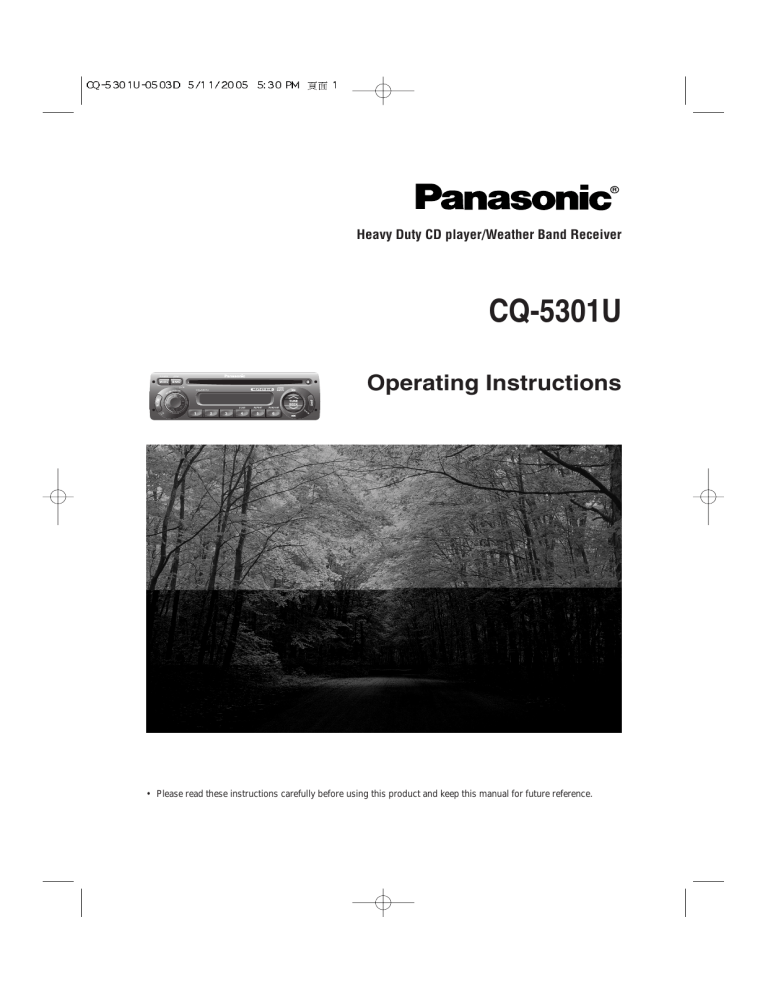

R
Heavy Duty CD player/Weather Band Receiver
CQ-5301U
Operating Instructions
MUTE
• Please read these instructions carefully before using this product and keep this manual for future reference.
Safety Information
■ Read the operating instructions for the unit and all other
components of your car audio system carefully before using
the system. They contain instructions about how to use the
system in a safe and effective manner. Panasonic assumes no
responsibility for any problems resulting from failure to
observe the instructions given in this manual.
Warning
This pictograph intends to alert you to the
presence of important operating instructions and
installation instructions. Failure to heed the
instructions may result in severe injury or death.
Warning
Observe the following warnings when handling
this unit.
❑ The driver should not operate the system while
driving.
Operating the system will distract the driver from looking
ahead of the vehicle and can cause accidents. Always stop
the vehicle in a safe location and use the parking brake
before operating the system.
❑ Use the proper power supply.
This product is designed for operation with a negative
grounded 12 V DC battery system. Never operate this
product with other battery systems, especially a 24 V DC
battery system.
❑ Do not expose the unit to direct sunlight or
excessive heat.
Otherwise these will raise the interior temperature of the
unit, and it may lead to smoke, fire, or other damage to the
unit.
❑ Keep batteries out of reach of infants.
Batteries can be ingested, so keep them out of the reach of
infants. If an infant ingests a battery, please seek immediate
medical attention.
❑ Do not use the product where it is exposed to water,
moisture, or dust.
Exposure of the unit to water, moisture, or dust may lead to
smoke, fire, or other damage to the unit. Make especially
sure that the unit does not get wet in car washes or on rainy
days.
❑ Protect the Deck Mechanism.
Do not insert any foreign objects into the slot of this unit.
❑ Do not disassemble or modify the unit.
Do not disassemble, modify the unit or attempt to repair the
product yourself. If the product needs to be repaired,
consult the shop where you purchased this unit or an
authorized Panasonic Servicenter.
❑ Do not use the unit when it is out of order.
If the unit is out of order (no power, no sound) or in an
abnormal state (has foreign matter in it, is exposed to water,
is smoking, or smells), turn it off immediately and consult
the store where you purchased it.
❑ The remote control unit should not lie about in the
car.
If the remote control unit lies about, it could fall on the floor
2
CQ-5301U
■ This manual uses pictographs to show you how to use the
product safely and to alert you to potential dangers resulting
from improper connections and operations. The meanings of
the pictographs are explained below. It is important that you
fully understand the meanings of the pictographs in order to
use this manual and the system properly.
Caution
This pictograph intends to alert you to the
presence of important operating instructions and
installation instructions. Failure to heed the
instructions may result in injury or material
damage.
while driving, get wedged under the brake pedal, and lead to
a traffic accident.
Observe the following warnings when
installation.
❑ Disconnect the lead from the negative (–) battery
terminal before installation.
Wiring and installation with the negative (–) battery terminal
connected may cause electrical shock and injury due to a
short circuit.
Some cars equipped with the electrical safety system have
specific procedures of battery terminal disconnection.
FAILURE TO FOLLOW THE PROCEDURE MAY LEAD TO THE
UNINTENDED ACTIVATION OF THE ELECTRICAL SAFETY
SYSTEM RESULTING IN DAMAGE TO THE VEHICLE AND
PERSONAL INJURY OR DEATH.
❑ Never use safety-related components for
installation, grounding, and other such functions.
Do not use safety-related vehicle components (fuel tank,
brake, suspension, steering wheel, pedals, airbag, etc.) for
wiring or fixing the product or its accessories.
❑ Installing the product on the air bag cover or in a
location where it interferes with airbag operation is
prohibited.
❑ Check for piping, gasoline tank, electric wiring, and
other items before installing the product.
If you need to open a hole in the vehicle chassis to attach or
wire the product, first check where the wire harness,
gasoline tank, and electric wiring are located. Then open the
hole from outside if possible.
❑ Never install the product in a location where it
interferes with your field of vision.
❑ Never have the power cord branched to supply other
equipment with power.
❑ After installation and wiring, you should check the
normal operation of other electrical equipment.
The continuation of their using in abnormal conditions may
cause fire, electrical shock or a traffic accident.
❑ In the case of installation to an airbag-equipping
car, confirm warnings and cautions of the vehicle
manufacturer before installation.
❑ Make sure the leads do not interfere with driving or
getting in and out of the vehicle.
❑ Follow the instruction to install and wire the
product.
Caution
Observe the following cautions when handling
this unit.
❑ Keep the sound volume at an appropriate level.
Keep the volume level low enough to be aware of road and
traffic conditions while driving.
❑ Do not insert or allow your hand or fingers to be
caught in the unit.
To prevent injury, do not get your hand or fingers caught in
moving parts or in the disc slot. Especially watch out for
infants.
❑ This unit is designed for use exclusively in
automobiles.
❑ Do not operate the unit for a prolonged period with
the engine turned off.
Operating the audio system for a long period of time with
the engine turned off will drain the battery.
❑ Refer fuse replacement to qualified service
personnel.
When the fuse burns out, eliminate the cause and have it
replaced with the fuse prescribed for this unit by a qualified
service engineer. Incorrect replacement of the fuse may lead
to smoke, fire, and damage to the product.
Observe the following cautions when
installation.
❑ Refer wiring and installation to qualified service
personnel.
Installation of this unit requires special skills and
experience. For maximum safety, have it installed by the
shop where you purchased it. Panasonic is not liable for any
problems resulting from your own installation of the unit.
Not following the instructions to properly install and wire
the product could cause an accident or fire.
❑ Take care not to damage the leads.
When wiring, take care not to damage the leads. Prevent
them from getting caught in the vehicle chassis, screws,
and moving parts such as seat rails. Do not scratch, pull,
bend or twist the leads. Do not run them near heat sources
or place heavy objects on them. If leads must be run over
sharp metal edges, protect the leads by winding them with
vinyl tape or similar protection.
❑ Use the designated parts and tools for installation.
Use the supplied or designated parts and appropriate tools
to install the product. The use of parts other than those
supplied or designated may result in internal damage to the
unit. Faulty installation may lead to an accident, a
malfunction or fire.
❑ Do not block the air vent or the cooling plate of the
unit.
Blocking these parts will cause the interior of the unit to
overheat and will result in fire or other damage.
❑ Do not install the product where it is exposed to
strong vibrations or is unstable.
Avoid slanted or strongly curved surfaces for installation. If
the installation is not stable, the unit may fall down while
driving and this can lead to an accident or injury.
❑ Installation Angle
The product should be installed in a horizontal position with
the front end up at a convenient angle, but not more than
30˚.
The user should bear in mind that in some areas there may
be restrictions on how and where this unit must be
installed. Consult your dealer for further details.
The following applies only in the U.S.A.
CAUTION!
THIS PRODUCT UTILIZES A CLASS I LASER.
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR
YOURSELF. REFER SERVICING TO QUALIFIED
PERSONNEL.
Part 15 of the FCC Rules
FCC Warning:
Any unauthorized changes or modifications to this
equipment would void the user's authority to operate
this device.
Laser products:
Wave length: 790 nm
Laser power: No hazardous radiation is emitted with
safety protection.
Accessories
1. Operating Instructions ..................................................................................................1
2. Supplied Hardware.............................................................................1 set (➡ page 21)
3. Warranty Card...............................................................................................................1
3
CQ-5301U
Contents
Safety Information(Part 15 of the FCC Rules). . . . . . . . . . . . . . . . . Page 2
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
❒ Power and Sound Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Power, volume, mute, display change, audio mode
(Bass/Treble/Balance/Fader)
❒ Clock Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Initial time, time reset
❒ Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Radio mode, band, manual tuning, seek tuning, preset station setting,
preset station calling, display change
❒ CD Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Disc insert and playback, stop and disc eject, listening to a CD,
CD player mode, display change, track selection, track search,
direct track selection, random play, scan play, repeat play,pause
❒ Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Troubleshooting tips, where to get service help
❒ Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Care of the unit, notes on discs, notes on CD-Rs/RWs
❒ Speaker Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
❒ Installation Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Installation hardware, overview, required tools dashboard specifications,
identify all leads, connect all leads, final installation, final checks,
preparation, to remove the unit
❒ Electrical Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Cautions, wiring diagram
❒ Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
4
CQ-5301U
FM
MUTE
Radio (Continued)
Preset Station Setting
Up to 6 stations can be saved in each of the FM1, FM2
and AM preset station memories.
Note: Existing saved stations are overwritten with new
stations after following this procedure.
q Band
Press [BAND](APM) to select a desired band.
(➡ page 9)
MUTE
Preset buttons from [1] to [6]
w Auto Preset Memory (APM)
Press and hold [BAND] (APM: auto preset memory) for more
than 2 seconds.
• The 6 stations with good reception will be automatically
saved in the memory under preset buttons from [1] to [6].
• Once set, the preset stations are sequentially scanned for 5
seconds each.
• To stop scanning, press one of the buttons from [1] to [6] .
Manual Preset Memory
q Use manual or seek tuning to find a station. (➡ page 9)
w Press and hold one of the preset buttons from [1] to [6]
until the display blinks once.
Preset Station Calling
Press the corresponding preset button from [1]
to [6] to tune in a preset station.
10
CQ-5301U
blinks once
Caution: To ensure safety, never attempt to preset stations
while you are driving.
MUTE
Tuning in a Weather Band Station
• Press [BAND](APM) to select WB (Weather Band). (a page 9)
• Press any of the buttons [1] to [6] to monitor the preset station.
WB
Weather Band Frequency (channel) Number
Note: The weather band (CH1-6) has been preset. CH7 is selected by
pressing [}] or [{].
Weather Band Stations
National Weather Radio Broadcasts from over 380 Iocations throughout the
U.S. on seven VHF/FM frequencies.
Tune to weather band to receive continuous weather information 24 hours
a day on one of the following frequencies.
1. 162.550 MHz
2. 162.400 MHz
3. 162.475 MHz
4. 162.425 MHz
5. 165.450 MHz
6. 162.500 MHz
7. 162.525 MHz
Occasionally the frequency of an existing or planned station must be
changed because of unexpected radio frequency interfere with adjacent
NOAA weather Radio Stations and/or with other Government or
commercial Operations within the area. If you have a question concerning
NOAA Weather Radio, please contact your nearest National Weather
Service Office.
11
CQ-5301U
CD Player
Disc Insert and Playback
Disc insert
u (eject)
Playback will start automatically after the player recognized
the loaded disc as an ordinary music CD. (When a CD-R or
CD-RW which has CD-DA formatted data as the same as an
ordinary music CD is loaded, this player recognizes it as an
ordinary music CD.)
“LOAd” will be displayed until the disc is loaded.
Label Side
Notes:
• Do not insert a disc when “DISC” indicator lights.
• The power will be turned on automatically when a disc is
loading.
Stop and Disc Eject
Press [u] (eject) to stop CD play and eject the disc.
During disc ejection, “EJ” will be displayed.
Listening to a CD
Press [MODE](POWER) to change to the CD player mode.
Playback will start automatically when a disc is loaded.
CD player
Radio
MUTE
12
CQ-5301U
( When CD disc loaded )
Cautions:
• Only 5" (12 cm) CD, CD-DA data recorded CD-R and CD-RW discs are available for this unit.
• This unit does not support CD text display.
• This unit does not support MP3 and WMA disc playback.
• Refer to page 18 about notes on CD-Rs/RWs.
• This unit is not designed for any 3" (8 cm) disc.
• If you insert an 3" (8 cm) disc and can not eject it, turn ACC of your car off once and turn it on again, then press
[u] (eject).
• Do not use irregular shaped discs.
• Do not use discs that have a seal or label attached.
• Do not insert foreign matter into the disc slot.
MUTE
Track Selection
Track Search
Press [d TUNE]: Advance to the next track.
Press [s TUNE]: Back to the beginning of the current
track.
Back to the previous track. (Press
twice.)
Press and hold...
[d TUNE]: Fast forward
[s TUNE]: Fast reverse
Release to resume the regular play.
Repeat play
• Press [5] (REPEAT) .
The current track is repeated.
• Press [5] (REPEAT) again to cancel.
Random play
• Press [6] (RANDOM).
All the tracks are played in random order.
• Press [6] (RANDOM) again to cancel.
Scan play
• Press [4] (SCAN).
The first 10 seconds of each track on the
disc are played in sequence.
• Press [4] (SCAN) again to cancel.
Pause
• Press [BAND] (h/ 5).
• Press again to cancel.
13
CQ-5301U
Troubleshooting
Preliminary Steps
Check and take steps as described in the tables below.
If You Suspect Something Wrong
Immediately switch the power off.
Disconnect the power connector and check that there is
neither smoke nor heat from the unit before asking for
repairs. Never try to repair the unit by yourself because it
is dangerous to do so.
Cautions:
• Do not use the unit if it malfunctions or if there is
something wrong.
• Do not use the unit in irregular condition, for
example, without sound, or with smoke or foul
smell, which can cause ignition or electric shock.
Immediately stop using it and call the store where
you purchased it.
Troubleshooting Tips
❐ Common
Trouble
Cause/Step
Vehicle’s ignition switch is not on.
a Turn your vehicle’s ignition switch to ACC or ON.
Cables are not correctly connected.
a Connect cables correctly.
No power.
Power connector is not correctly connected.
a Connect the power connector to the terminal that is always active.
Power connector is not correctly connected.
a Connect the power connector to your vehicle’s ACC source.
Grounding wire is not correctly connected.
a Connect the grounding wire to a metal part of the vehicle.
Mute is set to ON.
a Set it to OFF.
No sound.
Cables are not correctly connected.
a Connect cables correctly.
Noise.
14
CQ-5301U
The ground lead is not connected properly.
a Connect the ground lead properly.
❐ Radio
Trouble
Much noise in FM stereo
and monaural broadcasts.
Preset station is reset.
Cause/Step
Station is too far, or signals are too weak.
a Select other stations of higher signal level.
The radio antenna is not extended enough.
a Extend fully the radio antenna.
Battery cable is not correctly connected.
a Connect the battery cable to the terminal that is always active.
❐ CD
Trouble
Cause/Step
Disc is upside down.
a Place disc in the correct direction with the label side up.
Disc is in the CD
compartment but no
sound is made, or disc is
ejected automatically.
• Disc is dirty.
• Disc has scratches.
a Clean disc, referring to the section on “Notes on Discs”.
A disc that has data other than CD-DA type is loaded.
a Discs that have CD-DA type data should be used.
a The unit may not successfully playback a CD-R/RW that is made in
combination of writing software, a CD recorder (CD-R/RW drive) and a
disc which are incompatible one another. Refer to instructions for the
concerned devices for details.
Sound skips, bad sound
quality. (e.g. caused by
noise)
• Disc is dirty.
• Disc has scratches.
a Clean disc, referring to the section on “Notes on Discs”.
a The unit may not successfully playback a CD-R/RW that is made in
combination of writing software, a CD recorder (CD-R/RW drive) and a
disc which are incompatible one another. Refer to instructions for the
concerned devices for details.
15
CQ-5301U
Troubleshooting (Continued)
❐ CD (Continued)
Trouble
Cause/Step
Mounting angle is over 30˚.
a Adjust mounting angle to less than 30˚.
Sound skips due to
vibration.
Instable mounting.
a Mount the unit securely with the mounting parts, referring to the
section on installation.
Disc is not ejected.
• Disc is defective.
• Mechanical trouble.
a Press [u] (eject). If normal operation is not restored, call the store
where you purchased the unit or the nearest Servicenter to ask for
repairs.
Time is counted but no
sound comes out.
The first track of a mix mode disc was reproduced. (Mix mode is a format in
which data except music is recorded on the first track and music data is
recorded on other than the first track in a session.)
a Playback music data recorded on other than the first track.
❐ Sound Setting
Trouble
No sound from left, right,
front, or rear speaker.
Left and right sounds are
reversed in stereo
listening.
16
CQ-5301U
Cause/Step
Left and right balance, or front and rear balance is off on one side.
a Adjust BAL/FAD as appropriate.
Cables are not correctly connected.
a Connect the cables correctly.
The right speaker wire is connected to the left speaker and the left speaker
wire to the right speaker.
a Connect the speaker wires to the correct ones.
Error Display Messages
❐ CD
Trouble
Cause/Step
Disc is dirty, or is upside down.
A disc that has data other than CD-DA type is loaded.
➡ Check the disc.
Disc has scratches.
➡ Check the disc.
No operation by some cause.
➡ If normal operation is not restored, call the store where you purchased
the unit or the nearest Servicenter to ask for repairs.
17
CQ-5301U
Maintenance
Care of the Unit
❐ Cleaning this Unit
❐ Caution on Cleaning
Use a dry, soft cloth to wipe.
Never use solvents such as benzine, thinner as they
may mar the surface of the unit.
Notes on Discs
Do not play any ordinary music CDs with labels
other than this one.
How to hold the disc
• Do not touch the underside of the disc.
• Do not scratch the discs.
• Do not bend disc.
• When not in use, keep the disc in the case.
Label side
Do not use irregular shaped discs.
• Transparency discs maybe can not be played back
Do not leave discs on the following places:
• Direct sunlight
• Near car heaters
• Dirty, dusty and damp areas
• Seats and dashboards
Do not use irregular shaped discs.
<Right>
<Wrong>
Disc cleaning
Use a dry, soft cloth to wipe from the center outward.
Do not attach any seals or labels to your discs.
Do not write on the disc label in a heavy pen or
ballpoint pen stroke.
Notes on CD-Rs/RWs
• You may have trouble playing back some CD-R/RW discs recorded on CD recorders (CD-R/RW drives), either due to
their recording characteristics or dirt, fingerprints, scratches, etc. on the disc surface.
• CD-R/RW discs are less resistant to high temperatures and high humidity than ordinary music CDs. Leaving them
inside a vehicle for extended periods may damage them and make playback impossible.
• The unit may not successfully play back a CD-R/RW that was made by the combination of writing software, a CD
recorder (CD-R/RW drive) and a disc if they are incompatible one another.
• This player cannot play the CD-R/RW discs if the session is not closed.
• This player cannot play the CD-R/RW discs which contains other than CD-DA data.
• Be sure to observe the instructions of CD-R/RW disc for handling it.
18
CQ-5301U
Speaker Connections
Caution: Please follow the instructions given below. Failure to do so will cause damage to the unit and speakers.
<Right>
L +
-
R+
-
(White)
+
-
(White
w/black stripe)
(Gray)
+
-
(Gray
w/black stripe)
• Use ungrounded speaker only.
• The maximum speaker input should be 37 W or more. (If used with the optional
power amplifier, the speaker input should be higher than the maximum amplifier
output.)
• The speaker impedance should be 4 - 8 Ω.
• This unit uses the BTCL circuit, so each speaker should be connected separately
using parallel vinyl insulated cords.
• The speaker cords and the power amplifier unit should be kept away (about 30 cm
apart) from the antenna and antenna extension cord.
<Wrong>
L +
-
+
-
L +
-
+
-
L +
-
+
+
-
-
Chassis
+
+
R -
-
+
R -
+
-
+
R -
+
+
-
-
Chassis
• Never connect the speaker cord to
the body of the car.
• Do not use a 3-wire type speaker
system having a common earth
lead.
• Do not connect more than one
speaker to one set of speaker
leads.
Product Servicing
If the suggestions in the charts do not solve the problem, we recommend that you take it to your nearest authorized
Panasonic Servicenter. The product should be serviced only by a qualified technician.
Maintenance
Your product is designed and manufactured to ensure the minimum of maintenance. Use a soft cloth for routine
exterior cleaning. Never use benzine, thinner, or other solvents.
Caution
This product is designed without a fuse inside due to fuses already exist in your vehicle. We would recommend to use
fuses of the specified rating (15 A). Using fuses that exceed the prescribed capacity could cause this product to start
smoking, ignite or other malfunction.
If your vehicle is without the fuse or a circuit braker to protect this unit ,please your dealer add the specified fuse 15 A
or a circuit breaker at the BATTERY lead of your vehicle's harness. please see page 26 to find out where "BATTERY +
12 V" is for your dealer adding the fuse or the circuit breaker.
19
CQ-5301U
Installation Guide
WARNING
❐ This installation information is designed for experienced installers and is not
intended for non-technical individuals. It does not contain warnings or cautions of
potential dangers involved in attempting to install this product.
Any attempt to install this product in a vehicle by anyone other than a qualified
installer could cause damage to the electrical system and could result in serious
personal injury or death.
❐ If your vehicle is equipped with air bag and/or anti-theft systems, specific procedures
may be required for connection and disconnection of the battery to install this product.
Before attempting installation of this electronic component, contact your vehicle
dealer or manufacturer to determine the required procedure and strictly follow their
instructions.
FAILURE TO FOLLOW THE PROCEDURE MAY RESULT IN THE UNINTENDED DEPLOYMENT OF AIR BAGS OR ACTIVATION OF THE ANTI-THEFT SYSTEM RESULTING IN
DAMAGE TO THE VEHICLE AND PERSONAL INJURY.
❐ Overview
This product should be installed by a professional.
However, if you plan to install this product yourself,
your first step is to decide where to install it. The
instructions in these pages will guide you through the
remaining steps:
(Please refer to the “WARNING” statement above.)
• Identify and label the car wires.
• Connect the vehicle wires to the wires of the power
connector.
• Install the unit in the dashboard.
• Check the operation of the unit.
If you encounter problems, please consult your nearest
professional installer.
Caution: This unit operates with a 12 V DC negative
ground auto battery system only. Do not attempt to
use it in any other system. Doing so could cause
serious damage.
Before you begin installation, look for the items which
are packed with your unit.
• Warranty Card…Fill this out promptly.
• Panasonic Servicenter List for Service Directory
20
CQ-5301U
…Keep for future reference in case the product needs
servicing.
• Installation Hardware…Needed for in-dash installation.
❐ Dashboard Specifications
Thickness Min. 3⁄16" (4.75 mm)
Max. 7⁄32" (5.56 mm)
23⁄32" (53 mm)
75⁄32" (182 mm)
❐ Preparation
❐ Installation Hardware
Warning: If your vehicle is equipped with air bag
and/or anti-theft systems, specific procedures may
be required for connection and disconnection of the
battery to install this product.
Before attempting installation of this electronic
component, contact your vehicle dealer or
manufacturer to determine the required procedure
and strictly follow their instructions.
FAILURE TO FOLLOW THE PROCEDURE MAY
RESULT IN THE UNINTENDED DEPLOYMENT OF
AIR BAGS OR ACTIVATION OF THE ANTI-THEFT
SYSTEM RESULTING IN DAMAGE TO THE VEHICLE
AND PERSONAL INJURY.
• Disconnect the cable from the negative
terminal (see warning and caution below).
battery
• Remove Mounting Collar q from the main unit
temporarily, which are already mounted at shipment.*
Caution: Various settings that have been stored in
the memory in other on-board equipment (vehicle
navigation etc.) may be lost if the battery terminals
are disconnected.
Therefore, we recommend to make a record of or to
back up the settings before disconnecting the
terminals.
After completing installation of the main unit, set the
equipment again according to the record.
• Unit should be installed in a horizontal position with
the front end up at a convenient angle, but not more
than 30˚.
❐ Dashboard Installation
Installation Opening
This unit can be installed in any dashboard having an
opening as shown below. The dashboard should be
3/16” (4.75 mm) – 7/32” (5.56 mm) thick in order to be
able to support the unit.
21
CQ-5301U
Installation (Continued)
Cautions:
• We strongly recommend that you wear gloves for installation work to protect yourself from injuries.
• When bending the mounting tab of the mounting collar with a screwdriver, be careful not to injure your hands
and fingers.
First complete the electrical connections, and then check them for correctness.(a page 24)
The included Mounting Collar q is designed specially for this unit. Do not use it to attach any other model.
1
Insert Mounting Collar q into the
dashboard, and bend the mounting tabs
out with a screwdriver.
The tabs to be bent vary depending on
the vehicle. To securely install the unit,
fully bend a number of the tabs so that
there is no rattling.
Example:
Tab
q Mounting
Collar
Power Connector
Mounting Holes
Mounting Bolt
2
Mounting springs (C)
3
Engage the Mounting
Springs (C) in the
mounting holes of the
Mounting Collar q
firmly.
Mounting Spring
22
CQ-5301U
Mounting
Hole
Establish the rear connection of the unit.
After fixing Power Connector, fix the rear of the unit
to the vehicle body by either method (a) or (b)
shown in the previous page.
After installation reconnect the negative
(–) battery terminal.
To Remove the Unit from the vehicle's dashboard
Insert each Removal Tool i and pull.
i Removal Tool
(U-shaped)
Note: Do not lose Removal Tools. They will be needed to remove the unit from the vehicle's dashboard.
23
CQ-5301U
Electrical Connections
Cautions:
• This wiring information is for experienced technical individual, for safety reason, please your dealer wire this
connection.
• This product is designed to operate with a 12 V DC, negative ground battery system.
• To prevent damage to the unit, be sure to follow the connection diagram below.
• Do not insert the power connector into the unit until the wiring is completed.
• Be sure to insulate any exposed wires from a possible short-circuit from the vehicle chassis. Bundle all cables and
keep cable terminals free from touching any metal parts.
• Remember, if your vehicle has a drive computer or a navigation computer, the data of its memory maybe erased
when the battery terminals are disconnected.
❐ Wiring Diagram
24
CQ-5301U
Specifications
❐ General
Power Supply:
Current consumption:
Maximum Power Output:
Tone adjustment range:
Bass:
Treble:
Power Output:
Suitable Speaker Impedance:
Dimensions (W H D):
Weight:
12 V DC (11 V-16 V) test Voltage 14.4 V, Negative ground
Less than 2.5 A (CD mode, 0.5 W 4-speaker)
37 W ¥ 4 channels at 400 Hz, Volume Control maximum
± 12 dB at 100 Hz
± 12 dB at 10 kHz
18 W per channel into 4 ohms, 40 to 30 000 Hz at 3 % THD
4-8 Ω
7" 1-15/16" 5-7/8" (178 50 150 mm)
2.8 lbs. (1.3kg)
❐ FM Stereo Radio
Frequency Range:
Useable Sensitivity:
50 dB Quieting Sensitivity:
Frequency Response:
Alternate Channel Selectivity:
Stereo Separation:
Signal/Noise Ratio:
87.9-107.9 MHz
12 dBf. (1.1 µV/ 75 Ω, S/N 30 dB)
17 dBf. (1.8 µV/ 75 Ω)
30-15 000 Hz ±3 dB
75 dB
35 dB at 1 kHz
70 dB (Mono)
❐ AM Radio
Frequency range:
Usable sensitivity:
530 kHz – 1 710 kHz
28 dB/µV (25 µV, S/N 20 dB)
❐ Weather Band Radio
Frequency range:
Usable sensitivity:
Signal/Noise Ratio (40 dB/µV):
162.40 – 162.55 MHz
3 dB/µV (S/N 20 dB)
50 dB
❐ CD Player
Sampling Frequency:
DA Converter:
Error Correction System:
Pick-Up Type:
Light Source:
Wavalength:
Frequency Response:
Signal to Noise Ratio:
Total Harmonic Distortion:
Wow and Flutter:
Channel Separation:
32 times oversampling
MASH•1 bit/4 DAC System
Panasonic Super Decoding Algorithm
1-beam
Semiconductor laser
790 nm
20 - 20,000 Hz (±1 dB)
85 dB
0.01 % (1 kHz)
Below measurable limits
75 dB
Above specifications comply with EIA standards.
Note: Specifications and the design are subject to modification without notice due to improvements in technology.
25
CQ-5301U
MEMO
26
CQ-5301U
MEMO
27
CQ-5301U
Panasonic Consumer Electronics
Company, Division of Panasonic
Electric Corporation of North America
One Panasonic Way, Secaucus,
New Jersey 07094
YFM284C478ZA
TAMACO0505-0
Printed in China
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
