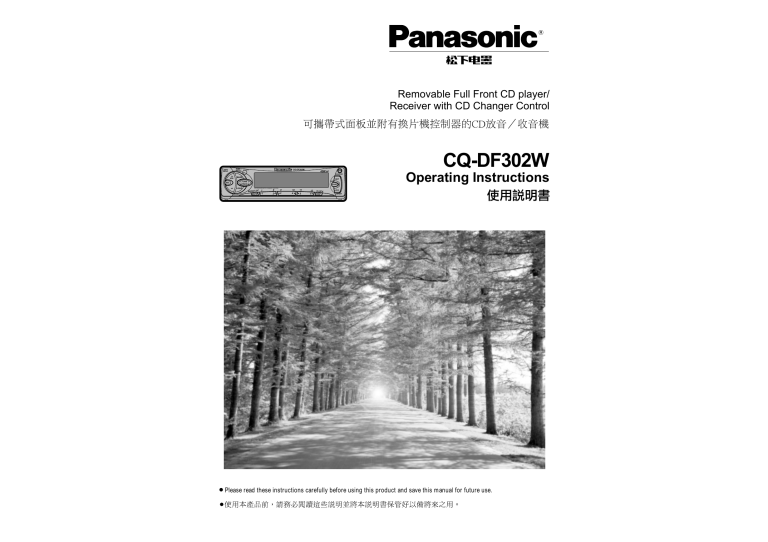

Panasonic CD Player CQ-DF302W User manual

Panasonic CD Player CQ-DF302W User manual
Removable Full Front CD player/
Receiver with CD Changer Control
SCAN
AUTO•P
CQ-DF302W
REMOTE
45W X 4
OPEN
RANDOM
VOL
SEL
BAND
REP
PWR
TUNE
TRACK
LOUD
SOURCE
CQ-DF302W
Operating Instructions
CD RECEIVER WITH CHANGER CONTROL
MONO/LOC
MUTE
7
1
8
2
9
3
10
4
11
5
12
6
CLOCK
DISP
LEVL
DIMMER
≥ Please read these instructions carefully before using this product and save this manual for future use.
Panasonic welcomes you to our ever growing family of electronic product owners. We know that this product will bring you many hours of enjoyment. Our reputation is built on precise electronic and mechanical
engineering, manufactured with carefully selected components and assembled by people who take pride in
their work. Once you discover the quality, reliability, and value we have built into this product, you too will
be proud to be a member of our family.
E
N
G
L
I
S
H
❐ Use this Product Safely
When Driving
Disc Mechanism
Keep the volume level low enough to be aware of
road and traffic conditions.
Do not insert coins or any small objects. Keep
screwdrivers and other metallic objects away from
the disc mechanism and disc.
When Car Washing
Do not expose the product, including the speakers
and CDs, to water or excessive moisture. This
could cause electrical shorts, fire, or other damage.
When Parked
Parking in direct sunlight can produce very high
temperatures inside your car. Give the interior a
chance to cool down before switching the unit on.
Use the Proper Power Supply
Use Authorized Servicenters
Do not attempt to disassemble or adjust this precision product. Please refer to the Servicenter list including with this product for service assistance.
For Installation
This product should be installed in a horizontal position with the front end up at a convenient angle,
but not more than 30x.
This product is designed to operate with a 12 V DC,
negative ground battery system.
❐ Components
≥ Operating instructions .................................... 1
≥ Installation hardware................1 set (➡ page 19)
≥ Power connector ............................................ 1
≥ Remote control unit ........................................ 1
≥ Lithium battery (CR2025)................................ 1
8
CQ-DF302W
CQ-DF302W
9
Panasonic welcomes you to our ever growing family of electronic product owners. We know that this product will bring you many hours of enjoyment. Our reputation is built on precise electronic and mechanical
engineering, manufactured with carefully selected components and assembled by people who take pride in
their work. Once you discover the quality, reliability, and value we have built into this product, you too will
be proud to be a member of our family.
E
N
G
L
I
S
H
❐ Use this Product Safely
When Driving
Disc Mechanism
Keep the volume level low enough to be aware of
road and traffic conditions.
Do not insert coins or any small objects. Keep
screwdrivers and other metallic objects away from
the disc mechanism and disc.
When Car Washing
Do not expose the product, including the speakers
and CDs, to water or excessive moisture. This
could cause electrical shorts, fire, or other damage.
When Parked
Parking in direct sunlight can produce very high
temperatures inside your car. Give the interior a
chance to cool down before switching the unit on.
Use the Proper Power Supply
Use Authorized Servicenters
Do not attempt to disassemble or adjust this precision product. Please refer to the Servicenter list including with this product for service assistance.
For Installation
This product should be installed in a horizontal position with the front end up at a convenient angle,
but not more than 30x.
This product is designed to operate with a 12 V DC,
negative ground battery system.
❐ Components
≥ Operating instructions .................................... 1
≥ Installation hardware................1 set (➡ page 19)
≥ Power connector ............................................ 1
≥ Remote control unit ........................................ 1
≥ Lithium battery (CR2025)................................ 1
8
CQ-DF302W
CQ-DF302W
9
E
N
G
L
I
S
H
Power and Sound Controls
1
Turn the key in the ignition until the accessory indicator lights.
Power on: Press [SOURCE] (PWR).
Power off: Press [SOURCE] (PWR) again and hold.
E
N
G
L
I
S
H
Power
2
ACC
ON
Note:
≥ When the power is switched on for the first time,
a demonstration message appears on the display.
To cancel this display, press [DISP].
SCAN
AUTO •P
CQ-DF302W
REMOTE
45W X 4
SCAN
AUTO •P
OPEN
CQ-DF302W
REMOTE
45W X 4
OPEN
RANDOM
VOL
SEL
BAND
RANDOM
VOL
REP
PWR
TUNE
TRACK
SEL
SOURCE
LOUD
7
1
8
2
9
3
10
4
11
5
12
6
CLOCK
DISP
LEVL
Mute
[" VOL]: Up
[# VOL]: Down
Press and hold for rapid adjustment.
Press [MUTE] to mute the sound completely.
Volume level
(0 to 40)
Press [MUTE] again to cancel.
7
1
8
2
9
3
10
4
11
5
12
6
LEVL
CLOCK
DISP
DIMMER
Loudness
Level Meter
Press [LOUD] to enhance bass and treble tones
at low or medium volume.
When the power is on, the level of sound sources,
such as radio and CD, is displayed.
Press [LEVL] to change the level meter display.
LOUD
Press [LOUD] again to cancel.
Anti-volume-blast circuit:
When the power is switched off and on again, the volume slowly rises to the previous level.
The anti-volume-blast circuit will not work when the volume level is set lower than position 20 on the display.
SOURCE
CD RECEIVER WITH CHANGER CONTROL
C
MONO/LO
MUTE
DIMMER
Volume
REP
PWR
TUNE
TRACK
LOUD
CD RECEIVER WITH CHANGER CONTROL
C
MONO/LO
MUTE
BAND
(Default)
Pattern 1
Pattern 2
Pattern 3
Pattern 6
Pattern 5
Pattern 4
Dimmer
Press and hold [LEVL] (DIMMER) for more than
2 seconds to change the dimmer level.
(Default)
Dimmer 1
(Bright)
10
CQ-DF302W
Dimmer 2
(Medium)
CQ-DF302W
Dimmer 3
(Dark)
11
E
N
G
L
I
S
H
Power and Sound Controls
1
Turn the key in the ignition until the accessory indicator lights.
Power on: Press [SOURCE] (PWR).
Power off: Press [SOURCE] (PWR) again and hold.
E
N
G
L
I
S
H
Power
2
ACC
ON
Note:
≥ When the power is switched on for the first time,
a demonstration message appears on the display.
To cancel this display, press [DISP].
SCAN
AUTO •P
CQ-DF302W
REMOTE
45W X 4
SCAN
AUTO •P
OPEN
CQ-DF302W
REMOTE
45W X 4
OPEN
RANDOM
VOL
SEL
BAND
RANDOM
VOL
REP
PWR
TUNE
TRACK
SEL
SOURCE
LOUD
7
1
8
2
9
3
10
4
11
5
12
6
CLOCK
DISP
LEVL
Mute
[" VOL]: Up
[# VOL]: Down
Press and hold for rapid adjustment.
Press [MUTE] to mute the sound completely.
Volume level
(0 to 40)
Press [MUTE] again to cancel.
7
1
8
2
9
3
10
4
11
5
12
6
LEVL
CLOCK
DISP
DIMMER
Loudness
Level Meter
Press [LOUD] to enhance bass and treble tones
at low or medium volume.
When the power is on, the level of sound sources,
such as radio and CD, is displayed.
Press [LEVL] to change the level meter display.
LOUD
Press [LOUD] again to cancel.
Anti-volume-blast circuit:
When the power is switched off and on again, the volume slowly rises to the previous level.
The anti-volume-blast circuit will not work when the volume level is set lower than position 20 on the display.
SOURCE
CD RECEIVER WITH CHANGER CONTROL
C
MONO/LO
MUTE
DIMMER
Volume
REP
PWR
TUNE
TRACK
LOUD
CD RECEIVER WITH CHANGER CONTROL
C
MONO/LO
MUTE
BAND
(Default)
Pattern 1
Pattern 2
Pattern 3
Pattern 6
Pattern 5
Pattern 4
Dimmer
Press and hold [LEVL] (DIMMER) for more than
2 seconds to change the dimmer level.
(Default)
Dimmer 1
(Bright)
10
CQ-DF302W
Dimmer 2
(Medium)
CQ-DF302W
Dimmer 3
(Dark)
11
E
N
G
L
I
S
H
3
Power and Sound Controls (Continued)
Audio Mode (Bass/Treble/Balance/Fader/Subwoofer)
1
Press [SEL] to select the audio mode.
Volume
Bass
Treble
Subwoofer
Fader
Balance
SCAN
AUTO •P
Clock Basics
Note:
≥ If no operation takes place for more than
5 seconds in audio mode (2 seconds in volume mode), the display returns to the regular mode.
Regular Mode
CQ-DF302W
REMOTE
E
N
G
L
I
S
H
45W X 4
4
The 12-hour system is used for the clock.
SCAN
AUTO •P
OPEN
CQ-DF302W
REMOTE
45W X 4
OPEN
RANDOM
RANDOM
VOL
BAND
SEL
LOUD
BAND
SOURCE
7
1
8
2
Press [" VOL] or [# VOL] to change each
level.
REP
PWR
TUNE
TRACK
SEL
SOURCE
LOUD
CD RECEIVER WITH CHANGER CONTROL
C
MONO/LO
MUTE
2
VOL
REP
PWR
TUNE
TRACK
9
3
10
4
11
5
12
6
CLOCK
DISP
CD RECEIVER WITH CHANGER CONTROL
C
MONO/LO
MUTE
LEVL
DIMMER
7
1
8
2
Treble:
R (right speaker) or L (left speaker)
Adjustable range: 1 to 15 Balance center
Fader:
F (front speaker) or R (rear speaker)
Subwoofer volume:
Subwoofer volume level:
From MUTE (0) to 8
12
CQ-DF302W
LEVL
CLOCK
DISP
DIMMER
Press [DISP] (CLOCK) to switch to the clock display.
Hours
2 Press and hold [DISP] (CLOCK).
In tuner mode:
Broadcast station
Clock display
In CD player (changer) mode:
3 Press [% TUNE] or [$ TUNE].
Minutes
4 Press [DISP] (CLOCK).
(Minutes blink.)
5 Press [% TUNE] or [$ TUNE].
(Minutes set.)
Adjustable range: 1 to 15 Fader center
12
6
Clock Display
(Hours set.)
Balance:
11
5
1 Press [DISP] (CLOCK).
(Hours blink.)
Adjustable range: j12 dB to i12 dB
10
4
Initial Time
Bass:
Adjustable range: j12 dB to i12 dB
9
3
6 Press [DISP] (CLOCK).
Playing time
Clock display
Note:
≥ The [DISP] (CLOCK) button will not work while
the CD player or CD changer is set to the scan
play mode. Cancel the scan play mode before
pressing [DISP] (CLOCK).
Time Reset
Press and hold [DISP] (CLOCK) for more than
2 seconds to activate the time setting mode to reset
the time.
Then, repeat steps 3 to 6.
(End.)
Default
Note:
≥ Press and hold [% TUNE] or [$ TUNE] to change
numbers rapidly.
CQ-DF302W
13
E
N
G
L
I
S
H
3
Power and Sound Controls (Continued)
Audio Mode (Bass/Treble/Balance/Fader/Subwoofer)
1
Press [SEL] to select the audio mode.
Volume
Bass
Treble
Subwoofer
Fader
Balance
SCAN
AUTO •P
Clock Basics
Note:
≥ If no operation takes place for more than
5 seconds in audio mode (2 seconds in volume mode), the display returns to the regular mode.
Regular Mode
CQ-DF302W
REMOTE
E
N
G
L
I
S
H
45W X 4
4
The 12-hour system is used for the clock.
SCAN
AUTO •P
OPEN
CQ-DF302W
REMOTE
45W X 4
OPEN
RANDOM
RANDOM
VOL
BAND
SEL
LOUD
BAND
SOURCE
7
1
8
2
Press [" VOL] or [# VOL] to change each
level.
REP
PWR
TUNE
TRACK
SEL
SOURCE
LOUD
CD RECEIVER WITH CHANGER CONTROL
C
MONO/LO
MUTE
2
VOL
REP
PWR
TUNE
TRACK
9
3
10
4
11
5
12
6
CLOCK
DISP
CD RECEIVER WITH CHANGER CONTROL
C
MONO/LO
MUTE
LEVL
DIMMER
7
1
8
2
Treble:
R (right speaker) or L (left speaker)
Adjustable range: 1 to 15 Balance center
Fader:
F (front speaker) or R (rear speaker)
Subwoofer volume:
Subwoofer volume level:
From MUTE (0) to 8
12
CQ-DF302W
LEVL
CLOCK
DISP
DIMMER
Press [DISP] (CLOCK) to switch to the clock display.
Hours
2 Press and hold [DISP] (CLOCK).
In tuner mode:
Broadcast station
Clock display
In CD player (changer) mode:
3 Press [% TUNE] or [$ TUNE].
Minutes
4 Press [DISP] (CLOCK).
(Minutes blink.)
5 Press [% TUNE] or [$ TUNE].
(Minutes set.)
Adjustable range: 1 to 15 Fader center
12
6
Clock Display
(Hours set.)
Balance:
11
5
1 Press [DISP] (CLOCK).
(Hours blink.)
Adjustable range: j12 dB to i12 dB
10
4
Initial Time
Bass:
Adjustable range: j12 dB to i12 dB
9
3
6 Press [DISP] (CLOCK).
Playing time
Clock display
Note:
≥ The [DISP] (CLOCK) button will not work while
the CD player or CD changer is set to the scan
play mode. Cancel the scan play mode before
pressing [DISP] (CLOCK).
Time Reset
Press and hold [DISP] (CLOCK) for more than
2 seconds to activate the time setting mode to reset
the time.
Then, repeat steps 3 to 6.
(End.)
Default
Note:
≥ Press and hold [% TUNE] or [$ TUNE] to change
numbers rapidly.
CQ-DF302W
13
E
N
G
L
I
S
H
5
Radio Basics
Selection
1 Mode
Press [SOURCE] to change to the radio mode.
Preset Station Setting
Up to 6 stations each can be saved in the FM1,
FM2, FM3 and AM preset station memories.
Source
Radio
CD changer control
SCAN
AUTO •P
Press [BAND] to select a desired band.
(➡ page 14)
(When a CD changer is connected.)
CQ-DF302W
REMOTE
45W X 4
SCAN
AUTO •P
OPEN
Preset number
CQ-DF302W
REMOTE
45W X 4
OPEN
RANDOM
VOL
SEL
BAND
ST
SOURCE
7
1
8
2
9
3
10
4
11
5
Tuning
3 Manual
[$ TUNE]: Higher frequency
[% TUNE]: Lower frequency
12
6
CLOCK
DISP
FM broadcast:
MONO OFF/
LOCAL OFF
MONO
MONO ON/
LOCAL OFF
LOCAL
MONO
MONO ON/
LOCAL ON
LOCAL
MONO OFF/
LOCAL ON
AM broadcast:
LOCAL OFF
LOCAL
7
1
8
2
9
3
10
4
11
5
12
6
CLOCK
DISP
LEVL
DIMMER
2 Auto Station Preset
Press and hold [BAND] (AUTO•P) for
more than 2 seconds (auto preset memory).
≥ The 6 strongest available stations will be
automatically saved in the memory
under preset buttons from [1] to [6].
≥ Once set, the preset stations are sequentially scanned for 5 seconds each.
Press and hold ...
[$ TUNE]: Higher frequency
[% TUNE]: Lower frequency
Tuning will automatically stop when the signals
of the next broadcast station are received.
FM broadcast:
Press and hold [MUTE] (MONO/LOC) to change
the mode.
Release when the desired mode.
AM broadcast:
Press and hold [MUTE] (MONO/LOC) to switch
LOCAL mode on and off.
SOURCE
CD RECEIVER WITH CHANGER CONTROL
C
MONO/LO
MUTE
DIMMER
Seek Tuning
weak signals are received from an FM
broadcast station.
LOCAL: Only strong signals of stations are
searched in seek tuning, while at the
LOCAL OFF setting, relatively weak signals are also searched.
REP
PWR
TUNE
TRACK
LEVL
FM stereo indicator
Selection
4 Mono/Local
MONO: Noise is significantly decreased when
BAND
LOUD
2 Band
Press [BAND] to change the band.
CQ-DF302W
VOL
SEL
CD RECEIVER WITH CHANGER CONTROL
C
MONO/LO
MUTE
14
RANDOM
REP
PWR
TUNE
TRACK
LOUD
6
1 Band
(When a CD is inserted.)
CD player
Caution:
≥ To ensure safety, never attempt to preset stations while you are driving.
E
N
G
L
I
S
H
Note:
≥ The stations manually preset on the selected band will be deleted.
Manual Station Preset
1 Use manual or seek tuning to find a
station. (➡ page 14)
2 Press and hold one of the preset buttons [1] to [6] until the display blinks
once.
3 Tuning in a Preset Station
Press the corresponding preset button [1]
to [6] to tune in a preset station.
Note:
≥ You can change the memory presetting by repeating the above procedure.
LOCAL ON
CQ-DF302W
15
E
N
G
L
I
S
H
5
Radio Basics
Selection
1 Mode
Press [SOURCE] to change to the radio mode.
Preset Station Setting
Up to 6 stations each can be saved in the FM1,
FM2, FM3 and AM preset station memories.
Source
Radio
CD changer control
SCAN
AUTO •P
Press [BAND] to select a desired band.
(➡ page 14)
(When a CD changer is connected.)
CQ-DF302W
REMOTE
45W X 4
SCAN
AUTO •P
OPEN
Preset number
CQ-DF302W
REMOTE
45W X 4
OPEN
RANDOM
VOL
SEL
BAND
ST
SOURCE
7
1
8
2
9
3
10
4
11
5
Tuning
3 Manual
[$ TUNE]: Higher frequency
[% TUNE]: Lower frequency
12
6
CLOCK
DISP
FM broadcast:
MONO OFF/
LOCAL OFF
MONO
MONO ON/
LOCAL OFF
LOCAL
MONO
MONO ON/
LOCAL ON
LOCAL
MONO OFF/
LOCAL ON
AM broadcast:
LOCAL OFF
LOCAL
7
1
8
2
9
3
10
4
11
5
12
6
CLOCK
DISP
LEVL
DIMMER
2 Auto Station Preset
Press and hold [BAND] (AUTO•P) for
more than 2 seconds (auto preset memory).
≥ The 6 strongest available stations will be
automatically saved in the memory
under preset buttons from [1] to [6].
≥ Once set, the preset stations are sequentially scanned for 5 seconds each.
Press and hold ...
[$ TUNE]: Higher frequency
[% TUNE]: Lower frequency
Tuning will automatically stop when the signals
of the next broadcast station are received.
FM broadcast:
Press and hold [MUTE] (MONO/LOC) to change
the mode.
Release when the desired mode.
AM broadcast:
Press and hold [MUTE] (MONO/LOC) to switch
LOCAL mode on and off.
SOURCE
CD RECEIVER WITH CHANGER CONTROL
C
MONO/LO
MUTE
DIMMER
Seek Tuning
weak signals are received from an FM
broadcast station.
LOCAL: Only strong signals of stations are
searched in seek tuning, while at the
LOCAL OFF setting, relatively weak signals are also searched.
REP
PWR
TUNE
TRACK
LEVL
FM stereo indicator
Selection
4 Mono/Local
MONO: Noise is significantly decreased when
BAND
LOUD
2 Band
Press [BAND] to change the band.
CQ-DF302W
VOL
SEL
CD RECEIVER WITH CHANGER CONTROL
C
MONO/LO
MUTE
14
RANDOM
REP
PWR
TUNE
TRACK
LOUD
6
1 Band
(When a CD is inserted.)
CD player
Caution:
≥ To ensure safety, never attempt to preset stations while you are driving.
E
N
G
L
I
S
H
Note:
≥ The stations manually preset on the selected band will be deleted.
Manual Station Preset
1 Use manual or seek tuning to find a
station. (➡ page 14)
2 Press and hold one of the preset buttons [1] to [6] until the display blinks
once.
3 Tuning in a Preset Station
Press the corresponding preset button [1]
to [6] to tune in a preset station.
Note:
≥ You can change the memory presetting by repeating the above procedure.
LOCAL ON
CQ-DF302W
15
E
N
G
L
I
S
H
7
CD Player and CD Changer
Cautions:
≥ Only 12 cm CD, CD-DA data recorded CD-R and CD-RW discs are available for this unit.
≥ This unit does not support CD text display.
≥ This unit does not support MP3 disc playback.
≥ Refer to page 30 for this unit.
≥ This unit is not designed for any 8 cm CD.
≥ If you insert an 8 cm CD and can not eject it, turn ACC of your car off once and turn it on again, then
press [<] (EJECT).
Disc Insert and Playback
1 Open the front panel.
45W X 4
OPEN
RANDOM
REP
PWR
Press [OPEN] to open the front panel.
SOURCE
the disc.
2 Insert
Playback will start automatically after the unit
recognized the loaded disc as an ordinary
music CD. (When a CD-R or CD-RW which
has CD-DA formatted data as the same as an
ordinary CD is loaded, this unit recognizes it
as an ordinary music CD.)
Close the front panel manually.
≥ Lights when the disc is
loaded.
≥ Do not insert a disc when
this indicator lights.
Label side
< (EJECT)
OPEN
RANDOM
Track random play
Press [SOURCE] to change to the CD player or
CD changer mode.
Source
Radio
PWR
SOURCE
CD RECEIVER WITH CHANGER CONTROL
7
1
8
2
9
3
10
4
11
5
12
6
CLOCK
DISP
LEVL
CD player
(When a CD is inserted.)
DIMMER
CD changer control (When a CD changer is
connected.)
Track Selection
Display Change
[5TRACK]: Advance to the next track.
[6TRACK]: Back to the beginning of the current track.
Back to the previous track.
(Press twice.)
Press [DISP] to switch to the clock display.
CD player:
Track Search
CD changer:
Press and hold ...
[5TRACK]: Fast forward
[6TRACK]: Fast backward
Release to resume the regular CD or CD changer
play.
16
CQ-DF302W
CD
player
CD
changer
Track repeat play
REP
TUNE
TRACK
45W X 4
OPEN
Track number/Track playing time
Disc number/Track number/
Track playing time
BAND
REP
PWR
TUNE
TRACK
SOURCE
CD RECEIVER WITH CHANGER CONTROL
MONO/LO
MUTE
Mode Selection
45W X 4
CQ-DF302W
REMOTE
LOUD
Close
BAND
C
MONO/LO
MUTE
≥ Press a disc number button from [1] to [6].
The corresponding disc starts playing.
≥ Press and hold a disc number button from [7] to
[12] ([1] to [6]) for more than 1 second.
The corresponding disc starts playing.
Track scan play
Disc scan play
Listening to a CD
LOUD
Direct Disc Selection
≥ Press a track number button from [1] to
[6].
The corresponding track starts playing.
≥ Press and hold a track number button from
[7] to [12] ([1] to [6]) for more than 1 second.
The corresponding track starts playing.
VOL
Press [<] (EJECT) to stop CD play and eject the disc.
SEL
Direct Track Selection
SEL
Stop and Disc Eject
VOL
CD
changer
8
RANDOM
Press [SOURCE] to change to CD play mode.
CQ-DF302W
CD
player
SCAN
AUTO •P
When CD is in the player
SCAN
AUTO •P REMOTE
Note:
≥ The CD changer functions are designed for Panasonic CD changer unit (optional).
≥ This unit does not support CD-ROM, CD-R, or CD-RW playback through CD changer. Use the CD changer to
listen to normal music CDs exclusively.
E
N
G
L
I
S
H
CD
player
CD
changer
Track scan play
CD
player
CD
changer
Clock display
Disc scan play
Clock display
CD
changer
C
7
1
8
2
9
3
10
4
11
5
12
6
CLOCK
DISP
LEVL
DIMMER
Lights when a magazine is
loaded in the changer.
Track random play
Track repeat play
≥ Press and hold [REP] (RANDOM) for
more than 2 seconds.
All the tracks (on all discs in the magazine*) are played in random order.
(*Only for CD changer)
≥ Press and hold [REP] (RANDOM) again
to cancel.
RAND
≥ Press [REP].
The current track is repeated.
≥ Press [REP] again to cancel.
REP
≥ Press [BAND] (SCAN).
The first 10 seconds of each track on
the disc are played in sequence.
≥ Press [BAND] (SCAN) again to cancel.
≥ Press and hold [BAND] (SCAN) for
more than 2 seconds.
The first track of all the discs in the
magazine is played for 10 seconds
each.
≥ Press and hold [BAND] (SCAN) again to
cancel.
CQ-DF302W
17
E
N
G
L
I
S
H
7
CD Player and CD Changer
Cautions:
≥ Only 12 cm CD, CD-DA data recorded CD-R and CD-RW discs are available for this unit.
≥ This unit does not support CD text display.
≥ This unit does not support MP3 disc playback.
≥ Refer to page 30 for this unit.
≥ This unit is not designed for any 8 cm CD.
≥ If you insert an 8 cm CD and can not eject it, turn ACC of your car off once and turn it on again, then
press [<] (EJECT).
Disc Insert and Playback
1 Open the front panel.
45W X 4
OPEN
RANDOM
REP
PWR
Press [OPEN] to open the front panel.
SOURCE
the disc.
2 Insert
Playback will start automatically after the unit
recognized the loaded disc as an ordinary
music CD. (When a CD-R or CD-RW which
has CD-DA formatted data as the same as an
ordinary CD is loaded, this unit recognizes it
as an ordinary music CD.)
Close the front panel manually.
≥ Lights when the disc is
loaded.
≥ Do not insert a disc when
this indicator lights.
Label side
< (EJECT)
OPEN
RANDOM
Track random play
Press [SOURCE] to change to the CD player or
CD changer mode.
Source
Radio
PWR
SOURCE
CD RECEIVER WITH CHANGER CONTROL
7
1
8
2
9
3
10
4
11
5
12
6
CLOCK
DISP
LEVL
CD player
(When a CD is inserted.)
DIMMER
CD changer control (When a CD changer is
connected.)
Track Selection
Display Change
[5TRACK]: Advance to the next track.
[6TRACK]: Back to the beginning of the current track.
Back to the previous track.
(Press twice.)
Press [DISP] to switch to the clock display.
CD player:
Track Search
CD changer:
Press and hold ...
[5TRACK]: Fast forward
[6TRACK]: Fast backward
Release to resume the regular CD or CD changer
play.
16
CQ-DF302W
CD
player
CD
changer
Track repeat play
REP
TUNE
TRACK
45W X 4
OPEN
Track number/Track playing time
Disc number/Track number/
Track playing time
BAND
REP
PWR
TUNE
TRACK
SOURCE
CD RECEIVER WITH CHANGER CONTROL
MONO/LO
MUTE
Mode Selection
45W X 4
CQ-DF302W
REMOTE
LOUD
Close
BAND
C
MONO/LO
MUTE
≥ Press a disc number button from [1] to [6].
The corresponding disc starts playing.
≥ Press and hold a disc number button from [7] to
[12] ([1] to [6]) for more than 1 second.
The corresponding disc starts playing.
Track scan play
Disc scan play
Listening to a CD
LOUD
Direct Disc Selection
≥ Press a track number button from [1] to
[6].
The corresponding track starts playing.
≥ Press and hold a track number button from
[7] to [12] ([1] to [6]) for more than 1 second.
The corresponding track starts playing.
VOL
Press [<] (EJECT) to stop CD play and eject the disc.
SEL
Direct Track Selection
SEL
Stop and Disc Eject
VOL
CD
changer
8
RANDOM
Press [SOURCE] to change to CD play mode.
CQ-DF302W
CD
player
SCAN
AUTO •P
When CD is in the player
SCAN
AUTO •P REMOTE
Note:
≥ The CD changer functions are designed for Panasonic CD changer unit (optional).
≥ This unit does not support CD-ROM, CD-R, or CD-RW playback through CD changer. Use the CD changer to
listen to normal music CDs exclusively.
E
N
G
L
I
S
H
CD
player
CD
changer
Track scan play
CD
player
CD
changer
Clock display
Disc scan play
Clock display
CD
changer
C
7
1
8
2
9
3
10
4
11
5
12
6
CLOCK
DISP
LEVL
DIMMER
Lights when a magazine is
loaded in the changer.
Track random play
Track repeat play
≥ Press and hold [REP] (RANDOM) for
more than 2 seconds.
All the tracks (on all discs in the magazine*) are played in random order.
(*Only for CD changer)
≥ Press and hold [REP] (RANDOM) again
to cancel.
RAND
≥ Press [REP].
The current track is repeated.
≥ Press [REP] again to cancel.
REP
≥ Press [BAND] (SCAN).
The first 10 seconds of each track on
the disc are played in sequence.
≥ Press [BAND] (SCAN) again to cancel.
≥ Press and hold [BAND] (SCAN) for
more than 2 seconds.
The first track of all the discs in the
magazine is played for 10 seconds
each.
≥ Press and hold [BAND] (SCAN) again to
cancel.
CQ-DF302W
17
E
N
G
L
I
S
H
Remote Control Unit Preparation
9
1 Remove the battery holder.
Pull the holder by the position B while pushing position A in the direction indicated by the arrow.
2 Install the battery on the battery holder.
Set a new battery properly with its (i) side facing up
as shown in the figure.
3 Insert the battery holder.
Push in the battery holder back into its original position.
Battery Installation
Battery Notes
Installation Guide
Lithium battery
(included)
Back side
WARNING
Any attempt to install this product in a motor car by anyone other than qualified installer could cause damage to the electrical system and could result in serious personal injury or death.
Position A
Remove and dispose of an old battery immediately.
Battery Information:
≥ Battery type: Panasonic lithium battery (CR2025) (included)
≥ Battery life: Approximately 6 months with normal use (at room temperature)
Caution:
≥ Improper use of batteries may cause overheating, an explosion or ignition, resulting in injury or a fire.
Battery leakage may damage the unit.
≥ Do not disassemble or short the battery. Do not throw a battery into a fire.
≥ Keep batteries away from children to avoid the risk of accidents.
≥ Be careful to the local disposal rules when you dispose of batteries.
Control Reference Guide
Buttons of the remote control function in the same way as the controls on the main unit of the reference page.
❐ Installation Hardware
No.
Item
Diagram
If you encounter problems, please consult your
nearest professional installer.
Q’ty
Mounting collar
1
2
Hex. nut (5 mm·)
1
3
Rear support strap
1
Before you begin installation, look for the items
which are packed with your unit.
4
Tapping screw
(5 mm·a16 mm)
1
5
Mounting bolt (5 mm·)
1
6
Power connector
1
≥ Warranty Card…Fill this out promptly.
≥ Panasonic Servicenter for Service Directory
…Keep for future reference in case the product
needs servicing.
≥ Installation Hardware…Needed for in-dash installation.
7
Removable face plate
case
1
8
Trim plate
1
(ATT)
PWR
Mode button (MODE)
(➡ pages 14, 16)
Band/Disc up* button
(BAND/DISC UP*)
(➡ pages 14, 17)
MUTE
MODE
VOL
PRG
TUNE
TRACK
Tune, Track buttons
(TUNE % $, TRACK 6 5)
(➡ pages 14, 16)
Car Audio
CQ-DF302W
Volume control buttons
(VOL " #)
(➡ page 10)
BAND/DISC UP
*Only for CD changer
control
(When the CD changer
is connected.)
18
Mute button (MUTE)
(➡ page 10)
Caution:
≥ This unit operates with a 12 V DC negative
ground auto battery system only. Do not attempt to use it in any other system. Doing so
could cause serious damage.
1
Point the remote control unit at the main unit’s sensor (REMOTE).
Power button (PWR)
(➡ page 10)
10
This installation information is designed for experienced installers and is not intended for non-technical individuals. It does not contain warnings or cautions of potential dangers involved in attempting to install this product.
Position B
Battery holder
E
N
G
L
I
S
H
❐ Required Tools
You’ll need a screwdriver, a 1.5 V AA battery, and
the following:
12 V DC
Electrical
Side-cut
Test bulb
tape
pliers
❐ Overview
This product should be installed by a professional.
However, if you plan to install this product yourself,
your first step is to decide where to install it. The
instructions in these pages will guide you through
the remaining steps:
(Please refer to the “WARNING” statement
above.)
≥ Identify and label the car wires.
≥ Connect the car wires to the wires of the power
connector.
≥ Install the unit in the dashboard.
≥ Check the operation of the unit.
❐ Dashboard Specifications
Thickness
Min. 4.75 mm
Max. 5.56 mm
53 mm
182 mm
CQ-DF302W
19
E
N
G
L
I
S
H
Remote Control Unit Preparation
9
1 Remove the battery holder.
Pull the holder by the position B while pushing position A in the direction indicated by the arrow.
2 Install the battery on the battery holder.
Set a new battery properly with its (i) side facing up
as shown in the figure.
3 Insert the battery holder.
Push in the battery holder back into its original position.
Battery Installation
Battery Notes
Installation Guide
Lithium battery
(included)
Back side
WARNING
Any attempt to install this product in a motor car by anyone other than qualified installer could cause damage to the electrical system and could result in serious personal injury or death.
Position A
Remove and dispose of an old battery immediately.
Battery Information:
≥ Battery type: Panasonic lithium battery (CR2025) (included)
≥ Battery life: Approximately 6 months with normal use (at room temperature)
Caution:
≥ Improper use of batteries may cause overheating, an explosion or ignition, resulting in injury or a fire.
Battery leakage may damage the unit.
≥ Do not disassemble or short the battery. Do not throw a battery into a fire.
≥ Keep batteries away from children to avoid the risk of accidents.
≥ Be careful to the local disposal rules when you dispose of batteries.
Control Reference Guide
Buttons of the remote control function in the same way as the controls on the main unit of the reference page.
❐ Installation Hardware
No.
Item
Diagram
If you encounter problems, please consult your
nearest professional installer.
Q’ty
Mounting collar
1
2
Hex. nut (5 mm·)
1
3
Rear support strap
1
Before you begin installation, look for the items
which are packed with your unit.
4
Tapping screw
(5 mm·a16 mm)
1
5
Mounting bolt (5 mm·)
1
6
Power connector
1
≥ Warranty Card…Fill this out promptly.
≥ Panasonic Servicenter for Service Directory
…Keep for future reference in case the product
needs servicing.
≥ Installation Hardware…Needed for in-dash installation.
7
Removable face plate
case
1
8
Trim plate
1
(ATT)
PWR
Mode button (MODE)
(➡ pages 14, 16)
Band/Disc up* button
(BAND/DISC UP*)
(➡ pages 14, 17)
MUTE
MODE
VOL
PRG
TUNE
TRACK
Tune, Track buttons
(TUNE % $, TRACK 6 5)
(➡ pages 14, 16)
Car Audio
CQ-DF302W
Volume control buttons
(VOL " #)
(➡ page 10)
BAND/DISC UP
*Only for CD changer
control
(When the CD changer
is connected.)
18
Mute button (MUTE)
(➡ page 10)
Caution:
≥ This unit operates with a 12 V DC negative
ground auto battery system only. Do not attempt to use it in any other system. Doing so
could cause serious damage.
1
Point the remote control unit at the main unit’s sensor (REMOTE).
Power button (PWR)
(➡ page 10)
10
This installation information is designed for experienced installers and is not intended for non-technical individuals. It does not contain warnings or cautions of potential dangers involved in attempting to install this product.
Position B
Battery holder
E
N
G
L
I
S
H
❐ Required Tools
You’ll need a screwdriver, a 1.5 V AA battery, and
the following:
12 V DC
Electrical
Side-cut
Test bulb
tape
pliers
❐ Overview
This product should be installed by a professional.
However, if you plan to install this product yourself,
your first step is to decide where to install it. The
instructions in these pages will guide you through
the remaining steps:
(Please refer to the “WARNING” statement
above.)
≥ Identify and label the car wires.
≥ Connect the car wires to the wires of the power
connector.
≥ Install the unit in the dashboard.
≥ Check the operation of the unit.
❐ Dashboard Specifications
Thickness
Min. 4.75 mm
Max. 5.56 mm
53 mm
182 mm
CQ-DF302W
19
E
N
G
L
I
S
H
11
Installation Guide (Continued)
❐ Identify All Leads
The first step in installation is to identify all the car
wires you’ll use when hooking up your sound system.
As you identify each wire, we suggest that you label
it using masking tape and a permanent marker.
This will help avoid confusion when making connections later.
Note:
≥ Do not connect the power connector to the stereo
unit until you have made all connections. If there
are no plastic caps on the stereo hooking wires,
insulate all exposed leads with electrical tape until
you are ready to use them. Identify the leads in
the following order.
Power Lead
If your car has a radio or is pre-wired for one:
Cut the connector wires one at a time from the plug
(leaving the leads as long as possible) so that you
can work with individual leads.
Turn the ignition on to the accessory position, and
ground one lead of the test bulb to the chassis.
Touch the other lead of the test bulb to each of the
exposed wires from the cut radio connector plug.
Touch one wire at a time until you find the outlet
that causes the test bulb to light.
Now turn the ignition off and then on. If the bulb
also turns off and on, that outlet is the car power
lead.
If your car is not wired for an audio unit:
Go to the fuse block and find the fuse port for radio
(RADIO), accessory (ACC), or ignition (IGN).
Battery Lead
If your stereo unit has a yellow lead, you will need
to locate the car’s battery lead. Otherwise you may
ignore this procedure. (The yellow battery lead provides continuous power to maintain a clock, memory storage, or other function.)
If your car has a radio or is pre-wired for one:
With the ignition and headlights off, identify the car
battery lead by grounding one lead of the test bulb
to the chassis and checking the remaining exposed
wires from the cut radio connector plug.
20
CQ-DF302W
If your car is not wired for an audio unit:
Go to the fuse block and find the fuse port for the
battery, usually marked BAT.
Speakers
Identify the car speaker leads. There are two leads
for each speaker which are usually color coded.
A handy way to identify the speaker leads and the
speaker they are connected with is to test the leads
using a 1.5 V AA battery as follows.
Hold one lead against one pole of the battery and
stroke the other lead across the other pole. You will
hear a scraping sound in one of the speakers if you
are holding a speaker lead.
If not, keep testing different lead combinations until
you have located all the speaker leads. When you
label them, include the speaker location for each.
Antenna Motor
If your car is equipped with an automatic power antenna, identify the car motor antenna lead by connecting one bulb tester lead to the car battery lead
and touching the remaining exposed wires from the
cut radio connector plug one at a time. You will
hear the antenna motor activate when you touch
the correct wire.
Antenna
The antenna lead is a thick, black wire with a metal
plug at the end.
❐ Connect All Leads
Now that you have identified all the wires in the car,
you are ready to begin connecting them to the
stereo unit wires. The wiring diagram (➡ pages 25,
26) shows the proper connections and color coding
of the leads.
We strongly recommend that you test the unit before making a final installation.
You can set the unit on the floor and make temporary connections to test the unit. Use electrical tape
to cover all exposed wires.
Important:
≥ Connect the red power lead last, after you
have made and insulated all other connections.
Ground
Connect the black ground lead of the power connector to the metal car chassis.
Speakers
Connect the speaker wires. See the wiring diagram
(➡ pages 25, 26) for the proper hookups. Follow
the diagram carefully to avoid damaging the speakers and the stereo unit.
The speakers used must be able to handle more
than 45 W of audio power. If using an optional
audio amplifier, the speakers should be able to handle the maximum amplifier output power. Speakers
with low input ratings can be damaged. Speaker
impedance should measure 4–8 ≠, which is typically marked on most speakers. Lower or higher
impedance speakers will affect output and can
cause both speaker and stereo unit damage.
Motor Antenna
Connect the car motor antenna lead to the dark
blue motor antenna relay control lead.
Battery
Connect the yellow battery lead to the correct radio
wire or to the battery fuse port on the fuse block.
Antenna
Connect the antenna by plugging the antenna lead
into the antenna receptacle.
Equipment
Connect any optional equipment such as an amplifier, according to the instructions furnished with
the equipment. Leave about 30 cm of distance between the speaker leads/amplifier unit and the antenna/antenna extension cord. Read the operating
and installation instructions of any equipment you
will connect to this unit.
Power
Connect the red power lead to the correct car radio
wire or to the appropriate fuse port on the fuse
block.
If the stereo unit functions properly with all these
connections made, disconnect the wires and proceed to the final installation.
❐ Final Installation
Lead Connections
Connect all wires, making sure that each connection is insulated and secure. Bundle all loose wires
and fasten them with tape so they will not fall down
later. Now insert the stereo unit into the mounting
collar.
Congratulations! After making a few final checks,
you’re ready to enjoy your new auto stereo system.
E
N
G
L
I
S
H
❐ Final Checks
1. Make sure that all wires are properly connected
and insulated.
2. Make sure that the stereo unit is securely held in
the mounting collar.
3. Turn on the ignition to check the unit for proper
operation.
12
If you have difficulties, consult your nearest authorized professional installer for assistance.
❐ Preparation
≥ We strongly recommend that you wear gloves
for installation work to protect yourself from
injuries.
≥ When bending the mounting tabs of the
mounting collar with a screwdriver, be careful
not to injure your hands and fingers.
≥ Disconnect the cable from the negative - battery
terminal (see caution below).
≥ Unit should be installed in a horizontal position
with the front end up at a convenient angle, but
not more than 30o.
Less than 30x
Caution:
≥ Do not disconnect the battery terminals of a
car with a trip or navigational computer since
all user settings stored in memory will be lost.
Instead take extra care with installing the unit
to prevent shorts.
Dashboard Installation
Installation Opening
53 mm
182 mm
This unit can be installed in any dashboard having
an opening as shown above. The dashboard should
be 4.75 mmj5.56 mm thick in order to be able to
support the unit.
CQ-DF302W
21
E
N
G
L
I
S
H
11
Installation Guide (Continued)
❐ Identify All Leads
The first step in installation is to identify all the car
wires you’ll use when hooking up your sound system.
As you identify each wire, we suggest that you label
it using masking tape and a permanent marker.
This will help avoid confusion when making connections later.
Note:
≥ Do not connect the power connector to the stereo
unit until you have made all connections. If there
are no plastic caps on the stereo hooking wires,
insulate all exposed leads with electrical tape until
you are ready to use them. Identify the leads in
the following order.
Power Lead
If your car has a radio or is pre-wired for one:
Cut the connector wires one at a time from the plug
(leaving the leads as long as possible) so that you
can work with individual leads.
Turn the ignition on to the accessory position, and
ground one lead of the test bulb to the chassis.
Touch the other lead of the test bulb to each of the
exposed wires from the cut radio connector plug.
Touch one wire at a time until you find the outlet
that causes the test bulb to light.
Now turn the ignition off and then on. If the bulb
also turns off and on, that outlet is the car power
lead.
If your car is not wired for an audio unit:
Go to the fuse block and find the fuse port for radio
(RADIO), accessory (ACC), or ignition (IGN).
Battery Lead
If your stereo unit has a yellow lead, you will need
to locate the car’s battery lead. Otherwise you may
ignore this procedure. (The yellow battery lead provides continuous power to maintain a clock, memory storage, or other function.)
If your car has a radio or is pre-wired for one:
With the ignition and headlights off, identify the car
battery lead by grounding one lead of the test bulb
to the chassis and checking the remaining exposed
wires from the cut radio connector plug.
20
CQ-DF302W
If your car is not wired for an audio unit:
Go to the fuse block and find the fuse port for the
battery, usually marked BAT.
Speakers
Identify the car speaker leads. There are two leads
for each speaker which are usually color coded.
A handy way to identify the speaker leads and the
speaker they are connected with is to test the leads
using a 1.5 V AA battery as follows.
Hold one lead against one pole of the battery and
stroke the other lead across the other pole. You will
hear a scraping sound in one of the speakers if you
are holding a speaker lead.
If not, keep testing different lead combinations until
you have located all the speaker leads. When you
label them, include the speaker location for each.
Antenna Motor
If your car is equipped with an automatic power antenna, identify the car motor antenna lead by connecting one bulb tester lead to the car battery lead
and touching the remaining exposed wires from the
cut radio connector plug one at a time. You will
hear the antenna motor activate when you touch
the correct wire.
Antenna
The antenna lead is a thick, black wire with a metal
plug at the end.
❐ Connect All Leads
Now that you have identified all the wires in the car,
you are ready to begin connecting them to the
stereo unit wires. The wiring diagram (➡ pages 25,
26) shows the proper connections and color coding
of the leads.
We strongly recommend that you test the unit before making a final installation.
You can set the unit on the floor and make temporary connections to test the unit. Use electrical tape
to cover all exposed wires.
Important:
≥ Connect the red power lead last, after you
have made and insulated all other connections.
Ground
Connect the black ground lead of the power connector to the metal car chassis.
Speakers
Connect the speaker wires. See the wiring diagram
(➡ pages 25, 26) for the proper hookups. Follow
the diagram carefully to avoid damaging the speakers and the stereo unit.
The speakers used must be able to handle more
than 45 W of audio power. If using an optional
audio amplifier, the speakers should be able to handle the maximum amplifier output power. Speakers
with low input ratings can be damaged. Speaker
impedance should measure 4–8 ≠, which is typically marked on most speakers. Lower or higher
impedance speakers will affect output and can
cause both speaker and stereo unit damage.
Motor Antenna
Connect the car motor antenna lead to the dark
blue motor antenna relay control lead.
Battery
Connect the yellow battery lead to the correct radio
wire or to the battery fuse port on the fuse block.
Antenna
Connect the antenna by plugging the antenna lead
into the antenna receptacle.
Equipment
Connect any optional equipment such as an amplifier, according to the instructions furnished with
the equipment. Leave about 30 cm of distance between the speaker leads/amplifier unit and the antenna/antenna extension cord. Read the operating
and installation instructions of any equipment you
will connect to this unit.
Power
Connect the red power lead to the correct car radio
wire or to the appropriate fuse port on the fuse
block.
If the stereo unit functions properly with all these
connections made, disconnect the wires and proceed to the final installation.
❐ Final Installation
Lead Connections
Connect all wires, making sure that each connection is insulated and secure. Bundle all loose wires
and fasten them with tape so they will not fall down
later. Now insert the stereo unit into the mounting
collar.
Congratulations! After making a few final checks,
you’re ready to enjoy your new auto stereo system.
E
N
G
L
I
S
H
❐ Final Checks
1. Make sure that all wires are properly connected
and insulated.
2. Make sure that the stereo unit is securely held in
the mounting collar.
3. Turn on the ignition to check the unit for proper
operation.
12
If you have difficulties, consult your nearest authorized professional installer for assistance.
❐ Preparation
≥ We strongly recommend that you wear gloves
for installation work to protect yourself from
injuries.
≥ When bending the mounting tabs of the
mounting collar with a screwdriver, be careful
not to injure your hands and fingers.
≥ Disconnect the cable from the negative - battery
terminal (see caution below).
≥ Unit should be installed in a horizontal position
with the front end up at a convenient angle, but
not more than 30o.
Less than 30x
Caution:
≥ Do not disconnect the battery terminals of a
car with a trip or navigational computer since
all user settings stored in memory will be lost.
Instead take extra care with installing the unit
to prevent shorts.
Dashboard Installation
Installation Opening
53 mm
182 mm
This unit can be installed in any dashboard having
an opening as shown above. The dashboard should
be 4.75 mmj5.56 mm thick in order to be able to
support the unit.
CQ-DF302W
21
E
N
G
L
I
S
H
13
Installation Guide (Continued)
❐ Installation Procedures
First complete the electrical connections, and
then check them for correctness. (➡ pages
25, 26)
1
Insert mounting collar 1 into the dashboard, and
bend the mounting tabs out with a screwdriver.
Make sure that the lock lever (§) is flush with the
mounting collar 1 (not projecting outward).
Lock lever (§)
Remove the Unit
E
N
G
L
I
S
H
Switch off the power of the unit.
14
the removable face plate.
1 Remove
1 Press [OPEN]. The removable face plate will
be opened.
45W X 4
Main unit
Contact
1 Open
OPEN
RANDOM
2 Push
REP
PWR
3 Pull out
2 Push the face plate to the left.
3 Pull it out toward you.
Lock lever (§)
6 Power connector
2 Remove the trim plate 8 with a screwdriver.
8 Trim plate
Screwdriver
Mounting tabs
5 Mounting bolt
2
3
4
(a) Using the rear support strap 3
Fire wall of car
4 Tapping screw
(5 mm·a16 mm)
3 mm·
1
Secure the rear of the unit.
After fixing mounting bolt 5 and power connector
6, fix the rear of the unit to the car body by either
method (a) or (b) shown below.
Insert trim plate 8.
5 Mounting bolt
(5 mm·)
out the unit while pushing down the lock
3 Pull
lever with a screwdriver.
Lock lever
After installation, reconnect the negative - battery terminal.
(b) Using the rubber cushion (option)
Lock lever
Rear support bracket
Rubber cushion (option) (provided on the car)
2 Hex. nut
(5 mm·)
3 Rear support
strap
2
4 Remove the unit pulling with both hands.
5 Mounting bolt
(5 mm·)
1 Mounting collar
1 Mounting collar
22
CQ-DF302W
CQ-DF302W
23
E
N
G
L
I
S
H
13
Installation Guide (Continued)
❐ Installation Procedures
First complete the electrical connections, and
then check them for correctness. (➡ pages
25, 26)
1
Insert mounting collar 1 into the dashboard, and
bend the mounting tabs out with a screwdriver.
Make sure that the lock lever (§) is flush with the
mounting collar 1 (not projecting outward).
Lock lever (§)
Remove the Unit
E
N
G
L
I
S
H
Switch off the power of the unit.
14
the removable face plate.
1 Remove
1 Press [OPEN]. The removable face plate will
be opened.
45W X 4
Main unit
Contact
1 Open
OPEN
RANDOM
2 Push
REP
PWR
3 Pull out
2 Push the face plate to the left.
3 Pull it out toward you.
Lock lever (§)
6 Power connector
2 Remove the trim plate 8 with a screwdriver.
8 Trim plate
Screwdriver
Mounting tabs
5 Mounting bolt
2
3
4
(a) Using the rear support strap 3
Fire wall of car
4 Tapping screw
(5 mm·a16 mm)
3 mm·
1
Secure the rear of the unit.
After fixing mounting bolt 5 and power connector
6, fix the rear of the unit to the car body by either
method (a) or (b) shown below.
Insert trim plate 8.
5 Mounting bolt
(5 mm·)
out the unit while pushing down the lock
3 Pull
lever with a screwdriver.
Lock lever
After installation, reconnect the negative - battery terminal.
(b) Using the rubber cushion (option)
Lock lever
Rear support bracket
Rubber cushion (option) (provided on the car)
2 Hex. nut
(5 mm·)
3 Rear support
strap
2
4 Remove the unit pulling with both hands.
5 Mounting bolt
(5 mm·)
1 Mounting collar
1 Mounting collar
22
CQ-DF302W
CQ-DF302W
23
E
N
G
L
I
S
H
15
Anti-Theft System
Electrical Connections
This unit is equipped with a removable face plate. Removing this face plate makes the radio totally inoperable.
The security indicator will blink.
Place the Removable Face
Plate into Case
1 Switch off the power of the unit.
2 Remove the removable face plate. (➡ page 23)
3 Gently press the button of the case and open
the cover. Place the face plate into the case and
take it with you when you leave the car.
7 Removable face plate case
Cautions:
≥ This product is designed to operate of a 12 V DC, negative ground battery system.
≥ To prevent damage to the unit, be sure to follow the wiring diagram on the next page.
≥ Remove approx. 5 mm of protective covering from the ends of the leads before connecting.
≥ Do not insert the power connector into the unit until the wiring is completed.
≥ Be sure to insulate any exposed wires from a possible short-circuit from the car chassis. Bundle all cables
and keep cable terminals free from touching any metal parts.
≥ Remember, if your car has a drive computer or a navigation computer, the data of its memory may be
erased when the battery terminals are disconnected.
E
N
G
L
I
S
H
16
Accessory used for wiring
Install Removable Face Plate
1 Fit the face plate with its left hole on one of the
pins provided on the main unit.
2 Fit the other hold on the other pin applying
slight pressure.
3 Move the face plate up and down a few times to
make sure it is secure. Then close the front
panel and press down the right side of the face
plate until it clicks into plate.
No.
Item
Q’ty
6
Power connector
1
Contact
1
3
2
Recommended external amplifier combination (example)
≥ Pre-amp out (rear/front) [CY-M9054 (4 channels system)]
≥ Subwoofer out [CY-M9054 (2 channels system) or CY-M7052 (1 channel system)]
(Continued to the next page.)
Security Indicator
The security indicator blinks when the removable
face plate is removed from the unit.
Press and hold [SEL] to turn the security indicator
on or off. (“LED ON” or “LED OFF”).
Default
Display
Security indicator
Security indicator
Blinks
OFF
Cautions:
≥ This face plate is not water-proof. Do not expose it to water or excessive moisture.
≥ Do not remove the face plate while driving your car.
≥ Do not place the face plate on the dashboard or nearby areas where the temperature rises to high level.
≥ Do not touch the contacts on the face plate or on the main unit, since this may result in poor electrical
contacts.
≥ If dirt or other foreign substances get on the contacts, wipe them off with a clean and dry cloth.
≥ Do not apply a strong downward force onto the face plate and do not put anything on it while it is open, or
it might be damaged.
24
CQ-DF302W
CQ-DF302W
25
E
N
G
L
I
S
H
15
Anti-Theft System
Electrical Connections
This unit is equipped with a removable face plate. Removing this face plate makes the radio totally inoperable.
The security indicator will blink.
Place the Removable Face
Plate into Case
1 Switch off the power of the unit.
2 Remove the removable face plate. (➡ page 23)
3 Gently press the button of the case and open
the cover. Place the face plate into the case and
take it with you when you leave the car.
7 Removable face plate case
Cautions:
≥ This product is designed to operate of a 12 V DC, negative ground battery system.
≥ To prevent damage to the unit, be sure to follow the wiring diagram on the next page.
≥ Remove approx. 5 mm of protective covering from the ends of the leads before connecting.
≥ Do not insert the power connector into the unit until the wiring is completed.
≥ Be sure to insulate any exposed wires from a possible short-circuit from the car chassis. Bundle all cables
and keep cable terminals free from touching any metal parts.
≥ Remember, if your car has a drive computer or a navigation computer, the data of its memory may be
erased when the battery terminals are disconnected.
E
N
G
L
I
S
H
16
Accessory used for wiring
Install Removable Face Plate
1 Fit the face plate with its left hole on one of the
pins provided on the main unit.
2 Fit the other hold on the other pin applying
slight pressure.
3 Move the face plate up and down a few times to
make sure it is secure. Then close the front
panel and press down the right side of the face
plate until it clicks into plate.
No.
Item
Q’ty
6
Power connector
1
Contact
1
3
2
Recommended external amplifier combination (example)
≥ Pre-amp out (rear/front) [CY-M9054 (4 channels system)]
≥ Subwoofer out [CY-M9054 (2 channels system) or CY-M7052 (1 channel system)]
(Continued to the next page.)
Security Indicator
The security indicator blinks when the removable
face plate is removed from the unit.
Press and hold [SEL] to turn the security indicator
on or off. (“LED ON” or “LED OFF”).
Default
Display
Security indicator
Security indicator
Blinks
OFF
Cautions:
≥ This face plate is not water-proof. Do not expose it to water or excessive moisture.
≥ Do not remove the face plate while driving your car.
≥ Do not place the face plate on the dashboard or nearby areas where the temperature rises to high level.
≥ Do not touch the contacts on the face plate or on the main unit, since this may result in poor electrical
contacts.
≥ If dirt or other foreign substances get on the contacts, wipe them off with a clean and dry cloth.
≥ Do not apply a strong downward force onto the face plate and do not put anything on it while it is open, or
it might be damaged.
24
CQ-DF302W
CQ-DF302W
25
E
N
G
L
I
S
H
Electrical Connections (Continued)
Troubleshooting
❐ Wiring Diagram
Preliminary Steps
Check and take steps as described in the tables below.
17
CD changer
CX-DP88
If You Suspect Something Wrong
Immediately switch power off.
Disconnect the power connector and check that there is
neither smoke nor heat from the unit before asking for repairs.
Never try to repair the unit by yourself because it is dangerous
to do so.
DIN extension cord (DIN/BATT/RCA/GND)
Yellow Fuse (3 A)
Black
Ground lead
Be sure to connect to a well
grounded metallic part of your car
because noises or troubles may occur.
Red
White
Battery lead
DIN cord
RCA cord
CD•C-IN
❐ Common
Red (R)
Subwoofer cord
Trouble
(MONO)
CD changer control connector
Cables are not correctly connected.
➡Connect cables correctly.
Antenna
6 Power connector
Preout cord (rear)
Battery cable is not correctly connected.
➡Connect the battery cable to the terminal that is always active.
REAR
Preout cord (front)
FRONT
Ground lead
To a clean, bare metallic
part of car chassis.
Motor antenna relay control lead
(To motor antenna) (Max. 500 mA)
This lead is not intended for use with
switch actuated power antenna.
Amp. relay control power lead
This lead is for connection to the power amplifier.
Black
BATTERY 15A
Fuse (15 A)
Yellow
Red
ACC
Battery lead
To the car battery,
continuous +12 V DC
No power.
Fuse is burnt.
➡Call the store where you purchased the unit, or your nearest Servicenter and
ask for fuse replacement.
Mute is set to ON.
➡Set it to OFF.
Speaker lead
White
(s)
(r)
Accessory cable is not correctly connected.
➡Connect the accessory cable to your car’s ACC source.
Grounding wire is not correctly connected.
➡Connect the grounding wire to a metal part of the car.
Power lead
Resistor (1 k≠) To ACC power,
+12 V DC
Dark blue
FRONT SP
White/black
stripe
Cause/Step
Car’s engine switch is not on.
➡Turn your car’s ignition switch to ACC or ON.
CQ-DF302W
Red (R)
White (L)
18
Troubleshooting Tips
White (L)
S•W-OUT
Red (R)
White (L)
Cautions:
≥ Do not use the unit if it malfunctions or
if there is something wrong.
≥ Do not use the unit in abnormal
condition, for example, without sound,
or with smoke or foul smell, can cause
ignition or electric shock. Immediately
stop using it and call the store where
you purchased it.
E
N
G
L
I
S
H
Gray/black
stripe
(s)
Gray
(r)
REAR SP
Green/black
stripe
(s)
No sound.
Green Violet/black
stripe
(r)
(s)
Cables are not correctly connected.
➡Connect cables correctly.
Violet
Condensation (dew)
➡Wait for a while before use.
(r)
❐ Radio
Left speaker
(Front)
26
CQ-DF302W
Right speaker
(Front)
Left speaker
(Rear)
Right speaker
(Rear)
Much noise in FM stereo
and monaural broadcasts.
Station is too far, or signals are too weak.
➡Select other stations of higher signal level.
Preset station is reset.
Battery cable is not correctly connected.
➡Connect the battery cable to the terminal that is always live.
CQ-DF302W
27
E
N
G
L
I
S
H
Electrical Connections (Continued)
Troubleshooting
❐ Wiring Diagram
Preliminary Steps
Check and take steps as described in the tables below.
17
CD changer
CX-DP88
If You Suspect Something Wrong
Immediately switch power off.
Disconnect the power connector and check that there is
neither smoke nor heat from the unit before asking for repairs.
Never try to repair the unit by yourself because it is dangerous
to do so.
DIN extension cord (DIN/BATT/RCA/GND)
Yellow Fuse (3 A)
Black
Ground lead
Be sure to connect to a well
grounded metallic part of your car
because noises or troubles may occur.
Red
White
Battery lead
DIN cord
RCA cord
CD•C-IN
❐ Common
Red (R)
Subwoofer cord
Trouble
(MONO)
CD changer control connector
Cables are not correctly connected.
➡Connect cables correctly.
Antenna
6 Power connector
Preout cord (rear)
Battery cable is not correctly connected.
➡Connect the battery cable to the terminal that is always active.
REAR
Preout cord (front)
FRONT
Ground lead
To a clean, bare metallic
part of car chassis.
Motor antenna relay control lead
(To motor antenna) (Max. 500 mA)
This lead is not intended for use with
switch actuated power antenna.
Amp. relay control power lead
This lead is for connection to the power amplifier.
Black
BATTERY 15A
Fuse (15 A)
Yellow
Red
ACC
Battery lead
To the car battery,
continuous +12 V DC
No power.
Fuse is burnt.
➡Call the store where you purchased the unit, or your nearest Servicenter and
ask for fuse replacement.
Mute is set to ON.
➡Set it to OFF.
Speaker lead
White
(s)
(r)
Accessory cable is not correctly connected.
➡Connect the accessory cable to your car’s ACC source.
Grounding wire is not correctly connected.
➡Connect the grounding wire to a metal part of the car.
Power lead
Resistor (1 k≠) To ACC power,
+12 V DC
Dark blue
FRONT SP
White/black
stripe
Cause/Step
Car’s engine switch is not on.
➡Turn your car’s ignition switch to ACC or ON.
CQ-DF302W
Red (R)
White (L)
18
Troubleshooting Tips
White (L)
S•W-OUT
Red (R)
White (L)
Cautions:
≥ Do not use the unit if it malfunctions or
if there is something wrong.
≥ Do not use the unit in abnormal
condition, for example, without sound,
or with smoke or foul smell, can cause
ignition or electric shock. Immediately
stop using it and call the store where
you purchased it.
E
N
G
L
I
S
H
Gray/black
stripe
(s)
Gray
(r)
REAR SP
Green/black
stripe
(s)
No sound.
Green Violet/black
stripe
(r)
(s)
Cables are not correctly connected.
➡Connect cables correctly.
Violet
Condensation (dew)
➡Wait for a while before use.
(r)
❐ Radio
Left speaker
(Front)
26
CQ-DF302W
Right speaker
(Front)
Left speaker
(Rear)
Right speaker
(Rear)
Much noise in FM stereo
and monaural broadcasts.
Station is too far, or signals are too weak.
➡Select other stations of higher signal level.
Preset station is reset.
Battery cable is not correctly connected.
➡Connect the battery cable to the terminal that is always live.
CQ-DF302W
27
E
N
G
L
I
S
H
19
Troubleshooting (Continued)
❐ CD
❐ Remote Control
Trouble
Disc is in the CD compartment but no sound is
made, or disc is ejected
automatically.
Cause/Step
Cause/Step
Battery poles (i) (j) are reversed.
➡Insert the battery correctly.
≥ Disc is dirty.
≥ Disc has scratches.
Wrong the battery.
➡Check the battery.
➡Clean disc, referring to the section on “Notes on CD/CD media (CD-R,
CD-RW)”.
Buttons are
operation.
invalid
for
Remote control is in the wrong direction.
➡Direct the remote control at sensor (REMOTE) on the panel.
Error Display Messages
❐ CD
Display
➡Clean disc, referring to the section on “Notes on CD/CD media (CD-R,
CD-RW)”.
➡The unit may not successfully play back a CD-R/RW that is made in
combination of writing software, a CD recorder (CD-R/RW drive) and a disc
which are incompatible one another. Refer to instructions for the concerned
devices for details.
Disc is not ejected.
Time is counted but no
sound comes out.
Instable mounting.
➡Mount the unit securely with the mounting parts, referring to the section on
installation.
≥ Disc is defective.
≥ Mechanical trouble.
➡Press [OPEN] to open the panel and press [<] (EJECT). If normal operation
is not restored yet, call the store where you purchased the unit or the nearest Servicenter to ask for repairs.
The first track of a mix mode disc was reproduced. (Mix mode is a format in
which data except music is recorded on the first track and music data is recorded
on other than the first track in a session.)
➡Play back music data recorded on other than the first track.
❐ Sound Setting
No sound from left, right,
front or rear speakers.
Left and right sounds are
reversed in stereo listening.
CQ-DF302W
Left and right balance, or front and rear balance is off on one side.
➡Adjust balance/fader mode as appropriate.
Cables are not correctly connected.
➡Connect the cables correctly.
The right speaker wire is connected to the left speaker and the left speaker wire
to the right speaker.
➡Connect the speaker wires to the correct ones.
Cause/Step
≥ Disc is dirty, or is upside down.
≥ A disc that has data other than CD-DA type is loaded.
➡Press [OPEN] to open the front panel, and then press [<] (EJECT) to eject
the disc.
Disc has scars.
➡Press [OPEN] to open the front panel, and then press [<] (EJECT) to eject
the disc.
Mounting angle is over 30o.
➡Adjust mounting angle to less than 30o.
Sound skips due to vibration.
20
Battery has run down.
➡Replace the battery.
A disc that has data other than CD-DA type is loaded.
➡Discs that have CD-DA type data should be used.
≥ Disc is dirty.
≥ Disc has scratches.
Sound skips, bad sound
quality (e.g. caused by
noise)
Trouble
Disc is upside down.
➡Place disc in the correct direction, and the label side up.
➡The unit may not successfully play back a CD-R/RW that is made in
combination of writing software, a CD recorder (CD-R/RW drive) and a disc
which are incompatible one another. Refer to instructions for the concerned
devices for details.
28
E
N
G
L
I
S
H
No operation by some cause.
➡Turn off the car engine (ACC off) and remove the fuse from the battery lead
(yellow) for 1 minute. Then reinstall the fuse.
❐ CD Changer
DISC No.
≥ Disc is dirty, or is upside down.
≥ A disc other than a music CD (CD-DA type) is loaded.
➡Select the next available compact disc.
Disc has scratches.
➡Select the next available compact disc.
DISC No.
No operation by some cause.
➡Press [RESET] on the CD changer (optional).
No disc in the changer (magazine).
➡Insert discs into the changer (magazine).
Notes:
≥ There may be cases where the disc numbers affected by an error are displayed before “E1” or “E2”.
≥ Displays and the steps to be taken for errors vary in part from changer to changer. For details, refer to the
operating instructions for the changer used.
CQ-DF302W
29
E
N
G
L
I
S
H
19
Troubleshooting (Continued)
❐ CD
❐ Remote Control
Trouble
Disc is in the CD compartment but no sound is
made, or disc is ejected
automatically.
Cause/Step
Cause/Step
Battery poles (i) (j) are reversed.
➡Insert the battery correctly.
≥ Disc is dirty.
≥ Disc has scratches.
Wrong the battery.
➡Check the battery.
➡Clean disc, referring to the section on “Notes on CD/CD media (CD-R,
CD-RW)”.
Buttons are
operation.
invalid
for
Remote control is in the wrong direction.
➡Direct the remote control at sensor (REMOTE) on the panel.
Error Display Messages
❐ CD
Display
➡Clean disc, referring to the section on “Notes on CD/CD media (CD-R,
CD-RW)”.
➡The unit may not successfully play back a CD-R/RW that is made in
combination of writing software, a CD recorder (CD-R/RW drive) and a disc
which are incompatible one another. Refer to instructions for the concerned
devices for details.
Disc is not ejected.
Time is counted but no
sound comes out.
Instable mounting.
➡Mount the unit securely with the mounting parts, referring to the section on
installation.
≥ Disc is defective.
≥ Mechanical trouble.
➡Press [OPEN] to open the panel and press [<] (EJECT). If normal operation
is not restored yet, call the store where you purchased the unit or the nearest Servicenter to ask for repairs.
The first track of a mix mode disc was reproduced. (Mix mode is a format in
which data except music is recorded on the first track and music data is recorded
on other than the first track in a session.)
➡Play back music data recorded on other than the first track.
❐ Sound Setting
No sound from left, right,
front or rear speakers.
Left and right sounds are
reversed in stereo listening.
CQ-DF302W
Left and right balance, or front and rear balance is off on one side.
➡Adjust balance/fader mode as appropriate.
Cables are not correctly connected.
➡Connect the cables correctly.
The right speaker wire is connected to the left speaker and the left speaker wire
to the right speaker.
➡Connect the speaker wires to the correct ones.
Cause/Step
≥ Disc is dirty, or is upside down.
≥ A disc that has data other than CD-DA type is loaded.
➡Press [OPEN] to open the front panel, and then press [<] (EJECT) to eject
the disc.
Disc has scars.
➡Press [OPEN] to open the front panel, and then press [<] (EJECT) to eject
the disc.
Mounting angle is over 30o.
➡Adjust mounting angle to less than 30o.
Sound skips due to vibration.
20
Battery has run down.
➡Replace the battery.
A disc that has data other than CD-DA type is loaded.
➡Discs that have CD-DA type data should be used.
≥ Disc is dirty.
≥ Disc has scratches.
Sound skips, bad sound
quality (e.g. caused by
noise)
Trouble
Disc is upside down.
➡Place disc in the correct direction, and the label side up.
➡The unit may not successfully play back a CD-R/RW that is made in
combination of writing software, a CD recorder (CD-R/RW drive) and a disc
which are incompatible one another. Refer to instructions for the concerned
devices for details.
28
E
N
G
L
I
S
H
No operation by some cause.
➡Turn off the car engine (ACC off) and remove the fuse from the battery lead
(yellow) for 1 minute. Then reinstall the fuse.
❐ CD Changer
DISC No.
≥ Disc is dirty, or is upside down.
≥ A disc other than a music CD (CD-DA type) is loaded.
➡Select the next available compact disc.
Disc has scratches.
➡Select the next available compact disc.
DISC No.
No operation by some cause.
➡Press [RESET] on the CD changer (optional).
No disc in the changer (magazine).
➡Insert discs into the changer (magazine).
Notes:
≥ There may be cases where the disc numbers affected by an error are displayed before “E1” or “E2”.
≥ Displays and the steps to be taken for errors vary in part from changer to changer. For details, refer to the
operating instructions for the changer used.
CQ-DF302W
29
E
N
G
L
I
S
H
21
Maintenance
Maintenance
Care of the Unit
Your product is designed and manufactured to ensure a minimum of maintenance. Use a soft cloth for routine
exterior cleaning. Never use benzine, thinner or other solvents.
❐ Cleaning this Unit
❐ Caution on Cleaning
Use a dry, soft cloth to wipe.
Never use solvents such as benzine, thinner as they
may mar the surface of the unit.
Notes on CD/CD Media (CD-R, CD-RW)
Product Servicing
If the suggestions in the charts do not solve the problem, we recommend that you take it to your nearest authorized Panasonic Servicenter. The product should be serviced only by a qualified technician.
Use fuses of the same specified rating (15 A). Using different substitutes or fuses with higher ratings, or connecting the unit directly without a fuse, could cause fire or damage to the stereo unit.
If the replacement fuse fails, contact your nearest Panasonic Servicenter for service.
Specifications
Label side
❐ General
Power supply:
Do not use irregular shaped discs.
Do not leave discs on the following places:
≥ Direct sunlight
≥ Near car heaters
≥ Dirty, dusty and damp areas
≥ Seats and dashboards
Current consumption:
Do not use irregular shaped discs.
<Right>
Caution on new discs
A new disc may have rough edges on its inner and outer
perimeter. These may cause malfunction.
Remove the rough edges using a pencil, etc.
Maximum power output:
<Wrong>
Power output:
Disc cleaning
Use a dry, soft cloth to wipe from the center outward.
Rough edges
Do not attach any seals or labels to your discs.
Do not write on the disc label in a heavy pen or ballpoint pen stroke.
❐ FM Stereo Radio
12 V DC (11 Vj16 V),
test voltage 14.4 V,
negative ground
Less than 2.2 A
(CD play mode;
0.5 Wa4 channels)
45 Wa4 channels at
400 Hz, Volume control
maximum
22 Wa4 channels at
400 Hz (DIN 45 324,
at 4 ≠)
Tone adjustment range:
Bass:
n12 dB at 100 Hz
Treble:
n12 dB at 10 kHz
Suitable speaker impedance: 4j8 ≠
Pre-Amp output voltage:
2.0 V (CD play mode;
1 kHz, 0 dB)
Subwoofer output voltage: 2.0 V
Output impedance:
200 ≠
Dimensions (WaHaD):
178a50a150 mm
Weight:
1.5 kg
Frequency range:
Usable sensitivity:
87.5 MHzj108.0 MHz
11.0 dBf.
(1.25 ¨V, 75 ≠)
50 dB quieting sensitivity: 15.2 dBf.
(1.6 ¨V, 75 ≠)
Frequency response:
30 Hzj15 kHz
(n3 dB)
Alternate channel selectivity: 75 dB
Stereo separation:
42 dB (1 kHz)
Image response ratio:
75 dB
IF response ratio:
100 dB
Signal/noise ratio:
70 dB
❐ AM Radio
Frequency range:
Usable sensitivity:
≥ You may have trouble playing back some CD-R/RW discs recorded on CD recorders (CD-R/RW drives), either due to their recording characteristics or dirt, fingerprints, scratches, etc. on the disc surface.
≥ CD-R/RW discs are less resistant to high temperatures and high humidity than ordinary music CDs. Leaving
them inside a car for extended periods may damage them and make playback impossible.
≥ The unit may not successfully play back a CD-R/RW that was made by the combination of writing software, a
CD recorder (CD-R/RW drive) and a disc if they are incompatible one another.
≥ This player cannot play the CD-R/RW discs if the session is not closed.
≥ This player cannot play the CD-R/RW discs which contains other than CD-DA data.
≥ Be sure to observe the instructions of CD-R/RW disc for handling it.
CQ-DF302W
531 kHzj1 602 kHz
28 dB/¨V
(25 ¨V, S/N 20 dB)
❐ CD Player
Sampling frequency:
DA converter:
Error correction system:
Notes on CD-Rs/RWs
30
22
Replacing the Fuse
Do not play any ordinary music CDs with labels
other than this one.
How to hold the disc
≥ Do not touch the underside of the disc.
≥ Do not scratch on the disc.
≥ Do not bend disc.
≥ When not in use, keep the disc in the case.
E
N
G
L
I
S
H
Pick-up type:
Light source:
Wave length:
Frequency response:
Signal/noise ratio:
Total harmonic distortion:
Wow and flutter:
Channel separation:
32 times oversampling
MASH • 1 bit/
4 DACsystem
Panasonic super
decoding algorithm
Astigma 3-beam
Semiconductor laser
780 nm
20 Hzj20 kHz (n1 dB)
96 dB
0.01 % (1 kHz)
Below measurable limits
75 dB
Note:
≥ Specifications and the design are subject to modification without notice due to improvements in technology.
CQ-DF302W
31
E
N
G
L
I
S
H
21
Maintenance
Maintenance
Care of the Unit
Your product is designed and manufactured to ensure a minimum of maintenance. Use a soft cloth for routine
exterior cleaning. Never use benzine, thinner or other solvents.
❐ Cleaning this Unit
❐ Caution on Cleaning
Use a dry, soft cloth to wipe.
Never use solvents such as benzine, thinner as they
may mar the surface of the unit.
Notes on CD/CD Media (CD-R, CD-RW)
Product Servicing
If the suggestions in the charts do not solve the problem, we recommend that you take it to your nearest authorized Panasonic Servicenter. The product should be serviced only by a qualified technician.
Use fuses of the same specified rating (15 A). Using different substitutes or fuses with higher ratings, or connecting the unit directly without a fuse, could cause fire or damage to the stereo unit.
If the replacement fuse fails, contact your nearest Panasonic Servicenter for service.
Specifications
Label side
❐ General
Power supply:
Do not use irregular shaped discs.
Do not leave discs on the following places:
≥ Direct sunlight
≥ Near car heaters
≥ Dirty, dusty and damp areas
≥ Seats and dashboards
Current consumption:
Do not use irregular shaped discs.
<Right>
Caution on new discs
A new disc may have rough edges on its inner and outer
perimeter. These may cause malfunction.
Remove the rough edges using a pencil, etc.
Maximum power output:
<Wrong>
Power output:
Disc cleaning
Use a dry, soft cloth to wipe from the center outward.
Rough edges
Do not attach any seals or labels to your discs.
Do not write on the disc label in a heavy pen or ballpoint pen stroke.
❐ FM Stereo Radio
12 V DC (11 Vj16 V),
test voltage 14.4 V,
negative ground
Less than 2.2 A
(CD play mode;
0.5 Wa4 channels)
45 Wa4 channels at
400 Hz, Volume control
maximum
22 Wa4 channels at
400 Hz (DIN 45 324,
at 4 ≠)
Tone adjustment range:
Bass:
n12 dB at 100 Hz
Treble:
n12 dB at 10 kHz
Suitable speaker impedance: 4j8 ≠
Pre-Amp output voltage:
2.0 V (CD play mode;
1 kHz, 0 dB)
Subwoofer output voltage: 2.0 V
Output impedance:
200 ≠
Dimensions (WaHaD):
178a50a150 mm
Weight:
1.5 kg
Frequency range:
Usable sensitivity:
87.5 MHzj108.0 MHz
11.0 dBf.
(1.25 ¨V, 75 ≠)
50 dB quieting sensitivity: 15.2 dBf.
(1.6 ¨V, 75 ≠)
Frequency response:
30 Hzj15 kHz
(n3 dB)
Alternate channel selectivity: 75 dB
Stereo separation:
42 dB (1 kHz)
Image response ratio:
75 dB
IF response ratio:
100 dB
Signal/noise ratio:
70 dB
❐ AM Radio
Frequency range:
Usable sensitivity:
≥ You may have trouble playing back some CD-R/RW discs recorded on CD recorders (CD-R/RW drives), either due to their recording characteristics or dirt, fingerprints, scratches, etc. on the disc surface.
≥ CD-R/RW discs are less resistant to high temperatures and high humidity than ordinary music CDs. Leaving
them inside a car for extended periods may damage them and make playback impossible.
≥ The unit may not successfully play back a CD-R/RW that was made by the combination of writing software, a
CD recorder (CD-R/RW drive) and a disc if they are incompatible one another.
≥ This player cannot play the CD-R/RW discs if the session is not closed.
≥ This player cannot play the CD-R/RW discs which contains other than CD-DA data.
≥ Be sure to observe the instructions of CD-R/RW disc for handling it.
CQ-DF302W
531 kHzj1 602 kHz
28 dB/¨V
(25 ¨V, S/N 20 dB)
❐ CD Player
Sampling frequency:
DA converter:
Error correction system:
Notes on CD-Rs/RWs
30
22
Replacing the Fuse
Do not play any ordinary music CDs with labels
other than this one.
How to hold the disc
≥ Do not touch the underside of the disc.
≥ Do not scratch on the disc.
≥ Do not bend disc.
≥ When not in use, keep the disc in the case.
E
N
G
L
I
S
H
Pick-up type:
Light source:
Wave length:
Frequency response:
Signal/noise ratio:
Total harmonic distortion:
Wow and flutter:
Channel separation:
32 times oversampling
MASH • 1 bit/
4 DACsystem
Panasonic super
decoding algorithm
Astigma 3-beam
Semiconductor laser
780 nm
20 Hzj20 kHz (n1 dB)
96 dB
0.01 % (1 kHz)
Below measurable limits
75 dB
Note:
≥ Specifications and the design are subject to modification without notice due to improvements in technology.
CQ-DF302W
31
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
