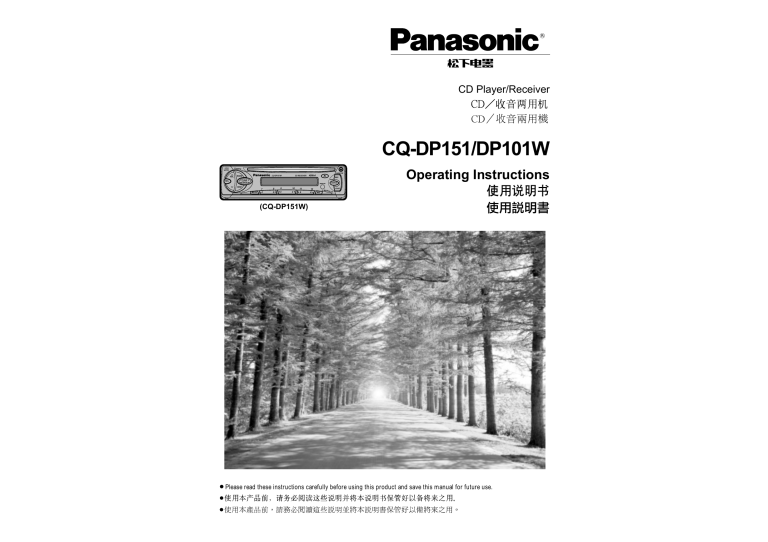

CD Player/Receiver
CQ-DP151/DP101W
SCAN/APM
RANDOM
VOL
CD RECEIVER
CQ-DP151W
BAND
45WX4
<
REP
PWR
TUNE
TRACK
SEL
REMOTE
DISP
MUTE
7
1
8
2
9
3
10
4
11
5
12
6
Operating Instructions
SOURCE
LOUD
M/L
MONO
/LOC
(CQ-DP151W)
≥ Please read these instructions carefully before using this product and save this manual for future use.
E
N
G
L
I
S
H
Panasonic welcomes you to our ever growing family of electronic product owners. We know that this product will bring you many hours of enjoyment. Our reputation is built on precise electronic and mechanical
engineering, manufactured with carefully selected components and assembled by people who take pride in
their work. Once you discover the quality, reliability, and value we have built into this product, you too will
be proud to be a member of our family.
❐ Use this Product Safely
When Driving
Disc Mechanism
Keep the volume level low enough to be aware of
road and traffic conditions.
Do not insert coins or any small objects. Keep
screwdrivers and other metallic objects away from
the disc mechanism and disc.
When Car Washing
Do not expose the product, including the speakers
and CDs, to water or excessive moisture. This
could cause electrical shorts, fire, or other damage.
When Parked
Parking in direct sunlight can produce very high
temperatures inside your car. Give the interior a
chance to cool down before switching the unit on.
Use the Proper Power Supply
C
H
I
N
E
S
E
Use Authorized Servicenters
Do not attempt to disassemble or adjust this precision product. Please refer to the Servicenter list including with this product for service assistance.
For Installation
This product should be installed in a horizontal position with the front end up at a convenient angle,
but not more than 30x.
This product is designed to operate with a 12 V DC,
negative ground battery system.
❐ Components
≥ Operating instructions .................................... 1
≥ Installation hardware................1 set (➡ page 26)
≥ Power connector ............................................ 1
≥ Warranty card.................................................. 1
Only for CQ-DP151W
≥ Remote control unit ........................................ 1
≥ Lithium battery (CR2025)................................ 1
Note:
≥ This operating instruction manual is for 2 models CQ-DP151W and CQ-DP101W. All illustrations
throughout this manual represent model CQ-DP151W unless otherwise specified. The following table describes the differences between 2 models.
Models
Features
Pre-Amp output connector
Remote control unit
14
CQ-DP151/DP101W
CQ-DP151W
CQ-DP101W
Rear, Front
Rear
Included
Not included
CQ-DP151/DP101W
15
Only for CQ-DP151W
E
N
G
L
I
S
H
Remote Control Unit Preparation
Power and Sound Controls
Battery Installation
Power
1
1 Remove the battery holder.
Pull the holder by the position B while pushing position A in the direction indicated by the arrow.
2 Install the battery on the battery holder.
Set a new battery properly with its (i) side facing up
as shown in the figure.
3 Insert the battery holder.
Push in the battery holder back into its original position.
Lithium battery
(included)
Back side
Position B
Turn the key in the ignition until the accessory indicator lights.
Power on: Press [SOURCE] (PWR).
Power off: Press [SOURCE] (PWR) again and hold.
E
N
G
L
I
S
H
2
ACC
ON
Volume
[" VOL]: Up
[# VOL]: Down
Press and hold for rapid adjustment.
Battery Notes
Battery holder
Position A
Remove and dispose of an old battery immediately.
Battery Information:
≥ Battery type: Panasonic lithium battery (CR2025) (included)
≥ Battery life: Approximately 6 months with normal use (at room temperature)
Volume level (0 to 40)
Caution:
≥ Improper use of batteries may cause overheating, an explosion or ignition, resulting in injury or a fire.
Battery leakage may damage the unit.
SCAN/APM
RANDOM
VOL
45WX4
<
REP
PWR
TUNE
TRACK
SEL
≥ Do not disassemble or short the battery. Do not throw a battery into a fire.
≥ Keep batteries away from children to avoid the risk of accidents.
≥ Be careful to the local disposal rules when you dispose of batteries.
CD RECEIVER
CQ-DP151W
BAND
REMOTE
DISP
MUTE
7
1
Control Reference Guide
8
2
9
3
10
4
11
5
12
6
SOURCE
LOUD
M/L
MONO
/LOC
Remote control signal sensor
Buttons of the remote control function in the same way as the controls on the main unit of the reference page.
Point the remote control unit at the main unit’s sensor (REMOTE).
Mute
Loudness
Press [MUTE] to mute the sound completely.
Press [LOUD] to enhance bass and treble
tones at low or medium volume.
MUTE
(ATT)
Power button (PWR)
(➡ page 19)
PWR
Mode button (MODE)
(➡ pages 22, 24)
Band button (BAND)
(➡ page 22)
MUTE
MODE
VOL
PRG
Mute button (MUTE)
(➡ page 19)
Press [MUTE] again to cancel.
LOUD
Press [LOUD] again to cancel.
Volume control buttons
(VOL, " #)
(➡ page 19)
Anti-volume-blast circuit:
When the power is switched off and on again, the volume slowly rises to the previous level.
The anti-volume-blast circuit will not work when the volume level is set lower than position 20 on the display.
BAND/DISC UP
TUNE
TRACK
Tune/ Track buttons
(TUNE/TRACK, 6 5/% $)
(➡ pages 22, 25)
Car Audio
Note:
≥ Disc up button (DISC UP) cannot be used in this model.
18
CQ-DP151/DP101W
CQ-DP151/DP101W
19
E
N
G
L
I
S
H
Power and Sound Controls (Continued)
3
1
Clock Basics
E
N
G
L
I
S
H
The 24-hour system is used for the clock.
4
Audio Mode (Bass/Treble/Balance/Fader)
Press [SEL] to select the audio mode.
Note:
≥ If no operation takes place for more than
5 seconds in audio mode (2 seconds in volume mode), the display returns to the regular
mode.
Regular Mode
Volume
Bass
Treble
Fader
Balance
SCAN/APM
SCAN/APM
RANDOM
RANDOM
VOL
CD RECEIVER
CQ-DP151W
BAND
45WX4
REMOTE
MUTE
7
1
8
2
9
3
10
4
11
5
12
6
M/L
[" VOL] or [# VOL] to change each
2 Press
level.
<
SOURCE
MUTE
/LOC
REP
PWR
REMOTE
LOUD
MONO
45WX4
TUNE
TRACK
SEL
DISP
DISP
CD RECEIVER
CQ-DP151W
BAND
REP
PWR
TUNE
TRACK
SEL
VOL
<
7
1
8
2
9
3
10
4
11
5
12
6
SOURCE
LOUD
M/L
MONO
/LOC
Initial Time
Clock Display
1 Press [DISP] (DISPLAY).
Press [DISP] (DISPLAY) to switch to the clock display.
Bass:
In tuner mode:
Hours
2 Press and hold [DISP] (DISPLAY).
Adjustable range: j12 to i12
Broadcast station
Clock display
(Hours blink.)
Treble:
3 Press [% TUNE] or [$ TUNE].
In CD player mode:
DISC
(Hours set.)
Adjustable range: j12 to i12
Minutes
4 Press [DISP] (DISPLAY).
Balance:
R (right speaker) or L (left speaker)
(Minutes blink.)
Adjustable range: 1 to 15
Balance center
5 Press [% TUNE] or [$ TUNE].
(Minutes set.)
Fader:
F (front speaker) or R (rear speaker)
6 Press [DISP] (DISPLAY).
TRACK
Playing time
Clock display
When the power is off:
Clock display
No display
Note:
≥ The [DISP] (DISPLAY) button will not work while
the CD player is set to the scan play mode.
Cancel the scan play mode before pressing
[DISP] (DISPLAY).
(End.)
Adjustable range: 1 to 15
20
CQ-DP151/DP101W
Fader center
Note:
≥ Press and hold [% TUNE] or [$ TUNE] to change
numbers rapidly.
Time Reset
Press and hold [DISP] (DISPLAY) for more than
2 seconds to activate the time setting mode to reset
the time.
Then, repeat steps 3 to 6.
CQ-DP151/DP101W
21
E
N
G
L
I
S
H
5
Radio Basics
Selection
1 Mode
Press [SOURCE] to change to
Preset Station Setting
Source
Radio
the radio mode.
Caution:
≥ To ensure safety, never attempt to preset stations while you are driving.
Up to 6 stations each can be saved in the FM1,
FM2, FM3 and AM preset station memories.
CD player
(When a CD is inserted.)
1 Band
SCAN/APM
SCAN/APM
RANDOM
VOL
CD RECEIVER
CQ-DP151W
BAND
45WX4
<
REMOTE
DISP
MUTE
7
1
8
2
9
3
10
4
11
12
6
5
LOUD
M/L
MONO
[% TUNE]: Lower frequency
REMOTE
DISP
MUTE
Seek Tuning
Press and hold ...
[$ TUNE]: Higher frequency
[% TUNE]: Lower frequency
Tuning will automatically stop when the signals
of the next broadcast station are received.
FM broadcast:
MONO
LOCAL
MONO
LOCAL
MONO
LOCAL
MONO
LOCAL
7
1
8
2
9
3
10
4
11
5
12
6
SOURCE
LOUD
M/L
MONO
/LOC
MONO OFF/
LOCAL OFF
MONO ON/
LOCAL OFF
Note:
≥ The stations manually preset on the selected
band will be deleted.
Manual Station Preset
1 Use manual or seek tuning to find a station.
(➡ page 22)
2 Press and hold one of the preset buttons [1]
to [6] until the display blinks once.
3 Tuning in a Preset Station
MONO ON/
LOCAL ON
Press the corresponding preset button [1] to [6]
to tune in a preset station.
MONO OFF/
LOCAL ON
Note:
≥ You can change the memory presetting by repeating
the above procedure.
AM broadcast:
MONO
LOCAL
MONO
LOCAL
CQ-DP151/DP101W
REP
PWR
TUNE
TRACK
/LOC
<
Press and hold [BAND] (APM) for more than
2 seconds (auto preset memory).
≥ The 6 strongest available stations will be automatically saved in the memory under preset
buttons [1] to [6].
≥ Once set, the preset stations are sequentially
scanned for 5 seconds each.
is significantly decreased when
weak signals are received from an FM
broadcast station.
LOCAL: Only strong signals of stations are
searched in seek tuning, while at the
LOCAL OFF setting, relatively weak signals are also searched.
FM broadcast:
Press [M/L] (MONO/LOC) to change the mode.
Release when at the desired mode.
AM broadcast:
Press [M/L] (MONO/LOC) to switch LOCAL mode
on and off.
22
45WX4
2 Auto Station Preset
Mono/Local Selection
4 MONO: Noise
CD RECEIVER
CQ-DP151W
BAND
SEL
SOURCE
2 Band
Press [BAND] to change the band.
Tuning
3 Manual
[$ TUNE]: Higher frequency
RANDOM
VOL
REP
PWR
STEREO
TUNE
TRACK
SEL
6
Preset number
Press [BAND] to select a desired band.
(➡ page 22)
FM stereo indicator
E
N
G
L
I
S
H
LOCAL OFF
LOCAL ON
CQ-DP151/DP101W
23
E
N
G
L
I
S
H
7
CD Player Basics
Caution:
≥ Only 12 cm CD is available for this unit.
< (EJECT)
Disc Insert and Playback
Disc insert
E
N
G
L
I
S
H
Track Selection
Track Search
[5TRACK]: Advance to the next track.
[6TRACK]: Back to the beginning of the
current track.
Back to the previous track.
(Press twice.)
Press and hold ...
[5TRACK]: Fast forward
[6TRACK]: Fast backward
Release to resume the regular CD play.
8
<
Direct Track Selection
Playback will start automatically.
“LOAd” will be displayed until the disc is
loaded.
≥ Press a track number button from [1] to [6].
The corresponding track starts playing.
≥ Press and hold a track number button from [7] to
[12] ([1] to [6]) for more than 1 second.
The corresponding track starts playing.
Label side
When CD is in the player
Press [SOURCE] to change to CD play mode.
SCAN/APM
RANDOM
Stop and Disc Eject
VOL
<
MUTE
REP
7
1
8
2
9
3
10
4
11
5
12
6
SOURCE
LOUD
M/L
MONO
/LOC
PWR
TRACK
10
11
DISC
SOURCE
REMOTE
LOUD
12
≥ Lights when the disc is loaded.
≥ Do not insert a disc when this indicator lights.
Listening to a CD
Display Change
Mode Selection
Press [DISP] (DISPLAY) to switch to the clock
display.
Press [SOURCE] to change to the CD play mode.
Scan play
Random play
Source
Radio
CD player
(When a CD is inserted.)
DISC
TRACK
Track number/
Track playing time
REP
PWR
RANDOM
45WX4
<
REMOTE
DISP
CD RECEIVER
45WX4
TUNE
TRACK
SEL
Press [<] (EJECT) to stop CD play and eject the
disc.
During disc ejection, “EJ” (EJECT) will be displayed.
CD RECEIVER
CQ-DP151W
BAND
Random play
Repeat play
≥ Press and hold [REP] (RANDOM) for more
than 2 seconds.
All the tracks are played in random order.
≥ Press and hold [REP] (RANDOM) again to
cancel.
DISC
R
TRACK
Clock display
Repeat play
SCAN/APM
RANDOM
VOL
CD RECEIVER
CQ-DP151W
BAND
<
DISC
REP
TRACK
REP
PWR
TUNE
TRACK
SEL
45WX4
≥ Press [REP].
The current track is repeated.
≥ Press [REP] again to cancel.
TRACK
DISP
MUTE
7
1
8
2
9
3
10
4
11
5
DISC
REMOTE
12
6
SOURCE
LOUD
M/L
MONO
/LOC
Scan play
≥ Press [BAND] (SCAN).
The first 10 seconds of each track on
the disc are played in sequence.
≥ Press [BAND] (SCAN) again to cancel.
DISC
TRACK
Lights when the disc is loaded.
<CD player display> Track playing time
24
CQ-DP151/DP101W
Track number
CQ-DP151/DP101W
25
E
N
G
L
I
S
H
Installation Guide
❐ Identify All Leads
WARNING
9
This installation information is designed for experienced installers and is not intended for non-technical individuals. It does not contain warnings or cautions of potential dangers involved in attempting to install this product.
Any attempt to install this product in a motor car by anyone other than qualified installer could cause damage to the electrical system and could result in serious personal injury or death.
❐ Installation Hardware
No.
Item
Diagram
Q’ty
1
Mounting collar
1
2
Hex. nut (5 mm·)
1
3
Rear support strap
1
4
Tapping screw
(5 mm·a16 mm)
1
5
Mounting bolt (5 mm·)
1
6
Power connector
1
Caution:
≥ This unit operates with a 12 V DC negative
ground auto battery system only. Do not attempt to use it in any other system. Doing so
could cause serious damage.
Before you begin installation, look for the items
which are packed with your unit.
≥ Warranty Card…Fill this out promptly.
≥ Panasonic Servicenter for Service Directory
…Keep for future reference in case the product
needs servicing.
≥ Installation Hardware…Needed for in-dash installation.
❐ Required Tools
7
Trim plate
1
You’ll need a screwdriver, a 1.5 V AA battery, and
the following:
12 V DC
Electrical
Side-cut
Test bulb
tape
pliers
❐ Overview
This product should be installed by a professional.
However, if you plan to install this product yourself,
your first step is to decide where to install it. The
instructions in these pages will guide you through
the remaining steps:
(Please refer to the “WARNING” statement
above.)
≥ Identify and label the car wires.
≥ Connect the car wires to the wires of the power
connector.
≥ Install the unit in the dashboard.
≥ Check the operation of the unit.
If you encounter problems, please consult your
nearest professional installer.
26
CQ-DP151/DP101W
The first step in installation is to identify all the car
wires you’ll use when hooking up your sound system.
As you identify each wire, we suggest that you label
it using masking tape and a permanent marker.
This will help avoid confusion when making connections later.
Note:
≥ Do not connect the power connector to the stereo
unit until you have made all connections. If there
are no plastic caps on the stereo hooking wires,
insulate all exposed leads with electrical tape until
you are ready to use them. Identify the leads in
the following order.
Power Lead
If your car has a radio or is pre-wired for one:
Cut the connector wires one at a time from the plug
(leaving the leads as long as possible) so that you
can work with individual leads.
Turn the ignition on to the accessory position, and
ground one lead of the test bulb to the chassis.
Touch the other lead of the test bulb to each of the
exposed wires from the cut radio connector plug.
Touch one wire at a time until you find the outlet
that causes the test bulb to light.
Now turn the ignition off and then on. If the bulb
also turns off and on, that outlet is the car power
lead.
If your car is not wired for an audio unit:
Go to the fuse block and find the fuse port for radio
(RADIO), accessory (ACC), or ignition (IGN).
❐ Dashboard Specifications
Thickness
Min. 4.75 mm
Max. 5.56 mm
53 mm
182 mm
Battery Lead
If your stereo unit has a yellow lead, you will need
to locate the car’s battery lead. Otherwise you may
ignore this procedure. (The yellow battery lead provides continuous power to maintain a clock, memory storage, or other function.)
If your car has a radio or is pre-wired for one:
With the ignition and headlights off, identify the car
battery lead by grounding one lead of the test bulb
to the chassis and checking the remaining exposed
wires from the cut radio connector plug.
If your car is not wired for an audio unit:
Go to the fuse block and find the fuse port for the
battery, usually marked BAT.
E
N
G
L
I
S
H
10
Speakers
Identify the car speaker leads. There are two leads
for each speaker which are usually color coded.
A handy way to identify the speaker leads and the
speaker they are connected with is to test the leads
using a 1.5 V AA battery as follows.
Hold one lead against one pole of the battery and
stroke the other lead across the other pole. You will
hear a scraping sound in one of the speakers if you
are holding a speaker lead.
If not, keep testing different lead combinations until
you have located all the speaker leads. When you
label them, include the speaker location for each.
Antenna Motor
If your car is equipped with an automatic power antenna, identify the car motor antenna lead by connecting one bulb tester lead to the car battery lead
and touching the remaining exposed wires from the
cut radio connector plug one at a time. You will
hear the antenna motor activate when you touch
the correct wire.
Antenna
The antenna lead is a thick, black wire with a metal
plug at the end.
❐ Connect All Leads
Now that you have identified all the wires in the car,
you are ready to begin connecting them to the
stereo unit wires. The wiring diagram (➡ page 32)
shows the proper connections and color coding of
the leads.
We strongly recommend that you test the unit before making a final installation.
You can set the unit on the floor and make temporary connections to test the unit. Use electrical tape
to cover all exposed wires.
Important:
≥ Connect the red power lead last, after you
have made and insulated all other connections.
Ground
Connect the black ground lead of the power connector to the metal car chassis.
CQ-DP151/DP101W
27
E
N
G
L
I
S
H
11
Installation Guide (Continued)
Speakers
Connect the speaker wires. See the wiring diagram
(➡ page 32) for the proper hookups. Follow the diagram carefully to avoid damaging the speakers
and the stereo unit.
The speakers used must be able to handle more
than 45 W of audio power. If using an optional
audio amplifier, the speakers should be able to handle the maximum amplifier output power. Speakers
with low input ratings can be damaged. Speaker
impedance should measure 4–8 ≠, which is typically marked on most speakers. Lower or higher
impedance speakers will affect output and can
cause both speaker and stereo unit damage.
Motor Antenna
Connect the car motor antenna lead to the dark
blue motor antenna relay control lead.
Battery
Connect the yellow battery lead to the correct radio
wire or to the battery fuse port on the fuse block.
Antenna
Connect the antenna by plugging the antenna lead
into the antenna receptacle.
Equipment
Connect any optional equipment such as an amplifier, according to the instructions furnished with
the equipment. Leave about 30 cm of distance between the speaker leads/amplifier unit and the antenna/antenna extension cord. Read the operating
and installation instructions of any equipment you
will connect to this unit.
Power
Connect the red power lead to the correct car radio
wire or to the appropriate fuse port on the fuse
block.
If the stereo unit functions properly with all these
connections made, disconnect the wires and proceed to the final installation.
❐ Final Installation
Lead Connections
Connect all wires, making sure that each connection is insulated and secure. Bundle all loose wires
and fasten them with tape so they will not fall down
later. Now insert the stereo unit into the mounting
collar.
Congratulations! After making a few final checks,
you’re ready to enjoy your new auto stereo system.
28
CQ-DP151/DP101W
❐ Final Checks
❐ Installation Procedures
1. Make sure that all wires are properly connected
and insulated.
2. Make sure that the stereo unit is securely held in
the mounting collar.
3. Turn on the ignition to check the unit for proper
operation.
First complete the electrical connections, and
then check them for correctness. (➡ page 32)
E
N
G
L
I
S
H
mounting collar 1 into the dashboard, and
1 Insert
bend the mounting tabs out with a screwdriver.
12
Make sure that the lock lever (§) is flush with the
mounting collar 1 (not projecting outward).
Lock lever (§)
If you have difficulties, consult your nearest authorized professional installer for assistance.
❐ Preparation
≥ We strongly recommend that you wear gloves
for installation work to protect yourself from
injuries.
≥ When bending the mounting tabs of the
mounting collar with a screwdriver, be careful
not to injure your hands and fingers.
6 Power connector
Lock lever (§)
≥ Disconnect the cable from the negative - battery
terminal (see caution below).
≥ Unit should be installed in a horizontal position
with the front end up at a convenient angle, but
not more than 30o.
Mounting tabs
5 Mounting bolt
the rear of the unit.
2 Secure
After fixing mounting bolt 5 and power connector
6, fix the rear of the unit to the car body by either
method (a) or (b) shown below.
3 Insert trim plate 7.
installation, reconnect
4 After
battery terminal.
Less than 30x
Caution:
≥ Do not disconnect the battery terminals of a
car with a trip or navigational computer since
all user settings stored in memory will be lost.
Instead take extra care with installing the unit
to prevent shorts.
(a) Using the rear support strap 3
the negative -
(b) Using the rubber cushion (option)
Fire wall of car
Dashboard Installation
4 Tapping screw
(5 mm·a16 mm)
Installation Opening
53 mm
182 mm
This unit can be installed in any dashboard having
an opening as shown above. The dashboard should
be 4.75 mmj5.56 mm thick in order to be able to
support the unit.
3 mm·
Rear support bracket
Rubber cushion (option) (provided on the car)
2 Hex. nut
(5 mm·)
3 Rear support
strap
5 Mounting bolt
(5 mm·)
1 Mounting collar
5 Mounting bolt
(5 mm·)
1 Mounting collar
CQ-DP151/DP101W
29
E
N
G
L
I
S
H
Installation Guide (Continued)
Remove the Unit
Install Removable Face Plate
13
Switch off the power of the unit.
1 Slide the left side of the removable face plate in
place.
2 Press the right end of the removable face plate
until “click” is heard.
the removable face plate.
1 Remove
1 Press ['] (release button). The removable
face plate will be released.
Main unit
Contact
Release button
E
N
G
L
I
S
H
14
2
Plastic tab
1
<
RANDOM
<
REP
<
PWR
SOURCE
2 Pull on the right side of the unit.
Cutout
2 Remove the trim plate 7 with a screwdriver.
7 Trim plate
Screwdriver
1
2
out the unit while pushing down the lock
3 Pull
lever with a screwdriver.
Lock lever
Cautions:
≥ This face plate is not water-proof. Do not expose it to water or excessive moisture.
≥ Do not remove the face plate while driving your car.
≥ Do not place the face plate on the dashboard or nearby areas where the temperature rises to high level.
≥ Do not touch the contacts on the face plate or on the main unit, since this may result in poor electrical
contacts.
≥ If dirt or other foreign substances get on the contacts, wipe them off with a clean and dry cloth.
≥ Do not apply a strong downward force onto the face plate and do not put anything on it while it is open, or
it might be damaged.
Lock lever
4 Remove the unit pulling with both hands.
30
CQ-DP151/DP101W
CQ-DP151/DP101W
31
E
N
G
L
I
S
H
15
Electrical Connections
Troubleshooting
Cautions:
≥ This product is designed to operate of a 12 V DC, negative ground battery system.
≥ To prevent damage to the unit, be sure to follow the wiring diagram below.
≥ Remove approx. 5 mm of protective covering from the ends of the leads before connecting.
≥ Do not insert the power connector into the unit until the wiring is completed.
≥ Be sure to insulate any exposed wires from a possible short-circuit from the car chassis. Bundle all cables
and keep cable terminals free from touching any metal parts.
≥ Remember, if your car has a drive computer or a navigation computer, the data of its memory may be
erased when the battery terminals are disconnected.
≥ All other installation methods require the use of dedicated metal fittings. Consult with a qualified servicing
engineer or your dealer if other method are required.
Accessory used for wiring
No.
Item
Q’ty
6
Power connector
1
Preliminary Steps
Check and take steps as described in the tables below.
If You Suspect Something Wrong
Immediately switch power off.
Disconnect the power connector and check that there is neither smoke nor heat from the unit before asking for repairs.
Never try to repair the unit yourself because it is dangerous to
do so.
❐ Common
Trouble
Pre-Amp output connector (Rear)
Cables are not correctly connected.
➡Connect cables correctly.
Pre-Amp output connector (Front)
CQ-DP151/DP101W
they may be something wrong with the unit.
Consult your nearest Panasonic Servicenter
for service.
6 Power connector
Yellow
Ground lead
To a clean, bare metallic part of car chassis.
Motor antenna
relay control lead
(To motor antenna) (Max. 500 mA)
This lead is not intended for use with switch
actuated power antenna.
(r)
Left speaker
(Front)
CQ-DP151/DP101W
(s)
BATTERY
15A
ACC
Red
Dark blue
Dark blue/white stripe
Speaker lead
Gray
(r)
Right speaker
(Front)
Power lead
To ACC power,
+12 V DC
Amp. relay control
power lead
(Max. 500 mA)
This lead is for connection
to the power amplifier.
Fuse is burnt.
➡Call the store where you purchased the unit, or your nearest service
station and ask for fuse replacement.
Mute is set to ON.
➡Set it to OFF.
No sound.
(s)
Green
(r)
Left speaker
(Rear)
Violet/black
stripe
(s)
Violet
(r)
Right speaker
(Rear)
Cables are not correctly connected.
➡Connect cables correctly.
Condensation (dew)
➡Wait for a while before use.
REAR SP
Green/black
stripe
Accessory cable is not correctly connected.
➡Connect the accessory cable to your car’s ACC source.
Grounding wire is not correctly connected.
➡Connect the grounding wire to a metal part of the car.
Battery lead
To the car battery,
continuous +12 V DC
Black
FRONT SP
Gray/black
stripe
No power.
§ If the fuse (rear panel) blows frequently,
Antenna
32
Battery cable is not correctly connected.
➡Connect the battery cable to the terminal that is always live.
Fuse (15 A) §
L (White)
R (Red)
(s)
Cause/Step
Car’s engine switch is not on.
➡Turn your car’s ignition switch to ACC or ON.
Only for CQ-DP151W
White
16
Troubleshooting Tips
❐ Wiring Diagram
White/black
stripe
Cautions:
≥ Do not use the unit if it malfunctions or
is something wrong.
≥ Do not use the unit in abnormal condition, for example, without sound, or
with smoke or foul smell, can cause ignition or electric shock. Immediately
stop using it and call the store where
you purchased it.
E
N
G
L
I
S
H
❐ Radio
Trouble
Cause/Step
Much noise in FM stereo
and monaural broadcasts.
Station is too far, or signals are too weak.
➡Select other stations of higher signal level.
Preset station is reset.
Battery cable is not correctly connected.
➡Connect the battery cable to the terminal that is always live.
CQ-DP151/DP101W
33
E
N
G
L
I
S
H
17
Troubleshooting (Continued)
❐ CD
❐ Remote Control
Trouble
Cause/Step
CD is inside but no
sound.
CD sound skips, tone
quality is low.
Sound skips due to vibration.
CD is dirty.
➡Clean CD, referring to the section on “Notes on CD”.
CD is dirty.
➡Clean CD, referring to the section on “Notes on CD”.
≥ CD is defective.
≥ Mechanical trouble.
➡Press [<] (EJECT). If normal operation is not restored yet, call the
store where you purchased the unit or the nearest service station to
ask for repairs.
CD is not ejected.
Buttons are invalid for
operation.
No sound from
right, front or
speakers.
Error Display Messages
❐ CD
Display
Left and right sounds are
reversed in stereo listening.
The right speaker wire is connected to the left speaker and the left speaker wire to the right speaker.
➡Connect the speaker wires to the correct ones.
Cause/Step
Disc is dirty, or is upside down.
➡The disc is ejected automatically.
Disc has scars.
➡The disc is ejected automatically.
No operation by some cause.
➡Turn off the car engine (ACC off) and remove the fuse from the
battery lead (yellow) for 1 minute. Then reinstall the fuse.
Left and right balance, or front and rear balance is off on one side.
➡Adjust balance/fader mode as appropriate.
Cables are not correctly connected.
➡Connect the cables correctly.
Wrong the battery.
➡Check the battery.
Remote control is in the wrong direction.
➡Direct the remote control at sensor (REMOTE) on the panel.
Cause/Step
left,
rear
18
Battery has run down.
➡Replace the battery.
❐ Sound Setting
Trouble
Cause/Step
Battery poles (i) (j) are reversed.
➡Insert the battery correctly.
Mounting angle is over 30o.
➡Adjust mounting angle to less than 30o.
Instable mounting.
➡Mount the unit securely with the mounting parts, referring to the
section on installation.
Only for CQ-DP151W
Trouble
CD is upside down.
➡Place CD in the correct direction, and the label side up.
E
N
G
L
I
S
H
Maintenance
Your product is designed and manufactured to ensure a minimum of maintenance. Use a soft cloth for routine
exterior cleaning. Never use benzine, thinner or other solvents.
Product Servicing
If the suggestions in the charts do not solve the problem, we recommend that you take it to your nearest authorized Panasonic Servicenter. The product should be serviced only by a qualified technician.
Replacing the Fuse
Use fuses of the same specified rating (15 A). Using different substitutes or fuses with higher ratings, or connecting the unit directly without a fuse, could cause fire or damage to the stereo unit.
If the replacement fuse fails, contact your nearest Panasonic Servicenter for service.
34
CQ-DP151/DP101W
CQ-DP151/DP101W
35
E
N
G
L
I
S
H
Maintenance
Specifications
Care of the Unit
❐ General
19
❐ Cleaning this Unit
❐ Caution on Cleaning
Use a dry, soft cloth to wipe.
Never use solvents such as benzine, thinner as they
may mar the surface of the unit.
Notes on CD
ONLY USE DISCS CARRYING THE LABEL.
How to hold the CD
≥ Do not touch the underside of the disc.
≥ Do not make scratches on the disc.
≥ Do not bend disc.
≥ When not in use, keep CD in the case.
Dimensions (WaHaD):
Weight:
Frequency range:
Usable sensitivity:
50 dB quieting sensitivity:
Frequency response:
Alternate channel selectivity:
Stereo separation:
Image response ratio:
IF response ratio:
Signal/noise ratio:
Label side
Do not use irregular shaped CDs.
<Right>
Disc cleaning
Use a dry, soft cloth to wipe from the center outward.
Caution on new discs
A new disc may have rough edges on its inner and outer
perimeter. These may cause malfunction.
Remove the rough edges using a pencil, etc.
Rough edge
Rough edge
36
CQ-DP151/DP101W
12 V DC (11 Vj16 V), test voltage 14.4 V, negative ground
Less than 2.2 A (CD play mode; 0.5 Wa4 channels)
45 Wa4 channels at 1 kHz, Volume control maximum
20 Wa4 channels
20
n12 dB at 100 Hz
n12 dB at 10 kHz
4j8 ≠
2.0 V (CD play mode; 1 kHz, 0 dB)
200 ≠ (CQ-DP151W)
600 ≠ (CQ-DP101W)
178a50a150 mm
1.5 k g
❐ FM Stereo Radio
Do not use irregular shaped CDs.
Do not leave discs on the following places:
≥ Direct sunlight
≥ Near car heaters
≥ Dirty, dusty and damp areas
≥ Seats and dashboards
Power supply:
Current consumption:
Maximum power output:
Power output:
Tone adjustment range:
Bass:
Treble:
Suitable speaker impedance:
Pre-Amp output voltage:
Output impedance:
E
N
G
L
I
S
H
<Wrong>
87.5 MHzj108.0 MHz
11.0 dBf. (1.25 ¨V, 75 ≠)
15.2 dBf. (1.6 ¨V, 75 ≠)
30 Hzj15 kHz (n3 dB)
75 dB
42 dB (1 kHz)
75 dB
100 dB
70 dB
❐ AM Radio
Frequency range:
Usable sensitivity:
531 kHzj1 602 kHz
28 dB/¨V (25 ¨V, S/N 20 dB)
❐ CD Player
Sampling frequency:
DA converter:
Error correction system:
Pick-up type:
Light source:
Wave length:
Frequency response:
Signal/noise ratio:
Total harmonic distortion:
Wow and flutter:
Channel separation:
32 times oversampling
MASH • 1 bit/4 DAC system
Panasonic super decoding algorithm
Astigma 3-beam
Semiconductor laser
780 nm
20 Hzj20 kHz (n1 dB)
96 dB
0.01 % (1 kHz)
Below measurable limits
75 dB
Note:
≥ Specifications and the design are subject to modification without notice due to improvements in technology.
CQ-DP151/DP101W
37
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
