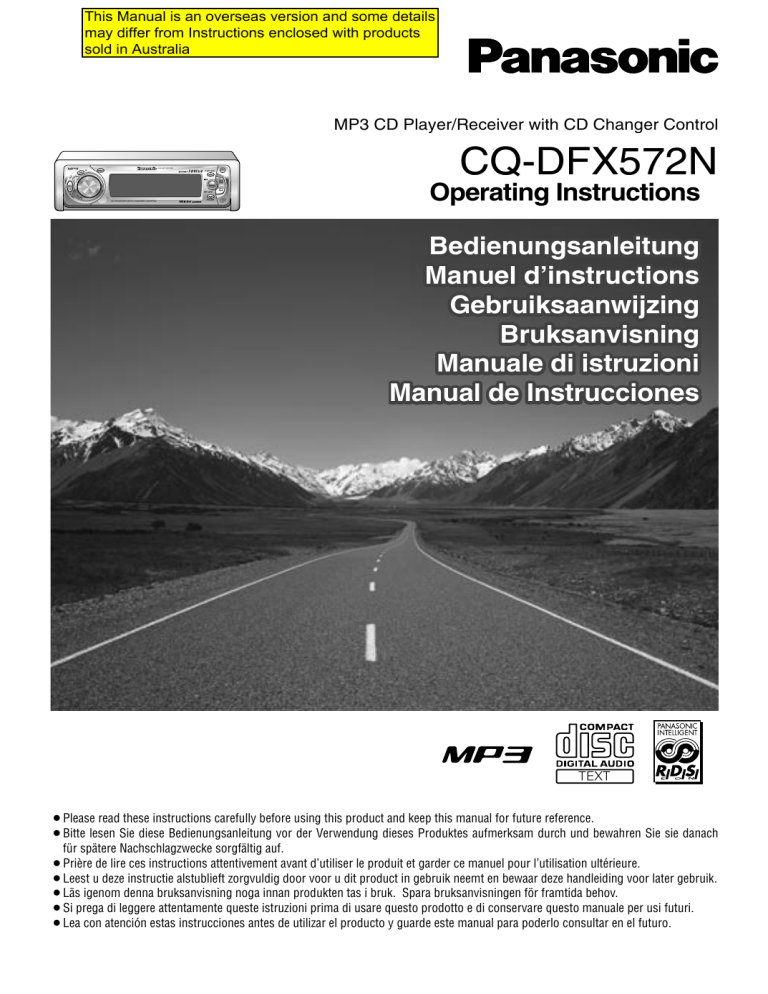

This Manual is an overseas version and some details
may differ from Instructions enclosed with products
sold in Australia
MP3 CD Player/Receiver with CD Changer Control
AF
CQ-DFX572N
DISP
P·SET/DISC
PW
R
OPEN
U
PUS
HM
EN
TA
TUNE
BAND
SRC
TRACK
SET/APM
SO
UR
CE
VO
LUM
E
CD RECEIVER WITH CHANGER CONTROL
EON PTY CT
FOLDER
CQ-DFX572N
Operating Instructions
Bedienungsanleitung
Manuel d’instructions
Gebruiksaanwijzing
Bruksanvisning
Manuale di istruzioni
Manual de Instrucciones
TEXT
¡Please read these instructions carefully before using this product and keep this manual for future reference.
¡Bitte lesen Sie diese Bedienungsanleitung vor der Verwendung dieses Produktes aufmerksam durch und bewahren Sie sie danach
für spätere Nachschlagzwecke sorgfältig auf.
¡Prière de lire ces instructions attentivement avant d’utiliser le produit et garder ce manuel pour l’utilisation ultérieure.
¡Leest u deze instructie alstublieft zorgvuldig door voor u dit product in gebruik neemt en bewaar deze handleiding voor later gebruik.
¡Läs igenom denna bruksanvisning noga innan produkten tas i bruk. Spara bruksanvisningen för framtida behov.
¡Si prega di leggere attentamente queste istruzioni prima di usare questo prodotto e di conservare questo manuale per usi futuri.
¡Lea con atención estas instrucciones antes de utilizar el producto y guarde este manual para poderlo consultar en el futuro.
Contents
Page
Precautions ...................................................
Components ..................................................
General ..........................................................
Radio ..............................................................
Radio Data System (RDS) ............................
CD Player .......................................................
MP3 Player.....................................................
Inhaltsverzeichnis
4
5
6
8
10
16
18
Seite
Vorsichtsmaßnahmen .................................. 46
Komponenten.............................................. 47
Allgemeines................................................... 48
Radio.............................................................. 50
Radio-Daten-System (RDS)-Empfang ......... 52
CD-Spieler ..................................................... 58
MP3-Spieler ................................................... 60
Table des matières
Page
Mesures de précaution..................................88
Éléments constitutifs ....................................89
Généralités .....................................................90
Autoradio ........................................................92
Réception radio RDS .....................................94
Lecteur de CD ..............................................100
Lecteur de MP3 ............................................102
Inhoudsopgave
Bladzijde
Voorzorgen ...................................................130
Componenten...............................................131
Algemeen......................................................132
Radio .............................................................134
Radio Data Systeem (RDS) .........................136
CD-speler ......................................................142
MP3-speler....................................................144
Sida
Innehåll
Observera ....................................................
Medföljande delar .......................................
Allmänt.........................................................
Radiomottagning ........................................
RDS (Radio Data System) ..........................
CD-spelare ...................................................
MP3-spelare.................................................
Contenuto
Pag.
Precauzioni..................................................
Componenti .................................................
Generali .......................................................
Radio ............................................................
RDS (Radio Data System) ..........................
Lettore CD ...................................................
Lettore MP3 ................................................
Indice
CQ-DFX572N
214
215
216
218
220
226
228
Pag.
Precauciones ..............................................
Componentes ..............................................
Generalidades .............................................
Radio ............................................................
Sistema da datos
radiofónicos (RDS) ...............................
Reproductor de CD .....................................
2
172
173
174
176
178
184
186
256
257
258
260
262
268
CD Changer Control .....................................
Audio Setting-AUDIO MENU ........................
Display Setting-PICTURE MENU .................
Function Setting-FUNCTION MENU ............
Installation .....................................................
Anti-Theft System .........................................
Electrical Connections .................................
22
24
26
28
30
33
34
Steuerung des CD-Wechslers ..................... 64
Audio-Einstellung <AUDIO-Menü>.............. 66
Bildeinstellung <PICTURE-Menü> .............. 68
Funktionseinstellung <FUNCTION-Menü> . 70
Einbau............................................................ 72
Diebstahlschutz ............................................ 75
Elektrischer Anschluß .................................. 76
Speaker Connections ...................................
Fuse ...............................................................
Maintenance ..................................................
Troubleshooting............................................
Specifications ...............................................
38
38
39
40
45
Anschluß der Lautsprecher ......................... 80
Sicherung ...................................................... 80
Pflege ............................................................. 81
Störungsbeseitigung.................................... 82
Technische Daten ......................................... 87
Commande de changeur de CD .................106
Définition de sortie audio-Menu AUDIO.... 108
Définition d'image-Menu PICTURE............ 110
Définition de fonction-Menu FUNCTION ... 112
Installation ....................................................114
Système antivol............................................117
Branchements électriques ..........................118
Branchment des haut-parleurs...................122
Fusible ..........................................................122
Entretien .......................................................123
En cas de difficulté ......................................124
Données techniques....................................129
Bediening van de CD-wisselaar .................148
Geluidsinstelling - AUDIO Menu................ 150
Beeldinstelling - PICTURE Menu ............... 152
Functie-instelling - FUNCTION Menu ........ 154
Installatie ..................................................... 156
Anti-diefstal systeem.................................. 159
Elektrische aansluitingen .......................... 160
Aansluitingen luidsprekers........................
Zekering .......................................................
Onderhoud ..................................................
Verhelpen van storingen ............................
Technische gegevens.................................
164
164
165
166
171
CD-växlarstyrning .......................................
Ljudinställningar-ljudmeny ........................
Bildskärmsinställningar-bildmeny ............
Visning av funktionsmeny .........................
Montering ....................................................
Stöldskyddsanordning ...............................
Elektriska anslutningar ..............................
190
192
194
196
198
201
202
Anslutning av högtalare .............................
Säkring.........................................................
Underhåll .....................................................
Felsökning ...................................................
Tekniska data ..............................................
206
206
207
208
213
Controllo del cambia CD ............................
Impostazione dell'audio-Menu AUDIO .....
Impostazione dell'immagine
-Menu PICTURE .....................................
Impostazione della funzione
-Menu FUNCTION....................................
Installazione ................................................
232
234
238
240
Sistema antifurto ........................................
Collegamenti elettrici .................................
Collegamenti degli altoparlanti .................
Fusibile ........................................................
Manutenzione ..............................................
Correzione dei difetti di funzionamento ...
Dati tecnici...................................................
243
244
248
248
249
250
255
Reproductor MP3 ........................................
Control del cambiador de discos CD ........
Ajuste de audio-Menú de AUDIO...............
Ajuste de la imagen-Menú de PICTURE ...
Ajuste de la función-Menú de FUNCTION..
Instalación ...................................................
Sistema antirrobo .......................................
270
274
276
278
280
282
285
Conexiones eléctricas................................
Conexiones de los altavoces.....................
Fusible .........................................................
Mantenimiento ............................................
Solución de problemas ..............................
Especificaciones.........................................
286
290
290
291
292
297
236
CQ-DFX572N
3
E
N
G
L
I
S
H
Panasonic welcomes you to their constantly growing family of electronic products owners.
We endeavor to give you the advantages of precise electronic and mechanical engineering, manufactured with carefully
selected components, and assembled by people who are proud of the reputation their work has built for our company.
We know this product will bring you many hours of enjoyment, and after you discover the quality, value and reliability
we have built into it, you too will be proud to be a member of our family.
1
Precautions
Volume Level
Disc Mechanism
For your driving safety, keep the volume level low enough
to be aware of road and traffic conditions.
Do not insert coins or any small objects. Keep screwdrivers
and other metallic objects away from the disc mechanism
and disc.
Car Washing
To avoid electrical shorts which may cause fire, or other
damage, do not expose this product (including the
speakers and CDs) to water or excessive moisture.
Car Ventilation
If your car is parked for several hours in direct sunlight, the
temperature inside the car may become very high. It is
advisable to drive the car and give the interior a chance to
cool down before switching the unit on.
Service
This product is made of precision parts. Do not attempt to
disassemble or adjust any parts. For repair, please consult
your nearest authorized Panasonic Service Center.
Note: The preset memory is cleared to return to the
original factory setting when the power connector or battery is disconnected.
Power Supply
This product is designed to be used in a car having a 12Volt negative ground battery system.
Laser Product
Label Indications and Their Locations
DANGER!
Invisible laser radiation
when open. Avoid direct
exposure to beam.
CLASS 1 LASER PRODUCT
¡APPREIL À LASER DE CLASSE
¡KLASS 1 LASER APPARAT
¡LUOKAN 1 LASERPLAITE
Caution: This product utilizes a laser.
Use of controls or adjustments or performance of procedures other than
those specified herein may result in hazardous radiation exposure.
Laser products:
Wave Length
780 nm
Laser Power
No hazardous radiation is emitted with safety protection.
Do not take apart this unit or attempt to make any changes
yourself.
This unit is a very intricate device that uses a laser pickup to retrieve
information from the surface of compact discs. The laser is carefully
shielded so that its rays remain inside the cabinet.
Therefore, never try to disassemble the player or alter any of its parts
since you may be exposed to laser rays and dangerous voltages.
4
CQ-DFX572N
Caution Label
DANGER! Invisible laser radiation when
open. Avoid direct exposure to beam.
ADVARSEL! Usynligt laserlys udstråles
ved åbning. Undgå direkte bestråling.
VARO! Avattaessa ja suojalukitus
ohitettaessa olet alttiina näkymättömälle
lasersäteilylle. Älä katso säteeseen.
VARNING! Osynlig lasersträlning när
denna del är öppnad och spärren är
urkopplad. Betrakta ej strälen.
ADVERSEL! Usynlig laserstråling når
deksel åpnes og sikkerhedslås brytes.
Unngå eksponering for strålen.
Deck Ass’y
(Upper Side)
VORSICHT! UNSICHTBARE LASERSTRAHLUNG!
WENN ABDECKUNG GEÖFFNET IST, NICHT DEM
LASERSTRAHL AUSSETZEN.
Components
Components
• Operating Instructions ........................................................................................1
• Supplied Hardware...................................................................1 set (a page 30)
• Remote Control Unit ...........................................................................................1
• Lithium Battery (CR2025)...................................................................................1
• Warranty Card.....................................................................................................1
E
N
G
L
I
S
H
2
Remote Control Preparation
Battery Installation
1. Remove the battery holder.
Pull the holder out at position B while pushing position A as indicated.
2. Install the battery on the battery holder.
Place the battery in the holder with its (+) side upwards as shown.
3. Insert the battery holder.
Push in the battery holder back into its original position.
(Back side)
Lithium battery
Position B
Position A
Battery Notes
Battery holder
Remove and dispose of an old battery immediately.
Battery Information:
¡Battery Type: Panasonic lithium battery (CR2025) (Included)
¡Battery Life: Approximately 6 months under normal use (at room temperature)
Caution: Improper use of batteries may cause overheating, an explosion or
ignition, resulting in injury or a fire. Battery leakage may damage the unit.
¡Do not disassemble or short the battery. Do not throw a battery into a fire.
¡Keep batteries away from children to avoid the risk of accidents.
¡Follow local regulations when disposing of batteries.
CQ-DFX572N
5
E
N
G
L
I
S
H
General
[SOURCE]
(Power/Source)
[DISP] (Display)
3
C
P·SET/DIS
[VOL}] [VOL{]
(Volume)
OPEN
[DISP]
(Display)
72N
CQ-DFX5
TUNEE
TUN
AF
CK
ND TRA
TRACK
BAND
BA
DISPP
DIS
PW
SET/APM
PUSH
ME
NU
R
TA
FOLDER
SRCC
SR
L
RO
R CONT
SO
UR
CE
VO
CHANGE
R WITH
LUM
E
CEIVE
CD RE
[]] [[]
(Adjust)
[MUTE]
(Mute/Attenuation)
[]]
[[]
Power
Turn your car's ignition key to ACC or ON position.
ON : Press [SRC] / [SOURCE].
OFF : Press [SRC] / [SOURCE] again and hold for more
than 1 second.
Note: If the security function is set to ON, the security message
is shown with a warning alarm. (Default: S-LED ON)
(a Page 28 about Security Function setting)
Demonstration Message
When you use this unit for the first time,
a demonstration message appears on
the display.
Press [DISP] to change to regular
mode.
Scrolling....
ACC Selection
If your car has the ACC position on the ignition switch,
set the ACC selection to ON. (Default: ACC OFF)
(a Page 28)
ACC ON is attached to the functional descriptions
under the ACC selection ON condition.
Note: To display the message again,
press [SRC] / [SOURCE] for 4 seconds or more when turning power
on. ACC ON
Source
Press [SRC] / [SOURCE] to change the source.
6
Radio
CD Player
(a Page 8)
(CD is in the player.
a Page 16)
CQ-DFX572N
MP3 Player
OR
(MP3 data disc is in the
player. a Page 18)
Auxiliary
CD Changer
Note: Connect to external
devices.
(A optional CD changer is
connected and magazine is in
the changer. a Page 22)
Volume
Clock Setting
Select the radio AM mode.(a Page 8)
Press and hold [DISP] for more than 2 seconds.
Up
Down
E
N
G
L
I
S
H
4
Setting Range : 0 to 40
Note: The sound level for each source is stored in
memory. (For radio, one volume setting for AM, one
volume setting for all FMs)
Mute / Attenuation
Adjust HOUR.
[[] : put forward hour.
[]] : put back hour.
(Only for remote control)
ON : Press [MUTE].
OFF : Press again.
Decreasing volume range depends on setting.
(Mute / Attenuation setting a Page 28)
Press [DISP].
Clock Display
When the power is set to OFF and ACC is set to ON,
press [DISP].
(Clock time)
Adjust MINUTE.
[[] : put forward minute.
[]] : put back minute.
(Display off)
When the power is set to ON, refer to the description
for each source mode.
Press [DISP].
Note: When a broadcast of FM Radio Data System is
received, the clock is put right automatically by the
Clock Time service. (a Page 10)
CQ-DFX572N
7
E
N
G
L
I
S
H
Radio
[}] [{]
(Preset station/Select)
5
[SOURCE]
(Source)
[DISP]
C
P·SET/DIS
[SEL]
(Menu/Return)
OPEN
Preset buttons
[1] to [6]
(Preset Station)
72N
CQ-DFX5
TUNEE
TUN
CK
ND TRA
TRACK
BAND
BA
DISPP
DIS
AF
PW
SET/APM
PUSH
ME
NU
R
TA
FOLDER
SRCC
SR
NTROL
R CO
SO
UR
CE
VO
LUM
PUSHCD RECEIVER WITH
E
CHANGE
[}] [{]
(Preset station/Select)
[BAND]
(Band/Auto preset
memory/Set)
[MENU] (Menu/Return)
[]] [[]
(Tune)
1
[DISP]
Radio Mode
Press [SRC] / [SOURCE] to select the radio
mode.
Radio Mode Display
FM Monaural Reception
Noise is significantly decreased when weak signals are
received from an FM broadcast station.
q Press [MENU].
w Press [}] or [{].
2
Band
e Press [BAND].
Press [BAND].
FM1
FM2
r Press [}] or [{].
t Press [BAND].
FM3
AM (LW/MW)
Local Tuning
Only stations with good reception are detected in seek
tuning.
3
Tuning
q Press [MENU].
[[] : Higher frequency
[]] : Lower frequency
Press and hold [[] or []] for more than 0.5
seconds, then release. Seeking will start.
w Press [}] or [{].
e Press [BAND].
r Press [}] or [{].
FM Stereo Indicator
8
CQ-DFX572N
t Press [BAND].
E
N
G
L
I
S
H
Station Preset
Up to 6 stations can be stored in each of the FM1, FM2, FM3 and AM (LW/MW) band selections.
6
Manual Preset Memory
Manually save a station in preset memory.
q [BAND]
: Select a band.
w []] or [[]
: Tuning a station.
e [}] or [{]
: Hold for more than
2 seconds.
r [}] or [{]
: Select the preset
number.
t [}] or [{]
: Hold for more than 2
seconds.
Notes:
¡Frequency setting can be performed even after selecting a preset number.
¡To suspend preset write, press [DISP].
Auto Preset Memory
Automatically save stations with good reception in the preset memory.
q [BAND]
: Select a band.
w [BAND]
: Hold for more than
2 seconds.
¡The 6 stations with good reception will be automatically saved in the memory under preset number 1 to 6.
¡Once set, the preset stations are
sequentially scanned for 5 seconds each.
¡To stop the scanning, press [}] or [{]. (Pressing one of the buttons from [1] to [6] on the remote control also can
stop the scanning.)
Note: New stations overwrite existing saved stations after following this procedure.
Preset Station Calling
q [BAND]
: Select a band.
w [}] or [{]
: Select the preset number for tuning in the preset
station.
■ To enter preset number directly from the remote control, select a band (Step q above) and press one of the buttons
from [1] to [6] on the remote control.
CQ-DFX572N
9
E
N
G
L
I
S
H
7
Radio Data System (RDS)
RDS Basics
Some FM stations are broadcasting added data compatible with RDS. This radio set offers convenient functions using such
data.
RDS service availability varies with areas. Please understand if RDS service is not available in your area, the following service is not available, either. This chapter explains the summary and operation regarding RDS.
The following functions are available when receiving RDS stations.
Program Service Name (PS)
Display
The name of station is displayed.
Alternative Frequency (AF)
When reception is poor, an RDS station broadcasting the
same program is tuned in automatically.
Traffic Program (TP)
Some RDS FM stations periodically provide traffic
announcement.
The station which broadcast the traffic announcement is
called Traffic Program (TP).
Traffic Announcement (TA)
Radio announcements on traffic conditions.
10
CQ-DFX572N
Clock Time (CT) Service
When receiving an RDS station, the CT service automatically adjusts the time.
"NO CT" is displayed in areas where CT service is not
available. (a Page 7 for Clock Adjustment)
Program Type (PTY) Display
RDS FM stations provide a program type identification
signal.
Example: news, rock, classical music, etc.(a Page 13)
E
N
G
L
I
S
H
Alternative Frequency (AF)
Alternative Frequency (AF) Mode
Default: AF mode is active.
(Press and hold [TA] on the main unit for more than 2
seconds to switch the AF mode on or off.)
AF ON : AF, Best Station and PI Seek function are active.
lights when AF is on.
[DISP] (Return)
[TA]
(AF mode)
Auto Preset Memory
C
P·SET/DIS
OPEN
72N
CQ-DFX5
TUNE
AF
ND
BAND
BA
DIS
DISPP
PW
TRACK
SET/APM
PUSH
ME
NU
R
TTAA
L
RO
R CONT
SO
UR
VO
LUM
[BAND]
(Set)
When AF ON is selected, only RDS
stations will be memorized
automatically.
(a Page 9 for auto preset memory)
FOLDER
SRC
CE
8
(Default)
E
PUSHCD RECEIVER
ANGE
WITH CH
[}] [{] (Select)
[MENU] (Menu/Return)
Note: When AF is set to OFF,
stations other than RDS
stations will also be saved in the
memory.
AF Level and Region (REG) Mode
q Press [MENU] / [SEL] to display the menu.
w Press [}] or [{] to select an item.
AF Level
REG Mode
Press [BAND] to change the AF level.
Changes the selection range of AF and PI Seek.
Press [BAND] to switch on or off in turn.
Low level AF sensitivity
The frequency is changed only for programs
within the region.
High level AF sensitivity
The frequency is changed also for programs
outside the region.
(Default)
(Default)
Notes:
¡When REG mode is switched from OFF to ON or vise versa, AF mode turns on automatically.
¡Press [MENU] / [SEL] or [DISP] to return to the regular mode.
Preset Memory (AF ON Setting)
[SEL] (Menu/Return)
Preset buttons
[1] to [6]
Preset Station Calling (Best Station)
AF self-tuning selects a station with good reception
when the preset tuning is activated.
[}] [{]
(Select)
For Poor Sound Quality (PI Seek)
(Only for remote control)
If reception is poor when tuning in a preset station,
press the same preset number button. The same
station with better reception will be searched for.
Press the same preset number button again to cancel.
[BAND]
(Set)
[DISP]
(Return)
CQ-DFX572N
11
E
N
G
L
I
S
H
Radio Data System (RDS) (continued)
Traffic Announcement (TA)
9
Traffic Announcement (TA) Mode
TA Mode
Press [TA] on the main unit to switch the TA mode on. (Press again to
switch the TA mode off)
TA ON : If the station received is not a TP station, the unit automatically
searches for a TP station to tune in to it. When the TP station
received begins a traffic announcement, you can hear it from the
unit.
[VOLUME]
(TA Volume)
[DISP]
[TA]
(Return)
(TA mode)
Lights when TA is ON
Traffic Announcement receiving display
[]] [[]
(TP seek tuning)
OPEN
C
P·SET/DIS
72N
CQ-DFX5
TUNEE
TUN
AF
CK
ND TRA
TRACK
BAND
BA
DIS
DISPP
PW
SET/APM
PUSH
ME
NU
R
TTAA
[BAND]
(Set)
FOLDER
SRC
L
RO
R CONT
SO
UR
CE
VO
CHANGE
R WITH
LUM
E
CEIVE
CD RE
[}] [{] (Select)
[MENU] (Menu/Return)
TP Seek Tuning
When TA ON is selected, only TP
station will be searched.
Press and hold [[] or []] for
more than 0.5 seconds, then
release. Seeking will start.
TP Auto Preset Memory
When TA ON is selected, only TP
stations will be memorized
automatically. (a Page 9 for auto
preset memory)
TA Volume Set
Traffic announcements are broadcast at the TA volume level.
q Press [MENU] / [SEL] to display the menu.
w Press [}] or [{] to select TA VOL.
e Press [BAND] to store the current volume level as the TA
volume level.
TP Auto Search
When reception of a TP station is
poor, TP Auto Search will automatically search for a TP station
with better reception. (Only when
in Muting in TA Mode.)
Note: Press [MENU] / [SEL] or [DISP] to return to the regular mode.
To listen to only traffic announcements
While listening to an FM station which is not currently
broadcasting traffic announcement, turn the [VOLUME] to the
counterclockwise or press [VOL{] (remote control) to set the
volume to 0. The traffic announcement will be output at the TA
volume level.
[SEL]
(Menu/Return)
TA Standby Mode
When set to TA on with the unit in another mode (CD, MP3, CD
changer, AUX), it will automatically switch to radio mode and output
the traffic announcement.
When the traffic announcement has finished, the unit will return to
the previous mode.
[VOL}] [VOL{]
(Volume)
[]] [[]
(TP seek tuning)
[}] [{]
(Select)
[BAND]
(Set)
[DISP]
(Return)
12
CQ-DFX572N
E
N
G
L
I
S
H
Program Type (PTY) Reception
10
Program Type (PTY) Mode
PTY Mode
Press and hold [MENU] / [SEL] for more than 2 seconds to switch the PTY
display mode on. (Press and hold again to switch the PTY display mode off.)
PTY ON : PTY function described below becomes enabled after selecting to the
PTY mode.
[DISP] (Return)
C
P·SET/DIS
OPEN
72N
CQ-DFX5
TUNEE
TUN
CK
ND TRA
TRACK
BAND
BA
DIS
DISPP
AF
PW
SET/APM
PUSH
ME
NU
R
TA
[BAND]
(PTY search/Set)
FOLDER
SRC
L
RO
R CONT
SO
UR
CE
VO
LUM
CEIVER
PUSH
CD RE
E
[]] [[] (PTY select)
ANGE
WITH CH
[}] [{] (Select)
[MENU]
(PTY mode/Menu/Return)
PTY Language Selection
ENGLISH
DEUTSCH
FRANÇAIS
FRAN AIS NEDERLANDS
SVENSKA
ITALIANO
q Press [MENU] / [SEL] to display the RDS-PTY
menu and press [BAND].
(Default : English)
ESPAÑOL
w Press [}] or [{] to select the language, and press
[BAND].
Note: Press [MENU] / [SEL] or [DISP] to return to
the regular mode.
PTY Selection
q Press [[] to change the program type as shown below.
([]] : opposite direction)
w Select the desired program type and press [BAND].
Seek will start to tune in to a station broadcasting the
selected program type.
Press [BAND] again to cancel.
SPEECH
INFO
CULTURE
ROCK M
OTHER M
SOCIAL
LEISURE
OLDIES
/
/
/
/
/
/
/
/
MUSIC /
SPORT /
SCIENCE /
EASY M /
WEATHER/
RELIGION /
JAZZ
/
FOLK M /
NEWS
/
EDUCATE /
VARIED /
LIGHT M /
FINANCE /
PHONE IN /
COUNTRY /
DOCUMENT
AFFAIRS /
DRAMA /
POP M /
CLASSICS /
CHILDREN /
TRAVEL /
NATION M /
[SEL]
(PTY mode/Menu/Return)
[]] [[]
(PTY select)
[BAND]
(PTY search/Set)
[}] [{]
(Select)
[DISP] (Return)
Note: When there is no corresponding program type
station, “NONE” is displayed for 2 seconds.
CQ-DFX572N
13
E
N
G
L
I
S
H
Radio Data System (RDS) (continued)
Program Type (PTY) Reception
11
PTY Preset Call
Program types are stored in memory under preset memory number 1 to 6 as shown in the table on the next page.
To select the desired program type, press [}] or [{] or preset buttons on the remote control.
C
P·SET/DIS
OPEN
72N
CQ-DFX5
TUNE
AF
ND
BAND
BA
DISP
PW
[BAND]
(Preset PTY search)
SET/APM
PUSH
ME
NU
R
TA
TRACK
FOLDER
SRC
L
RO
R CONT
SO
UR
CE
VO
CHANGE
R WITH
LUM
E
CEIVE
CD RE
[}] [{] (PTY preset call/Change)
PTY Preset Change
Preset PTY Search
q Select the desired program type by using PTY Selection
or PTY Preset Call.
q Select a desired program type by PTY preset call.
w Press [BAND] to tune in the same program type
station.
w Press and hold [}] or [{] for more than 2 seconds
until the preset number blinks.
Press [BAND] again to cancel.
e Press [}] or [{] to select the desired preset number.
r Press and hold [}] or [{] for more than 2 seconds to
save the new preset number.
Note: When there is no corresponding program
type station, “NONE” is displayed for 2 seconds.
*On the remote control, select the program type and press
and hold the preset buttons for more than 2 seconds.
Preset buttons
[1] to [6]
Note: To suspend preset write, press [DISP].
[}] [{]
(PTY preset call/Change)
[BAND]
(Preset PTY search)
14
CQ-DFX572N
Program Type (PTY) Reception
E
N
G
L
I
S
H
12
PTY Preset (Default)
Preset No.
Program Type
When PTY search is activated, these program type is receivable.
1
NEWS
2
SPEECH
AFFAIRS, INFO, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIED,
WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN,
TRAVEL, LEISURE, DOCUMENT
3
SPORT
SPORT
4
POP M
POP M
5
CLASSICS
6
MUSIC
NEWS
CLASSICS
ROCK M, EASY M, LIGHT M, OTHER M, JAZZ, COUNTRY, NATION M,
OLDIES, FOLK M
Other RDS functions
Enhanced Other Network (EON)
When EON data is received, the EON indicator lights the
TA and AF functions are expanded as follows.
TA : Traffic information from the current and other
network stations can be received.
AF : The frequency list of preset RDS stations is
updated by EON data.
EON enables the radio to make fuller use of RDS
information. It constantly updates the AF list of preset
stations, including the one that is currently tuned in to.
For example, if you preset a station far from home, you
will later be able to receive the same station at an alternative frequency, or any other station serving the same
program. EON also keeps track of locally available TP
stations for quick reception.
Emergency Announcement
Reception
When an emergency announcement is broadcast, the unit
is automatically switched to receiving that broadcast.
(Even when in CD mode, MP3 mode, CD changer mode
and AUX mode.). During receiving the emergency
announcement, "ALARM" appears on the display.
Note: Emergency announcements are broadcast at the
TA volume level. (a Page12)
CQ-DFX572N
15
E
N
G
L
I
S
H
13
CD and MP3
1
2
CD Player
Open the Front Panel
[}] [{] (Select)
Press [OPEN] on the front panel.
Insert a Disc
[DISP] (Return)
OPEN
C
P·SET/DIS
Label Side
72N
CQ-DFX5
TUNEE
TUN
AF
CK
ND TRA
TRACK
BAND
BA
DIS
DISPP
PW
SET/APM
PUSH
ME
NU
R
TA
FOLDER
SRCC
SR
L
RO
R CONT
ANGE
TH CH
SO
UR
CE
Insert a disc and close the front panel. Playback will start
automatically after the unit recognized the loaded disc as
an ordinary music CD. (When a CD-R or CD-RW which
has CD-DA formatted data is loaded, this unit
recognizes it as an ordinary music CD.)
Data reading.
Ordinary music CD
recognized and
playback starts.
or
VO
LUM
E
WI
CEIVER
PUSH
CD RE
[BAND]
(Pause/Set)
[MENU]
(Menu/Return)
When a disc is in the player...
Press [SRC] / [SOURCE] to select the CD player
mode and playback starts.
Display change
Press [DISP] .
MP3 data recognized
and playback starts.
(See page 18 about MP 3 player)
Cautions:
¡Do not use irregularly shaped discs.
¡Do not use discs that have a seal or label attached.
¡Be sure to close the front panel while CD playback.
¡To avoid damaging the front panel, do not push it
down or place objects on it while it is open.
¡Do not pinch your finger or hand in the front
panel. Do not insert foreign matter into the disc
slots.
Notes:
¡Do not insert a disc when
indicator lights
because a disc is already loaded.
¡When the power will be turned on automatically when
a disc is loaded. ACC ON
¡If a disc contains both CD-DA and MP3 data, only
first-recorded data is played.
Disc Title
Track Title
Clock Time
Track Selection
[2]: Next track
[1]: Beginning of the current track
For the previous track, press twice.
Fast Forward and Fast Reverse
Press and hold
3
To Stop and Eject a Disc
Open the front panel and press [u].
Note: The unit returns to previous mode when a disc is
ejected in the CD player mode.
[2]: Fast Forward
[1]: Fast Reverse
Release to resume the playback.
Pause
Press [BAND] to pause.
Press [BAND] again to resume playback.
16
CQ-DFX572N
Available Discs
CD-RW
TEXT
Note: Refer to the section on “Notes on CD-Rs/RWs” (a Page 39).
CD Mode Setting
q [MENU] / [SEL]
r [}] or [{] : Switch on or off in turn.
w [}] or [{] : Select an item.
t [MENU] / [SEL] or [DISP] : Return to regular
mode.
e [BAND]
E
N
G
L
I
S
H
14
: All the available tracks are played in a random sequence.
Random Play
: Cancel
: Repeat the current track.
Repeat Play
: Cancel
: Continuous scroll
Title Scroll
: Scroll stops after a circle scroll
Press and hold [DISP] for more than 2
seconds to have an another circle scroll
while a title is displayed.
Default : ON
(Up to 62 letters can be
displayed in scroll mode.)
Remote Control Operation
[#]
(Number/
Cancel)
POWER
SOURCE
MENU
[0] to [9]
SEL
NUMBER
VOL
Example: Track number 05
MUTE
[5]
(Scan)
[4]
(Random)
[BAND]
(Set)
1
2
3
RAND
SCAN
REP
4
5
6
7
8
9
BAND
0
DISP
SET
Direct Track Selection
[6]
(Repeat)
[DISP]
(Cancel)
q Press [#].
w Press [5].
e Press [BAND].
Notes:
¡To suspend direct track selection, press [#] or [DISP].
¡Random, Scan and Repeat play is canceled once [#] is pressed.
Car Audio
Random Play
Press [4]. The tracks are played in a random sequence.
Press [4] again to cancel.
Scan Play
Press [5]. The first 10 seconds of each track play in sequence.
Press [5] again to cancel.
Repeat Play
Press [6]. The current track is repeated.
Press [6] again to cancel.
CQ-DFX572N
17
E
N
G
L
I
S
H
MP3 Player
[}] [{]
(Folder/Select)
* See page 16 about Disc Insert
and disc ejecting.
15
C
P·SET/DIS
[SOURCE]
[SEL] (Menu/Return)
(Source)
OPEN
[4] (Random)
[5] (Scan)
[6] (Repeat)
72N
CQ-DFX5
TUNE
AF
BAND
DISP
PW
SET/APM
PUSH
ME
NU
R
TA
TRACK
FOLDER
SRC
L
RO
R CONT
SO
UR
CE
VO
CHANGE
R WITH
LUM
E
[}] [{]
(Folder/Select)
CEIVE
CD RE
[BAND]
(Pause/
Set)
When disc is in the player
[DISP]
Press [SRC] / [SOURCE] to select the MP3
player mode and playback starts.
[1] [2]
(File/Fast forward/
Fast reverse)
Display Change
Folder Selection
Press [DISP].
[}] : Next folder
[{] : Previous folder
File Selection
[2] : Next MP3 file
[1] : Beginning of the current MP3 file
For the previous file, press twice.
Play time
Folder name
(
)
(Data reading)
)
(Data reading)
Fast Forward / Fast Reverse
Press and hold
[2] : Fast forward
[1] : Fast reverse
Release to resume playback.
File Name
(
Pause
Press [BAND] to pause.
Press [BAND] again to resume playback.
Bit Rate
Sampling Frequency
Clock Time
18
CQ-DFX572N
Available Discs
MP3
Note: Refer to the section on “Points to remember when recording
MP3
MP3
CD-RW CD-ROM an MP3 disc” (a Page 20) and “Notes on CD-Rs/RWs” (a Page 39).
MP3 Mode Setting with Menu
q [MENU] / [SEL]
r [}] or [{] : Switch on or off in turn.
w [}] or [{] : Select an item.
t [MENU] / [SEL] or [DISP] : Return to regular
mode.
e [BAND]
All files
E
N
G
L
I
S
H
16
: All the available MP3 files in all folders are
played in a random sequence.
: Cancel
Random Play
One folder
: All the available MP3 files in current folder
are played in a random sequence.
: Cancel
: Repeat the current MP3 file selection.
File
: Cancel
Repeat Play
: Repeat the current folder selection.
Folder
: Cancel
: Continuous scroll
Name Scroll
: Scroll stops after a circle scroll
Press and hold [DISP] for more than 2
seconds to have an another circle scroll
while a name is displayed.
Default : ON
Remote Control Operation
Direct Folder Selection
Scan Play
■Folder number selection
■Example: Folder number 005
q Press [#].
w Press [5].
e Press [BAND].
File Scan
Press [5]. The first 10 seconds of each MP3 file on all folders are played in sequence. Press again [5] to cancel.
■Folder name selection
q Press and hold [#] for more than 2 seconds.
w Press [}] or [{] to select the folder.
e Press [BAND].
Folder Scan
Press and hold [5] for more than 2 seconds. From the next
folder, the first 10 seconds of the first MP3 file on each folders are played in sequence. Press and hold [5] again to
cancel.
Random Play
Notes:
¡To suspend direct track selection, press [#] or [DISP].
¡ If there is no file in the specified folder, error message
"E4" appears. (a Page 44)
¡Random, Scan and Repeat play are canceled once [#] is
pressed.
File : Press [4].
Folder: Press and hold [4].
Repeat Play
File : Press [6].
Folder: Press and hold [6].
CQ-DFX572N
19
E
N
G
L
I
S
H
MP3 Player (continued)
Points to remember when recording an MP3 disc
17
This player allows you to play MP3 files recorded on CD-ROMs, CD-Rs (Recordable) and CD-RWs (Rewritable).
What is MP3
MP3, short for MPEG Audio Layer-3, is a standard for compressing digital video data adopted for video CDs and similar
media. It is one of the audio compression systems covered by MPEG's (Motion Picture Experts Group) digital audio
compression standards. What it does is reduce the number of bytes in a song without detracting from the sound quality by
eliminating big sound waves within the sound range that is imperceptible to the human ear. This compression allows you
to reduce the contents of a conventional music CD by a factor of around 10. This means that you can record the contents
of 10 music CDs on a single CD-R or CD-RW. (The figures refer to data recorded on a 650 MB CD-R or CD-RW at a fixed
bit rate of 128 kbps and a sampling frequency of 44.1 kHz.)
■ Converting (encoding) audio data to an MP3 file
¡It is recommended to set the bit rate to “128 kbps or more” and “Fixed”.
¡Bit rate 8 kbps of MPEG-2 and sampling frequency 16 kHz of MPEG-2 can not be reproduced.
¡If set to VBR (Variable Bit Rate), the file playing time may not be displayed correctly, and the bit rate may flicker.
¡The playback sound quality differs depending on the encoding software and the bit rate. For details refer to the user
manual of your encoding software.
■ Recording MP3 files on a CD-R/RW
¡Do not record files other than MP3s or unnecessary folders on a disc. If many folders or files other than MP3s
are recorded on a disc, it may take up to a few minutes before playback starts, and you may have difficulties using
fast forward and fast reverse.
¡Use ISO 9660 file system (Extension of the ISO 9660 file systems are included.) APPLE HFS file system is not
supported. If they do not conform to ISO 9660 file system, the file may not play normally, or the file or folder
names may not be displayed correctly.
¡Make sure to add the “.mp3” extension to each MP3 file name. A file with a different file name extension or none
at all will not play.
¡Although Multi session recording is supported, the use of Disc-at-Once is recommended. Make sure to close the
session when you finished recording on a disc.
¡ID3Tag character information is not displayed. A file in which character information was recorded by use of
ID3Tag 2.0 or later version may not be reproduced normally. For example, the file playing time may not be displayed
correctly.
¡Packet writing software is not supported.
¡A playlist function is not supported. Record files and folders in the order in which you want them to be played.
Some writing software lets you specify the recording order by adding a prefix in the range of “01” - “99”, etc. to the
file name. For details refer to the user manual of your writing software.
Note: You may encounter trouble in playing MP3s or displaying the information of MP3 files recorded with certain
writing softwares or CD recorders (CD-R/RW drives).
Caution: Never assign the “.mp3” file name extension to a file that is not in the MP3 format. This may not only
produce noise from the speakers and speaker damage, but can damage your hearing.
20
CQ-DFX572N
E
N
G
L
I
S
H
18
Folder Selection Order / MP3 file playback order (Example)
Root Folder
(Root Directory)
1
2
Notes:
¡This unit counts the number of folders irrespective of the
presence or absence of MP3 file.
¡If the selected folder does not contain any MP3 files, the
nearest MP3 files in the order of playback will be played.
¡Playback order may be defferent from other MP3 players
even if the same disc is used.
¡“ROOT” appears when displaying the root folder’s folder name.
q
Folder Selection
4
e
In the order
1
8
~
3
w
File Selection
In the order
~
y
q
5
Maximum number of files / folders
6
r
8
7
Tree 1
Tree 2
Tree 3
¡Maximum number of trees: 8
¡Maximum number of files/folders: 254 (files + folders.
Root folder is not included.)
Note: If the total of files and folders exceeds 254, successful
playback may not be performed.
t
y
Tree 4
Supported file systems and file names
Supported file system
Displayable folder names and file names
ISO 9660 Level 1
Name files and folders in accordance with the standard of each file system.
Refer to the instructions of writing software for details.
ISO 9660 Level 2
¡This player can display file names of up to 31 letters in scroll mode.
* Up to 15 letters can be displayed when scrolling in the Joliet system.
¡ASCII character set and special characters in each language can be displayed.
Undisplayable characters and symbols will be converted into an asterisk ( ).
Joliet*
Romeo
Apple Extension to ISO 9660
*
ASCII character set: ASCII character set consisting of A to Z, a to z, digits 0 to 9, and
the following symbols: (space) ! ” # $ % & ’ ( ) * + , - . / : ; < = > ? @ [ \ ] ˆ _ ` { | } ~
Glossary
ISO 9660: The most common international standard
for the logical format for files and directories.
APPLE HFS: The file system used by the Macintosh
operating system to organize data. (Not supported)
Multi-session: A method of adding data incrementally
to a CD-R or CD-RW in more than one recording session.
Disc-at-Once: A method of writing data in a media by
just one operation and no more writing after that.
ID3Tag: A function that allows character information
(title, artist, album title, date, etc.) to be written onto the
disc. (Character information not displayed aPage 20)
Packet writing: A method of writing data on a CD
media in small increments. (Not supported)
Copyright
It is prohibited by copyright laws to copy, distribute and deliver copyrighted materials such as music without the approval
of copyright holder except enjoying yourself personally.
Note: MP3 encode software and writing software are not supplied to this model.
CQ-DFX572N
21
E
N
G
L
I
S
H
CD Changer Control
[}] [{](Disc/Select)
[SOURCE]
(Source)
[SRC]
(Source)
[SEL] (Menu/Return)
OPEN
C
P·SET/DIS
72N
CQ-DFX5
19
[4] (Random)
[5] (Scan)
[6] (Repeat)
TUNEE
TUN
AF
CK
ND TRA
TRACK
BAND
BA
DISP
PW
SET/APM
PUSH
ME
NU
R
TA
FOLDER
SRCC
SR
NTROL
R CO
ANGE
TH CH
SO
UR
CE
VO
LUM
E
PUSHCD RECEIVER WI
[MENU] (Menu/Return)
[BAND]
(Changer selection/Set)
[DISP] (Return)
[1] [2]
(Track/Fast forward/
Fast reverse)
CD changer functions are designed for optional
Panasonic CD changer unit.
(a Page 36 and 37 for connection)
Insert the Magazine
Playback starts.
Notes:
¡The power will be turned on automatically when a
magazine is loaded. ACC ON
¡The unit returns to previous mode when the magazine
is ejected in the CD changer mode.
Display Change
Press [DISP] .
Disc Number / Track Number
When magazine is in the
changer...
Press [SRC] / [SOURCE] to select the CD changer
mode and playback starts.
Note: Load a magazine with CDs when “NO DISC” is
displayed.
Disc Selection
[}] : Next disc
[{] : Previous disc
Track Selection
Play Time
[2] : Next track
[1] : Beginning of the current track
Previous track (Press twice.)
Disc Title
(
[}] [{]
(Disc/Select)
[BAND]
(Changer
selection/Set)
) (Data reading)
Fast Forward / Fast Reverse
Press and hold
[2] : Fast forward
[1] : Fast reverse
Release to resume the playback.
Track Title
(
) (Data reading)
CD changer Selection
Preparation: Connect another CD changer by using an
optional dual CD changer selector (CA-CD55EN).
(a Page 37)
Clock Time
Press [BAND] to select CD changer 1 or CD changer 2.
Example: CD changer 2 is selected.
Note: This selection is not possible when there is no
magazine in the CD changer.
22
CQ-DFX572N
Available Disc
Note: CD text is displayed when the unit is connected to a CD changer capable of recognizing
CD text (CX-DP9061EN, for example).
TEXT
CD Changer Mode Setting
q [MENU] / [SEL]
r [}] or [{] : Switch on or off in turn.
w [}] or [{] : Select an item.
t [MENU] / [SEL] or [DISP] : Return to regular
mode.
e [BAND]
E
N
G
L
I
S
H
20
: All the available tracks on all discs in the
magazine are played in a random sequence.
: Cancel
All discs
Random Play
One disc
: All the available tracks on current disc are
played in a random sequence.
: Cancel
Track
: Repeat the current track selection.
: Cancel
Repeat Play
: Repeat the current disc selection.
Disc
: Cancel
: Continuous scroll
Title Scroll
: Scroll stops after a circle scroll
Press and hold [DISP] for more than 2
seconds to have an another circle scroll
while a title is displayed.
Note: Use a CD having CD text information.
Default : ON
(Up to 62 letters can be
displayed in scroll mode.)
Remote Control Operation
Direct Disc Selection
Scan Play
Example: Disc number 05
Track Scan
Press [5]. The first 10 seconds of each track on all discs
are played in sequence. Press [5] again to cancel.
q Press [#] .
w Press [5]
e Press [BAND].
Notes:
¡To suspend direct disc selection, press [#] or [DISP].
¡Random, Scan and Repeat play is canceled once [#] is
pressed.
Disc Scan
Press and hold [5] for more than 2 seconds. From the
next disc, the first 10 seconds of the first track on each
discs are played in sequence. Press and hold [5] again
to cancel.
Random Play
Track : Press [4].
Disc : Press and hold [4].
Repeat Play
Track : Press [6].
Disc : Press and hold [6].
CQ-DFX572N
23
E
N
G
L
I
S
H
Audio Setting - AUDIO Menu
[DISP] (Return)
[BAND] (Set)
C
P·SET/DIS
OPEN
72N
CQ-DFX5
21
TUNE
AF
BAND
DISP
PW
TRACK
SET/APM
PUSH
ME
NU
R
TA
AUDIO Menu Display
FOLDER
SRC
L
RO
R CONT
ANGE
TH CH
SO
UR
CE
VO
LUM
E
PUSHCD RECEIVER WI
[}] [{]
(Select/Adjust)
[MENU] (Menu/Return)
[]] [[]
(Select)
q
Super High Definition
Bass (S·HDB)
Press [}] or [{] to
select
Especially for rock music, the bass-sound will
be more powerful.
Default : S·HDB OFF
Press [BAND] to set.
Press [MENU] / [SEL]
to open the menu.
Bass
w
Press [}] or [{] to
select
Turn the bass level up and down.
Default : 0
Setting range : –12 to +12 dB (in 2 dB step)
Press [BAND] to set.
Current Source
Treble
Turn the treble level up and down.
Default : 0
Setting range : –12 to +12 dB (in 2 step)
Balance
You can adjust the sound balance among the
right and left speakers.
Default : Center
Setting range : 15 levels each
Fader
You can adjust the sound balance among the
front and rear speakers.
24
Press [[] or []] to
select AUDIO.
Press [}] or [{] to
select
Press [BAND] to set.
Press [}] or [{] to
select
Press [BAND] to set.
Press [}] or [{] to
select
Default : Center
Setting range : 15 levels each
Press [BAND] to set.
Sub-Woofer Volume
Press [}] or [{] to
select
Default : 0 dB
Setting range : MUTE (-∞), –6 to +6 dB
(in 2 dB step)
Press [BAND] to set.
CQ-DFX572N
[SEL] (Menu/Return)
Note: Press [MENU] / [SEL] or [DISP] to return
to the regular mode.
E
N
G
L
I
S
H
22
[]] [[] (Select)
[}] [{] (Select/Adjust)
[BAND]
(Set)
[DISP] (Return)
e
q [}] or [{] to change.
w Press [BAND] to set.
: S.HDB off
: The bass sound of the speakers are strongly emphasized.
: The bass sounds of the speakers are moderately emphasized.
(The sound of the Sub-Woofer can be heard clearly.)
q [}] : Enhanced
[{] : Decrease
w Press [BAND] to set.
q [}] : Enhanced
[{] : Decrease
w Press [BAND] to set.
q [}] : Right enhanced
[{] : Left enhanced
w Press [BAND] to set.
q [}] : Front enhanced
[{] : Rear enhanced
w Press [BAND] to set.
q [}] : Up
[{] : Down
w Press [BAND] to set.
CQ-DFX572N
25
E
N
G
L
I
S
H
Display Setting - PICTURE Menu
[DISP] (Return)
[BAND] (Set)
OPEN
C
P·SET/DIS
72N
CQ-DFX5
23
PICTURE (Display) Menu
TUNE
BAND
DISP
AF
PW
TRACK
SET/APM
PUSH
ME
NU
R
TA
FOLDER
SRC
L
RO
R CONT
SO
UR
CE
VO
CHANGE
R WITH
LUM
E
CEIVE
CD RE
PUSH
[}] [{]
(Select/Adjust)
[]] [[]
(Select)
[MENU] (Menu/Return)
q
w
Press [}] or [{] to
select
Dimmer
Default : DIMMER 3
Press [BAND] to set.
Spectrum Analyzer
Display Pattern
Press [MENU] / [SEL]
to open the menu.
Press [}] or [{] to
select
Press [[] or []] to
select PICTURE.
Default : Pattern A
Variety : 6 types
Current Source
Press [BAND] to set.
Press [}] or [{] to
select
Contrast
Default : Level 3
Setting range : Level 1 to Level 5
Display Off
Press [BAND] to set.
Press [}] or [{] to
select
Default : DISP ON (Display on)
Press [BAND] to set.
26
CQ-DFX572N
[SEL] (Menu/Return)
Note: Press [MENU] / [SEL] or [DISP] to return
to the regular mode.
E
N
G
L
I
S
H
24
[]] [[] (Select)
[}] [{] (Select)
[BAND]
(Set)
[DISP] (Return)
e
q Press [}] or [{] to change
w Press [BAND] to set.
: Brighter
: Medium
: Darker
q Press [}] or [{] to change
w Press [BAND] to set.
: Pattern 1
: Pattern 2
: Pattern 3
: Pattern 4
: Pattern 5
: Off
q Press [}] or [{] to change
w Press [BAND] to set.
Decrease
Increase
q Press [}] or [{] to switch on or off in turn.
Regular display
Switching the display off
w Press [BAND] to set.
Note: Even when switching the display
off, pressing any button causes the display
activated for 5 seconds.
CQ-DFX572N
27
E
N
G
L
I
S
H
Function Setting - FUNCTION Menu
[DISP] (Return)
[BAND] (Set)
C
P·SET/DIS
OPEN
72N
CQ-DFX5
25
TUNE
AF
BAND
DISP
PW
FUNCTION Menu Display
SET/APM
PUSH
ME
NU
R
TA
TRACK
FOLDER
SRC
L
RO
R CONT
SO
UR
CE
VO
CHANGE
R WITH
LUM
E
CEIVE
CD RE
PUSH
[}] [{]
(Select/Adjust)
[]] [[]
(Select)
[MENU] (Menu/Return)
Press [}] or [{] to
select
Mute / Attenuation
Decreasing range by pressing [MUTE] button
can be selected. (a Page 7)
Default : MUTE
Press [BAND] to set.
External Mute
Allows you to mute the current source while
Panasonic navigation system provides voice
guidance or car telephone conversation is in
progress.
(a Page 35 about External Mute Lead connection)
Default : LV 0
Press [MENU] / [SEL]
to open the menu.
Press [}] or [{] to
select
Press [[] or []] to
select FUNCTION.
Press [BAND] to set.
Current Source
Security Function
Allows you to activate the anti-theft function
when leaving your car.
Default : ON
Press [}] or [{] to
select
Press [BAND] to set.
ACC Selection
Press [}] or [{] to
select
Default : OFF
Caution: Be sure to select OFF when your
car has no ACC position in the ignition
switch. Failure to do this could cause the
battery to go dead.
28
CQ-DFX572N
Press [BAND] to set.
[SEL] (Menu/Return)
Note: Press [MENU] / [SEL] or [DISP] to return
to the regular mode.
E
N
G
L
I
S
H
26
[]] [[] (Select)
[}] [{] (Select/Adjust)
[BAND]
(Set)
[DISP] (Return)
q Press [}] or [{] to select
w Press [BAND] to set.
: No sound
: Decrease to 1/10
q Press [}] or [{] to change
w Press [BAND] to set.
: No sound
: Decrease 15 levels
: Decrease 10 levels
: Unchanged
q Press [}] or [{] to change
: Security function is
activate.
: Security function is
not activate.
w Press [BAND] to set.
Note: The setting state of the External Mute
is displayed when the voice guidance or car
telephone is used (except when the setting
state is OFF).
Security Function
When the power of this unit is turned OFF....
When the key in the ignition is turned OFF.... ACC ON
¡Security message will be displayed.
¡The panel removal alarm will be active. (a Page 33)
When the front panel is removed...
¡The security indicator blinks.
(a Page 33)
(Security message)
q Press [}] or [{] to switch the ACC on or
OFF in turn.
ACC ON
¡The demonstration message is shown when [SRC] / [SOURCE]
is pressed for 4 seconds or more to turn on the power.
: Set to ON if your car
¡The
ending is shown when power is switched off.
has ACC position.
¡Power is turned on when a disc or magazine is inserted while
: Set to OFF if your car
power is off.
has no ACC position. ¡The Clock Time can be displayed while power is off.
¡When the ignition key is turned to OFF, the security message is
w Press [BAND] to set.
shown and the panel removal alarm sounds (at Security Function
ON setting).
ACC OFF
¡When power is turned off, the security message is shown and the
panel removal alarm sounds (at Security Function ON setting).
CQ-DFX572N
29
E
N
G
L
I
S
H
27
Installation
Preparation
¡Before installation, check the radio operation with
antenna and speakers.
¡Disconnect the cable from the negative (–) battery
terminal (see caution below).
¡Unit should be installed in a horizontal position with the
front end up at a convenient angle, but not more than
30°.
Supplied Hardware
No.
Item
Diagram
Q’ty
q
Mounting Collar
1
w
Mounting Bolt (5 mmø)
1
e
Power Connector
1
r
Removable Face Plate Case
1
t
Trim Plate
1
y
ISO Antenna Adapter
1
u
Lock Cancel Plate
2
30° or less
Caution: Do not disconnect the battery terminals of a
car with trip or navigational computer since all user
settings stored in memory will be lost. Instead take
extra care with installing the unit to prevent shorts.
Method for Fixing the Rear of the Unit
(a) Using the Rear Support Strap (Option)
Dashboard Installation
Installation Opening
The unit can be installed in
53 mm
any dashboard having an
opening as shown at right.
182 mm
The dashboard should be
4.5 mm - 6 mm thick in order to be able to support the
unit.
Installation Precautions
This product should be installed by a professional
installer, if possible.
In case of difficulty, please consult your nearest authorized
Panasonic Service Center.
1. This system is to be used only in a 12-volt, DC battery
system (car) with negative ground.
2. Follow the electrical connections carefully (a Page 34).
Failure to do so may result in damage to the unit.
3. Connect the power lead (red) after all other connections
are made.
4. Be sure to connect the battery lead (yellow) to the
positive terminal (+) of the battery or fuse block (BAT)
terminal.
5. Insulate all exposed wires to prevent short circuiting.
6. Secure all loose wires after installing the unit.
7. Please carefully read the operating and installation
instructions of the respective equipment before
connecting it to this unit.
30
CQ-DFX572N
Tapping Screw (Option)
Fire Wall of Car
3 mmø
Hex. Nut (Option)
Rear Support Strap (Option)
w Mounting Bolt
q Mounting Collar
(b) Using the Rubber Cushion (Option)
Rear Support Bracket
(Provided on the car)
Rubber Cushion
(Option)
w Mounting Bolt
q Mounting Collar
Cautions:
¡We strongly recommend that you wear gloves for installation work to protect yourself from injuries.
¡When bending the mounting tab of the mounting collar with a screwdriver, be careful not to injure your hands
and fingers.
1
First complete the electrical connections, and
then check them for correctness.(a Page 34)
The included Mounting Collar q is designed
specially for this unit. Do not use it to attach
any other model.
E
N
G
L
I
S
H
28
Insert Mounting Collar q into the
dashboard, and bend the mounting
tabs out with a screwdriver.
The tabs to be bent vary depending on
the car. To securely install the unit, fully
bend a number of the tabs so that there
is no rattling.
Example:
Tab
q Mounting
Collar
e Power Connector
Mounting Holes
w Mounting Bolt
2
3
4
Mounting Springs (C)
Engage the Mounting
Springs (C) in the mounting holes of the Mounting
Collar q firmly.
Secure the rear of the unit.
After fixing Mounting Bolt w and Power
Connector e, fix the rear of the unit to the car
body by either method (a) or (b) shown on the
previous page.
Insert Trim Plate t.
After installation reconnect the negative (–) battery terminal.
Mounting
Hole
Mounting Spring
CQ-DFX572N
31
E
N
G
L
I
S
H
Installation (continued)
To Remove the Unit
Switch off the power of the unit.
29
1
Remove the removable face plate.
1 Open
Contact
q Press [OPEN]. The removable face plate will
be opened.
w Push the face plate to either the right or left.
e Pull it out toward you.
P·SET/DISC
OPEN
Open
TUNE
BAND
TRACK
SET/APM
2
3
Remove the Trim Plate t with a screwdriver.
q Insert the Lock Cancel Plates u along the
grooves on both sides of the main unit until
“click” is heard.
w Pull out the unit while pushing the plates
further inside.
2 Push
;;;;;;;;;
;
;
;
;
;;;;;;;;;;
;
;
;
;
;;;;;;;;
;;
Insert the tab
end in the
outer groove.
“Click”
2 Pull out
4
32
Remove the unit pulling with both hands.
CQ-DFX572N
;;;
;
;;
;
;
;;
;
;
;
;
;
;;;;; ;
;; ;
3 Pull out
t Trim Plate
Screwdriver
1
2
1 Insert
u Lock Cancel Plate
Anti-Theft System
This unit is equipped with a removable face plate. Removing
this face plate makes the radio totally inoperable. The security
indicator will blink.
E
N
G
L
I
S
H
r Removable Face Plate Case
30
Place Removable Face Plate into
Case
q Switch off the power of the unit.
w Remove the removable face plate.
(a Page 32)
e Gently press the bottom of the case and open the cover.
Place the face plate into the case and take it with you
when you leave the car.
Install Removable Face Plate
Contact
q Fit the face plate with its right or left hole on one of the
pins provided on the main unit.
w Fit the other hold on the other pin applying slight pressure.
e Move the face plate up and down a few times to make
sure it is secure. Then close the front panel and press
down the right side of the face plate until it clicks into
plate.
3
2
1
Security Indicator
The security indicator blinks when the removable face plate is
removed from the unit.
This function is activated when the Security Function is ON.
(a Page 28)
Panel Removal Alarm
This alarm sounds to warn you not to forget to remove the
panel before leaving your car.
This function is activated when the Security Function is ON.
(a Page 28)
Security Indicator
Cautions:
¡This face plate is not waterproof. Do not expose it to water or excessive moisture.
¡Do not remove the face plate while driving your car.
¡Do not place the face plate on the dashboard or nearby areas where the temperature rises to high levels.
¡Do not touch the contacts on the face plate or on the main unit, since this may result in poor electrical contacts.
¡If dirt or other foreign substances get on the contacts, wipe them off with clean and dry cloth.
¡To avoid damaging the front panel, do not push it down or place objects on it while it is open.
CQ-DFX572N
33
E
N
G
L
I
S
H
31
Electrical Connections
Wiring Diagram
Precautions (ISO Connector)
¡The pin arrangement of the power connector
conforms to ISO standard.
¡The pin arrangement of ISO connectors in some
cars may differ from the ISO standard.
¡Please check that the pin arrangement of the
connector in your car conforms to ISO standard.
¡For car types A and B, change the wiring of the
red and yellow leads as shown at below.
¡After connection, insulate the portions marked
(C) with insulating tape.
Note: For cars other than types A and B, please
consult your local car shop.
ISO
CD Changer
Control Connector
Antenna
CQ-DFX572N
Standard ISO
A7: IGN or ACC switched 12 V supply
A7
(Red) C (Red)
(Yellow) C (Yellow)
ACC
y ISO Antenna
Adapter
(If needed)
BATTERY 15A
e Power
Connector
A4
A4: +12 V Battery (Permanent supply)
A
Car Type A
(R) (Red)
Pre-out Cord
(Rear)
A7: +12 V Battery (Permanent supply)
(Red)
C
REAR
(L) (White)
(Yellow)
BATTERY 15A
(Yellow) C (Red)
ACC
(R) (Red)
Pre-out Cord
(Front)
A4: IGN or ACC switched 12 V supply
FRONT
(L) (White)
(R) (Red)
B
Sub-Woofer
Cord
(Monaural)
Car Type B
A7: +12 V Battery (Permanent supply)
(Red) C (Red)
(Yellow) C (Yellow)
S.W-OUT
(L) (White)
(R) (Red)
ACC
BATTERY 15A
AUX Input
Cord
AUX-IN
(L) (White)
A4: No connection
34
CQ-DFX572N
Cautions:
¡Check the connectors provided on your car (see precaution below)
before connecting the system.
¡This unit is designed for use in a car having a 12-volt negative ground
battery system.
¡To prevent damage to the unit, be sure to follow the connection diagram.
¡Strip about 5 mm of the lead ends for connection (only non-ISO connector cords).
¡Do not insert the power connector into the unit until the wiring is completed.
¡Be sure to insulate any exposed wires to prevent short circuiting with the
car chassis. Bundle all cables, and prevent cable terminals from touching any metal parts.
(R) (Red)
CD.C-IN
(L) (White)
E
N
G
L
I
S
H
32
CD Changer Input Cord
C1 : External Mute Lead (Orange)
To the Navi Mute lead of the Panasonic car
navigation system or car telephone mute lead.
(Orange)
C2 : Dual CD Changer Control Lead
(Brown w/white stripe)
C3 : External Remote Control Lead
(Brown w/black stripe)
When using a non-Panasonic external remote
control, refer to the manufacture for their
product before connecting.
(Brown w/white stripe)
(Brown w/black stripe)
(Blue w/white stripe)
C4 : External Amplifier Control Power Lead
(Blue w/white stripe)
To an external amplifier.
(Not Used)
ISO Connector A (Black)
A7 (Red)
ACC
A8 (Black)
A8 : Ground Lead (Black)
To a clean, bare metallic part of the car chassis.
A7 : Power Lead (ACC or IGN) (Red)
To ACC power, +12 V DC.
Resistor (1kΩ)
A5 (Blue)
A4 : Battery Lead (Yellow)
To the car battery, continuous +12 V DC.
A4 (Yellow)
BATTERY 15A
Fuse (15A)
ISO Connector B (Brown)
B8 (Green w/black stripe)
B6 (White w/black stripe)
B7 (Green)
B4 (Gray w/black stripe)
B5 (White )
B2 (Violet w/black stripe)
B3 (Gray)
B1 (Violet )
A5 : Motor Antenna Relay Control Lead
(Blue)
To Motor Antenna (Max. 500mA)
This lead is not intended for use with a switch
actuated power antenna.
Note: The power antenna extends automatically when the power of this unit is turned on.
Speakers
B8 : Rear Left–
B7 : Rear Left +
B6 : Front Left –
B5 : Front Left +
B4 : Front Right –
B3 : Front Right +
B2 : Rear Right–
B1 : Rear Right +
CQ-DFX572N
35
E
N
G
L
I
S
H
33
Electrical Connections (continued)
System Upgrade Example 1 : Nine Speakers and CD Changer
Combination: CD Changer (CX-DP9061EN),
4 Channel Power Amplifier (CY-M9054EN) and
Stereo/Mono Power Amplifier (CY-M7052EN)
CD text recognizable
CD changer
CX-DP9061EN
¡This unit can be connected to an optional CD changer
(CX-DP9061/DP9060EN, CX-DP88N, CX-DP801/DP
803EN or CX-DP601EN) and extension cord. (Supplied
to CD changer.)
¡For details consult your nearest authorized Panasonic
Dealer.
¡For connection to a CD changer, refer to the operating
instructions of the CD changer (CX-DP9061/DP9060
EN, CX-DP88N, CX-DP801/DP803EN or CX-DP601EN).
Ground Lead (Black)
To a clean, bare metallic part of the car chassis
Power Connector
(Supplied to CX-DP9061EN)
Battery Lead (Yellow)
To the car battery, continuous +12 V DC
(L) (White)
RCA Cord
CD.C-IN
DIN Cord
(R) (Red)
Panasonic
CQ-DFX572N
Panasonic
4 Channel Power
Amplifier
CY-M9054EN
RCA Cord
(Option)
e Power
Connector
(R) (Red)
REAR
(L) (White)
Sub-Woofer
RCA Cord
(Option)
(R) (Red)
FRONT
(L) (White)
Stereo/Mono Power
Amplifier
CY-M7052EN
* For use as a monaural amplifier
(Bridge connection)
(Mono)
(Red)
S.W-OUT
RCA Cord
(Option)
(White)
Panasonic
36
CQ-DFX572N
Panasonic
E
N
G
L
I
S
H
System Upgrade Example 2 : Connecting Two CD Changers
Combination: Two CD Changer (CX-DP9061EN)
34
Note: To connect two CD changers, the optional dual CD changer selector (CA-CD55EN) is necessary.
CD text recognizable
CD changer
CX-DP9061EN
Power Connector
(Supplied to CX-DP9061EN)
Ground Lead (Black)
To a clean, bare metallic part of the car chassis
DIN Cord
RCA Cord
Battery Lead (Yellow)
To the car battery, continuous
+12 V DC
DIN Cord
(Supplied to
CA-CD55EN)
(R)
(Red)
CD.C-IN
(R) (Red)
(R) (Red)
(L) (White)
CD·C-1
RCA Cord
(Supplied to
CA-CD55EN)
CD·C-2
(L) (White)
TWIN CD·C-CONT
CQ-DFX572N
e Power
Connector
CD text recognizable
CD changer
CX-DP9061EN
(L)
(White)
Dual CD Changer
Selector
CA-CD55EN
Dual CD Changer Control Lead
(Brown w/white stripe)
(R)
(Red)
(L)
(White)
Power Connector
(Supplied to CX-DP9061EN)
RCA Cord
Ground Lead (Black)
To a clean, bare metallic part of the car chassis
Battery Lead (Yellow)
To the car battery, continuous
+12 V DC
DIN Cord
CQ-DFX572N
37
E
N
G
L
I
S
H
Speaker Connections
Caution: Please follow the instructions given below. Failure to do so will cause damage to the unit and speakers.
35
¡Use ungrounded speaker only.
¡The maximum speaker output should be 50 W or more. (If used with
the optional power amplifier, the speaker output should be higher than
the maximum amplifier output.)
¡The speaker impedance should be 4 - 8 Ω.
¡This unit uses the BTCL circuit, so each speaker should be connected
separately using parallel vinyl insulated cords.
¡The speaker cords and the power amplifier unit should be kept away
(about 30 cm apart) from the antenna and antenna extension cord.
¡Never connect the speaker cord to
the body of the car.
¡Do not use a 3-wire type speaker
system having a common earth
lead.
¡Do not connect more than one
speaker to one set of speaker
leads.
Fuse
Use fuses of the same specified rating (15 A). Using different substitutes or fuses with higher ratings, or connecting the
unit directly without a fuse, could cause fire or damage to the unit.
If the replacement fuse fails, contact your nearest authorized Panasonic Service Center.
38
CQ-DFX572N
Maintenance
Your product is designed and manufactured to ensure the minimum of maintenance. Use a soft cloth for routine exterior
cleaning. Never use benzine, thinner, or other solvents.
E
N
G
L
I
S
H
36
Notes on CD / CD Media (CD-ROM, CD-R, CD-RW)
If you use commercial CDs, they must have either
of these labels shown at right.
TEXT
How to hold the disc
¡Do not touch the underside of the disc.
¡Do not scratch on the disc.
¡Do not bend disc.
¡When not in use, keep disc in the case.
Label side
Do not use irregularly shaped discs.
Do not leave discs in the following places:
¡Direct sunlight
¡Near car heaters
¡Dirty, dusty and damp areas
¡Seats and dashboards
Disc cleaning
Use a dry, soft cloth to wipe from the center outward.
Do not use irregularly shaped discs.
<Right>
<Wrong>
Do not attach any seals or labels to your discs.
Do not write on the disc label in a heavy pen or
ballpoint pen.
Notes on CD-Rs/RWs
¡You may have trouble playing back some CD-R/RW discs recorded on CD recorders (CD-R/RW drives), either due to
their recording characteristics or dirt, fingerprints, scratches, etc. on the disc surface.
¡CD-R/RW discs are less resistant to high temperatures and high humidity than ordinary music CDs. Leaving them inside
a car for extended periods may damage and make playback impossible.
¡Some CD-R/RWs can not be played back successfully thanks to incompatibility among writing software, a CD recorder
(CD-R/RW drive) and the discs.
¡This player cannot play the CD-R/RW discs if the session is not closed.
¡This player cannot play the CD-R/RW discs which contains other than CD-DA or MP3 data (Video CD, etc.).
¡Be sure to observe the instructions of CD-R/RW disc for handling it.
CQ-DFX572N
39
E
N
G
L
I
S
H
Troubleshooting
Preliminary Steps
Check and take steps as described in the tables below.
37
If You Suspect Something Wrong
Immediately switch power off.
Disconnect the power cable and check that there is neither smoke
nor heat from the unit before asking for repairs. Never try to repair
the unit yourself because it is dangerous to do so.
Cautions:
¡Do not use the unit if it malfunctions or
something is wrong.
¡Do not use the unit in an irregular condition,
for example, without sound, or with smoke or
foul smell, which can cause ignition or electric
shock. Immediately stop using the unit and
call the store where you purchased it.
Product Service
If the suggestions in the charts do not solve the problem, we recommend that you take it to your nearest authorized
Panasonic Service Center. The product should be serviced only by a qualified technician.
■ Common
Problem
Possible cause / Possible solution
Car’s engine switch is not on.
aTurn your car’s ignition switch to ACC or ON.
Cables are not correctly connected.
aConnect cables correctly.
Battery cable: Connect the battery cable to the terminal that is always live.
Accessory cable: Connect the accessory cable to your car's ACC source.
Grounding wire: Connect the grounding wire to a metal part of your car.
No power.
Fuse is burnt.
aCall the store where you purchased the unit, or your nearest Panasonic
Service Center and ask for replacement fuse.
Mute is set to ON.
aSet it to OFF.
Cables are not correctly connected.
aConnect cables correctly.
No sound.
External Mute lead is not correctly connected.
aConnect the External Mute lead correctly.
Condensation (dew).
aWait for a while before use.
40
Only sound, no display.
Display is set to OFF.
aSet it to ON (a Page 26).
Noise.
A mobile phone is used near the unit.
aKeep the mobile phone away from the unit.
Buttons unusable
(each source operation.)
Menu mode is activated.
aPress [MENU] / [SEL] or [DISP] to return to the regular mode.
Audio sound is output
but the display shows
demonstration message.
Demonstration mode is ON.
aPress [DISP] to cancel the demonstration mode.
CQ-DFX572N
■ Radio
Problem
Possible cause / Possible solution
E
N
G
L
I
S
H
38
Station is too far, or signals are too weak.
aSelect other stations of higher signal level.
Poor reception in FM
stereo and monaural
broadcasts.
The radio antenna is not extended enough.
aExtend the radio antenna enough.
The motor antenna relay control lead is not connected correctly.
aIf there is a motor antenna in the car, connect the motor antenna relay
control lead to the motor antenna lead that is installed in the car correctly.
Preset station is reset.
Battery cable is not correctly connected.
aConnect the battery cable to the terminal that is always live.
■ CD / MP3
Problem
Possible cause / Possible solution
Disc is upside down.
aPlace disc in the correct direction with the label side up.
Disc is in the CD compartment but no sound
is made, or disc is
ejected automatically.
Disc is dirty.
aClean disc, referring to the section on "Notes on CD / CD Media (CD-ROM,
CD-R, CD-RW)" (a Page 39).
A disc that has data other than CD-DA or MP3 type is loaded.
aDiscs that have CD-DA or MP3 type data should be used.
aSome CD-R/RWs can not be played back successfully thanks to
incompatibility among writing software, a CD recorder (CD-R/RW drive)
and the discs. Refer to instructions for the concerned devices for details.
Sound skips, bad
sound quality. (e.g.
caused by noise)
Disc is dirty.
aClean disc, referring to the section on "Notes on CD / CD Media (CD-ROM,
CD-R, CD-RW)" (a Page 39).
aSome CD-R/RWs can not be played back successfully thanks to
incompatibility among writing software, a CD recorder (CD-R/RW drive)
and the discs. Refer to instructions for the concerned devices for details.
Mounting angle is over 30 degrees.
aAdjust mounting angle to less than 30 degrees.
Sound skip due to
vibration.
Disc is not ejected.
Unstable mounting.
aMount the unit securely with the mounting parts, referring to the section
on Installation.
¡CD is defective.
¡Mechanical trouble.
aOpen the panel and press [u]. If normal operation is not restored, call
the store where you purchased the unit or the nearest Panasonic Service
Center to ask for repairs.
CQ-DFX572N
41
E
N
G
L
I
S
H
Troubleshooting (continued)
■ CD
Problem
Possible cause / Possible solution
39
CD text is not displayed normally.
Disc is dirty, or has scratches.
aClean disc, referring to the section on "Notes on CD / CD Media (CD-ROM,
CD-R, CD-RW)" (a Page 39).
Time is counted but no
sound comes out.
The 1st track of a mix mode disc was reproduced. (Mix mode is a format in
which data except music is recorded on the 1st track and music data is
recorded on other than the 1st track in a session.)
aPlayback music data recorded on other than the 1st track.
■ MP3
Problem
Possible cause / Possible solution
The disc does not conform to any of the file systems supported by this player.
aInsert a disc that conforms to the file systems supported by this player.
For supported file systems, see "Points to remember when recording an
MP3 disc" (a Page 20).
No playback.
The MP3 file is missing the ".mp3" file name extension.
aMake sure to add the ".mp3" extension to each MP3 file name.
It takes too long for
playback to start.
Poor recording quality,
sound skipping.
The folders and files recorded on the disc are layered too much.
aAs checking of files takes longer in this case, do not record any unnecessary folders or files other than MP3s on the disc.
(If there are many hierarchies of files and folders, it may take up to 150
seconds to start playback.)
aThe recording quality differs depending on the encoding software used,
and on settings such as the bit rate. Set the bit rate within the range specified in the specifications chart (a Page 45).
It is recommended to set the bit rate to “128 kbps or more” and “Fixed”.
High-speed writing was executed when MP3 data was recorded on the disc.
aDecrease writing speed as low as possible.
Files are not played in
the desired order.
Folder / file name is not
displayed correctly.
Files or folders are not recorded in the desired playback order.
aSome writing software lets you specify the recording order by adding a
prefix in the range of “01” - “99”, etc. to the file name. For details refer
to the user manual of your writing software.
The disc does not conform to the file systems supported by this player.
aInsert a disc that conforms to the file systems supported by this player.
For supported file systems see "Points to remember when recording an
MP3 disc" (a Page 20).
aThere may be a problem with your writing software or CD recorder (CDR/RW drive). For details refer to the user manual of your writing software.
42
CQ-DFX572N
E
N
G
L
I
S
H
■ MP3 (Continued)
Problem
Possible cause / Possible solution
40
You ran the file in fast forward or fast reverse during playback or turned off the
ignition switch of the car during playback.
aPlaying another file will return the file playing time to normal.
File playing time is not
displayed correctly.
You played a VBR (Variable Bit Rate) format MP3 file.
aThe file playing time of VBR (Variable Bit Rate) format MP3 file is
sometimes displayed incorrectly.
You played a file in which character information had been recorded by use of
ID3Tag 2.0 or later version.
aA file in which character information was recorded by use of ID3Tag 2.0 or
later version may not be reproduced normally. For example, the file playing time may not be displayed correctly.
■ Sound Setting
Problem
No sound from left,
right, front, or rear
speaker.
Left and right sounds
are reversed.
Possible cause / Possible solution
Left and right balance, or front and rear balance is off on one side.
aAdjust BALANCE and FADER as appropriate (a Page 24).
Cables are not correctly connected.
aConnect the cables correctly.
The right speaker lead is connected to the left speaker and the left speaker lead
to the right speaker.
aConnect the speaker leads to the correct one.
■ Remote Control
Problem
Possible cause / Possible solution
Battery polarities (+) (–) are reversed.
aInsert the battery correctly.
Buttons are invalid for
operation.
Wrong battery
aCheck the battery.
Battery have run down.
aReplace the battery.
Remote control is in the wrong direction.
aDirect the remote controller at REMOTE (sensor) on the panel.
CQ-DFX572N
43
E
N
G
L
I
S
H
41
Troubleshooting (continued)
Error Display Messages
■ CD / MP3
Display
Possible cause / Possible solution
Disc is dirty, or is upside down.
A disc that has data other than CD-DA or MP3 type is loaded.
Disc has scratches.
No operation by some cause.
After 5 seconds
After 5 seconds
aOpen the panel and press [u].
¡Check the disc.
¡Load the disc again.
Return to previous mode
When there is no MP3 files in the specified folder during direct MP3 folder selection.
aPress [}] or [{] to select another folder which contains MP3 files.
The player for some reason cannot read the file you are trying to play.
(File recorded in an unsupported file system, compression scheme, data
format, file name extension, damaged data, etc.)
aSelect a file that the player can read. Confirm the type of data
recorded on the disc. Create a new disc if necessary.
■ CD Changer
Display
Possible cause / Possible solution
Disc is dirty, or is upside down.
A disc that has data other than CD-DA type is loaded.
Disc has scratches.
To next disc automatically
Return to previous mode
aEject the magazine.
¡Check disc.
¡Load the disc again.
No operation by some cause.
aEject the magazine. If failure persists, press the reset switch on the
CD changer. If normal operation is not restored, call the store where
you purchased the unit or the nearest Panasonic Service Center to ask
for repairs.
The display continues if the power is not turned off automatically.
No disc is in the CD Changer (magazine).
aInsert discs into the changer (magazine).
Note: Displays and the steps to be taken for errors vary in part from changer to changer. For details, refer to the Operating
Instructions for the changer used.
44
CQ-DFX572N
Specifications
General
CD Player
Power Supply
Sampling Frequency
DA Converter
Error Correction System
: DC 12 V (11 V - 16 V), Test
Voltage 14.4 V, Negative
Ground
Current Consumption
: Less than 2.5 A (CD mode,
0.5 W 4-Speaker)
Maximum Power Output : 50 W x 4 (at 4 Ω)
Power Output
: 22 W x 4 (DIN45 324, at 4 Ω)
Speaker Impedance
: 4-8Ω
External Input Impedance : 10 kΩ (AUX IN)
External Input Sensitivity : Max. 2 V (AUX IN)
Pre-Amp Output Voltage
: 2.5 V (CD mode)
Pre-Amp Output Impedance : 200 Ω
Sub-Woofer Output Voltage : 2.5 V
Dimensions
: 178 (W) x 50 (H) x 150 (D)
mm
Weight
: 1.6 kg
FM Stereo Radio
Frequency Range
Usable Sensitivity
Stereo Separation
: 87.5 - 108 MHz
: 6 dB/µV (S/N 30 dB)
: 35 dB (at 1 kHz)
MW Radio
Frequency Range
Usable Sensitivity
Pick-Up Type
Light Source
Wavelength
Frequency Response
Signal to Noise Ratio
Total Harmonic Distortion
Wow and Flutter
Channel Separation
MP3 decoding
: 8 times oversampling
: MASH• 1 bit/4 DAC System
: Panasonic Super Decoding
Algorithm
: Astigma 3-beam
: Semiconductor laser
: 780 nm
: 5 Hz - 20 kHz (±1 dB)
: 90 dB
: 0.01 % (1 kHz)
: Below measurable limits
: 70 dB
E
N
G
L
I
S
H
42
: MPEG 1 Audio Layer 3
MPEG 2 Audio Layer 3
Bit Rate
(MPEG 1 Audio Layer 3) : 32 kbps - 256 kbps,
VBR (Variable Bit Rate)
(MPEG 2 Audio Layer 3) : 16 kbps - 160 kbps,
VBR (Variable Bit Rate)
Sampling Frequency
(MPEG 1 Audio Layer 3) : 32 kHz, 44.1 kHz, 48 kHz
(MPEG 2 Audio Layer 3) : 22.05 kHz, 24 kHz
: 531 - 1,602 kHz
: 29 dB/µV (S/N 20 dB)
LW Radio
Frequency Range
Usable Sensitivity
: 153 - 279 kHz
: 34 dB/µV (S/N 20 dB)
Note: Specifications and design are subject to modification without notice due to improvements.
CQ-DFX572N
45
Matsushita Electric Industrial Co., Ltd.
Central P.O. Box 288, Osaka 542-8588, Japan
Dalian Matsushita Communication Industrial Co., Ltd.
Daxinzhaizi, Ganjingzi District, Dalian, China P.C. 116033
YEFM283837 D0202-1032
Printed in China
Was this manual useful for you? yes no
Thank you for your participation!
