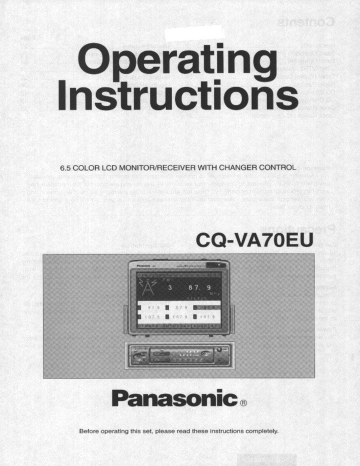

Operating
Instructions
6.5 COLOR LCD MONITOR/RECEIVER WITH CHANGER CONTROL
‚ СО-МАТОЕО
EEE НЫЕ
tes en.
у Bey EN PT
E E A — " Le LY |
y TRE т
ara aL Fy
> ен
5 E. A ; АА E ir. “a
ho LE - pe 1" Г.
Before operating this set, please read these instructions completely.
Contents
“page UE Page
Precautions ................._.—————_.e..eierereenerreneenanrec ee 2 Useful Features EHER 27
Basic Operation (Precautions) ....................—... 3 Setting for System Upgrading 29
Basic Operation (Display)..................-.e.emeeverro 5 Batteries for Remote Control... 31
VTRIVTR2 Operation (Display) .................—... 13 Maintenance and Care ..................ee.2eevierieeecenes 31
Tuner (Radio) Display ....................e.e.eeme..ee..—. 14 Installation Guide................ e ererserrererrericieereee.s 32 .
Radio Basics ...............e....esmeserreceererrnonena enana. 15 Electrica! ConneCtiON e .e..erereeen 36
CD Changer Control Display .................—e—e——.. 18 In Case of irregular Operation ...................... 42
CD Changer Control Operation .............. e. 19 Maintenance..............———.—.——.——.reeeeicereernene nene ee 42
Clock Basics (Display)...................-e-.eemmeee.. 25 Specifications .....................e.22x00r00r0 ee DIA 43
Clock Basics (12-hour clock) ...................=e...——.. 26
4 N
member of our family.
\
Precautions
Car Washing
To avoid electrical short circuits which may cause
fire or other damage, do not expose this equipment
(including the speakers, CDs or tapes) to water or
excessive moisture.
Service
This unit is made of precision parts. Do not attempt
to disassemble or adjust any parts. For repair,
please consult the MITO service department listed
in the Warranty card.
Power Supply
This equipment is designed to be used in a car that
has a 12-voit negative ground battery system.
CQ-VA70EU
Panasonic welcomes you to their constantly growing family of electronic products owners.
We endeavor to give you the advantages of precise electronic and mechanical engineering, manufac-
turing with carefully selected components, and assembly by people who are proud of the reputation their
work has produced for our company. We know this product will bring you many hours of enjoyment, and
after you discover the quality, value, and reliability we have built into it, you too will be proud to be a
A
Car Ventilation
If your car is parked for several hours in direct sun-
light, the temperature inside the car may become
very high. It is advisable to drive the car for a while
until the interior cools down before switching the
unit on,
About Preset Memory
The present memory settings are cleared and re-
turn to the original factory settings when the power
connector or battery is disconnected.
Disc Mechanism
Do not insert coins or any small objects. Keep
screwdrivers and other metallic objects away from
the disc mechanism and disc.
Basic Operation (Precautions)
How to open and close the display
Display position
Pressing OPEN button
Fully closed
Moves display to fully open position.
Fully open
Moves display to fully closed position.
ward.
button.
(0 When turning the ACC of the car off, the display is drawn in
automatically in about 2 seconds, provided it faces down-
(2) To draw in the display when it does not face downward,
place it in downward position and press the display release
E Drawing out the display
[1] Press OPEN button. ,
CAUTION:
OPEN button
„
Do not try to change the angle of the display
when il is not fully drawn out as this will damage
the unit. If the display is drawn out only half-way,
retract it first by pressing OPEN button, and then
press OPEN button again to draw it out com-
pletely.
Note:
If you press OPEN button with the display in
drawn-out position, the display will be drawn in. H
no operation takes place within approx. 10 sec-
onds, the display will be automatically drawn in.
E Angle adjustment
Adjustment range
35
7
[Vertical direction)
LLL NNAN
/ \
/ \
Fe | ge,
20° 20°
Adjustment range
[Horizontal direction]
CQ-VA70EU
Basic Operation (Precautions) (continues)
[2] Turning the display upward
Non-slip portion
Note:
* Do not turn the display forcibly.
* The display can be turned 135° in vertical direction
{upward and downward) and 20° to the right and left.
{The turning angles may be smaller for some car
models.)
When adjusting the display angle, be careful not to
get your hands or fingers caught between the dis-
play and the panel cutout.
* The display cannot be moved forward or backward
in the upright position. Never push or pull it forcibly.
* Adjusting the right-left angles (manual)
Angle adjustment should be done slowly, without applying unreasonable force.
* Before drawing in the display
Make sure to return the display to center position before drawing it in. It cannot be drawn in with its an-
gles adjusted.
Note:
To move the display, always hold it by the upper half
(non-slip portion provided on the rear). If you hold the
lower portion, you could get your fingers caught be-
tween the display unit and the mechanical parts at the
rear.
4
CQ-VA70EU
Basic Operation (Display)
=
у
С
L
|
S
H
3
SENSOR
ATT Indicator
Flashes when ATT is ON.
LOUD Indicator
Indicates when LOUD is ON.
|
= LI] a)
87.9 MN e875
107.9 Ш 107.9 JP 107.9
DIMMER Indicator
Indicates the brightness of the screen.
87. 9
MHz
STLRLO
87.9 PB 87.9
107.9 MB 107.9 BP 107.9
VOLUME Indicator
Indicates the level of sound volume.
CQ-VA70EU
Basic Operation (Display) continues
Panasonic
== Аа
le]
FUNCTION LOU
AA. A
(The corresponding button on
the display unit may also be
used for this operation.)
(The corresponding button on
the display unit may also be
used for this operation.)
(ATT)
TAN
Press and hold
A |
FUNCTION !
A CA
CQ-VA70EU
Power
(OD Turn the key in the ignition until the accessory indicator lights.
(2) * Press MODE to switch on the power.
* Press MODE to select the operation mode as follows.
OFF — AM/FM — VTR1 — VTR2
сне < |
(When a CD changer is connected.)
Volume
Press / AVOLYV to increase or decrease volume.
107.9 MM 107.9 107.39
Note:
The volume of this set can be adjusted individually for each mode
the Y TR, tuner and CD changer.
Attenuator
* Press ATT to decrease volume to about
1/10 of the previous level.
ATT
* Press ATT again to cancel.
Tone Enhancement
* Press and hold ATT (LOUD) for more than 2 seconds to enhance
bass and treble tones when listening at low
or medium volumes.
* Press and hold ATT (LOUD) for more than
2 seconds to cancel.
LOUD
Menu Control
Press and hold MODE for more than 2 seconds to switch the MENU
CONTROL mode. Press VTUNE/TRACKA to select the operation
A = mode as follows.
No. AON AS
TUNE/TRACK V TUNE/TRACK A
DISPLAY CONTROL screen
Press and hold FREE
RL
=
N
e
L
|
5
e
5
a (LI
1 Phy Lf Sd
Press to select _ г edi ad
an item (4). BRIGHT Bi (Hl tm) (11110
COLOR Mijirbiimi TIRO
TINT ErIrFIMImMirtidIE
газа
Press again to NEXT ¥ Press again to
move to the + 1 move to the
next page. previous page.
DISPLAY MODE SELECT screen
Press to select Press to select
an item (). EXTERNAL MODE E/TAFE an item (1).
| A HEXT Ww
Press again to Press again to
move o the 3 + move to the
page. previous page.
AUDIO CONTROL screen
Press to select ETITIITTT Кота! Press to select
an item (4). EXIJA: 111 y 18 AN Item (7).
BEER
BLEIBEN
[a NEXT Y
Press again to J 4 Press again to
move to the move to the
next page. AUDIO OUT SELECT screen Previous page.
oF F/RN Press to se-
lect an item
(1).
La NEXT
End
Press MODE again to return to normal mode.
7
CQ-VA7OEU
FUNCTION LOYD
Ql
Basic Operation (Display) (continues
<Display Unit Control>
BRIGHT CONTROL indicator
Lit when BRIGHT CONTROL is selected.
COLOR CONTROL indicator
| Lit when COLOR CONTROL is selected.
A РН
COLOR Ве НО :
TINT BILLIE
BIENS SUE : 2 3 4 TINT CONTROL indicator
| NEXT Y
Lit when TINT CONTROL is selected.
Lit when DIMMER CONTROL is selected
SCREEN SAVER Indicator
Lit when Screen Saver is selected.
EXTERNAL MODE ED/TAPE
EXTERNAL MODE indicator
Lit when External Mode is selected.
4 NEXT ¥
o MU 1
|
|
|
|
8
CQ-VA70EU
DISPLAY CONTROL
FUNCTION LOUD
Де F ATT
FUNCTION LOUD
A
+
F UN
FUNCTION LOUD
Зе
SA
©
Qa
VA \
A
BRIGHT (brightness) control
M Press Y TUNE/TRACKA on the DISPLAY CONTROL screen to se-
lect BRIGHT.
(2) Press VDISCA to decrease or increase the screen brightness.
BRIGHT ВОН ао
COLOR (depth of color) control
M Press VTUNE/TRACK/A on the DISPLAY CONTROL screen to se-
lect COLOR.
@ Press VDISCA to darken or lighten the color of the color image.
COLOR Millie НВ
TINT (tone of color) control
(D Press VTUNE/TRACKA on the DISPLAY CONTROL screen to se-
lect TINT.
(2) Press VDISCA to emphasize red or green in the color image.
TINT РНЕ НН = ТИВ
CQ-VA70EU 9
LON F
FUNCTION
о
A
ATT
LOUD
RAJ
Basic Operation (Display) (continued
Dimmer adjustment
(1) Press VTUNE/TRACKA on the DISPLAY CONTROL screen to se-
lect DIMMER.
(2) Press VDISCA to adjust the brightness level of the screen as fol-
lows:
Ds AUTO 1 2 2 Z 3 2 4
O
DISPLAY MODE SELECT
FUNCTION
A
ATT
LOUD
QA
dE
у
Screen Saver
(D Press VTUNE/TRACKA to switch to DISPLAY MODE SELECT
screen.
(2) Press VTUNE/TRACK/ again to select SCREEN SAVER.
(3) Press VDISCA to switeh SCREEN SAVER as follows:
OFFZ AZ B
* Screens A and B are different in patterns.
SCREEN SAVER ON SCREEN SAVER OFF
[SCREEN_SAVER] OFF[A]lB [SCREEN_SAVER] [OFFA B
<Operation during SCREEN SAVER Display>
Before using the function assigned to each button in each mode during SCREEN SAVER display, press
each button again to return to the base mode.
The individual buttons will not function without performing the above operation.
10
AUDIO CONTROL
Audio Mode Selection
Press VTUNE/TRACK/\ to switch to AUDIO CONTROL screen.
Bass
(D Select BASS on the AUDIO CONTROL screen. (See page 7.)
(2) Press VDISCA to decrease or increase the bass responds.
EZ) MUCOSA N
Treble
(D Select TRE on the AUDIO CONTROL screen. (See page 7.)
(2) Press VDISCA to decrease or increase the treble responds.
TRE MILCLLLLLEMINriririrD
Balance
(D Select BAL on the AUDIO CONTROL screen. (See page 7.)
(D Press VDISCA to shift the sound volume to the right or left speak-
ers.
FY E Ra |
Fader
(1) Select FAD on the AUDIO CONTROL screen. (See page 7.)
(2) Press VDISCA to shift the sound volume to front or rear speakers.
Fao [A E
11
CQ-VA70EU
Basic Operation (Display) (continued)
AUDIO OUT SELECT
BEEP setting
(1) PRESS VTUNE/TRACKA to switch to AUDIO QUT SELECT
screen.
(2) Press YDISCA to select ON or OFF as desired.
BEEP ON BEEP OFF
ВЕЕР! OFF /ON] BEEP] [OFF}/ON
12
CQ-VA70EU
VTRINTR2 Operation (Display)
ms mue que нов ни ори
Press MODE to change
to VTR1 mode.
"
!
I
Le nm
Press MODE to change to
VTR2 mode.
VTR1/VTR2 Operation
For safe driving, VTR operation is available only in stopped condition with the side-brake pulled.
"WARNING" will be displayed, if you try to switch to VTR mode by pressing MODE button while dri-
ving.
Lr]
— YOL
;
г x
4 Panasonic
98/9} == _
ия = Ру
ñ -
L и nd Az
A 1 as 6
i Г» La
Panasonic |
Car Audig TLS
To watch video programs
2 (E) am Press MODE to select VTR mode.
FUNCTION LOUD
AAA == VFRI=
(The corresponding button on
the display unit may also be
used for this operation.)
CQ-VA70EU 13
Tuner (Radio) Display
= - = a
a
soi AB prs dn coon Lc E
tra
Errata
FM1/FM2/AM1/AM2 (Band Indicator)
Indicates the band being received.
Channel Indicator
Indicates the preset channel number.
Frequency Indicator
Indicates the frequency on which the tuner is oper-
ating.
E as (
FM 1 -
87. 9 FM STEREO Indicator
STEREO AA Indicates that a FM stereo broadcast is being re-
- ceived.
Ш 87.9 87.9 -
\ —
O 107.92 J 107.9 HH 107.9
DIMMER AUTO IBGVILOUDIATT
Preset List Display
Shows the current channels preset.
14
CO-VA70EU
À
Radio Basics
FUNCTION LOUD
(The corresponding button on
the display unit may also be
used for this operation.)
E Ulea 2 ATT
FUNCTION LOUO
LAID
AN
(The corresponding button on
the display unit may also be
used for this operation.)
ase
QRS
= VOL
ANS
(The corresponding button on
the display unit may also be
used for this operation.)
Hold and rele
To change Tuner Mode
Press MODE to switch to tuner mode.
Selecting a Band
Press F to select the bands as follows.
FM1 > FM2 > AM] > AM2
1 4
Manual Tuning
Press VTUNE/TRACKA to move to a lower or higher frequency.
Seek Tuning
Press and hold VTUNE/TRACKA for more than half a second, then
release. The radio automatically stops on the next station.
15
CQ-VA70EU
Radio Basics (continued)
Preset Station Setting
Up to 24 stations can be preset in the station memory as follows;
FM1 FM2 AM1 AM2
6 stations 6 stations 6 stations 6 stations
Manual Station Preset
(1) Press F to select the desired band.
F )(ATT (2) Use Manual or seek tuning to find a station that you want to pro-
a O gram into memory.
(3) Press and hold one of the station selector buttons 1 through 6 until
the display blinks.
| Note: For safety reasons, do not attempt to program while driving. |
16
CQ-VA70EU
Tuning in a Station Preset
<Direct Tuning>
Press any of the button 1 through 6 to tune in the station preset.
E
N
G
L
|
S
H
—
n
<Sequential Tuning>
Press VDISCA to tune in to one of the stations preset to the preset
buttons (1 to 6). The stations change as follows.
$ |
DEOFOCOTOCOEO
Press and hold
Auto Station Preset
Select a band, press and hold F for more than 2 seconds.
* The 6 strongest available stations will be automatically set in
memory on preset button 1 through 6.
* Once set, the preset stations are sequentially scanned for 5 sec-
onds each.
* Press the appropriate preset button for the station you want to hear.
HB 373 В ss 1 EEE
91.7 Æ 101.9 PB 107.9
17
CQ-VA70EU
E
№
G
L
|
5
H
J
h
18
CD Changer Control Display
wean ADF Erne ds oon om Lo [EES
AR TT STI ei PTT DN ICM A MU MMM
e Te 1 UE © A D
DISC TRACK |
RC
01 Oa
TIME 03 15
!
Branpom FPRECALL
Bscan —PBrereEaT
DIMMER AUTOIESGUILOUDIATT
RANDOM (Random Play) Indicator
indicates random play.
HEpo-r» | (Disc random) BJ RanooM] (Track random)
ha
r
RECALL Indicator
Shows EBRECALL' when the disc content is displayed.
—
TY
REPEAT Indicator
Indicates repeated playing of a number.
EJ D-REP| (Disc repeat) ENT-REP] (Track repeat)
SCAN Indicator
Indicates the playing of numbers by scanning.
EJ o-scan) (Disc scan) EEN T-SCAN] (Track scan)
MEMO (Memory) Indicator
O Shows MEMO] when a number is stored in the memory.
O Shows PPM» | in memory play mode.
ho A
PAUSE/AP (Pause/Auto Pause) Indicator
Indicates a pause.
ENPause (Pause) | Ka =] (Auto pause)
CQ-VA70EU
CD Changer Control Operation
E
N
e
L
|
5
a
==
|
-
Panasonic
AAA
(The corresponding button on
the display unit may also be
used for this operation.)
YE
(The corresponding button on
the display unit may also be
used for this operation.)
To start the CD Changer
Press MODE to change into the CD changer mode.
Selecting a Disc
Press Y DISC to select discs in descending or ascending order.
Note:
The “DISC” or “DISC/\" is operated, has priority over that of
Random play mode. The Random mode will stop and the disc se-
lect function will operate once the “DISC” or “DISCA\" is pressed.
19
Ca-VA70EU
CD Changer Control Operation (continued)
Selecting a Track
FUNCTION LOUD
© A A) + Press TUNE/TRACK/Y once to go to the next track.
* Press “VTUNE/TRACK" once to play from the beginning of the cur-
= VOL
\ rent track.
AN zZ) * Press repeatedly to skip the desired number of tracks.
(The corresponding button on
the display unit may also be
used for this operation.)
Searching a Track
© A @ Press VTUNE/TRACK/\ for more than half a second to activate fast
forward (AA) or reverse (\/) through a track.
VOL
\ Release V TUNE/TRACKA to resume the normal CD play.
ANS
(The corresponding button on
the display unit may also be
used for this operation.)
FUNCTION [Rails]
Random Selection
(D Track Random Play
Press 2 (RANDOM). À random selection of music is played from all
available tracks.
* Press 2 (RANDOM) again to cancel. RANDOM
(2) Disc Random Play
* Press and hold 2 (RANDOM) for more than 2 seconds. “R »” indi-
cator will light. A random selection of music is played from afl avail-
able tracks.
* Press and hold 2 (RANDOM) for more than 2 seconds again to can-
cel. Bor» |
,
Note:
* The order of playing numbers is selected by the built-in computer at random.
* If a number selected for track random play is not available on the current disc (for example, if a 12th
number is selected when the disc has only 10 numbers), other numbers on the disc will be automat-
ically selected again.
* If there are only a few discs in the magazine, even empty disc trays will be selected, resulting in an
interruption of play during that time. Therefore, using the track random play function is not recom-
| mended in such a case.
20
СО-МАТОЕО
Scanning Tracks
(D Track Scan Play
» Press 5 (SCAN). The display blinks and the first 10 seconds of each
track on the discs play in sequence.
5 T-SCAN
-—
» Press 5 (SCAN) again to cancel.
* Scan mode is also released when the disc has come to the program
preceding the original program.
(2 Disc Scan Play
a Press and hold 5 (SCAN) for more than 2 seconds. The first track of
all the discs in the magazine is played 10 seconds each.
D-SCAN
* Press and hold 5 (SCAN) again for more than 2 seconds to cancel.
» Scan mode is also released when the disc has come to the program
preceding the original program.
Repeating a Track
0, (D Track Repeat Play
® * Press 6 (REPEAT) to repeat the current selection.
»
ue, EC ETRE?
* Press 6 (REPEAT) again to cancel.
(2 Disc Repeat Play
e Press and hold 6 (REPEAT) for more than 2 seconds to repeat the
current disc.
6 D-REP
» Press and hold 6 (REPEAT) again for more than 2 seconds to can-
cel.
21
CQ-VA70EU
22
CD Changer Control Operation (continues)
Pause/Auto Pause
Press 1 (PAUSE) to temporarily stop while the disc playing.
EN PAUSE
Press 1 (PAUSE) again to cancel.
* Press and hold 1 (PAUSE) for more than 2 seconds to temporarily
stop at the head of each track. (Auto Pause)
Press 1 (PAUSE) again, the disc starts playing again.
1 _
* Press and hold 1 (PAUSE) again for more than 2 seconds to cancel.
Storing Tracks in Memory
(1) Press 1 (PAUSE) to temporarily stop while the disc playing.
(2) Press 4 (MEMO).
ний RANDOM
(3) Press VDISCA and Y TUNE/TRACKA to select a desired num-
ber.
(4) Press 4 (MEMO) to save the selected number in memory.
4 MENT
CQ-VA70EU
006
SCAN
Li J ln i ko +
AT MO RCL
000
SCAN REPEAT
(5) Repeat steps 3) and @ to save one desired number after another
in the memory. The word FULL appears if an attempt is made to
save beyond the maximum limit.
* The maximum of numbers that can be saved in the memory varies
depending on the CD changer used.
MEMO — FULL
(6) When all numbers have been saved in the memory, press
(PAUSE). Memory play automatically starts with the first number
saved in the memory.
Memory Play
* Press 4 (MEMO) to siart ine memory piay.
EN
* Press 4 (MEMO) again to cancel.
Memory Check
Press 3 (RCL) to check the all memoried numbers on display.
EN RECALL
To clear the stored memories
To delete all numbers saved in the memory, press and hold 4 (MEMO)
for more than 2 seconds while the disc is playing. PQMEmo] or
м» | on the memory indicator goes out, indicating that the
memory has been all cleared.
23
CQ-VA70EU
24
CD Changer Control Operation (continued)
E Error Display acces Errors are displayed in basic display mode only.
Display
CQ-VA70EU
Description
This appears when the maximum limit is reached in saving numbers
for memory play.
This indicates either a dirty disc or a disc placed the wrong side out.
In this case, the changer automatically proceeds to the next disc.
This indicates a damaged disc. The changer automatically proceeds
to the next disc.
This appears if the set fails to operate due to some cause. Press the
EJECT button on the changer.
This appears if no disc is in the magazine.
Clock Basics (Display)
= «dy E ll Bl)
Г"
I
i
|
|
i
i
I
I
|
|
Y
(5 CLOCK OFFAON
[CLOCK AD J]
Press 1
CLOCK
button
(5 CLOCK OFF/ON
[CLOCK ADJ]
[HOUR] MINUTE
12 : 00
<Time Setting Mode>
25
CQ-VA70EU
соо
"Ta
Par
SN
Panasonic
Le EC ER
Clock Basics (12-hour ctock)
The set has a 12-hour clock built in.
MEMO SCAN REPEAT
Boe
MEMO SCAN REPEAT
To Read the Clock
* Press CLOCK to select CLOCK SELECT mode.
* Press VDISCA to set the clock function ON or OFF.
ON position: The present time (12-hour system) is displayed.
Clock Adjustment
(M Press VTUNE/TRACKA to select CLOCK ADJUST.
For initial adjustment = For second or subsequent adjustment
HOUR HOUR
(2) To set hours, press VDISC.
To set minutes, press DISC/x.
(3) Press CLOCK again after setting to switch to normal mode.
G 12:00
а
Note:
tf VDISC or DISCA is pressed in the middle of clock adjustment, hour or minute is continuously in-
creased.
26
CQ-VA70EU
Useful Features
Direct Memory Function
The set has a direct memory function which calls back a station from the memory and receives it as you
press a button in any mode. lt is convenient for listening to traffic information.
Press and hold ad Direct Memory (D.M)
Select a desired station to be saved in the memory in tuner mode,
press and hold D.M for more than 2 seconds. This saves the selected
station in the direct memory.
Panasonic
LIE HI
Direct Memory Recall
Press D.M to switch to D.M mode as below to receive the station saved
in the memory.
Panasonic
Ln NE. | FE
Normal mode <> D.M (User memory)
DIMMER AUTOIBGVILOUDIATT
27
CQ-VA70EU
Useful Features (continued)
Background Visual (BGV)
E
N
G
L
|
5
a,
№
©)
The BGV (Background Visual) function allows you to keep watching your favorite video tape program and
change only the audio sound. It is available in all VTR modes.
(D) Press MODE and select your favorite video tape program from any
VTR mode.
@ Press BGV to change to BGV mode. "BGV" appears in the display.
UNCTION
ho Or © Press MODE and select a favorite audio program from VTR.
МЕМО SCAN REPEAT
(всу) @ Press BGV again to cancel.
@le
Е
7
BGV
pan
Note:
Any button operated in BGV mode will only affect audio operation.
Color Selection
The colors of the function display can be modified.
Press and hold ké Each time press and hold BGV for more than 2 seconds, the next four
rene ra I different color patterns is selected.
an
28
CQ-VA70EU
Setting for System Upgrading
Setting for video output type car navigation system
To use a video output type car navigation system, connect it to the VTR2 terminal. This will bring up the nav-
igation screen when NAVIGATION switch is turned on without the side-brake having to be pulled. (Select
VTR2 with MODE button.)
* Set NAVIGATION switch to match the equipment connected to the VTR2 terminal as shown in the table
below.
Equipment connected to VTR2 Position of NAVIGATION switch
Car navigation system ON
Video playback equipment, such as video deck OFF
rol
FRATION * CAMERA-
ÓN On OFF EN OFF
NAVIGATION Switch
(The NAVIGATION switch is originally set to OFF position when shipped from the factory.)
Setting for connection of a car backup camera
Use the VTR1 terminal to connect the car backup camera. When the CAMERA switch is set to the ON posi-
tion and the reverse cord is connected, the camera operation will be interlocked with the reverse gear of the
car. In this arrangement, the display will change automatically to the car backup camera screen whenever
the car goes into reverse gear.
CAMERA Switch
(The CAMERA switch is originally set to OFF position when shipped from the factory.)
29
CQ-VA70EU
Setting for System Upgrading (continues
MAIN-IN Switch Setting
E
N
G
L
y
S
a,
No
со
ра
g
E
le) |
Ак №
(ЕЁ
ON OFF
——
MAIN-IN Switch
3
¥
If the MAIN-IN switch is in the OFF position, the signals input to the MAIN-IN input terminal will not be ге-
produced as sound. Keep MAIN-IN switch in the OFF position except for upgraded systems.
(The MAIN-IN switch is originally set to the OFF position before product shipment from the factory.)
30
CQ-VA70EU
Batteries for Remote Control
Battery Replacement:
1. Remove the battery holder.
Pull the holder by the Position B while Remote control
pushing Position A in the direction indi- rear side Lithium battery
cated by the arrow. ) (CR2025)
Position B
2. Replace the battery.
Set a new battery properly with the (+)
side up as illustrated.
3. Insert the battery holder.
Push in the holder to the original position.
Battery case Nr
Position A ~~
Note on Batteries:
Old batteries must immediately be removed and disposed.
Battery Information:
» Designated Battery: Panasonic Lithium Battery (CR2025)
* Battery Life: 6 months with normal use (in normal! room temperature)
Caution:
Improper use of batteries may cause overheating, explosion or ignition, resulting in injury or fire.
Battery leakage may cause damage to the unit.
* Do not disassemble or short the batteries. Do not throw the batteries into the fire.
* To avoid the risk of accident, keep the batteries out of reach of children.
Maintenance and Care
Maintenance
Your product is designed and manufactured to ensure a minimum of maintenance. To clean the exterior of
this unit, use a soft cloth to wipe the surface. Do not use benzine, thinner, or any other type of solvent.
Product Service
* This unit should only be serviced by qualified technicians. Service information is not provided for cus-
tomers.
* Should your units ever require service, refer to the MITO service department listed in the Warranty card
for detail instructions.
Replacing the Fuse
Be sure to use a fuse of the specified rating (3A, 10A) when replacing a blown fuse. Fuses with higher ca-
pacity ratings, use of any substitute, or connection without a fuse may result in a fire hazard or damage to
the unit. If the replacement fuse fails, consult the MITO service department for detail instructions.
31
CQ-VA70EU
32
Installation Guide
HE Precautions
If possible, this equipment should be professionally installed. In case of difficulty, please consult with your
nearest professional installer.
1. This unit only operates in a 12-volt DC negative ground system.
2. Before performing installation and wiring, remove the negative (-) terminal of the battery. (See Note
below.)
Note:
Do not disconnect the negative battery terminal in vehicles equipped with trip or navigational computers. All
electronic memory settings previously registered will be lost. Take extra care to avoid causing short-circuits
when installing the unit.
3. Follow the wiring connection diagram carefully to avoid causing damage to the unit.
4. Insulate all exposed wires to prevent short-circuits.
5. Secure all loose wires after installing the unit. |
6. Piease carefully read the operating and installation instructions of any equipment connected to this unit.
в Transportation bracket removal
Be sure to remove the transportation brackets before use (installation).
Use screws (M5 x 6 mm} with washers for installation.
Be careful not to lose any of these parts.
Transportation
Display Unit bracket
—
{ Binding-head screws
(M5 x 6 mm)
Ш Installation Hardware
(The supplied package contains the following installation hardware.)
No. | Description Qty. No. | Description Qty.
© | Trimplate 1 © | Washer assembling hex bolt (M6 x 20mm) 1
O | Mounting frame 1 © | Stay 1
© | Mounting spring 2 @ | Binding-head screw (M5 x 6 mm) 2
O | Rubber pad 1 ® | Flat-head screw (M5 x 6 mm) 4
© | Mounting bolt (M5) 1 ® | Spacer 2
@ | Flange nut (M6) 1 ® | Double-Faced adhesive tape 2
© | Washer assembling hex bolt (M5 x 10mm) 1 O | Magic tape 2
CQ-VA70EU
E Installation
1. Insert the mounting frame into the dashboard 2. Bend the tabs on the mounting frame with a
or console of the car. screwdriver or the like (at least at 6 points.)
Dashboard or console
O Mounting frame
Screwdriver
бы
@ Mounting frame
Dash-
hoard or
console
18 tahs
Dashboard or console
Fastening the Mounting Frame
The tabs to be bent vary depending on the
car. Bend them with a screwdriver to fasten
the mounting frame securely in the dash- e
board or console. Mounting frame
3. Attach the mounting springs to the car audio set.
© Mounting spring (2 pcs.) Display Unit
® Flat-head screw
(M5 x 6)(2 pes.)
CQ-VA70EU 33
Installation Guide (continued)
4. Install the car audio set and trim
plate in the mounting frame fas-
tened to the car.
Display Unit
O Trim plate
<
B There are two ways of fastening the rear of the car audio set.
» Fastening it to bracket on the car Bracket
O Rubber pad {on car)
© Mounting bolt (M5)
Display Unit
Drill a hole 6.5 to 7
mm in diameter.
AYN
© Flange пи! (Мб)
* Fastening to iron plate on the car
Iron plate on car
AN
© Washer assembling
hex bolt (M5 x 10)
© Washer assembling
hex bolt (M6 x 20)
Display Unit
ol
LO
- 18
XS
an
O
O
O
O
of
Stay
34
CQ-VA70EU
« When mounting the unit in a Toyota car, use the lateral side screw holes marked “T”.
* Use the brackets on the car for installation.
* An exclusive kit (optional) may be needed according to the year, model, and grade. Please consult a
nearby sales agent. An exclusive relay cord (optional) is also available. It facilitates wiring toward the car
side.
To maximize performance of this unit, mount it at an
angle of within 30 degrees against the horizontal plane.
30°
<Mounting the Tuner Unit>
Mounting Example
Stick Magic tape @ on the L-type mounting brackets and mount the tuner on the car carpet.
Note:
Some carpet materials may not be suitable for this mounting method.
Tuner Unit
O Magic tape
- 200 Carpet
)
Note:
* Never mount the tuner in any of the following locations to avoid damage due to overheating:
1. Near the heater port
2. Places like the dashboard or rear tray, where it may be exposed to direct sunlight.
* Do not mount the tuner near the door, where it could be exposed to rain.
La „”
CO-VA70EU
35
Electrical Connection
Before Wiring
* To prevent damage to the unit, be sure to follow the connection diagram below.
* Be sure to insulate any exposed wires against possible short-circuit from the car chassis. Bundle all ca-
bles and should not be disconnected. Therefore, extra care should be taken to prevent short-circuits.
¢ Do not insert the power connector into the unit until the wiring is completed.
Note:
For installation in cars with trip or navigational computers, all electronic memory settings previously registered
in the computer will be lost when the battery terminal is disconnected. Do not disconnect the battery in vehi-
cies equipped with these units. Therefore, extra care should be taken to prevent short-circuits.
<Basic Wiring>
{L)
(MAIN-IN FRONT)
Front main input
cord
Fear main input
cord
(MAIN-IN REAR)
CO-YA70 (Tuner Unit)
PREG
® © © ©) © © ÉS — CD changer connector
RGB Input connector for car navigator
0 a о
| E * See page 41 whan
1 | connecting the side-brake
(Black) (Blue) | | HE Display unit ect detection cord and the
ac 5 unit connector
Ground lead SID y reverse cord.
Power
connector (Gray) (SIDE BRAKE) (Blue wiyellow stripes)
(White)
[o (FRONT L) Side-brake
{Lett} | detection cord
Front \
speaker
cord
(Right) (REVERSE) (Violet wiwhite stripes)
Ei) Reversa cord
{Gray w/black stripes)
(Green)
® [FE {REAR L}
(Lett) > (Brown)
rown
Rear ; JEXT-CONT (—— Control cord
speaker {Green wiblack stripes) for external unit
cord (viole) — (REARR
$ [=55 ( -
(Right) Nr
op ;
{Violet w/black stripes) (EXT PLAY/STOP CONT) (Brown w/black stripes) Control cord
(Black) > tor enteran
Ground lead A LAY/STO
= Radio antenna
- —
Auto antenna {Blue} (ANT-CONT MAX O.1A) ) receptacle
, control powar cord ;
{Blue wiwhite stripes) (AMP-CONT MAX 0.1 A) CO-VA70
Extemal amp == A (Display unit)
control powar cord
(Orange) {NAVI MUTE)
NAVI muta cord {
{Brown wiwhite stripes) (TWIN CD + C-CONT)
Twin CD changer CO = <
control cord
(Red) {ACC 3A) Fuse
Accessory power III
com
(Yellow) (BATTERY 104) Fuse
Battery power cord
Note:
Connect the battery cable to à terminal that is
always live. Note:
De not connect this auto antenna control power
CQ-VA70EU
cable to the power terminal that directly drives the
auto antenna, (Otherwise, trouble may occur.)
36
<System Upgrading Example 1>
Connecting VTR1 (or a car backup camera) and VTR2 (or a general car navigator)
to the CQ-VA70EU
CO-VA70 (Tuner Unit}
(MAIN-IN FRONT) 0
Front main input
cord
Rear main input
cord
{MAIN-IN REAR)
@
030990
CD changer connector
VTR1 (IN VTR1 YTR2 IN VTR2
(VIDEO) E (AUDIO) (VIDEO) 4 | AUDIO)
VTA1 VTR2
(atso for back camera) {also for general car navigator)
* Make changeover at the * Make changeover at
back camera connection NAYIGATION switch.
RGB input connector tor car navigator changeover switch,
CO-VA70 (Blue)(Gray)
(Tuner Unit) du | * See page 41 when
— connecting the side-brake
a 0 detection cord and the
(Black) Display unit connector reverse cord.
Ground lead Em
нат (White) (FRONT L) (Gray) (SIDE BRAKE) (Blue wiyellow stripes)
(Left) о — | Side-brake detection cord
Front — os
speaker (White w/black stripes)
cord © male? (FRONT R) ||
(Right) = я e tr
© (REVERSE) (Violet w/white stipes)
(Gray wiblack stripes) =—< } E= Reverse cord
(Green) (REAR L)
[re]
(Left) E
Rear EXT-CON (Brown)
speaker (Green w/black stripes) Lo ( Ш Control cord
cord (Violet) (REAR A) — for external uni
(Right) NN —
| Y
Violet wblack stri
(Bl aci) pes) (EXT PLAY/STOP CONT} {Brown w/black stripes)
Mo Control cord
Ground lead 2m я for extemal unit
Auto antenna (Blue) (ANT-CONT MAX 0.1A) PLAY/STOP
control power cord co x —) Radio antenna
(Blue wAvwhite stripes) (AMP-CONT MAX 0.1A) receptacle
External amp == 2 СО-МАТО
control power cord (Display unit)
{Orange) (NAVI MUTE)
NAVI mute cord = fe
(Brown wiwhite stripes) (TWIN CD + C-CONT)
Twin CO changar e— { =
control cord
(Red) (ACC 3A) Fuse
Accassory power
cord
(Yellow) (BATTERY 10A} Fuse Nota:
Battery power cord ей Connect the battery cable to a terminal that is
L always live,
7
Electrical Connection (Continued)
<System Upgrading Example 2>
System upgrading by combining CQ-VA70 with CX-DP801EUC
RGB input connector
tor car navigaior CQ-VA70 (Tuner Unit)
o > (Gray)
4 she | Display unit connector
(Black) J (Blue) Gay CQ-VA70 (Display Unit)
re White) (FRONT L)
Va]
Ground lead Sm
Power
connactor
(Left)
Front
speaker
cord
(Right)
9 (Gray wiblack strips)
(Green) (REAR L)
(Left) Nee
Rear к (Grean w/black strips
peaker
cord
re, Violet) (REAR Rj} ||
(Right} Ne —
6m
(Violet wblack strips)
CQ-VA70 (Tuner Unit)
OE
POO
CD Changer
Control Connector
Keep the
MAIN-IN switch
DIN Extension Cord in the OFF
и position except
7 when using the
MAIN-IN input
— terminal.
ff (White)
f (Red) o e
№ —
Extension Cord {DINBATT/RCA/GND)
(Yellow)
Fuse (3.154)
38
CQ-VA70EU
Description of Tuner Unit Connectors and Switches
These are connectors and switches used to upgrade the system by connecting various units.
« Refer to the system upgrading examples on pages 37, 38 for connections.
00
7
| |
00
ОО
o
|
|
ооо
(D) VIDEO-OUT
Outputs a video signal for an external monitor.
(2) VTR2-IN
Accepts the video input from VTR2.
@ VTR1-IN
Accepts the video input from VTR1.
(4) PRE OUT (R)
Supplies the right channel audio output.
6 PRE OUT (L)
Supplies the left channel audio output.
© VTR1 (R)
Accepts the right channel audio input from
VTRI1.
(7) VTR1 (L)
Accepts the left channel audio input from
VTR1.
VTR2 (R)
Accepts the right channel audio input from
VTR2.
© VTR2 (L)
Accepts the left channel audio input from -
VTR2.
(9 EXT (R)
Accepts external audio input for the right chan-
nel.
{D EXT (L)
Accepts external audio input for the left chan-
nel.l
(9 CHeC
For connecting a CD changer.
CQ-VA70EU
39
40
Electrical Connection (continued
(3 Power Terminal
For connecting the power connector of the CQ-
VA7O.
(9 NAVI-RGB
For connecting a navigation system.
(19 DISPLAY UNIT-A
For connecting an exclusive display unit.
(9 DISPLAY UNIT-B
For connecting an exclusive display unit.
CQ-VA70EU
(7 MAIN-IN Switch
Set this switch to the ON position when using
the MAIN-IN terminal.
(9 NAVIGATION CHANGEOVER Switch
Set this switch to the ON position when using a
navigation system.
(9 CAMERA CHANGEOVER Switch
Set this switch to the ON position when using a
rear-view camera.
Connecting the Side-brake Detection Cord
Note:
Make sure to connect the side-brake cord to ensure safety and prevent accidents.
* Qut of the two cords coming from the side-brake switch, connect the cord that is normally not earthed on
the chassis (when the side-brake is released.)
Foot brake
Hand brake Side-brake switch
* Make sure to connect the side-brake cord (blue/yellow) to the wiring of the side-brake switch.
* The position of the side-brake switch can differ according to the car model. An example is shown below.
Detailed information is obtainable from the car dealer.
Side-brake switch
Brake lamp
(SIDE BRAKE) À
=] DS
Side-brake cord /5m , 8 Chassis
(Blue/yellow) Crimp connector
Connecting the Reverse Cord
* Connect the reverse cord (violet/white) to the plus
wire of the backup light. The backup light (with a
clear lens) is located at the rear of the car and lights
when the gear lever is put into reverse (R).
Location of backup lamp
Crimp connector
Backup light ya
fy
xi
Cut off here.
(REVERSE) | $
REVERSE cord /am
(violeV/white)
* The backpup light wiring can be
reached from the trunk,
FNQZD y
41
CQ-VA70EU
42
In Case of Irregular Operation
Tuner unit
LJ
ha
N
Reset Switch
Maintenance
BENZINE
THINNER
CQ-VA70EU
<Reset switch>
Pressing this switch after recovery from an irregularity resets the circuit
to its initial condition. Use a fine but strong enough tool like a thin bar to
press the switch. Note, however, that resetting will clear all memory
contents.
<Cleaning the unit casing>
* Wipe the unit casing clean with a dry soft cloth. Do not use benzine
or thinner because the casing and coating may deteriorate.
* If you use a chemical cleaning cloth, follow its usage instructions.
Specifications
General
Power supply
Current consumption
Bass adjustment
Treble adjustment
Rated output power
Maximum output power
Suitable speaker impedance
Audio input impedance
Audio input sensitivity
PRE-OUT output voltage
PRE-OUT output impedance
Video input signal
Video output signal
External dimensions Display Unit
Tuner Unit
Weight Display Unit
Tuner Unit
Tuner Block
FM tuner biock
Frequency Range
Practical sensitivity
S/N 50 dB quieting sensitivity
Total harmonic distortion (monaural)
Auditory correction S/N ratio
Frequency response
Stereo Separation
Effective selectivity
AM tuner block
Frequency Range
Practical sensitivity
Image rejection ratio
Display Block
Display
No. of pixels
Driving system
Light source
: DC 12V (11V - 16V); test voltage, 14.4V; negative ground
:7.8A (at rated VTR operation output)
: +12 dB (100 Hz)
: +12 dB (10,000 Hz)
: 12W x 4CH (1,000 Hz, 1%, 4)
: 30W x 4CH
: 402
: 10kKQ
:600 mV
:600 MY
:6000
: Composite video signal, 1.0 V[p-p], 7502
: Composite video signal, 1.0 V[p-p], 752
: 178(W) x 50(H) x 160(D) mm
260(W) x 40(H) x 160(D) mm
:2.3kg
1.7 kg
: 87.9 - 107.9 MHz
: 12 dB
: 15.2 dBf
: 0.3% (1 kHz)
: 70 dB
: 20 - 15,000 Hz +3 dB
: 42 dB (1 kHz)
: 75 dB
: 530 - 1,710 kHz
: 33 dB/uV (S/N 20 dB)
: 65 dB
: 6.5 type (17cm)
: 224,640 (Vertical 234 x Horizontal 960)
Effective pixel rate 99.99% or more
: TFT (thin-film transistor) active matrix system
: Internal light (smali FL incorporated)
CQ-VA70EU
43
Panasonic Consumer Electronics Panasonic Sales Company
Company, Division of Matsushita Division of Matsushita Electric of
Electric Corporation of America Puerto Rico, Inc. (“PSC”)
One Panasonic Way, Secaucus, Ave. 65 de Infanteria, Km. 9.5
New Jersey 07094 San Gabriel Industria! Park,
Carolina,
Puerto Rico 00985
YEFM282913 B0598-0
Printed in Japan
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
