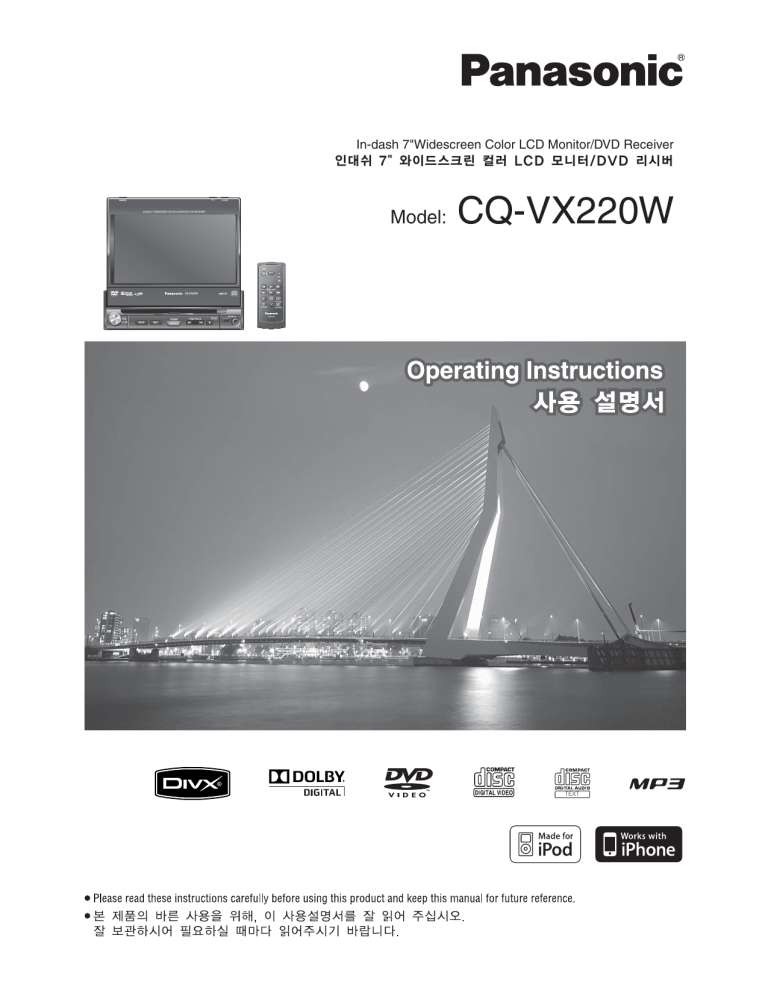

In-dash 7"Widescreen Color LCD Monitor/DVD Receiver
인대쉬 7" 와이드스크린 컬러 LCD 모니터/DVD 리시버
TILT
DIMMER
CLOSE
Model:
IN-DASH 7" WIDESCREEN COLOR LCD MONITOR / DVD RECEIVER
CQ-VX220W
PWR
MUTE
SRC
VOL
ENTER / BAND
ENT
CQ-VX220W
DIMMER
DIM
CQ-VD5005W
TEXT
TILT
OPEN
TOP MENU
RET
RETURN
AV1 IN
VOL
PUSH SEL
POWER
MUTE
MAP
DVD MENU
CAR AV
TUNE/TRACK
SOURCE
TEXT
English
Safety Information
1
■ Read the operating instructions for the unit and all other
components of your car audio system carefully before using
the system. They contain instructions about how to use the
system in a safe and effective manner. Panasonic assumes
no responsibility for any problems resulting from failure to
observe the instructions given in this manual.
Warning
This pictograph intends to alert you to the presence of important operating instructions and
installation instructions. Failure to heed the
instructions may result in severe injury or
death.
Warning
Observe the following warnings when using
this unit.
❑ The driver should neither watch the display nor
operate the system while driving.
Watching the display or operating the system will distract
the driver from looking ahead of the vehicle and can cause
accidents. Always stop the vehicle in a safe location and
use the parking brake before watching the display or operating the system.
❑ Use the proper power supply.
This product is designed for operation with a negative
grounded 12 V DC battery system. Never operate this
product with other battery systems, especially a 24 V DC
battery system.
❑ Keep batteries and insulation film out of reach of
infants.
Batteries and insulation film can be ingested, so keep them
out of the reach of infants. If an infant ingests a battery or
insulation film, please seek immediate medical attention.
❑ Protect the Deck Mechanism.
Do not insert any foreign objects into the slot of this unit.
❑ Do not disassemble or modify the unit.
Do not disassemble, modify the unit or attempt to repair
the product yourself. If the product needs to be repaired,
consult your dealer or an authorized Panasonic Service
Center.
❑ Do not use the unit when it is out of order.
If the unit is out of order (no power, no sound) or in an
abnormal state (has foreign objects in it, is exposed to
water, is smoking, or smells), turn it off immediately and
consult your dealer.
❑ The remote control unit should not lie about in the
car.
If the remote control unit lies about, it could fall on the
floor while driving, get wedged under the brake pedal, and
lead to a traffic accident.
❑ Refer fuse replacement to qualified service personnel.
When the fuse blows out, eliminate the cause and have it
replaced with the fuse prescribed for this unit by a qualified
service engineer. Incorrect replacement of the fuse may
lead to smoke, fire, and damage to the product.
2
CQ-VX220W
■ This manual uses pictographs to show you how to use the
product safely and to alert you to potential dangers resulting
from improper connections and operations. The meanings of
the pictographs are explained below. It is important that you
fully understand the meanings of the pictographs in order to
use this manual and the system properly.
Caution
This pictograph intends to alert you to the presence of important operating instructions and
installation instructions. Failure to heed the
instructions may result in injury or material damage.
Observe the following warnings when
installing.
❑ Disconnect the lead from the negative (–) battery
terminal before installation.
Wiring and installation with the negative (–) battery terminal connected may cause electrical shock and injury due to
a short circuit.
Some cars equipped with the electrical safety system have
specific procedures of battery terminal disconnection.
FAILURE TO FOLLOW THE PROCEDURE MAY LEAD TO
THE UNINTENDED ACTIVATION OF THE ELECTRICAL
SAFETY SYSTEM RESULTING IN DAMAGE TO THE VEHICLE AND PERSONAL INJURY OR DEATH.
❑ Never use safety-related components for installation, grounding, and other such functions.
Do not use safety-related vehicle components (fuel tank,
brake, suspension, steering wheel, pedals, airbag, etc.) for
wiring or fixing the product or its accessories.
❑ Installing the product on the air bag cover or in a
location where it interferes with airbag operation
is prohibited.
❑ Check for piping, gasoline tank, electric wiring,
and other items before installing the product.
If you need to open a hole in the vehicle chassis to attach
or wire the product, first check where the wire harness,
gasoline tank, and electric wiring are located. Then open
the hole from outside if possible.
❑ Never install the product in a location where it interferes with your field of vision.
❑ Never have the power cord branched to supply
other equipment with power.
❑ After installation and wiring, you should check the
normal operation of other electrical equipment.
The continuation of their using in abnormal conditions may
cause fire, electrical shock or a traffic accident.
❑ In the case of installation to an airbag-equipping
car, confirm warnings and cautions of the vehicle
manufacturer before installation.
❑ Make sure the leads do not interfere with driving
or getting in and out of the vehicle.
❑ Insulate all exposed wires to prevent short circuiting.
Observe the following cautions when using
this unit.
❑ Keep the sound volume at an appropriate level.
Keep the volume level low enough to be aware of road and
traffic conditions while driving.
❑ Do not insert or allow your hand or fingers to be
caught in the unit.
To prevent injury, do not get your hand or fingers caught in
moving parts or in the disc slot. Especially watch out for
infants.
❑ This unit is designed for use exclusively in automobiles.
❑ Do not operate the unit for a prolonged period with
the engine turned off.
Operating the audio system for a long period of time with
the engine turned off will drain the battery.
❑ Do not expose the unit to direct sunlight or excessive heat.
Otherwise these will raise the interior temperature of the
unit, and it may lead to smoke, fire, or other damage to the
unit.
❑ Do not use the product where it will be exposed to
water, moisture, or dust.
Exposure of the unit to water, moisture, or dust may lead
to smoke, fire, or other damage to the unit. Make especially
sure that the unit does not get wet in car washes or on
rainy days.
❑ Set the volume level to low enough before the AV1
IN connection is completed.
Failure to observe this, the loud noise may come out and
damage your speakers and your hearing. Direct connection
of the speaker/headphone output of an external device
without any attenuator may distort sound or damage the
connected external device.
Observe the following cautions when
installing.
❑ Refer wiring and installation to qualified service
personnel.
Installation of this unit requires special skills and experience. For maximum safety, have it installed by your dealer.
Panasonic is not liable for any problems resulting from
your own installation of the unit.
❑ Follow the instructions to install and wire the product.
Not following the instructions to properly install and wire
the product could cause an accident or fire.
❑ Take care not to damage the leads.
When wiring, take care not to damage the leads. Prevent
them from getting caught in the vehicle chassis, screws,
and moving parts such as seat rails. Do not scratch, pull,
bend or twist the leads. Do not run them near heat sources
or place heavy objects on them. If leads must be run over
sharp metal edges, protect the leads by winding them with
vinyl tape or similar protection.
❑ Use the designated parts and tools for installation.
Use the supplied or designated parts and appropriate tools
to install the product. The use of parts other than those
supplied or designated may result in internal damage to the
unit. Faulty installation may lead to an accident, a malfunction or fire.
❑ Do not block the air vent or the cooling plate of the
unit.
English
Caution
2
Blocking these parts will cause the interior of the unit to
overheat and will result in fire or other damage.
❑ Do not install the product where it is exposed to
strong vibrations or is unstable.
Avoid slanted or strongly curved surfaces for installation. If
the installation is not stable, the unit may fall down while
driving and this can lead to an accident or injury.
❑ Installation Angle
The product should be installed in a horizontal position
with the front end up at a convenient angle, but not more
than 30˚.
The user should bear in mind that in some areas there may
be restrictions on how and where this unit must be
installed. Consult your dealer for further details.
❑ Wear gloves for safety. Make sure that wiring is
completed before installation.
❑ To prevent damage to the unit, do not connect the
power connector until the whole wiring is completed.
❑ Do not connect more than one speaker to one set
of speaker leads. (except for connecting to a
tweeter)
Observe the following cautions when handling
the battery for the remote control unit.
● Use only specified battery (CR2025).
● Match the polarity of the battery with the (+) and (–) marks
in the battery case.
● Replace a dead battery as soon as possible.
● Remove the battery from the remote control unit when not
using it for an extended period of time.
● Insulate the battery (by placing them in a plastic bag or
covering them with vinyl tape) before disposal or storage.
● Dispose of the battery according to the local regulations.
● Do not disassemble, recharge, heat or short the battery. Do
not throw a battery into a fire or water.
In case of battery leakage
● Thoroughly wipe the battery liquid off the battery case and
insert new battery.
● If any part of your body or clothing comes into contact
with battery liquid, wash it with plenty of water.
● If battery liquid comes into contact with your eyes, wash
them with plenty of water and get immediate medical attention.
Caution
• PLEASE FOLLOW THE LAWS AND REGULATIONS OF YOUR STATE, PROVINCE OR COUNTRY FOR WIRING,
INSTALLATION, AND USE OF THIS UNIT AND THE DEVICES TO BE CONNECTED.
CQ-VX220W
3
English
Safety Information (continued)
3
Caution
THIS PRODUCT IS A CLASS I LASER PRODUCT.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE
OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN
MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR BY YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.
This system is designed so that you
cannot see moving pictures while
you are driving.
¡Park your car in a safe place and pull the side
brake (parking brake) lever before watching the
monitor.
¡A rear monitor (option) displays moving pictures while driving.
Note:
¡Be sure to connect the side brake (parking
brake) connection lead. (a Installation
Instructions)
4
CQ-VX220W
Liquid Crystal Panel
¡Do not cause impact to the liquid crystal panel.
¡Usage temperature range: 0 °C to 40 °C
When the temperature is very cold or very hot, the
image may not appear clearly or may move slowly.
Also, movement of the image may seem to be out of
synchronization or the image quality may decline in
such environments. Note that this is not a malfunction
or problem.
¡In order to protect the liquid crystal panel, keep it out
of direct sunlight while the unit is not in use.
¡Sudden changes in the temperature inside the car such
as those which occur immediately after the car’s air
conditioner or heater has been turned on may cause
the inside of the liquid crystal panel to cloud over due
to water vapor or it may cause condensation (droplets
of water) to form and, as a result, the panel may not
work properly. Do not use the unit while these symptoms are in evidence but leave the unit standing for
about and hour, and then resume or start use
English
Notes on Use
4
Before Reading These Instructions
Differences Among 3 Models
This operating instruction manual is for 3 models CQ-VX220W2/CQ-VX220W3 and
CQ-VX220W5.
The following table shows the playable region number for each model.
Model
Playable region number
CQ-VX220W2
2 (ALL)
CQ-VX220W3
3 (ALL)
CQ-VX220W5
5 (ALL)
Playable Discs:
2
3
2 3
4 5
ALL
5
“Before Disc Playback”
(a page 16)
Components
TILT
DIMMER
CLOSE
1. Main Unit
(LCD monitor/DVD player)
IN-DASH 7" WIDESCREEN COLOR LCD MONITOR / DVD RECEIVER
CQ-VX220W
DIMMER
DIM
CQ-VD5005W
Qty.: 1
TEXT
TILT
OPEN
AV1 IN
VOL
PUSH SEL
TUNE/TRACK
POWER
MUTE
MAP
SOURCE
PWR
MUTE
SRC
VOL
ENTER / BAND
ENT
TOP MENU
RET
RETURN
DVD MENU
XXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXX
XXXXXXXXXXXXXXXX
OO-OOOOO
2. Remote Control Unit
<EUR7641060>
(includes a battery: CR2025)
Qty.: 1
CAR AV
XXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXX
XXXXXXXXXXXXXXXX
OO-OOOOO
3. Operating Instructions
<YFM264C157CA>
Qty.: 1
XXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXX
XXXXXXXXXXXXXXXX
OO-OOOOO
4. System Upgrade Guidebook
<YFM264C158CA>
Qty.: 1
5. Installation Instructions
<YFM294C151CA>
Qty.: 1
6. Installation Hardware (screws,
cords, etc.)
(a Installation Instructions)
Note:
¡The number in parenthesis underneath each accessory
part name is the part number for maintenance and
service.
¡Accessories and their parts numbers are subject to
modification without prior notice due to improvements.
CQ-VX220W
5
English
Features
Panasonic welcomes you to our constantly growing family of electronic products owners.
We endeavor to give you the advantages of precise electronic and mechanical engineering, manufactured with carefully
selected components, and assembled by people who are proud of the reputation their work has built for our company.
We know this product will bring you many hours of enjoyment, and after you discover the quality, value and reliability
we have built into it, you too will be proud to be a member of our family.
5
Please refer to the separate “System Upgrade Guidebook” for how to operate this unit when optional devices are
connected.
■ No device is connected to this unit. a Basic operations are covered only by this book.
■ Optional devices are connected to this unit. a Refer to the “System Upgrade Guidebook” in addition.
■ USB Connector
¡By connecting the iPod/iPhone series to the USB
connector via a USB extension cable for iPod/
iPhone (USB 2.0, not included), you can enjoy
music/video files stored on the iPod/iPhone series
in your car.
¡The USB connector is equipped. Connection of a
USB memory (not included) to the USB connector
allows users to enjoy MP3/WMA files stored on
the USB memory in the car.
Compatible USB devices
¡USB Mass Storage Class
For details as to whether your USB memory/USB Audio
is compatible with USB Mass Storage Class, please contact the USB memory/USB Audio manufacturer.
¡USB Standard Compatibility 1.1/2.0 Full Speed
¡File System FAT12/16/32
¡Maximum current less than 500 mA
¡Capacity less than 4 GB (1 partition)
Note:
¡The use of USB devices that contain data files other
than MP3/WMA format is not recommended.
¡Audio playback may not be possible with some
types of USB device connected.
¡Playback or display may not be possible depending
on the type of USB device or the condition of the
recording.
¡For video browsing of the iPod/iPhone, please use
the optional Direct Cable for iPod with Video (CALDC100X) for connection with AV1 IN connector of
this unit. (Do not connect with AV2 IN connector)
(a Installation Instructions)
■ Integration of the monitor, FM/AM radio,
■
DVD Video/Video CD player and
CD/MP3/DivX player
Built-in AV Input/Output Terminals
For more convenient connection and setup, all terminals are now provided on the unit itself.
Note:
¡If a non-Panasonic product is connected to this unit,
we do not guarantee the operations of the product.
6
CQ-VX220W
■ SQ (Sound Quality)
You have 6 preset modes (Flat, Rock, Pop, Vocal,
Jazz, Club). You can customize your setting for these
and save them for instant recall.
SQ3 (3-Band Sound Quality)
Center frequency and level are adjustable in each of 3
bands. This lets you fine-tune sound quality for each
genre to suit car-interior acoustics and your personal
preferences. (a page 37)
■ GUI (Graphic User Interface)
GUI displays various indications with colorful symbols to enhance visibility, enjoyment, and operability.
■ Disc type auto-detection
The signal auto-detection function of this unit allows
users to be free from selection between PAL and
NTSC before use of your discs. (For output signal,
set TV Type . (a page 38))
■ Touch Panel Operation
Simply touch the screen lightly to operate virtually all
functions. Easy-to-use menus and icons let you
“touch and choose” what you want, so you can start
using your system from the very first day. That also
means that while you drive, you can concentrate on
the road.
■ DVD–R, DVD–RW Playback
(a page 16, 48 for details)
¡Discs in the video recording (VR) format are
unplayable.
■ ID code
4-digit ID code for increased security.
Fill in the ID code memo (a page 46).
Contents
English
한국어
2
52
¢ Safety Information .......................... 2
¢ Notes on Use ................................................... 5
¢ Before Reading These Instructions .............. 5
¢ Components .................................................... 5
¢ Features ........................................................... 6
¢ Preparation...................................... 8
First time power on, other settings, remote control unit, symbols
used in this manual
¢ Name of Controls and Functions ................ 10
¢ Touch Panel Operation Overview................ 12
¢ General .......................................... 14
Power on/power off, display open/close, source selection,
volume, mute, tilt angle, folding down the display temporarily
¢ Before Disc Playback..................... 16
¢ Disc Player..................................... 18
¢ Notes on MP3/DivX ....................................... 22
¢ Radio.............................................. 24
¢ USB - Audio Device Control ........ 26
¢ USB - iPod Control ....................... 28
¢ AV1/AV2 ......................................... 30
¢ Anti-Theft System ......................................... 31
¢ Settings ......................................... 32
Setup operation
Basic setting, screen, sound, disc, radio
¢ About DivX VOD Content ............................. 40
¢ Troubleshooting ........................... 41
¢ Maintenance .................................................. 47
¢ Notes on Discs .............................................. 48
¢ Language Code List...................................... 49
¢ Definition of Terms ....................................... 50
¢ Specifications................................................ 51
CQ-VX220W
7
English
Preparation
7
First Time Power On
Other Settings
When the power of this unit is turned on for the first time,
the following screen appears. Perform the settings in
accordance with the specifications of the car on which
this unit is mounted.
Please refer to the separate “System Upgrade
Guidebook” for how to operate this unit when optional devices are connected.
Basic Setting (basic settings) ( a page 34)
clock, ID code, input, other, memory clear
Screen (screen settings) (a page 36)
dimmer, display, aspect
Sound (sound settings) (a page 37)
SQ3, bass/treble, balance/fader
Disc
(disc settings) (a page 38)
audio language, subtitle language, menu language, video
setting, audio setting, DivX registration
On
: sets to ON if your car has ACC position.
Off
: sets to OFF if your car has no ACC position.
Note:
¡For an ACC-equipped car, select ON. The following
functions are available.
¡The power is turned on automatically when inserting
a disc.
¡ Off selection disables turning on the power of the
main unit through the remote control.
Caution
¡Be sure to select off when your car has no ACC
position in the ignition switch. Failure to do this
could cause the battery to go dead.
Radio
(radio settings) (a page 39)
FM setup
Note:
¡Refer to “Settings” (a page 32) for further information
about operations, settings, and others of the menu
screen.
You may need to set the following depending on the
devices to be connected.
AV1/AV2 (Camcorder, VCR, etc.)
¡Adjust
Input
. (a page 34)
Warning
OFF
ACC
IGN
8
CQ-VX220W
¡When you connect external devices to this unit, be
sure to connect the side brake connection lead
(aInstallation Instructions).
Before Initial Use
Pull the insulation film out from
the backside of the remote control gently.
Battery Replacement
q Remove the battery holder with the remote control
unit placed on a flat surface.
q Stick your thumbnail into the groove and push the
holder in the direction of the arrow at the same
time.
w Pull it out in the direction of the arrow using a
tough pointed object.
Tough pointed object
Symbols used in this manual
Pictographs
You can perform some operations of this unit in one or
more methods with the touch panel or remote control.
This book explains such operations in tabular form as follows. Refer to the following for the pictographs located in
the upper part of each table.
English
Remote Control Unit
8
Compatible
Discs
Compatible types of disc
The discs compatible with the targeted operation.
Compatible
Discs
Operation on the Touch Panel
YouDisques
can use the touch panel to perform the targeted
compatiblesIf the operation is not executable with the
operation.
touch panel, “––” is displayed.
Compatible
Discs
w Put a battery in the case with (+)-side facing up.
e Put the case back.
Lithium battery
2 (CR2025)
3
Battery case
Warning
¡Keep batteries away from children to avoid the risk
of accidents. If an infant ingests a battery, please
seek immediate medical attention.
Caution
¡Remove and dispose of an old battery immediately.
¡Do not disassemble, heat or short a battery. Do not
throw a battery into a fire or water.
¡Follow local regulations when disposing of a battery.
¡Improper use of a battery may cause overheating, an
explosion or ignition, resulting in injury or a fire.
Note:
¡Battery Information:
Battery Type: Panasonic lithium battery (CR2025)
Battery Life: Approximately 6 months under normal
use (at room temperature)
Operation on the Main Unit
You can use the Main Unit to perform the targeted operation.
If the operation is not executable with the Main Unit,
Compatible
“––”Discs
is displayed.
Compatible
Discs on the Remote Control Unit
Operation
You can use the remote control to perform the targeted
operation. If the operation is not executable with the
remote control, “––” is displayed.
Discos
compatibles
Disc Marks
The
following pictographs are used for the descriptions
Compatible
of disc
operation. (a page 17-21)
Discs
DVD : DVD
VCD : VCD (Video CD)
CD : CD
MP3 : CD-Rs/RWs containing MP3 files
DivX : CD-Rs/RWs or DVD-Rs/RWs containing DivX files
CQ-VX220W
9
English
Name of Controls and Functions
!0 [TILT]
(Display Raised)
TILT
DIMMER
CLOSE
o [OPEN] (CLOSE)
IN-DASH 7" WIDESCREEN COLOR LCD MONITOR / DVD RECEIVER
9
q [DIM] (DIMMER)
Display
Disc slot
w [VOL]
(PUSH SEL)
CQ-VX220W
DIMMER
DIM
TEXT
TILT
CQ-VD5005W
i AV1 IN
OPEN
AV1 IN
VOL
e [MUTE]
PUSH SEL
TUNE/TRACK
POWER
MUTE
MAP
SOURCE
u [u]
r [MAP]
t [SOURCE] (POWER)
y [s] [d] (TUNE/TRACK)
!0 [TILT]
(Display Closed)
DIMMER
q [DIM] (DIMMER)
DIM
CQ-VX220W
TILT
OPEN
o [OPEN] (CLOSE)
AV1 IN
VOL
PUSH SEL
POWER
MUTE
MAP
TUNE/TRACK
SOURCE
Remote control sensor
: This book refers to connections to the Panasonic car navigation system that will come onto the market in the future. Descriptions
regarding the car navigation system are boxed with a dotted line.
q [DIM]
(DIMMER)
¡The screen brightness is toggled between
the set level and maximum luminance.
¡Adjusts the sound volume.
w [VOL]
(PUSH SEL) ¡Adjusts audio settings.
e [MUTE]
¡Mutes the sound temporarily.
r [MAP]
¡Switches navigation mode on and off.
(available in the future)
y [s] [d] ¡Selects or searches for a track, file, station.
(TUNE/TRACK)
¡Fast forward/fast reverse.
¡Slow playback ([d]).
u [u]
Note:
¡Do not insert a disc when the eject button
[u] lights because a disc is already
loaded.
Note:
i AV1 IN
¡This button is available only when the
Panasonic Car Navigation System (available in the future) is connected to the RGB o [OPEN]
connector of this unit.
(CLOSE)
t [SOURCE] ¡Switches on/off the power.
¡Changes the modes such as sound and
(POWER)
picture.
10
CQ-VX220W
¡Ejects/reloads a disc.
!0 [TILT]
¡From line output of external audio/video
device. (a Installation Instructions)
¡Opens/closes the monitor.
¡Adjusts the monitor position.
¡Tilts the monitor forward temporarily.
English
Remote Control
Aim the remote control at the remote control sensor of the main unit and operate it.
10
q [SRC] (PWR)
(SOURCE/POWER)
r [MUTE]
PWR
t [+] [–] (VOL)
MUTE
SRC
VOL
w
[■] [❚❚] [B]
ENTER / BAND
ENT
[s] [d]
TOP MENU
e [RET] (RETURN)
RET
RETURN
DVD MENU
y [}] [{]
[] ] [[ ]
[ENT] (ENTER/BAND)
u[
(TOP MENU/DVD MENU)
CAR AV
Note:
¡[ENT], [RET], [■], [❚❚], [B], [
]
] are available only on the remote control unit.
q [SRC]
(PWR)
¡Switches the power on/off.
¡Changes the modes such as sound and
picture.
w [■]
¡Stops playback.
[❚❚]
¡Pause
[B]
¡Playback
[s] [d]
¡Selects or searches for a track, file.
¡Goes to beginning.
¡Fast forward/fast reverse.
¡Slow playback ([d]).
e [RET]
(RETURN)
¡Returns to the previous display.
¡Inputs the number again.
¡Displays the VCD’s menu.
r [MUTE]
¡Mutes the sound temporarily.
t [+] [–]
(VOL)
¡Adjusts the sound volume.
y []] [[]
¡Selects or searches for a station.
¡Selects (horizontally) or adjusts an operation or item.
[}] [{]
[ENT]
(ENTER/
BAND)
]
u[
(TOP MENU/
DVD MENU)
¡Selects (vertically) or adjusts an operation
or item.
¡Selects a band.
¡Shows OSD.
¡Searches for broadcast stations and
memorizes them automatically.
¡Determines an operation or item.
¡Displays the DVD/title menu. (Operations
vary according to the media.)
CQ-VX220W
11
English
Touch Panel Operation Overview
11
❒ Notes on the Touch Panel
Before operation
¡Clean the surface of the touch panel. (a page 47)
Operation
¡Use only your fingers to operate the touch panel.
¡Do not press the panel forcefully.
¡Do not scratch the panel with fingernails or any
hard objects.
¡Do not use a pen or other sharp implements to
operate the touch panel.
¡Do not bump the front panel.
a Failure to observe the above may damage or
break the glass on the surface of the touch
panel.
The State of Operation Screen
Example: DVD mode
Note:
¡The following picture is partly darkened for explanation.
¡Displaying contents and their positions partly vary with each mode. Refer to the description of each mode for details.
Clock time
(a page 34)
Aspect Button
(a page 36)
(only for video source)
Prohibition
Input is not possible
because the user has
attempted to perform
an operation which is
not supported by the
disc contents.
Sound Button
(a page 37)
Disc indicator (a page 17)
(Lights when a disc is loaded)
Source Button
Setup Button
(Content varies with each source)
Displays the Source Selection Screen.
Source Selection Screen
Source Selection Screen appears.
Touch desired source button.
Touch
to quit.
Press [SOURCE]/[SRC] to change to desired
mode.
Note:
¡The screen above appears when no external device is
connected to this unit.
12
CQ-VX220W
Displays the Setup Screen.
Setup Screen
Setup Screen appears. Select desired setting.
Setup menu, (a page 32)
Note:
¡ Refer to the instructions of each source.
¡ To switch Operation Screen ON, touch the center of touch panel or press [ENTER] on the remote control. (Touch
to cancel)
¡ If no operation takes place for more than 10 seconds when Operation Screen is ON, Operation Screen is turned off.
English
Switching the Display
12
Audio Source
❒ CD/MP3/USB audio device/iPod audio
Example: CD mode
Touch
.
Touch
.
Operation Screen
List Screen
Video Source
❒ iPod video
Touch
.
Touch
.
Operation Screen
List Screen
❒ DVD
Touch
.
Touch
.
Operation Screen 1
Operation Screen 2
❒ DivX
Touch
.
Touch
Touch
Operation Screen 1
.
.
Operation Screen 2
Touch
List Screen
.
CQ-VX220W
13
English
General
[VOL]
[TILT]
DIM
DIMMER
13
[OPEN]
TILT
CQ-VX220W
OPEN
AV1 IN
VOL
PUSH SEL
MUTE
[MUTE]
MAP
TUNE/TRACK
POWER
SOURCE
[SOURCE] (POWER)
Preparation: Turn your car’s ignition key to the ACC or ON position.
General Operations
Operations
Power
ON :
Power
OFF :
Display Open/Close
–
[SOURCE]
[SRC]
–
[SOURCE]
[SRC]
–
[OPEN]
–
¡Press once to open. Press again to
close.
Note:
¡When the display is opened or closed, a loud beep sounds three times.
¡If the unit stops halfway, press [OPEN] again to draw it all the way out.
¡Opening/closing the display can be done when the power is off.
Source selection
Note:
¡If there is no external
sources connected,
AV1/AV2 mode can be
set to skip.
(a page 34)
(a page 12)
[SOURCE]
RADIO (AM/FM)
(a page 24)
DVD (DVD/VCD (Video CD)/CD/MP3/DivX)
(a page 18)
iPod/USB
(a page 26)
AV1
(a page 30)
AV2
(a page 30)
Bluetooth (Phone/Audio)/TV
(a System
Upgrade
Guidebook)
…… Touch/Press and hold for more than 2 seconds
14
CQ-VX220W
[SRC]
English
General Operations (continued)
Operations
Volume
Note:
¡The sound level for
each source is
stored in memory.
–
w
q
q [+]
w [–]
14
q Up
w Down
Setting range: 0 to 40, default: 18
Note:
¡ The volume level can be set independently for each source and each
disc format.
Mutes the sound.
To cancel, press again.
Mute
–
[MUTE]
[MUTE]
Tilt Angle
–
[TILT]
–
q Press and hold for more than 2 seconds.
or
–
–
w Touch to adjust.
Setting range: 1 to 5
default: 5
–
–
–
–
the monitor is opened automatically when
turning ON ACC.
the monitor is not opened automatically.
default:
Manual
Warning
1
5
¡Do not touch the unit while the display is moving. Inserting hands, fingers or foreign objects into the unit can cause injuries and damage to the unit.
Note:
¡Vertical angle (TILT) is saved in the memory, so when the display is drawn out next, it
is automatically set at the angle and in the position adjusted before.
¡After adjusting its angle, also adjust the brightness as well. (a page 36)
¡The car model and installation conditions may impose some restrictions on the
adjustment of the monitor's angle.
Folding Down the
Display Temporarily
–
[TILT]
–
To raise the display, press again.
Note:
¡Even when the unit power is off, you can fold down the display temporarily.
Caution
¡Avoid physical shock to the monitor.
¡Do not place any object on the display, or subject it to undue force.
¡Do not move the display forcibly.
¡The monitor movable range may be limited by the type of car, the position where
the display is mounted, etc.
CQ-VX220W
15
English
Before Disc Playback
15
Discs that can be Played Back
❒ Disc Type
DISC
DVD
VCD
(Video CD)
CD
CD-R/RW
Recordable
¡DivX files recorded on CD-Rs/RWs and DVD-Rs/RWs
are playable. Refer to “Notes on MP3/DivX” for further
information. (a page 22)
ReWritable
❒ Symbols used on jackets
Mark/logo
TEXT
❒ About DivX
(Examples of such symbols include)
(IEC62107)
Disc Size
Video
Format
Audio
Format
12 cm
NTSC / PAL
LPCM,
MPEG1,
MPEG2,
Dolby
Digital
LPCM
(CD-DA*1),
MPEG1,
MPEG2
(SVCD)
2
¡
LPCM (CD-DA*1),
MP3
¡ 2
: Number of audio tracks
¡
: Number of angles
3
The numbers indicate the number of languages, tracks,
angles, etc., recorded on the disc.
Region No. 2, 3, 5, ALL*2
Screen size (H:V aspect ratio)
*1 CD-DA : A general music CD format.
Note:
¡Only discs with logos shown in the “Mark/logo” row of
the table above are playable.
¡About CD-Rs and CD-RWs, refer to “Notes on CDRs/RWs, DVD-Rs/RWs”. (a page 48)
¡Some copy-protected music CDs are not playable.
¡Even if you play a dts DVD or a dts CD, analog sound cannot be reproduced.
¡
4:3
: 4:3 standard size
¡
LB
: Letterbox (a page 38)
¡ 16:9 wide size
16:9 LB
16:9 PS
❒ Notes on DVD-Rs/RWs
¡Do not mix DVD-Video formatted data and other formatted data on the same disc.
¡Discs in the video recording (VR) format are
unplayable.
¡Unfinalized discs are unplayable.
¡Use disc-at-once recording for DVD-R DL (double-layer).
¡Some discs are unplayable depending on the disc itself,
device, drive and software that are used for disc recording.
❒ Discs not supported
The following discs are not played back on this product.
¡DVD-Audio
¡DVD-ROM
¡DVD-RAM
¡DVD+R
¡DVD+RW
¡VSD
¡CVD
¡Blu-ray Disc
¡CD-G
¡CD-ROM (except MP3)
¡CD-RW (except MP3/DivX and CD-DA)
¡CD-R (except MP3/DivX and CD-DA)
¡SACD
¡Photo CD
¡CDV
¡Hybrid SACD (except CD-DA)
¡CD-EXTRA (audio-only playback possible)
¡DVDs with a region number other than “2”, “3”, “5”
or “ALL”*2
¡Playing back a photo CD disc with this unit could
damage the data that is recorded on the disc.
16
: Number of subtitle languages
CQ-VX220W
: Playback in letterbox format on a standard
screen (4:3).
: Playback in Pan & Scan (pan and scan)
(a page 38) format on a standard screen
(4:3).
Note:
¡The size of the image that is displayed on the screen
depends on the screen mode ( Aspect a page 36), and
on the screen size for the content on the disc.
❒ Region Management Information
This product is designed and manufactured to respond to
the Region Management Information that is recorded on
a DVD disc. If the Region number described on the DVD
disc does not correspond to the Region number of this
product, this product does not play the disc.
*2The Region number for this product is “2” (for CQVX220W2),“3” (for CQ-VX220W3) or “5” (for CQVX220W5).
Playable Discs:
2
3
5
2 3
4 5
ALL
English
Disc Insert/Eject
■ When a disc is in the player...
16
DIMMER
TILT
CLOSE
TILT
OPEN
IN-DASH 7" WIDESCREEN COLOR LCD MONITOR / DVD RECEIVER
Printed side
CQ-VX220W
DIMMER
Caution
CQ-VD5005W
TEXT
[u] (eject)
lights.
AV1 IN
VOL
PUSH SEL
¡When the disc is inserted or ejected, to prevent disc
scratches never exert any downward force on the
disc.
Disc Insert
DIM
DVD VCD CD MP3 DivX
CH-C
¡The mode that supports the disc is selected, and playback starts.
DVD VCD DivX
¡The audio format is automatically identified.
(a page 16)
¡When the menu screen appears, see “Chapter/title
Selection” on page 20.
When a disc is in the player, change to disc player
mode (CD, MP3, DivX, DVD or VCD (Video CD)) and
playback starts.
Note:
¡Do not insert a disc when the eject button
lights because a disc is already loaded.
¡The power will be turned on automatically when a disc
is loaded.
¡You can play a disc even if the monitor is closed.
POWER
MUTE
MAP
TUNE/TRACK
SOURCE
Do not insert a disc when the eject button
because a disc is already loaded.
Disc Eject
DVD VCD CD MP3 DivX
lights
CH-C
Press [u] to stop playback and eject the disc.
(Press [u] again to reload the disc.)
Note:
¡If you leave a disc in the slot for more than 30 seconds
after its ejection, the disc will be automatically reloaded
after loud beep is energized three times.
DVD VCD CD MP3 DivX
CH-C
¡Due to limitations of certain discs, some DVD and
VCD (Video CD) discs may not operate as described
in this manual. Refer to the disc jacket for further
details.
¡This unit does not support DVD and VCD (Video
CD) karaoke functions.
DVD VCD DivX
¡The sound may be interrupted for a few moments
while the audio format is being identified.
Caution
¡Do not use irregularly shaped discs.
¡Do not insert foreign object into the disc slot.
¡This unit does not support 8-cm disc. In case of
load such a disc, eject and remove the disc from
the slot immediately.
CQ-VX220W
17
English
Disc Player
Source Button
Source Selection
DIMMER
q Touch “Source Button”.
TILT
CLOSE
TILT
OPEN
IN-DASH 7" WIDESCREEN COLOR LCD MONITOR / DVD RECEIVER
d
(Disc)
w Touch
on the Source
Selection Screen.
17
CQ-VX220W
DIMMER
Press [SOURCE]/[SRC] to change to the
desired mode.
To switch Operation Screen ON, touch the center of
touch panel or press [ENTER] on the remote control.
DIM
CQ-VD5005W
TEXT
AV1 IN
VOL
PUSH SEL
POWER
MUTE
MAP
TUNE/TRACK
SOURCE
[SOURCE]
Repeat/random indicator
[s] [d]
Video Mode Display
DVD
Source Button
Playing time
VCD (Video CD)
DivX
Source Button
Source Button
Playing time
Operation Buttons
Operation Buttons
Operation Buttons
List (Folder/File/Track) Selection
Audio Mode Display
MP3
Source Button
Playing time
(Example: MP3 mode)
: Folder
Playing time
: MP3/DivX file
Title/text scroll
Folder selection
Operation Buttons
Note:
to change the display. (a page 13)
¡Touch
q Touch
(folder
name) to select a folder.
,
: scrolls up/down the file list
by 1 page.
,
: scrolls up/down the file list
by 1 line.
w Touch
(file name)
to play.
:scrolls up/down the file list by 1
page.
[}] [{] :scrolls up/down the file list by 1
line.
[]] [[]
CD
Current track
Source Button
Playing time
Title/text scroll
Operation Buttons
18
CQ-VX220W
Note:
¡[s] and [d] of the main unit can scroll up and
down the file list by 1 page, respectively, too.
¡It is not possible to display the whole tree and file list
in a folder.
¡The displayed contents on the touch panel vary with
circumstances.
English
Basic Operations
Operations
Operations
Compatible
Discs
18
Track/file Selection
DVD VCD
CD
Compatible
MP3
DivX
Discs
DVD
Fast Forward/
Fast Reverse
Disques
DVD VCD
compatibles
CD
MP3 DivX
Compatible
DVD VCD DivX
Discs
[d]
[d]
Next track/file
[s]
[s]
Beginning of the current track/file
Previous track/file (Touch/press twice.)
Note:
¡When playing a DVD, there are cases where it is not possible to return to
the start of a chapter that spans 2 titles.
Fast forward
Release to resume playback.
Fast reverse
[s]
[s]
Release to resume playback.
The speeds of fast forward and fast reverse change incrementally in 4 steps
every time the corresponding button is pressed.
[d]
Folder Selection
–
MP3 DivX
Title/text Scroll
Compatible
Discs
CD MP3 DivX
[d]
[}]
Next folder
[{]
Previous folder
Scrolls the title/text once
–
–
–
[3]
To resume playback, touch/press
/ [5].
–
[y]
To resume playback, touch/press
again or touch/press
/ [5].
DVD VCD
Stop
Compatible
CD
Discs
MP3 DivX
DVD VCD
Pause
CD
Discos
MP3 DivX
compatibles
Slow Playback
[d]
–
–
To cancel, touch again.
MP3 DivX
–
–
To cancel, touch and hold for more
than 2 seconds again.
CD
–
–
To cancel, touch again.
–
–
To cancel, touch again.
–
–
To cancel, touch and hold again.
DVD VCD
Compatible
Discs
Repeat Play
¡Touch/press and hold in the pause mode.
Playback is at about 1/3 normal speed.
To resume normal playback, touch/press
/ [5].
Note:
¡Reverse slow playback is not possible.
[d]
DVD VCD
CD
*
MP3 DivX
Repeat Play within the
Current Folder
Scan Play
Random Play
*
CD
*
MP3 DivX
Random Play within the
Current Folder
*
MP3 DivX
…… Touch/Press and hold
* Touch panel symbols will change to indicate these current mode.
,
CQ-VX220W
19
English
Disc Player (continued)
To switch Operation Screen ON, touch the center of touch panel or press [ENTER] on the remote control.
Chapter/title Selection
Operations
19
Operations
Showing menu and
selecting an item
*1 Note on VCD:
For VCD, touch/press
/ [RETURN]
instead of
/
[DVD MENU].
Compatible
Discs
Compatible
Discs
DVD
VCD
–
or
*1
d
–
*1
Disques
compatibles
d
Compatible
Discs
*2
–
[DVD MENU] q Menu appears.
or
[RETURN]*1
d
d
[] ] [[ ] w Select the desired item. (Touch
[}] [{]
when the direction buttons
shown at left are not displayed.)
d
d
[ENTER] e Determine the setting.
–
–
Toggles the position of the buttons on
the screen between upper and lower.
–
–
Returns to the previous display.
–
–
q Toggles “Chapter number input
mode”, “Title number input mode”
and “Number input mode”.
–
–
–
[ENTER]
DVD
Starting Playback
from a specific
chapter/title
Touch the numerical
key to enter a number
directly
Compatible
Discs
Compatible
DVD
Discs
VCD
Discos
compatibles
d
to
d
d
w Input desired number.
d
e Playback starts.
Note:
¡For retrying selection during number entry, touch
.
Note:
appear even by pressing [DVD MENU], press and hold the same button for more than
¡When the top menu does notCompatible
Discs
2 seconds.
, the operation buttons disappear.
¡If no operation is performed for 8 seconds after you have touched
¡If the title/chapter number is inputted and no operation is performed for 8 seconds, playback will start from the number of the title/chapter entered.
*2 On-Screen Direct Operation (Only for DVD)
Some DVDs allow you to operate the DVD menu by
touching the screen.
20
CQ-VX220W
English
DVD mode display
Chapter/title selection
Fast forward/fast reverse
Audio Language/
Angle/Subtitle Language
Touch
.
Touch
.
20
Repeat play
Stop/pause/play
DVD menu
Useful Function
Operations
Operations
Compatible
Discs
Subtitle Language
–
Compatible
DVD
Discs
DivX
Audio Language
Disques
compatibles
DVD
DivX
Angle
Compatible
Discs
–
¡Touch during playback.
It is possible to change the subtitle language during play if multiple languages are recorded on the disc.
Note:
¡There may be a brief delay before the subtitles appear.
–
–
¡Touch during playback.
It is possible to change the audio language during play if multiple audio languages are recorded on the disc.
–
–
¡Touch during playback.
For DVDs which contain scenes which have been shot simultaneously from
a number of different angles the same scene can be viewed from each of
Compatible these different angles during play. ( Angle Mark a page 38)
Discs
DVD
Stereo & Monaural
–
–
It is possible to switch the audio between stereo sound and monaural sound
VCD
Compatible (L or R).
Discs
: stereo sound
ST
d
: the left channel audio is output on both the left and
L-ch
right speakers.
Discos
compatibles
d
: the right channel audio is output on both the left and
R-ch
right speakers.
Compatible
Note:
Discs
is touched , the operation buttons disappear.
¡If no operation is performed for 10 seconds or
¡It may not be possible to switch the language unless the unit is at the DVD menu (a previous page) or is at the DVD
settings. (a page 38)
¡The language on the DVD settings takes priority when the power is turned on or the disc is loaded.
¡The number of languages and angles depend on the disc. Some discs have only one language/angle or have no language/angle.
CQ-VX220W
21
English
Notes on MP3/DivX
21
What is MP3/DivX?
Display Information (on the Main Unit)
MP3*: MP3 (MPEG Audio Layer-3) is the compression format
of digital audio. It is developed by MPEG (Motion Picture
Experts Group). Using this compression format, you can
record the contents of about 10 music CDs on a single CD
(This figure refers to data recorded on a 650 MB CD-R or CDRW at a fixed bit rate of 128 kbps and a sampling frequency of
44.1 kHz).
Displayed items
*MPEG Layer-3 audio coding technology licensed form
Fraunhofer IIS and Thomson.
Displayable characters
DivX: The video compression format developed by DivX, Inc.
compresses video files without any considerable loss of video
quality.
Note:
¡MP3/DivX encoding and CD writing software programs are
not supplied with this unit.
Points to remember when making MP3/DivX files
Common
¡High bit rate and high sampling frequency are recommended
for high quality sound.
¡Selecting VBR (Variable Bit Rate) is not recommended
because playing time is not displayed properly and sound
may be skipped.
¡The playback sound quality differs depending on the encoding circumstances. For details, refer to the instructions of
your own encoding software and writing software.
MP3
¡ It is recommended to set the bit rate to “128 kbps or more”
and “fixed”.
DivX
¡DivX files greater than 2GB or having no index may not play
properly on this unit.
¡This unit supports all resolutions up to maximum of 720 x
480 (NTSC)/720 x 576 (PAL).
¡You can select up to 8 types of audios and subtitles on this
unit.
¡ GMC (Global Motion Compensation) is not supported.
¡ DivX-HD is not supported.
Caution
¡ Put only “.mp3” files on an MP3-formatted disc.
Put only “.DIVX”, “.divx”, “.AVI” and “.avi” files
on an DivX-formatted disc. Otherwise, abnormal
sound may be produced during play which can
damage the speaker and your hearing.
22
CQ-VX220W
¡ CD-TEXT
Disc title
Track title
¡ MP3/DivX
Folder name
File name
¡ MP3 (ID3 tag)
Album name
Title and artist name
¡Displayable length of file name/folder name: within 64 characters. (Unicoded file and folder names are reduced by half
in the number of displayable characters.)
¡Name files and folders in accordance with the standard of each
file system. Refer to the instructions of writing software for
details.
¡ASCII character set can be displayed.
¡Some Cyrillic characters in the Unicode can be displayed.
ASCII character set
A to Z, a to z, digits 0 to 9, and the following symbols:
(space) ! ” # $ % & ’ ( ) * + , - . / : ; < = > ? @ [ \ ] ˆ _ ` { | } ~
Note:
¡With some software in which MP3/DivX format files have been
encoded, the character information may not be displayed properly.
¡Undisplayable characters and symbols will be converted into
an asterisk ( ).
¡It is recommended that the length of the file name is less
than 8 (excluding the file extension).
*
¡ It is recommended not to use a disc holding two or more
different format types of files.
¡ If CD-DA files are on the same disc as MP3 or DivX files,
the songs and the movies may not play in the intended
order, or some songs or movies may not play at all.
¡ When storing MP3 data and DivX data on the same disc,
use different folders for each data.
¡ Do not record files other than MP3/DivX files and unnecessary folder on a disc.
¡ The name of an MP3/DivX file should be added by rules as
shown in the following descriptions and also comply with
the rules of each file system.
¡ The file extension “.mp3” should be assigned to MP3 files.
¡ The file extension “.DIVX”, “.divx”, “.AVI” or “.avi” should be
assigned to DivX files.
¡ You may encounter trouble in playing MP3/DivX files or displaying the information of MP3/DivX files recorded with certain writing software or CD/DVD recorders.
¡ This unit does not have a play list function.
¡ Although Multi-session recording is supported, the use of
Disc-at-Once is recommended.
English
Recording Recording
MP3/DivX
MP3/WMA
files onfiles
a CD/DVD-media
on a CD-media
22
Supported file systems
ISO 9660 Level 1/Level 2, Apple Extension to ISO 9660, Joliet,
Romeo
Note:
¡ Apple HFS, UDF 1.50, Mix CD and CD Extra are not supported.
Audio compression formats (Recommendation: “Points to remember when making MP3/DivX files” on the previous page)
Compression method
Bit rate
VBR
Sampling frequency
MPEG 1 audio layer 3 (MP3)
32 k – 320 kbps
Yes
32, 44.1, 48 kHz
MPEG 2 audio layer 3 (MP3)
8 k – 160 kbps
Yes
16, 22.05, 24 kHz
DivX data created using ver.3.11, 4.x, 5.x* 8 k – 320 kbps
Yes
8 k – 48 kHz
* DivX video system/MP2, MP3
Note:
¡ VBR is not recommended.
Folder selection order/file playback order
Maximum number of files/folders
¡ Maximum number of files: 1200 (Disc media)/
4096 (USB device)
¡ Maximum number of files in one folder: 1200(Disc media)/
255 (USB device)
¡ Maximum depth of trees: 8
¡ Maximum number of folders: 256 (Root folder is included.)
Disc media
1
2
Root Folder (Root Directory)
q
Folder Selection
3
4
w
e
5
6
r
7
Note:
¡ You can shorten the duration between data read and
playback by decreasing the quantity of files or folders, or
the depth of the hierarchy.
¡ This unit counts the number of folders irrespective of the
presence or absence of an MP3/DivX file.
¡ If the selected folder does not contain any MP3/DivX files,
the nearest MP3/DivX files in the order of playback will be
played.
¡ Playback order may be different from other MP3/DivX players even if the same disc is used.
8
Tree 1
Tree 2
Tree 3
In the order
1
–
8
File Selection
In the order
–
y
q
t
y
Tree 4
Tree 8 (Max.)
USB device
1
q
2
3
w
e
4
r
5
Tree 1 Tree 2 Tree 3
t
y
Tree 4 Tree 5
Tree 8 (Max.)
Copyright
No warranty
It is prohibited by copyright laws to copy, distribute and
deliver copyrighted materials such as music without the
approval of copyright holder except enjoying yourself
personally.
The above description complies with our investigations as of
December 2008. It has no warranty for reproducibility and
displayability of MP3/DivX.
CQ-VX220W
23
English
Radio
Source Button
Frequency
Source Selection
DIMMER
TILT
CLOSE
TILT
OPEN
IN-DASH 7" WIDESCREEN COLOR LCD MONITOR / DVD RECEIVER
w Touch
(Radio) on the
Source Selection
Screen.
23
All
indicator
q Touch “Source Button”.
d
/
Each
Band selection
Tuning
*List selection
Preset stations
CQ-VX220W
Auto presetting
Press [SOURCE]/[SRC] to change to the
desired mode.
DIMMER
DIM
CQ-VD5005W
TEXT
AV1 IN
VOL
PUSH SEL
POWER
MUTE
MAP
TUNE/TRACK
SOURCE
[SOURCE]
[s] [d]
* Appears only when
Setup e Radio e
All
FM Setup
is selected. (a page 39)
e Auto Preset e Each
/
All
Tuning
Operations
Band Selection
List Selection
Refer to the next page.
[BAND]*
–
Each
FM 1
All
FM
FM 2
FM 3
AM
AM
Preparation: Select All . (a page 39)
Setup e Radio e FM Setup e Auto Preset
–
FM 1 (list 1)
*[BAND] on the remote control is available only in the “Each” selection mode.
FM 2 (list 2)
e
Each
/
All
[BAND]
FM 3 (list 3)
There are 6 stations in each list. You can call up next 6 stations by switching from one
list to another.
Station
Selection
[d]
[[]
Up
[s]
[]]
Down
Seek Tuning
[d]
[[]
Up
[s]
[]]
Down
Touch/press and hold for more than 0.5 second then release. Seeking starts.
…… Touch/press and hold
24
CQ-VX220W
English
Preset Memory
Manual Preset Memory
Up to 6 stations can be
preset in each band.
Select a band and frequency.
to
–
–
blinks once
24
¡Touch and hold for more than 2 seconds.
¡The frequency blinks once, and a receiving station is saved in the memory.
New stations overwrite existing saved stations.
Auto Preset Memory
A
Preparation: Select Each . (a page 39) (default: Each )
Setup e Radio e FM Setup e Auto Preset e
Each / All
Each
Six stations are automatically preset in each band.
Select a band.
–
[BAND]
6 stations with first to 6th highest in signal strength of each band will be preset.
¡Touch and hold for more than 2 seconds.
¡Once set, the preset stations are sequentially scanned for 5 seconds each. (scanning)
New stations overwrite existing saved stations.
B
All
In total 18 FM stations are
automatically preset.
Preparation: Select All . (a page 39)
Setup e Radio e FM Setup e Auto Preset
–
[BAND]
e
Each
/
All
18 stations with first to 18th highest in
signal strength of all FMs will be preset at
once.
¡Touch and hold for more than 2 seconds.
¡Once set, the preset stations are sequentially scanned for 5 seconds each. (scanning)
New stations overwrite existing saved stations.
Preset Station Calling
Select a band or a list.
to
–
–
¡Touch desired preset button.
Preset Swap
A station preset is interchangeable with another
station preset.
Preparation: Select All . (a page 39)
Setup e Radio e FM Setup e Auto Preset
e
Each
/
All
q Select the list and the preset number that contains the station to be interchanged
(see “Preset station calling” above).
w Select the list and hold down the preset number that contains the targeted channel
for more than 2 seconds.
to
–
–
The preset station selected in the step q
is interchanged with the targeted preset
channel selected in the step w (Preset
Swap).
…… Touch and hold
CQ-VX220W
25
English
USB - Audio Device Control
25
Preparation:
¡Connect a USB audio device to USB connector of this unit.
Playing time
Source Selection
Source Button
q Touch “Source Button”.
Title/text scroll
DIMMER
d
TILT
CLOSE
TILT
OPEN
IN-DASH 7" WIDESCREEN COLOR LCD MONITOR / DVD RECEIVER
w Touch
(iPod/USB) on the
Source Selection
Screen.
Operation
Buttons
Press [SOURCE]/[SRC] to change to the
desired mode.
CQ-VX220W
DIMMER
DIM
TEXT
CQ-VD5005W
AV1 IN
VOL
PUSH SEL
POWER
MUTE
MAP
TUNE/TRACK
SOURCE
[SOURCE]
Folder selection
Caution
¡ Position the USB device and cable so that they do
not interfere with your driving.
¡ Do not connect any USB device other than a USB
memory, a USB audio player or an iPod/iPhone. Do
not connect multiple USB devices to the USB connector. Supplying power to multiple USB devices
from the connector could cause overheating and
smoking.
26
CQ-VX220W
Note:
¡ This unit plays back MP3/WMA files stored on a USB
memory.
¡ Back up any important data beforehand. We cannot
accept responsibility for any lost data.
¡ Refer to the section on “Compatible USB devices”.
(a page 6)
¡ Refer to the section on “Notes on MP3/DivX”.
(a page 22)
¡ A file with a play time exceeding 1 000 minutes will
not play correctly to the end of the track.
¡ When connecting (disconnecting) a USB memory,
turn down the volume of the unit.
¡ When connecting a USB memory, make sure the connector is pushed all the way into the socket.
¡ Do not leave the USB device for long periods of time
in places inside the car where the temperature rises
too high.
¡ The USB devices that do not comply with the USB
standard may not normally play with this unit.
¡ Even mass storage class USB devices may not normally play with this unit.
¡ The USB devices that contain other than MP3/WMA
files may not normally play with this unit.
: scrolls up/down the file list by 1
page.
[}] [{] : scrolls up/down the file list by 1
line.
[]] [[]
: Folder
: MP3/WMA file
q Touch
(folder
name) to select a folder.
,
: scrolls up/down the file list
by 1 page.
,
: scrolls up/down the file list
by 1 line.
w Touch
(file name)
to play.
English
List (Folder/File) Selection
26
Note:
¡Touch
(folder name) to go
back to the upper tier.
¡It is not possible to display the whole tree and file list
in a folder.
¡The displayed contents on the touch panel vary with
circumstances.
Basic Operations
Operations
File Selection
Fast Forward/
Fast Reverse
[d]
[d]
Next file
[s]
[s]
Beginning of the current file
Previous track/file (Touch/press twice.)
[d]
[d]
[s]
[s]
Fast forward
Release to resume playback.
Fast reverse
Release to resume playback.
[}]
Next folder
[{]
Previous folder
Folder Selection
–
Title/text Scroll
–
–
Scrolls the title/text once
Pause
–
–
To resume playback, touch/press again or
touch/press
/ [5].
–
–
To cancel, touch again.
Repeat Play
*
Repeat Play within the
Current Folder
*
–
–
To cancel, touch and hold for more than 2
seconds again.
Random Play
*
–
–
To cancel, touch again.
Random Play within
the Current Folder
*
–
–
To cancel, touch and hold again.
Scan Play
*
–
–
To cancel, touch again.
Folder Scan Play
*
–
–
The first 10 seconds of the all the folder is played.
To cancel, touch and hold for more than 2 seconds again.
…… Touch/Press and hold
* Touch panel symbols will change to indicate these current mode.
,
,
CQ-VX220W
27
English
USB - iPod Control
27
Preparation:
¡Connect an iPod/iPhone to USB connector of this unit.
¡Connect an iPod/iPhone to USB connector and AV1 IN of this unit with CA-LDC100X (option) for iPod Video/iPhone video.
Playing time
Source Selection
Source Button
q Touch “Source Button”.
Title/text scroll
DIMMER
d
TILT
CLOSE
TILT
OPEN
IN-DASH 7" WIDESCREEN COLOR LCD MONITOR / DVD RECEIVER
w Touch
(iPod/USB) on the
Source Selection
Screen.
Operation
Buttons
Press [SOURCE]/[SRC] to change to the
desired mode.
To switch Operation Screen ON, touch the center of
touch panel or press [ENTER] on the remote control.
(only for video mode)
Caution
¡ Position the USB device and cable so that they do
not interfere with your driving.
¡ Do not connect any USB device other than a USB
memory, a USB audio player or an iPod/iPhone. Do
not connect multiple USB devices to the USB connector. Supplying power to multiple USB devices
from the connector could cause overheating and
smoking.
Video Mode Display
Source Button
Playing time
Button leading
to the audio
mode
Title scroll
Operation Buttons
Audio Mode Display
Current track
Source Button
Playing time
Button leading
to the video
mode
Title/text scroll
Operation Buttons
28
CQ-VX220W
CQ-VX220W
DIMMER
DIM
CQ-VD5005W
TEXT
AV1 IN
VOL
PUSH SEL
POWER
MUTE
MAP
TUNE/TRACK
SOURCE
[SOURCE]
Note:
¡ Please read the operating instructions of your
iPod/iPhone as well as this book.
¡ Please disconnect iPod/iPhone accessories such as
earphones before connecting the iPod/iPhone to this
unit.
¡ If your iPod/iPhone is not working correctly, disconnect it from this unit, reset it and then reconnect it to
this unit.
¡ We shall not guarantee all the functions of the
iPod/iPhone to be connected.
¡ The number of displayable characters for a file name
is limited. (up to 252 bytes)
Controllable iPod, iPhone/software version
¡ iPod (5th generation, ver. 1.3)
¡ iPod nano (1st generation, ver. 1.3.1)
¡ iPod nano (2nd generation, ver. 1.1.3)
¡ iPod nano (3rd generation, ver. 1.1.2)
¡ iPod nano (4th generation, ver. 1.0.2)
¡ iPod classic (ver. 1.1.2)
¡ iPod touch (1st generation, ver. 1.1.4) (video playback is not supported.)
¡ iPod touch (2nd generation, ver. 2.1.1)
¡ iPhone (ver. 2.1.0)
* The applicable models have been confirmed as the
end of January 2009. We do not guarantee the operation with our future products or upgraded software.
¡ When connecting (disconnecting) a iPod/iPhone, turn
down the volume of the unit.
¡ When connecting a iPod/iPhone, make sure the connector is pushed all the way into the socket.
¡ Do not leave the iPod/iPhone for long periods of time in
places inside the car where the temperature rises too
high.
Example: iPod Auido
: scrolls up/down the file list by 1
page
[}] [{] : scrolls up/down the file list by 1
line.
[]] [[]
q Touch
(list name) to select the
play list. (Playlists/Artists/Albums/Songs/Genres)
,
: scrolls up/down the file list by 1 page.
,
: scrolls up/down the file list by 1 line.
w Select a folder in the same manner as q.
e Touch
(file name) to play.
English
List Selection
28
Note:
¡ It is not possible to display the whole tree and file list
in a folder.
¡ The displayed contents on the touch panel vary with
circumstances.
Basic Operations
Operations
Selection of video
mode or audio mode
–
–
Changes from the video mode to the audio mode.
–
–
Changes from the audio mode to the video mode.
Every time the iPod is switched between the audio
mode and the video mode, the list selection screen
appears first (not the operation screen). Touch the list
name to select the play list and play the desired file.
Note:
¡ The “Disp” button on the touch panel will be
disabled while the list selection screen
appears. However, this phenomenon is not a
trouble with the main unit. Use the list selection screen to play the desired file.
File Selection
[d]
[d]
Next file
[s]
[s]
Beginning of the current file
Previous track/file (Touch/press twice.)
[d]
[d]
[s]
[s]
Title/text Scroll
–
–
Scrolls the title/text once
Pause
–
–
To resume playback, touch/press again or
touch/press
/ [5].
Fast Forward/
Fast Reverse
Repeat Play
(Only for Audio mode)
Fast forward
Release to resume playback.
Fast reverse
Release to resume playback.
–
–
To cancel, touch again.
*
Note:
¡The All Repeat Play function of iPod is always activated and cannot be canceled from this unit.
Shuffle Songs
(Only for Audio mode)
*
Shuffle Albums
(Only for Audio mode)
*
–
–
To cancel, touch again.
–
–
To cancel, touch and hold again.
Note:
¡The shuffle function of iPod corresponds to the Random function of this unit.
…… Touch/Press and hold
* Touch panel symbols will change to indicate these current mode.
CQ-VX220W
29
English
AV1/AV2
Preparation:
¡Connect an optional external device to the AV1/AV2.
Source Selection
29
Source Button
You can view the images and listen to the sounds from
the connected external devices in the AV1/AV2 mode
respectively.
q Touch “Source Button”.
d
w Touch
/
(AV1/AV2) on the
Source Selection
Screen.
DIMMER
TILT
CLOSE
TILT
OPEN
IN-DASH 7" WIDESCREEN COLOR LCD MONITOR / DVD RECEIVER
CQ-VX220W
DIMMER
DIM
CQ-VD5005W
TEXT
AV1 IN
VOL
PUSH SEL
Press [SOURCE]/[SRC] to change to the
desired mode.
POWER
MUTE
MAP
[SOURCE]
To switch Operation Screen ON, touch the center of
touch panel or press [ENTER] on the remote control.
Note:
¡ Every time the source is switched from iPod mode to
AV1 mode while iPod/iPhone video file is playing on
this unit, the still image of iPod/iPhone video file will
be displayed on the screen with AV1 mode.
However, this phenomenon is not a trouble with this
unit and iPod/iPhone unit.
Make sure to remove the cable connection (CALDC100X, option) of front AV1 IN to iPod/iPhone and
connect the desired AV device to front AV1 IN connector using supplied conversion cable for AV1 IN when
you want to enjoy AV1 mode under above circumstance.
¡ You can set up the system so that the AV mode is not
Input
a page 34)
selected (source skip). (
¡ If no operation is performed for 10 seconds or
is
touched, the operation buttons disappear.
¡ Only the pin jack of the supplied Conversion Cable for
AV 1 IN or a pin jack that has the same electrode
arrangement can be connected to the AV 1 IN terminal. (See Fig. 1.)
¡ Use of the supplied Conversion Cable for AV 1 IN or
an audio pin jack that has the same electrode arrangement also allows users to enjoy only music. In this
case, the screen background becomes black.
30
CQ-VX220W
TUNE/TRACK
SOURCE
<Fig. 1>
Audio (L)
Audio (R)
Video
Ground
AV1 IN
This unit is equipped with a removable face plate.
Removing this face plate makes the unit totally inoperable.
DIMMER
DIM
CQ-VX220W
TILT
OPEN
English
Anti-Theft System
AV1 IN
VOL
POWER
PUSH SEL
MUTE
MAP
TUNE/TRACK
SOURCE
30
Removable face plate
Remove the Face Plate
q Switch off the power of the unit.
w Hold the top and bottom of the center part of the face
plate and pull it down toward you.
e Pull the face plate toward you.
r Place the face plate into the case and take it with you
when you leave the car.
w
e
Install the Face Plate
q Engage the right and left concave parts (A) on the
lower rear side of the face plate with the convex parts
(B) of the main unit.
w Raise and press the face plate toward the main unit
until a click is heard while engaging (A) with (B).
q
Detection switch
(B)
(A)
(B)
(A)
w
Face Plate Removal Alarm
This alarm sounds to warn you not to forget to remove
the face plate before leaving your car.
This function is activated when Security Alarm is set to
On . (a page 35)
Caution
¡ Be sure to follow the procedure mentioned above to mount the face plate appropriately. Improper mounting such
as forcible mounting without engaging the concave parts with the convex parts may cause trouble.
¡ Use caution not to damage the detection switch while mounting the face plate. Failure to observe this may cause
trouble.
¡ Use caution not to apply excessive force to the removed face plate when the plate is carried or stored. Failure to
observe this may cause trouble.
¡ This face plate is not waterproof. Do not expose it to water or excessive moisture.
¡ Do not remove the face plate while driving your car.
¡ Do not place the face plate on the dashboard or nearby areas where the temperature rises high.
CQ-VX220W
31
English
Settings
31
32
Basic Setting
Clock
ID-Code
Input
Other
Memory Clear
Basic Setting
Clock setting
ID Code Setting
Input Selection
Other settings
Memory clearance
(a page 34)
(a page 34)
(a page 34)
(a page 35)
(a page 35)
Screen
Dimmer
Display
Aspect
Screen
Adjusting the brightness
Display appearance
Display aspect setting
(a page 36)
(a page 36)
(a page 36)
Sound
SQ3
Bass/Treble
Balance/Fader
Sound
SQ3 setting
Bass/treble adjustment
Balance/fader adjustment
(a page 37)
(a page 37)
(a page 37)
Disc
Audio Language
Subtitle Language
Menu Language
Video Setting
Audio Setting
DivX Registration
Disc
DVD Audio Language Setting
DVD Subtitle Language Setting
DVD Menu Language Setting
DVD Video Setting
DVD Audio Setting
DivX Registration
(a page 38)
(a page 38)
(a page 38)
(a page 38)
(a page 39)
(a page 39)
Radio
FM Setup
Radio
Setting for FM stations
(a page 39)
CQ-VX220W
English
❏ Setup Operation
(Example: DVD mode)
q
w
Touch
e
Touch desired setting.
in Operation Screen.
(Example: setting screen of
Display Adjustment
32
a page 36)
Determines the setting and goes back to the
previous menu.
Determines the setting and gets out of the menu
Note:
¡ The display returns to the previous status if there is no operation for more than 60 seconds after changing to the setting menu.
¡ The item may not be temporarily selected depending on the current disc type or the state of this unit. In such a case,
change the source to another one and try to set up the item again.
CQ-VX220W
DIMMER
DIM
CQ-VD5005W
TEXT
TILT
OPEN
[DIM] (DIMMER)
(The screen brightness is toggled between the
set level and maximum luminance.)
DIMMER
TILT
CLOSE
TILT
OPEN
AV1 IN
VOL
PUSH SEL
POWER
MUTE
MAP
TUNE/TRACK
IN-DASH 7" WIDESCREEN COLOR LCD MONITOR / DVD RECEIVER
SOURCE
[SOURCE]
(Exit from the menu)
[VOL]
(PUSH SEL)
CQ-VX220W
DIMMER
DIM
CQ-VD5005W
TEXT
AV1 IN
VOL
PUSH SEL
POWER
MUTE
MAP
TUNE/TRACK
SOURCE
CQ-VX220W
33
English
Settings (continued)
33
Basic Setting
Screen
Sound
Disc
Radio
until “Completed!” is displayed.
w Touch and hold
The ID code cancelling procedure is completed. The unit
now works without an ID code.
Clock
Clock setting
Display
(Clock display)
On
: clock display ON (“– –:– –” is displayed
before adjusting the clock.)
Off
: clock display OFF
default:
Adjust
Off
Caution
(Clock adjustment)
}
: Forward
{
: Backward
¡Record your registered ID code and keep it in a
secure location. (Fill in the ID code memo
(a page 46).) If you forget it, you will be unable
to use the unit. In case you forget the ID code,
please consult your nearest Panasonic Service
Center.
Note:
.
¡To start the clock, touch
¡Set the Daylight Saving Time manually.
default: Hour Adjust: 00
Minute Adjust: 00
ID-Code
ID Code Setting
Prior to operating this unit, it is advisable to assign a 4digit ID code for security. Once the ID code has been set,
the unit cannot be operated if the main power supply is
disconnected then re-connected. It is electronically locked
so that a thief cannot use the stolen unit unless that person knows the code you have set.
The ID code operation must be performed only by the
person to whom the unit belongs.
Generally, it is not necessary to enter the ID code each
time when using the unit if it has not been disconnected
from the main power supply (car battery).
0 to 9
Input
Input selection
Note:
¡If a non-Panasonic navigation system is connected to
this unit, we do not guarantee the operations of the
navigation system.
AV1
How to set your ID code (for the first time)
q Enter an 4 digit ID code.
w Enter the same 4 digit ID code again.
How to change your ID code
q Enter the preset (old) 4 digit ID code. If the wrong ID
code is entered, a new ID code cannot be registered.
w Enter a new 4 digit ID code.
e Enter the new 4 digit ID code again.
How to cancel the known ID code
q Enter the preset (old) 4 digit ID code. If the wrong ID code
is entered, it is not possible to cancel the ID code function.
CQ-VX220W
(AV1 input selection)
AV1
: an external device is connected to AV1.
Skip
: skips AV1.
default:
AV2
AV1
(AV2 input selection)
AV2
: an external device is connected to AV2.
NAV1-3
: Select one from among NAV1, NAV2, and
NAV3 with which images are displayed
most beautifully when a non-Panasonic
car navigation system is connected.
4 digits numeric code
default: none
34
Note:
¡Should your unit ever require service, cancel your ID
code before sending for repair.
¡The ID code setting cannot be eliminated even by the
memory clear function.
¡The inputted code is not displayed for your security.
Skip
: skips AV2.
default:
Camera
AV2
(Rear view camera set up)
Selection of the terminal that connects to the rear view
camera.
Preparation: Connect the reverse lead. (a Installation
Instructions)
On
: connected to the CAMERA IN
Off
: unconnected
default:
Off
English
Note:
¡Make sure to select Off when no rear view camera is
connected.
¡The image from the rear view camera may be blurred
in the night or a dark place.
OSD Color
Blue
Green
Red
RGB Input
RGB1/2
(OSD color setting)
34
: Blue-based screen
: Green-based screen
: Red-based screen
(RGB input selection)
default:
: Select one between RGB1 and RGB2
with which images are displayed most
regularly when a car navigation system
is connected via RGB connector.
default: RGB1
Blue
Memory Clear
Memory clearance
The state of all of the current memories are returned to
default settings.
Note:
¡The ID code is not deleted by executing memory clear.
Other
Other settings
ACC Select
(Setting ACC selection ON and
OFF)
On
: sets to ON if your car has ACC position.
Off
: sets to OFF if your car has no ACC position.
default:
: clears the memory to default settings
No
: no memory clear.
The display returns to the previous one.
Caution
¡Be sure to select off when your car has no ACC
position in the ignition switch. Failure to do this
could cause the battery to go dead.
appears when
is selected.
Really?
On
Note:
¡For an ACC-equipped car, select ON. The following
functions are available.
¡The power is turned on automatically when inserting
a disc.
¡ Off selection disables turning on the power of the
main unit through the remote control.
Security Alarm
Yes
Yes
OK
Cancel
: proceed.
: no memory clear.
Note:
¡The power of this unit is turned off automatically after
OK is selected. (memory clearance completed).
Please turn on the power again to using this unit.
Caution
¡Be aware that this setting restores the unit to default
settings, so that all the memories and settings that
you have set will be eliminated.
(Security Alarm)
On
: activates the security alarm.
(a page 31)
Off
: inactivates the security alarm.
default:
On
CQ-VX220W
35
English
Settings (continued)
35
Basic Setting
Screen
Sound
Disc
Radio
(Display)
Dimmer
Aspect
Adjusting the brightness
1
2
Darker
Display aspect setting
Normal
3
Brighter
default: 1
Note:
¡When [DIM] is pressed, the screen brightness is toggled between the set level that is adjusted by the procedure above and the maximum luminance.
Full
Display
Display appearance
Contrast
¡The conventional display image
has a 4 to 3 ratio of horizontal to
vertical.
¡In this case, a blank area remains
on the right and left sides of the
display.
¡The screen is extended horizontally
as a whole to the aspect ratio of 16
to 9.
¡The extension ratio is the same at
any point of the screen.
Zoom
¡The screen is fully extended at the
normal aspect ratio of 4 to 3.
¡The top and bottom of the screen
are slightly cut.
Just
¡The screen is extended horizontally
to the aspect ratio of 16 to 9.
¡The extension ratio increases
toward the right and left ends of
the screen.
(Adjust the image contrast)
] : decreases the contrast between black and white.
[ : increases the contrast between black and white.
Bright
(Adjust the image brightness)
] : darkens.
default:
[ : lightens.
Color
(Adjust the image color depth)
] : lightens the depth of color on the display.
[ : deepens the depth of color on the display.
Tint
(Adjust the image tone or tint)
] : emphasizes green in the color image.
[ : emphasizes red in the color image.
Note:
¡When the video signal is PAL/SECAM format, adjustment cannot be performed.
Setting range: –15 to +15
default: ±0
36
CQ-VX220W
Normal
Note:
¡The aspect setting screen can be also activated by
touching Aspect when the button is displayed.
(a page 12)
¡This adjustment is common to video mode.
¡You cannot change the aspect in the menu screen and a
screen in the CD, MP3 and radio mode. These are fixed
to “Full”.
¡When the rear view camera is in operation with the
transmission gear shift in the reverse position, the
image is shown on the “Full” screen only.
¡In some cases, the picture looks different from the
original one due to your selection of aspect.
Caution
¡This is to remind you that compression or extension
of the screen using the aspect ratio (screen mode)
changing function of this product for commercial
purpose of profit making or viewing/listening by the
public could infringe on the rights of the author protected by the copyright law.
¡If you expand normal picture (4 to 3) by using
“Just”, “Zoom” or “Full” aspect to the full of the
screen, you might not see the periphery of the picture, or you might see a distorted picture.
Therefore, use the “Normal” mode to see the original picture as the author intended it.
Sound
Disc
English
Basic Setting Screen
Radio
Note:
¡The sound setting screen can be also activated by touching Sound when the button is displayed. (a page 12)
SQ3
Balance/Fader
(Sound level adjustment
between right and left speakers)
Balance
SQ3 setting
Six SQ presets are already provided at shipment in this
unit.
36
Balance/fader adjustment
[ : right enhanced
] : left enhanced
Flat : flat frequency response
Setting range: Right 15 to Left 15
default: Center
Pop : wide-ranged and deep sound
Rock : speedy and heavy sound
(Sound level adjustment between
front and rear speakers)
Fader
Jazz : jazz-specific deep sound
Club : club and disco-specific sound
[ : front enhanced
Vocal : clear sound
] : rear enhanced
default:
Flat
Setting range: Front 15 to Rear 15
default: Center
You may set your own SQ or modify factory presettings
in each memories by following the instructions below:
Adjusting level of each preset
q Select the preset SQ that you prefer to adjust.
to select a frequency in a freor
w Touch
quency band (BASS/MID/TRE).
to adjust each frequency.
or
e Touch
Adjustable range: –12 dB to +12 dB
Adjustable frequency:
BASS; 60 Hz, 80 Hz, 100 Hz, 200 Hz
MID; 500 Hz, 1 kHz, 2 kHz, 3 kHz
TRE; 10 kHz, 12 kHz, 15 kHz, 18 kHz
Note:
¡The new level adjustment will overwrite the previous
level adjustment.
¡For resuming the factory settings, touch and hold
Default for more than 2 seconds.
Audio setting with [VOL] (PUSH
SEL) on the main unit
Audio settings of Bass , Treble , Balance and
Fader
can be performed with [VOL] (PUSH SEL)
on the main unit.
q Press [VOL] (PUSH SEL) to select a setting item.
(Regular mode)
d
Bass
d
Bass/Treble
Treble
Bass/treble adjustment
d
Bass
(Bass adjustment)
Balance
[ : more
d
] : less
Fader
Treble
(Treble adjustment)
w Rotate [VOL] to make an adjustment.
[ : more
] : less
Setting range: –12 dB to +12 dB
default: ±0 dB
CQ-VX220W
37
English
Settings (continued)
37
Basic Setting Screen
Sound
Disc
Radio
Audio Language
Video Setting
DVD audio language setting
Display aspect and DVD software mode
Note:
¡These adjustments being executed, playback will start
from the beginning of a disc.
English : English
DVD Aspect
Narrow
Wide
(Display aspect setting)
: plays a video in 4:3 screen.
: plays a video in wide screen (16:9).
: Chinese
Français : French
Other : other language. Input the language code.
(a page 49)
default:
English
Subtitle Language
default:
Letter Box
Note:
¡A disc supporting closed captioning and subtitles may
overlap each other on the screen. In this case, turn the
subtitle off.
English : English
: Chinese
Français : French
Other : other language. Input the language code.
(a page 49)
default:
English
Menu Language
DVD menu language setting
(DVD software mode)
Pan & Scan : plays wide-screen video in Pan & Scan
Letter Box
DVD subtitle language setting
Wide
mode (in which the left and right edges
of the screen are cut off).
: plays wide-screen video in letterbox
mode (in which black bands appear at
the top and bottom of the screen).
default:
Pan & Scan
Note:
¡This function is available only when DVD Aspect is set
to Narrow .
¡Set the software setting according to the symbol used
on jacket. (a page 16)
¡DVD software mode setting is ignored if Pan & Scan
or Letter Box is already set in the software.
¡Screen aspect of the display unit is changed according
to the aspect ratio setting (a page 36) and DVD software’s aspect.
TV Type
(VIDEO OUT terminal setting)
English : English
PAL
: Chinese
Français : French
Other : other language. Input the language code.
NTSC
: sets PAL in accordance with the equipment connected to VIDEO OUT.
: sets NTSC in accordance with the
equipment connected to VIDEO OUT.
(a page 49)
default:
default:
English
Angle Mark
PAL
(Angle mark setting)
The angle mark is displayed to indicate the parts where
multi-angle data is recorded.
On
: activates angle mark.
Off
: inactivates angle mark.
default:
38
CQ-VX220W
On
Audio Setting
Disc
Radio
FM Setup
Audio setting at DVD playing
Down Mix
Sound
English
Basic Setting Screen
Setting for FM stations
Auto Preset
(Down mix setting)
Lt/Rt
: surround element decodable down mix
(Lt = Left total, Rt = Right total)
Lo/Ro
: simple stereo down mix
(Lo = Left only, Ro = Right only)
38
(Auto preset setting)
Each
: saves the preset stations in each band.
All
: saves the preset stations in all FM lists
regardless of band.
default:
Each
Note:
¡This function is available only when “Dolby Digital”
source is playing.
default:
DR COMP
Lt/Rt
(Dynamic Range Compression
setting)
STD
MIN
: DR COMP ON
Off
: DR COMP OFF
: made with the greatest compression,
roughly equivalent to a TV broadcast.
Note:
¡This function is available only when “Dolby Digital”
source is playing.
default:
Off
DivX Registration
Show the DivX Registration Code (a page 40)
CQ-VX220W
39
English
About DivX VOD Content
39
DivX Video-on-Demand (VOD) content is encrypted for copyright protection. In order to play DivX VOD content on this
unit, you first need to register the unit.
Follow the on line instructions for purchasing DivX VOD content to enter the unit’s registration code and register the
unit. For more information about DivX VOD, visit www.divx.com/vod.
Display the unit’s registration
code
q Touch
w Touch
e Touch
Disc
.
.
DivX Registration
.
8 alphanumeric characters
Note:
¡ We recommend that you make a note of this code for
future reference.
¡ After playing DivX VOD content for the first time,
another registration code is then displayed in “DivX
Registration”. Do not use this registration code to purchase DivX VOD content. If you use this code to purchase DivX VOD content, and then play the content on
this unit, you will no longer be able to play any content
that you purchased using the previous code.
¡ If you purchase DivX VOD content using a registration
code different from this unit’s code, you will not be
able to play this content. (“Authorization Error” is displayed.)
40
CQ-VX220W
Regarding DivX content that
can only be played a set number of times
Some DivX VOD content can only be played a set number
of times. When you play this content, the remaining number of plays is displayed. You cannot play this content
when the number of remaining plays is zero.
(“Rental Expired” is displayed.)
When playing this content
¡ The number of remaining plays is reduced by one if
- you press [SOURCE].
- you press [s] / [d] (a / f)
etc. and arrive at another content or the start of the
content being played.
❑ If You Suspect Something Wrong
Check and take steps as described below.
If the described suggestions do not solve the problem, it is recommended to take the unit to your nearest authorized Panasonic
Service Center. The product should be serviced only by qualified
personnel. Please refer checking and repair to professionals.
Panasonic shall not be liable for any accidents arising out of neglect of checking the unit or your own repair after your checking.
Never take measures especially those other than indicated by
italic letters in “Possible Solution” described below because
those are too dangerous for users to handle themselves.
Warning
¡Do not use the unit in an irregular condition, for example, without sound, or with
smoke or a foul smell, which can cause
ignition or electric shock. Immediately stop
using the unit and consult your dealer.
¡Never try to repair the unit by yourself
because it is dangerous to do so.
English
Troubleshooting
40
■ Common
Problem
Possible cause a Possible solution
The power cord (battery, power and ground) is connected in the wrong way.
aCheck the wiring.
No power to the unit
Sound is not
generated.
Noise
Fuse blows out.
aEliminate the cause of fuse blowout and replace the fuse with new one.
Consult your dealer.
MUTE is set to ON.
aSet MUTE to OFF.
The wiring of speaker lines is not correct, or a break or poor contact arises.
aCheck the wiring in accordance with the wiring diagram. (Installation
Instructions)
There is an electromagnetic-wave generator such as a cellular phone near the
unit or its electrical lines.
aKeep the electromagnetic-wave generator such as a cellular phone away
from the unit and the wiring of the unit. In case noise cannot be eliminated
due to the wiring harness of the car, consult your dealer.
The contact of the ground lead is poor.
aMake sure that the ground lead is connected to an unpainted part of the
chassis securely.
Noise is made in step
with engine revolutions.
Alternator noise comes from the car.
aChange the wiring position of the ground lead.
aMount a noise filter.
Some operations are not
executable.
Some operations are not executable in particular modes such as menu mode.
aRead the operating instructions carefully and cancel the mode. If the unit is
still out of order, consult your dealer.
No sound from
speaker(s)
There is a break, a short circuit, poor contact or wrong wiring regarding the
speaker wiring.
aCheck the speaker wiring.
The speaker channels
are reversed between
right and left.
The speaker wiring is reversed between right and left.
aPerform the speaker wiring in accordance with the wiring diagram.
The power of the unit
fails unintentionally.
The safety device works.
aConsult your dealer, or your nearest Panasonic Service Center.
CQ-VX220W
41
English
Troubleshooting (continued)
41
■ Common (continued)
Output
disabled/distorted
video/audio.
The conversion cable for AV 1 IN supplied with this unit is not used for the
terminal of AV1 IN.
aUse the conversion cable for AV 1 IN supplied with this unit for the
connection.
■ Display Settings
The picture is dark. The
picture is whitish. Something
is wrong with the picture.
The picture is light in color.
The screen is not adjusted properly.
aMake every adjustment of the screen.
The display does not go
back into the unit.
The monitor stops on the way to the home position.
aPress [OPEN].
■ Radio
Poor reception or noise
Antenna installation or wiring of antenna cable is faulty.
aCheck whether the antenna mounting position and its wiring are correct. In
addition, check to see whether the antenna ground is securely connected to
the chassis.
No power is supplied to the antenna amplifier (when using a film antenna, etc.).
aCheck the wiring of the antenna power lead.
The number of auto
preset stations is less
than 6.
The number of receivable stations is less than 6.
aMove to an area where receivable stations number is maximum, and try presetting.
Preset stations cannot
be stored.
The contact of the battery lead is poor, or the battery lead is not always powered.
aMake sure that the battery lead is connected securely, and preset stations
again.
■ CD
No playback or disc
ejected
Sound skipping or noise
Sound skipping due to
vibration
Disc unejectable
42
CQ-VX220W
The disc is inserted upside down.
aInsert a disc correctly.
There is a flaw or foreign object on the disc.
aRemove the foreign object, or use a flawless disc.
There is a flaw or foreign object on the disc.
aRemove the foreign object, or use a flawless disc.
The unit is not sufficiently secured.
aSecure the unit to the console box.
The unit is tilted at over 30˚ in the front-to-end direction.
aMake the angle 30˚ or less.
Something such as a peeled label obstructs the disc coming out.
aPress and hold the [u] for more than 10 seconds (disc forced ejection). In
case that the disc forced ejection does not work, consult your dealer.
The microcontroller in the unit operates abnormally due to noise or other factors.
aUnplug the power cord and plug it again. In case the unit is still out of order,
consult your dealer.
English
■ MP3/DivX
No playback or disc
ejected
The CD-Rs/RWs/DVDRs/RWs that are
playable on other
devices are not playable
on this unit.
Sound skipping or noise
The disc has unplayable formatted data.
aRefer to the description about MP3/DivX for playable formats.
42
The playability of some CD-Rs/RWs/DVD-Rs/RWs may depend on the combination of media, recording software and recorder to be used even if these CDRs/RWs/DVD-Rs/RWs are playable on other devices such as a PC.
aMake CD-Rs/RWs/DVD-Rs/RWs in a different combination of media, recording
software and recorder after referring to the description about MP3/DivX.
There is a flaw or foreign objects on the disc.
aRemove the foreign objects, or use a flawless disc. For MP3/DivX, refer to
the description about MP3/DivX.
Playing VBR (Variable Bit Rate) files may cause sound skipping.
aPlay Non-VBR files.
The picture stops.
The picture may stop if the DivX files are greater than 2 GB.
aKeep the file size under 2 GB.
Note:
¡Refer to “Notes on MP3/DivX”. (a page 22)
■ DVD
Cannot switch the audio
language/subtitle
language/angle.
¡It is not possible to switch if the disc does not have multiple audio
languages/subtitle languages/angles recorded on it. (Refer to the guide provided with your disc.)
¡Some discs permit switching through a menu screen.
¡Sometimes, switching angles is possible only with certain scenes.
The audio/subtitle
language selected in the
DVD settings is not
used.
If audio or subtitles in that language are not recorded on the disc, the audio or
subtitles do not switch to that language. (Some discs permit switching through a
menu screen. Refer to the guide provided with your disc.)
A DVD–R or DVD–RW is
not playable.
Sound is not generated.
The disc is still unfinalized.
aFinalize the disc.
Refer to “Before Disc Playback” (a page 16) or “Notes on Discs”
(a page 48) for other cases.
The disc is in the video recording (VR) format.
aPlay video formatted discs.
Refer to “Before Disc Playback” (a page 16) or “Notes on Discs”
(a page 48) for other cases.
The audio format is output disabled for this unit such as dts.
aUse output enabled discs.
Refer to “Before Disc Playback” (a page 16) or “Notes on Discs”
(a page 48) for other cases.
CQ-VX220W
43
English
Troubleshooting (continued)
■ Remote control unit
The battery is inserted in the wrong direction. A wrong battery is inserted.
aInsert a correct battery in the correct direction.
The battery is weak.
aReplace the battery with new one.
43
No response to pressing
buttons
The aiming direction of the remote control unit is wrong.
aAim the remote control unit at the sensor of the unit and press buttons.
The sensor is exposed to direct sunlight. (The remote control unit may not be
operable when the sensor is exposed to direct sunlight. In such a case, the system is not faulty.)
aBlock off sunlight to the sensor.
Unable to turn on the
power of the main unit
through the remote
control
Off is selected for the ACC selection.
aSelect On for the ACC selection.
aPress [POWER] of the main unit to turn on the power.
❑ Error Display Messages
■ CD/MP3/DivX/DVD/VCD (Video CD)
Display
Non Playable Disc
Mechanism Error
File Error
No Disc
Region Code Error
Possible cause a Possible solution
Disc is dirty, or is upside down.
aCheck disc.
Disc has scratches.
aCheck disc.
No operation by some cause.
aPress [u]. If failure persists, press the reset switch. If normal operation is not
restored, call the store where you purchased the unit or the nearest Panasonic
Service Center.
The type of the file that is selected is not supported.
aCheck disc.
No disc is in the player.
aInsert disc into the disc slot.
The region code of the disc to be used is not compatible with this unit.
aPress [u] and check the disc.
You are trying to play the DivX VOD content that was purchased with a different
registration code.
aPurchase the DivX VOD content with the registration code of this unit.
(a page 40)
The DivX VOD content has no available play count.
aPurchase again the content or play another content. (a page 40)
DivX HD not Supported
The selected DivX HD file is not supported.
aCheck the file. Play Non-DivX HD files.
Note:
¡There may be cases when the disc numbers affected by an error are displayed before “Non Playable Disc”.
44
CQ-VX220W
English
■ USB
Device Not Supported
No playable files exist.
aUse the type of USB device that is suitable for this unit.
An unsupported USB device was connected.
aRecord files that can be played back on this unit onto the USB device.
44
A USB device that exceeds the current capacity that can be supplied was connected.
aUse a USB device that has a consumption current of less than 500 mA.
Hardware Error
For some reason, an over-current was detected.
aSwitch the Source, and select USB (MP3/WMA) mode again.
aCheck that the USB connector section is not dirty, and that there is no foreign
material.
Read Error
No operation by some cause.
aSwitch the power or ACC ON/OFF. If this does not solve the problem, unplug
the power cord and plug it in again. In case the unit is still out of order, consult your dealer. (a Installation Instructions)
Decode Error
No operation by some cause.
aSwitch the power or ACC ON/OFF. If this does not solve the problem, unplug
the power cord and plug it in again. In case the unit is still out of order, consult your dealer. (a Installation Instructions)
File Error
The player for some reason cannot read the file you are trying to play. (File recorded in an unsupported file system, compression scheme, data format, file name
extension, damaged data, etc.)
aConfirm that the USB extension cable is firmly connected, and reconnect if
not. Select a file that the player can read. Check the type of data stored in
the USB device. Format the USB device if necessary.
DRM Protected
No File
A WMA file can be copyrighted.
aThe file protected by copyright is not playable.
Your USB device has no playable file.
aDownload playable file to your USB device.
CQ-VX220W
45
English
Troubleshooting (continued)
45
❑ In case you forget the ID
❑ Replacing the Fuse
In case you forget the ID code, please consult your
nearest Panasonic Service Center.
Use fuses of the same specified rating (15 A). Using different substitutes or fuses with higher rating, or connecting the product directly without a fuse, could cause fire or
damage to this unit.
If the replacement fuse fails, contact your nearest
Panasonic Service Center for service.
code...
ID code memo
Copy the memo at below, fill in the ID code, and keep it in
a secure location.
Model No. CQ-VX220W
ID CODE
❑ If the Unit Begins to
Malfunction...
Reset switch
Remove the face plate (a page 31) and insert a hard,
slender stick into the hole and push the switch.
Important
Push the switch only when the unit fails to operate with
any buttons. (Stored settings and adjustments are not
cleared.)
If the unit fails to return to normal condition, call the
nearest Panasonic Service Center and ask for repairs.
CQ-VX220W
❑ Product Servicing
If the suggestions in the charts do not solve the problem,
we recommend that you take it to your nearest authorized Panasonic Service Center. The product should be
serviced only by a qualified technician.
46
CQ-VX220W
TILT
OPEN
AV1 IN
Reset switch
Note:
¡If the ID-CODE has been already set, you will be asked
to enter the ID-CODE right after the unit is restarted.
❑ Cleaning this Unit
Your product is designed and manufactured to ensure a
minimum of maintenance. Use a dry soft cloth for routine
exterior cleaning. Never use benzine, thinner or other solvents.
Alcohol
Alcohol
Pesticide
Pesticide
Wax
Wax
Thinner
Thinner
Benzine
Benzine
English
Maintenance
To remove stubborn stains
1 Moisten the soft cloth in dishwashing
soap diluted with water and wring well.
2 Wipe lightly. Go over the same surface
with a dry cloth.
46
Note:
¡Since there is the possibility of water drops getting
inside of the unit, do not directly apply cleanser to the
surface.
¡Do not scratch the screen with your nails or other hard
objects. The resulting scratches or marks will obscure
the images.
Caution
¡If water drops or similar wet substances get inside
the monitor, it may cause a malfunction.
CQ-VX220W
47
English
Notes on Discs
47
How to hold the disc
¡Do not touch the underside of the disc.
¡Do not scratch the disc.
¡Do not bend disc.
¡When not in use, keep disc in the case.
Printed side
Do not use discs that fit any of the descriptions given
below. Using these discs may damage the discs or
cause the unit to malfunction.
¡Special discs in a shape which is not round
¡Partly or wholly transparent disc
Wholly transparent disc*
Partly transparent disc
*Wholly semi-transparent disc may not be played back.
Disc insert
The surfaces of new discs tend to be slippery. Therefore,
when using such a disc for the first time, it may not load
satisfactorily even when it has been inserted into the
unit. At a time like this, insert the disc into the unit as far
as it will go until it is loaded properly.
¡When inserting a disc into or ejecting and removing
it from the unit, insert it straight in or eject and
remove it straight out in parallel with the unit.
Otherwise, the disc may be scratched or marked in
the process.
¡When inserting a disc, do not put one disc on another. Failure to observe this may cause the discs to
be jammed.
Do not leave discs in the following places:
¡Direct sunlight
¡Near car heaters
¡Dirty, dusty and damp areas
¡On seats and dashboards
Disc cleaning
Use a dry, soft cloth to wipe from the center outward.
Do not attach any seals or labels to your discs.
Do not write on the disc label in a heavy pen or ballpoint
pen.
¡Discs with adhered labels, etc. on them
<Correct>
Disc with adhered stickers
or tape
Protective films or sheets
Notes on CD-Rs/RWs,
DVD–Rs/RWs
Disc accessories (stabilizers, etc.)
¡Damaged or deformed discs
Shoddily made discs
Discs with burrs
Please remove the burrs
before use.
<Wrong>
Labels created by a printer
Discs with cracks,
scratches or parts missing
¡You may have trouble playing back some CD-R/RW,
DVD–R/RW discs recorded on CD/DVD recorders (CDR/RW, DVD–R/RW drives), either due to their recording characteristics or dirt, fingerprints, scratches, etc.
on the disc surface.
¡CD-R/RW, DVD–R/RW discs are less resistant to high
temperatures and high humidity than ordinary music
CDs. Leaving them inside a car for extended periods
may damage and make playback impossible.
¡The unit may not successfully playback a CD-R/RW,
DVD–R/RW that was made by the combination of writing software, a CD/DVD recorder (CD-R/RW,
DVD–R/RW drives) and a disc if they are incompatible
with one another.
¡This player does not play CD-R/RW, DVD–R/RW discs
if the session is not closed.
¡Be sure to observe the handling instructions of CDR/RW, DVD–R/RW discs.
¡This player does not play CD-R/RW, DVD-R/RW discs
which contain other than CD-DA or MP3/DivX data.
48
CQ-VX220W
In “Other” cases... (a page 38)
Input the four digit language code pressing the buttons
Touch
to determine.
DVD language menu (a page 38)
to
.
English
Language Code List
48
Note:
¡Setting is finished and the display returns to the main menu.
.
¡For retrying selection during number entry, touch
Code
Language Name
Code
Language Name
Code
Language Name
6565
6566
6570
6577
6582
6583
6589
6590
6665
6669
6671
6672
6678
6679
6682
6765
6779
6783
6789
6865
6869
6890
6976
6978
6979
6983
6984
6985
7065
7073
7074
7079
7082
7089
7165
7168
7176
7178
7185
7265
7273
7282
7285
Afar
Abkhazian
Afrikaans
Ameharic
Arabic
Assamese
Aymara
Azerbaijani
Bashkir
Byelorussian
Bulgarian
Bihari
Bengali; Bangla
Tibetan
Breton
Catalan
Corsican
Czech
Welsh
Danish
German
Bhutani
Greek
English
Esperanto
Spanish
Estonian
Basque
Persian
Finnish
Fiji
Faroese
French
Frisian
Irish
Scots Gaelic
Galician
Guarani
Gujarati
Hausa
Hindi
Croatian
Hungarian
7289
7365
7378
7383
7384
7387
7465
7473
7487
7565
7575
7576
7577
7578
7579
7583
7585
7589
7665
7678
7679
7684
7686
7771
7773
7775
7776
7778
7779
7782
7783
7784
7789
7865
7869
7876
7879
7982
8065
8076
8083
8084
8185
Armenian
Interlingua
Indonesian
Icelandic
Italian
Hebrew
Japanese
Yiddish
Javanese
Georgian
Kazakh
Greenlandic
Cambodian
Kannada
Korean
Kashmiri
Kurdish
Kirghiz
Latin
Lingala
Laothian
Lithuanian
Latvian, Lettish
Malagasy
Maori
Macedonian
Malayalam
Mongolian
Moldavian
Marathi
Malay
Maltese
Burmese
Nauru
Nepali
Dutch
Norwegian
Oriya
Panjabi
Polish
Pashto, Pushto
Portuguese
Quechua
8277
8279
8285
8365
8368
8372
8373
8375
8376
8377
8378
8379
8381
8382
8385
8386
8387
8465
8469
8471
8472
8473
8475
8476
8479
8482
8484
8487
8575
8582
8590
8673
8679
8779
8872
8979
9072
9085
Rhaeto-Romance
Romanian
Russian
Sanskrit
Sindhi
Serbo-Croatian
Singhalese
Slovak
Slovenian
Samoan
Shona
Somali
Albanian
Serbian
Sundanese
Swedish
Swahili
Tamil
Telugu
Tajik
Thai
Tigrinya
Turkmen
Tagalog
Tonga
Turkish
Tatar
Twi
Ukrainian
Urdu
Uzbek
Vietnamese
Volapük
Wolof
Xhosa
Yoruba
Chinese
Zulu
CQ-VX220W
49
English
Definition of Terms
49
Dolby Digital
This fully discrete format divides the music signals
into 5.1 channels: Front Left (L), Front Right (R),
Centre (C), Left Surround (LS), Right Surround (RS)
and Subwoofer (SW: 0.1 channel) for recording and
playback. The number of channels that are recorded
depends on the software. (1 to 5.1 channels)
Manufactured under license from Dolby
Laboratories.
“Dolby” and the double-D symbol are trademarks
of Dolby Laboratories.
Confidential unpublished works. Copyright
1992–1997 Dolby Laboratories. All rights
reserved.
Interactive DVD
An interactive DVD is DVD software which includes
multiple angles, multiple plot endings, etc.
Letterbox screen
This refers to a screen on which the playback picture
of wide-screen DVDs or VCD (Video CD)s appears
with black bands running along the top and bottom.
LPCM (Linear PCM audio)
In this format, the audio signal is converted to digital
data and recorded in two channels without compression. Because the capacity of a DVD disc is large, it
can store more data with better accuracy than a CD.
Pan & Scan screen
This refers to a screen on which the playback picture
of wide-screen DVDs or VCD (Video CD)s is cut off
at the left and right sides.
50
CQ-VX220W
Playback control (VCD (Video CD))
If the VCD (Video CD) has “With Playback Control”
or others written on the disc surface or on the jacket,
the scenes or information to be viewed (or listened
to) can be selected interactively with the screen by
looking at the menu shown on the screen.
In these instructions, playback using the menu
screen is referred to as the “menu play” for video
CDs. This player supports Video CDs with playback
control.
DivX
DivX is a popular media technology created by DivX,
Inc. DivX media files contain highly compressed
video with high visual quality that maintains a relatively small file size. DivX files can also include
advanced media features like menus, subtitles, and
alternate audio tracks. Many DivX media files are
available for download online, and you can create
your own using your personal content and easy-touse tools from DivX.com.
This product incorporates copyright protection
technology that is protected by U.S. patents and
other intellectual property rights. Use of this
copyright protection technology must be authorized
by Macrovision, and is intended for home and other
limited viewing uses only unless otherwise
authorized by Macrovision. Reverse engineering or
disassembly is prohibited.
Official DivX® Certified product
Plays all versions of DivX® video with standard playback of DivX® media files
DivX,DivX Certified, and associated logos are trademarks of DivX, Inc. and are used under license.
General
¡Power supply
¡Current consumption
¡Power Output
¡Maximum power output
¡Compatible speaker
impedance
¡Video input signal
: 12 V DC (11 V – 16 V), test voltage 14.4 V, negative ground
: Less than 10 A (during disc
playback)
: 20 W x 4 ch (1 kHz, 1 %, 4 Ω)
: 50 W x 4 ch
: 4Ω–8Ω
: Composite video signal,
1.0 Vp-p (75 Ω)
¡Audio input sensitivity
: 2 Vrms
¡Video output signal
: Composite video signal,
1.0 Vp-p (75 Ω)
¡Pre-Amp output voltage
: 2 Vrms
¡Pre-Amp output impedance : Less than 600 Ω
¡Dimensions (W x H x D)
: 178 x 50 x 165 mm
¡Weight
: 2.4 kg
Front AV input (AV1 IN)
¡Input impedance
¡Allowable external input
¡Connector
¡Audio input sensitivity
: 47 kΩ
: 2.0 V
: 3.5 mmø mini-plug (Equipped
with video input terminal)
: Composite video signal, 1.0 Vpp (75 Ω)
: 2 Vrms
FM stereo radio
¡Frequency range
¡Usable sensitivity
¡Stereo separation
¡S/N ratio
:
:
:
:
¡Video input signal
AM radio
¡Frequency range
¡Usable sensitivity
¡Image rejection ratio
: 531 kHz – 1 602 kHz
: 28 dB/μV
: 50 dB
Audio section
¡Output voltage/Impedance
¡Frequency characteristics
¡Dynamic range
¡S/N ratio
:
:
:
:
Monitor
¡Liquid crystal panel
¡Screen dimensions
(W x H x D)
¡Number of pixels
¡Valid pixel ratio
¡Display method
¡Drive method
USB connector
¡USB standard compatibility
¡File system
¡Maximum supply current
¡Playable audio format
¡Recommended capacity
English
Specifications
50
2 Vrms/600 Ω
20 Hz – 20 kHz (±1 dB)
96 dB (during CD playback)
95 dB (during CD playback)
: 7-inch wide (17.5 cm)
: 154 x 87 x 177 mm
: 336 960 pixels (234 vertical x
480 horizontal x 3)
: Over 99.99%
: Transparent color filter format
: TFT (Thin Film Transistor) active
matrix format
:
:
:
:
:
1.1/2.0 full speed
FAT12/16/32
500 mA
MP3/WMA
Less than 4 GB (1 partition)
87.50 MHz – 108.00 MHz
7 dB/μV
30 dB (1 kHz)
62 dB
Note:
¡Specifications and the design are subject to modification without notice due to improvements in technology.
¡Some figures and illustrations on this manual may be different from your product.
Playable region number
Model
This operating instruction manual is for 3 models CQVX220W2/CQ-VX220W3 and CQ-VX220W5.
The following table shows the playable region number
for each model.
CQ-VX220W2
2 (ALL)
CQ-VX220W3
3 (ALL)
CQ-VX220W5
5 (ALL)
Applicable iPod/iPhone
Made for.
¡ iPod (5th generation)
¡ iPod nano (1st generation)
¡ iPod nano (2nd generation)
¡ iPod nano (3rd generation)
¡ iPod nano (4th generation)
¡ iPod touch (1st generation)
¡ iPod touch (2nd generation)
¡ iPod classic
Works with.
¡ iPhone
¡ iPhone 3G
* The applicable models have been confirmed as the
end of January 2009. We do not guarantee the
operation with our future products or upgraded
software.
Playable region number
“Made for iPod” means that an electronic accessory has
been designed to connect specifically to iPod and has
been certified by the developer to meet Apple
performance standards.
“Works with iPhone” means that an electronic accessory
has been designed to connect specifically to iPhone and
has been certified by the developer to meet Apple
performance standards.
¡ iPod is a trademark of Apple Inc., registered in the
U.S. and other countries.
¡ iPhone is a trademark of Apple Inc.
Apple is not responsible for the operation of this device
or its compliance with safety and regulatory standards.
CQ-VX220W
51
Memorandum
102
CQ-VX220W
CQ-VX220W
103
CQ-VX220W
Web Site : http://panasonic.net
YFM264C157CA
PTW1208-1029
Printed in China
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
