English

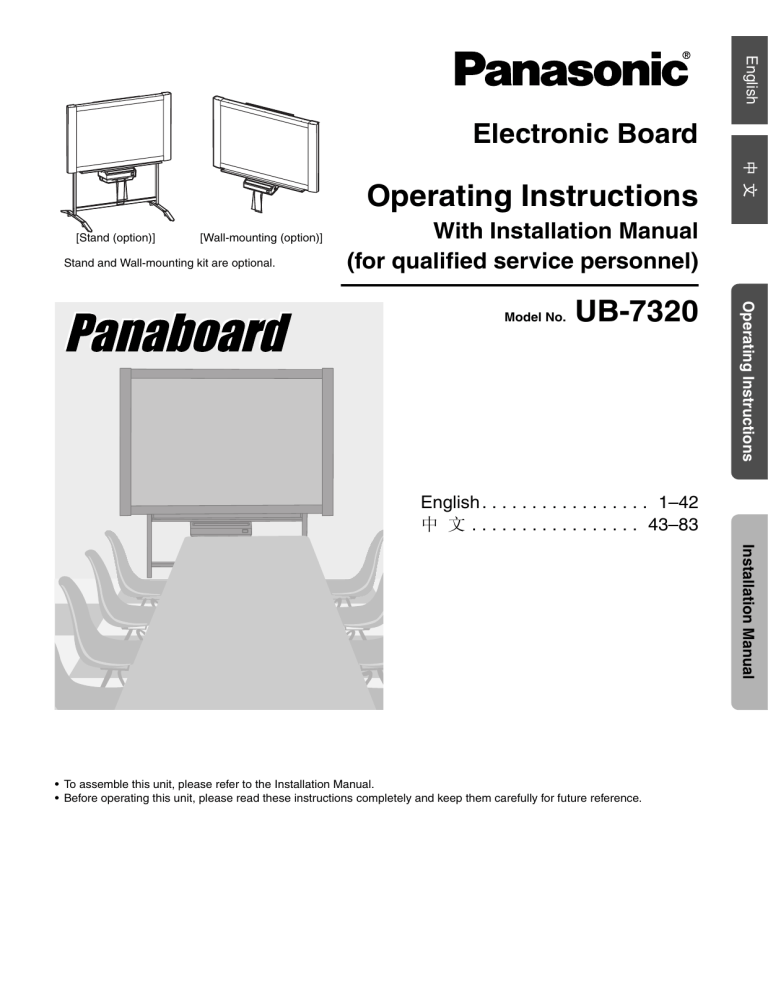

Electronic Board
[Stand (option)]
[Wall-mounting (option)]
Stand and Wall-mounting kit are optional.
中 文
Operating Instructions
With Installation Manual
(for qualified service personnel)
UB-7320
Operating Instructions
Model No.
English . . . . . . . . . . . . . . . . . 1–42
中 文 . . . . . . . . . . . . . . . . . 43–83
Installation Manual
• To assemble this unit, please refer to the Installation Manual.
• Before operating this unit, please read these instructions completely and keep them carefully for future reference.
Thank you for purchasing the Panasonic Electronic Board.
For optimum performance and safety, please read these instructions carefully.
Record these items for future reference
Model number: _________________________
Date of purchase: ________________________
Serial number: _________________________
Dealer’s name: __________________________
Dealer’s address: ______________________________________________________________________
Tel:
Accessories
•
•
•
•
Markers (red, black, and blue) .
Operating Instructions . . . . .
Eraser . . . . . . . . . . . . .
Power cord. . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
Q’ty
1 each
. . .1
. . .1
. . .1
Q’ty
• A4 (Letter*) size copy paper roll (10 m) . . . . . 1
• Software CD-ROM . . . . . . . . . . . . . . . . 1
* Letter size is for U.S.A. and Canada models.
• The stand and wall-mounting kit are optional. By way of example, this manual describes an Electronic
Board which is used with the stand.
• USB cable is not included.
• Microsoft, Windows and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in
the United States and/or other countries.
• IBM and AT are trademarks of International Business Machines Corporation in the United States, other countries,
or both.
• Pentium is a trademark or registered trademark of Intel Corporation or its subsidiaries in the United States and
other countries.
• Adobe, Acrobat, Acrobat Reader and Reader are either registered trademarks or trademarks of Adobe Systems
Incorporated in the United States and/or other countries.
• SANFORD and EXPO are registered ® U.S. trademarks of SANFORD or its Affiliates.
• All trademarks referred to in this manual are property of their respective companies.
• This software is based in part of the work of the IndependentJPEG Group.
• This software is based on the “libtiff” which has the following copyrights:
Copyright (C) 1988-1997 Sam Leffler
Copyright (C) 1991-1997 Silicon Graphics, Inc.
The information given in this Operating Instructions is subject to change without notice.
Warning about saving data
When the system storage device or any of its optional storage device is adversely effected by operational
errors, static electricity, electrical noise, vibration, dust or when the power has been cut off due to malfunction,
repair or inadvertently, the memory contents may be lost or changed. Before operating the system, make a
point of reading the precautionary notes in the Operating Instructions and the help information, and observe
them during operation.
Please observe carefully the following precaution:
• Make absolutely sure that all important data is saved by back-up or the original is saved.
The manufacturer hereby declares that it cannot be held accountable for any loss or change in any data
stored on floppy disks, hard disks, optical disks, or other memory devices.
2
English
Table of Contents
Page
For Your Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Before
You Start
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
• CD-ROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Part Names and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
• Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Loading Copy Paper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Operating Instructions
Making Copies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
• Copy types and procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Using the Projector Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Using
Paper Jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Computer Interfacing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
•
•
•
•
•
•
•
•
•
•
System requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Contents of CD-ROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Installing Drivers / Board Image Capture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Installing Quick Image Navigator / Panasonic-DMS . . . . . . . . . . . . . . . . . . . . 16
Removing Drivers / Board Image Capture / Quick Image Navigator . . . . . . . . 16
Removing Panasonic-DMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Scanning with the Board Image Capture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Scanning with the Quick Image Navigator / Panasonic-DMS . . . . . . . . . . . . . 18
Panaboard Operation Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Daily Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
• Cleaning the screen and the unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
• Caring for the eraser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
• Cleaning the printer head and paper feed roller. . . . . . . . . . . . . . . . . . . . . . . . 22
Help
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
• Meanings of error codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
• Option and Separately available . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
3
For Your Safety
For Your Safety
English
CAUTION:
TO PREVENT RISK OF ELECTRIC SHOCK
HAZARD, DO NOT REMOVE THE COVER OF THIS
PRODUCT, REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT
EXPOSE THIS PRODUCT TO RAIN OR ANY TYPE
OF MOISTURE.
THE SOCKET-OUTLET MUST BE NEAR THIS
EQUIPMENT AND MUST BE EASILY ACCESSIBLE.
The product should be used only with the power cord
that is supplied by the manufacturer.
Stop operation immediately if your product emits
smoke, excessive heat, abnormal smell or unusual
noise. These conditions can cause fire or electric
shock. Immediately turn the product off and unplug
the power cord, and contact your dealer for service.
• (220–240 V equipment)
A certified power supply cord has to be used with this
equipment. The relevant national installation and/or
equipment regulations shall be considered. A certified
power supply cord is not lighter than ordinary polyvinyl
chloride flexible cord according to IEC 60227
(designation H05VV-F 3G 1.0 mm2).
CLASS 1 LED PRODUCT
Für Benutzer in der BRD
Hinweis:
Maschinenlärminformations-Verordnung - 3. GPSGV, der
höchste Schalldruckpegel beträgt < 70 dB (A) oder weniger
gemäss EN ISO 7779.
For users in
the United Kingdom only
Safety Information
This appliance is supplied with a moulded three pin
mains plug for your safety and convenience.
A 5 amp. fuse is fitted in this plug. Should the fuse need
to be replaced please ensure that the replacement fuse
has a rating of 5 amps. and that it is approved by ASTA
or BSI to BS1362. Check for the ASTA mark
or the
BSI mark
on the body of the fuse. If the plug
contains a removable fuse cover you must ensure that it
is refitted when the fuse is replaced. If you lose the fuse
cover the plug must not be used until a replacement
cover is obtained. A replacement fuse cover can be
purchased from your local Panasonic Dealer.
If the fitted moulded plug is unsuitable for the socket
outlet in your home then the fuse should be removed
and the plug cut off and disposed of safely.
There is a danger of severe electrical shock if the cut off
plug is inserted into any 13 amp. socket.
If a new plug is to be fitted please observe the wiring
code as shown below. If in any doubt please consult a
qualified electrician.
WARNING: This appliance must be earthed.
IMPORTANT: The wires in this mains lead are coloured
in accordance with the following code.
Green-and-Yellow: Earth
Blue:
Neutral
Brown:
Live
As the colours of the wire in the mains lead of this
appliance may not correspond with the coloured
markings identifying the terminals in your plug, proceed
as follows.
The wire which is coloured Green-and-Yellow must be
connected to the terminal in the plug which is marked
with the letter E or by the Earth symbol
or coloured
Green or Green-and-Yellow.
The wire which is coloured Blue must be connected to
the terminal in the plug which is marked with the letter N
or coloured Black.
The wire which is coloured Brown must be connected to
the terminal in the plug which is marked with the letter L
or coloured Red.
How to replace the fuse:
Das Gerät ist nicht für die Benutzung am
Bildschirmarbeitsplatz gemäß BildscharbV vorgesehen.
4
Open the fuse compartment
with a screwdriver and
replace the fuse.
English
Precautions
Precautions
Do not position the electronic board in a location where
it is unstable.
Do not put drinks, other liquids or heavy items on the
tray or screen.
After installing or moving the electronic board, lock the
casters and set the fall-prevention extension legs.
Operating Instructions
Never remove the cover, take apart or modify the
product. This will void the warranty.
Push to lock
Locking the casters
(Push this side)
Do not use the electronic board in an excessively
humid or dusty location.
If the electronic board is not going to be used for an
extended period of time (e.g., during extended
holidays), turn off the power and remove the plug from
the wall outlet.
5
Precautions
Do not lean against the screen or on the cover (lower),
even if the electronic board is mounted on the wall.
CHOKING HAZARD
Keep the marker’s cap out of reach of
children to prevent swallowing.
Have the unit installed, removed and
disposed of only by qualified service
personnel.
When the unit will no longer be used, in order
to prevent it from falling, do not leave the unit
installed, but remove it. If the unit falls, it can
cause injury.
■ CD-ROM
To prevent the CD-ROMs from accidental damages:
6
Do not touch or write on the surface
of the disc.
Do not leave the disc out of the
protective case.
Do not place heavy objects on the
disc case or drop the case.
To clean the disc, hold the disc by
its edges and wipe it from the
center to the edges with a dry, soft
cloth.
Do not leave the disc in direct
sunlight or near heat sources.
English
Precautions
Installation
• Do not install the unit where it may be exposed to direct sunlight, near heating
equipment, or near air-conditioning vents as this may cause stretching and/or
discoloration of the screen.
• Do not install the unit in strong sunlight or strong lighting. Proper copying may
become impossible.
• Do not install the unit in locations where the temperature may change suddenly as
this may disable the unit’s ability to make copies.
Screen Film
• Make thick and dark lines inside the copying
area. Note that any writing inside the shaded
area (on right) cannot be copied.
Copying area
Operating Instructions
• Do not allow writing to remain on the screen for 35 mm
an extended period of time as it will become
harder to erase.
25 mm
35 mm
25 mm
• Do not touch the screen, write with markers, or
erase while the screen is moving as this may result in damage to the unit.
• Do not erase with an overly dirty eraser (see page 21).
• Use a commercially available white board cleaner for hard-to-erase stains.
(SANFORD® EXPO® white board cleaner etc.)
• Do not attach chart paper to the screen film for copying as this may result in
damage to the unit.
Markers,
Erasers and
Copy Paper
• Use only the included or designated markers, erasers and copy paper.
(See page 25.)
Use of accessories other than those included or designated (such as oil-based
markers) may damage the screen or result in hard-to-erase markings.
• Store markers horizontally as vertical storage may stop the ink from coming out.
• Store a copy paper roll in a cool, dark, moisture free location.
• Do not store printed copies exposed to direct sunlight or high humidity, or inside
vinyl chloride (plastic) files.
• For long-term storage, make another copy with an ordinary paper copier machine.
Power Cord
• The included power cord is for use with this unit only. Do not use it with other
devices.
• When moving the unit, disconnect the power cord from the electrical power socket
and from the printer’s power connector and coil it for transportation as stepping on
the power cord or having it catch on something during movement may result in
damage to the cord.
USB Cable
• Use a shielded USB cable that is certified as logo by USB-IF.
• If you connect the electronic board to a USB hub, it is not guaranteed to work.
• Do not connect two or more Panasonic electronic boards to a computer. It may
cause the computer operation to become unstable.
Projector
• Light from the projector may enter the eye when using a projector to project images
for the purpose of making presentations and so on. Be very careful as direct
projector light may hurt the eyes.
7
Part Names and Functions
Part Names and Functions
Scanner
Screen
One screen (with no
ruled lines) of four
screens can also be
used for a projector
(see page 12).
Printer
Tray
Stand
The stand is optional.
Output Port
Control Panel
(See page 9 for details.)
Power Switch
USB Connector
(ON)
(See page 14.)
(OFF)
AC Inlet
Printer Door
Open this door to load
copy paper or to remove
jammed paper.
(See pages 10, 13.)
PU SH
OPEN
Power Cord
Copied Paper Holder
Door Open
Button
This holder holds up to 5
sheets of output paper.
Push this button to open
the printer door.
PUSH
8
OPEN
English
Part Names and Functions
■ Control panel
Reverse Key
Contrast Indicator
Advance Key
Contrast Key
Copy Key
Name
Description
Contrast
Indicator
This lamp indicator displays the printing contrast used during
copying.
Indicator off: Normal printing contrast
Indicator on: Darker than normal printing contrast
Contrast
Key
Each time this key is pressed, the unit will alternate between
normal and dark contrast modes (Normal/Dark).
Copy Key
This key causes the screen to be copied.
Multi-Copy/
Error
Indicator
Multi-Copy/
Stop Key
Advance
Key
Reverse
Key
Operating Instructions
Panel
Multi-Copy/Stop Key
Multi-Copy/Error Indicator
This indicator displays the number of copies to be made. The
display changes each time the Multi-Copy/Stop Key is pressed.
Example: 1 → 2 → ··· → 9 →
→1 → ···
(Selecting “ ” allows you to copy 4 screens continuously.)
When an error occurred, a flashing symbol will appear in this
display to indicate the error status. (See page 24.)
When making multiple copies or copying 4 screens continuously,
press this key until the desired number of copies or “ ” is
displayed on the Multi-Copy/Error Indicator. This key can also be
pressed to stop copying while executing multiple copies or
copying 4 screens continuously.
• The display changes as shown below each time the screen is copied. After
reaching 0, the display will reset to 1.
Example for multiple copies:
5 → 4 → 3 → 2 → 1 → 0 → 1 (Number is counted down.)
Example for copying 4 screens continuously:
→
→
→ → 0 → 1 (Display changes.)
Pressing this key advances the screen from right to left.
Pressing this key twice advances two screens from right to left.
Pressing this key more than 2 seconds advances the screen to
the projector screen with no ruled lines.
Pressing this key advances the screen from left to right.
Pressing this key twice advances two screens from left to right.
Pressing this key more than 2 seconds advances the screen to
the projector screen with no ruled lines.
9
Loading Copy Paper
Note
Loading Copy Paper
1
• Use copy paper roll with a core diameter
of 25.4 mm (1 inch) or more. Using a copy
paper roll with a smaller core could cause
paper jams.
Set the power switch to on ( I ).
• “ ” will flash on the Multi-Copy/Error
Indicator when copy paper has run out.
• The screen will move to home position and
stop.
4
Pass the paper over the paper feed roller and
under the cutter cover, then through the output
port about 4 cm.
ER
POW
PUSH
Paper feed
roller
Cutter cover
OPEN
About 4 cm
2
Push the door open button and open the
printer door.
5
Close the printer door securely, using two
hands.
• If there is any copy paper remaining in the
copy paper compartment, remove it.
Door
Open
Button
PUSH
3
OPEN
Copy paper
compartment
Open the printer door to position B and load
the copy paper roll with smooth side facing
up, then move the printer door to position A to
prevent paper roll from falling.
(Loosen about 15 cm as shown and load it.)
Smooth side
About
15 cm
A
B
10
Wrong direction
Note
• Once the door is closed, paper will feed and
automatically cut. Remove and discard the
small piece of paper.
Load a new roll when:
• Red bands become visible at the edge of the copy
paper.
• The Multi-Copy/Error Indicator flashes “ ” even if
the printer door is closed properly.
Note
Making Copies
This section describes how to copy text and
illustrations drawn on the screen.
1
• While copying, do not touch the paper,
otherwise the paper may jam.
• Text or images in shades of yellow will not
copy.
Set the power switch to on ( I ).
• “ ” will light on the Multi-Copy/Error
Indicator to indicate that the unit is ready to
copy.
• The screen will move to home position and
stop.
■ Copy types and procedures
[A] Copying the front of the screen
Operating Instructions
1) Press
*1.
[B] Copying the back of the screen
ER
POW
1) Press
or
to move the screen to be
copied to the front.
2) Press
PUSH
*1.
OPEN
[C] Copying 4 screens continuously
1) Select “
Note
2) Press
• When the Multi-Copy/Error Indicator flashes
“ ”, refer to “Loading Copy Paper” on
page 10.
2
English
Making Copies
Press the Copy Key
.
• Text and illustrations on the screen will be
copied and copies emerge from the output
port.
• The copied paper holder can hold up to 5
copies.
(Note that exceeding the copied paper
holder’s capacity may result in paper jams.)
• For details on making multiple copies and so
on, see “Copy types and procedures” on
this page.
PUSH
• Press
” by pressing
.
.
to stop copying in mid-operation.
[D] Making multiple copies (up to 9)
1) Select the number of copies (1 to 9) by
pressing
as necessary.
2) Press
• Press
*1.
to stop copying in mid-operation.
*1 When copying is finished, the next screen is displayed.
OPEN
Output paper
11
Using the Projector Screen
Using the Projector
Screen
One of four screens of this electronic board can also
be used as the projector screen. The screen has no
ruled lines so the projected image is easy to see.
1
Press
or
more than 2 seconds to
move the screen to the projector screen.
• “0” is displayed on the Multi-Copy/Error
Indicator while the screen advances to the
projector screen.
or
Press
or
to move the screen to the
screen with no ruled lines.
2
Project an image on the screen.
Caution
• Light from the projector may enter the eye
when using a projector to project images for
the purpose of making presentations and so
on. Be very careful as direct projector light
may hurt the eyes.
Note
• Letters can be written on the projector
screen by the marker provided. However,
they may be hard to erase stains. To erase
them, use a commercially available white
board cleaner (SANFORD® EXPO® white
board cleaner etc.).
12
4
Paper Jams
To release jammed paper:
1
Push the door open button and open the
printer door.
English
Paper Jams
Pass the paper over the paper feed roller and
under the cutter cover, then through the output
port about 4 cm. (Refer to step 4 on page 10.)
In case paper cannot go through, just put the
paper on the paper feed roller and insert the
top of the paper in the cutter cover as shown
in the figure.
Door
Open
Button
2
Paper feed
roller
Cutter cover
OPEN
Remove the jammed paper by pulling the
paper roll to the direction A. If the jammed
paper is still in the cutter cover, remove it
using tweezers from slot B.
Operating Instructions
PUSH
5
Close the printer door securely, using two
hands.
A
Cutter cover
Slot B
3
Cut the paper straight as shown in the figure.
Note
• Use copy paper roll with a core diameter of
25.4 mm (1 inch) or more. Using a copy
paper roll with a smaller core could cause
paper jams.
• Once the door is closed, paper will feed and
automatically cut. Remove and discard the
small piece of paper.
Cut
13
Computer Interfacing
Computer Interfacing
Drivers and software must be installed in your
computer to use Board Image Capture, Quick Image
Navigator, Panasonic-DMS, printer and TWAIN driver.
■ System requirements
Computer
CPU
Interface
IBM® PC/AT® or compatible
machine with a CD-ROM drive
Pentium® II or higher processor
USB 2.0 or USB 1.1*1
OS
Windows® 98*2 / Windows Me*3 /
Windows 2000*4 / Windows XP*5 /
Windows Vista®*6
(64-bit editions are not supported.)
Memory
128 MB or more (Windows 98 /
Windows Me)
256 MB or more (Windows 2000 /
Windows XP / Windows Vista)
HD
At least 200 MB free space (except
saving space for data files)
*1 This electronic board does not function with Hi-Speed
USB 2.0. Even if using a computer equipped with HiSpeed USB 2.0, this electronic board functions with
Full Speed USB 2.0.
*2 Microsoft® Windows® 98 operating system
(hereafter Windows 98)
*3 Microsoft® Windows® Millennium Edition operating
system (hereafter Windows Me)
*4 Microsoft® Windows® 2000 operating system
(hereafter Windows 2000)
*5 Microsoft® Windows® XP operating system
(hereafter Windows XP)
*6 Microsoft® Windows Vista® operating system
(hereafter Windows Vista)
• The system requirements above do not meet the
recommended specifications of all operating
systems and of the included software.
14
■ Contents of CD-ROM
The provided CD-ROM includes the following
items.
• USB driver
• Printer driver
• TWAIN driver
• Board Image Capture
Allows you to scan hand-written text and
diagrams on the Panaboard and save the
scanned image as a PDF file.
• Electronic board operating instructions
Note
• The “menu” window contains links to “Quick
Image Navigator”, “Panasonic-DMS” and
“Adobe® Reader®”.
Notes when connecting the
electronic board to a computer
• First install the USB, printer and TWAIN driver to
your computer, then connect the electronic board
to the computer (refer to “Installing Drivers /
Board Image Capture” on page 15).
• If you connect the electronic board to a USB hub,
it is not guaranteed to work.
• Do not connect two or more Panasonic electronic
boards to a computer. It may cause the computer
operation to become unstable.
• Use a shielded USB cable that is certified as logo
by USB-IF.
■ Installing Drivers / Board Image
Capture
6
English
Computer Interfacing
When the following window appears, check
that the electronic board is not connected to
your computer and click [OK].
The USB, printer, TWAIN driver and Board Image
Capture are installed in your computer by following
procedures.
Note
• Do not yet connect a USB cable to the
electronic board.
Power on your computer and start Windows*1.
Operating Instructions
1
• Log on as an administrator for Windows
2000, Windows XP or Windows Vista.
*1 Microsoft® Windows® operating system
(hereafter Windows)
2
Insert the CD-ROM into the CD-ROM drive.
The Setup window appears automatically.
• Depending on the operating system or the
settings that you are using, the Setup
window may not appear automatically.
In such a case, execute “Menu.exe” in the
CD-ROM from the Explorer.
• If the Autoplay dialog box appears in
Windows Vista, click “Run Menu.exe”.
3
4
• If “Windows can't verify the publisher of this
driver software” is displayed in Windows
Vista, select “Install this driver software
anyway” to continue the installation.
• For Windows 98 or Windows Me, a floppy
disk or CD-ROM for installing the operating
system may be required.
• If the screen prompts to restart Windows,
restart Windows.
When “Welcome” window appears, click
[Next].
Click [Install Panaboard Software].
7
When the following window appears after files
are copied, power the electronic board on, and
connect a USB cable from the electronic
board to your computer.
• If “User Account Control” window is
displayed in Windows Vista, select
[Continue] to continue the installation.
• To read the operating instructions in the
provided CD-ROM, the Adobe Reader or
Acrobat® Reader must be installed in your
computer. It can be downloaded from the
Adobe's Web site if Internet is available.
5
Read “End-User License Agreement” carefully
and click [Yes].
15
Computer Interfacing
8
• If the wizard window is displayed to select
the file (##.inf) for the printer driver in
Windows XP, select “windows\inf\oem##.inf”.
• If the wizard window is displayed to connect
to the Windows Update in Windows XP SP2,
select [No].
• If the warning dialog is displayed in
Windows 2000 / Windows XP, select [Yes] or
[Continue Anyway] to continue the
installation. In Windows Vista, no warning
window is displayed and installation will
continue.
• The new hardware wizard windows may be
displayed several times depending on the
operating system.
• For Windows 98 or Windows Me, a floppy
disk or CD-ROM for installing the operating
system may be required.
9
In such a case, double-click “Menu.exe” in
the CD-ROM from the Explorer.
Follow the on-screen instructions if the wizard
windows appear.
• If the Autoplay dialog box appears in
Windows Vista, click “Run Menu.exe”.
3
4
When the installation is completed, click [OK].
5
6
7
■ Installing Quick Image Navigator /
Panasonic-DMS
After confirming your operating system, install the
software.
For Windows 2000 / Windows XP / Windows Vista:
Quick Image Navigator
For Windows 98 / Windows Me: Panasonic-DMS
If Panasonic-DMS is already installed, you do not
need to uninstall it.
1
Power on your computer and start Windows.
• Log on as an administrator for Windows
2000, Windows XP or Windows Vista.
2
Insert the CD-ROM into the CD-ROM drive.
The Setup window appears automatically.
• Depending on the operating system or the
settings that you are using, the Setup
window may not appear automatically.
16
Click [Download Quick Image Navigator].
• To download Quick Image Navigator and
Panasonic-DMS, your computer must be
able to access the Internet.
Note
• If the Panaboard is powered on and connected to
the computer with a USB cable when [Exit] is
clicked after the installation is completed, the
Board Image Capture software will automatically
start in Windows 2000 / Windows XP / Windows
Vista. (For further details, refer to “Scanning with
the Board Image Capture” on page 17.)
When “Welcome” window appears, click
[Next].
Download the desired software from the
appropriate download web site, then doubleclick the downloaded installer.
Follow the on-screen instructions when
messages appear.
When the setup process is completed, restart
Windows.
• For information about Quick Image Navigator
or Panasonic-DMS, refer to the
corresponding operating instructions, which
can be downloaded from the web site.
• To read the Quick Image Navigator operating
instructions or the Panasonic-DMS operating
instructions, Adobe Reader or Acrobat
Reader must be installed on your computer.
■ Removing Drivers / Board Image
Capture / Quick Image Navigator
If you need to remove the USB driver, printer driver,
TWAIN driver, Board Image Capture and Quick Image
Navigator, perform the following steps.
1
Power on your computer and start Windows.
• Log on as an administrator for Windows
2000, Windows XP or Windows Vista.
2
3
In the Control Panel, double-click Add/
Remove Programs (Windows XP: Add or
Remove Programs, Windows Vista:
Uninstall a program).
Select the software you want to remove, then
remove it.
• To remove the USB and TWAIN driver, select
Panaboard UB5-7 Driver.
To remove Board Image Capture, select
Panasonic Board Image Capture.
To remove Quick Image Navigator, select
Panasonic Quick Image Navigator.
Note
Operating Instructions
4
5
• If the Panaboard Operation Panel does not
appear, check the USB cable connection or
the status of the unit.
Follows the instructions on the screen.
After uninstalling, restart your computer.
4
■ Removing Panasonic-DMS
Click the
(Scan) button.
• When scanning is completed, the Save Scan
Image dialog box appears.
If you need to remove Panasonic-DMS, perform the
following steps.
1
2
3
4
Power on your computer and start Windows.
Click [Start], move the pointer to Programs–
Panasonic–Panasonic Document
Management System–Uninstall.
Click [OK].
After uninstalling, restart your computer.
■ Scanning with the Board Image
Capture
5
Power on the Panaboard.
Note
Power on your computer and start Windows.
• The last 5 folders used are displayed in the
Save Folder dropdown list.
Connect your computer and Panaboard with
the USB cable.
• Board Image Capture automatically starts,
then the Panaboard Operation Panel
appears.
Specify the folder where you want to save the
file, enter the file name, then click [OK].
• When the Launch Application check box is
checked, the scanned image will be
displayed after the file is saved.
To display the scanned image successfully,
Adobe Reader or Acrobat Reader must be
installed on your computer.
Board Image Capture allows you to scan handwritten text and diagrams on the Panaboard and
save the scanned image as a PDF file.
1
2
3
English
Computer Interfacing
6
Click [Close] on the Panaboard Operation
Panel window to end the session.
17
Computer Interfacing
Note
• Board Image Capture cannot be started while
the Panaboard Operation Panel is displayed
using Quick Image Navigator or Panasonic-DMS.
To start Board Image Capture, click [Close] in
the Panaboard Operation Panel window, then
start Board Image Capture.
• To stop Board Image Capture from starting
automatically when the Panaboard is connected,
follow the steps below:
1) Connect your computer and Panaboard with
the USB cable.
2) Click [Start], move the pointer to Settings–
Control Panel, then double-click Scanners
and Cameras.
• For Windows XP, click [Start] and move the
pointer to Control Panel.
For Windows Vista, click [Start] and move
the pointer to Control Panel, then click
Hardware and Sound.
3) Double-click Panaboard-UB5 USB Device
Driver and check the Disable device events
check box in the Events tab.
To start Board Image Capture, click [Start], then
move the pointer to Programs–Panasonic–
Board Image Capture–Board Image Capture.
(For Windows XP / Windows Vista, All Programs
is displayed instead of Programs.)
■ Scanning with the Quick Image
Navigator / Panasonic-DMS
You can scan images on the screen to your
computer by operating Quick Image Navigator or
Panasonic-DMS.
1
2
3
18
Click [Start], move the pointer to Programs–
Panasonic–Panasonic Document
Management System–Quick Image
Navigator (for Quick Image Navigator) or
Document Manager (for Panasonic-DMS).
(For Windows XP / Windows Vista, All
Programs instead of Programs.)
For Quick Image Navigator: From the File
menu, click Environment Setup..., click
TWAIN tab, then click Select TWAINcompliant scanning device....
For Panasonic-DMS: Click the File menu, then
click Select source....
Select Panaboard UB5-7 USB TWAIN Driver
and click [Select].
4
For Quick Image Navigator: From the File
menu, click Acquire Image... - To Import
Folder... (or To Current Folder...), or click the
(scanner) icon on the Toolbar.
For Panasonic-DMS: Click the File menu, then
click Acquire Image..., or click the (scanner)
icon on the Toolbar.
• The Panaboard Operation Panel appears.
Note
• When the Panaboard Operation Panel is not
displayed, check the USB cable connection
or the condition of the electronic board.
5
Click the
(Scan) button.
• Scanning starts and the scanned image will
be displayed on the screen of the computer.
It is also possible to start scanning using the
(Copy Key) on the electronic board.
6
Click [Close] on the Panaboard Operation
Panel to finish scanning.
• For more information about Quick Image
Navigator, refer to the Quick Image Navigator
operating instructions.
• For more information about Document
Manager, refer to the Panasonic-DMS
operating instructions.
Note
• Dragging the Panaboard Operation Panel using
the mouse or activating other software programs
during scanning may cause scanning troubles.
■ Panaboard Operation Panel
English
Computer Interfacing
It is possible to perform the same operations as with the electronic board control panel (page 9) from the following
Panaboard Operation buttons.
Note
• While the Panaboard Operation Panel is displayed, the Copy Key on the electronic board control panel is
used for scanning images into the computer.
Panel
Name
Description
This lamp indicator displays the contrast used during scanning or copying.
Contrast Button
Scan Button
Indicator off: Normal scanning or copying contrast
Indicator on: Darker than normal scanning or copying contrast
Operating Instructions
Contrast
Indicator
Each time this button is pressed, the unit will alternate between normal
and dark contrast modes (Normal/Dark).
This button scans the screen.
Multi-Copy/
Error Indicator
This indicator displays the number of copies to be made. The display
changes each time the Multi-Copy/Stop Button is pressed.
Example: 1 → 2 → ··· → 9 →
→1 → ···
(Selecting “ ” allows you to copy 4 screens continuously.)
When an error occurs, a flashing symbol will appear in this display to
indicate the error status. (See page 24.)
Multi-Copy/Stop
Button
When making multiple copies or copying 4 screens continuously, press
this button until the desired number of copies or “ ” is displayed on the
Multi-Copy/Error Indicator. This button can also be pressed to stop copying
while executing multiple copies or copying 4 screens continuously.
• The display changes as shown below each time the screen is copied.
After reaching 0, the display will reset to 1.
Example for multiple copies:
5 → 4 → 3 → 2 → 1 → 0 → 1 (Number is counted down.)
Example for copying 4 screens continuously:
→
→
→ → 0 → 1 (Display changes.)
* If scanning, the setting 1 to 9 for the number of copies or “ ” for
copying 4 screens continuously is ignored.
Advance Button
Clicking this button advances the screen from right to left.
Clicking this button twice advances two screens from right to left.
Reverse Button
Clicking this button advances the screen from left to right.
Clicking this button twice advances two screens from left to right.
Copy Button
This button causes the screen to be copied.
19
Computer Interfacing
Panel
Name
Description
The status box displays the status of the TWAIN driver and the electronic
board.
Stand by:
Status Box
The electronic board is stand by.
Both of the Panaboard Operation Panel and the electronic
board control panel are operational.
Rotating: The electronic board is rotating the screen.
Copying: The electronic board is copying the screen.
Scanning: The electronic board is now scanning the images on the
screen.
Converting: Indicates that the image data is being converted so that the
computer will be able to display the scanned data.
Busy:
The electronic board is processing jobs.
Error:
An error has occurred with the electronic board.
About Button
Click to display information about the TWAIN driver.
Help Button
Click to display help information.
Close Button
Click to close the Panaboard Operation Panel.
■ Printing
To print documents from the computer to the printer, select the Print menu of the application software and select
the printer name set when installing.
The standard printer name is “Panaboard-UB7 USB Printer (A4/Letter)*”.
* A4 or Letter changes with the models.
Note
• The Multi-Copy/Error Indicator flashes when printing.
After printing, all the panel keys are disabled until the Multi-Copy/Error Indicator lights.
• You cannot stop printing after printing starts. Do not attempt to stop printing.
• Do not turn off the power of the electronic board or unplug the USB cable before printing finishes. It may cause
the computer operation to become unstable.
• A maximum 9 copies are available.
• The copied paper holder can hold up to 5 sheets of copied paper. (Note that exceeding the copied paper
holder’s capacity may result in paper jams.)
• The Contrast Key is not effective for adjusting the contrast of print.
• When printing almost black pages continuously uniform color density and light line streaks may appear. In such
a case, try again after waiting a while.
• When the unit falls in abnormal condition during printing, printing jobs (jobs in the spooler) may be lost. In such
a case, print again.
20
Daily Care and
Maintenance
Always turn off the power switch and unplug the
power plug when cleaning outside and inside the
unit.
■ Caring for the eraser
English
Daily Care and Maintenance
When the erasing surface of the eraser becomes
dirty, hold down the sheet under the top sheet with
your finger and peel off the dirty sheet (white or gray
sheet) by pulling in the direction of the arrow.
■ Cleaning the screen and the unit
White or gray
sheet
Operating Instructions
Gently wipe the screen film and unit with a waterdampened cloth that has been thoroughly wrung.
Note
• Be sure to peel off only one sheet; white or
gray sheet of the eraser.
• When the eraser becomes thin, make sure
that the corners of the eraser do not strike the
screen during erasing as this may damage
the screen.
Note
• Use a commercially available white board
cleaner for hard-to-erase stains.
(SANFORD® EXPO® white board cleaner
etc.)
If you accidentally write on the screen with an
oil-based marker, wipe with a small amount of
ethyl alcohol.
• Do not use thinner, benzine or cleaners
containing abrasives as this may result in
discoloration.
• Do not wipe the screen film with a dry cloth as
this may generate a static charge.
21
Daily Care and Maintenance
■ Cleaning the printer head and
paper feed roller
3
Clean the Paper Feed Roller
Wipe any dirt or stains off the paper feed roller.
If black streaks appear on the copy, clean the printer
head and the paper feed roller.
1
Push the door open button and open the
printer door.
Paper feed
roller
Door
Open
Button
PUSH
2
OPEN
Clean the Printer Head
Dampen the tip of a cotton swab in ethyl
alcohol and gently wipe the printer head.
Printer head (Gold)
Cotton swab
Note
• Never touch the printer head or the
surrounding area with your hands as this may
disable copying.
22
• Dampen a soft cloth with neutral kitchen
cleaner diluted in water, wring the cloth
thoroughly, and wipe the entire surface of the
roller while rotating it. If this does not remove
all dirt, wipe with a cloth dampened with ethyl
alcohol.
4
Load the copy paper and close the printer door
securely, using two hands.
• For details on loading the copy paper, see
page 10.
English
Troubleshooting
Troubleshooting
Treat problems according to the information given in the table below. If problems still persist, call your dealer for
service.
Symptom
Power switch is on but the
indicator is off.
–
The unit is out of copy paper. (The Error Indicator flashes “
Load new paper.
10
”.)
”.)
10
Paper is jammed in the printer.
Remove the jammed paper and cut off the wrinkled portion, then
load paper again.
13
The paper feed roller is dirty.
Open the printer door and wipe the paper feed roller to clean it.
22
Confirm the paper is loaded correctly, smooth side face up.
10
The writing on the screen is too thin or light.
Make thicker, darker lines or change to a new marker.
–
The printer door is slightly open.
Close the printer door firmly, using two hands until a click is heard.
10
Black streaks or blank
(unprinted) spots appear on
the copy (copy paper is dirty).
The printer head or paper feed roller is dirty.
Open the printer door and clean any dirt off the printer head and
paper feed roller.
22
A black or white horizontal
line appears, or the page
prints in black or blank.
The unit is in strong sunlight or strong lighting.
Change the direction of the screen or block the light.
–
The screen does not
advance when the Copy,
Advance or Reverse Key is
pressed.
Static electricity was generated when the screen film was wiped.
Turn off the power and slowly move the screen by hand.
–
When connecting a USB
cable after installing the
driver, the warning message
is displayed to require the
Panaboard UB5-7 Driver
Disk.
The necessary file is not found in Windows 98.
Click the location’s box and select the pass
“UB5-7\UsbDrv\Win98-Me” in the pull down menu.
–
The software installed before
is deleted from the Programs
menu or cannot be used after
installing the PanasonicDMS.
After the existing Panasonic-DMS software is uninstalled, the new
Panasonic-DMS is installed.
Install the new Panasonic-DMS again as follows.
1. Uninstall the current Panasonic-DMS.
2. Install the old Panasonic-DMS.
3. Install the new Panasonic-DMS in the same folder with the old one.
Nothing is printed on the
paper or copies are faint or
blurred.
Operating Instructions
Check that the power plug is securely plugged in.
(If the indicator still does not light, turn the power off and on again.)
The printer door is open. (The Error Indicator flashes “
Close the printer door firmly until a click is heard.
Copied copy paper will not
come out.
See
Page
Care and Remedy
16-17
23
Troubleshooting
Symptom
Care and Remedy
See
Page
Panasonic Document
Management System menu
is remained in the Programs
menu even if PanasonicDMS is uninstalled.
The old Panasonic-DMS is not uninstalled if the old version of the
Panasonic-DMS has been installed before installing the new one.
Uninstall the old Panasonic-DMS from the Add / Remove
Programs of the Control Panel. (Refer to “Removing Drivers /
Board Image Capture / Quick Image Navigator” on page 16 and
remove Panasonic-DMS instead of Panasonic UB5-7 Driver.)
16
The USB driver or printer
driver does not work properly
immediately after the
installation of the software.
The Panaboard has not been registered in [Control Panel]–[Scanners
and Cameras] and [Printers].
Run “UB5-7\Uninstall\UB5-7Uninst.exe” in the CD-ROM to
uninstall the drivers from the computer. Then, install the drivers.
15
Check that the electronic board is in the condition that enables
operation or that the USB cable is connected properly.
–
The electronic board is connected via a USB hub.
Do not connect via a USB hub.
–
The computer does not
recognize the electronic
board.
■ Meanings of error codes
The following table describes the meaning of each of the symbols which may flash in the Multi-Copy/Error
Indicator.
Indication
Cause
Remedy
See
Page
Data transfer error
Connect the USB cable securely.
14
The screen will not move.
Turn off the power and slowly move the
screen by hand.
–
No paper
Load the copy paper roll.
10
The printer door is not closed securely.
Close the printer door securely.
10
Printer can not cut the paper.
Open the printer door and clear the
jammed paper.
13
The scanner or screen is in strong
sunlight or strong lighting.
Change the direction of the screen or
block the light.
–
(Error)
(Screen)
(Paper)
(Cut)
(Scanner Failure)
If other indications such as “
24
” appear, call your dealer.
English
Specifications
Specifications
Model No.
General
Output
Block
Power supply
Refer to the name plate on the printer
Power consumption
(Operational)
Refer to the name plate on the printer
External dimensions
(Height × Width × Depth,
without stand)
1504 mm × 1648 mm × 287 mm
Mass (without stand)
41.0 kg
Ambient operating conditions
Temperature: 10–35° C (50–95°F)
Humidity: 30–80% RH
Ambient storage conditions
Temperature: -20–60° C (-4–140°F)
Humidity: 15–80% RH
Writing implements
Dry erase felt-tipped markers (black, red, and blue)
PC interface
USB 1.1
Panel dimensions (Height × Width)
900 mm × 1400 mm (1664 mm diagonal)
Panel surfaces
4 screens (1 screen can also be used for the projector.)
Panel advance system
Endless scroll type
Copying area (Height × Width)
850 mm × 1330 mm
Scanning system
Image sensors
Scanning resolution
(Height × Width)
A4:
1.6 x 1.7 dots/mm
Letter: 1.7 x 1.6 dots/mm
Printing system
Thermal type
Printing resolution
8 dots/mm
Copy paper
Heat-sensitive roll paper
Paper thickness: 65 µm
Core diameter: 25.4 mm (1 inch) or more*1
Copy paper size
A4/Letter*2
Copy colour
Black
Contrast adjustment
Two levels: Normal/Dark
Time required for copying
16 s/sheet
Continuous copies
1 to 9 sheets
Paper empty indication
Yes
Operating Instructions
Input Block
UB-7320
■ Option and Separately available
Option
Stand: KX-B061
Wall-Mounting Kit: KX-B063
Separately
Available
Markers:
KX-B031 (set of 10 black markers),
KX-B032 (set of 10 red markers),
KX-B033 (set of 10 blue markers)
Erasers:
KX-B042 (set of 6 erasers)
Marker and eraser set: KX-B035 (contains one black, one red, and one blue markers and
one eraser)
Copy paper:
KX-B01 (1 roll [50 m])
KX-B02 (1 roll [100 m])
*1 Using a copy paper roll with a smaller core could cause paper jam.
*2 Letter size is for U.S.A. and Canada models.
25
26
English
Installation Manual
(for qualified service personnel)
Table of Contents
page
Assembling the Electronic Board . . . . . . . . . . . . . . . . . . . . . . . 28
●Accessories for assembling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
●Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Electronic Board Operations Check. . . . . . . . . . . . . . . . . . . . . 32
Repacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Assembling the Optional Stand (KX-B061) . . . . . . . . . . . . . . . 34
●Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
●Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Optional Wall-mounting Kit (KX-B063). . . . . . . . . . . . . . . . . . . 38
●Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
●Wall-mounting procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
●Attaching the wall-mounting fixtures. . . . . . . . . . . . . . . . . . . . . . . . . 40
Installation Manual
Before installing this set, please read this manual completely.
CLASS 1 LED PRODUCT
WARNING
Have the unit installed, removed and disposed of only by qualified
service personnel.
Safety check must be done by qualified service personnel after
installing this option.
27
Assembling the Electronic Board
■ Accessories for assembling
The package includes the parts for setting up the electronic board shown below. Make sure that all of these parts
are included in the package before proceeding.
No.
Part Name
Illustration
Q’ty
Remarks
1
Paper holder (A)
1
Paper holder (B)
1
Power cord
1
Wall-mounting
template
28
For wall-mounting
■ Assembly
1
Assemble the optional stand or wall-mounting kit.
2
Remove the electronic board from the shipping box.
English
Assembling the Electronic Board
■ If you are using a stand, refer to page 34.
■ If you are using a wall-mounting kit, refer to page 38.
Remove the joints, then remove the electronic board from the shipping box.
Shipping box
Paper holders
Copy paper roll
Power cord
Markers
Eraser
Manuals, CD-ROM
Installation Manual
Electronic board
Joints
Joints
Joints
Joints
Joints
Joints
Shipping box
Caution
• Do not touch the screen film surface, as this may damage it.
• The shipping box, cushioning material, and other packing material will be necessary if you ever need to
repackage the electronic board, so do not throw them away.
29
Assembling the Electronic Board
3
Install the electronic board.
Install the electronic board using the stand (option)
or wall-mounting kit (option).
■ Using the wall-mounting kit (option)
1)
Hang the electronic board on the optional wallmounting fixtures.
2)
Secure the wall-mounting fixture to the
electronic board using the two wing-bolts [M5
x 12 mm (15/32”)] provided with the wallmounting kit (option).
■ Using the stand (option)
1)
Hang the electronic board on the optional
stand.
A
B
• The electronic board can be mounted
200 mm (7 7/8”) higher than hang position A
by hanging it with the wing bolts B.
2)
Secure the stand fixture to the electronic
board using the two wing-bolts [M5 x 12 mm
(15/32”)] provided with the stand (option).
Caution
• When mounting the electronic board, avoid banging
it. Such impact may break the internal light or cause
other damage.
• After mounting the electronic board, gradually apply
weight to it to make sure that the wall is strong
enough to support it.
30
4
Attach the paper holders.
6
Install the paper holders to the holes in
numerical order of the arrows (1), (2), (3) and
(4).
[First install the paper holder (A), then install
the paper holder (B) on top of (A).]
English
Assembling the Electronic Board
Wipe the screen film surface.
Soak a soft cloth with water, wring well, and
wipe the screen film surface.
Paper holder (B) - hole (3), (4)
Paper holder (A) - hole (1), (2)
5
Connect the power cord.
Securely fit the supplied power cord into the
AC inlet on the printer unit.
Caution
7
Installation Manual
• Do not wipe the screen film surface with paint
thinner, benzene, or cleaners that contain abrasives.
Doing so may cause discoloration.
• Do not wipe the screen film surface with a dry cloth.
Doing so may create static electricity.
Check operations.
Refer to “Electronic Board Operations Check”
on page 32.
31
Electronic Board Operations Check
After assembling the electronic board, perform the procedures presented in the following table to make sure it
functions properly.
Points to Check
Step
1
2
3
Symptom
Turn on the power switch.
Open the printer door and load the
copy paper, then close the printer
door.
• Loading the Copy Paper
procedure (refer to the
Operating Instructions on page
10)
“ ” flashes after “ ” lights up.
(Normal operation)
(If not)
Check power cord. (See step 5
on page 31.)
“ ” lights up after the copy
paper is fed and automatically
cut.
(Normal operation)
(If not)
Check the condition of printer
door or copy paper roll.
Press
.
Screen is fed.
(Normal operation)
Press
.
The screen film surface is not
fed smoothly.
Contact the store or dealer
from which the unit was
purchased.
There are strange noises.
4
Use the accessory marker to
“ ” lights up and three copies
are made.
(Normal operation)
draw a large
Three copies are not made.
Contact the store or dealer
from which the unit was
purchased.
filling the
entire copyable area of the
screen film surface.
• Copyable area (refer to the
Operating Instructions on
page 7)
Press
Press
5
Solutions
Press
There are strange noises or
paper jams during the copying
process.
twice.
.
Press
to move the screen
film surface. Write letters, etc.
with the marker.
Press
The entire readable area is not
printed.
once.
.
The Contrast indicator light is
turned on and one copy is made.
(Normal operation)
The Contrast indicator light is
not turned on.
Contact the store or dealer
from which the unit was
purchased.
The image is not copied
properly.
There are strange markings on
the copy sheet
(e.g., stripes or lines).
6
32
Press
once.
The Contrast indicator light is
turned off.
(Normal operation)
(If not)
Contact the store or dealer from
which the unit was purchased.
English
Repacking
Perform Assembly Steps 2 through 5 on pages 29 - 31 in reverse to repack the electronic board and accessories.
Use the joints to fasten the shipping box.
Shipping box
Paper holders
Copy paper roll
Power cord
Markers
Eraser
Manuals, CD-ROM
Electronic board
Joints
Joints
Joints
Installation Manual
Joints
Joints
Joints
Shipping box
Caution
• Do not touch the screen film surface, as this may damage it.
33
Assembling the Optional Stand (KX-B061)
■ Accessories
The package box for the optional stand includes the parts noted below; please confirm that all parts are present
before beginning installation
.
No.
Part name
Illustration
Stand base
Q’ty
No.
2
Part name
Illustration
Wing bolt
Q’ty
6
15
M5 x 12 mm ( /32”)
Pipe
2
Support
bracket
2
Cover
2
Fall-prevention extension
leg
4
Side bar (A)
2
Screw
4
3
M6 x 60 mm (2 /8”)
Side bar (B)
1
Nut
4
*1
12
Wrench
Fixture
(left)
2
Wing bolt
(Not use*2)
Fixture
(right)
2
Screw
1
M8 x 45 mm (1 25/32”)
Screen holder
bracket
(Not use*2)
*1 The accessory wrench is required to fasten or loosen the screws
*2 These are used for other models.
● Before
,
4
; please store it carefully for future use.
assembly, be sure to lock the casters.
Locking the casters
(Push this side)
Releasing the lock
34
8
M4 x 8 mm (5/16”)
■ Assembly
1
English
Assembling the Optional Stand (KX-B061)
Assembling the stand
■ Assembling the fall-prevention extension legs
The fall-prevention extension legs increase the safety of the electronic board.
Fall-prevention extension legs
• Caster locks are attached to
the back side.
Caution
• Install and always set the fall-prevention legs when using the stand.
• When tightening the screw , hold the nut
with pliers.
Note
• When folding back the fall-prevention extension legs to release the lock, perform as follows.
Installation Manual
1
2
1
■ Inserting the covers
to the pipes
35
Assembling the Optional Stand (KX-B061)
■ Assembling the stand
Assemble with the holes
toward the front.
1
1
1
2
Locking
casters side
(rear)
Pull the fall-prevention extension legs
down (fall-prevention extension legs
will be fixed by the lock pin.)
Locking casters side
(rear)
Note
*1 Do not tighten the screw
36
too much. This may deform the pipes.
2
Attach the fixtures
3
Assemble and install the electronic board.
Refer to step 3 on page 30.
English
Assembling the Optional Stand (KX-B061)
with the four wing-bolts.
Installation Manual
37
Optional Wall-mounting Kit (KX-B063)
Before attempting installation of this wall-mounting kit, we strongly recommend consulting with the building manager,
engineer, or architect. The installer needs to know the type of construction used for the wall intended for this
installation and the location of wall studs. Selection of hardware is critical for safe wall-mounting, and depends on the
nature of wall construction. Installation should not occur until this consultation takes place.
Caution
• Do not attach the electronic board to mortared walls. Accidental electric leakage from the wall-mounting
fixture bolts to metal laths or wire laths can cause heat, smoke or a fire.
1. Tools required:
A minimum of eight (8) pieces of appropriate wall-support hardware (molley, toggle, etc.)
NOTE: THIS HARDWARE MUST BE LOCALLY PROCURED, IT IS NOT INCLUDED IN THE KIT.
Drill (and drill bit of correct size) for hardware installation
Screw driver (Both phillips (+) and slotted (–) will be required.)
Tape measure
Tape or thumb-tacks (2 pcs)
Bubble type level
2. Pre-requisites
1. Before installation, make sure that the wall intended for installation is capable of supporting flushmounted.
UB-7320 is 205 kgf (452 lbs.).
2. The position of the intended installation is of adequate size for the selected Panaboard.
UB-7320 is 1,664 mm (H) × 1,648 mm (W) [5' 6” (H) × 5' 5" (W)].
3. An outlet is within 3 m (9' 101/8" ), and not located behind the Panaboard.
■ Accessories
The package box for the optional wall-mounting kit includes the parts noted below; please confirm that all parts are
present before beginning installation. Eight screws for mounting the fixtures on the wall are not provided. Please
purchase the appropriate wall-mounting hardware (sold in stores). Refer to page 40.
No.
Part name
Illustration
Wall-mounting
fixture L
Q’ty
2
No.
Part name
Illustration
Screw
(Not use*)
Q’ty
4
M4 x 16 mm (20/32”)
Wall-mounting
fixture R
2
Wall-mounting
template
(Not use*)
Wing bolt
M5 x 12 mm (15/32")
(For mounting of the
electronic board)
*These are used for other models.
38
2
1
Use the wallmounting template
provided with
UB-7320.
■ Wall-mounting procedure
1
English
Optional Wall-mounting Kit (KX-B063)
Confirm that the wall is strong enough to support the weight of the electronic board.
Caution
The wall must be capable of supporting at least
2,010 N [205 kgf (452 lbs.)] for UB-7320.
2
Tape the Wall-mounting template on the wall.
• Do not use the template included in the wall-mounting kit (KX-B063), but rather the one included with
the electronic board (UB-7320).
• When taping the template on the wall, make sure it is level.
3
1) Drill holes in the wall for the wall-mounting fixtures (8 holes total).
• Holes on the wall-mounting fixture are 7 mm (1/4") in diameter.
2) After removing the wall-mounting template, attach the wall-mounting fixtures
with the appropriate wall-mounting hardware (two screws in each fixture).
Wall-mounting template (See page 28.)
(provided with UB-7320)
812. 8
Wall-mounting
fixture L
Wall-mounting
hardware*
Wall-mounting
fixture L
7
(2 0 m
3 m
/4
")
1
Wall-mounting
fixture R
50 mm
762 mm (2' 6")
(1 31/32")
2
Installation Manual
1
mm (
2' 8")
Wall-mounting
hardware*
406
.4
(16" mm
)
Center of the
electronic board
* This hardware must be locally procured, it is not included in the kit.
• Refer to the section “Attaching the wall-mounting fixtures” (page 40) for drilling in the wall and attaching the
mounting fixtures.
• Refer to step 3 on page 30 for mounting the electronic board.
39
Optional Wall-mounting Kit (KX-B063)
■ Attaching the wall-mounting fixtures
The electronic board must be mounted with the method most suited to the material of the wall.
Three methods are presented here.
(Other options may be available in your area.)
● Attaching
to metal or concrete walls
Stud plugs (sold in stores) are needed.
Drill bit
Drill eight holes in the wall.
For the correct hole size, refer
to the instructions for the
particular stud plugs used.
Metal or concrete
wall
Stud plug
Insert a stud plug in each hole.
Wall-mounting
fixture
Bolt
40
Insert each bolt through a hole
in the wall-mounting fixture and
tighten until the wall-mounting
fixture is securely fixed to the
wall.
● Attaching
English
Optional Wall-mounting Kit (KX-B063)
to plasterboard walls
Split-wing toggles (sold in stores) are needed.
Split-wing toggle
Wall-mounting
fixture
Plasterboard
Bolt
Arms
Arms
Insert each bolt through a hole
in the wall-mounting fixture and
into the hole in the wall beneath
so that the arms of the splitwing toggle are horizontal. For
the correct hole size, refer to the
instructions for the particular
split-wing toggles used.
After the arms expand, pull the
wall-mounting fixture out until
the arms of the split-wing toggle
grip firmly into the wall.
Tighten each bolt until the wallmounting fixture is securely
fixed to the wall.
to wooden walls
Installation Manual
● Attaching
Use wood screws (sold in stores).
Wall-mounting fixture
Wood screw
For the correct hole size, refer
to the instructions for the
particular wood screws used.
Wooden wall
41
42
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
