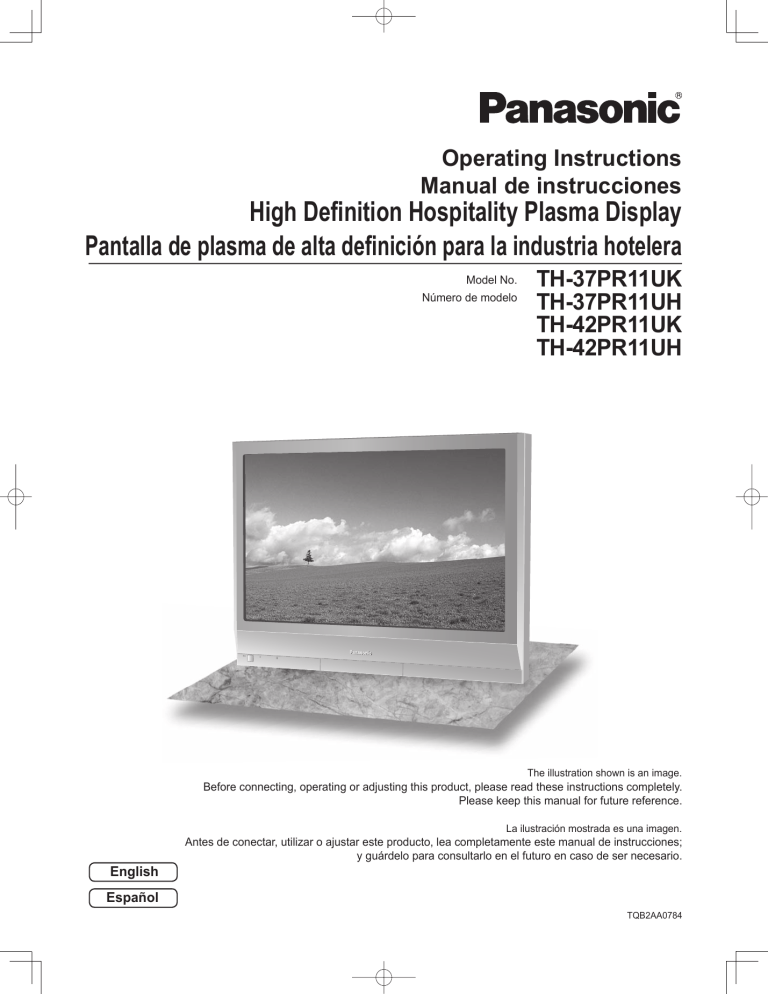

Operating Instructions
Manual de instrucciones
High Definition Hospitality Plasma Display
Pantalla de plasma de alta definición para la industria hotelera
Model No.
Número de modelo
TH-37PR11UK
TH-37PR11UH
TH-42PR11UK
TH-42PR11UH
The illustration shown is an image.
Before connecting, operating or adjusting this product, please read these instructions completely.
Please keep this manual for future reference.
La ilustración mostrada es una imagen.
Antes de conectar, utilizar o ajustar este producto, lea completamente este manual de instrucciones;
y guárdelo para consultarlo en el futuro en caso de ser necesario.
English
Español
TQB2AA0784
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: To reduce the risk of electric shock, do not remove cover or back.
No user-serviceable parts inside. Refer servicing to qualified service personnel.
The lightning flash with
arrow-head within a triangle
is intended to tell the user
that parts inside the product
are a risk of electric shock
to persons.
The exclamation point within
a triangle is intended to
tell the user that important
operating and servicing
instructions are in the papers
with the appliance.
WARNING : To prevent damage which may result in fire or shock hazard, do not expose this apparatus to rain
or moisture.
Do not place containers with water (flower vase, cups, cosmetics, etc.) above the set.
(including on shelves above, etc.)
WARNING : 1) To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to
qualified service personnel.
2) Do not remove the grounding pin on the power plug. This apparatus is equipped with a three pin
grounding-type power plug. This plug will only fit a grounding-type power outlet. This is a safety feature.
If you are unable to insert the plug into the outlet, contact an electrician.
Do not defeat the purpose of the grounding plug.
This video monitor is designed to display television content from a separate TV tuner. Full-power analog TV broadcasting
in the United States will end (as required by law) on February 17, 2009, after which full-power TV broadcasts will be
digital only. If this device is used after that date to record or display programming from a product with a TV tuner that
relies on a TV antenna, that product would need to contain a digital tuner, or a TV Converter would be necessary to
tune the digital signal received with a TV antenna. Analog TVs should continue to work as before for other purposes
(e.g., for watching low-power TV stations still broadcasting in analog, watching pre-recorded movies, or playing video
games). When a Converter is used with an older television receiver or directly with this product, a signal splitter might
be necessary to continue to receive low-power analog broadcasts via an antenna. For more information, please see
www.DTV.gov or 1-888-CALL-FCC. For information on the TV Converter program, and on government coupons that
may be used toward the purchase of one, see www.dtv2009.gov, or call the NTIA at 1-888-DTV-2009. Please check
with your cable or satellite service provider if you have questions about your cable or satellite set-top box.
2
Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one
wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
11) Only use attachments / accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution when moving the cart / apparatus combination
to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged
in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15) To prevent electric shock, ensure the grounding pin on the AC cord power plug is securely connected.
3
Dear Panasonic Customer
Welcome to the Panasonic family of customers. We hope that you will have many years of enjoyment
from your new Plasma Display.
To obtain maximum benefit from your set, please read these Instructions before making any adjustments,
and retain them for future reference.
Retain your purchase receipt as well, and record the model number and serial number of your set in the
space provided on the rear cover of these instructions.
Table of Contents
Important Safety Instructions.................................. 3
FCC STATEMENT ...................................................... 5
Safety Precautions ................................................... 6
Maintenance .............................................................. 7
Accessories .............................................................. 8
Accessories Supplied .............................................. 8
Connections .............................................................. 9
PC Input Terminals connection .............................. 10
SERIAL Terminals connection ............................... 11
Power ON / OFF ..................................................... 12
Initial selections ..................................................... 13
Selecting the input signal ...................................... 13
Selecting the On-Screen Menu Language ............ 13
Basic Controls ........................................................ 14
ASPECT Controls ................................................... 16
MULTI PIP ................................................................ 17
Advanced PIP ........................................................ 18
Digital Zoom ............................................................ 19
On-Screen Menu Displays ..................................... 20
Adjusting POS. /SIZE ............................................. 21
PICTURE Adjustments ........................................... 22
ADVANCED SETTINGS ........................................ 23
SOUND Adjustment ................................................ 24
PRESENT TIME SETUP / SET UP TIMER .............. 25
PRESENT TIME SETUP ....................................... 25
SET UP TIMER ..................................................... 25
4
SCREENSAVER
(For preventing image retention) .......................... 26
Setup of SCREENSAVER Time ............................ 26
Reduces screen image retention ........................... 27
SIDE BAR ADJUST ............................................... 27
Reduces power consumption ............................... 28
Customizing the Input labels................................. 29
SET UP for Input Signals ....................................... 30
COMPONENT / RGB IN SELECT ......................... 30
YUV / RGB IN SELECT ......................................... 30
SIGNAL menu ....................................................... 31
3D Y/C FILTER ...................................................... 31
COLOR SYSTEM / Panasonic AUTO ................... 32
3:2 PULLDOWN .................................................... 32
XGA MODE ........................................................... 32
REFRESH RATE ................................................... 33
NOISE REDUCTION ............................................. 33
SYNC .................................................................... 34
Input signal display ................................................ 34
Options Adjustments ............................................. 35
Weekly Command Timer ....................................... 38
Shipping condition ................................................. 39
Troubleshooting ..................................................... 40
List of Aspect Modes ............................................. 41
PC input signals ..................................................... 42
Command list of Weekly Command Timer ........... 43
Specifications ......................................................... 44
Panasonic Professional Flat Panel Display Limited Warranty .. 45
LIMITED WARRANTY STATEMENT ....................... 46
Customer Service .................................................. 47
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced technician for help.
This device complies with Part15 of the FCC Rules. Operation is subject to the following two conditions:(1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC CAUTION:
To assure continued compliance, follow the attached installation instructions and use only shielded interface
cables when connecting to computer or peripheral devices. Any changes or modifications not expressly
approved by Panasonic Corp. of North America could void the user's authority to operate this device.
FCC Declaration of Conformity
Model No. TH-37PR11UK, TH-37PR11UH, TH-42PR11UK, TH-42PR11UH
Responsible Party:
Contact Source:
Panasonic Corporation of North America
One Panasonic Way 1F-10, Secaucus, NJ 07094
Panasonic Professional Display Company
Panasonic Plasma Concierge 1-888-VIEW-PTV (1-888-843-9788)
email: [email protected]
CANADIAN NOTICE:
This Class B digital apparatus complies with Canadian ICES-003.
Note:
Do not allow a still picture to be displayed for an extended period, as this can cause a permanent image retention to
remain on the Plasma Display.
Examples of still pictures include logos, video games, computer images, teletext and images displayed in 4:3 mode.
Trademark Credits
• VGA is a trademark of International Business Machines Corporation.
• Macintosh is a registered trademark of Apple Computer, USA.
• SVGA, XGA, SXGA and UXGA are registered trademarks of the Video Electronics Standard Association.
Even if no special notation has been made of company or product trademarks, these trademarks have been fully
respected.
5
Safety Precautions
CAUTION
This Plasma Display is for use only with the following optional accessories. Use with any other type of optional
accessories may cause instability which could result in the possibility of injury.
(All of the following accessories are manufactured by Matsushita Electric Industrial Co., Ltd.)
• Pedestal ....................................................................................TY-ST09GR-K (for TH-37PR11UH, TH-42PR11UH),
TY-ST09GR-BK (for TH-37PR11UK, TH-42PR11UK)
• Wall-hanging bracket (vertical) ..................................................TY-WK42PV3U
• Wall-hanging bracket (angled) ..................................................TY-WK42PR3U
• BNC Component Video Terminal Board ....................................TY-42TM6A
• BNC Composite Video Terminal Board .....................................TY-42TM6B
• BNC Dual Video Terminal Board ...............................................TY-FB9BD
• Ir Through Terminal Board ........................................................TY-FB9RT
• RCA Component Video Terminal Board ....................................TY-42TM6Z
• RCA Composite Video Terminal Board .....................................TY-42TM6V
• PC Input Terminal Board ...........................................................TY-42TM6P
• RGB (Digital) Terminal Board ....................................................TY-42TM6D
• HDMI Terminal Board ................................................................TY-FB8HM
• Dual HDMI Terminal Board .......................................................TY-FB10HMD
• AV Terminal Box ........................................................................TY-TB10AV
• DVI-D Terminal Board ...............................................................TY-FB11DD
• U/V Tuner Board with MATE I/F ................................................TY-FB9TU
(Except for Canada and United States of America, only Mexico)
Always be sure to ask a qualified technician to carry out set-up.
Small parts can present choking hazard if accidentally swallowed. Keep small parts away from young children. Discard
unneeded small parts and other objects, including packaging materials and plastic bags/sheets to prevent them from being
played with by young children, creating the potential risk of suffocation.
When using the Plasma Display
Do not bring your hands, face or objects close to the
ventilation holes of the Plasma Display.
• Top of the Plasma Display is usually very hot due to the
high temperature of exhaust air being released through the
ventilation holes. Burns or personal injuries can happen if any
body parts are brought too close. Placing any object near the
top of the display could also result in heat damages to the object
as well as to the Display if its ventilation holes are blocked.
Be sure to disconnect all cables before moving the
Plasma Display.
• Moving the Display with its cables attached might damage
the cables which, in turn, can cause fire or electric shock.
Disconnect the power plug from the wall outlet as a
safety precaution before carrying out any cleaning.
• Electric shocks can result if this is not done.
6
Clean the power cable regularly to prevent it from
becoming dusty.
• Built-up dust on the power cord plug can increase
humidity which might damage the insulation and cause
fire. Unplug the cord from the wall outlet and clean it
with a dry cloth.
This Plasma Display radiates infrared rays, therefore it
may affect other infrared communication equipment.
Install your infrared sensor in a place away from direct
or reflected light from your Plasma Display.
Note:
Do not allow a still picture to be displayed for an extended
period, as this can cause a permanent image retention to
remain on the Plasma Display.
Examples of still pictures include logos, video games, computer
images, teletext and images displayed in 4:3 mode.
Safety Precautions / Maintenance
WARNING
Setup
Do not place the Plasma Display on sloped or unstable
surfaces.
• The Plasma Display may fall off or tip over.
Do not place any objects on top of the Plasma
Display.
• If water spills onto the Plasma Display or foreign objects
get inside it, a short-circuit may occur which could
result in fire or electric shock. If any foreign objects get
inside the Plasma Display, please consult an Authorized
Service Center.
Do not cover the ventilation holes.
• Doing so may cause the Plasma Display to overheat,
which can cause fire or damage to the Plasma
Display.
Securely insert the power cord plug as far as it will go.
• If the plug is not fully inserted, heat may be generated
which could cause fire. If the plug is damaged or the
wall socket plate is loose, they should not be used.
Do not handle the power cord plug with wet hands.
• Doing so may cause electric shocks.
Do not do anything that might damage the power cable.
When disconnecting the power cable, hold the plug,
not the cable.
• Do not make any modifications, place heavy objects on,
place near hot objects, heat, bend, twist or forcefully
pull the power cable. Doing so may cause damage to
the power cable which can cause fire or electric shock.
If damage to the cable is suspected, have it repaired at
an Authorized Service Center.
Transport only in upright position!
• Transporting the unit with its display panel facing
upright or downward may cause damage to the internal
circuitry.
If the Plasma Display will not be used for a long period
of time, unplug the power cord from the wall outlet.
If using the pedestal (optional accessory), leave a space
of 3 15/16” (10 cm) or more at the top, left and right,
and 2 3/4” (7 cm) or more at the rear, and also keep the
space between the bottom of the display and the floor
surface. If using some other setting-up method, follow
the manual of it.
If a problem occurs (such as no picture or no sound),
or if smoke or an abnormal odor is detected from the
Plasma Display, unplug the power cord immediately.
• Continuous use of the Display under these conditions
might cause fire or permanent damage to the unit.
Have the Display evaluated at an Authorized Service
Center. Services to the Display by any unauthorized
personnel are strongly discouraged due to its high
voltage dangerous nature.
AC Power Supply Cord
The Plasma Display is designed to operate on 110 - 127
V AC, 50/60 Hz.
Do not use any power supply cord other than that
provided with this unit.
• Doing so may cause fire or electric shocks.
If problems occur during use
If water or foreign objects get inside the Plasma Display,
if the Plasma Display is dropped, or if the cabinet
becomes damaged, disconnect the power cord plug
immediately.
• A short may occur, which could cause fire. Contact an
Authorized Service Center for any repairs that need to be
made.
Maintenance
The front of the display panel has been specially treated. Wipe the panel surface gently using only a cleaning
cloth or a soft, lint-free cloth.
• If the surface is particularly dirty, wipe with a soft, lint-free cloth which has been soaked in pure water or water in which
neutral detergent has been diluted 100 times, and then wipe it evenly with a dry cloth of the same type until the surface
is dry.
• Do not scratch or hit the surface of the panel with fingernails or other hard objects, otherwise the surface may become
damaged. Furthermore, avoid contact with volatile substances such as insect sprays, solvents and thinner, otherwise
the quality of the surface may be adversely affected.
If the cabinet becomes dirty, wipe it with a soft, dry cloth.
• If the cabinet is particularly dirty, soak the cloth in water to which a small amount of neutral detergent has been added
and then wring the cloth dry. Use this cloth to wipe the cabinet, and then wipe it dry with a dry cloth.
• Do not allow any detergent to come into direct contact with the surface of the Plasma Display. If water droplets get
inside the unit, operating problems may result.
• Avoid contact with volatile substances such as insect sprays, solvents and thinner, otherwise the quality of the cabinet
surface may be adversely affected or the coating may peel off. Furthermore, do not leave it for long periods in contact
with articles made from rubber or PVC.
7
Accessories
Accessories Supplied
Check that you have the Accessories and items shown
Operating Instruction book
AC cord
The remote control is not included with this set. Available for purchase separately.
Object model : N2QAYB000178
8
Fixing band × 1
Connections
AC cord connection (see page 12)
– AC cord fixing
Unplug the AC cord
Close
1
Push until
the hook
clicks.
1 Plug the AC cord into
the display unit.
Plug the AC cord until
it clicks.
2
2 Fix the AC cord with
the clamper which is
Note:
Make sure that the AC cord is locked attached to the unit.
on both the left and right sides.
Open
2. Pull off.
Unplug the AC cord pressing
the two knobs.
1. Keep the
knob
pressed.
Note:
When disconnecting the AC
cord, be absolutely sure to
disconnect the AC cord plug
at the socket outlet first.
– Cable fixing band
Secure any excess cables with band as required.
Note:
One fixing band is supplied with this unit. In case of securing cables at two positions, please purchase it separately.
Pass the attached cable
fixing band through the
clip as shown in the
figure.
To secure cables connected to Terminals, wrap the cable fixing band around them then
pass the pointed end through the locking block, as shown in the figure.
While ensuring there is sufficient slack in cables to minimize stress (especially
in the power cord), firmly bind all cables with the supplied fixing band.
To loosen:
Push the catch
To tighten:
Pull
2
1
Pull
AUDIO
SLOT1
SLOT2
Optional Terminal
Board Insert Slot
(covered)
SLOT3
PC
IN
From EXTERNAL
monitor terminal on
Computer (see page 10)
SERIAL
From SERIAL
Terminal on Computer
(see page 11)
9
Connections
PC Input Terminals connection
(Female)
COMPUTER
AUDIO
PC IN
Conversion adapter
(if necessary)
Mini D-sub 15p
RGB
PC cable
(Male)
Audio
Stereo plug
Connect a cable which matches
the audio output terminal on the computer.
Notes:
• Computer signals which can be input are those with a horizontal scanning frequency of 15 to 110 kHz and vertical scanning
frequency of 48 to 120 Hz. (However, the image will not be displayed properly if the signals exceed 1,200 lines.)
• The display resolution is a maximum of 768 × 720 dots (TH-37PR11UK/H), 768 × 768 dots (TH-42PR11UK/H) when the
aspect mode is set to “4:3”, and 1,024 × 720 dots (TH-37PR11UK/H), 1,024 × 768 dots (TH-42PR11UK/H) when the
aspect mode is set to “FULL”. If the display resolution exceeds these maximums, it may not be possible to show fine
detail with sufficient clarity.
• The PC input terminals are DDC2B-compatible. If the computer being connected is not DDC2B-compatible, you will need
to make setting changes to the computer at the time of connection.
• Some PC models cannot be connected to the set.
• There is no need to use an adapter for computers with DOS/V compatible Mini D-sub 15P terminal.
• The computer shown in the illustration is for example purposes only.
• Additional equipment and cables shown are not supplied with this set.
• Do not set the horizontal and vertical scanning frequencies for PC signals which are above or below the specified
frequency range.
• Component Input is possible with the pin 1, 2, 3 of the Mini D-sub 15P Connector.
• Change the “COMPONENT/RGB-IN SELECT” setting in the “SET UP” menu to “COMPONENT”
(when COMPONENT signal connection) or “RGB” (when RGB signal connection). (see page 30)
Signal Names for Mini D-sub 15P Connector
Pin No.
5
4
10 9
3
2
8
1
7
1
6
15 14 13 12 11
Pin Layout for PC Input
Terminal
10
2
3
4
5
Signal Name
R (PR/CR)
G (Y)
B (PB/CB)
NC (not connected)
GND (Ground)
Pin No.
6
7
8
9
10
Signal Name
GND (Ground)
GND (Ground)
GND (Ground)
+5 V DC
GND (Ground)
Pin No.
11
12
13
14
15
Signal Name
NC (not connected)
SDA
HD/SYNC
VD
SCL
Connections
SERIAL Terminals connection
The SERIAL terminal is used when the Plasma Display is controlled by a computer.
(Male)
COMPUTER
1
2
6
3
7
4
8
5
9
SERIAL
RS-232C Straight cable
Pin layout for SERIAL Terminal
(Female)
D-sub 9p
Notes:
• Use the RS-232C straight cable to connect the computer
to the Plasma Display.
• The computer shown is for example purposes only.
• Additional equipment and cables shown are not supplied
with this set.
The SERIAL terminal conforms to the RS-232C interface
specification, so that the Plasma Display can be controlled
by a computer which is connected to this terminal.
The computer will require software which allows the
sending and receiving of control data which satisfies the
conditions given below. Use a computer application such as
programming language software. Refer to the documentation
for the computer application for details.
Signal names for D-sub 9P connector
Pin No.
2
3
5
4 • 6
7
8
1 • 9
Details
RXD
TXD
GND
Non use
(Shorted in this set)
NC
These signal names are those of computer specifications.
Communication parameters
Signal level
Synchronization method
Baud rate
Parity
Character length
Stop bit
Flow control
RS-232C compliant
Asynchronous
9600 bps
None
8 bits
1 bit
-
Basic format for control data
The transmission of control data from the computer starts with
a STX signal, followed by the command, the parameters, and
lastly an ETX signal in that order. If there are no parameters,
then the parameter signal does not need to be sent.
STX
C1 C2 C3
Start
(02h)
:
P1 P2 P3 P4 P5
ETX
Colon
Parameter(s)
(1 - 5 bytes)
3-character
command (3 bytes)
End
(03h)
Notes:
• If multiple commands are transmitted, be sure to wait for
the response for the first command to come from this unit
before sending the next command.
• If an incorrect command is sent by mistake, this unit will
send an “ER401” command back to the computer.
• SL1A, SL1B, SL2A and SL2B of Command IMS are available
only when a dual input terminal board is attached.
Command
Command
PON
POF
AVL
AMT
Parameter
Control details
None
Power ON
None
Power OFF
**
Volume 00 - 63
0
Audio MUTE OFF
1
Audio MUTE ON
Input select (toggle)
IMS
None
Slot1 input
SL1
Slot2 input
SL2
Slot3 input
SL3
PC input
PC1
Slot1 input (INPUT1A)
SL1A
Slot1 input (INPUT1B)
SL1B
Slot2 input (INPUT2A)
SL2A
Slot2 input (INPUT2B)
SL2B
Screen mode select (toggle)
DAM
None
ZOOM
ZOOM
FULL
FULL
JUST
JUST
4:3
NORM
Panasonic Auto
SELF
JUST
SJST
4:3
SNOM
H-FILL
SFUL
With the power off, this display responds to PON command
only.
11
Power ON / OFF
Connecting the AC cord plug to the Plasma Display.
Fix the AC cord plug securely to the Plasma Display
with the clamper. (see page 9)
Connecting the plug to the Wall Outlet.
Note:
When disconnecting the AC cord, be absolutely sure to disconnect
the AC cord plug at the socket outlet first.
Press the Power switch on the Plasma Display to turn the set on:
Power-On.
Remote Control Sensor
Power Indicator: Green
POWER
Power Indicator
Press the
button on the remote control to turn the Plasma Display off.
Power Indicator: Red (standby)
Press the
button on the remote control to turn the Plasma Display on.
Power Indicator: Green
Turn the power to the Plasma Display off by pressing the POWER switch on the
unit, when the Plasma Display is on or in standby mode.
Note:
During operation of the power management function, the power indicator turns
orange in the power off state.
12
Initial selections
Selecting the input signal
Select the input signals to be connected by installing the optional Terminal Boards.
Press to select the input signal to be played back from the
equipment which has been connected to the Plasma Display.
Input signals will change as follows:
INPUT1
INPUT2
INPUT3
PC
Notes:
• Selecting is also possible by pressing the INPUT button on the unit.
• Input terminal will not be selected if the terminal board is not installed into the SLOT.
• Select to match the signals from the source connected to the component/RGB input
terminals. (see page 30)
• In 2 screen display, the same input mode cannot be selected for the main picture and
sub picture.
• Image retention (image lag) may occur on the plasma display panel when a still picture
is kept on the panel for an extended period. The function that darkens the screen slightly
is activated to prevent image retention (see page 40), but this function is not the perfect
solution to image retention.
INPUT MENU
ENTER/
VOL
Swing up the door at “PULL”.
Selecting the On-Screen Menu Language
Press to display the SET UP menu.
Press to select OSD LANGUAGE.
Press to select your preferred language.
Selectable languages
SET UP
English(UK)
Deutsch
Français
Italiano
Español
ENGLISH(US)
.......(Chinese)
.......(Japanese)
Русский .......(Russian)
1/2
SIGNAL
SCREENSAVER
COMPONENT/RGB-IN SELECT
RGB
INPUT LABEL
PC
OFF
POWER SAVE
OFF
STANDBY SAVE
POWER MANAGEMENT
OFF
AUTO POWER OFF
OFF
OSD LANGUAGE
ENGLISH (US)
13
Basic Controls
INPUT button
(INPUT1, INPUT2, INPUT3 and
PC selection)
(see page 13)
Remote control sensor
POWER
INPUT MENU
Power Indicator
The Power Indicator will light.
• Power-OFF .... Indicator not illuminated (The unit
will still consume some power
as long as the power cord is still
inserted into the wall outlet.)
• Standby ......... Red
• Power-ON ...... Green
• DPMS............. Orange (With PC input signal
and during operation of PC’s
screensaver.)
Main Power On / Off Switch
How to release button lock
MENU and ENTER/■ buttons are locked before
shipping.
You can unlock them with unit buttons.
1. Press +/▲ 4 times.
2. Press INPUT 4 times.
3. Press –/▼ 4 times.
4. Press ENTER/■.
Note:
After unlocking the buttons, Button lock in
OPTIONS menu is set to “Off”. (see page 36)
14
VOL
ENTER/
Volume Adjustment
Volume Up “+” Down “–”
When the menu screen is displayed:
“+” : press to move the cursor up
“–” : press to move the cursor down
(see page 20)
Enter / Aspect button
This button is locked by initial setting.
(see page 16, 20)
MENU Screen ON / OFF
This button is locked by initial setting.
Each time the MENU button is pressed, the
menu screen will switch. (see page 20)
Normal Viewing
SOUND
POS. /SIZE
SET UP
Basic Controls
Remote Control Transmitter
The remote control is not
included with this set. Available
for purchase separately.
Object model : N2QAYB000178
SURROUND button
The surround setting switches on and off each time
the SURROUND button is pressed.
The benefits of surround sound are enormous. You
can be completely enveloped in sound; just as if you
were at a concert hall or cinema.
Note:
The surround settings are memorized separately
for each AUDIO MENU (STANDARD, DYNAMIC,
CLEAR).
ACTION button
Press to make selections.
ASPECT button
Press to adjust the aspect.
(see page 16)
POWER button
The Plasma Display must first be plugged
into the wall outlet and turned on at the
power switch (see page 12).
Press this button to turn the Plasma
Display On, from Standby mode. Press
it again to turn the Plasma Display Off to
Standby mode.
POS. /SIZE button
(see page 21)
PICTURE button
(see page 22)
Sound mute On / Off
Press this button to mute the sound.
Press again to reactivate sound.
Sound is also reactivated when power is
turned off or volume level is changed.
N button
(see page 21, 22, 23, 24)
POSITION buttons
INPUT button
Press to select INPUT1, INPUT2, INPUT3
and PC input SLOTS sequentially. (see
page 13)
When a dual input terminal board is
attached, A or B is displayed depending
on the selected input signal. (Ex.
INPUT1A, INPUT1B)
OFF
SURROUND
ON
OFF TIMER button
The Plasma Display can be preset
to switch to stand-by after a fixed
period. The setting changes to 30
minutes, 60 minutes, 90 minutes
and 0 minutes (off timer cancelled)
each time the button is pressed.
30
60
90
0
When three minutes remain, “OFF
TIMER 3” will flash.
The off timer is cancelled if a
power interruption occurs.
SET UP button (see page 20)
SOUND button (see page 24)
Volume Adjustment
Press the Volume Up “+” or Down “–”
button to increase or decrease the
sound volume level.
R button (see page 20)
Press the R button to return to
previous menu screen.
RECALL button
Press the “RECALL” button to display
the current system status.
1 Input label
2 Aspect mode (see page 16)
3 Off timer
The off timer indicator is displayed only
when the off timer has been set.
4 Clock display (see page 37)
1
PC
4:3
4
MULTI Window buttons
(see page 17)
ON
2
10: 00
OFF TIMER
90
3
Digital Zoom (see page 19)
15
ASPECT Controls
The Plasma Display will allow you to enjoy viewing the picture at its maximum size, including wide screen cinema format
picture.
Press repeatedly to move through the aspect options:
For details about the aspect mode, please see “List of Aspect Modes” (page 41).
For VIDEO (S VIDEO) signal input:
4:3
ZOOM
Panasonic AUTO
JUST
FULL
[from the unit]
INPUT MENU
Note:
When selecting an input slot that attaches BNC Dual Video Terminal
Board (TY-FB9BD), Panasonic AUTO cannot be selected.
The aspect mode changes each time the ENTER button is pressed.
ENTER/
VOL
For PC signal input:
4:3
ZOOM
FULL
For SD signal input (525 (480) / 60i • 60p, 625 (575) / 50i • 50p):
4:3
ZOOM
FULL
JUST
For HD signal input [1125 (1080) / 60i • 50i • 60p • 50p • 24p • 25p • 30p • 24sF, 1250 (1080) / 50i, 750 (720) / 60p • 50p]:
4:3
H-FILL
ZOOM
FULL
JUST
[During MULTI PIP Operations]
4:3
FULL
• Picture and Picture, Picture in Picture :
• Others
: Aspect switching is not possible.
Notes:
• Panasonic AUTO can be selected only during Video signal input.
• The aspect mode is memorized separately for each input terminal.
• Do not allow the picture to be displayed in 4:3 mode for an extended period, as this can cause a permanent image
retention to remain on the Plasma Display Panel.
Panasonic AUTO
The display will automatically become enlarged (depending on the picture source), allowing you to view the picture at its maximum size.
4
16
Panasonic AUTO
3
For letter box image
9
Image is expanded
4
3
Changes in accordance with
the Panasonic AUTO mode
setting (see page 32).
For a 4:3 image
Notes:
• Panasonic AUTO mode is designed to automatically adjust the
aspect ratio to handle a mix of 16:9 and 4:3 program material.
Certain 4:3 program material, such as stock market data screens,
may occasionally cause the image size to change unexpectedly.
When viewing such programs, it is recommended that the ASPECT
be set to 4:3.
• If adjusting the PICTURE V-POS/V-SIZE in Panasonic AUTO with
FULL mode, the adjustment is not memorized. When exiting the
mode, the screen will return to a former adjustment.
All Aspect mode
Set “All Aspect” to “On” in Options menu to enable the extended aspect mode (page 37). When All Aspect mode, the aspect
mode of pictures is switched as follows. For details about the aspect mode, please see “List of Aspect Modes” (page 41).
For VIDEO (S VIDEO) signal input:
4:3
Zoom1
Zoom2
Zoom3
Panasonic Auto
16:9
14:9
Just
Notes:
• When selecting an input slot that attaches BNC Dual Video Terminal Board (TY-FB9BD), Panasonic Auto cannot be
selected.
• In All Aspect mode, “Panasonic AUTO” is displayed as “Panasonic Auto”.
16
ASPECT Controls
For PC signal input:
4:3
Zoom
16:9
For SD signal input (525 (480) / 60i • 60p, 625 (575) / 50i • 50p):
4:3
Zoom1
Zoom2
Zoom3
16:9
14:9
Just
For HD signal input [1125 (1080) / 60i • 50i • 60p • 50p • 24p • 25p • 30p • 24sF, 1250 (1080) / 50i, 750 (720) / 60p • 50p]:
4:3 Full
Zoom1
Zoom2
Zoom3
16:9
14:9
Just1
Just2
4:3 (1)
4:3 (2)
MULTI PIP
Press repeatedly.
Each time pressing this button main picture and sub picture will be displayed as follows below.
[Picture and Picture]
Main picture
Sub picture
Normal
Viewing
[Picture out Picture]
Main picture
Sub picture
A
B
A
B
B
A
B
A
[Picture in Picture]
Main picture Sub picture
A
B
Press to swap main picture and
sub picture.
B
A
[Example]
Press to select the input mode.
Main picture label is bright
Sub picture label is bright
Under main Picture and sub picture display, select the
picture which you would like to change input modes.
Notes:
B
B
• The sub picture sound is heard while a sub picture
operation is underway.
Input modes switching is possible
• The sub picture operation automatically returns to
Main picture label is changed Sub picture label is changed
the main picture operation if a sub picture operation
has not been performed for about 5 seconds or if any
of the remote control buttons is pressed (except
button).
PC1
VIDEO2
A
C
Press to change input signal.
PC1
VIDEO2
A
VIDEO2
VIDEO1
B
A
PC1
VIDEO2
D
Picture is changed
Press to move the sub picture.
Each time the location of the sub picture will be moved.
Notes:
• This button is effective only in the picture in picture.
• The sub picture may be hidden by the on screen display, depending on its position.
17
MULTI PIP
Advanced PIP
1
Set “Advanced PIP” to “On” in Options menu. (see page 36)
2
Press repeatedly.
Each time pressing this button main picture and sub picture will be displayed as follows.
One screen
Advanced PIP
1
Sub screen
8
Notes:
• To use
•
, and
,
,
2
3
4
7
6
5
Main screen
, buttons for the screen operations, follow the procedures in the previous page.
buttons are invalid during Advanced PIP operation.
Notes:
• If “INPUT lock” in Options menu is set to other than “Off”, MULTI PIP function isn’t available.
• Sound output is from the picture which is selected in Audio OUT (PIP) (see page 24).
• In 2 screen display, the same input mode cannot be selected for the main picture and sub picture.
• The main picture and sub picture are processed by different circuits, resulting in a slight difference in the clarity of the
pictures. There may also be a difference in the picture quality of the sub picture depending on the type of signals displayed
on the main picture and depending on the 2-picture display mode.
• Due to the small dimensions of the sub pictures, these sub pictures cannot be shown in detail.
• Computer screen picture is displayed in a simplified format, and it may not be possible to discern details on them satisfactorily.
• Following combinations of two analog signals cannot be displayed simultaneously;
Component - Component, Component - PC (RGB), PC (RGB) - Component, PC (RGB) - PC (RGB)
18
Digital Zoom
This displays an enlargement of the designated part of the displayed image.
1
Display the operation guide.
Press to access Digital Zoom.
The operation guide will be displayed.
EXIT
1
During Digital Zoom, only the following buttons can be operated.
[Unit]
[Remote control]
SURROUND button
OFF TIMER button
INPUT MENU
ENTER/
VOL
VOL button
MUTE button
VOL button
POSITION /
ACTION button
2
Select the area of the image to be enlarged.
Press on the enlargement location to select.
The cursor will move.
EXIT
2
3
Select the magnification required for the enlarged display.
Each time this is pressed, the magnification factor changes.
This is shown in the image being displayed.
×1
4
×2
×3
×4
Return to normal display (quit Digital Zoom).
Press to exit from the Digital Zoom.
Notes:
• When power goes OFF (including “Off Timer” operation), Digital Zoom terminates.
• The Digital Zoom function cannot be selected while in the following operation state:
“Multi-viewer” (Picture in Picture, Picture out Picture, Picture and Picture) operation. (see page 17)
When SCREENSAVER (except for NEGATIVE IMAGE) is running. (see page 26)
• While Digital Zoom is in operation, “Adjusting POS. /SIZE” cannot be used.
19
On-Screen Menu Display
Remote Control
Unit
1 Display the menu screen.
Press several times.
MENU
Each time the MENU button is pressed, the menu
screen will switch.
Normal Viewing
SET UP
SOUND
POS. /SIZE
Press to select.
(Example: PICTURE menu)
2 Select the item.
Select.
1/2
Select.
NORMALIZE NORMAL
Press.
STANDARD
25
0
0
0
5
PICTURE MENU
BRIGHTNESS
COLOR
TINT
SHARPNESS
(Example: PICTURE menu)
3 Set.
Set.
Set.
Press.
4 Exit the menu.
Press several times.
MENU
Press.
Press
to return to the previous menu.
Overview
Note: Menu that cannot be adjusted is grayout. Adjustable menu changes depending on signal, input and menu setting.
POS. /SIZE
SET UP
NORMALIZE NORMAL
AUTO SETUP
H-POS
H-SIZE
V-POS
V-SIZE
DOT CLOCK
CLOCK PHASE
0
0
0
0
0
0
(see page 21)
2/2
1/2
SIGNAL
SCREENSAVER
COMPONENT/RGB-IN SELECT
RGB
INPUT LABEL
PC
POWER SAVE
OFF
STANDBY SAVE
OFF
POWER MANAGEMENT
OFF
AUTO POWER OFF
OFF
OSD LANGUAGE
ENGLISH (US)
SET UP
2/2
1/2
NORMAL
OFF
ON
ADVANCED
SETTINGS STANDARD
MENU
25
BRIGHTNESS
0
COLOR
0
TINT
0
SHARPNESS
5
COLOR TEMP
COLOR MANAGEMENT
NORMAL
NORMALIZE
SET UP TIMER
PRESENT TIME SETUP
0
0
2.2
OFF
(see page 22, 23)
20
(see page 31-34)
SCREENSAVER
PRESENT TIME OF DAY 99:99
START
SCROLLING BAR ONLY
FUNCTION
TIME OF DAY
MODE
6:15
START TIME
12:30
FINISH TIME
BRIGHT
SIDE BAR ADJUST
WOBBLING
OFF
PEAK LIMIT
OFF
PRESENT TIME OF DAY 99:99
NORMALIZE NORMAL
BLACK EXTENSION
INPUT LEVEL
GAMMA
AGC
ON
AUTO
OFF
4:3
100 Hz
OFF
(see page 26-27)
SOUND
NORMALIZE NORMAL
3D Y/C FILTER (NTSC)
COLOR SYSTEM
3 : 2 PULLDOWN
Panasonic AUTO (4 : 3)
REFRESH RATE
NOISE REDUCTION
SET UP TIMER
(see page 22, 23)
ADVANCED SETTINGS
[ VIDEO ]
SIGNAL
AUDIO MENU
BASS
MID
TREBLE
BALANCE
SURROUND
AUDIO OUT (PIP)
STANDARD
0
0
0
0
OFF
MAIN
(see page 24)
POWER ON FUNCTION
POWER ON TIME
POWER OFF FUNCTION
POWER OFF TIME
OFF
0:00
OFF
0:00
(see page 25)
PRESENT TIME SETUP
PRESENT TIME OF DAY MON 99:99
SET
MON
DAY
99:99
PRESENT TIME OF DAY
(see page 25)
Adjusting POS. /SIZE
1
Press to display the POS. /SIZE menu.
Press to select the menu to adjust.
2
During “VIDEO (S VIDEO)”, “Digital”,
“SDI” and “HDMI” input signal.
POS. /SIZE
NORMALIZE NORMAL
AUTO SETUP
H-POS
H-SIZE
V-POS
V-SIZE
Press to adjust the menu.
3
0
0
0
0
During “COMPONENT”, “RGB”
and “PC” input signal.
POS. /SIZE
NORMALIZE NORMAL
AUTO SETUP
4
H-POS
H-SIZE
V-POS
V-SIZE
DOT CLOCK
CLOCK PHASE
Press to exit from adjust mode.
0
0
0
0
0
0
Notes:
• Unadjustable items are grayed out.
Adjustable items differ depending on the input signal and the display mode.
• Adjustment details are memorized separately for different input signal formats. (Adjustments for component signals are
memorized for 525 (480) / 60i · 60p, 625 (575) / 50i · 50p, 1125 (1080) / 60i · 50i · 60p · 50p · 24p · 25p · 30p · 24sF,
1250 (1080) / 50i, 750 (720) / 60p · 50p each, and RGB/PC/Digital signals are memorized for each frequency.)
• If a “Cue” or “Rew” signal from a VCR or DVD player is received, the picture position will shift up or down. This picture
position movement cannot be controlled by the POS. /SIZE function.
• If adjusting the PICTURE V-POS / V-SIZE in Panasonic AUTO with FULL mode, the adjustment is not memorized. When
exiting the mode, the screen will return to a former adjustment.
AUTO
SETUP
H-POS
Automatically adjust H-POS / V-POS / CLOCK PHASE / DOT CLOCK and set H-SIZE / V-SIZE the standard
value when RGB signal is input.
Notes:
• If the dot clock frequency is 108 MHz or higher, DOT CLOCK cannot be made.
• If the image is that the edge is hardly figured out or shadowy, that cannot be adjusted automatically.
In such case, press AUTO SETUP again after changing the image to the clearer one.
• When DVI-D is input, CLOCK PHASE cannot be adjusted automatically.
• Select NORMALIZE in POS. /SIZE and press the ACTION ( ) button when appropriate adjustment cannot
be made.
Adjust the horizontal position.
V-POS
Adjust the vertical position.
H-SIZE
Adjust the horizontal size.
DOT
CLOCK
(During “COMPONENT”, “RGB” and “PC” input signal)
Periodic striped pattern interference (noise) may occur when a striped pattern is displayed. If this happens,
adjust so that any such noise is minimized.
(During “COMPONENT”, “RGB” and “PC” input signal)
Eliminate the flickering and distortion.
CLOCK
PHASE
Helpful Hint (
/
NORMALIZE
V-SIZE
Adjust the vertical size.
Normalization)
While the POS. /SIZE display is active, if either the N button on the remote control is pressed at any time or the ACTION
( ) button is pressed during “NORMALIZE”, then all adjustment values are returned to the factory settings.
21
PICTURE Adjustments
1
Press to display the PICTURE menu.
2
Select to adjust each item.
Press to select the menu to adjust.
Select the desired level by looking at the picture behind the menu.
Note:
Menu that cannot be adjusted is grayout. Adjustable menu
changes depending on signal, input and menu setting.
1/2
Press the left or right button to switch between modes.
STANDARD
DYNAMIC
CINEMA
NORMALIZE NORMAL
STANDARD
25
0
0
0
5
PICTURE MENU
BRIGHTNESS
COLOR
TINT
SHARPNESS
STANDARD
For viewing in standard (evening lighting) environments.
This menu selects the normal levels of BRIGHTNESS
and PICTURE.
2/2
COLOR TEMP
COLOR MANAGEMENT
ADVANCED SETTINGS
DYNAMIC
For viewing in brighter environments.
This menu selects higher than normal levels of
BRIGHTNESS and PICTURE.
NORMAL
OFF
ON
CINEMA
Ideal for movies.
Press to select “ON”.
Press to enter Advanced
Settings.
ADVANCED SETTINGS ON
Enables fine picture adjustment at a professional level
(see next page).
Note:
If you would like to change the picture and color of the
selected PICTURE menu to something else, adjust using
the items in the PICTURE menu. (see next page)
ADVANCED SETTINGS
Press the left
NORMALIZE NORMAL
BLACK EXTENSION
INPUT LEVEL
GAMMA
AGC
0
0
NORMAL
button to switch between modes.
COOL
WARM
2.2
OFF
ADVANCED SETTINGS OFF
Displays images with settings of the PICTURE menu.
Helpful Hint (
or right
/
NORMALIZE
COLOR MANAGEMENT ON
Enables vivid color adjustment automatically.
Normalization)
While the “PICTURE” menu is displayed, if either the N button on the remote control is pressed at any time or the ACTION
( ) button is pressed during “NORMALIZE”, then all adjustment values are returned to the factory settings.
22
PICTURE Adjustments
Item
BRIGHTNESS
COLOR
TINT
SHARPNESS
Effect
Less
Notes:
• “COLOR” and “TINT” settings cannot be
adjusted for “RGB/PC” and “Digital” input
signal.
• You can change the level of each function
(PICTURE, BRIGHTNESS, COLOR, TINT,
SHARPNESS) for each PICTURE MENU.
• The setting details for STANDARD,
DYNAMIC and CINEMA respectively
are memorized separately for each input
terminal.
• The “TINT” setting can be adjusted
for NTSC signal only during “VIDEO
(S VIDEO)” input signal.
• In PICTURE, there is not a noticeable
change even when contrast is increased
with a bright picture or reduced with a dark
picture.
Adjustments
More
Darker
Brighter
Less
More
Reddish
Greenish
Less
More
Adjusts the proper picture contrast.
Adjusts for easier viewing of dark
pictures such as night scenes and
black hair.
Adjusts color saturation.
Adjusts for natural flesh tones.
Adjusts picture sharpness.
ADVANCED SETTINGS
Item
BLACK
EXTENSION
INPUT
LEVEL
GAMMA
AGC
Effect
Details
Less
More
Less
More
Down
Up
OFF
ON
Adjusts the dark shades of the image in gradation.
Adjustment of parts which are extremely bright and hard to see.
(This cannot be adjusted when the input signal is Digital.)
S CURVE
2.0
2.2
2.5
Increases the brightness of dark signal automatically.
Notes:
• The adjustment values are memorized separately for each input terminal.
• The adjustment range values should be used as an adjustment reference.
Helpful Hint (
/
NORMALIZE
Normalization)
On the remote control unit, while the “ADVANCED SETTINGS” menu is displayed, if either the N button is pressed at
any time or the ACTION ( ) button is pressed during “NORMALIZE”, then all adjustment values are returned to the
factory settings.
23
SOUND Adjustment
1
SOUND
Press to display the SOUND menu.
NORMALIZE NORMAL
2
AUDIO MENU
BASS
MID
TREBLE
BALANCE
SURROUND
AUDIO OUT (PIP)
Select to adjust each item.
Press to select the menu to adjust.
Select the desired level by listening to the sound.
3
STANDARD
0
0
0
0
OFF
MAIN
Press to exit from adjust mode.
Item
AUDIO MENU
BASS
MID
TREBLE
BALANCE
SURROUND
Details
STANDARD: Emits the original sound.
DYNAMIC: Accentuates sharp sound.
CLEAR:
Attenuates human voice.
Adjusts low pitch sounds.
Adjusts normal sounds.
Adjusts pitch sound.
Adjusts left and right volumes.
Select ON or OFF.
MAIN: Selects main picture sound.
SUB: Selects PIP frame sound.
INPUT1
PC
A
AUDIO OUT (PIP)
B
INPUT1
PC
A
B
Musical note ♪ is displayed on right side of the audio output
screen label.
Note: BASS, MID, TREBLE and SURROUND settings are memorized separately for each AUDIO MENU.
Helpful Hint (
/
NORMALIZE
Normalization)
While the “SOUND” menu is displayed, if either the N button on the remote control is pressed at any time or the ACTION
( ) button is pressed during “NORMALIZE”, then all adjustment values are returned to the factory settings.
24
PRESENT TIME SETUP / SET UP TIMER
The timer can switch the Plasma Display ON or OFF.
Before attempting Timer Set, confirm the PRESENT TIME OF DAY and adjust if necessary.
Then set POWER ON TIME / POWER OFF TIME.
1
2
SET UP
Press to display the SET UP menu.
Press to select SET UP TIMER or
PRESENT TIME SETUP.
2/2
SET UP TIMER
PRESENT TIME SETUP
Press to display the SET UP TIMER screen or PRESENT TIME SETUP screen.
PRESENT TIME SETUP
1
Press to select DAY or PRESENT TIME OF DAY.
2
Press to select SET.
PRESENT TIME SETUP
PRESENT TIME OF DAY MON 99:99
Press to set up DAY or PRESENT TIME OF DAY.
SET
button: Forward
MON
DAY
button: Back
99:99
PRESENT TIME OF DAY
Notes:
• Pressing “ ” or “ ” button once changes PRESENT TIME OF DAY 1 minute.
• Pressing “ ” or “ ” button continuously changes PRESENT TIME OF DAY by 15 minutes.
Press to store PRESENT TIME SETUP.
Notes:
• SET cannot be selected unless PRESENT TIME OF DAY is set.
• Unless setting the present time other than “99:99”, DAY setting is invalid.
• The settings of “DAY” and “PRESENT TIME OF DAY” are reset when leaving the display turned
off for about 7 days for the following reasons:
Pressing POWER switch of the unit to turn off the display.
Disconnecting the AC cord.
Interruption of power supply.
SET UP TIMER
1
Press to select POWER ON TIME / POWER OFF TIME.
button: Forward
button: Back
2
SET UP TIMER
Press to set up POWER ON TIME / POWER OFF TIME.
PRESENT TIME OF DAY 99:99
POWER ON FUNCTION
POWER ON TIME
POWER OFF FUNCTION
POWER OFF TIME
OFF
0:00
OFF
0:00
Notes:
• Pressing “ ” or “ ” button once changes POWER ON TIME
/ POWER OFF TIME 1 minute.
• Pressing “ ” or “ ” button continuously changes POWER ON TIME / POWER OFF
TIME by 15 minutes.
Press to select POWER ON FUNCTION / POWER OFF FUNCTION.
Press to select ON.
Note:
Timer function will not work unless “PRESENT TIME OF DAY” is set.
25
SCREENSAVER (For preventing image retention)
Do not display a still picture, especially in 4:3 mode, for any length of time.
If the display must remain on, a SCREENSAVER should be used.
1
Press to display the SET UP menu.
Press to select the SCREENSAVER.
2
Press to select the SCREENSAVER screen.
SET UP
1/2
SIGNAL
SCREENSAVER
COMPONENT/RGB-IN SELECT
RGB
PC
INPUT LABEL
POWER SAVE
OFF
STANDBY SAVE
OFF
POWER MANAGEMENT
OFF
AUTO POWER OFF
OFF
OSD LANGUAGE
ENGLISH (US)
SCREENSAVER
3
FUNCTION selection
Press to select the FUNCTION.
Press to select the desired function.
NEGATIVE IMAGE
SCROLLING BAR ONLY
WHITE SCREEN
OVERLAY SCROLLING BAR
4
5
MODE selection
NEGATIVE IMAGE
: A negative image will be displayed on the screen.
SCROLLING BAR ONLY : A white bar will scroll from left to right. The image won't be displayed.
OVERLAY SCROLLING BAR : The brightness of the image will be decreased and a white bar will scroll on it.
WHITE SCREEN
: The whole screen will be white.
Note: OVERLAY SCROLLING BAR is not effective during two screen display.
Press to select the
MODE.
Press to select each
mode items.
START setting
PRESENT TIME OF DAY 99:99
START
SCROLLING BAR ONLY
FUNCTION
OFF
MODE
6:15
START TIME
12:30
FINISH TIME
BRIGHT
SIDE BAR ADJUST
WOBBLING
OFF
PEAK LIMIT
OFF
Off
INTERVAL
: Operates when SHOW DURATION and SAVER
DURATION are set up and those times arrive.
TIME OF DAY : Operates when START TIME and FINISH TIME are
set up and those times arrive.
ON
: Operates when START is selected and the ACTION
( ) button is pressed.
When the MODE is set to ON, press to select START.
Press to start SCREENSAVER.
The menu screen will disappear and the SCREENSAVER will be activated. To stop the
SCREENSAVER under ON, press the R button or any buttons on the main unit.
Note: When the display is turned off, the SCREENSAVER will be deactivated.
Setup of SCREENSAVER Time
After selecting TIME OF DAY or INTERVAL, the relevant Time Setup will become available for selection and the Operating
Time may be set. (Time cannot be set when “MODE” is “ON” or “OFF”.)
Press to select START TIME / FINISH TIME (When TIME OF
DAY is selected).
Press to select SHOW DURATION / SAVER DURATION (When
INTERVAL is selected).
Press to setup.
button: Forward
button: Back
Notes:
• Pressing “ ” or “ ” button once changes the Time 1 minute.
[However, switching occurs every 15 minutes when Periodic Time is selected.]
• Pressing “ ” or “ ” button continuously changes the Time by 15 minutes.
Note: Timer function will not work unless “PRESENT TIME OF DAY” is set.
26
SCREENSAVER
PRESENT TIME OF DAY 15:00
START
SCROLLING BAR ONLY
FUNCTION
TIME OF DAY
MODE
6:15
START TIME
12:30
FINISH TIME
SCREENSAVER
PRESENT TIME OF DAY 15:00
START
SCROLLING BAR ONLY
FUNCTION
INTERVAL
MODE
12:00
SHOW DURATION
3:00
SAVER DURATION
SCREENSAVER (For preventing image retention)
Reduces screen image retention
These functions prevent the occurrence of an “image retention” on the display when turned ON.
WOBBLING: Automatically shifts the display image (therefore unnoticeable to the eye) to prevent image retention of
sharper contour of image.
ON1:
Shifts the image every 30 seconds.
ON2:
Shifts the image at a dot level pitch depending on screen-detection.
PEAK LIMIT: Suppresses image contrast (peak brightness).
Note: When a still picture is viewed for an extended time, the screen may become slightly darker. (see page 40)
Press to select “WOBBLING” or “PEAK LIMIT”.
SCREENSAVER
PRESENT TIME OF DAY 99:99
START
SCROLLING BAR ONLY
FUNCTION
OFF
MODE
6:15
START TIME
12:30
FINISH TIME
BRIGHT
SIDE BAR ADJUST
WOBBLING
OFF
PEAK LIMIT
OFF
Press to select “ON1”, “ON2” or “OFF” (WOBBLING).
“ON” or “OFF” (PEAK LIMIT).
SIDE BAR ADJUST
Do not display a picture in 4:3 mode for an extended period,
as this can cause an image retention to remain on the side
bars on either side of the display field.
To reduce the risk of such an image retention, illuminate the
side bars.
side bars
4:3 mode
retention
This function may be applicable to the non-picture area.
Non picture area
Picture out Picture
1
Press to select the SIDE BAR ADJUST.
Press to select OFF, DARK, MID, BRIGHT.
OFF
DARK
MID
BRIGHT
2
Press to exit from SCREENSAVER.
Picture and Picture
SCREENSAVER
PRESENT TIME OF DAY 99:99
START
SCROLLING BAR ONLY
FUNCTION
OFF
MODE
6:15
START TIME
12:30
FINISH TIME
BRIGHT
SIDE BAR ADJUST
WOBBLING
OFF
PEAK LIMIT
OFF
Notes:
• To reduce the occurrence of image retention, set the SIDE BAR ADJUST to BRIGHT.
• The side bar may flash (alternate black/white) depending on the picture being shown on the screen. Using Cinema mode
will reduce such flashing.
27
Reduces power consumption
• POWER SAVE:
• STANDBY SAVE:
• POWER MANAGEMENT:
• AUTO POWER OFF:
1
When this function is turned ON, luminous level of the Plasma Display is suppressed, so
power consumption is reduced.
When this function is turned ON, power consumption of the microcomputer is reduced during
power supply standby (see page 12, 14, 15), so standby power of the set is reduced.
When this function is set to ON, it operates under the following conditions to turn the power
on or off automatically.
When no pictures (sync signals) are detected for 30 or so seconds during PC IN signal
input:
→ Power is turned off (standby); the power indicator lights up orange.
The power is not turned off when the SYNC ON G sync signal has been detected.
When pictures (sync signals) are subsequently detected:
→ Power is turned on; the power indicator lights up green.
The power is not turned on when only the SYNC ON G sync signal has been
detected.
Notes:
• This function operates only during PC IN signal input.
• This function is invalid during input from PC Input Terminal Board (TY-42TM6P).
• This function is effective when “SYNC” is set to “AUTO”, “COMPONENT / RGB-IN SELECT”
is set to “RGB” and during normal viewing (one picture screen).
Equipment power supply is turned OFF when there is no signal.
When this is set to On, the power supply of the unit goes Off 10 minutes after the input
signals stop.
Notes:
• This function operates only during PC IN signal input.
• This function is effective when “SYNC” is set to “AUTO”, “COMPONENT / RGB-IN SELECT”
is set to “RGB” and during normal viewing (one picture screen).
Press to select
“POWER SAVE”
“STANDBY SAVE”
“POWER MANAGEMENT”
“AUTO POWER OFF”.
2
Press to select “ON” or “OFF”.
On
Off
3
Press to exit from SET UP.
28
SET UP
1/2
SIGNAL
SCREENSAVER
COMPONENT/RGB-IN SELECT
RGB
INPUT LABEL
PC
POWER SAVE
OFF
STANDBY SAVE
OFF
POWER MANAGEMENT
OFF
AUTO POWER OFF
OFF
OSD LANGUAGE
ENGLISH (US)
Customizing the Input labels
This function can change the label of the Input signal to be displayed.
Select the input signal which you would like to change its label before customizing the
Input labels. (see page 13, 15)
Press to select INPUT LABEL.
Press to change the INPUT LABEL.
Note:
While selecting a Input signal through Optional Terminal Board connected to Slot 1,
Slot 2 and Slot 3, the Input label will depend on each Optional Terminal Board.
SET UP
1/2
SIGNAL
SCREENSAVER
COMPONENT/RGB-IN SELECT
RGB
INPUT LABEL
PC
POWER SAVE
OFF
STANDBY SAVE
OFF
POWER MANAGEMENT
OFF
AUTO POWER OFF
OFF
OSD LANGUAGE
ENGLISH (US)
INPUT LABELS for Slot 1, Slot 2, Slot 3 and Mini D-sub:
[Slot1 Input]
INPUT1/VIDEO1/COMPONENT1/RGB1/DIGITAL1/PC1/DVD1/CATV1/VCR1/STB1
[Slot2 Input]
INPUT2/VIDEO2/COMPONENT2/RGB2/DIGITAL2/PC2/DVD2/CATV2/VCR2/STB2
[Slot3 Input]
INPUT3/VIDEO3/COMPONENT3/RGB3/PC3/DVD3/CATV3/VCR3/STB3
[PC (Mini D-sub) input] PC/COMPONENT/RGB/DVD/STB
When BNC Dual Video Terminal Board (TY-FB9BD) is used, an “A” or “B” is added at the end of each input label, depending
on the input selected (see below).
Addition sign
“A”
“B”
Selected Input
Composite
S VIDEO
29
SET UP for Input Signals
COMPONENT / RGB IN SELECT
Select to match the signals from the source connected to the COMPONENT / RGB input terminals.
Y, PB, PR signals
“COMPONENT”
RGB signals
“RGB”
1
2
SET UP
Press to select the “COMPONENT / RGB-IN SELECT”.
Press to select the desired mode.
COMPONENT
RGB
3
1/2
Press to display the SET UP menu.
SIGNAL
SCREENSAVER
COMPONENT/RGB-IN SELECT
RGB
INPUT LABEL
PC
POWER SAVE
OFF
STANDBY SAVE
OFF
POWER MANAGEMENT
OFF
AUTO POWER OFF
OFF
OSD LANGUAGE
ENGLISH (US)
Press to exit from adjust mode.
Notes:
• Selection may not be possible, depending on which optional board is installed.
• Make setting of the selected input terminal (SLOT1, SLOT2, SLOT3 or PC IN).
YUV / RGB IN SELECT
Select to match the signals from the source connected to the DVI input terminals.
YUV signals
“YUV”
RGB signals
“RGB”
1
2
SET UP
Press to select the “YUV / RGB-IN SELECT”.
Press to select the desired mode.
YUV
RGB
3
Press to exit from adjust mode.
Notes:
• Selection may not be possible, depending on which optional board is installed.
• Make setting of the selected input terminal (SLOT1 or SLOT2).
30
1/2
Press to display the SET UP menu.
SIGNAL
SCREENSAVER
YUV/RGB-IN SELECT
INPUT LABEL
POWER SAVE
STANDBY SAVE
POWER MANAGEMENT
AUTO POWER OFF
OSD LANGUAGE
RGB
PC
OFF
OFF
OFF
OFF
ENGLISH (US)
SET UP for Input Signals
SIGNAL menu
Note:
“SIGNAL” setup menu displays a different setting condition for each input signal.
1
2
SET UP
SIGNAL
SCREENSAVER
COMPONENT/RGB-IN SELECT
RGB
PC
INPUT LABEL
POWER SAVE
OFF
STANDBY SAVE
OFF
POWER MANAGEMENT
OFF
AUTO POWER OFF
OFF
OSD LANGUAGE
ENGLISH (US)
Press to display the SET UP menu.
Press to select the “SIGNAL”.
For VIDEO (S VIDEO)
Press to display the SIGNAL menu.
3
3D Y/C FILTER (NTSC)
COLOR SYSTEM
3 : 2 PULLDOWN
Panasonic AUTO (4 : 3)
REFRESH RATE
NOISE REDUCTION
Press to adjust the menu.
For RGB
[ VIDEO ]
SIGNAL
Press to select the menu to adjust.
4
Press to exit from adjust mode.
3 : 2 PULLDOWN
XGA MODE
REFRESH RATE
NOISE REDUCTION
H-FREQ. 63.98 kHz
V-FREQ. 60.02 Hz
SIGNAL FORMAT 1280×1024/60
AUTO
OFF
1024 × 768
100 Hz
OFF
H-FREQ. 63.98 kHz
V-FREQ. 60.02 Hz
SIGNAL FORMAT 1280×1024/60
For Digital
[ COMPONENT ]
OFF
1024 × 768
100 Hz
OFF
[ RGB ]
SIGNAL
SYNC
3 : 2 PULLDOWN
XGA MODE
REFRESH RATE
NOISE REDUCTION
ON
AUTO
OFF
4:3
100 Hz
OFF
For COMPONENT
SIGNAL
1/2
[ Digital ]
SIGNAL
3 : 2 PULLDOWN
REFRESH RATE
NOISE REDUCTION
OFF
100 Hz
OFF
H-FREQ. 63.98 kHz
V-FREQ. 60.02 Hz
SIGNAL FORMAT 1280×1024/60
3D Y/C FILTER – For NTSC AV images
Select “SIGNAL” from the “SET UP” menu during VIDEO (S VIDEO) input signal mode.
(“SIGNAL [VIDEO]” menu is displayed.)
Press to select the “3D Y/C FILTER (NTSC)”.
3D Y/C FILTER (NTSC)
ON
Press to set ON / OFF.
Note:
When ON, this setting only affects NTSC input signals.
31
SET UP for Input Signals
COLOR SYSTEM / Panasonic AUTO
Select SIGNAL from the “SET UP” menu during VIDEO (S VIDEO) input
signal mode.(“SIGNAL [VIDEO]” menu is displayed.)
Press to select the “COLOR SYSTEM” or “Panasonic AUTO”.
Press to select each function.
If the image becomes unstable:
With the system set on Auto, under conditions of low level
or noisy input signals the image may in rare cases become
unstable. Should this occur, set the system to match the format
of the input signal.
SIGNAL
3D Y/C FILTER (NTSC)
COLOR SYSTEM
3 : 2 PULLDOWN
Panasonic AUTO (4 : 3)
[ VIDEO ]
ON
AUTO
OFF
4:3
Mode
Function
COLOR SYSTEM Set the color system to match the input signal. When selecting “AUTO”, the color system is automatically
selected from NTSC/PAL/SECAM, however, M.NTSC signal is not displayed properly depending on
the attached terminal board. To display M.NTSC signal, select “M.NTSC” in COLOR SYSTEM.
AUTO
PAL
SECAM
M.NTSC
NTSC
Panasonic AUTO Set to “4:3” to view 4:3 images in an unchanged format when Panasonic AUTO is selected.
(4 : 3 )
If you would like to view 4:3 images in Just format, set to “JUST”.
Note:
Panasonic AUTO does not function when BNC Dual Video Terminal Board (TY-FB9BD) is used.
3:2 PULLDOWN
3:2 PULLDOWN: When ON, the display attempts to reproduce a more natural interpretation of sources such as movie
pictures, which are recorded at 24 frames per second.
If the picture is not stable, turn the setting to OFF.
Notes:
When ON, this setting only affects the following signal input:
• NTSC / PAL signal input during “VIDEO (S VIDEO)” input signal.
• 525i(480i), 625i(575i), 1125(1080)/60i signal input during “COMPONENT” input signal.
Press to select “3:2 PULLDOWN”.
3 : 2 PULLDOWN
OFF
Press to set ON/OFF.
XGA MODE
This menu is displayed when the input signal is Analogue (Component/PC). It allows switching between different XGA
signal settings for field angle/sampling.
Press to select “XGA MODE”.
Press to select “1024×768”, “1280×768” ,
“1366×768”.
32
XGA MODE
1024 × 768
SET UP for Input Signals
REFRESH RATE
This function sets the refresh rate of the display.
This menu is displayed when the input signal is 50 Hz system (50i, 50p, 25p, 24p, 24sF) of vertical scan rate.
100 Hz: Reduce screen flicker.
50 Hz: Enhance the resolution of moving images.
Note:
It is recommended to set to 100 Hz normally.
Press to select REFRESH RATE.
q
REFRESH RATE
100 Hz
Press to adjust.
NOISE REDUCTION
Sets the following three NR (Noise Reduction) functions together.
VIDEO NR, MOSQUITO NR, BLOCK NR
Press to select “NOISE REDUCTION”.
(
)
NOISE REDUCTION
OFF
(
)
NOISE REDUCTION
ADVANCED
Press to select “OFF”, “MIN”, “MID”, “MAX”,
“ADVANCED”.
Advanced NR
Sets the three NR functions separately.
1
Press to select “ADVANCED”.
▼
ADVANCED NR
Press to enter ADVANCED NR.
2
Press to select VIDEO NR,
MOSQUITO NR or BLOCK NR.
Press to select “OFF”, “MIN”, “MID”,
“MAX”.
VIDEO NR
MOSQUITO NR
BLOCK NR
ADVANCED NR
VIDEO NR
MOSQUITO NR
BLOCK NR
[ VIDEO ]
OFF
OFF
OFF
[ COMPONENT ]
OFF
OFF
OFF
ADVANCED NR
VIDEO NR
MOSQUITO NR
BLOCK NR
ADVANCED NR
VIDEO NR
MOSQUITO NR
BLOCK NR
[ RGB ]
OFF
OFF
OFF
[ Digital ]
OFF
OFF
OFF
VIDEO NR:
Automatically reduces unwanted picture noise.
MOSQUITO NR: Reduces mosquito noise around subtitles on MPEG videos.
BLOCK NR:
Reduces block noise when playing MPEG videos.
Notes:
• NOISE REDUCTION cannot be adjusted while a PC signal is being applied.
• BLOCK NR cannot be adjusted while a HD signal is being applied.
33
SET UP for Input Signals
SYNC
Select SIGNAL from the “SET UP” menu during RGB input signal.
Press to select the “SYNC”.
Press to adjust.
[ RGB ]
SIGNAL
SYNC
3 : 2 PULLDOWN
XGA MODE
AUTO
OFF
1024 × 768
Setting RGB sync signal
Confirm that the input is set to RGB INPUT (this setting is valid only for RGB INPUT
signal).
AUTO:
ON G:
VBS:
The H and V sync or synchronized signal are automatically selected.
If both input, it is selected the H and V sync.
Uses a synchronized signal on the Video G signal, which is input from
the G connector.
Uses a synchronized signal of Composite Sync input, which is input
from the HD connector.
SYNC
AUTO
SYNC
ON G
SYNC
VBS
Input signal display
Displays the frequency and the type of the current input signal.
This display is valid only for COMPONENT/RGB/PC and Digital input signal.
Display range:
Horizontal 15 - 110 kHz
Vertical
48 - 120 Hz
34
H-FREQ. 63.98 kHz
V-FREQ. 60.02 Hz
SIGNAL FORMAT 1280×1024/60
Options Adjustments
1
Options
Press to display the SET UP menu.
Weekly Command Timer
Press to select “OSD LANGUAGE”.
2
3
1/3
Onscreen display
Initial INPUT
Initial VOL level
Maximum VOL level
INPUT lock
Button lock
Remocon User level
Advanced PIP
On
Off
Off
0
Off
0
Off
Off
Off
Off
Press and hold until the Options menu is displayed.
Options
2/3
Press to select your preferred menu.
4
Off-timer function
Enable
Initial Power Mode
ID select
Remote ID
Serial ID
Normal
0
Off
Off
Press to adjust the menu.
5
3/3
Options
Slot power
Power On Screen Delay
Clock Display
All Aspect
Serial Slot Select
6
Off
Off
Off
Off
Slot1
Press to exit from Options menu.
Item
Adjustments
Weekly Command Timer Sets Weekly Command Timer. (see page 38)
On: Displays all the following on screen.
• Power on display
• Input signal switch display
Onscreen display
• No signal display
• Mute and the remaining time of off-timer after
was pressed.
Off: Hides all the items above from view.
Off
PC
INPUT1
INPUT2
INPUT3
Adjusts the input signal when the unit is turned on.
Notes:
• Only the adjusted signal is displayed. (see page 13)
Initial INPUT
• Signal can be displayed when the Terminal board is installed.
• This menu is available only when “INPUT lock” is “Off”.
• When a dual input terminal board is attached, A or B is displayed depending on the selected input signal.
(Ex. INPUT1A, INPUT1B)
Initial VOL level
Press
button to adjust the volume when the unit is turned on.
Off
On
Off: Sets normal volume.
On: Sets your preferred volume.
Notes:
• When “Maximum VOL level” is “On”, the volume can only be adjusted between 0 and your maximum range.
• You can hear the changed volume regardless of your volume setting before opening the options menu if
you adjust the volume when “Initial VOL level” is “On” and cursor is on the menu.
Maximum VOL level
Press
button to adjust the maximum volume.
Off
On
Off: Sets auto maximum volume.
On: Sets your preferred maximum volume.
Notes:
• If the “Maximum VOL level” is set lower than the “Initial VOL level”, the “Initial VOL level” automatically
becomes the same as the “Maximum VOL level”.
• The volume display can go up to 63 regardless of the settings.
• You can hear the changed volume regardless of your volume setting before opening the options menu if
you adjust the volume when “Maximum VOL level” is “On” and cursor is on the menu.
35
Options Adjustments
Item
Adjustments
INPUT lock
Off
PC
INPUT1
INPUT2
INPUT3
Locks the input switch operation.
Notes:
• Only the adjusted signal is displayed (see page 13).
• Signal can be displayed when the Terminal board is installed.
• Input switch can be used when this is set to “Off”.
• In two screen display mode, if anything other than “Off” is set, the value will be fixed as the value input in
the single screen display mode.
• When a dual input terminal board is attached, A or B is displayed depending on the selected input signal.
(Ex. INPUT1A, INPUT1B)
Button lock
Off
MENU&ENTER
On
Off: All the buttons on main unit can be used.
MENU&ENTER: Locks
and
buttons on main unit.
On: Locks all the button on main unit.
Sets Button lock with the unit buttons in the following procedure.
Off: Press four times→Press
four times→Press four times→Press
MENU&ENTER: Press
four times→Press four times→Press
four times→Press
On: Press four times→Press
four times→Press four times→Press
MENU
ENTER/
ENTER/
INPUT
ENTER/
INPUT
ENTER/
Remocon User level
Advanced PIP
Off-timer function
Initial Power Mode
ID select
Remote ID
Serial ID
Slot Power
36
ENTER/
ENTER/
Off
User1
User2
User3
Off: You can use all of the buttons on the remote control.
User1: You can only use
, , ,
, ,
buttons on the remote control.
button on the remote control.
User2: You can only use
User3: Locks all the buttons on remote control.
Off: Sets normal two screen display mode (see page 17).
On: Sets Advanced PIP mode (see page 18).
Notes:
• When “INPUT lock” is “On”, you cannot use all the two screen display functions.
• ,
buttons are unavailable during Advanced PIP mode operation.
Enable: Enables the “Off-timer function”.
Disable: Disables the “Off-timer function”.
Note:
When “Disable” is set, the Off-timer is cancelled.
Normal
Standby
On
Sets the power mode of the unit for when the power recovers from failure or after plugging off and in again.
Normal: Power returns in as the same state as before the power interruption.
Standby: Power returns in standby mode. (Power Indicator : red/orange)
On:
Power returns in power On. (Power Indicator : green)
Note:
When using multiple displays, “Standby” is preferred to be set in order to reduce a power load.
Sets panel ID number when panel is used in “Remote ID” or “Serial ID”.
Set value range: 0 - 100
(Standard value: 0)
The setting of this menu is valid only when using ID remote control.
Off: Disables ID remote control functions. You can use normal remote control operations.
On: Enable ID remote control functions.
Sets the panel ID Control.
Off: Disables external control by the ID.
On: Enables the external control by the ID.
Off
Off:
Auto:
On:
Note:
Auto
On
Power is not transmitted to the slot power.
Power is transmitted to the slot power only when main power is on.
Power is transmitted to the slot power when main power is on or in the standby state.
In some cases, power is transmitted to the slot power when main power is on or in the standby state
regardless of the slot power setting.
Options Adjustments
Item
Adjustments
Power On Screen
Delay
Off
1
2
3....
30
You can set the power-on delay time of the displays to reduce the power load, when you press POWER switch
to turn on the multiple displays that are set together.
Set each display’s setting individually.
Off:
The display will be turned on at the same time as POWER switch is pressed.
1 to 30 (sec.): Set the power-on delay time (second).
After pressing POWER switch, the display will be powered on with time delay depending on this
setting.
Notes:
• During this function is working, the power indicator is blinking green.
• This function also works when the power recovers from failure or after plugging off and in again the power
cord.
After you unplug and plug the power cord in while the unit is in standby mode and also the power is being
supplied to a terminal board, the unit will start supplying the power to the board with time delay according
to the setting.
The power indicator lights up red first and it turns orange when the power starts being supplied to the
board.
Off: Not display the clock.
On: Display the clock.
The clock is displayed at the lower left of the screen when
button is pressed.
Clock Display
10:00
Note: When “PRESENT TIME SETUP” is not set, the clock is not displayed even if “Clock Display” is “On”
(see page 25)
All Aspect
Sets All Aspect mode (advanced aspect setting) or default aspect mode.
With each press of
button, the aspect changes in the selected mode.
Off: Default aspect mode
On: All Aspect mode
Aspect mode of each setting is as follows:
(Example: HD signal)
Off
4:3→H-FILL→ZOOM→FULL→JUST
On
4:3 (1)→4:3 (2)→4:3 Full→Zoom1→Zoom2→Zoom3→16:9→14:9→Just1→Just2
Serial Slot
Select
Slot1
Slot2
Slot3
Selects the slot which communicates serial.
Note: The setting of an external command can be set only from the fixed serial terminal. (see page 11)
Normalization
When both main unit buttons and remote control are disabled due to the “Button lock”, “Remocon User level” or “Remote
ID” adjustments, set all the values “Off” so that all the buttons are enabled again.
Press the
button on main unit together with
button on the remote control and hold for more than 5 seconds. The
“SHIPPING” menu is displayed and the lock is released when it disappears.
37
Options Adjustments
Weekly Command Timer
You can set 7-day timer programming by setting time and command.
Note:
Before setting Weekly Command Timer, set PRESENT TIME SETUP. (see page 25)
Press to select Function.
1
Options
Press to select “On”.
1/3
Weekly Command Timer
On
Onscreen display
Note:
• When Function is set to On, SET UP TIMER
(see page 25) is unavailable and INTERVAL
/ TIME OF DAY in MODE of SCREENSAVER
(see page 26) cannot be selected.
Press ACTION ( ) button
Weekly Command Timer
Press to select a day.
2
Function
On
Monday
Tuesday
Program1
Program3
Wednesday
Thursday
Friday
Saturday
Sunday
Program Edit
Press to select a program number.
Note:
• You can set the program from 1 to 7.
--- indicates unset.
--Program3
--Program6
Program4
Program number
y
Thursday
Friday
Saturday
Sunday
Program Edit
Press to select Program Edit.
3
Program4
Program
8:00
01
10:30
02
--:-03
--:-04
--:-05
12:00
06
9:12
07
--:-08
Press to change the program numbers (1-7).
Press to select a command number.
Press to show the previous / next command
pages (1-8) of the selected program.
1
PON
IMS:SL1
------DAM:ZOOM
AVL:10
---
Press to show the command setting screen.
1/8
Weekly Command Timer
Program
01
02
03
04
05
06
07
08
1
8:00
10:30
PON
IMS:SL1
--:--
---
--:--
---
--:--
---
12:00
9:12
--:--
DAM:ZOOM
AVL:10
---
Command (--- indicates unset)
Set time of timer (--:-- indicates unset)
Command numbers
38
1/8
Weekly Command Timer
Press to select Program.
5
--Program6
Program Edit screen
Press to show the Program Edit screen.
4
Program3
8/8
Weekly Command Timer
Program
57
58
59
60
61
62
63
64
1
20:00
AVL:00
20:30
22:00
DAM:NORM
POF
--:--
---
--:--
---
--:--
---
--:--
---
--:--
---
Options Adjustments
Press to select Command No.
6
Press to select a command number.
Command setting screen
Weekly Command Timer
Program
1
Command No
Time
Command
Press to select Time / Command.
7
02
10:30
IMS:SL1
Weekly Command Timer
Program
1
Press to set each item.
02
Command No
Time: Set the time to execute a command program.
10:30
Time
IMS:SL1
Command
Pressing “ ” or “ ” button once changes “Time” 1
minute.
Pressing “ ” or “ ” button continuously changes “Time” by 15 minutes.
Command:Select a command to execute at the set time. This unit has 64 commands to set. (see
page 43)
Notes:
• Command is performed in order of execution time, regardless of the command number.
• If a command execution time overlaps with that of other commands, these commands are
performed in number order.
• Pressing , Time becomes --:-- and Command becomes ---.
Note:
Press
to return to the previous screen.
Shipping condition
This function allows you to reset the unit to the factory setting.
1
SET UP
1/2
Press to display the SET UP menu.
2
Press to select “OSD LANGUAGE”.
3
Press and hold till the SHIPPING menu is displayed.
4
Press to select “YES”.
SIGNAL
SCREENSAVER
COMPONENT/RGB-IN SELECT
RGB
INPUT LABEL
PC
OFF
POWER SAVE
OFF
STANDBY SAVE
POWER MANAGEMENT
OFF
AUTO POWER OFF
OFF
OSD LANGUAGE
ENGLISH (US)
SHIPPING
YES
Press to confirm.
[from the unit]
1 Press the MENU button till the SET UP menu is displayed.
2 Press the Volume Up “+” or Down “–” button to select “OSD LANGUAGE”.
3 Press and hold the ENTER button till the SHIPPING menu is displayed.
4 Press the Volume Up “+” or Down “–” button to select “YES”.
5 Press the ENTER button and wait for 10 sec.
Note:
Press the R button to return to SET UP menu when SHIPPING menu is displayed.
39
Troubleshooting
Before you call for service, determine the symptoms and make a few simple checks as shown below.
Symptoms
Checks
Sound
Interference
Noisy Sound
Electrical Appliances
Cars / Motorcycles
Fluorescent light
Normal Picture
No Sound
Volume
(Check whether the mute function has been activated on the remote control.)
No Picture
No Sound
Not plugged into AC outlet
Not switched on
PICTURE and BRIGHTNESS/Volume setting
(Check by pressing the power switch or stand-by button on the remote control.)
No Picture
Normal Sound
If a signal with a non-applicable color system format, or frequency is input, only the input
terminal indication is displayed.
No Color
Normal Sound
Color controls set at minimum level. (see page 22, 23)
COLOR SYSTEM (see page 32)
No remote control operations can be performed.
A cracking sound is sometimes heard from the unit.
The top or bottom of the picture on the screen is cut
off when I use the zoom function.
Areas at the top and bottom of the screen where
the image is missing appear when I use the zoom
function.
Check whether the batteries have discharged completely and, if they have not, whether they
were inserted properly.
Check whether the remote control sensor is exposed to an outdoor light or a strong fluorescent
light.
Check whether the remote control designed specifically for use with the unit is being used.
(The unit cannot be operated by any other remote control.)
If there is nothing wrong with the picture or sound, this is the sound of the cabinet undergoing
very slight contractions in response to changes in the room temperature. There are no adverse
effects on the performance or other aspects.
Adjust the position of the picture on the screen.
When using a video software program (such as a cinema size program) with a screen wider
than one in the 16:9 mode, blank areas separate from the images are formed at the top and
bottom of the screen.
I can hear sounds coming from inside the unit.
When the power is turned on, a sound of the display panel being driven may be heard: This is
normal and not indicative of malfunctioning.
This Plasma Display uses special image processing. Hence a slight time lag may occur between image and audio, depending on the type of input
signal. However, this is not a malfunction.
Plasma Display panel
Symptoms
Check
The screen darkens slightly when bright pictures with
minimal movements are shown.
The screen will darken slightly when photos, still images of a computer or other pictures with
minimal movements are shown for an extended period. This is done to reduce image retention
on the screen and the shortening of the screen’s service life: It is normal and not indicative of
malfunctioning.
The unit digitally processes the various signals in order to reproduce esthetically pleasing
images. As such, it sometimes takes a few moments for the picture to appear when the power
has been turned on, when the input has been switched or when the images for the main picture
and sub picture on the two screens are swapped.
Due to the characteristics of the system used to drive the panel, the edges may appear to flicker
in the fast-moving parts of the images: This is normal and not indicative of malfunctioning.
It takes a while for the picture to appear.
The edges of the images flicker.
The brightness on both sides of images in 4:3 mode
changes.
Some parts of the screen do not light up.
Image retention appears
40
When viewing the side panels at the “BRIGHT” or “MID” setting, the brightness on both sides
may change depending on the kind of program shown: This is normal and not indicative of
malfunctioning.
The plasma display panel is manufactured using an extremely high level of precision technology,
however, sometimes some parts of the screen may be missing picture elements or have luminous
spots. This is not a malfunction.
Do not allow a still picture to be displayed for an extended period, as this can cause a permanent
image retention to remain on the Plasma Display.
Examples of still pictures include logos, video games, computer images, teletext and images
displayed in 4:3 mode.
Note:
The permanent image retention on the Plasma Display resulting from fixed image use is not
an operating defect and as such is not covered by the Warranty.
This product is not designed to display fixed images for extended periods of time.
List of Aspect Modes
Aspect mode
All Aspect: Factory setting
On
All Aspect: Off
16:9
14:9
FULL
JUST
JUST
Pictures with a 4:3 aspect ratio are enlarged horizontally
so that the picture distortion is minimized. The left and right
edges of the pictures are cut off. The display of the areas
around the left and right edges of the screen is slightly
elongated.
4:3
4:3 (1)
4:3
H-FILL
Zoom
ZOOM
Zoom1
Zoom2
Zoom3
The display of the pictures fills the screen.
In the case of SD signals, pictures with a 4:3 aspect ratio are
enlarged horizontally, and displayed. This mode is suited to
displaying anamorphic pictures with a 16:9 aspect ratio.
Pictures with a 4:3 aspect ratio are enlarged horizontally
so that the picture distortion is minimized. The display of
the areas around the left and right edges of the screen is
slightly elongated.
4:3
4:3 Full
Description
–
Just1
4:3 (2)
Enlarged screen
Letterbox pictures with a 14:9 aspect ratio are enlarged
vertically and horizontally so that their display fills the
screen vertically and is slightly smaller than the screen
horizontally. The top and bottom edges of the pictures are
cut off. Side panels are displayed at the left and right edges
of the screen.
Just
Just2
Pictures with a 4:3 aspect ratio are displayed with their
original aspect ratio. Side panels are displayed at the left
and right edges of the screen.
Pictures with a 4:3 aspect ratio are displayed with their
original aspect ratio. The left and right edges of the pictures
are masked by side panels.
Pictures with a 4:3 aspect ratio are enlarged horizontally so
that their display fills the screen. The left and right edges of
the pictures are cut off.
Letterbox pictures with a 16:9 aspect ratio are enlarged
vertically and horizontally so that their display fills the screen.
The top and bottom edges of the pictures are cut off.
ZOOM
Letterbox pictures with a 16:9 aspect ratio are enlarged
vertically and horizontally so that their display fills the screen.
The top and bottom edges as well as the left and right edges
of the pictures are cut off.
–
Letterbox pictures with a 2.35:1 aspect ratio are enlarged
vertically and horizontally so that their display fills the screen
vertically and is slightly larger than the screen horizontally.
The top and bottom edges as well as the left and right edges
of the pictures are cut off.
41
PC input signals
Applicable input signals for Mini D-sub 15P (Component) / Mini D-sub 15P (RGB) (* Mark)
Signal name
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
525 (480) / 60i
525 (480) / 60p
625 (575) / 50i
625 (575) / 50p
750 (720) / 60p
750 (720) / 50p
1,125 (1,080) / 60p
1,125 (1,080) / 60i
1,125 (1,080) / 50p
1,125 (1,080) / 50i
1,125 (1,080) / 24sF
1,125 (1,080) / 30p
1,125 (1,080) / 25p
1,125 (1,080) / 24p
1,250 (1,080) / 50i
640 × 400 @70 Hz
640 × 480 @60 Hz
640 × 480 @72 Hz
640 × 480 @75 Hz
640 × 480 @85 Hz
852 × 480 @60 Hz
800 × 600 @56 Hz
800 × 600 @60 Hz
800 × 600 @72 Hz
800 × 600 @75 Hz
800 × 600 @85 Hz
1,024 × 768 @60 Hz
1,024 × 768 @70 Hz
1,024 × 768 @75 Hz
1,024 × 768 @85 Hz
1,152 × 864 @75 Hz
1,280 × 768 @60 Hz
1,280 × 960 @60 Hz
1,280 × 960 @85 Hz
1,280 × 1,024 @60 Hz
1,280 × 1,024 @75 Hz
1,280 × 1,024 @85 Hz
1,600 × 1,200 @60 Hz
1,600 × 1,200 @65 Hz
1,066 × 600 @60 Hz
1,366 × 768 @60 Hz
Macintosh13” (640 × 480)
Macintosh16” (832 × 624)
Macintosh21” (1,152 × 870)
Horizontal
frequency
(kHz)
15.73
31.47
15.63
31.25
45.00
37.50
67.50
33.75
56.26
28.13
27.00
33.75
28.13
27.00
31.25
31.46
31.47
37.86
37.50
43.27
31.47
35.16
37.88
48.08
46.88
53.67
48.36
56.48
60.02
68.68
67.50
47.70
60.00
85.94
63.98
79.98
91.15
75.00
81.25
37.64
48.36
35.00
49.72
68.68
Vertical
frequency
(Hz)
59.94
59.94
50.00
50.00
60.00
50.00
60.00
60.00
50.00
50.00
47.92
30.00
25.00
24.00
50.00
70.07
59.94
72.81
75.00
85.01
59.94
56.25
60.32
72.19
75.00
85.06
60.00
70.07
75.03
85.00
75.00
60.00
60.00
85.00
60.02
75.03
85.02
60.00
65.00
59.94
60.00
66.67
74.54
75.06
Dot clock
frequency
(MHz)
13.5
27.0
13.5
27.0
74.25
74.25
148.5
74.25
148.5
74.25
74.25
74.25
74.25
74.25
74.25
25.17
25.18
31.5
31.5
36.0
33.54
36.0
40.0
50.0
49.5
56.25
65.0
75.0
78.75
94.5
108.0
80.14
108.0
148.5
108.0
135.0
157.5
162.0
175.5
53.0
86.71
30.24
57.28
100.0
Mini D-sub 15P
(Component)
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
Mini D-sub 15P
(RGB)
* ∗4
*
*
*
*
* ∗1
* ∗1
* ∗1
* ∗1
* ∗2
* ∗1
* ∗1
* ∗1
* ∗3
*
* ∗5
*
*
*
* ∗5
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
∗1: Based on SMPTE 274M standard.
∗2: Based on SMPTE RP211 standard.
∗3: Based on SMPTE 295M standard.
∗4: When selected the RGB format and 525p signal input to the Mini D-sub 15P terminal, it is recognized as VGA 60Hz signal.
∗5: When inputted VGA 60Hz format signal from the other than Mini D-sub 15P terminal, it is recognized as 525p signal.
Note: Signals without above specification may not be displayed properly.
42
Command list of Weekly Command Timer
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
Command
AAC:MENCLR
AAC:MENDYN
AAC:MENSTD
AAC:SURMON
AAC:SUROFF
AMT:0
AMT:1
ASO:M
ASO:S
AVL:00
AVL:10
AVL:20
AVL:30
AVL:40
AVL:50
AVL:60
DAM:FULL
DAM:JUST
DAM:NORM
DAM:SELF
DAM:ZOOM
DWA:OFF
DWA:OVL1
DWA:OVL2
DWA:OVL3
DWA:OVL4
DWA:OVL5
DWA:OVL6
DWA:OVLOF
DWA:OVLON
DWA:PIN0
DWA:PIN1
DWA:PIN2
DWA:PIN3
DWA:PIP
DWA:POP
DWA:SWP
DWA:TWN
IMS:PC1
IMS:SL1
IMS:SL1A
IMS:SL1B
IMS:SL2
IMS:SL2A
IMS:SL2B
IMS:SL3
ISS:PC1
ISS:SL1
ISS:SL1A
ISS:SL1B
ISS:SL2
ISS:SL2A
ISS:SL2B
ISS:SL3
OSP:SCR0
OSP:SCR1
POF
PON
SSC:FNC0
SSC:FNC1
SSC:MOD0
SSC:MOD3
VMT:0∗
VMT:1∗
Control details
Audio Menu (Clear)
Audio Menu (Dynamic)
Audio Menu (Standard)
Surround (ON)
Surround (OFF)
Audio Mute (OFF)
Audio Mute (ON)
Audio out when PIP mode (Main Picture)
Audio out when PIP mode (Sub Picture)
Audio Volume (00)
Audio Volume (10)
Audio Volume (20)
Audio Volume (30)
Audio Volume (40)
Audio Volume (50)
Audio Volume (60)
Aspect (FULL)
Aspect (JUST)
Aspect (4:3)
Aspect (Panasonic Auto)
Aspect (ZOOM)
Dual Picture mode (OFF)
Advanced PIP mode (1) (see page 18)
Advanced PIP mode (2) (see page 18)
Advanced PIP mode (3) (see page 18)
Advanced PIP mode (4) (see page 18)
Advanced PIP mode (5) (see page 18)
Advanced PIP mode (6) (see page 18)
Advanced PIP mode (OFF) (normal two screen display mode)
Advanced PIP mode (ON)
The location of the sub picture (lower right)
The location of the sub picture (lower left)
The location of the sub picture (upper left)
The location of the sub picture (upper right)
Dual Picture mode (Picture in Picture)
Dual Picture mode (Picture out Picture)
Swap main picture and sub picture when PIP mode
Dual Picture mode (Picture and Picture)
Input select (PC1) (Main Picture when PIP mode)
Input select (SLOT1) (Main Picture when PIP mode)
Input select (SLOT1A) (Main Picture when PIP mode)
Input select (SLOT1B) (Main Picture when PIP mode)
Input select (SLOT2) (Main Picture when PIP mode)
Input select (SLOT2A) (Main Picture when PIP mode)
Input select (SLOT2B) (Main Picture when PIP mode)
Input select (SLOT3) (Main Picture when PIP mode)
Sub Picture Input Select (PC1)
Sub Picture Input Select (SLOT1)
Sub Picture Input Select (SLOT1A)
Sub Picture Input Select (SLOT1B)
Sub Picture Input Select (SLOT2)
Sub Picture Input Select (SLOT2A)
Sub Picture Input Select (SLOT2B)
Sub Picture Input Select (SLOT3)
Screen Saver SCROLLING BAR ONLY (OFF)
Screen Saver SCROLLING BAR ONLY (ON)
Power OFF
Power ON
Screen Saver function (SCROLLING BAR ONLY)
Screen Saver function (NEGATIVE IMAGE)
Screen Saver (Mode (OFF))
Screen Saver (Mode (ON))
Picture Mute (OFF)
Picture Mute (ON)
∗ Picture Mute cannot be unlocked by powering off/on with the remote control. Turn off and on again with the button on
the unit or enter the command VMT:0 to unlock Picture Mute.
43
Specifications
TH-37PR11UK/H
Power Source
Power Consumption
Power on
Stand-by condition
Power off condition
Plasma Display panel
Screen size
(No.of pixels)
Operating condition
Temperature
Humidity
Applicable signals
Scanning format
PC signals
Connection terminals
PC IN
SERIAL
Accessories Supplied
Fixing band
Dimensions (W × H × D)
Mass (weight)
Sound
Speaker
Audio Output
TH-42PR11UK/H
110 - 127 V AC, 50/60 Hz
315 W
Save OFF 1.5 W, Save ON 0.6 W
0.2 W
Drive method : AC type 37-inch,
16:9 aspect ratio
32.2” (819 mm) (W) × 17.9” (457 mm) (H)
× 36.9” (938 mm) (diagonal)
737,280 (1,024 (W) × 720 (H))
[3,072 × 720 dots]
365 W
Save OFF 1.5 W, Save ON 0.6 W
0.2 W
Drive method : AC type 42-inch,
16:9 aspect ratio
36.2” (922 mm) (W) × 20.4” (518 mm) (H)
× 41.6” (1,057 mm) (diagonal)
786,432 (1,024 (W) × 768 (H))
[3,072 × 768 dots]
32 °F - 104 °F (0 °C - 40 °C)
20 % - 80 %
525 (480) / 60i · 60p, 625 (575) / 50i · 50p, 750 (720) / 60p · 50p, 1125 (1080) / 60i · 60p · 50i · 50p
· 24p · 25p · 30p · 24sF, 1250 (1080) / 50i
VGA, SVGA, XGA,
VGA, SVGA,
SXGA, UXGA ···· (compressed)
XGA, SXGA, UXGA ···· (compressed)
Horizontal scanning frequency 15 - 110 kHz
Horizontal scanning frequency 15 - 110 kHz
Vertical scanning frequency 48 - 120 Hz
Vertical scanning frequency 48 - 120 Hz
Y or G with sync 1.0 Vp-p (75 Ω)
Y or G without sync 0.7 Vp-p (75 Ω)
B/PB/CB: 0.7 Vp-p (75 Ω)
R/PR/CR: 0.7 Vp-p (75 Ω)
HD/VD: 1.0 - 5.0 Vp-p (high impedance)
AUDIO IN (M3 JACK)
0.5 Vrms
EXTERNAL CONTROL TERMINAL (D-SUB 9PIN)
RS-232C COMPATIBLE
(HIGH-DENSITY MINI D-SUB 15PIN)
TMME203 × 1
36.1” (917 mm) × 25.4” (644 mm) × 3.7” (95 mm) 40.2” (1,020 mm) × 27.8” (705 mm) × 3.7” (95 mm)
(4.3” (109 mm) when including protruding portion of slots) (4.3” (109 mm) when including protruding portion of slots)
approx. 52.9 lbs
approx. 59.5 lbs
4.8 ” (120 mm) × 2.4 ” (60 mm) × 2 pcs, 8 Ω
20W [10 W + 10 W] (10 % THD)
Note:
Design and specifications are subject to change without notice. Mass and dimensions shown are approximate.
44
(for the U.S.A)
Panasonic Professional Display Company
Unit of Panasonic Corporation of
North America
One Panasonic Way 1F-10
Secaucus, NJ 07094
Panasonic Puerto Rico, Inc.
Ave. 65de Infanteria, Km.9.5
San Gabriel Industrial Park
Carolina, Puerto Rico 00985
Panasonic Professional Flat Panel Display
Limited Warranty
Panasonic Professional Display Company or
Panasonic Puerto Rico, Inc. (collectively referred to as
“the Warrantor”) will repair this product and all included
accessories with new or refurbished parts, free of charge
in the USA or Puerto Rico, of the original purchase in
the event of a defect in materials or workmanship as
follows:
Models or Parts
Part
Warranty
Labor
Warranty
inadequate signal pickup, maladjustment of consumer
controls, improper operation, power line surge, improper
voltage supply, lighting damage, or service by anyone
other than an authorized repair facility, or damaged this
attributable to acts of God.
LIMITS AND EXCLUSIONS
There are no express warranties except as listed above.
THE WARRANTOR SHALL NOT BE LIABLE FOR
INCIDENTAL OR CONSEQUENTIAL DAMAGES
(INCLUDING, WITHOUT LIMITION, DAMAGE
On-site or carry-in service in the USA may be obtained TO DISCS) RESULTING FROM THE USE OF THIS
during the warranty period by contacting Panasonic PRODUCT, OR ARISING OUT OF ANY BREACH OF
Professional Display Company Service toll free at THE WARRANTY. ALL EXPRESS AND IMPLIED
1-888-VIEW-PTV (1-888-843-9788).
WARRANTIES, INCLUDING THE WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR
PARTICULAR PURPOSE, ARE LIMITED TO THE
For service in Puerto Rico call 787-750-5135.
APPLICABLE WARRANTY PERIOD SET FORTH
ABOVE.
Professional Flat
Panel Display
2 Years
2 Years
This warranty is extended only to the original purchaser
and is non transferable. A purchase receipt or other
proof of date of original purchase will be required before
warranty service is rendered.
This warranty only covers failures due to defects in
materials or workmanship, which occur during normal
use. The warranty does not cover damage which occur
in shipment, or failures which are caused by products
not supplied by the warrantor, or failures which result
installation, set-up adjustments, improper antenna,
Some states do not allow the exclusion or limitation
of incidental or consequential damages, or limitations
on how long an implied warranty lasts, so the above
exclusions or limitations may nor apply to you. This
warranty gives you specific legal rights and you may
other rights, which vary from state to state.
If you have a problem with this product that is not
handled to your satisfaction, then write the Consumer
Affairs Department at the Company address indicated
above.
In the USA
FOR SERVICE
CALL TOLL FREE
1-888-VIEW-PTV
(1-888-843-9788)
In Puerto Rico
For service call 787-750-5135
45
(for Canada)
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3
LIMITED WARRANTY STATEMENT
Panasonic Canada Inc. (also known as PCI) warrants this product to be free of
defects in material and workmanship under normal use during the applicable
warranty coverage period described below. PCI agrees to repair, or at its option,
exchange, any part that becomes defective. However, the product must be
purchased and serviced in Canada. The product or part that shows evidence of
defect must be delivered prepaid or carried in to an authorized Panasonic Broadcast
Service Center. This warranty does not cover shipping costs.
The warranty coverage period is one year for both parts and labour beginning with
the date of original end user purchase, subject to the exceptions as stated below.
Repaired or replacement parts supplied during the warranty coverage period carry
the unexpired portion of the original warranty coverage period. Proof of product
purchase is a condition of warranty service. The owner must produce the product
purchase receipt or other satisfactory evidence of date of original purchase.
This warranty does not apply to external appearance items, such as handles, knobs,
safety windows, etc. This warranty does not apply to any part, or parts, of the
product, installed, altered, repaired or misused in any way that, in the opinion of PCI,
affects the reliability of or detracts from the performance of the product.
For products requiring routine preventive maintenance, that maintenance must be
performed in order to maintain warranty coverage.
Serial numbers that have been altered, defaced or removed void this warranty. This
warranty does not cover replacements or repairs necessitated by loss or damage
resulting from any cause beyond the control of PCI.
Marking or retained images (sometimes called “burn-in”) resulting from the display of
fixed images on video display products are not defects and are not covered under
this warranty.
THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR
ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES.
In certain instances, some jurisdictions do not allow the exclusion or limitation of
incidental or consequential damages, or the exclusion of implied warranties, so the
above limitations and exclusions may not be applicable.
46
WARRANTY COVERAGE PERIOD EXCEPTIONS
Item
Video Tape
P2/SD Cards
Video Heads
D5 Video heads
Parts
30 days—Replacement only
(content not covered)
(Content not covered)
1 year or 2,000 hrs. (prorated)
Whichever comes first
1 year or 1,000 hrs.
Whichever comes first
90 days
2 years
Maintenance Items
Colour Camera CCD
Imaging Block
BT-H Series LCD Monitors 2 years
3 years or 17,000 hrs.
* DLP™ Projectors
Whichever comes first
3 years or 2,500 hrs.
* LCD Projectors above
Whichever comes first
2,500 ANSI Lumens
3 years or 1,500 hrs.
* LCD Projectors below
Whichever comes first
2,500 ANSI Lumens
50% of the rated lamp life or 1 year.
Projector Lamps
Whichever comes first
103 inch Plasma displays 3 year (burn-in not covered)
1 year plus balance (if any) of
Hard Drive Disk Unit
the original Manufacturer’s
Limited Warranty.
(Content not covered)
Labour
N/A
N/A
1 year or 2,000 hrs.
Whichever comes first
1 year or 1,000 hrs.
Whichever comes first
90 days
1 year
1 year
3 years or 17,000 hrs.
Whichever comes first
3 years or 2,500 hrs.
Whichever comes first.
3 years or 1,500 hrs.
Whichever comes first
50% of the rated lamp life or 1 year.
Whichever comes first.
3 year
1 year
• Dust, smoke, rental/staging environment and twenty-four/seven operation,
dramatically decreases the interval between performances of routine preventive
maintenance required to maintain this warranty coverage.
Warranty Service
If the product needs to be shipped for service, carefully pack (preferably in the
original carton) and enclose a letter, detailing the complaint. Send prepaid and
adequately insured to the local authorized Panasonic Service Centre in your
area or to Panasonic Technical Support and Product Services Department, 5770
Ambler Drive, Mississauga, Ontario, L4W 2T3. Shipping to the latter location
requires a return authorization before shipment. No liability is assumed for loss
or damage to the product while in transit.
47
Note
48
Note
49
Customer’s Record
The model number and serial number of this product can be found on its back cover. You should note this serial number
in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase
to aid in identification in the event of theft or loss, and for Warranty Service purposes.
Model Number
Serial Number
© 2008 Matsushita Electric Industrial Co., Ltd. All Rights Reserved.
Panasonic Professional Display Company
Unit of Panasonic Corporation of North America
Executive Office :
One Panasonic Way 1F-10, Secaucus, NJ 07094
EASTERN ZONE : One Panasonic Way 4E-7 Secaucus, NJ 07094 (201) 348-7621
Mid-Atlantic/New England : One Panasonic Way 4E-7 Secaucus, NJ 07094 (201) 348-7621
Southeast Region : 1225 Northbrook Parkway, Ste 1-160 Suwanee GA 30024 (770)338-6835
Central Region : 1707 N Randall Road E1-C-1, Elgin, IL 60123 (847)468-5200
WESTERN ZONE : 3330 Cahuenga Blvd W., Los Angeles, CA 90068 (323) 436-3500
Dallas Region : 6226 Abington Way, Houston, TX 77008 (713) 802-2726
No. CA/Northwest Region : 5870 Stone Ridge, #3, Pleasanton, CA (925) 416-5108
Government Marketing Department : 52 West Gude Drive, Rockville, MD 20850 (301) 738-3840
Panasonic Canada Inc.
5770 Ambler Drive
Mississauga, Ontario
L4W 2T3
Printed in U.S.A.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
