Sony Satellite TV System SAT-W60 User manual

Sony Satellite TV System SAT-W60 User manual
4-079-943-22

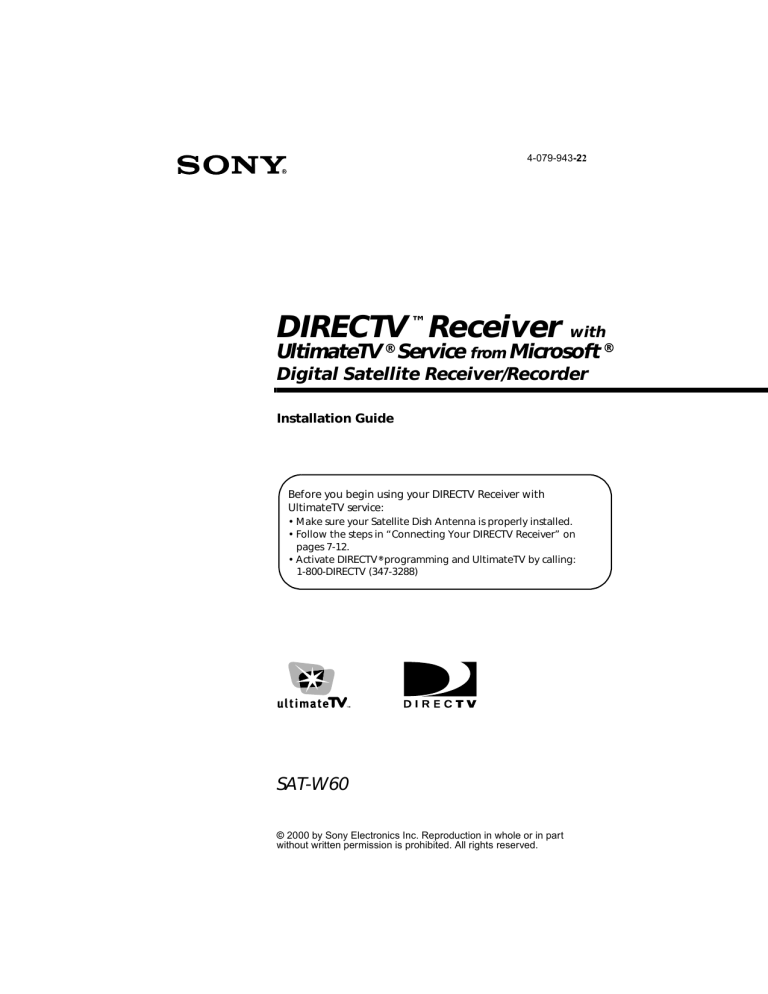

DIRECTV ™ Receiver
with
UltimateTV Service from Microsoft ®
®
Digital Satellite Receiver/Recorder
Installation Guide
Before you begin using your DIRECTV Receiver with
UltimateTV service:
• Make sure your Satellite Dish Antenna is properly installed.
• Follow the steps in “Connecting Your DIRECTV Receiver” on
pages 7-12.
• Activate DIRECTV ® programming and UltimateTV by calling:
1-800-DIRECTV (347-3288)
SAT-W60
© 2000 by Sony Electronics Inc. Reproduction in whole or in part
without written permission is prohibited. All rights reserved.
1
