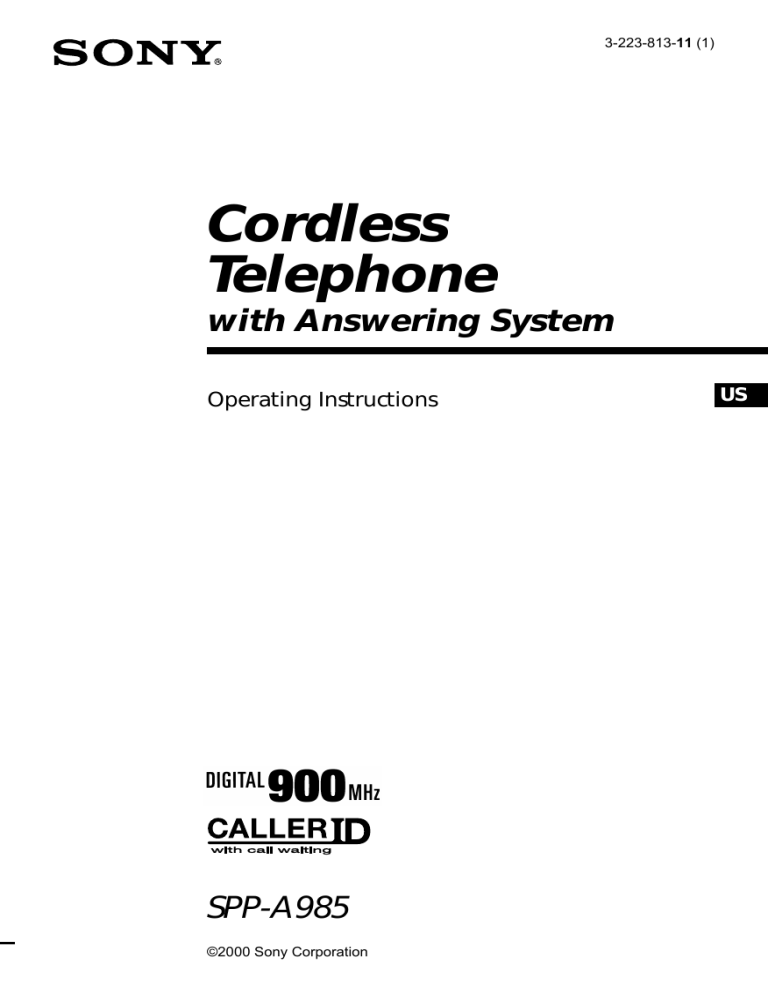

3-223-813-11 (1)
Cordless
Telephone
with Answering System
Operating Instructions
SPP-A985
©2000 Sony Corporation
US
Owner’s Record
The model and the serial numbers are
located at the bottom of the unit. Record
the serial number in the space provided
below. Refer to these numbers
whenever you call upon your Sony
dealer regarding this product.
Model No. SPP-A985
Serial No. ________________
2US
IMPORTANT
SAFETY
INSTRUCTIONS
When using your telephone equipment,
basic safety precautions should always
be followed to reduce the risk of fire,
electric shock and injury to persons,
including the following:
1. Read and understand all instructions.
2. Follow all warnings and instructions
marked on the product.
3. Unplug this product from the wall
outlet before cleaning. Do not use
liquid cleaners or aerosol cleaners.
Use a damp cloth for cleaning.
4. Do not use this product near water,
for example, near a bath tub, wash
bowl, kitchen sink, or laundry tub, in
a wet basement, or near a swimming
pool.
5. Do not place this product on an
unstable cart, stand, or table. The
product may fall, causing serious
damage to the product.
6. Slots and openings in the cabinet and
the back or bottom are provided for
ventilation. To protect it from
overheating, these openings must not
be blocked or covered. The openings
should never be blocked by placing
the product on the bed, sofa, rug, or
other similar surface. This product
should never be placed near or over a
radiator or heat register. This product
should not be placed in a built-in
installation unless proper ventilation
is provided.
7. This product should be operated only
from the type of power source
indicated on the marking label. If you
are not sure of the type of power
supply to your home, consult your
dealer or local power company.
8. Do not allow anything to rest on the
power cord. Do not locate this
product where the cord will be abused
by persons walking on it.
9. Do not overload wall outlets and
extension cords as this can result in
the risk of fire or electric shock.
10. Never push objects of any kind into
this product through cabinet slots as
they may touch dangerous voltage
points or short out parts that could
result in a risk of fire or electric shock.
Never spill liquid of any kind on the
product.
11. To reduce the risk of electric shock,
do not disassemble this product, but
take it to a qualified service personnel
when some service or repair work is
required. Opening or removing
covers may expose you to dangerous
voltages or other risks. Incorrect
reassembly can cause electric shock
when the appliance is subsequently
used.
12. Unplug this product from the wall
outlet and refer servicing to qualified
service personnel under the following
conditions:
A. When the power cord or plug is
damaged or frayed.
B. If liquid has been spilled into the
product.
C. If the product has been exposed to
rain or water.
D. If the product does not operate
normally by following the operating
instructions. Adjust only those
controls that are covered by the
operating instructions because
improper adjustment of other controls
may result in damage and will often
require extensive work by a qualified
technician to restore the product to
normal operation.
E. If the product has been dropped or
the cabinet has been damaged.
F. If the product exhibits a distinct
change in performance.
3US
13. Avoid using a telephone (other than
a cordless type) during an electrical
storm. There may be a remote risk of
electric shock from lightning.
14. Do not use the telephone to report a
gas leak in the vicinity of the leak.
SAVE THESE
INSTRUCTIONS
CAUTION:
To reduce the risk of fire or injury to persons by
battery, read and follow these instructions.
1. Use only the following type and size battery
pack: Sony BP-T23.
2. Do not dispose of the battery pack in a fire.
The cell may explode. Check with local codes
for possible special disposal instructions.
3. Do not open or mutilate the battery pack.
Released electrolyte is corrosive and may
cause damage to the eyes or skin. It may be
toxic if swallowed.
4. Exercise care in handling battery pack in
order not to short the battery with conducting
materials such as rings, bracelets, and keys.
The battery or conductor may overheat and
cause burns.
5. Charge the battery pack provided with or
identified for use with this product only in
accordance with the instructions and
limitations specified in the instruction manual
provided for this product.
6. Observe proper polarity orientation between
the battery pack and battery charger.
INFORMATION FOR
GENERAL TELEPHONES
1. This equipment complies with Part 68 of the
FCC rules. On the bottom of this equipment
is a label that contains, among other
information, the FCC certification number and
ringer equivalence number (REN) for this
equipment. If requested, this information
must be provided to the telephone company.
2. The applicable certification jack (connector)
USOC-RJ11C is used for this equipment.
4US
3. This equipment is designed to be connected to
the telephone network or premises wiring
using a compatible modular jack that is Part
68 compliant.
The FCC compliant telephone cord and
modular plug is provided with this
equipment.
4. The REN is used to determine the quantity of
devices that may be connected to the
telephone line. Excessive RENs on the
telephone line may result in the devices not
ringing in response to an incoming call.
Typically, the sum of the RENs should not
exceed five (5.0).To be certain of the number
of devices that may be connected to a line, as
determined by the total RENs, contact the
local telephone company.
5. If this equipment (SPP-A985) causes harm to
the telephone network, the telephone
company will notify you in advance that
temporary discontinuance of service may be
required. But if advance notice isn’t practical,
the telephone company will notify the
customer as soon as possible. Also, you will
be advised of your right to file a complaint
with the FCC if you believe it is necessary.
6. The telephone company may make changes in
its facilities, equipment, operations or
procedures that could affect the operation of
the equipment. If this happens the telephone
company will provide advance notice so you
can make necessary modifications to maintain
uninterrupted service.
7. If trouble is experienced with this equipment
(SPP-A985), for repair or warranty
information, please contact Sony Direct
Response Center: Tel 1-800-222-7669. If the
equipment is causing harm to the telephone
network, the telephone company may request
that you disconnect the equipment until the
problem is resolved.
8. All repairs will be performed in an authorized
Sony service station.
9. This equipment cannot be used to party lines
or coin lines.
10.This equipment is hearing aid compatible.
If your telephone is equipped
with automatic dialers
When programming emergency numbers and
(or) making test calls to emergency numbers:
1. Remain on the line and briefly explain to
the dispatcher the reason for the call.
2. Perform such activities in the off-peak
hours, such as early morning or late
evenings.
Caution
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate this
equipment.
Note
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment
generates, uses and can radiate radio frequency
energy and, if not installed and used in
accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference to
radio or television reception, which can be
determined by turning the equipment off and
on, the user is encouraged to try to correct the
interference by one or more of the following
measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the
equipment and receiver.
– Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
– Consult the dealer or an experienced radio/
TV technician for help.
5US
Table of contents
Getting Started
8 Read this first
9 Step 1: Checking the package
contents
10 Step 2: Setting up the base phone
13 Step 3: Preparing the battery
pack
16 Step 4: Entering the area code
20 Identifying the parts
Basics
24 Making calls
28
Redialing
29 Receiving calls
Telephone Features
32 Speed dialing
32
Storing phone numbers and
names
34
Making calls with speed
dialing
35 Phone Directory
35
Storing phone numbers and
names
37
Changing a stored name
and/or phone number
38
Erasing a memory location
38
Making calls from the Phone
Directory
40 Setting the ringer type
40
Turning off the ringer of the
handset
6US
Table of contents
41 Switching the phones during a
call
41
To switch from the base
phone to the handset
41
To switch from the handset
to the base phone
42 Talking between the phones
(Intercom)
42
To talk from the handset to
the base phone
42
To talk from the base phone
to the handset
44 Transferring a call
44
To transfer from the base
phone to the handset
45
To transfer from the handset
to the base phone
Answering Machine
Features
46 Setting up the answering
machine
46
Setting the time and day of
the week
47
Recording the greeting
49
Setting the number of rings
50
Setting the audible message
alert
51
Turning on the answering
function
53 Playing back messages
54
Adjusting the speaker
volume
54
Erasing messages
55 Selecting the Announcement
Only Mode
56 Screening calls
56
Turning on/off the screening
calls function
57 Recording a memo message
58 Operating from an outside phone
58
Setting the remote ID code
(security code)
59
Picking up new messages
Caller ID Features
60 Understanding the Caller ID
service
60
When you receive a call
61 Looking at the Caller ID list
61
Viewing the Caller ID list
62
Erasing data from the
Caller ID list
64 Using the Caller ID list
64
Calling back a number from
the Caller ID list
65
Storing a number of the
Caller ID list into the Phone
Directory
66
To change the number of
digits of the phone number
68 Using “Caller ID with call
waiting” service
Additional Information
69 Mounting the base phone on a
wall
70 Carrying the handset by the belt
clip
71 Notes on power sources
71 Maintenance
72 Troubleshooting
77 Specifications
78 Index
Back cover LIMITED WARRANTY
Table of contents
7US
Getting Started
Read this first
Before you use your phone, you must first set it up. Here’s a quick way
to set up your phone: Steps 1, 2, 3 and 4.
Step 1
(page 9)
First, unpack the phone and the supplied
accessories.
Step 2
(pages 10 to 12)
Next, you need to do three things to set
up the base phone, including finding the
best location for the base phone.
Base phone
Step 3
(pages 13 to 14)
Then, insert the battery pack into the
handset and charge it for more than 12
hours.
Step 4
(pages 16 to 19)
Finally, enter the area code to use the
Caller ID service.
Handset
8US
Getting Started
That’s it!
Step 1
Checking the package contents
Make sure you have received the following items in the package.
If anything is missing, contact your local Sony dealer.
Getting Started
AC power adaptor (AC-T131)
Base phone
Telephone line cords (2)
Wall bracket for base phone
Belt clip
Directories (2)
Handset
Rechargeable battery
pack (BP-T23)
Getting Started
9US
Step 2
Setting up the base phone
Do the following steps:
• Choose the best location
• Connect the base phone
• Choose the dialing mode
Choose the best location
Where you place the base phone affects the reception quality of the
handset.
Away from noise sources such as a window
by a street with heavy traffic
Away from television
sets and other
electronic equipment
Away from heat sources, such as radiators,
airducts, and sunlight
Away from a microwave
oven
Away from excessive
moisture, extremely low
temperatures, dust,
mechanical vibration, or
shock
Away from a personal
computer
Near a central location
and on a level surface
Away from another
cordless telephone
CAUTION: • Should you experience intermittent loss of audio during a conversation, try
moving closer to the base or move base phone away from other noise sources.
• The cordless telephone operates at a frequency that may cause interference to
nearby TVs and VCRs; the base phone should not be placed near or on the top
of a TV or VCR; and, if interference is experienced, moving the cordless
telephone farther away from the TV or VCR will often reduce or eliminate the
interference.
10US
Getting Started
Connect the base phone
If you want to hang the base phone on the wall, see page 69.
3
Getting Started
Hook the cord.
To an AC outlet
To DC IN 9V
2 AC power adaptor
(supplied AC-T131)
To LINE
To the
telephone outlet
1 Telephone line cord
(supplied)
1 Connect the telephone line cord
to the LINE jack and to a
telephone outlet.
2 Connect the AC power adaptor
to the DC IN 9V jack and to an
AC outlet.
3 Raise the antenna. Make sure it
points towards the ceiling.
continued
Getting Started
11US
Step 2: Setting up the base phone (continued)
Notes
• Use only the supplied AC-T131 AC power adaptor.
Do not use any other AC power adaptor.
• Connect the AC power adaptor to a continuous power
supply.
• Place the base phone close to the AC outlet so that
you can unplug the AC power adaptor easily.
Polarity of the plug
–
Tip
If your telephone outlet is not modular, contact your
telephone service company for assistance.
+
Modular
Choose the dialing mode
For the telephone to work properly, select an appropriate dialing mode
(tone or pulse).
DIAL MODE
switch
Depending on your dialing system, set the DIAL MODE switch as
follows:
If your dialing system is
Set the switch to
Tone
TONE
Pulse
PULSE
If you aren't sure of your dialing system
Make a trial call with the DIAL MODE switch set to TONE.
If the call connects, leave the switch as is; otherwise, set to PULSE.
12US
Getting Started
Step 3
Preparing the battery pack
Charge the battery pack for more than 12 hours before you start using
your phone.
compartment lid of the handset.
2 Insert the battery pack (with
BP-T23
contacts facing down) into the
battery compartment.
Getting Started
1 Slide open the battery
3 Close the battery compartment
lid.
4 Place the handset on the base
phone.
You can place it with either side
facing up.
The CHARGE lamp lights up
when the handset is properly
seated on the charge terminals
of the base phone. Charge the
battery pack for more than 12
hours so that the battery is fully
charged. The CHARGE lamp
remains lit even after charging
is completed.
CHARGE lamp
continued
Getting Started
13US
Step 3: Preparing the battery pack (continued)
Battery duration
A fully charged battery pack lasts for about:
• Approx. 7 hours when you use the handset continuously
• Approx. 7 days when the handset is in standby mode.
Notes
• The battery pack will gradually discharge over a long period of time, even
when not in use.
• If you leave the battery pack in the handset without charging it, the battery
pack will be completely discharged.
It may require several times of charging to recover to its full capacity.
To obtain the best performance from the battery
Do not place the handset on the base phone after each call. The battery
works best if the handset is returned to the base phone after two or
three calls. However, do not leave the handset off the base phone for a
long period of time as this will completely discharge the battery pack.
When to purchase a new battery pack
If the battery lasts only a few minutes even after 12 hours of charging,
the usable life of the battery has expired and needs replacement.
Contact your local Sony authorized dealer or service center, and ask
for a Sony BP-T23 rechargeable battery pack.
Note
Battery life may vary depending on usage condition and ambient temperature.
14US
Getting Started
Handset spare battery usage
As only one battery pack is supplied with this unit, it is necessary to
purchase an additional battery pack (optional) for use as a handset
spare battery pack.
lid of the base phone.
2 Insert the battery pack (with
BP-T23
contacts facing down) into the
battery compartment.
Getting Started
1 Open the battery compartment
3 Close the battery compartment
lid.
The SPARE BATT lamp lights
up. Charge the battery pack for
more than 24 hours so that the
battery is fully charged. The
SPARE BATT lamp remains lit
even after charging is
completed.
SPARE BATT lamp
Getting Started
15US
Step 4
Entering the area code
When you use this phone for the first time, or move to an area that has a
different area code, you must enter your home area code. Otherwise, you
cannot use some functions of this phone and the Caller ID functions.
This is also necessary because the phone must be able to select an area code to
properly dial call from the Caller ID list.
Depending on your region, enter 3-digit area code as follows:
Case 1.
If 7-digit dialing (no area code) is accepted for local calls in your area, see “To enter
your home area code” below.
If you live in an area where calls from or to other local areas can also be made by 10-digit dialing
(area code + number), you can register up to 5 local area codes with this telephone to take
advantage of this system. See “To enter the local area code (For 10 digits phone number users)”
on page 18.
Case 2.
If 10-digit dialing (area code + number) is required for all local calls in your area, at
first, enter “000” in your home area code. See “To enter your home area code” below.
Then see “To enter the local area code (For 10 digits phone number users)” on page
18.
To enter your home area code
Turn
Press
1 Press (PGM).
2 Turn
Jog Dial up to make “AREA”
flash.
DIRECTORY AREA
RINGER
3 Press Jog Dial.
HOME LOCAL
4 Press Jog Dial again.
“ENTER AREA CODE” appears on
the display.
5 Enter
three digits of your home area
code using the dialing keys.
6 Press (PGM).
US
16
Getting Started
You will hear a long confirmation
beep.
Notes
• If the home area code is already entered, it appears on the display in step 4.
To enter a different home area code, see “To change the home area code”
below.
• Do not allow more than 20 seconds to elapse between each step of the
procedure.
Getting Started
Tips
• You may press Jog Dial instead of (PGM) in step 6.
• To check the current home area code, perform steps 1 to 4. The home area
code appears on the display for about 20 seconds.
To change the home area code
1 Perform steps 1 to 4 on page 16.
The current home area code appears on the display.
2
3
4
Turn Jog Dial down to erase the current home area code.
Enter a new home area code using the dialing keys.
Press (PGM).
You will hear a long confirmation beep.
continued
Getting Started
17US
Step 4: Entering the area code (continued)
To enter the local area code (For 10 digits
phone numbers users)
If a call matches one of the local area codes you entered, the phone
number will be registered with 10 digits in the Caller ID list (area code
+ number). If a call does not match one of the local area codes you
entered, the phone number will be registered with 11 digits in the
Caller ID list (1 + area code + number). Some regions of the country
allow you to have more than one local area code. (Up to five local area
codes can be entered in this phone.)
1
Perform steps 1 to 3 on page 16.
2
Turn Jog Dial up to make ”LOCAL“ flash.
3
Press Jog Dial.
4
Select the number (”#1“ to ”#5“) to enter the
local area code by turning Jog Dial.
5
Press Jog Dial.
”ENTER AREA CODE“ appears on the
display.
6
Enter three digits of the local area code using the
dialing keys.
7
Press (PGM).
You will hear a long confirmation beep.
18US
Getting Started
HOME LOCAL
#1 #2 #3 #4 #5
Notes
• If the local area code is already entered, it appears on the display in step 5. To
enter a different local area code, see “To change the local area code” below.
• Do not allow more than 20 seconds to elapse between each step of the
procedure.
Getting Started
Tips
• You may press Jog Dial instead of (PGM) in step 7.
• To check the current local area code, perform steps 1 to 5. The local area code
appears on the display for about 20 seconds.
To change the local area code
Perform steps 1 to 5 on page 18.
1
The current local area code appears on the display.
2
3
4
Turn Jog Dial down to erase the current local area code.
Enter a new local area code using the dialing keys.
Press (PGM).
You will hear a long confirmation beep.
To erase the local area code
You can erase the local area code. Perform steps 1 and 2 above, then
press (PGM).
The local area code will be erased, and you will hear a long
confirmation beep.
Getting Started
19US
Identifying the parts
Refer to the pages indicated in parentheses for details.
Base Phone
qf
1
2
3
4
5
6
7
8
9
0
qa
qs
qd
qg
qh
qj
qk
ql
w;
wa
ws
wd
wf
wg
wh
wj wk wl e; ea
1 SKIP/QUICK button (p. 53)
Press to skip to the next message.
Keep the button pressed for quick
playback of messages.
2 PLAY/STOP (MAILBOX 1, 2, 3)
buttons (p. 51, 53)
Plays back recorded messages in
each mailbox.
3 NEW CALL lamp (p. 61)
Flashes when there is a “NEW”
data in the Caller ID list.
4 REPEAT/SLOW button (p. 53)
Press to repeat the current message
or go back to the previous message.
Keep the button pressed for slow
playback of messages.
5 Battery compartment (p. 15)
6 TIME/SET button (p. 46, 58)
Press when setting the day and
time, or to check the current time.
Also used when setting the remote
ID code (security code).
7 SELECT button (p. 46)
20US
Getting Started
8 MENU button (p. 46)
9 Dialing keys (p. 24)
0 PGM (Program) button (p. 32)
Used to store numbers for speed
dialing.
qa LINE lamp (p. 24, 29)
Lights when the handset is in use.
qs SPARE BATT lamp (p. 15)
Lights while the spare battery is
being charged.
qd CHARGE lamp (p. 13)
Lights while the battery is being
charged.
qf
qg
qh
qj
Display window (p. 26, 32)
Speaker
Antenna (p. 11, 69)
ANSWER ON/OFF button
(p. 51)
Turns the answering function on or
off.
qk REC/MEMO button (p. 47, 57)
Records a greeting or memo
message.
Getting Started
es ed ef
ql ERASE button (p. 48, 54)
wh INTERCOM button (p. 42)
Erases the recorded greeting or
messages.
w; VOL +/– buttons
(p. 26, 32, 54)
Adjusts the speaker volume or
press to move the cursor on the
display.
wa DIAL MODE switch (p. 12)
Selects pulse or tone dialing.
ws RINGER LEVEL switch (p. 31)
Adjusts the ringer volume.
wd REDIAL/PAUSE button
(p. 28, 33)
Redials the last number called/
inserts a pause in the dialing
sequence.
wf SPEED DIAL button (p. 32)
Automatically dials the numbers
programmed.
wg CALL WAITING/FLASH button
(p. 26, 68)
Switches to a second call if you
have “call waiting” service, or lets
you make a new call.
Lets you talk between the base
phone and handset.
wj MIC (microphone) (p. 47, 57)
wk HOLD button (p. 26)
Puts a call on hold.
wl
TONE button (p. 26)
Allows you to switch temporarily to
tone dialing.
e; SPEAKERPHONE lamp
(p. 26)
Lights while talking through the
speakerphone.
ea SPEAKERPHONE button
(p. 26)
Lets you make or receive a call.
es Hook for AC power adaptor
cord (p. 11)
ed DC IN 9V jack (p. 11, 69)
ef LINE (telephone line) jack
(p. 11, 69)
continued
Getting Started
21US
Identifying the parts (continued)
Handset
1
2
0
3
4
5
qa
qs
qd
6
7
8
9
qf
qg
qh
qj
qk
1 Antenna
2 Speaker
3 Jog Dial (p. 16, 35, 61)
4 TALK button (p. 24, 29)
Lets you make or receive a call.
5 INTERCOM button (p. 42)
Lets you talk between the base
phone and handset.
6 HOLD button (p. 25)
Puts a call on hold.
7 Battery compartment (p. 13)
8
TONE button (p. 25)
Allows you to switch temporarily to
tone dialing.
22US
Getting Started
9 PGM (Program) button
(p. 16, 35)
Used to store numbers in Phone
Directory.
q; Display window (p. 24, 60)
qa CALL WAITING/FLASH button
(p. 25, 68)
Switches to a second call if you
have “call waiting” service, or lets
you make a new call.
qs OFF button (p. 24)
Allows you to disconnect the call.
qd REDIAL button (p. 28)
Redials the last number called.
qf Dialing keys (p. 24)
Getting Started
ql
w;
qg # button (p. 66)
Used to change the number of
digits of the phone number in the
Caller ID list.
qh PAUSE button (p. 36)
Inserts a pause in the dialing
sequence.
qj MUTING button (p. 25)
Mutes your voice during a
conversation.
qk Microphone
ql I (HEADSET) jack (p. 24, 29, 70)
w; VOL (volume) switch (p. 25)
Adjusts the handset volume.
Getting Started
23US
Basics
Making calls
1 Pick up the handset from the
base phone.
2 Press (TALK) and wait until
(CALL WAITING/ FLASH)
I (HEADSET)
jack
VOL switch
(HOLD)
(*TONE)
(MUTING)
(REDIAL)
“TALK” appears on the display.
The display also shows the talk
time in hours, minutes and
seconds.
You will then hear a dial tone.
“HANDSET IN USE” appears
on the display of the base phone
and the LINE lamp on the base
phone lights up.
If “CHANNEL SEARCHING”
appears on the display, move
closer to the base phone.
3 Dial the phone number.
4 When you’re done talking, press
(OFF) or replace the handset on
the base phone.
The display and the LINE lamp
on the base phone go off.
Making calls when the headset is connected
When the TL-HD1 headset (optional) is connected to the I
(HEADSET) jack, you can talk through the headset.
Precaution
Avoid listening your headset at so loud a volume that extended play might
affect your hearing.
24US
Basics
Additional tasks
To
Do this
Adjust the handset volume Set the VOL switch to H (high), M (middle) or L
(low).
Press (HOLD). “HOLD” appears on the display.
Press (HOLD) again to resume the conversation.
Mute your voice
Press (MUTING) to disable the microphone.
“MUTING” appears on the display. Press
(MUTING) again to cancel.
Switch to another call
(“call waiting” service*)
Press (CALL WAITING/ FLASH).
Press (CALL WAITING/ FLASH) again to return to the
first caller.
Switch to tone dialing
temporarily
Press (*TONE) after you’re connected.
The line will remain in tone dialing until
disconnected.
Basics
Put a call on hold
* You need to subscribe to the service from your telephone company.
Notes
• When you increase the sound volume, in some cases the back ground noise
may be increased as well. You should adjust the volume accordingly.
• If your conversation is muted and “CHANNEL SEARCHING” appears on
the display, move closer to the base phone; otherwise, the call will be
disconnected after one minute.
If the battery becomes weak during a call
The handset will beep every three seconds five times and E and
“BATTERY LOW” appears on the display. Finish your call and charge
the battery pack.
For optimum performance, charge the battery for a full 12 hours.
Note that during the first 10 - 15 minutes of charging, the phone will be
inactive, i.e., unable to make or receive a call.
After this initial 10 - 15 minutes, you may be able to use the phone, but
the battery duration will be very short; thus it is recommended that
you fully charge the battery before the next usage.
continued
Basics
25US
Making calls (continued)
If you have a spare battery
You can replace the battery pack without disconnecting the call during
a conversation. To replace the battery pack, perform the following
procedure.
1
Press (HOLD) on the handset.
The call is on hold and “HOLD” appears on the display.
2
3
Replace the battery pack.
Press (HOLD) or (TALK) to resume the conversation.
Making calls through the speakerphone
Press (SPEAKERPHONE) on the base
phone.
“SPEAKERPHONE” appears on the
display and the display also shows the talk
time in hours, minutes and seconds.
SPEAKERPHONE lamp
(*TONE)
The SPEAKERPHONE lamp lights up.
Dial the phone number.
(VOL)
When you’re done talking, press
(SPEAKERPHONE) again.
(REDIAL/PAUSE)
(HOLD)
(CALL WAITING/FLASH)
(SPEAKERPHONE)
Additional tasks
To
Do this
Adjust the speaker volume During speakerphone conversation, press (VOL)
(+) or (--). Each press of (VOL)(+) or (--)
switches the speaker volume by one of 8 levels.
Put a call on hold
Press (HOLD). “HOLD” appears on the display.
Press (HOLD) again to resume the conversation.
Switch to another call
(“call waiting” service*)
Press (CALL WAITING/FLASH).
Press (CALL WAITING/FLASH) again to return to the
first caller.
Switch to tone dialing
temporarily
Press (*TONE) after you’re connected.
The line will remain in tone dialing until
disconnected.
* You need to subscribe to the service from your telephone company.
26US
Basics
Notes
• While conversing with an outside caller via the handset, the display on the
base phone shows “HANDSET IN USE”. If you press (SPEAKERPHONE) at
this time, you can talk to the handset and to the line connected.
• When the talk time exceeds 9:59’59, the display counts from 0:00’00 again.
To obtain the best speakerphone performance
• You may not be able to hear the other party’s voice in a noisy place.
Therefore, use the speakerphone in a quiet room.
• Do not bring your hand or other object too close to the microphone
or you will hear a shrill noise (“feedback”).
Basics
• When the speaker volume is loud, or the base phone has been placed
close to a wall, you may find that the volume drops suddenly. This
is due to a circuit in the telephone designed to protect against
feedback. In such cases, lower the speaker volume slightly.
continued
Basics
27US
Making calls (continued)
Redialing
1
Press (TALK) and wait until “TALK” appears on the display.
The LINE lamp on the base phone lights up.
If you’re at the base phone, press (SPEAKERPHONE).
“SPEAKERPHONE” appears on the display and the
SPEAKERPHONE lamp lights up.
2
Press (REDIAL) to redial the last number dialed.
If you’re at the base phone, press (REDIAL/PAUSE).
Note
If the number exceeds 32 digits or if it is erased, five short error beeps will alert
you that the number cannot be redialed.
Tip
The number to be redialed is the last number dialed either on the handset or on
the base phone.
To check the phone number before redialing
When not making a call with either the handset or base phone, press
(REDIAL). If you’re at the base phone, press (REDIAL/PAUSE).
The last number dialed is displayed for five seconds.
To dial the number, press (TALK) while the number is displayed. If
you’re at the base phone, press (SPEAKERPHONE).
Note
The number will not be displayed if the last number dialed exceeds 32 digits or
if it is erased.
To erase the last phone number dialed
When not conversing with an outside caller with either the handset or
base phone, press (REDIAL) twice within five seconds. If you’re at the
base phone, press (REDIAL/PAUSE) twice.
The number will be erased from the memory, and you will hear a long
confirmation beep.
28US
Basics
Receiving calls
1 When you hear the phone ring:
•Press (TALK).
or
(CALL WAITING/ FLASH)
I (HEADSET)
jack
VOL switch
“TALK” appears on the display and
the display also shows the talk time in
hours, minutes and seconds.
“HANDSET IN USE” appears on the
display of the base phone and the
LINE lamp on the base phone lights
up.
(MUTING)
Basics
(HOLD)
• Pick up the handset from the base
phone when the handset is placed
on the base phone.
2 When you’re done talking, press
(OFF) or replace the handset on the
base phone.
The display and the LINE lamp on the
base phone go off.
Receiving calls when the headset is connected
When the TL-HD1 headset (optional) is connected to the I
(HEADSET) jack, you can talk through the headset.
Precaution
Avoid listening your headset at so loud a volume that extended play might
affect your hearing.
continued
Basics
29US
Receiving calls (continued)
Additional tasks
To
Do this
Adjust the handset volume Set the VOL switch to H (high), M (middle) or L
(low).
Put a call on hold
Press (HOLD). “HOLD” appears on the display.
Press (HOLD) again to resume the conversation.
Mute your voice
Press (MUTING) to disable the microphone.
“MUTING” appears on the display. Press
(MUTING) again to cancel.
Switch to another call
(“call waiting” service*)
Press (CALL WAITING/ FLASH).
Press (CALL WAITING/ FLASH) again to return to the
first caller.
Turn on/off the ringer of
the handset
See “Turning off the ringer of the handset” on
page 40.
* You need to subscribe to the service from your telephone company.
Note
If another call comes in by “call waiting” service while conversing with an
outside caller, you will hear two short beeps.
Tip
To inform you of an incoming call, the display shows “** RINGING **” when
ringing.
If you have subscribed to the Caller ID service;
• the caller’s number and/or name appears on the display when you receive a
call (see page 60) or when another call comes in by “call waiting” service.
• the ringer sound changes to a higher tone if the call matches the number
stored on speed dialing keys or in the Phone Directory (memory match
function; see page 60).
30US
Basics
Receiving calls through the speakerphone
When you hear the phone ring, press
(SPEAKERPHONE) on the base phone.
“SPEAKERPHONE” appears on the display
and the display also shows the talk time in
hours, minutes and seconds.
SPEAKERPHONE lamp
(HOLD)
The SPEAKERPHONE lamp lights up.
When you’re done talking; press
(SPEAKERPHONE) again.
(VOL)
RINGER
LEVEL switch
(SPEAKERPHONE)
(CALL WAITING/FLASH)
Additional tasks
To
Do this
Put a call on hold
Press (HOLD). “HOLD” appears on the display.
Press (HOLD) again to resume the conversation.
Switch to another call
(“call waiting” service*)
Press (CALL WAITING/FLASH).
Press (CALL WAITING/FLASH) again to return to the
first caller.
Basics
To obtain the best speakerphone performance,
see page 27.
Adjust the speaker volume During speakerphone conversation, press (VOL)
(+) or (--). Each press of (VOL)(+) or (--)
switches the speaker volume by one of 8 levels.
Adjust the ringer volume
of the base phone
Set the RINGER LEVEL switch on the base phone
to HIGH, LOW or OFF.
* You need to subscribe to the service from your telephone company.
Note
Even when you set the RINGER LEVEL switch on the base phone to OFF, the
handset will ring when the ringer of the handset is turned on (see page 40).
Tips
• To inform you of an incoming call, the display shows “** RINGING **”
and the LINE lamp lights on and off according to the ring signal even when
you set the RINGER LEVEL switch on the base phone to OFF.
• If there is an incoming call while on the intercom, the base phone will ring
even when the RINGER LEVEL switch on the base phone is set to OFF.
Basics
31US
Telephone Features
Speed dialing
You can dial with a touch of a few keys by storing a phone number on
a dialing key.
Storing phone numbers and names
Example: to store “SONY” “123-4567”.
1 Press (PGM).
“PROGRAM” appears on the display.
2 Press (SPEED DIAL).
“ENTER 0 TO 9” appears on the
display.
3 Press one of the dialing keys ((0) to
(9)) to store a phone number on.
(VOL)
(REDIAL/PAUSE)
(SPEAKERPHONE)
ENTER NAME
You will hear a confirmation beep.
4 Enter the name using the dialing keys.
You can enter up to 16 characters.
Character table
32US
Key
Character
(1)
1
(2)
AtBtCt2
(3)
DtEtFt3
(4)
GtHtIt4
(5)
JtKtLt5
(6)
MtNtOt6
(7)
PtQtRtSt7
(8)
TtUtVt8
(9)
WtXtYtZt9
(0)
0
(*)
*
(#)
&t’t,t–t.t#
Telephone Features
Press a dialing key until the desired
character appears. (See the character
table for details.)
Enter successive characters in the same
way.
To enter two characters assigned to the
same key, or to enter a “space”, press
(VOL)(+) to move the cursor to the
right.
Example: to enter “SONY”, press (7)
four times (S), press (6) three times
(O), press (VOL)(+) to move the
cursor, press (6) twice (N), and press
(9) three times (Y).
SONY
5 Press (PGM).
“ENTER NUMBER” appears.
6 Enter the phone number.
SONY
1234567
You can enter up to 32 digits, including a tone
and a pause, each of which is counted as one
digit.
When the phone number of 17 digits or more
has been entered, the phone number appears in
two lines.
1234567890123456
12
7 Press (PGM).
Telephone Features
You will hear a long confirmation beep, and the
name and the number are stored. The display
goes off.
Note
Do not allow more than 20 seconds to elapse between each step of the
procedure.
Tip
If you have entered a wrong name or number in step 4 or 6, press
(VOL)(--) to erase it. Then enter the correct name or number.
To store a number to be dialed via Private Branch Exchange
(PBX)
Before entering a phone number in step 6 above, do as follows:
1
2
Enter the outside line access digit (e.g., 9).
Press (REDIAL/PAUSE).
To change a stored number
Store a new number, as described previously.
continued
Telephone Features
33US
Speed dialing (continued)
Making calls with speed dialing
1
2
3
Press (SPEAKERPHONE).
Press (SPEED DIAL).
Enter the desired speed dialing number ((0) to (9)).
The phone number stored as the speed dialing number will
be dialed.
To check the phone number before speed dialing
When not making a call with the base phone, press (SPEED DIAL) and
then one of the dialing keys ((0) to (9)).
The number stored on the key appears on the display for five seconds.
To dial the number, press (SPEAKERPHONE) while the number is
displayed.
34US
Telephone Features
Phone Directory
You can dial a number by scrolling through the Phone Directory, in
which up to 50 phone numbers can be stored.
Storing phone numbers and names
Example: to store “SONY” “123-4567”.
Turn
1 Press (PGM).
Press
(Be sure not to press (TALK).)
DIRECTORY AREA
RINGER
2 Press Jog Dial.
“ENTER NAME” appears.
(PAUSE)
3 Enter the name using the dialing keys.
You can enter up to 16 characters.
Character table
Key
Character
(1)
1
(2)
AtBtCt2
(3)
DtEtFt3
(4)
GtHtIt4
(5)
JtKtLt5
(6)
MtNtOt6
(7)
PtQtRtSt7
(8)
TtUtVt8
(9)
WtXtYtZt9
(0)
0
(*)
*
(#)
&t’t,t–t.t#
Press a dialing key until the desired
character appears. (See the character
table for details.)
Telephone Features
If “DIRECTORY” is not flashing, turn
Jog Dial down to make it flash.
Enter successive characters in the same
way.
To enter two characters assigned to the
same key, or to enter a “space”, turn
Jog Dial up to move the cursor to the
right.
Example: to enter “SONY”, press (7)
four times (S), press (6) three times
(O), turn Jog Dial up to move the
cursor, press (6) twice (N), and press
(9) three times (Y).
SONY
continued
Telephone Features
35US
Phone Directory (continued)
4 Press (PGM).
“ENTER NUMBER” appears.
5 Enter the phone number.
SONY
1234567
You can enter up to 32 digits, including a tone
and a pause, each of which is counted as one
digit.
When the phone number of 17 digits or more
has been entered, the phone number appears in
two lines.
1234567890123456
12
6 Press (PGM).
You will hear a long confirmation beep, and the
name and the number are stored. The display
goes off.
Notes
• If you intend to save a 51st phone number, you will hear five short error
beeps and “MEMORY FULL” will be displayed. You cannot store the phone
number. To store another phone number, erase one of the stored phone
numbers (see page 38).
• Do not allow more than 20 seconds to elapse between each step of the
procedure.
• The total number of phone numbers which can be stored into the Phone
Directory varies according to the number of digits of each phone number. If
all the phone numbers consist of up to 16 digits, you can store up to 50 phone
numbers. However, as the Phone Directory uses two-phone number memory
to store one phone number of 17 digits or more, the total number of phone
numbers which can be stored in the Phone Directory decreases two by two
every time you store a phone number of 17 digits or more.
Tips
• If you have entered a wrong name or number in step 3 or 5, turn Jog Dial
down to erase it. Then enter the correct name or number.
• You may press Jog Dial instead of (PGM) in steps 4 and 6.
To store a number to be dialed via Private Branch Exchange
(PBX)
Before entering a phone number in step 5 above, do as follows:
1
2
36US
Enter the outside line access digit (e.g., 9).
Press (PAUSE).
Telephone Features
Changing a stored name and/or phone
number
1
Display the name and phone number you want
to change by doing steps 1 and 2 in “Making
calls from the Phone Directory” on page 38.
SONY
1234567
2
Press Jog Dial.
DIAL EDIT ERASE
1234567
3
Turn Jog Dial up to make “EDIT” flash and
press Jog Dial.
SONY
1234567
4
Telephone Features
The cursor flashes at the last character of the
name.
Turn Jog Dial down to erase the characters and
enter the new name.
If you want to change only the number, skip this
step.
5
Press Jog Dial.
The cursor flashes at the last digit of the phone
number.
6
SMITH
1234567
Turn Jog Dial down to erase the number and
enter the new number.
If you don’t want to change the number, skip
this step.
7
Press Jog Dial.
You will hear a long confirmation beep and the
name and/or the number is changed.
Tip
When the phone number of 17 digits or more has been entered, “–” is displayed
next to 15th digit and then the all digits are displayed in two lines after about
two seconds.
continued
Telephone Features
37US
Phone Directory (continued)
Erasing a memory location
SONY
1234567
1
Display the name and phone number you want
to erase by doing steps 1 and 2 in “Making calls
from the Phone Directory”.
2
Press Jog Dial.
DIAL EDIT ERASE
1234567
3
Turn Jog Dial up to make “ERASE” flash and
press Jog Dial.
ERASE NO YES
1234567
4
Turn Jog Dial up to make “YES” flash, then press Jog Dial.
You hear a long confirmation beep and the memory location
is erased.
Making calls from the Phone Directory
1 Press Jog Dial.
Turn
Press
“DIRECTORY” appears on the
display.
2 Display the name and phone number
you want to call.
To search in alphabetical order: Turn
Jog Dial up or down.
To search by entering the initial
character: Press the dialing key of the
desired character, then turn Jog Dial.
SONY
1234567
3 Press Jog Dial.
DIAL EDIT ERASE
1234567
4 Press Jog Dial again.
The phone number will be dialed.
US
38
Telephone Features
Tip
You may press (TALK) to make a call instead of doing steps 3 and 4.
About the search order
The names appear in the following order when you turn Jog Dial up or
down.
t
t
• Alphabetical order: ABC...XYZ y symbols y * y # y 0 - 9
• Initial character: To search for “SONY” for example, press (7) and
then turn Jog Dial to search through the names starting with P, Q, R,
S or 7.
Telephone Features
Telephone Features
39US
Setting the ringer type
You can select a ringer type of the handset from four type.
Turn
Press
1 Press (PGM).
2 Turn
Jog Dial up to make “RINGER”
flash.
DIRECTORY AREA
RINGER
3 Press Jog Dial.
The current ringer type appears.
RINGER 1
SELECTED
4 Press one of the dialing keys ((1) to
(4)) to select a ringer type.
You will hear the corresponding ringer
tone.
5 Press (OFF).
Turning off the ringer of the handset
1
2
Perform steps 1 to 3 above.
Press (0).
You will hear a confirmation beep.
3
RINGER OFF
SELECTED
Press (OFF).
When “RINGER” is set to “RINGER OFF”
The handset won’t ring. You can still make calls, and also receive
calls if another telephone connected to the same line rings to inform
you on incoming calls.
To turn the ringer on again
Follow the instructions described in “Setting the ringer type”.
US
40
Telephone Features
Switching the phones during a call
You can easily switch between the handset and speakerphone on the
base phone without disconnecting the call.
To switch from the base phone to the handset
1 Press (HOLD) on the base
LINE lamp
phone.
The call is on hold and “HOLD”
appears on the display and the
SPEAKERPHONE lamp on the
base phone flashes.
2 Press (TALK) or (HOLD) on the
handset.
(SPEAKERPHONE)
You can continue talking to the
caller through the handset.
To switch from the handset to the base phone
1 Press (HOLD) on the handset.
Telephone Features
SPEAKERPHONE
lamp
The call is on hold and “HOLD”
appears on the display and the
LINE lamp on the base phone
flashes.
(TALK)
2 Press (SPEAKERPHONE) or
(HOLD) on the base phone.
You can continue talking to the
caller through the
speakerphone.
Tips
• While talking through the speakerphone on the base phone, if you pick up
the handset, the call will be switched to the handset.
• When the call is put on hold on the base phone, if you pick up the handset,
the call will be switched to the handset.
Telephone Features
41US
Talking between the phones (Intercom)
You can converse using the base phone and the handset. You can start
the intercom from either phone.
To talk from the handset to
the base phone
Press (INTERCOM) on the handset.
(OFF)
After the base phone rings twice, you
will be connected automatically.
When a person at the base phone
answers, you can talk with each other.
(TALK)
(INTERCOM)
“INTERCOM” appears on the display.
When you are done talking or if no
one answers the phone
Press (OFF) on the handset.
To talk from the base
phone to the handset
Press (INTERCOM) on the base phone.
The base phone and handset ring and
“** PAGING **” appears on the
display.
When a person at the handset presses
(INTERCOM), you can talk with each
other.
“INTERCOM” appears on the display.
(SPEAKERPHONE)
(INTERCOM)
When you are done talking or if no
one answers the phone
Press (INTERCOM) again.
42US
Telephone Features
Notes
• If there’s an incoming call while on the intercom, only the base phone rings.
To answer the call, press (SPEAKERPHONE) on the base phone or (TALK) on
the handset. The intercom is canceled and you can talk to the outside caller.
• While conversing with an outside caller via the base phone or handset, you
cannot make an intercom call. If you press (INTERCOM), you will hear a busy
tone.
Tips
• You can receive an intercom call on the handset even when “RINGER” is set
to “RINGER OFF”.
• You can receive an intercom call on the base phone even when the RINGER
LEVEL switch on the base phone is set to OFF. The base phone will ring at a
low level.
Telephone Features
Telephone Features
43US
Transferring a call
You can transfer a call between the handset and base phone without
disconnecting the call.
To transfer from the base phone to the handset
1 Press (INTERCOM) to page the
handset.
The call is put on hold on the
base phone and the handset
rings. “** PAGING **”
appears on the display of both
the base phone and handset.
2 Press (INTERCOM) on the
(SPEAKERPHONE)
handset.
“INTERCOM” appears on the
display of both the handset and
base phone.
You can talk between the base
phone and the handset.
3 Press (TALK) on the handset to
(TALK)
talk to the caller with the
handset.
“TALK” appears on the display
of the handset.
If no one answers the phone
Press (SPEAKERPHONE) on the base
phone.
Tips
• You can receive an intercom call on the handset even when “RINGER” is set
to “RINGER OFF”. The handset will ring at a low level.
• If you have accidentally pressed (HOLD) in step 1, just press (INTERCOM)
and you will get the same result as by pressing (INTERCOM) only.
• The INTERCOM lamp on the base phone flashes during intercom.
44US
Telephone Features
To transfer from the handset to the base phone
1 Press (INTERCOM) to page the
base phone.
The call is put on hold on the
handset.
(TALK)
After the base phone rings
twice, you will be connected
automatically.
When a person at the base
phone answers, you can talk
with each other.
2 Press (SPEAKERPHONE) on the
base phone to talk to the caller
with the base phone.
“SPEAKERPHONE” appears on
the display of the base phone.
(SPEAKERPHONE)
Telephone Features
“INTERCOM” appears on the
display of both the base phone
and handset.
If no one answers the phone
Press (TALK) on the handset.
Tip
You can receive an intercom call on the base phone even when the RINGER
LEVEL switch on the base phone is set to OFF. The base phone will ring at a
low level.
Telephone Features
45US
Answering Machine Features
Setting up the answering machine
Setting the time and day of the week
1 Press (MENU) repeatedly until
you hear “Set day and time”.
”- -” blinks on the display.
2 Press (SELECT) repeatedly to
select the day of the week.
3 Press (TIME/SET).
The day is set and the hour is
announced.
4 Press (SELECT) repeatedly to
select the hour.
5 Press (TIME/SET).
The hour is set and the minute is
announced.
6 Press (SELECT) repeatedly to
select the minute.
7 Press (TIME/SET).
The day and time you just
entered is announced and the
clock restarts.
8 Press (PLAY/STOP) to exit the
menu setup mode.
You will hear a long
confirmation beep.
Notes
• Press and hold (SELECT) to increase the minute setting by 10.
• The time and day are preset to Monday, 12:00 AM.
• “CL” flashes when the day and time is cleared or delayed due to a power
interruption, or when you connect the base phone to the AC outlet for the
first time.
46US
Answering Machine Features
Tip
All the mailbox buttons ((MAILBOX 1), (MAILBOX 2) and (MAILBOX 3)) work as
the (PLAY/STOP) button; press any of the three in this case.
To hear the current time
Press (TIME/SET). The current time setting is announced.
Recording the greeting
You can record your own greeting for the “normal” and
“announcement only” modes (see page 55).
1 Press (MENU) repeatedly until
“Set out-going message” is
announced.
“- -” blinks on the display.
2 Press (REC/MEMO).
“Now recording” is announced
and a long beep sounds.
(ERASE)
MIC (microphone)
away from the microphone
(MIC). The display starts
counting. You can record up to
90 seconds.
4 Press (PLAY/STOP) to stop
recording.
Your greeting replays
automatically.
Notes
• If you do not record your own greeting, the prerecorded greeting will be
assigned automatically (see page 48).
• If your greeting is less than two seconds, the greeting is not recorded. The
prerecorded greeting will be assigned automatically.
• If a call comes in during recording, recording stops automatically.
• If 90 seconds have passed or memory becomes full in step 3, recording stops
automatically.
• “Memory full” is announced if no recording space is available when you
press (REC/MEMO). Erase unnecessary messages (see page 54).
Tip
To record a greeting for the “announcement only” mode, select the
announcement only mode first (see page 55), then follow the instructions above.
Otherwise, the normal greeting will be recorded.
Answering Machine Features
3 Speak about 12 inches (30 cm)
continued
Answering Machine Features
47US
Setting up the answering machine (continued)
To check the greeting
Press (MENU) repeatedly until “Set out-going message” is announced.
Then press (PLAY/STOP) to play back the greeting.
To change the greeting
Record a new greeting by following the instructions on the previous
page. The new greeting replaces the old one.
To erase the greeting
1
Press (MENU) repeatedly until “Set out-going message” is
announced.
2
Press (ERASE).
Notes
• You can also erase the greeting during playback.
• If you have erased your own greeting, the prerecorded greeting will be
assigned automatically.
Prerecorded greetings
Normal mode:
“Hello, I’m unable to answer your call
right now. Please leave your name,
number and message after the tone.”
Announcement only mode: “Hello, I’m unable to answer your call
right now. Please call again. Thank you.”
48US
Answering Machine Features
Setting the number of rings
You can select the number of times the phone rings before it answers
to take a message.
There are four modes: 2, 4, 6, and Toll Saver.
1
Press (MENU) repeatedly until you hear “Set number of
rings”.
“- -” blinks on the display.
2
Press (SELECT) repeatedly to select a ring duration (2, 4, 6,
or Toll Saver).
To answer after 2 rings, select “2”.
To answer after 4 rings, select “4”.
To answer after 6 rings, select “6”.
Select “Toll Saver” to answer after 2 rings when there are
new messages, and 4 rings where there are no new
messages.
3
Press (TIME/SET).
The ring duration setting is announced.
4
Press (PLAY/STOP) to exit the menu setup mode.
Answering Machine Features
Notes
• When the number of rings is set to “Toll Saver”, the phone answers after 2
rings if new messages are recorded. If no new message are recorded, it
answers after 4 rings. When you hear 3 rings, you will know that there are no
new messages. You can save the toll for the call when you pick up messages
from an outside phone.
• The number of rings is preset to 4 rings.
continued
Answering Machine Features
49US
Setting up the answering machine (continued)
Setting the audible message alert
You have the option of having a beep tell you if you have received any
new incoming messages.
1 Press (MENU) repeatedly until
(TIME/SET)
(PLAY/STOP)
you hear “Set audible message
alert”.
“- -” blinks on the display.
2 Press (SELECT) to set the
(VOL)
audible message alert on or off.
3 Press (TIME/SET).
The setting is announced.
4 Press (PLAY/STOP) to exit the
menu setup mode.
Notes
• When the audible message alert is turned on, you will hear a beep every 10
seconds if there are any new messages.
• To stop the beep, press any button related to the answering machine
function.
• The audible message alert is preset to off.
50US
Answering Machine Features
Turning on the answering function
Message counter
Press (ANSWER ON/OFF) on the
base phone.
The ANSWER ON/OFF button
lights up.
(ANSWER ON/OFF)
Mailbox usage
This phone offers you three voice mailboxes, providing a convenient
way to share the mailbox feature with other members of your
household or business.
When a caller calls
Answering Machine Features
The caller can choose one of the two ways to leave a message:
• If calling from a touch-tone phone, the caller select a mailbox by
pressing (*)(1) (MAILBOX 1), (*)(2) (MAILBOX 2) or (*)(3)
(MAILBOX 3) while the caller hears the greeting. The greeting stops
and a beep will sound, then the caller can start recording a message
• Wait until the greeting finishes, then start recording a message.
When the caller does not select a mailbox, the message is
automatically recorded to MAILBOX 1.
Notes
• If four minutes have passed while recording the incoming message, the line
will be disconnected automatically.
• If the message is shorter than two seconds, it will not be recorded.
To turn off the answering function
Press (ANSWER ON/OFF) on the base phone.
The ANSWER ON/OFF button goes off.
continued
Answering Machine Features
51US
Setting up the answering machine (continued)
Note
The answering function is preset to on.
Tip
The answering machine will automatically answer a call after 10 rings, even if
the answering function is off and announces “Please enter your security code”
to prompt the caller to turn on the answering function.
When the memory is full
The total recording time of this answering machine is approximately
15 minutes (including the greeting, messages, and memo).
When the remaining recording time becomes less than 30 seconds, “F”
flashes on the display and the answering machine goes into the
memory full status.
In this status, the answering machine will not answer a call until after
10 rings even if the answering function is on.
To avoid this erase unnecessary messages (see page 54). You can also
erase the messages from an outside phone (see page 59).
52US
Answering Machine Features
Playing back messages
If there are new messages, the display flashes the number of new
messages.
You will hear beeps if the audible message alert setting is on (see page 50).
Press a mailbox button
((MAILBOX 1), (MAILBOX 2) or
(MAILBOX 3)) to play back new
messages in the selected mailbox.
(REPEAT/SLOW)
(SKIP/QUICK)
Additional tasks when playing back messages
Do this
Stop playback
Press a mailbox button ((MAILBOX 1),
(MAILBOX 2) or (MAILBOX 3)).
Repeat the current message
Press (REPEAT/SLOW) during play back.
Skip the current message
Press (SKIP/QUICK).
Answering Machine Features
To
Go back to the previous message Press (REPEAT/SLOW) within the first two
seconds of the current message playback.
Play back slowly
Press and hold (REPEAT/SLOW) during play
back.
Release (REPEAT/SLOW) to return to normal.
Play back quickly
Press and hold (SKIP/QUICK) during play
back.
Release (SKIP/QUICK) to return to normal.
Notes
• If a call comes in, the play back will stop.
• A time and day stamp is announced after each message.
Tips
• If there are no new messages, all the previously reviewed messages are
played back.
• The messages are saved even after a power failure.
continued
Answering Machine Features
53US
Playing back messages (continued)
Adjusting the speaker volume
To adjust the speaker volume, press
(VOL)(+) or (-).
Notes
• When you have reached the minimum or maximum volume level, you will
hear three short beeps.
• You cannot adjust the speaker volume while the phone is ringing.
Tip
There are 8 steps for the volume level (1 to 8). The volume level is preset to 5.
Erasing messages
1 Press and hold (ERASE) for
more than two seconds.
2 Press a button for the mailbox
you want to erase ((MAILBOX 1),
(MAILBOX 2) or (MAILBOX 3)).
You will hear a long
confirmation beep and all “old”
messages in the selected
mailbox are erased.
To erase individual messages
Press (ERASE) while playing back the message that you want to erase.
54US
Note
The display shows the total number of “new” (i.e. unreviewed) messages.
Therefore, the display is reset to “0” when you have played back all new
messages, whether they have been erased or not. Be sure to erase unnecessary
messages before the memory becomes full.
Answering Machine Features
Selecting the Announcement Only
Mode
You can set the answering machine to play the greeting without
recording incoming messages (announcement only mode). You might
want to select this mode when, for example, you expect to be away for
a while and you cannot pick up messages.
1 Press (MENU) repeatedly until
(TIME/SET)
you hear “Set announce only”.
2 Press (SELECT) to set the
announcement only mode on or
off.
(PLAY/STOP)
3 Press (TIME/SET).
The setting is announced.
4 Press (PLAY/STOP) to exit the
Notes
• To activate announcement only mode, you have to turn on the answering
machine.
• The announcement only mode is preset to off.
Answering Machine Features
Answering Machine Features
menu setup mode. The display
shows “A” when the answering
machine is set to the
announcement only mode.
55US
Screening calls
You can screen calls by leaving the answering machine on while you
are at home. When a call is answered, you can hear the message being
recorded through the base phone. You can decide either to continue
recording or to answer the call.
Alternatively, you may select to mute the message (see “Turning on/
off the screening calls function” below).
The message will be recorded, but to hear it you will need to play back
the message (see page 53).
To answer the call
Press (TALK) on the handset.
Notes
• Press (VOL)(+) or (-) to adjust the speaker volume. If the speaker volume is
set at its minimum level, you will not be able to hear incoming calls.
• The answering machine will stop automatically when the handset or a parallel
phone is picked up. If the answering machine does not stop, press either
(PLAY/STOP) on the base phone, or (*)(0) on the handset or parallel phone.
The recording will remain as a new message.
Turning on/off the screening calls function
The screening calls function is preset to on at the factory.
1 Press (MENU) repeatedly until
(TIME/SET)
you hear “Set call screening”.
2 Press (SELECT) to set the
screening calls function on or
off.
(PLAY/STOP)
3 Press (TIME/SET).
The setting is announced.
4 Press (PLAY/STOP) to exit the
menu setup mode.
56US
Answering Machine Features
Recording a memo message
You can leave messages for other users of the unit.
1 Press (REC/MEMO).
2 Press a mailbox button
((MAILBOX 1), (MAILBOX 2) or
(MAILBOX 3)) to which you
want to leave the message.
“Now recording” is announced
and counting starts.
3 Speak about 12 inches (30 cm)
MIC (microphone)
away from the microphone
(MIC) to record your message.
A memo can be up to four
minutes in length.
4 Press (PLAY/STOP) to stop
recording.
Notes
• If the memory becomes full, the answering machine will stop recording.
• “Memory full” is announced if no recording space is available when you
press (REC/MEMO).
• If your message is shorter than two seconds, the recording will be canceled.
• The display flashes “99” if you record a memo for more than 99 seconds.
• If a call comes in during recording, the recording will be stopped.
Answering Machine Features
Answering Machine Features
The message number on the
display increases by one.
57US
Operating from an outside phone
Setting the remote ID code (security code)
To operate the answering machine from a touch-tone phone while you
are away from home, you need to set the remote ID code (security
code).
1 Press (MENU) repeatedly until
you hear “Set security code”.
2 Press (SELECT) to change the
remote ID code (security code)
setting.
3 Press (TIME/SET) to confirm
your choice.
The new remote ID code
(security code) is announced.
4 Press (PLAY/STOP) to exit the
menu setup mode.
Note
Press and hold (SELECT) to increase the remote ID code (security code) by 10.
58US
Answering Machine Features
Picking up new messages
1
2
Call your telephone number from a touch-tone phone.
3
Press the keys in the “Table of control codes” below for the desired
operation command.
4
When you are finished, disconnect the line.
When you hear the greeting, press (#) and enter your remote ID code
(security code).
You will hear a confirmation beep.
The number of new messages will be announced.
Notes
• Do not let two seconds elapse between each digit of the remote ID code (security code) and
the control code.
• If you did not turn on the answering machine, your phone answers automatically after 10
rings.
• If the message recording memory runs out, the answering machine turns off automatically.
“Memory full. Please enter your security code” is announced.
• If you enter wrong remote ID code (security code) three times, the line will disconnect.
• If no keys are pressed within 20 seconds, the line will disconnect.
Table of control codes
To
Key
Notes
Play back messages in MAILBOX 1
(#)(1)
Plays back from the first new message.
Play back messages in MAILBOX 2
(#)(2)
Plays back from the first new message.
Play back messages in MAILBOX 3
(#)(3)
Plays back from the first new message.
Repeat/skip backward
(#)(4)
Press during play back to repeat a message. To
skip backward, press within two seconds after
the current message starts.
Get help
(*)(5)
Press to access simple voice menu. Press again
to access advanced voice menu.
Stop operation
(#)(5)
Stops every function
Skip forward
(#)(6)
Press during play back to skip forward.
Record greeting
(*)(7)
“Now recording” is announced.
Check greeting
(#)(7)
Review your greeting
Record a memo
(*)(8)
Select the mailbox by entering “1”, “2” or “3”.
Erase individual messages
(#)(9)
Press during play back
Turn answering machine on/off
(#)(0)
Turns the system on/off. “Answer machine on”
or “Answer machine off” is announced.
Answering Machine Features
Answering Machine Features
Tips
• Press (*)(0) on the touch-tone keypad or (PLAY/STOP) on the base phone to disconnect the
line.
• Cut off the Remote Control Card and carry it with you to see how to operate from an outside
phone.
59US
Caller ID Features
Understanding the Caller ID service
Caller ID allows the caller’s phone number to be shown on the display
before the call is answered. In order to use this feature, you must first
subscribe to the Caller ID service. The name of this service may vary
depending on your telephone company.
To use this feature, be sure to enter your home area code (see page 16).
When you receive a call
The phone number appears on the display with the date and time* as
shown in the following example.
If your Caller ID service includes the caller name service, the caller’s
name also appears on the display (up to 15 letters).
Handset
SMITH JOHN
1-201-123-4567
Caller’s name
Caller’s phone number
The date and time received
* The display on the base phone
does not show the date and time.
When you answer the call, the Caller ID display changes to the
“TALK” or “SPEAKERPHONE” display.
Notes
• The caller’s phone number and/or name will not appear in the following cases:
- “OUT OF AREA”: when the call is made through a telephone company which
does not offer Caller ID service (including international calls).
- “PRIVATE”: when the call is “blocked.” For privacy reasons, many states allow
callers the option to prevent his or her telephone data from being displayed on
the other party’s Caller ID display.
• If the call is from an office which uses multiple lines, the displayed phone number
may not match the number you use to call the extension.
Tip
Even if the ringer of the handset is set to “RINGER OFF”, you can receive
Caller ID data.
About the memory match function
If you receive a call from a phone number which is stored on speed dialing
keys (see page 32) or in the Phone Directory (see page 35), the ringer sound
will change to a higher tone from the second ring.
Note
The memory match function does not work with “OUT OF AREA” or “PRIVATE”
calls; and it may not work with calls made from an office which uses multiple lines
because the number does not always match the one you stored in this phone.
60US
Caller ID Features
Looking at the Caller ID list
The phone stores the data of the last 20 calls received including “OUT
OF AREA” and “PRIVATE” calls. It keeps track of all calls received;
even if they were not answered.
Viewing the Caller ID list
You can look through the Caller ID list to check the phone number
and/or name of the calls received on the handset’s display. Note that
the display on the base phone shows the current caller’s phone number
and/or name only, and you cannot view the caller ID list on the base
phone.
Turn
1 Turn Jog Dial.
The display shows the number
of “NEW” (calls which you have
not viewed) and “OLD” (calls
which you have viewed) calls.
NEW O8 OLD 12
2 Turn Jog Dial down to display
NEW CALL lamp
Note
If a 21st call is received, the oldest data is automatically
erased.
Tip
If there is a “NEW” data, the NEW CALL lamp of the
base phone flashes.
Caller ID Features
older data or up to display
newer data.
continued
Caller ID Features
61US
Looking at the Caller ID list (continued)
About the “*” mark
SMITH JOHN
*
1-201-123-4567
“*” appears if there are more than two calls
from the same phone number. The older data
will be replaced by the new data, so the calls
are counted as only one call.
Erasing data from the Caller ID list
Old data will be erased automatically when a 21st call comes in, but
you can also manually erase unnecessary data one by one or erase the
entire list.
To erase the phone number one by one
1 Display the phone number you want to erase
from the Caller ID list (see page 61).
2
Press Jog Dial.
DIAL PGM ERASE
1-201-123-4567
3
Turn Jog Dial up to make “ERASE” flash and
press Jog Dial.
ERASE NO YES
1-201-123-4567
4
Turn Jog Dial up to make “YES” flash, then
press Jog Dial.
You will hear a long confirmation beep and the
data is erased.
62US
SMITH JOHN
1-201-123-4567
Caller ID Features
To erase the entire list at once
1
Display any Caller ID data.
SMITH JOHN
1-201-123-4567
2
Press Jog Dial.
DIAL PGM ERASE
1-201-123-4567
3
Turn Jog Dial up to make “ERASE” flash and
press Jog Dial.
ERASE NO YES ALL
1-201-123-4567
4
Turn Jog Dial up to make “ALL” flash, then
press Jog Dial.
ALL ERASE NO YES
1-201-123-4567
5
Turn Jog Dial up to make “YES” flash, then
press Jog Dial.
NEW OO OLD OO
You will hear a long confirmation beep and the
entire list is erased.
Caller ID Features
Note
“ALL” appears only when all the data has become “OLD” data. If there is any
“NEW” data, you cannot erase the entire list.
Caller ID Features
63US
Using the Caller ID list
By using the Caller ID list, you can call back a phone number from the
Caller ID list easily, or store numbers from the Caller ID list into the
Phone Directory.
Calling back a number from the Caller ID list
1 Display the phone number you
Turn
Press
want to call from the Caller ID
list (see page 61).
SMITH JOHN
1-201-123-4567
2 Confirm the number and press
Jog Dial.
DIAL PGM ERASE
1-201-123-4567
3 Press Jog Dial again.
The phone automatically dials
the displayed number.
Notes
• If the number displayed in step 1 is not the one you should call back, you can
change the number of digits of the phone number as described on page 66.
• If the phone is connected to a Private Branch Exchange (PBX), you may not
be able to call back from the Caller ID list because an outside line access digit
is necessary.
Tip
You may press (TALK) to make a call instead of doing steps 2 and 3.
64US
Caller ID Features
Storing a number of the Caller ID list into
the Phone Directory
1
Display the name and phone number you want
to store from the Caller ID list (see page 61).
2
Confirm the number and press Jog Dial.
3
Turn Jog Dial up to make “PGM” flash and
press Jog Dial.
SMITH JOHN
1-201-123-4567
DIAL PGM ERASE
1-201-123-4567
SMITH JOHN
12011234567
The cursor flashes at the end of the name.
Enter or change the name, if necessary (see page
37).
4
Press Jog Dial.
The cursor flashes at the end of the phone
number.
SMITH JOHN
12011234567
Enter or change the phone number, if necessary
(see page 37).
Caller ID Features
5
Press Jog Dial again.
You will hear a long confirmation beep and the
name and number are stored.
Notes
• Do not allow more than 20 seconds to elapse between each step of the
procedure.
• If the number displayed in step 1 is not the one you should store, you can
change the number of digits of the phone number as described on page 66.
• If the phone is connected to a Private Branch Exchange (PBX), you may need
to add an outside line access digit.
continued
Caller ID Features
65US
Using the Caller ID list (continued)
To change the number of digits of the phone
number
If the number of digits of the phone number in the Caller ID list is
different from the actual phone number, you need to adjust the
number of digits of the phone number to call back or store into the
Phone Directory.
1
While the phone number from the Caller ID list is displayed,
press (#) repeatedly until the phone number with the
correct number of digits appears on the display.
Each time you press (#), the number of digits changes as
follows:
When the home area code and the local area code do
not match
SMITH JOHN
1-201-123-4567
SMITH JOHN
201-123-4567
SMITH JOHN
123-4567
SMITH JOHN
1-123-4567
When the home area code matches
66US
SMITH JOHN
123-4567
SMITH JOHN
1-201-123-4567
SMITH JOHN
1-123-4567
SMITH JOHN
201-123-4567
Caller ID Features
When the local area code matches
2
SMITH JOHN
201-123-4567
SMITH JOHN
1-123-4567
SMITH JOHN
1-201-123-4567
SMITH JOHN
123-4567
Continue the operation to call or store the phone number
with the correct number of digits (pages 64 and 65).
Notes
• You need to adjust the number of digits each time you call back from the
Caller ID list as the changes to the Caller ID data is not stored in memory.
• You may not be able to change the number of digits depending on the Caller
ID data.
Caller ID Features
Caller ID Features
67US
Using “Caller ID with call waiting”
service
This telephone is compatible with the “Caller ID with call waiting”
service. Make sure that your telephone company offers this service.
Like the basic Caller ID service, you need to subscribe to “Caller ID
with call waiting” in order to use this service.
Even though you may have already subscribed to “Caller ID” and
“call waiting” as two separate services, you need to request a
subscription to “Caller ID with call waiting” as a single service.
This is a new service that combines the two services.
Even though you now have a “Caller ID with call waiting”
compatible phone, unless you subscribe to the combined “Caller ID
with call waiting” service, you will not be able to see the name
and number of the second caller.
When a new call comes in while you are talking, you hear two short
beeps. The caller’s name and/or phone number of the new call appears
on the display for about 20 seconds.
To switch to another caller
1 To switch to the new caller,
press (CALL WAITING/ FLASH).
2 To switch back to the first caller,
press (CALL WAITING/ FLASH)
again.
68US
Caller ID Features
Additional Information
Mounting the base phone on a wall
1
1 Raise the hang-up tab.
2 Plug the telephone line cord to
Hang-up tab
the LINE jack and the AC power
adaptor to the DC IN 9V jack,
and hook the cords. Use the
shorter cord for mounting.
3 Attach the wall bracket to the
center of the base phone.
Align the f marks of the wall
bracket with those of the base
phone.
2
4 Plug the telephone line cord to
AC power
adaptor cord
Telephone
line cord
the telephone outlet, and hook
the base phone to the wall plate.
5 Plug the AC power adaptor to
an AC outlet. Then raise the
antenna so that it points
towards the ceiling.
3
4,5
Wall
bracket
AC outlet
AC power
adaptor
Tip
To remove the wall bracket, press the lower tabs.
Additional Information
Additional Information
Telephone
line cord
Wall
plate
69US
Carrying the handset by the belt clip
You can hang the handset on the belt by attaching the belt clip to the
handset.
Attaching the belt clip
Press the belt clip to the handset.
Make sure that the side tabs click
and go into the holes on the sides of
the handset.
Note
To prevent the handset from dropping, make sure that each tab is completely
inserted.
Detaching the belt clip
While pressing the back of the belt
clip, pull the sides one by one until
the tabs come off from the holes.
Note
Remove the belt clip carefully to avoid breaking your fingernails.
Using the headset
You can talk on the handset without using your hands by
connecting Sony TL-HD1 headset (optional) to the I
(HEADSET) jack on the handset.
70US
Additional Information
Notes on power sources
On battery pack
For the customers in the USA
• Store the battery pack at a
temperature between 41°F (5°C) and
95°F (35°C) for best performance.
RECYCLING NICKEL-CADMIUM
BATTERIES
• If you do not use the handset for a
long period of time, remove the
battery pack from the handset after
charging for more than 12 hours, and
base phone after charging for more
than 24 hours when you have a spare
battery. This maintains battery life.
On power failure
During a power interruption, you
cannot make or receive calls, and you
cannot use the answering machine.
Nickel-Cadmium batteries
are recyclable. You can help
preserve our environment
by returning your
unwanted batteries to your
nearest point for collection,
recycling or proper
disposal.
Note: In some areas the disposal of nickelcadmium batteries in household or
business trash may be prohibited.
RBRC (Rechargeable Battery Recycling
Corporation) advises you about spent battery
collection by the following phone number.
Call toll free number: 1-800-822-8837
(United States and Canada only)
Caution: Do not handle damaged or leaking
nickel-cadmium batteries.
Maintenance
Additional Information
• Clean the cabinets with a soft cloth
slightly moistened with water or a
mild detergent solution. Do not use
any type of abrasive pad, scouring
powder or solvent such as alcohol or
benzine as they may damage the
finish of the cabinet.
• If the charge terminals of the base
phone and handset are soiled, wipe
them with a soft cloth.
If you have any questions or problems
concerning your phone, please consult
your nearest Sony dealer.
Additional Information
71US
Troubleshooting
Making calls
If you’ve experienced any of the following difficulties while using your
phone, use this troubleshooting guide to help you remedy the problem.
Should any problem persist, consult your nearest Sony dealer.
Symptom
Remedy
You hear five short error
beeps when you press (TALK).
• Make sure you have set up the base phone correctly
(page 10).
• Move the handset closer to the base phone.
You hear no dial tone.
• Make sure the telephone line cord is securely
connected to the telephone outlet.
• Make sure the battery is fully charged (page 13).
The phone does not connect at
all, even though the number
you dial is correct.
• Make sure the dialing mode is set correctly (page 12).
The phone does not redial
correctly.
• Make sure the last dialed number is really the one you
want to dial.
You hear five short error beeps
when you try to redial.
• The number you last dialed exceeds 32 digits
(including the tone and pause digits if used).
• The number you last dialed is erased.
You cannot perform the redial
operations (redialing, checking
and erasing the phone
number), and “CHANNEL
SEARCHING” appears on the
display.
• Move the handset closer to the base phone and
perform the redial operations again.
Receiving calls
You cannot hear anything from • Press (VOL) (+) on the base phone to increase the
speaker volume.
the speakerphone.
72US
The handset does not ring.
• Make sure the ringer is turned on (page 40).
• The battery may be weak. Charge the battery for more
than 12 hours (page 13).
• Make sure you have set up the base phone correctly
(page 10).
• Move the handset closer to the base phone.
The base phone does not ring.
• Set the RINGER LEVEL switch on the base phone to
HIGH or LOW.
• Make sure the telephone line cord is securely
connected to the telephone outlet.
Additional Information
During conversation
Speed dialing/
Phone Directory
Intercom
Symptom
Remedy
You hear interference during
conversation.
• Move the handset closer to the base phone.
• Place the base phone away from noise sources
(page 10).
Your conversation is muted
and “CHANNEL
SEARCHING” appear on the
display.
• This is the out-of-range alarm. Move the handset
closer to the base phone within one minute.
• The battery is weak. Charge the battery for more than
You hear a beep every three
12 hours (page 13).
seconds and E and “BATTERY
LOW” appears on the display.
You hear five short error beeps • Make sure you follow the procedure for storing the
number correctly (pages 32, 35).
and cannot store a number on a
• Make sure the number (including the tone and pause
speed dialing key or in the
digits) does not exceed 32 digits.
Phone Directory.
You hear five short error beeps
when you try to make a speed
dial call.
• You have entered a speed dialing key for which no
phone number has been stored.
Speed dialing or Phone
Directory dialing is incorrect.
• Store the correct number (pages 32, 35).
• The battery may be weak. Charge the battery for more
The handset does not ring
than 12 hours (page 13).
when you use the intercom
• Move the handset closer to the base phone.
from the base phone, and the
base phone does not ring when • Place the base phone away from noise sources
(page 10).
you use the intercom from the
handset.
When pressing (INTERCOM),
you hear a busy tone and
cannot make an intercom call.
• Either the base phone or handset is being used to
converse with an outside caller.
Additional Information
continued
Additional Information
73US
Operating from an
outside phone
Answering machine
Troubleshooting (continued)
74US
Symptom
Remedy
Message is not recorded.
• The remaining recording time is less than 30 seconds
or 99 messages were recorded. The answering
machine becomes “Memory full” status and does not
record messages. Erase messages (page 54).
• The message is less than two seconds. The answering
machine does not record messages less than two
seconds in length.
No sound from the speaker of
the base phone.
• Adjust the speaker volume (page 54).
The caller’s message is
interrupted.
• The caller’s message is too long.
• The caller’s voice is too low. The unit disconnects the
line when it detects seven seconds of silence.
The clock is incorrect.
• There was a power interruption. Reset the time
(page 46).
The phone does not accept
your remote ID code (security
code).
• Make sure you call from a touch-tone phone.
• Make sure the remote ID code (security code) is
correct.
• Make sure you entered the remote ID code (security
code) within two seconds after you‘ve entered (#).
The line is disconnected when
you call your phone from a
touch-tone phone.
• You entered wrong remote ID codes (security codes)
three times.
Additional Information
Caller ID
Power source/battery
Remedy
The caller’s name and/or
phone number does not appear
on the display.
• Make sure you have subscribed to Caller ID service.
• Caller ID service may not work when the phone is
connected to a Private Branch Exchange (PBX).
• The call is made through company which does not
offer Caller ID service. “OUT OF AREA” will appear
on the display.
• The call was “blocked”. “PRIVATE” will appear on
the display.
• You have answered the call while “** RINGING **”
was displayed. Be sure to answer after the Caller ID
data is displayed.
The caller’s name and/or
phone number does not
appear on the display during
call waiting.
• Make sure you have subscribed to “Caller ID with call
waiting” service (page 68).
• Make sure nobody is talking with another phone on
the same telephone line.
You cannot dial the number
from the Caller ID list.
• Make sure you entered your home area code correctly
(page 16).
• You may need to change the number of digits of the
phone number (page 66).
• This function may not work when the phone is
connected to a Private Branch Exchange (PBX).
The memory match function
does not work.
• If the call is from an office which uses multiple lines,
the phone number may not match the number you
put in the memory.
• If you have stored the phone number with an outside
line access digit on a speed dialing key or in the
Phone Directory because the phone is connected to a
Private Branch Exchange (PBX), the phone number
will not match the Caller ID data.
The CHARGE lamp does not
light up when you place the
handset to charge.
• Wipe the charge terminals of the base phone and the
handset with a soft cloth for better contact of the
charge terminals.
• Make sure the handset is placed on the base phone
properly.
The battery duration is short.
• The battery pack was charged less than 12 hours (due
to power failure, etc.).
• The usage life of the battery has expired and needs
replacement.
The CHARGE lamp flashes.
• Move the handset closer to the base phone.
• Make sure the battery is inserted in the handset.
• The battery may be completely discharged. Charge
the battery for more than 12 hours (page 13). It may
require several times of charging to recover to its full
capacity.
Additional Information
Symptom
continued
Additional Information
75US
Troubleshooting (continued)
Message counter
The message counter on the base phone shows the following
information.
76US
When the counter shows
It means
Flashing number
Number of messages not yet played back.
CL
Flashes when the day and time is cleared or delayed due to a
power interruption, or when you connect the base phone to the
AC outlet for the first time. Reset the time correctly (page 46).
A
The announcement only mode is selected (page 55).
F
The recording area is full. Erase unnecesary messages (page 54).
Additional Information
Specifications
General
Base phone
Frequency band
902 - 928 MHz
Operating channel
30 channels
Dial signal
Tone, 10 PPS (pulse) selectable
Supplied accessories
See page 9.
Power source
DC 9V from AC power adaptor
AC-T131
Battery charging time
Approx. 24 hours
Dimensions
Approx. 7 3⁄ 8 x 2 3⁄4 x 9 1⁄8 inches (w/h/d),
antenna excluded
(approx. 186 x 68 x 229 mm)
Antenna: Approx. 4 3⁄ 4 inches
(approx. 120 mm)
Mass
Approx. 1 lb 8 oz
(approx. 664 g), wall bracket excluded
Handset
Power source
Rechargeable battery pack BP-T23
Battery charging time
Approx. 12 hours
Battery life
Standby: Approx. 7 days
Talk:
Approx. 7 hours
Dimensions
Approx. 2 3⁄8 x 7 x 1 13⁄16 inches (w/h/d),
antenna excluded
(approx. 58 x 177 x 46 mm)
Antenna: Approx. 2 7⁄8 inches
(approx. 72 mm)
Mass
Approx. 9.5 oz
(approx. 270 g), battery included
Answering machine
Maximum recording time
About 15 minutes, using incorporated IC
Greeting message
Up to 90 seconds per each
Incoming and Memo message
Up to 4 minutes per message
Design and specifications are subject to
change without notice.
Additional Information
Additional Information
77US
Index
A
D
Adjusting volume
handset volume 25, 30
speaker volume
26, 31, 54
Announcement only
mode 55
Answering machine
playing back
messages 53
setting up 46
turning on 56
Area code 16
Audible message alert 50
Day and time stamp 46, 53
Dialing mode
choosing 12
switching to the tone
temporarily 25, 26
Directory
Phone Directory 35
B
Battery pack
charging 13
duration 14
C
Call waiting service
25, 26, 68
Caller ID 60
Caller ID list 61
calling back 64
memory match
function 60
storing in Phone
Directory 65
Caller ID with call
waiting 68
Carrying the handset by
the belt clip 70
Connection 11
Control codes for remote
operations 59
78US
Additional Information
E, F
Erasing
Caller ID data 62
last phone number
dialed 28
local area code 19
messages 54
Phone Directory 38
G
Greeting 47
H
Headset 24, 29, 70
Hold 25, 26
Home area code 16
I, J, K
Identifying the parts 20
Intercom 42
L
Local area code 18
Location, base phone 10
M
Mailbox 51, 53
Making calls 24
Memo 57
Memory match
function 60
Messages
pick up from an outside
phone 59
playing 53
Mounting the base phone
on a wall 69
Muting 25, 30
N
Number of rings 49
O
Operating from an outside
phone 58
OUT OF AREA 60
P, Q
Package contents 9
Phone Directory 35
Playing back 53
PRIVATE 60
Pulse dialing 12
R
Receiving calls 29
Recording
greeting 47
memo 57
Redialing 28
Remote ID code
(security code) 58
Ringer
RINGER LEVEL
switch 31
setting the ringer
type 40
turning on/off 40
S
Screening calls 56
turning on/off the
screening calls function
56
Setting up
base phone 10
handset 13
Spare battery 15
Speakerphone 26, 27
Speed dialing 32
Stamping messages with
day and time 46, 53
Storing Caller ID data in
Phone Directory 65
Switching phones during a
call 41
T, U
Toll saver 49
Talking between the
phones 42
Tone dialing
dialing mode 12
switching to 25, 26
Transferring a call 44
Troubleshooting 72
V, W, X, Y, Z
Additional Information
Volume
handset 25, 30
speaker 26, 31, 54
Additional Information
79US
For the customers in the USA
Be sure to save the receipt and attach it to your WARRANTY card when having
your equipment repaired at an authorized Sony service center.
For online product registration, please contact
www.sony.com/productregistration
Sony Corporation Printed in China
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
