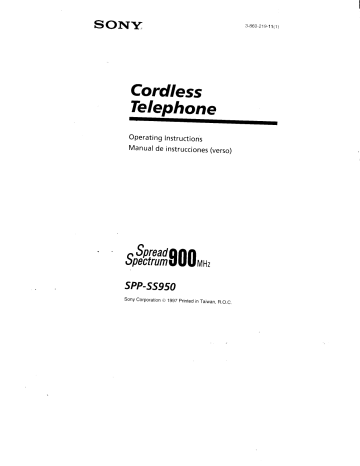

SONY 3-860-219-11(1)
Cordless
Telephone
ERE ree
Operating Instructions
Manual de instrucciones (verso)
soe 900...
SPP-55950
Sony Corporation © 1997 Printed in Taiwan, R.O.C.
SONY: N
ZA
es
! LIMITED WARRANTY |
Ne se
= x
WN Sony Electronics Inc. (“Sony”) warrants this Product (including any accessories) against defects in material or E
<> workmanship as follows: a
3 1. LABOR: For a period of one {1) year from the date of purchase, if this Product is determined to be defective, — XX
e Sony will repair or replace the Product, at its option, at no charge, or pay the labor charges to any Sony autho- Ne
a rized service facility. After the Warranty Périod, you must pay for all labor charges. RX
RU
2. PARTS: In addition, Sony will supply, at no charge, new or rebuilt replacements in exchange for defective RK
7
р,
e
0
parts for a period of one (1) year. After the warranty period, you must pay for ail parts costs.
A
> A
SER
DO
DU
=>
rx
3. ACCESSORIES: Parts and labor for all accessories are for one (1) year.
+
я
o.
DL
Lo
Co
- To obtain warranty service, you must take the Product, or deliver the Product freight prepaid, in either its original RS
Be packaging or packaging affording an equal degree of protection, to any authorized Sony service facility. po
o This warranty does not cover customer instruction, installation, set up adjustments or signal reception prob- es
XR lems. XA
Na Es
SA ; ; . - ; Xe
<> This warranty does not cover cosmetic damage or damage due to acts of God, accident, misuse, abuse, negli- RES
Re gence, commercial use, or modification of, or to any part of the Product, including the antenna. This warranty >
joe does not cover damage due to improper operation or maintenance, connection to improper voltage supply, or RE
RK attempted repair by anyone other than a facility authorized by Sony to service the Product. This warranty does RK
DR not cover Products sold AS IS or WITH ALL FAULTS, or consumables (such as fuses or batteries). This warranty x
Ne is valid only in the United States. XC
Proof of purchase in the form of a bill of sale or receipted invoice which is evidence that the unit is within the o
% Warranty period must be presented to obtain warranty service. ЗК
Zo This warranty is invalid if the factory applied serial number has been altered or removed from the Product. X=
e ES
RE REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE o
xo CONSUMER. SONY SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR =
ae BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIB- 2
RK {TED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICU- DO
e LAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. E
e RR
3 Some states do not allow the exclusion or limitation of incidental or consequential damages, or allow timitations XX
Ne on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. In addition, a
e. if you enter into a service contract with the Sony Partnership within 90 days of the date of sale, the limitation on ze.
RE how long an implied warranty lasts does not apply to you. This warranty gives you specific legal rights, and you e
Na may have other rights which vary from state to state. 2
e | =
Ls For your convenience, Sony Electronics inc. has established telephone numbers for frequently asked questions: SR
> DS
4 , . . . , OR
2 To locate the servicer or dealer nearest you, or for service assistance or resolution of a service problem, or for >
2. product information or operation, call: OS
A DEN
e. >
Ne Sony Direct Response Center RR
К 1-(800)-222-7669 RR
e or write to: DC
UC Sony Direct Response Center
es 12451 Gateway Blvd. Жо
2e Fort Myers, FL 33913 PR
o e
RX . >
o For an accessory or part not available from your authorized dealer, cali: o.
Xu = 2
RKC 1-(800)-488-SONY (7669) e
RC i
TTY, DE RTE Bos COIS SR HR
SE DOI EE ANNE NANA (EN HESS TEEN. NECE TNA DNI ACTRIZ NO DIE DA O NO
Owner's Record
The model and the serial numbers are located at the bottom of the unit. Rec
the serial number in the space provided below. Refer to these numbers whi
you call upon your Sony dealer regarding this product.
Model No. SPP-55950 Serial No.
IMPORTANT SAFETY
INSTRUCTIONS
When using your telephone equipment, basic safety precautions should alw
be followed to reduce the risk of fire, electric shock and injury to persons,
including the following:
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on the product.
3. Unplug this product from the wall outlet before cleaning. Do not use ligt
cleaners or aerosol cleaners. Use a damp cloth for cleaning.
4. Do not use this product near water, for example, near a bath tub, wash b
kitchen sink, or laundry tub, in a wet basement, or near a swimming poo
5. Do not place this product on an unstable cart, stand, or table. The produc
may fall, causing serious damage to the product.
6. Slots and openings in the cabinet and the back or bottom are provided fo
ventilation. To protect it from overheating, these openings must not be
blocked or covered. The openings should never be blocked by placing the
product on the bed, sofa, rug, or other similar surface. This product shoul
never be placed near or over a radiator or heat register. This product shou
not be placed in a built-in installation unless proper ventilation is provide
7. This product should be operated only from the type of power source
indicated on the marking label. If you are not sure of the type of power
supply to your home, consult your dealer or local power company.
8. Do not allow anything to rest on the power cord. Do not locate this produ:
where the cord will be abused by persons walking on it.
9. Do not overload wall outlets and extension cords as this can result in the r
of fire or electric shock.
10. Never push objects of any kind into this product through cabinet slots as t;
may touch dangerous voltage points or short out parts that could result in
risk of fire or electric shock. Never spill liquid of any kind on the product,
NN re HOC mr SOR DE NC SO HE SPR me SRC HOO ЧО О ПОРА AENA AE RARA
it to a qualified service personnel when some service or repair work 1s
required. Opening or removing covers may expose you to dangerous voltages
or other risks. Incorrect reassembly can cause electric shock when the
appliance is subsequently used.
12. Unplug this product from the wall outlet and refer servicing to qualified
service personnel under the following conditions:
When the power cord or plug is damaged or frayed.
If liquid has been spilled into the product.
If the product has been exposed to rain or water.
. If the product does not operate normally by following the operation
instructions. Adjust only those controls that are covered by the operating
instructions because improper adjustment of other controls may result in
damage and will often require extensive work by a qualified technician to
restore the product to normal operation. |
E. If the product has been dropped or the cabinet has been damaged.
F. If the product exhibits a distinct change in performance.
ons»
13. Avoid using a telephone (other than a cordless type) during an electrical
storm. There may be a remote risk of electric shock from lightning.
14. Do not use the telephone to report a gas leak in the vicinity of the leak.
SAVE THESE INSTRUCTIONS
CAUTION:
To reduce the risk of fire or injury to persons by battery, read and follow these
instructions.
1. Use only the following type and size battery pack: SONY BP-T18.
2. Do not dispose of the battery pack in a fire. The cell may explode. Check with
local codes for possible special disposal instructions.
3. Do not open or mutilate the battery pack. Released electrolyte is corrosive
and may cause damage to the eyes or skin. It may be toxic if swallowed.
4. Exercise care in handling battery in order not to short the battery with
conducting materials such as rings, bracelets, and keys. The battery or
conductor may overheat and cause burns.
5. Charge the battery pack provided with or identified for use with this product
only in accordance with the instructions and limitations specified in the
instruction manual provided for this product.
6. Observe proper polarity orientation between the battery pack and battery
charger.
If your telephone is equipped with
automatic dialers
When programming emergency numbers and (or) making test calls to emergency
numbers:
1. Remain on the line and briefly explain to the dispatcher the reason for the
call.
2. Perform such activities in the off-peak hours, such as early morning or late
evenings.
Caution
You are cautioned that any changes or modifications not expressly approved in
this manual could void your authority to operate this equipment.
Note
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
!
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
Which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
INFORMATION FOR GENERAL
T
8.
9.
10.
ELEPHONES
. This equipment complies with Part 68 of the FCC rules. On the bottom of this
equipment is a label that contains, among other information, the FCC
registration number and ringer equivalence number (REN) for this
equipment. If requested, this information must be provided to the telephone
company.
The applicable registration jack (connector) USOC-RJ11C is used for this
equipment.
This equipment is designed to be connected to the telephone network or
premises wiring using a compatible modular jack which is Part 68 compliant.
The FCC compliant telephone cord and modular plug is provided with this
equipment.
The REN is used to determine the quantity of devices which may be
connected to the telephone line. Excessive RENs on the telephone line may
result in the devices not ringing in response to an incoming call. In most, but
not all areas, the sum of the REN's should not exceed five (5.0). To be certain
of the number of devices that may be connected to a line, as determined by
the total RENs, contact the local telephone company.
If your equipment (SPP-SS950) causes harm to the telephone network, the
telephone company will notify you in advance that temporary discontinuance
of service may be required. But if advance notice isn’t practical, the telephone
company will notify the customer as soon as possible. Also, you will be
advised of your right to file a complaint with the FCC if you believe it is
necessary.
The telephone company may make changes in its facilities, equipment,
operations or procedures that could affect the operation of the equipment. If
this happens the telephone company will provide advance notice in order for
you to make necessary modifications to maintain uninterrupted service.
If trouble is experienced with this equipment (SPP-SS950), for repair or
warranty information, please contact Sony Direct Response Center: Tel 1-800-
222-7669. If the equipment is causing harm to the telephone network, the
telephone company may request that you disconnect the equipment until the
problem is resolved.
All repairs will be performed by an authorized Sony service station.
This equipment cannot be used to party lines or coin lines.
This equipment is hearing aid compatible.
Setting up the phone
Choose the best location
Where you place the base unit affects the reception quality of the handset
Place the base unit:
— near a central location and on a level surface
— away from television sets and other electronic equipment, a personal
computer, or a microwave oven
— away from noise sources such as a window by a street with heavy traff
— away from another cordless telephone
— away from heat sources, such as radiators, airducts, and sunlight
— away from excessive moisture, extremely low temperatures, dust, mec)
vibration, or shock
CAUTION
The cordless telephone operates at a frequency that may cause interferen
nearby TVs and VCRs; the base unit should not be placed near or on the
TV or VCR; and, if interference is experienced, moving the cordless telep
farther away from the TV or VCR will often reduce or eliminate the inter
Connect the base unit
If you want to hang the base unit on the wall, see “Mounting the base un
wall”.
AC power adaptor
(supplied)
‘0 AC outlet
Telephone line cord
(supplied)
SE To LINE
) telephone outlet en
s Anach the wall bracket on the bottom of the base unit as illustrated
to use it as a stand. Align the A marks of the wall bracket with those
of the base unit.
2 Connect the telephone line cord to the LINE jack and to a telephone
outlet.
3 Connect the AC power adaptor to the DC IN 9V jack and to an AC
outlet.
4 Raise the antenna. Make sure it points toward the ceiling.
Notes
* Use only the supplied AC-T37 AC power adaptor. Do Polarity of the plug
not use any other AC power adaptor.
* Connect the AC power adaptor to a continuous power
supply. В
* Place the base unit close to the AC outlet so that you can
unplug the AC power adaptor easily.
Tips
* If your telephone outlet is not modular, contact your telephone Modular
service company for assistance.
* To remove the wall bracket, press the upper tab. |
Choose the dialing mode
For the telephone to work properly, select an appropriate dialing mode (tone or
pulse).
Depending on your dialing system, set
the DIAL MODE switch as follows:
If your dialing system is Set the switch to
Tone T
Pulse P
|
DIAL MODE switch
If you aren’t sure of your dialing system
Make a trial call with the DIAL MODE switch set to T. 1f the call connects, leave
the switch as is; otherwise, set to P.
Charge the battery pack
Charge the battery pack for more than 12 hours before you start using your
phone.
1
1 Slide open the battery compartment lid of
the handset.
2 Connect the battery connector with correct
polarity (black and red cords).
3 Hook the cords, and insert the battery pack.
Then close the lid.
Place the handset on the base unit.
You can place either side facing up.
The CHARGE lamp lights up when the
handset is properly seated on the charge
terminals of the base unit. Charge the
battery pack for more than 12 hours so that
the battery is fully charged. The CHARGE
lamp remains lit even after charging is
completed.
Battery duration
A fully charged battery pack lasts for about:
e 4 hours when you use the handset continuously
e 7 days (RING ON mode) or 3 weeks (BATT SAVE
mode) when the handset is standing by.
Notes
* The battery pack will gradually discharge over a
long period of time, even if not in use.
The battery works best when charged after
several calls.
e If you leave the battery pack in the handset
without charging it, the battery pack will be
completely discharged. It may require several
times of charging to recover its full capacity.
CHARGE lamp
When to purchase a new battery pack
If the battery lasts only a few minutes even after 12 hours of charging, the usable
life of the battery has expired and needs replacement. Contact your local Sony
authorized dealer or service center, and ask for Sony BP-T18 rechargeable battery
pack.
Making and receiving calls
Making calls
| 1 Pick up the handset from the base
unit.
2 Press (TALK), and wait until the
TALK/BATT LOW lamp lights up.
You then hear a dial tone. If you hear
five short error beeps, move closer to
the base unit.
3 Dial the phone number.
4 When you're done talking, press
or replace the handset on the
base unit.
The TALK/BATT LOW lamp goes
off.
Receiving calls
1 When you hear the phone ring;
e Press (or any key except (OFF)).
or
e Pick up the handset from the base unit when the handset is
placed on the base unit.
The TALK/BATT LOW lamp lights up.
2 When you're done talking, press or replace the handset on the
base unit. The TALK/BATT LOW lamp goes off.
APF *
Additional tasks
To Do this
Adjust the handset During phone conversations, press (PGMVOU). Each press of
volume switches the speaker volume by four levels.
Switch to tone dialing Press after you're connected.
temporarily The line will remain in tone dialing until disconnected.
Switch to another call Press (FLASH).
("call waiting" service*) Press the button again to get back to the first caller.
* Contact your telephone company to subscribe to this service.
Note
- If the handset beeps every second during conversation, move closer to the base unit;
otherwise, the call will be disconnected after one minute.
Tip
You can save battery power by setting the RING ON/
BATT SAVE switch on the bottom to BATT SAVE.
The handset won't ring, but you can still make calls.
You can also receive calls if another telephone
connected to the same line rings to inform you on RING ON/ Ie
incoming calls. However, you can’t page the handset BATT SAVE WU
from the base unit. switch
If the battery becomes weak during a call
The handset will beep every three seconds with the TALK/BATT LOW lamp
flashing at the same time. Finish your call and charge the battery pack.
For optimum performance, charge the battery for a full 12 hours.
Note that during the first 10 - 15 minutes of charging, the phone will be inactive,
i.e., unable to make or receive a call.
After this initial 10 - 15 minutes, you may be able to use the phone, but the
battery duration will be very short; thus it is recommended that you fully
charge the battery before next use.
Redialing
“1 Press (TALK), and wait until the TALK/BATT LOW lamp lights up.
2 Press (REDIAL/PAUSE) to redial the number last dialed.
Note
If the number exceeds 32 digits, five short error beeps will alert you that the number can’t
be dialed.
To erase the last phone number dialed
Press ( REDIAL/PAUSE) twice.
The number will be erased from the memory, and you'll hear a long confirmation
beep.
CNE НОО ПОЛОЛЕООНЛОООНОЛНООНАНОЛОЛНООЕНАНОЛООООНОАОООООО ОНА
Speed dialing
You can dial with a touch of a few, keys by storing a phone number on a dialing
key.
Storing phone numbers
1
2
3
TALK/
ВАТТ
LOW 4
lamp
Note
Press (PGMAVOL).
The TALK/BATT LOW lamp flashes.
Press (SPEED DIAL).
Press one of the dialing keys (CO) to
(9) to store a phone number on.
You hear a confirmation beep.
Enter the phone number you want to
store.
You can enter up to 16 digits,
including a tone and a pause, each of
which is counted as one digit.
Press (PGM/ VOL).
You hear a long confirmation beep,
and the number is stored. The TALK/
BATT LOW lamp goes off.
Do not allow more than 20 seconds to elapse between each step of the procedure.
Tips
* If you enter a wrong number, press (PEMVOD), then start from the beginning.
* Use the supplied directory to write down what you stored on the speed dialing numbers.
«fai.
x a
To store a number to be dialed via Private Branch Exchange (PBX)
Before entering a phone number in Step 4, do as follows:
1 Enter the outside line access digit (e.g., 9).
2 Press CREDIAL/PAUSE).
To change a stored number
Store a new number, as described previously.
Making calls with speed dialing
1 Press and wait until the TALK/BATT LOW lamp lights up.
2 Press (SPEED DAD).
3 Enter the desired speed dialing number ((0) to (9)).
The phone number stored in the speed dialing number will be dialed.
Ns
Paging
You can page the handset from the base unit. Note that you can't page if the
handset is in use.
To page
Press (PAGE).
The handset rings.
When you keep pressing (PAGE),
the handset rings continuously.
Note
You can't page the handset when its RING ON/BATT SAVE is set to BATT SAVE.
Mounting the base unit on a wall т
1 Reverse the hang-up tab.
2 Plug the telephone line cord to the LINE jack and the AC power
adaptor to the DC IN 9V jack, and hook the cords. Use the shorter
cord for mounting.
3 Attach the wall bracket to the center of the base unit. Align the A
marks of the wall bracket with those of the base unit.
4 Plug the telephone line cord to the telephone outlet, and hook the
base unit to the wall plate.
5 Plug the AC power adaptor to an AC outlet. Then raise the antenna so
that it points towards the ceiling.
Telephone
2 3
line cord
AC power «Si
adaptor” E:
cord
bracket
AC powe
adaptor
AC outlet
Tip
To remove the wall bracket, press the lower tabs.
Maintenance В
—* Clean the cabinets with a soft cloth slightly moistened with water or a mild
detergent solution. Do not use any type of abrasive pad, scouring powder or
~ solvent such as alcohol or benzine as they may damage the finish of the
cabinet. ‘
* If the charge terminals of the base unit and handset are soiled, wipe them with
a soft cloth or paper.
If you have any questions or problems concerning your phone, please consult
your nearest Sony dealer.
. Notes on power sources
On battery pack
* Store the battery pack at a temperature between 41°F (5°C) and 95°F (35°C) for
best performance.
* If you do not use the cordless handset for a long period of time, remove the
battery pack, after charging for more than 12 hours.
On power failure
* During a power interruption, you cannot make or receive calls.
RECYCLING NICKEL-CADMIUM BATTERIES
NICKEL-CADMIUM BATTERY.
ED MUST BE DISPOSED OF PROPERLY.
Nickel-Cadmium batteries are recyclable. You can help preserve our
environment by returning your unwanted batteries to your nearest Sony
N i - C d Service Center for collection, recycling or proper disposal.
Note: In some areas the disposal of nickel-cadmium batteries in household
or business trash may be prohibited.
For the Sony Service Center nearest you call 1-800-222-SONY (United States only)
Caution: Do not handle damaged or leaking nickel-cadmium batteries.
Troubleshooting
Symptom Remedy
. You cannot make or receive e Place the base unit away from noise sources.
calls. * Move the handset closer to the base unit.
You hear no dial tone. * Make sure you set up the base unit correctly.
.
Make sure the battery is fully charged.
The phone does not connect at
all, even the number you dial is
correct.
Make sure the dialing mode setting (pulse or tone) is
correct.
-The phone doesn’t redial
correctly.
Make sure the last dialed number is really the one you
want to dial.
You hear five short error beeps
when yeu try to redial.
The number you last dialed exceeds 32 digits
(including the tone and pause digits if used).
The number you last dialed is erased.
You cannot store a speed dial
number.
Make sure the number (including the tone and pause
digits) does not exceed 16 digits.
The handset does not ring.
Set the RING ON/BATT SAVE switch to RING ON.
You hear interference during
conversation.
Move the handset closer to the base unit.
Place the base unit away from noise sources.
You hear a beep every second
during conversation.
It is an out-of-range alarm. Move the handset closer to
the base unit within one minute.
You hear a beep every three
seconds and the TALK/BATT
LOW lamp flashes.
The battery is weak. Charge the battery for more than
12 hours.
‘er
Specifications
General
Spread method
Access method
Frequency band -
Operation channel
Supplied accessories
Handset
Power source
Battery life
Dimensions
Mass
Base unit
Power source
Battery charging time
Dimensions
Mass
Direct-Sequence Spread-Spectrum
~ FDMA-TDD
902 — 928 MHz
20 channels
AC power adaptor AC-T37 (1)
Telephone line cords (2)
Rechargeable battery pack BP-T18 (1)
Directories (2 sheets)
Wall bracket/stand (1)
Rechargeable battery pack BP-T18
Standby: Approx. 7 days (RING ON mode)
Approx. 3 weeks (BATT SAVE mode)
Talk: Approx. 4 hours
Approx. 58 x 177 x 46 mm (w/h/d), antenna excluded
(Approx. 2 % x 7 x 1 "#6 inches)
Antenna: 72 mm (2 % inches)
Approx. Approx. 250 g (Approx. 8.8 0z), battery included
DC 9V from AC power adaptor
Approx. 12 hours
Approx. 128 x 58 x 208 mm (w/h/d), antenna excluded
(Approx. 5 % x 2 % x 8 V4 inches)
Antenna: 165 mm (6 % inches)
Approx. 320 g (Approx. 11 07), wall bracket excluded
Design and specifications are subject to change without notice.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
