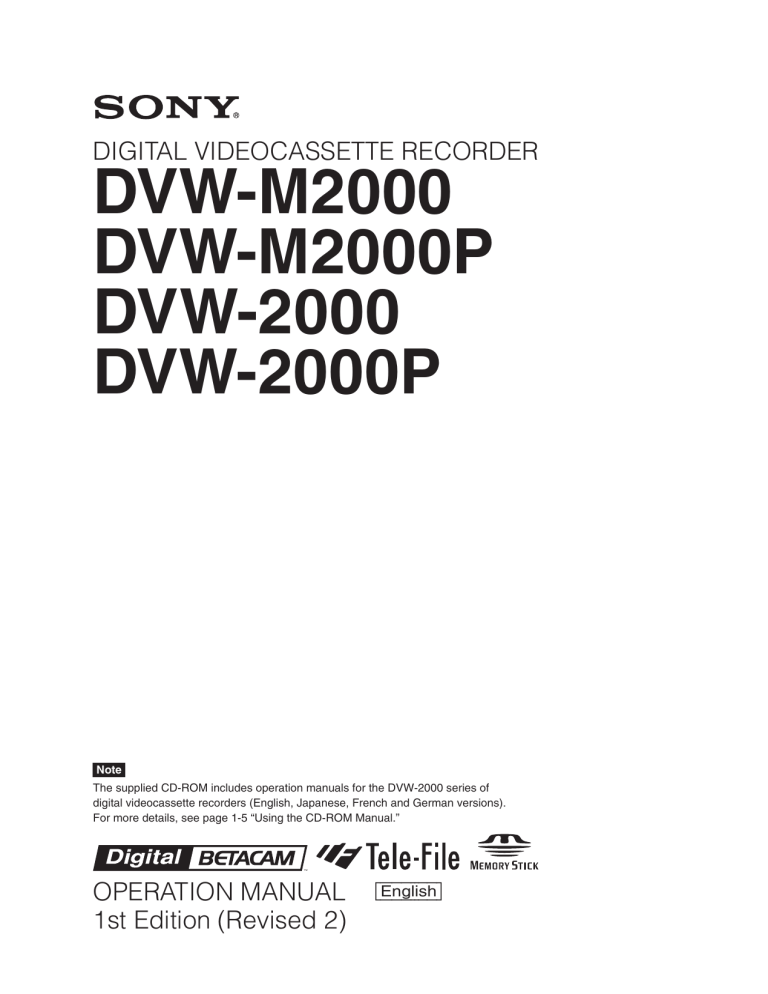

DIGITAL VIDEOCASSETTE RECORDER
DVW-M2000
DVW-M2000P
DVW-2000
DVW-2000P
Note
The supplied CD-ROM includes operation manuals for the DVW-2000 series of
digital videocassette recorders (English, Japanese, French and German versions).
For more details, see page 1-5 “Using the CD-ROM Manual.”
TM
OPERATION MANUAL
1st Edition (Revised 2)
[English]
WARNING
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
To avoid electrical shock, do not open the
cabinet. Refer servicing to qualified
personnel only.
THIS APPARATUS MUST BE EARTHED.
AVERTISSEMENT
Afin d’éviter tout risque d’incendie ou
d’électrocution, ne pas exposer cet
appareil à la pluie ou à l’humidité.
Afin d’écarter tout risque d’électrocution,
garder le coffret fermé. Ne confier
l’entretien de l’appareil qu’à un personnel
qualifié.
CET APPAREIL DOIT ÊTRE RELIÉ À LA
TERRE.
VORSICHT
Um Feuergefahr und die Gefahr eines
elektrischen Schlages zu vermeiden, darf
das Gerät weder Regen noch Feuchtigkeit
ausgesetzt werden.
Um einen elektrischen Schlag zu
vermeiden, darf das Gehäuse nicht
geöffnet werden. Überlassen Sie
Wartungsarbeiten stets nur einem
Fachmann.
DIESES GERÄT MUSS GEERDET
WERDEN.
For the customers in the USA
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own
expense.
You are cautioned that any changes or modifications not
expressly approved in this manual could void your authority
to operate this equipment.
The shielded interface cable recommended in this manual
must be used with this equipment in order to comply with the
limits for a digital device pursuant to Subpart B of Part 15 of
FCC Rules.
This symbol is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
WARNING: THIS WARNING IS APPLICABLE FOR USA
ONLY.
If used in USA, use the UL LISTED power cord
specified below.
DO NOT USE ANY OTHER POWER CORD.
Plug Cap Parallel blade with ground pin (NEMA
5-15P Configuration)
Cord
Type SJT, three 16 or 18 AWG wires
Length
Minimum 1.5 m Less than 2.5 m (8 ft
3 in)
Rating
Minimum 10 A, 125 V
Using this unit at a voltage other than 120V may require the
use of a different line cord or attachment plug, or both. To
reduce the risk of fire or electric shock, refer servicing to
qualified service personnel.
WARNING: THIS WARNING IS APPLICABLE FOR OTHER
COUNTRIES.
1. Use the approved Power Cord (3-core mains lead)/
Appliance Connector/Plug with earthing-contacts that
conforms to the safety regulations of each country if
applicable.
2. Use the Power Cord (3-core mains lead)/Appliance
Connector/Plug conforming to the proper ratings (Voltage,
Ampere).
If you have questions on the use of the above Power Cord/
Appliance Connector/Plug, please consult a qualified service
personnel.
AVERTISSEMENT: CET AVERTISSEMENT EST
VALABLE POUR LES AUTRES PAYS.
1. Utiliser un cordon d’alimentation approuvé (conducteur
d’alimentation 3 âmes)/connecteur d’appareil/prise avec
contacts de mise à la terre conforme aux règles de
sécurité de chaque pays si applicable.
2. Utiliser un cordon d’alimentation approuvé (conducteur
d’alimentation 3 âmes)/connecteur d’appareil/prise
conforme aux valeurs nominales (tension, ampérage)
correctes.
S’adresser à un personnel de service qualifié pour toute
question concernant l’emploi du cordon d’alimentation/
connecteur d’appareil/prise ci-dessus.
WARNUNG: DIESE WARNUNG GILT FÜR ANDERE
LÄNDER.
1. Verwenden Sie Netzkabel (dreiadrig), Geräteanschlüsse
und Netzkabelstecker mit Masseleitung, die den
Sicherheitsrichtlinien des jeweiligen Landes entspricht.
2. Verwenden Sie Netzkabel (dreiadrig), Geräteanschlüsse
und Netzkabelstecker mit Masseleitung, die den vor Ort
herrschenden Spannungsanforderungen (Spannug,
Stromstärke) entsprechen.
Bei Frage über die Eignung und Sicherheit von Netzkabeln
(dreiadrig), Geräteanschlüssen und Netzkabelsteckern
wenden Sie sich bitte an einen qualifizierten
Electrotechniker.
For the customers in Europe
This product with the CE marking complies with both the
EMC Directive (89/336/EEC) and the Low Voltage Directive
(73/23/EEC) issued by the Commission of the European
Community.
Compliance with these directives implies conformity to the
following European standards:
• EN60065: Product Safety
• EN55103-1: Electromagnetic Interference (Emission)
• EN55103-2: Electromagnetic Susceptibility (Immunity)
This product is intended for use in the following
Electromagnetic Environment (s):
E1 (Residential), E2 (Commercial and light industrial), E3
(Urban outdoors) and E4 (Controlled EMC environment ex.
TV studio).
Pour les clients européens
Ce produit portant la marque CE est conforme à la fois à la
Directive sur la compatibilité électromagnétique (EMC) (89/
336/CEE) et à la Directive sur les basses tensions (73/23/
CEE) émises par la Commission de la Communauté
européenne.
La conformité à ces directives implique la conformité aux
normes européennes suivantes:
• EN60065: Sécurité des produits
• EN55103-1: Interférences électromagnétiques (émission)
• EN55103-2: Sensibilité électromagnétique (immunité)
Ce produit est prévu pour être utilisé dans les
environnements électromagnétiques suivants:
E1 (résidentiel), E2 (commercial et industrie légère), E3
(urbain extérieur) et E4 (environnement EMC contrôlé, ex.
studio de télévision).
CAUTION
The apparatus shall not be exposed to dripping or splashing
and no objects filled with liquid, such as vases, shall be
placed on the apparatus.
ATTENTION
Eviter d’exposer l’appareil à un égouttement ou à des
éclaboussures et ne placer aucun objet rempli de liquide,
comme un vase, sur l’appareil.
ACHTUNG
Das Gerät ist nicht tropf- und spritzwassersicher, daher
dürfen keine mit Flüssigkeiten gefüllten Gegenstände, z. B.
Vasen, darauf abgestellt werden.
CAUTION
The unit is not disconnected from the AC power source
(mains) as long as it is connected to the wall outlet, even if
the unit itself has been turned off.
ATTENTION
Cet appareil n’est pas déconnecté de la source
d’alimentation secteur tant qu’il est raccordé à la prise
murale, même si l’appareil lui-même a été mis hors tension.
ACHTUNG
Solange das Netzkabel an eine Netzsteckdose
angeschlossen ist, bleibt das Gerät auch im ausgeschalteten
Zustand mit dem Strommetz verbunden.
Für Kunden in Europa
Dieses Produkt besitzt die CE-Kennzeichnung und erfüllt die
EMV-Direktive (89/336/EMG) der EG-Kommission als auch
die Direktive Niederspannung (73/23/EMG).
Angewandte Normen:
• EN60065: Produktsicherheit
• EN55103-1: Elektromagnetische Verträglichkeit
(Störaussendung)
• EN55103-2: Elektromagnetische Verträglichkeit
(Störfestigkeit)
für die folgenden elektromagnetischen Umgebungen:
E1 (Wohnbereich), E2 (kommerzieller und in beschränktem
maße industrieller Bereich), E3 (Stadtbereich im Freien) und
E4 (kontrollierter EMV-Bereich, z.B. Fernsehstudio).
Table of Contents
Chapter 1
Overview
1-1 Features ........................................................................................... 1-1
1-2 Example System Configuration .................................................... 1-4
1-3 Using the CD-ROM Manual .......................................................... 1-5
1-3-1 CD-ROM System Requirements ............................................ 1-5
1-3-2 Preparations ............................................................................ 1-5
1-3-3 Reading the CD-ROM Manual .............................................. 1-5
Chapter 2
Location and Function of
Parts
2-1 Control Panels ................................................................................. 2-1
2-1-1 Upper Control Panel ............................................................... 2-2
2-1-2 Lower Control Panel .............................................................. 2-3
2-1-3 Switch Panel ......................................................................... 2-14
2-2 Connector Panel ........................................................................... 2-15
Chapter 3
Preparations
3-1 Connections to External Devices ................................................... 3-1
3-1-1 Connections to Digital Devices .............................................. 3-1
3-1-2 Connections to Analog Devices ............................................. 3-2
3-2 Reference Signals for Video Output and Servo System .............. 3-3
3-2-1 External Sync Signal for the Internal Reference Video Signal
Generator ................................................................................ 3-3
3-2-2 Reference Signal for the Servo System .................................. 3-4
3-2-3 Connecting Reference Signals ............................................... 3-5
3-3 Setup ................................................................................................ 3-7
3-4 Superimposed Character Information ......................................... 3-8
3-5 Cassettes ........................................................................................ 3-10
3-5-1 Cassette Types ...................................................................... 3-10
3-5-2 Inserting and Ejecting Cassettes .......................................... 3-10
3-5-3 Preventing Accidental Erasure of Recordings ...................... 3-11
3-6 Using a Memory Stick .................................................................. 3-12
3-6-1 Notes on Memory Stick ....................................................... 3-12
Chapter 4
Recording and Playback
4-1 Recording ........................................................................................ 4-1
4-1-1 Preparations for Recording .................................................... 4-1
4-1-2 Recording Time Code and User Bit Values ............................ 4-2
4-1-3 Recording Procedure .............................................................. 4-5
4-2 Playback .......................................................................................... 4-6
4-2-1 Preparations for Playback ...................................................... 4-6
4-2-2 Playback Procedures .............................................................. 4-7
4-2-3 Dynamic Motion Control (DMC) Playback......................... 4-11
Chapter 5
Editing
5-1 Automatic Editing .......................................................................... 5-1
5-1-1 Overview ................................................................................ 5-1
5-1-2 Switch and Menu Settings...................................................... 5-2
5-1-3 Selecting the Editing Mode .................................................... 5-3
5-1-4 Setting Edit Points .................................................................. 5-3
5-1-5 Modifying and Deleting Edit Points ...................................... 5-6
5-1-6 Cue-Up to Edit Points and Preroll.......................................... 5-7
5-1-7 Preview ................................................................................... 5-7
5-1-8 Carrying Out Automatic Editing ............................................ 5-8
(Continued)
Table of Contents
1
Table of Contents
Chapter 5
Editing (Continued)
5-2 DMC Editing ................................................................................. 5-11
5-2-1 Overview of DMC Editing ................................................... 5-11
5-2-2 Carrying Out DMC Editing.................................................. 5-12
5-3 Special Automatic Editing Methods ........................................... 5-13
5-3-1 Quick Editing ....................................................................... 5-13
5-3-2 Continuous Editing .............................................................. 5-13
5-3-3 Standalone Editing ............................................................... 5-14
5-3-4 Manual Editing ..................................................................... 5-14
5-3-5 Preread Editing ..................................................................... 5-14
Chapter 6
Shot Mark Function
6-1 Overview .......................................................................................... 6-1
6-2 Shot Mark Operation Menu .......................................................... 6-2
6-3 Shot Mark Operations ................................................................... 6-3
6-3-1 Reading Shot Marks ............................................................... 6-3
6-3-2 Writing Shot Marks ................................................................ 6-3
6-3-3 Shot Mark List Operations ..................................................... 6-4
6-3-4 Cueing Up to Shot Marks....................................................... 6-6
6-3-5 Reading In Shot Data ............................................................. 6-7
6-3-6 Sorting Shot Marks ................................................................ 6-8
Chapter 7
Tele-File
7-1 Overview of Tele-File Functions .................................................... 7-1
7-2 Opening the Tele-File Menu .......................................................... 7-2
7-3 Tele-File Menu ................................................................................ 7-3
7-3-1 Clip Data Display ................................................................... 7-3
7-3-2 Preroll and Cue Up Using Clip Data ...................................... 7-6
7-3-3 Modifying Clip Data .............................................................. 7-7
7-3-4 Undo/Resume Functions ...................................................... 7-10
7-3-5 Displaying and Modifying Attribute Data ........................... 7-11
Chapter 8
UMID Functions
8-1 Overview of UMID Functions ....................................................... 8-1
8-2 Recording UMIDs .......................................................................... 8-2
8-3 UMID Output and Display ............................................................ 8-4
8-3-1 UMID Output Settings ........................................................... 8-4
8-3-2 UMID Display........................................................................ 8-4
Chapter 9
Essence Marks
9-1 Overview of Essence Mark Functions .......................................... 9-1
9-2 Essence Mark Recording and Output .......................................... 9-2
9-2-1 Essence Mark Recording ....................................................... 9-2
9-2-2 Essence Mark Output ............................................................. 9-2
Chapter 10
Auto Event Detector
10-1 Overview of Auto Event Detector Functions ............................ 10-1
10-2 Event Output and Recording .................................................... 10-1
2
Table of Contents
6-1
Chapter 11
Function Menu
11-1 Overview of the Function Menu ............................................... 11-1
11-1-1 Function Menu Configuration ........................................... 11-1
11-1-2 Using the Function Menu .................................................. 11-2
11-2 Function Menu Item List ........................................................... 11-3
Chapter 12
Setup Menus
12-1
12-2
12-3
12-4
Chapter 13
Setup Utility Menu
Functions
13-1 Overview of Setup Utility Menu Functions .............................. 13-1
13-1-1 Using Memory Stick Data ................................................. 13-1
Chapter 14
Maintenance and
Inspection
14-1 Removing a Cassette When Tape Slack Occurs ...................... 14-1
14-2 Head Cleaning ............................................................................ 14-1
14-3 Error Messages ........................................................................... 14-2
14-4 Moisture Condensation .............................................................. 14-4
14-5 Regular Checks ........................................................................... 14-5
14-5-1 Digital Hours Meter ........................................................... 14-5
14-5-2 Maintenance Timings ........................................................ 14-6
Appendix
Specifications ......................................................................................... A-1
Setup Menu Configuration ........................................................ 12-1
Setup Menu Operations ............................................................. 12-2
Items in the Basic Setup Menu .................................................. 12-5
Items in the Extended Setup Menu ........................................... 12-8
Index ....................................................................................................... I-1
Table of Contents
3
1-1
Features
lightweight, and low power consumption design.
It not only offers recording and playback in digital
Betacam format, but can also play back tapes recorded
in Betacam SX format, analog Betacam format, or
MPEG IMX format 1).
Digital Betacam format
The digital Betacam format is characterized in that the
video and four-channel audio signals of each field are
recorded onto the tape with six helical tracks, at a
slightly slower tape speed and three times faster drum
rotation speed than the analog Betacam formats:
Betacam, and Betacam SP.
As for longitudinal tracks, the digital Betacam format
has a CTL track, a time code (LTC) track and a cue
audio track, similarly to the analog Betacam formats.
However, it does not have a channel-1 audio track, and
this is a solution to expand the space for the helical
tracks.
Digital Betacam VTRs have a greater drum diameter
than that of analog Betacam ones to ensure optimum
digital recording, but their built-in time base corrector
circuit enables them to play analog Betacam tapes
(analog Betacam playback compatibility).
Full erase head
CTL head
Betacam SP tape pattern
Digital Betacam tape pattern
Cue audio
Channel-2 audio
Channel-1 audio
Video
Channel-1 to
Channel-4 audio
Video
Y track
C track
Cue/time code erase head
Audio/time code record/playback head
Time code
CTL (control)
..........................................................................................................................................................................................................
1) The DVW-2000/2000P does not support these three
formats (Betacam SX, analog Betacam, MPEG IMX).
Chapter 1 Overview
1-1
Chapter 1 Overview
Chapter
1 Overview
The DVW-M2000/M2000P/2000/2000P is a digital
videocassette recorder based on the digital Betacam
format.
This unit uses large scale integrated circuits for signal
processing, and has a simple internal construction,
allowing it to provide functionality at least equivalent
to a conventional VTR in a compact (4U size),
1-1 Features
Chapter 1
Overview
High-performance heads and compatibility
playback function
The newly developed high-performance heads and
dynamic tracking (DT) technology provide highdensity recording and playback in narrow tracks with
high reliability. In addition to the digital Betacam
recording and playback heads, this unit is also
equipped with Betacam SX format playback heads,
MPEG IMX playback heads, and analog Betacam DT
heads, to provide compatibility playback functions,
and allowing a wide variety of recorded resources to
be used effectively.
Note that the compatibility playback functions differ
depending on the models covered by this manual. 1)
High-precision digital signal processing
and range of interfaces
While supporting a wide range of input and output
signals, all of the VTR internal processing is digital,
providing high stability and reliability.
The audio signals, similarly, are based on AES/EBU
format, and are subjected to digital signal processing
while still uncompressed.
The following interfaces are standard equipment, for
ease of connection to different external devices.
• Analog composite signal input/output
• Analog component signal input/output
• Analog audio signal input/output (4 channels)
• SDI (Serial Digital Interface) SMPTE 259M input
(component digital video/audio (4 channels))
• SDI SMPTE 259M output (component digital video/
audio (DVW-M2000/M2000P: 8 channels; DVW2000/2000P: (4 channels))
• AES/EBU serial digital audio input (4 channels)
• AES/EBU serial digital audio output (DVW-M2000/
M2000P: 8 channels; DVW-2000/2000P: 4 channels)
• Time code input/output
• Cue audio signal input/output
High quality four-channel audio
High quality 20 bit/48 kHz digital audio is supported.
There are four digital audio input/output channels, and
four analog audio input/output channels.
Newly developed multifunction control
panel
While a compact 4U size, this unit has a front panel
which provides a wide range of functions while
maintaining existing operability.
Basic operation buttons and jog/shuttle
dial
The basic buttons and jog/shuttle dial for VTR and
editing operations are provided in the conventional
VTR layout, ensuring continuity with conventional
operating panels.
Time data display
This can be selected to display a CTL counter value,
time code value, or time code user bits. It can also
display edit points and edit durations.
Menu-based control interface
The time data/menu display shows not only various
values and settings, but also the pages of a menu
system for commonly used functions. You can use the
function keys and MULTI CONTROL knob to easily
change settings.
Other operation settings, including interfacing with
external devices, can be set from the control panel by
the same type of setup menu system as on a
conventional VTR.
..........................................................................................................................................................................................................
1) The DVW-2000/2000P is equipped with no Betacam SX
playback heads, no analog Betacam DT playback heads,
and no MPEG IMX playback heads.
1-2
Chapter 1 Overview
Wide range of editing functions
By combining two units, you can carry out both
assemble editing and insert editing automatically. All
of the necessary editing functions are provided to set
and amend edit points, to preview and review results
of editing, and so on.
DMC editing
This allows automatic editing with a varying playback
speed memorized beforehand for an edit segment.
Split editing
Cross-fade editing
In audio editing, to avoid unnatural effects at edit
points, you can fade the audio track. The setting allows
you to select fade-in, fade-out, or cut-in.
Tele-File functions
Tele-File enables data writing/reading between
cassettes with memory labels and VTRs. It increases
the efficiency of operations such as recording,
playback and editing, and source data management.
Remote control function
This unit can be controlled from an external remote
controller or editor through an interface complying
with RS-422A (serial 9-pin). Since two remote control
connectors are provided, you can also control a
number of VTRs simultaneously.
Additionally, a parallel (50-pin) interface is also fitted
as standard, supporting easy external control through
the parallel interface.
Rack mounting
Using the optional RMM-131 Rack Mount Adaptor,
you can mount the unit in a standard EIA 19-inch rack.
For details of rack mounting, refer to the Installation
Manual.
In insert editing, this allows editing with the audio IN
and OUT points to be displaced from the video edit
points.
Preread editing
This allows you to play back prerecorded video and
audio material, edit it by applying effects with an
external device, and then rerecord in real time on the
same tape.
..........................................................................................................................................................................................................
1) The MPEG IMX and Betacam SX formats are not
supported by the DVW-2000/2000P.
Chapter 1 Overview
1-3
Overview
In digital Betacam or MPEG IMX format1) playback,
the dedicated playback DT heads allow smooth,
noiseless playback from –1 to +3 times normal speed.
In analog Betacam compatible playback also, similar
dedicated DT heads allow noiseless playback from –1
to +3 times normal speed, and in Betacam SX format1)
compatible playback, special multi-head playback
technology allows noiseless playback from –1 to +2
times normal speed.
In slow motion operation, the digital jog sound
function provides the same ease of operation as a
conventional analog VTR.
Chapter 1
High quality variable speed playback and
digital jog sound function
1-1
1-2Features
Example
System Configuration
Chapter 1
Overview
The following conceptual diagram shows an example
of use.
Microphone
BVE-series editor
Tape control
Digital/analog cassette
SDI
Audio/video
server
system
DVW-M2000/M2000P/2000/2000P
Video monitor
Analog composite
Analog composite/component
Analog audio
Audio monitor
1-4
Chapter 1 Overview
SDI
VTR with SDI connectors
or analog VTR
1-3
Using the CD-ROM Manual
The following are required to access the supplied CDROM disc.
• Computer: PC with Intel Pentium CPU
- Installed memory: 64 MB or more
- CD-ROM drive: × 8 or faster
• Monitor: Monitor supporting resolution of 800 × 600
or higher
• Operating system: Microsoft Windows Millennium
Edition, Windows 2000 Service Pack 2, Windows XP
Professional or Windows XP Home Edition
When these requirements are not met, access to the
CD-ROM disc may be slow, or not possible at all.
1-3-2 Preparations
One of the following programs must be installed on
your computer in order to use the operation manuals
contained on the CD-ROM disc.
• Adobe Acrobat Reader Version 4.0 or higher
• Adobe Reader Version 6.0 or higher
1-3-3 Reading the CD-ROM
Manual
To read the operation manual contained on the CDROM disc, do the following.
1
Insert the CD-ROM disc in your CD-ROM drive.
A cover page appears automatically in your
browser. If it does not appear automatically in the
browser, double-click the index.htm file on the
CD-ROM disc.
2
Select and click the operation manual that you
want to read.
This opens the PDF file of the operation manual.
Note
If you lose the CD-ROM disc or become unable to
read its content, for example because of a hardware
failure, you can do one of the following.
You can purchase a new CD-ROM disc to replace one
that has been lost or damaged. Contact your Sony
service representative.
Note
If Adobe Reader is not installed, you can download it
from the following URL:
http://www.adobe.com/products/acrobat/
readstep2.html
.........................................................................................................................................................................................................
• Intel and Pentium are registered trademarks of Intel
Corporation or its subsidiaries in the United States and
other countries.
• Microsoft and Windows are registered trademarks of
Microsoft Corporation in the United States and/or other
countries.
• Adobe, Acrobat, and Adobe Reader are trademarks of
Adobe Systems Incorporated in the United States and/or
other countries.
Chapter 1 Overview
1-5
Overview
1-3-1 CD-ROM System
Requirements
Chapter 1
The supplied CD-ROM includes operation manuals for
the DVW-2000 series of digital videocassette recorders
(English, Japanese, French, and German versions).
2-1
Control Panels
Upper control panel (see page 2-2)
Z
VID. IN PB/EE CONFI CTL/TC MENU TCGSET
PB
Y-R,B
OFF
TC
Lower control panel (see page 2-3)
CONTROL PANEL
KEY INHI
ON
OFF
PANEL SEL
REAR
Switch panel (access by opening the lower control panel) (see page 2-14)
FRONT
Lower control panel unlock buttons
Pushing in these buttons allows you to open the lower control panel.
Chapter 2 Location and Function of Parts
2-1
Chapter 2 Location and Function of Parts
Chapter 2
Location and Function of Parts
There are three control panels, as follows:
• Upper control panel
• Lower control panel
• Switch panel
2-1 Control Panels
2-1-1 Upper Control Panel
Chapter 2 Location and Function of Parts
1 POWER switch
2 REMOTE buttons and RS-232C indicator
3 EJECT button
4 Format indicators
BETACAM/SP
POWER
REMOTE
1(9P)
2(50P) RS-232C
BETACAM SX
MPEG IMX
Cassette compartment
Digital BETACAM
EJECT
Z
PHONES
5 PHONES jack and control
1 POWER switch
Pressing the ‘ ) ’ side of the switch powers the unit on.
When the unit is powered on, the audio setting display
section (see page 2-5) and the time data/menu display
section (see page 2-7) light.
2 REMOTE buttons and RS-232C indicator
Press one of these buttons to select the device
controlling this unit.
1(9P): This unit is controlled by the device connected
to the REMOTE 1-IN(9P) or REMOTE 1OUT(9P) connector. The button lights.
2(50P): This unit is controlled by the device
connected to the REMOTE 2 PARALLEL I/
O(50P) connector. The button lights.
RS-232C indicator: This indicator lights when this
unit is controlled through the RS-232C connector.
3 EJECT button
To eject the cassette, press this button. While the
cassette is being ejected, this button lights.
When using the lower control panel as remote control
panel, press the DELETE button and STOP button at
the same time to eject the cassette.
Note
Ejecting with the EJECT button is a local operation. It
is not possible to eject a cassette in another unit by
remote control.
4 Format indicators
The BETACAM/SP, BETACAM SX, MPEG IMX, or
Digital BETACAM indicator1) lights depending on the
current recording or playback format.
The BETACAM/SP indicator lights when the format is
Betacam or Betacam SP.
5 PHONES jack and control
Connect stereo headphones with an impedance of
8 ohms, to monitor the sound during recording,
playback and editing.
The control knob adjusts the volume.
It is possible to set an internal board switch so that the
output volume from the MONITOR OUTPUT L and R
connectors is controlled simultaneously.
For details, refer to the Installation Manual.
..........................................................................................................................................................................................................
1) The BETACAM/SP, BETACAM SX, and MPEG IMX
indicators do not exist on the DVW-2000/2000P.
2-2
Chapter 2
Location and Function of Parts
2-1-2 Lower Control Panel
Chapter 2 Location and Function of Parts
4 Time data/menu display section (see page 2-7)
2 CHANNEL CONDITION
indicator (see page 2-6)
1 Audio control section
(see page 2-4)
5 MULTI CONTROL knob and SHIFT
indicator (see page 2-8)
6 RESET button (see page 2-8)
3 Menu control buttons
(see page 2-6)
VID. IN PB/EE CONFI CTL/TC MENU TCGSET
PB
Y-R,B
OFF
TC
7 Search control section (see page 2-8)
8 REC INHI indicator (see page 2-10)
9 Tape transport control section (see page 2-10)
qa ALARM indicator and KEY INHI
indicator (see page 2-11)
q; Editing mode setting
section (see page 2-11)
qs PLAYER button and RECORDER
button (see page 2-12)
VID. IN PB/EE CONFI CTL/TC MENU TCGSET
PB
Y-R,B
OFF
TC
qd Editing control section (see page 2-12)
qf Shot mark section (see page 2-13)
Chapter 2 Location and Function of Parts
2-3
2-1 Control Panels
1 Audio control section
Chapter 2 Location and Function of Parts
1 Audio selection function selector buttons
2 DISPLAY FULL/FINE button
3 Audio setting display section
4 Audio signal
selection buttons
MIXING (mixing setting mode) button: Pressing
this button puts the unit into mixing setting mode.
In the audio setting display section, the MIX
indicator flashes. In this state, you can use the
audio signal selection buttons to specify which
input channel signal will be recorded on which
audio track on the tape.
Pressing this button again takes the unit out of
mixing setting mode and puts it into monitor
signal selection mode.
On how to operate in input signal selection mode, mixing
setting mode, and monitor signal selection mode, see the
descriptions of the audio signal selection buttons on page
2-5.
6 PB controls
5 REC controls
In the audio control section, you can select and display
input and output signals for audio channels.
1 Audio selection function selector buttons
INPUT (input signal selection mode) button:
Pressing this button puts the unit into input signal
selection mode. In the audio setting display
section, indicators flash to indicate the currently
selected signal for each channel (SDI, AES/EBU,
or ANA). In this state, you can use the audio
signal selection buttons to select the signal to
input to each channel.
You can select the following signals for audio
input channels 1 to 4, respectively.
• For input channel 1: SDI-1, SDI-5, AES/EBU-1,
or ANALOG-1
• For input channel 2: SDI-2, SDI-6, AES/EBU-2,
or ANALOG-2
• For input channel 3: SDI-3, SDI-7, AES/EBU-3,
or ANALOG-3
• For input channel 4: SDI-4, SDI-8, AES/EBU-4,
or ANALOG-4
Pressing this button again takes the unit out of
input signal selection mode and puts it into
monitor signal selection mode.
2-4
Chapter 2
Location and Function of Parts
2 DISPLAY FULL/FINE button
Pressing this button toggles the display mode of the
level meters in the audio setting display section
between FULL and FINE.
FULL: The display covers the range –60 dB to 0 dB
or –40 dB to +20 dB as selected using setup menu
item 806. In this mode the segment of the display
corresponding to the current audio level and all
lower segments light.
FINE: The display is enlarged, with a step of
0.25 dB. A segment indicating the reference level
lights. In this mode only the segment of the
display corresponding to the current audio level
lights. If the audio level exceeds the maximum
display level, the top segment flashes, and if the
audio level goes below the minimum display
level, the bottom segment flashes.
3 Audio setting display section
Input signal indicator
MIX indicator
OVER indicator
Level meter
SDI
AES/EBU/ANA
DATA 5 6 7 8
MIX 1 2 3 4
dB OVER dB
20
0
2
10
-10
1
Input channel
indicator
-20
0
-1
-10
-30
-20
-40
-2
-40
-60
L EMPH R
Monitor channel L
and R indicators
EMPH indicator
Input signal indicator: Indicates the currently
selected input signal (‘SDI’, ‘AES/EBU’, ‘ANA’
for analog) for the corresponding audio input
channel.
DATA indicator: Lights when the corresponding
audio track (audio channel on the tape) is put into
data mode.
For details of the data mode, refer to the Maintenance
Manual Volume 1.
MIX (mixing) indicator: Flashes when a mixing
setting operation is enabled for the corresponding
audio track. The indicator showing the number of
the selected input channel lights.
OVER indicator: While the unit is in recording or
playback mode, this lights when the level of the
audio signal on the corresponding channel exceeds
the maximum level that can be indicated on the
level meter.
Level meter: Displays the audio signal level when
the unit is in recording, E-E1), or playback mode.
You can use the setup menu to switch the display
mode between PEAK.0 (0 dB is maximum level)
and REF.0 (0 dB is the reference level). You can
also use the DISPLAY FULL/FINE button 2 to
enlarge the display only near the reference level.
4 Audio signal selection buttons (CH1 to CH4,
CUE)
The function of these buttons depends on the signal
selection mode set with the audio selection function
selector buttons (INPUT, MIXING) 1 as follows.
Input signal selection mode (the input signal
indicator flashes): The buttons in the upper row
select signals for each audio input channel.
Each time you press the CH1 (CH2, CH3, CH4)
button, the selected signal cycles through SDI
(channel 1 (2, 3, 4)) t SDI (channel 5 (6, 7, 8))
t AES/EBU t ANA(analog) t SDI (channel 1
(2, 3, 4))...
Press the INPUT button to confirm the input
signal selections.
Mixing setting mode (the MIX indicator flashes):
The buttons in the lower row (REC row) select the
tracks (audio channels on the tape) to contain the
mixed signals. In the audio setting display section,
the MIX indicator for the corresponding track
flashes. The buttons in the upper row (EXT row)
select the input channel signals to record on the
corresponding track. By pressing two buttons at
the same time, you can specify that the signals of
two input channels be mixed for recording.
For example, if you want to record the mixed
signals of input channels 1 and 4 on track 3, press
the CH3 button in the lower row (REC row), and
then simultaneously press the CH1 and CH4
buttons in the upper row (EXT row).
..........................................................................................................................................................................................................
1) E-E mode: Abbreviation of “Electric-to-Electric mode”.
but not through magnetic conversion circuits such as
heads and tapes. This can be used to check input signals
In this mode, video and audio signals input to the VTR
and for adjusting input signal levels.
are output after passing through internal electric circuits,
Chapter 2 Location and Function of Parts
2-5
Chapter 2 Location and Function of Parts
DATA indicator
Input channel indicator: Indicates the input channel
from which audio signals are recorded on the
audio track. Two numbers light to indicate that
signals from the corresponding input channels are
mixed for recording.
Monitor channel L and R indicators: Indicate
whether or not the signals of the track are output
to the MONITOR OUTPUT L and R connectors
or the PHONES jack. ‘L’ lights to indicate output
to the left monitor channel, and ‘R’ lights to
indicate output to the right monitor channel.
EMPH (emphasis) indicator: While the unit is in
recording or playback mode, this lights when the
emphasis setting is on for the audio signal on the
corresponding track.
2-1 Control Panels
Note
Chapter 2 Location and Function of Parts
Before selecting signals from two input channels
for recording in one recorder channel, check to be
sure that the emphasis settings (ON or OFF) of the
two input channels are the same. Recording and
playback of mixed signals cannot be carried out
correctly if the emphasis settings are different.
For audio tracks with emphasis on, the EMPH
indicator in the audio setting display section
lights.
Monitor signal selection mode (the input signal
indicator and the MIX indicator do not flash):
The buttons in the upper and lower rows select
tracks to be output to the MONITOR OUTPUT L
and R connectors on the connector panel or the
PHONES jack on the upper control panel. The
buttons in the upper row (L row) select tracks for
output to the MONITOR OUTPUT L connector,
and the buttons on the lower row (R row) select
tracks for output to the MONITOR OUTPUT R
connector. You can obtain the mixed output of
multiple tracks by simultaneously pressing
multiple buttons in the upper or lower rows. For
example, simultaneously press the CH1, CH2, and
CH3 buttons in the upper row to mix the signals of
audio tracks 1, 2, and 3 for output to the
MONITOR OUTPUT L connector.
To monitor channels 5 to 8 in MPEG IMX
playback, press the CUE button to switch between
CH1 to CH4 and CH5 to CH8, and then select the
desired channels.
5 REC (recording) controls
These individually adjust the recording levels on
channels 1 to 4 and cue audio.
To set the recording level, put the unit into E-E mode,
press to protrude the control knobs and adjust the level
while watching the level meters.
When the control knobs are pushed in, the recording
levels return to the preset levels and cannot be
adjusted.
For details about selecting the E-E mode, see the
description of the REC button in the tape transport control
section (see page 2-10) and function menu HOME page (see
page 11-3).
2-6
Chapter 2
Location and Function of Parts
6 PB (playback) controls
These adjust individually the playback levels on
channels 1 to 4 and cue audio.
During playback, press to protrude the control knobs
and adjust the level while monitoring the audio level
indication on the level meters in the audio setting
display section.
When the control knobs are pushed in, the playback
levels return to the preset levels, and cannot be
adjusted.
On how to adjust the output levels of audio channel 5 to 8
during IMX tape playback, see the description of setup menu
item 826 (page 12-29)
2 CHANNEL CONDITION indicator
A three-color indicator shows the state of the playback
signal.
Green: The state of the playback signal is good.
Yellow: The playback signal is somewhat
deteriorated, but playback is possible.
Red: The playback signal is deteriorated.
When this indicator remains on, head cleaning or
an internal inspection is necessary.
3 Menu control buttons
These buttons are used for function menu (see the
following section “Overview of the function menu”)
and setup menu (see Chapter 12) operations. The page
buttons (V, v, and HOME) select menu pages, and the
function buttons (F1 to F6) make function settings.
V: Selects the next page in the order HOME t 1 t
2 t 3 t 4 t 5 t HOME.
v: Selects the next page in the order HOME t 5 t
4 t 3 t 2 t 1 t HOME.
When there are setup menu definitions on page 6,
page 6 is displayed between page 5 and the HOME
page.
HOME: Selects the function menu HOME page.
When at least one user-defined function key is set
in the HOME2 page, pressing the HOME button
toggles the menu page display between HOME
and HOME2.
F1 to F6: Make settings for the items displayed in the
upper line of the menu display (the menu item
display line). Pressing one of these buttons
changes the setting for the corresponding item and
displays the setting in the lower line of the menu
display.
Overview of the function menu
The function menu provides convenient access to
frequently used function settings, such as input video
signal selection and time code settings.
For details on the function menu, see Chapter 11.
4 Time data/menu display section
2F
01:23:45:06
Time data type indicator
This indicates the type of data displayed in the time
data display area 1.
LTC (longitudinal time code): Time code recorded
on a longitudinal track on the tape
LUB: LTC user bit values
VITC (vertical interval time code): Time code
recorded in the vertical blanking interval
VIUB: VITC user bit value
DF (drop-frame) indicator (525-line mode only)
This lights when values of drop-frame mode time code
are displayed.
1 Time data display
VIUB DF LTC VITC
Time data display area 1
Normally this displays a CTL count, time code value,
or user bit value according to the setting in function
menu HOME page for F4 (CTL/TC).
CONFI ON
59.94
DB 525
DOLBY NR
REM: 01: 23 : 45 78. 9%
1 VID. IN PB/EE CONFI CTL/TC MENU TCGSET
PB
Y-R,B
OFF
TC
2 Menu display
2 Time data display
This displays indicators relating to time data and other
indicators.
LTC indicator
Regardless of the display in time data display
area 1, this indicator lights when LTC values are being
read or recorded.
VITC indicator
Regardless of the display in time data display
area 1, this indicator lights when VITC values are
being read or recorded.
Capstan lock mode indicator
This indicates the capstan lock mode (2F, 4F, or 8F)
set in function menu page 4 or in setup menu item 106.
Time data display area 1
Time data type indicator
DF indicator
LTC indicator
VITC indicator
Capstan lock mode indicator
Playback format indicator
System frequency indicator
525/625 indicator
CONFI (ON)/PREREAD
indicators
VIUB DF LTC VITC
2F
01:23:45:06
CONFI ON
DOLBY NR
Speed indication area
DOLBY NR indicator
Time data display area 2
Playback format indicator
This indicator shows the current playback format.
DB: Digital Betacam format
IMX: MPEG IMX format, bit rate 50 Mbps, 8 audio
channels/16 bits
IMX4: MPEG IMX format, bit rate 50 Mbps, 4 audio
channels/24 bits
SX: Betacam SX format
SP: Betacam SP format
No display: Betacam format
System frequency indicator
Displays the current playback field frequency.
525/625 indicator
This indicator shows the number of scan lines for the
television standard (525 (NTSC) or 625 (PAL))
selected using setup menu item 013.
Chapter 2 Location and Function of Parts
2-7
Chapter 2 Location and Function of Parts
If there is no setting displayed in the lower line of
the menu display, even though a menu item is
displayed in the upper line, pressing the
corresponding function button moves to a lower
menu level.
2-1 Control Panels
Chapter 2 Location and Function of Parts
CONFI (ON)/PREREAD indicators
These indicate the state of the VTR CONFI playback 1)
function. When the CONFI playback function is
enabled by the setting in function menu HOME page,
the CONFI indicator appears, and when CONFI
playback is actually being carried out the ON indicator
also appears.
When F6 (PREREAD) is set to ON in function menu
page 4, the CONFI playback function is disabled and
one of the following is displayed.
PREREAD: Preread of both audio and video
A-PREAD: Preread of both audio only
V-PREAD: Preread of video only
Time data display area 2
Displays data types and time data such as the time
code of edit points and the total time of that tape.
The following data types are shown.
TOTL: Time value representing the total tape length.
REM: Time value representing the remaining tape
length.
Either TOTL or REM appears depending on the
function menu page 3 setting for F5 (T INFO).
The values displayed are approximate values
calculated on the basis of the detected tape diameter.
They are not precise to units of seconds.
2 Menu display
This displays the function menu and setup menu.
For details on the function menu, see Chapter 11 and for
details on the setup menu, see Chapter 12.
5 MULTI CONTROL knob and SHIFT
indicator
In function menu operations, rotate the MULTI
CONTROL knob to change settings that flash in the
menu display section. In setup menu operations, rotate
this knob to select menu items.
The SHIFT indicator lights when you press this knob
in. In this state, the value of the setting changes by a
greater amount when you rotate the knob.
6 RESET button
To reset a CTL, time code (TC) or user bit (UB) value
displayed in time data display area 1, hold this button
down.
Resetting the CTL value erases all edit points.
7 Search control section
BOT: Returned to top of tape.
EOT: Reached end of tape.
IN: video IN point
OUT: video OUT point
AIN: audio IN point
AOUT: audio OUT point
DUR: duration value
TCG (time code generator): time code generated by
the internal time code generator
DOLBY NR indicator
This lights when the Dolby noise-reduction 2) circuit is
functioning.
1 SHUTTLE button
2 JOG button
3 VAR button
RECORDER
SHUTTLE/VAR
JOG
TTLE
SHU
E
RS
VE
RE
JOG
VA
R
FO
RW
4 SHUTTLE/VAR
and JOG
indicators
AR
D
5 Search dial
Speed indication area
This indicates the speed of a DMC playback.
During a DMC playback, “DMC SPD” is displayed in
time data display area 2.
..........................................................................................................................................................................................................
1) CONFI playback: This refers to playback of the audio
and video signals immediately after recording, using the
confidence heads, the signal being output to all intents
and purposes simultaneously with recording. This is used
to check recording.
2-8
Chapter 2
Location and Function of Parts
2) Dolby noise reduction: Dolby noise reduction
manufactured under license from Dolby Laboratories
Licensing Corporation. “DOLBY” and the double-D
symbol ; are trademarks of Dolby Laboratories
Licensing Corporation.
Playback modes using the search dial
Playback mode
Operations and functions
Press the SHUTTLE button or the
search dial so that the SHUTTLE
button lights, then turn the search dial.
Playback is carried out at a speed
determined by the position of the
search dial. The playback speed
range is as follows:
Shuttle
For details of playback in shuttle mode, see the description
of the search dial 5.
2 JOG button
To use the search dial for playback in jog mode, press
this button, turning it on.
• Using a Digital Betacam tape: –50 to
+50 times normal speed
• Using an MPEG IMX tape: –78 to
+78 times normal speed
For details of playback in jog mode, see the description of
the search dial 5.
• Using a Betacam SX tape: –78 to
+78 times normal speed
3 VAR (variable) button
To use the search dial for playback in variable speed
mode, press this button, turning it on.
• Using an analog Betacam tape: –35
to +35 times normal speed for 525/
60 mode or –42 to +42 times normal
speed for 625/50 mode
For details of playback in variable speed mode, see the
description of the search dial 5.
The search dial has detents at the still
position and at ±5 times normal
speed.
4 SHUTTLE/VAR and JOG indicators
Either of the indicators is lit to show the current search
mode or the mode used last. When the unit is turned
on, the SHUTTLE/VAR indicator lights.
When the SHUTTLE/VAR indicator is lit: Shuttle
or variable speed mode
When the JOG indicator is lit: Jog mode
The maximum shuttle mode playback
speed can be changed by changing
the setting of setup menu item 102
(see page 12-8).
Press the JOG button or the search
dial so that the JOG button lights, then
turn the search dial. Playback is
carried out at a speed determined by
the speed of rotation of the search
dial. The playback speed range is –1
to +1 time normal speed.
5 Search dial
Turn this to carry out playback in the modes shown in
the following table. Turning the dial clockwise lights
the H indicator and plays back in the forward
direction. Turning the dial counterclockwise lights the
h indicator and plays back in the reverse direction.
When the tape is stopped or the unit is turned on, the
s indicator lights. Pressing the dial toggles between
shuttle and jog modes or between variable speed and
jog modes.
You can carry out noiseless playback in the following
speed ranges depending on the tape format.
Digital Betacam: –1 to +3 times normal speed
MPEG IMX: –1 to +3 times normal speed
Betacam SX: –1 to +2 times normal speed
Betacam/Betacam SP: –1 to +3 times normal speed
Jog
The search dial has no detents.
Variable speed
Press the VAR button, turning it on,
then turn the search dial. You can
control the playback speed finely (a
maximum of 51 steps) in the range in
which noiseless playback is possible.
The search dial has detents at the still
position and at the normal speed
position.
Capstan override
For details on operation, see page
4-9.
Setting setup menu item 101 (see page 12-8) to KEY enables
you to use only the SHUTTLE, JOG, and VAR buttons to
select shuttle/jog/variable speed modes.
Chapter 2 Location and Function of Parts
2-9
Chapter 2 Location and Function of Parts
1 SHUTTLE button
To use the search dial for playback in shuttle mode,
press this button, turning it on.
2-1 Control Panels
8 REC INHI (recording inhibit) indicator
Chapter 2 Location and Function of Parts
This indicator is on or off according to the
combination of the F5 (RECINH) setting on function
menu page 4 and the record inhibit plug on the
cassette, as shown in the following table. When this
indicator is on, recording on tape is prohibited.
REC INHI indicator indications
REC INHI
indicator state
RECINH setting State of the record
inhibit plug on the
cassette
ON
Record inhibit/permit
Lit
OFF
Record inhibit
Lit a)
Record permit
Off
a) It is possible to make a setting (setup menu item 107) so
that in this case the indicator flashes.
9 Tape transport control section
Cuing up edit points
Hold down the IN, OUT, AUDIO IN, or AUDIO OUT
button while pressing this button to cue up to the
corresponding edit point.
2 REC (record) button
To start recording, press this button together with the
PLAY button, turning it on.
Monitoring in E-E mode
When the unit is in stop mode, pressing the REC
button causes it to light and allows you to monitor the
video and audio in E-E mode. To return to the original
state, press the STOP button.
During playback, search, fast forward, or rewind,
while the REC button is held down you can monitor
the video and audio in E-E mode. In this case the
button does not light.
3 EDIT button
To carry out manual editing, press this button
simultaneously with the PLAY button.
1 PREROLL button
2 REC button
3 EDIT button
REC
PREROLL
EDIT
STANDBY
4 STANDBY button
REW
F FWD
PLAY
STOP
5 STOP button
6 F FWD button
7 PLAY button
8 SERVO indicator
9 REW button
1 PREROLL button
Press this button to cue up to the preroll point (before
the IN point by the time set as the preroll time) on the
tape. You can change or select the preroll time and the
state of the unit at the end of preroll (“stop mode” 1) or
(still playback mode) using setup menu item 001 or
401.
Monitoring in E-E mode
When the unit is in stop mode, pressing the EDIT
button causes it to light and allows you to monitor the
input signal selected with the ASSEMBLE button or
INSERT buttons in E-E mode. To return to the original
state, press the STOP button.
During playback, search, fast forward, or rewind,
while the EDIT button is held down you can monitor
the video and audio input signals in E-E mode.
4 STANDBY button
When a cassette is inserted and this button is off, to put
the unit in standby mode, press the button, turning it
on.
In standby mode, the drum is rotating and the tape is in
contact with the drum. As a result, recording or
playback can start immediately.
To end standby mode, press the STANDBY button,
turning it off.
If 8 minutes (value can be varied using setup menu
item 501) elapse in standby mode, the unit
automatically switches out of standby mode to protect
the tape.
..........................................................................................................................................................................................................
1) Stop mode: The state in which the device currently the
subject of operation is stopped, and the STOP button is
lit.
2-10
Chapter 2
Location and Function of Parts
Fault display function
The STOP button flashes in the following cases related
to reference signals:
• When F2 (OUTREF) is set to INPUT on function
menu page 4, and there is no input video signal.
• When F2 (OUTREF) is set to REF in function menu
page 4, and there is no external reference signal input
or the input external reference signal is not
synchronized to the input video signal.
6 F FWD (fast forward) button
To fast forward the tape, press this button, turning it
on.
7 PLAY button
To start playback, press this button, turning it on.
1 ASSEMBLE button
Press this button, turning it on, to carry out assemble
editing 1).
All signals (video signals, audio signals, time code
signals, and so on) are recorded together.
Press the button again, turning it off, to exit from
assemble editing mode.
Note
When even one of the INSERT buttons is lit, the
ASSEMBLE button does not work. To use the
ASSEMBLE button, turn off all the lit INSERT
buttons.
2 INSERT buttons
Press the corresponding button, turning it on, to select
a signal for insert editing 2). Press the button again,
turning it off, to cancel the selection.
VIDEO button: Selects the video signal.
TC (time code) button: Selects time code.
CH1 to CH4 (audio channels 1 to 4) buttons:
Select the signals on audio channels 1 to 4.
CUE button: Selects the cue audio signal.
Note
To operate in capstan override mode
Hold down this button, and turn the search dial.
When the ASSEMBLE button is lit, none of the
INSERT buttons work. To use INSERT buttons, press
the ASSEMBLE button, turning it off.
For details of capstan override mode, see page 4-9.
8 SERVO indicator
Lights when the drum servo and capstan servo are
locked.
9 REW (rewind) button
To rewind the tape, press this button, turning it on.
q; Editing mode setting section
1 ASSEMBLE button
ASSEMBLE
qa ALARM indicator and KEY INHI
indicator
ALARM indicator
This lights when a hardware error is detected on the
unit, and goes off when the error is resolved.
When this indicator is lit, an error message appears in
the time data/menu display section. If you are using
the SDI OUTPUT 3 (SUPER) or COMPOSITE
VIDEO OUTPUT 3 (SUPER) connector, then when
the setting of F4 (CHARA) in function menu page 4 is
ON, the error message also appears on the monitor
screen.
INSERT
VIDEO
TC
CH1
CH2
CH3
CH4
CUE
For details on error messages, refer to Section 1-24 in the
Maintenance Manual Volume 1.
2 INSERT buttons
..........................................................................................................................................................................................................
1) Assemble editing: Editing in which new video/audio is
added in sequence to the end of existing recorded video/
audio.
2) Insert editing: Editing in which new video/audio is added
to an intermediate position of existing recorded video/
audio.
Chapter 2
Location and Function of Parts
2-11
Chapter 2 Location and Function of Parts
5 STOP button
To stop recording or playback, press this button,
turning it on.
When you stop playback, the unit switches either to
still playback or to E-E mode according to the setting
on function menu HOME page for F2 (PB/EE) and the
setting of setup menu item 108.
2-1 Control Panels
Chapter 2 Location and Function of Parts
KEY INHI (inhibit) indicator
This indicator lights when the KEY INHIBIT switch
on the switch panel (see page 2-14) is set to ON.
qs PLAYER button and RECORDER
button
When you carry out editing using a VTR connected to
the REMOTE 1-IN(9P) or REMOTE 1-OUT(9P)
connector (see page 2-18) as the player and this unit as
the recorder, these buttons select which VTR the
editing control buttons and tape transport buttons on
this unit control.
PLAYER: The editing control buttons and tape
transport buttons on this unit control the external
player VTR.
RECORDER: The editing control buttons and tape
transport buttons on this unit control the recorder,
that is to say, this unit.
When this unit is being used in standalone mode,
neither button functions.
qd Editing control section
2 MEMORY indicator
When memorizing the playback speed using the DMC
EDIT button, this indicator flashes as the playback
speed is captured to memory, and lights continuously
once the speed is captured.
3 DELETE button
This deletes an existing edit point.
Hold down this button and press the IN, OUT, AUDIO
IN, or AUDIO OUT button which is lit, indicating an
existing edit point, to delete the corresponding edit
point. The button either goes off or flashes. When the
button flashes, it is necessary to set the deleted edit
point again.
To cancel the DMC mode, hold down the DMC EDIT
button and press the DELETE button.
4 TRIM buttons
Use these buttons to trim an edit point to single-frame
precision.
Hold down the IN, OUT, AUDIO IN, or AUDIO OUT
button, and press one of these buttons. The ‘+’ button
advances the corresponding edit point by one frame,
and the ‘–’ button sets it back by one frame.
Pressing one of these buttons while holding down the
PLAY button adjusts the tape speed by +8% or –8%
correspondingly. (Capstan override function)
1 DMC EDIT button
2 MEMORY indicator
3 DELETE button
4 TRIM buttons
5 Edit point setting buttons
TRIM
IN
DMC EDIT
DELETE
AUDIO OUT
ENTRY
MEMORY
PREVIEW
AUTO EDIT
REVIEW
IN
OUT
6 PREVIEW button
7 AUTO EDIT button
8 REVIEW button
1 DMC EDIT button
To carry out recording of playback at any speed
between –1 and +3 times normal (between –1 and +2
times normal for Betacam SX), automatic playback,
and automatic editing.
2-12
Chapter 2
Location and Function of Parts
5 Edit point setting buttons
IN button and OUT button: To set a video IN point
or OUT point, hold down the IN button or OUT
button, and press the ENTRY button.
After you have made the setting, pressing the IN
button or OUT button displays the video IN point
or video OUT point set in time data display area 2.
AUDIO IN button and AUDIO OUT button: In
insert editing, to set an audio IN point or audio
OUT point separate from the corresponding video
edit point, hold down the AUDIO IN button or
AUDIO OUT button, and press the ENTRY
button.
After you have made the setting, pressing the
AUDIO IN button or AUDIO OUT button
displays the audio IN point or audio OUT point set
in time data display area 2.
3 MARK button
Hold this button down for 2 seconds or more, to enable
writing, amending, and deleting of shot marks.
6 REVIEW button
Use this button to review the editing results after
carrying out automatic editing.
7 AUTO (automatic) EDIT button
After edit point setting, to carry out automatic editing
(recording), press this button, turning it on.
If the IN point is not set, the automatic editing is
carried out with the point where you pressed this
button as the IN point.
If you pressed the PREVIEW button to carry out a
preview, when the preview ends this button flashes.
8 PREVIEW button
After edit point setting, to preview the editing results
on the monitor before recording, press this button,
turning it on.
If the IN point is not set, the preview is carried out
with the point where you pressed this button as the IN
point.
During the preview it is lit, and when the preview ends
it flashes.
qf Shot mark section
1 LIST button
LIST GOOD SHOT MARK
REC/
ERASE
2 REC/ERASE indicator
3 MARK button
1 LIST button
Use this button to read in and list shot marks.
2 REC/ERASE indicator
This lights in the state in which writing, amending, and
deleting of shot marks is enabled and flashes while a
shot mark is actually being written, amended or
deleted.
Chapter 2
Location and Function of Parts
2-13
Chapter 2 Location and Function of Parts
ENTRY button: Use this for setting edit points and
so on.
• To set a video IN point or OUT point: Hold
down the IN button or OUT button, and press
this button.
• To set an audio IN point or OUT point: Hold
down the AUDIO IN button or AUDIO OUT
button, and press this button.
2-1 Control Panels
2-1-3 Switch Panel
Chapter 2 Location and Function of Parts
To access the switch panel, open the lower control panel.
On how to open the lower control panel, see the figure on
page 2-1.
CONTROL PANEL
KEY INHI
ON
OFF
PANEL SEL
REAR
FRONT
4 CONTROL PANEL connector
3 PANEL SELECT switch
2 KEY INHIBIT switch
1 Memory stick slot
1 Memory stick slot
Use this to update the firmware. You can also save or
load setup menu settings onto the Memory Stick.
Note
After inserting a Memory Stick, allow at least five
seconds to elapse before removing it.
For details on firmware update and save or load setup menu
settings, see Section 13-1 “Overview of Setup Utility Menu
Functions” and refer to the Maintenance Manual Volume 1.
2 KEY INHIBIT switch
Moving this switch to the ON position disables the
controls on the upper and lower control panels.
You can specify which buttons and knobs are disabled
in setup menu item 118.
3 PANEL SELECT switch
In addition to the lower control panel, you can connect
a similar control panel to this unit. When two control
panels are connected to the unit, the PANEL SELECT
switch is used to specify which panel be enabled to
control the unit.
FRONT: Enables the control panel connected to the
CONTROL PANEL connector on the switch
panel.
2-14
Chapter 2
Location and Function of Parts
REAR: Enables the control panel connected to the
CONTROL PANEL connector on the connector
panel. When setup menu item 117 is set to PARA,
this switch position also enables the control panel
connected to the CONTROL PANEL connector
on the switch panel.
4 CONTROL PANEL connector (10-pin, round
type)
Plug in the lower control panel connection cable.
2-2
Connector Panel
2 Analog video input/output section (see page 2-16)
Cooling fan
Chapter 2 Location and Function of Parts
1 Analog audio input/output
section
3 Digital audio input/output section (see page 2-16)
75Ω
75Ω
4 Digital signal input/
output section (see
page 2-17)
Cooling fan
5 Power supply section
(see page 2-17)
7 Time code input/output
section (see page 2-18)
6 External device connectors (see page 2-17)
8 Audio monitor signal output section
(see page 2-18)
2 AUDIO INPUT CH1 to CH4 (channels 1 to 4)
and CUE IN LEVEL switches
Set these for each channel as shown in the following
table, according to the audio/cue input level to the
AUDIO INPUT CH1 to CH4 and CUE IN connectors
and the impedance.
1 Analog audio input/output section
1 AUDIO INPUT CH1 to CH4 connectors
2 AUDIO INPUT CH1 to CH4 and CUE
IN LEVEL switches
AUDIO INPUT
CH2 LEVEL
CH3 LEVEL
CH1 LEVEL
LOW
OFF
HIGH
ON
600Ω
LOW
OFF
HIGH
ON
600Ω
LOW
OFF
CUE
IN LEVEL
CH4 LEVEL
HIGH
ON
600Ω
LOW
OFF
HIGH
ON
600Ω
LOW
AUDIO INPUT CH1 to CH4 and
CUE IN LEVEL switch settings
HIGH
ON
600Ω
OFF
Audio/cue input level and impedance Switch setting
Level
CH1
CH2
AUDIO OUTPUT
CH3
CUE
CH4
OUT
Impedance
–60 dBu
High impedance LOW-OFF
(microphone input) (approx. 20 kΩ) (left position)
+4 dBu
(line audio input)
High impedance HIGH-OFF
(approx. 20 kΩ) (center position)
+4 dBm
(line audio input)
600 Ω
HIGH-ON 600 Ω
(right position)
4 CUE IN/OUT connectors
3 AUDIO OUTPUT CH1 to
CH4 connectors
1 AUDIO INPUT CH1 to CH4 (channels 1 to 4)
connectors (XLR 3-pin, female)
Input analog audio signals to channels 1 to 4.
You can record analog audio signals input to these
connectors to any audio track on the tape.
3 AUDIO OUTPUT CH1 to CH4 (channels 1 to 4)
connectors (XLR 3-pin, male)
These connectors output analog audio signals for
channels 1 to 4.
4 CUE IN/OUT(cue audio input/output)
connectors (XLR 3-pin, female/male)
The IN connector inputs and the OUT connector
outputs the analog cue audio signals.
Chapter 2
Location and Function of Parts
2-15
2-2 Connector Panel
2 Analog video input/output section
Chapter 2 Location and Function of Parts
1 REF.VIDEO INPUT connectors and 75 Ω termination switch
2 COMPOSITE VIDEO INPUT connectors
and 75 Ω termination switch
5 COMPOSITE VIDEO OUTPUT connectors
(BNC type)
These connectors output analog composite video
signals.
When the setting of F4 (CHARA) in function menu
page 4 is ON, connector 3 (SUPER) outputs a signal
with superimposed time code, menu settings, alarm
messages, and other text information.
VIDEO INPUT
REF.VIDEO COMPOSITE COMPONENT
OFF
ON OFF
ON
75 Y
75
3 Digital audio input/output section
R-Y
B-Y
3 COMPONENT VIDEO
INPUT connectors
1 AUDIO INPUT (AES/EBU) connectors
AUDIO INPUT(AES/EBU)
CH1/2
CH3/4
VIDEO OUTPUT
COMPOSITE COMPONENT
1
Y
2
R-Y
3
(SUPER)
B-Y
AUDIO OUTPUT(AES/EBU)
CH1/2
CH3/4
CH5/6
CH7/8
4 COMPONENT VIDEO
OUTPUT connectors
2 AUDIO OUTPUT (AES/EBU) connectors
5 COMPOSITE VIDEO
OUTPUT connectors
1 REF. (reference) VIDEO INPUT connectors
(BNC type) and 75 Ω termination switch
Input a reference video signal. Input a video signal
with chroma burst (VBS) or a monochrome video
signal (VS). When using the loop-through connection
set the switch to the OFF position, and otherwise to the
ON position.
2 COMPOSITE VIDEO INPUT connectors (BNC
type) and 75 Ω termination switch
Input analog composite video signals.
When using the loop-through connection set the switch
to the OFF position, and otherwise to the ON position.
3 COMPONENT VIDEO INPUT connectors
(BNC type)
Input analog component video signals (Y/R–Y/B–Y).
4 COMPONENT VIDEO OUTPUT connectors
(BNC type)
These connectors output analog component video
signals (Y/R–Y/B–Y).
2-16
Chapter 2
Location and Function of Parts
1 AUDIO INPUT (AES/EBU) connectors (BNC
type)
Input up to two sets (4 channels: channels 1/2 and 3/4)
of AES/EBU format digital audio signals.
2 AUDIO OUTPUT (AES/EBU) connectors (BNC
type)
These connectors output up to four sets (8 channels:
channels 1/2, 3/4, 5/6 and 7/8) of AES/EBU format
digital audio signals. Note that if your unit is a DVW2000/2000P, AES/EBU digital audio outputs are
limited to two sets (4 channels: channels 1/2 and 3/4).
4 Digital signal input/output section
5 Power supply section
Chapter 2 Location and Function of Parts
SDI
INPUT
1 AC IN connector
1 SDI INPUT connectors
2 Ground terminal
SDI
1 AC IN connector
Use a power cord to connect this to an AC outlet.
OUTPUT
1
2
2 SDI OUTPUT connectors
3(SUPER)
2 Ground terminal
Connect this to ground.
6 External device connectors
1 SDI (Serial Digital Interface) INPUT connectors
(BNC type)
Input D1 format digital video/audio signals. Of the two
connectors, the upper one is for input, and the lower
one is for an active-through connection.
REMOTE 2 PARALLEL I/O(50P)
REMOTE 1-IN(9P)
2 CONTROL PANEL
connector
REMOTE 1-OUT(9P)
2 SDI (Serial Digital Interface) OUTPUT
connectors (BNC type)
These connectors output D1 format digital video/audio
signals.
When the setting of F4 (CHARA) in function menu
page 4 is ON, connector 3 (SUPER) outputs a signal
with superimposed time code, menu settings, alarm
messages, and other text information.
CONTROL PANEL
1 REMOTE 2 PARALLEL
I/O(50P) connector
VIDEO CONTROL
3 VIDEO CONTROL
connector
RS232C
4 OPTION connector
(OPTION)
5 REMOTE 1-IN(9P)
connector
6 REMOTE 1-OUT(9P)
connector
7 RS-232C connector
1 REMOTE 2 PARALLEL I/O(50P) connector
(D-sub 50-pin)
Connect remote control signals from an external
device.
For details, refer to the Installation Manual.
Chapter 2
Location and Function of Parts
2-17
2-2 Connector Panel
Chapter 2 Location and Function of Parts
2 CONTROL PANEL connector (round type, 10pin)
In addition to the lower control panel, a similar control
panel can be connected to this unit. To connect such a
second control panel, use this connector. When two
control panels are connected, use the PANEL SELECT
switch on the switch panel (see page 2-14) to specify
which control panel will control this unit.
3 VIDEO CONTROL connector (D-sub 15-pin)
For remote control of the internal digital video
processor, connect an optional BVR-50/50P Remote
Control Unit.
Always power off this unit before connecting the
remote control unit.
4 OPTION connector (D-sub 9-pin)
Not used.
5 REMOTE 1-IN(9P) connector (D-sub 9-pin)
When using this unit together with another DVWM2000/M2000P/2000/2000P or an MPEG IMX, D-1,
D-2, or Betacam VTR, and a BVE-series BVE-900/
910/2000/9000/9000P/9100/9100P or other editor,
connect the optional 9-pin remote control cable from
the other unit to this connector.
Depending on the setting of setup menu item 211, you
can use this connector alone, or in a loop-through
configuration with the REMOTE 1-OUT(9P)
connector.
6 REMOTE 1-OUT(9P) connector (D-sub 9-pin)
This provides the loop-through output for remote
control signals from the REMOTE 1-IN(9P)
connector.
Depending on the setting of setup menu item 211, you
can use this connector alone, or in a loop-through
configuration with the REMOTE 1-IN(9P) connector.
7 RS-232C connector (D-sub 9-pin)
Use this for monitoring and diagnosis of the state of
this unit from an external computer, using ISR
(Interactive Status Reporting).
2-18
7 Time code input/output section
1 TIME CODE IN connector
TIME CODE
OUT
IN
2 TIME CODE OUT connector
1 TIME CODE IN connector (XLR 3-pin, female)
To record time code from an external device, input a
time code signal from the time code output connector
of the other device.
2 TIME CODE OUT connector (XLR 3-pin, male)
This outputs a time code according to the operating
state of the unit, as follows:
• During playback: the playback time code
By setting setup menu item 606, you can also output
the time code from the internal time code generator
locked to the playback time code.
• During recording: the time code generated by the
internal time code generator or the time code input to
the TIME CODE IN connector.
8 Audio monitor signal output section
R
MONITOR OUTPUT
L
1 MONITOR OUTPUT R
connector
2 MONITOR OUTPUT L
connector
1 MONITOR OUTPUT R connector (XLR 3-pin,
male)
This outputs the audio signals whose output
destination was set to ‘R’ with the audio signal
selection buttons in the audio control section. If
multiple tracks have been set to ‘R’, the signals of
those tracks are mixed for output.
2 MONITOR OUTPUT L connector (XLR 3-pin,
male)
This outputs the audio signals whose output
destination was set to ‘L’ with the audio signal
selection buttons in the audio control section. If
multiple tracks have been set to ‘L’, the signals of
those tracks are mixed for output.
Chapter 2
Location and Function of Parts
3-1
Connections to External Devices
shows the connections with a MSW-A2000/A2000P/
M2000/M2000P/2000/2000P unit as a player, with this
unit used as recorder.
This unit can input serial digital signals (video and
audio) from another digital VTR such as the MSWA2000/A2000P/M2000/M2000P/2000/2000P and
DVW-A500/A500P/500/500P. The following example
Reference signal
75 Ω termination
switch: OFF
REF. VIDEO INPUT
REMOTE 1-IN(9P)
MSW-A2000/A2000P/M2000/
M2000P/2000/2000P (player)
75 Ω termination
switch: ON
REF. VIDEO INPUT
SDI OUTPUT 3
REMOTE 1-OUT(9P)
75Ω
SDI INPUT
75Ω
SDI OUTPUT 3
DVW-M2000/M2000P/2000/2000P (recorder)
BVM-1454 series video
monitor
Chapter 3 Preparations
3-1
Chapter 3 Preparations
Chapter 3 Preparations
3-1-1 Connections to Digital Devices
3-1 Connections to External Devices
3-1-2 Connections to Analog Devices
The following example shows the connections with an
analog VTR (a Betacam SP VTR, D2 VTR, 1-inch
VTR, etc.) for recording analog audio and video
signals.
Chapter 3
Preparations
Video monitor
COMPONENT/
COMPOSITE
VIDEO OUTPUT
AUDIO INPUT CH1 to CH4 and CUE IN LEVEL
switches:
Set according to the analog/cue audio input
level and the impedance.
(see page 2-15)
75Ω
DVW-M2000/M2000P/2000/2000P
AUDIO
AUDIO INPUT
INPUT
CH1
CH1 to
to CH4
CH4
AUDIO OUTPUT
OUTPUT
AUDIO
CH1
CH1 to
to CH4
CH4
DVR-28/28P/20/20P D2
VTR, BVH-3000/3000PS
1-inch VTR, etc. (player)
REMOTE (9P)
VIDEO OUTPUT
COMPOSITE
AUDIO OUTPUT
OUTPUT
AUDIO
CH1 to
to CH4
CH4
CH1
BVW-75/70/65/60 series
Betacam SP VTR (player)
REMOTE (9P)
VIDEO OUTPUT
COMPONENT
3-2
Chapter 3
Preparations
75 Ω termination switch:
Set to OFF when using an analog
composite video signal bridge
connection, and otherwise to ON.
REMOTE 1-IN
(9P)
75Ω
COMPOSITE
VIDEO INPUT
COMPONENT
VIDEO INPUT
3-2 Reference Signals for Video Output and Servo
System
This section describes how reference signals for the
video output signals and servo system are selected.
The output from the internal reference video signal
generator is supplied to the output video signal and
servo circuits as a reference signal.
3-2-1 External Sync Signal for the Internal Reference Video Signal Generator
EXT
Setting of setup
menu item 309?
AUTO1
AUTO2
INPUT
INPUT
Setting of OUTREF?
Setting of OUTREF ?
REF
Yes
REF
Yes
Currently recording
or editing?
Currently recording?
No
No
Is a signal input to the
connector selected with
the VID.IN setting?
Yes
Synchronize to the input video
signal selected with the VID.IN
setting.
No
Is a signal input to
the REF. VIDEO
INPUT connector?
No
Yes
Synchronize to the reference
video signal input to the REF.
VIDEO INPUT connector.
No external synchronization
Chapter 3 Preparations
3-3
Preparations
Start
Chapter 3
synchronization status is as shown in the following
flowchart.
The video signals are output always synchronized to
the internal reference video signal.
The internal reference video signal generator is
synchronized either to a reference video signal or to an
input video signal. Depending on the settings of the
function menu item OUTREF and setup menu item
309, and the input signal selection, the external
3-2 Reference Signals for Video Output and Servo System
3-2-2 Reference Signal for the Servo System
The VTR automatically selects either the input video
signal or the output from the internal reference video
signal generator as the reference signal for the servo
system. Which of the two signals is selected depends
on the operational status of the VTR, as shown in the
following flowchart.
Chapter 3
Start
Preparations
EXT
Setting of setup
menu item 309?
AUTO1
AUTO2
INPUT
Setting of OUTREF?
REF
Yes
Currently
recording or
editing?
No
Is a signal input to the
connector selected with
the VID.IN setting?
Yes
Lock the servo to the input
video signal selected with
VID.IN setting.
3-4
Chapter 3
Preparations
No
Is a signal input to the
REF. VIDEO INPUT
connector?
No
Yes
Synchronize to the reference
video signal input to the REF.
VIDEO INPUT connector.
No external synchronization
3-2-3 Connecting Reference Signals
Connect reference signals as shown below, according
to the way in which the unit is to be used.
Connections for recording from a switcher or signal generator
Chapter 3
Reference signal
Preparations
Switcher or signal generator
75 Ω termination switch: ON REF. VIDEO
INPUT
75Ω
SDI INPUT
75Ω
DVW-M2000/M2000P/2000/2000P
Connections for recording from an external VTR (player)
Reference signal
75 Ω termination switch: OFF
REF. VIDEO
INPUT
SDI INPUT
75Ω
75 Ω termination switch: ON
REF. VIDEO
INPUT
SDI OUTPUT
75Ω
DVW-M2000/M2000P/2000/2000P (recorder)
DNW-A65/A65P (player)
Chapter 3 Preparations
3-5
3-2 Reference Signals for Video Output and Servo System
Connections for playback
Reference signal
Video monitor
Chapter 3
75 Ω termination switch: ON
REF. VIDEO
INPUT
Preparations
75Ω
75Ω
DVW-M2000/M2000P/2000/2000P
3-6
Chapter 3
Preparations
• SDI OUTPUT
• COMPOSITE
• COMPONENT
3-3
Setup
The principal setup operations before operating this
unit can be carried out using setup menus.
The setup menus of this unit comprise a basic setup
menu and an extended setup menu. The contents of
these menus are as follows.
Chapter 3
Basic setup menu:
• Items relating to the hours meter
• Items relating to operation
• Items relating to menu banks
Preparations
Extended setup menu:
• Items relating to control panels
• Items relating to the remote control interface
• Items relating to editing operations
• Items relating to preroll
• Items relating to tape protection
• Items relating to the time code generator
• Items relating to video control
• Items relating to audio control
• Items relating to digital processing
For detailed information about the items, except for the
basic setup menu items relating to the hours meter, of these
menus and how to use them, see Chapter 12 “Setup Menus”.
For detailed information about menu operations relating to
the hours meter, see Section 14-5-1 “Digital Hours
Meter”(page 14-5).
This unit allows menu settings to be saved in what are
termed “menu banks.” Saved sets of menu settings can
be recalled for use as required.
For more information about the menu banks, see the section
“Menu bank operations (menu items B01 to B13)” (page
12-4) .
Chapter 3 Preparations
3-7
3-2
Signals for Video
Output and Servo
System
3-4Reference
Superimposed
Character
Information
When the function menu item CHARA is set to ON,
the video signal output from the COMPOSITE VIDEO
OUTPUT 3 (SUPER) connector or the SDI OUTPUT
3 (SUPER) connector contains superimposed character
information, including time code, menu settings, and
alarm messages.
Adjusting the character display
You can adjust the position, size and type of the
superimposed characters using setup menu items 002,
003, 005, 009, and 011.
Chapter 3
For details, see Section 12-3 “Items in the Basic Setup
Menu” (page 12-5).
Information displayed
Preparations
2 Time code reader drop frame mark
(for 525-line mode only)
1 Type of time data
3 Time code generator drop frame mark (for
525-line mode only)
4 VITC field mark
Time data
T C R . 2 3 : 5 9 . 4 0 . 1 8 *
P
S H U T T L E
S T I L L
6 Operation mode
5 Recorder/player selection
1 Type of time data
Note
The display shown above corresponds to the factory
default settings of the unit.
Changing the setting of setup menu item 005 allows
different time data to be displayed in the lower line of
the display.
For details, see Section 12-3 “Items in the Basic Setup
Menu” (page 12-5).
Display
Meaning
CTL
CTL counter data
TCR
LTC reader time code
UBR
LTC reader user’s bits
TCR.
VITC reader time code
UBR.
VITC reader user’s bits
TCG
Time code generator time code
UBG
Time code generator user’s bits
IN
IN point
OUT
OUT point
AI
Audio IN point
AO
Audio OUT point
DUR
Duration between any two of the four edit
points (IN, OUT, audio IN, audio OUT)
Note
If the time data or user’s bits cannot be read correctly,
they will be displayed with an asterisk. For example,
“T*R”, “U*R”, “T*R.” or “U*R.”.
3-8
Chapter 3
Preparations
2 Time code reader drop frame mark (for 525-line
mode only)
“.”: Indicates drop frame mode
“:”: Indicates non-drop-frame mode
Block B
TAPE UNTHREAD
Cassette is not loaded.
STANDBY OFF
Standby off mode
T.RELEASE
Tape tension released
STOP
Stop mode
F.FWD
Fast forward mode
REW
Rewind mode
PREROLL
Preroll mode
PLAY
Playback mode (servo unlocked)
PLAY
LOCK
Record mode (servo locked)
PLAY
Variation
from normal
speed (%)
Capstan override mode (see
page 4-9)
REC
Record mode (servo unocked)
5 Recorder/player selection
The indication changes as follows, according to the
state of the RECORDER or PLAYER buttons on the
control panel.
No display: Neither the RECORDER or PLAYER
button is lit.
P: The PLAYER button is lit.
R: The RECORDER button is lit.
REC
LOCK
6 Operation mode
The field is divided into three blocks, A, B and C
• Block A displays the operation mode.
• Block B displays the servo lock status or tape speed.
• Block C displays a x mark to indicate an edit section
during automatic editing, or the section between the
IN and OUT points in auto feed playback.
AUTO EDIT
Automatic editing mode
PREVIEW
Preview mode
Playback mode (servo locked)
EDIT
Edit mode (servo unlocked)
EDIT
LOCK
Edit mode (servo locked)
JOG
STILL
A still picture in jog mode
JOG
FWD
Jog mode in forward direction
JOG
REV
Jog mode in reverse direction
SHUTTLE
(Speed)
Shuttle mode
VAR
(Speed)
Variable speed mode
Review mode
REVIEW
DMC
(Speed) a)
DMC playback mode
(Speed)
a)
DMC editing preview mode
D-EDIT
(Speed)
a)
DMC editing mode
DMC-SPD
(Speed)
DMC initial speed setting
PLY-SPD
Variation
from normal
speed (%)
Tape speed override mode
(when “TSO” is selected in
setup menu item 111)
D-PREV
a) Initial speed settings or stored speed settings
A
B
C
Chapter 3 Preparations
3-9
Preparations
4 VITC field mark
“ ” (blank): Fields 1 and 3 (for 525/60 mode) or
fields 1, 3, 5 and 7 (for 625/50 mode)
“ * ”: Fields 2 and 4 (for 525/60 mode) or fields 2, 4,
6 and 8 (for 625/50 mode)
Block A
Chapter 3
3 Time code generator drop frame mark (for 525line mode only)
“.”: Indicates drop frame mode (factory preset)
“:”: Indicates non-drop-frame mode
Operation mode
Display
3-2
Signals for Video Output and Servo System
3-5Reference
Cassettes
3-5-1 Cassette Types
This unit uses the following digital Betacam cassettes
for both recording and playback.
3-5-2 Inserting and Ejecting
Cassettes
It is not possible to insert or eject a cassette unless the
unit is powered on.
Digital Betacam cassettes
Chapter 3
Small cassettes
BCT-D6/D12/D22/D32/D40
Large cassettes
BCT-D34L/D64L/D94L/D124L
Inserting a cassette
Preparations
The following tapes can be used for playback (on
DVW-M2000/M2000P).
• MPEG IMX cassettes
• Betacam SX cassettes
• Betacam SP cassettes (metal tape)
• Betacam cassettes (oxide tape)
1
EJECT button
2
Small cassette
Large cassette
STANDBY
STANDBY button
REW
PLAY
F FWD
STOP
STOP button
1
2
Turn the POWER switch on.
Check the following points, then insert the cassette
in the orientation shown in the figure.
• Check that message “ERR-10” is not shown in
the time data/menu display section.
• Check that there is no slack in the tape.
The cassette is drawn into the unit, and the
STANDBY and STOP buttons light.
If message “ERR-10” appears in the time data/menu display
section, there is moisture condensation in the unit (see page
14-4).
3-10
Chapter 3
Preparations
Removing slack from the tape
Press in one of the reels with a finger, and turn gently
in the direction shown by the arrows until there is no
slack in the tape.
Chapter 3
Preparations
Ejecting a cassette
Press the EJECT button.
Note
Ejecting is a local operation. It is not possible to eject a
cassette in another unit by remote control.
If the tape slacks inside the unit, pressing the EJECT button
may not eject the cassette. For information about how to
remove the cassette in such a case, refer to Section 1-17 in
the Installation Manual.
3-5-3 Preventing Accidental
Erasure of Recordings
To prevent a tape from being inadvertently erased,
press in the red record inhibit plug on the cassette.
Large cassette
Small cassette
Press in the red record inhibit plug. (“ON”)
Return this plug to its original position to enable recording on the
tape again. (“OFF”)
Chapter 3
Preparations
3-11
3-2
Signals
for Video Stick
Output and Servo System
3-6Reference
Using
a Memory
When a Memory Stick (option) is inserted in the
VTR, the file data can be stored on the Memory Stick,
which enables you to share data among VTRs.
Inserting a Memory Stick
Chapter 3
Insert a Memory Stick with the label side up into the
Memory Stick slot until it clicks and the access lamp
lights in red.
Types of Memory Stick
There are two types of Memory Stick: MagicGate
Memory Stick that are equipped with the MagicGate
copyright protection technology and general Memory
Stick. Use the general type of Memory Stick (8MF,
16MF, 32MF, 64MF, 128MB) with this unit.
On MagicGate
Preparations
MagicGate is copyright-protection technology that
uses encryption technology.
Label side
Before using a Memory Stick
Memory Stick
Terminal
Write-protect tab
Note
Never insert/remove a Memory Stick during access to
data.
To remove a Memory Stick
If you push the inserted Memory Stick, the Memory
Stick will pop out a little. Then pull the Memory Stick
out.
3-6-1 Notes on Memory Stick
On Memory Stick
Memory Stick is a new compact, portable and
versatile IC recording medium with a data capacity
that exceeds that of a floppy disk. Memory Stick is
specially designed for exchanging and sharing digital
data among Memory Stick compatible products.
Because it is removable, Memory Stick can also be
used for external data storage.
3-12
Chapter 3
Preparations
Labeling position
• You cannot record or erase data when the write-protect
tab on the Memory Stick is set to LOCK.
• We recommend backing up important data.
• Image data may be damaged in the following cases:
– If you remove the Memory Stick, or turn the
power off when the access lamp is lit or flashing
– If you use a Memory Stick near static electricity or
a magnetic field
Notes
Chapter 3
• Prevent metallic objects or your finger from coming
into contact with the terminal of the connecting
section.
• Do not attach any material other than the supplied
label to the label space.
• Attach the label at the prescribed labeling position.
Make sure the label is attached at the labeling
position properly.
• Do not bend, drop, or apply strong shock to a
Memory Stick.
• Do not disassemble or modify a Memory Stick.
• Do not let the Memory Stick get wet.
• Do not use or keep a Memory Stick in locations that
are:
– Extremely hot such as in a car parked in the sun
– Under direct sunlight
– Very humid or subject to corrosive gases
• When you carry or store a Memory Stick, keep it in
its case.
Preparations
During access to data
While data are being read from or written to the
Memory Stick, do not shake this unit or subject it to
shock. Do not turn off the power of the unit or remove
the Memory Stick. This may damage the data.
For details, refer to the Maintenance Manual.
• Memory Stick and
are the trademarks of
Sony Corporation.
• MagicGate Memory Stick and
are the
trademarks of Sony Corporation.
Chapter 3
Preparations
3-13
4-1 Recording
Chapter 4 Recording and Playback
Chapter 4 Recording and
Playback
This section describes video and audio recording on
the unit.
4-1-1 Preparations for Recording
For details on each setting, see the pages indicated in
parenthesis.
Switch and menu settings
Before beginning recording, make necessary switch
and menu settings.
POWER switch: ‘ ( ’ side (ON)
REMOTE buttons (see page 2-2): off
Audio signal selection buttons (see page 2-5):
Select the audio channel to be monitored.
CONFI (ON)/PREREAD indicators (see page 2-8): lit
Z
VID.IN setting (see page 11-3):
Select the input video signal.
PREREAD setting
(see page 11-8): OFF
VID. IN PB/EE CONFI CTL/TC MENU TCGSET
PB
Y-R,B
OFF
TC
CONFI setting (see page 11-3):
ENABLE
PB/EE setting (see page 11-3): PB
CTL/TC setting (see page 11-3):
Select the time data to be displayed.
RECINH setting (see page 11-8):
OFF
Audio selection function selector buttons
(see page 2-4): Select the input audio signal.
REC controls (see page 2-6):
Adjust the audio recording levels.
Chapter 4 Recording and Playback
4-1
4-1 Recording
Adjusting the audio recording levels
To use the emphasis function
When carrying out audio recording at a
reference level
Leave the REC controls pressed in. The audio signals
will be recorded at a preset reference level (a reference
0 dB indication for an input of +4 dBm).
To add emphasis to the analog input audio signal or
analog playback audio signal, set the EMPHSS to ON
(see page 11-6).
When the signal to which emphasis has been applied is
played back, it is automatically subjected to
deemphasis processing.
Using the emphasis-deemphasis processing enables the
dynamic range to be improved by reducing highfrequency noise.
Chapter 4
Manually adjusting the recording levels
For each channel, press to protrude the REC control in
the upper control panel, and adjust so that the audio
level indication is 0 dB for an average volume. Carry
out the adjustment in E-E mode.
Recording and Playback
For details of selecting the E-E mode, see the description of
the REC button in the tape transport control section (page
2-10) and the PB/EE setting in function menu HOME page
(page 11-3).
To change the display range of the audio
level indications
Press the DISPLAY FULL/FINE button (see page
2-4).
To monitor the simultaneous playback of
the recorded video and audio signals
Set the CONFI to ENABLE (see page 11-3) to light
the CONFI indicator. It is now possible to
simultaneously monitor the video and audio signals
being recorded.
4-2
Chapter 4
Recording and Playback
4-1-2 Recording Time Code and
User Bit Values
There are three ways of recording time code, as
follows:
• Setting an initial value, then recording the output of
the internal time code generator
• Recording the output of the internal time code
generator synchronized to an external time code
generator
• Recording the output of an external time code
without modification
To set an initial value then record the time
code
If necessary, change the settings in function menu page
1 (see page 11-4).
Set the TCG (F1) to INT, and the TCG (F2) to
PRESET.
Setting the time code value to the real time
With the settings in function menu page 1 set as
follows, carry out the procedure under the heading
above, “Setting an initial time code value”. In steps 3
and 4, set the value slightly after the current time, then
carry out step 6 at the instant the real time catches up
with the setting.
TCG (F1): INT
TCG (F2): PRESET
RUN: FREE
DF: DF (525/60 mode only)
Setting an initial time code value
Use the following procedure.
RESET button
Z
1
2
1
2
Set the CTL/TC to TC.
Press the F6 (TCGSET) button.
The function menu display changes as follows.
TCG 00 : 00 : 00 : 00
SET
SET
EXIT
The first digit of the time code value (8 digits:
hours, minutes, seconds, and frames) flashes.
To set all digits to zero
Press the RESET button.
3
Press the F1 (T) or F2 (t) button to select the
digit to be changed.
Set the CTL/TC to UB.
Carry out the procedure in steps 2 to 6 under the
heading above, “Setting an initial time code
value”.
You can set each digit to any hexadecimal value,
represented by 0 to 9, and A to F.
Note
If any of the settings (to write a recording start mark)
in item G03 of the shot mark operation menu are set to
ON, then for 20 frames from each recording, assemble
editing, or insert editing start, the user bits are
overwritten with the shot mark data.
Pressing the F2 (t) button moves the flashing
digit position to the right, and pressing the F1 (T)
button moves the flashing digit position to the left.
4
Turn the MULTI CONTROL knob or press the F3
(+)/F4 (–) button to change the value in the
flashing digit position.
5
Until all the digits are set as required, repeat steps
3 and 4.
6
Press the F5 (SET) button.
When the RUN is set to FREE in function menu
page 1, the time code value immediately starts
advancing.
Chapter 4 Recording and Playback
4-3
Recording and Playback
1,2,3,4,5,6
Chapter 4
Setting a user bit value
The user bit values recorded on the time code track
provide for eight hexadecimal digits, which can be
used to hold the date, time, or other information.
Use the following procedure.
4-1 Recording
To synchronize the internal time code
generator to an external signal
Chapter 4
Recording and Playback
Use this method to synchronize the time code
generators of a number of VTRs, or to record the
playback time code signal from an external VTR
without deterioration of the signal waveform.
In this case the RUN and DF settings are ignored. You
can synchronize the internal time code generator to
either of the following external time codes.
• The time code output (LTC) of an external time code
generator or external VTR connected to the TIME
CODE IN connector of the unit
• The time code (VITC) present in a video signal input
to the unit
• The time code (SMPTE RP188) present in an SDI
signal input to the unit
To synchronize the internal time code generator to an
external signal, use the following procedure.
Z
IN
TIME CODE
OUT
1,2
1
TIME CODE IN connector
1
• When synchronizing to an external time code
output (LTC):
Connect the time code output of the external time
code generator or external VTR to the TIME
CODE IN connector.
• When synchronizing to the time code (VITC) in
an input video signal:
With the VID.IN in function menu HOME page,
select an input video signal containing VITC.
• When synchronizing to the time code (SMPTE
RP188) in an SDI signal:
With the VID.IN in function menu HOME page,
select SDI.
4-4
Chapter 4
Recording and Playback
2
Perform the following settings in function menu
page 1.
• When synchronizing to an external time code
output (LTC) or the time code (VITC) in an input
video signal:
TCG (F1): EXT
TCG (F2): REGEN
VITC: ON (when recording VITC)
TCR: LTC or VITC according as you are
synchronizing to LTC or VITC (If set to
AUTO, LTC is used.)
• When synchronizing to the time code (SMPTE
RP188) in an SDI signal:
TCG (F1): RP188
TCG (F2), VITC, TCR: Any setting
Note
When the TCG (F1) is set to RP188, when settings
of the TCG (F1) and VID.IN conflict with each
other, or when the input signal selected with the
VID.IN is not present, the TCG (F1) setting
display flashes.
This starts the internal time code generator running
in synchronization with the external time code
generator.
Once the internal time code generator is
synchronized with the external time code
generator, even if the external time code generator
connection is removed, the internal time code
generator continues to run.
To record an external time code without
modification
4-1-3 Recording Procedure
To record, use the following procedure.
Using this method has no effect on the running of the
internal time code generator.
To record the playback time code from an external
VTR, the method under the heading above, “To
synchronize the internal time code generator to an
external signal”, is recommended.
Z
Chapter 4
Z
1
IN
TIME CODE
OUT
2
For details, see the section “Inserting a cassette” (page
3-10).
1
2
1
Connect the time code output of the external time
code generator to the TIME CODE IN connector.
2
Perform the following settings in function menu
page 1:
TCG (F1): EXT
TCG (F2): PRESET
Insert a cassette.
Hold down the REC button, and press the PLAY
button.
Recording starts, the servo locks, and the SERVO
indicator lights.
3
To stop recording, press the STOP button.
If you record to the end of the tape
The tape is automatically rewound, and stops.
It is possible to disable the automatic rewind function by
changing the setting of setup menu item 125.
Chapter 4 Recording and Playback
4-5
Recording and Playback
1 2 3
4-1
4-2Recording
Playback
This section describes playback of video and audio.
4-2-1 Preparations for Playback
For details on each setting, see the pages indicated in
parenthesis.
Switch and menu settings
Before beginning playback, make necessary switch
and menu settings.
Chapter 4
POWER switch: ‘ ( ’ side (ON)
Recording and Playback
REMOTE buttons (see page 2-2): off
Audio signal selection buttons (see page 2-5):
Select the audio channel(s) to be monitored.
Z
VID. IN PB/EE CONFI CTL/TC MENU TCGSET
PB
Y-R,B
OFF
TC
PB controls (see page 2-6):
Adjust the audio playback levels.
TCR setting (see page 11-4): Select the time code to be displayed.
PB/EE setting (see page 11-3): PB
TCG (F2) setting (see page 11-4): Select the output time code.
TCG (F1) setting (see page 11-4): INT
CTL/TC setting (see page 11-3): Select the time data to be displayed.
4-6
Chapter 4
Recording and Playback
Time data selection
Normal playback
Displayed time data
Use the CTL/TC setting in function menu HOME page
to select one of CTL (control), time code, and user bit
values. When you select time code, the data displayed
is determined by the TCR setting (LTC/AUTO/VITC)
in function menu page 1 as follows.
First insert a cassette.
TCR setting
Displayed data
LTC
LTC recorded on tape
LTC or VITC (automatically switched)
VITC recorded on tape
Cassette compartment
Z
Chapter 4
AUTO
VITC
For details of how to insert a cassette, see Section 3-5-2
“Inserting and Ejecting Cassettes” (page 3-10).
Recording and Playback
Output time code
The TCG (F2) setting and setup menu item 606
determine whether the time code output from the
TIME CODE OUT connector is the time code
generated by the internal time code generator
(REGEN), or the playback time code (PRESET).
STOP button
PLAY button
For details of the TCG (F2) settings, see page 11-4.
4-2-2 Playback Procedures
This section describes the following types of playback
which the unit can carry out:
• Normal playback
Playback at normal (×1) speed
• Playback in jog mode
Variable speed playback, with the speed determined
by the speed of turning the search dial
• Playback in shuttle mode
Variable speed playback, with the speed determined
by the angular position of the search dial
• Playback in variable speed mode
Variable speed playback, with the speed finely
determined by the angular position of the search dial
• Playback using the capstan override function
The playback speed is adjusted temporarily according
to the angular position of the search dial, to align the
playback phase with that of another VTR.
• DMC Playback
Playback carried out at memorized varying speed.
To start playback
Press the PLAY button.
Playback starts, the servo locks, and the SERVO
indicator lights.
To stop playback
Press the STOP button.
If you play back to the end of the tape
The tape is automatically rewound, and stops.
It is possible to disable the automatic rewind function by
changing the setting of setup menu item 125.
When using the Dolby noise reduction system
When using an analog Betacam cassette, you can use
Dolby C noise reduction for audio playback.
To activate the Dolby noise reduction system, set the
DOLBY of function menu page 4 to NR ON (see page
11-7).
Chapter 4 Recording and Playback
4-7
4-2 Playback
Playback in jog mode
Playback in shuttle mode
In jog mode, you can control the speed of playback by
the speed of turning the search dial. The playback
speed range is ±1 times normal speed.
In shuttle mode, you can control the speed of playback
by the angular position of the search dial. The range of
playback speed is as follows:
• Using a Digital Betacam tape: ±50 times
• Using an MPEG IMX tape: ±78 times
• Using a Betacam SX tape: ±78 times
• Using an analog Betacam tape: ±35 times (for 525/60
mode) or ±42 times (for 625/50 mode)
There are detents on the search dial at the still position
and at ±5 times normal speed.
To carry out playback in shuttle mode, use the
following procedure.
The playback speed range can be ±3 times normal speed by
changing the setting of setup menu item 116.
To carry out playback in jog mode, use the following
procedure.
Chapter 4
Z
Recording and Playback
Z
1 1,2,3
1
Press the JOG button or search dial so that the JOG
button is lit.
Pressing the search dial toggles between jog mode
and shuttle mode.
2
1
To stop playback in jog mode, stop turning the
search dial.
The function to toggle between jog mode and shuttle
mode each time the search dial is pressed can be
disabled by changing the setting of setup menu item
101.
1,2,3
Press the SHUTTLE button or search dial so that
the SHUTTLE button is lit.
Pressing the search dial toggles between jog mode
and shuttle mode.
Turn the search dial in the desired direction, at the
speed corresponding to the desired playback speed.
Playback in jog mode starts.
3
1 3
2
Turn the search dial to the desired angle
corresponding to the desired playback speed.
Playback in shuttle mode starts.
3
To stop playback in shuttle mode, return the search
dial to the center position, or press the STOP
button.
The function to toggle between jog mode and shuttle
mode each time the search dial is pressed can be
disabled by changing the setting of setup menu item
101.
To return to normal-speed playback
Press the PLAY button.
4-8
Chapter 4
Recording and Playback
To alternate between normal-speed playback
and variable speed mode playback
Set the search dial to the position corresponding to the
desired variable playback speed, then switch between
normal-speed playback and variable speed playback by
pressing the PLAY and VAR buttons alternately.
For intermittent variable speed mode playback, press
the STOP and VAR buttons alternately.
Playback in variable speed mode
Playback using the capstan override
function
You can use the capstan override function to adjust the
playback speed temporarily. This function is
convenient for playback phase synchronization with
another VTR playing back the same program.
Two types of playback operation are available using
the capstan override function (capstan override
playback).
To perform temporal capstan override
playback
Z
Z
1
1
2
3 2,3
1(A)
Press the VAR button, turning it on.
Turn the search dial to the desired angle
corresponding to the desired playback speed.
Playback in variable speed mode starts.
3
1(B) 2
To stop playback in variable speed mode, return
the search dial to the center position, or press the
STOP button.
To return to normal-speed playback
Press the PLAY button.
1
(A) Hold down the PLAY button, and turn the
search dial in the desired direction to adjust the
playback speed.
The range of speed adjustment is ± 15% in
steps of 1%.
(B) Hold down the PLAY button, and press the
TRIM buttons to adjust the playback speed.
The playback speed can be adjusted to ± 8%
only.
The SERVO indicator goes off.
(Continued)
Chapter 4 Recording and Playback
4-9
Recording and Playback
In variable speed mode, you can finely control (51
steps) the playback speed in the following speed
ranges depending on the tape format.
Digital Betacam: –1 to +3 times normal speed
MPEG IMX: –1 to +3 times normal speed
Betacam SX: –1 to +2 times normal speed
Betacam/Betacam SP: –1 to +3 times normal speed
There are detents on the search dial at the still position
and at ±1 times normal speed.
To carry out playback in variable speed mode, use the
following procedure.
Chapter 4
To alternate between normal-speed playback
and shuttle mode playback
Set the search dial to the position corresponding to the
desired shuttle playback speed, then switch between
normal-speed playback and shuttle playback by
pressing the PLAY and SHUTTLE buttons alternately.
For intermittent shuttle mode playback, press the
STOP and SHUTTLE buttons alternately.
4-2 Playback
2
When the adjustment is completed, release the
PLAY button.
The tape transport returns to normal speed, and the
SERVO indicator comes on again.
To perform continuous capstan override
playback
Chapter 4
Z
Recording and Playback
3
1
2
2
Set setup menu item 111 (TSO PLAY) to TSO.
Hold down the DMC EDIT button and turn the
MULTI CONTROL knob to select the playback
speed.
The selected playback speed is displayed in time
data display area 2 on the lower control panel of
this unit as well as in the character information
display on the monitor screen.
3
Press the PLAY button while holding down the
DMC EDIT button.
4
Press the PLAY button or perform any other
operation to exit the tape speed override mode.
See Section 12-2 “Setup Menu operations” (page 12-2) for
details of setup menu operations.
For details of character information displayed on the video
monitor screen, see the descriptions of F4 (CHARA) in
function menu page 4 (page 11-7) and setup menu item 005
(page 12-5).
4-10
Chapter 4
Recording and Playback
4-2-3 Dynamic Motion Control (DMC) Playback
Overview
DMC playback allows you to vary the playback speed
for a certain section of a tape, in variable speed mode
(from –1 to +3 times normal speed for digital Betacam
playback, from –1 to +3 times normal speed for MPEG
IMX playback, from –1 to +2 times normal speed for
Betacam SX playback, or from –1 to +3 times normal
speed for analog Betacam playback), and store the
varying speed in memory for later playback at the
same varying speed.
Stop
Press the REVIEW button again
at the on-air cue.
Speed variation start point
Speed variation end point
On-air end point
Press the REVIEW button.
Normal speed
playback
DMC playback
Normal speed playback
Stop
Starting DMC playback
immediately after preroll
Press the PREVIEW button.
Normal speed
playback
Storing a varying playback speed in
memory
DMC playback
1
2
To store the playback speed for DMC playback, use
the following procedure.
Note
Make sure that the TSO PLAY of setup menu item 111
is set to DIS beforehand.
Normal speed playback
Press the DMC EDIT button, turning it on.
Either while playing back the recorded tape, or
during recording, press the ENTRY button and one
of the following buttons simultaneously, to set the
start and end points.
• On-air start point: AUDIO IN button
• Speed variation start point: IN button
• Speed variation end point: OUT button
• On-air end point: AUDIO OUT button
Each press turns the corresponding button on.
Z
3
Press the search dial or the SHUTTLE button or
VAR button to enter shuttle/variable speed mode.
The SHUTTLE/VAR indicator lights.
(Continued)
1,4 5 2
7 3 3,4,6
Chapter 4
Recording and Playback
4-11
Recording and Playback
Waiting for the on-air cue
before starting DMC
playback
During DMC playback the tape moves as shown in the
following figure.
Chapter 4
On-air start point Preroll point
For example, during a live broadcast of a sporting
event you can set the start and end points of highlights
while recording, and then provide immediate DMC
playback of those highlights.
4-2 Playback
4
Holding down the DMC EDIT button, turn the
search dial, to set the initial speed at the playback
start point.
The speed you set appears in the speed indication
area. During this period the tape does not move.
When the initial speed setting is complete, release
the DMC EDIT button.
5
Press the PREVIEW button.
Chapter 4
The tape is prerolled and played back at normal
speed from the on-air start point to the speed
variation start point. On passing the speed variation
start point, the MEMORY indicator begins to
flash, and playback begins at the speed set in step
4.
Recording and Playback
6
Turn the search dial to vary the playback speed.
Executing DMC Playback
There are two methods of starting DMC playback.
• Starting playback at the on-air cue from the on-air
start point
• Starting playback immediately after preroll
Notes
• To avoid operating mistakes we recommend that you
use the VTR in standalone mode when carrying out
DMC playback.
• When using two VTRs connected for editing, you can
only use the recorder VTR for DMC playback, and
only when neither the RECORDER nor PLAYER
button is lit.
To start playback at the on-air cue from the
on-air start point
Use the following procedure.
While the MEMORY indicator is flashing, the
speed variations are stored in memory. On passing
the speed variation end point, the MEMORY
indicator changes from flashing to continuously lit,
and the variable speed storing ends.
7
Z
Press the STOP button to stop the tape.
If the MEMORY indicator lights continuously
before the speed variation end point
This indicates that the memory became full at that
point. It is therefore not possible to record more speed
variation. The maximum capacity is a duration of 120
seconds.
To amend the stored speed variation
Press the PREVIEW button.
The interval between the speed variation start and end
points is automatically played back at the stored speed.
Operate the search dial as required, to adjust the
playback speed.
Setting the initial speed to normal speed
In step 4, press the PLAY button.
4-12
Chapter 4
Recording and Playback
1,2
1
Press the REVIEW button.
The REVIEW button lights, and the tape is cued up
to the on-air start point. After the tape is cued up,
the REVIEW button flashes.
2
At the moment the on-air cue is given, press the
REVIEW button once more.
The REVIEW button lights, and playback starts at
standard speed.
Between the speed variation start and end points,
DMC playback is carried out at the stored speed,
and then playback continues at normal speed and
the tape stops at the on-air end point.
To start playback immediately after preroll
Press the PREVIEW button.
The PREVIEW button lights, and after preroll, DMC
playback is carried out for the section from the speed
variation start point, then playback continues at normal
speed from the speed variation end point.
To stop the tape during DMC playback
Press the STOP button.
Chapter 4
To exit DMC playback mode
Press the DMC EDIT button and the DELETE button
simultaneously.
Recording and Playback
Chapter 4
Recording and Playback
4-13
5-1
Automatic Editing
Chapter 5
This section describes how to carry out automatic
editing with this unit and another VTR connected to
the REMOTE1-IN(9P) connector.
Sequence of editing operations
The following flowchart outlines the sequence of
operations in automatic editing with two VTRs.
Selecting the editing mode (page 5-3)
Editing mode
Using CTL to interpolate time code values
When you are using time code values as edit point
addresses, the time code must be recorded on the tape
in correct time sequence (i.e. the sections must be in
strictly ascending time order).
If the time code values are all in correct time sequence,
then if there are any discontinuities in the time code,
the unit allows them to be interpolated using the CTL
counter.
Recording time code
For automatic editing, regardless of the TCG (F1) and
TCG (F2) settings, time code is recorded continuously
from the previous time code recorded on the tape.
Previewing the edit segments (page 5-7)
Amending edit points as necessary (page 5-6)
Carrying out automatic editing (page 5-8)
Checking the editing results as necessary (page 5-9)
Using an editing control unit
When controlling this unit with an editing control unit,
set an edit delay on the editing control unit so that cut
in and cut out instructions are output 5 frames before
the actual edit point.
Notes on video output to the monitor
In E-E mode, the video output of the unit is delayed by
the time for video circuit processing with respect to the
input video signal (8H).
Unlike the playback operations described in Chapter 4,
for playback to be carried out in editing mode with
both the player and recorder specified, you can use
setup menu item 701 to delay the SYNC phase,
delaying it by 8H.
Using setup menu item 610, it is also possible to record time
code according to the settings in the function menu.
Chapter 5
Editing
5-1
Editing
You can carry out DMC editing in both editing modes.
In insert editing, split editing is also possible.
Setting the recorder and player edit points (page 5-3)
Chapter 5
• Assemble editing
This is the editing mode in which successive portions
of the edited result are recorded on the end of the
already completed section.
The CTL signal, video signal, audio signal, and time
code are all newly recorded on the tape.
• Insert editing
In this mode, new material is recorded at an
intermediate point of an existing recording.
The CTL signal is not recorded. The video signal,
audio signal, and time code signal can all be
independently recorded.
Editing
5-1-1 Overview
5-1 Automatic Editing
5-1-2 Switch and Menu Settings
Before beginning editing, make necessary switch and
menu settings.
Recorder settings
POWER switch: ‘ ( ’ side (ON)
REMOTE buttons (see page 2-2): 1(9P)
Editing mode setting section (see page 2-11): Select assemble editing or insert editing.
Chapter 5
Z
Editing
VID.IN setting (see page 11-3):
Select the input video signal.
VID. IN PB/EE CONFI CTL/TC MENU TCGSET
PB
Y-R,B
OFF
TC
RECINH setting (see page 11-8):
OFF
CTL/TC setting (see page 11-3):
TC or CTL
Audio selection function selector buttons (see page 2-4):
Select the input audio signal.
REC controls (see page 2-6): Adjust
the audio recording levels.
Player settings
POWER switch: ‘ ( ’ side (ON)
REMOTE buttons (see page 2-2): 1(9P)
Z
VID. IN PB/EE CONFI CTL/TC MENU TCGSET
PB
Y-R,B
OFF
TC
PB controls (see page 2-6):
Adjust the audio playback levels.
5-2
Chapter 5
Editing
CTL/TC setting (see page 11-3): TC or CTL
5-1-3 Selecting the Editing Mode
1
To select the editing mode
Select assemble editing or insert editing.
Press the RECORDER button or PLAYER button
to select the VTR on which you will set the edit
point.
The button which you have pressed lights.
ASSEMBLE button
2
INSERT buttons
Z
Turn the search dial in jog or shuttle mode, and
position the tape at the required edit point.
For details of playback in jog or shuttle mode, see the
sections “Playback in jog mode” and “Playback in
shuttle mode” (page 4-8).
3
When you select the editing mode, the IN/OUT
buttons begin to flash, indicating that the edit points
require setting.
When the IN point or OUT point is set, the IN
button or OUT button respectively lights.
4
Editing
Depending on the editing mode, press the following
button or buttons.
• For assemble editing: ASSEMBLE button
• For insert editing: the desired INSERT buttons
(VIDEO, CH1 to CH4, CUE, TC)
Repeat steps 1 to 3 until all the necessary edit
points are set.
When the IN points on both the recorder and
player are set, the PREVIEW button and AUTO
EDIT button flash, and it becomes possible to
carry out a preview or editing operation.
5-1-4 Setting Edit Points
Set the edit points (IN and OUT points). To use split
editing in insert mode, you can set the audio and video
edit points separately.
To set an edit point
Automatic setting of edit points
Editing requires four edit points: the IN and OUT
points on both the recorder and player. However, once
any three of these points are defined, the last point is
set automatically. For example, if you set the recorder
IN and OUT points, and the player IN point, the player
OUT point is set automatically.
Note
Z
In the following cases, the DELETE button begins to
flash and you cannot carry out automatic editing.
• The OUT point is before the IN point.
• All four of the recorder IN and OUT points and the
player IN and OUT points have been set.
Use the DELETE button to delete a redundant edit
point, or set the edit points correctly.
3
1 2
For details of deleting edit points, see the section “Deleting
an edit point” (page 5-6).
Chapter 5
Editing
Chapter 5
IN/OUT buttons
At the point at which you wish to set the IN point
or OUT point, hold down the ENTRY button and
press the IN button or OUT button as the case may
be.
5-3
5-1 Automatic Editing
Note
Setting split edit points
In split editing, you can set the edit points for audio
and video independently. Set the audio edit points with
the AUDIO IN/OUT buttons, and the video edit points
with the IN/OUT buttons.
Note that split editing is only possible when the
recording mode is insert editing.
Z
Chapter 5
Editing
4
1
1 2 3
Press the appropriate INSERT button (VIDEO,
CH1 to CH4, CUE, or TC).
The IN/OUT button flash.
2
Press the RECORDER or PLAYER button to
select the VTR for which edit points are to be set.
During split editing, if you set six or more edit points
for the recorder and player, the DELETE button starts
to flash, to indicate that such a setup is impossible.
Delete all unnecessary edit points, using the DELETE
button.
For details of how to delete edit points, see the section
“Deleting an edit point” (page 5-6).
Automatic setting of edit points in split editing
Split editing requires a total of eight edit points: four
video edit points (player IN and OUT and recorder IN
and OUT) and four audio edit points (player audio IN
and OUT and recorder audio IN and OUT). However,
as soon as you set five points, the system automatically
calculates and sets the remaining three points.
Specifically, once you have set three of the four video
edit points and two audio edit points, the remaining
three edit points are set automatically, regardless of
whether these points are for the recorder or player.
In the figure below, the edit points shown within boxes
are already set. The other edit points (recorder audio
OUT point, and player audio IN and video OUT
points) are set automatically.
Note that, regardless of whether it was set manually or
automatically, any edit point can be deleted or
corrected later.
The button you have pressed lights.
3
To find the edit point, rotate the search dial in jog
or shuttle mode.
Audio IN point
IN point Audio OUT point
OUT point
Recorder
For details of jog/shuttle mode playback, see the
sections “Playback in jog mode” and “Playback in
shuttle mode” (page 4-8).
4
Press the ENTRY button together with one of the
IN, OUT, AUDIO IN, and AUDIO OUT buttons,
to set the edit point.
Once an edit point is set, the corresponding button
changes from flashing to continuously lit.
5
Repeat steps 2 through 4 to set the required edit
points.
As each edit point is set, the corresponding button
changes from flashing to continuously lit.
5-4
Chapter 5
Editing
Player
Audio IN point
IN point
Audio OUT point
OUT point
You can set audio cut in, crossfade, fade in, and fade out
effects, including their durations, by menu selection.
For details, refer to the Installation Manual.
When the audio IN point is not set for insert
editing of audio only
As long as the audio OUT point is set, the VTR is
ready for preview or editing. If the audio IN point has
not been set, the current tape position is automatically
used as the audio IN point.
Using a VTR without a split editing function as
the player
If it is not possible to set separate audio and video edit
points on the VTR you are using as the player, by
setting the audio IN and OUT points on the recorder
(this unit), then setting three video edit points, split
editing is possible.
You can display the duration between two edit points
in the following three cases, in the time data/menu
display section (see page 2-7).
• When two edit points are set: the duration of the
segment between the two points
• When only one edit point is set: the duration of the
segment between the point which is set and the
current tape position
• When no edit point is set: the duration of the previous
edit segment
The duration is displayed in time data display area 2,
thus: “DURATION 0:01:10:00”.
To display a duration, use the following procedure.
1
Time data display area 1
Time data display area 2
2
Hold down any two of the IN, OUT, AUDIO IN
and AUDIO OUT buttons.
While you hold down the buttons, the duration is
displayed in time data display area 2.
Z
2
1
The button you have pressed lights.
1
Press the RECORDER button or PLAYER button
to select the VTR on which you wish to check the
edit point.
The button you have pressed lights.
2
Hold down the IN, OUT, AUDIO IN or AUDIO
OUT button according to the edit point you wish to
check.
While you hold down the button, the
corresponding indicator lights in the upper line of
time data display area 2, and the time value of the
edit point is displayed.
Chapter 5
Editing
5-5
Editing
You can display the time value for an edit point in the
time data/menu display section (see page 2-7).
The edit point appears in time data display area 2.
Press the RECORDER button or PLAYER button
to select the VTR on which you wish to check the
duration.
Chapter 5
To display the time value for an edit point
To display the duration of an edit segment
5-1 Automatic Editing
5-1-5 Modifying and Deleting
Edit Points
If the edit points are not set correctly, for example if an
OUT point is before a corresponding IN point, the
DELETE button flashes, and it is not possible to carry
out a preview or editing operation. In this case, either
modify the erroneous edit point, or first delete it and
then enter it correctly.
Deleting an edit point
To delete an edit point, use the following procedure.
You can use the same procedure whether or not the
DELETE button is flashing.
Z
Modifying an edit point
To modify an edit point, use the following procedure.
2
Chapter 5
Time data display area 1
1
Time data display area 2
Editing
1
Z
Press the RECORDER button or PLAYER button
to select the VTR on which you wish to delete the
edit point.
The button you have pressed lights.
2
2
1
1
Press the RECORDER button or PLAYER button
to select the VTR on which you wish to modify the
edit point.
The button you have pressed lights.
2
Hold down the IN, OUT, AUDIO IN, or AUDIO
OUT button corresponding to the edit point you
wish to modify, and press the TRIM buttons
(+ or –).
While you hold down the button, the time value for
the edit point appears in the display; pressing the +
button increases the value by one frame, and
pressing the – button decreases it by one frame.
5-6
Chapter 5
Editing
Hold down the DELETE button and press the IN,
OUT, AUDIO IN or AUDIO OUT button
according to the edit point you wish to delete.
The edit point is deleted according to which button
you pressed, and the DELETE button goes off.
5-1-6 Cue-Up to Edit Points and
Preroll
To preroll to a position before an edit IN point or cue
up to any edit point, use the following procedure.
5-1-7 Preview
When you have set the edit points, the PREVIEW
button flashes, indicating that you can carry out a
preview.
To carry out a preview, use the following procedure.
Z
Z
Press the RECORDER button or PLAYER button
to select the VTR on which you wish to operate.
The button you have pressed lights.
2
2
1
2
1
Editing
1
1
Chapter 5
2
Press the RECORDER button, turning it on.
Press the PREVIEW button.
• To cue up to an edit point
Hold down the IN/OUT button or AUDIO IN/
OUT button according to the edit point to which
you wish to cue up, and press the PREROLL
button.
The PREVIEW button changes from flashing to
continuously lit, and the preview is carried out.
At the end of the preview, the PREVIEW button
flashes again.
This cues up to the edit point you have selected.
To stop the preview
Press the STOP button.
The tape stops at the position where you pressed
the button.
• To preroll
Press the PREROLL button.
The tape is wound back to a position 5 seconds
before the edit IN point, and stops.
To change the preroll time
The factory default setting for the preroll time is 5
seconds, but you can use setup menu item 001 to
change this to any value from 0 to 30 seconds. If you
change the preroll time, make sure that the setting is
not longer than the recording length before the edit IN
point.
Note that for automatic editing, the preroll time setting
on the recorder takes precedence.
For details of setup menu item 001, see Section 12-3 “Items
in the Basic Setup Menu” (page 12-5).
To return the tape to the preroll point
Press the PREROLL button.
To return the tape to the IN point or OUT point
Press the PREROLL button and the IN button or OUT
button simultaneously.
After the preview, make any necessary adjustments to
the edit points, then repeat the preview.
For details of how to modify or delete edit points, see
Section 5-1-5 “Modifying and Deleting Edit Points”
(page 5-6).
Chapter 5
Editing
5-7
5-1 Automatic Editing
• From the OUT point to the postroll point, you can
monitor the playback from the recorder.
Monitor output
During a preview, on a monitor connected to the
recorder you can monitor the following video and
audio.
• From the preroll point to the IN point, you can
monitor the playback from the recorder.
• From the IN point to the OUT point, you can monitor
the playback from the player through the recorder in
E-E mode.
The following figure illustrates this.
IN point
OUT point
E-E mode
(player)
Playback
(recorder)
Playback
(recorder)
5-1-8 Carrying Out Automatic Editing
Tape transport
Chapter 5
Preroll point
IN Point
OUT Point
Postroll point
Editing
Recorder
Preroll
Postroll
Edit segment
Recording overlap
(in case of assemble
editing)
Stop
Player
Time flow
Playback
Overview
When you carry out automatic editing, the recorder
and player operate as shown in the figure above, to
copy the video and audio signals between the IN and
OUT points on the player to the segment between the
IN and OUT points on the recorder.
5-8
Chapter 5
Editing
Stop
Monitor output
During execution of an automatic edit, as during a
preview, on a monitor connected to the recorder you
can monitor the following video and audio.
• From the preroll point to the IN point, you can
monitor the playback from the recorder.
• From the IN point to the OUT point, you can monitor
the playback from the player through the recorder in
E-E mode.
• From the OUT point to the postroll point, you can
monitor the playback from the recorder.
The following figure illustrates this.
IN point
Playback
(recorder)
OUT point
E-E mode
(player)
Z
Playback
(recorder)
Using a single monitor for video and audio
on both player and recorder
OUT button
ENTRY button
For efficient editing if only one monitor is available,
use the following method.
REVIEW button
1
2
3
PREVIEW button
Connect the monitor to the recorder.
Press the PLAYER button on the recorder.
Note
In insert editing to tape, it is necessary for audio,
video, and CTL signals to be recorded in advance
throughout the insert editing section on the tape. If you
execute an insert edit over a section where these
signals are not present, noise or breakup can occur in
the audio and video when that section is played back.
Starting automatic editing
When you have set the edit points, press the flashing
AUTO EDIT button.
The AUTO EDIT button changes from flashing to
continuously lit, and the automatic editing operation
begins.
At the end of the editing operation, the AUTO EDIT
button goes off.
To abandon automatic editing
Press the STOP button.
The automatic editing operation is abandoned. At the
same time, the PREVIEW button and AUTO EDIT
button start flashing, and the state before the editing
was started is restored.
In this case, the IN and OUT points already set are
preserved so that you can carry out a preview or
automatic editing operation again by pressing the
PREVIEW button or AUTO EDIT button.
Reviewing the editing results
After carrying out an editing operation, you can carry
out a review, to check the editing results on the
monitor.
To carry out a review, after carrying out the edit, and
before you set any new edit points or make other
settings, press the REVIEW button.
The REVIEW button lights, and the review is carried
out.
At the end of the review the REVIEW button goes off,
and the tape returns to the OUT point.
Chapter 5
Editing
5-9
Editing
This forces the recorder to E-E mode, in which the
player video and audio signals are output to the
monitor.
To change the OUT point after starting
automatic editing operation
After starting the automatic editing operation, to end
the operation before the preset OUT point, hold down
the ENTRY button and press the OUT button.
The position where you pressed the button becomes
the OUT point, and editing ends.
Chapter 5
In the basic setup menu, set item 008 to AUTO.
AUTO EDIT button
5-1 Automatic Editing
After automatic editing, to adjust the edit
points and reexecute the edit
Hold down the DELETE button and press the ENTRY
button to recall the edit points. After adjusting the edit
points, press the AUTO EDIT button to carry out the
edit again.
For details of how to adjust edit points, see Section 5-1-5
“Modifying and Deleting Edit Points” (page 5-6).
Chapter 5
Editing
5-10
Chapter 5
Editing
5-2
DMC Editing
By controlling the player playback speed from the
recorder you can achieve variable speed editing.
5-2-1 Overview of DMC Editing
Conditions for DMC editing
DMC editing can be used for insert or assemble
editing, but not for audio split editing.
Tape movement during DMC editing
The following figure illustrates how the tapes move on
the player and recorder during DMC editing.
Tape transport
IN Point
Preroll
OUT Point
Postroll
Recorder
Chapter 5
DMC editing
Playback
Editing
Playback
Stop
Preroll time x
initial speed
Postroll time x
final speed
IN Point
Player
Time flow
Stop
Tape moves at
initial speed
Playback at stored
varying speed
Tape moves at
final speed
Chapter 5 Editing
5-11
5-2 DMC Editing
5-2-2 Carrying Out DMC Editing
7
When the initial speed setting is complete, release
the DMC EDIT button.
Setting the edit points and player speed
8
Press the PREVIEW button.
The tape is prerolled and then the recorder starts
operating at normal speed and the player at the set
initial speed.
Use the following procedure.
9
Z
Chapter 5
2,6,7
8
4 1 5 3 6,9
Editing
1
Press the ASSEMBLE button or the desired
INSERT button to select the editing mode.
2
Press the DMC EDIT button.
This unit switches to the DMC editing mode, and
the DMC EDIT button lights.
On passing the IN point, the MEMORY indicator
begins to flash: turn the search dial to vary the
playback speed.
While the MEMORY indicator is flashing, the
speed variations are stored in memory. On passing
the OUT point, the MEMORY indicator changes
from flashing to continuously lit, and the variable
speed storing ends.
If the MEMORY indicator lights continuously
before the OUT point
This indicates that the memory became full at that
point. Thus even before the OUT point is reached, it is
not possible to record more speed variation.
The maximum capacity is a duration of 120 seconds.
Quitting the DMC edit mode
3
4
Press the RECORDER button.
Holding down the ENTRY button, press the IN or
OUT button to set an edit point.
Press the DELETE button and DMC EDIT button
simultaneously.
5
Press the PLAYER button, to set the player IN
point.
Executing the DMC edit
Note
It is not possible to set the player OUT point.
6
Holding down the DMC EDIT button, turn the
search dial, to set the initial speed.
To select normal speed as the initial speed, press
the PLAY button.
The speed you set appears in the speed indication
area.
5-12
Chapter 5
Editing
Press the AUTO EDIT button.
DMC editing is carried out at the stored varying speed.
Once the editing is carried out, the stored speed
variation is lost from memory.
To check the editing results
Press the REVIEW button.
5-3
Special Automatic Editing Methods
This section describes the following automatic editing
methods:
• Quick editing
• Continuous editing
• Standalone editing
• Manual editing
• Preread editing
5-3-1 Quick Editing
5-3-2 Continuous Editing
After an automatic editing operation, the recorder
automatically returns to the OUT point. For the second
and subsequent editing operations, you can continue
editing by simply specifying the IN and OUT points on
the player. In this case the current OUT point on the
recorder becomes the new IN point.
OUT point of preceding edit =
IN point of current edit
After selecting the edit mode, you can save on editing
time by setting the edit points and executing the edit at
the same time.
For quick editing, use the following procedure.
Recorder
Preceding edit segment
Current edit segment
Player
OUT point
1
23
1
2
1
When operating the player, press the PLAYER
button, turning it on, and when operating the
recorder, press the RECORDER button, turning it
on, then stop the tapes on both the player and the
recorder at the positions you wish to make the
respective IN points.
Press the AUTO EDIT button.
Editing starts.
3
Watching the editing on the monitor, at the
position you wish to make the OUT point, hold
down the ENTRY button and press the OUT
button.
Set the player IN and OUT points.
On the recorder the OUT point for the previous
edit becomes the new IN point.
2
3
Press the PREVIEW button to carry out a preview.
Press the AUTO EDIT button.
This executes the edit.
When the editing operation is completed, the
recorder stops at the OUT point, and the player
stops 2 seconds after the OUT point.
By repeating this process, you can carry out
continuous editing.
By setting setup menu item 326, you can make the preceding
OUT point automatically become the new IN point.
Editing ends.
The point at which you started the editing becomes
the IN point, and the point at which you ended the
editing becomes the OUT point.
If you want to preview
In step 1, after setting the recorder or player IN point,
press the PREVIEW button.
Chapter 5 Editing
5-13
Editing
After automatic editing of one edit segment, to carry
out continuous editing use the following procedure.
Chapter 5
IN point
Z
5-3 Special Automatic Editing Methods
5-3-3 Standalone Editing
This refers to editing using as the player an external
device which cannot be controlled remotely through
the REMOTE1-IN(9P) connector. For example, you
can record a color bar signal from a signal generator in
the joints between the scenes of an already completed
tape.
Carrying out standalone editing
Set the IN point with neither the PLAYER button or
RECORDER button lit.
The AUTO EDIT button flashes, and it is now possible
to carry out automatic editing.
If necessary, you can also first set the OUT point.
Chapter 5
5-3-4 Manual Editing
Editing
Use the following procedure to carry out manual
editing.
1
2
6
At the editing end point (the recorder OUT point),
press the PLAY button.
Editing ends, and the recorder continues with
playback.
7
Press the STOP button to stop the recorder
playback.
5-3-5 Preread Editing
Video and digital audio signals already recorded on the
tape can be used as an edit source for insert editing.
This type of editing is called “preread editing”, as this
unit uses the preread heads to read the signals in
advance from the tape.
The signals read out can be send to a mixer for mixing,
and can be recorded either on the original channels or
on other digital audio channels.
For preread editing, set the PREREAD to ON (see
page 11-8).
Press the RECORDER button, turning it on.
Use the search dial in jog or shuttle mode to find
the editing start point (the recorder IN point), and
stop the tape just before this point.
Audio source
Digital or analog
audio output
Audio mixer
Note
If the recorder is in stop mode, then when editing
starts this section of the video will break up.
3
4
Digital or analog
Audio input
75Ω
75Ω
Select the editing mode.
Press the PLAY button.
The recorder begins playback.
Digital or analog
video output
Note
It takes about two seconds until the playback video
stabilizes. For this reason, start the playback from
before the segment of video you wish to use.
5
At the editing start point (the recorder IN point),
press the EDIT button and PLAY button
simultaneously.
Editing starts.
5-14
Chapter 5
Editing
Video switcher
Video source
Digital or analog
video input
Notes
Set PB/EE in function menu HOME page to PB.
4
After selecting the desired insert editing mode,
carry out the preread editing.
5
When the preread editing is completed, remove the
connections.
6
7
Set the PREREAD to OFF.
Editing
1
2
3
Chapter 5
• In preread editing, if an input video signal is used as
the reference signal for the output video signal, this
forms a feedback loop. To prevent the occurrence of
feedback, set the OUTREF in function menu page 4
to REF, and set item 309 in the extended setup menu
to AUTO 1 so as to use an external reference signal.
• When the preread mode is selected, to prevent
feedback due to the loop connection, whatever the
editing mode of this unit, no E-E video output is
available.
When the PREREAD is set to OFF after preread
editing, however, if the loop connection remains and
an E-E signal is output, feedback will occur.
To prevent this, select PB mode for the video and
digital audio channels in all the modes before the
preread editing, as follows.
Set the PREREAD in function menu page 4 to ON.
Make the necessary connections for the preread
editing.
Check that no loop connection remains.
Chapter 5 Editing
5-15
6-1
Overview
Shot marks are indications at desired points on a tape
which enable faster cueing.
Types of shot mark
This unit supports the following three types of shot
mark. This chapter describes recording start marks and
Shot mark type
Writing on a camcorder,
etc.
post marks, treating them as varieties of shot marks.
Writing on this unit
Modifying and
erasing on this unit
Recording start mark Automatically written at the Written or not according to a separate menu
Possible
setting for each recording mode (crash recording,
start of recording.
assemble editing, insert editing).
For each mode for which the setting is “ON”, the
mark is written automatically at the start of
recording.
Written by a manual shot
mark operation during
recording or editing.
Written by a button operation during crash
recording or assemble editing. A menu setting
determines which of three types of mark is
written: shot mark 1, shot mark 2, or post mark.
Post mark
Not written
(Written only on this unit)
Written by a button operation during playback,
while stopped, during a search, or during
recording (crash recording or assemble editing).
Reading shot marks
This unit reads in shot marks written on a tape and
stores them in memory. (To a maximum of 200)
Once this data is stored in this unit, it is preserved even
when the power is turned off.
Writing and erasing shot marks
For recording start marks, a menu setting determines
whether or not they are written each time recording
starts. Shot mark 1, shot mark 2, and post mark types
can be written at any point on a tape, and also erased
or rewritten.
Shot mark list operations
On the monitor, you can display a list of the shot
marks read in by this unit, select required shot marks,
delete shot marks, and so on. You can also add a
memo mark (#) to a shot mark in the list.
During tape playback, you can add virtual shot marks
to the list. This is not written on the tape itself.
Cueing up to shot marks
By selecting a desired shot mark from the shot mark
list, you can cue up immediately to that position. By
means of a button operation, you can also cue up to the
shot marks adjacent to the current tape position (index
function).
Shot data display
When the tape includes shot data (camera, time, and
other information captured at the time of shooting),
you can read this in, and display the details on a
monitor. It is also possible to display the shot mark list
and shot data simultaneously.
Sorting shot marks by cassette
When the tape includes shot data, this unit recognizes
which cassette each shot mark comes from. You can
therefore sort the read-in shot marks by cassette in
time code order.
Chapter 6 Shot Mark Function
6-1
Shot Mark Function
First, the shot mark functions of this unit are described
in simple terms.
Chapter 6
Shot mark 1 and
shot mark 2
Chapter 6 Shot Mark Function
This unit can record shot marks or use shot marks
recorded in digital Betacam, MPEG IMX, or Betacam
SX format.
6-1
6-2Overview
Shot
Mark Operation Menu
This section describes the settings in the shot mark
operation menu.
Details of the shot mark operation menu
Displaying the shot mark operation menu
The shot mark operation menu comprises four items,
G01 to G04. The detailed contents appear in the
following table.
With the function menu HOME page showing in the
menu display, hold down the MARK button, and press
the F5 (MENU) button.
Item name
Item
number
Settings
G01
SEARCH
TYPE
Select which shot mark type the
index function searches for,
from the following possibilities:
all
rec start mark
shot mark 1
shot mark 2
post mark
G02
LISTING TYPE For each type of shot mark,
select whether to read into the
list (ON) or not read (OFF):
rec start mark
shot mark 1
shot mark 2
post mark
G03
RS.MARK
MODE
For each type of recording,
select whether to write recording
start marks (ON) or not write
them (OFF):
crash rec: crash recording
assemble: assemble editing
insert: insert editing
G04
MARK IN REC
Select the type of shot mark to
write during recording and
assemble editing.
shot mark 1
shot mark 2
post mark
Z
F5 (MENU) button
Chapter 6
MARK button
The following menu appears on the monitor.
Shot Mark Function
SHOT MARKER
GO1:SEARCH TYPE all
GO2:LISTING TYPE
GO3:RS.MARK MODE
GO4:MARK IN REC
shot1
Changing the menu settings
The basic procedure for accessing menu items and
changing settings is the same as for the setup menus.
Note, however, the operations in “To change the
settings of menu items with sub-items” (page 12-3) for
items G02 and G03.
For details of the setup menu configuration and operations,
see Section 12-1 “Setup Menu Configuration” (page 12-1)
and Section 12-2 “Setup Menu Operations”(page 12-2),
respectively.
6-2
Chapter 6
Shot Mark Function
6-3
Shot Mark Operations
This section describes the operations concerning
reading and writing shot marks. Note that the
following operations cannot be carried out by remote
control.
6-3-1 Reading Shot Marks
To read in shot marks
With a cassette loaded, hold down the LIST button and
press the F FWD or REW button.
Reading shot marks from more than one
cassette
After changing the cassettes, carry out the reading
operation again.
Data written in the new cassette will be added as long
as the total does not exceed 200 shot marks. For
example, if 190 shot marks have already read in, only
10 shot marks will be read from the new tape.
In the shot mark list (see page 6-5) the data from
different cassettes is separated by a row of dashes.
6-3-2 Writing Shot Marks
Z
Writing recording start marks during
recording
Note
While the shot marks are being read in, the F FWD or
REW button flashes.
The unit searches to the end of the tape, then rewinds
automatically.
For insert mode, press the TC button to turn the
indicator on.
For the procedure for listing the shot marks read in, see
page 6-4.
Writing shot mark 1, shot mark 2, or post
marks
Note
It is only possible to read in a maximum of 200 shot
marks.
When 200 shot marks have been read in, the control
panel display shows the message “S-LIST FULL”, and
the reading stops.
To cancel the message, press one of the tape transport
buttons.
To stop reading
Selecting the type of shot mark written
In item G04 of the shot mark operation menu (page
6-2), select one of shot mark 1, shot mark 2, and post
mark.
Note
If any of the settings (to write a recording start mark)
in item G03 of the shot mark operation menu are set to
“ON,” then for 20 frames from each recording,
assemble editing, or insert editing start, the user bits
are overwritten with the shot mark data.
Press the STOP button.
Chapter 6 Shot Mark Function
6-3
Shot Mark Function
REW button
LIST button
Chapter 6
F FWD button
In item G03 of the shot mark operation menu (page
6-2), for each of the three recording modes (crash
recording, assemble editing, and insert editing), select
whether or not to write recording start mark.
When you set a particular mode to “ON”, a recording
start mark is written on the tape each time you start
recording in that mode.
6-3 Shot Mark Operations
To write in crash recording or assemble
editing
Erasing a shot mark
1
Hold the MARK button down for at least 2
seconds.
Select the shot mark from the shot mark list, and then
carry out the deletion operation.
2
At the position you wish to write the mark, hold
down the ENTRY button, and press the MARK
button.
A mark of the type selected in item G04 of the shot
mark operation menu is written.
For details of the procedure, see page 6-6.
6-3-3 Shot Mark List Operations
Displaying the shot mark list
Hold down the ENTRY button and press the LIST
button.
Z
Z
Chapter 6
ENTRY button
Shot Mark Function
MARK button
REC/ERASE indicator
ENTRY button
Writing during playback, while stopped, or
during a search
When this unit is in any of the playback, stop, or
search modes, you can write a post mark only.
1
Hold the MARK button down for at least 2
seconds.
The REC/ERASE indicator lights.
2
At the position you wish to write the mark, hold
down the ENTRY button and press the MARK
button.
A post mark is written the instant you pressed the
MARK button.
While the mark is being written, the message
“RECORD SHOT MARK” appears on the
monitor, and the REC/ERASE indicator flashes.
6-4
Chapter 6
Shot Mark Function
LIST button
All of the shot mark types for which item G02 in the
shot mark operation menu is set to “ON” appear in the
list. If you do the same operation again, the list display
disappears.
While the shot mark list is displayed, the function
menu display changes as follows.
SHT
MRK MEMO SELECT DELETE
SETING
EXIT
Example of list display
The following figure shows how the list is organized.
Shot mark number of current cursor
position / total number of stored shot
marks
Separator
between read-in
groups of shot
marks
Cursor (current
shot mark position)
Position in list
SHOT MARKER
(011/180)
NO.
TIME CODE
---------------------------*011 S1 10:04:05:11
012 R
10:05:35:24
013 V
10:07:05:02
---------------------------014 R
10:08:35:04
015 S2 10:09:05:11
016 R
10:10:35:24
017 #R 10:10:36:00
A virtual shot mark appears on the monitor as “VMARK xxx” (xxx is the number). This is not written to
the tape.
After entering a virtual shot mark, if you change the
cassette or power the unit off, it appears in the list as
the first shot mark of the next group read in.
Adding a memo mark (#)
Select the shot mark to which you wish to add the
memo mark, then press the F1 (MEMO) button.
Repeat this operation to remove a memo mark.
Selecting the types of shot mark to be
read in the list
Time code
For each of the types of shot mark (recording start
mark, shot mark 1, shot mark 2, and post mark) you
can specify whether it is read in.
In item G02 of the shot mark operation menu, set the
required types to “ON”.
For details of the menu, see page 6-2.
You can also use the following procedure.
Turn the MULTI CONTROL knob to align the asterisk
cursor with the desired shot mark.
1
With the shot mark list displayed, press the F5
(SETING) button.
You can now select the shot mark types.
The function menu display changes as follows.
Entering virtual shot marks
When the REC/ERASE indicator is off, hold down the
ENTRY button and press the MARK button.
Shot Mark Function
Selecting a shot mark
SHT
MRK
PREV
NEXT
OFF
ON
EXIT
2
Press the F1 (PREV) or F2 (NEXT) button to
select a shot mark type.
3
Press the F4 (ON) or F3 (OFF) button to switch
between ON (displayed) and OFF (not displayed).
4
To return to the shot mark list, press the F6 (EXIT)
button.
Z
ENTRY button
Deleting a shot mark from the list
MARK button
To delete a shot mark or the shot mark list, you can use
the F2 (SELECT) button instead of the MARK button,
and the F3 (DELETE) button instead of the DELETE
button.
Chapter 6 Shot Mark Function
Chapter 6
Shot mark type
R: recording start mark
S1: shot mark 1
S2: shot mark 2
V: virtual shot mark
P: post mark
#: memo mark
6-5
6-3 Shot Mark Operations
To delete an individual shot mark
Use the following procedure.
1
The REC/ERASE indicator lights, indicating that
you can rewrite or erase shot marks.
Z
3
1
Chapter 6
2
2
3
Display the shot mark list.
4
Press the DELETE button and MARK button
simultaneously.
2 1
With the shot mark list displayed, select the shot
mark to be deleted using the MULTI CONTROL
knob.
Shot Mark Function
With the MARK button held down, press the
DELETE button.
Turn the MULTI CONTROL knob to select on the
list the shot mark you wish to erase.
During the erasure process the message “ERASE
SHOT MARK” appears, and the REC/ERASE
indicator flashes.
5
When the shot mark has been erased, close the shot
mark list.
6
Hold down the MARK button for at least 2
seconds, to turn off the REC/ERASE indicator.
Hold the MARK button down.
While you hold down the button, an “X” appears
after the selected shot mark number, indicating that
it will be deleted.
To delete more than one shot mark, while holding
down the MARK button turn the MULTI
CONTROL knob to select all of the shot marks.
3
With no shot mark list displayed, hold the MARK
button down for at least 2 seconds.
6-3-4 Cueing Up to Shot Marks
Cueing up to a selected shot mark
Use the following procedure.
This deletes the shot marks which were marked by
an “X”.
Z
To delete the entire list
Hold down the DELETE button and press the LIST
button.
This deletes all shot marks from the list. This does not
erase marks from the tape.
MARK button
Erasing shot marks from the tape
Once you erase a shot mark from the tape, it cannot be
read back in.
6-6
Chapter 6
Shot Mark Function
1
F FWD button
To erase a shot mark, use the following procedure.
Note
2
REW button
1
Select the desired shot mark from the shot mark
list.
2
Press the PREROLL button.
Cueing up to shot marks adjacent to the
current tape position (index function)
1
In item G01 of the shot mark operation menu
(page 6-2), select one of recording start mark, shot
mark 1, shot mark 2, and post mark, or select all.
2
Holding down the MARK button, press the F FWD
button or REW button.
The tape is played back, and the shot data displayed.
To delete the shot data
Once again hold down the ENTRY button, and press
the PLAY button.
Example of shot data display
The shot data display appears as shown below.
While the tape is moving the F FWD button or
REW button flashes.
When the shot mark is detected, its type is
displayed in time data display area 2 on the lower
control panel and in the character information
display on the monitor screen.
Note
6-3-5 Reading In Shot Data
When there is shot data (time, device, and other
information about the shooting) written on the tape,
you can read it in and display it on the monitor.
Displaying the shot data
TCR 23:59:59:29
The details in the shot data depend on the shooting
conditions. If because of the devices used there is no
shot data on a part of the tape, it appears as blank.
Displaying the shot data on the shot mark
list
Turn the MULTI CONTROL knob to position the
cursor on a separator in the shot mark list.
If there is shot data recorded when the immediately
following shot mark was written, it appears in the
display as shown below.
Holding down the ENTRY button, press the PLAY
button.
Model name (4 characters)
Model number (4 digits)
Serial number (6 digits)
Cassette number (4 digits)
Z
Shot data
First shot
mark in the
group
PLAY button
SHOT MARK
(---/180)
NO.
TIME CODE
*012345-DNW_-0123-4567011 S1 10:04:05:11
012 R
10:05:35:24
013 V
10:07:05:02
---------------------------014 R
10:08:35:04
015 S2 10:09:05:11
016 R
10:10:35:24
017 R
10:10:36:00
ENTRY button
You can sort the shot marks in the list, based on the shot
data. For details, see the next section.
Chapter 6 Shot Mark Function
6-7
Shot Mark Function
You cannot use the above procedure to cue up to a
virtual shot mark.
Recording
time code
Chapter 6
For details of character information display on the
monitor screen, see F4 (CHARA) in function menu page
4 (page 11-7) and setup menu item 005 (page 12-5).
Camera IDs
MODEL NAME
DNW 0090
SERIAL NUMBER 010001
DATE
1998.05.11
TIME
12.55.10
CASSETTE NUMBER 0095
SHOT NUMBER
0052
ID1
AAAAAAAAAAAA
ID2
BBBBBBBBBBBB
ID3
CCCCCCCCCCCC
ID4
DDDDDDDDDDDD
6-3 Shot Mark Operations
6-3-6 Sorting Shot Marks
Based on shot data recorded on the tape, you can
separate the shot marks by cassette, and sort them in
time code sequence.
To sort the shot marks
Use the following procedure.
1
With the shot mark list displayed, press the F5
(SETING) button.
2
Press the F2 (NEXT) button, and select SORTING
LIST.
3
Press the F4 (ON) button to change the setting to
ON.
Sorting starts. When it ends, the setting indication
returns to OFF.
Z
For example, if shot marks have been read in twice
from the same cassette, these can be collated as shown
in the following figure.
2
3
1
Chapter 6
Shot Mark Function
Before sorting
Cassette 1
Cassette 2 (first time)
Cassette 3
Cassette 2 (second time)
SHOT MARKER
(---/180)
NO.
TIME CODE
*012345-DNW_-0123-4567011 S1 10:04:05:11
---------------------------012 V
10:07:05:02
013 R
10:08:35:04
---------------------------014 S2 10:09:05:11
015 R
10:10:35:24
016 R
10:10:36:00
---------------------------017 R
10:05:35:24
After sorting
SHOT MARKER
(---/180)
NO.
TIME CODE
*012345-DNW_-0123-4567011 S1 10:04:05:11
---------------------------012 S2 10:09:05:11
013 R
10:10:35:24
014 R
10:10:36:00
---------------------------015 R
10:05:35:24
016 V
10:07:05:02
017 R
10:08:35:04
Cassette 1
Cassette 3
Cassette 2 (first and second
times)
Shot marks from the cassette 2 read in twice are
collated, and arranged in time code sequence.
6-8
Chapter 6
Shot Mark Function
7-1
Overview of Tele-File Functions
Memory label
Newly developed IC
In Tele-File, data is managed in units called “clips.” A
clip consists of the following data items, whose
settings can be displayed and changed.
• Cue point
• Write protect
• Mark
• Recording start point
• IN point
• OUT point
• Take number
• Cut number
• Scene number
• Comment
Data library management with handy
reader/writer
An optional handy reader/writer (supporting Memory
Stick) is available to facilitate data library
management.
Chapter 7
The Tele-File system employs a newly developed
memory IC with the following features.
• Thin design: With a thickness of 0.5 mm, the IC can
be attached to cassettes as a memory label.
• Memory capacity: 1 KB (user area, rewritable)
• Data transfer speed: 100 kbps
• Security functions: Reading and writing
authorization can be controlled through multiple
passwords and permission settings.
Data management in clip units
Chapter 7 Tele-File
Tele-File is a non-contact data carrier system.
Tele-File increases the efficiency of data management
and operations such as recording, playback, and
editing by enabling information to be exchanged
between VTRs with data reading and writing functions
and cassettes with Tele-File labels.
Tele-File
Chapter 7
Tele-File
7-1
7-1
of Tele-File
7-2Overview
Opening
theFunctions
Tele-File
Menu
To open from the function menu
Configuration of the Tele-File menu
Display page 5 of the function menu in the menu
display section, and then press the F1 (TELE-F)
button.
The Tele-File menu has a tree structure, as illustrated
below.
When the menu first opens, the menu operation mode
is clip data display mode.
The Tele-File menu opens.
For details about the function menu, see Chapter 11
“Function Menu” (page 11-1).
[Tele-File menu]
Clip data display mode
Attribute data display/
modify mode
To open automatically
Clip data modify mode
When setup menu item 134 is set to ON, and when the
current function menu page is HOME, HOME2, or
page 1 to page 5, the Tele-File menu opens
automatically whenever a Tele-File label is detected on
a cassette loaded into the VTR.
Undo check mode
For details about setup menu item 134, see Section 12-4
“Items in the Extended Setup Menu” (page 12-8).
Chapter 7
Tele-File
7-2
Chapter 7
Tele-File
7-3
Tele-File Menu
7-3-1 Clip Data Display
For more information about how to display menus on the
monitor, see the section “To display menus on the monitor”
(page 12-2).
Shown below are examples of the default menu
displays in the menu display section and the monitor
display.
Menu display section
Tele-File menu indicator
Data type indicator
Setting display area
TEL
Cue
E-F ATTRIB SELECT
HOME
F1
F2
UNDO WR/EXT
F3
F4
F5
F6
Menu items (functions)
Title
Monitor display
Number of selected clip
Final data recording date
Remaining memory percentage a)
Tele-File
Clip No. 0001
Clip No. 0002
Clip No. 0003
·
·
·
48%
R
@
Chapter 7
Data type
TELE-FILE : TEST 01
2001/07/21
No. 0001
Cue Point
WP Mark
*00:00:02:10
ON KEEP
00:00:31:10
00:00:57:10
a) The Tele-File memory always contains the attribute data so that this indication never shows “100%.”
Tele-File menu indicator
Indicates that the menu display section is currently
displaying the Tele-File menu.
Data type indicator
Indicates the type of data selected with the clip data
display mode. There are the following types.
Cue: Cue point
Protct: Write protected
Mark: Mark
R-Strt: Recording start point
IN: IN point
OUT: OUT point
Take: Take number
Cut: Cut number
Scene: Scene number
Comnt: Comment
Chapter 7
Tele-File
7-3
7-3 Tele-File Menu
Setting display area
Displays the setting of the currently selected data type,
and a cursor (“*” or “>”).
The meaning of the cursor symbols is as follows:
*: Indicates that the mode is clip data display mode or
attribute data display/modify mode, and that data is
selected.
>: Indicates that the mode is clip data modify mode or
attribute data display/modify mode, and prompts for
data entry or modification.
Menu items (functions)
Display menu items (functions).
These are common for all of the data items in clip data
display mode. The function assignments for each item
are as follows.
Clip data display mode menu items
Item name
Function
F1 (ATTRIB)
Selects attribute data display/modify mode.
For details about attribute data display/modify mode, see Section 7-3-5 “Displaying and Modifying
Attribute Data” (page 7-11).
F2 (SELECT)
Selects a data modification mode for the data selected in the clip. The cursor changes from “*” to “>”.
Note
In the following cases, the SELECT item does not appear, and it is not possible to select a data
modification mode.
• When setup menu item 133 is set to REMOTE
• When the memory label itself is write protected
For more information about clip data modifications, see Section 7-3-3 “Modifying Clip Data” (page 7-7).
Chapter 7
F3 (T)
Selects data in a clip.
With each press, the “*” cursor moves to select the previous data item. The display scrolls to the left
when the cursor moves to data that is not currently displayed.
Tele-File
F4 (t)
Selects data in a clip.
With each press, the “*” cursor moves to select the next data item. The display scrolls to the right when
the cursor moves to data that is not currently displayed.
F5 (UNDO)
Selects undo check mode. This button appears and is enabled when data has been modified after being
read from the Tele-File label.
For more information about undo check mode, see Section 7-3-4 “Undo/Resume Functions” (page 7-10).
F6 (WR/EXT)
Writes data and exits from the Tele-File menu (return to function menu page 5).
Note
If you attempt to change clip data that is writeprotected, the message “PROTECTED CLIP!”
appears, and it is not possible to change the data.
Remove the write-protect setting (see page 7-9).
7-4
Chapter 7
Tele-File
Title
The title (maximum 14 characters) set in attribute data
display/modify mode.
Selected clip number
A 4-digit number representing the number of the
selected clip (with the “*” cursor).
Remaining memory percentage
The percentage of remaining memory (user area)
available for use.
If there is not sufficient free memory, the message <<
MEMORY FULL!!>> appears (stays lit for three
seconds) in time data display area 2 when you attempt
to add data.
To select clips
Rotate the MULTI CONTROL knob in clip data
display mode.
The data for the selected clip appears in the menu
display section, where it is selected.
In the monitor display, the “*” cursor moves up and
down as clips are selected.
Data which is not visible is selected and displayed
after scrolling.
Cursor
Final data recording date
The data (year/month/day) on which data was most
recently recorded.
To select data in a clip
In clip data display mode, press the F3 (T) or F4 (t)
button.
The “*” cursor moves and data is selected. Data which
is not visible is selected and displayed after scrolling.
TELE-FILE : TEST 01
2001/07/21
No. 0001
Cue Point
WP Mark
00:00:02:10 *ON KEEP
00:00:31:10
00:00:57:10
48%
R
@ (Scrolling)
Cursor
Chapter 7
Tele-File
7-5
Tele-File
Clip data No. 0001...
Data is displayed for 1 clip per line.
Clips are assigned continuous numbers, beginning with
No. 0001 for the clip on the top line.
48%
R
@
Chapter 7
Data type
The data type. The displayed data is the same as the
data displayed in the menu display section, but some
of the captions are different. There are the following
types.
Cue Point: Cue point
WP: Write protected
Mark: Mark
R: Recording start point
IN Point: IN point
OUT Point: OUT point
Tk: Take number
Cut: Cut number
Scn: Scene number
Comment: Comment
TELE-FILE : TEST 01
2001/07/21
No. 0001
Cue Point
WP Mark
00:00:02:10
ON KEEP
*00:00:31:10
00:00:57:10
7-3 Tele-File Menu
Moving the cursor directly
Regardless of the cursor’s current position, pressing
one of the following buttons moves the cursor directly
to the specified position in the same clip and displays
the data.
IN (video IN point) button: IN point data
OUT (video OUT point) button: OUT point data
MARK button: Cue point data
To display the duration
Press the IN (video IN point) and OUT (video OUT
point) buttons simultaneously. The cursor moves to the
IN point data of the same clip, and the duration
appears while the buttons are held down. If there is no
IN point or OUT point data, the duration is displayed
as 0:00:00:00.
7-3-2 Preroll and Cue Up Using
Clip Data
Chapter 7
In clip data display mode, you can use clip data to
preroll and cue up.
Tele-File
To preroll to the cue point, IN point, or
OUT point
1
2
Select a clip.
3
Press the PREROLL button.
Select the cue point, the IN point, or the OUT
point.
The unit exits from the Tele-File menu and prerolls
to the position of the selected data.
The preroll time is according to the setting of setup
menu item 001.
Note
The unit does not preroll if there is no data for the
selected point.
7-6
Chapter 7
Tele-File
To cue up the cue point, IN point, or OUT
point
1
2
Select a clip.
Press the PREROLL button while holding down
the IN (video IN point), OUT (video OUT point),
or MARK button.
The unit exits from the Tele-File menu and cues up
the position of the data selected in step 2 (the cue
point position if the MARK button was pressed).
Note
The unit does not preroll if there is no data for the
selected point.
7-3-3 Modifying Clip Data
To modify clip data, put the unit into clip data display
mode and then press the F2 (SELECT) button to put it
into clip data modification mode (the cursor changes to
“>”).
The function assignments for menu items in clip data
modification mode are as follows.
Clip data modification mode menu items
Item name
Function
F1 (RETURN)
Returns to clip data display mode.
F2 (MODIFY)
Changes the setting of the selected data, or makes a new setting.
The function button changes according to the data type.
See the following for more information about how to set the various data types.
• Cue point, IN point, OUT point: “To set time code data” (page 7-8)
• Write protect, mark, recording start point: “To make write protect, mark, and recording start point
settings” (page 7-9)
• Take number, cut number, scene number: “To make take number, cut number, and scene number
settings” (page 7-9)
• Comment: “To make comment settings” (page 7-10)
F3 (DELETE)
Deletes the data setting value. Enabled when cue point, IN point, OUT point, take number, cut number,
scene number, or comment data is selected.
A confirmation message appears. Press one of the following buttons to confirm or cancel the operation.
• F1 (CANCEL): Cancels the deletion and returns to clip data display mode.
• F2 (OK): Executes the deletion and returns to clip data display mode.
Deletes the selected clip.
A confirmation message appears. Press one of the following buttons to confirm or cancel the operation.
F5 (INS LN)
Inserts a clip at the cursor position.
A confirmation message appears. Press one of the following buttons to confirm or cancel the operation.
• F1 (CANCEL): Cancels the insertion and returns to clip data display mode.
• F2 (OK): Executes the insertion and returns to clip data display mode.
HOME + F4
(DELETE ALL)
Deletes all clips.
A confirmation message appears. Press one of the following buttons to confirm or cancel the operation.
• F1 (CANCEL): Cancels the deletion and returns to clip data display mode.
• F2 (OK): Executes the deletion and returns to clip data display mode.
Note
If you attempt to change clip data that is writeprotected, the message “PROTECTED CLIP!”
appears, and it is not possible to change the data.
Remove the write-protect setting (see page 7-9).
Chapter 7
Tele-File
7-7
Tele-File
• F1 (CANCEL): Cancels the deletion and returns to clip data display mode.
• F2 (OK): Executes the deletion and returns to clip data display mode.
Chapter 7
F4 (DEL LN)
7-3 Tele-File Menu
To add and delete clips
To set time code data
To add clips
Proceed as follows to make or change settings for cue
point, IN point, and OUT point data.
1
2
Rotate the MULTI CONTROL knob to move the
“*” cursor to the position where you want to insert
the clip.
Press the F2 (SELECT) button.
1
2
3
Select a clip.
Select cue point, IN point, or OUT point.
Press the F2 (SELECT) button.
The unit enters clip data modification mode.
3
The unit enters clip data modification mode.
Press the F5 (INS LN) button.
4
A confirmation message “INSERT CLIP OK?”
appears.
4
Press the F2 (OK) button.
The clip is added at the position to which you
moved the cursor in step 1.
The two most significant digits begin to flash, and
the data can be set or modified.
5
Press the F3 (T) or F4 (t) button until the digit
that you want to set starts flashing.
6
Rotate the MULTI CONTROL knob to make the
setting.
To delete clips
Chapter 7
1
2
Select the clip to delete.
Tele-File
3
7
Repeat steps 5 and 6 until you have set all the
required digits.
8
Press the F5 (SET) button.
Press the F4 (DEL LN) button.
A confirmation message “DELETE THIS CLIP
OK?” appears.
4
To display the offset from the previous setting
value
The offset is displayed as long as you hold down
the F2 (OFFSET) button.
Press the F2 (SELECT) button.
The unit enters clip data modification mode.
Press the F2 (OK) button.
The clip selected in step 1 is deleted.
7-8
Chapter 7
Tele-File
Press the F2 (MODIFY) button.
The setting is confirmed and the unit returns to clip
data display mode.
To cancel the setting or modification and return
to clip data display mode
Press the F1 (CANCEL) button.
To set the set or modified data as other time
data
Press the F6 (SET TO) button and select the time
data (cue point, IN point, or OUT point), and then
press the F5 (SET) or F6 (SET NL) button. The
position where the data is set differs as follows,
depending on the button pressed.
• F5 (SET): The data is set in the selected time
data position.
• F6 (SET NL): A new clip is added at the lowest
line and the time data is set at the selected data
position in the new clip.
To make take number, cut number, and
scene number settings
Proceed as follows to make take number, cut number,
and scene number settings.
1
2
3
Select a clip.
Select take number, cut number, or scene number.
Press the F2 (SELECT) button.
The unit enters clip data modification mode.
To make write protect, mark, and
recording start point settings
4
The most significant digit begins to flash, and the
data can be set.
Proceed as follows to make write protect, mark, and
recording start point settings.
Select a clip.
Select write protect, mark, or recording start point.
Press the F3 (T) or F4 (t) button until the digit
that you want to set starts flashing.
6
Rotate the MULTI CONTROL knob to make the
setting.
7
Repeat steps 5 and 6 until you have set all the
required digits.
8
Press the F2 (SET) button.
Press the F2 (SELECT) button.
The unit enters clip data modification mode.
Press the F2 (MODIFY) button.
The data entry area begins to flash, and the data
can be set.
5
Select the data by pressing the F3 (+) or F4 (–)
button or rotating the MULTI CONTROL knob.
6
Press the F2 (SET) button.
Tele-File
4
5
Chapter 7
1
2
3
Press the F2 (MODIFY) button.
The setting is confirmed and the unit returns to clip
data display mode.
The data setting is confirmed and the unit returns
to clip data display mode.
Chapter 7
Tele-File
7-9
7-3 Tele-File Menu
To make comment settings
Proceed as follows to make comment settings.
1
2
3
Select a clip.
Select comment.
Press the F2 (SELECT) button.
The unit enters clip data modification mode.
4
Press the F2 (MODIFY) button.
The data entry area begins to flash, and the data
can be set.
Enter a character by rotating the MULTI
CONTROL knob.
6
Press F4 (t) button to move to the next character
place.
7
Repeat steps 5 and 6 until you have entered the
entire comment.
Chapter 7
5
Tele-File
To delete characters
Press the F3 (T) or F4 (t) button until the
character that you want to delete starts flashing,
and then press the F5 (DELETE) button.
To insert characters
Press the F3 (T) or F4 (t) button until the
character place after the place where you want to
insert starts flashing, and then press the F6
(INSERT) button.
8
Press the F2 (OK) button.
The comment is confirmed and the unit returns to
clip data display mode.
7-10
Chapter 7
Tele-File
7-3-4 Undo/Resume Functions
Undo function
The undo function cancels all modifications and
returns the data to the state it was in when first read.
Press the F5 (UNDO) button in clip data display mode.
A confirmation message appears. Press the F2 (OK)
button to execute the undo and cancel all modifications
to the data.
Resume function
If you have not modified any data since the last
execution of the undo function, you can press the F5
(UNDO) button again. The button functions as a
resume button, which cancels the immediately
preceding undo.
Press the F5 (UNDO) button in clip data display mode.
A confirmation message appears. Press the F2 (OK)
button to execute the resume and cancel the
immediately preceding undo.
7-3-5 Displaying and Modifying Attribute Data
You can display and modify attribute data. The
example below shows attribute data displayed on the
monitor.
Video final recording date
Title
ID
Administrator data
Model name
Serial number
Write inhibit setting
Thread count
Number of cue points
TELE-FILE
INFORMATION
*REC DATE
2001/07/21
TITLE
TEST 01
ID
ADMIN
MODEL
SERIAL 00000
WRITE INHIBIT OFF
THREAD COUNT 00012
CUE POINT No. 0003
CONTROL MODE panel
SIZE 01024 USED 0270
Control mode
Memory size
Amount of memory used
Title
The title (name assigned to Tele-File, etc., maximum
24 characters).
The title can be modified.
Thread count
The thread count value recorded on the tape.
ID
The ID (unique number assigned to Tele-File,
maximum 24 characters).
The ID can be modified.
Administrator data
Data about the administrator of the cassette or tape
material (maximum 16 characters).
The administrator data can be modified.
Model name
The model name of the VTR that recorded most
recently to the tape.
Serial number
The serial number of the VTR that recorded most
recently to the tape.
Tele-File
Write inhibit setting
Whether the entire Tele-File is write inhibited.
The write inhibit setting can be modified.
Chapter 7
Video final recording date
The most recent date (year/month/day) on which video
was recorded on the tape.
Number of cue points
The number of cue points recorded in the Tele-File.
You can check the cue point values in clip data display
mode.
Control mode
The setting of setup menu item 133.
For more information about setup menu item 133, see page
12-11.
Memory size
The size of the memory in the Tele-File (unit: bytes).
Amount of memory used
The amount of memory currently being used (unit:
bytes).
Chapter 7
Tele-File
7-11
7-3 Tele-File Menu
To modify attribute data
You can modify the title, ID, administrator data, and
write inhibit setting attributes.
However, the attributes cannot be modified when the
write inhibit setting is ON. Proceed as follows after
setting the write inhibit setting to OFF.
1
Rotate the MULTI CONTROL knob to select the
item.
The F2 (SELECT) button is enabled when you
select an item that can be modified (title, ID,
administrator data, and write inhibit setting).
2
Press the F2 (SELECT) button.
The data can be set or modified.
3
Rotate the MULTI CONTROL knob to set or
modify the data.
4
Press the F2 (SET) button.
Chapter 7
The change to the setting is confirmed.
Note
Tele-File
In the following cases, the SELECT item does not
appear, and it is not possible to select a data
modification mode.
• When setup menu item 133 is set to REMOTE
• When the memory label itself is write protected
To format the Tele-File memory
You can format the Tele-File memory (erase all
modifiable data). However, the memory cannot be
formatted in the following cases.
• When the write inhibit setting is ON
• When the control protocol is “remote”
To format Tele-File memory, proceed as follows.
1
Press the F4 (FORMAT) button.
A confirmation message appears.
7-12
Chapter 7
Tele-File
2
Press the F2 (OK) button.
All modifiable data is erased.
Note
In the following cases, the FORMAT item does not
appear, and it is not possible to select a data
modification mode.
• When setup menu item 133 is set to REMOTE
• When the memory label itself is write protected
8-1
Overview of UMID Functions
UMID
Basic
device that recorded the material and whether the
material is the original or a copy. The Source Pack
section contains information about when/where/who
recorded the material.
A UMID with a Basic section only is called a Basic
UMID. A UMID with both Basic and Source Pack
sections is called an Extended UMID. The following
figure shows a general overview of the information
contained in a UMID.
Instance Number
Copy or original
Chapter 8 UMID Functions
The UMID (Unique Material Identifier) is a type of
meta-data in video and audio materials. It has been
internationally standardized in SMPTE Standard
330M. This unit supports recording and generation of
UMIDs.
The UMID is made up of a section called the “Basic”
section and a section called the “Source Pack” section.
The Basic section contains information such as the
Material Number
Which device recorded the original
Source Pack
Date/Time
When was it recorded
Spatial Co-ordinates
Where was it recorded
Stored Ownership
Who recorded it
Chapter 8
UMID Functions
Chapter 8 UMID Functions
8-1
8-1
of UMID Functions
8-2Overview
Recording
UMIDs
UMIDs can be recorded when recording video signals
with this unit. You can select whether to inherit (copy)
the UMID contained in input signals, or automatically
or forcibly generate a new UMID.
Selecting the type of UMID to record
Select whether to record a Basic UMID or an Extended
UMID by using setup menu item 655 UMID
RECORDING.
Selecting the SDI VANC line to insert the
UMID
You can select the VANC 1) line into which the
generated UMID should be inserted. Make this
selection by using setup menu item 652 UMID SD
VANC LINE.
See page 12-18 for more information about setup menu item
652.
Note
See page 12-18 for more information about setup menu item
655.
Selecting whether to inherit or generate
the UMID
When recording a UMID, you can select whether to
inherit (copy) the UMID contained in input signals, or
generate a new UMID. Make this selection by using
setup menu item 656 MATERIAL NO.
See page 12-19 for more information about setup menu item
656.
Chapter 8
UMID Functions
Selecting the Instance Number generation
method when inheriting UMIDs
If you choose to inherit the UMID contained in input
signals, almost all of the information in the UMID is
copied without change, but the Instance Number
changes to a value which indicates that “this UMID is
a copy”. The new value can be generated from a 16-bit
pseudo-random number with the addition of the
number of copies (1 byte), or it can be generated from
a 24-bit pseudo-random number. Select the method
used to generate the Instance Number by using setup
menu item 654 UMID GENERATE METHOD.
See page 12-18 for more information about setup menu item
654.
UMID data in the input signal may not be readable if
the line where UMID data is inserted into SDI input
signals is the same as the line where this unit inserts
VITC (setup menu item 601 (page 12-16) and setup
menu item 602 (page 12-16)), or if that line is subject
to blanking (setup menu item 723 (page 12-24)). In
cases like these, change the setup menu settings.
To avoid the above situation, the following settings are
recommended.
• For setup menu item 652, chose a line that is different
from the lines chosen for setup menu items 601 and
602.
• Do not use setup menu item 723 (page 12-24) to
blank the line chosen for setup menu item 652.
To set Stored Ownership
If you wish to set Stored Ownership (data in the
Source Pack which indicates “who”) when generating
a UMID, call up item 029 STORED OWNERSHIP in
the setup menu and proceed as follows.
See Section 12-2 “Setup Menu Operations” (page 12-2) for
more information about basic setup menu operations.
1
Set setup menu item 029 to “on” and press the F5
(SET) button.
The Stored Ownership setting screen appears. (The
following figure shows the monitor screen.)
..........................................................................................................................................................................................................
1) VANC: Vertical ancillary (data)
8-2
Chapter 8
UMID Functions
Time zone settings
ITEM-029
STORED OWNERSHIP
COUNTRY
ORGANIZATION
*USER
2
The UMID uses the UTC (Coordinated Universal
Time) time standard. Setting this unit’s built-in
calendar clock to the local time, and then setting a time
zone to indicate the difference from global UTC
standard time allows correct UMIDs to be generated.
To set the time zone, display the HOME page of the
function menu and proceed as follows.
- XXXX
- YYYY
- ABCD
Press the F3 (PREV) and F4 (NEXT) buttons to
select the item you want to set (COUNTRY,
ORGANIZATION, or USER).
The selected item (example: USER) is shown in
F2.
SET 029:USER
UP
ITEM
USER
HOME
3
4
F1
F2
- ABCD
PREV
NEXT
F3
F4
1
With the ENTRY button in the editing control
section held down, press the F5 (MENU) button.
The error logger screen appears.
SET
EXIT
F5
F6
Press the F2 (USER) button.
Refer to the Maintenance Manual Volume 1 for more
information about the error logger.
2
The content of the setting is a character string (in
this example “ABCD”). Select any character to
change in the string by pressing the F3 (PREV)
and F4 (NEXT) buttons.
The selected character flashes.
6
Repeat steps 4 and 5 for all of the characters that
you want to change.
7
• If you do not want to change the other items
(COUNTRY and ORGANIZATION), proceed to
step 8.
• If you want to change the other items, press the
F1 (ITEM) button and proceed as in steps 2 to 6.
The OFFSET TO UTC item appears.
ERR OFFSET TO UTC
LOG PREV
NEXT
HOME
To cancel changes and exit the setup menu
Press the F6 (EXIT) button.
F2
+
SET
EXIT
F3
F4
F5
F6
ERROR LOGGER
(014/023)
014 REFERENCE MISSING
015 AUDIO PB CONDITION
016 VIDEO PB CONDITION
TAPE ERROR
ON
WARNING
ON
CONDITION
ON
*OFFSET TO UTC
+09:00
Push SET button
2001 12 24 23:59:59
3
Press the F1 (PREV) and F2 (NEXT) button to
select the OFFSET TO UTC item, and use the
MULTI CONTROL knob or the F3 (–) and F4 (+)
buttons to set the offset to UTC time.
For example, if the local time is 9 hours in advance
of UTC, set to “+9:00”.
4
Press the F5 (SET) button.
Press the F5 (SET) button.
The changed settings are confirmed.
F1
+09:00
–
UMID Functions
Rotate the MULTI CONTROL knob to display the
desired character in the position of the flashing
character.
Press the F5 (SET) button.
Chapter 8
5
8
See Section 11-1-2 “Using the Function Menu” (page 11-2)
for more information about function menu operations.
This makes the setting effective.
Chapter 8 UMID Functions
8-3
8-1
of Output
UMID Functions
8-3Overview
UMID
and
Display
This section explains how to output and display
UMIDs.
UMID display on the video monitor
8-3-1 UMID Output Settings
You can choose to output UMIDs or not, and select
either Basic UMID or Extended UMID when you
choose to output UMIDs. Make these settings using
setup menu item 651 UMID OUTPUT.
See page 12-18 for more information about setup menu item
651.
8-3-2 UMID Display
During recording and playback, UMID data appears in
the menu display section of the control panel and on
the video monitor.
To display the UMID
In function menu page 5, press the F2 (UMID) button.
See Section 11-1-2 “Using the Function Menu” (page 11-2)
for more information about function menu operations.
Chapter 8
The UMID appears in the menu display section of the
control panel and on the video monitor.
First item in UMID displayed in menu display section
UMID Functions
UMI INSTANCE 24PRS XX-XX-XX
D
HOME
F1
F2
F3
F4
F5
To switch the displayed UMID item in the
menu display section
Rotate the MULTI CONTROL knob.
8-4
Chapter 8
UMID Functions
UMID INFORMATION
INSTANCE 24PRS XX-XX-XX
MATERIAL IEEE 1394 ZONE
XX-XX-XX-XX-XX-XX-XX-XX
XX-XX-XX-XX-XX-XX-XX-XX
DATE/TIME 20XX/XX/XX
XX:XX:XX:XX +XX:XX
ALTITUDE XXXXXXXXm
LONGITUDE EXXX XX'XX.XX
LATITUDE SXXX XX'XX.XX
ORGANIZATION XXXX
USER XXXX
COUNTRY XXXX
1
2
3
4
5
6
7
8
9
1 Instance Number generation method and
Instance Number
The generation method is displayed as follows.
CP+16: “16-bit PRS (pseudo-random sequence)
+Copy No.” method
24PRS: 24-bit PRS method
others: Other than the above
2 Material Number generation method
SMPTE: SMPTE method
IEEE 1394 ZONE: IEEE 1394 ZONE method
IEEE 1394 RND: IEEE 1394 RND method
others: Other than the above
EXIT
F6
See the next section “UMID display on the video monitor”
for examples of the UMID displayed on the video monitor.
To exit from UMID display
Press the F6 (EXIT) button.
The video monitor connected to the COMPOSITE
VIDEO OUTPUT 3 (SUPER) connector or the SDI
OUTPUT 3 (SUPER) connector on the connector
panel displays all UMID items at once. The display of
each line is explained below.
3 Material Number
The material number is displayed in hexadecimal
across two lines.
The following items, 4 through 9, are contained in
the Source Pack.
4 Date/Time
Date/Time data is displayed across two lines.
The upper line shows the MJD (Modified Julian Date)
contained in the Source Pack, converted to UTC.
The lower line shows the data in unit count format
(hours : minutes : seconds : frame) converted to UTC.
Note
The function for converting unit count to UTC works
only when the unit rate is 2 (24 frames), 3 (24/1.001
frames), 4 (25 frames), 6 (30 frames), or 7 (30/1.001
frames). For other unit rates, the unit rate number and
unit rate are displayed in hexadecimal.
Chapter 8
5 Altitude
XXXXXXXXm: Altitude data indicating the distance
from the center of the earth is displayed in this
format.
S+XXXXXXXm Y+D: Altitude data indicating the
distance from sea level is displayed in this format.
The meaning of the characters and strings shown
is as follows.
• “S” (1st character): Indicates data from a Sensor.
“R” is shown for position data from the
recording device (Recorder), and “T” is shown
for Target position data.
• “+” (2nd character): Indicates higher than sea
level. “–” indicates lower than sea level.
• “XXXXXXXm” : Altitude data (unit meters).
• “Y”: The number of satellites used to calculate
position data (hexadecimal).
• “D”: DOP (dilution of precision) value.
• “+” (between Y and D): Displayed when a
supportive apparatus was used. A space (blank)
is displayed when no supportive apparatus was
used.
UMID Functions
6 Longitude
Following “W” to indicate west longitude or “E” to
indicate east longitude, the longitude is displayed in
degrees, minutes, and seconds (seconds are shown up
to 2 decimal places).
Example: “E134 59’23.00” for “East longitude 134
degrees 59 minutes 23.00 seconds”
7 Latitude
Following “N” to indicate north latitude or “S” to
indicate south latitude, the latitude is displayed in
degrees, minutes, and seconds (seconds are shown up
to 2 decimal places).
Example: “N34 59’23.32” for”North latitude 34
degrees 59 minutes 23.32 seconds”
Chapter 8 UMID Functions
8-5
9-1
Overview of Essence Mark Functions
Chapter 9 Essence Marks
An essence mark uses a term value dictionary item as
defined in the SMPTE RP210A Metadata Dictionary
to express and transfer points such as recording start
points and edit point candidates in up to 32 bytes of
data.
The basic format of the SMPTE RP210A Metadata
Dictionary is defined in SMPTE 336M Data Encoding
Protocol using Key-Length-Value (KLV coding
specifications).
Chapter 9
Essence Marks
Chapter 9 Essence Marks
9-1
9-1
Übersicht
über dieMark
Essenzmarken-Funktionen
9-2
Essence
Recording and
9-2-1 Essence Mark Recording
Essence marks contained in SDI input signals and
essence marks generated by this unit can be recorded
to tape together with video signals.
All essence mark data generated by this unit is 7-bit
ASCII codes. The generation period is 1 frame.
Selecting the SDI VANC line into which to
insert essence marks
You can select the SDI signal VANC line into which
essence marks should be inserted. Make this selection
using setup menu item 660 ESSENCE MARK SD
VANC LINE.
See page 12-19 for more information about setup menu item
660.
Note
Essence mark data in the input signal may not be
readable if the line where Essence mark data is
inserted into SDI input signals is the same as the line
where this unit inserts VITC (setup menu item 601
(page 12-16) and setup menu item 602 (page 12-16)),
or if that line is subject to blanking (setup menu item
723 (page 12-24)). In cases like these, change the
setup menu settings.
Chapter 9
Essence Marks
To avoid the above situation, the following settings are
recommended.
• For setup menu item 660, chose a line that is different
from the lines chosen for setup menu items 601 and
602.
• Do not use setup menu item 723 (page 12-24) to
blank the line chosen for setup menu item 652.
Selecting whether to record essence
marks contained in input video signals
You can select whether or not to record essence mark
data contained in input video signals. Make this
selection using setup menu item 661 ESSENCE
MARK INPUT RECORD.
See page 12-20 for more information about setup menu item
661.
9-2
Chapter 9
Essence Marks
Output
Selecting whether to record generated
essence marks
You can select whether or not to record generated
essence mark data when you record video signals with
this unit. Make this selection using setup menu item
662 ESSENCE MARK SELF RECORD.
See page 12-20 for more information about setup menu item
662.
9-2-2 Essence Mark Output
Essence marks can be output to SDI signals when
playing back a tape. Information such as shot marks
recorded on the tape can also be converted into essence
marks and output.
Selecting whether to output essence
marks
You can select whether or not to output essence marks
when you play back a tape. Make this selection using
setup menu item 657 ESSENCE MARK TAPE
OUTPUT.
See page 12-19 for more information about setup menu item
657.
Outputting shot marks converted into
essence marks
You can select whether or not to convert shot marks
recorded on a tape into essence marks for output when
you play back the tape. Make this selection using setup
menu item 658 SHOT MARK ESSENCE MARK
CONVERT.
See page 12-19 for more information about setup menu item
658.
10-1 Overview of Auto Event Detector Functions
See Chapter 9 for more information about essence marks,
and see Chapter 7 for more information about the Tele-File
functions.
Note
Events are output about 3 frames after the actual
locations of the events.
10-2 Event Output and Recording
Outputtting events converted into essence
marks
You can select whether or not to convert into essence
marks and output events detected by the AED during
playback (normal playback, variable speed playback,
and jog playback). Make this selection using setup
menu item 659 AED ESSENCE MARK CONVERT.
See page 12-19 for more information about setup menu item
659.
Auto Event Detector
The Auto Event Detector function works for all tapes
that can be played back by this unit.
Chapter 10
The Auto Event Detector (AED) detects locations
where video signals show large changes (cuts), and
locations where the video suddenly becomes brighter
for a short period (flash).
Detected events can be converted into essence marks
and output. The time code of detected events can be
recorded in a Tele-File label.
To write the time code of cut events to a TeleFile label
With the ENTRY button in the editing control section
held down, press the VAR button in the search control
section. The tape starts to run in the forward direction
at a high speed where noiseless playback is possible,
and events detected by the AED are written to a TeleFile label as cue data.
To stop the writing to the Tele-File label, press the
STOP button or do something else to change the play
mode.
Notes
Recording event marks in a Tele-File label
The time code of cut events detected by the AED can
be written to a Tele-File label.
• Writing stops automatically if the Tele-File memory
becomes full.
• Make sure that the Tele-File label is writable, for
example by removing write protection if it is applied.
Chapter 10
Auto Event Detector
Chapter 10 Auto Event Detector
10-1
11-1 Overview of the Function Menu
11-1-1 Function Menu
Configuration
The function menu consists of six pages by factory
default: the HOME page and five pages numbered 1 to
5. You can also display the HOME2 page by setting
user-defined function keys. The following icons appear
at the left edge of the menu display section to denote
the current page.
1 : HOME page
1: Page 1
2: Page 2
3: Page 3
HOME2 page (user-defined function keys)
Up to six function keys can be defined (i.e. six
functions can be assigned to the F1 to F6 buttons in the
HOME2 page).
You can select and define the following function keys:
• Functions selected from the function menu items in
the HOME page and menu pages 1 to 4
• Function key to display the setting for setup menu
item 211 (REMOTE1 PORT) and to carry out the
operation when the menu item setting is “panel”.
Note
By factory default, no function keys are defined in the
HOME2 page.
It is not possible to display the HOME2 page unless
you have defined at least one function key in that page.
For details on defining user-defined function keys in the
HOME2 page, refer to the Maintenance Manual Volume 1.
4: Page 4
5: Page 5
Page 6
6: Page 6
2 : HOME 2 page
Each page has a menu display section made up of an
upper and lower part. The upper part displays the
menu items (functions) in the page, and the lower part
displays the menu item settings. The figure below
shows the menu display section in the HOME page.
You can define up to six setup menu items (assign six
setup menu items to the F1 to F6 buttons) and register
them on page 6.
Note
There is nothing defined on page 6 when the unit is
shipped from the factory.
For more information about defining setup menu items for
page 6, refer to the Maintenance Manual Volume 1.
Menu items (functions)
VID. IN PB/EE CONFI CTL/TC MENU TCGSET
PB
Y-R,B
OFF
TC
HOME
F1
F2
F3
F4
F5
F6
Settings (values)
In the figure above, Y-R,B (analog component signals)
is selected as the setting for VID.IN, the menu item for
button F1. This manual refers to this as “F1 (VID.IN)
in function menu HOME page is set to Y-R,B.”
Chapter 11 Function Menu
11-1
Chapter 11 Function Menu
Chapter
11 Function Menu
The function menu allows you to make frequently
made settings, such as selection of input video signals
and time code settings.
11-1 Overview of the Function Menu
Chapter 11
11-1-2 Using the Function Menu
Function Menu
To change a menu item setting
To change a menu item setting, press the
corresponding function button (F1 to F6) to display the
desired setting in the lower part of the menu display.
Each press of the button displays the next setting.
When a menu item setting flashes
Menu item settings flash to inform you that you can
change the setting value by rotating the MULTI
CONTROL knob.
To change the function menu page
Press either of the page buttons (V, v).
• The V button selects the next page in the order
HOME t 1 t 2 t 3 t 4 t 5 t 6 t HOME...
• The v button selects the next page in the order
HOME t 6 t 5 t 4 t 3 t 2 t 1 t HOME...
With one of menu pages 1 to 6 displayed, pressing the
HOME button changes the page to the HOME page.
Pressing the HOME button when the HOME or
HOME2 page is displayed changes the page to
HOME2 or HOME, respectively.
Settings which do not appear in the menu
display section
In the HOME page (see the figure in Section 11-1-1
“Function Menu Configuration”), the settings for F5
(MENU) and F6 (TCGSET) do not appear in the menu
display. When you press the F5 or F6 button, the
whole menu page changes to allow you to set these
items.
11-2
Chapter 11
Function Menu
11-2 Function Menu Item List
Chapter 11
The function menu has the following items.
Function Menu
HOME page
Item
Setting
F1 (VID.IN)
Selects the input video signal.
COMPST: Analog composite signal
Y-R,B: Analog component signal
SDI: SDI signal
SG (normally not displayed): Test signal from the internal test signal generator (For details, see setup
menu item 710 on page 12-22.)
F2 (PB/EE)
Selects the video and audio signals output during fast forward, rewind, stop, and standby.
PB: Playback signals
EE: E-E mode signals
F3 (CONFI)
Selects whether or not to use the CONFI playback function when recording.
ENABLE: Use the CONFI playback function. (The CONFI indicator lights in the time data display.)
DISABL: Do not use the CONFI playback function.
F4 (CTL/TC)
Selects the time data to display in time data display area 1 (see page 2-7).
TC: Playback time code read by the internal time code reader, or recording time code. The LTC or VITC
time data type indicator (see page 2-7) lights.a)
UB: User bits data of playback time code or recording time code. The LUB or VIUB time data type
indicator lights, depending on whether the time code is LTC or VITC.a)
CTL: The running time of the tape being played back or recorded, as calculated from a count of CTL
signals recorded on the tape. The time is displayed in Hours: Minutes: Seconds: Frames format.
F5 (MENU)
Puts the system into setup menu mode (see Chapter 12).
When the current setup menu settings are the same as the contents of any of menu banks 1 to 4, or the
factory defaults, the corresponding indication (1), (2), (3), or (dflt) appears.
(1): Same as menu bank 1.
(2): Same as menu bank 2.
(3): Same as menu bank 3.
(4): Same as menu bank 4.
(dflt): Same as factory defaults.
F6 (TCGSET)
• When F4 (CTL/TC) is set to TC, a screen appears that allows you to set the initial value of the time code
generated by the internal time code generator (see page 4-3).
• When F4 (CTL/TC) is set to UB, a screen appears that allows you to set the time code user bits (see
page 4-3).
a) The selection of LTC or VITC depends on the setting of
F6 (TCR) in function menu page 1.
Chapter 11 Function Menu
11-3
11-2 Function Menu Item List
Chapter 11
Page 1
Function Menu
Item
Setting
F1 (TCG)
Selects the time code to use.
INT: Time code generated by the internal time code generator
EXT: One of the following time codes
• When F6 (TCR) is set to LTC or AUTO, the external time code input from the TIME CODE IN connector
• When F6 (TCR) is set to VITC, the VITC time code of the input video signal
RP188: Synchronize the internal time code generator with the SMPTE RP188 time code contained in the
SDI input signal.
Note
If you set this menu item to RP188 when F1 (VID.IN) in the HOME page is not set to SDI or when no SDI
input is present, the menu setting display “RP188” flashes as a warning. Nevertheless, the unit operates in
compliance with the setting of this menu item.
F2 (TCG)
For the internal time code generator, selects one of the following.
PRESET: Preset the initial value of time code generated by the internal time code generator by a control
panel operation, or by remote control from the device connected to the REMOTE1-IN(9P) connector.
REGEN: Synchronize the internal time code generator with the playback time code read by the internal
time code reader.
F3 (RUN)
Selects one of the following running modes for the internal time code generator.
FREE: The time code continues to increase as long as the unit is powered on, regardless of the unit’s
operating mode.
REC: Time code increases during recording only. If you select this mode, you should also set F1 (TCG) to
INT, and set F2 (TCG) to PRESET.
F4 (DF)
In 525-line mode, selects either drop-frame mode or non-drop frame mode for the time code generator and
the CTL counter.
DF: Drop-frame mode
NDF: Non-drop frame mode
F5 (VITC)
Specifies whether or not to record the VITC generated by the internal time code generator.
ON: Record internally generated VITC.
OFF: Do not record internally generated VITC.
F6 (TCR)
Selects the type of time code to display in the time data display.
LTC: Display LTC.
AUTO: Display VITC when tape speed is 1/2 or less of normal speed, and LTC otherwise.
VITC: Display VITC.
11-4
Chapter 11
Function Menu
Chapter 11
Page 2
Setting
F1 (V.PROC)
Selects the control method for the internal digital video processor.
Function Menu
Item
LOCAL: Change the settings of the internal digital video processor by using this function menu.
REMOTE: Use the optional BVR-50/50P Remote Control Unit to control the internal digital video
processor.
MENU: Change the settings of the internal digital video processor by using the MENU of the HOME page.
F2 (VIDEO)
Sets the video signal output level (–∞ to +3 dB).
PRESET: Regardless of manually values, the video signal is set to the standard level.
Manual setting: With the displayed setting flashing, you can rotate the MULTI CONTROL knob to adjust
the value for the video signal output level.
F3 (CHROMA)
Sets the chroma signal output level (–∞ to +3 dB).
PRESET: Regardless of manually set values, the chroma signal is set to the standard level.
Manual setting: With the displayed setting flashing, you can rotate the MULTI CONTROL knob to adjust
the value for the chroma signal output level.
F4 (HUE) (525line mode)/
(C PHAS) (625line mode)
F5 (SETUP)
(525-line mode)/
(BLACK) (625line mode)
F6 (YC DLY)
(DVW-M2000/
M2000P only)
Sets the color phase (phase relative to burst)
PRESET: Regardless of manually set values, the color phase is set to the standard value.
Manual setting: With the displayed setting flashing, you can rotate the MULTI CONTROL knob to adjust
the value across the range ±30°.
Sets the setup level (525/60 mode) or black level (625/50 mode)
PRESET: Regardless of manually set values, the level is set to the standard value.
Manual setting: With the displayed setting flashing, you can rotate the MULTI CONTROL knob to adjust
the setup level across the range ±30 IRE (525/60 mode) or to adjust the black level across the range
±210 mV (625/50 mode).
Sets amount of Y/C delay.
PRESET: Regardless of manually set values, the Y/C delay is to the standard value.
Manual setting: With the displayed setting flashing, you can rotate the MULTI CONTROL knob to adjust
the Y/C delay across the range ±100 ns.
Chapter 11 Function Menu
11-5
11-2 Function Menu Item List
Chapter 11
Page 3
Function Menu
Item
Setting
F1 (SYNC)
Sets the output signal sync phase.
Setting method
With the displayed setting flashing, you can rotate the MULTI CONTROL knob to adjust the output signal
sync phase across the range ±15 µs relative to this unit’s input reference signal.
Adjust this item when you want to adjust the output signal sync phase precisely to match a reference
signal, or when connecting this unit and other VTRs to a device such as a switcher to perform operations
such as special effects editing.
F2 (SC)
Sets the output signal subcarrier phase.
Setting method
With the displayed setting flashing, you can rotate the MULTI CONTROL knob to adjust the output signal
subcarrier phase across the range ±200 ns relative to this unit’s input reference signal.
Adjust this item when you are using composite signals in editing and want to adjust the output signal
subcarrier phase precisely to match a reference signal. Even when this value is adjusted, the output SCH
(subcarrier to sync) phase is maintained.
F3 (VIN LV)
Sets the level of composite video signals input to the COMPOSITE VIDEO INPUT connectors.
AGC: Adjusts the level automatically.
Manual setting: With the displayed setting flashing, you can rotate the MULTI CONTROL knob to adjust
the level of composite video signals input to the COMPOSITE VIDEO INPUT connectors.
F4 (EMPHSS)
Specifies whether to add audio emphasis to analog audio input signals and Betacam/Betacam SP format
playback audio signals.
ON: Add audio emphasis.
OFF: Do not add audio emphasis.
F5 (T INFO)
Selects the type of time data to display in time data display area 2.
TOTAL: Display total time.
REMAIN: Display remaining time.
11-6
Chapter 11
Function Menu
Chapter 11
Page 4
Setting
F1 (CAPSTN)
Selects the number of fields for capstan lock in playback and editing.
Function Menu
Item
For DVW-M2000/2000
2F: The capstan servo locks in units of 2 fields.
• For tape output, color framing may not match the reference signal selected with the F2 (OUTREF).
• In assemble editing, color framing may be non-continuous at edit points.
When playing back a tape that was recorded with composite source signals, a vertical shift in the video
(H shift) occurs. (When setup menu item 712 is set to ON.)
4F: The capstan servo locks in units of 4 fields.
• For tape output, color framing matches the reference signal selected with the F2 (OUTREF).
• In assemble editing, color framing is continuous at edit points.
Even when playing back a tape that was recorded with composite source signals, no vertical shift in
the video (H shift) occurs. You should set this menu item to this setting when you are editing
composite signals, when continuity in video phase across edit points is required, and when you
perform A/B-roll editing.
For DVW-M2000P/2000P
2F: The capstan servo locks in units of 2 fields.
• For tape output, color framing may not match the reference signal selected with the F2 (OUTREF).
• In assemble editing, color framing may be non-continuous at edit points.
When playing back a tape that was recorded with composite source signals, a vertical shift in the video
(H shift) occurs. (When setup menu item 712 is set to ON.)
4F: The capstan servo locks in units of 4 fields.
• For tape output, color framing may not match the reference signal selected with the F2 (OUTREF).
• In assemble editing, color framing may be non-continuous at edit points.
When playing back a tape that was recorded with composite source signals, a vertical shift in the video
(H shift) occurs. (When setup menu item 712 is set to ON.)
8F: The capstan servo locks in units of 8 fields.
• For tape output, color framing matches the reference signal selected with the F2 (OUTREF).
• In assemble editing, color framing is continuous at edit points.
Even when playing back a tape that was recorded with composite source signals, no vertical shift in
the video (H shift) occurs. You should set this menu item to this setting when you are editing
composite signals, when continuity in video phase across edit points is required, and when you
perform A/B-roll editing.
F2 (OUTREF)
Selects the reference signal of this unit, according to the setting of setup menu item 309 and this unit’s
operating state.
REF: Use the signal input to the REF.VIDEO INPUT connector as the reference signal. During recording,
input digital audio signals and video signals must be synchronized with this signal.
INPUT: Use the input video signal selected in the F1 (VID.IN) of the HOME page as the reference signal.
F3 (DOLBY)
(DVW-M2000/
M2000P only)
When using oxide tapes, specifies whether or not to use the Dolby type C low-frequency noise reduction
(NR) system.
NR ON: Use the Dolby NR system when playing back analog Betacam oxide tapes.
NR OFF: Do not use the Dolby NR system when playing back analog Betacam oxide tapes.
F4 (CHARA)
Specifies whether or not to superimpose time code, menu settings, error messages, and so on over the
video signals output to the 3 (SUPER) connector in the SDI OUTPUT connectors, and the 3 (SUPER)
connector in the COMPOSITE VIDEO OUTPUT connectors.
ON: Superimpose.
OFF: Do not superimpose.
(Continued)
Chapter 11 Function Menu
11-7
11-2 Function Menu Item List
Chapter 11
Item
Setting
Function Menu
F5 (RECINH)
Specifies whether or not to inhibit recording to tape.
ON: Inhibit recording to tape depending on the setting of setup menu item 310.
OFF: Do not inhibit recording to tape.
F6 (PREREAD)
Specifies whether or not to preread (read before write) in insert editing.
ON: Preread depending on the setting of setup menu item 319.
OFF: Do not preread.
Page 5
Item
Setting
F1 (TELE-F)
Displays the Tele-File menu.
For details of the Tele-File menu, see Section 7-3 “Tele-File Menu” (page 7-3).
F2 (UMID)
Displays UMID information during recording/playback.
For details of UMID, see Chapter 8.
F5 (SUPUTL)
Displays the setup utility menu.
For details of the setup utility menu, see Chapter 13.
11-8
Chapter 11
Function Menu
12-1 Setup Menu Configuration
Configuration of the extended setup menu
The extended setup menu comprises the following
groups of items.
Item group
Function
Refer to
Items
100 to 199
Settings relating to control
panels
Page 12-8
For details, refer to the Installation Manual.
Items
200 to 299
Settings relating to the remote
control interface
Page 12-11
In this manual, both the basic setup menu items and
extended setup menu items are also referred to simply
as setup menu items or menu items.
Items
300 to 399
Settings relating to editing
operations
Page 12-12
Items
400 to 499
Settings relating to preroll
Page 12-15
Configuration of the basic setup menu
The basic setup menu comprises the following groups
of items.
Items
500 to 599
Settings relating to tape
protection
Page 12-15
Items
600 to 699
Settings relating to the time
code generator
Page 12-16
Items
700 to 799
Settings relating to video
control
Page 12-21
Items
800 to 899
Settings relating to audio
control
Page 12-26
Items
900 to 999
Settings relating to digital
processing
Page 12-30
Item group
Function
Refer to
Items
H01 to H14
Display of the total number of
hours the unit has been
powered on, and other
information collected by the
digital hours meter
Page 14-5
Items
001 to 099
Settings relating to the preroll
time, superimposed text
information, switching between
525-line (NTSC) and 625-line
(PAL) operation modes, etc.
Page 12-5
Items
B01 to B20
Settings relating to the menu
banks for saving menu settings
Page 12-7
For the menu items added when the BKMW-104 HD UpConverter Board is installed, refer to the Operation Manual
or Installation Manual for the BKMW-104.
Chapter 12 Setup Menus
12-1
Chapter 12 Setup Menus
Chapter 12
Setup Menus
This unit has the following setup menus.
• Basic setup menu
• Extended setup menu
To access the extended setup menu, a setting on the
internal SS-89 board is required.
12-2
Menu Operations
12-2SetupSetup
Menu Operations
To display setup menus
Chapter 12
MULTI RECORDER
CONTROL
ASSEMBLE
VIDEO
TC
CH1
CH2
CH3
CH4
CUE
PUSH/
SHIFT
Setup Menus
CHANNEL
CONDITION
VID. IN PB/EE CONFI CTL/TC MENU TCGSET
PB
Y-R,B
OFF
TC
HOME
F1
F2
F3
F4
HOME button
F5
PLAYER
ALARM
KEY INHI
To display menus on the monitor
Setting CHARA to ON in function menu page 4 allows
you to display setup menus on the monitor connected
to the COMPOSITE VIDEO OUTPUT 3 (SUPER)
connector or SDI OUTPUT 3 (SUPER) connector of
this unit. When a setup menu appears on the monitor, a
cursor indicates the currently selected menu item.
RESET
F6
Group name for the
currently selected item
F5 (MENU) button
Cursor indicating
the currently
selected item
Function menu HOME page
With the function menu HOME page showing in the
menu display, press the F5 (MENU) button.
The currently selected setup menu item is displayed in
the menu display, with the menu item number flashing.
For basic operations in the menu display, see page 2-7.
SET H01 : OPE HOURS
UP
SELECT
Setup menu item H01 displayed
O
SET
EXIT
Customizing the setup menu
You can customize the setup menu so that items which
you do not use are not displayed.
“[C]” appears in the upper right of the monitor when
the menu is customized (when there are items which
are not displayed). However, there is no indication in
the menu display section that the menu has been
customized.
For details about how to customize the setup menu, refer to
the Maintenance Manual.
Displaying a desired menu item
ASSEMBLE
VIDEO
TC
CH1
CH2
CH3
CH4
CUE
MULTI RECORDER
CONTROL
PUSH/
SHIFT
CHANNEL
CONDITION
–
SET 001:P–ROLL TIME
UP
SELECT
HOME
F1
v and V buttons
F2
F3
5S
F4
PLAYER
ALARM
KEY INHI
SET
EXIT
F5
F6
RESET
MULTI
CONTROL knob
When the menu item number displayed in the menu
display is flashing, you can change the menu item by
turning the MULTI CONTROL knob.
To skip from one item group to the next, press the v
button or V button.
12-2
Chapter 12
Setup Menus
To display a desired sub-item
For a menu item having sub-items, you can select a
desired sub-item as follows.
With a desired menu item selected, press the F2
(SELECT) button.
2
1
Turn the MULTI CONTROL knob to select a
desired sub-item.
The current setting of the sub-item flashes.
2
Changing menu item setting values
The procedures for changing menu item setting values
or sub-item setting values are described below.
To select another menu item and change its
setting value
Press the F1 (RETURN) button twice in succession
making the current menu item number flash, then
perform the procedures for selecting a desired
menu item and changing its setting value.
Press the F2 (SELECT) button.
The current setting of the menu item flashes.
2
Press the F3 (–) button or F4 (+) button, or turn the
MULTI CONTROL knob to select a desired
setting value.
Press the F3 (–) button or F4 (+) button, or turn the
MULTI CONTROL knob to select a desired
setting value.
To select another sub-item and change its
setting value
Press the F1 (RETURN) button making the current
sub-item name flash, then perform the procedures
for selecting a desired sub-item and changing its
setting value.
To change the settings of menu items without
sub-items
After selecting a desired menu item using the
procedure described in the section “Displaying a
desired menu item” on page 12-2 and with the menu
item number flashing, proceed as follows.
1
Press the F2 (SELECT) button.
3
When all required changes have been made, press
the F5 (SET) button.
This makes the new settings effective.
To select another menu item and change its
setting value
Press the F1 (RETURN) button making the current
menu item number flash, then perform the
procedures for selecting a desired menu item and
changing its setting value.
3
To abandon making changes and exit from the
setup menu display
Press the F6 (EXIT) button.
When all required changes have been made, press
the F5 (SET) button.
This makes the new settings effective.
To abandon making changes and exit from the
setup menu display
Press the F6 (EXIT) button.
Chapter 12 Setup Menus
12-3
Setup Menus
The currently selected sub-item name flashes.
Chapter 12
1
To change the settings of menu items with
sub-items
When a selected menu item has sub-items, select a
desired sub-item using the procedure described in the
section “To display a desired sub-item” on this page
making the sub-item name flash, then proceed as
follows.
12-2 Setup Menu Operations
Resetting the menu settings to their
factory default values (menu item B20)
Recall (B01)
Save
Chapter 12
Current active
menu settings
Save (B11)
Menu bank 1
To reset the current active menu settings to their
factory default values, proceed as follows.
Setup Menus
1
Perform steps 1 to 3 of the procedure described in
the section “To change the settings of menu items
without sub-items” on page 12-3 to set menu item
B20 RESET SETUP to ON.
The current active menu settings are reset to their
factory default settings.
2
a)
Recall (B02)
Press the F5 (SET) button again.
Menu bank 2
Save (B12)
a)
Recall (B03)
Menu bank 3
Save (B13)
a)
Recall (B20)
Save
a)
Menu bank 4
This saves the menu settings.
a) Use maintenance menu item 122.
Menu bank operations (menu items B01 to
B13)
This unit allows menu settings to be saved in what are
termed “menu banks”. Saved sets of menu settings can
be recalled for use as required.
To save the current active menu settings
Set one of menu items B11 SAVE BANK 1 to B13
SAVE BANK 3 to ON, depending on which of the
menu banks you wish to save in, then press the F5
(SET) button.
To recall settings from a menu bank
When recalling the settings saved in one of menu
banks 1 to 3, set the corresponding one of menu items
B01 RECALL BANK 1 to B03 RECALL BANK 3 to
ON, then press the F5(SET) button.
When you wish to recall the settings saved in menu
bank 4, select bank-4 with menu item B20 PRESET
SETUP.
For details about menu bank 4, refer to the Maintenance
Manual.
12-4
Chapter 12
Setup Menus
12-3 Items in the Basic Setup Menu
The basic setup menu contains the following items.
In the “Settings” column of the table, the factory
default settings are indicated by an enclosing box.
001
PREROLL TIME
0S ... 5S ... 30S: Set the preroll time to between 0 and 30 seconds. A preroll time
of at least 5 seconds is recommended when using this unit for editing.
002a)
CHARACTER HPOSITION
Adjust the horizontal screen position of the character information output from the
COMPOSITE VIDEO OUTPUT 3 (SUPER) connector and the SDI OUTPUT 3
(SUPER) connector for superimposed display on the monitor.
00 ... 1C ... 3C (525-line mode)/00 ... 19 ... 36 (625-line mode): The
hexadecimal value 00 is for the far left of the screen and increasing the value
moves the position of the characters to the right.
003a), b)
CHARACTER VPOSITION
Adjust the vertical screen position of the first line of the characters information
output from the COMPOSITE VIDEO OUTPUT 3 (SUPER) connector and the
SDI OUTPUT 3 (SUPER) connector for superimposed display on the monitor.
00 ... 5C ... 71 (525-line mode)/00 ... 70 ... 88 (625-line mode): The hexadecimal
value 00 is for the top of the screen and increasing the value lowers the
position of the characters.
004
SYNCHRONIZE
When editing using this unit as a controller and an external VTR connected to this
unit via a 9-pin remote control cable, this item determines whether or not to
operate the two units in phase synchronization.
OFF: Do not operate in phase synchronization.
ON : Operate in phase synchronization.
005
DISPLAY INFORMATION
SELECT
Determines the kind of character information to be output from the COMPOSITE
VIDEO OUTPUT 3 (SUPER) connector and the SDI OUTPUT 3 (SUPER)
connector when the function menu item CHARA is set to ON.
T&STA : Time data display information and the unit’s status
T&UB: Time data display information and the user’s bits
T&CTL: Time data display information and CTL
T&T: Time data display information and time code (LTC or VITC)
TIME: Time code (LTC or VITC) only
If there is an overlap between the setting of this item and the setting of the control
panel, it is automatically avoided. For example, if CTL is selected on the control
panel and this menu item setting is T&CTL, then CTL and LTC are output.
006
LOCAL FUNCTION
ENABLE
Determines which buttons on the control panel are enabled when this unit is
controlled from external equipment.
DIS: All buttons and switches are disabled.
S&E&F : Only the STOP button, EJECT button, and F1 to F6 buttons are
enabled.
ENA: All buttons and switches except the RECORDER button and PLAYER
button are enabled.
MAP: Buttons and switches are enabled or disabled in accordance with the
settings of menu item 023.
007
TAPE TIMER DISPLAY
Determines whether to display the CTL count in 12-hour mode or 24-hour mode.
+ –12H : 12-hour mode
24H: 24-hour mode
008
MONITORING
SELECTION FOR VTRTO-VTR EDIT
For recorder-player editing with only one monitor connected to the recorder,
determines whether the recorder is forced into E-E mode when the recorder’s
PLAYER button is pressed to view the player’s playback signals on the monitor.
MANU : Do not force the recorder into E-E mode.
AUTO: Force the recorder into E-E mode.
a) When setting items 002 and 003, watch the monitor
screen, and adjust to the required state.
b) When displaying time code values, there is a slight time
delay. Therefore, when creating a tape for off-line
editing, the information inserted in the upper half of the
screen may be delayed by one frame.
(Continued)
Chapter 12 Setup Menus
12-5
Setup Menus
Settings
Chapter 12
Item number Item name
12-3 Items in the Basic Setup Menu
Item number Item name
009
a)
Settings
Determines the type of characters such as time code output from the
COMPOSITE VIDEO OUTPUT 3 (SUPER) connector and the SDI OUTPUT 3
(SUPER) connector for superimposed display on the monitor.
WHITE : White letters on a black background
BLACK: Black letters on a white background
W/OUT: White letters with black outline
B/OUT: Black letters with white outline
011a)
CHARACTER V-SIZE
Determines the vertical size of characters such as time code output from the
COMPOSITE VIDEO OUTPUT 3 (SUPER) connector and the SDI OUTPUT 3
(SUPER) connector for superimposed display on the monitor.
×1 : Standard size
×2: 2 times standard size
012b)
CONDITION DISPLAY
VIDEO MONTOR
Specifies whether to add an indication of channel condition and tape time to
superimposed text, when “×1” is selected in menu item 011.
disable : Do not display.
enable: Display.
Chapter 12
CHARACTER TYPE
Setup Menus
a) When setting items 009 and 011, watch the monitor
screen, and adjust to the required state.
b) The channel condition indication appears under the timer
or status line (under the video playback level indication
during playback of an analog tape), in the format
“V–A–”, where the symbol following the “V” indicates
the rotating head condition for video channels and the
symbol following the “A” indicates the rotating head
condition for audio channels.
The following three symbols appear:
“–” (good)
“*” (fair)
“x” (poor)
The tape time is displayed as follows in the time data
display area 2 of the time data/menu display section.
BOT: Displayed when the tape has returned to the top.
EOT: Displayed when the tape has reached the end.
TTL: 00: 00: Displays a time representing the total
length of the tape.
REM: 00: 00: Displays a time representing the
remaining length of the tape.
“00:00” means “hours:minutes” for both TTL and REM.
The setting of item F5 (T INFO) on page 3 of the
function menu determines whether TTL or REM is
displayed.
For more information about page 3 of the function menu,
see “Page 3” in Section 11-2 “Function Menu Item List”
(page 11-6).
12-6
Chapter 12
Setup Menus
023
Sub-item
When MAP is selected in menu item 006, the buttons that can be operated on the
control panel of this unit when it is being controlled by remote control from
another device can be selected from the following sub-items.
The settings of each sub-item are as follows.
DIS : Do not function.
ENA: Function.
1
STOP
Select whether the STOP button functions.
2
PLAY
Select whether the PLAY button functions.
3
REC/EDIT
Select whether the REC and EDIT buttons function.
4
STANDBY
Select whether the STANDBY button functions.
5
EJECT
Select whether the EJECT button functions.
6
JOG
Select whether the JOG button functions.
7
SHUTTLE
Select whether the SHUTTLE button functions.
8
VAR
Select whether the VAR button functions.
9
FF/REW
Select whether the F FWD and REW buttons function.
10
PREROLL
Select whether the PREROLL button functions.
11
AUTO/PRE/REVIEW Select whether the AUTO EDIT, PREVIEW, REVIEW buttons function.
12
F-KEY
Select whether the F1 to F6 buttons function.
13
AUDIO/MONITOR
Select whether the audio signal buttons function.
14
EDIT PRESET
Select whether the EDIT PRESET button functions.
15
OTHERS
Select whether the ENTRY, IN, OUT, AUDIO IN, AUDIO OUT, TRIM+, TRIM–,
GS-MARK, GS-LIST, DELETE, and DMC EDIT buttons function.
029
LOCAL KEY MAP
STORED OWNERSHIP
Setup Menus
Settings
Select whether or not to set the Stored Ownership UMID item.
off : Do not set.
on: Set.
To set Stored Ownership, display this item in the menu display section, and press
the F5 (SET) button to move to the Stored Ownership setting screen.
For details, see the section “To set Stored Ownership” (page 8-2).
B01
RECALL BANK 1
Set to ON to recall menu settings from menu bank 1.
B02
RECALL BANK 2
Set to ON to recall menu settings from menu bank 2.
B03
RECALL BANK 3
Set to ON to recall menu settings from menu bank 3.
B11
SAVE BANK 1
Set to ON to save current active menu settings to menu bank 1.
B12
SAVE BANK 2
Set to ON to save current active menu settings to menu bank 2.
B13
SAVE BANK 3
Set to ON to save current active menu settings to menu bank 3.
B20
RESET SETUP
Set this item to ON to return the current menu settings to the factory defaults.
Set it to bank-4 to use the contents of menu bank 4 as the current menu settings.
For details about menu bank 4, refer to the Maintenance Manual.
Chapter 12 Setup Menus
Chapter 12
Item number Item name
12-7
12-4
in the Extended
Setup Menu
12-4ItemsItems
in the Extended
The extended setup menu contains the following
items.
Setup Menu
In the “Settings” column of the table, the factory
default settings are indicated by an enclosing box.
Chapter 12
Menu items in the range 100 to 199, relating to the control panels
Setup Menus
Item number Item name
Settings
101
SELECTION FOR
SEARCH DIAL ENABLE
Select how the unit enters the search mode.
DIAL : Turning the search dial switches to search mode at all times except during
recording/editing.
KEY: One of the JOG, SHUTTLE, and VAR buttons must be pressed to switch to
search mode.
102
MAXIMUM SPEED
Select the fast forward and rewind tape speed and also search mode speed
during tape playback.
MAX : Perform fast forward, rewind, and search mode playback at the maximum
speeds.
MX/24: Perform fast forward and rewind at the maximum speeds, and search
mode playback at up to 24 times normal speed.
×24: Perform fast forward and rewind at 24 times normal speed, and search
mode playback at up to 24 times normal speed.
Maximum fast forward, rewind, and search mode speeds
• Analog cassette: 35 times (525-line mode) or 42 times (625-line mode) normal
speed.
• Betacam SX/MPEG IMX cassettes: 60 times normal speed (525-line mode) or
78 times (625-line mode)
• Digital Betacam cassette: 50 times normal speed
103
AUDIO SELECTED LINE
OUT (DVW-M2000/
M2000P only)
Select the output signal to the MONITOR OUTPUT connectors.
MANU : Output the signals selected by the audio signal selection buttons on the
lower control panel.
AUTO1: Output stereo, using the AFM channels (3 and 4) for playback from
metal tape, and the LNG channels (1 and 2) for playback from oxide tape.
AUTO2: Output the signals selected by the audio signal selection buttons on the
lower control panel, but during variable speed playback, if AFM is selected,
automatically switch to LNG.
104
AUDIO MUTING TIME
Select the length of time for which audio muting occurs when the unit switches to
playback either from stopped or from still playback in the search mode.
OFF : Set the audio muting time to zero (i.e. no muting).
0.1S ... 1.0S: Set the audio muting time from 0.1 second to 1.0 second, in 0.1second increments.
105
REFERENCE SYSTEM
ALARM
Select whether or not to display a warning when the video/audio reference signal
selected by the function menu item OUTREF, is not supplied or is out of phase
with the input video signal.
OFF: No warning.
ON : Flash the STOP button as a warning.
106
CAPSTAN LOCK
Select the capstan servo lock mode.
PANEL : The capstan servo lock mode is determined by the function menu item
CAPSTN.
2F: The capstan servo locks every two fields regardless of the setting of the
function menu item CAPSTN.
4F: The capstan servo locks every four fields regardless of the setting of the
function menu item CAPSTN.
8F (for DVW-M2000P/2000P): The capstan servo locks every eight fields
regardless of the setting of the function menu item CAPSTN.
12-8
Chapter 12
Setup Menus
Menu items in the range 100 to 199, relating to the control panels (Continued)
Item number Item name
Settings
Select whether or not to flash the REC INHI indicator when the function menu
item RECINH is set to OFF and the record inhibit plug on the cassette is pressed
in.
OFF : Do not flash the REC INHI indicator.
ON: Flash the REC INHI indicator.
108
AUTO EE SELECT
When a digital cassette is inserted and the function menu item PB/EE is set to
EE, select the VTR modes in which input video and audio signals are
automatically handled in E-E mode.
When an analog cassette is inserted, regardless of the function menu setting the
PB mode is always selected.
S/F/R : In STOP/EJECT/F.FWD/REW modes
STOP: In STOP/EJECT modes
109
FORCED EE WHEN
TAPE UNTHREAD
During tape threading and unthreading, and when no cassette is inserted, select
whether the setting of the function menu item PB/EE controls the PB/EE setting
for output signals.
OFF: Control by the function menu item PB/EE
ON : No control (always E-E signal)
111
TSO PLAY
Select whether or not to enable tape speed override mode.
DIS : Disable tape speed override mode.
TSO: Enable tape speed override mode.
115
PHASE LOCK IN
VARIABLE X3 (DVWM2000/M2000P only)
Select whether or not to lock the capstan phase in ×3 variable speed play mode
when playing back a Betacam or Betacam SP cassette.
OFF : Do not lock.
ON: Lock.
116
JOG DIAL RESPONSE
Select the tape speed characteristics for the search dial rotation rate (VTR
commands).
TYPE1 : Tape speed varies linearly over the range –1 to +1.
TYPE2: Tape speed varies stepwise as shown in the figure belowa) over the
range –3 to +3. (Characterized by a zone around –1 and +1 where the tape
speed is independent of the search dial rotation rate)
TYPE3: Tape speed varies linearly over the range –3 to +3, as shown in the
figure belowb).
TYPE4: Tape speed varies stepwise as shown in the figure belowc) over the
range –2 to +2. (Characterized by a zone around –1 and +1 where the tape
speed is independent of the search dial rotation rate)
117
CONTROL PANEL
SELECTION
Select the control panel function when the PANEL SELECT switch on the switch
panel is set to REAR.
SW : Only the control panel connected to the CONTROL PANEL connector on
the connector panel functions.
PARA: The control panels connected to the CONTROL PANEL connectors on
the switch panel and connector panel both function.
a)
b)
Speed
TYPE 2
+3
(reverse)
TYPE 3
FWD
+3
-1
FWD
TYPE 4
FWD
Rotation rate
+1
RVS
c)
Speed
FWD
+2
+1
Rotation rate
RVS
FWD
RVS
-3
RVS
-3
Rotation rate
-1
-2
(forward)
RVS
Speed
FWD
RVS
(Continued)
Chapter 12 Setup Menus
12-9
Setup Menus
REC INHIBIT LAMP
FLASHING
Chapter 12
107
12-4 Items in the Extended Setup Menu
Menu items in the range 100 to 199, relating to the control panels (Continued)
Item number Item name
Settings
Chapter 12
118
KEY INHIBIT SWITCH
EFFECTIVE AREA
Sub-item
Select which switches and buttons can be operated when the KEY INHIBIT
switch on the switch panel is set to ON. The following sub-items control different
sets of switches and buttons independently.
Setup Menus
1
REMOTE
SELECT
Select whether the REMOTE 1(9P) and 2(50P) buttons in the upper control panel
are enabled.
DIS : Disabled
ENA: Enabled
2
AUDIO/F-KEY
Select whether the audio signal selection buttons and F1 to F6 buttons in the
lower control panel are enabled.
DIS : Disabled
ENA: Enabled
audio: Disable audio input signal selection, audio mixing settings, and monitor
signal selection.
f-key: Disable function keys (including HOME).
in/mx: Disable audio input signal selection, audio mixing settings.
3
MODE CONTROL Select which switch and button operations can be carried out from the lower
control panel of this unit or an external control panel connected to this unit.
DIS : All switches and buttons other than the audio signal selection buttons and
F1 to F6 buttons are disabled.
EDIT: All switches and buttons for editing operations other than the audio signal
selection buttons and F1 to F6 buttons are disabled.
ENA: All switches and buttons other than the audio signal selection buttons and
F1 to F6 buttons are enabled.
119
VARIABLE SPEED LIMIT Select the playback speed range when carrying out playback in variable speed
IN KEY PANEL CONTROL mode from the control panel of this unit.
OFF : For MPEG IMX and analog tapes, from –1 to +3 times normal speed; for
Digital Betacam tapes, from –1 to +3 times normal speed; for Betacam SX
tapes, –1 to +2 times normal speed.
ON: For MPEG IMX, Betacam SX, Digital Betacam tapes, and analog tapes, from
0 to 1 times normal speed.
120
CTL LOCK IN VAR/SHTL
Select whether the tape transport should be phase-locked to the CTL signal
during playback in variable speed or shuttle mode.
OFF : Not phase-locked.
ON: Phase-locked at the following speeds: –1, –0.5, 0.5, 1.0 and 2.0 times
normal.
121
DT MODE
Select field or frame mode for variable speed playback.
FIELD : Always field playback
FRAME: Frame playback in the noiseless playback speed range; otherwise field
playback.
Frame playback provides higher-density still pictures than field playback.
Note
For analog Betacam playback, field playback is always used. For digital Betacam
playback, the frame playback is valid only in the forward direction.
125
AUTO REWIND
Select whether to rewind the tape automatically when recording or playback
reaches the end of a tape.
DIS: Do not rewind the tape automatically.
ENA : Rewind the tape automatically.
130
TIMER DISPLAY
DIMMER CONTROL
Set the brightness of the time data/menu display panel.
0 to 7 : Set in this range. 0 is the brightest, and 7 the dimmest.
12-10
Chapter 12 Setup Menus
Menu items in the range 100 to 199, relating to the control panels (Continued)
Item number Item name
Settings
Selects the device used for data modification operations in the Tele-File menu.
CONTROL PANEL : Operate with the control panel of this unit.
REMOTE: Operate with remote devices connected to connectors such as
REMOTE1, REMOTE2, and RS-232C.
134
TELE-FILE MENU AUTO
POPUP
Selects whether to open the Tele-File menu automatically when a cassette with a
Tele-File label is loaded. However, this is valid only when the function menu is
HOME, HOME2, or page 1 to 5.
OFF : Do not open the Tele-File menu automatically.
ON: Open the Tele-File menu automatically.
135
TELE-FILE THREAD
Selects whether to clear the thread counter when formatting a Tele-File.
COUNTER CLEAR MODE NOT CLEAR : Do not clear the thread counter.
WHEN FORMAT: Clear the thread counter.
136
TELE-FILE IN OUT INPUT Selects whether to continuously input log (IN and OUT point) data in the Tele-File
CONTINUE
menu screen.
OFF : Do not continuously input log (IN and OUT point) data.
ON : Continuously input log (IN and OUT point) data.
Menu items in the range 200 to 299, relating to the remote control interface
Item number Item name
Settings
201
PARA RUN
Select whether or not to use synchronized operation for two or more VTRs.
DIS : No synchronized operation
ENA: Use synchronized operation
Note
To use synchronized operation for two or more VTRs, set item 201 to “ENA” on
all of the VTRs.
202
CF FLAG (DVW-M2000P/
2000P only)
Select the mode for locking to the color framing sent from the remote controller.
8F : Eight-field locking mode
4F/8F: Four- or eight-field locking mode
211
REMOTE1 PORT
Select how to use the REMOTE 1-IN(9P) and REMOTE 1-OUT(9P) connectors
on the connector panel.
i&o : Both the IN and OUT connectors are effective whether in local or remote
mode.
in: Only the IN connector is effective whether in local or remote mode.
out: Only the OUT connector is effective whether in local or remote mode.
panel: Allows you to select i&o, in, or out using the function menu.
Note
When selecting “panel”, first define user-defined function key RMT1 in the
HOME2 page.
On how to define user-defined function keys in the HOME2 page, refer to the
Maintenance Manual Volume 1.
Chapter 12 Setup Menus
12-11
Setup Menus
TELE-FILE CONTROL
MODE
Chapter 12
133
12-4 Items in the Extended Setup Menu
Item number Item name
Menu items in the range 300 to 399, relating to editing operations
Settings
Chapter 12
VAR SPEED RANGE FOR Select the playback speed range when carrying out playback in variable speed
SYNCHRONIZATION
mode from a remote control unit connected to the REMOTE 1-IN(9P) connector
or REMOTE 1-OUT (9P) connector.
–1~+3 : For MPEG IMX tapes, analog tapes, and Digital Betacam tapes, from –1
to +3 times normal speed; for Betacam SX tapes, –1 to +2 times normal
speed.
~+3.45: For MPEG IMX tapes, analog tapes, and Digital Betacam tapes, from
–1 to +3.45 times normal speed; for Betacam SX tapes, –1.5 to +2.3 times
normal speed.
WIDE : Undefined
302
CAPSTAN RE-LOCKING
DIRECTION
Setup Menus
301
In 525-line mode
When the function menu item CAPSTN is set to 4F, select whether the capstan
servo should lock by accelerating or decelerating.
DECEL : Lock by decelerating.
ACCEL: Lock by accelerating.
In 625-line mode
When the function menu item CAPSTN is set to 4F or 8F, select whether the
capstan servo should lock by accelerating or decelerating.
DECEL : Lock by decelerating.
ACCEL : Lock by accelerating.
304
EDIT FIELD SELECT
Select with which fields to start and end editing using tape.
1F : Start editing with field 1 and end with field 2.
2F: Start editing with field 2 and end with field 1.
1F/2F: Start and end editing depending on the timing of command reception.
305
SYNC GRADE
When editing in phase-synchronized mode with menu item 004 set to ON, select
the target phase synchronization accuracy.
ACCUR : ±0 frame accuracy
ROUGH: ±1 frame accuracy
306
DMC INITIAL SPEED
Select the initial speed automatically set when carrying out DMC editing.
MANU : The speed determined by the rotation of the search dial
PLAY: Normal playback speed
STILL: Stationary
±0.03 to ±1, +2: Speed set in the range ±0.03 to +2 (select from +2, ±1, ±0.5,
±0.2, ±0.1, ±0.03)
Note
If you want to carry out DMC editing after setting this menu item, first press the
DMC EDIT and DELETE buttons simultaneously to turn off the DMC EDIT button.
307
AUTO-DELETION FOR
INCONSISTENT DATA
Select what happens when an erroneous edit point is set.
MANU : A warning is given by flashing the DELETE button on the lower control
panel.
The operator must manually delete the unnecessary edit points or correct the
erroneous edit point.
NEG&E: When inconsistent edit points are set, such as when an OUT point is
before an IN point, or an audio OUT point is before an audio IN point, or when
too many edit points are specified, the previously set edit point is deleted.
NEG: When inconsistent edit points are set, such as when an OUT point is before
an IN point, or an audio OUT point is before an audio IN point, the previously
set edit point is deleted. When too many edit points are specified, the DELETE
button on the control panel flashes to give a warning.
Note
Pressing the button corresponding to an edit point to be deleted and the DELETE
button simultaneously, deletes the edit point. If an erroneous edit point is set (the
DELETE button is flashing), editing is not executed.
12-12
Chapter 12 Setup Menus
Menu items in the range 300 to 399, relating to editing operations (Continued)
Item number Item name
Settings
Select the STD or NON-STD mode in accordance with a composite video input.
AUTO : Detect automatically whether the input video luminance and chrominance
signals are interleaved or not. If they are interleaved, select the STD mode. If
they are not interleaved, select the NON-STD mode.
STD: The STD mode is always used (forced STD mode).
N-STD: Use this setting when color framing of the input video signal is unstable
(forced NON-STD mode).
309
SERVO/AV REFERENCE
SEL
Select the servo reference signal.
AUTO1 : During recording, an analog component/composite or digital input video
signal is used as the servo reference signal. During playback, the signal
selected by the function menu item OUTREF is used as the servo reference
signal. If the signal selected by the OUTREF setting is not connected, an
internal reference signal is used.
AUTO2: When the function menu item OUTREF is set to REF, and any of the
ASSEMBLE, VIDEO, AUDIO CH1 to CH8 and TC buttons is lit, the reference
signal for video/audio signal processing is locked to the input video signal.
EXT: The servo reference signal is forced to be “EXT” (an external reference
video input signal is used).
310
REC INHIBIT
Select the conditions under which recording is inhibited when the function menu
item RECINH is set to ON.
ALL : All tape recording is inhibited.
CRASH: Normal tape recording is inhibited. Select this setting when you wish to
carry out assemble editing.
VIDEO: Inhibit recording of video and CTL signals.
AUDIO: Inhibit recording of audio and CTL signals.
Note
When the function menu item RECINH is set to ON, the REC INHI indicator on
the lower control panel lights. If an operation inhibited by this item is attempted,
the REC INHI indicator flashes.
311
ANALOG AUDIO EDIT
PRESET REPLACE FOR
CH1
312
ANALOG AUDIO EDIT
PRESET REPLACE FOR
CH2
313
ANALOG AUDIO EDIT
PRESET REPLACE FOR
CH3
314
ANALOG AUDIO EDIT
PRESET REPLACE FOR
CH4
315
ANALOG AUDIO EDIT
RESET REPLACE FOR
CUE
When using an editor (PVE-500, BVE-600, etc.) or a remote controller which
cannot control digital audio edit preset, select how to activate edit preset of each
digital audio channel (channels 1 to 4) on this unit using the analog audio edit
preset function of the editor or remote controller.
Set edit preset of each digital audio channel of this unit on or off according to the
analog audio preset specified by the remote controller or editor.
NODEF: No definition.
CH1: Follow edit preset of analog channel 1.
CH2: Follow edit preset of analog channel 2.
CH1+2: Follow edit preset of analog channel 1 or 2.
The default settings for each item are as follows:
311: CH1
312: CH2
313: NODEF
314: NODEF
315: NODEF
(Continued)
Chapter 12 Setup Menus
12-13
Setup Menus
SELECTION OF STD/
NON-STD FOR
COMPOSITE VIDEO IN
Chapter 12
308
12-4 Items in the Extended Setup Menu
Menu items in the range 300 to 399, relating to editing operations (Continued)
Item number Item name
Settings
Chapter 12
316
CONFIDENCE PB MODE
Setup Menus
Sets F3 (CONFI) in function menu HOME page to ENABLE.
For settings of F3 (CONFI), see page 11-3.
mode1: The CONFI playback function is only enabled during recording.
mode2 : The CONFI playback function is also enabled during normal playback
with the edit preset function being on, as well as during recording.
mode3: The CONFI playback function is only enabled during crash recording.
Note
Playback is performed in advance mode during auto edit previewing regardless of
the setting of this menu item.
317
AUDIO EDIT MODE
Select the type of audio transition used for digital audio editing.
CUT: Cut editing (audio discontinuity at transition point, and possible noise during
playback).
IN/OUT
CROSS : Cross-fade
t
FI/FO: Fade in and out
IN/OUT
t
t: Time set by item 803 DIGITAL AUDIO FADE TIME
318
EDIT RETRY
For two-VTR editing, set when this unit is used as the recorder. Selects the
operation if the recorder was not synchronized in time.
OFF: Editing is not carried out, and the unit stops.
ON : The editing is automatically retried (up to twice).
319
PREREAD SELECT
Specify the preread operation.
A/V : Preread for both audio and video.
AUDIO: Preread for audio only.
VIDEO: Preread for video only.
The preread operation is enabled when the function menu item PREREAD is set
to ON or with a command from the 9-pin remote control interface.
320
DIGITAL AUDIO PB
PROCESS ON EDIT
POINT
Select the treatment of audio playback at edit points.
CUT : Carry out a cut (possibly resulting in audio discontinuities at the edit point).
FADE: Fade out and fade in.
326
AUTOMATIC IN ENTRY
AFTER AUTO EDIT
Select whether or not to automatically set the OUT point of the previous edit as
the next IN point at the end of an automatic edit.
OFF : No automatic setting
R: Set recorder IN point automatically.
R & P: Set recorder IN point automatically, and also player IN point in two-VTR
editing.
334
EE REFERENCE
CONTROL
Specify how to select the reference video signal in E-E mode.
normal : Select according to the flowchart in Section 3-2-1 “External Sync Signal
for the Internal Reference Video Signal Generator” (page 3-3).
input : In E-E mode select the input video signal. When not in E-E mode, select
according to the flowchart in Section 3-2-1 “External Sync Signal for the
Internal Reference Video Signal Generator” (page 3-3).
336
EDIT PRESET INHIBIT IN Specify which buttons are disabled in the editing mode setting section on the
lower control panel.
KEY PANEL CONTROL
off : Disable all buttons.
TC: Disable the TC button.
12-14
Chapter 12 Setup Menus
Menu items in the range 400 to 499, relating to preroll
Settings
Item number Item name
FUNCTION MODE
AFTER CUEUP
Select the state that the unit goes into after a cuing-up operation.
STOP : Stop (the “stop mode”)
STILL: Still playback (in search mode)
402
TIME REFERENCE FOR
PREROLL
When prerolling a tape with time code discontinuities, select whether or not to use
CTL pulses to count time code from before a discontinuity.
CTL : Use CTL pulses to count time code.
TC: Do not use CTL pulses to count time code.
403
AUTOMATIC PREROLL
REFERENCE ENTRY
Select whether or not the edit IN point is automatically set by pressing the
PREROLL button, when the IN point is not set before starting preroll.
DIS : IN point is not set automatically.
ENA: IN point is set automatically.
405
CUEUP BY CTL
Select the tape transport mode when cuing. This setting is valid only when the
function menu item CTL/TC is set to CTL.
CAP. : During cuing up, the tape transport is in the “pinch ON” state (maximum
tape speed 10 times normal).
REEL : During cuing up, the tape transport is in the “pinch OFF” state. As the
tape approaches the cue up point and the tape speed drops, the tape transport
switches to the “pinch ON” state.a)
To give priority to editing accuracy, select “CAP”.
a) When controlled from an editor (BVE-2000/9100 etc.),
selecting “REEL” allows high-speed cuing up.
Item number Item name
Menu items in the range 500 to 599, relating to tape protection
Settings
501
STILL TIMER
Select the time delay from the tape transport stopping (either the “stop mode” or
the still playback mode in search mode) until the unit automatically switches to
the tape protection mode, in order to protect the video heads and the tape.
0.5S ... 8M ... 30M: Set the value in the range 0.5 seconds to 30 minutes.
502
TAPE PROTECTION
MODE FROM SEARCH
Select the operation of the protection mode to protect the video heads and tape
when in the still playback mode in search mode (jog/shuttle).
STEP : Step forward at 1/30 normal speed every 2 seconds.
STDBY: Switch to “Standby OFF mode” (the unit not on standby).
T.REL: Switch to tension release mode (the tape tension slackened).
503
TAPE PROTECTION
MODE FROM STOP
Select the operation of the protection mode to protect the video heads and tape
when stopped (the “stop mode”).
STDBY : Switch to “Standby OFF mode” (the unit not on standby).
T.REL: Switch to tension release mode (the tape tension slackened).
504
DRUM ROTATION IN
STANDBY OFF
Select whether the drum rotates in “Standby OFF mode”.
OFF : Drum does not rotate.
ON: Drum rotates.
505
STILL TENSION
Select the tape tension state in the still playback mode.
NORM : Normal tape tension is maintained during still playback mode, ready for
playback.
LOOSE: Reduce the tape tension further from the NORM setting. (Select
“LOOSE” when the unit is on standby for a long period of still playback, for
example, in a library management system (LMS).)
Note
When LOOSE is selected, playback cannot be guaranteed.
Chapter 12 Setup Menus
12-15
Setup Menus
Note
When controlling this unit from an editor with the standard constants set, select
“STOP”.
Chapter 12
401
12-4 Items in the Extended Setup Menu
Menu items in the range 600 to 699, relating to the time code generator
Chapter 12
Item number Item name
Settings
601
In 525-line mode
Select a line to insert the VITC in.
12H ... 16H ... 20H: Select any line from 12 to 20.
VITC POSITION SEL-1
Setup Menus
Note
You can insert the VITC signal in two places. To insert it in two places, set both
items 601 and 602.
In 625-line mode
Select a line to insert the VITC in.
9H ... 19H ... 22H: Select any line from 9 to 22.
Note
You can insert the VITC signal in two places. To insert it in two places, set both
items 601 and 602.
602
VITC POSITION SEL-2
In 525-line mode
Select a line to insert the VITC in.
12H ... 18H ... 20H: Select any line from 12 to 20.
Note
You can insert the VITC signal in two places. To insert it in two places, set both
items 601 and 602.
In 625-line mode
Select a line to insert the VITC in.
9H ... 21H ... 22H: Select any line from 9 to 22.
Note
You can insert the VITC signal in two places. To insert it in two places, set both
items 601 and 602.
603
ID CODE PRESET
Select whether or not to set the ID code.
OFF : Do not set the ID code.
ON: Set the ID code.
To set the ID code:
Press the F5 (SET) button with this menu item displayed in the menu display, to
enter the ID code setting mode. You can then set the user ID digit by digit using
the T and t buttons for digit selection. When all required digits have been set
correctly, press the F5 (SET) button again to save the ID code and exit from the
ID code setting mode.
604
ID CODE SW
Select whether or not to record the ID code set using item 603 in the user bits.
OFF : Record the normal data in the user bits.
ON: Record the ID code in the user bits.
605
TCG REGEN MODE
Select the signals to be regenerated when the time code generator is in the
regeneration mode (i.e., when the function menu item TCG (F2) is set to
REGEN).
TC&UB : Both the time code and user bit signals are regenerated.
TC: Only the time code signal is regenerated.
UB: Only the user bit signal is regenerated.
12-16
Chapter 12 Setup Menus
Menu items in the range 600 to 699, relating to the time code generator (Continued)
Item number Item name
Settings
Select the signal output from the TIME CODE OUT connector during normal (×1)
speed playback in the following cases:
• For tape playback when the function menu item TCG (F1) is set to INT and TCG
(F2) set to REGEN.
• For preroll or postroll playback during automatic editing with the tape.
TAPE: During tape playback, the playback time code signal is output without
regeneration. (The time code values do not correspond to the video output.)
REGEN : The playback time code is output after regeneration.
AUTO: The operation with the AUTO setting is as follows.
• The playback time code (LTC) signal is output delayed, to coincide with the
output video signal.
• Operation is independent of the internal time code generator settings or editing
state.
• The output video signal and LTC are only accurately synchronized for normal
speed playback.
• If the edit preset is turned on or off, the delay changes, and therefore the time
code will be discontinuous.
607
U-BIT BINARY GROUP
FLAG
Select the user bits to be used in the time code generated by the time code
generator.
000 : Character set not specified
001: 8-bit characters compliant with ISO 646 and ISO 2022
010: Undefined
011: Undefined
100: Undefined
101: SMPTE 262M page/line multiplex system
110: Undefined
111: Undefined
608
PHASE CORRECTION
Select whether or not to carry out phase correction control on the LTC generated
by the time code generator.
OFF : No control
ON: Carry out control.
609
TCG CF FLAG
Select whether or not the color framing flag is set in the blank bit of the time code
data.
OFF : Color framing flag is not set.
ON: Color framing flag is set.
AUTO: Color framing flag is set or not depending upon the color framing phase
relationship between the recorded video signal and the time code signal.
When AUTO is selected, color framing is controlled as follows according to the
operating mode of the time code generator.
• In INT PRESET mode (the function menu item TCG (F1) is set to INT and TCG
(F2) set to PRESET, and in modes other than the automatic editing mode): the
time code signal is generated with color framing locked to the video signal, and
the color framing flag is set.
• In INT REGEN mode (the function menu item TCG (F1) is set to INT and TCG
(F2) set to REGEN, and in the automatic editing mode), and also in EXT mode
(the function menu item TCG (F1) is set to EXT): the time code signal is
generated without color framing locked to the video signal, and the color framing
flag is not set.
(Continued)
Chapter 12 Setup Menus
12-17
Setup Menus
TC OUTPUT SIGNAL IN
REGEN MODE
Chapter 12
606
12-4 Items in the Extended Setup Menu
Menu items in the range 600 to 699, relating to the time code generator (Continued)
Item number Item name
Settings
Chapter 12
REGEN CONTROL
MODE
In editing performed using the control panel of this unit, select whether or not the
time code is automatically regenerated.
AS&IN : In automatic editing with this unit as the recorder, regardless of the
settings of the function menu items TCG (F1) and TCG (F2), in assemble and
insert editing, the time code generator regenerates according to the time code
on the tape.
ASSEM: In automatic editing with this unit as the recorder, regardless of the
settings of the function menu items TCG (F1) and TCG (F2), in assemble
editing only, the time code generator regenerates according to the time code
on the tape.
MANU: Regardless of whether this unit is the recorder or player, the time code
generator operates in accordance with the settings of the function menu items
TCG (F1) and TCG (F2).
FULL: Whether local or remote and regardless of the settings of the function
menu items TCG (F1) and TCG (F2), when any of the ASSEMBLE, VIDEO,
AUDIO CH1 to CH8, and TC buttons is lit, the time code generator regenerates
according to the time code played back from the tape.
651
UMID OUTPUT
Select UMID output and the UMID type.
off : Do not output UMID.
BASIC: Output Basic UMID.
EXTENDED: Output Extended UMID.
Setup Menus
610
Notes
• Even if EXTENDED is selected, Basic UMID is output if Basic UMID is recorded
on the tape being played back.
• When menu item 901 VIDEO OUTPUT DATA is set to “8 bit”, nothing of UMID is
output regardless of the setting of this menu item.
652
UMID SD VANC LINE
Specify the SDI signal VANC line into which the UMID should be inserted.
12H, 13H, 15H, 16H, 17H , 18H, 19H (DVW-M2000/2000)
9H, 10H, 12H, 13H, 14H, 15H, 16H, 17H , 18H (DVW-M2000P/2000P)
Notes
• When SDI signals containing a UMID are output in E-E mode, the output VANC
line follows the input VANC line, regardless of the setting of this item.
• The output VANC line during playback follows the setting for recording.
654
UMID GENERATE
METHOD
Select the Instance No. generation method when the UMID is inherited.
copy No. + 16bit PRS : Copy No. + 16-bit random number
24bit PRS: 24-bit random number
Note
When menu item 656 is set to NEW (an Instance Number indicating that this is
the original is generated), the same value (all zeros) is generated regardless of
which of the above methods is selected.
655
12-18
UMID RECORDING
Chapter 12 Setup Menus
Select the UMID type to be recorded to tape.
off : Do not record UMID.
BASIC: Record Basic UMID.
EXTENDED: Record Extended UMID.
Menu items in the range 600 to 699, relating to the time code generator (Continued)
Item number Item name
Settings
Select whether to inherit the UMID in the input signal when recording a UMID.
INPUT : Inherit the UMID in the input signal, if it is present.
• Even when INPUT is selected, a new UMID is generated if the input signal
does not contain UMID data (the same behavior as when NEW is selected).
• When recording with inherited data, the Instance Number is newly generated
according to menu item 654, changing to a value that indicates that “this is a
copy”.
• When the UMID in the input signal is a Basic UMID, a Basic UMID is
recorded, even if menu item 655 is set to EXTENDED.
• When the UMID in the input signal is an Extended UMID, the recorded UMID
follows the setting of menu item 655.
NEW: Generate a new UMID, regardless of whether or not the input signal
contains a UMID.
• The Basic section does not change during recording.
• An Instance Number indicating that “this is the original” is generated.
• The Source Pack Date/Time (when) changes with each frame.
• The Source Pack Spatial Co-ordinates (where) are not recorded.
• The Source Pack Stored Ownership (who) can be set. (See the section “To
set Stored Ownership” (page 8-2)).
657
ESSENCE MARK TAPE
OUTPUT
Select whether or not to output essence marks recorded on the tape during
playback.
off : Do not output.
on: Output.
Note
When menu item 901 VIDEO OUTPUT DATA is set to “8 bit”, nothing of UMID is
output regardless of the setting of this menu item.
658
SHOT MARK ESSENCE
MARK CONVERT
Select whether or not to convert into essence marks and output shot marks
recorded in the LTC track which are detected during playback.
off : Do not output.
SHOTM: Output.
Depending on the type of the detected shot marks, the output essence marks are
“_RecStart”, “_ShotMark1”, or “_ShotMark2”.
Notes
• Of the shot marks, post marks are not converted to essence marks.
• Shot mark detection timing depends on playback conditions.
• When menu item 901 VIDEO OUTPUT DATA is set to “8 bit”, nothing of UMID is
output regardless of the setting of this menu item.
659
AED ESSENCE MARK
CONVERT
Select whether or not to convert into essence marks and output events detected
during playback by the AED (Auto Event Detector).
off : Do not output.
on: Output.
Note
When menu item 901 VIDEO OUTPUT DATA is set to “8 bit”, nothing of UMID is
output regardless of the setting of this menu item.
660
ESSENCE MARK SD
VANC LINE
Specify the VANC line into which to insert essence marks during video recording
and playback.
12H, 13H, 15H, 16H, 17H , 18H, 19H (DVW-M2000/2000)
9H, 10H, 12H, 13H, 14H, 15H, 16H, 17H , 18H (DVW-M2000P/2000P)
Notes
• The output VANC line during playback follows the setting for recording.
• The VANC line for SDI signal E-E output of essence marks contained in the
input SDI signal follows the input.
(Continued)
Chapter 12 Setup Menus
12-19
Setup Menus
MATERIAL NO.
Chapter 12
656
12-4 Items in the Extended Setup Menu
Menu items in the range 600 to 699, relating to the time code generator (Continued)
Item number Item name
Settings
Chapter 12
ESSENCE MARK INPUT
RECORD
Select whether or not to record essence marks contained in the video input.
off : Do not record.
on: Record.
662
ESSENCE MARK SELF
RECORD
Select whether or not to record to tape essence marks generated by this unit
when recording video.
Setup Menus
661
Sub items
663
1
crash rec
Select whether or not to record essence marks during crash recording.
off : Do not record.
on: Record “_RecStart” essence mark in the recording start frame.
2
assemble
Select whether or not to record essence marks during assemble edit recording.
off : Do not record.
on: Record “_RecStart” essence mark in the recording start frame.
3
insert
Select whether or not to record essence marks during insert edit recording.
off : Do not record.
on: Record “_RecStart” essence mark in the recording start frame, and record
“_RecEnd” essence mark in the recording end frame.
UMID OUT DUP
Select whether, when playing back (PLAY) Digital Betacam, to output UMID data
recorded in the 1st field to the 2nd field.
OFF : UMID is not output to the 2nd field when essence marks are recorded in
the 2nd field.
ON: Output the same UMID as the 1st field to the 2nd field.
UMID or essence marks are recorded in the 2nd field.
When it is necessary to record both UMID and essence marks, essence marks
are recorded and UMID is not recorded in the 2nd field.
664
12-20
DIGITAL BETACAM
ESSENCE MARK OUT
SHIFT
Chapter 12 Setup Menus
Select whether or not, when using a Digital Betacam player, to output to the next
frame (1st/2nd field) essence mark data which is recorded in the 2nd field.
off : Do not output essence marks to the next frame.
on: Output essence marks to the next frame (do not output in original frame).
Item number Item name
Menu items in the range 700 to 799, relating to video control
Settings
In E-E mode the video signal is output delayed with respect to the video input
signal by the time for video circuit processing. With this item, select whether or
not to delay the sync signal attached to the output video signal by an amount
corresponding to the delay.
SYNC : Delay the sync signal by the corresponding amount before attaching it.
VIDEO: Attach a sync signal with the same timing as the input signal.
703
BLANK LINE SELECT
Switch blanking on or off for individual lines in the vertical blanking interval. The
Y/C signal and odd/even fields are blanked simultaneously.
Sub-Item
0
DVW-M2000/ 12 ...
2000
19
20
DVWM2000P/
2000P
ALL LINE
- - - : Specify the blanking for each line separately.
BLANK: Regardless of the setting of other sub-items, blank all lines which can be
specified in this menu item.
THROU: Regardless of the setting of other sub-items, switch off blanking for all
lines which can be specified in this menu item.
LINE 12 ... LINE
19
Specify blanking for lines 12 to 19.
BLANK : Carry out blanking.
THROU: Switch off blanking.
LINE 20
Specify blanking for lines 20.
BLANK : Carry out blanking.
HALF: Carry out half-blanking.
THROU: Switch off blanking.
9 ... 22 LINE 9 ... LINE 22 Specify blanking for lines 9 to 22.
BLANK : Carry out blanking.
THROU: Switch off blanking.
23
704
Note
For playback of an analog Betacam cassette (Betacam SP, etc.) regardless of the
setting of this item, the chrominance signal is blanked up to line 15.
LINE 23
Specify blanking for lines 23.
HALF : Carry out half-blanking.
THROU: Switch off blanking.
DECODE Y/C SEP MODE Select the method of processing the input video signal in the vertical blanking
interval, independently for each line.
Sub-Item
DVW-M2000/ 12 ...
2000
20
LINE 12 ... LINE
20
Make the selection for lines 12 to 20.
BPF: Carry out Y/C separation.
B&W : Treat all as luminance signals.
21...
22
LINE 21 ... LINE
22
Make the selection for lines 21 to 22.
BPF: Carry out Y/C separation.
B&W: Treat all as luminance signals.
COMB : Process with an appropriate Y/C separation.
DVWM2000P/
2000P
9 ... 22 LINE 9 ... LINE 22 Make the selection for lines 9 to 22.
BPF: Carry out Y/C separation.
B&W : Treat all as luminance signals.
705
EDGE SUBCARRIER
REDUCER MODE
During recording and playback of a composite signal, in the playback circuit the
edge subcarrier reducer (ESR) is automatically switched on or off according to
the VTR operation. When recording a “Non-Standard” signal, for example, if the
color edges are not as good as with a proper signal, the ESR can be forced on.
This item makes this selection.
AUTO : ESR is switched on and off automatically.
ON: ESR operation is forced on.
(Continued)
Chapter 12 Setup Menus
12-21
Setup Menus
SELECTION OF VIDEO/
SYNC DELAY
Chapter 12
701
12-4 Items in the Extended Setup Menu
Menu items in the range 700 to 799, relating to video control (Continued)
Item number Item name
Settings
Chapter 12
Setup Menus
707
FORCED VERTICAL
INTERPOLATION OFF
The “Y-add” functiona) is normally switched on automatically during jog or variable
speed playback. This item selects whether or not to force the “Y-add” function off.
AUTO : Automatically switch the “Y-add” function on.
OFF: Force the “Y-add” function off.
709
CAV LEVEL FORMAT
(DVW-M2000/M2000P
only)
Select whether the analog component input/output should be D-1 or Betacam.
Format
Color bars
Y Video
Y Sync
R–Y/B–Y
D-1 CAV
100/0/100/0
700 mV
300 mV
700 mV
Betacam
100/7.5/77/7.5
714 mV
286 mV
700 mV
Sub-Item
710
0
INPUT CAV
LEVEL
Select the analog component input format.
B-CAM : Betacam
D1: D-1
1
OUTPUT CAV
LEVEL
Select the analog component output format.
B-CAM : Betacam
D1: D-1
INTERNAL VIDEO
SIGNAL GENERATOR
Select the test signal to be output from the VTR’s internal test signal generator.
OFF: No test signal is generated. (The VTR operates normally.)
CB100 : 100% color bar signal
CB100 : 100% color bar signal (DVW-M2000P/2000P)
CB75 : 75% color bar signal (DVW-M2000/2000)
CB75R: 75% color bar signal (reverse)
BOW: Bowtie signal
PLSBR: Pulse & bar signal
MLTBS: Multi-burst signal
HSWP: H sweep signal
5STEP: 5-step signal
RAMP: Ramp signal
SH: Shallow ramp signal
RED: Red signal
GRAY: 50% flat signal
WHITE: 100% flat signal
BB: Black burst signal
SDI: SDI check field signal
NTC7: NTC 7 test signal (DVW-M2000/2000)
LN330: Line 330 test signal (DVW-M2000P/2000P)
To turn on the internal test signal generator, hold the F1 (VID.IN) button in
function menu HOME page for three seconds or more with this menu item set to
other than OFF. When the test signal generator is turned on, the display of the
VID.IN setting changes to SG. To turn off the test signal generator, press the F1
(VID.IN) button in function menu HOME page again.
a) The “Y-add” function is a circuit operation to interpolate
the video signal vertically during jog or variable speed
playback for the purpose of reducing the vertical
movement of the playback picture.
12-22
Chapter 12
Setup Menus
Menu items in the range 700 to 799, relating to video control (Continued)
Item number Item name
Settings
VIDEO PROCESS ON
CAP LOCK 2FIELD
When the function menu item CAPSTN or menu item 106 is set to 2F for 2-field
playback, select whether or not to carry out a “picture shift”.
OFF : No picture shift
ON: Carry out picture shift.
713
VIDEO SETUP
REFERENCE LEVEL
(DVW-M2000 only)
Sub-Item
Set the video setup amounts to be removed from a recording signal and Betacam
playback signal, and to be added to a composite output signal. There are
independent settings for a recording signal (referred to below as an input signal),
a Betacam signal, and a composite output signal (referred to below as an output
signal).
Notes
• Setup removal is carried out only with respect to a Betacam format CAV input
signal (menu setting) and NTSC composite input signal. It is not carried out with
respect to other input signals.
• The setup amounts specified in this menu item have no connection with the
function menu item SETUP.
0
MASTER LEVEL
When the input signal, Betacam playback signal, and output signal settings are
“MSTER” (master), the setup amount specified for this sub-item is removed from
the input signal and Betacam playback signal, and is added to the output signal.
0.0% ... 7.5% ... 10.0%: Setting in this range, in 0.5% increments.
1
INPUT LEVEL
MSTER : Set the input signal to the master setting.
0.0% ... 7.5% ... 10.0%: Set the setup amount to be removed from the input signal
in this range, in 0.5% increments.
2
INPUT VBLK CONT
REMOV: Remove the setup amount in the vertical blanking interval of the input
signal.
THROU : Do not remove the setup amount in the vertical blanking interval of the
input signal.
3
BETACAM PB LEVEL MSTER : Set the Betacam playback signal to the master setting.
(DVW-M2000/M2000P) 0.0% ... 7.5% ... 10.0%: Set the setup amount to be removed from the Betacam
playback signal in this range, in 0.5% increments.
4
OUTPUT LEVEL
MSTER : Set the output signal to the master setting.
0.0% ... 7.5% ... 10.0%: Set the setup amount to be added to the output signal in
this range, in 0.5% increments.
(Continued)
Chapter 12 Setup Menus
12-23
Setup Menus
Note
To eliminate the adverse effect of the residual chrominance subcarrier component
in the Y signal that is the result of the Y/C separation, this unit automatically
applies a shift to the playback image in the H direction, so that even in 2-field
playback a satisfactory image can be obtained.
Chapter 12
712
12-4 Items in the Extended Setup Menu
Menu items in the range 700 to 799, relating to video control (Continued)
(Items 715 to 721: Settings for controlling the video processing system according to the menu settings)
Item number Item name
Settings
Chapter 12
Setup Menus
715
VIDEO GAIN CONTROL
Adjust the video output level.
–2048 to 0 to +848
716
CHROMA GAIN
CONTROL
Adjust the chroma output level.
–2048 to 0 to +848
717
CHROMA PHASE
CONTROL
Adjust the chroma phase.
–128 to 0 to +127
718
SETUP LEVEL (DVWM2000/2000)/BLACK
LEVEL (DVW-M2000P/
2000P)
Adjust the setup level (black level).
–272 to 0 to +272
719
SYSTEM PHASE SYNC
Adjust the output signal sync phase.
–128 to 0 to +127
720
SYSTEM PHASE SC
Adjust the output signal subcarrier phase.
0 to 1023
721
Y/C DELAY (DVWM2000/M2000P only)
For playback from an analog Betacam cassette, adjust the Y/C delay.
–2048 to 0 to +2047
Note
When you make settings for items 715 to 721, set the
function menu item V.PROC to MENU.
When it is set to MENU, all controls for video output
processing on the control panel are disabled.
Item number Item name
Settings
723
Switch blanking on or off for individual lines in the vertical blanking interval of an
input video signal. The Y/C signal and odd/even fields are blanked
simultaneously.
A signal with blanking carried out according to this setting is recorded.
INPUT VIDEO BLANK
Sub-Item
0
DVW-M2000/ 12 ...
2000
20
DVWM2000P/
2000P
12-24
ALL LINE
- - - : Specify the blanking for each line separately.
BLANK: Regardless of the setting of other sub-items, blank all lines which can be
specified in this menu item.
THROU: Regardless of the setting of other sub-items, switch off blanking for all
lines which can be specified in this menu item.
LINE 12 ... LINE
20
Specify blanking for lines 12 to 20.
BLANK: Carry out blanking.
THROU : Switch off blanking.
9 ... 22 LINE 9 ... LINE 22 Specify blanking for lines 9 to 22.
BLANK: Carry out blanking.
THROU : Switch off blanking.
Chapter 12
Setup Menus
Menu items in the range 700 to 799, relating to video control (Continued)
Item number Item name
Settings
Select the horizontal blanking width of the video output signal.
NAROW : Digital blanking (narrow)
WIDE: Analog blanking (wide)
When WIDE is selected, the horizontal blanking width complies with RS170A, and
normally the blanking is widened and the image becomes narrower. It is
recommended to select NAROW at the editing stage, then later, for broadcast
transmission to select WIDE, to output a signal conforming to the standard. Note,
however, that NAROW has to be always selected for SDI signals.
727
VIDEO EDIT PREVIEW
SWITCHER
Set the output phase for the video playback signal when any of the ASSEMBLE,
VIDEO, AUDIO CH1 to CH4, CUE, and TC buttons is lit.
INT : The video playback signal output phase is the same as the output phase in
E-E mode. Use this setting when editing with a single VTR, or when
previewing while watching the VTR output signal.
EXT: The video playback signal output phase is the same as the phase of an
input video signal or external reference signal.
Note
Whichever setting is used, the correct editing results will be obtained. When,
however, you are using an external switcher to switch the video output signal
from this unit for the purposes of preview, select EXT. This will prevent any
image shifts at editing IN and OUT points.
728
OUTPUT SCH PHASE
Set the subcarrier H phase.
–2048 to 0 to +2047
733
C.PHASE TYPE
Select the PAL chroma phase type. (DVW-M2000P/2000P)
HUE : Vary the hue.
L.ALT: Vary the SC phase of composite output.
Chapter 12 Setup Menus
12-25
Setup Menus
H BLANKING WIDTH
Chapter 12
726
12-4 Items in the Extended Setup Menu
Menu items in the range 800 to 899, relating to audio control
Chapter 12
Setup Menus
Item number Item name
Settings
801
DIGITAL JOG SOUND
Turns the digital jog sound on and off.
OFF: Digital jog sound is turned off.
Audio of digital channels not subjected to speed correction is output. When
the tape stops, after one second the audio is muted.
ON : Digital jog sound is turned on.
When the tape speed is in the range × –1 to × 1 (for Betacam SX playback, in
the range × –1 to × 2), speed correction is carried out, and the same jog
sound as a conventional analog VTR is output.
802
DIGITAL AUDIO MUTE IN Set the digital audio muting conditions during shuttle playback.
SHUTTLE MODE
OFF : Not muted.
CUEUP: Muted during cue-up or preroll operations.
FULL: Muted in shuttle mode.
803
DIGITAL AUDIO FADE
TIME
Specify the time for cross-fade or fade in/out editing of audio signals.
5 ms, 10 ms , 15 ms, 20 ms, 25 msa), 50 msb), 85 ms, 115 msc)
Note
The cross-fade or fade in/out operation means that the recording is rewritten from
the OUT point for the length specified by this setting. Even at the minimum 5 ms
setting, a length of recording corresponding to a field is rewritten.
To avoid rewriting, set menu item 317 AUDIO EDIT MODE to “CUT”, but in this
case there is an audio discontinuity at the edit point. There is no effect on the
recorded video signal.
805
AUDIO MONITOR
OUTPUT MIXING
Select the audio mixing method used for digital audio signals and Betacam
playback analog audio signals supplied to the MONITOR OUTPUT connector.
ADD: Simple addition
RMS : Root-mean-square
AVE: Simple average
806
LEVEL METER SCALE
Select the mode in which digital audio levels are displayed.
PEAK.0 : Displays the audio level as negative values with the maximum level set
to 0 dB.
REF.0: Displays the audio level as positive and negative values with the
reference level set to 0 dB.
a) Cross-fade time is 24 ms.
b) Actual value is 49 ms.
c) Actual value is 114 ms.
12-26
Chapter 12
Setup Menus
Menu items in the range 800 to 899, relating to audio control (Continued)
Item number Item name
Settings
Select the output timing of digital audio playback signals: (SDI and AES/EBU
only). The reference position corresponds to a setting of 80H; when the setting is
less than 80H, the output timing is advanced, and when it is higher than 80H,
the output timing is delayed. (at 80H, 128 samples = approx. 2.7 ms, and 1
sample=approx. 20 µs)
0 ... 80 ... FF : Setting in this range
808
INTERNAL AUDIO
SIGNAL GENERATOR
Select the operation of the internal audio test signal generator.
OFF : No operation
SILNC: Silent signal
1KHZ: At 1 kHz, –20 dB FS sine wave is supplied to all audio input channels.
To turn on the internal audio test signal generator, set this menu item to other
than OFF, then hold the audio signal selection button for CH1 (channel 1) for
three seconds or more. When the test signal generator is turned on, the input
signal indicator in the audio setting display section turns off. To turn off the test
signal generator, press the audio signal selection button for any of CH1 to CH4
(channels 1 to 4).
809
AUDIO LEVEL METER
DIMMER CONTROL
Set the brightness of the audio level meters.
0 ... 7: Set in this range. 0 is the brightest, and 7 the dimmest.
810
AUDIO EDIT PREVIEW
SWITCHER
Set the output phase for the audio playback signal when any of the ASSEMBLE,
VIDEO, AUDIO CH1 to CH4, CUE, and TC buttons is lit.
INT : The audio playback signal output phase is the same as the output phase in
the E-E mode. Use this setting when editing with a single VTR, or when
previewing while watching the VTR output signal.
EXT: The audio playback signal output phase is the same as the phase of an
input video signal or external reference video signal.
Note
Whichever setting is used, the correct editing results will be obtained. When,
however, you are using an external switcher to switch the audio output signal
from this unit for the purposes of preview, selecting EXT will prevent any muting
or discontinuities in the audio at editing IN and OUT points.
815
AUDIO SAMPLING RATE
CONVERTER
Select the mode of operation of the sampling rate converter for AES/EBU input to
channels 1 to 4.
OFF : No operation
44kHz: Operate. Choose this setting when the input signal sampling frequency is
44 to 48 kHz.
32kHz: Operate. Choose this setting when the input signal sampling frequency is
32 kHz.
(Continued)
Chapter 12 Setup Menus
12-27
Setup Menus
AUDIO OUTPUT PHASE
Chapter 12
807
12-4 Items in the Extended Setup Menu
Menu items in the range 800 to 899, relating to audio control (Continued)
Item number Item name
Settings
Chapter 12
823
NAU FLG PB
Sub-item
Setup Menus
1
CH1/CH2
2
CH3/CH4
3
CCH5/CH6
(DVW-M2000/
M2000P only)
Valid only for an
MPEG IMX format
8-channel
recording tape
4
824
825
12-28
CH7/CH8
(DVW-M2000/
M2000P only)
Valid only for an
MPEG IMX format
8-channel
recording tape
Controls the non-audio flag when the playback format is Digital Betacam or
Betacam SX.
During playback (except E-E mode), sets the digital audio non-audio flag as
follows.
OFF : OFF (the data is audio)
ON: ON (the data is non-audio)
AUTO: As follows, depending on whether tape data has been confirmed.
• Tape data has been read and confirmed: ON or OFF, according to the data.
• Tape data has not been confirmed: Current state is maintained.
Notes
• During playback of analog tapes, the non-audio flag is OFF regardless of the
setting of this item.
• In the MPEG IMX format, operation is the same as for the OFF setting or AUTO
setting.
• Recording operation follows the setting of maintenance menu item M372.
For more information about the maintenance menu item M372, refer to the
Maintenance Manual.
ANALOG OUTPUT
SELECT
Select the analog audio signals (tracks 1 to 8) to be assigned to audio output
channels 1 to 4.
Sub-item
Note
The settings tr5/6 and tr7/8 are only valid for MPEG IMX playback on the DVWM2000/M2000P.
1
CH1/CH2
tr1/2 : Assign tracks 1 and 2 to audio output channels 1 and 2
tr3/4: Assign tracks 3 and 4 to audio output channels 1 and 2
tr5/6: Assign tracks 5 and 6 to audio output channels 1 and 2
tr7/8: Assign tracks 7 and 8 to audio output channels 1 and 2
2
CH3/CH4
tr1/2: Assign tracks 1 and 2 to audio output channels 3 and 4
tr3/4 : Assign tracks 3 and 4 to audio output channels 3 and 4
tr5/6: Assign tracks 5 and 6 to audio output channels 3 and 4
tr7/8: Assign tracks 7 and 8 to audio output channels 3 and 4
AUDIO ADVANCE MODE
Chapter 12
Setup Menus
Set the audio signal output phase.
OFF : Same as the video output phase
ON: One frame ahead of the video output phase
Menu items in the range 800 to 899, relating to audio control (Continued)
Item number Item name
Settings
AUDIO PB VOLUME
SELECT
(DVW-M2000/M2000P
only)
Selects which PB control knobs are assigned to control playback of digital audio
channels.
827
828
0
ALL CH
DEFAULT : Use the following settings.
CH1: Control knob 1
CH2: Control knob 2
CH3: Control knob 3
CH4: Control knob 4
CH5: Unity
CH6: Unity
CH7: Unity
CH8: Unity
UNITY: Set all channels to unity, and disable the control knobs.
MENU: Use the following menu settings.
1
CH1
2
CH2
3
CH3
4
CH4
UNITY: Set playback level to unity.
VOL1: Assign playback level control to control knob 1.
VOL2: Assign playback level control to control knob 2.
VOL3: Assign playback level control to control knob 3.
VOL4: Assign playback level control to control knob 4.
5
CH5
6
CH6
7
CH7
8
CH8
Setup Menus
Sub-item
AES/EBU AUDIO
OUTPUT SELECT
Select the audio signals (tracks 1 to 8) to be assigned to AES/EBU digital audio
output tracks 1 to 4.
Sub-item
Note
The settings tr5/6 and tr7/8 are only valid for MPEG IMX playback on the DVWM2000/M2000P.
1
CH1/CH2
tr1/2 : Assign tracks 1 and 2 to audio output channels 1 and 2.
tr3/4: Assign tracks 3 and 4 to audio output channels 1 and 2.
tr5/6: Assign tracks 5 and 6 to audio output channels 1 and 2.
tr7/8: Assign tracks 7 and 8 to audio output channels 1 and 2.
2
CH3/CH4
tr1/2: Assign tracks 1 and 2 to audio output channels 3 and 4.
tr3/4 : Assign tracks 3 and 4 to audio output channels 3 and 4.
tr5/6: Assign tracks 5 and 6 to audio output channels 3 and 4.
tr7/8: Assign tracks 7 and 8 to audio output channels 3 and 4.
SDI AUDIO OUTPUT
SELECT
Select the audio signals (tracks 1 to 8) to be assigned to SDI audio signal output
channels.
Sub-item
Note
The settings tr5/6 and tr7/8 are only valid for MPEG IMX playback on the DVWM2000/M2000P.
1
CH1/CH2
tr1/2 : Assign tracks 1 and 2 to audio output channels 1 and 2.
tr3/4: Assign tracks 3 and 4 to audio output channels 1 and 2.
tr5/6: Assign tracks 5 and 6 to audio output channels 1 and 2.
tr7/8: Assign tracks 7 and 8 to audio output channels 1 and 2.
2
CH3/CH4
tr1/2: Assign tracks 1 and 2 to audio output channels 3 and 4.
tr3/4 : Assign tracks 3 and 4 to audio output channels 3 and 4.
tr5/6: Assign tracks 5 and 6 to audio output channels 3 and 4.
tr7/8: Assign tracks 7 and 8 to audio output channels 3 and 4.
Chapter 12 Setup Menus
Chapter 12
826
12-29
12-4 Items in the Extended Setup Menu
Item number Item name
Chapter 12
901
Menu items in the range 900 to 999, relating to digital processing
Settings
VIDEO OUTPUT DATA
Set the bit length for SDI video output data.
8bit: Set the bit length to 8 bits.
10bit : Set the bit length to 10 bits.
Setup Menus
It is recommended that you select the optimal setting for the device to which you
are going to connect this unit.
903
FREEZE MODE
Select the freeze mode and freeze timing.
FIELD : Freeze a video field. Field may be odd or even, according to the timing.
FLD1: Freeze an odd field.
FLD2: Freeze an even field.
FRM12: Freeze a frame consisting of an odd field and following even field.
FRM21: Freeze a frame consisting of an even field and following odd field.
Odd and even fields are distinguished by the reference video signal.
Changing the menu setting during a freeze does not affect the freeze image.
The setting is reflected the next time a freeze is carried out.
You can freeze an image using the DELETE button and TRIM + button.
For details, see menu item 904.
904
FREEZE CONTROL
FROM KEY PANEL
Determine how the buttons used to freeze an image function.
MOMNT : Holding the DELETE button and pressing the TRIM + button carries out
a freeze. The freeze ends when the buttons are released.
LATCH: Holding the DELETE button and pressing the TRIM + button carries out
a freeze. The freeze continues even after the buttons are released.
• To update the freeze image
Hold the DELETE button and press the TRIM + button again.
• To end the freeze
Hold the DELETE button and press the TRIM – button.
905
AUTO FREEZE
CONTROL
Set the auto freeze function operation (conditions for ending a freeze, etc.).
In normal playback, if there is a sudden worsening of the channel condition (entry
into unrecorded area), this function freezes the image.
DIS : Disable the auto freeze function.
MODE1: End the freeze when signals which can be recorded normally are
restored.
MODE2: End freeze automatically on playback after stopping.
• The automatic freeze mode is determined by item 903.
• The freeze is ended immediately, regardless of the above conditions, when this
unit is switched to any of the following modes:
Eject
EDIT preset on
Cue up
Recording
906
STOP FREEZE
CONTROL
Select whether or not the STOP FREEZE function should operate.
DIS : Does not operate.
ENA: Operates.
SD-SDI H-ANC
Select whether or not to add information to the SDI output.
920
Sub-item
12-30
1
AUDIO 5CH-8CH
(DVW-M2000/
M2000P only)
ON Select whether to add digital audio data channels 5 to 8 (ON), or not (OFF).
OFF
2
RP-188 ATC
ON Select whether to add RP-188 time code data (ON), or not (OFF).
OFF
Chapter 12
Setup Menus
13-1 Overview of Setup Utility Menu Functions
See Section 3-6 “Using a Memory Stick” (page 3-12) for
more information about memory sticks.
Refer to the Maintenance manual Volume 1 for more
information about downloading, uploading, and formatting
operations.
To download files saved in memory sticks
Proceed as follows.
1
To display the setup utility menu
Press the F1 (DNLOAD) button.
The menu display changes, allowing you to
execute the download. The name of the currently
selected file is flashing on the screen.
Display page 5 of the function menu in the menu
display section, and press the F5 (SUPUTL) button.
The setup utility menu appears in the menu display
section.
SUP DOWNLOAD SETUP - DBMNRXXX.SUP
UTL
SET
HOME
SUP SETUP MENU UTILITY (MEMORY STICK)
UTL DNLOAD UPLOAD FORMAT
HOME
F1
F2
F3
F4
EXIT
F5
F6
To return to the page 5 screen
Press the F6 (EXIT) button.
To display the setup utility menu on a monitor
Connect a monitor to the COMPOSITE VIDEO
OUTPUT 3 (SUPER) or SDI OUTPUT 3 (SUPER)
connector of this unit.
SETUP MENU UTILITY
MEMORY STICK
F1:SETUP MENU DOWNLOAD
F2:SETUP MENU UPLOAD
F3:FORMAT STICK
F2
F3
F4
EXIT
F5
F6
2
With the HOME button held down, rotate the
MULTI CONTROL knob to select the file to
download.
3
Rotate the MULTI CONTROL knob to display
“EXEC OFF”.
This menu provides the following functions.
F1 (DNLOAD): Downloads data from the memory
stick.
F2 (UPLOAD): Uploads data to the memory stick.
F3 (FORMAT): Formats the memory stick.
F1
SUP DOWNLOAD SETUP - EXEC OFF
UTL
HOME
4
F1
F2
F3
F4
SET
EXIT
F5
F6
With the HOME button held down, rotate the
MULTI CONTROL knob to switch EXEC OFF to
EXEC ON.
SUP DOWNLOAD SETUP - EXEC ON
UTL
HOME
F1
F2
F3
SET
F4
EXIT
F5
F6
When you want to redo a file selection, rotate the
MULTI CONTROL knob to display the file name
again, then go back to step 2.
The monitor screen display changes as follows.
STICK TO ROM
SETUP MENU DOWNLOAD
STICK -> VTR
File:
DBMNRXXX.SUP
EXECUTE - ON
(Continued)
Chapter 13 Setup Utility Menu Functions
13-1
Chapter 13 Setup Utility Menu Functions
Setup
Utility Menu Functions
See Section 11-2 “Function Menu Item List” (page 11-3) for
more information about the function menu.
13-1-1 Using Memory Stick Data
Chapter 13
You can use the setup utility menu to download files
saved in memory sticks, to upload files to memory
sticks, and to format memory sticks from MS-DOS.
Call up the setup utility menu from the function menu.
13-1 Overview of Setup Utility Menu Functions
5
Press the F5 (SET) button.
ROM TO STICK
SETUP MENU UPLOAD
The selected file is downloaded.
STICK <- VTR
File:
XXXXXXXX.XXX
Note
Chapter 13
Setup Utility Menu Functions
Do not do any of the following during the download.
Doing so can corrupt the ROM software of this unit,
making the unit unable to download normally.
• Power the unit off.
• Remove or insert a memory stick.
• Remove or load a cassette.
EXECUTE - ON
5
Press the F5 (SET) button.
The selected file is uploaded.
To upload a file to a memory stick
Note
Proceed as follows.
1
Press the F2 (UPLOAD) button.
The menu display changes, allowing you to
execute the upload. The name of the currently
selected file is flashing on the screen.
SUP UPLOAD SETUP - DBMNRXXX.SUP
UTL
HOME
2
3
F1
F2
F3
To format a memory stick
SET
F4
F5
EXIT
F6
1
Rotate the MULTI CONTROL knob to display
“EXEC OFF”.
HOME
F1
F2
F3
SET
F4
F5
EXIT
F6
With the HOME button held down, rotate the
MULTI CONTROL knob to switch EXEC OFF to
EXEC ON.
F1
F2
F3
SET
F4
F5
EXIT
F6
When you want to redo a file selection, rotate the
MULTI CONTROL knob to display the file name
again, then go back to step 2.
The monitor screen display changes as follows.
13-2
Chapter 13
SUP FORMAT - EXEC OFF
UTL
HOME
2
F1
F2
SET
F3
F4
F5
EXIT
F6
With the HOME button held down, rotate the
MULTI CONTROL knob to switch EXEC OFF to
EXEC ON.
SUP FORMAT - EXEC ON
UTL
HOME
F1
F2
SET
F3
F4
F5
EXIT
F6
The monitor screen display changes as follows.
SUP UPLOAD SETUP - EXEC ON
UTL
HOME
Press the F3 (FORMAT) button.
The menu display changes, allowing you to
execute formatting.
With the HOME button held down, rotate the
MULTI CONTROL knob to select the file to
upload.
SUP UPLOAD SETUP - EXEC OFF
UTL
4
Do not do any of the following during the upload.
Doing so can corrupt the ROM software of this unit,
making the unit unable to download normally.
• Power the unit off.
• Remove or insert a memory stick.
• Remove or load a cassette.
Setup Utility Menu Functions
FORMAT STICK
to MS-DOS
CAUTION!!
All data in the MEMORY
STICK will be deleted.
EXECUTE - ON
3
Press the F5 (SET) button.
Formatting is executed.
If you are using a new memory stick, or if an error
occurs during execution of F3: FORMAT STICK, use
the sub mode to format the memory stick.
Chapter 13
Note
Setup Utility Menu Functions
All data in the memory stick is erased when you
execute F3: FORMAT STICK.
Chapter 13 Setup Utility Menu Functions
13-3
14-1 Removing a Cassette When Tape Slack
Occurs
For details, refer to Section 1-17 in the Installation Manual.
To clean the video heads and audio heads, always use
the special-purpose Sony BCT-HD12CL cleaning
cassette.
If you insert the cleaning cassette, it is automatically
ejected after a head cleaning operation which lasts for
5 seconds.
Follow the instructions with the cleaning cassette
carefully, as inappropriate use of the cleaning cassette
can damage the heads.
Notes
• When carrying out head cleaning without using the
automatic cleaning function, be sure to eject the
cleaning cassette after use in order not to damage the
heads.
• You cannot use the BCT-5CLN cleaning cassette.
Chapter 14 Maintenance and Inspection
14-1
Chapter 14 Maintenance and Inspection
Maintenance
and Inspection
14-2 Head Cleaning
Chapter 14
If tape slack occurs in the unit, it is necessary to
remove the upper lid and sound baffle. This job should
always be entrusted to a technician who has undergone
service training.
14-5
Regular
Checks
14-3
Error
Messages
This unit is equipped with a self-diagnosis function,
and if a problem is detected, displays an error message
in the time data display and on the monitor.
If an error message appears, contact your Sony service
representative.
Indications in the time data display
Chapter 14
If a problem is detected, the ALARM indicator in the
lower control panel lights, and an error message and
error code appear in time data display area 1.
Z
Maintenance and Inspection
ALARM indicator
Time data display area 1
Indications on the monitor
The error message and code also appear superimposed
on a monitor connected to the COMPOSITE VIDEO
OUTPUT 3 (SUPER) connector or SDI OUTPUT 3
(SUPER) connector. Depending on the error code, an
indication of the source of the problem may appear as
a secondary error message.
ERROR-01
REEL TROUBLE-1
14-2
Chapter 14
Maintenance and Inspection
Error message displays
• To display error messages and codes superimposed
on the monitor, set the CHARA in function menu
page 4 to ON.
• Some error messages have no associated error codes.
In this case, they appear over the time data area.
• Error messages with error codes are saved in nonvolatile memory as an error log.
• In some cases the error message is slightly different
on the monitor and in the time data area.
Error Message List
Description
NO COMMUNICATION
Abnormality in the interface between the lower control panel and SYS CPU (SS-89
board) has been detected in the lower control panel side.
01
REEL TROUBLE
Tape slacking has been detected in the threading or unthreading operation.
02
REEL TROUBLE
Tape slacking or tape breaking has been detected in the SEARCH, FF,or REW
mode.
03
REEL TROUBLE
Tape slacking,tape breaking,or supply or take-up reel locking has been detected in
the REC or PLAY mode.
04
REEL TROUBLE
A malfunctional tape transport speed has been detected in the FF or REW mode.
05
REEL TROUBLE
A malfunctional operation of the supply or take-up reel has been detected during
cassette insertion.
06
TAPE TENSION
Excessive tape tension has been detected in the REC or PLAY mode.
07
CAPSTAN TROUBLE
Malfunction of capstan motor has been detected.
08
DRUM TROUBLE
Malfunction of drum motor has been detected.
09
TH/UNTH MOTOR
Malfunction of threading or unthreading operation has been detected.
0A
THREADING
The tape top processing has not been completed in the threading mode.
10
HUMID
Dew condensation has been detected.
11
TAPE T/E SENSOR
The tape top and tape end have been detected simultaneously.
12
TAPE TOP SENSOR
Malfunction of tape top sensor has been detected.
13
TAPE END SENSOR
Malfunction of tape end sensor has been detected.
14
FAN MOTOR
Malfunction of cooling fan motor has been detected.
20
CASS COMP MOTOR
Malfunction of cassette compartment-up or down operation has been detected.
21
REEL SFT MOTOR
Malfunction of movement of the reel table corresponding to the cassette size has
been detected.
22
REEL POS SENSOR
The L-cassette and S-cassette positions of the reel table have been detected
simultaneously.
23
THRED RING SENS
The thread end and unthread end states of the threading ring have been detected
simultaneously.
92
INTERNAL I/F1
Abnormality in the interface between SYS CPU (on SS-89 board) and other CPU/
MPU has been detected.
93
CPU INITIALIZE ERROR
Abnormality in the interface between SV CPU (on SS-89 board) and DRUM CPU
(on DR-414 board) has been detected.
95
OTHERS NV-RAM ERROR
Abnormality has been detected in the operation of an NV-RAM (on FP-133 board).
96
SY NV-RAM ERROR
Abnormality has been detected in the operation of an NV-RAM (on SS-89 board)
for the system control system.
97
SV NV-RAM
Abnormality has been detected in the operation of an NV-RAM (on DR-508 board)
for the servo system.
98
RF NV-RAM ERROR
Abnormality has been detected in the operation of an NV-RAM (on EQ-84 board)
for the RF system.
99
INTERNAL I/F 2
Abnormality in the interface between SYS CPU (on SS-89 board) and SERVO
CPU (on SS-89 board) or MPU (on EQ-84 or DM-123 board) has been detected.
Chapter 14 Maintenance and Inspection
Maintenance and Inspection
Message
–
Chapter 14
Code
14-3
14-5
Regular
Checks
14-4
Moisture
Condensation
When the unit is suddenly moved from a cold to a
warm location, or used in a very humid place, moisture
from the air can condense on the head-drum. This is
called moisture condensation. If the tape is run in this
state, it can adhere to the drum. To prevent such a
condition from occurring, the unit is provided with a
moisture detecting function.
If moisture condenses on the head-drum while the unit
is in use, the ALARM indicator lights and “ERR-10”
is displayed in the time data display area 1.
Chapter 14
Z
Maintenance and Inspection
ALARM indicator
If moisture condensation occurs, “ERR-10”
appears in time data display area 1.
14-4
Chapter 14
Maintenance and Inspection
If this happens, the drum and capstan motors stop and
the cassette is automatically ejected. Then, the durm
starts to rotate again to dry its surface. In this state, the
unit is not operable. When the moisture has
evaporated, the error message disappears and the
ALARM indicator goes off.
If “ERR-10” appears and the ALARM indicator
lights immediately after powering the unit on
Leave the unit powered on and wait until the error
message disappears and the indicator goes off.
While the indicator is lit, you cannot insert a cassette.
When the indicator goes off and the error message
disappears, you can use the unit.
If you move the unit from a cold to a warm
location
Leave the unit powered off for about 10 minutes, in
order to give the unit time to detect moisture
condensation.
14-5 Regular Checks
14-5-1 Digital Hours Meter
The hours meter can display seven items of
information, in corresponding display modes, about
the operational history of the unit. Use it as a guide in
scheduling periodic maintenance.
Displaying the hours meter
MULTI CONTROL knob
Z
Display modes of the hours meter
F6 (EXIT) button
H03: TAPE RUNNING mode
Displays the total number of hours the unit has been in
fast forward, rewind, playback, search, recording or
editing (except for stop and still) mode in units of 1
hour.
H04: THREADING mode
Displays the total number of times tape has been
threaded in the unit.
F5 (MENU) button
To display the hours meter
Press the F5 (MENU) button, then turn the MULTI
CONTROL knob to display the required item in the
time data display.
To exit from the hours meter
Press the F6 (EXIT) button.
H12: DRUM RUNNING mode (resettable)
Same as H02 except that the count is resettable.
This can be used as a guide in determining when to
replace the drum.
H13: TAPE RUNNING mode (resettable)
Same as H03 except that the count is resettable.
This can be used as a guide in determining when to
replace such components as fixed heads and pinch
rollers.
H14: THREADING mode (resettable)
Same as H04 except that the count is resettable.
This can be used as a guide in determining when to
replace, for example, the threading motor.
Chapter 14 Maintenance and Inspection
14-5
Maintenance and Inspection
H02: DRUM RUNNING mode
Displays the total number of hours the drum has run
with tape threaded in units of 1 hour.
Chapter 14
H01: OPERATION mode
Displays the total number of hours the unit has been
powered on in units of 1 hour.
14-5 Regular Checks
14-5-2 Maintenance Timings
Use the following table as a timing guide for checking
and replacing components of the unit.
These intervals are not guaranteed lifetimes; the timing
for replacing components depends on the particular
conditions of use. In particular, depending on the
degree of dirt contamination and abrasion, pinch
rollers and cleaners may require replacement earlier
than suggested by this table.
Note that an arrow in the table means that the
component to be replaced is part of the assembly the
arrow points to, which must be replaced as a whole.
For information on severe conditions (frequent threading/
unthreading) or how to replace components, refer to the
Maintenance Manual Volume 1.
Chapter 14
Maintenance and Inspection
Guideline replacement intervals
Digital hours meter indication R: Replace C: Check, and replace if necessary
(menu number in parenthesis)
1000 hrs 2000 hrs 3000 hrs 4000 hrs 5000 hrs
C
C
C
Drum running time (H02)
Component
Upper drum
6000 hrs
C(↓)
Drum assembly
C
Brush slip ring assembly
Video head cleaner (roller)
Pinch roller assembly
Tape running time (H03)
R
R(↑)
R
R
R
R
Reel table assembly
R (Replace at interval of
4000 hours.)
Pinch application
assembly
Tape running time (H03)
Fan motor (card)
Operation time (H01)
R
Replace after 40,000 hours
Fan motor (MD)
Replace after 40,000 hours
Power supply unit
Replace after 40,000 hours
14-6
Chapter 14
Maintenance and Inspection
Specifications
Tape transport system
Tape speed
Digital Betacam: 96.7 mm/s
MPEG IMX (DVW-M2000/
M2000P):
64.5 mm/s (525/60)
53.8 mm/s (625/50)
Betacam SX (DVW-M2000/
M2000P): 59.6 mm/s
Analog Betacam (DVW-M2000/
M2000P):
118.6 mm/s (525/60)
101.5 mm/s (625/50)
Digital Betacam record/playback time
124 minutes with BCT-D124L
MPEG IMX playback time (DVW-M2000/M2000P)
184 minutes with BCT-184MXL
(525/60)
220 minutes with BCT-184MXL
(625/50)
Appendix
A-1
Appendix
Recording format Digital Betacam
Power requirements
100 to 240 VAC, 50/60 Hz
Power consumption
2.2 A (220 W) (DVW-M2000/
M2000P)
2 A (200 W) (DVW-2000/2000P)
Peak inrush current
(1) Power ON, current probe method:
54 A (240 V), 20 A (100 V)
(2) Hot switching inrush current, measured in
accordance with European
standard EN55103-1: 16 A
(230 V)
Operating temperature
5°C to 40°C (41°F to 104°F)
Storage temperature
–20°C to +60°C (–4°F to +140°F)
Humidity
20 to 90%
Mass
DVW-M2000/M2000P: 23.5 kg
(51 lb 12 oz)
DVW-2000/2000P: 22 kg (48 lb
8 oz)
Dimensions (w/h/d)
427 × 194 × 544 mm
(16 7/8 × 7 3/4 × 21 1/2 inches)
Betacam SX playback time (DVW-M2000/M2000P)
194 minutes with BCT-194SXLA
Analog Betacam playback time (DVW-M2000/
M2000P)
90 minutes with BCT-90MLA
(525/60)
108 minutes with BCT-90MLA
(625/50)
Fast forward/ rewind time
Approx. 3 minutes with BCT184MXL
Search speed
Shuttle mode Digital Betacam playback: Still to
approx. ±50 times normal
playback speed
MPEG IMX playback (DVWM2000/M2000P): Still to approx.
±78 times normal playback speed
Betacam SX playback (DVWM2000/M2000P): Still to approx.
±78 times normal playback speed
Analog Betacam playback (DVWM2000/M2000P): Still to ±35
times normal playback speed
(525/60)
Still to ±42 times normal
playback speed (625/50)
Variable speed mode
Digital Betacam playback: –1 to +3
times normal playback speed
MPEG IMX playback (DVWM2000/M2000P): –1 to +3 times
normal playback speed
Betacam SX playback (DVWM2000/M2000P): –1 to +2 times
normal playback speed
Analog Betacam playback (DVWM2000/M2000P): –1 to +3 times
normal playback speed
Jog mode
Still to ±1 times normal playback
speed
Servo lock time 0.5 (525/60)/0.7 (625/50) second or
less (from standby on)
Load/unload time 6 seconds or less
Appendix
General
Specifications
Recommended tapes
Digital Betacam cassettes (S, L):
BCT-D6/D12/D22/D32/D40
BCT-D34L/D64L/D94L/D124L
MPEG IMX cassettes (S, L) (for
playback only on DVW-M2000/
M2000P)
Betacam SX cassettes (S, L) (for
playback only on DVW-M2000/
M2000P)
Betacam SP cassettes (S, L) (for
playback only on DVW-M2000/
M2000P)
Betacam cassettes (S, L) (for
playback only on DVW-M2000/
M2000P)
Appendix
Digital video system
Digital video signal system
Sampling frequency
Y: 13.5 MHz
R–Y/B–Y: 6.75 MHz
Quantization
10 bits/sample
Compression
Coefficient recording system
Channel coding S-I-NRZI PR-IV
Error correction Reed-Solomon code
Analog component output
Bandwidth
Y
0 to 5.75 MHz +0.5 dB/–2.0 dB
R–Y/ B–Y
0 to 2.75 MHz +0.5 dB/–2.0 dB
S/N
56 dB or more
K factor (2T pulse)
1% or less
Analog component input to analog
component output
Input A/D quantization
10 bits/sample
Bandwidth
Y
0 to 5.75 MHz +0.5 dB/–2.0 dB
R–Y/ B–Y
0 to 2.75 MHz +0.5 dB/–2.0 dB
S/N
56 dB or more
K factor (2T pulse)
1% or less
LF non-linearity 3.0% or less
A-2
Appendix
Analog composite input to analog composite
output
Bandwidth (Y)
0 to 5.75 MHz +0.5 dB/ –2.0 dB
S/N
56 dB or more
Differential gain 2% or less
Differential phase 2° or less
Y/C delay
20 ns or less
K factor (2T pulse)
1% or less
Output SCH phase
Based upon RS-170A/CCIR
R.624-3
(Adjustable by using the menu)
Digitale audio system
Digital audio (CH1 to CH4) signal format
Sampling frequency
48 kHz (synchronized with video)
Quantization
20 bits/sample
Wow and flutter Below measurable level
Headroom
20 dB (or 18 dB, selectable)
Emphasis
T1= 50 µs, T2=15 µs (on/off
selectable in recording mode)
Analog output
Frequency response
20 Hz to 20 kHz +0.5 dB/ –1.0 dB
(0 dB at 1 kHz)
Dynamic range
95 dB or more (at 1 kHz, emphasis
on)
Distortion
0.05% or less (at 1 kHz, emphasis
on, reference level (+4 dBm))
Crosstalk
–80 dB or less (at 1 kHz, between
any two channels)
Analog audio system
Analog audio (cue audio)
Frequency response
100 Hz to 12 kHz +3 dB/–3 dB
S/N ratio
45 dB or more (at 3% distorsion
level)
Distortion
2% or less (THD at 1 kHz reference
level)
Wow and flutter DVW-M2000/2000: 0.2% wrms or
less
DVW-M2000P/2000P: 0.2% wrms
or less (DIN 45507 weighted)
MPEG IMX playback (DVW-M2000/M2000P)
Video
Bandwidth
Y
DVW-M2000: 0 to 5.75 MHz +0.5 dB/–2 dB
DVW-M2000P: 0 to 2.75 MHz +0.5 dB/–2 dB
R–Y/B–Y
0 to 2.75 MHz +0.5 dB/–2dB
S/N ratio
56 dB or more
K factor
1% or less
Digital Audio
Frequency response (0 dB at 1 kHz)
20 Hz to 20 kHz +0.5 dB/–1.0 dB
Dynamic range
95 dB (at 1 kHz, emphasis on) in 4-channel/24-bit mode
90 dB (at 1 kHz, emphasis on) in 8-channel/16-bit mode
Distortion (T.H.D at 1 kHz reference level) 0.05% rms (emphasis on)
Below measurable level
Appendix
Wow and flutter
Betacam SX playback (DVW-M2000/M2000P)
Video
Bandwidth
Y
525-line mode: 0 to 4.5 MHz +0.5 dB/–3.0 dB
625-line mode: 0 to 5.5 MHz +0.5 dB/–3.0 dB
R–Y/B–Y
0 to 2.0 MHz +0.5 dB/–3.0 dB
S/N
56 dB or more
K factor (2T pulse)
1% or less
Audio
Frequency response
20 Hz to 20 kHz +0.5 dB/–1.0 dB (0 dB at 1 kHz)
Dynamic range
90 dB or more (at 1kHz, emphasis on)
Distortion
0,05% or less (at 1 kHz, emphasis on, reference level (+4 dBm))
Analog Betacam playback (DVW-M2000)
Video
Bandwidth
S/N
Metal tape
Oxide tape
Y
30 Hz to 4.5 MHz +0.5 dB/ –4.0 dB
30 Hz to 4.1 MHz +0.5 dB/ –6.0 dB
R–Y/ B–Y
30 Hz to 1.5 MHz +0.5 dB/–3.0 dB
30 Hz to 1.5 MHz +0.5 dB/–3.0 dB
Y
51 dB or more
48 dB or more
R–Y/ B–Y
48 dB or more
45 dB or more
2% or less
3% or less
K factor (2T pulse)
LF non-linearity
Y/C delay
Y
3% or less
R–Y/ B–Y
4% or less
20 ns or less
Appendix
A-3
Specifications
Audio
LNG
AFM
Metal tape
Oxide tape
Frequency response (at 10 dB
below reference level a))
50 Hz to 15 kHz +1.5 dB/ –2.0 dB
50 Hz to 15 kHz +3.0 dB
S/N ratio (at 3% distortion level)
72 dB or more
50 dB or more (Dolby NR off)
Distortion (THD at 1 kHz
reference level a))
1% or less
2% or less
Wow and flutter
0.1% rms or less
Frequency response (at
reference level a))
20 Hz to 20 kHz + 0.5 dB/–2.0 dB
S/N (at 3% distortion level)
85 dB or more
Distortion (THD at 1 kHz
reference levela))
0.5% or less
a) Reference level: +4 dBm
Appendix
Analog Betacam playback (DVW-M2000P)
Video
Bandwidth
S/N
Metal tape
Oxide tape
Y
25 Hz to 5.5 MHz +0.5 dB/ –4.0 dB
25 Hz to 4.0 MHz +0.5 dB/–6.0 dB
R–Y/ B–Y
25 Hz to 2.0 MHz +0.5 dB/–3.0 dB
25 Hz to 1.5 MHz +0.5 dB/–3.0 dB
Y
48 dB or more
46 dB or more
R–Y/ B–Y
48 dB or more
45 dB or more
2% or less
3% or less
K factor (2T pulse)
LF non-linearity
Y
3% or less
R–Y/ B–Y
4% or less
Y/C delay
20 ns or less
Audio
LNG
AFM
Frequency response (at 20 dB
below peak level a))
Metal tape
Oxide tape
50 Hz to 15 kHz +1.5 dB/–2.0 dB
50 Hz to 15 kHz ±3.0 dB
S/N (at 3% distortion level) (CCIR 68 dB or more
468-3 weighted)
62 dB or more
Distortion (THD at 1 kHz
reference level b))
1% or less
2% or less
Wow and flutter
0.1% rms or less
Frequency response (at
reference level a))
20 Hz to 20 kHz +0.5 dB/–2.0 dB
S/N (at 3% distortion level)
More than 72 dB (CCIR 468-3 weighted)
Distortion (THD at 1 kHz
reference level b))
Less than 0.5%
a) Peak level: +8 dB above reference level
b) Reference level: +4 dBm
A-4
Appendix
Processor adjustment range
TIME CODE IN
Video level
±3 dB/ –∞ to +3 dB selectable
Chroma level
±3 dB/ –∞ to +3 dB selectable
Setup level (DVW-M2000/2000)
±30 IRE
Black level (DVW-M2000P/2000P)
±210 mV
Y/C delay
±100 ns (in analog Betacam
playback)
Chroma phase
±30°
System phase
Sync: ±15 µs
SC: ±200 ns
CUE IN
SDI INPUT
BNC (1 with active through out)
Serial digital (270 Mbits/s)
SMPTE 259M/ITU-R BT.656
REF. VIDEO INPUT
BNC (2 in loop through
connection)
Black burst or composite sync
0.3 Vp-p, 75Ω, sync negative
COMPOSITE VIDEO INPUT
BNC (3 for 1 set)
Y: 1.0 Vp-p, Sync negative
R–Y/B–Y: 0.7 Vp-p, 75 Ω, with
100% color bar for DVWM2000P/2000P and with 100%
or 75% color bar selectable for
DVW-M2000/2000
COMPOSITE VIDEO INPUT
BNC (2 in loop through
connection)
1.0 Vp-p, 75 Ω, Sync negative
AUDIO INPUT CH1, CH2, CH3, CH4
XLR 3-pin, female (4)
LOW OFF: –60 dBu, high
impedance, balanced
HIGH OFF: +4 dBu, high
impedance, balanced
HIGH ON: +4 dBm, 600 Ω
termination, balanced
AUDIO INPUT(AES/EBU) CH1/2, CH3/4
BNC (2)
Complies with AES-3id-1995
Output connectors
SDI OUTPUT
BNC (3 including 1 for character
superimposition)
Serial digital (270 Mbits/ s)
SMPTE 259 M/ITU-R BT.656
COMPONENT VIDEO OUTPUT
BNC (3 for 1 set)
Y: 1.0 Vp-p, Sync negative
R–Y/B–Y: 0.7 Vp-p, 75 Ω, with
100% color bar for DVWM2000P/2000P and with 100%
or 75% color bar selectable for
DVW-M2000/2000
COMPOSITE VIDEO OUTPUT
BNC (3 including 1 for character
superimposition)
1.0 Vp-p, 75 Ω, Sync negative
AUDIO OUTPUT CH1, CH2, CH3, CH4
XLR 3-pin, male (4)
+4 dBm at 600 Ω load, low
impedance, balanced
AUDIO OUTPUT (AES/EBU) CH1/2, CH3/4, CH5/6,
CH7/8 (CH5/6 and CH7/8 usable on DVW-2000/
2000P only)
BNC (4)
Complies with AES-3id-1995
MONITOR OUTPUT (L/R)
XLR 3-pin, male (2)
+4 dBm at 600 Ω load, low
impedance, balanced
TIME CODE OUT
XLR 3-pin, male (1)
2.2 Vp-p, low impedance, balanced
PHONES
JM-60 stereo phone jack
–∞ to –12 dBu at 8 Ω load,
unbalanced
CUE OUT
XLR 3-pin, male (1)
+4 dBm at 600 Ω load, low
impedance, balanced
Appendix
A-5
Appendix
Input connectors
XLR 3-pin, female (1)
0.5 to 18 Vp-p, 10 kΩ, balanced
XLR 3-pin, female (1)
LOW OFF: –60 dBu, high
impedance, balanced
HIGH OFF: +4 dBu, high
impedance, balanced
HIGH ON: +4 dBm, 600 Ω
termination, balanced
Specifications
Remote connectors
CONTROL PANEL
10-pin (2), female
Front/rear selectable
REMOTE 1-IN (9P)
D-sub 9-pin, female
REMOTE 1-OUT (9P)
D-sub 9-pin, female
RS-232C
D-sub 9-pin, male
VIDEO CONTROL
D-sub 15-pin, male (for optional
BVR-50/50P)
REMOTE 2 PARALLEL I/O (50P)
50-pin, female
Appendix
Memory stick slot
Memory stick (8 to 128MB)
Accessories supplied
PSW 4 × 16 screws for rack mounting (4)
Operation Manual (English version ×1, Japanese
version ×1)
Installation Manual (English version ×1, Japanese
version ×1)
CD-ROM (1)
Optional accessories
BKDW-101 Remote Control Panel
BKMW-102 Remote Control Unit
BKMW-103 Control Panel Extension Kit
BKMW-104 HD Upconverter Board
RCC-5G 9-pin Remote Control Cable
BVR-50/50P TBC Remote Control Unit
RMM-131 Rack Mount Adaptor
BCT-HD12CL Cleaning Cassette Tape
AC power cord
• For customers in the U.S.A. and Canada
Part No. 1-557-377-11
Plug holder 3-613-640-01
• For customers in the United Kingdom
Part No. 1-777-823-12
Plug holder 3-613-640-01
A-6
Appendix
• For customers in European countries other than the
United Kingdom
Part No. 1-551-631-22
Plug holder 3-613-640-01
Design and specifications are subject to change
without notice.
To prevent electromagnetic interference
from portable communications devices
The use of portable telephones and other
communications devices near this unit can result in
misoperations and interference with audio and video
signals.
It is recommended that portable communications
devices near this unit be powered off.
Index
B
Basic menu items 12-5
Betacam
Cassette 3-10
compatibility 1-2
SX/SP cassette 3-10
BLACK (function menu) 11-5
C
C PHAS (function menu) 11-5
CAPSTN (function menu) 11-7
Capstan override function 4-9
Cassettes 3-10
CD-ROM manual 1-5
CHANNEL CONDITION indicator 2-6
CHARA (function menu) 11-7
CH1 to CH4 buttons 2-11
CHROMA (function menu) 11-5
COMPONENT VIDEO INPUT
connectors 2-16
COMPONENT VIDEO OUTPUT
connectors 2-16
COMPOSITE VIDEO INPUT connectors/
75 Ω termination switch 2-16
COMPOSITE VIDEO OUTPUT
connectors 2-16
CONFI (ON)/PREREAD indicators 2-8
CONFI (function menu) 11-3
CONFI playback 2-8
Connections
to analog devices 3-2
to digital devices 3-1
D
DELETE button 2-12
DF (function menu) 11-4
DF indicator 2-7
Digital
audio input/output section 2-16
device connection 3-1
hours meter 14-5
signal input/output section 2-17
Digital Betacam
cassettes 3-10
format 1-1
tapes A-2
DISPLAY FULL/FINE button 2-4
DMC
editing 5-11
playback 4-12
DMC EDIT button 2-12
DOLBY (function menu) 11-7
DOLBY NR indicator 2-8
Drop frame
mark 3-9
mode 11-4
recording 9-2
Extended menu items 12-8
External device connectors 2-17
F
F FWD button 2-11
Features 1-1
525/625 indicator 2-7
F1 to F6 buttons 2-6
Format indicators 2-2, 2-7
Function menu
configuration 11-1
item 11-3
operation 2-6
G
Ground terminal 2-17
H
Head Cleaning 14-1
Head configuration 1-1
Headphones 2-2
HOME button 2-6
HUE (function menu) 11-5
Index
AC IN connector 2-17
ALARM indicator 2-11
Analog
audio input/output section 2-15
device connection 3-2
video input/output section 2-16
ASSEMBLE button 2-11
Audio
monitor signal output section 2-18
selection function selector buttons 2-4
setting display section 2-5
signal selection buttons 2-5
AUDIO IN/OUT buttons 2-12
AUDIO INPUT (AES/EBU) connectors
2-16
AUDIO INPUT CH1 to CH4 connectors
2-15
AUDIO INPUT CH1 to CH4 and CUE IN
LEVEL switches 2-15
AUDIO OUTPUT (AES/EBU) connectors
2-16
AUDIO OUTPUT CH1 to CH4 connectors
2-15
AUTO EDIT button 2-13
Auto Event Detector
output/recording 10-1
overview 10-1
Connector panel 2-15
Continuous editing 5-13
CONTROL PANEL connector 2-18
Control panels 2-1
CTL/TC (function menu) 11-3
CUE button 2-11
CUE IN/OUT connectors 2-15, A-5
Index
A
I
IN/OUT buttons 2-12
INPUT button 2-4
Input signal selection 2-4
INSERT buttons 2-11
E
J
EDIT button 2-10
Edit point 5-3
cue-up and preroll 5-7
modifying and deleting 5-6
setting buttons 2-12
Editing
automatic editing 5-1
carrying out 5-8
continuous editing 5-13
control section 2-12
cross-fade editing 12-14
manual editing 5-14
mode setting section 2-11
preread editing 5-14
quick editing 5-13
selecting the editing mode 5-3
special methods 5-13
split editing 5-4
standalone editing 5-14
switch/menu settings 5-2
E-E mode 2-5, 2-10
EJECT button 2-2
EMPHSS (function menu) 11-6
ENTRY button 2-13
Error messages 14-2
Essence mark
output 9-2
overview 9-1
JOG
button 2-9
indicator 2-9
Jog mode 4-8
K
KEY INHI indicator 2-12
KEY INHIBIT switch 2-14
L
Level meter 2-5
LIST button 2-13
Location and function of parts
connector panel 2-15
lower control panel 2-3
switch panel 2-14
upper control panel 2-2
LTC
external sync 4-4
M
Manual editing 5-14
MARK button 2-13
MEMORY indicator 2-12
Memory stick 3-12
(Continued)
Index
I-1
Index
MENU (function menu) 11-3
Menu
control buttons 2-6
display 2-8
operation 2-6, 6-2, 12-2
MIXING button 2-4
Moisture condensation 14-4
MONITOR OUTPUT connectors 2-18
MPEG IMX 1-1
cassette 3-10
compatibility 1-2
N
Non-drop frame
mark 3-9
mode 11-4
O
Operation mode 3-9
OPTION connector 2-18
OUTREF (function menu) 11-7
Index
P
PANEL SELECT switch 2-14
Parts replacement 14-6
PB controls 2-6
PB/EE (function menu) 11-3
PHONES jack/control 2-2
PLAY button 2-11
Playback
capstan override 4-9
dynamic motion control (DMC) 4-12
jog mode 4-8
normal 4-7
shuttle mode 4-8
speed indication 2-8
variable mode 4-9
PLAYER button 2-12
Power supply section 2-17
POWER switch 2-2
Preparations
for playback 4-6
for recording 4-1
PREREAD (function menu) 11-8
Preread editing 5-14
PREROLL button 2-10
PRESET/REGEN 11-4
Preview 5-7
PREVIEW button 2-13
Q
Quick Editing 5-13
R
REC
button 2-10
controls 2-6
REC INHI indicator 2-10
I-2
Index
RECINH (function menu) 11-8
REC/ERASE indicator 2-13
RECORDER button 2-12
Recording
preparations 4-1
procedure 4-5
time code 4-2
REF. VIDEO INPUT connectors/75Ω
termination switch 2-16
Reference signals
connection 3-5
for the servo system 3-4
Reference video signal generator 3-3
Regular checks 14-5
REMOTE buttons 2-2
Remote control 2-2
REMOTE 1-IN(9P) connector 2-18
REMOTE 1-OUT(9P) connector 2-18
REMOTE 2 PARALLEL I/O(50P)
connector 2-17
RESET button 2-8
REVIEW button 2-13
REW button 2-11
RS-232C
connector 2-18
indicator 2-2
RUN (function menu) 11-4
S
SC (function menu) 11-6
SDI INPUT connectors 2-17
SDI OUTPUT connectors 2-17
Search control section 2-8
Search dial 2-9
SERVO indicator 2-11
SETUP (function menu) 11-5
Setup 3-7
Setup utility menu
overview 13-1
memory stick data operations 13-1
SHIFT indicator 2-8
Shot data 6-7
Shot mark function
cueing up 6-6
list operations 6-4
operation menu 6-2
operations 6-3
overview 6-1
reading 6-3
sorting 6-8
writing 6-3
Shot mark section 2-13
SHUTTLE button 2-9
Shuttle mode 4-8
SHUTTLE/VAR indicator 2-9
Specifications A-1
Standalone editing 5-14
STANDBY button 2-10
STOP button 2-11
Superimposed character information 3-8
SUPUTL (function menu) 11-8
Switch panel 2-14
SYNC (function menu) 11-6
System configurations 1-4
T
T INFO (function menu) 11-6
Tape transport control section 2-10
TC button 2-11
TCG (function menu) 11-4
TCGSET (function menu) 11-3
TCR (function menu) 11-4
TELE-F (function menu) 11-8
Tele-File
attribute data 7-11
clip data 7-3
format 7-12
memory label 7-1
overview 7-1
resume 7-10
undo 7-10
Time Code 4-2
TIME CODE IN connector 2-18
Time code input/output section 2-18
TIME CODE OUT connector 2-18
Time data 3-8
display 2-7
TRIM buttons 2-12
U
UMID (function menu) 11-8
UMID
display 8-4
output 8-4
overview 8-1
recording 8-2
Upper control panel 2-2
User bit values 4-2
V
VAR button 2-9
Variable speed mode 4-9
VIDEO (function menu) 11-5
VIDEO button 2-11
VIDEO CONTROL connector 2-18
Video test signal (setup menu item 710)
12-22
VID.IN (function menu) 11-3
VIN LV (function menu) 11-6
VITC (function menu) 11-4
VITC
external sync 4-4
field 3-9
V.PROC (function menu) 11-5
Y
YC DLY (function menu) 11-5
The material contained in this manual consists of
information that is the property of Sony Corporation and is
intended solely for use by the purchasers of the equipment
described in this manual.
Sony Corporation expressly prohibits the duplication of any
portion of this manual or the use thereof for any purpose
other than the operation or maintenance of the equipment
described in this manual without the express written
permission of Sony Corporation.
DVW-M2000/M2000P
DVW-2000/2000P
(SY,
Sony Corporation
B & P Company
)
3-826-015-03(1)
 2004
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF
