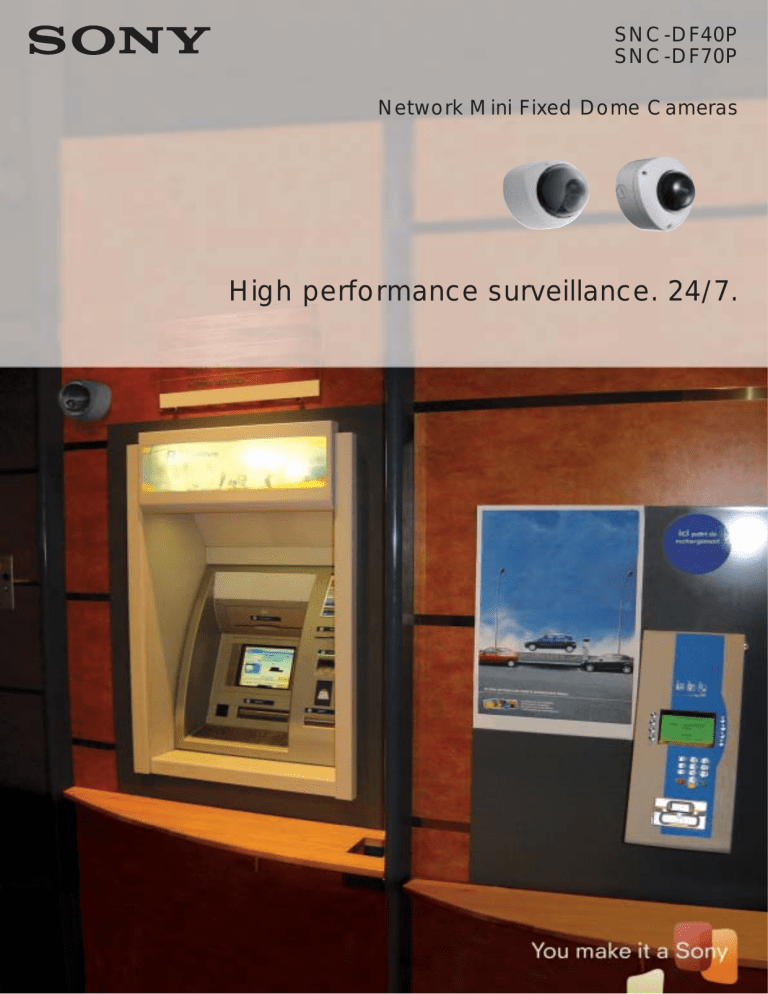

SNC-DF40P
SNC-DF70P
Network Mini Fixed Dome Cameras
High performance surveillance. 24/7.
High performance surveillance, indoor or out.
Day-time, night-time or round the clock.
Sony introduces two new additions to its line-up of
mini fixed dome cameras – the SNC-DF40P and
SNC-DF70P. These network cameras have a
compact dome design, making them highly
discreet - ideal for use in building entrances,
schools, offices, retail stores and shopping malls.
The SNC-DF Series incorporates a built-in web
server and network interface, enabling users to
control the cameras and monitor images over a
network.
These cameras utilise both MPEG-4 and JPEG
compression formats, allowing for smooth
video/audio streaming and providing high-quality
still images over a wide range of network
bandwidths.
What's more, audio input and line output for active
speakers permit audio monitoring and audible
warnings at the monitoring site.
To meet an even wider range of monitoring needs,
the SNC-DF70P also offers a Day/Night capability.
Along with its IP-66 rated aluminium diecast
construction, this makes it ideal for 24-hour
outdoor surveillance applications.
All-in-one Network Mini Fixed Dome Camera
The SNC-DF Series incorporates a built-in web
server and a 100Base-TX/10Base-T network
interface in a compact dome design, allowing users
to monitor live images and control cameras from a
PC running a standard web browser; additional
software or plug-ins are not needed. Its compact,
discreet appearance is ideal where less noticeable
video cameras are preferred.
Features
Easy Mounting and Flexible Installation
Superior Picture Quality
HAD™
The SNC-DF Series incorporates a 1/4-type Super
CCD that achieves high horizontal resolution of 480 TV lines
and high sensitivity. The CCD imager provides a minimum
illumination of 0.8 lx at F1.0 (SNC-DF40P)/0.9 lx at F1.0
(SNC-DF70P), enabling capture of clear images even under
low light conditions.
The SNC-DF Series can be wall- or celing-mounted with
the supplied ceiling mount bracket. An optional bracket is available
for a flush in-ceiling mount. For even greater flexibility, the 2.7x
varifocal lens incorporated into these cameras can be freely
rotated, allowing for easy adjustment of the camera's viewing
angle after installation.
MPEG-4 and JPEG Compression Formats
The SNC-DF Series supports both the MPEG-4 and JPEG
compression formats. The high compression ratio of MPEG-4
provides smooth moving images over networks even when
bandwidth is limited. If higher quality, still images are
preferred, then the industry standard JPEG compression
format is selectable from the setup menu. The SNC-DF Series
also supports variable bit rates up to 2 Mb/s.
Adjustment range of lens angle
a (Panning): +
-150°
b (Tilting): +
75°
c (Rotating): +
-150°
Image size can be selected from six modes: 640 x 480, 480 x
360, 384 x 288, 320 x 240, 256 x 192, and 160 x 120.
High Frame Rate
The SNC-DF Series produces images at a maximum frame
rate of 25fps*1 when the image size is 320 x 240 in both
MPEG-4 and JPEG modes, producing clear and smoothmoving images.
*1
In order to view images at the maximum frame rate, adequate PC processing
power and network bandwidth are required.
b
c
a
Audio Monitoring
Incorporating an external microphone input, the SNC-DF
Series is capable of picking up sound from the camera site
clearly. The unit is also equipped with an audio line output for
active speakers. This allows users to communicate with the
remote site, expanding the capability of remote monitoring
applications.
Day/Night Function (SNC-DF70P)
The SNC-DF70P features a 'Day/Night' capability, which
provides optimised sensitivity in both day and night shooting
applications.
As the scene darkens, an infrared filter is automatically
replaced with a clear filter and the camera switches to B&W
mode, allowing for operation at a minimum illumination of
0.2 lx at F1.0, or 0 lx*2 using an IR Illuminator from 3rd party
vendors.
Ceiling Surface Mount (SNC-DF40P)
*2 0 lux means absence of visible light to the naked eye.
Compatible with RealShot Manager
RealShot™ Manager is a powerful, easy-to-use management
platform that provides total control over a complete network
of cameras and video file servers. Recordings can be
searched by time/date, alarm events or inserted comments.
Camera settings can be adjusted according to user needs and
Pan-Tilt-Zoom control of Sony cameras is afforded by the
intuitive interface. On-screen layouts can be readily
customized to give the user convenient access to multiple
cameras.
Ceiling Flush Mount (SNC-DF40P)
* Optional YT-ICB40 Ceiling-mount
bracket is required.
Features
Analogue Composite Video Output
Network Security Features
Adaptive Rate Control
To meet Quality of Service (QoS) requirements over a
network, the SNC-DF Series provides an adaptive rate control
function. This automatically varies the bit rate of audio and
video data to meet changing network conditions and selects
the most appropriate frame rates while also helping to prevent
audio and video breakup.
Multicasting Capability
The SNC-DF Series has a built-in multicasting capability that
enables efficient video and audio streaming to a large number
of users.
Simultaneous Access
Up to 20 (JPEG mode)/10 (MPEG-4 mode) users can
simultaneously access any of the SNC-DF Series cameras
and monitor images separately.
Network Security Features
Access to the SNC-DF Series can be restricted to one or more
groups of selected users. Up to ten different groups can be
established by defining an IP address range for each group. In
addition, user names and passwords can be assigned to
allow three levels of access. The administrator has complete
access/control of the cameras while the other two levels of
access can be set to limit user privileges to functions such as
viewing, trigger control, etc.
Alarm Functions
Motion Detection/Alarm Trigger
The SNC-DF Series is equipped with a built-in motion
detection function that can generate an alarm through its
alarm-output port or trigger another device to perform a
variety of actions. The motion detection function uses vector
information to detect motion so that unwanted noise
components do not accidentally trigger the alarm. In addition,
the SNC-DF Series is equipped with a sensor-input port that
can receive a trigger from an external sensor.
Pre-/Post-Alarm Image Storage
With a built-in buffer memory, the SNC-DF Series can store
several seconds of pre-alarm and post-alarm still images
when an alarm is triggered by the motion detection function,
the alarm input, or both.
Image storage capacity
MPEG-4 image: Approx. 15 s* (pre-/post- 7.5 s)
* when the image size is 320 x 240 at a frame rate of 30 fps and a bit
rate of 512 kbps
JPEG image: Approx. 10 s* (pre-/post- 5 s)
* when the image size is 320 x 240 at a frame rate of 15 fps and the
image quality is set to Level 3
Image Transfer Using FTP/SMTP
All of the pre-/post-alarm images stored at the time of an
alarm event can be transferred to an FTP server for later
viewing. In addition, the still image captured at the time of an
alarm event can be sent to a designated e-mail address.
The SNC-DF Series is equipped with an analogue composite
video output, allowing camera images to be directly recorded
or monitored by connecting video equipment such as
time-lapse recorders, hard disk recorders, and monitors.
Rugged Design (SNC-DF70P)
The SNC-DF70P is specially designed to be used for outdoor
surveillance or indoors for vandal resistant applications.
The cameras are housed in a heavy-duty aluminium die-cast
enclosure with a durable polycarbonate viewing window.
These cameras comply with the IP66*4 standard for protection
against water and dust.
*4 Ingress Protection (IP) standard is a system for numerically classifying the
degree of protection provided by enclosures of electrical equipment against
solid objects and liquids. IP66 means there is no ingress of dust and the
equipment is protected against powerful water jets.
System Configuration
Monitoring using a web browser
or RealShot Manager
Sensor in
Sensor
100Base-TX
Alarm out
LAN/WAN
Motion Detection/IR Cont Out
SNC-DF40P
SNC-DF70P
Video out
PC
PC
Microphone
HSR-X206P
Digital Video
Surveillance Recorder
Speaker
Monitor
Dimensions
SNC-DF40P
Top view
SNC-DF70P
Rear view
Top view
Rear view
3/8)
1/2)
164.5 (6
166.1 (6
5/8)
5/8)
3/8)
89.3 (3
135 (5
1/4)
132 (5
87.2 (3
1/2)
125.5 (5)
3/8)
85.7 (3
3/8)
83.5 (3
123.9 (5)
85.7 (3
Unit: mm (inches)
Optional accessories
Rear panel layout
YT-ICB40
In-Ceiling bracket
for SNC-DF40P
YT-ICB70
In-Ceiling bracket
for SNC-DF70P
SNC-DF40P
Specifications
SNC-DF40P
SNC-DF70P
1/4-type Super HAD CCD
752 x 582
1/50 to 1/100,000 s
Auto:ON/OFF switchable (up to 18 dB)
Auto, Back-Light-Compensation(BLC)
ATW
CS mount
x2.7 Vari-focal auto iris lens
66.6 to 26.9 degrees
f=3.0 to 8.0 mm
F=1.0
CCD iris
200 mm
Yes
No
Yes
Camera
Image device
Number of effective pixels (H x V)
Electronic shutter
Gain control
Exposure control
White balance mode
Lens mount
Lens type
Horizontal viewing angle
Focal length
F number
Iris
Minimum object distance
Motion Detection
Day/Night function
Image size (H x V)
Compression format
Maximum frame rate (MPEG-4 mode)
(JPEG mode)
640 x 480, 480 x 360, 384 x 288, 320 x 240, 256 x 192, 160 x 120
MPEG-4/JPEG selectable
Max. 25 fps (320 x 240)
Max. 25 fps (320 x 240)
Audio
Compression format
G.711 (64 Kbps) / G.726 (40, 32, 24, 16 Kbps)
Network
Protocols
Number of clients
TCP/IP, UDP, RTP, RTCP, ARP, ICMP, DHCP, DNS, HTTP, FTP, SMTP
JPEG: 20 users, MPEG-4: 10 users
Interface
Ethernet
Analogue video output
Monitor output
I/O port
External microphone input
Audio line output
100Base-TX/10Base-T (RJ-45)
Composite video (1.0 Vp-p)
2-Pin connector
Sensor in (1), Alarm out (2)
Mini-jack, 2.4 V DC plug-in power, 4.7 kΩ
Mini-jack (Monoaural), max output level: 1 Vrms
Analogue video output
Signal system
Horizontal resolution
S/N ratio
Minimum illumination
(Colour)
(Black and White)
PAL (Composite)
480 TV lines
50 dB
0.8 lx (AGC On, F1.0, 50 IRE)
–
0.9 lx (AGC On, F1.0, 50 IRE)
0.2 lx (AGC On, F1.0)
General
Mass
Dimensions (W x H x D)
Power requirements
Power consumption
Operating temperature
Storage temperature
Operating humidity
Storage humidity
Approx. 750 g (1 lb 10 oz)
124 x 132 x 126 mm (5 x 5 1/4 x 5 inches)
without projection ports
AC 24 V 50/60 Hz, DC 12 V,POE
7.5 W
-10 to +50 ºC (14 to 122 ºF)
-20 to +60 ºC (-4 to +140 ºF)
20 to 80%, non-condensing
20 to 95%, non-condensing
Approx. 1,500 g (3 lb 5 oz)
165 x 135 x 166 mm (6 1/2 x 5 3/8 x 6 5/8 inches)
without projection ports
8.0 W
CD-ROM (setup program, users guide), Monitor cables (2),
AC power code, Wire rope, Screws (2),
Installation manual
CD-ROM (setup program, users guide), Monitor cables (2),
AC power code, Wire rope, Screws (2), Dome cover screw,
Installation manual
Supplied accessories
System requirements
Operating system
Processor
Memory
Web browser
Microsoft® Windows® 2000/XP
Intel® Pentium® III, 1 GHz or higher (Recommendation: Pentium IV, 2GHz or higher)
256 MB RAM minimum
Microsoft Internet Explorer® version 5.5 or 6.0
© 2004 Sony Corporation. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Features and specifications are subject to change
without notice. All non-metric weights and measurements are approximate. Sony is a registered trademark of Sony Corporation, Japan. Super HAD is a trademark of Sony
Corporation. All other trademarks are the property of their respective owners.
CA SNC-DF40P/GB- / /2004
SONY EUROPE
www.sonybiz.net
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
