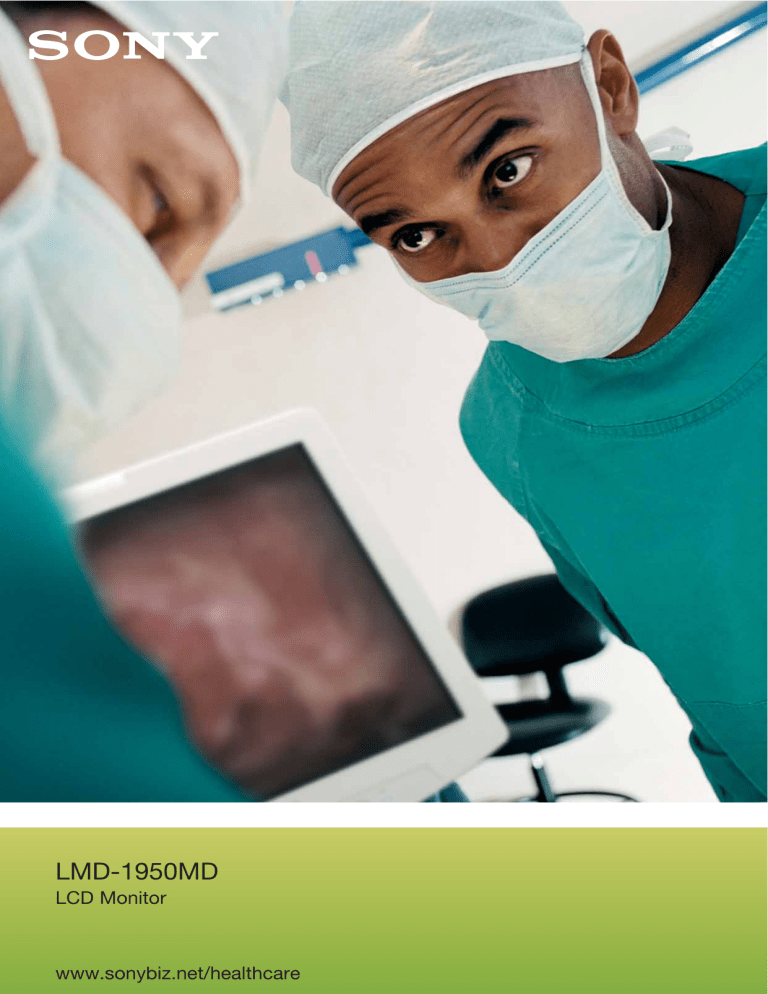

LMD-1950MD
LCD Monitor
www.sonybiz.net/healthcare
Sony has introduced a new addition to its
medical-grade LCD lineup – the LMD-1950MD
19.1-inch* LCD monitor. It meets stringent
medical safety and EMC standards and also
satisfies operating room requirements.
Incorporating a superb-quality SXGA (1280 x
1024) panel, the LMD-1950MD delivers
extremely high levels of brightness, contrast,
and colour depth. In addition to the Sony
original X-Algorithm technology for I/P
conversion, the monitor incorporates full
10-bit digital video signal processing, which
enables the unit to deliver natural images with
accurate colour reproduction. What’s more,
video signals** are reproduced at an extremely
high resolution of 700 TV lines, providing
detailed images – an essential requirement
for endoscopy applications.
The LMD-1950MD is equipped with a range
of interfaces as standard, allowing users to
view images from multiple sources. It can
accept analogue or digital video signals,
including high definition signals, as well as PC
signals. With multiple option boards, even
more signals can be accepted. In addition,
the LMD-1950MD incorporates a Native
Scan Mode, allowing users to monitor images
from high-definition cameras in native HD
resolution.
The LMD-1950MD has been designed
without air vents to prevent foreign matter
from entering or exiting the unit, and since the
unit complies with VESA mounting standards,
it can be mounted on a surgical mount-arm,
making it ideal for use in operating theatres.
With other convenient features such as User
Memory, Selectable Scan Modes, Auto
Chroma Phase Adjustment, and parallel/
serial interfaces for remote control, the
LMD-1950MD is an ideal choice for surgical
endoscopy applications.
* Viewable area measured diagonally.
** Component/RGB signals only.
LMD-1950MD
MEDICAL SAFETY APPROVAL
The LMD-1950MD complies with the
UL2601-1, CSA 601.1 and EN 60 601-1
safety regulations, making it suitable for
use in professional medical applications.
FEATURES
EXCELLENT PICTURE REPRODUCTION
Sophisticated I/P (Interlace
to Progressive) Conversion
With conventional LCD monitors,
interlace signals are displayed on the
progressive LCD pixel array by combining two adjacent picture fields into
one picture frame, or by doubling
scanning lines to create the progressive picture frame. However, these
I/P conversion methods can cause
picture degradation when displaying
moving images.
To solve this problem, the
LMD-1950MD provides sophisticated I/P conversion using Sony
original X-Algorithm technology. This
method combines the pixels above,
below, and in the diagonal direction
of the image in areas where there is
movement, and then inserts a natural
pixel to create the absent lines.
The result? Much smoother image
reproduction for both moving and
static picture areas.
Natural Gradation and
Accurate Colour Reproduction
(10-Bit DSP)
The LMD-1950MD adopts a newly
developed full 10-bit digital video
signal processor to produce accurate, life-like images with smooth and
natural gradation. Conventional LCD
monitors inherently exhibit colour
shift. However, the LMD-1950MD
with its 10-bit processing minimises
this and achieves accurate colour
reproduction with consistent colour
temperature throughout the grayscale.
High Horizontal Resolution
The LMD-1950MD achieves a high
horizontal resolution of 700 TV lines,
providing extremely precise and
detailed images, which is essential
during endoscopic procedures.
High Clarity SXGA-Panel
The LMD-1950MD incorporates an
extremely bright 19.1-inch LCD
panel with a robust multi-layer
AR-coated protection layer, which
minimises the damage that can
be caused by scratching the panel.
The AR coating also reduces the
reflection from ambient light to a
minimum. As a result, when used in
bright lighting conditions, high contrast is maintained even in dark
areas of the picture – a benefit over
current CRT monitors.
1920/1080/60i
1280/720/60p
1920
1280
720
1080
The scan size options are 20% Over
Scan, Normal Scan (7% over scan),
-3% Under Scan, Full Scan, Native
Scan and Zoom.
1080
SELECTABLE SCAN MODES
Native Scan Mode
The LMD-1950MD can accept a
variety of signals ranging from SD to
HD video, as well as PC signals via
its DVI-D or HD15 connectors. In
addition to its standard inputs, five
different optional input adapters are
offered for use in its two expansion
slots. This flexibility allows multiple
signal sources from a variety of
equipment to be connected and
monitored by selecting them from
the input button on the front panel.
The LMD-1950MD also provides
parallel and serial control ports as
standard.
Display image
1280
1280
1024
DESIGNED FOR USE
IN MEDICAL OPERATING
THEATRES
Preset Signals*
575/50i
625 575
(PAL)
480/60i
525 483
(NTSC)
576/50p 625 576
480/60p 525 483
1080/50i 1125 1080
1035/60i 1125 1035
Preset 1
Standrard
Aspect Ratio
Frame Rate *
Active Lines
Total Lines
Format
BKM-243HS
BKM-220D
The User Memory Function allows
up to 20 picture settings to be saved
in the memory, enabling Doctors to
set, save, and recall their preferred
picture settings. The following
parameters can be independently
set and the combination can be
saved as a picture setting:
Colour temperature / Brightness /
Contrast / Chroma / Phase /
Aperture / Gamma / Aspect /
Scan / Picture Delay Minimum /
User Memory Name
Video Input Formats
BKM-229X
BKM- 227W
Standard on
rear panel
OPERATIONAL
CONVENIENCE
The LMD-1950MD has been
designed with no air vents, which
means that blood, chemicals and
dust cannot enter the monitor, preventing damage and at the same
time keeping internal debris out of
the operating room. This, along with
the monitor’s compliance to the
100-mm hole spacing VESA mounting standard, makes the unit ideal
for use with a surgical equipment
arm in an operating room.
Optional Input Adaptors
Composite
Y/C
RGB
Component
SD-SDI
HD-SDI
DV
DVI-D
HD15
720
Display image
Scanning System
Input Adaptors
Original image
25 2:1 Interlace 16:9/4:3 EBU N10
(PAL: ITU-R BT.624)
30 2:1 Interlace 16:9/4:3 SMPTE 253M
(NTSC: SMPTE 170M)
50 Progressive 16:9/4:3 ITU-R BT.1358
60 Progressive 16:9/4:3 SMPTE 293M
25 2:1Interlace 16:9
SMPTE 274M
30 2:1 Interlace 16:9
SMPTE 260M/
BTA S-001B
1080/60i 1125 1080 30 2:1 Interlace 16:9
SMPTE 274M/
BTA S-001B
720/60p 750 720 60 Progressive 16:9
SMPTE 296M
* The frame rate is compatible with 1/1.001.
Preset
Signals
HD15 640 x 480
800 x 600
1024 x 768
1152 x 864
1280 x 960
1280 x 1024
720 x 400
VGA Mode 3
VGA VESA 72 Hz
VGA VESA 75 Hz
VGA VESA 85 Hz
VGA Non-CRT
SVGA VESA 56 Hz
SVGA VESA 60 Hz
SVGA VESA 72 Hz
SVGA VESA 75 Hz
SVGA VESA 85 Hz
SVGA Non-CRT
XGA VESA 60 Hz
XGA VESA 70 Hz
XGA VESA 75 Hz
XGA VESA 85 Hz
XGA Non-CRT
VESA 75 Hz
VESA 60 Hz
VESA Non-CRT
SXGA VESA 60 Hz
SXGA VESA 75 Hz
SXGA CRT 50 Hz
SXGA Non-CRT
VGA TEXT
fv (Hz)
INPUT VERSATILITY
Original image
fH (kHz)
Native Scan Mode can be selected
when displaying images generated
by HD signals (1080i/720p).
This mode performs pixel-to-pixel
mapping without scaling when
processing high-definition signals to
provide a native HD image on the
monitor. The centre area of the
image, which is most vital during
endoscopic applications, is displayed on the monitor.
31.5
37.9
37.5
43.3
29.5
35.2
37.9
48.1
46.9
53.7
37.0
48.4
56.5
60.0
68.7
47.3
67.5
60.0
59.2
64.0
80.0
52.7
63.2
31.5
60
72
75
85
60
56
60
72
75
85
60
60
70
75
85
60
75
60
60
60
75
50
60
70
* The DVI signal is automatically adjusted
within the range of the following input
signal. A range of Input signal: Horizontal
frequency: 31.5 to 64.0 kHz / Vertical
frequency: 50.0 to 85.1 Hz / Dot clock: 25.0
to 108.0 MHz
For more details, please consult your nearest
Sony dealer.
LMD-1950MD Specifications
Dimensions
Unit: mm (inches)
PICTURE PERFORMANCE
Resolution
1280 x 1024 dots (SXGA)
Picture Size
(H x W) (Diagonal)
Approx. 376 x 301 mm (14 7/8 x 11 7/8 inches)
Diagonal 482 mm (19.1 inches)
INPUT / OUTPUT
Composite
BNC (x 1)
1.0 Vp-p ±3 dB, sync negative
Y/C
4pin Mini DIN (x 1)
Y: 1.0 Vp-p ±3dB, sync negative
C: 0.286 Vp-p ±3dB (NTSC) / 0.3 Vp-p ±3dB (PAL)
Component/RGB
BNC (x 3)
218 (7 5/8)
185 (7 3/8)
403 (15 7/8)
89°/89°/89°/89°(typical) (up/down/left/right contrast>10:1)
303 (12)
5:4
Viewing Angle
Component
302 (12)
44 (1 3/4)
379 (15)
Aspect
Input
442 (17 1/2)
118 (4 3/4)
28°
125 (5)
a-Si TFT Active Matrix LCD with an AR-coated
protection panel
287 (11 3/8)
LCD Panel Type
195 (7 3/4)
274 (10 7/8)
Y: 1.0 Vp-p ±3 dB
Pb, Pr: 0.7 Vp-p ±3 dB
RGB
G: 0.7 Vp-p ±3 dB, Sync on G 0.3 Vp-p
B: 0.7 Vp-p ±3 dB
100 (4)
BNC (x1)
0.3 ~ 4 Vp-p ±bipolarity ternary or negative polarity binary
Remote
Output
Computer
DVI-D: TMDS (Single Link)
HD15
Analogue RGB: HD D-sub15pin (female);
0.7 Vp-p, 75 Ω sync positive (R, G, B)
Parallel
Modular 8 pin (Assignable)
Serial
RS-232C (serial remote), D-sub 9-pin
Composite
BNC (x 1), Loop-through, automatic 75 Ω termination
Y/C
4 pin Mini DIN (x 1), Loop-through, automatic 75 Ω
termination
Component/RGB
BNC (x 3), Loop-through, automatic 75 Ω termination
Ext. Sync
BNC (x 1), Loop-through, automatic 75 Ω termination
210 (8 3/8)
Ext. Sync
100 (4)
R: 0.7 Vp-p ±3 dB
Front Panel
3
4
5 6
7
8
9
!º
!¡
2
!™
!£
1
GENERAL
Power Consumption
Maximum: Approx. 66 W (with 2 x BKM-229X)
Standard: Approx. 59 W (without optional input adaptor)
Power Requirement
DC 24 V 2.8 A, AC 100 to 240 V ±10%, 50/60 Hz
Operating Temperature
0 to 40 °C (32 to 104 °F)
Operating Humidity
30 to 85 % (no condensation)
Storage & Transport Temperature
-20 to 60 °C (-4 to 140 °F)
Storage & Transport Humidity
0 to 90 % (no condensation)
Operating / Storage / Trans. Pressure
700 hPa to 1060 hPa
Dimensions (W x H x D)(inches)
442 x 403 x 118 (17 1/2 x 15 7/8 x 4 3/4)
1 I/O (Power) switch
2 Tally Lamp
3 APA (Auto Pixel Alignment)
key
4 (brightness) +/- keys
5 (contrast) +/- keys
6 MENU key
7 Arrow keys (
)
8 ENTER key
9 USER MEMORY key
!º INPUT / key
!¡
(key inhibit) indicator
!™ REMOTE indicator
!£ POWER indicator
Connector Panel
Mass
9.7 Kg (21 lb 6 oz) with 2 x BKM-229X
8 1 2 34 56
7
Supplied Accessories
AC adaptor,AC power cord,AC plug holder (2), DC cable,
Instructions for Use, CD-ROM,Warranty Card, Using
the CD-ROM Manual,Quick Reference, “When you first
use the monitor” booklet, Sales Companies Guide
9
!¡
Optional Accessories
BKM-227W: NTSC/PAL Input Adaptor
BKM-229X: Analogue Component Input Adaptor
BKM-220D: SDI 4:2:2 Input Adaptor
BKM-243HS: HD-SDI & SDI Input Adaptor
SU-560: Monitor Stand
1 COMPOSITE connector
(BNC)
2 Y/C connector (4-pin
mini-DIN)
3 G/Y connector (BNC)
4 B/PB connector (BNC)
5 R/PR connector (BNC)
6 EXT SYNC (external sync)
connector (BNC)
!º
7 Optional input slots
8
(equipotential/
function ground) terminal
9 DC IN socket
!º Loop-through output
connectors
!¡ DVI input connector (DVI-D)
© 2006 Sony Corporation. All rights reserved.
Reproduction in whole or in part without permission is prohibited.
Features and specifications are subject to change without notice.
All non-metric weights and measurements are approximate.
Images on monitors are simulated.
Sony is a registered trademark of Sony Corporation.
CA LMD-1950MD/GB- /01/2006
!™ !£
!¢
!™ HD15 input connector
(HD D-Sub 15 pin)
!£ PARALLEL REMOTE
terminal (modular
connector, 8 pin)
!¢ RS-232C (serial remote)
connector (D-Sub 9 pin)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
