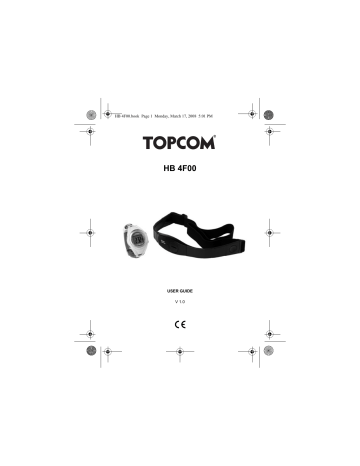

HB 4F00.book Page 1 Monday, March 17, 2008 5:01 PM
HB 4F00
USER GUIDE
V 1.0
HB 4F00.book Page 2 Monday, March 17, 2008 5:01 PM
UK The CE symbol indicates that the unit complies with the essential
requirements of the directive 89/336/EEC.
UK The features described in this manual are published with reservation to
modifications.
This product is in compliance with the essential requirements and other relevant provisions of the R&TTE directive 89/336/EEC.
The Declaration of conformity can be found on :
http://www.topcom.be/cedeclarations.asp
HB 4F00.book Page 3 Monday, March 17, 2008 5:01 PM
TOPCOM HB 4F00
TOPCOM TWINTALKER 3000
INTRODUCTION
Congratulations on your purchase of the HB 4F00. We hope that you will
enjoy using the Heart Meter and the benefits it offers. In exercise or sports,
your heart naturally speeds up in pumping blood to the body in accordance
with the increased energy level. The Heart Meter can calculate this increase
expressed as the number of beats per minute (bpm) to determine a target
heart rate safe for each individual. The HB 4F00 watch supports 4 user
modes:
1. Normal time mode
2. Alarm mode
3. Chronograph mode
4. Countdown timer mode
5. Heartrate mode
Current Time Mode
Daily Alarm Mode
Date Mode
Heart Rate Mode
Chronograph Mode
ENGLISH
1
3
Countdown Timer Mode
Exercise Timer Mode
More information about the target heart rate zone, maximum
heart rate etc... can be found on:
www.topcom.net/sports/heartbeat.asp
2
SAFETY NOTES
Using a Heart Monitor is NOT a substitute for professional medical
attention. If you suffer from heart disorder, illness or have recently taken up
fitness training, it is advisable that you seek a doctor or talk to your trainer
and work out a fitness plan that suits you.
The watch should only be used as a guide in maintaining a safe heart beat
rate for exercises. It should NOT be relied upon as a medical heart rate
monitor. If you are uncertain about how your exercise program will impact
on your heart, please consult a physician.
3
TOPCOM TWINTALKER 3000
3
HB 4F00.book Page 4 Monday, March 17, 2008 5:01 PM
4
TOPCOM HB 4F00
3
CARE AND MAINTENANCE
DO NOT expose the watch to extreme weather conditions or cleaning
agents and solvents. Avoid dropping or rough handling of the watch. Avoid
fastening the strap too tightly. Clean the watch with a dry soft cloth or a soft
cloth moistened with water and mild detergent. Store the watch in a dry
place when not in use.
ENGLISH
4
CHANGING THE BATTERY
If you are not confident with electronics, let the
battery be changed by a professional. Do not open
the watch yourself.
4.1 WATCH
•
Remove the back cover of the watch with a
small screwdriver.
Remove the old battery.
Install the new 3V (CR2032) battery with the
positive (+) pole facing up and replace the cover.
•
•
4.2 CHEST BELT
•
•
•
Remove the battery cover from the
bottom of the belt using a small coin.
Remove the old battery.
Install the new 3V (CR2032) battery
with the positive (+) pole facing the
battery cover and replace the cover.
5
BUTTONS
S1
S3
S2
S4
The buttons are mentioned in the manual
as follows:
•
•
•
•
•
•
•
•
S1 = Press S1 once
[S1] = Press & hold S1
S2 = Press S2 once
[S2] = Press & hold S2
S3 = Press S3 once
[S3] = Press & hold S3
S4 = Press S4 once
[S4] = Press & hold S4
4
4
REV 1.1 - U8006182
HB 4F00.book Page 5 Monday, March 17, 2008 5:01 PM
TOPCOM HB 4F00
5
TOPCOM TWINTALKER 3000
5.2 BACK LIGHT
Press S1 briefly to active the back light of the display for 3 seconds.
6
SETTING TIME/DATE, BEEP ON/OFF AND BIRTHDAY
In normal time mode (time on
display):
• [S2]: Seconds will blink.
• S3 or S4: Set seconds to
zero.
• S2: Confirm. Minutes will
blink.
• S3 or S4: Adjust minutes up
or down. [S3] or [S4]: Adjust
minutes quickly.
• S2: Confirm. Hour will blink.
• S3 or S4: Adjust hour up or
down. [S3] or [S4]: Adjust
hour quickly.
• S2: Confirm.
• S3 or S4: Adjust year up or
down.
[S3] or [S4]: Adjust year
quickly.
• S2: Confirm
ENGLISH
5.1 MASTER RESET
Press and hold S2, S3 and S4 simultaneously to reset the watch.
!!! All set information will be lost, also the time.
Current Time Mode
second
birthday
day
minute
birthday
month
hour
birthday
year
year
beep
month
12/24-hr
Increase or
decrease
the set value
Increase or
decrease
the set value
at a higher
speed
• S3 or S4: Adjust month up or
down. [S3] or [S4]: Adjust
month quickly.
• S2: Confirm.
day
D/M
or M/D
Setting Sequence
• S3 or S4: Adjust day up or down.
[S3] or [S4]: Adjust day quickly.
• S2: Confirm.
5
TOPCOM TWINTALKER 3000
5
HB 4F00.book Page 6 Monday, March 17, 2008 5:01 PM
6
TOPCOM HB 4F00
• S3 or S4: To set the month format in Month-Day or Day-Month.
• S2: Confirm.
• S3 or S4: To set the time format in 12HR or 24 HR.
• S2: Confirm.
ENGLISH
• S3 or S4: To set beep on (ON) or off (OF).
• S2: Confirm.
• S3 or S4: Adjust birth year up or down. [S3] or [S4]: Adjust year
quickly.
• S2: Confirm
• S3 or S4: Adjust birth month up or down. [S3] or [S4]: Adjust month
quickly.
• S2: Confirm
• S3 or S4: Adjust birthday up or down. [S3] or [S4]: Adjust day quickly.
• S2: Confirm
• [S2]: To leave the setting.
Normal time mode will be displayed when NO key is pressed for
1 minute.
7
TO SHOW THE DAY AND MONTH
In normal time mode (time on display):
• S3: The day and month are show for 10 seconds.
6
6
REV 1.1 - U8006182
HB 4F00.book Page 7 Monday, March 17, 2008 5:01 PM
TOPCOM HB 4F00
TOPCOM TWINTALKER 3000
SETTING ALARM TIME AND HOURLY CHIME
8.1 SETTING
In normal time mode (time on display):
• S2: To toggle to alarm mode.
• [S2]: Minutes will blink.
• S3 or S4: Adjust minutes up or down.
[S3] or [S4]: Adjust minutes quickly.
• S2: Confirm. Hour will blink.
ENGLISH
8
7
• S3 or S4: Adjust hour up or down.
[S3] or [S4]: Adjust hour quickly.
• [S2]: To confirm the setting of the alarm
time .
8.2 ACTIVATE / DEACTIVATE ALARM
In alarm mode:
S4: Alarm on
1.
2.
3.
S4: Alarm off
If the alarm time has been adjusted, alarm turns ON automatically.
When the alarm is ON, the watch sounds at the alarm time.
When the alarm rings, press any button except S1 to stop
the alarm.
8.3 ACTIVATE / DEACTIVATE HOURLY CHIME
In alarm mode:
S3: Chime on
S3: Chime off
7
TOPCOM TWINTALKER 3000
7
HB 4F00.book Page 8 Monday, March 17, 2008 5:01 PM
8
TOPCOM HB 4F00
9
CHRONOGRAPH MODE
The chronograph counts up to 99 hours, 59 minutes and 59
seconds.
ENGLISH
In normal time mode:
• 2 x S2: To toggle to chronograph mode.
• S3: Start chrono.
• S3: Stop / Pause chono.
• S4: Freeze display (split time)
• [S4] Reset the chrono (Only when chono is stopped).
10 COUNTDOWN MODE
The maximum counting down time is 99 hours, 59 and minutes 59
seconds. The initial setting of the timer is 1 minute.
During the last 5 seconds the watch will beep once per second, and
10 seconds when it reach zero.
When the timer is counted to zero, it will automatically reload the
preset value.
To set the countdown time:
• 3 x S2: To toggle to countdown mode.
• [S2]: Seconds will blink.
• S3 or S4: Adjust seconds up or down.
• [S3] or [S4]: Adjust seconds quickly.
• S2: Confirm. Minutes will blink.
• S3 or S4: Adjust minutes up or down.
• [S3] or [S4]: Adjust minutes quickly.
• S2: Confirm. Hour will blink.
• S3 or S4: Adjust hour up or down.
• [S3] or [S4]: Adjust hour quickly.
• [S2]: To confirm the the count down time.
To start the count down:
• S3: Start the counting.
• S3: Stop / Pause the counting. S4 to reset the counting timer (when
it’s stopped or paused).
8
8
REV 1.1 - U8006182
HB 4F00.book Page 9 Monday, March 17, 2008 5:01 PM
TOPCOM HB 4F00
9
TOPCOM TWINTALKER 3000
11.1 PRECAUTIONS
• Avoid fastening the strap too tight.
• Do not bend or fold the chest belt for preventing damage.
• Wetting the skin, where there is contact with the conductive area of
the chest belt will improve the conduction and get a more stable signal.
• The physical condition of an individual might effect the intensity of
measured signal.
• Avoid using the heart rate monitor close to a trolley car, a tram stop,
transformer, electric substation and high-tension distribution lines etc.
The radio signal will be affected under influence of the environment
from high voltage and strong electromagnetic fields.
ENGLISH
11 HEARTBEAT MEASUREMENT
11.2 USING THE TRANSMITTER BELT.
Fasten the fastener at one end. Try the chest belt on your chest and loosen
the stretch band if necessary.
Adjust the length of the stretch band until it feels conformable. The stretch
band must cling to the chest. Fasten the fastener at the other end. Adjust
the sensor to the center of your chest and be sure the backside of the
sensor clings to your chest and touches the skin.
The chest belt has to be worn while using the heart rate function.
9
TOPCOM TWINTALKER 3000
9
HB 4F00.book Page 10 Monday, March 17, 2008 5:01 PM
10
TOPCOM HB 4F00
Moisten the chess belt conductive pads with saliva of ECG-gel
(available at you local pharmacy) in order to ensure good
contact with the skin at all time.
ENGLISH
11.3 EXERCISE ZONES
Exercise zones are established by setting the Upper and Lower Heart Rate
Limits. These limits constitute a certain percentage of your Maximum Heart
Rate (MHR).
The following formula will help you to make an educated guess:
MHR = 220 - (Your age)
Use the following Heart Rate Zone Chart to select the zone you wish to
exercise in. You should consult a medical professional when selecting
a training zone, especially if you have a heart condition.
20
Burning glycogen
Burning fat
Age
25
30
35
40
45
50
55
60
65
Zone 3 - Performance - 80% - 95% MHR
190
185
180
175
171
166
161
156
152
147
160
156
152
148
144
140
136
132
128
124
160
156
152
148
144
140
136
132
128
124
130
126
123
120
117
113
110
107
104
100
Zone 2 - Fitness - 60% - 80% MHR
Zone 1 - Health - 50% - 65% MHR
130
126
123
120
117
113
110
107
104
100
100
97
95
92
90
87
85
82
80
77
10
10
REV 1.1 - U8006182
HB 4F00.book Page 11 Monday, March 17, 2008 5:01 PM
TOPCOM HB 4F00
11
TOPCOM TWINTALKER 3000
In time mode:
• S4: To go to Heart rate mode.
• S3: To activate the heart rate measurement
• When hartrate is recieved from the belt the following will be showed:
- the heart rate in beats per minutes
- Percentage of estimated maximum heart rate
%EMHR ( = current HR/MHR*100%)
ENGLISH
11.4 HEART RATE MEASUREMENT
The watch will beep every 10 seconds if no heart rate signal is
received from the belt. After 1 minute if no heart rate is received
the watch will return to Idle mode.
11.5 HEART RATE WITH EXERCISE TIMER
During heart rate measurement press S2 to toggle between current HR
measurement and excercise time. The excercise time automatically starts
when valid HR is measured.
percentage of estimated
maximum heart rate
acquired heart rate
(beats per minute)
Heart Rate Alert ON
Exercise Timer Counting
When no HR is measured during 10 seconds, the timer will stop and flash.
If no HR is measured during 50 seconds, the HR measurement will stop and
turn off automatically.
When the HR measurement is started again after it has been stopped, the
timer will start again from the last reading.
To reset the timer make sure it’s stopped: Press [S4] to reset
11
TOPCOM TWINTALKER 3000
11
HB 4F00.book Page 12 Monday, March 17, 2008 5:01 PM
12
TOPCOM HB 4F00
11.6 SETTING AND USING THE HEART RATE ZONE FUNCTION
Alert Zone
ON/OFF
AGE/HR/
% of HR
Upper Limit
in HR/
% of EMHR
Lower Limit
in HR/
% of EMHR
Increase or
decrease
the set value
Increase or
decrease
the set value
at a higher
speed
ENGLISH
Setting the heart Alert zone
The heart rate alert zone can be set by one of the following principles:
- User’s age
- Heart rate
- %EMH
When age is selected the upper and
lower limit are calculated
automatically as followed:
Heart Rate Mode
- Lower limit = 65% of the MHR
- Upper limit = 85% of the MHR
In heart rate mode: press [S2]
S3 or S4: to set the zone alarm On/
Off
S2: to confirm
If you select ON:
S4 or S4: to select AGE, HR% or HR
S2: to confirm
The lower limit is shown in BPM or in
%MHR
When HR% or HR is selected:
S3 or S4: to Increase/decrease the lower zone limit
S2: to confirm
S3 or S4: to Increase/decrease the upper zone limit
[S2]: to confirm
Using the heart rate zone alarm
If the heart rate zone alarm is On, the ‘Zone’ icon will be shown on the
display.
When you are above or below the zone limit:
- An arrow above/below the ‘Zone’ icon will indicate if you are under or
exceed the zone limit.
- the watch will beep twice every 10 seconds as a warning.
- the display will blink
12
12
REV 1.1 - U8006182
HB 4F00.book Page 13 Monday, March 17, 2008 5:01 PM
TOPCOM HB 4F00
13
TOPCOM TWINTALKER 3000
ENGLISH
When you are in the zone:
- The blinking will stop
Within the desirable
heart rate range
exceed
the upper limit
Heart Rate Mode
below
the lower limit
beep!!!
beep!!!
beep!!!
beep!!!
12 SPECIFICATIONS
Current Time Mode
• Hour, minute and second
• Month, day, day of week and year
• 12 / 24 hour format selectable
• Month-day/Day-month selectable
• Auto calendar from year 2000 to 2099
• Birthday range from year 1900 to 2099
• Automatic age calculation from birthday for estimated maximumheart rate calculation
• Hourly Chime on the hours
• Key tone ON/OFF
Heart Rate Mode
• Measuring range: 40 to 240 bpm
• Default Heart Rate Zone Value: 126 / 165 bpm for lower/higher
limit respectively
• Default Heart Rate % in Zone Value: 65% / 85% for lower/higher
limit respectively
Daily Alarm Mode
• Daily Alarm: 1 daily alarm
• Alarm Duration: about 30 seconds
Chronograph Mode
• Resolution: 1/100 second
• Counting range: 99 hours, 59 minutes, 59.99 seconds
13
TOPCOM TWINTALKER 3000
13
HB 4F00.book Page 14 Monday, March 17, 2008 5:01 PM
14
TOPCOM HB 4F00
Countdown Timer Mode
• Resoluton: 1 second
• Setting limit: 99 hours, 59 minutes, 59 seconds
• Timer sound: beep every 1 second at last seconds and beep for
10 seconds when count to zero
ENGLISH
Heart Rate Exercise Timer
• Resoluton: 1 second
• Counting range: 9 hours, 59 minutes, 59 seconds
Others
• Electro-luminescent backlight
13 TOPCOM WARRANTY
13.1 WARRANTY PERIOD
The Topcom units have a 24-month warranty period. The warranty period
starts on the day the new unit is purchased. There is no warranty on
standard or rechargeable batteries (AA/AAA type).
Consumables or defects causing a negligible effect on operation or value of
the equipment are not covered.
The warranty has to be proven by presentation of the original or copy of the
purchase receipt, on which the date of purchase and the unit-model are
indicated.
13.2 WARRANTY HANDLING
A faulty unit needs to be returned to a Topcom service centre including a
valid purchase note and a filled in service card.
If the unit develops a fault during the warranty period, Topcom or its officially
appointed service center will repair any defects caused by material or
manufacturing faults free of charge, by either repairing or exchanging the
faulty units or parts of the faulty units. In case of replacement, colour and
model can be different from the original purchased unit.
The initial purchase date shall determine the start of the warranty period.
The warranty period is not extended if the unit is exchanged or repaired by
Topcom or its appointed service centre.
14
14
REV 1.1 - U8006182
HB 4F00.book Page 15 Monday, March 17, 2008 5:01 PM
TOPCOM HB 4F00
15
TOPCOM TWINTALKER 3000
ENGLISH
13.3 WARRANTY EXCLUSIONS
Damage or defects caused by incorrect treatment or operation and damage
resulting from use of non-original parts or accessories are not covered by
the warranty.
The warranty does not cover damage caused by outside factors, such as
lightning, water and fire, nor any damage caused during transportation.
No warranty can be claimed if the serial number on the units has been
changed, removed or rendered illegible.
Any warranty claims will be invalid if the unit has been repaired, altered or
modified by the buyer.
15
TOPCOM TWINTALKER 3000
15
HB 4F00.book Page 16 Monday, March 17, 2008 5:01 PM
ENGLISH
16
16
REV 1.1 - U8006182
HB 4F00.book Page 17 Monday, March 17, 2008 5:01 PM
TOPCOM TWINTALKER 3000
17
TOPCOM TWINTALKER 3000
17
HB 4F00.book Page 18 Monday, March 17, 2008 5:01 PM
ENGLISH
18
18
REV 1.1 - U8006182
HB 4F00.book Page 19 Monday, March 17, 2008 5:01 PM
SERVICE RETURN CARD - RÜCKSENDEKARTE CARTE DE RETOUR SERVICE - RETOURFICHE
TOPCOM TWINTALKER 3000
RETURN WITH YOUR DEFECT PRODUCT
Name/Vorname/Prénom/Naam:
Surname/Familienname/Nom/Familienaam:
Street/Straße/Rue/Straat:
Nr./N°:
Box/Postfach/Boîte/Postbus:
Location/Ort./Lieu/Plaats:
Post code/Postleitzahl/Code Postal/Postcode:
Country/Land/Pays/Land:
Tel./Tél.:
E-mail:
Model name/Modellbezeichnung/Nom du modèle/Modelnaam:
Serial Nr/Seriennummer/N° série/Serienummer:
Purchase date/Kaufdatum/Date d’achat/Aankoopdatum:
(DD/MM/YYYY) - (TT/MM/JJJJ)
Fault description/Beschreibung des Defekts/Description de la panne/Beschrijving defect:
(Original Proof of Purchase has to be attached to this return card to be valid for warranty)
Model name/Modellbezeichnung/Nom du modèle/Modelnaam:
Serial Nr/Seriennummer/N° série/Serienummer:
Purchase date/Kaufdatum/Date d’achat/Aankoopdatum:
(DD/MM/YYYY) - (TT/MM/JJJJ)
Fault description/Beschreibung des Defekts/Description de la panne/Beschrijving defect:
R00001
19
TOPCOM TWINTALKER 3000
19
HB 4F00.book Page 20 Monday, March 17, 2008 5:01 PM
visit our website
www.topcom.net
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
