Toro MP3 Player SA2220 User manual

Toro MP3 Player SA2220 User manual

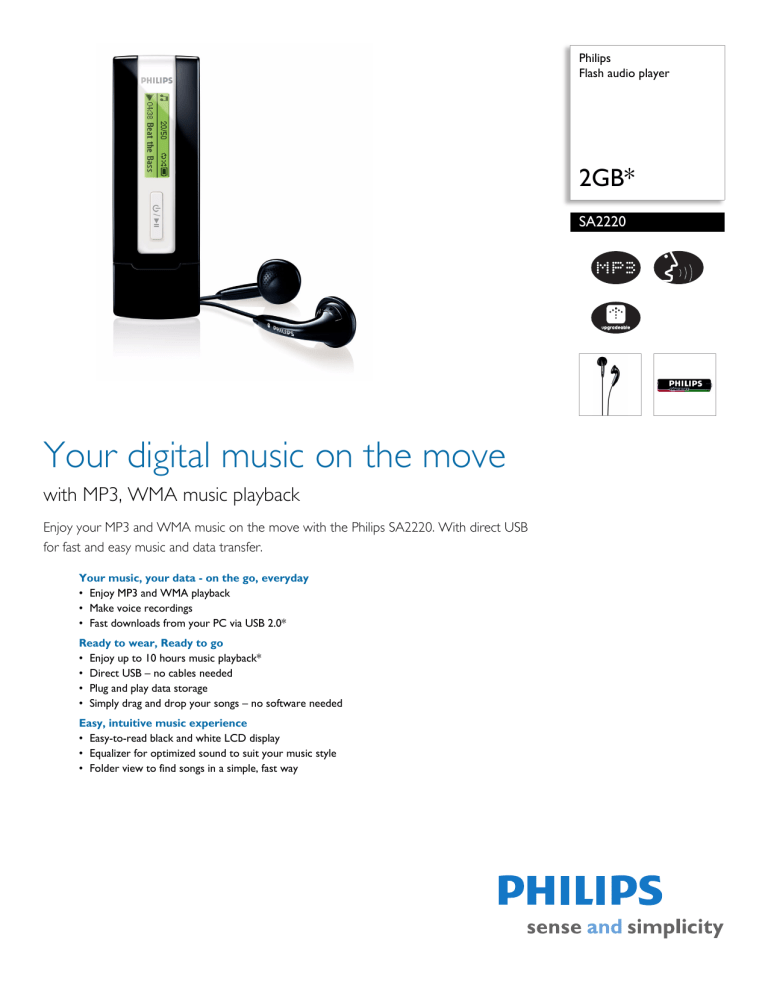

Philips
Flash audio player
2GB*
SA2220
Your digital music on the move
with MP3, WMA music playback
Enjoy your MP3 and WMA music on the move with the Philips SA2220. With direct USB
for fast and easy music and data transfer.
Your music, your data - on the go, everyday
• Enjoy MP3 and WMA playback
• Make voice recordings
• Fast downloads from your PC via USB 2.0*
Ready to wear, Ready to go
• Enjoy up to 10 hours music playback*
• Direct USB – no cables needed
• Plug and play data storage
• Simply drag and drop your songs – no software needed
Easy, intuitive music experience
• Easy-to-read black and white LCD display
• Equalizer for optimized sound to suit your music style
• Folder view to find songs in a simple, fast way
SA2220/37
Flash audio player
2GB*
Specifications
Picture/Display
•
•
•
•
Connectivity
Backlight
Lines of text: 2
Resolution: 32 x 128
Type: LCD
• Headphone: 3.5 mm
• USB: High-speed USB 2.0
Convenience
Sound
•
•
•
•
•
Channel separation: 35 dB
Equalizer settings: Classic, Jazz, Pop, Rock
Frequency response: 80 - 18 000 Hz
Output power (RMS): 2 x 3 mW
Signal to noise ratio: > 80 dB
Audio Playback
• Compression format: MP3, WAV, Windows
Media™ Audio
• ID3 Tag support: Track title and artist name
• MP3 bit rates: 8-320 kbps and VBR
• MP3 sample rates: 8, 11.025, 16, 22.050, 24, 32,
44.1, 48 kHz
• WMA bit rates: 64-320 kbps
• WMA sample rates: 8, 11.025, 16, 22.050, 32, 44.1,
48 kHz
Audio Capturing
• Audio file format: WAV
• Built-in microphone: mono
• Voice recording: ADPCM
Storage Media
•
•
•
•
Built-in memory capacity: 2 GB
Built-in memory type: NAND Flash
Mass storage class compliant
Music memory capacity, WMA: Up to 930 tracks *
• Firmware upgradeable
• Function: Keypad lock
Accessories
• Batteries: AAA Alkaline
• Headphones: AY3809
• User Guide on CD-ROM
Software
• Device manager: to restore and upgrade
Green Specifications
• Lead-free soldered product
System Requirements
• CD-ROM drive
• Internet connection: Yes (for access to updated
support documents, manuals, future firmware and
PC software upgrades)
• PC OS: Windows 2000, Me, XP
• USB: Free USB port
Dimensions
• Blister dimensions (WxDxH): 135 x 38 x 195 mm
• Packaging type: Clamshell
• Product dimensions (WxDxH): 31 X 19.5 X 91.5
mm
Power
• Batteries included
• Battery type: AAA / LR03 Alkaline
• Playtime on external battery: Up to 10 hours
•
Issue date 2008-07-02
© 2008 Koninklijke Philips Electronics N.V.
All Rights reserved.
Version: 2.0.5
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
12 NC: 8670 000 30192
UPC: 6 09585 13346 4
www.philips.com
