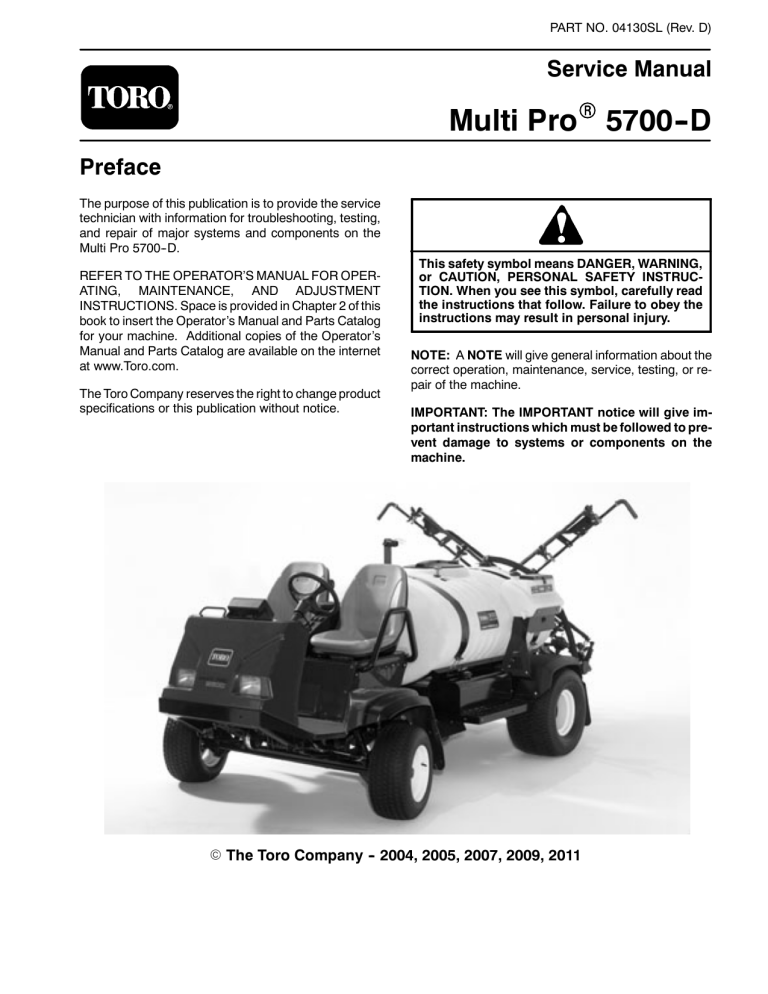

PART NO. 04130SL (Rev. D)
Service Manual
Multi ProR 5700--D
Preface
The purpose of this publication is to provide the service
technician with information for troubleshooting, testing,
and repair of major systems and components on the
Multi Pro 5700--D.
REFER TO THE OPERATOR’S MANUAL FOR OPERATING, MAINTENANCE, AND ADJUSTMENT
INSTRUCTIONS. Space is provided in Chapter 2 of this
book to insert the Operator’s Manual and Parts Catalog
for your machine. Additional copies of the Operator’s
Manual and Parts Catalog are available on the internet
at www.Toro.com.
The Toro Company reserves the right to change product
specifications or this publication without notice.
This safety symbol means DANGER, WARNING,
or CAUTION, PERSONAL SAFETY INSTRUCTION. When you see this symbol, carefully read
the instructions that follow. Failure to obey the
instructions may result in personal injury.
NOTE: A NOTE will give general information about the
correct operation, maintenance, service, testing, or repair of the machine.
IMPORTANT: The IMPORTANT notice will give important instructions which must be followed to prevent damage to systems or components on the
machine.
E The Toro Company - 2004, 2005, 2007, 2009, 2011

This page is intentionally blank.
Multi Pro 5700--D
Product Records . . . . . . . . . . . . . . . . . . . . . . . . . . .
Equivalents and Conversions . . . . . . . . . . . . . . . .
Torque Specifications . . . . . . . . . . . . . . . . . . . . . . .
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 -2 -2 -2 --
1
2
3
7
Chapter 3 -- Kubota Diesel Engine
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 -- 1
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 -- 2
Service and Repairs . . . . . . . . . . . . . . . . . . . . . . . . 3 -- 4
KUBOTA 05 SERIES ENGINE SERVICE MANUAL
Chapter 4 -- Hydraulic System
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General Information . . . . . . . . . . . . . . . . . . . . . . . .
Spray System Flow Diagram . . . . . . . . . . . . . . . . .
Spray System Operation . . . . . . . . . . . . . . . . . . . .
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service and Repairs . . . . . . . . . . . . . . . . . . . . . . . .
6 -6 -6 -6 -6 -6 --
2
3
4
5
6
8
Chapter 7 -- Chassis
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 -- 2
Service and Repairs . . . . . . . . . . . . . . . . . . . . . . . . 7 -- 3
Chassis
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 -- 3
General Information . . . . . . . . . . . . . . . . . . . . . . . . 4 -- 4
Hydraulic Schematic . . . . . . . . . . . . . . . . . . . . . . . . 4 -- 8
Hydraulic Flow Circuits . . . . . . . . . . . . . . . . . . . . . . 4 -- 9
Special Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 -- 12
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 -- 14
Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 -- 16
Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 -- 25
Service and Repairs . . . . . . . . . . . . . . . . . . . . . . . 4 -- 27
EATON MODEL 26000 SINGLE GEAR PUMP REPAIR
INFORMATION
EATON MODEL 72400 SERVO CONTROLLED PISTON PUMP REPAIR INFORMATION
EATON MODEL 74318 and 74348 PISTON MOTORS:
FIXED DISPLACEMENT, VALVE PLATE DESIGN
REPAIR INFORMATION
PARKER TORQLINKTM SERVICE PROCEDURE
Chapter 6 -- Spray System
Product Records
and Maintenance
Chapter 2 -- Product Records and Maintenance
Kubota Diesel
Engine
Electrical Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . 5 -- 2
Special Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 -- 3
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 -- 4
Electrical System Quick Checks . . . . . . . . . . . . . . 5 -- 6
Component Testing . . . . . . . . . . . . . . . . . . . . . . . . . 5 -- 7
Service and Repairs . . . . . . . . . . . . . . . . . . . . . . . 5 -- 27
Hydraulic
System
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . 1 -- 2
Jacking Instructions . . . . . . . . . . . . . . . . . . . . . . . . . 1 -- 4
Safety and Instruction Decals . . . . . . . . . . . . . . . . 1 -- 4
Electrical
System
Chapter 5 -- Electrical System
Spray
System
Chapter 1 -- Safety
Safety
Table Of Contents
Multi Pro 5700--D
This page is intentionally blank.
Multi Pro 5700--D
General Information . . . . . . . . . . . . . . . . . . . . . . 7.1 -- 2
Special Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.1 -- 3
Electrical Schematic . . . . . . . . . . . . . . . . . . . . . . 7.1 -- 4
Sonic Boom System Operation . . . . . . . . . . . . . 7.1 -- 6
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . 7.1 -- 16
Service and Repairs . . . . . . . . . . . . . . . . . . . . . 7.1 -- 22
Chapter 8 -- Electrical Diagrams
Electrical Schematics . . . . . . . . . . . . . . . . . . . . . . . 8 -- 3
Circuit Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 -- 6
Wire Harness Drawings . . . . . . . . . . . . . . . . . . . . 8 -- 10
Multi Pro 5700--D
Rev. D
Electrical
Drawings
Chapter 7.1 -- Sonic Boom System (Optional Kit)
Sonic Boom
System
Table Of Contents (Continued)
This page is intentionally blank.
Rev. D
Multi Pro 5700--D
Safety
Table of Contents
SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . .
Before Operating . . . . . . . . . . . . . . . . . . . . . . . . . . . .
While Operating . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maintenance and Service . . . . . . . . . . . . . . . . . . . .
Multi Pro 5700–D
2
2
2
3
JACKING INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . 4
SAFETY AND INSTRUCTION DECALS . . . . . . . . . . 4
Page 1 – 1
Safety
Safety
Chapter 1
Safety Instructions
The Multi Pro 5700--D Turf Sprayer is designed and
tested to offer safe service when operated and maintained properly. Although hazard control and accident
prevention are partially dependent upon the design and
configuration of the machine, these factors are also dependent upon the awareness, concern, and proper
training of the personnel involved in the operation, transport, maintenance, and storage of the machine. Improper use or maintenance of the machine can result in injury
or death. To reduce the potential for injury or death,
comply with the following safety instructions.
WARNING
To reduce the potential for injury or death,
comply with the following safety instructions.
Before Operating
1. Read and understand the contents of the Operator’s
Manual before starting and operating the machine. Become familiar with the controls and know how to stop the
machine and engine quickly. Additional copies of the
Operator’s Manual are available on the internet at
www.Toro.com.
2. Keep all shields, safety devices, and decals in place.
If a shield, safety device, or decal is defective, illegible
or damaged, repair or replace it before operating the
machine. Also tighten any loose nuts, bolts or screws to
ensure machine is in safe operating condition.
3. Assure interlock switches are adjusted correctly so
engine cannot be started unless traction pedal is in the
NEUTRAL position.
4. Since diesel fuel is highly flammable, handle it carefully:
A. Store fuel in containers specifically designed for
this purpose.
B. Do not remove machine fuel tank cap while engine is hot or running.
C. Do not smoke while handling fuel.
D. Fill fuel tank outdoors and only to within an inch of
the top of the tank, not the filler neck. Do not overfill
the fuel tank.
E. Wipe up any spilled fuel.
While Operating
1. Sit on the seat when starting and operating the machine.
2. Before starting the engine:
5. Before getting off the seat:
A. Ensure that traction pedal is in the NEUTRAL
position.
A. Engage the parking brake.
B. Set parking brake.
B. Make sure traction pedal is in the NEUTRAL position and the pump switch is OFF.
C. Turn pump switch OFF.
3. Do not run engine in a confined area without adequate ventilation. Exhaust fumes are hazardous and
could possibly be deadly.
4. Do not touch engine, radiator, muffler or exhaust
pipe while engine is running or soon after it is stopped.
These areas could be hot enough to cause burns.
Safety
D. Stop engine and remove key from ignition switch.
E. Do not park on slopes unless wheels are chocked
or blocked.
6. Follow spray chemical manufacturer’s recommendations for handling precautions, protective equipment,
and mixing proportions.
Page 1 -- 2 Rev. C
Multi Pro 5700--D
1. Before servicing or making adjustments, turn spray
pump off, put traction pedal in neutral, stop engine, set
parking brake, and remove key from the switch.
2. Prior to servicing sprayer components, determine
what chemical(s) have been used in the sprayer. Follow
precautions and recommendations printed on chemical
container labels or Material Safety Data Sheets when
servicing sprayer components. Use appropriate protective equipment: protective clothing, chemical resistant
gloves, and eye protection.
3. Make sure machine is in safe operating condition by
keeping all nuts, bolts and screws tight.
4. Never store the machine or fuel container inside
where there is an open flame, such as near a water heater or furnace.
5. Make sure all hydraulic line connectors are tight and
that all hydraulic hoses and lines are in good condition,
before applying pressure to the system.
6. Keep body and hands away from pin hole leaks in hydraulic lines that eject high pressure hydraulic fluid. Use
cardboard or paper to find hydraulic leaks. Hydraulic
fluid escaping under pressure can penetrate skin and
cause injury. Fluid accidentally injected into the skin
must be surgically removed within a few hours by a doctor familiar with this form of injury or gangrene may result.
7. Before disconnecting or performing any work on the
hydraulic system, all pressure in hydraulic system must
be relieved. To relieve system pressure, rotate steering
wheel in both directions after the key switch has been
turned off.
8. If major repairs are ever needed or assistance is desired, contact an Authorized Toro Distributor.
9. To reduce potential fire hazard, keep engine area
free of excessive grease, grass, leaves and dirt. Clean
protective screen on machine frequently.
Multi Pro 5700–D
10.If engine must be running to perform maintenance or
an adjustment, keep clothing, hands, feet, and other
parts of the body away from moving parts. Keep bystanders away.
11. Do not overspeed the engine. To assure safety and
accuracy, check maximum engine speed.
12.Shut engine off before checking or adding oil to the
crankcase.
13.Disconnect battery before servicing the machine.
Disconnect negative (–) battery cable first and positive
(+) cable last. If battery voltage is required for troubleshooting or test procedures, temporarily connect the
battery. Reconnect positive (+) cable first and negative
(–) cable last.
14.Battery acid is poisonous and can cause burns.
Avoid contact with skin, eyes, and clothing. Protect your
face, eyes, and clothing when working with a battery.
15.Battery gases can explode. Keep cigarettes, sparks,
and flames away from the battery.
16.To assure optimum performance and continued
safety of the machine, use genuine Toro replacement
parts and accessories. Replacement parts and accessories made by other manufacturers may result in nonconformance with safety standards, and the warranty
may be voided.
17.When raising the machine to change tires or to perform other service, use correct blocks, hoists, and jacks.
Make sure machine is parked on a solid level surface
such as a concrete floor. Prior to raising the machine, remove any attachments that may interfere with the safe
and proper raising of the machine. Always chock or
block wheels. Use jack stands or solid wood blocks to
support the raised machine. If the machine is not properly supported by blocks or jack stands, the machine
may move or fall, which may result in personal injury
(see Jacking Instructions in this Chapter).
Page 1 – 3
Safety
Safety
Maintenance and Service
Jacking Instructions
CAUTION
When raising the machine to change tires or to
perform other service, use correct blocks,
hoists, and jacks. Make sure machine is parked
on a solid level surface such as a concrete floor.
Prior to raising machine, remove any attachments that may interfere with the safe and proper raising of the machine. Always chock or
block wheels. Use jack stands or solid wood
blocks to support the raised machine. If the machine is not properly supported by blocks or
jack stands, the machine may move or fall,
which may result in personal injury.
1
1
Figure 1
1. Front jacking points
Jacking the Front End
1. Set parking brake and chock both rear tires to prevent the machine from moving.
2. Position jack securely under the front axle, directly
beneath the leaf springs (Fig. 1).
3. Jack front of machine off the ground.
1
1
4. Position jack stands or hardwood blocks under the
axle as close to the wheel as possible to support the machine.
Figure 2
Jacking the Rear End
1. Rear jacking points
1. Set parking brake and chock both front tires to prevent the machine from moving.
2. Place jack securely under the rear most frame supports between the angle welds (Fig. 2).
3. Jack rear of machine off the ground.
4. Position jack stands or hardwood blocks under the
frame to support the machine.
Safety and Instruction Decals
Numerous safety and instruction decals are affixed to
the Multi Pro 5700–D. If any decal becomes illegible or
damaged, install a new decal. Part numbers are listed
in your Parts Catalog. Order replacement decals from
your Authorized Toro Distributor.
Safety
Page 1 – 4
Multi Pro 5700–D
Chapter 2
Product Records and Maintenance
PRODUCT RECORDS . . . . . . . . . . . . . . . . . . . . . . . . .
EQUIVALENTS AND CONVERSIONS . . . . . . . . . . .
Decimal and Millimeter Equivalents . . . . . . . . . . . .
U.S. to Metric Conversions . . . . . . . . . . . . . . . . . . .
TORQUE SPECIFICATIONS . . . . . . . . . . . . . . . . . . . .
Fastener Identification . . . . . . . . . . . . . . . . . . . . . . .
Standard Torque for Dry, Zinc Plated and
Steel Fasteners (Inch Series Fasteners) . . . . . .
Standard Torque for Dry, Zinc Plated and
Steel Fasteners (Metric Fasteners) . . . . . . . . . . .
Other Torque Specifications . . . . . . . . . . . . . . . . . .
Conversion Factors . . . . . . . . . . . . . . . . . . . . . . . . . .
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Records
and Maintenance
Table of Contents
1
2
2
2
3
3
4
5
6
6
7
Product Records
Insert Operator’s Manual and Parts Catalog for your
Multi Pro 5700--D at the end of this chapter. Additionally,
if any optional equipment has been installed to your
sprayer, insert the Installation Instructions, Operator’s
Manuals and Parts Catalogs for those options at the end
of this chapter.
Multi Pro 5700--D
Page 2 -- 1
Product Records and Maintenance
Equivalents and Conversions
0.09375
Product Records and Maintenance
Page 2 -- 2 Rev. C
Multi Pro 5700--D
Recommended fastener torque values are listed in the
following tables. For critical applications, as determined
by Toro, either the recommended torque or a torque that
is unique to the application is clearly identified and specified in this Service Manual.
These Torque Specifications for the installation and
tightening of fasteners shall apply to all fasteners which
do not have a specific requirement identified in this Service Manual. The following factors shall be considered
when applying torque: cleanliness of the fastener, use
of a thread sealant (e.g. Loctite), degree of lubrication
on the fastener, presence of a prevailing torque feature,
hardness of the surface underneath the fastener’s head,
or similar condition which affects the installation.
As noted in the following tables, torque values should be
reduced by 25% for lubricated fasteners to achieve
the similar stress as a dry fastener. Torque values may
also have to be reduced when the fastener is threaded
into aluminum or brass. The specific torque value
should be determined based on the aluminum or brass
material strength, fastener size, length of thread engagement, etc.
The standard method of verifying torque shall be performed by marking a line on the fastener (head or nut)
and mating part, then back off fastener 1/4 of a turn.
Measure the torque required to tighten the fastener until
the lines match up.
Fastener Identification
Grade 1
Grade 5
Grade 8
Class 8.8
Inch Series Bolts and Screws
Metric Bolts and Screws
Figure 1
Multi Pro 5700–D
Class 10.9
Figure 2
Page 2 – 3
Product Records and Maintenance
Product Records
and Maintenance
Torque Specifications
Standard Torque for Dry, Zinc Plated and Steel Fasteners (Inch Series Fasteners)
Thread Size
Grade 1, 5, &
8 with Thin
Height Nuts
SAE Grade 1 Bolts, Screws, Studs, &
Sems with Regular Height Nuts
(SAE J995 Grade 2 or Stronger Nuts)
in–lb
in–lb
N–cm
10 + 2
13 + 2
147 + 23
# 6 – 32 UNC
# 6 – 40 UNF
# 8 – 32 UNC
13 + 2
25 + 5
# 10 – 24 UNC
30 + 5
SAE Grade 8 Bolts, Screws, Studs, &
Sems with Regular Height Nuts
(SAE J995 Grade 5 or Stronger Nuts)
in–lb
N–cm
in–lb
N–cm
15 + 2
170 + 20
23 + 2
260 + 20
17 + 2
190 + 20
25 + 2
280 + 20
29 + 3
330 + 30
41 + 4
460 + 45
31 + 3
350 + 30
43 + 4
485 + 45
42 + 4
475 + 45
60 + 6
675 + 70
48 + 4
540 + 45
68 + 6
765 + 70
282 + 30
# 8 – 36 UNF
18 + 2
SAE Grade 5 Bolts, Screws, Studs, &
Sems with Regular Height Nuts
(SAE J995 Grade 2 or Stronger Nuts)
339 + 56
# 10 – 32 UNF
1/4 – 20 UNC
48 + 7
53 + 7
599 + 79
100 + 10
1125 + 100
140 + 15
1580 + 170
1/4 – 28 UNF
53 + 7
65 + 10
734 + 113
115 + 10
1300 + 100
160 + 15
1800 + 170
5/16 – 18 UNC
115 + 15
105 + 17
1186 + 169
200 + 25
2250 + 280
300 + 30
3390 + 340
5/16 – 24 UNF
138 + 17
128 + 17
1446 + 192
225 + 25
2540 + 280
325 + 30
3670 + 340
ft–lb
ft–lb
N–m
ft–lb
N–m
ft–lb
N–m
3/8 – 16 UNC
16 + 2
16 + 2
22 + 3
30 + 3
41 + 4
43 + 4
58 + 5
3/8 – 24 UNF
17 + 2
18 + 2
24 + 3
35 + 3
47 + 4
50 + 4
68 + 5
7/16 – 14 UNC
27 + 3
27 + 3
37 + 4
50 + 5
68 + 7
70 + 7
95 + 9
7/16 – 20 UNF
29 + 3
29 + 3
39 + 4
55 + 5
75 + 7
77 + 7
104 + 9
1/2 – 13 UNC
30 + 3
48 + 7
65 + 9
75 + 8
102 + 11
105 + 10
142 + 14
1/2 – 20 UNF
32 + 3
53 + 7
72 + 9
85 + 8
115 + 11
120 + 10
163 + 14
5/8 – 11 UNC
65 + 10
88 + 12
119 + 16
150 + 15
203 + 20
210 + 20
285 + 27
5/8 – 18 UNF
75 + 10
95 + 15
129 + 20
170 + 15
230 + 20
240 + 20
325 + 27
3/4 – 10 UNC
93 + 12
140 + 20
190 + 27
265 + 25
359 + 34
375 + 35
508 + 47
3/4 – 16 UNF
115 + 15
165 + 25
224 + 34
300 + 25
407 + 34
420 + 35
569 + 47
7/8 – 9 UNC
140 + 20
225 + 25
305 + 34
430 + 45
583 + 61
600 + 60
813 + 81
7/8 – 14 UNF
155 + 25
260 + 30
353 + 41
475 + 45
644 + 61
660 + 60
895 + 81
NOTE: Reduce torque values listed in the table above
by 25% for lubricated fasteners. Lubricated fasteners
are defined as threads coated with a lubricant such as
oil, graphite, or thread sealant such as Loctite.
NOTE: Torque values may have to be reduced when
installing fasteners into threaded aluminum or brass.
The specific torque value should be determined based
Product Records and Maintenance
on the fastener size, the aluminum or base material
strength, length of thread engagement, etc.
NOTE: The nominal torque values listed above for
Grade 5 and 8 fasteners are based on 75% of the minimum proof load specified in SAE J429. The tolerance is
approximately + 10% of the nominal torque value. Thin
height nuts include jam nuts.
Page 2 – 4
Multi Pro 5700–D
Standard Torque for Dry, Zinc Plated and Steel Fasteners (Metric Fasteners)
Class 8.8 Bolts, Screws, and Studs with
Regular Height Nuts
(Class 8 or Stronger Nuts)
Class 10.9 Bolts, Screws, and Studs with
Regular Height Nuts
(Class 10 or Stronger Nuts)
M5 X 0.8
57 + 5 in–lb
640 + 60 N–cm
78 + 7 in–lb
885 + 80 N–cm
M6 X 1.0
96 + 9 in–lb
1018 + 100 N–cm
133 + 13 in–lb
1500 + 150 N–cm
M8 X 1.25
19 + 2 ft–lb
26 + 3 N–m
27 + 2 ft–lb
36 + 3 N–m
M10 X 1.5
38 + 4 ft–lb
52 + 5 N–m
53 + 5 ft–lb
72 + 7 N–m
M12 X 1.75
66 + 7 ft–lb
90 + 10 N–m
92 + 9 ft–lb
125 + 12 N–m
M16 X 2.0
166 + 15 ft–lb
225 + 20 N–m
229 + 22 ft–lb
310 + 30 N–m
M20 X 2.5
325 + 33 ft–lb
440 + 45 N–m
450 + 37 ft–lb
610 + 50 N–m
NOTE: Reduce torque values listed in the table above
by 25% for lubricated fasteners. Lubricated fasteners
are defined as threads coated with a lubricant such as
oil, graphite, or thread sealant such as Loctite.
NOTE: Torque values may have to be reduced when
installing fasteners into threaded aluminum or brass.
The specific torque value should be determined based
Multi Pro 5700–D
on the fastener size, the aluminum or base material
strength, length of thread engagement, etc.
NOTE: The nominal torque values listed above are
based on 75% of the minimum proof load specified in
SAE J1199. The tolerance is approximately + 10% of the
nominal torque value.
Page 2 – 5
Product Records and Maintenance
Product Records
and Maintenance
Thread Size
Other Torque Specifications
SAE Grade 8 Steel Set Screws
Wheel Bolts and Lug Nuts
Recommended Torque
Thread Size
Recommended Torque**
Thread Size
Square Head
Hex Socket
1/4 – 20 UNC
140 + 20 in–lb
73 + 12 in–lb
5/16 – 18 UNC
215 + 35 in–lb
145 + 20 in–lb
3/8 – 16 UNC
35 + 10 ft–lb
18 + 3 ft–lb
1/2 – 13 UNC
75 + 15 ft–lb
50 + 10 ft–lb
7/16 – 20 UNF
Grade 5
65 + 10 ft–lb
88 + 14 N–m
1/2 – 20 UNF
Grade 5
80 + 10 ft–lb
108 + 14 N–m
M12 X 1.25
Class 8.8
80 + 10 ft–lb
108 + 14 N–m
M12 X 1.5
Class 8.8
80 + 10 ft–lb
108 + 14 N–m
** For steel wheels and non–lubricated fasteners.
Thread Cutting Screws
(Zinc Plated Steel)
Type 1, Type 23, or Type F
Thread Size
Baseline Torque*
No. 6 – 32 UNC
20 + 5 in–lb
No. 8 – 32 UNC
Thread Cutting Screws
(Zinc Plated Steel)
Thread
Size
Threads per Inch
Baseline Torque*
Type A
Type B
No. 6
18
20
20 + 5 in–lb
30 + 5 in–lb
No. 8
15
18
30 + 5 in–lb
No. 10 – 24 UNC
38 + 7 in–lb
No. 10
12
16
38 + 7 in–lb
1/4 – 20 UNC
85 + 15 in–lb
No. 12
11
14
85 + 15 in–lb
5/16 – 18 UNC
110 + 20 in–lb
3/8 – 16 UNC
200 + 100 in–lb
* Hole size, material strength, material thickness & finish
must be considered when determining specific torque
values. All torque values are based on non–lubricated
fasteners.
Conversion Factors
in–lb X 11.2985 = N–cm
ft–lb X 1.3558 = N–m
Product Records and Maintenance
N–cm X 0.08851 = in–lb
N–m X 0.7376 = ft–lb
Page 2 – 6
Multi Pro 5700–D
Maintenance
Multi Pro 5700–D
Page 2 – 7
Product Records
and Maintenance
Maintenance procedures and recommended service intervals for the Multi Pro 5700–D are covered in the Operator’s Manual. Refer to that publication when performing
regular equipment maintenance. Several maintenance
procedures have break–in intervals identified in the Operator’s Manual. Refer to the Engine Operator’s Manual
for additional engine specific maintenance procedures.
Product Records and Maintenance
This page is intentionally blank.
Product Records and Maintenance
Page 2 – 8
Multi Pro 5700–D
Chapter 3
Kubota Diesel Engine
Table of Contents
Kubota Diesel
Engine
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
SERVICE AND REPAIRS . . . . . . . . . . . . . . . . . . . . . . 4
Fuel System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Air Cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Exhaust System . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Radiator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
KUBOTA 05 SERIES ENGINE SERVICE MANUAL
Introduction
This Chapter gives information about specifications, adjustments and repair of the Kubota Diesel engine that
powers the Multi Pro 5700–D.
General maintenance procedures are described in your
Operator’s Manual. Information on engine troubleshooting, testing, disassembly and reassembly is identified in
the Kubota 05 Series Engine Service Manual that is included at the end of this section.
Most engine repairs and adjustments require tools
which are commonly available in many service shops.
Special tools are described in the Kubota 05 Series Engine Service Manual. The use of some specialized test
equipment is explained. However, the cost of the test
equipment and the specialized nature of some repairs
may dictate that the work be done at an engine repair
facility.
Multi Pro 5700–D
Page 3 – 1
Kubota Diesel Engine
Specifications
Item
Description
Make / Designation
V1505–EB–TORO, Kubota, 4–Cycle, 4 Cylinder,
Water Cooled, Diesel Engine
Horse Power
35.5 HP @ 3000 RPM
Bore mm (in.)
78.0 (3.07)
Stroke mm (in.)
78.4 (3.09)
Total Displacement cc (cu. in.)
1498 (91)
Torque N–m (ft–lb)
84 (62) @ 3000 RPM
Firing Order
1–3–4–2
Fuel
No. 2 Diesel Fuel (ASTM D975)
Fuel Injection Pump
Bosch MD Type Mini Pump
Governor
Centrifugal Mechanical
Low Idle (no load)
1200 – 1250 RPM
High Idle (no load)
3050 – 3150 RPM
Direction of Rotation
Counterclockwise (Viewed from Flywheel)
Compression Ratio
23:1
Injection Nozzles
Mini Nozzle (DN–OPD)
Engine Oil
10W30 Detergent (API CD or better)
Oil Pump
Trochoid Type
Crankcase Oil Capacity liters (U.S. qt.)
4.7 (5) with Filter
Starter
12 VDC, 1 KW
Alternator/Regulator
12 VDC 40 AMP
Dry Weight kilograms (U.S. lbs)
Kubota Diesel Engine
110 (242.5)
Page 3 – 2
Multi Pro 5700–D
Kubota Diesel
Engine
This page is intentionally blank.
Multi Pro 5700–D
Page 3 – 3
Kubota Diesel Engine
Service and Repairs
Fuel System
SERIAL NUMBER BELOW 310000000
2
3
4
5
6
1
Thread Sealant
12
7
11
10
20
18
17
21
23
8
9
19
14
5
16
22
15 14
13
24
24
25
26
FRONT
RIGHT
SERIAL NUMBER ABOVE 310000000
Figure 1
1.
2.
3.
4.
5.
6.
7.
8.
9.
Fuel tank
Fuel cap with gauge
Bushing
Elbow fitting
Hose clamp
Fuel return hose
Elbow fitting
Fuel supply hose
Flange nut (4 used)
Kubota Diesel Engine
10.
11.
12.
13.
14.
15.
16.
17.
18.
Hold down strap (2 used)
Flange head screw (4 used)
Cushion strip (2 used)
Fuel return hose
Hose clamp
Elbow fitting
Flat washer (2 used)
Cap screw (2 used)
Fuel gauge
Page 3 -- 4
Rev. D
19.
20.
21.
22.
23.
24.
25.
26.
Tank strap (2 used)
Washer head screw (2 used)
Fuel tank cap
Fuel supply hose
Standpipe (fuel supply)
Grommet
Fuel tank
U-- nut (2 used)
Multi Pro 5700--D
DANGER
2
Because diesel fuel is highly flammable, use
caution when storing or handling it. Do not
smoke while filling the fuel tank. Do not fill fuel
tank while engine is running, hot or when machine is in an enclosed area. Always fill fuel tank
outside and wipe up any spilled fuel before starting the engine. Store fuel in a clean, safety--approved container and keep cap in place. Use diesel fuel for the engine only; not for any other
purpose.
1
SERIAL NUMBER BELOW 310000000
Check Fuel Lines and Connections
1. Fuel filter
2. Fuel hose (from tank)
SERIAL NUMBER ABOVE 310000000
Empty and Clean Fuel Tank
Empty and clean the fuel tank if the fuel system becomes contaminated or if the machine is to be stored for
an extended period.
To clean fuel tank, flush tank out with clean solvent.
Make sure tank is free of contaminates and debris.
2
3
3
Fuel Tank Removal
1
1. Park machine on a level surface, stop engine, engage parking brake and remove key from the ignition
switch.
2. Use a fuel transfer pump to remove fuel from the fuel
tank and into a suitable container.
3. Loosen hose clamps that secure supply and return
hoses to tank. Remove hoses from tank.
4. Remove fuel tank from machine using Figure 1 as a
guide.
5. If necessary, remove fuel hoses from machine. Note
fuel hose routing for assembly purposes (Fig. 3).
3
Figure 3
1. Fuel supply hose
2. Fuel return hose
3. R-- clamp
Fuel Tank Installation
1. Install fuel tank to machine using Figure 1 as a guide.
2. If fuel hoses were removed, route fuel hoses through
R--clamps on frame and connect to proper engine and
fuel tank fittings. Secure hoses with hose clamps.
3. Fill fuel tank (see Operator’s Manual).
4. Start engine and check fuel line connections for any
leakage.
Multi Pro 5700--D
Page 3 -- 5 Rev. D
Kubota Diesel Engine
Kubota Diesel
Engine
Figure 2
Check fuel lines and connections periodically as recommended in the Operator’s Manual. Check lines for deterioration, damage, leaks or loose connections. Replace
hoses, clamps and connections as necessary.
Air Cleaner
FRONT
4
RIGHT
5
3
2
1
10
6
8
9
7
Figure 4
1.
2.
3.
4.
Air cleaner housing
Mounting band
Flange nut (2 used)
Flat washer (2 used)
Kubota Diesel Engine
5. Air cleaner cover
6. Flange head screw (2 used)
7. Air cleaner cap
Page 3 – 6
8. Foam seal
9. Air cleaner hose
10. Hose clamp
Multi Pro 5700–D
Removal (Fig. 4)
3
NOTE: For air cleaner maintenance information, refer
to the Operator’s Manual.
2
1. Raise passenger seat to access air cleaner assembly.
2. Remove air cleaner components as needed using
Figure 4 as a guide.
Installation (Fig. 4)
4
1
Figure 5
1. Assemble air cleaner system using Figures 4 as a
guide. Make sure that vacuator valve on air cleaner cover points downward after assembly (Fig. 5).
Multi Pro 5700–D
1. Air cleaner housing
2. Air cleaner element
Page 3 – 7
3. Air cleaner cover
4. Vacuator valve
Kubota Diesel Engine
Kubota Diesel
Engine
IMPORTANT: Any leaks in the air filter system will
cause serious engine damage. Make sure that all air
cleaner components are in good condition and are
properly secured during reassembly.
Exhaust System
FRONT
RIGHT
1
2
3
6
4
7
10
8
9
9
10
5
11
13
14
15
11
12
16
12
17
18
5
19
19
15
14
13
13
14
15
21
5
20
SERIAL NUMBER BELOW 310000000
Figure 6
1.
2.
3.
4.
5.
6.
7.
Muffler gasket
Lock washer (4 used)
Cap screw (4 used)
Exhaust pipe
Heat shield (6 used)
Cap screw (2 used)
Lock washer (2 used)
8.
9.
10.
11.
12.
13.
14.
Exhaust pipe bracket
Flange head screw
Flat washer
Flange nut
Exhaust pipe hanger
Cap screw
Lock washer
Removal (Fig. 6 or 7)
CAUTION
The muffler and exhaust pipes may be hot. To
avoid possible burns, allow the engine and exhaust system to cool before working on the exhaust system.
1. Park machine on a level surface, stop engine, engage parking brake and remove key from the ignition
switch.
2. Support muffler from below to prevent it from falling.
Kubota Diesel Engine
15.
16.
17.
18.
19.
20.
21.
Flat washer
Flange nut
Cap screw
Muffler
Muffler clamp
Tailpipe
Muffler heat shield (2 used)
3. Remove exhaust system components as required
using Fig. 6 (machines with serial number below
310000000) or Fig. 7 (machines with serial number
above 310000000) as a guide. During removal, note
location of fasteners in rubber exhaust system hangers
so hangers are properly assembled.
NOTE: On machines with serial number below
310000000, the muffler inlet is offset and the muffler outlet is centered.
4. Locate and retrieve muffler gasket if exhaust pipe
was removed.
5. Remove heat shields, hangers and brackets from
exhaust components as needed.
Page 3 -- 8 Rev. D
Multi Pro 5700--D
Installation (Fig. 6 or 7)
SERIAL NUMBER ABOVE 310000000
2. Make sure that gasket surfaces on engine exhaust
manifold and exhaust pipe are clean.
2
NOTE: On machines with serial number below
310000000, the muffler inlet is offset and the muffler outlet is centered.
4
3
3. Install all removed exhaust system components using Fig. 6 (machines with serial number below
310000000) or Fig. 7 (machines with serial number
above 310000000) as a guide.
8
7
6
5
9
Multi Pro 5700--D
12
10
B. Install rubber exhaust system hangers as noted
during exhaust system removal.
D. Tighten muffler clamps last to secure exhaust
components.
11
7
A. During exhaust installation, finger tighten all exhaust system components before fully tightening
any of the fasteners.
C. Make sure that tailpipe outlet is parallel to the
ground.
1
13
6
7
Kubota Diesel
Engine
1. Install all removed heat shields, hangers and brackets to exhaust components.
14
Figure 7
1.
2.
3.
4.
5.
6.
7.
Muffler gasket
Lock washer (4 used)
Cap screw (4 used)
Exhaust pipe
Screw (2 used)
Flat washer (3 used)
Muffler hanger (3 used)
Page 3 -- 9 Rev. D
8.
9.
10.
11.
12.
13.
14.
Flange nut (2 used)
Cap screw (2 used)
Muffler hanger (2 used)
Muffler clamp (2 used)
Muffler
Flange nut
Carriage screw
Kubota Diesel Engine
Radiator
7
4
8
9
8
6
5
3
4
3
10
1
2
14
FRONT
13
12
15
RIGHT
16
17
18
11
4
19
20
24
22
23
18
13
21
20
25
26
Figure 7
1.
2.
3.
4.
5.
6.
7.
8.
9.
Oil cooler
Radiator brace (2 used)
Flat washer
Lock washer
Cap screw (2 used)
Cap screw (4 used)
Overflow hose
Hose clamp
Overflow bottle
10.
11.
12.
13.
14.
15.
16.
17.
18.
Hose
Radiator shroud
Foam seal (2 used)
Foam seal
Radiator
Hose clamp
Upper radiator hose
Lower radiator hose
Flat washer
Removal (Figs. 7)
19.
20.
21.
22.
23.
24.
25.
26.
Cap screw (4 used)
Fan shroud
Flange nut
Cap screw (2 used)
Foam seal (2 used)
Foam seal (2 used)
Isomount (2 used)
Flange nut (2 used)
2. Drain radiator into a suitable container using the radiator drain (see Operator’s Manual).
1. Park machine on a level surface, stop engine, engage parking brake and remove key from the ignition
switch. Raise seats of machine to allow access to engine compartment.
4. Loosen hose clamp that secures overflow hose to radiator flange (Fig. 9). Slide overflow hose from radiator
flange and position hose away from radiator.
CAUTION
Do not open radiator cap or drain coolant if the
radiator or engine is hot. Pressurized, hot coolant can escape and cause burns. Ethylene–glycol antifreeze is poisonous. Dispose of coolant
properly, or store it in a properly labeled container away from children and pets.
Kubota Diesel Engine
3. Loosen hose clamps that secure radiator hoses. Disconnect upper and lower hoses from the radiator.
5. Remove six (6) cap screws (items 5 and 6), lock
washers and flat washers that secure top and bottom of
radiator shroud to radiator.
Page 3 – 10
Multi Pro 5700–D
6. Disconnect throttle cable from engine (Fig. 8).
8. Reconnect throttle cable to engine (Fig. 8).
A. Loosen jam nut that secures throttle cable to
throttle plate on engine.
A. Position throttle cable end to speed control lever
on engine and secure with e–ring.
B. Remove e–ring that secures throttle cable to
speed control lever on engine.
B. Secure throttle cable to throttle plate on engine
with jam nut.
7. Remove fasteners that secure spray control console
to seat box assembly (Fig. 9). Carefully pivot seats and
control console forward to allow radiator access. Take
care not to damage the wire harness or throttle cable.
8. Remove four (4) cap screws (item 19), lock washers
and flat washers that secure fan shroud to radiator.
9. Remove two (2) cap screws (item 22), flat washers
and flange nuts that attach fan shrouds.
10.Carefully lift upper fan shroud from machine.
9. Secure radiator shroud to radiator with six (6) cap
screws (items 5 and 6), lock washers and flat washers.
10.Place overflow hose to radiator flange and secure
with hose clamp (Fig. 9).
11. Make sure radiator drain is closed. Fill radiator with
coolant (see Operator’s Manual).
12.Check position of wires, hydraulic hoses and control
cables for proper clearance with rotating, high temperature and moving components.
13.Start engine and check for proper operation. Check
all hose connections for leaks.
11. Remove two (2) flange nuts (item 26) that secure the
isomounts on the bottom of the radiator to the machine
frame.
2
12.Carefully lift radiator up from machine.
Installation (Figs. 7)
1. Replace any foam seal pieces that are damaged or
deteriorated.
1
2. Make sure that lower fan shroud is positioned below
fan.
3. Carefully lower radiator to the machine frame. Secure isomounts on the bottom of the radiator to the machine frame with two (2) flange nuts.
Figure 8
1. Throttle cable
2. Throttle plate
4. Position upper fan shroud to radiator. Attach fan
shrouds with cap screws (item 22), flat washers and
flange nuts.
2
5. Secure radiator shrouds to radiator with four (4) cap
screws (item 19), lock washers and flat washers. Make
sure that clearance exists between radiator shrouds
and fan at all points before tightening fasteners.
2
6. Connect lower and upper hoses to the radiator. Secure hoses with hose clamps.
1
7. Carefully pivot seats and spray control console back
in position taking care not to damage wiring harness or
throttle cable. Install fasteners to secure control console
to seat box assembly.
Figure 9
1. Overflow hose
Multi Pro 5700–D
Page 3 – 11
2. Spray console fastener
Kubota Diesel Engine
Kubota Diesel
Engine
C. Position throttle cable away from the engine.
Engine
FRONT
RIGHT
1
5
2
23
24
3
18
4
18
19
13
16
25
26
27
30
15 14
18
17
22
20
18
21
19
11
29
28
12
11
7
6
8
9
10
Figure 11
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Engine assembly
E-- ring
Hose clamp
Air cleaner hose
Air cleaner assembly
Fuel pump
Fuel filter (if equipped)
Water/fuel filter
Snubbing washer
Flange nut
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
Engine mount (4 used)
Cap screw
Lock washer
Cap screw
Front engine bracket (RH shown)
Lock nut
Throttle plate
Lock washer
Cap screw
Lock washer
Removal (Fig. 11)
1. Park machine on a level surface, stop engine and remove key from the ignition switch. Raise machine to allow engine to be lowered from frame.
2. Disconnect negative (--) and then positive (+) battery
cables at the battery.
3. Loosen hose clamps that secure air cleaner hose to
engine air intake and air cleaner assembly. Remove air
cleaner hose.
Kubota Diesel Engine
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
Cap screw
Cap screw
Coupling
Cap screw
Set screw
Lock washer
Cap screw
Rear engine bracket (2 used)
Cap screw (4 used)
Flywheel housing
CAUTION
Do not open radiator cap or drain coolant if the
radiator or engine is hot. Pressurized, hot coolant can escape and cause burns. Ethylene--glycol antifreeze is poisonous. Dispose of coolant
properly, or store it in a properly labeled container away from children and pets.
4. Drain coolant from the radiator into a suitable container (see Operator’s Manual).
Page 3 -- 12 Rev. D
Multi Pro 5700--D
1
CAUTION
4
3
Exhaust system components may be hot. To
avoid possible burns, allow the exhaust system
to cool before working on or near the muffler.
5. Remove exhaust system from engine (see Exhaust
System Removal in this section).
2
6. Remove upper and lower radiator hoses from engine.
Figure 11
1. Starter motor stud
2. Negative battery cable
3. Harness ground wire
4. Motor mount
Kubota Diesel
Engine
7. Disconnect engine electrical connections. Position
wires away from engine.
NOTE: Label all electrical leads for reassembly purposes.
A. Remove positive battery cable, cable to accessory solenoid and fusible link connector from electric
starter motor solenoid stud (Fig. 11). Remove cable
tie that secures fusible link connector to starter.
1
B. Disconnect wire harness white wire and violet/
white wire connectors from starter motor.
C. Remove cap screw and lock washer that secure
negative battery cable and wire harness ground wire
to engine (Fig. 11).
Figure 12
1. Temperature sender
D. Remove orange wire from glow plug terminal.
E. Disconnect blue wire from temperature sender
(Fig. 12).
F. Remove cable from alternator stud. Disconnect
wire harness connector from alternator (Fig. 13).
2
1
G. Disconnect brown/white wire from oil pressure
switch (Fig. 13).
3
H. Disconnect wire harness connector from fuel
stop solenoid (Fig. 14).
8. Clamp fuel supply hose after the water/fuel filter to
prevent leakage (Fig. 14). Disconnect fuel hose from the
fuel injector pump on engine. Position disconnected fuel
hose away from engine.
IMPORTANT: Support hydraulic pump assembly to
prevent it from falling and being damaged.
4
Figure 13
1. Alternator
2. Alternator stud
3. Harness connector
4. Oil pressure switch
9. Remove hydraulic pump assembly from engine (see
Pump Assembly in Service and Repairs section of
Chapter 4 – Hydraulic System).
Multi Pro 5700–D
Page 3 – 13
Kubota Diesel Engine
10.Remove throttle cable from engine (Fig. 14).
A. Loosen jam nut that secures throttle cable to
throttle plate on engine.
5
1
2
B. Remove e–ring that secures throttle cable to
speed control lever on engine.
C. Position throttle cable away from the engine.
4
11. Note location of any cable ties used to secure the wiring harness, fuel lines or hydraulic hoses to the engine
assembly. Remove cable ties attached to engine assembly.
IMPORTANT: Support engine assembly to prevent
it from falling and being damaged during removal.
12.Remove flange nuts, snubbing washers and cap
screws securing the engine brackets to the machine
frame (Fig. 11).
IMPORTANT: Make sure not to damage the engine,
fuel hoses, hydraulic lines, electrical harness or
other parts while removing the engine assembly.
3
Figure 14
1. Fuel stop solenoid
2. Fuel supply hose
3. Water/fuel filter
4. Throttle cable
5. Throttle plate
6. Connect machine wire harness to engine electrical
components (see step 7 in removal procedure).
7. Connect fuel supply hose to the fuel injector pump on
engine (Fig. 14). Remove clamp from fuel hose.
8. Reconnect throttle cable to engine (Fig. 14).
13.Using a hoist or lift, carefully lower engine from the
machine.
14.If necessary, remove engine brackets from the engine and engine mounts from frame.
A. Position throttle cable end to speed control lever
on engine and secure with e–ring.
B. Secure throttle cable to throttle plate on engine
with jam nut.
Installation (Fig. 10)
1. Locate machine on a level surface with key removed
from the ignition switch. Raise machine to allow engine
to be raised into frame.
2. Make sure that all parts removed from the engine
during maintenance or rebuilding are reinstalled to the
engine.
3. If engine brackets were removed from engine, secure brackets to engine with cap screws and lock washers.
9. Install upper and lower radiator hoses to engine. Secure hoses with hose clamps.
IMPORTANT: During hydraulic pump installation,
support pump to prevent it from falling and being
damaged.
10.Install hydraulic pump assembly to engine (see
Pump Assembly in Service and Repairs section of
Chapter 4 – Hydraulic System).
4. If engine mounts were removed from frame, secure
mounts to frame with cap screws and flange nuts.
IMPORTANT: Any leaks in the air intake system will
cause serious engine damage. Make sure that all air
cleaner components are in good condition and are
properly secured during reassembly.
IMPORTANT: Support engine assembly to prevent
it from falling and being damaged during installation.
11. Install air cleaner hose to engine and air cleaner assembly. Make sure that hose clamps are properly tightened.
IMPORTANT: Make sure not to damage the engine,
fuel hoses, hydraulic lines, electrical harness or
other parts while installing the engine assembly.
12.Install exhaust system (see Exhaust System Installation in this section).
5. Using a hoist or lift, carefully raise engine assembly
from under machine and position to frame. Insert cap
screws through engine brackets and motor mounts from
above (Fig. 11). Install flange nuts on cap screws and
tighten nuts.
Kubota Diesel Engine
13.Install cable ties to secure the wiring harness, fuel
lines and hydraulic hoses to the engine assembly using
notes taken during engine removal.
14.Properly fill the radiator with coolant (see Operator’s
Manual).
Page 3 – 14
Multi Pro 5700–D
15.Check engine oil level and adjust if necessary (see
Operator’s Manual).
16.Connect positive (+) and then negative (–) battery
cables to the battery.
17.Check position of wires, fuel lines, hydraulic hoses
and cables for proper clearance with rotating, high temperature and moving components.
Kubota Diesel
Engine
18.Start engine and check for proper operation. Check
all hose connections for leaks. Check engine speed.
Multi Pro 5700–D
Page 3 – 15
Kubota Diesel Engine
This page is intentionally blank.
Kubota Diesel Engine
Page 3 – 16
Multi Pro 5700–D
Chapter 4
Hydraulic System
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
GENERAL INFORMATION . . . . . . . . . . . . . . . . . . . . . 4
Hydraulic Hoses . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Hydraulic Fitting Installation . . . . . . . . . . . . . . . . . . . 4
Towing Sprayer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Check Hydraulic Fluid . . . . . . . . . . . . . . . . . . . . . . . 6
HYDRAULIC SCHEMATIC . . . . . . . . . . . . . . . . . . . . . 8
HYDRAULIC FLOW CIRCUITS . . . . . . . . . . . . . . . . . 9
Traction Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Steering Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Spray Pump Drive Circuit . . . . . . . . . . . . . . . . . . . . 11
SPECIAL TOOLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Hydraulic Pressure Test Kit . . . . . . . . . . . . . . . . . . 12
Hydraulic Tester (Pressure and Flow) . . . . . . . . . 12
Hydraulic Test Fitting Kit . . . . . . . . . . . . . . . . . . . . . 13
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . 14
TESTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Traction Circuit Charge Pressure Test . . . . . . . . . 17
Traction Circuit Relief Pressure Test . . . . . . . . . . 18
Gear Pump Flow Test . . . . . . . . . . . . . . . . . . . . . . . 19
Steering Circuit Relief Pressure Test . . . . . . . . . . 20
Steering Control Valve and Steering
Cylinder Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Spray Pump Drive Circuit Relief Pressure Test . 22
Wheel Motor Efficiency: Case Drain Test . . . . . . 23
Pulse Width Modulated (PWM) Valve Flow Test 24
ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Adjust Traction Pedal for Neutral (Machines with
Serial Numbers Below 310000000) . . . . . . . . . 25
Adjust Traction Pedal for Neutral (Machines with
Serial Numbers Above 310000000) . . . . . . . . . 25
Adjust Relief Valve . . . . . . . . . . . . . . . . . . . . . . . . . 26
Multi Pro 5700--D
SERVICE AND REPAIRS . . . . . . . . . . . . . . . . . . . . . 27
General Precautions for Removing and Installing
Hydraulic System Components . . . . . . . . . . . . . 27
Check Hydraulic Lines and Hoses . . . . . . . . . . . . 27
Flush Hydraulic System . . . . . . . . . . . . . . . . . . . . . 28
Charge Hydraulic System . . . . . . . . . . . . . . . . . . . 29
Gear Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Gear Pump Service . . . . . . . . . . . . . . . . . . . . . . . . . 32
Piston (Traction) Pump . . . . . . . . . . . . . . . . . . . . . . 34
Piston (Traction) Pump Service . . . . . . . . . . . . . . 36
Manual Servo Control Assembly . . . . . . . . . . . . . 37
Wheel Motors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Wheel Motor Service . . . . . . . . . . . . . . . . . . . . . . . 40
Spray Pump Drive Motor . . . . . . . . . . . . . . . . . . . . 42
Spray Pump Drive Motor Service . . . . . . . . . . . . . 44
Relief Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Pulse Width Modulated (PWM) Valve . . . . . . . . . 46
Steering Control Valve . . . . . . . . . . . . . . . . . . . . . . 48
Steering Control Valve Service . . . . . . . . . . . . . . . 50
Steering Cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Steering Cylinder Service . . . . . . . . . . . . . . . . . . . 54
Oil Cooler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Hydraulic Reservoir . . . . . . . . . . . . . . . . . . . . . . . . 58
EATON MODEL 26000 SINGLE GEAR PUMP REPAIR
INFORMATION
EATON MODEL 72400 SERVO CONTROLLED PISTON PUMP REPAIR INFORMATION
EATON MODEL 74318 and 74348 PISTON MOTORS:
FIXED DISPLACEMENT, VALVE PLATE DESIGN
REPAIR INFORMATION
PARKER TORQLINKTM SERVICE PROCEDURE
Page 4 -- 1 Rev. D
Hydraulic System
Hydraulic
System
Table of Contents
This page is intentionally blank.
Hydraulic System
Page 4 -- 2
Multi Pro 5700--D
Specifications
Item
Description
Piston (Traction) Pump
System Relief Pressure: Forward
System Relief Pressure: Reverse
Charge Pressure
Variable displacement piston pump
4000 PSI (276 bar)
4000 PSI (276 bar)
250 to 300 PSI (17 to 21 bar)
Gear Pump
Steering Circuit Relief Pressure
Spray Pump Circuit Relief Pressure
Single section, positive displacement gear pump
1000 PSI (69 bar)
1500 PSI (103 bar)
Rear Wheel Motors
Fixed displacement piston motor
Spray Pump Motor
Orbital rotor motor
Hydraulic Filter
10 Micron spin--on cartridge type
Hydraulic Reservoir
12 gal. (45 l)
See Operator’s Manual
Hydraulic
System
Hydraulic Oil
Multi Pro 5700--D
Page 4 -- 3
Hydraulic System
General Information
Hydraulic Hoses
Hydraulic hoses are subject to extreme conditions such
as pressure differentials during operation and exposure
to weather, sun, chemicals, very warm storage conditions, or mishandling during operation and maintenance. These conditions can cause damage or
premature deterioration. Some hoses are more susceptible to these conditions than others. Inspect the hoses
frequently for signs of deterioration or damage.
When replacing a hydraulic hose, be sure that the hose
is straight (not twisted) before tightening the fittings.
This can be done by observing the imprint on the hose.
Use two wrenches; hold the hose straight with one
wrench and tighten the hose swivel nut onto the fitting
with the other wrench.
WARNING
Before disconnecting or performing any work
on hydraulic system, relieve all pressure in
system. Stop engine and rotate the steering
wheel.
Keep body and hands away from pin hole leaks
or nozzles that eject hydraulic fluid under high
pressure. Use paper or cardboard, not hands,
to search for leaks. Hydraulic fluid escaping
under pressure can have sufficient force to
penetrate the skin and cause serious injury. If
fluid is injected into the skin, it must be surgically removed within a few hours by a doctor
familiar with this type of injury. Gangrene may
result from such an injury.
Hydraulic Fitting Installation
O--Ring Face Seal
Nut
1. Make sure both threads and sealing surfaces are
free of burrs, nicks, scratches, or any foreign material.
Body
Sleeve
2. Make sure the O--ring is installed and properly
seated in the groove. It is recommended that the O--ring
be replaced any time the connection is opened.
Seal
3. Lubricate the O--ring with a light coating of oil.
4. Put the tube and nut squarely into position on the
face seal end of the fitting and tighten the nut until finger
tight.
Figure 1
5. Mark the nut and fitting body. Hold the body with a
wrench. Use another wrench to tighten the nut to the correct Flats From Finger Tight (F.F.F.T.). The markings on
the nut and fitting body will verify that the connection has
been tightened.
Size
4 (1/4 in. nominal hose or tubing)
6 (3/8 in.)
8 (1/2 in.)
10 (5/8 in.)
12 (3/4 in.)
16 (1 in.)
Hydraulic System
Final
Position
Mark Nut
and Body
F.F.F.T.
0.75 + 0.25
0.75 + 0.25
0.75 + 0.25
1.00 + 0.25
0.75 + 0.25
0.75 + 0.25
Extend Line
Finger Tight
Initial
Position
After Proper Tightening
Figure 2
Page 4 -- 4
Multi Pro 5700--D
SAE Straight Thread O--Ring Port -- Non--adjustable
1. Make sure both threads and sealing surfaces are
free of burrs, nicks, scratches, or any foreign material.
2. Always replace the O--ring seal when this type of fitting shows signs of leakage.
3. Lubricate the O--ring with a light coating of oil.
O--Ring
4. Install the fitting into the port and tighten it down full
length until finger tight.
Size
4 (1/4 in. nominal hose or tubing)
6 (3/8 in.)
8 (1/2 in.)
10 (5/8 in.)
12 (3/4 in.)
16 (1 in.)
F.F.F.T.
1.00 + 0.25
1.50 + 0.25
1.50 + 0.25
1.50 + 0.25
1.50 + 0.25
1.50 + 0.25
NOTE: Installation torque values for non--adjustable fittings are listed in Figure 4. These torque values should
only be used when a fitting can be accessed with a
socket. Use of an offset wrench (e.g. crowfoot wrench)
will affect torque wrench accuracy and should not be
used.
Fitting Size
Installation Torque
4
9--10 ft--lb (12--13 N--m)
6
20--21 ft--lb (27--28 N--m)
8
35--37 ft--lb (47--50 N--m)
10
60--66 ft--lb (81--89 N--m)
12
81--87 ft--lb (110--117 N--m)
16
121--131 ft--lb (164--177 N--m)
Figure 4
Hydraulic
System
5. Tighten the fitting to the correct Flats From Finger
Tight (F.F.F.T.).
Figure 3
SAE Straight Thread O--Ring Port -- Adjustable
1. Make sure both threads and sealing surfaces are
free of burrs, nicks, scratches, or any foreign material.
2. Always replace the O--ring seal when this type of fitting shows signs of leakage.
Lock Nut
3. Lubricate the O--ring with a light coating of oil.
4. Turn back the jam nut as far as possible. Make sure
the back up washer is not loose and is pushed up as far
as possible (Step 1).
Back--up Washer
O--Ring
Figure 5
5. Install the fitting into the port and tighten finger tight
until the washer contacts the face of the port (Step 2).
6. To put the fitting in the desired position, unscrew it by
the required amount, but no more than one full turn
(Step 3).
7. Hold the fitting in the desired position with a wrench
and turn the jam nut with another wrench to the correct
Flats From Finger Tight (F.F.F.T.) (Step 4).
Size
4 (1/4 in. nominal hose or tubing)
6 (3/8 in.)
8 (1/2 in.)
10 (5/8 in.)
12 (3/4 in.)
16 (1 in.)
Multi Pro 5700--D
Step 1
Step 3
Step 2
Step 4
F.F.F.T.
1.00 + 0.25
1.50 + 0.25
1.50 + 0.25
1.50 + 0.25
1.50 + 0.25
1.50 + 0.25
Figure 6
Page 4 -- 5
Hydraulic System
Towing Sprayer
IMPORTANT: If towing limits are exceeded, severe
damage to the piston (traction) pump may occur.
If it becomes necessary to tow (or push) the machine,
tow (or push) at a speed below 3 mph (4.8 kph). The
piston (traction) pump is equipped with a by--pass valve
that needs to be turned 90o for towing (or pushing). See
Operator’s Manual for Towing Procedures.
1
Figure 7
1. By--pass valve location
Check Hydraulic Fluid
The Multi Pro 5700--D hydraulic system is designed to
operate on anti--wear hydraulic fluid. The reservoir
holds approximately 12 gallons (45 liters) of hydraulic
fluid. Check level of hydraulic fluid daily. See Operator’s Manual for fluid level checking procedure and hydraulic oil recommendations.
1
Figure 8
1. Hydraulic reservoir cap
Hydraulic System
Page 4 -- 6
Multi Pro 5700--D
Hydraulic
System
This page is intentionally blank.
Multi Pro 5700--D
Page 4 -- 7
Hydraulic System
Hydraulic System
FLOW DURING
FORWARD MOTION
WHEEL
MOTOR
Page 4 -- 8
TO REMOTE
(5.8 GPM)
(275 PSI)
WHEEL
MOTOR
HYDRAULIC
RESERVOIR
(5.8 GPM VAC)
(13 GPM VAC)
(0--17 GPM MAX)
MAIN RETURN
(12.5 GPM) (0--20 PSI)
KUBOTA
DIESEL
ENGINE
NOTE: FLOWS SHOWN ARE AT
FULL ENGINE SPEED (3100 RPM),
FORWARD MOTION AND TURNING
TO THE RIGHT
MAIN PRESSURE
FLOW DURING FORWARD MOTION
CHARGE PORT
GEAR
PUMP
RELIEF
VALVE
PRIORITY FLOW
PISTON
PUMP
UPPER
LOWER
(0--4000 PSI)
FILTER
CHARGE
PUMP
PRESSURE
NOMINAL SPRAYER
(9.5 GPM SECONDARY FLOW) (0--1500 PSI)
(9.5 GPM) (0--75 PSI)
SECONDARY
FLOW
CASE DRAIN
IN
(0--9.5 GPM)
PULSE WIDTH
MODULATED
VALVE
CF
EX
HYDRAULIC
MOTOR
(CHARGE PUMP
PRESSURE)
IN = PRESSURE
CF = CONTROLLED
FLOW
EX = BYPASS
SPRAY PUMP
F L R T
STEERING
VALVE
(3 GPM) (0--75 PSI)
(3 GPM) (0--1000PSI)
FLOW DURING
RIGHT TURN
STEERING
CYLINDER
T = TANK
R = WORKING PRESSURE
L = WORKING PRESSURE
P = PRESSURE
Hydraulic Schematic
OIL COOLER
RADIATOR
(0--20 PSI)
Multi Pro 5700--D
Hydraulic Flow Circuits
Traction Circuit
Traction circuit pressure (forward or reverse) can be
measured by installing a tee fitting and gauge into the
traction system hydraulic lines.
Multi Pro 5700–D
The piston (traction) pump and wheel motors use a
small amount of hydraulic oil for internal lubrication. Oil
is designed to leak across pump and motor parts into the
case drain. This leakage results in the loss of hydraulic
oil from the closed loop traction circuit that must be replaced.
The piston (traction) pump incorporates a charge pump
that provides make–up oil for the traction circuit. This
gerotor gear pump is driven by the piston pump drive
shaft. It provides a constant supply of charge oil to the
traction circuit to make up for oil that is lost due to internal leakage in the piston pump and wheel motors.
Charge pump flow is directed through the oil filter and to
the low pressure side of the closed loop traction circuit.
Pressure in the charge circuit is limited by a relief valve
located in the charge plate adapter on the rear of the piston pump. Charge pump pressure can be measured at
the auxiliary test port on the side of the piston pump.
Page 4 – 9
Hydraulic System
Hydraulic
System
The traction circuit piston pump is a variable displacement pump that is directly coupled to the engine flywheel. Pushing the top of the traction pedal rotates the
pump swash plate to create a flow of oil for forward machine movement. Pushing the bottom of the traction
pedal rotates the pump swash plate to cause oil flow for
reverse machine movement. This oil is directed to the
rear wheel motors. Operating pressure on the high pressure side of the closed traction circuit loop is determined
by the amount of load developed at the fixed displacement wheel motors. As the load increases, circuit pressure can increase to relief valve settings: 4000 PSI in
either forward or reverse. If pressure exceeds the relief
setting, oil flows through the relief valve to the low pressure side of the closed loop circuit.
Steering Circuit
that flow goes through the top of the spool. Flow entering
the steering control valve from the gear pump goes
through the spool and is routed through the rotary meter
(V1) and out the L port. Pressure extends the steering
cylinder piston for a left turn. The rotary meter ensures
that the oil flow to the cylinder is proportional to the
amount of the turning on the steering wheel. Fluid leaving the cylinder flows back through the spool valve, then
to the oil cooler and returns to the reservoir.
A single section gear pump is coupled to the piston (traction) pump. The gear pump supplies hydraulic flow to
the steering control valve and the spray pump drive hydraulic motor. Pump hydraulic flow is delivered to the
two circuits through a flow divider with the steering circuit having priority. The gear pump takes its suction from
the hydraulic reservoir. Steering circuit pressure is limited by a relief valve located in the gear pump.
The steering control valve includes a check valve that allows steering operation when the engine is not running.
Steering wheel rotation with the engine off causes oil
flow from the steering control gerotor. The check valve
opens in this situation to allow oil flow from the steering
control to the steering cylinder in a closed loop.
The steering control valve returns to the neutral position
when turning is completed.
Right Turn
Left Turn
When a right turn is made with the engine running, the
turning of the steering wheel positions the spool valve so
that flow goes through the bottom of the spool. Flow entering the steering control valve from the gear pump
goes through the spool and is routed through rotary meter (V1) but goes out port R. Pressure contracts the
steering cylinder piston for a right turn. The rotary meter
ensures that the oil flow to the cylinder is proportional to
the amount of the turning on the steering wheel. Fluid
leaving the cylinder flows back through the spool valve,
then to the oil cooler and returns to the reservoir.
When a left turn is made with the engine running, the
turning of the steering wheel positions the spool valve so
The steering control valve returns to the neutral position
when turning is completed.
Hydraulic flow and pressure to the steering control valve
can be monitored at the outlet of the gear pump.
With the steering wheel in the neutral position and the
engine running, gear pump flow enters the steering control valve (port P) and goes through the steering control
spool valve, by–passing the rotary meter (V1) and steering cylinder. Flow leaves the control valve (port T), to the
oil cooler, and returns to the hydraulic oil reservoir.
STEERING CYLINDER
NO PISTON MOVEMENT
R
T
L
P
STEERING
CONTROL
NEUTRAL POSITION
STEERING CYLINDER
PISTON MOVEMENT
L
R
T
P
STEERING
CONTROL
LEFT TURN
STEERING CYLINDER
PISTON MOVEMENT
L
R
T
P
STEERING
CONTROL
RIGHT TURN
Figure 9
Hydraulic System
Page 4 – 10
Multi Pro 5700–D
Spray Pump Drive Circuit
Spray pump drive circuit hydraulic flow and pressure
can be monitored at the outlet of the gear pump.
Hydraulic flow control for the spray pump drive hydraulic
motor is completed by the Pulse Width Modulated
(PWM) Valve. The PWM Valve consists of an electric solenoid valve that allows the operator to adjust hydraulic
flow to the spray pump motor. The spray pump on/off
and application rate (increase/decrease) switches are
used to adjust electrical current to the PWM Valve solenoid.
With the engine running and the spray pump switch in
the OFF position, the solenoid valve in the PWM Valve
is not energized. All gear pump flow to the PWM Valve
is directed out the EX port of the PWM Valve, to the oil
cooler, and returns to the hydraulic oil reservoir. The
spray pump hydraulic motor receives no hydraulic flow
so the spray system pump is not rotated and no spray
system flow is available.
Multi Pro 5700–D
With the engine running and the spray pump switch in
the ON position, the solenoid valve in the PWM Valve is
energized. Based on available current (mA) from the
spray pump application rate (increase/decrease)
switch, the solenoid spool valve in the PWM Valve directs some gear pump flow out the CF port to the spray
pump hydraulic motor. This hydraulic flow causes the
motor to rotate the spray system pump for spray system
operation. Gear pump hydraulic flow in excess of PWM
solenoid spool valve setting is directed out the EX port
of the PWM Valve, to the oil cooler, and returns to the hydraulic oil reservoir.
The spray pump application rate (increase/decrease)
switch allows the operator to adjust electrical current to
the PWM Valve solenoid. Higher current (rate increase)
to the PWM Valve solenoid increases hydraulic flow to
the spray pump motor and results in a higher spray
pump speed with more spray system output/pressure.
Lower current (rate decrease) to the PWM Valve solenoid decreases hydraulic flow to the spray pump motor
and results in a lower spray pump speed with less spray
system output/pressure.
NOTE: Correct operation of the PWM Valve depends
on precision manufacturer’s assembly and adjustment.
No disassembly or adjustment of the PWM Valve is recommended.
Page 4 – 11
Hydraulic System
Hydraulic
System
A single section gear pump is coupled directly to the piston (traction) pump. The gear pump supplies hydraulic
flow to the steering control valve and the spray pump
drive hydraulic motor. Gear pump hydraulic flow is delivered to the two circuits through a flow divider with the
steering circuit having priority. The gear pump takes its
suction from the hydraulic reservoir. Spray pump drive
circuit pressure is limited by an adjustable relief valve located on the outside of the piston (traction) pump.
Special Tools
Order these special tools from your Toro Distributor.
Hydraulic Pressure Test Kit
Toro Part Number: TOR47009
Use to take various pressure readings for diagnostic
tests. Quick disconnect fittings provided attach directly
to mating fittings on machine test ports without tools. A
high pressure hose is provided for remote readings.
Contains one each: 1000 PSI (70 Bar), 5000 PSI (350
Bar) and 10000 PSI (700 Bar) gauges. Use gauges as
recommended in Testing section of this chapter.
Figure 10
Hydraulic Tester (Pressure and Flow)
Toro Part Number: TOR214678
Use to test hydraulic circuits and components for flow
and pressure capacities as recommended in the Testing
section of this chapter. This tester includes the following:
1. INLET HOSE: Hose connected from the system circuit to the inlet side of the hydraulic tester.
2. LOAD VALVE: A simulated working load is created
in the circuit by turning the valve to restrict flow.
3. PRESSURE GAUGE: Glycerine filled 0 to 5000 PSI
gauge to provide operating circuit pressure.
4. FLOW METER: This meter measures actual oil flow
in the operating circuit with a gauge rated from 1 to 15
GPM (5 to 55 LPM).
Figure 11
5. OUTLET HOSE: A hose from the outlet side of the
hydraulic tester connects to the hydraulic system circuit.
6. FITTINGS: An assortment of hydraulic fittings are included with this kit.
Hydraulic System
Page 4 -- 12 Rev. D
Multi Pro 5700--D
O--Ring Kit
Toro Part Number: 16--3799
The kit includes O--rings in a variety of sizes for face seal
and port seal hydraulic connections. It is recommended
that O--rings be replaced whenever a hydraulic connection is loosened.
Figure 12
Toro Part Number: TOR4079
This kit includes a variety of O--ring Face Seal fittings to
enable connection of test gauges to the hydraulic system.
TORO TEST FITTING KIT (NO. TOR4079)
The kit includes: tee’s, unions, reducers, plugs, caps
and test fittings.
Figure 13
Multi Pro 5700--D
Page 4 -- 13 Rev. C
Hydraulic System
Hydraulic
Hydraulic
System
System
Hydraulic Test Fitting Kit
Troubleshooting
The cause of an improperly functioning hydraulic system is best diagnosed with the use of proper testing
equipment and a thorough understanding of the complete hydraulic system.
A hydraulic system with an excessive increase in heat
or noise has a potential for failure. Should either of these
conditions be noticed, immediately stop the machine,
turn off the engine, locate the cause of the trouble, and
correct it before allowing the machine to be used again.
Continued use of an improperly functioning hydraulic
system could lead to extensive internal component
damage.
The chart that follows contains information to assist in
troubleshooting. There may possibly be more than one
cause for a machine malfunction.
Refer to the Testing section of this Chapter for precautions and specific test procedures.
Problem
Possible Cause
Hydraulic oil leaks.
Hydraulic fitting(s) or hose(s) are loose or damaged.
O--ring(s) or seal(s) are missing or damaged.
Foaming hydraulic fluid.
Oil level in reservoir is incorrect.
Hydraulic system has wrong kind of oil.
Piston and/or gear pump suction line has an air leak.
Water in hydraulic system.
Hydraulic system operates hot.
Oil level in reservoir is incorrect.
Hydraulic hose is kinked.
Oil is contaminated or incorrect viscosity.
Brakes are engaged or sticking.
Piston pump by--pass valve is open or damaged.
Hydraulic oil cooling system is not operating properly.
Charge pressure is low.
Traction circuit pressure is incorrect.
Wheel motor(s) or spray pump motor is/are worn or damaged.
Gear pump or piston (traction) pump is worn or damaged.
Machine operates in one direction
only.
Traction control linkage is faulty.
Traction pedal is sluggish.
Traction control linkage is stuck or binding.
System charge check valve and/or system relief valve is defective.
Piston pump manual servo control assembly is damaged.
Piston pump or wheel motor(s) are worn or damaged.
Charge pressure is low.
Hydraulic System
Page 4 -- 14
Multi Pro 5700--D
Machine travels too far before stopping when the traction pedal is released.
Traction linkage is binding or out of adjustment.
Piston pump manual servo control assembly is damaged.
Traction pedal does not return to neutral.
Traction power is lost or unit will not
operate in either direction.
Brakes are engaged or sticking.
Traction control linkage is damaged or disconnected.
Hydraulic reservoir oil level is low.
Piston pump by--pass valve is open or damaged.
Charge pressure is low.
Traction circuit pressure is low.
Rear wheel motor couplers are damaged.
Steering inoperative or sluggish
Engine speed is too low.
Steering cylinder is binding.
Check valve in steering control valve is sticking, worn or damaged.
Steering relief valve is stuck open.
Steering control valve is worn or damaged.
Steering cylinder leaks internally.
Priority valve in gear pump is sticking, worn or damaged.
Gear pump is worn or damaged.
Turning steering wheel turns machine in the wrong direction.
Hoses to the steering cylinder are reversed.
Spray pump hydraulic motor does
not rotate.
PWM Valve solenoid valve is sticking or damaged.
Steering cylinder has internal leak.
PWM Valve solenoid or circuit wiring has electrical problem (see
Chapter 5 -- Electrical System).
Priority valve in gear pump is sticking or damaged.
Spray pump hydraulic motor is worn or damaged.
Multi Pro 5700--D
Page 4 -- 15
Hydraulic System
Hydraulic
System
Reservoir oil level is low.
Testing
The most effective method for isolating problems in the
hydraulic system is by using hydraulic test equipment
such as pressure gauges and flow meters in the hydraulic circuits during various operational checks (See the
Special Tools section in this Chapter).
Before Performing Hydraulic Tests
IMPORTANT: All obvious areas such as hydraulic
oil supply, oil filter, binding linkages, loose fasteners, or improper adjustments must be checked before assuming that a hydraulic component is the
source of a hydraulic problem.
WARNING
Before performing any work on the hydraulic
system, system pressure must be relieved and
all rotating machine parts must come to a stop.
Turn ignition switch OFF and remove key from
switch. When engine has stopped rotating, operate all hydraulic controls to relieve hydraulic
system pressure.
Precautions for Hydraulic Testing
CAUTION
Failure to use gauges with recommended pressure (PSI) rating as listed in test procedures
could result in damage to the gauge and possible
personal injury from leaking hot oil.
WARNING
CAUTION
All testing should be performed by two (2)
people. One person should be in the seat to operate the machine, and the other person should
read and record test results.
1. Clean machine thoroughly before disconnecting or
disassembling any hydraulic components. Always keep
in mind the need for cleanliness when working on hydraulic equipment. Contamination will cause excessive
wear of hydraulic components.
2. Put metal caps or plugs on any hydraulic lines left
open or exposed during testing or removal of components.
3. The engine must be in good operating condition. Use
a phototac to check engine speed when performing a
hydraulic test. Engine speed will affect the accuracy of
the tester readings.
4. The inlet and the outlet hoses for tester with pressure
and flow capabilities must be properly connected. If
hoses are reversed, damage to the hydraulic tester or
components can occur.
5. When using hydraulic tester with pressure and flow
capabilities, completely open tester load valve before
starting engine to minimize the possibility of damage to
components.
6. Install tester fittings finger tight and far enough to
make sure that they are not cross–threaded before tightening them with a wrench.
7. Position tester hoses to prevent rotating machine
parts from contacting and damaging the hoses or tester.
Keep body and hands away from pin hole leaks
or nozzles that eject hydraulic fluid under high
pressure. Do not use hands to search for
leaks; use paper or cardboard. Hydraulic fluid
escaping under pressure can have sufficient
force to penetrate the skin and cause serious
injury. If fluid is injected into the skin, it must
be surgically removed within a few hours by a
doctor familiar with this type of injury. Gangrene may result from such an injury.
8. Check oil level in the hydraulic reservoir. After connecting test equipment, make sure reservoir is full.
9. Check control linkages for improper adjustment,
binding, or broken parts.
10.After installing test gauges, run engine at low speed
and check for any hydraulic oil leaks.
11. All hydraulic tests should be made with the hydraulic
oil at normal operating temperature.
12.Before returning machine to use, make sure that hydraulic reservoir has correct fluid level. Also, check for
hydraulic leaks after test equipment has been removed
from hydraulic system.
Hydraulic System
Page 4 – 16
Multi Pro 5700–D
Traction Circuit Charge Pressure Test
1. Make sure hydraulic oil is at normal operating temperature by operating the machine for approximately 10
minutes. Make sure the hydraulic tank is full.
2. Park machine on a level surface, stop engine, engage parking brake, and remove key from the ignition
switch. After turning engine off, operate all hydraulic
controls to relieve hydraulic system pressure.
1
CAUTION
Prevent personal injury and/or damage to equipment. Read all WARNINGS, CAUTIONS, and Precautions for Hydraulic Testing at the beginning
of this section.
Figure 13
1. Auxiliary test port plug
Hydraulic
System
3. Remove plug from auxiliary test port on left side of
piston (traction) pump (Fig. 13). Connect a 1000 PSI
gauge into auxiliary test port.
4. After installing pressure gauge, start engine and run
at idle speed. Check for hydraulic leakage and correct
before proceeding with test.
5. Operate the engine at high idle engine speed (3050
– 3150 RPM) with no load on the hydraulic system.
GAUGE READING TO BE 250 to 300 PSI.
6. Stop engine and record test results.
7. If there is no pressure, or pressure is low, check for
restriction in pump suction line. Also, inspect charge relief valve located in charge pump adapter on piston
pump. If necessary, check for internal damage or worn
parts in charge pump.
8. Also, with the pressure gauge still connected to the
auxiliary test port on piston pump, take a gauge reading
while operating the machine in forward and reverse.
Start the engine and put throttle at high idle engine
speed. Apply the brakes and push the traction pedal forward, then reverse.
GAUGE READING TO BE 250 to 300 PSI.
9. If charge pressure is good under no load, but drops
below specification when under traction load, the piston
(traction) pump and/or traction wheel motor(s) should
be suspected of wear and inefficiency. When the piston
pump and/or traction motor(s) are worn or damaged, the
charge pump is not able to keep up with internal leakage
in traction circuit components.
10.Disconnect pressure gauge from piston pump and
reinstall plug to auxiliary test port.
Multi Pro 5700–D
Page 4 – 17
Hydraulic System
Traction Circuit Relief Pressure Test
1. Make sure hydraulic oil is at normal operating temperature by operating the machine for approximately 10
minutes. Make sure the hydraulic tank is full.
2. Park machine on a level surface, stop engine, engage parking brake, and remove key from the ignition
switch. After turning engine off, operate all hydraulic
controls to relieve hydraulic system pressure.
9. Release traction pedal and stop engine. Record test
results.
10.If traction pressure is too low, inspect traction pump
relief valves (Fig. 15). Clean or replace valves as necessary. These cartridge type valves are factory set, and
are not adjustable. If relief valves are in good condition,
traction pump or wheel motors should be suspected of
wear and inefficiency.
11. Disconnect pressure gauge from machine and reconnect hydraulic hose.
CAUTION
Prevent personal injury and/or damage to equipment. Read all WARNINGS, CAUTIONS, and Precautions for Hydraulic Testing at the beginning
of this section.
3. Clean and disconnect hydraulic pressure hose from
piston pump fitting on right side of pump for function to
be checked (Fig. 14):
1
Forward pressure hose is upper hose
Reverse pressure hose is lower hose
2
4. Install T–connector with 10,000 PSI test gauge between the piston pump fitting and the disconnected
hose.
5. After installing pressure gauge, start engine and run
at idle speed. Check for hydraulic leakage and correct
before proceeding with test.
Figure 14
1. Forward pressure hose
2. Reverse pressure hose
6. Operate the engine at high idle speed (3050 – 3150
RPM).
1
CAUTION
Move machine to an open area, away from people
and obstructions.
7. Drive machine to an open area and engage the parking brake.
8. Sit on seat, apply brakes fully, and slowly depress the
traction pedal in the appropriate direction (forward or reverse). While pushing traction pedal, look at pressure
reading on gauge:
2
Figure 15
1. Forward relief valve
2. Reverse relief valve
GAUGE READING TO BE:
Forward: maximum of 4000 PSI
Reverse: maximum of 4000 PSI
Hydraulic System
Page 4 – 18
Multi Pro 5700–D
Gear Pump Flow Test
Output from the gear pump is divided by a priority flow
divider to allow priority flow to the steering circuit and
secondary flow to the spray pump drive circuit. To test
gear pump flow, testing of both circuits is required. Total
gear pump flow is the combined flow from the two circuits. If a problem is suspected in one of the two circuits,
flow for that circuit should be measured to determine if
the problem is pump related or is involved with other circuit components.
6. While watching tester pressure gauges, slowly close
flow control valve on the tester until 800 PSI is obtained
on gauge. Verify engine speed continues to be within
spec. Record flow meter reading.
1. Make sure hydraulic oil is at normal operating temperature by operating the machine for approximately 10
minutes. Make sure the hydraulic tank is full.
7. Open tester flow control valve and stop engine.
CAUTION
Prevent personal injury and/or damage to equipment. Read all WARNINGS, CAUTIONS, and Precautions for Hydraulic Testing at the beginning
of this section.
IMPORTANT: Make sure that the oil flow indicator
arrow on the flow meter is showing that the oil will
flow from the pump, through the tester, and into the
hydraulic hose.
NOTE: Relief pressure for steering and/or spray pump
drive circuits can be determined with the tester positioned as described in this test.
8. Remove tester and reinstall disconnected hose.
Complete steps 3 through 6 for other circuit hose.
9. If the total of the two flows is less than 12.5 GPM or
a pressure of 800 PSI could not be obtained, check for
restriction in pump suction line. If suction line is not restricted, remove gear pump and repair or replace as
necessary.
If the total of the two flows is 12.5 GPM but individual circuit flow is incorrect (e.g. steering circuit has 6 GPM and
spray motor circuit has 6.5 GPM), suspect a problem
with one of circuits or with the priority flow divider in the
gear pump.
3. With the engine off, clean hose fitting and disconnect
one of the circuit pressure hoses from the gear pump
(Fig. 16). Install tester with pressure gauges and flow
meter in series between the gear pump and the disconnected hose. Make sure the tester flow control valve
is open.
4. After installing tester, start engine and run at idle
speed. Check for hydraulic leakage and correct before
proceeding with test.
IMPORTANT: The gear pump is a positive displacement type. If pump flow is completely restricted or
stopped, damage to the gear pump, tester, or other
components could occur.
1
2
Figure 16
1. Steering circuit pressure hose
2. Spray motor circuit pressure hose
5. Operate the engine at high idle speed (3050 – 3150
RPM). Verify engine speed with a phototac.
Multi Pro 5700–D
Page 4 – 19
Hydraulic System
Hydraulic
System
2. Park machine on a level surface, stop engine, engage parking brake, and remove key from the ignition
switch. After turning engine off, operate all hydraulic
controls to relieve hydraulic system pressure.
GAUGE READING TO BE: For steering circuit, flow
should be approximately 3 GPM at 800 PSI. For
spray motor circuit, flow should be approximately 9.5
GPM at 800 PSI.
Steering Circuit Relief Pressure Test
1. Make sure hydraulic oil is at normal operating temperature by operating the machine for approximately 10
minutes. Make sure the hydraulic tank is full.
2. Park machine on a level surface, stop engine, engage parking brake, and remove key from the ignition
switch. After turning engine off, operate all hydraulic
controls to relieve hydraulic system pressure.
CAUTION
1
2
Prevent personal injury and/or damage to equipment. Read all WARNINGS, CAUTIONS, and Precautions for Hydraulic Testing at the beginning
of this section.
Figure 17
1. Steering circuit pressure hose
2. Spray motor circuit pressure hose
3. Clean hose fitting and disconnect lower pressure
hose from the left side of the gear pump (Fig. 17).
4. Install T–connector with 5,000 PSI pressure gauge
in series with the pump and the disconnected hose.
5. After installing pressure gauge, start engine and run
at idle speed. Check for hydraulic leakage and correct
before proceeding with test.
2
6. Start engine and adjust engine speed to high idle
(3050 – 3150 RPM).
IMPORTANT: Hold steering wheel at full lock only
long enough to get a system pressure reading.
Holding the steering wheel against the stop for an
extended period will damage the steering motor.
7. Watch pressure gauge carefully while turning the
steering wheel completely in one direction (full steering
lock) and holding momentarily.
1
Figure 18
1. Steering relief valve
2. Gear pump suction hose
8. System pressure should be approximately 1000 PSI
as the relief valve lifts. Return steering wheel to the center position.
9. Slow engine speed and turn off machine. Record test
results.
10.If relief pressure is incorrect, inspect for worn, stuck,
or out of adjustment relief valve. Steering relief valve is
located under the suction hose on the right side of the
gear pump (Fig. 18). For adjustment procedure, see Adjust Relief Valve in the Adjustments section of this Chapter. After adjustment, retest relief valve pressure.
11. Disconnect T–connector and pressure gauge from
gear pump and hose. Reconnect hose to the pump.
Hydraulic System
Page 4 – 20
Multi Pro 5700–D
Steering Control Valve and Steering Cylinder Test
1. Make sure hydraulic oil is at normal operating temperature by operating the machine for approximately 10
minutes.
NOTE: This steering test procedure will be affected by
incorrect tire pressure, binding of the hydraulic steering
cylinder, excessive weight on the vehicle, and/or binding
of the steering assembly (e.g. wheel spindles, tie rods).
Make sure that these items are checked before proceeding with any hydraulic testing procedure.
3. Drive machine slowly in a figure eight on a flat level
surface.
A. There should be no shaking or vibration in the
steering wheel or front wheels.
B. Steering wheel movements should be followed
immediately by a corresponding front wheel movement without the steering wheel continuing to turn.
4. Stop machine with the engine running. Turn steering
wheel with small quick movements in both directions.
Let go of the steering wheel after each movement.
A. The steering must immediately return to the neutral position.
B. The steering wheel or front wheels should not
continue to turn.
5. If either of these performance tests indicate a steering problem, determine if the steering cylinder is faulty
using the following procedure.
Keep body and hands away from disconnected
hoses and fittings that might eject hydraulic fluid
under high pressure. Use paper or cardboard,
not hands, to search for leaks. Hydraulic fluid escaping under pressure can have sufficient force
to penetrate the skin and cause serious injury. If
fluid is injected into the skin, it must be surgically
removed within a few hours by a doctor familiar
with this type of injury. Gangrene may result from
such an injury.
IMPORTANT: Do not turn steering wheel to the
left (counterclockwise) as system damage may
occur.
F. With the engine off, continue turning the steering
wheel to the right (clockwise) with the steering cylinder fully contracted. Observe the open fitting on the
steering cylinder as the wheel is turned. If oil comes
out of the fitting while turning the steering wheel to
the right, the steering cylinder has internal leakage
and must be repaired or replaced.
G. Remove plug from the disconnected hydraulic
hose. Reconnect hose to the steering cylinder.
6. If steering problem exists and the steering cylinder,
steering circuit relief valve pressure and gear pump flow
tested acceptably, steering control valve requires service (see Steering Control Valve and Steering Control
Valve Service).
A. Park machine on a level surface with the spray
system turned off.
B. With the engine running, turn the steering wheel
to the right (clockwise) until the steering cylinder rod
is fully contracted.
C. Turn engine off and engage the parking brake.
D. Read Precautions for Hydraulic Testing.
E. Clean and remove hydraulic hose from the fitting
on the barrel end of the steering cylinder. Plug the
end of the disconnected hose.
Multi Pro 5700–D
Page 4 – 21
Hydraulic System
Hydraulic
System
2. Perform the Steering Circuit Relief Pressure and
Gear Pump Flow tests to make sure that relief valve and
gear pump are functioning correctly.
WARNING
Spray Pump Drive Circuit Relief Pressure Test
1. Make sure hydraulic oil is at normal operating temperature by operating the machine for approximately 10
minutes. Make sure the hydraulic tank is full.
2. Park machine on a level surface, stop engine, engage parking brake, and remove key from the ignition
switch. After turning engine off, operate all hydraulic
controls to relieve hydraulic system pressure.
8. Open control valve on tester, slow engine speed and
shut off engine. Record test results.
A. If relief pressure specification is not met, adjust
spray circuit relief valve (Fig. 19) (see Adjust Relief
Valve in the Adjustments section of this Chapter). After adjustment, retest relief valve pressure.
B. If relief pressure specification is met, disconnect
tester from tee fitting and spray circuit pressure
hose. Reconnect pressure hose to tee fitting.
CAUTION
Prevent personal injury and/or damage to equipment. Read all WARNINGS, CAUTIONS, and Precautions for Hydraulic Testing at the beginning
of this section.
1
2
4
IMPORTANT: Make sure that oil flow indicator arrow
on the flow meter is showing that oil will flow from
the pump, through the tester, and into the hydraulic
hose.
3
3. Clean hydraulic fittings and install tester with pressure gauges and flow meter in series between the gear
pump tee fitting and the spray motor circuit pressure
hose (Fig. 19). Make sure the tester flow control
valve is completely open.
4. After installing tester, start engine and run at idle
speed. Check for hydraulic leakage and correct before
proceeding with test.
Figure 19
1. Gear pump
2. Gear pump tee fitting
3. Spray circuit hose
4. Spray circuit relief valve
5. Adjust engine speed to high idle (3050 – 3150 RPM).
IMPORTANT: The gear pump is a positive displacement type. If gear pump flow is completely restricted or stopped, damage to the gear pump,
tester, or other components could occur.
6. Watch pressure gauge carefully while slowly closing
the flow control valve on the tester.
7. System pressure should be approximately 1500 PSI
as the relief valve lifts.
Hydraulic System
Page 4 – 22
Multi Pro 5700–D
Wheel Motor Efficiency: Case Drain Test
NOTE: Over a period of time, a wheel motor can wear
internally. A worn motor may by–pass oil to its case drain
causing the motor to be less efficient. Eventually,
enough oil loss will cause the wheel motor to stall under
heavy load conditions. Continued operation with a worn,
inefficient motor can generate excessive heat, cause
damage to seals and other components in the hydraulic
system and affect overall machine performance.
1. Make sure hydraulic oil is at normal operating temperature by operating the machine for approximately 10
minutes. Make sure the hydraulic tank is full.
11. Wheel motor internal leakage will be shown on flow
meter in GPM. Flow should be less than 2 GPM for the
tested wheel motor.
12.If specifications are not met, the tested wheel motor
needs to be repaired or replaced as necessary.
13.If other wheel motor requires testing, complete steps
5 to 14 for the remaining motor.
14.Disconnect tester from pump hydraulic fitting and
hose. Reconnect hose to pump connection. Reconnect
hydraulic lines to rear wheel motor.
2. Park machine on a level surface, stop engine, engage parking brake, and remove key from the ignition
switch. After turning engine off, operate all hydraulic
controls to relieve hydraulic system pressure.
1
3
Hydraulic
System
CAUTION
Prevent personal injury and/or damage to equipment. Read all WARNINGS, CAUTIONS, and Precautions for Hydraulic Testing at the beginning
of this section.
3. Make sure that traction pedal is adjusted to the neutral position (see Adjust Traction Pedal for Neutral in the
Adjustments section of this Chapter).
4. Attach a heavy chain to the rear of the machine frame
and an immovable object to prevent the machine from
moving during testing.
2
Figure 20
1. Wheel motor (RH shown)
2. Hydraulic tee fitting
3. Pressure hose
2
5. Chock rear wheel being tested to prevent rotation of
the wheel. Make sure parking brake is engaged.
6. Disconnect hydraulic tee fitting and pressure hose
from rear wheel motor that is not being tested (Fig. 20).
Cap disconnected fitting and hose. Plug ports in wheel
motor to prevent contamination.
1
7. Disconnect hose from the upper hydraulic fitting on
the right side of the piston (traction) pump (Fig. 21).
8. Install tester with pressure gauges and flow meter in
series with the piston pump and the disconnected hose.
Make sure the tester flow control valve is fully open.
9. Start engine and move throttle to high idle (3050 –
3150 RPM).
Figure 21
1. Upper hydraulic hose
2. Piston (traction) pump
10.Sit on seat, apply brakes fully, and slowly depress the
traction pedal in forward direction until 1000 PSI is displayed on the tester pressure gauge.
Multi Pro 5700–D
Page 4 – 23
Hydraulic System
Pulse Width Modulated (PWM) Valve Flow Test
1. Make sure hydraulic oil is at normal operating temperature by operating the machine for approximately 10
minutes. Make sure the hydraulic tank is full.
2. Park machine on a level surface, stop engine, engage parking brake, and remove key from the ignition
switch. After turning engine off, operate all hydraulic
controls to relieve hydraulic system pressure.
3. Perform the Gear Pump Flow Test. Make sure that
spray motor circuit hydraulic flow has been tested and
recorded.
CAUTION
10.Using the application rate switch, increase the spray
rate slightly while monitoring the flow tester. Check for
hydraulic leakage and correct before proceeding with
test.
11. With the engine still running at high idle, increase the
spray rate with the application rate switch while monitoring the flow tester. As the spray rate is increased, hydraulic flow should increase as well. At maximum spray
rate, hydraulic flow on the tester should approach spray
motor circuit hydraulic flow previously tested and recorded. If hydraulic flow does not increase correctly, either the the circuit wiring to the PWM Valve solenoid or
the PWM Valve is faulty.
12.Disconnect tester from PWM Valve CF port fitting
and hydraulic hose. Reconnect hose to fitting.
Prevent personal injury and/or damage to equipment. Read all WARNINGS, CAUTIONS, and Precautions for Hydraulic Testing at the beginning
of this section.
13.If the machine has a Pro Control System installed, reconnect the Pro Control console computer.
1
4. Disconnect hydraulic hose from the CF port fitting in
the PWM Valve (Fig. 22).
2
IMPORTANT: Make sure that the oil flow indicator
arrow on the flow meter is showing that the oil will
flow from the PWM Valve CF port, through the tester,
and into the hydraulic hose.
5. Install tester with pressure gauges and flow meter in
series with the CF port fitting and the disconnected hydraulic hose. Make sure the tester flow control valve
is fully open.
3
6. Make sure that spray tank has sufficient fluid for
agitation. Make sure that spray pump is turned off.
7. If the machine has a Pro Control System installed,
disconnect the Pro Control console computer.
Figure 22
1. PWM Valve
2. CF port fitting
3. PWM Valve solenoid
8. Start engine and move throttle to high idle speed
(3050 – 3150 RPM). The flow meter should indicate
little, if any, hydraulic flow (less than 1 GPM) from the
PWM Valve CF port.
A. If higher flow exists, stop engine, disconnect the
PWM Valve solenoid connection from the machine
harness and retest. If higher flow still exists, the
PWM Valve should be replaced. If flow decreases to
less than 1 GPM after solenoid is disconnected, inspect spray system electrical components and wiring before continuing PWM Valve flow test.
9. Make sure that spray booms are off. Turn spray
pump and tank agitation on.
Hydraulic System
Page 4 – 24
Multi Pro 5700–D
Adjustments
Adjust Traction Pedal for Neutral (Machines with Serial Numbers Below 310000000)
The piston (traction) pump control lever should return to
the neutral position when the traction pedal is released.
If the machine creeps when in neutral, check the following items:
2
3
1
1. The centering arms should be parallel to each other
and also parallel to the centerline of the machine.
2. The centering arms should touch both front and rear
bearings on control plate.
4
3. The centering arms should be tensioned by two
springs.
4. The bearings attached to control plate should rotate
freely.
Figure 24
1. Centering arm
2. Bearing
3. Spring
4. Control plate
Adjust Traction Pedal for Neutral (Machines with Serial Numbers Above 310000000)
The piston (traction) pump control lever should return to
the neutral position when the traction pedal is released.
If the machine creeps when in neutral, adjust the traction
pedal neutral assembly (Fig. 25).
1. Loosen jam nut on spring shaft.
2. Adjust spring shaft until neutral operation is correct.
2
3. Tighten jam nut to secure adjustment.
4
3
1
Figure 25
1. Traction pedal
2. Rod end
Multi Pro 5700--D
Page 4 -- 25 Rev. D
3. Jam nut
4. Spring shaft
Hydraulic System
Hydraulic
System
Reposition the control plate on the piston pump control
lever if needed.
Adjust Relief Valve
The spray pump drive circuit relief valve is located on the
left side of the piston (traction) pump (Fig. 26). The
steering circuit relief valve is located under the suction
hose on the right side of the gear pump (Fig. 27). Relief
pressure should be tested before and after adjusting the
relief valve (see Steering Circuit Relief Pressure Test
and Spray Pump Drive Circuit Relief Pressure Test in the
Testing section of this chapter). Adjustment of the relief
valve can be performed as follows:
1
3
2
NOTE: Do not remove the relief valve for adjustment.
NOTE: To gain access to the adjustment socket and
jam nut on the steering circuit relief valve, remove plastic
cap.
1. To increase relief pressure setting, loosen jam nut
on relief valve and turn the adjustment socket on the relief valve in a clockwise direction. A 1/8 turn on the socket will make a measurable change in relief pressure.
Tighten jam nut after adjustment.
Figure 26
1. Spray circuit relief valve
2. Relief valve body
2
2. To decrease pressure setting, loosen jam nut on relief valve and turn the adjustment socket on the relief
valve in a counterclockwise direction. A 1/8 turn on the
socket will make a measurable change in relief pressure. Tighten jam nut after adjustment.
1
3. Recheck spray pump drive circuit relief pressure and
readjust as needed.
Figure 27
1. Steering relief valve
Hydraulic System
3. Jam nut
Page 4 -- 26
Rev. D
2. Gear pump
Multi Pro 5700--D
Service and Repairs
General Precautions for Removing and Installing Hydraulic System Components
Before Repair or Replacement of Components
After Repair or Replacement of Components
1. Before removing any parts from the hydraulic system, park machine on a level surface, engage parking
brake, and stop engine. Remove key from the ignition
switch.
1. Check oil level in the hydraulic reservoir and add correct oil if necessary. Drain and refill hydraulic reservoir
and change oil filter if component failure was severe or
system is contaminated (see Flush Hydraulic System).
2. Clean machine before disconnecting, removing, or
disassembling any hydraulic components. Make sure
hydraulic components, hoses connections, and fittings
are cleaned thoroughly. Always keep in mind the need
for cleanliness when working on hydraulic components.
2. Lubricate O–rings and seals with clean hydraulic oil
before installing hydraulic components.
3. Make sure caps or plugs are removed from the hydraulic fittings and components before reconnecting.
4. Use proper tightening methods when installing hydraulic hoses and fittings (see Hydraulic Fitting Installation).
Rotate steering wheel and depress traction pedal in both forward and reverse to relieve hydraulic system pressure and to avoid injury from
pressurized hydraulic oil.
3. After turning engine off, operate all hydraulic controls
to relieve hydraulic system pressure.
4. Put caps or plugs on any hydraulic lines, hydraulic fittings, and components left open or exposed to prevent
contamination.
5. After repairs, check control linkages and cables for
proper adjustment, binding, or broken parts.
6. After disconnecting or replacing any hydraulic component(s), operate machine functions slowly until air is
out of system (see Charge Hydraulic System).
7. Check for hydraulic oil leaks. Shut off engine and correct leaks if necessary. Check oil level in hydraulic reservoir and add correct oil if necessary.
5. Put labels on disconnected hydraulic lines and
hoses for proper installation after repairs are completed.
6. Note the position of hydraulic fittings (especially elbow fittings) on hydraulic components before removal.
Mark parts if necessary to make sure they will be aligned
properly when reinstalling hydraulic hoses.
Check Hydraulic Lines and Hoses
WARNING
Keep body and hands away from pin hole leaks
or nozzles that eject hydraulic fluid under high
pressure. Use paper or cardboard, not hands, to
search for leaks. Hydraulic fluid escaping under
pressure can have sufficient force to penetrate
the skin and cause serious injury. If fluid is injected into the skin, it must be surgically removed within a few hours by a doctor familiar
with this type of injury. Gangrene may result from
such an injury.
Multi Pro 5700–D
Check hydraulic lines and hoses daily for leaks, kinked
lines, loose mounting supports, wear, loose fittings,
weather deterioration and chemical deterioration. Make
all necessary repairs before operating.
Page 4 – 27
Hydraulic System
Hydraulic
System
CAUTION
Flush Hydraulic System
IMPORTANT: Flush the hydraulic system any time
there is a severe component failure or the system is
contaminated. Contaminated oil appears milky,
black, or contains metal particles.
1. Make sure hydraulic oil warm by operating the machine for several minutes. Park machine on a level surface. Stop engine, apply parking brake, and remove key
from ignition switch.
2. Clean area around hydraulic filter mounting area and
remove filter (see Operator’s Manual). Drain filter into a
suitable container. Properly dispose removed filter.
3. Drain hydraulic reservoir into a suitable container
(see Operator’s Manual).
4. Drain hydraulic system. Drain all hoses and components while the system is warm.
5. Make sure filter mounting surface is clean. Apply
clean hydraulic oil to gasket on new filter. Screw filter
onto filter head until gasket contacts mounting surface,
then tighten filter 3/4 turn further.
6. Reinstall all hoses and hydraulic components.
NOTE: Use only hydraulic fluids specified in Operator’s
Manual. Other fluids could cause system damage.
7. Fill hydraulic oil reservoir (see Operator’s Manual).
Hydraulic System
8. Disconnect wire harness electrical connector from
the engine fuel stop solenoid to prevent the engine from
starting.
9. Make sure traction pedal is in neutral.. Turn ignition
key switch to start; engage starter for ten (10) seconds
to prime hydraulic pumps. Wait fifteen (15) seconds to
allow the starter motor to cool and then repeat cranking
procedure again.
10.Connect wire harness electrical connector to fuel
stop solenoid to allow engine to start.
11. Start engine and run at low idle speed (1200 -- 1250
RPM) for a minimum of two (2) minutes.
12.Increase engine speed to high idle (3050 -- 3150
RPM) for minimum of one (1) minute under no load.
13.Turn steering wheel in both directions several times.
14.Shut off engine and check for hydraulic oil leaks.
Check oil level in hydraulic reservoir and add correct oil
if necessary.
15.Operate the machine for two (2) hours under normal
operating conditions.
16.Check condition of hydraulic oil. If the fluid shows any
signs of contamination repeat steps 1 through 12 again.
17.Resume normal operation and follow recommended
maintenance intervals.
Page 4 -- 28 Rev. D
Multi Pro 5700--D
Charge Hydraulic System
IMPORTANT: Change hydraulic oil filter whenever
hydraulic components are repaired or replaced.
1. Position machine on a level surface, engage parking
brake and remove key from the ignition switch.
2. Make sure all hydraulic connections, lines, and components are tight.
3. If component failure was severe or the system is contaminated, flush and refill hydraulic system and reservoir (see Flush Hydraulic System in this section).
4. Make sure hydraulic reservoir is full. Add correct hydraulic oil if necessary (see Operator’s Manual).
5. Check control cable to the piston (traction) pump for
proper adjustment, binding, or broken parts.
6. Disconnect wire harness electrical connector from
the engine fuel stop solenoid to prevent the engine from
starting.
11. After the hydraulic system starts to show signs of fill,
rotate steering wheel until the steering cylinder rod
moves in and out several times. If the cylinder rod does
not move after 15 seconds, or the gear pump emits abnormal sounds, shut the engine off immediately and determine cause or problem. Inspect for the following:
A. Loose filter or suction lines.
B. Blocked suction line.
C. Faulty charge relief valve.
D. Faulty gear pump.
12.If cylinder does move in 15 seconds, proceed to
step 13.
13.Operate the traction pedal in the forward and reverse
directions. The rear wheels should rotate in the proper
direction.
A. If the wheels rotate in the wrong direction, stop
engine, remove lines from side of piston (traction)
pump, and reverse the connections.
B. If the wheels rotate in the proper direction, stop
engine.
7. Make sure traction pedal is in neutral.. Turn ignition
key switch to start; engage starter for ten (10) seconds
to prime hydraulic pumps. Wait fifteen (15) seconds to
allow the starter motor to cool and then repeat cranking
procedure again.
14.Adjust traction pedal to the neutral position (see Operator’s Manual).
8. Connect wire harness electrical connector to fuel
stop solenoid to allow engine to start.
16.Remove blocks from frame and lower machine to the
ground. Remove chocks from front wheels.
15.Check operation of the neutral switch (see Operator’s Manual).
17.If the piston (traction) pump or a wheel motor was replaced or rebuilt, run the machine so wheels turn slowly
for 10 minutes.
WARNING
Before jacking up the machine, review and follow
Jacking Instructions in Chapter 1 -- Safety.
9. Raise rear wheels off the ground, and place support
blocks under the frame. Chock front wheels to prevent
movement of the machine.
18.Operate machine by gradually increasing it’s work
load to full over a 10 minute period.
19.Stop the machine. Check hydraulic reservoir and fill
if necessary. Check hydraulic components for leaks and
tighten any loose connections.
10.Start engine and run it at low idle (1200 -- 1250 RPM).
The charge pump should pick up oil and fill the hydraulic
system. If there is no indication of fill in 30 seconds, stop
the engine and determine the cause.
Multi Pro 5700--D
Page 4 -- 29 Rev. D
Hydraulic System
Hydraulic
System
NOTE: When initially starting the hydraulic system with
new or rebuilt components such as motors or pumps, it
is important that the hydraulic system be charged properly. Air must be purged from the system and its components to reduce the chance of damage.
Gear Pump
15
12
14
13
11
8
9
12
10
LEFT SIDE OF PUMP
1
2
7
6
5
4
3
NOTE: ILLUSTRATION FROM
BOTTOM OF MACHINE
Figure 26
1.
2.
3.
4.
5.
Piston (traction) pump
O–ring
Gear pump
O–ring
Hydraulic hose (gear pump suction)
Hydraulic System
6.
7.
8.
9.
10.
Cap screw (2 used)
Flat washer (2 used)
O–ring
Hydraulic hose (to steering control)
O–ring
Page 4 – 30
11.
12.
13.
14.
15.
Hydraulic tee fitting
O–ring
Hydraulic hose (to PWM valve)
Hydraulic hose (to relief valve)
Relief valve assembly
Multi Pro 5700–D
4. Install new hydraulic oil filter and fill hydraulic reservoir with correct oil (see Operator’s Manual).
Removal (Fig. 26)
1. Park machine on a level surface, stop engine, engage parking brake, and remove key from the ignition
switch.
2. To prevent contamination of hydraulic system during
gear pump removal, thoroughly clean exterior of pump
assembly.
5. Properly fill hydraulic system (see Charge Hydraulic
System in the Service and Repairs section of this chapter).
6. Stop engine and check for hydraulic oil leaks. Check
hydraulic reservoir oil level.
CAUTION
2
Rotate steering wheel and depress traction pedal in both forward and reverse to relieve hydraulic system pressure and to avoid injury from
pressurized hydraulic oil.
3. Operate all hydraulic controls to relieve hydraulic
system pressure.
4. Read the General Precautions for Removing and
Installing Hydraulic System Components at the beginning of the Service and Repairs section of this chapter.
Figure 27
1. Gear pump
2. Piston pump
5. Put drain pan below the gear pump. Remove hydraulic hoses and fittings connected to gear pump. Put plugs
or caps on disconnected hydraulic hoses and open
ports of pump to prevent contamination of the system.
6. Support the gear pump to prevent it from falling (Fig.
27). Remove two (2) cap screws and flat washers retaining gear pump to piston pump.
7. Carefully pull gear pump from piston pump and lower
it out of the machine. Locate and retrieve o–ring from between pumps.
Installation (Fig. 26)
1. Lubricate new o–ring and position it to gear pump.
Carefully raise gear pump and position it to the piston
pump.
2. Align spline teeth and slide gear pump input shaft
into piston pump coupling. Support gear pump to prevent it from falling while installing two (2) cap screws and
flat washers securing gear pump to piston pump.
3. Remove plugs or caps from disconnected hydraulic
hoses and ports of the gear pump. Lubricate new o–
rings and install fittings and hoses to correct location on
gear pump.
Multi Pro 5700–D
Page 4 – 31
Hydraulic System
Hydraulic
System
NOTE: To ease reassembly, tag hydraulic hoses to
show their correct position on the gear pump.
1
Gear Pump Service
2
6
1
8
21 to 24 ft–lb
(29 to 33 N–m)
10
3
4
11
25 to 28 ft–lb
(34 to 38 N–m)
14
7
5
15
7
9
12
16
13
19
21
17
30 to 34 ft–lb
(41 to 46 N–m)
20
22
18
23
15
21 to 24 ft–lb
(29 to 33 N–m)
24
Figure 28
1.
2.
3.
4.
5.
6.
7.
8.
Cap screw (8 used)
Washer (4 used)
Shaft seal
Washer
Front plate
Plug
O–ring
Backup gasket
9.
10.
11.
12.
13.
14.
15.
16.
Pressure seal
Wear plate
Drive gear
Idler gear
Body
Plug
O–ring
Backplate
17.
18.
19.
20.
21.
22.
23.
24.
Steering relief valve
O–ring
Backup washer
O–ring
Flow divider spool
Spring
Disc
Plug
NOTE: For service of the gear pump, see the Eaton
Model 26000 Single Gear Pumps Repair Information at
the end of this chapter.
Hydraulic System
Page 4 – 32
Multi Pro 5700–D
Hydraulic
System
This page is intentionally blank.
Multi Pro 5700–D
Page 4 – 33
Hydraulic System
Piston (Traction) Pump
36
32
37
2
38
39
34
33 35
32 31
30
4
27
40
26
29
28
4
22
LEFT SIDE OF PUMP
21
24 4 23
22
17 9
7
16
9
20
19
7
1
18 7
11
14
Antiseize
Lubricant
15
7
8
13
7
10
12
NOTE: ILLUSTRATION FROM
BOTTOM OF MACHINE
9
6
4
25
5
4 3
2
Figure 31
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
Piston (traction) pump
O--ring
Hydraulic adapter
O--ring
Hydraulic tee fitting
Hydraulic hose (to reservoir)
O--ring
90o hydraulic fitting
O--ring
Hydraulic hose (piston pump suction)
O--ring
Gear pump
Hydraulic hose (gear pump suction)
Cap screw (2 used)
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
Flat washer (2 used)
Hydraulic hose (to LH wheel motor)
Hydraulic hose (to RH wheel motor)
45o hydraulic fitting
Straight fitting
O--ring
Hydraulic hose (to oil filter)
O--ring
90o hydraulic fitting
Hydraulic hose (from oil filter)
Hydraulic hose (from wheel motors)
Hydraulic hose (to steering control)
Hydraulic tee fitting
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.
39.
40.
Hydraulic hose (to PWM valve)
Hydraulic hose
O--ring
90o hydraulic fitting
O--ring
Seal kit
Relief valve
Relief valve body
Hydraulic adapter
Cap screw (2 used)
Lock washer (2 used)
Flat washer (2 used)
O--ring
Removal (Fig. 31)
1. Park machine on a level surface, stop engine, engage parking brake, and remove key from the ignition
switch.
2. To prevent contamination of hydraulic system during
pump removal, thoroughly clean exterior of pump assembly.
Hydraulic System
CAUTION
Rotate steering wheel and depress traction pedal in both forward and reverse to relieve hydraulic system pressure and to avoid injury from
pressurized hydraulic oil.
Page 4 -- 34
Multi Pro 5700--D
3. Operate all hydraulic controls to relieve hydraulic
system pressure.
6. Connect two (2) wires to neutral switch on piston
pump (Fig. 32).
4. Remove traction cable ball joint from control plate on
piston pump by removing lock nut (Fig. 32). Remove cap
screw from control plate. Locate and retrieve three (3)
flat washers (Fig. 33).
7. Remove plugs or caps from disconnected hydraulic
hoses and ports of the pump assembly. Lubricate new
O--rings and install fittings and hoses to correct location
on gear and piston pumps.
5. Disconnect two (2) wires from neutral switch on piston pump (Fig. 32).
8. Secure R--clamp and right side brake cable to pump
assembly with flange head screw and flange nut.
6. Remove flange head screw and flange nut that secures R--clamp and right side brake cable to pump assembly (Fig. 32).
9. Install new hydraulic oil filter and fill hydraulic reservoir with correct oil (see Operator’s Manual).
7. Read the General Precautions for Removing and
Installing Hydraulic System Components at the beginning of the Service and Repairs section of this chapter.
NOTE: To ease reassembly, tag hydraulic hoses to
show their correct position on the pump assembly.
10.Properly fill hydraulic system (see Charge Hydraulic
System in the Service and Repairs section of this chapter).
11. Stop engine and check for hydraulic oil leaks. Check
hydraulic reservoir oil level.
4
1
9. Support the pump assembly to prevent it from falling.
Remove two (2) cap screws, lock washers and flat
washers that retain pump assembly to engine bell housing.
3
Hydraulic
System
8. Put a drain pan below the pump assembly. Remove
hydraulic hoses and fittings connected to piston and
gear pumps. Put plugs or caps on disconnected hydraulic hoses to prevent contamination of the system. Put
plugs in open ports of pumps.
2
10.Carefully pull pump assembly from engine and lower
it out of the machine.
11. If needed, separate gear pump from piston pump
(see Gear Pump Removal in this section).
Figure 32
1. Traction cable lock nut
2. Neutral switch
3. R--clamp/brake cable
4. Centering arm
Installation (Fig. 31)
1. If gear pump was removed from piston pump, install
gear pump to piston pump (see Gear Pump Installation
in this section).
1
2
2. Apply antiseize lubricant to piston pump shaft
splines.
3
4
3. Carefully raise pump assembly and position it to the
engine. Make sure that both bushings on control plate
are between centering arms on rear of engine (Fig. 32).
4. Align spline teeth and slide piston pump input shaft
into engine coupling spline. Support pump to prevent it
from falling while installing two (2) cap screws, lock
washers and flat washers to secure pump to engine bell
housing.
5. Secure traction cable to control plate with cap screw,
three (3) washers and lock nut (Fig. 32 and 33).
Multi Pro 5700--D
6
5
7
Figure 33
1.
2.
3.
4.
Page 4 -- 35
Cap screw
Flat washer
Neutral plate
Flat washer
5. Lock nut
6. Ball joint
7. Traction cable
Hydraulic System
Piston (Traction) Pump Service
50
47
49
41
14
37
54
46
15
36
40
48
43 42
51
53
34
44
52
12
19
20
45
38
33
34
35
39
27
23
10
20
9
21
32
30
22
31
19
25
28
8
29
27
24
10
1
26
18
11
6
5
17
12
13
7
14
6
4
2
15
16
5
3
Figure 32
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
Drive shaft
Retaining ring
Shaft seal
Washer
Retaining ring
Thrust bearing race
Thrust bearing
Bearing
Housing
Seal set
Servo piston
Gasket
Cover plate
Flat washer (4 used per cover)
Socket head screw (4 used per cover)
Washer
Jam nut
Seal washer
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
Plug
O–ring
Cradle
Bushing
Screw
Valve plate
Bearing
Reverse relief valve
O–ring
O–ring
Bypass valve
Key
Geroter (inner)
O–ring
Geroter (outer)
Flat washer (4 used)
Cap screw (3 1/2” long: 2 used)
Cap screw (4” long: 2 used)
37.
38.
39.
40.
41.
42.
43.
44.
45.
46.
47.
48.
49.
50.
51.
52.
53.
54.
Charge pump adapter
Backplate
Roll pin
Housing gasket
Rotating kit
Camplate
Servo piston follower
Cap screw (2 used)
Bushing dowel (2 used)
Socket head screw (6 used)
Control arm
Hex nut
Lock washer
Manual servo control assembly
Control orifice (3 used)
Housing gasket
Cover plate
Forward relief valve
NOTE: For service of the piston (traction) pump, see
the Eaton Model 72400 Servo Controlled Piston Pump
Repair Information at the end of this chapter.
Hydraulic System
Page 4 – 36
Multi Pro 5700–D
Manual Servo Control Assembly
44 to 52 ft–lb
(60 to 70 N–m)
15
10
1
14
2
3
9
7
4
13
12
5
4
8
6
16
24
17 to 26 in–lb
(1.9 to 2.9 N–m)
17
23
Loctite #222
11
28 to 34 in–lb
(3.2 to 3.8 N–m)
21
Loctite #242
18
20
19
Figure 33
1.
2.
3.
4.
5.
6.
7.
8.
Plug
O–ring
Retaining ring
Spring retainer
Spring
Spool valve
Control housing
Input shaft
9.
10.
11.
12.
13.
14.
15.
16.
O–ring
Wiper seal
O–ring
Adaptor
Ball
Pin
Neutral switch
O–ring
17.
18.
19.
20.
21.
22.
23.
24.
Set screw
Set screw
Pin
Retaining ring
Feedback link
Dowel pin
Bell crank
Set screw
NOTE: For service of the manual servo control assembly (including neutral switch adjustment), see the Eaton
Model 72400 Servo Controlled Piston Pump Repair Information at the end of this chapter.
Multi Pro 5700–D
Page 4 – 37
Hydraulic System
Hydraulic
System
22
Wheel Motors
1
29
30
28
21
31
60 ft–lb
(81 N–m)
6
22 23
21
14
20 24
25
13
9
27
13
19
2
3
9
4
25
17 20
18
13
7
70 to 90 ft–lb
(95 to 122 N–m)
18 17
16
26
LEFT
FRONT
5
16
8
13 14
12
10
11
15
60 ft–lb
(81 N–m)
Figure 34
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Planetary assembly
Lug nut (8 used per wheel)
Tire and wheel assembly
Gasket
RH brake assembly
Flange head screw (4 used per brake)
Splined brake shaft
Retaining ring
O–ring
RH wheel motor
Flat washer (2 used per motor)
Hydraulic System
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
Cap screw (2 used per motor)
O–ring
Hydraulic tee fitting
Hyd. hose (to top pump fitting)
O–ring
Hydraulic adapter
O–ring
Hydraulic hose (to pump case drain)
O–ring
O–ring
Page 4 – 38
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
Hydraulic adapter
Hydraulic tee fitting
Hydraulic hose
Hydraulic hose
Hyd. hose (to bottom pump fitting)
LH wheel motor
LH brake cable
LH brake assembly
Flange head screw (6 used per side)
RH brake cable
Multi Pro 5700–D
Removal (Fig. 34)
1. Park machine on a level surface, stop engine, engage parking brake, and remove key from the ignition
switch.
5. Remove plugs from hydraulic lines, fittings, and
ports. Lubricate new o–rings and attach hydraulic hoses
to wheel motor.
6. If right side wheel motor was removed, plug speed
sensor connector into machine wiring harness.
7. Check fluid level in hydraulic oil reservoir and adjust
as required (see Operator’s Manual).
Rotate steering wheel and depress traction pedal in both forward and reverse to relieve hydraulic system pressure and to avoid injury from
pressurized hydraulic oil.
8. Operate machine and inspect for leaks.
2. Operate all hydraulic controls to relieve hydraulic
system pressure.
3
2
3. Read the General Precautions for Removing and
Installing Hydraulic System Components at the beginning of the Service and Repairs section of this chapter.
4. To prevent contamination of hydraulic system during
motor removal, thoroughly clean exterior of motor and
fittings.
1
Figure 35
1. Splined brake shaft step
2. Hydraulic motor end
3. Planetary assembly end
2
NOTE: To ease reassembly, tag the hydraulic hoses to
show their correct position on the wheel motor.
1
5. Disconnect hydraulic hoses from fittings on wheel
motor. Put caps or plugs on hydraulic lines, fittings, and
ports to prevent contamination.
6. If right side wheel motor is being removed, unplug
speed sensor connector from machine wiring harness.
3
IMPORTANT: Before loosening fasteners, support
wheel motor to prevent motor from falling.
7. Support the pump assembly to prevent it from falling.
Remove two (2) cap screws and flat washers that secure
wheel motor to brake and planetary assemblies. Remove wheel motor from machine.
4
Figure 36
1. Piston (traction) pump
2. Top pump fitting
3. Bottom pump fitting
4. Case drain fitting
Installation (Fig. 34)
1. If splined brake shaft was removed from brake assembly, make sure that the stepped end of the shaft is
aligned toward the hydraulic wheel motor (Fig. 35). Also,
make sure that splines engage rotating discs in brake
assembly.
2. Position wheel motor to brake assembly.
3. Align splines on motor shaft and splined brake shaft.
Slide motor to brake assembly.
4. Secure motor to brake and planetary assemblies
with cap screws and flat washers. Torque cap screws 60
ft–lb (81 N–m).
Multi Pro 5700–D
Page 4 – 39
Hydraulic System
Hydraulic
System
CAUTION
Wheel Motor Service
15 to 18 ft–lb
(20 to 24 N–m)
7
8
4
4
5
6
9
5
12
3
2
1
18
19
10
11
20
13
14
15
16
17
21
Figure 37
1.
2.
3.
4.
5.
6.
7.
Retaining ring
Shaft seal
Washer
Retaining ring
Thrust bearing race
Thrust bearing
Drive shaft
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
Cap screw (6 used)
Back plate
Dowel pin
Dowel pin (3 used)
O–ring
Needle bearing
Valve plate
NOTE: The wheel motors used on the Multi Pro
5700–D are very similar. The major difference is the
speed sensor installed in the right side wheel motor. Service of the left and right motors requires the same procedure.
Rotating kit
Cam plate insert
Housing
Speed sensor (RH wheel)
O–ring
O–ring
Needle bearing
NOTE: For information on speed sensor installation,
see Traction Speed Sensor in the Service and Repairs
section of Chapter 5 – Electrical System.
NOTE: For service of the wheel motors, see the Eaton
Model 74318 and 74348 Piston Motors: Fixed Displacement, Valve Plate Design Repair Information at the end
of this chapter.
Hydraulic System
Page 4 – 40
Multi Pro 5700–D
Hydraulic
System
This page is intentionally blank.
Multi Pro 5700–D
Page 4 – 41
Hydraulic System
Spray Pump Drive Motor
1
3
4
5
6
7
10
RIGHT
15
14
13
26
12
9
8
Loctite #242
FRONT
9
8
10
2
16
Loctite #242
6
21
11
4
2
Antiseize
Lubricant
Antiseize
Lubricant
17
18
19
20
21
22
23
24
25
22
26
27
Figure 40
1.
2.
3.
4.
5.
6.
7.
8.
9.
Spray pump assembly
Flange nut
Square key
Lock nut
Pump hub
Coupler spacer
Rubber coupling
Flat washer
Cap screw
Hydraulic System
10.
11.
12.
13.
14.
15.
16.
17.
18.
Set screw
Hydraulic motor hub
Flange head screw
Rear guard plate
Front guard plate
Flange nut
PWM Valve
Pump mount bracket
Flange head screw (4 used)
Page 4 -- 42
19.
20.
21.
22.
23.
24.
25.
26.
27.
Woodruff key
Hydraulic motor
Hydraulic hose (from PWM CF port)
O--ring
Hydraulic 90o fitting (short)
O--ring
Hydraulic 90o fitting (long)
Hydraulic hose (to T fitting on PWM)
U--bolt (2 used)
Multi Pro 5700--D
1. Park machine on a level surface, stop engine, engage parking brake, and remove key from the ignition
switch.
CAUTION
Rotate steering wheel and depress traction pedal in both forward and reverse to relieve hydraulic system pressure and to avoid injury from
pressurized hydraulic oil.
2. Operate all hydraulic controls to relieve hydraulic
system pressure.
3. Read the General Precautions for Removing and
Installing Hydraulic System Components at the beginning of the Service and Repairs section of this chapter.
4. Remove flange head screw and flange nut that secure front and rear guard plate. Remove four (4) flange
nuts that retain guard plates to pump mount bracket. Remove guard plates from machine.
5. Label all hydraulic connections to ease reassembly.
Clean hydraulic hose ends prior to disconnecting the
hoses from hydraulic motor.
6. Disconnect hydraulic hoses from motor. Allow hoses
to drain into a suitable container.
7. Put caps or plugs on disconnected hoses and fittings
to prevent contamination.
8. Remove lock nuts, flat washers, cap screws, and
coupler spacers that secure rubber coupling to hydraulic
motor hub.
2. If motor hub was removed, apply antiseize lubricant
to motor shaft. Install woodruff key in shaft and slide hub
onto motor shaft.
3. Position motor on pump mounting bracket and install
flange head screws and flange nuts to motor and mounting bracket. Leave fasteners loose.
4. Place coupling spacers into rubber coupling. Install
cap screws, flat washers, and lock nuts to secure rubber
coupling to motor hub. Make sure that cap screw
threads extend through lock nut.
5. If motor hub was removed, apply Loctite #242 (or
equivalent) to threads of motor hub set screws. Install
set screws into hub to secure hub to motor shaft.
6. Turn pump shaft by hand and position motor on
mounting bracket to best align the coupling assembly
between the pump shaft and the hydraulic motor shaft.
7. Secure motor to mounting bracket by tightening
flange head screws and flange nuts.
8. Lubricate new O--rings and install hydraulic hoses to
correct hydraulic fittings on motor.
9. Position front and rear guard plates to pump mount
bracket. Install and tighten flange head screw and
flange nut to guard plates. Install flange nuts to secure
guard plates to pump mount bracket.
10.Check fluid level in hydraulic oil reservoir and adjust
as required (see Operator’s Manual).
11. Properly fill hydraulic system (see Charge Hydraulic
System in the Service and Repairs section of this chapter).
12.Stop engine and check for hydraulic oil leaks. Check
hydraulic reservoir oil level.
9. Remove two (2) flange head screws and flange nuts
that secure hydraulic motor to pump mount bracket.
1
10.Remove hydraulic motor from machine.
11. If needed, loosen set screws in hydraulic motor hub.
Pull hub from motor shaft. Locate and remove woodruff
key from motor shaft. Remove set screws from hub.
Clean threads of set screws and hub.
12.If hydraulic fitting removal is needed, note orientation
of hydraulic fittings before removing fittings from motor.
3
2
Installation (Fig. 40)
1. If removed, lubricate new O--rings and install hydraulic fittings to motor.
Multi Pro 5700--D
Page 4 -- 43
Figure 41
1. Spray pump drive motor
2. Hydraulic hose (from PWM CF port)
3. Hydraulic hose (to PWM EX port)
Hydraulic System
Hydraulic
System
Removal (Fig. 40)
Spray Pump Drive Motor Service
17
19
16
12
13
15
18
6
20
2
3
21
1
22
14
22 to 26 ft–lb
(30 to 35 N–m)
4
6
5
7
6
8
10
9
6
11
Figure 40
1.
2.
3.
4.
5.
6.
7.
8.
Cap screw (5 used)
End cover
Commutator seal
Commutator
Commutator ring
Ring seal
Manifold
Stator
9.
10.
11.
12.
13.
14.
15.
Vane
Rotor
Wear plate
Drive link
Shaft
Woodruff key
Bearing
16.
17.
18.
19.
20.
21.
22.
Thrust bearing
Thrust washer
Inner seal
Backup washer
Housing
Bearing
Seal
NOTE: For service of the spray pump drive motor, see
the Parker TorqlinkTM Service Procedure at the end of
this chapter.
Hydraulic System
Page 4 – 44
Multi Pro 5700–D
Relief Valve
Removal
A. Contamination may cause valves to stick or hang
up. Contamination can become lodged in small valve
orifices or seal areas causing malfunction.
1. Park machine on a level surface, stop engine, engage parking brake, and remove key from the ignition
switch.
B. If sealing surfaces appear pitted or damaged, the
hydraulic system may be over heating or there may
be water in the hydraulic system.
CAUTION
2. Operate all hydraulic controls to relieve hydraulic
system pressure.
3. Read the General Precautions for Removing and
Installing Hydraulic System Components at the beginning of the Service and Repairs section of this chapter.
4. Disconnect hose assembly from hydraulic fitting at
bottom of relief valve body. Allow hose to drain into a
suitable container.
5. Unscrew relief valve body from hydraulic adapter in
side of piston pump.
6. If needed, remove hydraulic fitting from bottom of relief valve body.
Installation
1. Lubricate new o–rings with clean hydraulic fluid.
CAUTION
Use eye protection such as goggles when using
compressed air.
4. Clean relief valve cartridge using clean mineral spirits to flush out any contamination. Submerge cartridge
in clean mineral spirits to flush out contamination. Particles as fine as talcum powder can affect the operation
of relief valve. Use compressed air for cleaning.
Reassembly
1. Lubricate new o–ring and back–up ring with clean
hydraulic fluid. Install o–ring and back–up ring to the relief valve cartridge.
2. Carefully thread relief valve cartridge into the relief
valve body. The valve should go in easily without binding. Torque cartridge to 190 in–lb (21.4 N–m).
3. Lubricate new O–rings with clean hydraulic fluid.
Connect hydraulic fittings and O–rings to the relief valve
body.
5
2. If removed, install hydraulic fitting into bottom of relief valve body.
6
3
2
3. Secure valve body to the hydraulic adapter in side of
piston pump.
190 in–lb
(21.5 N–m)
7
1
4. Install hydraulic hose to hydraulic fitting at bottom of
relief valve body. Tighten hose connections.
8
9
10
4
Disassembly
1. Unscrew relief valve cartridge from the relief valve
body. Remove o–ring and back–up ring.
2. Inspect ports of the relief valve body for damaged
sealing surfaces or threads and contamination.
3. Inspect relief valve cartridge for damaged sealing
surfaces and contamination.
Multi Pro 5700–D
Figure 41
1.
2.
3.
4.
5.
Page 4 – 45
Pump assembly
O–ring
Hydraulic adapter
O–ring
Relief valve body
6.
7.
8.
9.
10.
Relief cartridge
Seal kit
Hydraulic fitting
O–ring
Hydraulic hose
Hydraulic System
Hydraulic
System
Rotate steering wheel and depress traction pedal in both forward and reverse to relieve hydraulic system pressure and to avoid injury from
pressurized hydraulic oil.
Pulse Width Modulated (PWM) Valve
8
9
15
12
11
10
FRONT
14
RIGHT
10
5
1
13
16
4
9
17
3
8
2
7
18
6
5
19
20
7
17
Figure 44
1.
2.
3.
4.
5.
6.
7.
Spray pump assembly
Flange nut
Flange head screw
Rear guard plate
Flange nut (3 used)
Front guard plate
Hydraulic hose (PWM to motor)
8.
9.
10.
11.
12.
13.
14.
O--ring
Hydraulic fitting
O--ring
Cap screw (2 used)
PWM Valve
Hydraulic hose (from gear pump)
Hydraulic tee fitting
The Pulse Width Modulated (PWM) Valve is used on the
Multi Pro 5700--D to control gear pump flow to the spray
pump hydraulic motor. Electrical current to the PWM
Valve solenoid coil affects the internal spool setting of
the Valve and thus the hydraulic flow to the spray pump
motor.
For information on PWM Valve solenoid testing, see
Pulse Width Modulated (PWM) Valve Solenoid in the
Component Testing section of Chapter 5 -- Electrical
System.
Hydraulic System
15.
16.
17.
18.
19.
20.
Hydraulic hose (to oil cooler)
O--ring
Hydraulic hose (motor to PWM tee)
Flat washer (2 used)
Hydraulic motor
Pump mount bracket
IMPORTANT: Correct operation of the PWM Valve
depends on precise assembly and adjustment. No
disassembly or adjustment of the PWM Valve is recommended.
Internal parts for the PWM valve are not available. On
machines with serial numbers above 260000300, the
PWM valve solenoid coil is available as a separate component. Refer to your parts catalog for replacement part
information.
Page 4 -- 46 Rev. D
Multi Pro 5700--D
Removal (Fig. 38)
1
1. Park machine on a level surface, stop engine, engage parking brake, and remove key from the ignition
switch.
CAUTION
3
Rotate steering wheel and depress traction pedal in both forward and reverse to relieve hydraulic system pressure and to avoid injury from
pressurized hydraulic oil.
3. Read the General Precautions for Removing and
Installing Hydraulic System Components at the beginning of the Service and Repairs section of this chapter.
Figure 43
1. PWM Valve
2. Solenoid
3. Solenoid connector
1
4. Label all hydraulic connections to ease reassembly.
Clean hydraulic hose ends prior to disconnecting the
hoses from PWM Valve.
3
2
5. Disconnect four (4) hydraulic hoses from fittings in
PWM Valve. Allow hoses to drain into a suitable container.
Hydraulic
System
2. Operate all hydraulic controls to relieve hydraulic
system pressure.
2
4
6. Put caps or plugs on disconnected hoses and fittings
to prevent contamination.
7. Disconnect PWM Valve solenoid connector from
machine wiring harness (Fig. 43).
8. Remove two (2) cap screws and flange nuts that secure PWM Valve to pump mount bracket. Locate and retrieve two (2) flat washers from between PWM Valve and
pump mount bracket. Remove PWM Valve from machine.
Figure 44
1. IN port (from gear pump)
2. CF port (to motor)
3. EX port (to oil cooler)
4. Solenoid coil
Installation (Fig. 38)
1. Place two (2) cap screws into PWM Valve mounting
holes. Install flat washer on screws and position Valve
to pump mount bracket. Install and tighten flange nuts
to secure PWM Valve to bracket.
2. Remove caps and plugs from hydraulic hoses and
fittings. Lubricate new o–rings and install hydraulic
hoses to fittings in PWM Valve.
3. Plug PWM Valve solenoid connector into machine
wiring harness.
4. Check fluid level in hydraulic oil reservoir and adjust
as required (see Operator’s Manual).
5. Operate machine and inspect for leaks.
Multi Pro 5700–D
Page 4 – 47
Hydraulic System
Steering Control Valve
9
8
6
5
4
2
2
1
7
10
2
3
2
11
1
12
20 to 26 ft--lb
(28 to 35 N--m)
13
FRONT
RIGHT
Figure 46
1.
2.
3.
4.
5.
Hydraulic hose (to steering cylinder)
O--ring
Hydraulic hose (to oil cooler)
Hydraulic hose (from pump)
Steering control valve
Hydraulic System
6.
7.
8.
9.
Steering column
Cap screw (4 used)
Steering wheel
Steering wheel cover
Page 4 -- 48 Rev. C
10.
11.
12.
13.
Nut
Dust cover
Steering seal
Steering cylinder
Multi Pro 5700--D
Removal (Fig. 45)
1. Park the machine on a level surface, engage parking
brake, and stop engine. Remove key from the ignition
switch.
3. Lubricate new o–rings and connect hydraulic hoses
to steering control valve (Fig. 46). Tighten hose connections.
4. Position dash panel to front hood and secure with
fasteners (Fig. 47).
5. Check fluid level in hydraulic oil reservoir and adjust
as required (see Operator’s Manual).
CAUTION
Rotate steering wheel and depress traction pedal in both forward and reverse to relieve hydraulic system pressure and to avoid injury from
pressurized hydraulic oil.
6. After assembly is completed, operate steering cylinder to verify that hydraulic hoses and fittings are not contacted by anything and that there are no leaks.
5
2. Operate all hydraulic controls to relieve hydraulic
system pressure.
3. Read the General Precautions for Removing and
Installing Hydraulic System Components at the beginning of the Service and Repairs section of this chapter.
3
4. Label all hydraulic connections for reassembly purposes. Clean hydraulic hose ends prior to disconnecting
the hoses.
6. Disconnect hydraulic hoses connected to the steering control valve. Allow hoses to drain into a suitable
container. Cap or plug openings of control valve and
hoses to prevent contamination.
2
4
Figure 46
1. Steering control valve
2. Hyd hose (left turn)
3. Hyd hose (right turn)
4. Hyd hose (from pump)
5. Hyd hose (to oil cooler)
1
7. Support steering control valve to prevent it from falling during removal.
2
8. Loosen and remove four (4) cap screws that secure
steering column and steering control valve to machine
frame.
3
9. Slide steering valve from control column. Remove
control valve from machine.
3
Installation (Fig. 45)
1. Slide steering control valve onto steering column.
Secure steering column and control valve to frame with
four (4) cap screws.
Figure 47
1. Steering column
2. Dash front edge screw
3. Dash side screw
2. Remove caps and plugs from disconnected hoses
and fittings.
Multi Pro 5700–D
Page 4 – 49
Hydraulic System
Hydraulic
System
5. Remove fasteners that secure dash panel to front
hood (Fig. 47). Front edge of panel is secured with four
(4) screws and weldnuts. Sides of panel are fastened
with four (4) screws and flange nuts. Carefully slide dash
panel up steering column to allow access to steering
control valve.
1
Steering Control Valve Service
8
1
3
24
2
6
7
4
5
20
19
19
23
22
21
150 in–lb
(17 N–m)
9
10
13
12
11
14
140 to 160 in–lb
(15.8 to 18.1 N–m)
15
18
17
16
Figure 48
1.
2.
3.
4.
5.
6.
7.
8.
Steering valve housing
Dust seal
O–ring
Spool
Spring retaining ring
Pin
Sleeve
Centering springs/spacers
9.
10.
11.
12.
13.
14.
15.
16.
Geroter drive
Wear plate
Bearing race
Thrust bearing
Plug
O–ring
Check ball
Quad seal
4. Slide the spool and sleeve assembly from the housing.
Disassembly
NOTE: Cleanliness is extremely important when
repairing hydraulic components. Work in a clean area.
Before disassembly, drain the oil, then plug the ports
and thoroughly clean the exterior. During repairs,
always protect machined surfaces.
1. Remove the seven cap screws from the steering
valve assembly.
2. Remove end cap, geroter, spacer, geroter drive,
wear plate, seal ring, and o–rings (Items 11, 13, and 15)
from housing (Fig. 48).
3. Remove the plug, o–ring, and check ball from the
housing.
Hydraulic System
17.
18.
19.
20.
21.
22.
23.
24.
Cap screw (7 used)
End cap
O–ring
Seal ring
O–ring
Geroter
O–ring
Spacer
5. Remove the thrust bearing and bearing races (2).
6. Remove the quad seal.
7. Use a small blade screwdriver to carefully pry the
dust seal from the housing. Be careful to not damage the
dust seal seat in the housing.
8. Remove the pin (Item 6) that holds the spool and
sleeve together.
9. Carefully slide the spool out of the sleeve. The centering springs and spring retaining ring will stay with the
spool as it is removed.
Page 4 – 50
Multi Pro 5700–D
8. Put the thrust bearing and bearing races into the
housing. The thrust bearing goes between the two bearing races (Fig. 49).
The centering springs are under tension. Remove the retaining ring carefully.
IMPORTANT: Do not damage the dust or quad seals
when installing the spool and sleeve assembly.
10.Remove the spring retaining ring and centering
springs from the spool.
9. Apply a light coating of clean hydraulic oil to the spool
and sleeve assembly. Carefully slide the assembly into
the housing.
Reassembly
Check all mating surfaces. Replace any parts with
scratches or burrs that could cause leakage. Wash all
metal parts in clean solvent. Blow them dry with pressurized air. Do not wipe parts dry with paper towels or cloth.
Lint in a hydraulic system will cause damage.
NOTE: Always use new seals and o–rings when
reassembling the steering control valve.
IMPORTANT: During reassembly, lubricate the new
seals with petroleum jelly. Also, lubricate machined
surfaces and bearings with clean hydraulic oil.
10.Clamp the housing in a vise. Use only enough clamping force to hold the housing securely.
11. Lubricate and install a new o-ring (Item 3) in the
groove in the housing.
12.Install the wear plate and align screw holes in the
wear plate with threaded holes in the housing.
NOTE: The holes in the wear plate are symmetrical.
13.Install the geroter drive, making sure the slot in the
drive engages the pin.
14.Lubricate and install new o-ring in wear plate groove.
1. Install the quad seal:
A. Put one of the bearing races and sleeve into the
housing.
B. Together, the housing and bearing race create a
groove into which the quad seal will be installed.
C. Hold the bearing race tightly against the input end
of the housing by pushing on the gerotor end of the
sleeve.
15.Install the gerotor and align the screw holes.
16.Lubricate and install new o-ring in gerotor ring
groove.
17.Lubricate and install new o-ring and seal ring in gerotor star groove.
18.Install the spacer.
D. Fit the quad seal into its seat through the input
end of the housing. Be sure the seal is not twisted.
19.Install the end cap and seven (7) cap screws. Tighten
the cap screws, in a crossing pattern, from 140 to 160
in-lb (15.8 to 18.1 N–m).
E. Remove the sleeve and bearing race.
20.Remove the steering control unit from the vise.
2. Lubricate and install the dust seal.
3. Install the centering springs in the spool. It is best to
install the two flat pieces first. Next, install the curved
pieces, three at a time.
4. Fit the retaining ring over the centering springs.
21.Install the check ball and plug with o–ring. Tighten
the plug to 150 in-lb (17 N–m).
Thrust Bearing
and Race (2)
Dust Seal
5. Apply a light coating of clean hydraulic oil to the spool
and slide it into the sleeve. Be sure the centering springs
fit into the notches in the sleeve.
Quad Seal
6. Install the pin.
7. Apply a light coating of petroleum jelly to the inner
edge of the dust and quad seals.
Multi Pro 5700–D
Page 4 – 51
Figure 49
Hydraulic System
Hydraulic
System
CAUTION
Steering Cylinder
Antiseize
Lubricant
6
5
4
3
2
1
7
8
4
3
2
9
1
10
6
20 to 25 ft--lb
(27 to 34 N--m)
11
FRONT
12
RIGHT
Figure 52
1.
2.
3.
4.
Hydraulic hose
O--ring
Hydraulic fitting
O--ring
Hydraulic System
5.
6.
7.
8.
Jam nut
Grease fitting
Ball joint
Cotter pin
Page 4 -- 52
9.
10.
11.
12.
Rod end seal
Steering cylinder
Slotted hex nut
Lock nut
Multi Pro 5700--D
Removal (Fig. 52)
1. Park the machine on a level surface, engage the
parking brake, and stop the engine. Remove the key
from the ignition switch.
4. Secure barrel end of cylinder to the front axle with
locking nut.
5. Remove caps and plugs from disconnected hoses
and fittings.
6. Lubricate new O--rings and connect hydraulic hoses
to steering cylinder (Fig. 53). Tighten hose connections.
Rotate steering wheel and depress traction pedal in both forward and reverse to relieve hydraulic system pressure and to avoid injury from
pressurized hydraulic oil.
2. Operate all hydraulic controls to relieve hydraulic
system pressure.
7. Check fluid level in hydraulic oil reservoir and adjust
as required (see Operator’s Manual).
8. After assembly is completed, operate steering cylinder to verify that hydraulic hoses and fittings are not contacted by anything and that there are no leaks. Also,
make sure that a clockwise rotation of the steering wheel
makes a right turn.
3. Read the General Precautions for Removing and
Installing Hydraulic System Components at the beginning of the Service and Repairs section of this chapter.
2
4. Label all hydraulic connections for reassembly.
Clean hydraulic hose ends prior to disconnecting the
hoses from steering cylinder.
1
5. Disconnect hydraulic hoses from steering cylinder
(Fig. 53). Allow hoses to drain into a suitable container.
6. Put caps or plugs on disconnected hoses and fittings
to prevent contamination.
7. Remove lock nut that secures the barrel end of the
steering cylinder to the front axle.
8. Remove cotter pin and hex slotted nut that secure
the shaft end of the steering cylinder to the left side front
axle spindle.
3
Figure 53
1. Hose from steering control R port
2. Hose from steering control L port
3. Steering cylinder
9. Remove steering cylinder from machine.
10.If ball joint requires removal from cylinder shaft,
count number of revolutions it takes to remove from
shaft so ball joint can be re--installed without affecting
steering.
Installation (Fig. 52)
1. If ball joint was removed from cylinder shaft, apply
antiseize lubricant to threads of cylinder shaft. Install
ball joint onto shaft the same number of revolutions
needed to remove ball joint. Secure ball joint with jam
nut.
2. Place rod end seal on cylinder shaft ball joint. Insert
rod ends of cylinder down into attachment points on the
left side front axle spindle and front axle.
3. Secure shaft end of cylinder to the front axle spindle
with slotted hex nut. Torque hex nut from 20 to 25 ft--lb
(27 to 34 N--m). Install cotter pin.
Multi Pro 5700--D
Page 4 -- 53
Hydraulic System
Hydraulic
System
CAUTION
Steering Cylinder Service
2
7
11
14
6
12
10
9
5
8
4
3
1
13
40 ft–lb
(54 N–m)
Figure 52
1.
2.
3.
4.
5.
Retaining ring
O–ring
Head
Backup ring
O–ring
Hydraulic System
6.
7.
8.
9.
10.
Shaft
Rod seal
Piston
Uni–ring
Lock nut
Page 4 – 54
11.
12.
13.
14.
Barrel
Dust seal
Ball joint
Jam nut
Multi Pro 5700–D
Disassembly (Fig. 52)
Reassembly (Fig. 52)
1. Remove oil from the steering cylinder into a drain pan
by slowly pumping the cylinder shaft. Plug both ports
and clean the outside of the cylinder.
1. Make sure all parts are clean before reassembly.
2. Mount end of steering cylinder in a vise. Remove retaining ring that secures head into barrel.
3. Remove plugs from ports. Extract shaft, head, and
piston by carefully twisting and pulling on the shaft.
IMPORTANT: Do not clamp vise jaws against the
shaft surface. Protect shaft surface before mounting in a vice.
4. Mount shaft securely in a vise by clamping on the end
of the shaft. Remove lock nut and piston from the shaft.
Slide head off the shaft.
5. Remove Uni–ring and o–ring from the piston.
A. Install Uni–ring and o–ring to the piston.
B. Install o–ring, back–up ring, rod seal, and dust
seal to the head.
IMPORTANT: Do not clamp vise jaws against the
shaft surface. Protect shaft surface before mounting in a vice.
3. Mount shaft securely in a vise by clamping on the end
of the shaft.
A. Coat shaft with a light coat of clean hydraulic oil.
B. Slide head assembly onto the shaft. Install piston
and lock nut onto the shaft. Torque lock nut 40 ft–lb
(54 N–m) to secure assembly.
C. Remove shaft from the vise.
6. Remove o–ring, back–up ring, rod seal, and dust
seal from the head.
IMPORTANT: Prevent damage when clamping the
hydraulic cylinder into a vise. Do not close vise
enough to distort the barrel.
4. Mount end of the barrel in a vise.
5. Coat all internal parts with a light coat of clean hydraulic oil. Slide piston, shaft, and head assembly into
the barrel being careful not to damage the seals.
6. Secure head into the barrel with retaining ring.
Multi Pro 5700–D
Page 4 – 55
Hydraulic System
Hydraulic
System
IMPORTANT: Prevent damage when clamping the
hydraulic cylinder into a vise. Do not close vise
enough to distort the barrel.
2. Coat new o–rings, Uni–ring, rod seal, and back–up
ring with with clean hydraulic oil.
Oil Cooler
3
FRONT
2
1
RIGHT
4
5
6
14
7
9 8
7
10
11
12
13
Figure 53
1.
2.
3.
4.
5.
Oil cooler
Rivet
Oil cooler mount hook (2 used)
Radiator shroud
O–ring
Hydraulic System
6.
7.
8.
9.
10.
Hydraulic fitting (2 used)
Clamp (4 used)
Rubber grommet (2 used)
Oil cooler hose (2 used)
Hydraulic 90o fitting
Page 4 – 56
11.
12.
13.
14.
O–ring
Hydraulic fitting
O–ring
Radiator
Multi Pro 5700–D
Removal (Fig. 53)
Installation (Fig. 53)
1. Park the machine on a level surface, engage the
parking brake, and stop the engine. Remove the key
from the ignition switch.
1. Place oil cooler onto hooks.
2. Remove caps and plugs from disconnected hoses
and fittings.
3. Lubricate new o–rings and connect hydraulic hoses
to oil cooler fittings. Tighten all hose connections.
CAUTION
Rotate steering wheel and depress traction pedal in both forward and reverse to relieve hydraulic system pressure and to avoid injury from
pressurized hydraulic oil.
2. Operate all hydraulic controls to relieve hydraulic
system pressure.
4. Check fluid level in hydraulic oil reservoir and adjust
as required (see Operator’s Manual).
5. After assembly is completed, operate machine to
verify that hydraulic hoses and fittings are not contacted
by anything and that there are no hydraulic leaks.
3. Read the General Precautions for Removing and
Installing Hydraulic System Components at the beginning of the Service and Repairs section of this chapter.
Hydraulic
System
4. Label all hydraulic connections for reassembly.
Clean hydraulic hose ends prior to disconnecting the
hoses from oil cooler.
5. From under front of machine, disconnect hydraulic
hoses from oil cooler. Allow hoses to drain into a suitable
container.
6. Put caps or plugs on disconnected hoses and fittings
to prevent contamination.
7. Lift oil cooler from hooks and remove from machine.
8. Clean oil cooler with solvent. Inspect for damage.
Multi Pro 5700–D
Page 4 – 57
Hydraulic System
Hydraulic Reservoir
FRONT
RIGHT
18
1
2
3
4
5
17
7
16
6
8
15
14 13
9
12
11
10
Figure 54
1.
2.
3.
4.
5.
6.
Hydraulic reservoir cap
Strainer
Hydraulic reservoir
O–ring (2 used)
Hydraulic fitting (2 used)
Hydraulic hose (from oil cooler)
Hydraulic System
7.
8.
9.
10.
11.
12.
O–ring (2 used)
Hydraulic hose (from piston pump)
Hydraulic hose (to piston pump)
Hydraulic hose (to gear pump)
O–ring (2 used)
Hydraulic fitting (2 used)
Page 4 – 58
13.
14.
15.
16.
17.
18.
O–ring (2 used)
Cushion (2 used)
Lock nut (4 used)
Hold down strap (2 used)
Flange head screw (4 used)
Frame
Multi Pro 5700–D
Removal (Fig. 54)
1. Park the machine on a level surface, engage the
parking brake, and stop the engine. Remove the key
from the ignition switch.
3
2. Read the General Precautions for Removing and
Installing Hydraulic System Components at the beginning of the Service and Repairs section of this chapter.
4
3. Disconnect one hydraulic hose from the bottom of
the hydraulic reservoir to drain reservoir (see Operator’s
Manual).
2
1
4. Disconnect remaining hydraulic hoses from reservoir.
Figure 55
5. Remove hydraulic reservoir from machine using Figure 54 as a guide.
1. Hose (from oil cooler)
2. Hose (from piston pump)
3. Hose (to piston pump)
4. Hose (to gear pump)
Inspection
1. Clean hydraulic reservoir with solvent.
Hydraulic
System
2. Inspect reservoir for leaks, cracks, or other damage.
Installation (Fig. 54)
1. Install hydraulic reservoir to machine using Figure 54
as a guide.
2. Lubricate new o–rings and reconnect hydraulic
hoses to reservoir (Fig. 55).
3. Fill reservoir with hydraulic fluid as required (see Operator’s Manual).
4. Operate machine and inspect for leaks.
Multi Pro 5700–D
Page 4 – 59
Hydraulic System
This page is intentionally blank.
Hydraulic System
Page 4 – 60
Multi Pro 5700–D
Chapter 5
Electrical System
Table of Contents
Multi Pro 5700–D
Traction Speed Sensor . . . . . . . . . . . . . . . . . . . . .
Accessory Solenoid . . . . . . . . . . . . . . . . . . . . . . . .
Pressure Rate and Boom Actuator Switches . . .
Spray Pump, Agitation and Boom
Control Switches . . . . . . . . . . . . . . . . . . . . . . . . .
Master Boom (Foot) Switch . . . . . . . . . . . . . . . . . .
Pulse Width Modulated (PWM) Valve Solenoid .
Manual Interface Module . . . . . . . . . . . . . . . . . . . .
Relays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glow Relay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel Stop Solenoid . . . . . . . . . . . . . . . . . . . . . . . . .
Glow Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fusible Link Harness . . . . . . . . . . . . . . . . . . . . . . .
Diode Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . .
SERVICE AND REPAIRS . . . . . . . . . . . . . . . . . . . . .
Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Traction Speed Sensor . . . . . . . . . . . . . . . . . . . . .
Cruise Control Coil . . . . . . . . . . . . . . . . . . . . . . . . .
Battery Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Battery Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Battery Service . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page 5 – 1
14
15
16
17
18
19
20
21
22
23
24
25
26
26
27
27
28
29
30
30
31
Electrical System
Electrical
System
ELECTRICAL DIAGRAMS . . . . . . . . . . . . . . . . . . . . . 2
SPECIAL TOOLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Multimeter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Battery Terminal Protector . . . . . . . . . . . . . . . . . . . . 3
Battery Hydrometer . . . . . . . . . . . . . . . . . . . . . . . . . 3
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . 4
Starting Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
General Run Problems . . . . . . . . . . . . . . . . . . . . . . 5
ELECTRICAL SYSTEM QUICK CHECKS . . . . . . . . 6
Battery Test (Open Circuit Test) . . . . . . . . . . . . . . . 6
Charging System Test . . . . . . . . . . . . . . . . . . . . . . . 6
Neutral Switch Operation . . . . . . . . . . . . . . . . . . . . . 6
COMPONENT TESTING . . . . . . . . . . . . . . . . . . . . . . . 7
Ignition Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Neutral Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Hour Meter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Headlight Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Cruise Control Switch . . . . . . . . . . . . . . . . . . . . . . . 10
Cruise Control Coil . . . . . . . . . . . . . . . . . . . . . . . . . 10
Brake Pedal Switch . . . . . . . . . . . . . . . . . . . . . . . . . 11
Temperature Sender . . . . . . . . . . . . . . . . . . . . . . . . 12
Indicator Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Electrical Diagrams
The electrical schematic, electrical circuit drawings and
wire harness drawings for the Multi Pro 5700–D are located in Chapter 8 – Electrical Diagrams.
Electrical System
Page 5 – 2
Multi Pro 5700–D
Special Tools
Order these special tools from your Toro Distributor.
Some tools may also be available from a local supplier.
Multimeter
The multimeter can test electrical components and circuits for current, resistance, or voltage.
NOTE: Toro recommends the use of a DIGITAL Volt-Ohm--Amp multimeter when testing electrical circuits.
The high impedance (internal resistance) of a digital meter in the voltage mode will make sure that excess current is not allowed through the meter. This excess
current can cause damage to circuits not designed to
carry it.
Figure 1
Battery Terminal Protector
Toro Part Number: 107--0392
Electrical
System
Battery Terminal Protector is an aerosol spray that
should be used on battery terminals to reduce corrosion
problems. Apply terminal protector after battery cable
has been secured to battery terminal.
Figure 2
Battery Hydrometer
Use the Battery Hydrometer when measuring specific
gravity of battery electrolyte. Obtain this tool locally.
Figure 3
Multi Pro 5700--D
Page 5 -- 3 Rev. C
Electrical System
Troubleshooting
For effective troubleshooting and repairs, you must
have a good understanding of the electrical circuits and
components used on this machine (see Electrical Schematics in Chapter 8 – Electrical Diagrams).
CAUTION
Remove all jewelry, especially rings and
watches, before doing any electrical troubleshooting or testing. Disconnect the battery
cables unless the test requires battery voltage.
If the machine has any interlock switches by–passed,
they must be reconnected for proper troubleshooting
and safety.
Starting Problems
Problem
Possible Causes
Starter solenoid clicks, but starter will not crank
(if solenoid clicks, problem is not in safety interlock
system).
Battery charge is low.
Battery cables are loose or corroded.
Battery ground to frame is loose or corroded.
Wiring at starter is faulty.
Starter solenoid is faulty.
Starter mounting bolts are loose or not supplying a
sufficient ground for solenoid.
Starter is faulty.
Nothing happens when start attempt is made.
Battery cables are loose or corroded.
Battery ground cable to frame is loose or corroded.
Battery is dead.
Main fuse (20 amp) is open.
Wiring to start circuit components is loose, corroded, or
damaged (see Chapter 8 – Electrical Diagrams).
Neutral switch is out of adjustment or faulty.
Ignition switch is faulty.
Fuse block is faulty.
Starter solenoid is faulty.
Electrical System
Page 5 – 4
Multi Pro 5700–D
Starting Problems (continued)
Problem
Possible Causes
Engine cranks, but does not start.
Ignition switch is faulty.
Engine is malfunctioning (see Chapter 3 – Kubota
Diesel Engine).
Fuel system is malfunctioning (see Chapter 3 – Kubota
Diesel Engine).
Engine may be too cold.
Engine cranks (but should not) with the traction pedal
out of the neutral position.
Neutral switch is out of adjustment or faulty.
Neutral switch wiring is faulty (see Chapter 8 –
Electrical Diagrams).
General Run Problems
Problem
Possible Causes
Battery does not charge.
Wiring to the charging circuit components is loose,
corroded, or damaged (see Chapter 8 – Electrical
Diagrams).
Alternator belt is slipping or damaged.
Electrical
System
Alternator is faulty.
Battery is dead.
Engine kills during operation.
Ignition switch is faulty.
Engine is malfunctioning (see Chapter 3 – Kubota
Diesel Engine).
Multi Pro 5700–D
Page 5 – 5
Electrical System
Electrical System Quick Checks
Battery Test (Open Circuit Test)
Use a multimeter to measure the voltage between the
battery terminals.
Voltage Measured
Battery Charge Level
12.68 v (or higher)
Fully charged (100%)
Set the multimeter to the DC volts setting. The battery
should be at a temperature of 60o to 100o F (16o to 38o
C). The ignition key should be in the OFF position and
all accessories turned off. Connect the positive (+) meter lead to the positive battery post and the negative (--)
meter lead to the negative battery post.
12.45 v
75% charged
12.24 v
50% charged
12.06 v
25% charged
11.89 v
0% charged
NOTE: This test provides a relative condition of the battery. Load testing of the battery will provide additional
and more accurate information.
Charging System Test
This is a simple test used to determine if a charging system is functioning. It will tell you if a charging system has
an output, but not its capacity.
Start the engine and run at high idle (3050 -- 3150 RPM).
Allow the battery to charge for at least 3 minutes. Record
the battery voltage.
Use a multimeter set to the DC volts setting. Connect the
positive (+) meter lead to the positive battery post and
the negative (--) meter lead to the negative battery post.
Leave the test leads connected and record the battery
voltage.
Test results should be (example):
NOTE: Upon starting the engine, the battery voltage
will drop and then should increase once the engine is
running.
At least 0.50 volt over initial battery voltage.
Initial Battery Voltage
= 12.30 v
Battery Voltage after 3 Minute Charge
= 12.80 v
Difference
= +0.50 v
NOTE: Depending upon the condition of the battery
charge and battery temperature, the charging system
voltage will increase at different rates as the battery
charges.
Neutral Switch Operation
CAUTION
Do not disconnect neutral interlock switch. It is
for the operator’s protection. Check the operation of the switch daily for proper operation. Replace malfunctioning neutral interlock switch
before operating the machine.
Electrical System
Neutral switch operation is described in the Multi Pro
5700--D Operator’s Manual. Testing of the neutral
switch is included in the Component Testing section of
this Chapter.
Page 5 -- 6 Rev. C
Multi Pro 5700--D
Component Testing
For accurate resistance and/or continuity checks, electrically disconnect the component being tested from the
circuit (e.g. disconnect the ignition switch connectors
before doing a continuity check on the ignition switch).
NOTE: See the Kubota 05 Series Diesel Engine Service Manual for more component testing information.
CAUTION
When testing electrical components for continuity with a multimeter (ohms setting), make sure
that power to the circuit has been disconnected.
Ignition Switch
The ignition (key) switch has three positions (OFF, ON,
and START). Two ignition switches have been used on
Multi Pro 5700--D sprayers. Machines with serial numbers below 310000000 were equipped with a switch as
shown in Figure 4. Machines with serial numbers above
310000000 use a switch as shown in Figure 5. The
switch terminals are marked as shown in the appropriate figure. The circuit logic of the ignition switches is
shown in the charts below. With the use of a multimeter
(ohms setting), the switch functions may be tested to determine whether continuity exists between the various
terminals for each switch position. Verify continuity between switch terminals.
Circuit identification for machines with serial number below 310000000 (Fig. 4):
45°
NONE
ON
B + I + A, X + Y
ON
A
B
45 °
START
S
I
Y
X
REAR VIEW
FRONT VIEW
Figure 4
CIRCUIT
OFF
START
OFF
SERIAL NUMBER ABOVE 310000000
Electrical
System
POSITION
SERIAL NUMBER BELOW 310000000
RUN
B+I+S
OFF
45o
45o
START
Circuit identification for machines with serial number
above 310000000 (Fig. 5):
POSITION
OFF
NONE
ON
B + C + F, D + E
START
F
A
CIRCUIT
E
B
C
D
REAR VIEW
FRONT VIEW
A+B+C
Figure 5
Multi Pro 5700--D
Page 5 -- 7
Rev. D
Electrical System
Neutral Switch
The neutral switch is located on the top side of the piston
(traction) pump (Fig. 7). The switch is closed when the
traction pedal is in the neutral position and opens when
the pedal is depressed in either direction (forward or reverse).
1
2
Test the switch by disconnecting the wires from the
switch terminals and connecting a continuity tester
across the two switch terminals. With the engine turned
off, slowly push the traction pedal in a forward or reverse
direction while watching the continuity tester. There
should be indications that the traction neutral switch is
opening and closing. Allow the traction pedal to return
to the neutral position. There should be continuity
across the switch terminals when the traction pedal is in
the neutral position.
See Manual Servo Control Assembly in Chapter 4 – Hydraulic Systems for disassembly, reassembly and adjustment procedures for the neutral switch.
Figure 7
1. Piston (traction) pump
2. Neutral switch
Hour Meter
The hour meter is located on the dash panel (Fig. 8).
Testing
1. Make sure ignition switch is off. Disconnect the harness electrical connector from the terminals on the hour
meter.
1
2. Connect the positive (+) terminal of a 12 VDC source
to the positive (+) terminal of the hour meter.
3. Connect the negative (–) terminal of the voltage
source to the other terminal of the hour meter.
Figure 8
1. Hour meter
4. The hour meter should move 1/10 of an hour in six
minutes.
5. Disconnect voltage source from the hour meter.
QUARTZ
6. Reconnect harness to the meter terminals.
RUNNING: INDICATOR
WINDOW
00000
1
–
10
HOURS
1/10 WHEEL: WHITE W/BLACK NUMBERS
HOUR WHEELS: BLACK W/WHITE NUMBERS
Figure 9
Electrical System
Page 5 – 8
Multi Pro 5700–D
Headlight Switch
The headlight switch is located on the dash panel (Fig.
10) and is used to turn the headlights on and off.
1
Testing
1. Make sure ignition switch is off. Locate headlight
switch and unplug wire harness connector from switch.
2. The switch terminals are marked as shown in Figure
11. In the ON position, continuity should exist between
the two terminals. In the OFF position, there should be
no continuity between the switch terminals.
3. Reconnect the harness connectors to the switch after testing.
Figure 10
1. Headlight switch
BACK OF SWITCH
Electrical
System
Figure 11
Multi Pro 5700–D
Page 5 – 9
Electrical System
Cruise Control Switch
The cruise control switch is positioned on the dash panel
above the ignition switch (Fig. 12). This switch energizes the cruise control coil to allow the operator to maintain a constant ground speed.
1
Testing
1. Make sure ignition switch is off. Locate switch and
unplug machine wire harness connector from switch.
Figure 12
1. Cruise control switch
2. The switch terminals are marked as shown in Figure
13. In the ON position, continuity should exist between
terminals 2 and 3. In the momentary SET position, continuity should exist between terminals 5 and 6. In the OFF
position, there should be no continuity between any
switch terminals.
3. Terminals 7 (–) and 8 (+) are used for the indicator
light in the switch. The light should be illuminated when
the switch is in the ON position.
4. Reconnect the harness connector to the switch after
testing.
7
5
6
8
2
3
BACK OF SWITCH
Figure 13
Cruise Control Coil
The cruise control coil is energized by the cruise control
switch. The energized coil becomes a magnet to hold
the traction pedal in position and maintains ground
speed for accurate sprayer operation.
3
1
2
Testing
4
1. Make sure ignition switch is off. Locate control coil
next to traction pedal under the floorboard (Fig. 14). Unplug coil connector from machine wire harness.
NOTE: Prior to taking small resistance readings with a
digital multi meter, short the meter test leads together.
The meter will display a small resistance value (usually
0.5 ohms or less). This resistance is due to the internal
resistance of the meter and test leads. Subtract this value from from the measured value of the coil you are testing.
6
5
2. Using a multimeter (ohms setting), verify control coil
resistance between the terminals of the connector and
the frame of the coil. Resistance should be from 3.6 to
4.0 ohms.
3. If coil does not engage when voltage is applied or coil
resistance is incorrect, replace control coil.
4. Reconnect the coil connector to the machine harness after testing.
Electrical System
Figure 14
1. Cruise control coil
2. Plate
3. Traction pedal
Page 5 – 10
4. Cap screw (4 used)
5. Lock washer (4 used)
6. Hex nut (4 used)
Multi Pro 5700–D
Brake Pedal Switch
The brake pedal switch is mounted on the frame under
the floorboard (Fig. 15). The brake pedal switch prevents the cruise control coil from being energized when
the brake pedal is pushed.
1
Testing
1. Make sure ignition switch is off. Locate switch and
unplug wire harness connector from switch.
4
2. When the switch plunger is pressed (brake pedal released), there should be continuity between the switch
terminals. When the switch plunger is extended (brake
pedal depressed), there should be no continuity between the switch terminals.
3. Reconnect the harness connector to the switch after
testing.
5
3
2
Figure 15
1. Brake pedal
2. Brake pedal switch
3. Washer head screw
4. Lock washer
5. Hex nut
1
Electrical
System
2
2
Figure 16
1. Switch plunger
Multi Pro 5700–D
Page 5 – 11
2. Switch terminal
Electrical System
Temperature Sender
The temperature sender is located near the alternator
on the water flange attached to the engine cylinder head
(Fig. 17). There is a blue wire attached to the terminal of
the sender.
1
Testing
1. Lower coolant level in the engine and remove the
temperature sender from water flange.
2. Put sender in a container of oil with a thermometer
and slowly heat the oil (Fig. 18).
CAUTION
Figure 17
Handle the hot oil with extreme care to prevent
personal injury or fire.
1. Temperature sender
NOTE: Prior to taking resistance readings with a digital
multimeter, short the meter test leads together. The meter will display a small resistance value (usually 0.5
ohms or less). This resistance is due to the internal resistance of the meter and test leads. Subtract this value
from from the measured value of the temperature sender you are testing.
3. Check resistance of the sender with a multimeter
(ohms setting) as the temperature increases. The temperature sender is normally open and should close between 216 to 226oF (102 to 108oC).
VOA
Figure 18
4. Allow oil to cool while observing temperature. The
temperature sender should open at about 208oF (98oC).
5. Replace sender if specifications are not met.
6. Install temperature sender to the water flange.
A. Clean threads of water flange and sender thoroughly. Apply thread sealant to the threads of the
sender.
B. Tighten sender into the water flange.
C. Reconnect blue wire to sender.
7. Fill engine cooling system (see Operator’s Manual).
Electrical System
Page 5 – 12
Multi Pro 5700–D
Indicator Lights
High Temperature Warning Light
If the engine coolant temperature rises to approximately
220oF (104oC), the high temperature light should come
on when the normally open temperature sender closes.
2
1
3
4
To test the high temperature warning light and circuit wiring, start the engine and ground the blue wire attached
to temperature sender located on water pump housing
(see Temperature Sender in this Chapter). High temperature warning light should illuminate.
Figure 19
Glow Plug Indicator Light
The glow plug light should come on when the ignition
switch is placed in the ON position prior to placing the
ignition switch in START. The light should stay lit for
approximately 6 seconds while the ignition switch is left
in the ON position.
1. High temp warning
2. Glow plug indicator
3. Engine oil pressure
4. Charge indicator
5
Engine Oil Pressure Light
1
To test the oil pressure light and circuit wiring, ground the
brown/white wire attached to oil pressure switch located
on the front side of engine near the oil dipstick. Turn ignition switch to the ON position; the oil pressure light
should come on indicating correct operation of the electrical wiring to the oil pressure switch.
2
3
1A (+)
2A (+)
6
Charge Indicator Light
1B (–)
The charge indicator light should come on when the ignition switch is in the ON position with the engine not running or with an improperly operating charging circuit
while the engine is running.
4
2B (–)
Figure 20
1. High temp warning
2. Glow plug indicator
3. Engine oil pressure
4. Charge indicator
5. Warning light front
6. Warning light back
Testing Indicator Lights
1. Apply 12 VDC to terminals 1A and 2A (Fig. 20).
2. Ground terminals 1B and 2B (Fig. 20).
3. Both indicator lights should illuminate.
Multi Pro 5700–D
Page 5 – 13
Electrical System
Electrical
System
The oil pressure light should come on when the ignition
switch is in the ON position with the engine not running.
Also, it should light with the engine running if the engine
oil pressure drops below 4.3 PSI (0.3 kg/cm2).
Traction Speed Sensor
The traction speed sensor is attached to the right side
rear wheel motor (Fig. 21). The sensor provides ground
speed information for two (2) options: the Pro Control
Electronics and the speedometer kit. It uses a magnetically based, Hall Effect integrated circuit. As the piston
group in the wheel motor turns, the sensor accurately
senses the movement of the pistons passing the sensor.
The red connector wire (connector terminal A) is the
positive lead, the black wire (terminal C) is the ground
lead, and the white wire (terminal B) is the signal output.
1
2
Testing
4
1. Make sure ignition switch is off. Remove speed sensor from machine (see Traction Speed Sensor Removal
in the Service and Repair Section of this Chapter).
3
IMPORTANT: Incorrect jumper wire connections
during testing can damage the sensor.
2. Using a +12 VDC battery, a multimeter, a 1K ohm resistor and appropriate jumper wires, connect the battery
and multimeter to the speed sensor using Figure 22 as
a guide.
Figure 21
1. Speed sensor
2. O--ring
3. RH wheel motor housing
4. Motor piston group
3. Set multimeter to DC volts setting.
1K ohm
resistor
4. The multimeter should display very low voltage when
a metal object is held near the sensor tip. The multimeter
should display battery voltage when the metal object is
moved away from the sensor tip.
+
5. After sensor testing is complete, remove jumper
wires, resistor and multimeter leads from sensor connector.
--
12 VDC
4
6
IMPORTANT: When replacing the sensor, see Traction Speed Sensor Installation in the Service and
Repair Section of this chapter.
5
7
6. Reinstall speed sensor into wheel motor (see Traction Speed Sensor Installation in the Service and Repair
Section of this Chapter). Reconnect speed sensor to
machine wire harness.
3
1
2
Figure 22
1.
2.
3.
4.
Electrical System
Speed sensor
Sensor tip
Lock nut
Sensor connector
Page 5 -- 14 Rev. C
5. Red wire
6. White wire
7. Black wire
Multi Pro 5700--D
Accessory Solenoid
The accessory solenoid provides a current supply to the
spray system and optional accessories (e.g. foam markers). The solenoid is energized when the ignition key
switch is in the RUN position. The accessory solenoid is
attached to the electric panel under the operator seat
(Fig.23).
1
Testing
1. Make sure engine is off. Disconnect battery cables
from battery making sure to disconnect negative (–)
cable first and then positive (+) cable.
2. Raise operator seat and locate accessory solenoid.
Put labels on wires for proper installation after repairs
are completed. Disconnect machine harness wires from
solenoid.
Figure 23
1. Accessory solenoid
1
3. Apply 12 VDC (+) to one solenoid coil post and
ground the other solenoid coil post. The solenoid should
click. Using a multimeter (ohms setting), make sure resistance across the main contact posts is less than 1
ohm.
4. Remove voltage from solenoid coil post. The solenoid should click. Make sure resistance across the main
contact posts is infinite ohms (no continuity).
2
Electrical
System
5. Replace accessory solenoid if necessary.
6. Reconnect electrical connections to solenoid.
7. Reconnect battery cables to battery making sure to
install positive (+) cable first and then negative (–) cable.
WIRING
DIAGRAM
2
1
Figure 24
1. Main contact post
Multi Pro 5700–D
Page 5 – 15
2. Solenoid coil post
Electrical System
Pressure Rate and Boom Actuator Switches
The pressure rate (increase/decrease) switch is located
on the spray control console (Fig. 25). This switch along
with the Manual Interface Module (or Pro Control, if
equipped) changes the applied current to the PWM
valve which controls hydraulic flow to the hydraulic motor that drives the spray pump. Pressing the switch to the
increase position allows additional current to the PWM
valve which increases flow to the hydraulic motor. The
spray pump increases speed to allow additional flow
and pressure from the spray pump. Moving the switch
to the decrease position reduces current to the PWM
valve and results in less flow and pressure from the
spray pump.
2
4
3
1
The boom actuator switches are identical to the pressure rate switch. These switches are used to operate the
boom actuators to raise or lower the spray booms.
Figure 25
Testing
1. Spray control console
2. Pressure +/– switch
1. Make sure ignition switch is off. Locate switch, remove console panel, and unplug wire harness connector from switch.
2. The switch terminals are marked as shown in Figure
26. In the INCREASE or boom raise position, continuity
should exist between terminals 2 and 3 and also between terminals 5 and 6. In the neutral, center position,
there should be no continuity between any switch terminals. In the DECREASE or boom lower position, continuity should exist between terminals 2 and 1 and also
between terminals 5 and 4.
3. Reconnect the harness connector to the switch after
testing.
Electrical System
Page 5 – 16
3. RH boom switch
4. LH boom switch
4
5
6
1
2
3
BACK OF SWITCH
Figure 26
Multi Pro 5700–D
Spray Pump, Agitation and Boom Control Switches
The spray pump (on/off), agitation (on/off) and boom
(on/off) control switches are located on the spray control
console (Fig. 27).
3
2
Testing
1. Make sure ignition switch is off. Remove console
panel, locate switch and unplug machine wire harness
connector from switch.
6
4
2. The switch terminals are marked as shown in Figure
28. In the ON position, continuity should exist between
terminals 2 and 3 and also between terminals 5 and 6.
In the OFF position, continuity should exist between terminals 1 and 2 and also between terminals 4 and 5.
1
Figure 27
1. Spray control console
2. Agitation switch
3. Spray pump switch
4. Reconnect the harness connector to the switch after
testing.
4. RH boom switch
5. Center boom switch
6. LH boom switch
7
4
5
6
8
1
2
3
BACK OF SWITCH
Figure 28
Multi Pro 5700–D
Page 5 – 17
Electrical System
Electrical
System
3. Terminals 7 (–) and 8 (+) are used for the indicator
light in the switch. The light should be illuminated when
the switch is in the ON position.
5
Master Boom (Foot) Switch
The master boom switch is located on the floorboard of
the machine (Fig. 29). This switch allows the machine
operator to control the operation of all boom sections using one switch.
1
Testing
1. Locate switch and unplug wire harness connectors
from switch. Note wire connector location on switch.
2. The switch terminals are shown in Figure 30. Continuity should exist between the common terminal and
only one of the side terminals. When the switch is depressed, continuity should exist between the common
terminal and the other side terminal. Regardless of
switch position, there should never be continuity between the two side terminals.
Figure 29
1. Master boom switch
3. Reconnect the harness connectors to the switch after testing.
1
2
2
Figure 30
1. Common terminal
Electrical System
Page 5 – 18
2. Side terminal
Multi Pro 5700–D
Pulse Width Modulated (PWM) Valve Solenoid
The Pulse Width Modulated (PWM) Valve which controls hydraulic flow to the spray pump motor includes an
electric solenoid (Fig. 30). When the spray console rate
switch is depressed, the available current to the PWM
valve solenoid is changed. This solenoid current change
causes a valve shift and subsequent change in hydraulic flow to the spray pump motor. Testing of the PWM
Valve solenoid can be done without removing the solenoid.
1
3
Testing
2
NOTE: Prior to taking small resistance readings with a
digital multimeter, short the meter test leads together.
The meter will display a small resistance value (usually
0.5 ohms or less). This resistance is due to the internal
resistance of the meter and test leads. Subtract this value from from the measured value of the solenoid you are
testing.
1. Make sure ignition switch is off. Disconnect PWM
Valve solenoid electrical connector.
Figure 30
1. PWM valve
2. Solenoid
3. Solenoid connector
SERIAL NUMBER ABOVE 260000300
NOTE: The solenoid coil on machines with serial numbers below 260000300 is not available as a separate
component (shown in Fig. 30). On machines with serial
numbers above 260000300, the coil is available as a
separate component (Fig. 31). Refer to your parts catalog for replacement part information.
4
3
1
3. Reconnect electrical connector to the solenoid.
2
Figure 31
1. PWM valve
2. Solenoid coil
Multi Pro 5700--D
Page 5 -- 19 Rev. D
3. O--ring
4. Nut
Electrical System
Electrical
System
2. Measure resistance between the two solenoid connector terminals. The resistance for the solenoid coil
should be approximately 9.6 ohms.
Manual Interface Module
The manual interface module is used in conjunction with
the increase/decrease switch to adjust current flow to
the PWM Valve and to maintain pump rate settings when
the booms are turned off and on again using the master
boom (foot) switch. The module is fastened to the head
light shield under the dash panel (Fig. 32). The manual
interface module is disabled if a Pro Control is installed
in the spray system.
5. If voltage change to the PWM Valve is correct, the interface module, circuit wiring and increase/decrease
switch are functioning correctly. If voltage change is incorrect, test increase/decrease switch and then circuit
wiring. Replace manual interface module only after other components have tested acceptably.
6. Remove multimeter and reconnect PWM Valve electrical connector to the machine harness.
Once the operator has set the spray application rate,
whenever the master boom switch is turned off, the
module stores the current (mA) setting available to the
PWM valve solenoid. When the master boom switch is
used to begin spraying again, the module ensures that
the spray application rate is unchanged. Because of the
module, the operator does not have to reset spray rates
when the master boom switch is used to turn the spray
booms back on.
1
2
The interface module is a solid state device and there is
no reliable means of bench testing the module. If spray
rates have to be reset after turning the booms off and on
with the master boom switch, the manual interface module should be suspect.
Testing of the interface module, circuit wiring and increase/decrease switch can be performed as follows:
Figure 32
1. Manual interface module
2. RH headlight
1. Make sure ignition switch is off. Disconnect PWM
Valve solenoid electrical connector from the machine
wiring harness.
2. Connect one multimeter test lead to one of the harness connector leads and the other meter test lead to
the second harness connector lead (Fig. 33). Set multimeter to DC Volts setting.
2
1
3. Turn ignition switch to the RUN position.
4. While monitoring the multimeter display, use the increase/decrease switch to adjust spray rate:
A. Pressing the increase/decrease switch to increase should result in an increased voltage displayed on the multimeter.
Figure 33
B. Pressing the increase/decrease switch to decrease should result in a decreased voltage displayed on the multimeter.
Electrical System
1. PWM Valve connector
Page 5 – 20
2. Harness connector
Multi Pro 5700–D
Relays
The Multi Pro 5700–D uses three (3) relays that are attached to the electric panel under the operator seat. One
of these relays is used to energize the cruise control coil.
The other two relays are used in the spray system in
conjunction with the master boom (foot) switch to turn
the spray booms on and off.
Testing
NOTE: Prior to taking small resistance readings with a
digital multimeter, short the meter test leads together.
The meter will display a small resistance value (usually
0.5 ohms or less). This resistance is due to the internal
resistance of the meter and test leads. Subtract this value from from the measured value of the component you
are testing.
86
85
1. Verify coil resistance between terminals 85 and 86
with a multimeter (ohms setting). Resistance should be
from 70 to 90 ohms.
87A
87
30
Figure 34
2. Connect multimeter (ohms setting) leads to relay terminals 30 and 87. Ground terminal 86 and apply +12
VDC to terminal 85. The relay should make and break
continuity between terminals 30 and 87 as +12 VDC is
applied and removed from terminal 85.
Electrical
System
3. Disconnect voltage from terminal 85 and multimeter
lead from terminal 87.
4. Connect multimeter (ohms setting) leads to relay terminals 30 and 87A. Apply +12 VDC to terminal 85. The
relay should break and make continuity between terminals 30 and 87A as +12 VDC is applied and removed
from terminal 85.
5. Disconnect voltage and multimeter leads from the
relay terminals.
Multi Pro 5700–D
Page 5 – 21
Electrical System
Glow Relay
The glow relay is attached to the electric panel under the
operator seat (Fig. 36). When energized, the glow relay
allows electrical current to the engine glow plugs.
30
NOTE: Prior to taking small resistance readings with a
digital multi meter, short the meter test leads together.
The meter will display a small resistance value (usually
0.5 ohms or less). This resistance is due to the internal
resistance of the meter and test leads. Subtract this value from from the measured value of the component you
are testing.
85
86
87
1. Verify coil resistance between terminals 85 and 86
with a multimeter (ohms setting). Resistance should be
approximately 72 ohms.
2. Connect multimeter (ohms setting) leads to relay terminals 30 and 87. Ground terminal 86 and apply +12
VDC to terminal 85. The relay should make and break
continuity between terminals 30 and 87 as +12 VDC is
applied and removed from terminal 85.
86
87
85
30
Figure 35
3. Disconnect voltage and leads from the relay terminals.
1
Figure 36
1. Glow relay
Electrical System
Page 5 – 22
Multi Pro 5700–D
Fuel Stop Solenoid
The fuel stop solenoid must be energized for the engine
to run. It is mounted to the injection pump on the engine
(Fig. 37).
1
2
In Place Testing
NOTE: Prior to taking small resistance readings with a
digital multimeter, short the test leads together. The meter will display a small resistance value (usually 0.5
ohms or less). This resistance is due to the internal resistance of the meter and test leads. Subtract this value
from the measured value of the component you are testing.
1. Disconnect wire harness connector from solenoid.
2. Using a digital multimeter, touch one test lead to the
pull coil terminal and the other test lead to the fuel stop
solenoid frame (ground) (Fig. 38). The resistance of the
pull coil should be less than 1 ohm (but not zero).
Figure 37
1. Injection pump
2. Fuel stop solenoid
2
3. Using a digital multimeter, touch one test lead to the
hold coil terminal and the other test lead to the fuel stop
solenoid frame (ground) (Fig. 38). The resistance of the
hold coil should be approximately 15 ohms.
1
4. Connect solenoid to the wiring harness.
1. Disconnect wire harness connector from solenoid.
NOTE: The solenoid may be removed from the engine
or tested in place.
Figure 38
1. Fuel stop solenoid
2. Pull coil terminal
3. Hold coil terminal
2. If the solenoid is removed from the engine, make
sure that the solenoid plunger moves freely and is free
of dirt, debris and corrosion.
3. Connect a positive (+) test lead from a 12 VDC
source to the pull coil and hold coil terminals.
4. Touch a negative (–) test lead from the 12 VDC
source to the fuel stop solenoid frame (ground) (Fig. 38).
The solenoid should engage, making an audible “click,”
and the plunger should retract.
5. Remove positive (+) voltage from the pull coil terminal. The solenoid should stay engaged.
6. Remove positive (+) voltage from the hold coil terminal. The solenoid should release.
7. Reconnect the wires to the solenoid.
Multi Pro 5700–D
Page 5 – 23
Electrical System
Electrical
System
3
Live testing
Glow Controller
The controller is attached to the electric panel under the
operator seat.
NOTE: Refer to see Chapter 8 – Electrical Diagrams
when troubleshooting the glow controller.
Controller Operation
1. When the ignition switch is placed in the RUN position, the controller energizes the glow plugs and lights
up the glow lamp for approximately 6 seconds.
2. When the ignition switch is held in the START position, the glow plugs will energize while the switch is held
in START and the glow lamp will not light.
3. When the ignition switch is released from START to
RUN, the glow plugs will de–energize and the glow lamp
will remain off.
5. If any of the conditions in Step 3 are not met or power
to terminal 1 exists and any of the other conditions in
Step 4 are not met:
A. Verify continuity of the circuitry from the battery to
the glow relay and glow plugs (see Chapter 8 – Electrical Diagrams).
B. Verify continuity of the circuitry from the battery to
ignition switch, glow controller, glow lamp, glow
relay, and ground (see Chapter 8 – Electrical Diagrams).
C. Replace parts as necessary.
6. Connect electrical connector to the fuel stop solenoid.
2
Controller Checks
1. Make sure there is power from the battery.
3
6
2. Disconnect electrical connector to the fuel stop solenoid to prevent the engine from starting.
2
5
1
4
3. Place ignition switch in the RUN position. Verify the
following while in the RUN position:
A. Glow indicator lamp is on.
1
B. Glow relay is energized.
3
C. Glow plugs are energized.
D. Glow indicator lamp goes out and glow plugs de–
energize after approximately 6 seconds.
Figure 39
1. Glow controller end view
2. Top view
3. Side view
4. Place ignition switch in the START position. Verify
the following while in the START position:
A. Glow indicator lamp is out.
B. Glow relay is energized.
C. Glow plugs are energized.
D. Power exists at terminal 1 of the glow controller.
NOTE: If there is no power to terminal 1 of the glow controller, verify continuity of the circuitry from the ignition
switch to the controller and perform Step 4 again (see
Chapter 8 – Electrical Diagrams).
Electrical System
Page 5 – 24
Multi Pro 5700–D
Fuel Pump
The fuel pump is attached to the frame just outboard of
the fuel injection pump (Fig. 40).
DANGER
7. Wipe up any spilled fuel.
8. Reconnect electrical connector to the fuel stop solenoid.
9. Bleed fuel system (see Operator’s Manual).
Because diesel fuel is highly flammable, use caution when handling it. Do not smoke while testing
the fuel pump. Do not test fuel pump while engine
is hot. Make sure that there is adequate ventilation when testing. Always wipe up any spilled
fuel before starting the engine.
Operational Test
1. Disconnect electrical connector from the fuel stop
solenoid to prevent the engine from firing (see Fuel Stop
Solenoid in this section).
3. Make sure fuel hoses attached to the fuel pump are
free of obstructions.
4. Place pump discharge fuel hose into a large, graduated cylinder sufficient enough to collect 1 liter (33.8 fluid
ounces).
IMPORTANT: When testing the fuel pump, DO NOT
turn ignition switch to START.
Note: Machines that are equipped with a Biodiesel
Conversion Kit will have the same fuel pump as machines with serial numbers above 280000000.
5. Collect fuel in the graduated cylinder by turning ignition switch to the RUN position. Allow pump to run for
time listed below, then return switch to OFF.
A. For machines with serial numbers below
270999999, the amount of fuel collected in the graduated cylinder should be approximately 11.8 fl oz
(350 ml) after thirty (30) seconds.
Figure 40
1. Fuel pump
2. Fuel discharge hose
Fuel Pump Specifications
Fuel pump specifications for machines with serial numbers below 270999999 are as follows:
Pump Capacity
Pressure
Current Draw
23.5 fl oz/min (700 ml/min)
3.3 PSI (22.8 kPa)
0.9 amp
Fuel pump specifications for machines with serial numbers above 280000000 are as follows:
Pump Capacity
Pressure
Current Draw
64 fl oz/min (1.9 liters/min)
7 PSI (48.3 kPa)
2.0 amp
B. For machines with serial numbers above
280000000, the amount of fuel collected in the graduated cylinder should be approximately 16 fl oz (475
ml) after fifteen (15) seconds.
6. Replace fuel pump as necessary. Install fuel hose to
the fuel filter.
Multi Pro 5700--D
Page 5 -- 25 Rev. C
Electrical System
Electrical
System
2. Disconnect pump fuel discharge hose from the fuel
filter.
2
1
Fusible Link Harness
The Multi Pro 5700–D uses three (3) fusible links for circuit protection. These fusible links are located in a harness that connects the starter B+ terminal to the main
wire harness (Fig. 41). If any of these links should fail,
current to the protected circuit will cease. Refer to wire
harness drawings in Chapter 8 – Electrical Diagrams for
additional fusible link information.
2
Use a multimeter to make sure that continuity exists between each terminal pin in connector P1 and connector
J1 at the starter (Fig. 42). If any of the fusible links are
open, replace the complete harness.
1
Figure 41
1. Starter motor
2. Fusible link harness
FUSIBLE LINK
FUSIBLE LINK
FUSIBLE LINK
Figure 42
Diode Assembly
Two diode assemblies (Fig. 43) are used in the Multi Pro
5700–D wiring harness. Diode D1 is used to provide a
latching circuit for the cruise relay. Diode D2 is used for
circuit protection from voltage spikes that occur when
the cruise control coil is de–energized.
These diodes plug into the vehicle wire harness (see
wire harness drawings in Chapter 8 – Electrical Diagrams).
2
1
3
Figure 43
1. Diode assembly
2. Male terminal
3. Female terminal
Testing
The diodes can be individually tested using a digital
multimeter (diode test or ohms setting) and the table to
the right.
Electrical System
Multimeter
Red Lead (+)
on Terminal
Multimeter
Black Lead (–)
on Terminal
Continuity
Female
Male
YES
Male
Female
NO
Page 5 – 26
Multi Pro 5700–D
Service and Repairs
NOTE: See the Kubota 05 Series Diesel Engine Service Manual for engine electrical component repair information.
Headlights
Removal and Installation
2
1. Set parking brake, turn ignition off, and remove key.
3
2. Remove two (2) flange head screws that secure
shield to machine. Position shield away from back of
headlight.
3. Unplug wiring harness connector from headlight
bulb.
1
4
5
6
NOTE: Headlight bulb can be replaced without removing headlight body. Be careful when servicing bulb. Never touch bulb with fingers – handle bulb by the base.
5
4. To replace the headlight bulb:
A. Turn the bulb approximately 1/4 turn counterclockwise and remove bulb from headlight body.
Figure 44
1. Headlight lens
2. Headlight body
3. Screw (3 used)
4. Headlight bulb
5. Flange head screw
6. Shield
5. If headlight body or lens requires removal, remove
three (3) screws that secure headlight assembly to machine. Remove headlight assembly. Install in reverse order.
6. After repairs are completed, attach wiring harness
connector to headlight bulb.
7. Attach shield to machine with two (2) flange head
screws.
Multi Pro 5700–D
Page 5 – 27
Electrical System
Electrical
System
B. Align bulb base with hole in headlight body. Insert
bulb into headlight body and turn the bulb approximately 1/4 turn clockwise.
Traction Speed Sensor
Removal (Fig. 45)
1. Locate speed sensor on right side wheel motor. Disconnect speed sensor from machine wire harness.
2. Loosen lock nut and remove speed sensor from
wheel motor.
Installation (Fig. 45)
1
1. Thread lock nut fully onto speed sensor threads.
2
2. Center a wheel motor piston in the center of the sensor port (see Sensor Port View in Fig. 46). Use a suitable
tool to feel when a motor piston is in the center of the
sensor port.
4
3. Lubricate O-ring and install onto sensor threads.
3
4. Thread sensor into port until sensor contacts piston.
Rotate motor output shaft one complete revolution to
make sure it rotates freely.
Figure 45
1. Speed sensor
2. O--ring
3. RH wheel motor housing
4. Motor piston group
5. Turn sensor out (counter-clockwise) until angle between sensor orientation grooves and motor centerline
is between 90o and 93o, then back out sensor one full
turn. Hold sensor at this position and torque lock nut
from 75 to 125 in-lb (8.5 to 14.1 N--m).
6. Plug speed sensor connector into machine wire harness.
SENSOR PORT VIEW
Sensor Port
Orientation
Grooves
Piston
CORRECT
POSITION
Sensor Port
Piston
INCORRECT
POSITION
Lock Nut
Speed Sensor
SENSOR INSTALLATION
90o to 93o
Motor
Centerline
Piston
Orientation
Grooves
SENSOR SIDE VIEW
Figure 46
Electrical System
Page 5 -- 28 Rev. C
Multi Pro 5700--D
Cruise Control Coil
Removal (Fig. 48)
1. Set parking brake, turn ignition off and remove key.
2
2. Remove hex nut and lock washer that secure shaft
to machine frame. Remove shaft with collar, flange
bushing, plate, and compression spring.
3. Unplug cruise control coil connector from machine
wiring harness. Remove four (4) cap screws, lock washers, and hex nuts that secure coil to frame. Remove
cruise control coil.
1
Installation (Fig. 48)
1. Attach cruise control coil to frame using four (4) cap
screws, lock washers and hex nuts.
1. Cruise control coil
2. Traction pedal
Anti–seize
Lubricant
3. Plug cruise control coil connector into machine wiring harness.
6
4. Check that gap between cruise coil and plate is
approximately 3/32” (2.4 mm). If gap is incorrect, loosen
set screw in collar and slide collar on shaft to allow proper gap. Tighten set screw to secure collar on shaft.
1
2
4 3
7
5
Electrical
System
2. Position compression spring, plate, and flange bushing to machine making sure to align plate slot with post
on traction pedal. Apply anti–seize lubricant to shaft and
insert shaft with collar. Secure shaft to frame with hex
nut and lock washer.
Figure 47
11
10
9
8
Figure 48
1.
2.
3.
4.
5.
6.
Multi Pro 5700–D
Page 5 – 29
Cruise control coil
Compression spring
Plate
Flange bushing
Collar w/setscrew
Shaft
7.
8.
9.
10.
11.
Cap screw (4 used)
Lock washer (4 used)
Hex nut (4 used)
Shaft lock washer
Shaft hex nut
Electrical System
Battery Storage
If the machine will be stored for more than 30 days:
1. Remove the battery and charge it fully (see Battery
Service).
4. Store battery in a cool atmosphere to avoid quick deterioration of the battery charge.
5. To help prevent the battery from freezing, make sure
it is fully charged (see Battery Service).
2. Either store battery on a shelf or on the machine.
3. Leave cables disconnected if the battery is stored on
the machine.
Battery Care
1. Battery electrolyte level must be properly maintained. The top of the battery must be kept clean. lf the
machine is stored in a location where temperatures are
extremely high, the battery will run down more rapidly
than if the machine is stored in a location where temperatures are cool.
3. Battery cables must be tight on terminals to provide
good electrical contact.
WARNING
Connecting cables to the wrong post could result in personal injury and/or damage to the
electrical system.
WARNING
Wear safety goggles and rubber gloves when
working with electrolyte. Charge battery in a
well ventilated place so gasses produced
while charging can dissipate. Since the gases
are explosive, keep open flames and electrical
sparks away from the battery; do not smoke.
Nausea may result if the gases are inhaled. Unplug charger from electrical outlet before connecting or disconnecting charger leads to or
from battery posts.
IMPORTANT: Do not remove battery fill caps while
cleaning.
4. If corrosion occurs at battery terminals, disconnect
cables. Always disconnect negative (–) cable first.
Clean clamps and terminals separately. Reconnect
cables with positive (+) cable first. Coat battery posts
and cable connectors with Battery Terminal Protector
(Toro Part No. 107–0392) or petroleum jelly to prevent
corrosion.
5. Check electrolyte level every 25 operating hours and
every 30 days if machine is in storage.
6. Maintain cell electrolyte level with distilled or demineralized water. Do not fill cells above the fill line.
2. Check battery condition weekly or after every 50
hours of operation. Keep terminals and entire battery
case clean because a dirty battery will discharge slowly.
A. Clean battery by washing entire case with a solution of baking soda and water. Rinse with clear water.
B. Coat battery posts and cable connectors with
Battery Terminal Protector (Toro Part No. 107–0392)
or petroleum jelly to prevent corrosion.
Electrical System
Page 5 – 30
Multi Pro 5700–D
Battery Service
The battery is the heart of the electrical system. With
regular and proper service, battery life can be extended.
Additionally, battery and electrical component failure
can be prevented.
2. Make sure battery compartment is clean and repainted if necessary. Make sure all battery cables, connections and battery retainer are in good condition.
3. Place battery in its compartment with the battery
posts toward the rear of the vehicle. Make sure battery
is level and flat.
CAUTION
When working with batteries, use extreme caution to avoid splashing or spilling electrolyte.
Electrolyte can destroy clothing and burn skin or
eyes. Always wear safety goggles and a face
shield when working with batteries.
4. Secure battery retainer. Do not overtighten to prevent cracking or distorting the battery case.
5. Connect positive (+) cable connector onto positive
battery post. Tighten cap screw and nut using two
wrenches.
6. Connect a digital multimeter (set to amps) between
the negative battery post and the ground (–) cable connector. The reading should be less than 0.1 amp. If the
reading is 0.1 amp or more, the unit’s electrical system
should be tested and repaired.
Electrolyte Specific Gravity
Fully charged: 1.265 corrected to 80oF (26.7oC)
Discharged: less than 1.240
Battery Specifications
BCI Group Size 34
690 CCA at 0o F (–18o C)
Reserve Capacity of 100 minutes at 80oF (27oC)
7. Connect ground (–) cable connector to the negative
battery post. Tighten cap screw and lock nut using two
wrenches.
Dimensions (including terminal posts)
Length
10.17 inches (25.8 cm)
Width
6.65 inches (16.9 cm)
Height
7.98 inches (20.3 cm)
Battery Removal (Fig. 49)
IMPORTANT: Be careful not to damage battery terminal posts or cable connectors when removing the
battery cables.
Electrical
System
8. Coat battery posts and cable connectors with Battery
Terminal Protector (Toro Part No. 107–0392) or petroleum jelly to prevent corrosion.
3
1. Make sure ignition and all accessories are OFF.
2
2. Using two wrenches, loosen cap screw and nut on
ground (–) cable connector first and then remove
ground (–) cable from battery. This should prevent short
circuiting the battery, other components or the operators’ hands.
1
3. Loosen cap screw and nut on positive (+) cable connector using two wrenches. Remove positive (+) cable
from battery.
4. Loosen cap screw and flange nut that secure battery
retainer to the battery compartment.
Figure 49
1. Battery
2. Positive battery cable
3. Negative battery cable
5. Make sure battery vent caps are on tightly.
6. Remove battery from the battery compartment to a
service area to allow better access for service.
Battery Installation (Fig. 49)
IMPORTANT: To prevent possible electrical problems, install only a fully charged battery.
1. Make sure ignition and all accessories are OFF.
Multi Pro 5700–D
Page 5 – 31
Electrical System
Inspection, Maintenance, and Testing
1. Perform the following inspections and maintenance:
A. Replace battery if cracked or leaking.
B. Check battery terminal posts for corrosion. Use
wire brush to clean corrosion from posts.
IMPORTANT: Before cleaning the battery, tape or
block vent holes to the filler caps and make sure the
caps are on tightly.
C. Check for signs of wetness or leakage on the top
of the battery which might indicate a loose or missing
filler cap, overcharging, loose terminal post, or overfilling. Also, check battery case for dirt and oil. Clean
the battery with a solution of baking soda and water,
then rinse it with clean water.
D. Check that the cover seal is not broken away. Replace the battery if the seal is broken or leaking.
E. Check the electrolyte level in each cell. If the level
is below the tops of the plates in any cell, fill all cells
with distilled water between the minimum and maximum fill lines. Charge at 15 to 25 amps for 15 minutes to allow sufficient mixing of the electrolyte.
2. Conduct a hydrometer test of the battery electrolyte.
IMPORTANT: Make sure the area around the cells is
clean before opening the battery caps.
A. Measure the specific gravity of each cell with a
hydrometer. Draw electrolyte in and out of the
hydrometer barrel prior to taking a reading to warm–
up the hydrometer. At the same time take the temperature of the cell.
B. Temperature correct each cell reading. For each
10oF (5.5oC) above 80oF (26.7oC) add 0.004 to the
specific gravity reading. For each 10oF (5.5oC) below 80oF (26.7oC) subtract 0.004 from the specific
gravity reading.
Example: Cell Temperature
100oF
Cell Gravity
1.245
100oF minus 80oF equals 20oF
(37.7oC minus 26.7oC equals 11.0oC)
20oF multiply by 0.004/10oF equals 0.008
(11oC multiply by 0.004/5.5oC equals 0.008)
ADD (conversion above)
0.008
Correction to 80oF (26.7oC)
1.253
Electrical System
C. If the difference between the highest and lowest
cell specific gravity is 0.050 or greater or the lowest
cell specific gravity is less than 1.225, charge the battery. Charge at the recommended rate and time given in Charging or until all cells specific gravity is
1.225 or greater with the difference in specific gravity
between the highest and lowest cell less than 0.050.
If these charging conditions can not be met, replace
the battery.
3. Perform a high–discharge test with an adjustable
load tester.
This is one of the most reliable means of testing a battery
as it simulates the cold–cranking test. A commercial battery load tester is required to perform this test.
CAUTION
Follow the battery tester manufacturer’s instructions when using a battery tester.
A. Check the voltage across the battery terminals
prior to testing the battery. If the voltage is less than
12.4 VDC, recharge the battery.
B. If the battery has been charged, apply a 150 amp
load for 15 seconds to remove the surface charge.
Use a battery load tester following the manufacturer’s instructions.
C. Make sure battery terminals are free of corrosion.
D. Measure the temperature of the center cell.
