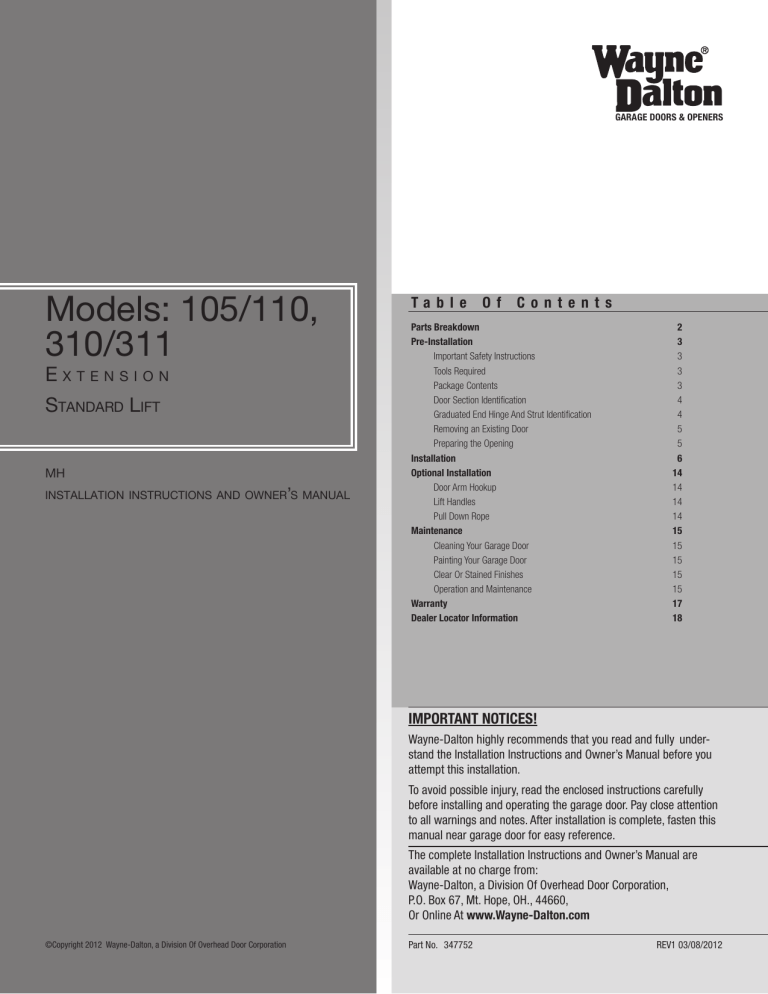

GARAGE DOORS & OPENERS
Models: 105/110,
310/311
Extension
Standard Lift
MH
installation instructions and owner’s manual
Ta b l e
O f
C o n t e n t s
Parts Breakdown
Pre-Installation
Important Safety Instructions
Tools Required
Package Contents
Door Section Identification
Graduated End Hinge And Strut Identification
Removing an Existing Door
Preparing the Opening
Installation
Optional Installation
Door Arm Hookup
Lift Handles
Pull Down Rope
Maintenance
Cleaning Your Garage Door
Painting Your Garage Door
Clear Or Stained Finishes
Operation and Maintenance
Warranty
Dealer Locator Information
2
3
3
3
3
4
4
5
5
6
14
14
14
14
15
15
15
15
15
17
18
IMPORTANT NOTICES!
Wayne-Dalton highly recommends that you read and fully understand the Installation Instructions and Owner’s Manual before you
attempt this installation.
To avoid possible injury, read the enclosed instructions carefully
before installing and operating the garage door. Pay close attention
to all warnings and notes. After installation is complete, fasten this
manual near garage door for easy reference.
The complete Installation Instructions and Owner’s Manual are
available at no charge from:
Wayne-Dalton, a Division Of Overhead Door Corporation,
P.O. Box 67, Mt. Hope, OH., 44660,
Or Online At www.Wayne-Dalton.com
©Copyright 2012 Wayne-Dalton, a Division Of Overhead Door Corporation
Part No. 347752
REV1 03/08/2012
Parts Breakdown
NOTE: The illustrations shown on this page are general
representations of the door parts. Each specific door
models may have unique variations.
G3.
F2.
G6.
G5.
F1.
A1.
H2.
G4.
G7.
G10.
G8.
D1.
G5.
G9.
C1.
A2.
E1.
G2.
E2.
G1.
A1.
G5.
D1.
A2.
G10.
F6.
C2.
F4.
G3.
G9.
G6.
F3.
C2.
G5.
F1.
F6.
G2.
F7.
I2.
G4.
B3.
G7.
G8.
B2.
A2.
B1.
J1.
G10.
G5.
A4.
K1.
A1.
A3.
F4.
C3.
G1.
H1.
G10.
F7.
J1.
F5.
F2.
F3.
F5.
I1.
A. Track Rollers (As Required):
A1. Short Stem Track Rollers
A2. Long Stem Track Rollers
A3. Short Stem Tandem Track Rollers
A4. Long Stem Tandem Track Rollers
B. Graduated End Hinges:
B1. Single Graduated End Hinges (S.E.H.), Industry Standard
B2. Double Graduated End Hinges (D.E.H.), Industry Standard
B3. Half Center Hinges (As Required)
C. Stacked Sections:
C1. Top Section
C2. Intermediate(s) Section (As Required)
C3. Bottom Section
D. Top Fixtures (As Required):
D1. Top Fixture Assemblies
E. Strut(s) (As Required):
E1. Strut (2” U-shaped)
E2. Strut (3” U-shaped)
F. Tracks:
F1. Left Hand and Right Hand Horizontal Track Assemblies
F2. Left Hand and Right Hand Riveted Track Assemblies (As Required)
F3. Left Hand and Right Hand Wall Angle Track Assemblies (As Required)
F4. Left Hand and Right Hand Vertical Track Assemblies (As Required)
F5. Left Hand and Right Hand Vertical Tracks (As Required)
F6. Left Hand and Right Hand Fully Adjustable (F.A.) Flag Angles (As Required)
F7. Left Hand and Right Hand Fully Adjustable (F.A.) Jamb Brackets (As Required)
G. Extension Spring Assembly:
G1. Extension Springs
G2. Snubber Cables
G3. Front Cable Lift Sheaves
G4. Rear Cable Lift Sheaves
G5. 3 Hole Clips (As Required)
G6. S-Hooks (As Required)
G7. Sheave Forks (As Required)
G8. 5/16”–18 x 3-3/4” Eye Bolts (As Required)
G9. Counterbalance Lift Cables
G10. 5/16”–18 Hex Nuts (As Required)
H. Rear Back Hangs:
H1. Left Hand Rear Back Hang Assemblies
H2. Right Hand Rear Back Hang Assemblies
I. Bottom Corner Bracket (As Required):
I1. Left Hand and Right Hand Bottom Corner Brackets
J. Track Roller Carriers (As Required):
J1. Track Roller Carriers
K. Bottom Weather Seal (As Required):
K1. Bottom Weather Seal (Door Width)
2
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer,
refer to your local yellow pages business listings or go to the Find a Dealer section online at www.Wayne-Dalton.com
Pre-Installation
Important Safety Instructions
Tools Required
Definition of key words used in this manual:
• Power drill
• Drill bits: 1/8”, 3/16”,
9/32”, 7/16”, 1/2”
• Ratchet wrench
• Socket driver: 7/16”
• Sockets: 7/16”, 1/2”,
9/16”, 5/8”
WARNING
Indicates a potentially hazardous situation which; if not avoided,
could result in severe or fatal injury.
Caution: Property damage or injury can result from failure to follow
instructions.
Important: Required step for safe and proper door operation.
Note: Information assuring proper installation of the door.
READ THESE INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING INSTALLATION. IF IN QUESTION
ABOUT ANY OF THE PROCEDURES, DO NOT PERFORM THE WORK. INSTEAD, HAVE A TRAINED
DOOR SYSTEMS TECHNICIAN DO THE INSTALLATION OR REPAIRS.
• Phillips head
screwdriver
• Locking Pliers
• (2) Vice clamps
• Wrenches: 3/8”,
7/16”, 1/2”, 9/16”,
5/8”
• Hammer
• Tape Measure
Step Ladder
• Level
• Pencil
• Leather gloves
• Safety glasses
Package Contents
Note: Depending on the door model, some parts listed will not be supplied if not required. Rear
Back Hangs may not be included with your door.
1.
2.
3.
READ AND FOLLOW ALL INSTALLATION INSTRUCTIONS.
Wear protective gloves during installation to avoid possible cuts from sharp metal edges.
It is always recommended to wear eye protection when using tools, otherwise eye injury
could result.
4.
Avoid installing your new door on windy days. Door could fall during the installation causing severe or fatal injury.
5.
Doors 12’-0” wide and over should be installed by two persons, to avoid possible injury.
6.
Operate door only when it is properly adjusted and free from obstructions.
7.
If a door becomes hard to operate, inoperative or is damaged, immediately have necessary adjustments and/ or repairs made by a trained door system technician using proper
tools and instructions.
8.
DO NOT stand or walk under a moving door, or permit anybody to stand or walk under an
electrically operated door.
9.
DO NOT place fingers or hands into open section joints when closing a door. Use lift
handles/ gripping points when operating door manually.
10. DO NOT permit children to operate garage door or door controls. Severe or fatal injury
could result should the child become entrapped between the door and the floor.
11. Due to constant extreme spring tension, do not attempt any adjustment, repair or alteration to any part of the door, especially to springs, spring brackets, bottom corner brackets,
fasteners, counterbalance lift cables or supports. To avoid possible severe or fatal injury,
have any such work performed by a trained door systems technician using proper tools
and instructions.
12. On electrically operated doors, pull down ropes must be removed and locks must be
removed or made inoperative in the open (unlocked) position.
13. Top section of door may need to be reinforced when attaching an electric opener. Check
door and/ or opener manufacturer’s instructions.
14. Visually inspect door and hardware monthly for worn and or broken parts. Check to
ensure door operates freely.
15. Test electric opener’s safety features monthly, following opener manufacturer’s instructions.
16. NEVER hang tools, bicycles, hoses, clothing or anything else from horizontal tracks. Track
systems are not intended or designed to support extra weight.
17. This door may not meet the building code wind load requirements in your area. For your
safety, you will need to check with your local building official for wind load code requirements and building permit information.
After installation is complete, fasten this manual near the garage door.
Important: Stainless steel or pt2000 coated lag screws must be used when
installing center bearing brackets, end brackets, jamb brackets, drawbar operator mounting/ support brackets and disconnect brackets on treated lumber
(preservative-treated). Stainless steel or pt2000 lag screws are not necessary
when installing products on un-treated lumber.
Note: It is recommended that 5/16” lag screws are pilot drilled using a 3/16” drill bit, prior to
fastening.
Important: When installing 5/16” lag screws using an electric drill/ driver, the
drill/ drivers clutch must be set to deliver no more than 200 in-lbs of torque.
Fastener failure could occur at higher settings.
Door sections (as required)
Extension Springs
Fully Adjustable jamb
Fully Adjustable flag
brackets RH/LH (as required) angles RH/LH (as required)
Vertical tracks RH/LH (as required)
Vertical track assemblies RH/LH (as required)
Rivited vertical track assemblies RH/LH (as required)
Wall angle track assemblies RH/LH (as required)
Horizontal tracks RH/LH
(2) Spacers
WARNING
Tandem track rollers
(if included)
Track rollers
Top fixture assemblies
(as required)
Track roller carriers
Bottom weather seal
Top fixture assemblies
(as required) with 3/4” nails (as required)
(as required) Strut (if included)
Prior to winding or making adjustments to the springs, ensure
you’re winding in the proper direction as stated in the Installation Instructions. Otherwise, the spring fittings may release
from spring if not wound in the proper direction and could
result in severe or fatal injury.
5/16” x 1-1/4”
Half Center
Hinges (as required) hinges (as required) Clevis pin (as required) Cotter pin (as required)
Important: Right and left hand is always determined from inside the building
looking out
Bottom corner brackets
(as required)
3
Bottom corner brackets
(as required)
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer,
refer to your local yellow pages business listings or go to the Find a Dealer section online at www.Wayne-Dalton.com
Bottom corner brackets
(as required)
Top rail
Typical design option “Outside surface of
door sections shown”
Bottom corner brackets
(as required)
Weather seals
& nails (If included)
Pull down rope
(if included)
Strut clips
(as required)
4. or 3.
Top
section
Outside
surface
3.
Intermediate II
section
(2) 5/16”-18 x
Lift handles (as required) 3-3/4” Eye bolts
Counterbalance
lift cables
Graduated End Hinge And
Strut Identification
1/4” - 20 x 1 7/8”
Carriage bolts (as required)
3/8” - 16 x 1-1/4” Hex Head
Bolts (as required)
Graduated End Hinge Schedule
Door Height
(2) 3/8”- 16 Hex nuts
1/4”- 20 Flanged
hex nuts (as required)
(2) 3/8”-16 x 3/4”
Truss head bolts
Track
Section Type
Graduated End Hinge
Number
Top
N/A
2”
Intermediate I
#2
1/4”-20 x 9/16”
Track bolts (as required)
Bottom
#1
Top
N/A
Intermediate I
#4
3 Section High Door
3”
1/4” - 10 x 1”
Tamper-resistant hex head
lag screw (as required)
1/4” - 14 x 1”
Lag screws (as required)
2”
Bottom
#3
Top
N/A
Intermediate II
3#
Intermediate I
2#
Bottom
1#
Top
N/A
Intermediate II
5#
Intermediate I
4#
4 Section High Door
1/4” - 14 x 1”
Lag screws (as required)
5/16” x 2” Tamper-resistant hex head
lag screw (as required)
3”
3/8” - 16 x 1-1/4” Hex head
bolts (as required)
2”
Bottom
3#
Top
N/A
Intermediate III
4#
Intermediate II
3#
Intermediate I
2#
Bottom
1#
Top
N/A
Intermediate III
6#
Intermediate II
5#
Intermediate I
4#
Bottom
3#
5 Section High Door
1/4”-20 x 7/8” Self
drilling screws (as required)
1
Bottom
rail
NOTE: 3 Section high doors, does not have
an Intermediate II Section.
S-hooks (2) Sheave forks
(as required)
(as required)
3 Hole clips
(as required)
#
Bottom
rail
Typical
stamping
location
Side views of sections
Top Intermediate(s) Bottom
section
section
1.
Bottom
section
(2) Front
(2) Rear
cable lift sheaves cable lift sheaves
#
2.
Intermediate I
section
Snubber cables
Inside
surface
5/16” x 1 5/8” Hex head lag screws
(as required)
3”
Door Section Identification
NOTE: Center hinge(s) use #1 graduated end hinges at each pre-drilled vertical stile location.
The pre-drilled locations are located at the top and or bottom rails on the inside of the section
surface.
NOTE: Some doors will receive half center hinge(s). These will be installed in between the center
hinge(s) and graduated end hinge(s).
Strut Identification:
Identify your struts to determine which ones are long strut(s) or short strut(s).
Short Strut(s) are typically installed along the top rail of the top section and or along the bottom
rail of the bottom section.
Long Strut(s) are typically installed along the top and or bottom rails of sections. Measure the
height of the long strut(s) to determine if you have 2” or 3”.
NOTE: Some struts also may or may not have holes in them. If they don’t, then prior to installing
the strut and hinge to the section surface, you may have to drill a 3/16” hole for the appropriate
fastener on one or both sides of the strut legs.
When installing your door, you must use sections of the appropriate height in the right stacking
location. Determine, what sections you need to use in what order depends on the design of your
door.
Sections are stamped for identification, #1, #2, #3, #4, #5, #6, #7, and #8. The stamp, located
on each side of the sections identifies the stacking sequence. The sequence is always determined by #1 being the bottom section to #7 or #8 being the highest top section. If the stamp on
the section is illegible, refer to the section side view illustration. The section side view illustration
shows the section profile of all sections, and can also be used to identify each section.
The BOTTOM SECTION can be identified by #1.
The INTERMEDIATE I SECTION can be identified by #2.
The INTERMEDIATE II SECTION can be identified by #3, for a 4 section high door only.
The INTERMEDIATE III SECTION can be identified by #4, for a 5 section high door only.
4
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer,
refer to your local yellow pages business listings or go to the Find a Dealer section online at www.Wayne-Dalton.com
Backroom requirement: Backroom is defined as the distance needed from the opening back
into the garage to allow the door to open fully.
Headroom requirement: Headroom is defined as the space needed above the top of the door
for tracks, springs, etc. to allow the door to open properly. If the door is to be motor operated,
2-1/2” (64 mm) of additional headroom is required.
Backroom Requirements
Strutting Schedule for Door Heights Less Than Or Equal to 8’0”
Door Width
Product
Up To and Including
12’2”
From 12’3” To 16’0”
Model 105
N/A
(4) 2” Struts
N/A
Door Height
Model 110
N/A
(4) 2” Struts
(4) 3” Struts
6’0” to 7’0”
Model 310/311
N/A
(4) 2” Struts
(4) 3” Struts
7’1” to 8’0”
From 16’1” To 18’0”
Track
12” Or 15” Radius
Manual Lift
Motor Operated
98” (2489 mm)
125” (3175 mm)
110” (2794 mm)
137” (3480 mm)
Headroom Requirements
2” Strut
3” Strut
Track Type
Space Needed
12” Radius
12 1/2” (318 mm)
15” Radius
14 1/2” (368 mm)
Long strut
Upper hinge
leaf
Short strut
Lower hinge
leaf
Hinges are stamped for
identification
2
1
Suitable mounting surface
2”x 6” lumber minimum
Center hinge(s)
(as required)
1
Min. side room clearance for 2”
track is 3-1/2” (89 mm).
Min. side room clearance for 3”
track is 4-1/2” (114 mm).
Headroom
Header board 2”x 6”
lumber preferred
Half center hinge(s)
(as required)
Min. side
room
clearance for
2” track is
3-1/2” (89
mm).
Min. side
room
clearance for
3” track is
4-1/2” (114
mm).
Removing an Existing Door
Important: Counterbalance spring tension must always be released before any
attempt is made to start removing an existing door.
WARNING
A powerful spring releasing its energy suddenly can cause severe
or fatal injury. To avoid injury, have a trained door systems technician, using proper tools and instructions, release the spring
tension.
kro
Nail
el h
Lev
ed
ish
Fin width
r
Doo
Plumb
jambs
Ja
Jamb
Preparing the Opening
IMPORTANT: If you just removed your existing door or you are installing a new
door, complete all steps in preparing the opening.
To ensure secure mounting of track brackets, side and center brackets, or steel angles to new or
retro-fit construction, it is recommended to follow the procedures outlined in DASMA technical
data sheets #156, #161 and #164 at www.dasma.com.
The inside perimeter of your garage door opening should be framed with wood jamb and header
material. The jambs and header must be securely fastened to sound framing members. It is
recommended that 2” x 6” lumber be used. The jambs must be plumb and the header level.
The jambs should extend a minimum of 12” (305 mm) above the top of the opening for Torsion
counterbalance systems. For low headroom applications, the jambs should extend to the ceiling
height. Minimum side clearance required, from the opening to the wall, is 3-1/2” (89 mm), for
2” track. Minimum side clearance required, from the opening to the wall, is 4-1/2” (114 mm),
for 3” track.
Important: Closely inspect jambs, header and mounting surface. Any wood
found not to be sound, must be replaced.
For Torsion counterbalance systems, a suitable mounting surface (2” x 6”) must be firmly attached to the wall, above the header at the center of the opening.
Note: Drill a 3/16” pilot hole in the mounting surface to avoid splitting the lumber. Do not attach
the mounting surface with nails.
Weatherstrips (may not be included):
Depending on the size of your door, you may have to cut or trim the weatherstrips (if necessary)
to properly fit into the header and jambs.
Note: If nailing product at 40°F or below, pre-drilling is required.
Note: Do not permanently attach weatherstrips to the header and jambs at this time.
For the header, align the weatherstrip 1/8” to 1/4” inside the header edge, and temporarily
secure it to the header with equally spaced nails. Starting at either side of the jamb, fit the
weatherstrip up tight against the temporarily attached weatherstrip in the header and 1/8”
to 1/4” inside the jamb edge. Temporarily secure the weatherstrip with equally spaced nails.
Repeat for other side. This will keep the bottom section from falling out of the opening during
installation. Equally space nails approximately 12” to 18” apart.
5
om
s
trip Finished
ers
Door
ath
e
W
Height
s
mb
For detailed information see supplemental instructions “Removing an Existing Door/ Preparing
the Opening”. These instructions are not supplied with the door, but are available at no charge
from Wayne-Dalton, A Division Of Overhead Door Corporation, P.O. Box 67, Mt. Hope, OH.,
44660, or at www.Wayne-Dalton.com.
Bac
er
ead
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer,
refer to your local yellow pages business listings or go to the Find a Dealer section online at www.Wayne-Dalton.com
Weatherstrips
1/8” to 1/4”
Tools: Hammer, Tape Measure, Saw Horses
Note: If a bottom weather seal is supplied, complete this step.
Note: Refer to Door Section Identification / Parts Breakdown.
Place the bottom section face down on a couple of sawhorses or flat clean/ smooth surface.
Align the bottom weather seal with the flap pointing towards the outside surface of the bottom section.
Starting at one end of the door, measure inward 1” and attach the bottom weather seal to
the bottom of the bottom section with 3/4” long galvanized roofing nails (not supplied). Now
stretch the bottom weather seal slightly and nail the rest of the bottom weather seal to the
bottom of the bottom section every 6”.
Once the bottom weather seal is fastened cut off any extra material so that the bottom
weather seal is even with both ends of the bottom section.
NOTE: Verify bottom weather seal is aligned with bottom section. If there is more than 1/2”
excess weather seal on either side, trim weather seal even with bottom section.
Before installing your door, be certain that you have read and followed all of the instructions covered in the pre-installation section of this manual. Failure to do so may result in an
improperly installed door.
Important: Wood doors must be completely finished (3 total coats, including
primer coat) prior to installation, to ensure that the interior and exterior
surfaces, as well as all edges of the doors are properly protected against
moisture or other contaminants. Wood doors, in a non-finished condition,
must be transported and stored so the wood surfaces are NOT exposed
to moisture or other contaminants. Improper transportation, storage or
delays in finishing, that allows exposure of the wood door surfaces to moisture or other contaminants will result in the warranty being voided.
NOTE: Reference TDS 160 for general garage door terminology at www.dasma.com.
1
Bottom Weather Seal
3
Installation
Fully Adjustable Flag Angles
Side
view
bottom
section
Tools: None
NOTE: If you have a wall angle track assembly or if you already have flag angles preattached to the vertical tracks, skip this step. Refer to Package Contents / Parts Breakdown,
to determine if you have flag angles.
Note: Flag angles are right and left handed.
If you have Fully Adjustable vertical tracks, hand tighten the left hand flag angle to the left
hand vertical track using (2) 1/4”-20 x 9/16” track bolts and (2) 1/4”-20 flange hex nuts.
Repeat for other side. Flange nuts will be secured after flag angle spacing is completed in
step, Top Section.
Flap
Edge of
bottom
section
Bottom
weather
seal
Bottom
weather seal
1”
6”
3/4” Long galvanized roofing nails (not supplied)
4
Flag angle
1/4”-20
Flange hex nuts
6”
Bottom Corner Brackets
Tools: Power Drill, 9/32” Drill Bit, Socket Driver 7/16”, Wrench 7/16”
Note: Refer to Door Section Identification / Parts Breakdown, to determine which bottom
corner brackets were supplied with your door.
WARNING
1/4”- 20 x 9/16”
Track bolts
Fully Adjustable
vertical
track
2
Failure to ensure tight fit of cable loop over cotter pin or milford pin could result in counterbalance lift cable coming off
the pin, allowing the door to fall, possibly resulting in severe
or fatal injury.
With the bottom section facing down from the previous step, uncoil the counterbalance lift
cables.
Starting on the left hand side, either:
Place the cable loop into position between the two holes on the side of the left hand bottom
corner bracket. Slide a clevis pin through the innermost hole, cable loop, and outermost
hole, of the bottom corner bracket. Slide a washer onto the clevis pin and secure in place by
inserting a cotter pin into the hole of the clevis pin. Bend the ends of the cotter pin outwards
to secure it in place. Repeat for other bottom corner bracket.
Place the cable loop on the milford pin of the bottom corner bracket. Repeat for other bottom
corner bracket.
Next, starting on the left hand side, align the left hand bottom corner bracket horizontally with
the bottom edge of the bottom section and also align the bottom corner bracket vertically
with the left bottom edge of the bottom section. Using the bottom corner bracket as a template, mark and pre-drill 9/32” diameter holes through the bottom section. Attach the bottom
corner bracket to the bottom section using 1/4”-20 x 1-7/8” carriage bolts and 1/4”–20
flange hex nuts, as shown. Repeat the same process for other side. Mark and drill a pilot
holes 1” deep into the bottom section with a 1/8” drill bit. Secure the bottom corner brackets
to the bottom section using (1) 1/4”-14 x 1” tamper resistant lag screw, as shown. Repeat
the same process for the right hand side.
IMPORTANT: Be extremely careful not to drill thru the section. Only drill 1”
deep.
NOTE: All doors are provided with the tamper resistant fastener for the bottom corner brackets. However, the professional installer is most likely to have the proper tool to install this fastener. If the homeowner does not have the proper tool to install the tamper resistant fastener,
use a regular 1/4”-20 x 1-7/8” carriage bolt and a 1/4”–20 flange hex nut in its place.
If applicable, insert a short stem track roller into each of the bottom corner brackets, as
shown.
Fully Adjustable Jamb Brackets
Tools: None
NOTE: If you have a wall angle track assembly or if you already have jamb brackets preattached to the vertical tracks, skip this step. Refer to Package Contents / Parts Breakdown,
to determine if you have jamb brackets.
Note: The bottom jamb bracket is always the shortest bracket, while the center jamb
bracket is the next tallest. If three jamb brackets per side are included with your door, you will
have received a top jamb bracket, which is the tallest.
To attach the bottom jamb bracket, locate lower hole of the hole/ slot pattern of the 1st hole
set on the vertical track. Align the slot in the jamb bracket with the lower hole of the hole/ slot
pattern. Secure jamb bracket using (1) 1/4”-20 x 9/16” track bolt and (1) 1/4”-20 flange hex
nut. Repeat for other side.
Place the center jamb bracket over the lower hole of the hole/ slot pattern that is centered
between the bottom jamb bracket and flag angle of the 2nd hole set. Secure jamb bracket
using (1) 1/4”-20 x 9/16” track bolt and (1) 1/4”-20 flange hex nut. Repeat for other side.
If a top jamb bracket was included, secure it to vertical track using the lower hole of the hole/
slot pattern in the 3rd hole set and (1) 1/4”-20 x 9/16” track bolt and (1) 1/4”-20 flange hex
nut. Repeat for other side.
Vertical track Top of track
1st hole set
Lower hole of
hole/ slot pattern
2nd hole set
3rd hole set
1/4”- 20
Flange hex nut
F.A. jamb
bracket
1/4”- 20 x
9/16”
Track bolt
Typical left
hand bottom
corner bracket
Jamb bracket
in place
Counterbalance lift cable loop
Washer
Cotter pin (attached into
place from opposite side
of bottom corner bracket)
Typical left hand
bottom corner bracket
6
Clevis pin (inserted through cotter pin
and bent into place)
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer,
refer to your local yellow pages business listings or go to the Find a Dealer section online at www.Wayne-Dalton.com
Bottom section
Side view of track roller
carrier(s)
Bottom weather
seal
Outer holes
(3” Track)
(3) 1/4” - 20 x 1 7/8” Carriage bolts
and (3) 1/4” - 20 Flange hex nuts
(1) 1/4” - 14 x 1” Tamper
resistant lag screw
Typical left hand
bottom corner bracket
Inner holes
(2” Track)
Bottom section
6
Bottom weather
seal
(3) 1/4” - 20 x 1 7/8” Carriage bolts
and (3) 1/4” - 20 Flange hex nuts
Short stem
track roller
Spacer
Bottom
section
(1) 1/4” - 14 x 1” Tamper
resistant lag screw
Cable loop
Short stem
track roller
Bottom
weather
seal
Counterbalance
lift cable
Milford pin
Typical left hand
bottom corner bracket
Roller
spacer
(5) 1/4” - 20 x 1 7/8”
Carriage bolts and (5)
1/4” - 20 Flange hex
nuts
3/4”
Bottom
weather
seal
Counterbalance
lift cable
7
Cable loop
5
Roller
spacer
Typical left hand
bottom corner bracket
Track Roller Carriers
Tools: Power Drill, 9/32” Drill Bit, Socket Driver 7/16”, Wrench 7/16”
Note: If you don’t have track roller carriers, then skip this step. Refer to Package Contents /
Parts Breakdown, to determine if track roller carriers were supplied with your door.
Starting on left hand side of the bottom section, attach the track roller carrier with the stamp
“STD” facing UP to the bottom corner bracket by aligning the four holes of the track roller
carrier with the four holes in the bottom corner bracket. Mark and pre-drill (4) 1/8” diameter
holes and secure the track roller carrier to the bottom corner bracket and bottom section
using (4) 1/4”-14 x 1” lag screws.
Insert a short/long stem track roller and spacer into the inner/outer holes of the track roller
carrier. Repeat the same process for the right hand side.
NOTE: The track roller carrier’s inner holes are used on doors with 2” track applications with
a short stem track roller; the outer holes are used on doors with 3” track applications with a
long stem track roller.
Typical bottom
corner bracket
Track roller
carrier
“STD”
facing UP
Long stem
track roller
1/4” - 14 x 1”
Lag screws
Graduated End And Center Hinges
Tools: Power Drill, 1/8”/9/32” Drill Bit, Socket Driver 7/16”, Tape
NOTE: Refer to the Door Section Identification, Graduated End Hinge and Strut Identification,
to determine the appropriate hinges and or struts for your sections.
Using the appropriate graduated end hinges for the ends and depending on the width of your
door, enough center hinge(s) for each pre-drilled hole location.
Starting at the upper left hand corner of the bottom section. Position the lower hinge leaf
of the appropriate graduated end hinge onto the upper corner of the bottom section. Align
the slots of the lower hinge leaf with the pre-drilled holes in the bottom section. Next, lay a
long strut (if applicable) over the lower hinge leaf and over the top rail of the bottom section.
Center the long strut from side to side, as shown.
For single graduated end hinges without a strut:
Starting on the left hand side, attach the upper slot of the graduated end hinge to the bottom
section using (1) 1/4”-20 x 1-7/8” carriage bolt and (1) 1/4”–20 flange hex nut. Next, secure
the lower slot of the graduated end hinge to the bottom section using (1) 1/4”-20 x 1-7/8”
carriage bolt and (1) 1/4”–20 flange hex nut, as shown. Repeat same process for other side.
For single graduated end hinges with a strut (if applicable):
Starting on the left hand side, attach the upper slot of the graduated end hinge, (1) strut clip
and the upper leg of strut to the bottom section using (1) 1/4”-20 x 1-7/8” carriage bolt and
(1) 1/4”–20 flange hex nut. Next secure the bottom leg of strut, the lower slot of the graduated end hinge to the bottom section (1) 1/4”-20 x 1-7/8” carriage bolt and (1) 1/4”–20
flange hex nut, as shown. Repeat same process for other side.
For doors with double graduated end hinges:
Position the second graduated end hinge next to the first (single) graduated end hinge. Using
the second graduated end hinge as a template, drill pilot holes, 1” deep into the bottom
section with a 1/8” drill bit.
IMPORTANT: Be extremely careful not to drill thru the section. Only drill 1”
deep.
Attach the upper leg of strut (if applicable) to the upper slot of the graduated end hinge to the
bottom section using (1) 1/4”-14 x 1” lag screw. Next secure the bottom leg of strut (if applicable) to the lower slot of the graduated end hinge to the bottom section using (1) 1/4”-14
x 1” lag screw, as shown. Repeat same process for other side.
(1) 1/4” - 14 x 1” Tamper
resistant lag screw
Milford pin
Short stem
track roller
Short
strut
Typical bottom
corner bracket
Bottom section
Short stem
track roller
Tools: Power Drill, 1/8” Drill Bit, Socket Driver 7/16”, Tape Measure
NOTE: Refer to the Door Section Identification and Strut Identification, to determine if the
bottom section requires a short strut to be installed.
Lay the short strut onto the bottom rail of the bottom section. Position the bottom of the strut
3/4” up from the bottom edge of the bottom section. Center the short strut from side to side
on the section surface.
Drill pilot holes, 1” deep into the bottom section using a 1/8” drill bit.
IMPORTANT: Be extremely careful not to drill thru the section. Only drill 1”
deep.
Attach the strut using (2) 1/4”-14 x 1” lag screws at each on each end and center stile
(aligned with hinges) locations.
(1) 1/4” - 14 x 1” Tamper
resistant lag screw
Typical left hand
bottom corner bracket
Bottom section
(3) 1/4” - 20 x 1 7/8” Carriage bolts
and (3) 1/4” - 20 Flange hex nuts
Strutting
Spacer
(4) 1/4”-14 x 1”
Lag screws
7
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer,
refer to your local yellow pages business listings or go to the Find a Dealer section online at www.Wayne-Dalton.com
Double graduated end hinge
with long stem track roller
Lower hinge
Long strut
leaf(s)
(if applicable)
Single graduated end hinge
with short stem track roller
Hinge
Short
tube(s)
edge
(1) Strut clip
(if applicable)
Half
center
hinge
Equally spaced
Typical section
shown
Lower hinge leaf
Long edge
(1) Strut clip
(if applicable)
(2) 1/4” - 14 x 1”
Lag screws
(2) 1/4” - 20 x 1 7/8” Carriage bolts
and (2) 1/4” - 20 Flange hex nuts
Short edge
Hinge
tube(s)
Tandem
roller
Short
edge
(1) Strut clip
(if applicable)
9
Single graduated end hinge with
short stem tandem roller
Double graduated end hinge
with long stem tandem roller
Lower hinge
Long strut
leaf(s)
(if applicable)
(2) 1/4” - 14 x 1”
Lag screws
(2) 1/4” - 20 x 1 7/8” Carriage bolts
and (2) 1/4” - 20 Flange hex nuts
Short edge
Top Fixtures
Tools: Power drill, 7/16” Socket driver
NOTE: Refer to Door Section Identification / Parts Breakdown.
NOTE: If your door came with two top fixtures, then one top fixture are required for each side.
NOTE: If your door came with four top fixtures, then two top fixtures are required for each
side.
Place the top section face down on a couple of sawhorses or flat clean/ smooth surface.
NOTE: Refer to illustrations to determine which top fixture was supplied with your door.
First, you’ll need to measure the width of the top rail of the top section, to determine, the
proper location and the correct orientation of the top fixtures.
On top sections with a 5-3/16” top rail: Measure down from the top of the top
section 3-1/4” and make a small mark. Align the top of the top fixture base / top fixture assembly with the mark previously made and even with the edge of the section.
NOTE: The slotted half of the top fixture base / top fixture assembly should be facing
upwards.
On top sections with a 3-1/8” top rail: Measure down from the top of the top
section 1-1/8” and make a small mark. Align the top of the top fixture base / top fixture assembly with the mark previously made and even with the edge of the section.
NOTE: The slotted half of the top fixture base / top fixture assembly should be facing
downwards.
Using the top fixture base as a template, mark and pre-drill (4) 9/32” diameter holes through
the top section. Attach the top fixture base to the top section using (4) 1/4”-20 x 1-7/8” carriage bolts and (4) 1/4”–20 flange hex nuts. Repeat the same process for the right hand side.
The top fixtures will be tightened and adjusted later, in step, Adjusting Top Fixtures. Insert a
short stem track roller into each of the top fixture slides.
Long edge
(1) Strut clip
(if applicable)
Long strut
(if applicable)
(2) 1/4” - 14 x 1” Lag screws
Typical
section
shown
Typical
section
shown
For Center Hinges without a strut:
Starting on the left hand side, attach the upper slot of the center hinge to the bottom section
using (1) 1/4”-20 x 1-7/8” carriage bolt and (1) 1/4”–20 flange hex nut. Next, secure the
lower slot of the center hinge to the bottom section using (1) 1/4”-20 x 1-7/8” carriage bolt
and (1) 1/4”–20 flange hex nut, as shown. Repeat same process for other center hinges.
For Center Hinges with a strut (if applicable):
Starting on the left hand side, attach the upper slot of the center hinge, (1) strut clip and
the upper leg of strut to the bottom section using (1) 1/4”-20 x 1-7/8” carriage bolt and
(1) 1/4”–20 flange hex nut. Next secure the bottom leg of strut, the lower slot of the center
hinge to the bottom section (1) 1/4”-20 x 1-7/8” carriage bolt and (1) 1/4”–20 flange hex
nut, as shown. Repeat same process for other center hinges.
Center hinge
Short
edge
(1) Strut clip
(2) 1/4” - 20 x 1 7/8” Carriage bolts
(if applicable)
(1) Strut clip
and (2) 1/4” - 20 Flange hex nuts
(if applicable)
(4) 1/4” - 20 Flange hex nuts
/4”
3-1
Lower hinge leaf
Long edge
Center
hinge
n
sio
en/16”
3
Dim
=5
Top
rail
Long edge
(1) Strut clip
(if applicable)
(1) Strut clip
(if applicable)
Typical
section
shown
Short edge
Long strut
(if applicable)
Top fixture
slide
Top fixture
base
Top section
Short stem
track roller
If you have single graduated end hinges, insert a short stem track roller / short stem tandem
track roller (if included) into the hinge tube on each side.
If you have double graduated end hinges, insert a long stem track roller / short stem tandem
track roller (if included) into the hinge tubes on each side.
Important: When placing track rollers / tandem track roller (if included)
into graduated end hinges number 2 and higher, the track roller / tandem
track roller (if included) goes into tube furthest away from section.
8
Slot
(4) 1/4” - 20 x 1-7/8”
Carriage bolts
(4) 1/4” - 20 Flange hex nuts
/4”
3-1
(4) 1/4” - 20 x 1-7/8”
Carriage bolts
Top
rail
Half Center Hinges
Tools: Power drill, 7/16” Socket driver, Tape measure
Top fixture assembly (pre-assembled)
Short stem track roller
Note: If you don’t have half center hinges, then skip this step. Refer to Package Contents /
Parts Breakdown, to determine if you have half center hinges.
Using a tape measure, position the half center hinges equally spaced in between the center
hinges and equally spaced in between the center hinges and the graduated end hinges.
Position the holes of the lower hinge leaf onto the bottom section surface, as shown. Using
the half center hinge as a template, drill pilot holes, 1” deep into the bottom section using a
1/8” drill bit.
IMPORTANT: Be extremely careful not to drill thru the section. Only drill 1”
deep.
Attach the lower hinge leaf of the center hinge to the bottom section using (2) 1/4”-14 x 1”
lag screws. Repeat for other half center hinge(s). Set the bottom section aside.
Place the Intermediate I section face down on a couple of sawhorses or flat clean/ smooth
surface. Reference step Graduated End And Center Hinges and this step to attach the long
struts (if applicable) and hinges to the top rail of the sections in the same manner as was
done for the bottom section. Repeat the same process for the other Intermediate section(s) if
applicable, except top section.
(4) 1/4” - 20
Flange hex nuts
n
sio
en /8”
m
i
1
D 3=
/8”
1-1
Top
rail
Top fixture
base
Slot
Short stem
track roller
8
Top section
Loosen the
5/16”-18 Hex nut
Top fixture slide
Top fixture
base
Slot
(4) 1/4” - 20 x 1-7/8”
Carriage bolts
n
sio
en/16”
m
i
3
D 5=
Top fixture
slide
Top section
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer,
refer to your local yellow pages business listings or go to the Find a Dealer section online at www.Wayne-Dalton.com
(4) 1/4” - 20
Flange hex nuts
/8”
1-1
(4) 1/4” - 20 x 1-7/8”
Carriage bolts
Slot
n
sio
en /8”
Dim3-1
=
If the bottom section was shimmed to level it, the vertical track on the
shimmed side must be raised the height of the shim.
Position the left hand vertical track assembly / wall angle track assembly over the track
rollers of the bottom section. Make sure the counterbalance lift cable is located between the
track rollers and the door jamb. Drill 3/16” pilot holes into the door jamb for the lag screws.
For flag angle track assemblies:
Loosely fasten jamb brackets and flag angle to the jamb using 5/16” x 1-5/8” lag screws, as
shown.
For wall angle track assembly:
Loosely fasten wall angle to the jamb using 5/16” x 1-5/8” lag screws, as shown.
If you have 2” vertical tracks:
Tighten lag screws, securing the bottom jamb bracket/bottom slot to jamb, maintain 3/8” to
5/8” spacing, between the bottom section and vertical track.
If you have 3” vertical tracks:
Tighten lag screws, securing the bottom jamb bracket/bottom slot to jamb, maintain 1/2” to
3/4” spacing, between the bottom section and vertical track.
Hang counterbalance lift cable over flag angle/wall angle. Repeat same process for other
side.
Top section
Top
rail
Top fixture
base
Loosen the
5/16”-18 Hex nut
Top fixture assembly (pre-assembled)
Top fixture slide
Short stem track roller
10
Strutting For Top Section
Tools: Power drill, 7/16” Socket driver
NOTE: Refer to the Door Section Identification and Strut Identification, to determine if the top
section requires a short strut to be installed.
Lay the short strut onto the top rail of the top section. Position the top of the strut 3/4” down
from the top edge of the top section. Center the short strut from side to side on the section
surface.
Drill pilot holes, 1” deep into the top section using a 1/8” drill bit.
IMPORTANT: Be extremely careful not to drill thru the section. Only drill 1”
deep.
Attach the strut using (2) 1/4”-14 x 1” lag screws at each on each end and center stile
(aligned with hinges) locations.
Short strut
Top section
Wallangle
track
assembly
Riveted track
flag angle
shown
Lag
screw
locations
5/16” x 1-5/8”
Lag screws
3/4”
Jamb
bracket
Typical
top fixture
assembly
1/4” - 14 x 1”
Lag screws
11
Bottom
section
Track
rollers
Bottom Section
13
Fully Adjustable Riveted
flag angle
flag angle
2” Vertical track
spacing (3/8” to 5/8”)
Bottom
section
3” Vertical track
spacing (1/2” to 3/4”)
Vertical track
assembly
Tools: Level, Wooden shims (if necessary)
Center the bottom section in the door opening. Level the section using wooden shims (if
necessary) under the bottom section.
Floor
Track roller
Stacking Sections
Tools: Power drill,7/16” Socket driver
Note: Make sure graduated end and center hinges are flipped down, when stacking another
section on top.
With assistance, lift intermediate I (second) section and guide the track rollers / tandem
rollers into the vertical tracks. Lower section until it is seated against bottom section. Keep
sections aligned. Repeat same process for other sections, except top section.
For Graduated end hinges and Center Hinges:
Starting with the outer graduated end hinges, flip the upper hinge leaf up and secure to the
section using (2) 1/4”-20 x 1-7/8” carriage bolts and (2) 1/4”–20 flange hex nuts. Repeat
same process for the center hinges.
If you have double graduated end hinges, flip the inner upper hinge leaf up and use it as a
template. Mark and pre-drill (2) 1/8” pilot holes, 1” deep into the section using a 1/8” drill bit.
Attach the upper hinge leaf to the section using (2) 1/4”-14 x 1” lag screws. Repeat same
process for other side.
If you have half center hinges:
Flip the upper hinge leaf up and use it as a template. Mark and pre-drill (2) 1/8” pilot holes,
1” deep into the section using a 1/8” drill bit. Attach the upper hinge leaf to the section using
(2) 1/4”-14 x 1” lag screws. Repeat same process for other half center hinges.
IMPORTANT: Be extremely careful not to drill thru the section. Only drill 1”
deep.
Important: Push & hold the hinge leafs securely against the sections while
securing with 1/4”-20 x 1-7/8” carriage bolts and 1/4”–20 flange hex nuts.
There should be no gap between the hinge leafs and the sections.
Weather seal
Level
Bottom section
Wooden shims
(If necessary)
12
Flag
angle
Vertical Tracks
Tools: Power Drill, 3/16” Drill bit, 7/16” Socket driver, Tape measure,
IMPORTANT: If your door is to be installed prior to a finishing construction
of the building’s floor, the vertical tracks and the door bottom section
assembly should be installed such that when the floor is constructed, no
door or track parts are trapped in the floor construction.
Important: The tops of the vertical tracks must be level from side to side.
9
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer,
refer to your local yellow pages business listings or go to the Find a Dealer section online at www.Wayne-Dalton.com
Door width (2” Track)
+ 3-3/8” to 3-1/2”
Top of flag angle or
Top of wallangle assembly
Typical graduated end
hinge with typical long
stem tandem track roller
Left double graduated
end hinge with typical
long stem track roller
Vertical
tracks
Top
section
(2) 1/4”-14 x 1”
Lag screws
Typical sections shown
Center
hinge(s)
Flag angle or
wallangle assembly
Horizontal Tracks
15
Right single
graduated end hinge
with typical short
stem track roller
Tools: Ratchet wrench, 7/16” Socket, 9/16” Socket, 9/16” Wrench,
To install horizontal track, place the curved end over the top track roller of the top section.
Align the bottom of the horizontal track with the top of the vertical track. Tighten the horizontal track to the flag angle/wall angle with (2) 1/4”-20 x 9/16” track bolts and (2) 1/4”-20
flange hex nuts.
WARNING
Upper hinge leaf
Do not raise door until horizontal tracks are secured at rear,
as outlined in step, Rear Back Hangs, or door could fall from
overhead position causing severe or fatal injury.
Half center hinge
Level the horizontal track assembly and bolt the horizontal track angle to the first encountered slot in the flag angle/wall angle using (1) 3/8”-16 x 3/4” truss head bolt and (1) 3/8”16 hex nut. Repeat for other side.
Remove the nail that was temporarily holding the top section in place, installed in step, Top
Section.
Important: Failure to remove nail before attempting to raise door could
cause permanent damage to top section.
Note: If an opener will be installed, position horizontal tracks slightly above level.
Vertival track Or Wall angle
Horizontal
track
3/8”-16 Hex nut
Long strut (if applicable)
14
Top section
Vertical track
against rollers
Bottom section
Right double graduated
end hinge with typical
long stem track roller
(2) 1/4”-20 x 1-7/8” Carriage bolts and (2) 1/4”-20 Flange hex nuts
Left single
graduated end
hinge with
typical short
stem track roller
Nail
2” Track Applications:
1-11/16” to 1-3/4”
3” Track Applications:
2-3/16” to 2-1/4”
Intermediate I section
Door width (3” Track)
+ 4-7/8” to 5”
Top Section
Tools: Hammer, Step ladder, Tape measure
Place the top section in the opening. Temporarily secure the top section by driving a nail into
the header near the center of the door and bending it over the top section. Now, flip up the
graduated end hinge and center hinge leaves, hold tight against section, and fasten center
hinges first and end hinges last (refer to step, Stacking Sections). Vertical track alignment
is critical. For 2” track, position flag angle/wall angle between 1-11/16” (43 mm) to 1-3/4”
(44 mm) from the edge of the door; tighten the bottom lag screw. For 3” track, position flag
angle/wall angle between 2-3/16” (56 mm) to 2-1/4” (57 mm) from the edge of the door;
tighten the bottom lag screw.
Flag angles/wall angles must be parallel to the door sections. Repeat same process for other
side.
Important: The dimension between the flag angles must be:
For 2” track applications: door width plus 3-3/8” (86mm) to 3-1/2” (89 mm) for
smooth, safe door operation.
For 3” track applications: door width plus 4-7/8” (124mm) to 5” (127 mm) for
smooth, safe door operation.
Complete the vertical track installation by securing the jamb bracket(s) or slots in the wall
angle and tightening the other lag screws. Push the vertical track against the track rollers so
that the track rollers are touching the deepest part of the curved side of the track; tighten all
the track bolts and nuts. Repeat for other side.
Horizontal
track angle
3/8”-16 x 3/4”
Truss head bolt
1/4”-20
Flange hex nuts
Flag angle
3/8”-16
Hex nut
1/4”-20 x 9/16”
Track bolts
3/8”-16 x 3/4”
Truss head bolt
Horizontal
track angle
Horizontal
track
Horizontal
track
3/8”-16
Hex nut
Horizontal
track angle
Flag angle
Horizontal
track
16
Flag angle
3/8”-16
x 3/4”
Truss
head
bolt
Adjusting Top Fixtures
Tools: 7/16” Wrench, Step ladder
Adjusting top fixture slide:
With horizontal tracks installed, you can now adjust the top fixtures. Vertically align the top
section of the door with the lower sections. Once aligned, position the top fixture slide(s)
out against the horizontal track. Maintaining the slide(s) position, tighten either the 1/4”-20
Flange hex nut (s) or the 5/16”-18 hex nut(s) to secure the top fixture slide(s) to the top
fixture base(s). Repeat for other side.
Refer to the illustration to determine if you need to lock each of the top fixture slides into
place using (1) 1/4”-20 x 9/16” track bolt and (1) 1/4”-20 flange hex nut through any two
aligning holes, as shown.
10
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer,
refer to your local yellow pages business listings or go to the Find a Dealer section online at www.Wayne-Dalton.com
Top
section
(2) 1/4”-20
Flange hex
nut(s)
Top
section
Typical top
fixture slide
Typical top
fixture slide
(1)1/4”-20 x 9/16”
Track bolt
Stem track
roller
Horizontal
track
Horizontal tracks
5/16”-18
Flange hex
nut(s)
(1) 1/4”-20
Flange hex
nut
Reversing the top fixture slide, if needed:
NOTE: Depending on your application, you may have to reverse the top fixture slide for more
adjustability, prior to securing it to the top fixture base.
Remove the top fixture slide by removing the (2) 1/4”-20 flanged hex nuts and the (2) 1/4”20 x 5/8” carriage bolts. Remove the track roller from the top fixture slide and flip the top
fixture slide in the opposite direction. Re-insert the track roller back into the top fixture slide
and loosely fasten the top fixture slide to the top fixture base by re-using the (2) 1/4”-20 x
5/8” carriage bolts and (2) 1/4”-20 flange hex nuts. Repeat same process for other side.
Now follow the instructions at the top of this step “Adjusting top fixture slide(s)”.
Vice clamp
Vice clamp
2nd Track roller
(2) 1/4”-20
Flange hex nuts
Flip top fixture
slide
Top fixture
slide
Top fixture base
(2) 1/4”-20 x 1/2”
Carriage bolts
17
Sound framing
members
Rear Back Hangs
Tools: Ratchet wrench, Socket: 1/2” 5/8”, Wrench: 1/2” 5/8”, (2) Vice
Raise the door until the top section and half of the next section are in a horizontal position.
Do not raise door any further since rear of horizontal tracks are not yet supported.
WARNING
Perforated angle bolted
using (2) 5/16” x 1-5/8”
hex head lag screws to
ceiling member and
parallel to door
Raising door further can result in door falling and cause
severe or fatal injury.
Clamp a pair of vice clamps onto the vertical tracks just above the second roller on one side,
and just below the second track roller on the other side. This will prevent the door from raising or lowering while installing the rear back hangs.
Using perforated angle (may not be supplied), (2) 5/16” x 1-5/8” hex head lag screws and
(3) 5/16” bolts with nuts (may not be supplied), fabricate rear back hangs for the horizontal
tracks. Attach horizontal tracks to the rear back hangs with 5/16”-18 x 1 hex bolts and nuts
(may not be supplied). Horizontal tracks must be level and parallel with door within 3/4” to
7/8” maximum of door edge.
Horizontal
track
(3) 5/16” Bolts and nuts
5/16”-18 x 1-1/4”
Hex bolt must extend into the
track to serve as a roller stop
WARNING
Perforated angle
Keep horizontal track parallel and within 3/4” to 7/8” maximum
of door edge, otherwise door could fall, resulting in severe or
fatal injury.
Sound framing
members
Important: Do not support the weight of the door on any part of the horizontal track hanger that cantilevers 4” or more beyond a sound framing
member.
Note: If rear back hangs are to be installed over drywall, use (2) 5/16” x 2” hex head lag
screws and make sure lag screws engage into solid structural lumber.
Note: 26” angle must be attached to sound framing members and nails should not be used.
Now, permanently attach the weatherstrips on both door jambs and header. The weatherstrips were temporarily attached in Preparing the Opening, in the pre-installation section of
this manual.
NOTE: When permanently attaching the weatherstrips to the jambs, avoid pushing the weatherstrips too tightly against the face of door.
(3) 5/16”
Bolts and nuts
Horizontal
track
Perforated angle
5/16”-18 x 1-1/4”
Hex bolt must extend into the
track to serve as a roller stop
11
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer,
refer to your local yellow pages business listings or go to the Find a Dealer section online at www.Wayne-Dalton.com
Perforated angle bolted
using (2) 5/16” x 1-5/8”
hex head lag screws to
ceiling member and
parallel to door
3/4” To 7/8”
Door edges
Horizontal tracks
(1) 5/16”-18 x 3-3/4”
Eye bolt
3/4” To 7/8”
Rear back hang
(Perforated angle)
6”-8”
Horizontal
track
Spring safety
cable
Rear back
hang
Special
knot
(1) 5/16”-18
Hex nut
18
3 Hole clip
Attaching Front Cable Lift Sheaves
Horizontal track
Tools: 3/8” Wrench, Tape Measure
3/8”-16
Hex nut
3” Or 4”
Front cable
lift sheave
19
Flag angle
(1) 5/16”-18
Hex nut
(1) 5/16”-18 x 3-3/4”
Eye bolt
Measure the front cable lift sheaves to determine if they are 3 or 4 inches. Starting on the left
hand side and using (1) 3/8”-16 hex nut, attach the front cable lift sheave into the appropriate hole, as shown).
If you have 3” front cable lift sheaves and a 12” Radius Horizontal
Track:
Secure the front cable lift sheave to the 13/32” hole near the top of the flag angle using (1)
3/8”-16 hex nut, as shown.
If you have 3” or 4” front cable lift sheaves and a 15” Radius Horizontal
Track:
Bolt the front cable lift sheave to the first 13/32” hole in the horizontal track angle, using (1)
3/8”-16 hex nut, as shown.
Repeat the same process for right hand side.
Remove the locking pliers from the vertical tracks. With assistance, raise the door slowly into
the open position making sure the door travels smoothly through the tracks. Clamp locking
pliers to the back leg of both horizontal tracks, below the bottom track rollers to keep the
door from lowering.
Front cable lift sheave
12” Radius horizontal
track with 3” front cable
lift sheave hole location
Front view
3 Hole clip
(1) 5/16” x 1-5/8”
Lag screw
3 Hole
clip
Special
knot
Special
knot
Spring
safety
cable
Spring
safety
cable
Extension
spring
Spring
safety
cable
Extension
spring loop
15” Radius horizontal track
with 3” or 4” front cable lift
sheave hole location
20
Back view
Extension
spring
Extension
spring
Extension
spring loop
Eye
bolt
Rear back
hang
Extension
spring loop
Attaching Spring Sheaves
Tools: 3/8” Wrench
Hook the sheave fork through the front loop of the extension spring and attach the sheave
fork to the rear cable lift sheave using (1) 3/8”-16 x 1-1/4” hex head bolt and (1) 3/8”-16
hex nut.
Thread the counterbalance lift cable over the front cable lift sheave and around the rear
cable lift sheave and tie the special knot around the “horizontal angle” using a 3 hole clip, as
shown.
Insert one end of the large “S” hook into the “horizontal angle” with the 3 hole clip and the
other end into the second slot of the horizontal angle, as shown.
Repeat for the other side.
IMPORTANT: Close “S” hooks and eye bolts to prevent springs from coming
loose.
Horizontal
track angle
Horizontal track
Attaching Extension Springs
Tools: 3/8” Wrench
WARNING
Position (1) 5/16”-18 x 3-3/4” eye bolt and (1) 5/16”-18 hex nut in the rear back hang, 6” to
8” above the horizontal track, as shown. Feed the snubber cable through the rear back hang
and tie the special knot around the “room side” of the 3 hole clip, as shown. Secure the eye
bolt and 3 hole clip to the rear back hang with (1) 5/16” - 18 hex nut. Hook one end of the
extension spring onto the eye bolt. Feed the snubber cable through the rear extension spring
loop and center of the extension spring then front spring loop, pull the snubber cable taut and
tie the special knot around the “jamb side” of the 3 hole clip. Attach the “jamb side” 3 hole
clip to the jamb near the flag angle with (1) 5/16” x 1-5/8” lag bolt.
NOTE: Snubber cables must be taut.
FAILURE TO CLOSE “S” HOOKS AND EYE BOLTS CAN RESULT IN SEVER OR
FATAL INJURY IF SPRINGS COME LOOSE.
NOTE: Some larger doors feature 2 pairs of extension springs. A snubber cable must be
installed through each spring.
WARNING
Failure to install snubber cables can result in severe or fatal injury
in case of spring breakage.
12
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer,
refer to your local yellow pages business listings or go to the Find a Dealer section online at www.Wayne-Dalton.com
Extension spring
Sheave fork
Spring safety cable
DOOR HEIGHT
Spring Length Relaxed
Spring Length Extended
(Door Open)
(Door Closed)
7’0”
Spring safety cable
Rear cable
lift sheave
7’6”
Extension
spring loop
7’9”
(1) 3/8” - 16
Hex nut
Horizontal
track
(1) 3/8”-16 x 1-1/4”
Hex head bolt
8’0”
Sheave
fork
(1) 3/8” - 16
Hex nut
22
Sheave
fork
Front cable
lift sheave
Counterbalance
lift cable
Rear cable
lift sheave
Special knot
3 Hole
clip
Counterbalance
lift cable
“S” Hook
Front cable
lift sheave
Horizontal
track
angle
Second slot
Counterbalance
lift cable
23
“S” Hook
Counterbalance
lift cable
Rear
cable lift
sheave
67”
(635 mm)
(1702 mm)
27”
72”
(686 mm)
(1829 mm)
27”
73.5”
(686 mm)
(1867 mm)
27”
75”
(686 mm)
(1905 mm)­
Final Adjustments
Tools: None
Now lift the door and check its balance. If the door is hard to pull down or lifts by itself, adjust
extension spring length by moving the “S” hook backward (towards the rear back hangs) to a
different hole in the horizontal angle.
If the door is difficult to lift or too easy to pull down, adjust extension spring length by moving
the “S” hook forward (towards the header) to a different hole in the horizontal angle.
Important: Whenever adjusting extension spring length for door balance,
always open the door to the fully open position and return the locking pliers to the horizontal tracks below the bottom track rollers.
If the door still does not operate easily, lower the door into the closed position and recheck
the following items:
1.) Check the door for level.
2.) Check the distance between flag angles – must be door width plus 3-3/8” + 1/4” – 0”.
3.) Check the counterbalance lift cables for equal tension- adjust by re-tieing the special
knot.
Counterbalance
lift cable
Extension
spring
Horizontal
track
25”
Label Placement
Tools: Step Ladder
IMPORTANT: Using the illustration, attach the appropriate labels to the appropriate location on the section, as shown.
NOTE: The Spring Warning tag(s) are factory attached (one per spring).
NOTE: Because of different configurations, some labels may require minor relocations.
Torsion spring tag(s) (one per spring)
Hook plate
Spring safety
cable
HIGH SPRING TENSION CAN CAUSE
SERIOUS INJURY OR DEATH.
WARNING
Sheave fork
Counterbalance
lift cable
DRILLING, SAWING, SANDING OR
MACHINING WOOD PRODUCTS GENERATES
WOOD DUST, A SUBSTANCE KNOWN TO THE
STATE OF CALIFORNIA TO CAUSE CANCER.
AVOID INHALING WOOD DUST OR USE A
RESPIRATOR OR OTHER SAFEGUARDS FOR
PERSONAL PROTECTION.
DO NOT REMOVE, COVER OR PAINT OVER
THIS LABEL. PRODUCT USER SHOULD
INSPECT THIS LABEL PERIODICALLY FOR
LEGIBILITY AND SHOULD ORDER A
REPLACEMENT FROM THE DOOR
MANUFACTURER AS NEEDED.
CALIFORNIA HEALTH AND SAFETY
CODE SECTION 25249.6
Horizontal track
This illustrations shows doors featuring (2) pairs of extension springs
Wayne Dalton, a Division of
Overhead Door Corp.
P.O. Box 67
Mt. Hope, OH 44660
www.wayne-dalton.com
SAFETY INSTRUCTIONS
1. Operate door ONLY when it is properly
adjusted and free of obstructions.
2. If a door becomes hard to operate,
inoperative or is damaged, immediately
have necessary adjustments and/or repairs
made by a trained door system technician
using proper tools and instructions.
3. DO NOT stand or walk under a moving door,
or permit anybody to stand or walk under
an electrically operated door.
4. DO NOT place fingers or hands into open
section joints when closing a door. Use lift
handles/gripping points when operating
door manually.
5. DO NOT permit children to operate garage
door or door controls.
6. Due to constant extreme spring tension,
DO NOT attempt any adjustment, repair or
alteration to any part of the door,
especially to springs, spring brackets,
bottom corner brackets, red colored
fasteners, cables or supports. To avoid
possible severe or fatal injury, have any
such work performed by a trained door
system technician using proper tools and
instructions.
7. On electrically operated doors, pull down
ropes must be removed and locks must be
removed or made inoperative in the open
(unlocked) position.
8. Top section of door may need to be
reinforced when attaching an electric
opener. Check door and/or opener
manufacturer’s instructions.
9. VISUALLY inspect door and hardware
monthly for worn and/or broken parts.
Check to ensure door operates freely.
10. Test electric opener’s safety features
monthly, following opener manufacturer’s
instructions.
11. NEVER hang tools, bicycles, hoses, clothing
or anything else from horizontal tracks.
Track systems are not intended or designed
to support such extra weight.
Cable Adjustments
Tools: None
of Overhead Door Corp.
Adjust counterbalance lift cables to create about 1” to 2” (25 mm to 50 mm) of initial extension spring stretch, with the door in the fully opened position.
Measure relaxed extension spring length for your door height and verify with chart. Spring
length must be the same for both extension springs to allow even door balance.
Carefully remove the locking pliers from the horizontal track and lower the door into the
closed position.
Once the door is closed, measure the extension spring length in tension for both sides. Using
the chart, verify the spring length in tension, is correct with your door height.
Note: It may be necessary to adjust spring length for proper door balance.
DOOR HEIGHT
6’3”
6’6”
Adjustments or repairs must ONLY be made
by a trained door systems technician using
proper tools and instructions.
DO NOT remove, cover or paint over this tag.
Product user should inspect this tag
periodically for legibility and should order a
replacement tag from the door
manufacturer, as needed.
Residential
warning label
Place label at a readable height on door. DO NOT
remove, cover or paint over this label. Product
user should inspect this label periodically for
legibility and should order a replacement label
from the door manufacturer as needed.
Copyright 2010 Wayne Dalton, a Division
6’0”
DO NOT adjust, repair or remove springs or
parts to which springs are connected, such
as steel brackets, cables, wood blocks,
fasteners or other parts of the
counterbalance system.
344648 NEW 11/19/2010
Wayne Dalton, a Division of
Overhead Door Corp.
3395 Addison Dr.
Pensacola, FL 32514
www.wayne-dalton.com
21
Residential Dust label
(For California Residents Only)
Spring Length Relaxed
Spring Length Extended
(Door Open)
(Door Closed)
25”
61”
(635 mm)
(1549 mm)
25”
62.5”
(635 mm)
(1588 mm)
25”
64”
(635 mm)
(1626 mm)
324100
REV5 01/15/2010
WARNING
WARNING
Lift handles/gripping points are required
on this door, located as spelled out in the
installation instructions, even if the door
is motor operated.
Failure to install and use these lift handles/
gripping points on this door can result in
serious injury to fingers and/or hands, if
placed in the opening between sections,
when the door is operated manually.
Lift handles/gripping points are required
on this door, located as spelled out in the
installation instructions, even if the door
is motor operated.
Failure to install and use these lift handles/
gripping points on this door can result in
serious injury to fingers and/or hands, if
placed in the opening between sections,
when the door is operated manually.
WARNING
The adjacent bottom corner bracket and
all cable retention features including
milford pins, cotter pins, & clevis pins are
under HIGH SPRING TENSION.
Adjustments and repairs must only be
made by a trained door systems
technician, using proper tools and
instructions.
DO NOT REMOVE, COVER OR PAINT OVER
THIS LABEL. PRODUCT USER SHOULD
INSPECT THIS LABEL PERIODICALLY FOR
LEGIBILITY AND SHOULD ORDER A
REPLACEMENT FROM THE DOOR
MANUFACTURER AS NEEDED.
13
Wood label
important notice
IMPORTANT
THIS WOOD PRODUCT REQUIRES PROPER
FINISHING PRIOR TO ANY DOOR HARDWARE BEING
APPLIED. BOTH INNER AND OUTER FACES OF THE
SECTION(S), AS WELL AS ALL EDGE SURFACES
MUST BE PREPARED AND FINISHED IN STRICT
ACC0RDANCE TO THE DIRECTIONS GIVEN IN THE
INSTALLATION INSTRUCTIONS AND OWNER’S
MANUAL UNDER “MAINTENANCE AND PAINTING
INSTRUCTIONS FOR ALL WOOD DOORS”.
IMPROPER STORAGE, IMPROPER TRANSPORTATION
AND/OR DELAY IN FINISHING, THAT ALLOWS FOR
THE EXPOSURE OF THIS WOOD PRODUCT TO
MOISTURE AND/OR OTHER CONTAMINANTS, VOIDS
THE LIMITED WARRANTY.
316986
Bottom section warning labels
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer,
refer to your local yellow pages business listings or go to the Find a Dealer section online at www.Wayne-Dalton.com
WARNING
The adjacent bottom corner bracket and
all cable retention features including
milford pins, cotter pins, & clevis pins are
under HIGH SPRING TENSION.
Adjustments and repairs must only be
made by a trained door systems
technician, using proper tools and
instructions.
DO NOT REMOVE, COVER OR PAINT OVER
THIS LABEL. PRODUCT USER SHOULD
INSPECT THIS LABEL PERIODICALLY FOR
LEGIBILITY AND SHOULD ORDER A
REPLACEMENT FROM THE DOOR
MANUFACTURER AS NEEDED.
Optional Installation
WARNING
Door Arm Hookup
Tools: Needle nose pliers
Do not install pull down rope on doors with operators. Children
may become entangled in the rope causing severe or fatal injury.
At the center of the top section, measure horizontally from the top of center hinge to the bottom
of strut. Using that dimension, measure and cut (2) pieces of perforated angles. Assemble the
(2) pieces together using (2) 3/8” bolts and nuts (supplied by others). Now, secure to the top
section using carriage bolts and nuts (supplied by others), thru bolt both the perforated angles to
the top section, as shown.
Align the door arm with hole with one of the holes in the perforated angles. Secure the door
arm to the perforated angle using (1) 5/16” – 18 x 1” hex head bolt and (1) 5/16” – 18 lock nut
(supplied by others), as shown.
Measure and mark the jamb approximately 48” to 50” (1220 to 1270 mm) from floor on the
right or left side of jamb. Drill 1/8” pilot hole for no. 6 screw eye. Tie the pull down rope to the
no. 6 screw eye and to the bottom corner bracket, as shown.
No. 6 Screw eye
Typical bottom
corner bracket
Strut
Top
section
(2) 3/8” Hex bolt
and lock nut
(supplied by others).
(2) Perforated
angles
Carriage bolt
and nuts
(supplied by
others)
Center hinge
(1) 5/16” Hex bolt
and lock nut
(supplied by others).
48” to 50”
From floor
Pull down
rope
Pull
down
rope
Typical
door arm
Lift Handles
Tools: Power drill, 1/8” Drill bit, Tape measure
NOTE: Lift handles must be lined up vertically.
Bottom Section:
Locate the exterior center stile or center most stile on the bottom section.
NOTE: For flush doors, find the center most stile by locating the center most hinge.
Using the bottom hole of the lift handle, measure up 3” from the bottom of bottom section. Mark
the hole locations and drill (2) 9/32” dia. holes through the bottom section. On the outside of
the door, insert (2) 1/4” - 20 x 2 1/2” carriage bolts (black head) into the outside lift handle and
insert the assembly into the (2) pre-drilled holes in the bottom section. From the inside, slide the
(2) holes in the inside lift handle over the stems of the carriage bolts. Secure the outside and
inside lift handle to the bottom section with (2) 1/4” – 20 flange hex nuts.
Intermediate I Section:
Locate the exterior center stile or center most stile on the Intermediate I section. Mark a vertical
line on the section at that point.
NOTE: Some Garage Doors may require both lift handles to be installed on bottom section. If
your bottom section height is 28” or 29”, install both lift handles onto the bottom section. Install
bottom lift handle per above instructions, then install the second lift handle a Minimum of 20”
and a Maximum of 30” above the bottom lift handle.
Measure up 4” from the bottom of the Intermediate I section. Using this measurement as a
guide, position the bottom hole of the lift handle bottom at the mark. Make a mark at the top
hole of the lift handle. This should give you a Minimum of 20” and a Maximum of 30” between
the lower lift handle and the middle of the top lift handle. If needed, reposition the lift handle to
stay within the Minimum and Maximum dimensions, as stated above.
Using the lift handle as a template, mark the hole locations and drill (2) 9/32” dia. holes through
the section. On the outside of the door, insert (2) 1/4” - 20 x 2 1/2” carriage bolts (black head)
into the outside lift handle and insert the assembly into the (2) pre-drilled holes in the section.
From the inside, slide the (2) holes in the inside lift handle over the stems of the carriage bolts.
Secure the outside and inside lift handle to the section with (2) 1/4” – 20 flange hex nuts.
(2) 1/4” - 20 x 2 1/2”
Lift
Carriage bolts and (2) 1/4” – 20
handle
Flange hex nuts
Intermediate I
section
Center
hinge
Bottom
section
Lift
handle
(2) 1/4” - 20 x 2 1/2”
Carriage bolts and (2) 1/4” – 20
Flange hex nuts
Strut
3”
Pull Down Rope
Tools: Power drill, 1/8” Drill bit, Tape measure
14
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer,
refer to your local yellow pages business listings or go to the Find a Dealer section online at www.Wayne-Dalton.com
Maintenance
Before you begin, read all warning labels affixed to the door and the installation instructions and
owner’s manual. When correctly installed, your Wayne-Dalton door will operate smoothly. Always
operate your door with controlled movements. Do not slam your door or throw your door into the
open position, this may cause damage to the door or its components. If your door has an electric
opener, refer to the owner’s manual to disconnect the opener before performing manual door
operation below.
Manual door operation:
For additional information on manual garage door operations go to www.dasma.com and
reference TDS 165.
IMPORTANT: DO NOT PLACE FINGERS OR HANDS INTO SECTION JOINTS WHEN OPENING
AND/OR CLOSING A DOOR. ALWAYS USE LIFT HANDLES / SUITABLE GRIPPING POINTS WHEN
OPERATING THE DOOR MANUALLY.
Opening a Door: Make sure the lock(s) are in the unlocked position. Lift the door by using the lift
handles / suitable gripping points only. Door should open with little resistance.
Closing a Door: From inside the garage, pull door downward using lift handles / gripping point
only or a high friction area only. If you are unable to reach the lift handles/ suitable gripping
points only, use pull down rope affixed to the side of door. Door should close completely with
little resistance.
Using an electric operator:
IMPORTANT: PULL DOWN ROPES MUST BE REMOVED AND LOCKS MUST BE REMOVED OR
MADE INOPERATIVE IN THE UNLOCKED POSITION.
When connecting a drawbar (trolley type) garage door operator to this door, an drawbar operator and or drawbar operator bracket must be securely attached to the top section of the door,
along with any struts provided with the door. Always use the drawbar operator and or drawbar
operator bracket supplied with the door. To avoid possible damage to your door, Wayne-Dalton
recommends reinforcing the top section on models 8000, 8100, 8200 and 9100 doors with a
strut (may or may not be supplied). The installation of the drawbar operator must be according
to manufacturer’s instructions and force settings must be adjusted properly. Refer to the owner’s
manual supplied with your drawbar operator for complete details on installation, operation,
maintenance and testing of the operator.
Maintaining Your Garage Door:
Before you begin, read all warning labels affixed to the door and the installation instructions
and owner’s manual. Perform routine maintenance steps once a month, and have the door
professionally inspected once a year. Review your Installation Instructions and Owner’s Manual
for the garage door. These instructions are available at no charge from Wayne-Dalton, A Division
Of Overhead Door Corporation, P.O. Box 67, Mt. Hope, OH., 44660, or at www.wayne-dalton.
com. For additional information on garage door/operator maintenance go to www.dasma.com
and reference TDS 151, 167 and 179.
Monthly Inspections:
1. Visual Inspection: Closely inspect jambs, header and mounting surface. Any wood found not
to be structurally sound must be replaced. Inspect the springs, counterbalance lift cables, track
rollers, pulleys, rear back hangs and other door hardware for signs of worn or broken parts.
Tighten any loose screws and/or bolts. Check exterior surface of the door sections for any minor
cracks. Verify door has not shifted right or left in the opening. If you suspect problems, have a
trained door system technician make the repairs.
Cleaning Your Garage Door
Important: Do not use a pressure washer on your garage door!
An annual inspection of all the surfaces of your garage door(s) will reveal the extent of weathering and the possible need for refinishing. When the finish becomes eroded or thin, clean and
prime any areas showing deterioration. Then completely refinish the door, according to the
directions, listed below, or the manufacturer’s label directions. Proper finishing of the wood
substrates to protect your door(s) from the effects of moisture and sunlight is vital in extending
the service life and beautifying your garage door(s).
The interior and exterior surfaces, as well as all edges must be properly primed, painted and
maintained, to protect and beautify your door. These finishing instructions are intended to
achieve both objectives for your wood doors(s).
Note: Be sure to clean behind weatherstrips on both sides and top of door.
Caution: Never mix cleansers or detergents with bleach.
Glass cleaning instructions
Clean with a mild detergent solution (same as above) and a soft cloth. After cleaning, rinse
thoroughly.
Acrylic cleaning instructions
Clean acrylic glazing with nonabrasive soap or detergent and plenty of water. Use your bare
hands to feel and dislodge any caked on particles. A soft, grit-free cloth, sponge or chamois may
be used to wipe the surface. Do not use hard or rough cloths that will scratch the acrylic glazing.
Dry glazing with a clean damp chamois.
Note: Do not use any window cleaning fluids, scouring compounds, gritty cloths or solventbased cleaners of any kind.
Clean all surfaces of dust, dirt and any other contaminants. Any scarring or stains that occur
during transportation, handling or storage must be re-sanded to the original condition.
Painting Your Garage Door
A high quality exterior 100% Acrylic Latex based finish paint is recommended for painting your
wood door. FOR BEST RESULTS DO NOT USE A DARK COLOR PAINT. HIGH HEAT ABSORPTION
CAN CAUSE EXCESSIVE BOWING AND CRACKING OF THE WOOD. If priming is necessary, prime
the interior and exterior surfaces, as well as all edges, using a primer compatible with the
selected finish paint and for the specific species of wood substrate being finished.
NOTE: Some species of wood, such as cedar, require special primers and finishes to prevent
tannin stains from appearing. Consult with your paint supplier.
If the door is factory primed by Wayne-Dalton, the priming step is not required, except if touchup is needed due to surface preparation and re-sanding.
NOTE: Wayne-Dalton uses a latex primer.
Finish paint the interior and exterior surfaces, as well as all edges with at least 2 coats of a high
quality exterior 100% Acrylic Latex finish paint over the primer. Follow paint manufacture’s label
directions explicitly for all coatings.
IMPORTANT: THE FOLLOWING TOP COATS ARE NOT RECOMMENDED. Shake and shingle
paints, clear coatings, oil or alkyd paints, vinyl acetate (PVA), vinyl acrylic or
vinyl acetate acrylic co-polymer paints.
WARNING
GARAGE DOOR SPRINGS, COUNTERBALANCE LIFT CABLES, BRACKETS, AND
OTHER HARDWARE ATTACHED TO THE SPRINGS ARE UNDER EXTREME TENSION, AND IF HANDLED IMPROPERLY, CAN CAUSE SEVERE OR FATAL INJURY.
ONLY A TRAINED DOOR SYSTEMS TECHNICIAN SHOULD ADJUST THEM, BY
CAREFULLY FOLLOWING THE MANUFACTURER’S INSTRUCTIONS.
Clear Or Stained Finishes
WARNING
If staining, select an exterior grade stain, approved for use on the species of wood substrates
being finished and compatible with Alkyd varnishes. FOR BEST RESULTS DO NOT USE A DARK
STAIN. HIGH HEAT ABSORPTION CAN CAUSE EXCESSIVE BOWING AND CRACKING OF THE
WOOD. Apply the stain to the interior and exterior surfaces, as well as all edges, following stain
manufacturer’s label directions. After proper drying time for the stain, or if wood is being left
natural, apply 1 coat of waterproof exterior Alkyd varnish (marine type varnish) to the interior
and exterior surfaces, as well as all edges. After recommended drying time of 1st coat, sand all
surfaces with fine grit (320) sandpaper. Clean all surfaces of sanding dust and apply a 2nd coat
of the Alkyd varnish to the interior and exterior surfaces, as well as all edges. After 2nd coat is
dry, sand all surfaces again with fine grit (320) sandpaper. Clean all surfaces of sanding dust
and apply a final 3rd coat of the Alkyd varnish to all surfaces.
Three finish coats of waterproof exterior Alkyd varnish are required to properly finish a stained
or natural wood door. Follow the finish manufacturer’s label directions explicitly for each coat
applied.
NOTE: Do not stain MDO plywood, apply paint only.
Only a waterproof exterior Alkyd varnish top coat finish is approved for stained or natural wood
doors. Other types of top coat finishes, including deck sealers, are not acceptable and if used,
will void the warranty.
NEVER REMOVE, ADJUST, OR LOOSEN THE BOLTS, SCREWS AND/OR LAG
SCREWS ON THE COUNTERBALANCE (END OR CENTER BEARING BRACKETS)
SYSTEM OR BOTTOM CORNER BRACKETS OF THE DOOR. THESE BRACKETS
ARE CONNECTED TO THE SPRING(S) AND ARE UNDER EXTREME TENSION. TO
AVOID POSSIBLE SEVERE OR FATAL INJURY, HAVE ANY SUCH WORK PERFORMED BY A TRAINED DOOR SYSTEMS TECHNICIAN USING PROPER TOOLS
AND INSTRUCTIONS.
Operation and Maintenance
Operating Your Garage Door:
15
TorqueMaster® Plus Springs: Pawl knob(s) (located on the TorqueMaster® end brackets above
the door) should be engaged to prevent the door from rapidly descending in case of spring
failure or forceful manual operation.
Torsion Springs: The torsion springs (located above the door) should only be adjusted by a
trained door systems technician. DO NOT attempt to repair or adjust torsion springs yourself.
Extension Springs: A restraining cable or other device should be installed on the extension spring
(located above the horizontal tracks) to help contain the spring if it breaks.
2. Door Balance: Periodically test the balance of your door. If you have a garage door drawbar
operator, use the release mechanism so you can operate the door by hand when doing this
test. Start with the door in the fully closed position. Lift the door to check its balance. Adjust
TorqueMaster® or Extension spring(s), if door lifts by itself (hard to pull down) or if door is difficult
to lift (easy to pull down). DO NOT attempt to repair or adjust Torsion Springs yourself. To adjust
TorqueMaster® or Extension spring(s), refer to your installation instructions and owner’s manual.
If in question about any of the procedures, do not perform the work. Instead, have it adjusted by
a trained door systems technician.
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer,
refer to your local yellow pages business listings or go to the Find a Dealer section online at www.Wayne-Dalton.com
3. Lubrication: The door should open and close smoothly. Ensure the door track rollers are
rotating freely when opening and closing the door. If track rollers do not rotate freely, clean the
door tracks, removing dirt and any foreign substances. Clean and lubricate (use a non-silicon
based lubricant) graduated end hinges, steel track rollers, spring(s) and bearings. DO NOT lubricate plastic idler bearings, nylon track rollers, door track. DO NOT oil a cylinder lock, if actuation
is difficult use a graphite dust to lubricate.
16
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer,
refer to your local yellow pages business listings or go to the Find a Dealer section online at www.Wayne-Dalton.com
Warranty
Limited warranty
Wayne Wood, Raised Panel, 105/110, 310/311
Subject to the terms and conditions contained in this Limited Warranty, Wayne-Dalton (“Manufacturer”) warrants the sections of the door, against defects in
material and workmanship, for a period of ONE (1) YEAR from the time of delivery provided:
i) (i) The interior and exterior surfaces, as well as all edges of the wood door(s) are properly finished according to the Manufactures Maintenance and Painting
Instructions and finish manufacturer’s instructions. All surfaces of the wood door(s) must be completely finished (3 total coats, including primer coat) prior to
installation, to ensure that the interior and exterior surfaces, as well as all edges of the doors are properly protected against moisture or other contaminants.
Wood doors, in a non-finished condition, must be transported and stored so the wood surfaces are NOT exposed to moisture or other contaminants. If the door(s)
is not finished within TEN (10) DAYS of delivery, this warranty shall only extend to defects in workmanship and materials that appear within ONE (1) MONTH.
IMPROPER TRANSPORTATION, STORAGE OR DELAYS IN FINISHING, THAT ALLOWS EXPOSURE OF THE WOOD DOOR SURFACES TO MOISTURE OR OTHER CONTAMINANTS WILL RESULT IN THE WARRANTY BEING VOIDED.
The Manufacturer warrants the garage door hardware, tracks and springs of the above-described door, for a period of ONE (1) YEAR from the date of installation, against defects in material and workmanship, subject to all the terms and conditions below.
The Manufacturer will not be responsible for grain and color variations of natural wood. These natural variations in grain and color are not product defects, and
therefore will not be considered under this Limited Warranty.
The Manufacturer uses high quality material for framework, door skins, overlays, and panel materials. Exposure of wood to the environment may cause bowing,
checking and/or cracking of a door section regardless of efficiency of painting. This is not considered a defect; it is an uncontrollable characteristic of natural wood. The
dealer and the end user have the responsibility to select the type of material and/ or door which will offer the best results and longevity for the climate and/or environmental condition in which they will use the product.
This Limited Warranty is extended only to the person who purchased the product and continues to own the premises (where the door is installed) as his/her
primary residence (“Buyer”). This Limited Warranty does not apply to residences other than primary, or to commercial or industrial installations, or to installations on
rental property (even when used by a tenant as a residence). This Limited Warranty is not transferable to any other person (even when the premises is sold), nor does it
extend benefits to any other person. As a result this Limited Warranty does NOT apply to any person who purchases the product from someone other than an authorized
Wayne-Dalton dealer or distributor.
The Manufacturer will not be responsible for any damage attributable to improper storage, improper installation, or any alteration of the door or its components,
abuse, damage from corrosive fumes or substances, salt spray or saltwater air, fire, Acts of God, failure to properly maintain the door, or attempt to use the door, its
components or related products for other than its intended purpose and its customary usage. This Limited Warranty does not cover ordinary wear. This Limited Warranty
will be voided if any holes are drilled into the door, other than those specified by the Manufacturer.
THIS LIMITED WARRANTY COVERS A CONSUMER PRODUCT AS DEFINED BY THE MAGNUSON-MOSS ACT. NO WARRANTIES,
EXPRESS OR IMPLIED (INCLUDING BUT NOT LIMITED TO THE WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE) WILL EXTEND BEYOND THE TIME PERIOD SET FORTH IN UNDERSCORED BOLD FACE TYPE IN THIS LIMITED WARRANTY, ABOVE.
• • Some States do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you.
Any claim under this Limited Warranty must be made in writing, within the applicable warranty period, to the dealer from which the product was purchased. Unless the dealer is no longer in business, a written claim to the Manufacturer will be the same as if no claim had been made at all.
At the Manufacturer’s option, pursuant to the dealer having notified the Manufacturer of a warranty claim, a service representative may inspect the product on
site, or Buyer may be required to return the product to the Manufacturer at Buyer’s expense. Buyer agrees to cooperate with any representative of the Manufacturer and
to give such representative full access to the product with the claimed defect and full access to the location of its installation.
If the Manufacturer determines that the claim is valid under the terms of this Limited Warranty, the Manufacturer will cause the defective product to be repaired
or replaced. The decision about the manner in which the defect will be remedied will be at the discretion of the Manufacturer, subject to applicable law. THE REMEDY
WILL COVER ONLY MATERIAL. THIS LIMITED WARRANTY DOES NOT COVER OTHER CHARGES, SUCH AS FIELD SERVICE LABOR FOR REMOVAL, INSTALLATION, PAINTING,
SHIPPING, ETC.
Any repairs or replacements arranged by Manufacturer will be covered by (and subject to) the terms, conditions, limitations and exceptions of this Limited Warranty; provided, however, that the installation date for the repaired or replaced product will be deemed to be the date the original product was installed, and this Limited
Warranty will expire at the same time as if there had been no defect. If a claim under this Limited Warranty is resolved in a manner other than described in the immediately preceding paragraph, then neither this Limited Warranty nor any other warranty from the Manufacturer will cover the repaired or replaced portion of the product.
THE REMEDIES FOR THE BUYER DESCRIBED IN THIS LIMITED WARRANTY ARE EXCLUSIVE and take the place of any other remedy. The liability of the Manufacturer, whether in contract or tort, under warranty, product liability, or otherwise, will not go beyond the Manufacturer’s obligation to repair or replace, at its option, as
described above. THE MANUFACTURER WILL NOT UNDER ANY CIRCUMSTANCES BE LIABLE FOR SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, including (but
not limited to) damage or loss of other property or equipment, personal injury, loss of profits or revenues, business or service interruptions, cost of capital , cost of
purchase or replacement of other goods, or claims of third parties for any of the foregoing.
• • Some States do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
No employee, distributor, dealer, representative, or other person has the authority to modify any term or condition contained in this Limited Warranty or to grant
any other warranty on behalf of or binding on the Manufacturer, and anyone’s attempt to do so will be null and void.
Buyer should be prepared to verify the date of installation to the satisfaction of the Manufacturer.
The rights and obligations of the Manufacturer and Buyer under this Limited Warranty will be governed by the laws of the State of Ohio, USA, to the extent
permitted by law.
• • This Limited Warranty gives you specific legal rights and you may also have other rights, which may vary from State to State.
**NOTE: Variations in color or graining of natural wood is not considered a product defect, and therefore not covered under the limited warranty.
17
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer,
refer to your local yellow pages business listings or go to the Find a Dealer section online at www.Wayne-Dalton.com
Covered by one or more of the following Patents; 5,408,724; 5,409,051; 5,419,010; 5,495,640; 5,522,446; 5,562,141; 5,566,740; 5,568,672;
5,718,533; 6,019,269; 6,089,304; 6,644,378; 6,374,567; 6,561,256; 6,527,037; 6,640,872; 6,672,362; 6,725,898; 6,843,300; 6,915,573;
6,951,237; 7,014,386; 7,036,548; 7,059,380; 7,121,317; 7,128,123; 7,134,471; 7,134,472; 7,219,392; 7,254,868. Canadian: 2,384,936;
2,477,445; 2,495,175; 2,507,590; 2,530,701; 2,530,74; 2, 2,532,824. Other US and Foreign Patents pending.
Please Do Not Return This Product To The Store
Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your local yellow pages
business listings or go to the Find a Dealer section online at www.Wayne-Dalton.com
Thank you for your purchase.
After installation is complete, fasten this manual near THE garage door.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
