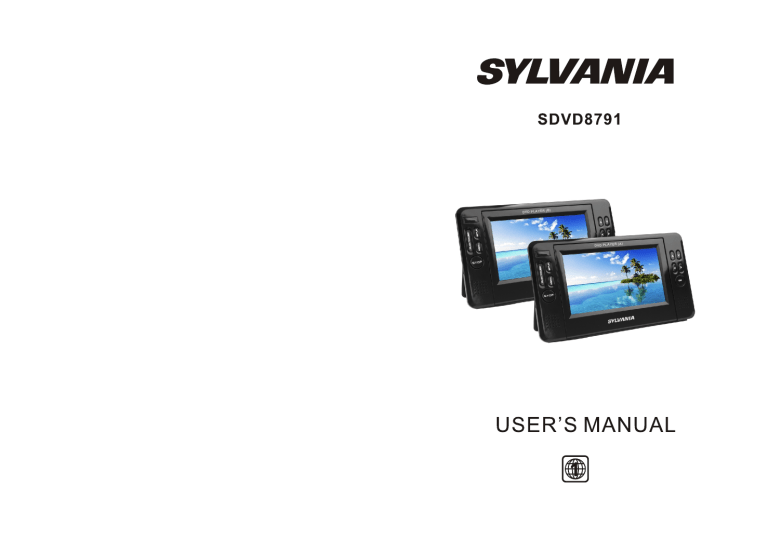

Sylvania DVD Player SDVD8791 User manual

Sylvania DVD Player SDVD8791 User manual
(B)
DVD PLAY ER
(A)
DVD PLAY ER
Safety Precaution
Table Of Contents
Safety Precaution
1
Introduction
2
Package
2
Main Unit Controls
3
The Remote Control
4
System Connection
7
Basic operation
Thank you for choosing our portable DVD player. It includes a 7” wide screen and a DVD
player. The unit applies the latest state of art electronics and is designed for use at home,
in hotels and in offices etc for relaxation. The compact size makes carrying easier as
well as installation. Please read the manual carefully prior to use and keep it well for later
consultation.
Hi-voltage, Don't Open it
10
Unit A System Setup
14
Unit B System Setup
17
Specification
20
Troubleshooting
21
Remind user to be careful to
avoid electric shock
Warning: To reduce the risk of fire or electric shock, do not expose this apparatus to rain
or moisture.
1) Please read the instruction manual carefully and follow all the requirements of safe
operation to operate the device.
2) Do not use this unit near water. Do not place over the unit any container with liquid
inside.
3) Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
4) Unplug this unit during lightning storms or when unused for long time.
5) About Cleaning: Unplug the system, use only wet cloth to clean. Do not use liquid
detergent or aerosol.
6) Only use accessories specified by the manufacturer.
7) Refer all servicing to qualified service personnel, servicing is required when the unit
has been damaged in any way, such as power supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the unit, exposed to moisture, does not
operate normally. Don't try to repair the machine by yourself because of the danger of
high voltage and electric shock.
8) Do not use irregular shaped discs such as heart or star-shaped discs as they may
cause the unit to malfunction.
1
Introduction
Unit A Control
Your portable DVD player plays digital video discs that conform to the
universal DVDVideo standard. With it, you can play movies with true cinema
picture quality and stereo or multi-channel sound (depending on disc and play
back set-up).You can also select sound track, subtitle languages, and
different angle of view (again depending on DVD disc). Besides, you can
restrict the play of discs that are not suitable for children.
You can play the following discs on the DVD player (including CD-R,
CD -R W, D V D R an d DV D RW )
DVD-Video
Video CD
Audio CD
MP3 CD
Discs with JPEG files
Package
7 '' DVD Players
2
Remote Control with battery
2
AV Cable(DVD to DVD)
1
AC/DC Power Adapter
2
Cigarette Lighter Adapter
1
User Manual
1
Earphone
2
AV Cable (DVD to TV)
1
Overview of A Unit
1
2 5
3
6
4
7
8
1.
2.
3.
4.
5.
6.
7.
10
8. STOP button
9.
10.OK button
11. DC IN 9-12V
12. AV IN
13. AV OUT
Open knob
Earphone jack
Volume knob
Power ON/OFF switch
SETUP button
Play/Pause
MENU button
Overview of B Unit
1
2 5
3
6
4
7
8
1.
2.
3.
4.
5.
6.
2
11
12
9 13
11
9 12
10
7. MENU button
8. STOP button
9.
10.OK button
11. DC IN 9-12V
12. AV OUT
Open knob
Earphone jack
Volume knob
Power ON/OFF switch
SETUP button
Play/Pause
3
Remote control for B unit
The Remote Control
Remote control for A unit
1
1
10
10
11
12
2
11
12
2
4
13
14
5
6
15
16
4
13
14
5
6
15
16
3
3
20
17
7
20
18
17
7
19
8
9
18
19
8
9
11. Zoom ( To zoom in or zoom out the
scene when playing )
1. Number button
2. TITLE ( To display title information)
12. Menu (To enter or exit menu page)
3. AUDIO (To select audio language)
13. Subtitle (To select subtitle language
when playing DVD disc)
4. SETUP (To go to or exit setup menu)
14. Angle (To change viewing angle when
playing disc with multi-angle)
5. Previous/Next button (To go to
previous/next chapter or scene during
playing)
15. A-B (Repeat a specific portion from
point A to B, press it again to cancel
repeat playing)
6. Fast forward/backward button (To
scan forward/backward at 2, 4, 8, 16,
or 32 times )
16. Repeat (To repeat playing title,
chapter or track)
7. OSD ( To display disc information
during playing)
17. Return (To return to the main menu)
8. Play/Pause
18. Mute ( To turn mute)
9. Stop ( First time: Stop at the present
playing point; Press
to continue to
play; press it again to stop playing)
19. VOL +/- (To adjust the volume)
20. Enter ( To confirm)
10. IN/OUT ( To input or output signal)
Number button
2.TITLE (To display title
information)
3.AUDIO(To select audio language)
4.SETUP(To go to or exit setup menu)
5.
/
button(To go to
Previous/next chapter or scene during
playing)
6.
/
button (To scan forward /backward
at 2,4,8,16 or 32 times)
7.OSD(To display disc information
during playing such as elapsed and
remaining)
8.Play/pause
9.STOP(press once to stop playback,
then press
to resume playback
from the point where you stopped;
press stop button twice to stop playback
completely.
4
5
10.SLOW
11.ZOOM(To zoom in/out the image
during playback)
12.MENU(To enter or exit menu root)
13.SUBTITLE (To select subtitle
language when playing DVD disc)
14.ANGLE(To change viewing angle
when playing disc with multi-angle)
15.A-B(Repeat a specific portion from
point A to B, press it again to cancel
repeat playing)
16.REPEAT(To Repeat playing title,
chapter or track)
17.RETURN(To return to the main menu)
18.MUTE(To turn mute)
19.VOL+/-(To adjust the volume)
20.ENTER(To confirm)
The Use of Remote Control
System Connection
Please put the battery into the remote control as per below illustration
Connect A unit
1
Caution: turn off yo ur player b efore you co nnect A unit
1.Connect the supplied AV cable to:
the AV out jack on B unit.
the AV IN jack on A unit.
2
CR2025
CR2025
B unit
DC IN 9-12V
AV OUT
AV IN
DC IN 9-12V
When using remote control, make sure the infrared window is pointed to
infrared receiving window of the machine. The distance between machine
and remote control must be within 3 metres. Please refer to the following
illustration.
30 0
30
30 0
A unit
AV OUT
0
0
30
B unit
A unit
Connect power
Notice
1.To avoid falling off or place near damp environment.
2.To avoid infrared receiving window of the unit being under direct sunlight
3.Please use a new battery to replace old one if the remote control doesn't
work.
6
Caution:
1.Risk of product damage! Ensure that the power supply voltage corresponds
to the voltage pointed on the back or the underside of the player.
2.Risk of electric shock ! When you unplug the AC adapter, always pull the plug
from the socket. Never pull the cable.
3.connect one end of the double -connector end of the AC cable to the DC IN
jack on A unit.
4.connect the other end of the double-connector end of the AC cable to the
DC IN jack on B unit.
5.conect the one-conector end to the car cigarette lighter socket.
7
Connect additional equipment
DC IN 9-12V
AV OUT
AV IN
A unit
Car cigar ette lighter
Caution:turn off your player before connecting to any additional equipment.
You ca n co nn ec t th e pl ay er t o a TV o r an am pli fie r to e nj oy DV Ds o r Ka ra ok e.
Match the color of the AV cables.
with the jacks: the yellow cable is for the yellow video jack, the red/white
cable is for th e r ed/white audio jacks.
DC IN 9-12V
AV OUT
AV IN
DC IN 9-12V
AV OUT
A unit
B unit
DC IN 9-12V
AV OUT
B unit
Connecting DC Adaptor
1. Connect the AC adapter cable to:
the DC IN jack on the A unit or B unit .
The power outlet
AUDIO IN
VIDEO IN
AMPLIFIER
TV
DC IN 9-12V
AV OUT
AV IN
A unit
Center speaker
Left front speaker
Right front speaker
DC IN 9-12V
AV OUT
B unit
SUBWOOFER
Right rear speaker
Left rear speaker
Notice:There is no 5.1 channel in the unit, however, after connecting to APM it is available to
output audio in 5.1 channel
8
9
Basic Operation
Fast forward and fast backward
DVD
DVD
MPEG4
SVCD
VCD
CD
MPEG4
SVCD
VCD
CD
MP3
When playing disc of DVD, MPEG4,SVCD, VCD, CD, the unit can search forward or
backward.
1. Press , the unit will search forward. Press it repeatedly ,the unit will play at 2, 4, 8, 16,
32 times of speed.
Playing disc of DVD, MPEG4, SVCD, VCD, CD, Mp3
1. After connecting power to the unit, turn on the unit with the ON/OFF switch.
2X
4X
16X
8X
2. Open the disc tray and place a disc into the tray with the label side facing up.
3. Close the tray. The unit will load the disc and start playing.
4. Press to stop playing at the present point; Press
again to stop playing).
6. During playback press
To continue to play; press
32X
2. Press , the unit will search backward. Press it repeatedly ,
the unit will play at 2, 4, 8, 16, 32 times of speed.
to pause; press it again to continue to play.
2X
4X
16X
8X
6. When the playing is finished, please turn off the power.
7. For some DVD disc with Title or Chapter menu, press “ MENU” button to enter menu
page, select programma by number buttons or
.
Notice: When at pause, stop, or no disc, in about 3 minutes the unit will be protected.
Press any button to exit.
32X
Repeat playing
Pause during playback
DVD
DVD
MPEG4
SVCD
During playback,press[
.
VCD
CD
MPEG4
SVCD
VCD
CD
MP3
] to pause; press it again to resume playback
When playing disc of DVD,MPEG4,SVCD,VCD,CD, user can repeat playing
one chapter, title or the whole disc.
For DVD disc, press repeat button to repeat playing one Chapter, press it
again to repeat playing Title; press it third time to repeat playing the whole
disc ;Press it again to cancel repeat function.
Note
When at PAUSE,STOP,or no disc,in about 3 minutes the unit will be protected;
press any button to exit.
Play DVD disc with title or chapter menu
For some DVD disc with Title or chapter menu,press MENU button to enter
menu page,and use direction button to select,Press" ENTER" to confirm.
Chapter
Title
All
Repeat off
For CD/VCD disc,press Repeat repeatedly to repeat the track and the whole
disc
Track
Repeat off
All
For Mp3 disc,press REPEAT to repeat playing current file;press it again to
repeat playing the folder;press it third time to cancel repeat function.
Repeat off
10
Repeat one
Repeat folder
11
Repeat playing of favorite scene
DVD
MPEG4
SVCD
VCD
CD
Playing JPG file
MP3
When playing disc of DVD, MPEG4, SVCD, VCD, CD, Mp3, user can repeatedly
play a specific section.
During playback, press “A-B” button at a point A, then press
A
this button again in point B, the unit will automatically repeat
playing the part between A-B
Press it the third time, the unit will return to normal playback.
AB
Angle
During playing DVD disc with multi-angle, press “Angle”
button, the followings will be displayed on screen:
Press number buttons to select the angle you desire
1 /4
2 /4
To return to normal playing, please press “Angle” .
The unit will play the disc in the default angle.
3 /4
Notice
The function is available only for discs with multi-angle.
4 /4
Zoom in/ out
DVD
MPEG4
SVCD
VCD
2X
When playing disc of DVD, MPEG4, SVCD, VCD,
user can zoom in or zoom out the image .
3X
During playback, press “Zoom ” button, the image will be
enlarged; press it again the image will be enlarged again;
press it fourth time, the image will zoom out, press it
repeatedly and the image will return to normal status.
4X
1
2
3
Place a JPG disc into the tray,the unit will start reading and play.
Press "MENU"to browse JPG file.
When viewing JPG file,press[ ],pictures will be displayed in thumbnail mode,
press[
] or OK button to select one picture to view.
4 Press[
] and OK button to select a JPG file from the menu.
5 To browse JPG file selected,press[ ] or OK button.
6 To rotate the picture counter-clockwise,press[ ];Press[ ] to rotate the picture
clockwise.
7 Press[
] to reverse the picture horizontally and press[ ] to reverse the picture
vertically.
8 Press OSD button when viewing pictures,you can select different refresh mode
as follows:
. from top to bottom
. from bottom to top
. from left side to right side
. from right side to left side
. from left top to right bottom
. from right top to left bottom
. from left bottom to right top
. from right bottom to left top
. from horizontal centre to both sides
. from vertical centre to both sides
. from top and bottom to centre
. from right and left to centre
. from four window top side to bottom side
. from four window left side to right side
. from four edges to centre
9. During viewing files, “ “ may appear when pressing "Angle” or "Subtitle" or "Audio"
or "A-B" or "Title" etc; in this situation these options are unavailable to operate.
Play Mp3 file
1.Place Mp3 disc into the disc door .
2.Press[
] or OK button to select a Mp3 file;Press[
play the file selected.
00 36 03
Dir 001
1 /2X
When the image is enlarged, user can press
the image
43
\Ctyy\
to move
......
Mp3
1 /3X
Mp3
Mp3
Mp3
Mp3
TRACK01
TRACK02
TRACK03
TRACK04
TRACK05
1 /4X
12
13
] or OK button to
Unit A System Setup
Press”Setup”button,the main menu will be displayed on the
screen
In the General Setup Page, Press
button to highlight this
item.
Press OK button to access.
Press
button to select the setting.
Press OK button to confirm your selection.
Press button to exit.
--General Setup Page-TV Display
TV Type
Angle Mark
OSD Lang
Screen Saver
Video Setup Page
Wide
NTSC
ON
ENG
ON
--General Setup Page-TV Display
WIDE
TV Type
NTSC
Angle Mark
ON
OSD Lang
ENG
Screen Saver
ON
On
Off
Set Screen Saver
Screen Saver
Select On to activate the screen saver function,
when you activate this function,a moving DVD symbol
appears on the screen when the unit is stopped or
when it shows a still picture for several minutes.This
features saves the screen from the being damaged by
a static image remaining on the LCD screen for long
periods of time.
Select Off to cancel this function.
Go to General Setup Page
Video setup page
General setup page
TV display:
Enter this option,user can set screen display format
--General Setup Page-TV Display
Wide Normal/PS
TV Type
NTSC Normal/LB
Angle Mark
ON
Wide
OSD Lang
ENG
Screen Saver
ON
(Nomal/PS,Nomal/LB,Wide)
The default is "Wide"
--Video Setup Page-Quality
Panel Quality
Enter this option, user can adjust picture quality of video
output. There are items available to be adjusted:
Brightness, contrast, Hue and Saturation.
For all these items the default is 00
Note
The function depends on the display ratio with which the
DVD disc is recorded.
Go to Video Setup Page
Please choose “Wide(16:9)"when using a16:9 wide screen
Set TV Display Mode
TV set16:9
--Video Setup Page-Quality
Panel Quality
Enter this option,user can adjust picture quality of unit
screen.There are items available to be adjusted:
Brightness,contrast,Hue and Saturation.
For all these items the default is 00
TV Type:
--General Setup Page-TV Display
Wide
TV Type
NTSC PAL
Angle Mark
ON
NTSC
OSD Lang
ENG
Screen Saver
ON
Enter this option to select TV type(PAL,NTSC)
Go to Video Panel Quality Setup Page
The default is NTSC .
Password Setup Page
Set TV Standard
Angle Mark:
--General Setup Page-TV Display
Wide
TV Type
NTSC
Angle Mark
ON
On
OSD Lang
ENG Off
Screen Saver
ON
When available,a camera symbol will appear on the screen
--Password Setup Page-Password
when various angle are available on the DVD.Select "OFF"
Enter this option, you can set a password(four numbers).
All parental Control features are password protected.
This function allow you to change the password.
The default password is 8888.
and the camera symbol will disappear
Go To Password Setup Page
Set Angle Mark
--Video Setup Page-TV Display
Wide
TV Type
NTSC
Angle Mark
ON
OSD Lang
ENG English
French
Screen Saver
ON
OSD Language:
In the option user can set OSD menu language(English,
French,German,Italian).
The default:English
German
Italian
Set OSD Language
14
15
Unit B System Setup
Preference page
--Preference Page-Audio
Subtitle
Disc Menu
Parental
Default
ENG
OFF
ENG
English
French
German
Italian
Audio:
Enter this option,user can select your preferred audio
language for DVDs,The default is English.
Note
The audio language depend on the material on each disc.
User can also change the audio language during playback
by pressing the Audio button.
Press”Setup”button,the main menu will be displayed on the
screen
In the General Setup Page, Press
button to highlight this
item.
Press OK button to access.
Press
button to select the setting.
Press OK button to confirm your selection.
Press button to exit.
Preference Audio La nguage
--Preference Page-Audio
Subtitle
Disc Menu
Parental
Default
ENG
OFF English
ENG French
German
Italian
Subtitle
Select your preferred language to show the subtitles
on the screen.The subtitle languages depend on the
information available on each disc,You can also change the
subtitle language during playback by press the SUBTITLE
button.
General Setup Page
TV display:
Off
Enter this option,user can set screen display format
Preferred Subtitle Language
(Nomal/PS,Nomal/LB,Wide)
The default is "Wide"
Disc Menu
This function allows you to choose the menu language
stored on the disc.
--Preference Page-Audio
Subtitle
Disc Menu
Parental
Default
Normal/PS
Normal/LB
Wide
Note
The function depends on the display ratio with which the
DVD disc is recorded.
Please choose “Wide(16:9)"when using a16:9 wide screen
ENG
OFF
ENG English
TV set
French
German
Italian
Angle Mark:
Preferred Menu Language
Enter this option to set the angle during playback.
Optional setting: ON, OFF
Parental:
DVD discs equipped with the child lock function are rated
ENG
ENG
ENG
1
2
3
4
5
6
7
8
KID SAF
G
PG
PG 13
PGR
R
NC 17
ADULT
lock level and the way a disc can be controlled may vary from
disc to disc. If the disc allows, you can edit out violent scenes
and replace them or lock out playback of the disc altogether.
Screen Saver
Enter this option to set whether to activate the screen saver
function.
press the number button on the remote control to enter the
password and press the OK button to return to the previous
Set Parental Control
menu.
The default is ADULT.
On
Off
The default is ON.
Default:
Select this item and press OK button to reset
all settings to the original factory settings.
--Preference Page-Audio
Subtitle
Disc Menu
Parental
Default
The default is: ON
according to their content. The content authorized by a parental
--Preference Page-Audio
Subtitle
Disc Menu
Paretal
Default
On
Off
ENG
OFF
ENG
OSD Language:
In the option user can set OSD menu language(English,
French,German,Italian).
The default:English
Reset
Load Factory Setting
English
French
German
Italian
16
17
Parental:
Enter this option to set the parental control level to some
Enter this option, user can adjust picture quality of video
output. There are items available to be adjusted:
Brightness, contrast, Hue and Saturation.
For all these items the default is 00
unsuitable disc scenes being watched by the children.
Optional parental control levels: KID SAFE, G, PG, PG 13, PGR,
R, Nc17, ADULT.
The default of this option is ADULT.
Password Setup Page
Default:
Select this item and press OK button to reset
all settings to the original factory settings.
Enter this option,you can set a password(four numbers).
All parental Control features are password protected.
The default is 8888.
Preference Page
Audio:
Enter this option, user can select your preferred audio
language for DVDs.
The default is English
Note
The audio language depend on the material on each disc.
User can also change the audio language during playback
by pressing the Audio button.
Subtitle
Select your preferred language to show the subtitles
on the screen.
The default is OFF
The subtitle languages depend on the
information available on each disc,You can also change the
subtitle language during playback by press the SUBTITLE
button.
Disc Menu
This function allows you to choose the menu language
stored on the disc.
The default is English.
Note: the disc menu languages depend on the
information available on the disc.
18
19
Specification
Troubleshooting
Compatible disc: DVD/VCD/CD/Mp3/MPEG4
Signal system: PAL/NTSC
Panel size: 7 inch
Frequency response: 20 Hz to 20 kHz
Video output: 1 Vp-p/75 Ohm, unbalanced
Audio output: 1.4Vrms/10kOhm
Audio S/N: Better than 80 dB
Dynamic range: Better than 85 dB
Laser: Semiconductor Laser, Wave Length: 650 nm/795 nm
Power source: DC 9-12V
Power consumption: 10 W
Operating temperature: 0~40°C
Weight(A unit /B unit): 0.7/0.7kg
Dimensions (A unit /B unit ) (W x D x H): 255x 146x 36/255x 146x 36mm
Note:
1.The quality and speed for reading JPEG photos depend on the resolution
and compression ratio of the photos. Some JPEG photo may not be
played due to the disc quality and the formats.
2.Some DVD+R/RW,DVD-R/RW,CD-R/RW disc may not be played due to
the quality on burning conditions.
PROBLEM
The icon
appears on
screen
The feature or action cannot be completed at
this time because:
1.The disc's software restricts it.
2.The disc's software doesn't support the
feature (e.g., angles)
3.The feature is not available at the moment.
4.You've requested a title or chapter number
that is out of range.
Picture is
distorted
The disc might be damaged. Try another disc;
It is normal for some distortion to appear during
forward or reverse scan.
Rechargeable battery use
The unit utilizes long-life Li polymer battery for portable power supply.The
battery has no Memory Effect and thus can be recharged safely regardless
of whether the battery is fully or partially discharged.It is enough to recharge
no longer than 6H each time.fully recharged battery can last about 2 hours.
Precautions related to Battery Recharge
The battery can be only recharged when turning power to OFF state,and
keep continuous power supply,the red light will be on,and thelight will turn
yellow whenit is fully charged.
Using and Maintaining Rechargeable Battery
SOLUTION
Make sure the machine is connected properly.
No sound or
distorted sound Make sure all cables are securely inserted into
the appropriate jacks.
You can't advance through the opening credits
Can't advance
and warning information that appears at the
through a movie beginning of movies because the disc is
programmed to prohibit that action.
No forward or
reverse scan
Some discs have sections that prohibit rapid
scanning or chapter skip;
If you try to skip through the warning information
and credits at the beginning of a movie, you
won't be able to. This part of the movie is often
programmed to prohibit skipping through it.
If at any time in the future you should need to dispose of this
product please note that waste electrical products should not
be disposed of with household waste. Please recycle where
facilities exist. Check with your Local Authority or retailer for
recycling advice.(Waste Electrical and Electronic equipment
Directive)
1. The normal working temperature is: 0°C ~40 °C ;
2. Always unplug AC/DC power supply for the unit when not in use;
3. Heat will create during playing, it's normal, while avoid long time playing
and unattended;
4. Avoid having the unit collide with any objects, and place away from all
possible heat sources or damp areas.
Owing to continuous improvement, no prior notice will be given regarding changes on above
feature and spec.
20
21
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
