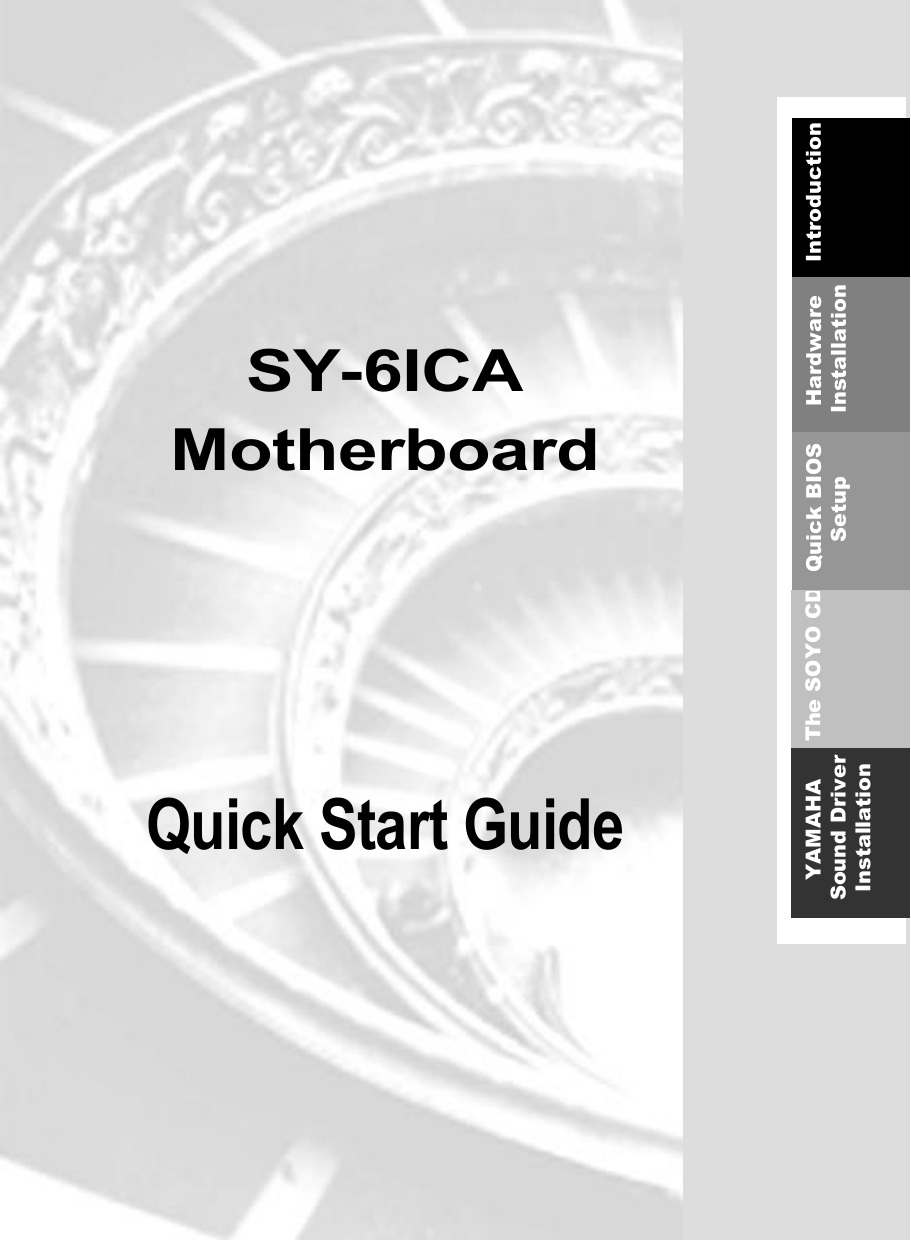

Yamaha Computer Hardware SY-6ICA User manual

Quick Start Guide
The SOYO CD Quick BIOS
YAMAHA
Sound Driver
Setup
Installation
Hardware
Installation
SY-6ICA
Motherboard
Introduction
SOYO ™
SY-6ICA Motherboard
Pentium ® III & Pentium® II processors
Intel FW82820 AGP/PCI/AMR Motherboard
100 & 133 MHz Front Side Bus supported
ATX Form Factor
Copyright © 1999 bySoyo Computer Inc.
Trademarks:
Soyo is the registered trademark of Soyo Computer Inc. All trademarks are the properties of
their owners.
Product Rights:
All names of the product and corporate mentioned in this publication are used for identification
purposes only. The registered trademarks and copyrights belong to their respective companies.
Copyright Notice:
All rights reserved. This manual has been copyrighted by Soyo Computer Inc. No part of this
manual may be reproduced, transmitted, transcribed, translated into any other language, or
stored in a retrieval system, in any form or by any means, such as by electronic, mechanical,
magnetic, optical, chemical, manual or otherwise, without permission in writing from Soyo
Computer Inc.
Disclaimer:
Soyo Computer Inc. makes no representations or warranties regarding the contents of this
manual. We reserve the right to amend the manual or revise the specifications of the product
described in it from time to time without obligation to notify any person of such revision or
amend. The information contained in this manual is provided to our customers for general use.
Customers should be aware that the personal computer field is subject to many patents. All of
our customers should ensure that their use of our products does not infringe upon any patents. It
is the policy of Soyo Computer Inc. to respect the valid patent rights of third parties and not to
infringe upon or to cause others to infringe upon such rights.
Restricted Rights Legend:
Use, duplication, or disclosure by the Government is subject to restrictions set forth in
subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at
252.277-7013.
About This Guide:
This Quick Start Guide can help system manufacturers and end users in setting up and installing
the Motherboard. Information in this guide has been carefully checked for reliability; however,
to the correctness of the contents there is no guarantee given. The information in this document
is subject to amend without notice.
For further information, please visit our Web Site on the Internet. The address is
"http://www.soyo.com.tw".
6ICA Serial - Version 1.0 - Edition: February 2000
* These specifications are subject to amend without notice
2
1
Introduction
Congratulations on your purchase of the SY-6ICA Motherboard. This Quick Start Guide
illustrates the steps for installing and setting up your new Motherboard.
This guide provides all users with the basic steps of Motherboard setting and operation. For
further information, please refer to the SY-6ICA Motherboard Uses’Guide that came with
your Motherboard.
Unpacking
When unpacking the Motherboard, check for the following items:
u
The SY-6ICA FW82820 AGP/PCI/AMR Motherboard
u This Quick Start Guide
u The Installation CD-ROM
u SOYO 3-in-1 Bonus Pack CD-ROM (Norton AntiVirus, Ghost and
Virtual Drive)
u
The Foldable URM (Universal Retention Mechanism) Set
(Factory installed on this motherboard)
u One IDE Device ATA 66 Flat Cable
u One Floppy Disk Drive Flat Cable
3
Introduction
SY-6ICA Quick Start Guide
Introduction
SY-6ICA Quick Start Guide
SY-6ICA Motherboard Layout
JP15
PS/2 KB PS/2 Mouse
Connector Connector
4 5 6
CPUFAN
1 2 3
PWRFAN
ATX Power
1
1
1
JP1
USB 1
3
USB 2
Slot 1
PRT
For
Pentium II or Pentium III
(SECC& SECC2)
Processors
R
COM 1
R
Intel®
COM2
FW82820
IDE 2 IDE 1
SDRAM
FDC
JOYSTICK
LINE-OUT
JP44
LINE-IN
WOL
Header
MIC JACK
RIMM 1
AMR
J10
CD-IN 1
CODEC
AC97
AGP Slot
4
RIMM 2
3
1
1
1
PCI Slot #1
Intel
PCI Slot #2
Winbond
W83627HF
-AW
PCI Slot #3
IR1
PCI Slot #4
FW82801AA
JP5
6
10
3
1
CMOS Clear
Jumper
2
1
(Optional) JP7
Intel
5
PCI Slot #5
3V
Lithium
Battery
82802AC
4MB
Power
LEDKeylock Speaker
+
_
_
+
+
4
JP9
JP10
_
+
Reset
_
1
ACPI HDD
PWRBT LED LED
1
3
1
CHAFAN
1
Key Features
Ø
Supports Intel® processors
- FSB 100MHz: Pentium® II (350450MHz) & Pentium® III (450-733MHz)
- FSB 133MHz: Pentium® III
(533/600MHz)
Supports 100/133 MHz Front Side Bus
Frequency
Ø
Battery Low voltage Detect
Ø
Support 7 sets of voltage monitoring
Ø
Supports multiple-boot function
Ø
Y2K Complaint
Ø
AGP 2.0 Compliant;
AGP Universal Connector supports:
- 1.5V and 3.3V AGP cards
- 1X/2X/4X data transfer
Ø
Hardware Random Number Generator
(RNG) for enabling enhanced platform
security
Ø
RTC hardware to handle Y2K Century
Rollover
Ø
Supports Audio Modem Riser slot (AMR
1.0 compliant) *
Ø
2 x RIMM slots for RDRAM memory
Power-on by modem, alarm, PS/2
Keyboard and Mouse
Ø
1 x 32-bit AGP slot
Ø
5 x 32-bit bus master PCI slots
Ø
Power failure resume
Ø
Ø
Supports Suspend to RAM
2 x USB ports onboard (USB3 share
USB2)
Ø
1 x IrDA port
Ø
ATX power connector
Ø
Ø
Auto-detect CPU voltage
Ø
Easy CPU settings in BIOS with the
“SOYO COMBO Setup”
Ø
PC99, ACPI
Ø
Ultra DMA33/66 (ATA 33/66)
Ø
Ø
Supports Wake-On-LAN (WOL)
Direct Rambus™ memory technology
Ø
Maximum memory size up to 1GB using
256Mb Direct RDRAM technology
Supports ACPI Suspend Indicator
Ø
Ø
Ø
Supports onboard hardware monitoring
and includes Hardware Doctor™ utility
Ø
Fan speed control
* If the user wants to use a Modem Riser card (MR) make sure to use a Secondary mode MR, PRIMARY
mode MRs are NOT Supported.
5
Introduction
SY-6ICA Quick Start Guide
SY-6ICA Quick Start Guide
2
Installation
Hardware
Installation
To avoid damage to your Motherboard, please follow these simple rules while
handling this equipment:
l
Before handling the Motherboard, ground yourself by touching on to an unpainted
portion of the system's metal chassis.
l
Remove the Motherboard from its anti-static packaging. Hold the motherboard by the
edges and avoid touching its components.
l
Check the Motherboard for damage. If any chip appears to be loose, press carefully
to seat it firmly in its socket.
Follow the directions in this section which is designed to guide you through a quick and
correct method to install your new SY-6ICA Motherboard. For detailed information, please
refer to the SY-6ICA Motherboard User's guide and Technical Reference online manual on
in the CD-ROM package that came with your Motherboard.
Gather and prepare all necessary components to complete the installation successfully:
u
u
u
u
u
u
u
u
u
u
Slot 1 processor with built-in CPU cooling fan (boxed type)
RAMBUS module
Computer case with adequate power supply unit
Monitor
PS/2 Keyboard
Pointing Device (PS/2 Mouse)
Speaker(s) (optional)
Disk Drives: HDD, CD-ROM, Floppy drive…
External Peripherals: Printer, Plotter, and Modem (optional)
Internal Peripherals: Modem and LAN cards (optional)
Note: If you want to use an external speaker connected to "Line-out" port, please make
sure to use an "amplified speaker" that can generate proper output sound volume.
6
SY-6ICA Quick Start Guide
Install the Motherboard
Follow the steps below in order to perform the installation of your new SY-6ICA Motherboard.
Step 1. Install the CPU
350MHz (100 x 3. 5)
400MHz (100 x 4.0)
450MHz (100 x 4.5)
500MHz (100 x 5.0)
550MHz (100 x 5.5)
600MHz (100 x 6.0)
533MHz (133 x 4.0)
600MHz (133 x 4.5)
667MHz (133 x 5.0)
733MHz (133 x 5.5)
FSB 133MHz
400MHz (133 x 3.0)
466MHz (133 x 3.5)
CPU Mount Procedure: To mount the processor that you have purchased
separately, follow these instructions.
Retention Module
Step 2.
Step 1.
Insert the CPU into the retention Step 3.
module. The CPU fits in the CPU
slot in only ONE way, do not try to
force it in.
Open the two sides by folding them up.
After completely inserting the CPU,
Now your CPU is ready for use.
Note: Installing a heat sink and cooling fan on top of your CPU is necessary for proper heat dissipation. Failing to
install these items may result in overheating and possible burn-out of your CPU.
7
Hardware
Installation
Mark your CPU Frequency: Record the working frequency of your CPU
that should be clearly marked on the CPU cover.
FSB 100MHz
SY-6ICA Quick Start Guide
Connections to the Motherboard
This section tells how to connect internal peripherals and the power supply to the Motherboard.
Step 2.
Hardware
Installation
The internal peripherals consist of IDE devices (HDD, CD-ROM), Floppy Disk Drive, Chassis
Fan, Front Panel Devices (ACPI LED, Internal Speaker, Reset Button, IDE LED, and
KeyLock Switch.), Wake-On-LAN card, VGA card, Sound Card, and other devices.
For more details on connecting internal and external peripherals to your new SY-6ICA
Motherboard, please refer to SY-6ICA Motherboard User's Guide and Technical Reference
online manual on the CD-ROM.
Connectors and Plug-ins
Wake-On-LAN Header: JP44
Pin1
Pin2
Pin3
5VSB
GND
MP-Wakeup
Chassis Fan: CHAFAN
Pin2
Pin3
12V
SENSOR
Pin1
GND
CD -IN: J10
1
Reset
_
CPU Cooling Fan: CPUFAN
Pin2
Pin3
12V
SENSOR
Pin1
GND
Connect to your CD-ROM audio output.
_
1
+
1
+ _+ _
PWRBT
Power Fan: PWRFAN
Pin2
Pin3
12V
SENSOR
Pin1 Pin2 Pin3 Pin4
R
G
L
G
Power LED
Speaker
Power LED Key Lock
+
Pin1
GND
ACPI LED HDD LED
Pin1
5V
Pin1
5V
Keylock
Pin2
NC
Pin3
Pin1
Pin2
GND Control Pin
GND
Speaker
Pin2
Pin3
Pin4
NC
NC
Speaker out
HDD LED
ACPI LED
PWRBT
Pin1
Pin2
Pin1
Pin2
Pin1
Pin2
LED Anode LED Cathode LED Anode LED Cathode Power On/Off GND
Pin1
VCC
Pin2
None
Pin3
IRRX
IrDA (Infrared Device Header): IR1
Pin4
Pin5
Pin6
Pin7
GND
IRTX
NC
NC
RESET
Pin1
Pin2
Power Good GND
Pin8
NC
Pin9
NC
Pin10
NC
ATX Power On/Off: PWRBT
Connect your power switch to this header (momentary switch type).
To turn off the system, press this switch and hold down for longer than 4 seconds.
ATX Power Supply: ATX PW
Attach the ATX Power cable to this connector. (This motherboard requires an ATX power supply, an AT
power supply can NOT be used.)
When using the Power-On by PS/2 Keyboard function, please make sure the ATX power supply is able to
provide at least 720mA on the 5V Standby lead (5VSB).
8
SY-6ICA Quick Start Guide
Configure Memory
This motherboard incorporates the latest Direct Rambus™ technology memory subsystem
capable of delivering three times the bandwidth of conventional 100MHz SDRAM based
systems. The board comes with two RIMM™ sockets for modular memory expansion,
allowing maximum memory array sizes of up to 256MB/512MB/1GB using RDRAM
modules that come with 64/72Mbit, 128/144Mbit or 256/288Mbit ICs.
This motherboard supports a single channel of Direct RDRAM memory that can
accommodate a maximum of 32 RDRAM devices. At a FSB frequency of 100MHz, 300 &
400MHz Direct RDRAMs are supported, At a FSB frequency of 133MHz, 356 & 400MHz
direct RDRAMs are supported, providing up to 1.6GB/sec of data transfer rate.
Memory Configuration
Direct Rambus™ signals are daisy-chained through each RDRAM memory module, as
shown in the figure below. Therefore, you must always install a total of 2 Direct RDRAM
and Continuation modules (e.g., one Direct RDRAM and one Continuation modules)
in all two RIMM slots to complete the memory subsystem, or otherwise the
motherboard main memory will not be functional. There is no restriction on installing Direct
RDRAM and Continuation modules in which RIMM slots.
-Processor
Memory
Control
Hub
Graphics
Processor
ASIC
RIMM 1
[RDRAM 1]
RIMM 2
[RDRAM 2]
Daisy-chaining the two DRAMs
SY-6ICA Direct Rambus Memory Subsystem
*ALWAYS INSTALL TWO RDRAM MODULES
9
Hardware
Installation
Step 3.
SY-6ICA Quick Start Guide
Step 4.
Set the CPU Frequency
Hardware
Installation
This Motherboard does not use any jumpers to set the CPU frequency; the CPU settings
can be changed through the BIOS [SOYO COMBO SETUP]. Please refer to Chapter 3
“Quick BIOS Setup”for details on setting the CoppermineTM processor frequency.
Step 5.
Set JP9 for FWH Boot Block Write-Protect
Setting this jumper to open will prevent the boot block area of the FWH (FirmWare Hub) chip
from being written data into, such that it is write-protected from unwanted or abnormal write
activity.
Note: In some rare cases, the boot block area will need to be flashed to complete the BIOS
upgrade procedure. Setting JP9 to open will cause incomplete BIOS update in that case.
The FWH Boot Block
Write-Protect
JP9 Setting
Locked
open JP9
Unlocked
short JP9
1 2
Step 6.
1 2
Enable/Disable Power-On by Keyboard (JP1)
You may choose to enable the Power-On through Keyboard function by shorting pin 1-2 on
jumper JP1; or short pin 2-3 to disable this function.
Power-On by
Keyboard
JP1 Setting
Enable
Disable
Short pin 1-2 to
enable the PowerOn by Keyboard
function.
Short pin 2-3 and
the Power-On by
Keyboard function is
disabled.
1 2 3
1 2 3
Important: When using the Power-On by Keyboard function, please make sure the
ATX power supply is able to provide at least 720mA on the 5V Standby lead (5VSB)
in order to meet the standard ATX specification.
10
SY-6ICA Quick Start Guide
Step 7.
PC speaker redirection (JP10)
Through this jumper the case speaker output can be redirected to the external (amplified)
speakers (if connected) through the on-board Audio-Codec.
Redirect to external speaker
JP10 Setting
Short pin 1-2
Use case speaker
Short pin 2-3
1 2 3
Step 8.
1 2 3
CPU Core Voltage Adjust (JP15)
In case your CPU is running on a frequency higher then it is specified for, increasing its core
voltage can enhance its stability. Over-clocking your CPU does however force your system
to operate outside of its specifications, and therefore SOYO can not guarantee system
stability.
CPU Core Voltage Adjust
JP15 Setting
4 5 6
Default Vcore
Short pin 1-2
1 2 3
4 5 6
2.5% higher
Short pin 2-3
1 2 3
4 5 6
5% higher
Short pin 4-5
1 2 3
4 5 6
7.5% higher
Short pin 5-6
1 2 3
11
Hardware
Installation
PC speaker
redirection
SY-6ICA Quick Start Guide
Step 9.
CPU Safe Mode (JP7)
Hardware
Installation
If the user overclocks the system there is always the risk that the system will not boot up
properly. In that case closing JP7 will force system to use the actual CPU multiplier to boot
up. The boot-up sequence in that case will be as follows:
Ø
Ø
Ø
-The system will start up with the lowest multiplier available.
-The BIOS will now read the CPU-ID code and set the multiplier in accordance with it.
-The system will boot up normally with the actual (non-overclock) CPU frequency.
CPU Safe Mode
JP7 Setting
Normal
Force actual CPU Frequency
Open JP7
Close JP7
1 2
1 2
Note: After properly booting up, set JP7 back to open again.
Step 10. CMOS Clear (JP5)
After you have turned off your computer, clear the CMOS memory by momentarily shorting
pins 2-3 on jumper JP5, for a few seconds. Then restore JP5 to the initial 1-2 jumper setting
in order to recover and retain the default settings.
Jumper JP5 can be easily identified by its white colored cap.
CMOS Clearing
JP5 Setting
Clear CMOS Data
Short pin 2-3 for
at least 5 seconds to
clear the CMOS
Retain CMOS Data
Short pin 1-2 to
retain new
settings
1 2 3
1 2 3
Note: You must unplug the ATX power cable from the ATX power connector when
performing the CMOS Clear operation.
12
SY-6ICA Quick Start Guide
3
Quick BIOS Setup
This Motherboard does not require any hardware jumpers to set the CPU frequency. Instead,
CPU settings are software configurable through the BIOS [Soyo Combo Feature]. The
[Soyo Combo Feature] menu combines the main parameters that you need to configure
your system. They are all in one menu to enable a quick setup in BIOS.
Step 1.
Select [Standard CMOS Features]
Set [Date/Time] and [Floppy drive type], then set [Hard Disk Type] to “Auto”.
Step 2.
Select [Load Optimized Defaults]
Select the “Load Optimized Defaults”menu and type “Y”at the prompt to load the BIOS
optimal setup.
Step 3.
Select [Soyo Combo Feature]
Move the cursor to the [CPU Frequency] field to set the CPU frequency.
Available [CPU Frequency] settings on your SY-6ICA Motherboard are detailed in the
following table. If you set this field to [Manual], you are then required to fill in the next two
consecutive fields: (1) the CPU Host/PCI Clock, and (2) the CPU Ratio.
CPU Frequency
350MHz (100 x 3.5)
400MHz (100 x 4.0)
450MHz (100 x 4.5)
500MHz (100 x 5.0)
550MHz (100 x 5.5)
600MHz (100 x 6.0)
Step 4.
400MHz (133 x 3.0)
466MHz (133 x 3.5)
533MHz (133 x 4.0)
600MHz (133 x 4.5)
667MHz (133 x 5.0)
733MHz (133 x 5.5)
Select the working frequency of
your Pentium® III & Pentium ® II
processor among these preset
values.
Note:
Mark the checkbox that
corresponds to the working
frequency of your Pentium® III &
Pentium® II processor in case the
CMOS configuration should be lost.
Select [SAVE & EXIT SETUP]
Press <Enter> to save the new configuration to the CMOS memory, and continue the boot
sequence.
13
Quick BIOS
Setup
After completion of hardware installation, turn the power switch on, then press the <DEL> key
while the system diagnostic is checking to enter the Award BIOS Setup program. The CMOS
SETUP UTILITY will be displayed on screen. Then follow these steps to configure the CPU
settings.
SY-6ICA Quick Start Guide
The SOYO CD
4
The SOYO-CD will NOT autorun if you use it on an Operating System other
than Windows 9x or NT.
Your SY-6ICA Motherboard comes with a CD-ROM labeled "SOYO CD." The SOYO CD
contains (1) the user's manual file for your new Motherboard, (2) the drivers software
available for installation, and (3) a database in HTML format with information on SOYO
Motherboards and other products.
Step 1.
Insert the SOYO CD into the CD-ROM drive
The SOYO CD will auto-run, and the SOYO CD Start Up Menu will be as shown.
The SOYO CD
If you use Windows NT, the SOYO-CD will not detect your motherboard type. In that case
the following dialog will pop up, please choose your motherboard and press OK. Now the
SOYO-CD Start Up Menu will be shown.
X
Please Select Your Board
LI-7000
7IWB
7IWB V1.0
7IWM
7IWM/L V1
7IWA-F
7IWA-F V1.0
6IWM/L
6IWM
6IWA
Cancel
OK
(SOYO CD Start Up Program Menu)
If you use Windows 95 or 98, the SOYO CD Start Up Program automatically detects
which SOYO Motherboard you own and displays the corresponding model name.
14
The user's manual files included on the SOYO CD are in PDF (Postscript Document)
format. In order to read a PDF file, the appropriate Acrobat Reader software must be
installed in your system.
Note: The Start Up program automatically detects if the Acrobat Reader utility is already
present in your system, and otherwise prompts you on whether or not you want to install it.
You must install the Acrobat Reader utility to be able to read the user's manual file. Follow
the instructions on your screen during installation, then once the installation is completed,
restart your system and re-run the SOYO CD.
Step 2.
Install Drivers and Utilities
Click the Install Drivers button to display the list of drivers software that can be installed
with your Motherboard. The Start Up program displays the drivers available for the
particular model of Motherboard you own. We recommend that you only install those
drivers.
15
The SOYO CD
SY-6ICA Quick Start Guide
SY-6ICA Quick Start Guide
driver
revision:
Intel .inf utility for Win 9x
Intel Ultra ATA66 Storage Driver for Win 98/98SE/NT
YAMAHA codec drivers for Win NT 4.0
YAMAHA Xgstudio program for Win 9x/NT
Winbond hardware doctor for 6ICA (Win 95/98)
Cancel
OK
(Driver Installation Menu)
The SOYO CD
A short description of all available drivers follows:
Ø
Intel .inf utility for Win 9x
Windows 95 and 98 will not recognize the new INTEL Camino chipset properly. To update
the necessary .inf files that will help Windows recognize the Camino chipset, please run this
utility.
Ø
Intel Ultra ATA66 Storage Driver for Win 98/98SE/NT
This driver will enable the use of Ultra 66(ATA66) Harddisks on your system. This driver is
optimized for the Intel® chipset on your motherboard.
Ø
YAMAHA codec drivers for Win NT4.0
You have to install the drivers before installing any application for the YAMAHA codec.
Please refer to the back of the manual for installation information for other operating
systems.
Ø
YAMAHA XGstudio program for Win 9x/NT
The Application program allows the user to make full use of the functionality that the
Yamaha sound chip has to offer. Make sure to install the Yamaha driver for your OS before
installing any of the application software.
Ø
Winbond hardware doctor for 6ICA (Win 95/98)
Your motherboard comes with a hardware monitoring IC. By installing this utility
Temperature, Fan speed and Voltages can be monitored. It is also possible to set alarms
when current system values exceed or fall below pre-set values.
Select which driver you want to install and click OK, or click Cancel to abort the driver
installation and return to the main menu.
16
SY-6ICA Quick Start Guide
Note: Once you have selected a driver, the system will automatically exit the SOYO CD to
begin the driver installation program. When the installation is complete, most drivers
require to restart your system before they can become active.
Step 3.
Check the Latest Releases
Click the 'Check the latest Releases' button to go the SOYO Website to automatically find
the latest BIOS, manual and driver releases for your motherboard. This button will only
work if your computer is connected to the internet through a network or modem
connection. Make sure to get your modem connection up before clicking this button.
Step 4.
Enter the SOYO CD
Click the Enter SOYO CD button to enter the SOYO HTML database. The Start Up
program will activate the default HTML browser installed on your system (for example,
Internet Explorer or Netscape) to visualize the contents of the SOYO CD.
The SOYO CD
The SOYO CD contains useful information about your Motherboard and other SOYO
products available. For your convenience, this information is available in HTML format,
similar to the format widely used on the Internet.
Note: If no HTML browser is installed on your system, the Start Up program will prompt
you on whether or not you would like to install the Internet Explorer* browser. Click YES to
install the HTML browser. After the installation is complete, please restart your system.
Then re-run the SOYO CD and you will be able to browse the SOYO HTML database.
(* Internet Explorer is a Microsoft Trademark)
17
SY-6ICA Quick Start Guide
5
Yamaha Sound Driver Installation
Most of the drivers on this CD can be installed automatically. Run the SOYO-CD program
and click the 'install drivers' button. Now a list of the available drivers will be displayed.
Select a driver and click OK to install the driver. Some drivers will have to be installed by
hand. See the explanation below.
Ø
Yamaha Soundchip drivers for Windows 95 & 98
For windows 95/98, after installation of windows go to 'my computer' and select 'properties'.
Now the 'system properties' menu will be shown. Select 'hardware' tab, and click the
'device manager' button.
On the device manager a question mark will be shown under 'other devices' -> 'PCI
multimedia audio device'. Do not remove this entry! To change the driver, click this entry
and select properties -> driver -> update driver. Now an update menu will be shown. If
windows asks you for the location of the driver, give it the following directory:
d:\driv-com\yamaha\win95&98vxd\v4.06.1010
After the installation is finished, windows 95/89 will properly recognize your Yamaha sound
chip.
YAMAHA
Sound Driver
Installation
Ø
Yamaha Soundchip drivers for Windows 98SE
Windows will detect a multi-media device at start-up, follow the installation steps on the
screen. When windows asks you for the location of the drivers, click 'browse' and go the
following directory:
d:\driv-com\yamaha\WIN98&2000wdm\v4.10.2119
(where d is your CD-ROM drive letter)
Now click OK and the drivers will be installed properly.
Ø
Yamaha Soundchip drivers for Windows 2000
For windows 2000, after installation of windows go to 'my computer' and select 'properties'.
Now the 'system properties' menu will be shown. Select 'hardware' tab, and click the
'device manager' button.
On the device manager a question mark will be shown under 'multimedia audio controller'.
Do not remove this entry!
18
SY-6ICA Quick Start Guide
To change the driver, click this entry and select properties -> driver -> update driver. Now
an updatemenu will be shown. If windows asks you for the location of the driver, give it the
following directory:
d:\driv-com\yamaha\WIN98&2000wdm\v4.10.2119
After the installation is finished, windows 2000 will properly recognize your Yamaha sound
chip.
Ø
Application for windows 95, 98 and 98SE
On the CD an application is available for the Yamaha soundchip.To install this application
(Ystation),please go to the following directory:
Ø
YAMAHA Codec Application Driver directory:
driv-com\yamaha\Ystation\v3.26\Setup.exe
and run the setup.exe file. This will install the application.
Ø
Wavetable for windows NT
On the CD a wavetable is available. This wavetable has to be installed to make use of
MIDI. To install take the following steps:
Select the multi media icon and select the devices tab.
Now select 'MIDI devices and instruments' and click the 'add' button below.
Choose 'unlisted or updated driver' and press OK.
Now give the following directory:
d:\driv-com\yamaha\syxg50nt\disk1\setup
This will start the installation process. After installation you will be able to make use of
MIDI.
19
YAMAHA
Sound Driver
Installation
Double click 'my computer', and choose 'control panel'.
SY-6ICA Quick Start Guide
Quick Trouble shoot tips
Video (no display) related issues
I built a new computer system using a Soyo board and nothing happens when
turning it on, no video and no beeps from the PC speaker. What is happening
and how can it be fixed?
No screen and no beeps mean that your CPU and motherboard do not work at all. It
could be that the CPU is not seated correctly or that a component on the M/B is
grounded (shorted) with the case. Also make sure to check the voltage setting
switch (110V/220V) on the back of the power supply. To isolate the problem do
the following:
1. Press and hold down on the “Ins” (insert) key while turning on the computer
until you get video. If you do not get video then,
2. Double-check jumpers setting on you motherboard and remove all add-on
cards, unplug all hard-disk and floppy-disk drive cables and see if you can hear
some beeps. If you still do not get any beeps, then try putting the motherboard on
the table (to isolate it from the case) with the CPU and speaker only, and give it one
more try.
I hear a series of beeps and I do not get anything from my monitor. What
could be wrong?
The following lists some basic beep codes and their possible meanings:
•
One long beep and 3 very short beeps - The video card is not detected by
the motherboard. Please re-seat your video card. If you are using an AGP
card, please push your AGP card down real hard. You may have to push
VERY hard without the AGP card mounting screw. Make sure not to
insert the card the other way around.
•
Continuous beeps – One or more of the memory modules is not seated
correctly in its socket.
My PCI VGA card works fine with my system, but when I put in a new AGP
card, it does not give me any video. Is my AGP slot bad?
This is a common problem with AGP video cards. The reason is that your AGP
card did not get seated into the AGP slot fully and firmly. Please push your AGP
card down into the socket real hard, it should snap twice. You may have to unscrew
the AGP card to allow the card to go further down. Do take care not to damage the
card by using too much force.
20
SY-6ICA Quick Start Guide
I get distorted video my AGP card right after I save my bios. Why is that?
The cause is likely that your AGP card is not running at the correct bus speed. To
fix this, please clear the CMOS via JP5 and if it still does not work, please upgrade
your motherboard bios to the latest version.
BIOS Issues
Where can I find the BIOS revision of my mainboard?
It will be displayed on the up-left corner on the screen during boot-up. It will show
as your board type followed by the revision number, such as 5EH_2CA1 (meaning
revision 2CA1 for the SY-5EH board) or 6BA+ IV_2AA2 which means SY-6BA+
IV motherboard with 2AA2 bios.
Where can I find the latest BIOS of my motherboard?
Please go to the technical support page of one of the SOYO websites (Taiwan:
www.soyo.com.tw), and look up your motherboard to find the latest BIOS
revision.
Hard disk, floppy drive, CD-ROM etc
When I boot up my new computer I got "floppy boot failure" and the LED on
the floppy stays on
Make sure the red wire of floppy ribbon cable goes to Pin1 on the floppy drive side
(don't trust the "key lock" or "notch") and use the end-connector of the cable (don't
use middle one).
Modem issues
I get an "I/O Conflict" message when I turn on my system and I can not get
my modem to work
What you need to do is to disable 'COM2' (or UART2 or serial port 2) in the bios
under integrated peripheral setup.
I have installed my modem drivers several times and I still cannot get my
modem to work. Why?
If you are sure that the modem driver has been installed correctly, then you need to
install the south bridge driver from the SOYO CD, this is because Windows does
not properly recognize relatively new chipsets.
Audio Issues
I do not get any sound from my sound card. What could be wrong?
Please make sure the speaker is connected to the speaker out port on your sound card.
21
SY-6ICA Quick Start Guide
In Device Manager, I keep getting yellow exclamation signs on my sound port
even though I have installed my sound driver several times and I could not get
my sound card to work. What is wrong?
It is likely that you did not have the correct driver installed. If you are sure that the
correct sound driver has been installed, then please install the 'south bridge' driver
for the motherboard.
The sound is working in my system, but when I play CD music from the CDROM, I do not get any sound. What is wrong?
This is because the 3-wire audio cable from the CD-ROM to the sound card is not
connected or it is loose.
The sound from my sound card is distorted when Windows starts. What is
wrong?
First, if you are using an ISA sound card, please make sure the IRQ needed for the
sound card is set to 'Legacy ISA' in the bios. In other words, if your ISA sound card
takes IRQ5, then set IRQ5 to 'Legacy ISA'. Next, install the 'south bridge' driver for
the motherboard.
The sound and everything else works fine except that the recorder and
microphone do not work. What is wrong?
This is because the recorder and microphone in the Windows are not enabled.
Please go to sound properties and enable them.
Lock up (freeze)
When I boot up my system, everything works fine. It sees my CPU and
memory, detects my hard drive, floppy drive and CD-ROM but locks up at
"Verify DMI pool data... ", and it won’t go any further. What should I do?
Please clear the CMOS via JP5 then choose 'load setup default' in the bios and save
the bios and exit. Next, unplug all other add-on cards except the video card and
floppy drive controller, and see if it can boot from floppy. Then put back the
peripherals one by one to identify which one causes the lockup. If you are running a
Cyrix CPU, make sure the 'linear burst function' is enabled in the bios.
I can not get my board to run properly.
Please make sure you have the latest bios and driver from the SOYO web site at:
http://www.soyo.com
22
SY-6ICA Quick Start Guide
How to contact us:
n
If you are interested in our products, please contact the SOYO sales
department in the region you live.
n
If you require Technical Assistance, please contact our Technical Support in
the region you live.
SOYO prefers Email as communication medium, remember to always add to the
email the country that you live in.
SOYO Taiwan
SOYO USA
No. 21 Wu-Kung 5 Rd., Hsin Chuang
City, Taipei Hsien, Taiwan
41484 Christy Street, Fremont, CA
94538
Region Covered: Taiwan and AsiaPacific. (Including Australia).
Region Covered: US and Canada
Web Site: www.soyousa.com,
www.soyo.com
Web Site: www.soyo.com.tw
Sales:
Email : [email protected]
Sales:
Tel: 886-2-22903300-318
Fax: 886-2-22983322
E-mail: [email protected]
Technical Support:
Support Web Site:
www.soyousa.com/support.htm
Technical Support:
Fax: 886-2-22983322
E-mail: [email protected]
SOYO (U.K.) LTD.
Unit 7, Alice Way, Hounslow Business
Park,
Hanworth Road, Hounslow, TW3 3UD
SOYO Europe BV
Signaalrood 19, 2718 SH Zoetermeer
The Netherlands
Region Covered: United Kingdom and
Republic of Ireland
Region Covered: Europe except
Germany.
Web Site: www.soyo.co.uk
Sales:
Tel : +44 (0)181 569 4111
Fax: +44 (0)181 569 4134
E-mail: [email protected]
Web Site: www.soyo.nl, www.soyoeurope.com
Sales:
Tel: +31-69-3637500
Fax: +31-79-3637575
Email: [email protected]
Technical Support:
Tel : +44 (0)181 569 4111
Fax: +44 (0)181 569 4134
E-Mail: [email protected]
Technical Support:
Tel : +31-79-3637500
Fax: +31-79-3637575
Email: [email protected]
23
SY-6ICA Quick Start Guide
SOYO Deutschland GmbH
SOYO Hong Kong
August-Wilhelm-Kuhnholz-Str. 15
D-26135 Oldenburg
Region Covered: Hong Kong
Web Site: www.soyo.com.hk
Sales:
tel: 852-27109810
fax: 852-27109078
E-mail: [email protected]
Region Covered: Germany
Web Site: www.saat.de, www.soyosaat.com, www.soyo-saat.de
Vertrieb Mainboards, Notebooks und
SoyoCom Produkte:
E-Mail: [email protected]
Fon: +49-(0)441/20910-31/33
Fax: +49-(0)441/203422
Technical Support:
tel: 852-27109810
fax: 852-27109078
E-mail: [email protected]
Technischer Support:
E-Mail: s[email protected]
Fon: +49-(0)441/20910-40
Fax: +49-(0)441/203422
SOYO China (Gin Mei Jei)
Region Covered: All of China
Sales:
Tel: 86-10-62510089
fax: 86-10-62510388
E-mail: [email protected]
SOYO KOREA
Region Covered: Korea
Sales:
Tel : 82-2-716-2850
Fax : 82-2-704-2619
E-mail : [email protected]
Technical Support:
Tel: 86-10-62510089
fax: 86-10-62510388
E-mail: [email protected]
Technical Support:
tel : 82-2-717-4392
fax : 82-2-712-5853
e-mail : [email protected]
SOYO Japan
Region Covered: Japan
Web site: www.soyo.co.jp
Sales:
Tel: 81-3-33682188
Fax: 81-3-33682199
E-mail: [email protected]
Technical Support:
Tel: 81-3-33682188
Fax: 81-3-33682199
E-mail: sup[email protected]
24
Edition: February
Version 1.0
SY-6ICA
SERIAL
