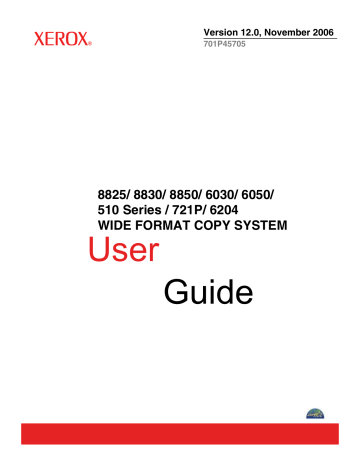

Xerox Copier 6050 User manual
Version 12.0, November 2006
701P45705
8825/ 8830/ 8850/ 6030/ 6050/
510 Series / 721P/ 6204
WIDE FORMAT COPY SYSTEM
User
Guide
Prepared by:
Xerox Corporation
Global Knowledge and Language Services
800 Phillips Road 845-17S
Webster, New York 14580
©2006 by Xerox Corporation. All rights reserved.
Copyright protection claimed includes all forms and matters of copyrightable material and
information now allowed by statutory judicial law or hereinafter granted, including without
limitation, material generated from the software programs which are displayed on the screen
such as icons, screen displays, looks, etc.
Printed in the United States of America.
XEROX® and all Xerox product names mentioned in this publication are trademarks of
XEROX CORPORATION.
One or more of the fonts listed within this document may be a registered trademark of
Morisawa & Company, Ltd. or DYNALAB, Inc.
Changes are periodically made to this document. Changes, technical inaccuracies, and
typographic errors will be corrected in subsequent editions.
Table of Contents
SAFETY NOTES............................................................................................VII
WARNING – ELECTRICAL SAFETY INFORMATION ......................................... IX
OPERATIONAL SAFETY INFORMATION.............................................................. X
MAINTENANCE INFORMATION......................................................................... XI
OZONE SAFETY INFORMATION ........................................................................ XI
FOR CONSUMAABLES ...................................................................................... XI
RADIO FREQUENCY EMISSIONS ...................................................................... XII
United States, Canada, Europe, Australia/New Zealand: ..........................xii
PRODUCT SAFETY CERTIFICATION ................................................................. XII
REGULATORY INFORMATION ......................................................................... XII
ENVIRONMENTAL COMPLIANCE .................................................................... XIII
GETTING TO KNOW THE WIDE FORMAT COPY SYSTEM .................1
FEATURE KEYS .................................................................................................2
SCAN SYSTEM STANDARD COMPONENTS ...........................................................3
SCAN SYSTEM COMPACT COMPONENTS .............................................................7
SCAN SYSTEM CONTROL PANEL .......................................................................8
Media Selection ............................................................................................9
Image Quality Area ....................................................................................13
Background Suppression ............................................................................16
Copy ...........................................................................................................17
Reduce/Enlarge ..........................................................................................18
Graphical Display and Navigation Keys ....................................................20
Numeric Keypad and Special Features/Control Keys ................................22
Special Features Keys ................................................................................23
Scan Control Keys ......................................................................................23
THE PRINTER AND THE FREEFLOW ACCXES CONTROLLER .............................23
POWERING ON THE WIDE FORMAT COPY SYSTEM .................................24
Initial power-on ..........................................................................................24
Switching on the Scan System.....................................................................24
Switching on the Controller and the Printer (XEROX WIDE FORMAT
COPY SYSTEM 8825/8830/8850) ..............................................................25
CONTROLLER POWER SWITCHES .....................................................................26
Switching on the PUN or YKE Controller and the Printer (XEROX WIDE
FORMAT 8825/8830/8850/510 Series/721P).............................................26
Switching on the Printer and the Controller (PUN, YKE, and YKE-N
controllers) .................................................................................................27
POWERING THE XEROX 6204 WIDE FORMAT SOLUTION ON/OFF ....................30
Powering On the System.............................................................................30
Powering Off the System.............................................................................30
Scan System Warm-up ................................................................................31
POWERING OFF THE SYSTEM ...........................................................................31
DOCUMENT QUALITY.................................................................................33
DOCUMENT QUALITY ......................................................................................33
XEROX WIDE FORMAT COPY SYSTEM
Table of Contents • iii
DYNAMIC BACKGROUND REMOVAL ...............................................................33
Automatic edge detection and document centering ....................................34
DETERMINING DOCUMENT QUALITY................................................................35
What is a good quality document?..............................................................35
What is a bad quality document?................................................................35
PREPARING DOCUMENTS .................................................................................36
SCANNING STRATEGIES ...................................................................................37
IMAGE QUALITY ..........................................................................................39
ORIGINAL, TYPE ..............................................................................................39
COPY MODE.................................................................................................40
Type, Normal, Line, Photo,.........................................................................40
SCAN MODE.................................................................................................41
Type, Normal ..............................................................................................41
Type Line ....................................................................................................42
Type Photo..................................................................................................43
Type, Color.................................................................................................44
BACKGROUND SUPPRESSION ...........................................................................47
COPY ...............................................................................................................48
MAKING COPIES...........................................................................................49
MAKING COPIES ..............................................................................................49
Controlling the scan ...................................................................................49
Image Quality .............................................................................................51
MAKING A COPY WITH THE DEFAULT SETTINGS ...............................................52
MAKING A COPY THE SAME SIZE AS THE ORIGINAL DOCUMENT .......................53
FITTING THE IMAGE TO A FIXED COPY SIZE ......................................................54
SCANNING WHEN USING A FOLDER ......................................................55
SCANNING WHEN USING A FOLDER..................................................................55
Ready to Copy Finisher Screen ..................................................................56
SCANNING OVERSIZED DOCUMENTS ...................................................57
SCANNING OVERSIZED DOCUMENTS ................................................................57
LONG DOCUMENTS ...................................................................................57
WIDE DOCUMENTS ....................................................................................57
SPECIAL FEATURES KEYS.........................................................................59
SPECIAL FEATURES KEYS.................................................................................59
PRINTER INTERRUPT KEY ................................................................................60
STORE/RECALL KEY ........................................................................................61
Last Job ......................................................................................................61
Job Templates.............................................................................................63
Save Default Template................................................................................67
Recall Factory Defaults..............................................................................68
FINISHER KEY ..................................................................................................68
Finisher menu options ................................................................................70
SETS BUILD KEY ..............................................................................................73
Preparing to build the set ...........................................................................73
Building and printing the set ......................................................................73
BATCH KEY .....................................................................................................75
TRANSFORM KEY .............................................................................................76
Margins ......................................................................................................76
Justification ................................................................................................78
Transform ...................................................................................................79
SAMPLE KEY....................................................................................................82
iv • Table of Contents
XEROX WIDE FORMAT COPY SYSTEM
Copy Mode Sample: ...................................................................................82
Scan Mode Sample: ....................................................................................82
SCANNING TO THE NETWORK (SCAN MODE).....................................85
SCANNING TO THE NETWORK (SCAN MODE)..................................................85
SWITCHING BETWEEN COPY MODE AND SCAN MODE ...................................86
UNDERSTANDING THE READY TO SCAN SCREEN ........................................87
SELECTIONS DISABLED IN SCAN MODE ..........................................................88
OPERATING IN SCAN MODE............................................................................88
CLEARING THE SCANNED IMAGES....................................................................90
MANAGING THE FILE SYSTEM ..........................................................................90
MAIN MENU....................................................................................................93
MAIN MENU ....................................................................................................93
CONFIGURATION MENU ...................................................................................94
LOCALIZATION.........................................................................................95
CONTROL PANEL.....................................................................................96
COPY OPTIONS ........................................................................................97
IMAGE ENHANCEMENTS......................................................................102
TIMERS ....................................................................................................103
POWER SAVER........................................................................................105
SCANNER CONTROL..............................................................................105
SYSTEM INFORMATION MENU .......................................................................107
SYSTEM DESCRIPTION..........................................................................108
RECENT FAULT LIST .............................................................................109
CONFIGURATION PRINTS ....................................................................110
SYSTEM ADMINISTRATION MENU ..................................................................112
Entering the system administration password ..........................................112
JOB ACCOUNTING.................................................................................113
FILE SYSTEM ..........................................................................................113
CHANGE PASSWORD.............................................................................117
SECURITY SETTINGS .............................................................................118
DIAGNOSTICS MENU ......................................................................................119
USAGE METERS......................................................................................120
CLEAR SCANNER USAGE ......................................................................121
SCANNER DIAGNOSTICS.......................................................................121
PASSWORD..............................................................................................136
JOB ACCOUNTING......................................................................................139
JOB ACCOUNTING..........................................................................................139
OVERVIEW ....................................................................................................139
JOB ACCOUNTING MODE MENU.....................................................................140
SUBMITTING JOBS..........................................................................................140
From the Scan System Control Panel.......................................................140
Over the network ......................................................................................142
Terminating use under an account ...........................................................142
CLEANING AND MAINTENANCE - SCAN SYSTEM ............................143
CLEANING AND MAINTENANCE - SCAN SYSTEM ............................................143
CLEANING THE PLATEN GLASS, DOCUMENT DRIVE ROLLS, AND BACKER ROLL
......................................................................................................................144
CLEANING THE CALIBRATION STRIP .............................................................145
PROBLEM SOLVING ..................................................................................147
PROBLEM SOLVING ........................................................................................147
XEROX WIDE FORMAT COPY SYSTEM
Table of Contents • v
SPECIFICATIONS ........................................................................................162
SPECIFICATIONS ............................................................................................162
APPENDICES ................................................................................................165
APPENDIX 1: SCANNING RESOLUTIONS AND SPEEDS .....................................165
APPENDIX 2: PAPER SHEET SIZES ..................................................................166
APPENDIX 3: PAPER ROLL SIZES ...................................................................168
APPENDIX 4: FILE FORMATS .........................................................................169
APPENDIX 6: LED STATUS INDICATORS .......................................................170
APPENDIX 7: MAIN MENU STRUCTURE ........................................................171
INDEX .............................................................................................................173
vi • Table of Contents
XEROX WIDE FORMAT COPY SYSTEM
Safety Notes
Read these safety notes carefully before using this product to ensure that
you operate the equipment safely.
Your Xerox/Fuji Xerox product and recommended supplies have been
designed and tested to meet strict safety requirements. These include
safety agency approval, and compliance with established environmental
standards. Please read the following instructions carefully before
operating the product and refer to them as needed to ensure the
continued safe operation of your product.
The safety and environment testing and performance of this product have
been verified using Xerox materials only.
WARNING:
Any unauthorized alteration, which may include the
addition of new functions or connection of external
devices, may affect the product certification. Please
contact your Authorized Local Dealer for more
information.
Warning Markings
All warning instructions marked on or supplied with the product should be
followed.
XEROX WIDE FORMAT COPY SYSTEM
Warning
This WARNING alerts users to areas of
the product where there is the possibility
of personal injury
Warning
This WARNING alerts users to areas of
the product where there are heated
surfaces, which should not be touched.
Safety Notes • vii
Electrical Supply
This product shall be operated from the type of electrical supply indicated
on the product's data plate label. If you are not sure that your electrical
supply meets the requirements, please consult your local power
company for advice.
WARNING: This product must be connected to a protective grounded
circuit.
This product is supplied with a plug that has a protective grounding pin.
This plug will only fit into a grounded electrical outlet. This is a safety
feature. To avoid risk of electric shock, contact your electrician to
replace the electrical outlet if you are unable to insert the plug into it.
Never use a grounding adapter plug to connect the product to an
electrical outlet that lacks a grounded connection terminal.
Operator Accessible Areas
This equipment has been designed to restrict operator access to safe
areas only. Operator access to hazardous areas is restricted with covers
or guards, which would require a tool to remove. Never remove these
covers or guards.
Maintenance
Any operator product maintenance procedures will be described in the
user documentation supplied with the product. Do not to carry out any
maintenance on this product which is not described in the customer
documentation.
Cleaning Your Product
Before cleaning this product, unplug the product from the electrical
outlet. Always use materials specifically designated for this product, as
the use of other materials may result in poor performance and may
create a hazardous situation. Do not use aerosol cleaners, because they
may be explosive and flammable under certain circumstances.
viii • Safety Notes
XEROX WIDE FORMAT COPY SYSTEM
WARNING – Electrical Safety
Information
•
Use only the power cord supplied with this equipment.
•
Plug the power cord directly into a grounded electrical outlet. Do not
use an extension cord. If you do not know if an outlet is grounded,
consult a qualified electrician.
If this machine needs to be moved to a different location, contact a Xerox
service representative or your authorized local representative or service
support organization.
•
•
Improper connection of the equipment-grounding conductor can
result in electrical shock.
Do not place this equipment where people might step or trip on the
power cord.
•
Do not place objects on the power cord.
•
Do not override or disable electrical or mechanical interlocks.
•
Do not obstruct the ventilation openings.
•
Never push objects of any kind into slots or openings on this
equipment.
•
If any of the following conditions occur, switch off the power to the
machine immediately and disconnect the power cord from the
electrical outlet. Call an authorized local service representative to
correct the problem.
- The equipment emits an unusual noise or odor.
- The power cord is damaged or frayed.
- A wall panel circuit breaker, fuse, or other safety device has
been tripped.
- Liquid is spilled into the copier/printer.
- The equipment is exposed to water.
- Any part of the equipment is damaged.
Disconnect Device
The power cable is the disconnect device for this equipment. It is
attached to the back of the machine as a plug-in device. To remove all
electrical power from the equipment, disconnect the power cable from
the electrical outlet.
XEROX WIDE FORMAT COPY SYSTEM
Safety Notes • ix
Operational Safety Information
To ensure the continued safe operation of your Xerox/Fuji Xerox
equipment, follow these safety guidelines at all times.
Do These:
-
Always connect equipment to a correctly grounded power outlet. If in
doubt, have the outlet checked by a qualified electrician.
-
This equipment must be connected to a protective grounded circuit.
This equipment is supplied with a plug that has a protective
grounding pin. This plug will only fit into a grounded electrical outlet.
This is a safety feature. To avoid risk of electric shock, contact your
electrician to replace the electrical outlet if you are unable to insert
the plug into it. Never use a plug that lacks a grounded connection
terminal to connect the product to an electrical outlet.
-
-
-
-
Always follow all warnings and instructions that are marked on or
supplied with the equipment.
Always exercise care when moving or relocating equipment. Please
contact your local Xerox/Fuji Xerox Service Department or your local
support organization to arrange relocation of the product to a location
outside your building.
Always locate the equipment in an area that has adequate ventilation
and room for servicing. See the Install guide for minimum
dimensions.
Always use materials and supplies specifically designed for your
Xerox/Fuji Xerox equipment. Use of unsuitable materials may result
in poor performance.
Always unplug this equipment from the electrical outlet before
cleaning.
Do Not Do These:
-
Never use a plug that lacks a grounded connection terminal to
connect the product to an electrical outlet.
-
Never attempt any maintenance function that is not specifically
described in this documentation.
-
This equipment should not be placed in a built-in installation unless
proper ventilation is provided. Please contact your Authorized Local
Dealer for further information.
Never remove covers or guards that are fastened with screws.
There are no operator serviceable areas within these covers.
Never locate the equipment near a radiator or any other heat source.
Never push objects of any kind into the ventilation openings.
Never override or “cheat” any of the electrical or mechanical interlock
devices.
-
x • Safety Notes
XEROX WIDE FORMAT COPY SYSTEM
-
Never operate the equipment if you notice unusual noises or odors.
Disconnect the power cord from the electrical outlet and contact your
local Xerox/Fuji Xerox Service Representative or Service Provider
immediately.
Maintenance Information
Do not attempt any maintenance procedure that is not specifically
described in the documentation that is supplied with your copier/printer.
- Do not use aerosol cleaners. The use of cleaners that are not
approved may cause poor performance of the equipment, and could
create a dangerous condition.
- Use supplies and cleaning materials only as directed in this manual.
Keep all of these materials out of the reach of children.
- Do not remove covers or guards that are fastened with screws.
There are no parts behind these covers that you can maintain or
service.
- Do not perform any maintenance procedures unless you have been
trained to do them by an Authorized Local Dealer or unless a
procedure is specifically described in the user manuals.
Ozone Safety Information
This product will produce ozone during normal operation. The ozone
produced is heavier than air and is dependent on copy volume.
Providing the correct environmental parameters as specified in the Xerox
installation procedure will ensure that the concentration levels meet safe
limits.
If you need additional information about ozone, please request the Xerox
publication Ozone by calling 1-800-828-6571 in the United States and
Canada. In other markets please contact your Authorized Local Dealer
or Service Provider.
For Consumaables
Store all consumables in accordance with the instructions given on the
package or container.
○ Keep all consumables away from the reach of children.
○ Never throw toner, toner cartridges, or toner containers into an open
flame
XEROX WIDE FORMAT COPY SYSTEM
Safety Notes • xi
Radio Frequency Emissions
United States, Canada, Europe, Australia/New Zealand:
NOTE: This equipment has been tested and found to comply with the
limits for a class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is
likely to cause harmful interference, in which case the user will be
required to correct the interference at his own expense.
Changes and modifications to this equipment not specifically approved
by Xerox/Fuji Xerox may void the user’s authority to operate this
equipment.
Shielded interface cables must be used with this equipment to maintain
compliance with FCC regulations in the United States and the
Radiocommunications Act 1992 in Australia/New Zealand as applicable.
Product Safety Certification
This product is certified by the following Agency using the Safety
standards listed.
Agency
TUV Rhineland of North America
NEMKO
Standard
UL60950-1 1st (2003) (USA/Canada)
IEC60950-1 Edition 1 (2001)
This product was manufactured under a registered ISO9001 Quality
system.
Regulatory Information
CE Mark
The CE mark applied to this product symbolizes Xerox’s declaration of
conformity with the following applicable Directives of the European Union
as of the dates indicated:
January 1, 1995: Council Directive 72/23/EEC amended by Council
directive 93/68/EEC, approximation of the laws of the member states
related to low voltage equipment.
January 1, 1996: Council directive 89/336/EEC, approximation of the
laws of the member states related to electromagnetic compatibility.
March 9, 1999: Council Directive 99/5/EC, on radio equipment and
telecommunications terminal equipment and the mutual recognition of
their conformity.
xii • Safety Notes
XEROX WIDE FORMAT COPY SYSTEM
A full declaration of conformity, defining the relevant directives and
referenced standards, can be obtained from your Authorized Local
Dealer.
WARNING: In order to allow this equipment to operate in proximity to
Industrial Scientific and Medical (ISM) equipment, the external radiation
from the ISM equipment may have to be limited or special mitigation
measures taken.
WARNING: This is a Class A product. In a domestic environment the
product may cause radio frequency interference, in which case the user
may be required to take adequate measures.
WARNING: Shielded interface cables must be used with this product to
maintain compliance with Council Directive 89/336/EEC.
Environmental Compliance
USA
Energy Star
As an ENERGY STAR partner, Xerox Corporation has
determined that this product meets the ENERGY STAR
guidelines for energy efficiency.
ENERGY STAR and the ENERGY STAR mark are
registered U.S. marks.
The ENERGY STAR Office Equipment Program is a
team effort between U.S., European Union and
Japanese governments and the office equipment
industry to promote energy-efficient copiers, printers,
fax, multifunction machines, personal computers, and
monitors. Reducing product energy consumption helps
combat smog, acid rain, and long-term changes to the
climate by decreasing the emissions that result from
generating electricity.
Xerox ENERGY STAR equipment is preset at the factory
to enter a “low power” state and/or shut off completely
after a specified period of use. These energy-saving
features can reduce product energy consumption in half
when compared to conventional equipment.
XEROX WIDE FORMAT COPY SYSTEM
Safety Notes • xiii
Canada
Environmental Choice:
Terra Choice Environmental Services, Inc. of Canada
has verified that this Xerox product conforms to all
applicable Environmental Choice EcoLogo requirements
for minimized impact to the environment.
As a participant in the Environmental Choice program,
Xerox Corporation has determined that this product
meets the Environmental Choice guidelines for energy
efficiency.
Environment Canada established the Environmental
Choice program in 1988 to help consumers identify
environmentally responsible products and services.
Copier, printer, digital press, and fax products must meet
energy efficiency and emissions criteria, and exhibit
compatibility with recycled supplies. Currently,
Environmental Choice has more than 1600 approved
products and 140 licensees. Xerox has been a leader in
offering EcoLogo approved products.
xiv • Safety Notes
XEROX WIDE FORMAT COPY SYSTEM
Getting to know the WIDE
FORMAT COPY SYSTEM
This manual contains operating instructions for the user and the system
administrator for the XEROX WIDE FORMAT COPY SYSTEM
8825/8830/8850/510 Series, 721P, 6030/6050, and 6204 with version
12.0 FreeFlow Accxes firmware loaded into the Controller.
NOTE: For the 6030/6050 printers that want to use the FreeFlow Accxes
firmware features, the printer also needs to be connected to a separate
PUN or YKE controller, referred to as the FreeFlow Accxes Print Server.
The Web Print Management Tool software will be loaded on the print
server.
Your XEROX WIDE FORMAT COPY SYSTEM is an integrated solution
for electronically scanning and then printing good quality copies of the
images for engineering or architectural size documents. The WIDE
FORMAT COPY SYSTEM consists of the WIDE FORMAT SCAN
SYSTEM and Control Panel for capturing images, the FreeFlow Accxes
Controller for processing these images, and XEROX WIDE FORMAT
COPY SYSTEM Printers 8825, 8830, 8850, 510 Series, 721P,
6030/6050, or 6204.
The WIDE FORMAT COPY SYSTEM has two modes of operation COPY and SCAN.
ƒ
In the COPY mode, documents are scanned, temporarily stored
in memory or on the FreeFlow Accxes Controller hard disk, and
then sent to the local Printer as soon as the Printer is available.
ƒ
In the SCAN mode:
Scan-to-Net: Documents are scanned and then stored on the
FreeFlow Accxes Controller hard disk for later retrieval over a
network by a remote device.
Scan-to-FTP: Scanned images can be transferred to 4 remote
FTP destinations. The scanned images are not stored on the
FreeFlow Accxes Controller’s hard drive. The FTP feature is
located on the Sample Mode screen.
The WIDE FORMAT COPY SYSTEM allows concurrent printing,
copying, and scanning to the network, so there is no need to wait for the
Printer to finish before scanning the next document.
XEROX WIDE FORMAT COPY SYSTEM
Getting to know the WIDE FORMAT COPY SYSTEM • 1
The XEROX WIDE FORMAT COPY SYSTEM contains Dynamic
Background Suppression technology. Dynamic Background
Suppression examines a sample of the document intelligently and makes
automatic image quality adjustments that yield a good copy even from
poor original documents. The document width is automatically detected
and the centering of a scanned original for most opaque documents is
adjusted. Translucent documents (transparencies, clear film, etc.) in
most cases will not be detected.
The Productivity feature was introduced with version 10.0 firmware and
requires that a new WIDE FORMAT SCAN SYSTEM has a new
Document Feed-in Tray. Sensors built into the Feed Tray measure the
document width without doing a prescan, which increases the document
and copy throughput, thereby increasing productivity.
NOTE: Documents must be centered when using the sensors for width
detection.
For documents that require additional adjustments to obtain the best
copy quality, a variety of image quality and reduction/enlargement
settings are available. All of these functions are controlled from the Scan
System Control Panel. This Control Panel, which is mounted on top of
the Scan System, receives all power and information from the Scan
System.
Feature Keys
Print and Copy feature keys are standard for all printers using FreeFlow
Accxes 12.0 firmware, except for the XEROX WIDE FORMAT 6030/6050
Printer. In the 12.0 firmware, the following feature keys need to be
loaded before the features can be used. See the Feature Key
instructions and Coupon Exchange screens on the www.xerox.com
website.
•
XEROX WIDE FORMAT Scan System Features:
Scan-to-Net Feature Key – to create an electronic file from a
scanned image.
Scan-to-Print Feature Key – to scan, create a preview, and
send the scanned image to the printer when the Scan-to-Net
feature is present.
Color Enablement Feature Key – allows color scanning when
the Scan-to-Net feature is present.
Speed Enhancement Turbo II Feature Key – 4 inches per
second (ips) for 36” wide media.
Speed Enhancement Turbo III Feature Key – HFT, PUN, YKE,
YKE-N Controllers only: 7.33 ips in Copy Mode.
•
XEROX WIDE FORMAT 6030/6050 Printer:
Print Server Enablement Feature Key – Enables print and
copy mode for a remote printer.
2 • Getting to know the WIDE FORMAT COPY SYSTEM
XEROX WIDE FORMAT COPY SYSTEM
•
XEROX WIDE FORMAT Printers and Scan Systems:
Job Accounting Feature Key – Job accounting enables the
tracking of media usage data. The Account Management Tool
(AMT), or some other external accounting tool, is used to assign
a User ID, Account ID, and Printer ID. It then collects and tallies
the stored data from the printers.
PostScript Feature Key – This enables the interpretation of
Adobe Post Script 3, PDF 1.6 for the YKE-N Controller, PDF 1.4
and 1.5 for the YKE controller, and PDF 1.3 for all other
FreeFlow Accxes Controllers.
Disk Image Overwrite Feature Key – Enables the security
options for overwriting image data on the hard drive. The
immediate overwriting of data to DOD specification is such that
the system, at any point in its operation, can be considered
secure and all data will be removed no matter what operation the
customer is performing.
OS Enablement Feature Key – Enables the YKE controller to
print, copy, and scan.
NOTE: The Special Features Key section of this document refers to
physical buttons (keys) that are on all the XEROX WIDE FORMAT Scan
Systems.
Scan System standard components
The illustrations below show the components of the WIDE FORMAT
SCAN SYSTEM. These components are standard on the XEROX WIDE
FORMAT COPY SYSTEM 8825, 8830, 8850, 6030/6050, 6204, and 510
Series. The Stand is standard or optional on the 8850. With the
exception of the Stand and Standard Organizer, the components are
standard on the 721P. Following the illustrations are descriptions of each
of the components.
XEROX WIDE FORMAT COPY SYSTEM
Getting to know the WIDE FORMAT COPY SYSTEM • 3
WIDE FORMAT SCAN SYSTEM Front View
B
A
C
F
D
A. Document Handler
Raise the Document Handler for routine maintenance functions and to
access the optical paper sensors for diagnostic routines.
B. Scan System Control Panel
The control panel allows the selection of options and features and
contains a graphical display for the communication of information and
instructions. Refer to Scan System Control Panel for additional
information.
C. Thick Document Lever
The Thick Document Lever is used to adjust the Scan System for
thick documents and to remove documents from the Scan System
feed mechanism. When setting the thickness for a document, raise
the lever to the next thickness. If the document slides past the Feed
Rolls into the Document Handler, lower the Lever to the next position.
D. Stand
The Stand is standard with the XEROX WIDE FORMAT COPY
SYSTEM 8825, 8830, 8850, 6030/6050, 6204, and 510dp series. It is
optional with the 721P.
E. Standard Organizer (not shown in previous photo)
The Organizer is located on the front of the Scan System. It is useful
for holding multiple documents that are to be scanned. It has two
4 • Getting to know the WIDE FORMAT COPY SYSTEM
XEROX WIDE FORMAT COPY SYSTEM
extensions at its end that can be pulled out to accommodate longer
documents (up to size E or A0).
F. Productivity Document Feed Tray
Insert documents to be scanned face down and centered into the
Document Feed Tray. Provides built-in Document Width Sensors
that eliminate the need to prescan document to do width
measurement. This increases the document throughput resulting in
higher productivity with a WIDE FORMAT COPY SYSTEM. This
functionality is only available on the newer WIDE FORMAT SCAN
SYSTEM.
WIDE FORMAT SCAN SYSTEM Rear View
A: Standard Stacker
D: Power Cord and Connector
B: Document Exit Slot
E: Status Indicator LED
C: Power On/Off switch
F: IEEE 1394 Cable and Connector
NOTE: Components shown above with the exception of the Standard
Organizer are also available on all WIDE FORMAT SCAN SYSTEMS
XEROX WIDE FORMAT COPY SYSTEM
Getting to know the WIDE FORMAT COPY SYSTEM • 5
A. Standard Stacker
The Stacker is located at the rear of the Scan System. When the
AUTORETURN feature is set to REAR, documents exit the Scan
System onto the Stacker. The Stacker can be adjusted to any one of
four positions by raising or lowering it. The height of the Stacker
should be adjusted to accommodate the document being scanned. It
has two extensions at its end that can be pulled out to accommodate
longer documents (up to size E or A0). When scanning most common
weight (20 lb, 80gsm) documents, move the Stacker to the 2nd rung
from the bottom.
NOTE: All thick documents, and documents over 36 inches (914 mm),
exit from the rear of the Scan System (regardless of the AUTORETURN
setting). When scanning thick documents, the Stacker must be set to the
lowest position for optimum performance.
B. Document Exit Slot
When the DOCUMENT RETURN feature is set to REAR, documents
exit the Scan System through this slot and are delivered to the rear
Stacker.
C. Power On/Off Switch
This switch turns the Scan System on and off. Press this switch to
the on (I) position to turn on the Scan System and to the off (O)
position to turn off the Scan System.
D. The Power Cord supplies power to the Scan System. Plug one end of
the cord into the Scan System and the other end into an electrical
outlet.
E. Status LED
The digital status LED provides an indication of the condition of the
Scan System and communications with the FreeFlow Accxes
Controller. A letter “P”, displayed on the LED Display on the rear of
the Scan System, indicates that the Scan System is operating
normally and has established communications with the controller.
F. IEEE 1394 Cable and Connector
The IEEE 1394 Cable is the communications link between the Scan
System and the Controller. Plug one end of the cable into either one
of the IEEE 1394 connections at the rear of the Scan System. Plug
the other end into the IEEE 1394 connection on the Controller.
6 • Getting to know the WIDE FORMAT COPY SYSTEM
XEROX WIDE FORMAT COPY SYSTEM
Scan System compact components
The illustrations show the optional compact Stacker and organizer that
are available for the WIDE FORMAT SCAN SYSTEM. The compact
components allow the XEROX WIDE FORMAT COPY SYSTEM to be
installed in sites where space requirements are at a premium.
Front View of the Wide Format Scan System
A: Compact Organizer
Back View of the Wide Format Scan System
A
A: Compact Stacker
XEROX WIDE FORMAT COPY SYSTEM
Getting to know the WIDE FORMAT COPY SYSTEM • 7
Scan System Control Panel
The Scan System Control Panel is divided into three sections:
•
The options keys section (A), which contains the - Media
Selection, Image Quality, and Reduce/Enlarge options
selections
•
The graphical display (B) and the navigation keys (F) section.
•
The right-hand section, which contains the numeric keypad (D),
the special features keys (E), and the scan control keys (C).
If the BEEP function is enabled (factory default), a beep sound will be
heard when a key is pressed. If an incorrect key is pressed, a multiple
beep sound will be heard.
Scan System Control Panel
C
D
B
E
F
A
A: Option Keys section
D: Numerical Key pad
B: Graphical Display
E: Special Features keys
C: Scan Control keys
F: Navigation keys
OPTIONS KEYS
The left side of the Scan System Control Panel contains the keys for the
selection of options. It is divided into three areas - Media Selection,
Image Quality, and Reduce/Enlarge.
To select an option, press the key(s) beneath the option. In some cases,
a screen requiring a selection or input is displayed on the graphical
8 • Getting to know the WIDE FORMAT COPY SYSTEM
XEROX WIDE FORMAT COPY SYSTEM
display. When an option is selected, the indicator lamp to the left of the
option illuminates.
The illustration below depicts the options portion of the Scan System
Control Panel.
Control Panel Options Area
Media Selection
The Media Selection area of the Scan System Control Panel allows you
to select the media Source, Type, and Output Format. The illustration
below depicts the Media Selection portion of the control panel.
Media Selection Area
XEROX WIDE FORMAT COPY SYSTEM
Getting to know the WIDE FORMAT COPY SYSTEM • 9
Source
The Source option allows you to select the source of the media on which
the image will be printed. To select the media source, press the key
beneath the Source settings until the desired source indicator lamp
illuminates.
The Source settings are:
•
Sheet – This setting tells the Printer to print from a manually
inserted sheet of media.
•
R4 – This setting is applicable to the WIDE FORMAT COPY
SYSTEM 721P and 6050. When R4 is selected, both the R1
and R3 indicator lamps illuminate and the Printer then selects
the media stored on Roll 4.
•
R3 –When it is selected, the R3 indicator lamp illuminates and
the Printer selects the media stored on Roll 3.
•
R2 – This setting tells the Printer to select the media stored on
Roll 2.
•
R1 – This setting tells the Printer to select the media stored on
Roll 1.
•
Auto (factory default) – This setting automatically selects the roll
containing the media that best fits the size of the captured
image. For most documents, the Scan System is able to
automatically detect the width of the scanned document. This
permits the Auto function to automatically select the most
appropriate roll of media.
NOTE: The presence of the Sheet feature and the amount of rolls
available vary by the type of WIDE FORMAT PRINTER. If these options
are not installed, they cannot be selected. To print from a cut sheet,
Sheet mode must be explicitly selected. The Auto mode cannot select a
cut sheet.
Type
The Type option allows you to select the kind of media on which to print
– Bond, Vellum/Tracing, or Film. To select the media type, press the
key beneath the Type settings until the desired type indicator lamp
illuminates.
NOTE: Only media types actually loaded into the Printer can be
selected. When a roll is selected, the media type for that roll is
automatically selected also. If more than one media type is loaded when
the media source is set to Auto, the default choice priority is Bond (first),
Vellum (second), and Film (third). Refer to the applicable Printer
Operator Manual for instructions about how to load rolls and specify the
width and media type.
10 • Getting to know the WIDE FORMAT COPY SYSTEM
XEROX WIDE FORMAT COPY SYSTEM
Output Format
The Output Format option allows you to select the size to which the roll
feed media will be cut. It has three modes – Manual, Preset, and
Synchro.
Manual
Manual allows you to enter the desired length and width manually.
To select the Manual mode:
1. Press the key beneath Output Format until the Manual indicator
lamp illuminates. The CUSTOM OUTPUT FORMAT screen is
displayed.
NOTE: If the indicator lamp is already lit, press the key once to display
the screen.
CUSTOM OUTPUT FORMAT
ENTER CUSTOM MEDIA SIZE:
11.0 IN
WIDTH (11.0 -36.0):
LENGTH
(8.3 – 1200.0):
8.5 IN
Custom Output Format Screen
2. Press the Previous or Next key to select WIDTH or LENGTH.
3. Press the Enter key to confirm the choice.
4. Use the numeric keypad to enter the desired value.
NOTE: The entered value must be within the limits shown in
parentheses on the screen.
5. Press the Enter key to confirm the value.
6. Repeat steps 3 to 5 to enter the value for the remaining setting.
7. When the values for WIDTH and LENGTH are correct, press the
Exit key to return to the READY screen.
Preset
Preset allows you to select a predefined length to which the roll media
should be cut during printing. The associated width specification will
depend on the Media Source selection. If the Media Source selection
is set to Auto, the system will select the roll of media that best matches
the width specification. If Media Source is set to R1, R2, R3, or R4; the
system will use the selected roll regardless of the width specification.
To select the Preset mode:
1. Press the key beneath Output Format until the Preset indicator
lamp illuminates. The PRESET OUTPUT FORMAT screen is
displayed.
XEROX WIDE FORMAT COPY SYSTEM
Getting to know the WIDE FORMAT COPY SYSTEM • 11
NOTE: If the indicator lamp is already lit, press the key once to display
the screen.
PRESET OUTPUT FORMAT
SELECT:
8.5 X 11 ANSI A
Preset Output Format screen
2. Press the Previous or Next key to select an item from the list.
NOTE: Formats can be added or removed from this list. Refer to
“Custom Media Formats” in the “Main Menu” section for more
information.
3. Press the Enter key to confirm the choice and return to the
READY screen.
Synchro
When the Synchro mode is selected, the length of the original is
measured as it passes through the Scan System and automatically cuts
the media at the Printer to match the length of the original document.
Synchro is the factory default. To select the Synchro mode, press the
key beneath Output Formats until the Synchro indicator lamp
illuminates.
12 • Getting to know the WIDE FORMAT COPY SYSTEM
XEROX WIDE FORMAT COPY SYSTEM
Image Quality Area
The Image Quality area of the Scan System Control Panel allows you to
make corrective adjustments to the image and extract the best possible
copy quality from an original document. It contains the Type,
Background Suppression, and Copy options.
The illustrations below depict the Image Quality portion of the Control
Panel for FreeFlow Accxes software version 12.0 and SCAN SYSTEM
firmware version 3.2.6 or higher.
Image Quality Area
The SCAN SYSTEM firmware must be at version 3.2.6 or greater to
support Normal, Line, Photo, or Color Type. If the SCAN SYSTEM is
not at the required version, there will be an error message.
XEROX WIDE FORMAT COPY SYSTEM
Getting to know the WIDE FORMAT COPY SYSTEM • 13
Depending on what Mode is selected (COPY or SCAN) the message will
be displayed as show below.
INVALID MODE
UPGRADE SCANNER FIRMWARE
AUTO
100.0 %
1
Invalid Mode in Copy Mode
INVALID MODE
UPGRADE SCANNER FIRMWARE
TIFF/CCITTG4
11 BIT
400 DPI
Invalid Mode screen in Scan Mode
Original, Type
The Type option allows you to specify the type classification of your
document. To select the document type, press the key beneath the
Type settings until the desired Type indicator lamp illuminates.
Normal
Normal — (factory default) Select Normal for most copying needs. This
setting will provide good image quality for copying most types of
drawings containing text, line art, or a mixture of these. Shaded areas
will be preserved. The TIFF, CALS, and PDF file types are available for
Normal images.
In the SCAN mode, the following screen is displayed when the Normal
key is pressed.
9
PREVIEW
FORMAT:
TIFF
Scan Options (Normal) Screen
14 • Getting to know the WIDE FORMAT COPY SYSTEM
XEROX WIDE FORMAT COPY SYSTEM
Line
Line — Select Line for an image containing fine lines, especially pencil.
This selection produces high contrast and dark black images. The TIFF,
CALS, and PDF file types are available for Line images. If the Mode
selected is SCAN, and the Scan-to-Net feature key is installed, the
SCAN OPTION (LINE) screen will be displayed. If the COPY mode is
selected, the READY TO COPY screen will be displayed. Refer to the
"Image Quality" section of this manual for additional information.
SCAN OPTIONS (LINE)
9 PREVIEW
TIFF
FORMAT:
Scan Options (Line) Screen
Photo — Select Photo when the document contains a gray scale or
color image, such as a photograph. TIFF is the file type that is available
for Photo images. If the Copy Mode is selected, the READY TO COPY
screen will be displayed. In Scan Mode, the following screen will be
displayed. Refer to the Image Quality section of this manual for
additional information.
9
SCAN OPTIONS (PHOTO)
PREVIEW
COMPRESSION:
FORMAT:
RAW
TIFF
Scan Options (Photo) Screen
NOTE: The Background Suppression option cannot be used with the
Photo setting. If Photo is selected, Background Suppression is
automatically set to OFF.
Color
Color — Color is only selectable in the SCAN mode. Select Color when
scanning full color documents. When Color Type is selected, a version
of the following screens will be displayed. The content of the screen will
depend on the selected FORMAT and COMPRESSION.
The following screens will only be displayed in SCAN mode when the
Scan-to-Net and Color Enablement feature keys are installed. The
Normal and Photo LED's will be lit when Color is selected.
The selections that appear on the screen depend on the FORMAT and
COMPRESSION selections.
XEROX WIDE FORMAT COPY SYSTEM
Getting to know the WIDE FORMAT COPY SYSTEM • 15
SCAN OPTIONS (COLOR)
9
FORMAT: : TIFF
PREVIEW
COMPRESSION:
:
PACKBITS
Scan Options (Color) Screen - Packbits Compression Selection
9
SCAN OPTIONS (COLOR)
PREVIEW
FORMAT: : TIFF
COMPRESSION:
PALETTE:
INDEX
DEFAULT
Scan Options (Color) Screen - Index Compression Selection
SCAN OPTIONS (COLOR)
9
PREVIEW
COMPRESSION:
FORMAT:
JPEG
NORMAL
Scan Options (Color) Screen – Normal Compression Selection
Background
Suppression
Background Suppression
The Background Suppression option enables you to make adjustments
for documents that contain poor contrast between the foreground image
and the background.
Four Background Suppression choices are provided:
Off This setting disables Background Suppression. All the
characteristics of the original document with minimum alteration are
reproduced on the copy. Choose this selection when:
•
The lead edge of the document is very different from the rest of
the document (e.g., the lead edge contains a black border).
•
Maps with grayscale or color content may copy best in this
mode.
•
To retain more light color information, such as light gray or
yellow.
NOTE: If Photo or Color is selected as the Original, Type, the Off
setting is automatically selected. The contrast can still be adjusted by
pressing the key(s) beneath Image Quality, Copy.
16 • Getting to know the WIDE FORMAT COPY SYSTEM
XEROX WIDE FORMAT COPY SYSTEM
(Light) This setting works best for documents on translucent or
transparent media, such as vellum (tracing paper) or film, or with
medium levels of colored background on opaque media or for
documents. Such documents have a higher contrast between the
foreground and background than dark documents, but less contrast
than normal documents.
(Dark) Use this setting for documents with a dark background or
with medium contrast between the foreground and background. In
this mode, the background is not suppressed, but the foreground
image is improved to increase the contrast.
Auto (factory default) – The Scan System automatically adjusts the
image quality parameters to obtain the best copy.
NOTE: All three Background Suppression settings can be adjusted
further by changing the contrast setting in the Image Quality and Copy
area.
Background Suppression can operate in either the dynamic or static
mode.
Select the Menu key> CONFIGURATION>IMAGE ENHANCEMENT.
IMAGE ENHANCEMENT
COLOR
SRGB
COLOR IQ:
IQ: SRGB
BEST IQ
NORMAL MODE:
9
DYNAMIC BACKGROUND REMOVAL
Image Enhancement Screen
When enabled, the dynamic mode will monitor the whole document and
adjust the image quality settings as the document is being scanned in
order to optimize the background of the copy.
When disabled, the static mode monitors the first two inches to establish
a background threshold that is used throughout the document in order to
optimize the background of the copy.
Static Background Suppression is not available in the PRODUCTIVITY
mode.
Copy
The Copy option allows you to darken or lighten the contrast of the copy
with respect to the original document. Press the down arrow key to
darken the contrast. Press the up arrow key to lighten the contrast. The
indicator lamp for the selected contrast setting illuminates. The middle
contrast setting is the factory default setting.
You can use this feature to further adjust the effects of the Type and
Background Suppression selections. The feature operates with all four
Background Suppression modes.
NOTE: Copy is not selectable in Color mode.
XEROX WIDE FORMAT COPY SYSTEM
Getting to know the WIDE FORMAT COPY SYSTEM • 17
Reduce/Enlarge
The Reduce/Enlarge area of the Scan System Control Panel allows you
to select one of three reduction/enlargement modes - Auto, Manual, and
Preset. The illustration below depicts the Reduce/Enlarge portion of the
Control Panel.
NOTE: Reduce/Enlarge can only be selected in Copy mode.
Reduce/Enlarge Area
Auto
Auto automatically adjusts the reduction/enlargement to fit the size of
media selected. To select the Auto mode, press the key beneath
Reduce/Enlarge until the Auto indicator lamp illuminates.
NOTE: The size of the output media must be known in advance for this
feature to operate. Therefore, Auto is not a valid selection if both the
Synchro cut option and the Sheet and Auto media source options are
selected. If you select this combination, an INVALID AUTO
COMBINATION status is displayed.
Manual
Manual allows you to reduce the image captured by the Scan System to
as little as 25%, or as much as 400%, of the original size before the copy
is printed.
To select the Manual mode:
1. Press the key beneath Reduce/Enlarge until the Manual
indicator lamp illuminates. The MANUAL
REDUCTION/ENLARGEMENT screen is displayed.
18 • Getting to know the WIDE FORMAT COPY SYSTEM
XEROX WIDE FORMAT COPY SYSTEM
NOTE: If the indicator lamp is already lit, press the key once to display
the screen.
MANUAL REDUCTION/ENLARGEMENT
ENTER (25.0 – 400.0):
100.0%
Manual Reduction/Enlargement Screen
2. Enter a reduction/enlargement between 25 and 400. You can
select any value between these limits in 0.1% increments.
3. Press the Enter key to confirm your choice and return to the
READY screen. The READY screen now displays the new
reduction/enlargement percentage.
NOTE: Pressing the Exit key rejects the choice and retains the previous
setting.
Preset
Preset (factory default) allows you to select a predefined reduction or
enlargement percentage.
To select the Preset mode:
1. Press the key under Reduce/Enlarge until the Preset indicator
lamp illuminates. The PRESET REDUCTION/ENLARGEMENT
screen is displayed.
NOTE: If the indicator lamp is already lit, press the key once to display
the screen.
PRESET REDUCTION/ENLARGEMENT
SELECT:
100.0%
Preset Reduction/Enlargement Screen
2. Press the Previous or Next key until the desired
reduction/enlargement ratio is displayed. The possible choices
are any combination of the following:
XEROX WIDE FORMAT COPY SYSTEM
•
50%, 100% (default), and 200%
•
65% and 129%, if the ANSI and ARCH sizes are enabled
Getting to know the WIDE FORMAT COPY SYSTEM • 19
•
71% and 141%, if the ISO A, ISO B or JIS B sizes are
enabled
•
Up to six additional preset values, if these values have been
defined using the CUSTOM R/E presets menu functions.
NOTE: Refer to “Media Series” in the “Main Menu” section for more
information about enabling media series and defining custom presets.
3. Press the Enter key to confirm your choice and return to the
READY screen. The READY screen now displays the new
reduction/enlargement percentage.
NOTE: Pressing the Exit key rejects the choice and retains the previous
setting.
Graphical Display
and Navigation Keys
The middle portion of the Scan System Control Panel contains the
graphical display and the navigation keys. The illustration below depicts
the middle portion of the Control Panel.
READY TO COPY
INSERT DOCUMENT
AUTO
100.0
%
Menu
Previous
Next
1
Enter
Exit
Mode
Navigational Keys and Graphical Display Area
Graphical Display
The graphical display provides you with information and instructions
pertaining to the system. It consists of up to four lines of text and
graphics. The display can be adjusted upward for better viewing.
Navigation Keys
The navigation keys, located beneath the display, are used to move
through the menu screens, to select items on the screen, and to specify
parameters when an options screen is displayed. Some keys have more
than one function depending on the screen being displayed at the time.
These special functions are explained in later sections.
Menu
The Menu key invokes the main menu. If a menu screen is already being
displayed, pressing this key exits the menus and directly returns you to
the previous READY State.
Previous
20 • Getting to know the WIDE FORMAT COPY SYSTEM
XEROX WIDE FORMAT COPY SYSTEM
The Previous key highlights the previous item in a displayed list.
Next
The Next key highlights the following item in a displayed list.
Enter
The Enter key either confirms the selection of the currently highlighted
item or confirms an entered numeric value.
Exit
The Exit key cancels a selection operation and returns you to a previous
screen. It has other effects, depending upon the specific situation, that
are explained later.
Mode
The Mode key is a valid selection only when READY is displayed on the
screen. This key is used to switch between the READY TO COPY mode
and the READY TO SCAN mode. The SCAN mode can be entered only
if the Scan-to-Net feature key is loaded.
Below are examples of the READY screen in COPY and SCAN modes.
READY TO COPY
INSERT DOCUMENT
AUTO
100.0 %
1
Ready to Copy Screen
READY TO SCAN
INSERT DOCUMENT
TIFF/CCITTG4
1
1 BIT
400
Ready to Scan Screen
In the COPY mode, the scanned image or set of images is printed on the
Printer and then deleted from the hard disk.
In the SCAN mode, the scanned image or set of images is stored on the
hard disk for later retrieval over a network by a client running on a
remotely located device. Scanned images can also be transferred to
four remote FTP destinations from the Samples Mode screen. Refer to
the “Scanning to the Network” section for more information about the
SCAN mode.
NOTE: The SCAN mode is an optional feature that is enabled by
installing the Scan-to-Net feature key. Contact your XEROX
representative for ordering information.
XEROX WIDE FORMAT COPY SYSTEM
Getting to know the WIDE FORMAT COPY SYSTEM • 21
Numeric Keypad and
Special Features/Control
Keys
The right side of the Scan System Control Panel contains a numeric
keypad for entering quantities, keys for selecting other features, and
keys for controlling the scanning and printing of images. To the left of
some of the keys are indicator lamps that illuminate when the associated
feature has been selected.
Batch
Transform
Sets Build
ABC
DEF
2
3
GHI
JKL
M NO
4
5
6
PRS
TUV
WXY
7
8
9
/.
0
C/CA
1
Finisher
Store/
Recall
Printer
Interrupt
Sample
Start
Stop
Numeric Keypad
The numeric keypad contains the 0 to 9 numeric keys, the decimal key
and the C/CA key.
Numeric (0-9) keys
These keys are used for numeric entry, password entry, and copy
quantity fields.
NOTE: The letters next to the numbers are for entering User and
Account Ids and Scan Directory information.
/. (Decimal key)
This key is used for entering alphanumeric values and string entries for
account and user identities and directory names.
NOTE: The forward slash (/) to the left of the decimal is for future use.
C/CA (Clear/Clear All) key
This key has the following functions:
•
When in READY TO COPY mode, one press clears the current
copy count to one. Two presses within one-second resets the
copy parameters to the default settings.
•
When in READY TO SCAN mode, pressing this key brings up
the CLEAR SCANNED IMAGE screen.
22 • Getting to know the WIDE FORMAT COPY SYSTEM
XEROX WIDE FORMAT COPY SYSTEM
Special Features
Keys
•
When in READY TO BUILD SET mode, pressing this key brings
up the scanned document (Refer to Sets Build key section of
this manual for additional information).
•
When in the entry state for numeric entry fields, pressing this key
acts as a backspace/delete key. When the last digit is deleted,
the numeric field goes to zero.
•
When in password entry and string entry fields, pressing this key
acts as a backspace key. When the last character is deleted, the
field is blank.
•
When in quantity entry fields, pressing this key clears the field
to 1.
The special features keys are used to activate, deactivate, or change
parameters associated with special features. An indicator lamp adjacent
to each feature key illuminates whenever the corresponding feature is
activated.
The special features keys include the Printer Interrupt, Store/Recall,
Finisher, Sets Build, Batch, Transform, and Sample keys. These
keys are described in detail in the Special features keys section of this
guide.
Scan Control Keys
The Start and Stop keys control the scanning and printing of images.
Start key:
The Start key is used to begin the copy sequence when the AUTOSCAN
feature is not enabled.
If you press the Start key while the status is NOT READY or INVALID
AUTO COMBINATION, the system will beep to indicate an invalid key
press. If you press the Start key while the status is READY TO COPY or
READY TO SCAN, the document is scanned.
NOTE: INVALID AUTO COMBINATION indicates an incompatible
combination of AUTO settings (i.e., Media Selection, Source set to
Sheet or Auto, Media Selection, Output Format set to Synchro, and
Reduce/Enlarge set to Auto).
Stop key:
The Stop key allows you to immediately stop the scanning operation to
prevent damage to the document. Any scanned information is discarded.
The READY screen prompts you to remove the document.
The Printer and the FreeFlow Accxes
Controller
For detailed operating instructions about the Printer and Controller
components of the WIDE FORMAT COPY SYSTEM and about network
connectivity, refer to the documentation listed below.
y
FreeFlow Accxes System & Web Print Management Tool Setup
Guide
y
FreeFlow Accxes Controller Service Manual for HFT/PUN
XEROX WIDE FORMAT COPY SYSTEM
Getting to know the WIDE FORMAT COPY SYSTEM • 23
y
Xerox FreeFlow Accxes Controller Service Manual for YKE/
YKE-N
Powering On the WIDE FORMAT
COPY SYSTEM
To power on the XEROX WIDE FORMAT COPY SYSTEMS, you first
must switch on the Scan System and wait for 30 seconds or check that a
“P” is displayed on the status LED in the back of the Scan System. Then
switch on the Printer, then the Controller.
Follow the instructions provided in this section for your system.
Initial power-on
For all controllers except the YKE controller and the YKE-N controller,
when the WIDE FORMAT SCAN SYSTEM is present, the DDS
parameter must be set to Enabled in order to enable the COPY/SCAN
functionality of the scanner. Go to the Web Print Management Tool.
Select Configuration > Printer > Printer Setup > DDS Enabled. Be sure
that the DDS Enabled checkbox is selected. If the DDS Enabled
checkbox is not selected, then the COPY/SCAN functionality will be
disabled.
The default for this parameter is disabled. You must ensure that it is set
to Enabled when powering on the XEROX WIDE FORMAT SCAN
SYSTEM for the first time. After setting the DDS parameter, wait 30
seconds, and then power the system off then on. Once you enable this
parameter, it will remain enabled (even following future software
upgrades).
For the XEROX WIDE FORMAT COPY SYSTEM 510 Series or 8825,
8830, and 8850, you can set this parameter from either the
CONTROLLER CONFIGURATION screen of the Printer Control Panel or
on the Web Print Management Tool. For the XEROX WIDE FORMAT
COPY SYSTEM 6030/6050, 721P, and 6204, you can only set this
parameter from the Web Print Management Tool, (Configuration >
Printer > Printer Setup > DDS Enabled).
Switching on the
Scan System
To switch on the Scan System, press the Power On/Off Switch on the
back of the Scan System to the On (I) position as shown below. Wait for
30 seconds or until a P is displayed on the status LED.
24 • Getting to know the WIDE FORMAT COPY SYSTEM
XEROX WIDE FORMAT COPY SYSTEM
SCAN SYSTEM
Power Switch
Power Switch for the Scan System
When the Scan System is switched on, the fluorescent lamp inside the
Scan System illuminates immediately. If the lamp does not illuminate,
refer to the "Problem solving" section of this guide.
Switching on the
Controller and the Printer
(XEROX WIDE FORMAT
COPY SYSTEM
8825/8830/8850)
Certain Controllers receive their power from the Printer. They do not
have a separate power switch.
NOTE: Ensure that the Scan System is switched on first and the “P” is
displayed in the Status Indicator window.
To power on these Controllers and the Printer, do the following:
1. Switch the Printer Power Switch to the Off position.
2. Switch the Circuit Breaker Switch to the On position.
3. Switch the Printer Power Switch to the On position.
XEROX WIDE FORMAT COPY SYSTEM
Getting to know the WIDE FORMAT COPY SYSTEM • 25
Switching on the PUN
or YKE Controller and
the Printer (XEROX
WIDE FORMAT
8825/8830/8850/510
Series/721P)
Controller Power Switches
The YKE and the PUN Controller has its own power switch. First power
on the Controller, and then power on the Printer.
YKE Controller Power Switch
Power Switch
location on the
PUN Controller
1.
26 • Getting to know the WIDE FORMAT COPY SYSTEM
XEROX WIDE FORMAT COPY SYSTEM
Switching on the
Printer and the
Controller
(PUN, YKE, and
YKE-N controllers)
NOTE: Ensure that the Scan System is switched on first and the P is
displayed in the Status Indicator window before powering on the
Controller.
The PUN controller and the FreeFlow Accxes Print Servers (YKE and
YKE-N controllers) each has its own power switch.
Power Switch location on the
YKE-N Controller.
When powering them on:
1. Power on the Printer.
2. Power on the Scan System.
3. Wait for the “P” to be displayed in the Status Indicator window of the
Scan System.
4. Power on the Controller.
XEROX WIDE FORMAT COPY SYSTEM
Getting to know the WIDE FORMAT COPY SYSTEM • 27
510 Series
Power Switch
721P Series
Power Switch
28 • Getting to know the WIDE FORMAT COPY SYSTEM
XEROX WIDE FORMAT COPY SYSTEM
Xerox 6030/6050
Wide Format
Power Switch
Xerox 6204 Wide Format
Power Switch
Note: The controller manages
the power supplied to the
Printer or Copier/Printer.
XEROX WIDE FORMAT COPY SYSTEM
Getting to know the WIDE FORMAT COPY SYSTEM • 29
Powering the Xerox 6204 Wide
Format Solution On/Off
The following describes the procedure for powering the Xerox 6204 Wide
Format Solution with FreeFlow Accxes Print Server on and off.
Powering On the
System
1. Move the printer circuit breaker switch up, to the On [ | ] position.
2. Move the printer power switch to the On [ | ] position.
Printer Power
Switch
Circuit Breaker
3. Press the power button on the front of the controller.
Power Button
The power button lamp will illuminate. After about one-half minute,
the control panel will display the message Printer Warming Up. The
machine will be print-ready in about three minutes.
CAUTION Powering down the system incorrectly may result in data
corruption and a service call. The system shutdown procedure below
allows the controller to power down correctly. Shutdown is best
performed through the Web Print Management Tool or the control
panel’s System Administration menu’s [Shutdown] feature. Only
authorized persons should power down the system fully.
Powering Off the
System
1. Ensure that all jobs have finished processing, and that the
<Transmitting> indicator on the control panel is not illuminated.
2. Select [Shutdown] from either the control panel or the Web Print
Management Tool.
From the control panel
Select the <Log In/Out> button, enter the System Administration
password, and then select the [Shutdown] button.
30 • Getting to know the WIDE FORMAT COPY SYSTEM
XEROX WIDE FORMAT COPY SYSTEM
The [Power Off] screen will display briefly on the control panel, and
then the control panel and the printer will shut down.
The controller will complete its shutdown within 30 seconds from the
moment the control panel and printer shut down. The controller’s
power button lamp will go out when the controller completes its
shutdown.
From the Web Print Management Tool
Select [Utilities] > Shutdown > [Shutdown].
The control panel, printer, and controller will undergo the same
power down process as described above.
3. Move the printer power switch to the off position.
4. Move the printer circuit breaker switch to the off position.
Scan System Warm-up
The Scan System requires about 45 seconds to warm up and initialize
after you power on the WIDE FORMAT COPY SYSTEM. Once the
initialization is complete, the READY screen is displayed. Below is an
example of the READY screen.
READY TO COPY
INSERT DOCUMENT
AUTO
100.0 %
1
Ready to Copy Screen
You can now insert a document into the Document Feed Tray of the
Scan System. The Scan System will then transport the document to the
starting position. This transportation of the document is called staging.
If you cannot insert a document into the feed mechanism and achieve
staging after approximately 4 minutes, refer to the "Problem solving"
section of this guide.
Powering off the System
To power off the WIDE FORMAT COPY SYSTEM, do the following:
1. Power off the Controller and the Printer.
•
For the 8825/8830/8850/510 Series, switch the Circuit
Breaker Switch to the Off (O) position. Then switch the
Printer Switch to the Off (O) position.
•
For the 721P, first power off the Printer. Then power off the
Controller.
2. Switch off the Scan System by pressing the Power On/Off Switch
on the back of the Scan System to the Off (O) position as shown
below.
SCAN SYSTEM
Power Switch
XEROX WIDE FORMAT COPY SYSTEM
Getting to know the WIDE FORMAT COPY SYSTEM • 31
Power On/Off Switch Photo
32 • Getting to know the WIDE FORMAT COPY SYSTEM
XEROX WIDE FORMAT COPY SYSTEM
Document quality
Document quality
Document quality is the primary factor in obtaining good copies from
scanned originals. For most documents, the four Background
Suppression key selections with DYNAMIC BACKGROUND REMOVAL
enabled, which is the default setting, provides an accurate copy. Some
documents, however, require manual adjustments to the settings.
This section explains the DYNAMIC BACKGROUND REMOVAL feature,
describes the characteristics of good quality and bad quality documents,
provides tips for preparing and organizing documents for scanning, and
summarizes the procedures for scanning documents of different quality
types.
Dynamic Background Removal
NOTE: DYNAMIC BACKGROUND Removal cannot be disabled
(unchecked) when using the Productivity mode.
The DYNAMIC BACKGROUND REMOVAL eliminates the need to make
additional manual adjustments for most input documents. Select the
Menu key > CONFIGURATION > IMAGE ENHANCEMENT.
This feature allows the system to dynamically adjust itself for each
document. There are two modes associated with this feature:
•
When DYNAMIC BACKGROUND REMOVAL is enabled, the
image is continually monitored as it is being scanned and the
copy quality parameters adjusted to achieve the best copy
quality.
•
When DYNAMIC BACKGROUND REMOVAL is not enabled, the
process takes a 0.70 inch (17.8 mm) snapshot over the full width
of the image after the first 1.5 inches scan. It uses this fixed area
to set the copy parameters for the remainder of the image being
scanned. This operating mode should be used for documents
with consistent background throughout.
DYNAMIC BACKGROUND REMOVAL only monitors the document in
the process direction, from the lead edge to the trail edge. It cannot
make adjustment from the left side to the right side of the document. For
example, if the input document is dark, DYNAMIC BACKGROUND
XEROX WIDE FORMAT COPY SYSTEM
Document quality • 33
REMOVAL will automatically make the appropriate compensation to
optimize the reproduction of the dark details. If the input document has a
faded background, the feature will enable a faithful reproduction of the
original. However, the faded background must be inserted with the fading
running in the process direction with the darker side being inserted first.
In some cases, you may wish to optimize the settings for individual
documents. For example, you may not wish to faithfully reproduce
paste-up lines, or other artifacts on the original. For this reason,
additional controls are available for selection of document type,
document image quality, desired output darkness, and background
suppression.
The DYNAMIC BACKGROUND REMOVAL feature, when enabled, uses
information about the document captured during the scanning process to
set image quality settings. The system automatically adjusts for the
darkness of the background and the image content throughout the length
of the document. When not enabled, it only uses the information in a
0.70 (17.8 mm) area over the width of the document to establish the
image quality settings. Therefore, best results can be obtained if the
document is fed in with an edge that has a representative sampling of
both the background and the foreground image.
The Dynamic Background Removal feature provides an accurate copy
for most documents including blueline, blueprints, color line art/text, and
mixed documents containing combinations of halftone and art, or
photograph and art. For documents with inverted images, the INVERT
function should be enabled. Refer to "Inverting an image" in the "Special
features keys" section for instructions on the INVERT function.
Automatic edge
detection and
document centering
The AUTOWIDTH /AUTOCENTER features enable the system to
automatically detect the width and center of the document. In cases
such as transparencies or translucent documents where automatic
detection is not possible, a message will prompt you to enter the width
manually. You then must center the document before inserting it into the
Scan System.
You can enable/disable the AUTOWIDTH/CENTER feature at any time.
Refer to "Scan System Control" in the "Main Menu" section of this
manual for more information.
PRODUCTIVITY MODE: This feature became available with version
10.0 FreeFlow Accxes software, and requires a new WIDE FORMAT
SCAN SYSTEM with the Productivity Document Feed Tray with the
discrete width sensors. This feature measures the document width
without doing a pre-scan, requiring the operator to manually align the
document within the media size guidelines on the Feed-in Tray. The
width sensors eliminate the need for a prescan, thereby increasing the
overall throughput of the system, resulting in higher productivity
When the PRODUCTIVITY MODE is used, the operator must select the
media series, ANSI, ARCH, ISO A, CUSTOM, etc., since the number of
sensors that can be provided can not monitor every media series. The
PRODUCTIVITY mode can be enabled/disabled at anytime. Refer to
"Scan System Control" in the "Main Menu" section of this manual for
more information.
34 • Document quality
XEROX WIDE FORMAT COPY SYSTEM
Determining document quality
Some documents require additional adjustments to obtain the best copy
quality. Documents of good quality are easy to scan and usually give
good copies on the first attempt. Documents of bad quality may require
more than one attempt, using different settings, to obtain the best copy
quality.
What is a good
quality document?
Background
Foreground
4"
4"
A good quality document has all of these characteristics:
What is a bad quality
document?
•
The contrast between the foreground (the image of interest) and
the background is high. The foreground may be color or black.
•
The foreground is a solid, high-density black or dark color (or
dark blue on a blueline, or dark brown on a sepia). The
foreground density is uniform. There is only one kind of
foreground (e.g., there are no pencil additions on a blueline). If
the document is of mixed type, the foreground is color.
•
If the document is white on black or white on blue, the
foreground is clear white or nearly white, and the background is
a solid, high-density black or dark color.
•
The background is white or light-colored and is free of speckling
or other noise. The background density is uniform.
•
The document has no creases, folds, stains, tears or extraneous
marks that the Scan System might interpret as foreground.
Bad quality documents often require special attention to achieve a
usable image. Fortunately, image processing technology is incorporated
that can extract acceptable images from documents degraded by many
kinds of problems.
A bad quality document has one or more of the following problems:
•
The foreground is light (e.g., a faded or overexposed blueprint or
light pencil lines).
•
The foreground has variable density (i.e., some parts are dark
and some parts are light).
•
The foreground consists of two or more densities or colors (e.g.,
pencil additions on an ink drawing, or pencil or ink additions on a
sepia).
•
The background is medium dark or dark (e.g., underexposed
blueprint).
•
The background has variable density.
•
The background has speckles.
XEROX WIDE FORMAT COPY SYSTEM
Document quality • 35
•
The document has creases, folds, stains, tears, or extraneous
marks that the Scan System might interpret as foreground.
Preparing documents
When preparing documents for scanning, keep the following points in
mind:
If documents have been stored rolled up, flatten them out. They will be
much easier to handle if they have been stored flat for at least eight
hours. The longer that documents have been stored flat, the easier it will
be to scan them. Rolled-up documents will typically roll back up after
being scanned.
If possible, sort the documents you are going to scan according to these
guidelines:
36 • Document quality
•
First, group the documents by media type - bond, vellum or
film. Within each document type, you can further group the
documents by image type (e.g., blueprint, pencil, sepia, line,
photo, mixed (photo and line, blueline and pencil), and so
forth).
•
Line documents contain lines or text against a highly
contrasted background.
•
Photo documents are continuous-tone or grayscale images.
•
Mixed documents contain both line elements and photo
elements or halftone images.
•
Scanning groups of documents of the same type or series
(ANSI, ARCH, etc.) minimizes the number of changes you
will need to make to the Image Quality settings.
•
Next, divide the documents in each media type group into "good"
and "bad" piles based on your evaluation of their foreground and
background quality. See "What is a good quality document?"
and "What is a bad quality document?" in this section for
assistance in doing so.
•
By grouping the documents in this way, you can scan the good
quality documents first. Then you can focus on the bad quality
documents, which will require more attention.
•
Next, determine if any of the documents are inverted (i.e., white
or light foreground against dark background). If any documents
are inverted, refer to "Inverting an image" in the "Special features
keys" section.
•
Finally, sort the documents by size or series (ANSI, ARCH, etc.).
This minimizes the number of times you will need to change the
Media Selection, Output Format settings when using preset or
custom format sizes.
XEROX WIDE FORMAT COPY SYSTEM
Scanning strategies
When scanning documents, always try the default Image Quality
settings first. Select the documents type: line, photo, mixed or color and
use the Original, Type, Normal, Line, Photo or Color default settings
for that type. Color is a Scan-to-Net feature and only available in SCAN
mode. These settings have been designed to give the optimum image
quality for most documents.
If you have a special original type, you may want to try some of the
advanced image processing features available on the Scan System.
Table 2 describes the scanning strategies for special original types.
Table 2. Scanning strategies for special documents
Type of original
First step to try
Second step to try
Color photograph
Set Original Type to Photo
Mode Scan: Set Original
Type to Color.
Set Original Type to
Normal and
Background
Suppression to Off.
Color lithograph
Mode COPY: Set Original
Type to Normal.
Set Original Type to
Normal and Background
Suppression to Off.
Set Original Type to
Photo.
Set Original Type to
Normal and Background
Suppression to Off.
Set Original Type to
Photo.
Mode SCAN: Set Original
Type to Color.
Color map
Mode COPY: Set Original
Type to Normal.
Mode SCAN: Set Original
Type to Color.
Third step to try
Old blueprint or sepia
with dark background
Set Original Type to Line
and Background
Suppression to Auto.
Transform, Invert to ON
Set Original Type to Line,
Background Suppression
to dark original,
Transform, Invert to ON.
Adjust the Copy
contrast as required
for best image
quality.
Old blueprint or sepia
with dark background
and side-to-side
fading
Set Original Type to Line
and Background
Suppression to Auto.
If fade is still visible in the
copy, rotate the original
90 degrees. Generally,
feeding the darkest edge
first provides the best
results.
Adjust the Copy
contrast as required
for best image
quality.
Faded line/text
drawing
Set Original Type to Line,
Background Suppression to
Auto.
If fade is still visible in the
copy, rotate the original
90 degrees.
Adjust the Copy
contrast as required
for best image
quality.
In reduction, use
Reduction Line
Preservation.
Line, photo or mixed
original on film, clear
film, vellum/tracing or
other translucent
media
Set Background
Suppression to (light) and
Normal. Select Photo for
photo and select Line for
line drawing. Use Normal
for mixed documents.
XEROX WIDE FORMAT COPY SYSTEM
Set Background
Suppression to OFF.
Document quality • 37
Image Quality
The Image Quality area of the Scan System Control Panel allows you to
make adjustments for both the type of Original document and the output
Copy to produce the best possible copy quality. It contains selections for
Original (Document): Type and Background Suppression, and Copy
options lighter or darker. There is also an IMAGE ENHANCEMENT
selection in the Menu options that can be used in some copy jobs to
improve the image quality. Press the Menu key and scroll to
CONFIGURATION > IMAGE ENHANCEMENT.
The illustration below depicts the Image Quality portion of the Control
Panel.
Image Quality Area
Original, Type
Type
XEROX WIDE FORMAT COPY SYSTEM
Image Quality • 39
The Type option allows you to specify the type classification of your
document. To select the document type, press the key beneath the
Type settings until the desired Type indicator lamp illuminates.
NOTE: The SCAN OPTIONS will not be displayed unless the Scan-toNet feature is installed. To order this feature, contact your XEROX
representative.
COPY MODE
Type, Normal, Line,
Photo,
The Type settings are: Normal, Line, and Photo. Color is only available
in SCAN mode.
The Line mode scans with high contrast to provide exceptional copying
of line drawings even light pencil is reproduced as a dark black line.
NOTE: Line mode should not be used with documents containing half
toned images, as this may cause them to become too dark.
Select Photo mode when the document contains a gray scale or color
image, such as a photograph.
Normal mode attempts to reproduce the document being scanned to
provide the best image quality including halftones and shadings as well
as fine lines.
1. Select the Line, Photo or Normal by pressing the arrow key
below Original, Type.
READY TO COPY
INSERT DOCUMENT
AUTO
100.0%
1
Ready to Copy Screen
Additional image quality settings associated with Normal, Line, and
Photo mode can be obtained by using the Menu key. Access the
IMAGING menu to use the REDUCTION LINE PRESERVATION and the
IMAGE ENHANCEMENT menu to use NORMAL MODE and DYNAMIC
BACKGROUND REMOVAL.
2. Press the Menu key to enter the menu options.
3. Press the Previous and Next keys to scroll to the
CONFIGURATION menu and press the Enter key.
4. Use the Previous and Next keys to scroll to the IMAGE
ENHANCEMENT or COPY OPTIONS>IMAGING menu, and then
press the Enter key.
5. Use Previous and Next keys to select the option, then press the
Enter key to select and enable the settings.
40 • Image Quality
XEROX WIDE FORMAT COPY SYSTEM
IMAGE ENHANCEMENT
IMAGING
AUTO-ROTATE
COLOR IQ: SRGB
9 REDUCTION LINE PRESERVATION
MAXIMUM COPY LENGTH: 1200.0 IN
Imaging screen
REDUCTION LINE PRESERVATION — Selecting the checkbox
will preserve fine lines in the original document when reducing
images during copying in Normal and Line mode only.
MAXIMUM COPY LENGTH – To see what your Scan System’s
maximum copy length is, select the Menu key > Configuration
> Copy Options > Imaging > Maximum Copy Length. The
default is 100 feet. For the 6030/6050, the scanned copy would
get cut off at 3 meters.
WARNING: Copy documents that are larger than the printer’s maximum
capability will not print correctly, or may not print at all.
IMAGE ENHANCEMENT
SRGB
COLOR
COLOR IQ:
IQ: SRGB
NORMAL MODE:
BEST IQ
9
DYNAMIC BACKGROUND REMOVAL
Image Enhancement Screen
NORMAL MODE — BEST IQ provides the best image quality,
but it is a slower scanning speed.
FASTEST provides a faster scanning speed with lower image
quality. It’s only available if the Turbo III Speed Enhancement
feature key is installed.
DYNAMIC BACKGROUND REMOVAL —The Dynamic
Background Removal feature, when enabled, uses information
about the document captured during the scanning process to set
image quality settings. The system automatically adjusts for the
darkness of the background and the image content throughout
the length of the document. Refer to DYNAMIC BACKGROUND
REMOVAL in the Document Quality section of this manual for
additional information.
SCAN MODE
Type, Normal
NOTE: SCAN mode will not be displayed unless the Scan-to-Net feature
is enabled. To order this feature, contact your XEROX representative.
XEROX WIDE FORMAT COPY SYSTEM
Image Quality • 41
Normal mode attempts to reproduce the document being scanned to
provide the best image quality including halftones and shadings as well
as fine lines. To select the scan options for Color Mode:
1. Press the Mode key. The Please Enter Directory screen is
displayed.
2. Enter the Directory Name. The READY TO SCAN INSERT
DOCUMENT screen is displayed.
3. Select the Normal by pressing the arrow key below Original,
Type key until the Normal light comes on. The SCAN OPTIONS
(NORMAL) screen is displayed.
4. Use the Enter key to enable/disable checkbox selection and the
Next or Previous Key to select options with a colon (e.g.,
FORMAT: TIFF).
The options available for selections displayed on the screen will change
depending on the FORMAT and COMPRESSION that are selected.
Listed below are the selections and available options and their
definitions:
•
PREVIEW - Use this checkbox to enable or disable the
generation of a preview image for your scanned document.
Default is enabled (checkbox is checked)
•
FORMAT - Use this selection to determine which format you
would like to have the scanned image saved in, TIFF, CALS (1
BIT only) or PDF. Default is TIFF.
The screen shown below only appears in the SCAN mode.
Additional image quality selections are available by pressing the
Menu key and scrolling to CONFIGURATION>COPY
OPTIONS>IMAGING or CONFIGURATION> IMAGE
ENHANCEMENT. Refer to the Main Menu section of the manual
for additional information on these selections.
SCAN OPTIONS (NORMAL)
9 PREVIEW
FORMAT:
TIFF
Scan Options (Normal) Screen
Type Line
42 • Image Quality
Line — Select Line for an image containing text, line art, or a mixture of
these. If the COPY mode is selected the READY TO COPY screen will
be displayed. If the Mode selected is SCAN, and the Scan-to-Net feature
key is installed, the SCAN OPTION (LINE) screen will be displayed.
XEROX WIDE FORMAT COPY SYSTEM
9
SCAN OPTIONS (LINE)
PREVIEW
TIFF
FORMAT:
Scan Options (Line) Screen
1. Select the Line by pressing the arrow key below the Original,
Type key. The SCAN OPTIONS (LINE) is displayed.
2. Press the Previous or Next key to highlight the scan option you
wish to change.
3. Select one of the following:
•
•
PREVIEW — Default is enabled and a checkmark is present
in the box. Press the Enter key to enable/disable the
preview. When PREVIEW is enabled, a small JPEG (.JPG)
file is created during the scanning process and stored on the
hard disk. The FreeFlow Accxes Client Tools software,
running on a network connected terminal, can use this file to
display a preview of the scanned image.
FILE FORMAT — Default is TIFF. Use the Next and
Previous keys to select the format for the document to be
saved as. The selection is TIFF, CALS or PDF.
4. Press the Enter key to confirm the selection.
Type Photo
Select Photo when the document contains a gray scale or color image,
such as a photograph. When Photo is selected in the Scan Mode, the
screen below will be displayed. The screen provides additional options
for the user.
9
SCAN OPTIONS (PHOTO)
PREVIEW
COMPRESSION:
RAW
FORMAT:
TIFF
Scan Options (Photo) Screen
The SCAN OPTIONS (PHOTO) menu allows you to perform the
following functions:
•
Enable or disable PREVIEW in Photo mode. When PREVIEW
is enabled, a small JPEG (.JPG) file is created during the
scanning process and stored on the hard disk. The FreeFlow
Accxes Client Tools software, running on a network connected
terminal, can use this file to display a preview of the scanned
image.
•
Specify the saved document compression format for Photo
mode.
XEROX WIDE FORMAT COPY SYSTEM
Image Quality • 43
•
View the saved document file format for Photo mode. The
format is 8 bit TIFF.
NOTE: This option will not be displayed unless the Scan-to-Net feature
is enabled. To order this feature, contact your XEROX representative.
NOTE: The Background Suppression option cannot be used with the
Photo setting. If Photo is selected, Background Suppression is
automatically set to Off.
1. Enter the SCAN mode by pressing the Mode key, then entering
the Directory Name and pressing the Enter key.
2. Select Photo by pressing the arrow key below Original, Type
key. The screen shown below is displayed.
SCAN OPTIONS (PHOTO)
PREVIEW
9
COMPRESSION:
RAW
TIFF
FORMAT:
Scan Options (Photo) Screen
3. Press the Previous or Next key to highlight the scan option you
wish to change.
Do one of the following:
•
For PREVIEW, press the Enter key to enable or disable the
option. A checkmark appears in the box to the left of the
option when the option is enabled. The factory default
setting is enabled.
•
For COMPRESSION, press the Previous or Next key to
highlight the desired setting. Then press the Enter key to
select the highlighted format. The choices are RAW and
PACKBITS. The factory default setting is RAW.
4. For FILE FORMAT, the only selection is TIFF. Repeat steps 3
and 4 to change the remaining setting, if desired.
5. Press the Enter key to confirm the selection.
6. Press the Exit key to return to the Ready screen.
Type, Color
Color — Select Color when scanning full color documents. When Color
Type is selected, a version of the following screens will be displayed.
The content of the screen will depend on the selected FORMAT and
COMPRESSION.
This screen will only be displayed in SCAN mode when the Scan-to-Net
and Color Enablement feature keys are installed. The Normal and
Photo LEDs will be lit when Color is selected.
To select the scan options for Color Mode:
1. Press the Mode key. The Please Enter Directory screen is
displayed.
44 • Image Quality
XEROX WIDE FORMAT COPY SYSTEM
2. Enter the Directory Name. The READY TO SCAN INSERT
DOCUMENT screen is displayed.
3. Select the Color by pressing the arrow key below the Original,
Type key until the Normal and Photo lights come on. The SCAN
OPTIONS (COLOR) screen is displayed.
4. Use the Enter key to enable/disable checkbox selection and the
Next or Previous Key to select options with a colon (e.g.,
FORMAT: TIFF).
The options available for selections displayed on the screen will change
depending on the FORMAT and COMPRESSION that are selected.
Listed below are the selections and available options and their definition:
PREVIEW - Use this checkbox to enable or disable the generation of
a preview image for your scanned document. Default is enabled
(checkbox is checked)
FORMAT - Use this selection to determine which format you would
like to have the scanned image saved in, TIFF or JPEG. Default is
TIFF.
COMPRESSION (TIFF selected) - Use this selection to determine
the compression method to apply to the saved TIFF document.
Select one of the following:
PACKBITS - Saves the document as 24-bit RGB compressed.
INDEX - Saves the document as 8-bit indexed RGB (using
thresholding) compressed with PACKBITS.
INDEX ED - Saves the document as 8-bit indexed RGB (using error
diffusion) compression with PACKBITS
SCAN OPTIONS (COLOR)
9
FORMAT: : TIFF
PREVIEW
COMPRESSION:
:
PACKBITS
Scan Options (Color) Screens
9
SCAN OPTIONS (COLOR)
PREVIEW
FORMAT: : TIFF
COMPRESSION:
PALETTE:
INDEX
DEFAULT
Scan Options (Color) Screen – TIFF file format
PALETTE - Is shown only when the selected FORMAT is TIFF and
the COMPRESSION is INDEX or INDEXED. Use this selection to
determine which palette to use during RGB-to-index color
conversion. Select one of the following:
•
XEROX WIDE FORMAT COPY SYSTEM
DEFAULT - Is the standard Windows system palette.
Image Quality • 45
•
CAD_GIS - Is an AutoCAD-based palette suitable for
scanning CAD documents and GIS maps.
•
WEB - Is a Windows WEB palette of 216 colors suitable for
publishing documents on the WEB.
•
PERCEPTUAL - Perceptual palette or Visual palette gives
more weight to visually sensitive colors.
SCAN OPTIONS (COLOR)
9
PREVIEW
COMPRESSION:
FORMAT:
JPEG
NORMAL
Scan Options (Color) Screen – JPEG file format
COMPRESSION (JPEG file format selected) - Use this selection to
determine the compression method to apply to the saved JPEG
document. Select one of the following:
46 • Image Quality
•
BEST IQ - Saves a document at a lower compression ratio
but has higher image quality.
•
NORMAL - Saves a document at an average compression
ratio and has average image quality.
•
BEST COMPRESSION - Saves a document at a higher
compression ratio but has a lower image quality
XEROX WIDE FORMAT COPY SYSTEM
Background Suppression
The Background Suppression enables you to make adjustments for
documents that contain poor contrast between the foreground image and
the background. Background Suppression monitors the pre-scan
image, to ensure the best image quality possible. In the PRODUCTIVITY
mode, there is no prescan, therefore Background Suppression is done
while the document is being scanned.
NOTE: The scan system uses the first few inches of a document to
determine the background suppression. If the first few inches of the
document being scanned are not representative of the entire document,
either too much or too little of the background will be removed. If this
occurs, try physically turning the document 90 degrees and scan it again.
Continue with this until an edge is found that produces a good scan.
Four choices are provided:
NOTE: Off is the only choice for Photo and Color Scanning. Scanning
low contrast documents with background suppression OFF will produce
washed out images. When scanning these documents, background
suppression should be set to AUTO or DARK.
Off
This setting disables Background Suppression. It produces a
document that reproduces all the characteristics of the original
document with minimum alteration. Choose this selection when:
•
The lead edge of the document is very different from the rest
of the document (e.g., the lead edge contains a black border).
•
Maps with grayscale or color content may copy best in this
mode.
•
To retain more light color information such as light gray or
yellow.
(Light) This setting works best for documents on translucent or
transparent media, such as vellum (tracing paper) or film, or with
medium levels of colored background on opaque media or for
documents. Such documents have a higher contrast between the
foreground and background than dark documents, but less
contrast than normal documents.
(Dark) Use this setting for documents with a dark background or
with medium contrast between the foreground and background. In
this mode, the background is not suppressed, but the foreground
image is improved to increase the contrast.
Auto (factory default) - The Scan System automatically adjusts the
image quality parameters to obtain the best copy.
NOTE: All three Background Suppression settings can be adjusted
further by changing the contrast setting in the Image Quality, Copy
area.
XEROX WIDE FORMAT COPY SYSTEM
Image Quality • 47
Copy
The Copy option allows you to darken or lighten the contrast of the copy
with respect to the original document. Press the down arrow key to
darken the contrast. Press the up arrow key to lighten the contrast. The
indicator lamp for the selected contrast setting illuminates. The middle
contrast setting is the factory default setting.
You can use this feature to further adjust the effects of the Type and
Background Suppression selections. The feature operates with all four
Background Suppression modes.
48 • Image Quality
XEROX WIDE FORMAT COPY SYSTEM
Making copies
Making copies
When the Graphical Display indicates READY TO COPY, the WIDE
FORMAT COPY SYSTEM is ready to make copies.
Controlling the scan
Several settings are available for controlling how the Scan System starts
and finishes a scan. These settings are accessible from the SCANNER
CONTROL option of the CONFIGURATION menu.
SCANNER CONTROL
9
AUTOSCAN
DOCUMENT RETURN:
MODE:
FRONT
AUTOWIDTH / AUTOCENTER
Scanner Control Screen
When making a copy, you need to be aware of these settings. If any of
these settings have been changed from the default settings, the Scan
System may not operate according to your expectations.
Below is a brief summary of the scan control settings. For complete
information about these settings, refer to “Scan System Control” in the
“Main Menu” section of this manual.
AUTOSCAN
AUTOSCAN enabled is the default setting. Normally, the AUTOSCAN
mode is enabled. When it is enabled, the Scan System automatically
begins the scanning of a document when the document is inserted. If
AUTOSCAN is disabled, the Scan System transports the document to
the starting position and then waits for you to press the Start key before
beginning the scan.
DOCUMENT RETURN
FRONT is the default setting. When the DOCUMENT RETURN feature
is set to FRONT, the Scan System returns the document to the front or
READY position at the completion of the scan. When the DOCUMENT
RETURN feature is set to REAR, the Scan System delivers the
document to the rear Stacker at the completion of the scan.
XEROX WIDE FORMAT COPY SYSTEM
Making copies • 49
Some documents will always exit to the rear at the completion of the
scan regardless of the DOCUMENT RETURN setting. These documents
include:
•
Thick documents
•
Documents longer than 5 feet (1.52 meters)
•
Documents over 36 inches (914 mm) in width
MODE:
MANUAL - The user must enter the width of the document manually, and
very carefully center the document when inserting it into the Scan
System. The document is prescanned in this mode.
AUTOWIDTH - This is the default setting. When AUTOWIDTH is
selected, the Scan System automatically detects the width of the
document.
AUTOWIDTH/AUTOCENTER - The document is prescanned in this
mode. When AUTOWIDTH/AUTOCENTER is enabled, the Scan System
automatically centers the image and automatically detects the document
width.
PRODUCTIVITY – ANSI - PRODUCTIVITY is only available on Scan
Systems with FreeFlow Accxes firmware 10.0 or higher, Scan System
firmware 3.2.6 or higher, and the Productivity Document Feed Tray that
includes discrete width sensors. PRODUCTIVITY – ANSI is the default.
Other media type selections include ARCH, ISO A, ISO B, JIS B and
CUSTOM. These selections must be made so that the sensors detect
the correct width. This feature eliminates the prescan width
measurement, which increases document throughput speed resulting in
greater productivity. CUSTOM requires standard media sizes to be
entered in CUSTOM MEDIA FORMATS.
AUTOWIDTH and AUTOWITH/AUTOCENTER are not available in this
mode.
Select the Menu key > CONFIGURATION>SCAN SYSTEM CONTROL,
MODE: for additional information.
50 • Making copies
XEROX WIDE FORMAT COPY SYSTEM
Image Quality
The Image Quality area of the Scan System Control Panel allows you to
make adjustments for both the type of original document and the output
copy to produce the best possible image quality. It contains selections
for Original (Document): Type and Background Suppression, and
Copy options lighter or darker.
The illustration below depicts the Image Quality portion of the Control
Panel. Refer to the Image Quality section of this manual for additional
information.
Image Quality Illustration
There are many settings, other than Media Selection, Image Quality
and Reduce/Enlarge areas, which are available on the Control Panel.
The Transform special features key allows you adjust the margins
around the image, specify the position of the image on the media, and
transform the image into a mirror and/or inverted. Refer to the applicable
sections of this guide for detailed information about the many document
settings available to you.
XEROX WIDE FORMAT COPY SYSTEM
Making copies • 51
Making a copy with the default
settings
When the default document settings are used, the display indicates that
the roll of media that best fits the size of the original document will be
automatically selected. The reduction/ enlargement setting is 100%, so
the copy will be the same size as the original document. The copy
quantity is set to 1.
The illustration below shows the READY screen in its default state.
READY TO COPY
INSERT DOCUMENT
AUTO
100.0%
1
Ready to Copy Screen
NOTE: Many document settings other than the default settings are
possible. For example, the options keys on the Scan System Control
Panel allow you to control the media selection, image quality and
reduction/enlargement percentage. The Transform special features key
allows you to adjust the margins around the image, specify the position
of the image on the media, and transform the image into a mirror and/or
inverted image. Refer to the applicable sections of this guide for detailed
information about the many document settings available to you.
NOTE: When scanning to print, the copy is made using the current
Printer processing defaults including margins. If the image being
scanned is the same size as the media being used, set the margins to 0
(zero) to prevent the image from being clipped or select a larger media
size.
To make a copy using the default document settings:
1. Insert the original document face down and centered on the
Document Feed-in Tray of the Scan System.
NOTE: If the document is not exactly centered and the AUTOCENTER
feature is enabled, the Scan System will automatically correct the
problem electronically. The resulting image will still be correctly
positioned on the output media. If AUTOWIDTH/AUTOCENTER is
disabled, you will need to carefully center the document when inserting it.
Refer to “Controlling the scan” on the previous page.
AUTOWIDTH/AUTOCENTER is not available in the PRODUCTIVITY
mode, requiring the user to manually align the document within the
appropriate document size guidelines on the Feed-in Tray.
2. Gently move the document forward until the lead edge engages
the feed rolls. The Scan System transports the document to the
52 • Making copies
XEROX WIDE FORMAT COPY SYSTEM
starting position. It then scans the document. The resulting
image is electronically sent to the Printer and your copy is
printed.
NOTE: If AUTOSCAN is disabled, you will need to press the Start key to
begin the scan. Refer to “Controlling the scan” on the previous page.
NOTE: If the PRODUCTIVITY mode is enabled the document will start
scanning immediately. If the PRODUCTIVITY mode is not enabled, the
document will pre-scan a small distance then reverse itself before
starting the complete scan.
3. When the document is returned to the READY position, do one
of the following:
•
Pull the document to remove it. Lift the Thick Document
Lever to remove fragile or thick documents.
•
Press the Start key on the Scan System Control Panel to
scan the document again.
NOTE: If DOCUMENT RETURN is set to REAR, the document is
delivered to the rear Stacker. Some documents exit to the rear Stacker
regardless of the DOCUMENT RETURN setting. Refer to “Controlling
the scan” on the previous page.
Making a copy the same size as the
original document
1. Set the Media Selection Source to Auto. The Auto indicator
lamp illuminates. This setting allows the WIDE FORMAT COPY
SYSTEM to automatically select the available media roll that
best fits the image width.
NOTE: If the correct media size is not loaded, the next larger size will be
used.
2. Select the Media Selection, Type. The default setting is Bond.
3. Set the Media Selection, Output Format to Synchro. This
setting cuts the media to the same length as the original
document.
4. Set Reduce/Enlarge to Preset. If the size is not already set to
100%, use the Previous and Next keys to select a reduction and
press the Enter key.
5. Insert the document face down into the Scan System. If the
scan does not start automatically, press the Start key.
NOTE: To set the scan to begin automatically, refer to “Scan System
Control” in the “Main Menu” section.
NOTE: If the image needs to be rotated to fit on the selected media size,
additional processing time is required. If possible, feed the original
XEROX WIDE FORMAT COPY SYSTEM
Making copies • 53
image so that no image rotation is required. This will achieve the fastest
processing time. For example, if an A-size copy is required on a 12-inch
(30.48 cm) roll, feed the original with the short edge first, not the long
edge first. If a B-size copy is required on a 17-inch roll, feed the
document with the long edge first, not the short edge first.
The Scan System scans the document and the Printer (if not already
busy) prints the copy immediately. If the Printer is busy when the scan is
made, the copy will be printed when the Printer becomes available.
When the Scan System detects the trail edge of the document, the
Printer automatically cuts the media so that the copy is the same length
as the original document.
Fitting the image to a fixed copy size
The scanned image can be automatically fit onto a predefined size of
media.
1. Set the Media Selection, Source to Auto. The Auto indicator
lamp illuminates. This setting automatically selects the available
media roll that best fits the image width.
2. Select the Media Selection, Type of media. The default setting
is Bond.
3. Set the Media Selection, Output Format to Preset and select
the desired page size. This setting cuts the media to a
previously defined length that the operator chooses.
PRESET OUTPUT FORMAT
SELECT
8.5 X 11 ANSI A
Preset Output Format Screen
4. Press the Previous or Next key until the desired output size is
highlighted.
5. Press the Enter key to confirm your choice.
6. Set the Reduce/Enlarge to Auto.
7. Insert the document face down into the Scan System. If the
scan does not start automatically, press the Start key.
NOTE: To set the scan to begin automatically, refer to “Scan System
Control” in the “Main Menu” section of this manual.
The Scan System scans the document, and the Printer (if not already
busy) prints the copy immediately. If the Printer is busy when the scan is
made, the copy will be printed when the Printer becomes available.
54 • Making copies
XEROX WIDE FORMAT COPY SYSTEM
Scanning when using a Folder
Scanning when using a Folder
When using a Folder, the document must be inserted in the correct
orientation in order to have the title block visible after the copy is folded.
Refer to the Finisher key information in the Special feature keys section
of this manual for additional information to set up the desired fold and
other Finisher options. Documents larger than 80 inches (2.1M) can only
be partially folded.
When using the Reduce/Enlarge feature and a Folder, you must orient
and insert the document title block in the same orientation as the
resulting enlargement or reduction copy size. In addition, the
recommended media should be used.
For example: the job requires that an A (A4) document be enlarged to a
C (A2) document. To have the title block visible after folding, the A (A4)
document must be inserted as if it were a C (A2) document.
You may want to refer to CUSTOM R/E PRESETS in the Main Menu,
COPY OPTIONS section, and set up the REDUCTION/ENLARGEMENT
default to show the standard reduction and enlargement. Set the
reduction /enlargement to display A to C (A4 to A2) above the keys.
To ensure that the selected fold is made correctly, it is critical that the
document be centered on the Scan System Document Feed Tray when
scanning.
For additional folding and title block positioning information, refer to the
Folder Operator Manual or the Folding Supplement CD.
XEROX WIDE FORMAT COPY SYSTEM
Scanning when using a Folder • 55
Ready to Copy
Finisher Screen
When the Finisher key is pressed and the finishing options are selected,
a new page icon is added to the READY TO COPY screen. The page
icon is displayed with a dotted box at one of the page corners. The
dotted box indicates the title block location selection made using the
Finisher menu. The title block location can be changed on this screen
using the Next and Previous keys. Refer to the Finisher Key section for
additional finishing information. The title block location icon will show a
dotted line in all corners when a fold program other than BYPASS is
selected.
READY TO COPY
INSERT DOCUMENT
AUTO
100.0 %
1
Ready to Copy Screen
NOTE: Any of the finishing options can be changed during a Sets Build
job. The option(s) must be changed before the document to be copied is
inserted.
56 • Scanning when using a Folder
XEROX WIDE FORMAT COPY SYSTEM
Scanning oversized documents
Scanning oversized documents
An oversized document is defined as any document that is larger in width
or length than a standard E-size (A0) document.
LONG DOCUMENTS
Operator assistance will be required to guide and control the position of a
long document to prevent it from skewing or moving from side-to-side as
it feeds through the Scan System. Documents longer than 36 inches
(914 mm) will always exit to the rear of the Scan System.
See the Maximum Copy Length section in this document.
WIDE DOCUMENTS
Documents wider than 36 inches (914 mm), but less than 42 inches
(1057 mm), can be scanned. However, the scanned image area, of a
document centered on the Feed-in Tray, is 36 inches (914 mm). Any
image beyond the 36 inch (914 mm) width will be clipped off on the
output copy.
When a document wider than 36 inches (914 mm) is inserted into the
Document Handler, a message will be displayed to enter the scan width.
To scan the document, enter 36 in. (914 mm) then press the Enter key to
start the scan. A number larger than 36 (914) will not be accepted.
XEROX WIDE FORMAT COPY SYSTEM
Scanning oversized documents • 57
Special features keys
Special features keys
There are many enhanced features for making copies that meet special
needs. The keys that control these features are on the right side of the
Scan System Control Panel.
To enable a feature, press the applicable key. If the feature has an
associated screen, that screen is displayed when the key is pressed. If
any settings are changed from the default state, the corresponding
indicator lamp next to the key illuminates. Pressing the C/CA key on the
numeric keypad twice returns all settings for the feature to the default
state and the corresponding indicator lamp is extinguished.
When the settings for a feature are appropriately set, pressing the same
feature key causes the changes to be accepted and the system returns
to the READY state. Pressing a different feature key while editing a
setting is invalid and causes a beep. Pressing a different feature key
while not editing a setting causes the requested feature screen to be
displayed.
If a feature has no associated screen, pressing that feature key switches
the feature on (enabled) or off (disabled). When such a feature is
enabled, the corresponding indicator lamp is illuminated.
If the BEEP function (factory default) is enabled, a beep sound will be
heard when a key is pressed. If an improper key is pressed, a multiple
beep sound will be heard.
The illustration on the following page depicts the special features portion
of the Scan System Control Panel.
XEROX WIDE FORMAT COPY SYSTEM
Special features keys • 59
Batch
Transform
Sets Build
ABC
DEF
2
3
GHI
JKL
M NO
4
5
6
PRS
TUV
WXY
7
8
9
/.
0
C/CA
1
Finisher
Store/
Recall
Printer
Interrupt
Sample
Start
Stop
Numeric Keys Area
Printer Interrupt key
Jobs on the WIDE FORMAT COPY SYSTEM have the following priority:
1. Any job currently printing
2. A copy job that is ready to print
3. A remote print job.
If a remote print job is in progress, a copy job (one or more images
captured by the Scan System), cannot normally use the Printer until the
remote print job has finished. The Printer Interrupt key enables you to
switch the copy priority from normal to high.
To process a copy job immediately, press the Printer Interrupt key. The
Printer Interrupt indicator lamp illuminates. The current pages of the
most current remote print job are completed. Usually a maximum of two
pages are printed. The print job is then suspended and you can run copy
jobs. When the copy jobs are finished, you can press the Printer
Interrupt key again. The Printer Interrupt indicator lamp is
extinguished. The interrupted remote print job resumes.
If you send no more copy jobs, press no keys, and scan no documents,
the Printer Interrupt feature is automatically disabled after a time set by
the PRINTER INTERRUPT timer. Refer to "Timers" in the "Main Menu,
CONFIGURATION" section for instructions about how to set this value.
The default value is 1 minute. It can be set to a value between 1 and 99
minutes.
60 • Special features keys
XEROX WIDE FORMAT COPY SYSTEM
Store/Recall key
The Store/Recall feature contains the following menu choices:
•
LAST JOB - Enables you to recall and reuse the information from
the last copy job.
•
JOB TEMPLATES - Enables you to save the settings from
previous jobs in memory as templates.
•
SAVE DEFAULT TEMPLATE - Enables you to save the settings
from the current job as the default template.
•
RECALL FACTORY DEFAULTS - Enables you to recall the
factory default settings as the active default settings.
To access the STORE/RECALL menu:
1. Press the Store/Recall key. The STORE/RECALL menu screen
is displayed. The black arrows indicate that the menu contains
more options than are visible. The selected option is highlighted.
STORE/RECALL
LAST JOB
JOB TEMPLATES
SAVE DEFAULT TEMPLATE
Store/Recall Screen
2. Press the Previous or Next key to scroll through the list of
options.
3. When the desired option is highlighted, press the Enter key to
select the option. The menu or screen for the selected option is
displayed.
Last Job
The LAST JOB option of the STORE/RECALL menu provides a submenu of the following choices:
•
RECALL LAST JOB – Enables you to recall and reuse the
parameters, images, and features associated with the last copy
job. You can either reprint the last job or print a new job using all
of the recalled settings. If you desired, the recalled settings could
be changed without scanning the job again.
NOTE: When Immediate Image Overwrite is enabled on the Web Print
Management Tool, and is running, all the scanned images and image
sets will be deleted from FreeFlow Accxes as soon as they are
processed. The FreeFlow Accxes controller will reboot, causing a “DISK
IMAGE OVERWRITE IN PROGRESS ” message on the printer and scan
system during the reboot. Scan System users will not be able to recall
the last job.
XEROX WIDE FORMAT COPY SYSTEM
Special features keys • 61
•
DELETE LAST JOB – Enables you to delete the information from
the last job.
NOTE: In the SCAN mode, the Last Job option is not available.
To access the LAST JOB menu:
1. Press the Store/Recall key. The STORE/RECALL menu screen
is displayed.
2. Press the Enter key to select LAST JOB. The LAST JOB menu
screen is displayed. The selected option is highlighted.
LAST JOB
RECALL LAST JOB
DELETE LAST JOB
Last Job Screen
3. Press the Previous or Next key to highlight the desired option.
4. Press the Enter key to select the highlighted option. The screen
for the selected option is displayed.
Recalling the Last Job
Use the RECALL LAST JOB option to recall the information from the last
job.
NOTE: If the Invert feature (changes dark to light and vice versa) is
selected before printing the recalled document, the document will not be
inverted. It will need to be rescanned to get the inverted image.
To recall the last job information:
1. Press the Store/Recall key. The Store/Recall menu screen is
displayed.
2. Press the Enter key to select LAST JOB. The LAST JOB menu
screen is displayed.
3. Press the Enter key to select RECALL LAST JOB. The screen
shown below is displayed.
COPIER PARAMETERS AND IMAGES
FOR LAST JOB RECALLED
PRESS ENTER TO CONTINUE
Copier Parameters and Images Screen
4. Press the Enter key to return to the READY screen.
You can now use the settings as they have been recalled, or you can
change one or more of them.
62 • Special features keys
XEROX WIDE FORMAT COPY SYSTEM
Reprinting with
Changed Features
If the last job was a set, the settings that can be changed are displayed
in a neutral state (the LEDs are off). Changing one of these settings will
apply to all of the pages in the set. Some of the settings that can be
changed are: scale, page size, media type, margins, and justification.
NOTE: The recalled job must be printed or cleared before the next
document can be scanned. If there is no last job to be restored, as is the
case at power up or after the last job has been deleted, a warning
message will advise you.
Deleting the Last Job
If, for security reasons, the parameters and images of the last job should
not be left stored, use the DELETE LAST JOB option.
To delete the information from the last job:
1. Press the Store/Recall key. The STORE/RECALL menu screen
is displayed.
2. Press the Enter key to select LAST JOB. The LAST JOB menu
screen is displayed.
3. Press the Next key to highlight DELETE LAST JOB.
4. Press the Enter key to select DELETE LAST JOB. A delete
confirmation screen is displayed. The default response is NO.
DELETE LAST JOB
ARE YOU SURE ?: NO
Delete Last Job Screen
5. Press the Previous or Next key to change the response to YES.
6. Press the Enter key to confirm the deletion. The screen shown
below is displayed. The last job images and parameters are
deleted.
LAST JOB PARAMETERS AND
IMAGES ARE NOT AVAILABLE
PRESS ENTER TO CONTINUE
Job Parameters and Images Screen
7. Press the Enter key to return to the READY screen.
Job Templates
The JOB TEMPLATES option of the STORE/RECALL menu provides a
sub-menu of the following choices:
•
RECALL TEMPLATE - Enables you to recall saved settings.
•
SAVE TEMPLATE - Enables you to save job settings in memory.
•
DELETE TEMPLATE - Enables you to delete saved settings.
XEROX WIDE FORMAT COPY SYSTEM
Special features keys • 63
To access the JOB TEMPLATES menu:
1. Press the Store/Recall key. The STORE/RECALL menu screen
is displayed.
2. Press the Next key to highlight JOB TEMPLATES.
3. Press the Enter key to select JOB TEMPLATES. The JOB
TEMPLATES menu screen is displayed. The selected option is
highlighted.
JOB TEMPLATES
RECALL TEMPLATE
SAVE TEMPLATE
DELETE TEMPLATE
Job Templates Screen
4. Press the Previous or Next key to highlight the desired option.
5. Press the Enter key to select the highlighted option. The screen
for the selected option is displayed.
Saving Job Templates
The SAVE TEMPLATE option allows you to save groups of settings
associated with a job in memory as templates. Up to nine such
templates can be saved.
To save a job template:
1. Press the Store/Recall key. The STORE/RECALL menu screen
is displayed.
2. Press the Next key to highlight JOB TEMPLATES.
3. Press the Enter key to select JOB TEMPLATES. The JOB
TEMPLATES menu screen is displayed.
4. Press the Next key to highlight SAVE TEMPLATE.
5. Press the Enter key to select SAVE TEMPLATE. The SAVE
TEMPLATE screen is displayed. It shows the unused template
locations. Locations that contain a template already are not
shown.
SAVE TEMPLATE
UNUSED TEMPLATES: 6 7 8 9
ENTER TEMPLA TE NUMBER: 0
Save Template Screen
6. Choose an unused location and use the numeric keypad to enter
its location.
64 • Special features keys
XEROX WIDE FORMAT COPY SYSTEM
7. Press the Enter key to confirm your location choice. The
settings from the current copy job are saved at the location
entered and a save confirmation screen is displayed.
JOB PARAMETERS SAVED
PRESS ENTER TO CONTINUE
Job Parameters Saved Screen
NOTE: You can replace the contents of a used location with the current
job settings information. If you choose a location that already contains
information, the TEMPLATE IS IN USE screen is displayed as shown
below. Press the Enter key to overwrite the contents. Press the Exit key
to cancel the operation.
TEMPLATE IS IN USE
PRESS ENTER TO OVERWRITE
EXIT TO ABORT
Template is in Use Screen
8. Press the Enter key to return to the READY screen.
Recalling Job
Templates
The RECALL TEMPLATE option allows you to recall job parameters that
were previously saved as templates and use them for the current job.
To recall a template:
1. Press the Store/ Recall key. The STORE/RECALL menu
screen is displayed.
2. Press the Next key to highlight JOB TEMPLATES.
3. Press the Enter key to select JOB TEMPLATES. The JOB
TEMPLATES menu screen is displayed.
4. Press the Enter key to select RECALL TEMPLATE. The
RECALL TEMPLATE screen is displayed. The storage locations
that actually contain templates are shown. Locations that do not
contain a template are not shown.
XEROX WIDE FORMAT COPY SYSTEM
Special features keys • 65
RECALL TEMPLATE
TEMPLATES IN USE:
1
2
3
ENTER TEMPLA TE NUMBER
0
4
5
Recall Template Screen
5. Use the numeric keypad to enter the location of the template to
be recalled.
6. Press the Enter key to confirm your choice. A recall
confirmation screen is displayed. The associated template is
recalled and the Scan System Control Panel settings are
configured accordingly.
JOB PARAMETERS RECALLED
PRESS ENTER TO CONTINUE
Job Parameters Recalled Screen
You can now use the parameter settings as they have been recalled, or
you may change some of them.
NOTE: If you change any of the Image Quality settings (i.e., document
type, background suppression, or copy contrast) or if you want to invert
the image, an error message will advise you to rescan the image. You
must rescan the image to change any image quality settings for a job
that has been recalled.
7. Press the Enter key to return to the READY screen.
Deleting Job Templates
Use the DELETE TEMPLATE option to delete previously saved
templates. Doing so leaves the template location blank and available to
use again. Once a template has been deleted, it cannot be recalled.
To delete a saved template:
1. Press the Store/Recall key. The STORE/RECALL menu screen
is displayed.
2. Press the Next key to highlight JOB TEMPLATES.
3. Press the Enter key to select JOB TEMPLATES. The JOB
TEMPLATES menu screen is displayed.
4. Press the Next key until DELETE TEMPLATE is highlighted.
5. Press the Enter key to select DELETE TEMPLATE. The
DELETE TEMPLATE screen is displayed. This screen indicates
66 • Special features keys
XEROX WIDE FORMAT COPY SYSTEM
the locations for the templates currently in use. Locations that
do not contain a template are not shown.
Below is an example of the DELETE TEMPLATE screen.
DELETE TEMPLATE
TEMPLATES IN USE: 1 2 3 4 5
ENTER TEMPLA TE NUMBER: 0
Delete Template Screen
6. Use the numeric keypad to enter the location of the template to
be deleted, then press the Enter key. The deleted location is
removed from the list in the DELETE TEMPLATE screen and the
contents of that location are deleted.
You can now select other locations to be deleted in the same way.
7. If no more locations are to be deleted, press the Exit key to
return to the READY screen.
Save Default
Template
The SAVE DEFAULT TEMPLATE option of the STORE/RECALL menu
enables you to save the settings for the current job as the default
settings. Each additional job will then have these settings established as
the default selections.
To save the current job settings as the default template:
1. Ensure that all the options under Media Selection, Image
Quality, and Reduce/Enlarge are set as desired. Make any
necessary changes.
2. Press the Store/Recall key. The STORE/RECALL menu screen
is displayed.
3. Press the Next key until SAVE DEFAULT TEMPLATE is
highlighted.
4. Press the Enter key to select SAVE DEFAULT TEMPLATE. A
confirmation screen is displayed indicating that the job
parameters have been saved.
JOB PARAMETERS SAVED
PRESS ENTER TO CONTINUE
Job Parameters Saved Option
5. Press the Enter key to return to the READY screen.
XEROX WIDE FORMAT COPY SYSTEM
Special features keys • 67
Recall Factory
Defaults
The factory default job settings are permanently stored in memory. The
RECALL FACTORY DEFAULTS option of the STORE/RECALL menu
enables you to recall the factory default settings as the active default
settings.
To recall the factory default settings:
1. Press the Store/Recall key. The STORE/RECALL menu screen
is displayed.
2. Press the Next key until RECALL FACTORY DEFAULTS is
highlighted.
3. Press the Enter key to select RECALL FACTORY DEFAULTS.
The factory default settings are immediately recalled. A
confirmation screen is displayed.
JOB PARAMETERS RECALLED
PRESS ENTER TO CONTINUE
Job Parameters Recalled Screen
4. Press the Enter key to return to the READY screen.
Finisher key
A finishing device, such as a folder, can be connected to the WIDE
FORMAT COPY SYSTEM. If such a device is connected, the Finisher
key enables or disables that device.
To enable/disable a finishing device:
•
Press the Finisher key. The Finisher indicator lamp illuminates
and the FINISHER menu screen is displayed. The black arrows
indicate that the menu contains more options than are visible.
The selected option is highlighted.
FINISHER
FOLD PROGRAM
TITLE BLOCK LOCATION
OUTPUT BIN
OVERLENGTH OPTION
TAB OPTIONS
Finisher Screen
Other Finisher options that are accessed from this screen, using the
Next key, are: Punch Options, Margin Options, Crossfold Options, and
Intelligent Title Block Option.
NOTE: If no finishing device is connected, pressing the Finisher key
produces the error message shown below.
68 • Special features keys
XEROX WIDE FORMAT COPY SYSTEM
FINISHE R
FINISHE R OPTION
IS NOT AVAILABLE
Finisher Not Available Error Message Screen
When a set is being built, the finisher options cannot be changed and
pressing the Finisher key is invalid. The error screen shown below is
displayed. Enable the finisher and select the finisher options either
before selecting the Sets Build option or after the set has been built.
FINISHE R
FINIS HER OP TION CANNOT BE CHA NGED
DURING SETS B UILD OPERA TION
1. Press the Exit key to return to the READY screen. The Finisher
indicator lamp is extinguished.
2. Press the Previous or Next key to scroll through the list of
options.
3. When the desired option is highlighted, press the Enter key to
select the option. The screen for the selected option is
displayed. See Finisher menu options below and on the next
page for an illustration and description of each option. Also refer
to the Folder User Documentation for additional information on
the available folding options.
4. Press the Previous or Next key to scroll through the choices for
the selected option.
5. When the desired choice is highlighted, press the Enter key to
confirm your selection.
6. Repeat steps 4 and 5 if you want to change a setting for any
other options.
7. Press the Exit key to return to the READY screen.
A page icon is displayed with a dotted box at one of the page corners if a
FOLD PROGRAM other than BYPASS is selected. The dotted box
indicates the title block location selection made using the Finisher menu.
The title block location can be changed on this screen using the Next
and Previous keys.
XEROX WIDE FORMAT COPY SYSTEM
Special features keys • 69
READY TO COPY
INSERT DOCUMENT
AUTO
100.0 %
1
Ready to Copy Screen
1. To disable the finisher, press the Finisher key again and select
BYPASS on the FOLD PROGRAM screen. The Finisher
indicator lamp is extinguished.
Finisher menu
options
Below are descriptions of each of the Finisher menu options. Refer to the
Finisher user documentation for additional information on these options.
FOLD PROGRAMS
The FOLD PROGRAM feature enables you to select one of up to 20
user-defined programs. The program names are programmed into the
finisher and passed to the Controller when the finisher goes through its
power-up sequence.
PROGRAM:
FOLD PROGRAM
USER PROGRAM
Fold Program Screen
OVERLENGTH
OPTIONS
The OVERLENGTH OPTIONS feature enables you to specify how long
documents (documents over 80 inches long) are handled by the folder.
The choices are NO FOLD and Z-FOLD. If NO FOLD is selected, the
long document will not be folded. If Z-FOLD is selected, the long
document will be Z-FOLDED, but not cross-folded. NO FOLD is the
factory default setting. This is not available for all finishers.
OVERLENGTH OPTIONS
OVERLENGTH: NO FOLD
Overlength Options Screen
TAB OPTIONS
70 • Special features keys
The TAB OPTIONS feature enables you to override the pre-programmed
tab settings for the selected finishing program. The choices are
ALWAYS ON, ALWAYS OFF, and USE PROGRAM SETTING. USE
PROGRAM SETTING is the factory default setting.
XEROX WIDE FORMAT COPY SYSTEM
TAB:
TAB OPTIONS
USE PROGRAM
Tab Options Screen
PUNCH OPTIONS
The PUNCH OPTIONS feature enables you to override the preprogrammed hole punch settings for the selected finishing program. The
choices are ALWAYS ON, ALWAYS OFF, and USE PROGRAM
SETTING. USE PROGRAM SETTING is the factory default setting.
PUNCH:
PUNCH OPTIONS
USE PROGRAM
Punch Options Screen
MARGIN OPTIONS
The MARGIN OPTIONS feature enables you to override the preprogrammed margin settings for the selected finishing program. The
choices are ALWAYS OFF and USE PROGRAM SETTING. Note that
ALWAYS ON is not an available setting. USE PROGRAM SETTING is
the factory default setting.
MARGIN:
MARGIN OPTIONS
USE PROGRAM
Margin Options Screen
NOTE: When using the Scan System’s width detection sensors, if the
document is a little bit off-center, this could cause problems for folding,
especially for A, B, and C size documents. When using the sensors to
detect the width of your document, you must center the document as you
feed it into the Scan System.
CROSSFOLD OPTIONS
The CROSSFOLD OPTIONS feature enables you to override the preprogrammed crossfold settings for the selected finishing program. The
choices are ALWAYS ON, ALWAYS OFF, and USE PROGRAM
SETTING. USE PROGRAM SETTING is the factory default setting.
XEROX WIDE FORMAT COPY SYSTEM
Special features keys • 71
CROSSFOLD OPTIONS
CROSSFOLD:
USE PROGRAM
Crossfold Options Screen
TITLE BLOCK
LOCATION
The TITLE BLOCK LOCATION feature enables you to specify the
location of the title block for the copy jobs that are about to be run. On
the Scan System, select the Finisher Key > Intelligent Title Block to
get to the following screen. The title block location choices are BOTTOM
RIGHT, BOTTOM LEFT, TOP RIGHT, TOP LEFT. BOTTOM RIGHT is
the factory default setting.
INTELLIGENT TITLE BLOCK OPTION
9
INTELLIGENT TITLE BLOCK
Intelligent Title Block Screen
INTELLIGENT TITLE BLOCK should be used if the title block is not
located in the desired location on the folded copy. This selection will use
information, document size, selected fold program and title block position
input to place the title block in a position based on the information.
Intelligent Title Block is DISABLED by default. It may not be the user’s
desired location. Before making this selection, check the following:
• Auto rotate is selected.
• Document being scanned is oriented correctly for scanning.
• Ensure that the title block position specified is correct.
• For additional help, refer to the Folding Supplement manual.
NOTE: The title block location may also be selected on the READY TO
COPY screen, using the title block location icon. The title block location
is indicated by the dotted lines.
TITLE BLOCK
TB LOCATION:
UPPER RIGHT
Title Block Location Screen
OUTPUT BIN
72 • Special features keys
The OUTPUT BIN feature enables you to specify which finisher output
bin to use for the finished output. The choices are DON’T CARE, BIN X
(where X equals 1 to the actual number of finisher bins), FANFOLD.
XEROX WIDE FORMAT COPY SYSTEM
DON’T CARE is the factory default setting. The settings are dependent
on the finisher.
OUTPUT BIN
OUTPUT BIN:
BYPASS
Output Bin Screen
Sets Build key
The Sets Build mode allows you to scan a series of images and build an
electronically collated set. Once the set is built, one or more collated
copies can be printed.
NOTE: The Sets Build mode is not available unless the WIDE FORMAT
COPY SYSTEM is in the COPY mode.
NOTE: Any of the finishing options can be changed during a Sets Build
job. The option(s) must be changed before the document to be copied is
inserted.
Preparing to build the
set
In Sets Build mode, documents of C (A2) size, and larger, are normally
delivered to the rear of the Scan System after the scan. If the
DOCUMENT RETURN parameter is set to REAR, then all documents
are delivered to the rear after scanning. The WIDE FORMAT SCAN
SYSTEM is equipped with a document catching device, called the
Stacker, to receive these documents. Refer to “Scan System Control” in
the “Main Menu” section of this manual for further information about the
DOCUMENT RETURN parameter.
Building and printing
the set
To build a collated set:
1. Press the Sets Build key. The Sets Build indicator lamp
illuminates and the SETS BUILD screen is displayed. This
screen enables you to select the desired collation method, to
select whether or not to print checkplots, and to begin the
accumulation of the documents to create the set.
SETS BUILD
COLLATION:
9
FORWARD
CHECKPLOT
Sets Build Screen
2. Press the Previous or the Next key to select FORWARD or
REVERSE collation.
XEROX WIDE FORMAT COPY SYSTEM
Special features keys • 73
•
FORWARD prints the collated set in the order that the
sheets were scanned. Page 1 will be on the top.
3
1
2
3
1
PRINTE D
SCANNED
•
2
REVERSE prints the set in the reverse order that they were
scanned. Page 1 will be on the bottom.
3
2
1
1
SCANNED
2
3
PRINTE D
3. Regardless of the collation order chosen, if you want a printed
copy (checkplot) after you scan each document, before they are
printed as a set, then select the CHECKPLOT box.
4. Press the Enter key to confirm your choice. The READY TO
BUILD SET screen is displayed.
READY TO BUILD SET
INSERT DOCUMENT: 1
AUTO
100.0
MEMORY
%
Ready to Build Set Screen
5. Insert each document of the set, one at a time, into the Scan
System as prompted by the display. As the documents are
scanned, the amount of memory used is shown in the
rectangular graphical display.
NOTE: You can select reduction/enlargement and copy quality settings
for each sheet prior to scanning that sheet.
6. When the set is completely scanned, press the Sets Build key
again. The Sets Build indicator lamp is extinguished when the
Start key is pressed then the READY TO PRINT SET screen is
displayed.
READY TO P RINT SET
PRESS START TO P RINT
100.0
3
Ready to Print Set Screen
7. If desired, you can now make further changes to the Media
Selection, Source selection and the Reduction/Enlargement
74 • Special features keys
XEROX WIDE FORMAT COPY SYSTEM
value. Any such change will be applied to that printing of the
entire set.
8. Enter the number of copies desired and press the Start key.
The Printer prints the number of sets requested.
After the printing of the set, the set can be recalled, the values changed
again, and the set reprinted using the new values. To recall the set, refer
to “Store/Recall key” in the “Special features key” section of this manual
for further information.
NOTE: Settings for the last document scanned are not restored when
recalling a set. After a set is recalled, all LED’s will be turned off. If a
setting is changed after a set is recalled, it will be applied to all
documents in the set.
Batch key
The Batch feature allows you to improve copy speed by enabling Batch
Mode processing of several documents on the Scan System. When
Batch Mode processing is enabled, the Scan System collects prescan
information for just the first document inserted into the Scan System.
Prescan information on subsequent documents in the set is not
collected. The subsequent documents will be scanned using the
information collected on the first document. Eliminating the collection of
this information increases overall copy speed.
To enable Batch Mode processing:
1. Press the Batch key. The Batch indicator lamp will begin
flashing.
2. Insert the first original into the Scan System. The Scan System
scans the original and the screen shown below is displayed.
WIDTH FOUND FOR SE T IS XX.X
INP UT ANOTHER WID TH OR
PRESS ENTER TO ACCEPT
Width Found for Set is XX.X Screen
3. Do one of the following:
ƒ
Use the numeric keypad to enter the width of the set and
press the Enter key to accept the value.
ƒ
Press the Enter key to accept the width detected by the
WIDE FORMAT COPY SYSTEM.
ƒ
The Batch indicator lamp becomes steady and remains so
until batch mode is disabled.
4. When the last document in the set has been scanned, press the
Batch key to disable batch mode. The Batch indicator lamp is
extinguished.
XEROX WIDE FORMAT COPY SYSTEM
Special features keys • 75
NOTE: When Batch mode is ENABLED, the AUTOCENTER feature is
temporarily disabled. Be careful to manually center each document that
is inserted into the Scan System
Transform key
The Transform feature contains the following menu choices:
•
MARGINS - Allows you to adjust the dimensions of the margins
around the image. By entering positive margins, blank space is
inserted around the image. By entering negative values,
unwanted parts of the image can be cropped.
•
JUSTIFICATION - Allows you to adjust the position of the image
on the media.
•
TRANSFORM - Allows you to request transformation of the
scanned image into a mirror image, a negative photographic
inversion, or both.
NOTE: The image can also be rotated. Refer to “Imaging” in the “Copy
Options” section for further information about image rotation.
To access the TRANSFORM MENU:
1. Press the Transform key. The TRANSFORM MENU screen is
displayed. The selected option is highlighted.
TRANSFORM MENU
MARGINS
JUSTIFICATION
TRANSFORM
Transform Menu Screen
2. Press the Previous or Next key to highlight the desired option.
3. Press the Enter key to select the highlighted option. The screen
for the selected option is displayed.
Margins
The MARGINS option of the TRANSFORM MENU allows you to select
the dimensions for the margins that surround an image. These margins
are referred to as the lead, left, right and trail edges.
NOTE: Margins can only be adjusted when the WIDE FORMAT COPY
SYSTEM is in the COPY mode.
The example below illustrates an image entering the Scan System and
the orientation of the image margins.
76 • Special features keys
XEROX WIDE FORMAT COPY SYSTEM
Scanner
Lead
d
Right image
d
Left image
d
Trail
d Scan System Diagram
Image Entering the
Margins are added to the image in one of two ways:
•
If Synchro has been selected from the Output Format area of
the Scan System Control Panel, the lead margin is added before
the image is printed. The trail margin is added after the media
cut signal is received from the Scan System. Thus, the length of
the media from the Printer will be the scanned document length
plus the lead and trail margins.
•
If a fixed media length (Preset or Manual) has been selected as
the Output Format, the white space of the specified margin
surrounds the image, but the actual physical dimensions of the
media remain as specified. The margins reduce the allowable
area on the media in which the image may be placed.
To adjust the margins for an image:
1. Press the Transform key. The TRANSFORM MENU screen is
displayed.
2. Press the Enter key to select MARGINS. A screen displaying
the settings for each margin is displayed. Below is an example
of the screen.
LEAD
LEFT
RIGHT
TRAIL
+
+
+
+
1.0 IN
0.0 IN
0.0 IN
0.0 IN
Margins Selection Screen in Transform Menu
If the unit of measure has been set to inches, “IN” appears next to each
value. If the unit of measure has been set to millimeters, “MM” appears
next to each value. Refer to “Localization” in the “Main
CONFIGURATION “section for information about setting the display
units.
The graphical display to the right of the margin settings illustrates the
approximate placement of the image as a result of the settings.
3. Press the Previous or Next key to highlight the setting you wish
to change.
NOTE: Each margin has two components. They are a “+/-“ indicator
and a numeric value. As you press the Previous or Next key, the
components highlight individually.
XEROX WIDE FORMAT COPY SYSTEM
Special features keys • 77
4. Press the Enter key to select the setting.
5. Change the setting as follows:
•
To change the “+” or “-“ setting, press the Previous or Next
key. An edge of the image can be clipped by entering a
negative margin value for that edge. In that case, the
affected edge is shown as a dotted line and the image icon
is shown as partially outside the bounds of the media.
The illustration below shows a negative left margin with TOP
LEFT justification.
LEAD
LEFT
RIGHT
TRAIL
+ 2.0 IN
- 1.0 IN
+ 0.0 IN
+ 0.0 IN
Margins Selection Screen in Transform Menu
•
To change the value setting, use the numeric keypad to
enter the value. The values can be set in increments of 0.1
in (1.0 mm) and over a range of +8 to -8 in (+203 to -203
mm). Values outside the allowed range are rejected. If you
enter an invalid value, press the Exit key to clear it. The
default margins are 0.
6. Press the Enter key to confirm the setting. The graphical display
updates accordingly.
NOTE: To cancel the setting, press the Exit key.
7. When you have set all the margins as desired, press the Exit
key to return to the TRANSFORM MENU screen.
Justification
The JUSTIFICATION option of the TRANSFORM MENU allows you to
adjust the position of the image on the media.
NOTE: “Image” means the entire scanned page including the white
space.
To specify the image position:
1. Press the Transform key. The TRANSFORM MENU screen is
displayed.
2. Press the Next key to highlight JUSTIFICATION.
3. Press the Enter key to select JUSTIFICATION. The
JUSTIFICATION screen is displayed. This screen shows the
current settings for the X and Y coordinates. It also includes a
graphical display of the approximate position of the image as a
result of the settings.
78 • Special features keys
XEROX WIDE FORMAT COPY SYSTEM
Below is an example of the JUSTIFICATION screen.
JUSTIF ICA TION
LEFT
CENTER
X:
Y:
Justification Screen
4. Press the Previous or the Next key to select the X (horizontal)
or Y (vertical) coordinate.
5. Press the Enter key to confirm your choice.
6. Press the Previous or Next key to select a choice for
justification.
For the X direction, the choices are LEFT, CENTER, and RIGHT. For
the Y direction, the choices are TOP, CENTER, and BOTTOM.
7. Press the Enter key to confirm your choice. The graphical
display updates accordingly.
NOTE: To cancel your choice, press the Exit key.
8. Repeat steps 4 through 7 if you wish to change position of the
other coordinate.
9. Press the Exit key to return to the TRANSFORM MENU screen.
Transform
The TRANSFORM option of the TRANSFORM MENU allows you to
create a mirror image of a scanned image and to convert a scanned
image to a negative image.
Creating a Mirror Image
The MIRROR option allows you to create a mirror image of a scanned
image.
To create a mirror image:
1. Press the Transform key. The TRANSFORM MENU screen is
displayed.
2. Press the Next key until TRANSFORM is highlighted.
3. Press the Enter key to select TRANSFORM. The TRANSFORM
screen is displayed.
Below is an example of the TRANSFORM screen with both the MIRROR
and INVERT options turned off.
XEROX WIDE FORMAT COPY SYSTEM
Special features keys • 79
TRANSFORM
MIRROR:
OFF
OFF
INVERT:
Transform Screen
4. Press the Enter key to select MIRROR.
5. Press the Previous or Next key to select the desired
transformation. Four choices are available: X, Y, XY, and OFF.
Table 4 below graphically depicts the choices.
Table 4. Mirror transformations
Axis
Transform
X
Y
XY
OFF
6. Press the Enter key to confirm your choice. The graphical
display updates accordingly. The illustration below shows the
TRANSFORM screen with “X” as the mirror image selection.
TRANSFORM
MIRROR:
INVERT:
X
OFF
Transform Screen
NOTE: To cancel your choice, press the Exit key
7. Press the Exit key to return to the READY screen.
Inverting an Image
80 • Special features keys
The INVERT option allows you to convert a scanned image to a negative
image. For black and white images, the white pixels will be printed black
and the black pixels will be printed white. For grayscale images, the
image will be converted into its photographic negative. INVERT is not
selectable when Color is selected as an Original, Type.
XEROX WIDE FORMAT COPY SYSTEM
To invert an image:
1. Press the Transform key. The TRANSFORM MENU screen is
displayed.
2. Press the Next key until TRANSFORM is highlighted.
3. Press the Enter key to select TRANSFORM. The TRANSFORM
screen is displayed.
Below is an example of the TRANSFORM screen with both the MIRROR
and INVERT options turned off.
TRANSFORM
MIRROR:
OFF
INVERT:
OFF
Transform Screen
4. Press the Next key to highlight INVERT.
5. Press the Enter key to select INVERT.
6. Press the Previous or Next key to turn the option ON or OFF.
7. Press the Enter key to confirm your choice. The graphical
display updates accordingly.
When INVERT is ON, the icon on the right side of the TRANSFORM
screen is inverted. The example below shows the TRANSFORM screen
with INVERT turned ON.
MIRROR
OFF
INVERT
ON
TRANSFORM
Transform Screen
NOTE: To cancel your choice, press the Exit key.
8. Press the Exit key to return to the READY screen.
XEROX WIDE FORMAT COPY SYSTEM
Special features keys • 81
Sample key
The Sample key allows you to access the Sample Mode screen, from
where you can send a scanned image to an FTP destination.
The Sample key also allows you to print a sample of a scanned image in
both the COPY mode and the SCAN mode. You can then check the
sample for quality or observe the results of features or copy quality
adjustments before the document is copied or scan to a file.
The dimensions of the sample, in the Copy mode, are the width of the
page by 210 mm. The sample is taken from a point equidistant from the
lead and trail edge of the image. Refer to Copy Mode below for
instruction to print a sample.
In the SCAN mode the sample size is the whole document. To enable
the Sample key in the SCAN Mode, the Scan-to-net feature must be
installed. To enable a print sample the Scan-to-Print feature key must be
installed. Refer to the Scan Mode Sample below for instructions to print a
sample.
Copy Mode Sample:
To print a sample of a scanned image:
1. Press the Sample key. The Sample indicator lamp illuminates.
The Scan System Control Panel is placed in Printer Interrupt
mode and the Printer Interrupt indicator lamp illuminates. The
Printer immediately prints a sample of the next image inserted
into the Scan System. The SAMPLE MODE screen is displayed.
SAMPLE MODE
PRESS START TO ACCEPT PAGE.
PRESS C/CA TO REJECT.
Sample Mode Screen 1
2. Do one of the following:
•
Press the Start key to print the complete image as a full-size
copy.
•
Press the C/CA key to delete the scanned image.
3. Press the Sample key again to disable the Sample feature. The
Printer is returned to the default priority setting and the Sample
and Printer Interrupt indicator lamps are extinguished.
Scan Mode Sample:
The best sample prints will be produced if the image enhancement
features have been enabled. Refer to the Image Quality section of this
document for more information.
In order to have the selections indicated below in the SAMPLE MODE
screen, the Scan-to-Net feature key must be installed to get SCAN
IMAGE TO FILE, and the Scan-to-Print feature key must be installed to
get SCAN IMAGE TO PRINTER. It is convenient on the WIDE FORMAT
COPY SYSTEMS to be able to make a sample before scanning an
image to file.
82 • Special features keys
XEROX WIDE FORMAT COPY SYSTEM
To print a sample copy, perform the following:
1. If the Scan System is set to COPY mode, switch to SCAN mode.
For more information, refer to the section of this document
entitled “Switching between COPY mode and SCAN mode”.
2. Enter the Directory name.
3. Press the Sample special function key. The SAMPLE MODE
screen is displayed.
SAMPLE MODE
FILE: LOCAL FILE
9
SCAN IMAGE TO PRINTER
Sample Mode Screen 2
NOTE: When there is no Scan-to-Print license present, the FILE field will
not be shown. Instead, it will be replaced by the phrase "NO SCAN-TONET LICENSE".
The FILE field has the following options to choose from:
LOCAL FILE - Creates a local file on the hard drive.
DESTINATION 1 - FTP file to remote destination 1 configured via Web
Print Management Tool "Scan Destinations" page.
DESTINATION 2 - FTP file to remote destination 2 configured via Web
Print Management Tool "Scan Destinations" page.
DESTINATION 3 - FTP file to remote destination 1 configured via Web
Print Management Tool "Scan Destinations" page.
DESTINATION 4 - FTP file to remote destination 1 configured via Web
Print Management Tool "Scan Destinations" page.
NO FILE - Will not leave a file on the hard drive. (Scan-to-Print MUST be
enabled when this is selected.)
NOTE: At least one destination must be specified for a file. If you select
NO FILE and disable the SCAN IMAGE TO PRINTER checkbox, then
you will not be able to exit the screen until either the Scan-to-Print
checkbox is selected, or a destination other than NO FILE is selected.
4. Press the Next key to highlight SCAN IMAGE TO PRINTER.
NOTE: When there is no Scan-to-Print license present, the SCAN
IMAGE TO PRINTER selection field will not be shown. Instead, it will be
replaced by the phrase "NO SCAN-TO-PRINT LICENSE".
5. Press the Enter key to enable SCAN IMAGE TO PRINTER.
Press the Exit key to exit the menu.
XEROX WIDE FORMAT COPY SYSTEM
Special features keys • 83
The processing time for Scan-to-Printer images will be longer, depending
on the image size.
84 • Special features keys
XEROX WIDE FORMAT COPY SYSTEM
Scanning to the Network (SCAN
mode)
Scanning to the Network (SCAN
mode)
The WIDE FORMAT COPY SYSTEM has two scanning modes of
operation: COPY mode and SCAN mode.
NOTE: The SCAN mode is optional on the XEROX WIDE FORMAT
COPY SYSTEM 8825. Color Scan-to-Net is an available option for all
XEROX WIDE FORMAT COPY SYSTEMS equipped with the WIDE
FORMAT SCAN SYSTEM. The Color Scan-to-Net feature requires a
separately purchased, Color Enablement feature key.
NOTE: The COPY mode will be disabled and the READY TO COPY
screen will not be accessible when the SCAN OPTION (COLOR) is
enabled and a color printer is connected to the Controller.
•
In COPY mode, documents are scanned and temporarily stored
in memory or on the controller internal hard disk, and then sent
to the local Printer as soon as the Printer is available. When the
next job is scanned, the file from the previous job is automatically
deleted from the hard disk, making room for new files. Operation
of the system works as described in the previous sections.
•
In SCAN mode, there are two choices:
Scan-to-FTP: This is a security feature to allow scanned images
to be sent to 4 remote FTP destinations. Before an image is
scanned, the FTP Destination is selected on the Scan System’s
Sample Mode screen. The scanned image data will not be left
on the FreeFlow Accxes disk, as they are with Scan-to-Net
images. The FTP Destinations were defined on the Web Print
Management Tool page located at Printer Defaults > Utilities >
Scan Destinations. See the Sample Mode section of this
document for details.
XEROX WIDE FORMAT COPY SYSTEM
Scanning to the Network (SCAN mode) • 85
If an internal error occurs while FTP transferring a scanned
image to a remote file system, the scanned image will be deleted
and the following error will be displayed. Setting up an FTP
destination on the Web Print Management Tool with an invalid
user name and/or password, can also cause this error.
CONTROLLER FAULT
50000017: INTERNAL FAULT
FTP TRANSFER FAILED
SCANNED IMAGE DELETED
FTP Transfer Failed Screen
Scan-to-Net: The image file created by scanning is stored
directly on the controller hard disk for later retrieval over a
connected network by a remote system. The image is stored in
Tagged Image File Format (TIFF) 6.0 using CCITT Group 4,
CALS, Packbits, or PDF. High resolution JPG files are also
available with the Color Scan-to-Net option. Files stored in SCAN
mode can be retrieved over the network. After the FreeFlow
Accxes Client Tools program, which is running on a networkconnected computer, retrieves the file, the image residing on the
local hard disk is deleted automatically.
After a file has been on the local hard disk for longer than the
time specified for the FILE DELETION Timer, the system
automatically deletes the file. Refer to the Main Menu,
CONFIGURATION menu, TIMERS section of this manual for
information about setting the FILE DELETION timer.
Switching between COPY mode and
SCAN mode
NOTE: The COPY mode will be disabled and the READY TO COPY
screen will not be accessible when a color printer is connected to the
Controller.
To switch between the COPY mode and the SCAN mode, perform the
following steps:
1. Ensure that the READY TO COPY screen is displayed. If a
menu is displayed, press the Menu key to return to the READY
screen. If PLEASE ENTER ACCOUNT is displayed, enter a
valid User ID code, then enter a valid account number to obtain
the READY screen.
2. Press the Mode key. The system switches to the SCAN mode
and the screen now displays. Pressing the Mode key again
returns the system to the COPY mode.
86 • Scanning to the Network (SCAN mode)
XEROX WIDE FORMAT COPY SYSTEM
PLEASE ENTER
DIRECTORY
Images
Please Enter Directory Screen
3. Enter a Directory name, up to 16 alphanumeric characters, to
which you will scan the images. The name cannot begin with a
period/decimal point.
Understanding the READY TO SCAN
screen
Below is an example of the READY TO SCAN screen. Following the
example are descriptions of the special information displayed on the
screen.
READY TO SCAN
INSERT DOCUMENT
TIFF/CCITTG4
1
1 BIT
400
Ready to Scan Screen
TIFF/CCITTG
41 BIT
This area indicates the selected file format. Refer to
SCAN OPTIONS (LINE) or SCAN OPTIONS (PHOTO)
or SCAN OPTIONS (COLOR) to set these options. The
available options will differ depending upon your Scan
Option selection.
This area shows the selected scanning resolution.
Press the Previous or Next key to select a value of 100,
200, 300, or 400 DPI (Dots Per Inch). A new value can
be selected before each scan.
This icon shows how much Random Access Memory (RAM)
is in use by the scanned file. As space is used, the dark area
increases. After the scan is complete, the file is processed
and then moved to the internal hard disk. The RAM space
then becomes available again.
This icon shows how much hard disk space is in use by
stored files. As space is used, the dark area increases.
When files are moved off the disk over the network to
remote devices, the space becomes available again. Files
XEROX WIDE FORMAT COPY SYSTEM
Scanning to the Network (SCAN mode) • 87
are also deleted when the age of the file exceeds the value
set in the timer. Refer to “Timers” in the “Main Menu”
section to set this value. The factory default is 24 hours.
Selections disabled in SCAN mode
Certain selections available in COPY mode are not available in SCAN
mode. The unavailable selections are:
•
Sets Build - In Scan-to-Net mode each document has a
separate image stored on the disk. Scan-to-FTP images are not
stored on the disk. Each image is separately retrieved at the
remote device. Images cannot be grouped in sets.
•
Specifying the media Source and Type – Since the output is
now an electronic file, specifying the media is not applicable.
•
Specifying the output format – The image file always has the
format of the length of the document by the scan width. The
scan width can be manually specified if the entire width of the
document is not desired. Refer to “Scan System Control” in the
“Main Menu” section to enable or disable manual specification of
the scan width.
•
Selection of Margins or Justification – You can crop equal
amounts from each side edge of the document by manually
specifying a scan width that is narrower than the actual
document. Refer to “Scan System Control” in the “Main Menu”
section to enable or disable manual specification of the scan
width.
•
Specification of Finishing Options – Since there is no physical
output, the finishing operations are not applicable.
•
Selection of Reduce/Enlarge - The electronic file is saved
without alteration, so all scanned information is preserved.
•
Selection of Image Type. Only Line, Photo, Normal, and Color
image types are valid for SCAN mode. Refer to the “Image
Quality”, “Scan Mode” section in this manual for additional
information
•
Background Suppression - This selection is automatically
switched to OFF if a color printer is connected.
Operating in SCAN mode
To scan documents for later retrieval over the network:
1. If job accounting is enabled, enter in your User ID and Account
ID when prompted and press Enter. If job accounting is not
enabled, you will not have to enter your IDs.
2. If you want to see a preview of the scanned images when they
are retrieved from the Controller to your workstation, verify that
the Scan System’s default “PREVIEW” box is checked when
selecting the Original, Type. Use the Previous, Next, and
Enter keys to enable PREVIEW. Use the Enter key to confirm
your choice(s).
88 • Scanning to the Network (SCAN mode)
XEROX WIDE FORMAT COPY SYSTEM
3. With READY TO COPY is displayed on the Scan System Control
Panel, press the Mode key to display READY TO SCAN.
4. Use the keypad on the Scan System Control Panel to enter in
your 16 alphanumeric character Scan Directory name.
5. To view a sample of the file before it is scanned to a file, press
the Sample key on the Control Panel. Use the Next or Previous
key to highlight SCAN-TO-PRINTER and press the Enter key.
Press the Exit key to return to the READY screen, then press
Start. A copy will be sent to the printer.
6. When the Scan System Control Panel displays READY TO
SCAN, select your desired scanning resolution using the Next
and Previous keys.
NOTE: When making a color scan, be sure to select Color with the
arrow key under Image Quality on the Scan System Control Panel. The
Normal and Photo lights will be on.
7. Select the Image Quality, Original, Type by pressing the arrow
button located under Type. When the Type (Normal, Line,
Photo, or Color) is selected, the appropriate SCAN OPTION
(NORMAL, LINE, PHOTO, or COLOR) is displayed. Use the
Next, Previous, and Enter keys to navigate to and through the
available options on the screen. Press the Enter key to confirm
your choice(s). For additional information refer to the “Image
Quality, Scan Mode” section of this manual.
8. Insert your original document face down and centered on the
feed tray of the Scan System.
9. Gently move your document forward until the Scan System’s
feed rolls engage the document’s leading edge.
10. If prompted to do so, enter the desired scanning width and press
Enter.
11. As your document is automatically fed into the Scan System, the
resulting image is stored as a file in the Scan Directory on the
system Controller’s hard drive. The image can be retrieved at
your workstation using the Document Retrieve Tool of the
FreeFlow Accxes Client Tools.
NOTE: You may have to press the Start button if the configuration (for
Auto Scan) has been changed from the factory default.
XEROX WIDE FORMAT COPY SYSTEM
Scanning to the Network (SCAN mode) • 89
Clearing the scanned images
The C/CA key enables you to remove scanned images from the WIDE
FORMAT COPY SYSTEM hard disk.
To clear scanned images:
1. Press the C/CA key. The CLEAR SCANNED IMAGE screen is
displayed.
CLEAR SCANNED IMAGE
DO NOT CLEAR IMAGE
Clear Scanned Image Screen
2. Press the Previous or Next key to highlight the desired
selection.
3. Press the Enter key to select the highlighted selection. The
choices are:
DO NOT CLEAR IMAGE – The image is not deleted.
CLEAR LAST IMAGE - The last image scanned by the currently
active account is deleted. Press the C/CA key again, followed
by the Enter key, to delete the next-to-last scanned image. This
process can be repeated until all desired images are removed
from the hard disk. It may take a few minutes longer to clear a
scanned photo or an image with color.
NOTE: It is not possible to skip images. For example, it is not possible
to leave the last image scanned, but delete the next-to-last image
scanned. Photo and Color mode scans may take a few minutes to clear.
CLEAR ALL IMAGES – All images stored under the currently
active account are deleted.
Managing the file system
The file system stores images in directories on the internal hard disk
drive. The images are stored in the Directory specified by the user
when entering the SCAN mode. The default directory is “images”.
Managing the file system requires the System Administrator password.
The FILE SYSTEM option of the SYSTEM ADMINISTRATION menu
enables the System Administrator to perform a number of file system
management functions. They are:
•
Listing the number of images stored under each directory and
the percentage of total hard disk space consumed by each
account
•
Deleting all of the images scanned under any directory.
90 • Scanning to the Network (SCAN mode)
XEROX WIDE FORMAT COPY SYSTEM
•
Deleting all of the images currently stored on the hard disk.
Refer to “File System” in the “Main Menu” section of this manual for
complete information about the above functions.
XEROX WIDE FORMAT COPY SYSTEM
Scanning to the Network (SCAN mode) • 91
Main Menu
Main Menu
The Main Menu provides options for configuring the system, obtaining
system information, performing system administration functions, and
running system diagnostics.
When you access the Main Menu, a menu containing the following submenus is displayed:
•
CONFIGURATION - Enables you to configure the settings for a
variety of system options. These include localization, the Scan
System Control Panel, copy options, scan options for Normal,
Line and Photo modes (and Color, if enabled), timers, the power
saver timeout, and Scan System control for Copy and Scan
modes.
•
SYSTEM INFORMATION - Enables you to obtain information
about the system components, display the Scan System fault list,
print configuration pages, and view user account information.
•
SYSTEM ADMINISTRATION - Enables the system administrator
to perform job accounting, file system management, security,
and change password functions. Access to this menu requires
an administrator’s password.
•
DIAGNOSTICS - Enables the Customer Service Engineer and/or
the operator to run a number of system diagnostic routines.
To access the Main Menu:
1. Press the Menu key.
READY TO COPY
INSERT DOCUMENT
AUTO
1
100.0%
Menu
Previous
Next
Enter
Exit
Mode
Ready to Copy Screen
XEROX WIDE FORMAT COPY SYSTEM
Main Menu • 93
The MAIN MENU screen is displayed. The black arrows indicate that the
menu list contains more items than are visible. The selected option is
highlighted.
MAIN MENU
CONFIGURATION
SYSTEM INFORMATION
SYSTEM ADMINISTRATION
Main Menu Screen
2. Press the Previous or Next key to scroll through the list options.
3. When the desired option is highlighted, press the Enter key to
select the option.
Configuration menu
The CONFIGURATION option of the Main Menu provides a sub-menu of
the following choices:
•
LOCALIZATION - Sets the display language and units of
measurements.
•
CONTROL PANEL - Controls whether the beeper is used for the
key click and invalid entry beeps. Also allows selection of the
font display style and the default operating mode.
•
COPY OPTIONS - Sets the choices for standard media series,
custom media formats, custom reduction/enlargement values,
and imaging parameters.
•
IMAGE ENHANCEMENTS - Enhances the appearance of a
color scanned images in particular color halftones, Scanning
speed BEST IQ and FASTEST, and Dynamic Background
Removal. The FASTEST selections requires the Turbo III.
•
TIMERS - Sets the values for the Feature, Printer Interrupt, and
File Deletion timers.
•
POWER SAVER - Sets the number of hours of inactivity after
which the system goes into Power Saver mode.
•
SCANNER CONTROL - Sets the choices for the operation of the
Scan System for both copying and scan-to-file. Auto Scan,
Document Return, and Mode (Manual Width, Auto Width).
To access the CONFIGURATION menu:
1. Press the Menu key. The MAIN MENU screen is displayed.
2. Press the Enter key to select CONFIGURATION. The
CONFIGURATION menu screen is displayed. The black arrows
indicate the menu contains more options than are visible. The
selected option is highlighted.
94 • Main Menu
XEROX WIDE FORMAT COPY SYSTEM
CONFIGURATION
LOCALIZATION
CONTROL PANEL
COPY OPTIONS
Configuration Screen
3. Press the Previous or Next key to scroll through the list of
options.
4. When the desired option is highlighted, press the Enter key to
select the options. The menu or screen for the selected option is
displayed.
LOCALIZATION
The LOCALIZATION option of the CONFIGURATION menu sets the
language in which messages are displayed. It also controls whether
measurements are displayed in English or metric units.
To set the display language or display units:
1. Press the Menu key. The MAIN MENU screen is displayed.
2. Press the Enter key to select CONFIGURATION. The
CONFIGURATION menu screen is displayed.
3. Press the Enter key to select LOCALIZATION. The
LOCALIZATION screen is displayed. Below is an example of the
LOCALIZATION screen.
LOCALIZATION
LANGUAGE: ENGLISH
DISPLAY UNITS:
Localization Screen
4. Press the Previous or Next key to highlight LANGUAGE or
DISPLAY UNITS.
5. Press the Enter key to select the highlighted option.
6. Press the Previous or Next key to highlight the desired setting
for the option.
The choices for LANGUAGE are ENGLISH, SPANISH, FRENCH,
ITALIAN, GERMAN, RUSSIAN, or PORTUGUESE. ENGLISH is the
default setting.
The choices for DISPLAY UNITS are INCHES or MM (MILLIMETERS).
INCHES is the default setting.
7. Press the Enter key to select the highlighted setting.
8. Repeat steps 4 through 6 to change the remaining setting, if
desired.
9. Press the Exit key to return to the CONFIGURATION menu
screen.
XEROX WIDE FORMAT COPY SYSTEM
Main Menu • 95
CONTROL PANEL
The CONTROL PANEL option of the CONFIGURATION menu controls
whether the beeper is used for the key click and invalid entry beeps. It
also allows selection of the font display style and the default mode of
operation for the WIDE FORMAT COPY SYSTEM.
To set the beeper, text style or default operating mode:
1. Press the Menu key. The MAIN MENU screen is displayed.
2. Press the Enter key to select CONFIGURATION. The
CONFIGURATION menu screen is displayed.
3. Press the Next key to select CONTROL PANEL.
4. Press the Enter key to select CONTROL PANEL. The
CONTROL PANEL screen is displayed. Below is an example of
the CONTROL PANEL screen.
BEEPER:
TEXT:
CONTROL PANEL
ENABLED
NORMAL
DEFAULT MODE:
COPY
Control Panel Screen
5. Press the Previous or Next key to highlight BEEPER, TEXT
MODE or DEFAULT MODE.
6. Press the Enter key to select the highlighted option.
7. Press the Previous or Next key to highlight the desired setting
for the option.
The choices for BEEPER are ENABLED or DISABLED. ENABLED is
the default setting. The Initialization Beep and the Fault Beep are not
affected by this setting and cannot be turned off.
The choices for TEXT are NORMAL or BOLD. NORMAL is the default
setting.
The choices for DEFAULT MODE are COPY or SCAN. COPY is the
default setting.
NOTE: The DEFAULT MODE setting will not be displayed unless the
Scan-to-Net feature is enabled. SCAN mode is an option on the 8825
and 8850 Scan Systems. To order this feature, contact XEROX
Representative.
8. Press the Enter key to select the highlighted setting.
9. Repeat steps 5 through 8 if you wish to change another setting.
10. Press the Exit key to return to the CONFIGURATION menu
screen.
96 • Main Menu
XEROX WIDE FORMAT COPY SYSTEM
COPY OPTIONS
The COPY OPTIONS feature of the CONFIGURATION menu provides a
sub-menu of the following choices:
•
MEDIA SERIES – Sets the standard media sizes for preset
output formats. Table 5 shows the standard media series and
the sizes associated with them.
•
CUSTOM MEDIA FORMATS – Sets the custom media sizes for
preset output formats.
•
CUSTOM R/E PRESETS – Sets the reduction/enlargement
ratios
•
IMAGING – Sets the imaging options.
To access the COPY OPTIONS menu:
1. Press the Menu key. The MAIN MENU screen is displayed.
2. Press the Enter key to select CONFIGURATION. The
CONFIGURATION menu screen is displayed.
3. Press the Next key until COPY OPTIONS is displayed. The
COPY OPTIONS menu screen is displayed. The black arrows
indicate that the menu contains more options than are visible.
The selected option is highlighted.
COPY OPTIONS
MEDIA SERIES
CUSTOM MEDIA FORMATS
CUSTOM R/E PRESETS
Copy Options Screen
4. Press the Previous or Next key to scroll through the list of
options.
5. Press the Enter key to select the highlighted option. The screen
for the selected option is displayed.
XEROX WIDE FORMAT COPY SYSTEM
Main Menu • 97
Table 5. Media sizes
Choose
Series
To Display
Sizes
Dimensions
ANSI
A
8.5 x 11 inches (215.9 x 279.4 mm)
B
11 x 17 inches (279.4 x 431.8 mm)
C
17 x 22 inches (431.8 x 558.8 mm)
D
22 x 34 inches (558.8 x 863.6 mm)
E
34 x 44 inches (836.6 x 1117.6 mm)
A
9 x 12 inches (228.6 x 304.8 mm)
B
12 x 18 inches (304.8 x 457.2 mm)
C
18 x 24 inches (457.2 x 609.6 mm)
D
24 x 36 inches (609.6 x 914.4 mm)
E
36 x 48 inches (914.4 x 1219.2 mm)
30
30 x 42 Inches (76.2 x 106.7 mm)
A4
210 x 297 mm
A3
297 x 420 mm
A2
420 x 594 mm
A1
594 x 841 mm
A0
841 x 1189 mm
B4
250 x 353 mm
B3
353 x 500 mm
B2
500 x 707 mm
B1
707 x 1000 mm
B4
257 x 364 mm
B3
364 x 515 mm
B2
515 x 728 mm
B1
728 x 1030 mm
ARCH
ISO A
ISO B
JIS B
MEDIA SERIES
(width x length)
The MEDIA SERIES option controls which standard media series are
displayed when Preset is selected from the Output Format portion of the
Scan System Control Panel.
You can select one or more media series to be displayed. Refer to Table
5 for a listing of the sizes associated with each media series.
To enable/disable a media series:
1. Press the Menu key. The MAIN MENU screen is displayed.
2. Press the Enter key to select CONFIGURATION. The
CONFIGURATION menu screen is displayed.
98 • Main Menu
XEROX WIDE FORMAT COPY SYSTEM
3. Press the Next key until COPY OPTIONS is highlighted.
4. Press the Enter key to select COPY OPTIONS. The COPY
OPTIONS menu screen is displayed.
5. Press the Enter key to select MEDIA SERIES. The MEDIA
SERIES screen is displayed. Below is an example of the MEDIA
SERIES screen.
MEDIA SERIES
ANSI
ARCH
ISO A
ISO B
JIS B
Media Series Screen
6. Press the Previous or Next key to highlight a media series.
7. Press the Enter key to ENABLE or DISABLE the highlighted
media series. A checkmark appears in the box to the left of the
series when the series is enabled.
The factory default setting is ENABLED for the ANSI media
series and DISABLED for all others.
8. Repeat steps 6 and 7 for each media series you wish to enable
or disable.
9. Press the Exit key to return to the COPY OPTIONS menu
screen.
CUSTOM MEDIA
FORMATS
The CUSTOM MEDIA FORMATS option controls which custom media
formats are displayed when Preset is selected from the Output Format
portion of the Scan System Control Panel. You can specify up to six
custom media formats. To use the SCANNER CONTROL, MODE:
PRODUCTIVITY: CUSTOM mode, the custom sizes must be entered in
the CUSTOM MEDIA FORMATS.
To specify a custom media format:
1. Press the Menu key. The MAIN MENU screen is displayed.
2. Press the Enter key to select CONFIGURATION. The
CONFIGURATION menu screen is displayed.
3. Press the Next key until COPY OPTIONS is highlighted.
4. Press the Enter key to select COPY OPTIONS. The COPY
OPTIONS menu screen is displayed.
5. Press the Next key to highlight CUSTOM MEDIA FORMATS.
6. Press the Enter key to select CUSTOM MEDIA FORMATS. The
CUSTOM MEDIA FORMATS screen is displayed.
The first "0.0" in each "0.0 x 0.0" format represents the width. The
second "0.0" represents the length.
XEROX WIDE FORMAT COPY SYSTEM
Main Menu • 99
NOTE: The formats are expressed in the units of measurement selected
for the machine. Refer to "Localization" in the "Main Menu" section for
further information.
Below is an example of the MEDIA SERIES screen. In the example, the
display units have been set to inches.
CUSTOM MEDIA FORMATS (IN)
0.0.X 0.0
0.0 X 0.0
0.0.X 0.0
0.0 X 0.0
0.0.X 0.0
0.0 X 0.0
Custom Media Formats Screen
7. Press the Previous or Next key to highlight the desired field.
8. Use the numeric keypad to enter the value for the highlighted
field.
9. Widths in excess of 36 inches (914 mm) or less than 11 inches
(297 mm) are not valid.
10. Press the Enter key to confirm the value.
11. Repeat steps 7 through 9 until all desired formats are defined.
NOTE: Any custom formats that are not defined are automatically set to
zero and are not displayed elsewhere.
12. Press the Exit key to return to the COPY OPTIONS menu
screen.
CUSTOM R/E PRESETS
The CUSTOM R/E PRESETS option controls which
reduction/enlargement ratios are displayed when Preset is selected from
the Reduction/Enlargement portion of the Scan System Control Panel.
You can specify up to six reduction/enlargement presets.
To specify a reduction/enlargement preset:
1. Press the Menu key. The MAIN MENU screen is displayed.
2. Press the Enter key to select CONFIGURATION. The
CONFIGURATION menu screen is displayed.
3. Press the Next key until COPY OPTIONS is highlighted.
4. Press the Enter key to select COPY OPTIONS. The COPY
OPTIONS menu screen is displayed.
5. Press the Next key until CUSTOM R/E PRESETS is highlighted.
6. Press the Enter key to select CUSTOM R/E PRESETS. The
CUSTOM R/E PRESETS screen is displayed. Below is an
example of the CUSTOM R/E PRESETS screen.
100 • Main Menu
XEROX WIDE FORMAT COPY SYSTEM
CUSTOM R/E PRESETS
100.0%
100.0%
100.0%
100.0%
100.0%
100.0%
Custom R/E Presets Screen
7. Press the Previous or Next key to highlight the value that you
wish to change.
8. Use the numeric keypad to enter the desired value. The valid
value range is from 25% to 400%.
NOTE: Duplicate values are not displayed in the Preset
Reduction/Enlargement list. You can remove a preset value from the list
by setting the value to 100.0%.
9. Press the Enter key to confirm the value.
10. Repeat steps 7 through 9 for each value you wish to change.
11. Press the Exit key to return to the COPY OPTIONS menu
screen.
IMAGING
The IMAGING option allows you to perform the following functions:
•
AUTO ROTATE - Enable or disable automatic image rotation. If
AUTO ROTATE is enabled, the scanned image will be
electronically rotated 90 degrees only to match one of the page
dimensions, prevent clipping on the selected roll, or to correct
the orientation for use with the folder.
•
REDUCTION LINE PRESERVATION - Use this feature to
enable/disable line preservation when reducing normal and linemode documents.
MAXIMUM COPY LENGTH – To see what your Scan System’s
maximum copy length is, select the Menu key > Configuration
> Copy Options > Imaging > Maximum Copy Length. The
default is 100 feet. For the 6030/6050, the scanned copy would
get cut off at 3 meters.
WARNING: Copy documents that are larger than the printer’s
maximum capability will not print correctly, or may not print at all.
To enable/disable the imaging options:
1. Press the Menu key. The MAIN MENU screen is displayed.
2. Press the Enter key to select CONFIGURATION. The
CONFIGURATION menu screen is displayed.
XEROX WIDE FORMAT COPY SYSTEM
Main Menu • 101
3. Press the Next key until COPY OPTIONS is highlighted.
4. Press the Enter key to select COPY OPTIONS. The COPY
OPTIONS menu screen is displayed.
5. Press the Next key until IMAGING is highlighted.
6. Press the Enter key to select IMAGING. The IMAGING screen
is displayed. Below is an example of the IMAGING screen.
IMAGE ENHANCEMENT
IMAGING
AUTO-ROTATE
COLOR IQ: SRGB
9 REDUCTION LINE PRESERVATION
MAXIMUM COPY LENGTH: 1200.0 IN
Imaging Screen
7. Press the Previous or Next key to highlight the desired option.
8. Press the Enter key to enable or disable the highlighted option.
A checkmark appears in the box to the left of the option when the
option is enabled.
The factory default setting is disabled for AUTO-ROTATE.
9. Repeat steps 7 and 8 to enable or disable REDUCTION LINE
PRESERVATION, if desired.
10. Press the Exit key to return to the COPY OPTIONS menu
screen.
IMAGE ENHANCEMENTS
The IMAGE ENHANCEMENT feature settings are used to enhance the
appearance of color scanned images, particularly halftone color originals
(for example, maps).
This feature will greatly enhance the printing of a color sample using the
Color Scan-to-Print feature key.
To enable the IMAGE ENHANCEMENT features, perform the following:
1. Select the Menu key.
2. Press the Enter key to select CONFIGURATION. The
CONFIGURATION menu screen is displayed.
3. Press the Next key until IMAGE ENHANCEMENT is highlighted.
4. Press the Enter key to select IMAGE ENHANCEMENT. The
IMAGE ENHANCEMENT menu screen is displayed.
5. Press the Next key to highlight COLOR IQ.
6. Press the Enter key to select COLOR IQ. The COLOR IQ screen
is displayed.
102 • Main Menu
XEROX WIDE FORMAT COPY SYSTEM
IMAGE ENHANCEMENT
SRGB
COLOR IQ:
IQ: SRGB
COLOR
BEST IQ
NORMAL MODE:
9
DYNAMIC BACKGROUND REMOVAL
Image Enhancement Screen
7. Press the Next key to select the enhancement option you want:
•
NONE: scanned color has no color correction applied.
•
SRGB: scanned colors will be converted to the SRGB
(Standard Red Green Blue) color space
•
ADAPTIVE CONTRAST: scanned colors are first converted
to the SRGB color space, and then enhanced using an
adaptive contrast algorithm. The adjustment changes the
images white point, black point,
NOTE: Further color halftone image enhancement can be achieved
when printing by enabling the Error Diffusion Raster Halftone Method in
the controller Web Print Management Tool. The setting is found on the
Processing Defaults page. Select Error Diffusion from the Raster
Halftone Method pull-down menu.
8. Press the Enter key to select the enhancement setting.
9. Press the Next key to select NORMAL MODE then press the
Enter key to select Normal Mode.
10. Press Previous or Next to scroll through the settings BEST IQ
and FASTEST, then press the Enter key to select the setting.
BEST IQ is the default.
11. Press the Next key to select DYNAMIC BACKGROUND
SUPPRESSION. Then press the Enter key to enable/disable
DYNAMIC BACKGROUND REMOVAL. Disabling the DYNAMIC
BACKGROUND REMOVAL enables the STATIC
BACKGROUND REMOVAL. DYNAMIC BACKGROUND
REMOVAL is the default and should be used for most document
types.
12. Press the Enter key to confirm the selection.
13. Press the Exit key to return to the CONFIGURATION menu.
TIMERS
The TIMERS option of the CONFIGURATION menu allows you to set the
values for the time-out functions. Pressing any key or scanning a
document resets the timers.
The timers are as follows:
•
XEROX WIDE FORMAT COPY SYSTEM
FEATURE – Controls how long the current feature parameters
remain in effect after the last key press, scan completion, or
insertion of a document into the Scan System. The FEATURE
timer can be set between 0 and 99 minutes. The factory default
Main Menu • 103
is 5 minutes. A value of 0 means that the feature will never time
out.
NOTE: To prevent images from being lost, feature time-outs will not
occur during the sets build process.
•
PRINTER INTERRUPT - Controls how long the Printer remains
in the interrupted state with no interruption at the Scan System
Control Panel. This timer pertains to print jobs that have been
interrupted to allow a copy job to process. The allowed range is
1 to 99 minutes. The factory default is 1 minute.
•
FILE DELETION - Specifies the maximum amount of time a
scanned image file remains on the file system before being
deleted. This timer pertains only to files scanned when the
WIDE FORMAT COPY SYSTEM is in the READY TO SCAN
mode. This timer can be set between 1 and 24 hours in
increments of 1 hour. When a file is scanned in, it is given a time
stamp. When the age of the file on the hard disk exceeds the
value of the FILE DELETION timer, the file is automatically
deleted to allow space for new files. The default value is 24
hours. After the files have been deleted, the directory will also be
deleted if no other files are scanned to it.
To adjust a timer:
1. Press the Menu key. The MAIN MENU screen is displayed.
2. Press the Enter key to select CONFIGURATION. The
CONFIGURATION menu screen is displayed.
3. Press the Next key until TIMERS is highlighted.
4. Press the Enter key to select TIMERS. The TIMERS screen is
displayed.
TIMERS
FEATURE (0 — 99) MIN 5
PRINTER INTERRUPT (1 — 99 MIN): 1
FILE DELETION (1-24 HR): 24
Timers Screen
5. Press the Previous or Next key to highlight the desired timer.
6. Press the Enter key to select the highlighted timer.
7. Use the numeric keypad to enter the timer value.
8. Press the Enter key to confirm the value.
9. Repeat steps 5 through 8 if you want to set the value for
additional timers.
10. Press the Exit key to return to the CONFIGURATION menu
screen.
104 • Main Menu
XEROX WIDE FORMAT COPY SYSTEM
POWER SAVER
The POWER SAVER option of the CONFIGURATION menu allows you
to set the number of hours of inactivity after which the system goes into
Power Saver mode.
To adjust the power saver:
1. Press the Menu key. The MAIN MENU screen is displayed.
2. Press the Enter key to select CONFIGURATION. The
CONFIGURATION menu screen is displayed.
3. Press the Next key until POWER SAVER is highlighted.
4. Press the Enter key to select POWER SAVER. The POWER
SAVER screen is displayed.
POWER SAVER
POWER SAVER DELA Y (0 − 4 HR): 3
Power Saver Screen
5. Use the numeric keypad to enter the power saver value. The
valid value range is 0 to 4 hours. The factory default is 3 hours.
6. Press the Enter key to confirm the value.
7. Press the Exit key to return to the CONFIGURATION menu
screen.
SCANNER CONTROL
The SCANNER CONTROL option of the CONFIGURATION menu allows
you to set the options for how the Scan System starts and finishes a
scan. It contains the following features:
•
AUTOSCAN - Tells the Scan System either to start the scan
automatically when the document is inserted (ENABLED), or to
wait until the Start key is pressed (DISABLED). ENABLED is
the factory default setting.
•
DOCUMENT RETURN - Tells the Scan System, after the scan,
either to return the document to the front of the Scan System
(FRONT), or to drop the document from the rear of the Scan
System into the catch tray (REAR). REAR is the factory default
setting.
NOTE: Refer to Controlling the Scan for additional information.
MODE: (PRODUCTIVITY is the default.)
XEROX WIDE FORMAT COPY SYSTEM
•
MANUAL WIDTH - The user must enter the document width
and very carefully center the document. In this mode the
document will be prescanned.
•
AUTOWIDTH - Enables the automatic detection of the width
of the document. In this mode the document will be
prescanned.
Main Menu • 105
•
AUTOWIDTH/AUTOCENTER - Enables the automatic
centering of the image and automatic width detection. This
selection is the default. In this mode the document will be
prescanned.
•
PRODUCTIVITY - This feature does not use
AUTOCENTER, requiring the operator to manually align the
document within the media guidelines on the Feed-in Tray.
The width sensors eliminate the need for a prescan, thereby
increasing the overall throughput of the system resulting in
higher productivity. When this feature is used, the operator
must select the media series, ANSI, ARCH, ISO A, ISO B
JIS B and CUSTOM etc. since the number of sensors
provided cannot monitor every media type.
To use the MODE: PRODUCTIVITY: CUSTOM the custom
sizes must be entered in the CUSTOM MEDIA FORMATS
(Select the Menu key > CONFIGURATION>COPY
OPTIONS).
To set the Scanner Control features:
1. Press the Menu key. The MAIN MENU screen is displayed.
2. Press the Enter key to select CONFIGURATION. The
CONFIGURATION menu screen is displayed.
3. Press the Next key until SCANNER CONTROL is highlighted.
4. Press the Enter key to select SCANNER CONTROL. The
SCANNER CONTROL screen is displayed.
SCANNER CONTROL
9
AUTOSCAN
DOCUMENT RETURN:
MODE:
FRONT
AUTOWIDTH/AUTOCENTER
ScannerControl Screen
5. Press the Previous or Next key to select the desired feature.
6. Press the Enter key to confirm the choice.
7. Press the Previous or Next key to select the desired setting.
106 • Main Menu
•
For AUTOSCAN, you can enable or disable the feature. A
checkmark in the box to the left of the feature indicates that
the feature is enabled. Enabled is the factory default setting
for these features.
•
For DOCUMENT RETURN, the selections are FRONT and
REAR. FRONT is the factory default setting.
•
For MODE: use the Previous or Next keys to select the
desired option then press the Enter key to confirm the
choice. The options are MANUAL, AUTOWIDTH,
AUTOWIDTH/AUTOCENTER, or PRODUCTIVITY. If
PRODUCTIVITY is selected, then use the Previous or Next
key to select the ANSI, ARCH, ISO A, ISO B, JISB, or
CUSTOM setting.
XEROX WIDE FORMAT COPY SYSTEM
•
Use the CUSTOM setting when documents of mixed series
will be scanned in the same job. The CUSTOM selection
uses the custom sizes that are entered in the CUSTOM
MEDIA SIZES (Menu key > CONFIGURATION>COPY
OPTIONS).
CUSTOM MEDIA FORMATS (IN)
0.0.X 0.0
0.0 X 0.0
0.0.X 0.0
0.0 X 0.0
0.0.X 0.0
0.0 X 0.0
Custom Media Formats Screen
8. Press the Exit key to return to the CONFIGURATION menu
screen.
System Information menu
The SYSTEM INFORMATION option of the MAIN MENU contains the
following menu choices:
•
SYSTEM DESCRIPTION - Provides information about each
component connected to the WIDE FORMAT COPY SYSTEM.
•
RECENT FAULT LIST - Displays the most recent faults related
to the Scan System.
•
CONFIGURATION PRINTS - Prints Copier and Printer
configuration pages.
To access the SYSTEM INFORMATION menu:
1. Press the Menu key. The MAIN MENU screen is displayed.
2. Press the Next key to highlight SYSTEM INFORMATION.
3. Press the Enter key to select SYSTEM INFORMATION. The
SYSTEM INFORMATION menu screen is displayed. The black
arrows indicate that the menu contains more options than are
visible. The selected option is highlighted.
SYSTEM INFORMATION
SYSTEM DESCRIPTION
RECENT FAULT LIST
CONFIGURATION PRINTS
System Information Screen
4. Press the Previous or Next key to scroll through the list of
options.
5. When the desired option is highlighted, press the Enter key to
select the option. The menu or screen for the selected option is
displayed.
XEROX WIDE FORMAT COPY SYSTEM
Main Menu • 107
SYSTEM DESCRIPTION
The SYSTEM DESCRIPTION option of the SYSTEM INFORMATION
menu provides information on the model identity and firmware version for
each component connected to the WIDE FORMAT COPY SYSTEM.
To display component information:
1. Press the Menu key. The MAIN MENU screen is displayed.
2. Press the Next key to highlight the SYSTEM INFORMATION
option.
3. Press the Enter key to select SYSTEM INFORMATION. The
SYSTEM INFORMATION menu screen is displayed.
4. Press the Enter key to select SYSTEM DESCRIPTION. The
SYSTEM DESCRIPTION screen is displayed.
SYSTEM DESCRIPTION
SCANNER
CONTROLLER
CONTROL PANEL
System Description Screen
5. Press the Previous or Next key to highlight the component
about which you want to view information.
6. Press the Enter key to select the highlighted component. The
screen for the selected component is displayed. Following are
examples of the screens for each of the components.
SCANNER
MODEL: XEROX WIDE FORMAT SCAN SYSTEM
FIRMWARE: 3.2.8
Scanner Screen
CONTROLLER
MODEL: 4
FIRMWARE: 10.0
RAM: 512MB
Controller Screen
NOTE: The CONTROLLER screen also provides the amount of
Random Access Memory (RAM).
108 • Main Menu
XEROX WIDE FORMAT COPY SYSTEM
CONTROL PANEL
MODEL: 1
FIRMWARE : 1.1.0
Control Panel Screen
PRINTER
MODEL: XEROX XXXX WIDE FORMAT
FIRMWARE: XXX
Printer Screen
NOTE: The XXXX represents the Printer name.
FINISHER
MODEL:
NONE
Finisher Screen
NOTE: This screen identifies the Finisher, if any. If there is no finisher,
the MODEL is displayed as NONE. If a Folder is connected, the
FINISHER screen displays the configuration of the connected Folder.
7. Press the Exit key to return to the SYSTEM DESCRIPTION
screen.
RECENT FAULT LIST
The RECENT FAULT LIST option of the SYSTEM INFORMATION menu
displays the most recent faults related to the Scan System. Fault
messages are stored in the Controller. Each fault message contains a
fault code and a digital time stamp. When you call for service, the
service center may ask you for this information.
To display the recent fault list:
1. Press the Menu key. The MAIN MENU screen is displayed.
2. Press the Next key to highlight SYSTEM INFORMATION.
3. Press the Enter key to select SYSTEM INFORMATION. The
SYSTEM INFORMATION menu screen is displayed.
XEROX WIDE FORMAT COPY SYSTEM
Main Menu • 109
4. Press the Next key to highlight RECENT FAULT LIST.
Press the Enter key to select RECENT FAULT LIST. The
RECENT FAULT LIST screen is displayed. Below is an example
of the RECENT FAULT LIST screen. The first column is the time
given in seconds since January 1, 1970. That's what is used to
determine the actual system date and time.
5.
Go to the Problem Solving section of this document to look up
the second column’s fault code.
RECENT FAULT LIST
37449914 50000008
37449868 50000008
Recent Fault List Screen
6. Press the Previous or Next key to scroll through the list.
7. Press the Exit key to return to the SYSTEM INFORMATION
menu screen.
CONFIGURATION PRINTS
The CONFIGURATION PRINTS option of the SYSTEM INFORMATION
menu allows you to print one of the following selections:
•
Copier Configuration
•
Printer Configuration
•
Printer Settings
•
All of the above.
To print a configuration print:
1. Press the Menu key. The MAIN MENU screen is displayed.
2. Press the Next key to highlight SYSTEM INFORMATION.
3. Press the Enter key to select SYSTEM INFORMATION. The
SYSTEM INFORMATION menu screen is displayed.
4. Press the Previous or Next key until CONFIGURATION
PRINTS is highlighted.
5. Press the Enter key to select CONFIGURATION PRINTS. The
CONFIGURATION PRINTS screen is displayed.
CONFIGURATION
COPIER CONFIGURATION
PRINTER CONFIGURATION
PRINTER SETTINGS
ALL CONFIGURATION PRINTS
Configuration Screen
110 • Main Menu
XEROX WIDE FORMAT COPY SYSTEM
6. Press the Previous or Next key to highlight the configuration
page you want to print.
7. Press the Enter key to select the highlighted configuration. The
screen for the selected configuration is displayed. The default
response is YES.
Below is an illustration of the COPIER CONFIGURATION screen.
COPIER CONFIGURATION
QUEUE TO PRINTER:
YES
Copier Configuration Screen
8. Press the Enter key to confirm the response. A status message
is displayed indicating that the configuration has been queued to
the Printer.
Below are illustrations of the other CONFIGURATION PRINT screens
with the status message.
PRINTER CONFIGURATION
QUEUE TO PRINTER:
YES
Printer Configuration Screen
PRINTER SETTINGS
QUEUE TO PRINTER:
YES
Printer Settings Screen
ALL CONFIGURATION PRINTS
QUEUE TO PRINTER:
YES
All Configuration Prints Screen
XEROX WIDE FORMAT COPY SYSTEM
Main Menu • 111
9. Press the Exit key to return to the CONFIGURATION PRINTS
screen.
System Administration menu
The SYSTEM ADMINISTRATION option of the MAIN MENU is reserved
for the system administrator. It can be accessed only after entering the
system administration password.
When this option is selected, the system administrator is immediately
prompted for a password. See "Entering the system administration
password" in this section for complete information about the password
entry.
Once the system administration password has been entered correctly,
the SYSTEM ADMINISTRATION menu screen is displayed. It contains
the following options:
•
JOB ACCOUNTING MODE - Allows the system administrator to
enable the Job Accounting Mode. The options are DISABLED,
ENABLED, and OPTIONAL. The default is DISABLED.
•
FILE SYSTEM - Allows the system administrator to view and
delete account information.
•
CHANGE PASSWORD - Allows the system administrator to
change the system administration password.
SECURITY SETTINGS - Allows the system administrator to set
the image recall feature. The immediate overwriting of data to
DOD specification is such that the system, at any point in its
operation, can be considered secure and all data will be
removed no matter what operation the customer is performing.
Entering the system
administration
password
Access to the SYSTEM ADMINISTRATION menu requires the entry of
the system administration password.
To enter the system administration password:
1. Press the Menu key. The MAIN MENU screen is displayed.
2. Press the Previous or Next key until SYSTEM
ADMINISTRATION is highlighted.
3. Press the Enter key to select SYSTEM ADMINISTRATION. The
SYSTEM ADMINISTRATION password screen is displayed.
SYS TEM ADMINIS TRA TION
ENTE R PASSWORD:
System Administration Screen
112 • Main Menu
XEROX WIDE FORMAT COPY SYSTEM
4. Use the numeric keypad to enter the password. The password
will display as asterisks.
5. Press the Enter key to confirm the password entry. The
SYSTEM ADMINISTRATION menu screen is displayed. The
black arrows indicate that the menu contains more options than
are visible. The selected option is highlighted.
SYSTEM
JOB ACCOUNTING MODE
FILE SYSTEM
CHANGE PASSWORD
SECURITY SETTINGS
System Screen
NOTE: If an incorrect password is entered, an error message will be
displayed as shown below. Enter the password again.
SYS TEM ADMINIS TRA TION
PASSWORD: *****
INVALID PASSWORD, RE-ENTER
System Administration Screen
6. Press the Previous or Next key to scroll through the list of
system administration options.
7. Press the Enter key to select the desired option.
JOB ACCOUNTING
The JOB ACCOUNTING option of the System Administration menu
allows the system administrator with access to enable Job Accounting.
The options are DISABLED, ENABLED, and OPTIONAL. The default is
DISABLED.
FILE SYSTEM
The FILE SYSTEM option of the SYSTEM ADMINISTRATION menu
provides a sub-menu of the following menu choices:
•
LIST BY DIRECTORY- Allows the system administrator to list
the number of images stored under each directory and the
percentage of total hard disk space consumed by the directory.
•
DELETE IMAGES - Allows the system administrator to delete all
of the images scanned for a particular directory.
•
DELETE ALL IMAGES - Allows the system administrator to
delete all of the images currently stored on the hard disk.
To access the FILE SYSTEM menu:
1. Access the SYSTEM ADMINISTRATION menu. See “Entering
the system administration password” in this section.
XEROX WIDE FORMAT COPY SYSTEM
Main Menu • 113
2. Press the Next key to highlight FILE SYSTEM.
3. Press the Enter key to select FILE SYSTEM. The FILE
SYSTEM menu screen is displayed.
FILE SYSTEM
LIST BY DIRECTORY
DELETE IMAGES
DELETE ALL IMAGES
File System Screen
4. Press the Previous or Next key to highlight the desired option.
5. Press the Enter key to select the highlighted option.
LISTING STORED
IMAGE INFORMATION
BY DIRECTORY
The LIST BY DIRECTORY option allows the system administrator to
display a list of the number of images stored under each directory and
the percentage of total hard disk space consumed by each account.
To list scanned image information by account:
1. Access the SYSTEM ADMINISTRATION menu. See "Entering
the system administration password" in this section.
2. Press the Next key to highlight FILE SYSTEM.
3. Press the Enter key to select FILE SYSTEM. The FILE
SYSTEM menu screen is displayed.
4. Press the Enter key to select LIST BY DIRECTORY. The LIST
BY DIRECTORY screen is displayed. The following illustration is
a DIRECTORY example of the LIST BY screen.
NOTE: Directories that do not contain files will not be displayed.
Directories not containing files are deleted.
DIRECTORY
images
images
LIST BY DIRECTORY
COUNT
2*
35
SIZE (%)
<1
2
List by Directory Screen
For each directory, the account name (DIRECTORY), the number of
images stored under the directory (COUNT), and the percentage of total
disk space consumed by the account (SIZE (%)) are shown. The length
of the directory name may cause the information associated with the
directory to wrap to the next line. Also, if the directory name exceeds the
character limit of the first line, the name will be truncated at the width of
the screen.
Use the Previous or Next key to scroll through the list.
114 • Main Menu
XEROX WIDE FORMAT COPY SYSTEM
An asterisk in the COUNT field indicates that some images in memory
have not yet been processed. A “<1” in the SIZE field indicates the
account uses less than 1% of the total disk space on the file system.
5. Press the Exit key to return to the FILE SYSTEM menu screen.
DELETING STORED
IMAGES BY
DIRECTORY
The DELETE IMAGE option allows the system administrator to delete all
the images stored for a particular account.
To delete stored images by account:
1. Access the SYSTEM ADMINISTRATION menu. See “Entering
the system administration password” in this section.
2. Press the Next key to highlight FILE SYSTEM.
3. Press the Enter key to select FILE SYSTEM. The FILE
SYSTEM menu screen is displayed.
4. Press the Next key to highlight DELETE IMAGES.
5. Press the Enter key to select DELETE IMAGES. The DELETE
IMAGES screen is displayed.
DELETE IMAGES
DIRECTORY:
Images †
Delete Images Screen
6. Use the numeric keypad to enter the name of the directory from
which you would like delete the stored images.
7. Press the Enter key to confirm the account number. A delete
confirmation screen is displayed. The default response is NO.
The following illustration is an example of the DELETE IMAGES screen.
DIRECTORY:
DELETE IMAGES
Images
ARE YOU SURE ?
NO
Delete Images- Are You Sure Screen
8. Press the Previous or Next key to change the response to YES.
9. Press the Enter key to confirm the deletion. While the deletion is
in process, a “DELETING. . .” message is displayed. When the
deletion is complete, the status changes to IMAGES DELETED.
Below is an example of the deletion screen.
XEROX WIDE FORMAT COPY SYSTEM
Main Menu • 115
DELETE IMAGES
DIRECTORY:
Images
†
IMAGES DELETED
Delete Images – Images Deleted Screen
10. Press the Exit key to return to the FILE SYSTEM menu screen.
DELETING ALL
STORED IMAGES
The DELETE ALL IMAGES option allows the system administrator to
delete all the images stored on the file system.
To delete all stored images:
1. Access the SYSTEM ADMINISTRATION menu. See "Entering
the system administration password" in this section.
2. Press the Next key to highlight FILE SYSTEM.
3. Press the Enter key to select FILE SYSTEM. The FILE
SYSTEM menu screen is displayed.
4. Press the Next key until DELETE ALL IMAGES is highlighted.
5. Press the Enter key to select DELETE ALL IMAGES. The
DELETE ALL IMAGES screen is displayed. The default
response is NO.
DELETE ALL IMAGES
ARE YOU SURE?:
NO
Delete All Images Screen
6. Press the Previous or Next key to change the response to YES.
7. Press the Enter key to confirm the deletion. While the deletion is
in process, a "DELETING. . ." message is displayed. When the
deletion is complete, the status changes to IMAGES DELETED.
DELETE IMAGES
ARE YOU SURE?:
YES
IMAGES DELETED
Delete Images – Are You Sure Screen
8. Press the Exit key to return to the FILE SYSTEM menu screen.
116 • Main Menu
XEROX WIDE FORMAT COPY SYSTEM
CHANGE PASSWORD
The CHANGE PASSWORD option of the SYSTEM ADMINISTRATION
menu allows the system administrator to change the system
administration password.
The default system administration password on all newly delivered
machines is 0 (zero). The system administrator is required to change the
password after the initial log in. Immediately following the log in, the
CHANGE PASSWORD screen is displayed. The password must be
changed at that time.
If the existing password has been lost, call for service. The customer
service engineer will reset the password to the default value of 0. The
system administrator should then change the password to a different
value.
NOTE: Changing the system administrator password on the Scan
System Control Panel also changes the system administrator password
for the Printer. These two passwords always have the same value.
To change the system administration password:
1. Select the Menu key.
2. Access the SYSTEM ADMINISTRATION menu. See "Entering
the system administration password" in this section.
3. Press the Next key until CHANGE PASSWORD is highlighted.
4. Press the Enter key to select CHANGE PASSWORD. The
CHANGE PASSWORD screen is displayed.
CHANGE PASSWORD
ENTE R OLD PASSWORD:
Change Password Screen
5. Use the numeric keypad to enter the old password.
6. Press the Enter key to confirm the old password. The CHANGE
PASSWORD screen will instruct you to enter the new password.
CHANGE PASSWORD
ENTER NEW PASSWORD:
Change Password Screen
7. Use the numeric keypad to enter the new password. The
password will display as asterisks.
XEROX WIDE FORMAT COPY SYSTEM
Main Menu • 117
NOTE: The valid range for passwords is 0 - 65535. If the existing
password or an invalid password is entered, an error message will be
displayed. The new password must be entered again.
8. Press the Enter key to confirm the new password. The
CHANGE PASSWORD screen will instruct you to re-enter the
new password.
CHANGE PASSWORD
RE-ENTER NEW PASSWORD:
Change Password – Re-Enter Password Screen
9. Use the numeric keypad to re-enter the new password. The
password will display as asterisks.
10. Press the Enter key to confirm the re-entry. You will be returned
to the SYSTEM ADMINISTRATION menu screen. The new
password is now effective. The old password is no longer valid.
SECURITY SETTINGS
Scan-to-FTP: Scanned images can be transferred to 4 remote FTP
destinations. The scanned images are not stored on the Controller’s hard
drive. The FTP feature is located on the Sample Mode screen.
Scan-to-Net: At most installations, users have the ability to recall the
last image scanned (that was not sent to an FTP destination) and all the
settings associated with that image. The recalled image can then be
printed without the need to scan from the original document.
Security concerns at certain installations, however, might require that the
image recall feature be disabled. The SECURITY SETTINGS option of
the System Administration menu allows the system administrator to
enable or disable the image recall feature. The default setting is
ENABLED.
To enable/disable the image recall feature:
1. Select the Menu key.
2. Access the SYSTEM ADMINISTRATION menu.
3. Press the Next key until SECURITY SETTINGS is highlighted.
4. Press the Enter key to select SECURITY SETTINGS. The
SECURITY SETTINGS screen is displayed.
118 • Main Menu
XEROX WIDE FORMAT COPY SYSTEM
SECURITY SE TTINGS
IMAGE RECALL:
ENABLED
Security Settings Screen
5. Press the Previous or Next key to highlight the desired
response, ENABLED or DISABLED.
6. Press the Enter key to confirm your selection.
7. Press the Exit key to return to the SYSTEM ADMINISTRATION
menu screen.
Diagnostics menu
The DIAGNOSTICS option of the Main Menu contains the following
menu choices:
NOTE: Some of the scanner diagnostics listed below require a
password to access and are performed only by a Customer Service
Engineer.
•
USAGE METERS - Enables you to view usage information for
documents scanned and media printed.
•
CLEAR USAGE - Enables the Customer Service Engineer to
reset to zero the usage value for documents scanned. The
diagnostic password is required for this function.
•
SCANNER DIAGNOSTICS - Provides a sub-menu of Scan
System diagnostic routines. Some of these routines are
accessible by both the operator and the Customer Service
Engineer, but should only be accessed by an operator when
directed to do so by Service. Access to these tests has been
given to enable some preliminary diagnostics to be done by
phone before a Customer Service Engineer is dispatched.
Others are accessible by the Service Engineer only and require
the entry of the diagnostic password.
•
INSTALLATION TEST PRINT - Enables the Customer Service
Engineer to make a copy of the test print to assist in diagnosing
the Scan System.
•
PASSWORD - Enables the Customer Service Engineer to enter
the password for access to password-protected diagnostic
functions.
To access the DIAGNOSTICS menu:
1. Press the Menu key. The MAIN MENU screen is displayed.
XEROX WIDE FORMAT COPY SYSTEM
Main Menu • 119
2. Press the Next key until DIAGNOSTICS is highlighted.
3. Press the Enter key to select DIAGNOSTICS. The
DIAGNOSTICS menu screen is displayed. The black arrows
indicate the menu contains more options than are visible. The
selected option is highlighted.
DIAGNOSTICS
USAGE METERS
CLEAR SCANNER USAGE
SCANNER DIAGNOSTICS
Diagnostics Menu
4. Press the Previous or Next key to scroll through the list of
options.
5. When the desired option is highlighted, press the Enter key to
select the option. The menu or screen for the selected option is
displayed.
USAGE METERS
Select the USAGE METERS option of the DIAGNOSTICS menu to view
the total system usage for documents scanned and media printed.
To view area and media usage:
1. Press the Menu key. The MAIN MENU screen is displayed.
2. Press the Next key until DIAGNOSTICS is highlighted.
3. Press the Enter key to select DIAGNOSTICS. The
DIAGNOSTICS menu screen is displayed.
4. Press the Enter key to select USAGE METERS. The USAGE
METERS screen is displayed.
The USAGE METERS screen provides Scan System area usage and
media usage. Scan System area usage is measured in square units.
Media usage is measured in both linear and square units. Units are
displayed as either feet or meters depending on the display units
selected for the Scan System. Refer to "Localization" in the "Main Menu"
section for complete information about setting the display units.
Below is an example of the USAGE METERS screen. In the example,
the units are displayed as meters.
USAGE METE RS
2
SCANNER (F ):
MEDIA LINEAR
MEDIA AREA
11
307
670
Usage Meters Screen
120 • Main Menu
XEROX WIDE FORMAT COPY SYSTEM
5. When finished viewing the usage information, press the Exit key
to return to the DIAGNOSTICS menu screen.
CLEAR SCANNER
USAGE
The CLEAR SCANNER USAGE option of the DIAGNOSTICS menu is
for use by the Customer Service Engineer only. It requires the entry of
the diagnostic password. It allows the Customer Service Engineer to
reset to zero the usage value for documents scanned.
If you select this option, the CLEAR SCANNER USAGE screen is
displayed. You cannot perform any functions in this screen. Press the
Exit key to return to the DIAGNOSTICS menu screen.
Below is an example of the Clear Scanner Usage screen. In the
example, the units are displayed as square feet.
CLEAR SCANNER USAGE
SCANNER (F ) :
2
ARE YOU SURE?:
1234
NO
Clear Scanner Usage Screen
SCANNER
DIAGNOSTICS
The SCANNER DIAGNOSTICS option of the DIAGNOSTICS menu
provides a sub-menu of the following choices:
•
IMAGE PATH - Enables you to validate the operation of the
image processing (IP) card and the image bar.
•
SCAN BAR - Enables you to calibrate the response of the scan
bar.
•
FULL SYSTEM TEST - Enables you to run all applicable tests on
the Scan System to determine if it is working properly.
•
WRITE NVR - Enables the Customer Service Engineer to modify
the contents of the non-volatile memory of the Scan System.
The diagnostic password is required for this function.
•
RESET NVR DEFAULTS - Enables the Customer Service
Engineer to reset the NVR values to the factory default values.
The diagnostic password is required for this function.
•
SCANNER RELIABILITY METER - Enables you to gather data
about the usage of the scanning mechanism.
•
SCANNER FAULTS (ORDERED) - Enables you to view the
entries in the internal Scanner Fault Log.
•
FAULTS (COUNTS) - Enables you to view the last cleared
faults.
•
CLEAR SCANNER FAULT LOG - Enables the Customer Service
Engineer to erase the contents of the Scanner Fault Log. The
diagnostic password is required for this function.
XEROX WIDE FORMAT COPY SYSTEM
Main Menu • 121
•
CLEAN CALIBRATION ZONE - Enables you to quickly move the
calibration surface to the cleaning position.
•
COMPONENT TESTS - Provides a sub-menu of Scanner
component diagnostic routines. Some of these routines are
accessible by both the operator and the Customer Service
Engineer. Others are accessible by the Customer Service
Engineer only and require the entry of the diagnostic password.
•
READ NVR - Enables you to examine the contents of the nonvolatile RAM (NVR).
To access the SCANNER DIAGNOSTICS menu:
1. Press the Menu key. The MAIN MENU screen is displayed.
2. Press the Next key until DIAGNOSTICS is highlighted.
3. Press the Enter key to select DIAGNOSTICS. The
DIAGNOSTICS menu screen is displayed.
4. Press the Next key until SCANNER DIAGNOSTICS is
highlighted.
5. Press the Enter key to highlight SCANNER DIAGNOSTICS.
The SCANNER DIAGNOSTICS menu screen is displayed. The
black arrows indicate that the menu contains more options than
are visible. The selected option is highlighted.
SCANNER DIAGNOSTICS
IMAGE PATH
SCAN BAR
FULL SYSTEM TEST
Scanner Diagnostics Screen
6. Press the Previous or Next key to scroll through the list of
options.
7. When the desired option is highlighted, press the Enter key to
select the option. The menu or screen for the selected option is
displayed.
IMAGE PATH
Select the IMAGE PATH option to validate the operation of the image
processing (IP) card and the image bar.
To run the IMAGE PATH diagnostic:
1. Press the Menu key. The MAIN MENU screen is displayed.
2. Press the Next key until DIAGNOSTICS is highlighted.
3. Press the Enter key to select DIAGNOSTICS. The
DIAGNOSTICS menu screen is displayed.
4. Press the Next key until SCANNER DIAGNOSTICS is displayed.
5. Press the Enter key to select SCANNER DIAGNOSTICS. The
SCANNER DIAGNOSTICS menu screen is displayed.
122 • Main Menu
XEROX WIDE FORMAT COPY SYSTEM
6. Press the Enter key to select IMAGE PATH. The IMAGE PATH
screen is displayed.
IMAGE PATH
STATUS: 0
BOARD ID: 2
BAR2: 0
BAR1: 0
BAR3: 0
ALL: 0
Image Path Screen
When you enter the IMAGE PATH screen, the status field for all tests
contains a "0." After a few seconds, the results of the tests are
displayed. A test result with no failure displays as PASS. A test result
with a failure displays a failure code. If a failure code is displayed, call
for service.
7. Press the Exit key to return to the SCANNER DIAGNOSTICS
menu screen.
SCAN BAR
Select the SCAN BAR option to calibrate the response of the scan bar.
To run the SCAN BAR diagnostic:
1. Press the Menu key. The MAIN MENU screen is displayed.
2. Press the Next key until DIAGNOSTICS is highlighted.
3. Press the Enter key to select DIAGNOSTICS. The
DIAGNOSTICS menu screen is displayed.
4. Press the Next key until SCANNER DIAGNOSTICS is displayed.
5. Press the Enter key to select SCANNER DIAGNOSTICS. The
SCANNER DIAGNOSTICS menu screen is displayed.
6. Press the Next key to highlight SCAN BAR.
7. Press the Enter key to select SCAN BAR. The SCAN BAR
screen is displayed.
SCAN BAR
CALIBRATION TEST
PRESS START TO BEGIN
Scan Bar Screen
8. Press the Start key to begin the test. While the test is executing,
the bottom display line changes to “RUNNING.”
At the completion of the test, the test result is displayed. A test result
with no failure displays as PASSED. A test result with a failure displays
as FAILED followed by ERROR CODE: and a hexadecimal value
between 0 and FF. If a failure code is displayed, call for service.
XEROX WIDE FORMAT COPY SYSTEM
Main Menu • 123
9. Press the Exit key to return to the SCANNER DIAGNOSTICS
menu screen.
FULL SYSTEM TEST
Select the FULL SYSTEM TEST option to run all applicable tests on the
Scan System to determine if it is working properly.
To run the FULL SYSTEM TEST diagnostic:
1. Press the Menu key. The MAIN MENU screen is displayed.
2. Press the Next key until DIAGNOSTICS is highlighted.
3. Press the Enter key to select DIAGNOSTICS. The
DIAGNOSTICS menu screen is displayed.
4. Press the Next key until SCANNER DIAGNOSTICS is displayed.
5. Press the Enter key to select SCANNER DIAGNOSTICS. The
SCANNER DIAGNOSTICS menu screen is displayed.
6. Press the Next key until FULL SYSTEM TEST is highlighted.
7. Press the Enter key to select FULL SYSTEM TEST. The FULL
SYSTEM TEST screen is displayed.
FULL SYSTEM TEST
A)
B)
C)
G)
H)
I)
D)
E)
F)
PRESS START TO BEGIN
Full System Test Screen
Nine sub-tests are included in the system test. Each letter on the screen
corresponds to a sub-test as follows:
a) Post Test 5 – NVM (Non Volatile Memory) Verification
b) Post Test 6 – Motor Communications
c) Post Test 7 – SCVM Code Checksum
d) Post Test 8 – SCVM (Scan System Virtual Memory) Load
and Functional Test
e) Post Test 9 – Pixel Magic Interface
f)
Post Test A – Pixel Magic Internal
g) Post Test B – Video Path
h) Post Test C – 24 VDC (Volts Direct Current) Power Supply
Test
i)
Post Test D – Lamp
8. Press the Start key to begin the system test. While the tests are
executing, the bottom display line changes to “RUNNING.”
At the completion of the tests, the test results are displayed. If a sub-test
is successful, a “P” is displayed. If a sub-test fails, an “F” is displayed. If
an “F” is displayed, the test has failed and service is required.
124 • Main Menu
XEROX WIDE FORMAT COPY SYSTEM
9. Press the Exit key to return to the SCANNER DIAGNOSTICS
menu screen.
WRITE NVR
The WRITE NVR option is for use by the Customer Service Engineer
only and requires the entry of the diagnostic password. It allows the
Customer Service Engineer to modify the contents of the non-volatile
memory of the Scan System.
If you select this option, the WRITE NVR screen is displayed. You
cannot perform any functions in this screen. Press the Exit key to return
to the SCANNER DIAGNOSTICS menu screen.
Below is an example of the WRITE NVR screen.
WRITE NVR
ADDRESS:
D0
EXECUTE:
NO
SIZE:
4
DATA:
ABCD4321
USE . KEY FOR HEX DIGITS
Write NVR Screen
RESET NVR DEFAULTS
The RESET NVR DEFAULTS option is for use by the Customer Service
Engineer only and requires the entry of the diagnostic password. It
allows the Customer Service Engineer to reset the NVR values to the
factory default values.
If you select this option, the RESET NVR DEFAULTS screen is
displayed. You cannot perform any functions in this screen. Press the
Exit key to return to the SCANNER DIAGNOSTICS menu screen.
Below is an illustration of the RESET NVR DEFAULTS screen.
RESET NVR DEFAULTS
WARNING: THIS FUNCTION
DESTROYS NVR CONTENTS
EXECUTE:
NO
Reset NVR Defaults Screen
SCANNER RELIABILITY
METER
Select the SCANNER RELIABILITY METER option to view the current
value of the usage meter maintained by the Scan System. The meter
counts and displays the number of linear feet since the Scan System
Fault Log was last cleared. The number of linear feet between fault
occurrences is an indication of the reliability of the Scan System.
To run the SCANNER RELIABILITY METER diagnostic:
1. Press the Menu key. The MAIN MENU screen is displayed.
2. Press the Next key until DIAGNOSTICS is highlighted.
XEROX WIDE FORMAT COPY SYSTEM
Main Menu • 125
3. Press the Enter key to select DIAGNOSTICS. The
DIAGNOSTICS menu screen is displayed.
4. Press the Next key until SCANNER DIAGNOSTICS is displayed.
5. Press the Enter key to select SCANNER DIAGNOSTICS. The
SCANNER DIAGNOSTICS menu screen is displayed.
6. Press the Next key until SCANNER RELIABILITY METER is
highlighted.
7. Press the Enter key to select SCANNER RELIABILITY METER.
The SCANNER RELIABILITY METER screen is displayed.
The Scanner usage meter is intended for gathering data about the
reliability of the scanning mechanism. This meter measures linear usage
only. Units are displayed as either feet or meters depending on the
display units selected for the machine. Refer to “Localization” in the
“Main Menu” section for complete information about setting the display
units.
Below is an example of the SCANNER RELIABILITY METER screen. In
the example, the units are displayed as feet.
SCANNER RELIABILITY
LINEAR SCAN (FT):
COLOR (FT):
5678
0
Scanner Reliability Screen
8. Press the Exit key to return to the SCANNER DIAGNOSTICS
menu screen.
SCANNER FAULTS
(ORDERED)
Select the SCANNER FAULTS (ORDERED) option to view the entries in
the internal Scanner Fault Log.
To run the SCANNER FAULTS (ORDERED) diagnostic:
1. Press the Menu key. The MAIN MENU screen is displayed.
2. Press the Next key until DIAGNOSTICS is highlighted.
3. Press the Enter key to select DIAGNOSTICS. The
DIAGNOSTICS menu screen is displayed.
4. Press the Next key until SCANNER DIAGNOSTICS is displayed.
5. Press the Enter key to select SCANNER DIAGNOSTICS. The
SCANNER DIAGNOSTICS menu screen is displayed.
6. Press the Next key until SCANNER FAULTS (ORDERED) is
highlighted.
7. Press the Enter key to select SCANNER FAULTS (ORDERED).
The SCANNER FAULTS (ORDERED) screen is displayed.
The first line of the display contains the value of the internal Scanner
Reliability Meter reading when the log was last cleared. If the log has
never been cleared, the value is set to zero. This line scrolls with the log
data.
126 • Main Menu
XEROX WIDE FORMAT COPY SYSTEM
The second and third lines contain the log entry information in columnar
format. The first column indicates the log entry number. The second
column indicates the fault code recorded in the log. The third column is
the value of the internal Scanner Usage Meter at the time the fault was
detected.
Below is an example of the SCANNER FAULTS (ORDERED) screen.
SCANNER FAULTS (ORDERED)
LAST CLEARED:
2001
01
01-02
2476
02
01-03
2402
Scanner Faults (Ordered) Screen
8. Use the Previous or Next key to scroll through the listing.
The entries are presented three to a screen. You can view all valid
entries in the Scanner Fault Log from this screen. Empty log entries are
not displayed.
9. When finished viewing the fault data, press the Exit key to return
to the SCANNER DIAGNOSTICS menu screen.
SCANNER FAULTS
(COUNT)
Select the SCANNER FAULTS (COUNT) option to view the last cleared
faults.
To run the SCANNER FAULTS (COUNTS) diagnostic:
1. Press the Menu key. The MAIN MENU screen is displayed.
2. Press the Next key until DIAGNOSTICS is highlighted.
3. Press the Enter key to select DIAGNOSTICS. The
DIAGNOSTICS menu screen is displayed.
4. Press the Next key until SCANNER DIAGNOSTICS is displayed.
5. Press the Enter key to select SCANNER DIAGNOSTICS. The
SCANNER DIAGNOSTICS menu screen is displayed.
6. Press the Next key until SCANNER FAULTS (COUNTS) is
highlighted.
7. Press the Enter key to select SCANNER FAULTS (COUNTS).
The SCANNER FAULTS (COUNTS) screen is displayed.
The first line of the display contains the value of the internal Scanner
Reliability Meter reading when the log was last cleared. If the log has
never been cleared, the value is set to zero. This line scrolls with the log
data.
The second and third lines contain the log entry information in columnar
format. The first column indicates the log entry number. The second
column indicates the fault code recorded in the log. The third column is
the value of the internal Scanner Usage Meter at the time the fault was
detected.
Below is an example of the SCANNER FAULTS (COUNTS) screen.
XEROX WIDE FORMAT COPY SYSTEM
Main Menu • 127
SCANNER FAULTS (COUNTS)
LAST CLEARED:
2001
01
01-02
2476
02
01-03
2402
Scanner Faults (Counts) Screen
8. Use the Previous or Next key to scroll through the listing.
The entries are presented three to a screen. You can view all valid
entries in the Scanner Fault Log from this screen. Empty log entries are
not displayed.
9. When finished viewing the fault data, press the Exit key to return
to the SCANNER DIAGNOSTICS menu screen.
CLEAR SCANNER
FAULT LOG
The CLEAR SCANNER FAULT LOG option is for use by the Customer
Service Engineer only and requires the entry of the diagnostic password.
It allows the Customer Service Engineer to erase the contents of the
Scanner Fault Log.
If you select this option, the CLEAR SCANNER FAULT LOG screen is
displayed. You cannot perform any functions in this screen. Press the
Exit key to return to the SCANNER DIAGNOSTICS menu screen.
Below is an illustration of the CLEAR SCANNER FAULT LOG screen.
CLEAR SCANNER FAULT LOG
WARNING: THIS FUNCTION
DESTROYS ALL LOG MESSAGES
EXECUTE:
NO
Clear Fault Log Screen
CLEAN CAL ZONE
The CLEAN CAL ZONE (Clean Calibration Zone) provides the user with
a quick way to move the Calibration Motor to the cleaning position. There
are two selections CLEANING POSITION AND HOME POSITION.
CLEAN CAL ZONE
POSITION:
CLEANING POSITION
Clean Cal Zone Screen
COMPONENT TESTS
128 • Main Menu
The COMPONENT TESTS option of the SCANNER DIAGNOSTICS
menu provides a sub-menu of the following menu choices:
XEROX WIDE FORMAT COPY SYSTEM
•
MOTOR SPEED - Enables the Customer Service Engineer to
adjust the Scan System motor speed and correct magnification
errors in the process direction. The diagnostic password is
required for this function.
•
LEAD EDGE/TRAIL EDGE - Enables you to execute the lead
edge/trail edge diagnostic.
•
SENSORS - Enables you to display the current state of the Scan
System optical paper sensors and the thick document sensor.
•
MOTOR COMMUNICATIONS - Enables a document motor
communications loopback test to assist in diagnosing a Scan
System problem.
•
DOCUMENT MOTOR - Enables you to stop and start the
document handler motor.
•
LAMP - Enables you to turn the lamp on and off and receive a
feedback from the illumination sensor.
•
CALIBRATION MOTOR - Enables you to test the calibration
zone motor.
To access the COMPONENT TESTS menu:
1. Press the Menu key. The MAIN MENU screen is displayed.
2. Press the Next key until DIAGNOSTICS is highlighted.
3. Press the Enter key to select DIAGNOSTICS. The
DIAGNOSTICS menu screen is displayed.
4. Press the Next key until SCANNER DIAGNOSTICS is
highlighted.
5. Press the Enter key to highlight SCANNER DIAGNOSTICS.
The SCANNER DIAGNOSTICS menu screen is displayed.
6. Press the Next key until COMPONENT TESTS is highlighted.
7. Press the Enter key to select COMPONENT TESTS. The
COMPONENT TESTS menu screen is displayed. The black
arrows indicate that the menu contains more options than are
visible. The selected option is highlighted.
COMPONENT TESTS
MOTOR SPEED
LEAD EDGE/TRAIL EDGE
SENSORS
Component Tests Screen
8. Press the Previous or Next key to scroll through the list of
options.
9. When the desired option is highlighted, press the Enter key to
select the option. The screen for the selected option is
displayed.
XEROX WIDE FORMAT COPY SYSTEM
Main Menu • 129
MOTOR SPEED
The MOTOR SPEED option is for use by the Customer Service Engineer
only and requires the entry of the diagnostic password. It allows the
Customer Service Engineer to adjust the Scan System motor speed and
correct magnification error in the process direction.
If you select this option, the MOTOR SPEED screen is displayed. You
cannot perform any functions in this screen. Press the Exit key to return
to the COMPONENTS TESTS menu screen.
Below is an example of the MOTOR SPEED screen.
MOTOR SPEED
EXPECTED LENGTH:
610
MEASURED LENGTH:
0
PRESS START TO ADJUST SPEED
Motor Speed Screen
LEAD EDGE/TRAIL
EDGE
Select the LEAD EDGE/TRAIL EDGE option to execute the lead
edge/trail edge adjustment diagnostic.
To run the LEAD EDGE/TRAIL EDGE diagnostic:
1. Press the Menu key. The MAIN MENU screen is displayed.
2. Press the Next key until DIAGNOSTICS is highlighted.
3. Press the Enter key to select DIAGNOSTICS. The
DIAGNOSTICS menu screen is displayed.
4. Press the Next key until SCANNER DIAGNOSTICS is displayed.
5. Press the Enter key to select SCANNER DIAGNOSTICS. The
SCANNER DIAGNOSTICS menu screen is displayed.
6. Press the Next key until COMPONENT TESTS is highlighted.
7. Press the Enter key to select COMPONENT TESTS. The
COMPONENTS TESTS menu screen is displayed.
8. Press the Enter key to select LEAD EDGE/TRAIL EDGE. The
LEAD EDGE/TRAIL EDGE ADJUSTMENT screen is displayed.
LEAD EDGE/TRAIL EDGE
ADJUSTMENT
PRESS START TO BEGIN
Lead Edge/Trail Edge Adjustment Screen
9. Insert a black sheet (8.5 X 11) of paper into the Scan System.
10. Press the Start key to begin the diagnostic. When the diagnostic
completes, the last line of the display is replaced with a status
130 • Main Menu
XEROX WIDE FORMAT COPY SYSTEM
line indicating PASS or FAIL. The last line may also display as
NO RESPONSE FROM SCANNER if the Scan System does not
process the request within the timeout period.
11. Press the Enter key to return to the COMPONENT TESTS menu
screen.
SENSORS
Select the SENSORS option to display the current state of the Scan
System optical paper sensors, calibration home sensor, and the thick
document sensor.
To display the status of the sensors:
1. Press the Menu key. The MAIN MENU screen is displayed.
2. Press the Next key until DIAGNOSTICS is highlighted.
3. Press the Enter key to select DIAGNOSTICS. The
DIAGNOSTICS menu screen is displayed.
4. Press the Next key until SCANNER DIAGNOSTICS is displayed.
5. Press the Enter key to select SCANNER DIAGNOSTICS. The
SCANNER DIAGNOSTICS menu screen is displayed.
6. Press the Next key until COMPONENT TESTS is highlighted.
7. Press the Enter key to select COMPONENT TESTS. The
COMPONENTS TESTS menu screen is displayed.
8. Press the Enter key to select SENSORS. Depending on the
Document Feed-in Tray configuration, a SENSORS screen is
displayed. The screen below is with the Productivity Tray. When
a sensor is activated the icon O is filled in.
SENSORS
EXIT: O
HOME: O
THICK: O
INPUT: O
O
O
REGISTER: O
O
O
O
O
O
O
O
O
Sensors Screen
9. To check the status of the optical paper sensors:
a) Raise the Thickness Lever to enable an 8.5 X 11 sheet of
paper to be inserted into the Scan System.
b) Insert the sheet of paper centered on the Scan System and
slowly push the paper into the Scan System to check the
INPUT, REGISTER, and EXIT sensors.
The sensors are located underneath the top cover. The photo below
shows the location of each of the sensors on the Document Feed Tray.
XEROX WIDE FORMAT COPY SYSTEM
Main Menu • 131
Sensor Locations on the Synergix Scan System
B
F
A
F
E
D
C
A: Left Oversize Document
Sensor
D: Register
B: Exit
E: Input
C: Right Oversize Document
Sensor
F Discrete Width Sensors (Four on
left and four on right)
c) Observe the Display. When the sensor is activated the icon
O is filled in.
d) Move the sheet of paper fully to the left and right to check
the LEFT and RIGHT sensors.
10. To check the status of the thick document sensor:
a) Raise the Thick Document Lever. When the sensor is
activated the icon O is filled in.
b) When finished viewing the status of the thick document
sensor, lower the Thick Document Lever.
11. To check the status of HOME sensor.
a) Raise the Document Handler just enough to access the
Calibration Roll drive gear and still be able to see the
Display.
b) Rotate the Calibration Roll one full revolution. The status will
change from NO to YES if the sensor is okay.
132 • Main Menu
XEROX WIDE FORMAT COPY SYSTEM
A: Calibration Roll Drive Gear
12. Press the Exit key to return to the COMPONENT TESTS menu
screen.
MOTOR
COMMUNICATIONS
The MOTOR COMMUNICATIONS test is for use by the Customer
Service Engineer only. However, user access is permitted in the event
that Service instructs the user to perform this test. This test allows the
Customer Service Engineer or user, if directed by the Service Engineer,
to run a motor communications loopback test to assist in diagnosing a
Scan System problem.
When the Start key is pressed, the message changes to STATUS. After
the test completes, either a PASS or FAIL status is displayed. If the
status is FAIL, some test values will be displayed, and Service will be
required.
DOCUMENT MOTOR
COMMUNICATIONS
PRESS START TO BEGIN
Document Motor Communications Screen
DOCUMENT MOTOR
This option allows you to stop and start the document handler motor.
When you select this option, the DOCUMENT MOTOR screen is
displayed.
To run the DOCUMENT MOTOR diagnostic:
1. Press the Menu key. The MAIN MENU screen is displayed.
XEROX WIDE FORMAT COPY SYSTEM
Main Menu • 133
2. Press the Next key until DIAGNOSTICS is highlighted.
3. Press the Enter key to select DIAGNOSTICS. The
DIAGNOSTICS menu screen is displayed.
4. Press the Next key until SCANNER DIAGNOSTICS is displayed.
5. Press the Enter key to select SCANNER DIAGNOSTICS. The
SCANNER DIAGNOSTICS menu screen is displayed.
6. Press the Next key until COMPONENT TESTS is highlighted.
7. Press the Enter key to select COMPONENT TESTS. The
COMPONENTS TESTS menu screen is displayed.
8. Press the Next key until DOCUMENT MOTOR is highlighted.
9. Press the Enter key to select DOCUMENT MOTOR. The
DOCUMENT MOTOR screen is displayed.
DOCUMENT MOTOR
MOTOR: OFF
SPEED:
DIRECTION:
.125
FORWARD
Document Motor Screen
10. Turn the motor on.
a) Press the Previous or Next key to highlight MOTOR.
b) Press the Enter key to confirm your selection.
c) Press the Previous or Next key to select ON. The choices
are ON and OFF.
d) Press the Enter key to confirm your selection.
11. Select the motor speed.
a) Press the Previous or Next key to highlight SPEED.
b) Press the Enter key to confirm your selection.
c) Press the Previous or Next key to select the desired motor
speed. The choices are .125, .250, .500, .750, 1, 1.5, 2, 3
and 4.
d) Press the Enter key to confirm your selection.
12. Select the motor direction.
a) Press the Previous or Next key to highlight DIRECTION.
b) Press the Enter key to confirm your selection.
c) Press the Previous or Next key to select the desired motor
direction. The choices are FORWARD and REVERSE.
d) Press the Enter key to confirm your selection.
13. Press the Start key to activate the motor.
14. Press the Exit key to return to the COMPONENT TESTS menu
screen.
134 • Main Menu
XEROX WIDE FORMAT COPY SYSTEM
CALIBRATION
MOTOR
Select the CALIBRATION MOTOR option to set the calibration zone
motor.
To run the CALIBRATION MOTOR diagnostic:
1. Press the Menu key. The MAIN MENU screen is displayed.
2. Press the Next key until DIAGNOSTICS is highlighted.
3. Press the Enter key to select DIAGNOSTICS. The
DIAGNOSTICS menu screen is displayed.
4. Press the Next key until SCANNER DIAGNOSTICS is displayed.
5. Press the Enter key to select SCANNER DIAGNOSTICS. The
SCANNER DIAGNOSTICS menu screen is displayed.
6. Press the Next key until COMPONENT TESTS is highlighted.
7. Press the Enter key to select COMPONENT TESTS. The
COMPONENTS TESTS menu screen is displayed.
8. Press the Next key until CALIBRATION MOTOR is highlighted.
9. Press the Enter key to select CALIBRATION MOTOR. The
CALIBRATION MOTOR screen is displayed.
CALIBRATION
MOTOR: OFF
FUNCTION:
ROTATE
Calibration Screen
10. Press the Previous or Next key to select FUNCTION.
11. Press the Enter key to select FUNCTION.
12. Press the Previous or Next key to highlight the desired function.
The choices are GO TO WIDTH, GO TO CALIBRATE, GO TO
HOME, FIND HOME, and ROTATE.
13. Press the Enter key to confirm your selection.
14. Press the Previous or Next key to highlight MOTOR.
15. Press the Enter key to confirm your selection.
16. Press the Previous or Next key to highlight ON. The choices
are ON and OFF. The requested operation will execute.
If a GO TO or FIND function has been selected, the MOTOR field will be
automatically set to OFF when the MOTOR field is once again selected.
If the ROTATE function has been selected, the motor will run
continuously until you set the MOTOR field to OFF.
NOTE: If the Scan System encounters a failure accessing the calibration
motor function, the fourth line of the display will read "FAILURE CODE:"
followed by a two-digit hexadecimal number. The fourth line may also
XEROX WIDE FORMAT COPY SYSTEM
Main Menu • 135
display NO RESPONSE FROM SCANNER if the Scan System does not
respond to the test request.
17. Press the Exit key to return to the Component Tests menu
screen.
READ NVR
The READ NVR option allows the examination of the contents of the
non-volatile RAM (NVR). The service center may ask you to provide this
information when calling for service.
To run the READ NVR diagnostic:
1. Press the Menu key. The MAIN MENU screen is displayed.
2. Press the Next key until DIAGNOSTICS is highlighted.
3. Press the Enter key to select DIAGNOSTICS. The
DIAGNOSTICS menu screen is displayed.
4. Press the Next key until SCANNER DIAGNOSTICS is displayed.
5. Press the Enter key to select SCANNER DIAGNOSTICS. The
SCANNER DIAGNOSTICS menu screen is displayed.
6. Press the Next key until READ NVR is highlighted.
7. Press the Enter key to select READ NVR. The READ NVR
screen is displayed. An "xx" displays for all the NVR values.
READ NVR
00 -07:
xx xx xx xx xx xx xx
08 - 0F: xx xx xx xx xx xx xx
xx xx xx xx xx xx xx
10-17:
xx xx xx xx xx xx xx
18-1F:
PRESS START TO BEGIN
xx
xx
xx
xx
Read NVR Screen
8. Press the Start key to display the actual values.
9. Press the Previous or Next key to scroll through the values.
There are 16 rows of values in all.
10. Press the Exit key to return to the SCANNER DIAGNOSTICS
screen.
PASSWORD
The PASSWORD option of the DIAGNOSTICS menu is for use by the
Customer Service Engineer only. It allows the Customer Service
Engineer to enter the password for access to password-protected
diagnostic functions.
If you select this option, the PASSWORD screen is displayed. You
cannot perform any functions in this screen. Press the Exit key to return
to the COMPONENT TESTS menu screen.
136 • Main Menu
XEROX WIDE FORMAT COPY SYSTEM
PASSWORD
ENTE R PASSWORD:
Password Screen
XEROX WIDE FORMAT COPY SYSTEM
Main Menu • 137
Job Accounting
Job Accounting
NOTE: The JOB ACCOUNTING feature is an optional feature on the
WIDE FORMAT COPY SYSTEM, requiring a Feature Key to activate it.
If you obtain this feature, the System Administrator can enable it at any
time on the WIDE FORMAT COPY SYSTEM by sending a special
feature key file to the Printer. Once the feature is enabled, it remains
enabled (even following upgrades to the system software). Contact your
XEROX sales representative for ordering information.
Overview
JOB ACCOUNTING is a SYSTEM ADMINISTRATION menu option.
Access to it is restricted to the system administrator and requires the
entry of the system administration password.
The JOB ACCOUNTING option allows Scan System and Printer usage
to be recorded in user defined account numbers. Usage is expressed as
the area (not the length) of the media scanned or used.
Job Accounting for the Scan System is controlled through the Scan
System Control Panel. For the WIDE FORMAT COPY SYSTEM 8825,
8830, 8850, 510 Series, 6204, and 721P, Job Accounting for the Printer
can be set from either the Printer Control Panel or the Web-based Print
Management Tool. For the WIDE FORMAT COPY SYSTEM 6030/6050,
Job Accounting for the Printer can be set from the Web Print
Management Tool only.
The Web Print Management Tool consists of special Web pages located
in the Controller. They are accessible through either the Microsoft
Internet Explorer or the Netscape browsers. Version 4.0 or higher is
required for proper results. Other Web browsers are not supported and
may or may not work correctly.
Job Accounting can be set on the Scan System or Printer to one of three
modes. The modes are ENABLED, OPTIONAL, and DISABLED.
The Scan System and Printer share a common job based accounting
database referred to as the FreeFlow Accxes Account Management
Tool. This Account Management Tool is composed of two
XEROX WIDE FORMAT COPY SYSTEM
Job Accounting • 139
components, an external accounting software package, installed on
an Administrative workstation, and the job log file that is created on
the Controller. The Account Management Tool creates all accounts,
assigns the user IDs, gathers all the account data, manages all the
accounts, and provides account reports.
NOTE: For full information on the new job accounting refer to the
Account Management Tool help files.
Job Accounting Mode menu
The JOB ACCOUNTING MODE menu allows the system administrator to
access the function for enabling or disabling the Job Accounting Mode at
the Scan System. Access is restricted to the System Administrator and
requires the entry of the system administration password. It provides a
sub-menu of the following choices:
JOB ACCOUNTING MODE
MODE:
DISABLED
Job Accounting Mode Screen
The job accounting modes are as follows:
•
ENABLED - all jobs require a System Administrator assigned
valid account number,
•
OPTIONAL - a System Administrator assigned valid account
number is optional for any job
•
DISABLED - jobs do not require an account number.
To access the Job Accounting menu:
1. Select the Menu key.
2. Select System Administration > Job Accounting Mode
3. Press the Previous or Next key to scroll through the list of
options.
4. When the desired option is highlighted, press the Enter key to
select the option. The menu or screen for the selected option is
displayed.
Submitting jobs
Job Accounting is enabled or disabled on the Scan System and the
Printer independently. Job submission from either device depends on
the Job Accounting mode set for the device.
From the Scan
System Control Panel
140 • Job Accounting
If Job Accounting is ENABLED, the following screen is displayed:
XEROX WIDE FORMAT COPY SYSTEM
PLEASE ENTER
USER:
Job Accounting Please Enter User Id Screen
NOTE: If Job Accounting Mode is enabled as OPTIONAL, the phrase
“OR PRESS ENTER” will display at the bottom of the screen. No USER
ID is required. Press Enter to continue.
You must enter the User ID code assigned to you by the System
Administrator. The Account ID can be alphanumeric. To enter a numeric
account, press a numeric key once. To enter an alpha character, press
the numeric key associated with the desired letter. Press the numeric key
twice to get the first letter, three times for the second letter, etc. Pressing
a key six to eight times will provide the lower case version of the
respective letter. Pressing the Next key moves the cursor to the right,
which will add a blank space or allow entry of a character. Pressing the
Previous or C/CA keys move the cursor to the left deleting the
character.
Then press ENTER to display the ACCOUNT screen and enter the
account number assigned to you using the numeric keys. Once you do
so, the READY screen is displayed. You can now scan and print copies.
PLEASE ENTER
ACCOUNT:
Job Accounting Please Enter Account Id Screen
If Job Accounting Mode is OPTIONAL, the above screen will not be
displayed. In either case, the READY screen is displayed after you
press the Enter key. You can now scan and print copies.
If you entered a valid account number, all usage is charged to that
account and is also accumulated under Generic User ID and Account ID
code. If you did not enter an account number, usage is accumulated
only in the System Account under Generic User ID and Account code.
For both the ENABLED and OPTIONAL modes, if you enter an invalid
account, an error message indicated below is displayed. You cannot
access the READY screen if an invalid number is entered
XEROX WIDE FORMAT COPY SYSTEM
Job Accounting • 141
ERROR:
INVALID USER OR ACCOUNT
Job Accounting Error Screen
Over the network
When Job Accounting Mode is enabled the system examines the
incoming job for a valid account number. If none is found, the job is
rejected, and an error page is printed.
NOTE: The print drivers and the FreeFlow Accxes Client Tools (ACT)
software all have a feature that allows insertion of a job accounting
number. Refer to the help files for these software products for details.
If Job Accounting is optionally ENABLED, remote print jobs will be
printed whether or not they have a valid account number. If a valid
account number is present, the job will be charged to the user account
and also accumulated to a system Generic User Id and Account Code. If
no account number is present, the job is charged to a system Generic
User Id and Account Code. This is the same as when Job Accounting is
DISABLED.
Terminating use
under an account
Once a valid job account number has been entered from the Scan
System Control Panel, all use of the WIDE FORMAT COPY SYSTEM
Scan System is charged to that account. All usage continues to
accumulate to that account until one of the following occurs:
•
You press the Exit key while either the READY screen or a fault
screen is displayed.
•
The FEATURE timer times out due to no activity. The default
value is 5 minutes, but this value can be changed. Refer to
"TIMERS" in the "Main Menu" section for information about
changing the value.
When an account is no longer in use, the PLEASE ENTER ACCOUNT
screen is displayed.
NOTE: To avoid incorrect accounting, always ensure that the PLEASE
ENTER USER screen is displayed before leaving the WIDE FORMAT
COPY SYSTEM for the next operator. Press the Exit key to obtain this
screen.
142 • Job Accounting
XEROX WIDE FORMAT COPY SYSTEM
Cleaning and maintenance Scan System
Cleaning and maintenance - Scan
System
For the Scan System to do its best job, the Platen Glass, Document
Drive Rolls, Backer Roll, Calibration Strip, and Document Feed Tray
must be kept clean. This requires some daily and monthly cleaning and
maintenance activities.
Daily activities:
•
Clean the Platen Glass, Document Drive Rolls, and Backer Roll.
See the “Cleaning the Platen Glass and Document Drive Rolls”
section on the next page.
•
Inspect the Document Feed Tray and clean as required.
Monthly activities:
•
Clean the Calibration Strip. See the "Cleaning the Calibration
Strip" section.
•
Inspect the Platen Glass for chips and scratches. If the Platen
Glass is chipped or scratched, and these defects are visible in
the scanned images, call XEROX service.
The following illustration depicts the Scan System components that
require cleaning.
XEROX WIDE FORMAT COPY SYSTEM
Cleaning and maintenance - Scan System • 143
D
E
C
B
A
A: Platen Glass
D: Document Drive Rolls (front)
B: Backer Roll
E: Document Feed Tray
C: Document Drive Rolls (rear)
Cleaning the Platen Glass, Document
Drive Rolls, and Backer Roll
Perform the following steps daily:
1. Open the Top Cover.
2. Dampen a clean, lint-free towel (600S4372) with platen glass
cleaning fluid (Xerox 43P81).
3. Wipe the Platen Glass with the towel.
4. Visually inspect the Platen Glass to ensure that all dirt, glue, and
other residue have been removed.
5. Place a small amount of the cleaning fluid on the towel and clean
the front and rear Document Drive Rolls. Rotate the Rolls as you
clean them to ensure that the entire roll surface is clean.
6. Place a small amount of the cleaning fluid on the towel and wipe
the white Backer Roll.
NOTE: The Backer Roll is located on the underside of the Top Cover.
The Backer Roll may rotate as you clean it. This is normal behavior.
7. Close the Top Cover.
144 • Cleaning and maintenance - Scan System
XEROX WIDE FORMAT COPY SYSTEM
Cleaning the Calibration Strip
Perform the following steps monthly:
1. Press the Menu key, then scroll to the Diagnostic and press the
Enter key.
•
Scroll to CLEAN CAL ZONE and press the Enter key.
•
Press the Enter key to select CLEANING POSITION.
NOTE: The Top Cover must be closed while running this test.
2. Raise the Top Cover.
3. Inspect the Calibration Strip.
4. Place a small amount of platen glass cleaning fluid (Xerox
43P81) on a clean, lint-free towel (600S4372) and clean the
Calibration Strip.
5. Lower the Top Cover.
6. Press the Enter key to select HOME POSITION.
7. Press the Exit key to exit the CLEAN CAL ZONE.
8. Press the Menu key to return to the READY screen. The
Calibration Strip automatically returns to its home position.
XEROX WIDE FORMAT COPY SYSTEM
Cleaning and maintenance - Scan System • 145
Problem solving
Problem solving
This section contains a problem-solving table and an error message
table for help in resolving problems with the WIDE FORMAT SCAN
SYSTEM.
Identify the problem you are experiencing and follow the step(s)
indicated in the table for fixing the problem. If the procedures do not
restore normal Scan System operation, call for service. For help in
solving problems with the Printer or the Printer media, refer to the
applicable Printer Operator Manual.
Table 7. Problem Solving Table
Problem
First solution to try
Second solution to try
Third solution to
try
Power on
The Exposure Lamp does not
illuminate when the Scan
System is switched on.
Ensure that the Power Cord is Check that the Power
Call for Service.
connected to the Scan System On/Off Switch is in the on (I)
and to the correct power
position.
source.
The Scan System Control
Panel continuously displays a
clock face and the System
does not initialize.
Ensure that the IEEE 1394
cable is connected to both the
Scan System and the
Controller. Check that the
cable was not forced in the
connector incorrectly.
For all controllers, except
the YKE and YKE-N, ensure
that the DDS option is set to
Enabled.
NOTE: For the 8825/8830,
and 6030/6050 Printers, you
can change this setting from
either the CONTROLLER
CONFIGURATION screen
of the Printer Control Panel,
or in the Web Print
Management Tool, select
Configuration > Printer >
Printer Setup > DDS
Enabled. Wait 30 seconds.
Then power the system off
then on (rebooted).
For the 721P Printer, this
change can be made from
the Web Print Management
Tool only.
XEROX WIDE FORMAT COPY SYSTEM
Problem solving • 147
Problem
First solution to try
Second solution to try
Constant Scanner NOT
READY message
Lift the Document Handler
Call for Service.
Third solution to
try
Switch off the Scan System
Switch off the
Printer/Controller
Switch on the Scan System
and wait for the display to
indicate “P”
Switch on the Controller, then
the Printer.
Corrupted or unclear
messages after powering the
Scan System off, then on.
Ensure the System was
powered off, then on correctly:
Call for Service.
Switch off the Scan System.
Switch off the
Printer/Controller.
Switch on the Scan System
and wait for the display to
indicate P.
Switch on the Controller then
Printer.
Scan System control
The Scan System does not
scan when a document is
inserted.
Press the Start key or enable
AUTOSCAN. See "Scan
System control" in the "Main
Menu" section for more
information.
The Scan System measures
the width of the original
incorrectly. The copy is either
wider than the original, or the
copy is clipped.
Clean the Platen Glass.
When the Scan System is set
to exit to the front, the
document is difficult to remove
from the Scan System.
Raise the Thick Document
Lever to release the
document. Be sure to lower
the Thick Document Lever
before making the next
copy/scan.
Open the Upper Document
Transport. Look for a row of
10 holes across the Feed-in
Shelf next to the Platen Glass.
If the holes are present, press
the Menu key and scroll to
CONFIGURATION>SCAN
SYSTEM CONTROL> MODE
and check if mode is set to
PRODUCTIVITY. If it is,
ensure that the media series
setting for the PRODUCTIVIY
matches the media series
being used in the Printer. If
the media series matches, set
the MODE to
AUTOWIDTH/AUTOCENTER
and call for service.
Turn AUTOWIDTH off. See
"Scan System Control" in
the "Main Menu" section for
more information.
Run the diagnostic
test to validate
which width
detection sensors
are working
correctly. Select
Main button >
Diagnostics >
Scanner
Diagnostics >
Component Tests >
Sensors.
Set the Scan System to exit
to the rear. See "Scan
System Control" in the
"Main Menu section for
more information.
Document feed
148 • Problem solving
XEROX WIDE FORMAT COPY SYSTEM
Problem
First solution to try
Second solution to try
Third solution to
try
The Scan System will not
accept a thin document (less
than .03 in (1 mm) thick).
Ensure that both the Scan
System and the Printer are
powered up and initialized.
Ensure that the Thickness
Lever is adjusted correctly for
the document being scanned.
If the thin document has a
torn or dog-eared lead
edge, try feeding a different
edge first.
Insert the document
in a document
carrier.
The Scan System will not
accept a thick document.
Ensure that both the Scan
System and the Printer are
powered up and initialized.
Set the Thick Document
Lever to its next higher
setting. Thick documents
may require operator
assistance.
The Scan System measures
the width of the original
incorrectly. The copy is either
wider than the original or the
copy is clipped.
Refer to this document’s
section “Cleaning the Platen
Glass, Document Drive Rolls
and Backer Roll”. Wipe the
Document Feed Tray with
anti-static fluid.
Turn the AUTOWIDTH off.
See “Scan System Control”
in the “Main Menu” section
for more information.
See the second item above in
Scan System Control.
When the Scan System is set
to exit to the front, the
document is difficult to remove
from the Scan System.
Raise the Thick Document
Lever to release the
document. Be sure to lower
the Thick Document Lever
before making the next
copy/scan.
Set the Scan System to exit
to the rear. See “Scan
System Control” in the
“Main Menu” section of this
document for more
information.
Width detection failed when
scanning transparent
documents. Width sensors in
most cases will not detect
transparent documents.
Enter the document width.
Turn AUTOWIDTH off and
refer to “Scan System
Control” in the Main Menu.
Not Ready Media Jam
Refer to “Cleaning the Platen
Glass, Document Drive Rolls,
and Backer Roll”. Wipe the
Document Feed Tray with
anti-static fluid.
If the document is folded,
worn or damaged, use a
document carrier or try
feeding a different edge.
The Scan System does not
position the document
correctly before scanning.
Ensure that you are inserting
the document correctly.
Check the operation of the
optical paper sensors. See
"Sensors" in the "Main
Menu" section for more
information.
Center the document between
the marks on the Document
Feed Tray.
For thick
documents, set the
Thick Document
Lever to its next
higher setting.
Thick documents
may require
operator assistance.
Smoothly insert the document
into the feed mechanism so
that the lead edge of the
document is against the rollers
before the Scan System
begins to stage the document.
Image quality
Vertical lines and streaks are
visible in the copy.
Clean the Platen Glass.
XEROX WIDE FORMAT COPY SYSTEM
Problem solving • 149
Problem
First solution to try
Second solution to try
Third solution to
try
Visible document edges on
the copy.
Try a lighter Contrast setting.
Dark spots or smudges
appear on the copy.
Clean the Platen Glass.
Inspect the original and
clean it if necessary.
Adjust the Copy
setting for best
image quality.
The copy image is too light.
Adjust the Copy setting for
best image quality.
Rotate the original 90
degrees.
The image density on the
copy varies from light to dark.
Rotate the original 90
degrees.
Adjust the Copy setting for
best image quality.
Copies made in Photo mode
have geometric patterns.
Set the Original, Type to
Normal and the Background
Suppression to Off.
Set Original, Type to Line
and Background
Suppression off.
Fine lines on the original do
not appear on the copy when
the image size is reduced.
Enable the LINE MODE LINE
PRESERVATION option. See
"Imaging" in the "Main Menu"
section for more information.
Adjust the Copy setting for
best image quality.
Try a lighter
Contrast setting.
Gray areas appear in the copy Refold the document in the
at the location of creases or
reverse direction to flatten the
folds in the original document. creases or folds.
Error messages
An error message is displayed Locate the message in Table
on the Scan System Control
8, "Error Code Messages," in
Panel.
this section and perform the
corrective action indicated.
Table 8. Error Code Messages Table
Error message
Probable cause
Corrective action
40000001: ERROR
The Job Log File size has reached the
maximum space allocated for it.
Contact your System Administrator.
ACCOUNTING DISK FULL
40000002: ERROR
The number of Job Records in the Job Contact your System Administrator.
Log File has reached the maximum as
defined by the FreeFlow Accxes
Account Management Tool.
CONTROLLER FAULT 50000001
The Controller has developed a
"memory is full" internal fault. Large
documents using Auto
Reduction/Enlargement or AutoRotate may cause this fault. Also,
Photo and Mixed/Custom modes
require significantly more memory
than Line mode.
Remove the document. Press Start to
print the job.
The Controller has developed a
“memory is full” internal fault. Large
documents using Auto
Reduction/Enlargement or Auto
Rotate may cause this fault. Also,
Photo and Mixed/Custom modes
require significantly more memory
than Line mode.
Remove the document. Wait for previous
scans to finish printing. End the current set
or print it if a set is in progress. Rescan the
document.
CONTROLLER FAULT 50000002
150 • Problem solving
XEROX WIDE FORMAT COPY SYSTEM
CONTROLLER FAULT 50000003
CONTROLLER FAULT 50000004
A task controlling the Scan System
received an unrecognized request
from the task controlling the Scan
System control panel.
CONTROLLER FAULT 50000005
CONTROLLER FAULT 50000007
Power off the System.
Check that all cables are connected
correctly.
Power on the System.
See the "Powering off the System" and
"Powering on the System" sections for
more information.
A software problem was encountered
in controlling the Scan System.
Power off and power on the System. See
the "Powering off the System" and
"Powering on the System" sections for
more information.
CONTROLLER FAULT 50000008 - DOCUMENT
JAM
A document jam has occurred in the
Scan System.
Remove the jammed document. Scan the
document again.
CONTROLLER FAULT 50000011 - SCANNED
IMAGE LOST
FreeFlow Accxes firmware supports a
maximum of 128 active jobs in the
printer queue. Scans made after the
maximum were refused and a scan
error was declared.
Allow the jobs in the queue to print, and
then rescan the document.
SCAN SYSTEM FAULT 5000000B - CHECK SCAN
SYSTEM
A fault has occurred in communicating
with the Scan System.
Check that the IEEE 1394 cable is
properly connected at both ends.
FreeFlow Accxes firmware reserves 8 jobs
for Scan-to-Net and copy jobs. This
provides sufficient capability for scans and
copy jobs even when there is a high
volume of print jobs on the network.
Check that the Scan System is still
connected to the AC power and is still
switched on.
VERIFY SCAN SYSTEM IS
POWERED AND
PROPERLY CONNECTED
Power off and power on the System. See
the "Powering off the System" and
"Powering on the System" sections for
more information.
The file system or memory is full.
Retrieve or delete some documents to
create more space. Then rescan the
document.
CONTROLLER FAULT 50000014 - MEMORY FULL
Documents were scanned too fast.
Memory is full.
Wait for previously scanned documents to
be processed and stored on the hard disk.
Then scan the current document again.
CONTROLLER FAULT 50000015
An error occurred saving the scanned
image to a disk.
Do not scan until the interrupted job is
finished. Check that the SCSI cable or
IEEE 1394 cable is connected correctly.
CONTROLLER FAULT –
FTP file transfer failed.
On the Web Print Management Tool,
check the FTP destination settings by
selecting Printer Defaults > Utilities > Scan
Destinations.
When a user selects the On-Demand
Image Overwrite on the Web Print
Management Tool, the FreeFlow
Accxes controller will reboot, causing
the message on the printer and scan
system during the reboot.
The message will be gone after the reboot
sequence updates the scan system in the
normal fashion.
CONTROLLER FAULT 50000012 - MEMORY FULL
CONTROLLER FAULT 5000013 - MEMORY FULL
50000017
SCAN SYSTEM MESSAGE:
“DISK IMAGE OVERWRITE
IN PROGRESS”
XEROX WIDE FORMAT COPY SYSTEM
Problem solving • 151
Error message
Probable cause
Corrective action
40000001: ERROR
The Job Log File size has reached the
maximum space allocated for it.
Contact your System Administrator.
ACCOUNTING DISK FULL
40000002: ERROR
The number of Job Records in the Job Contact your System Administrator.
Log File has reached the maximum as
defined by the FreeFlow Accxes
Account Management Tool.
CONTROLLER FAULT 50000001
The Controller has developed a
"memory is full" internal fault. Large
documents using Auto
Reduction/Enlargement or AutoRotate may cause this fault. Also,
Photo and Mixed/Custom modes
require significantly more memory
than Line mode.
Remove the document. Press Start to
print the job.
The Controller has developed a
“memory is full” internal fault. Large
documents using Auto
Reduction/Enlargement or Auto
Rotate may cause this fault. Also,
Photo and Mixed/Custom modes
require significantly more memory
than Line mode.
Remove the document. Wait for previous
scans to finish printing. End the current set
or print it if a set is in progress. Rescan the
document.
A task controlling the Scan System
received an unrecognized request
from the task controlling the Scan
System control panel.
Power off the System.
CONTROLLER FAULT 50000002
CONTROLLER FAULT 50000003
CONTROLLER FAULT 50000004
CONTROLLER FAULT 50000005
CONTROLLER FAULT 50000007
Check that all cables are connected
correctly.
Power on the System.
See the "Powering off the System" and
"Powering on the System" sections for
more information.
A software problem was encountered
in controlling the Scan System.
Power off and power on the System. See
the "Powering off the System" and
"Powering on the System" sections for
more information.
CONTROLLER FAULT 50000008 - DOCUMENT
JAM
A document jam has occurred in the
Scan System.
Remove the jammed document. Scan the
document again.
CONTROLLER FAULT 50000011 - SCANNED
IMAGE LOST
FreeFlow Accxes firmware supports a
maximum of 128 active jobs in the
printer queue. Scans made after the
maximum were refused and a scan
error was declared.
Allow the jobs in the queue to print, and
then rescan the document.
SCAN SYSTEM FAULT 5000000B - CHECK SCAN
SYSTEM
A fault has occurred in communicating
with the Scan System.
Check that the IEEE 1394 cable is
properly connected at both ends.
VERIFY SCAN SYSTEM IS
POWERED AND
PROPERLY CONNECTED
SCAN SYSTEM FIRMWARE Scan System firmware is not at
VERSION FAULT -50000020 current version to support Controller
firmware version 11.0. Scan System
152 • Problem solving
firmware must be at version 3.2.6 or
FreeFlow Accxes firmware reserves 8 jobs
for Scan-to-Net and copy jobs. This
provides sufficient capability for scans and
copy jobs even when there is a high
volume of print jobs on the network.
Check that the Scan System is still
connected to the AC power and is still
switched on.
Power off and power on the System. See
the "Powering off the System" and
"Powering on the System" sections for
more information.
Update the Scan System firmware.
XEROX WIDE FORMAT COPY SYSTEM
Error message
Probable cause
Corrective action
40000001: ERROR
The Job Log File size has reached the
maximum space allocated for it.
Contact your System Administrator.
ACCOUNTING DISK FULL
40000002: ERROR
The number of Job Records in the Job Contact your System Administrator.
Log File has reached the maximum as
defined by the FreeFlow Accxes
Account Management Tool.
CONTROLLER FAULT 50000001
The Controller has developed a
"memory is full" internal fault. Large
documents using Auto
Reduction/Enlargement or AutoRotate may cause this fault. Also,
Photo and Mixed/Custom modes
require significantly more memory
than Line mode.
Remove the document. Press Start to
print the job.
The Controller has developed a
“memory is full” internal fault. Large
documents using Auto
Reduction/Enlargement or Auto
Rotate may cause this fault. Also,
Photo and Mixed/Custom modes
require significantly more memory
than Line mode.
Remove the document. Wait for previous
scans to finish printing. End the current set
or print it if a set is in progress. Rescan the
document.
A task controlling the Scan System
received an unrecognized request
from the task controlling the Scan
System control panel.
Power off the System.
CONTROLLER FAULT 50000002
CONTROLLER FAULT 50000003
CONTROLLER FAULT 50000004
CONTROLLER FAULT 50000005
CONTROLLER FAULT 50000007
Check that all cables are connected
correctly.
Power on the System.
See the "Powering off the System" and
"Powering on the System" sections for
more information.
A software problem was encountered
in controlling the Scan System.
Power off and power on the System. See
the "Powering off the System" and
"Powering on the System" sections for
more information.
CONTROLLER FAULT 50000008 - DOCUMENT
JAM
A document jam has occurred in the
Scan System.
Remove the jammed document. Scan the
document again.
CONTROLLER FAULT 50000011 - SCANNED
IMAGE LOST
FreeFlow Accxes firmware supports a
maximum of 128 active jobs in the
printer queue. Scans made after the
maximum were refused and a scan
error was declared.
Allow the jobs in the queue to print, and
then rescan the document.
SCAN SYSTEM FAULT 5000000B - CHECK SCAN
SYSTEM
A fault has occurred in communicating
with the Scan System.
Check that the IEEE 1394 cable is
properly connected at both ends.
Check that the Scan System is still
connected to the AC power and is still
switched on.
VERIFY SCAN SYSTEM IS
POWERED AND
PROPERLY CONNECTED
SCAN SYSTEM FAULT -
FreeFlow Accxes firmware reserves 8 jobs
for Scan-to-Net and copy jobs. This
provides sufficient capability for scans and
copy jobs even when there is a high
volume of print jobs on the network.
Power off and power on the System. See
the "Powering off the System" and
"Powering on the System" sections for
more information.
An error occurred during processing
XEROX WIDE FORMAT COPY SYSTEM
Rescan the document.
Problem solving • 153
Error message
Probable cause
Corrective action
40000001: ERROR
The Job Log File size has reached the
maximum space allocated for it.
Contact your System Administrator.
ACCOUNTING DISK FULL
40000002: ERROR
The number of Job Records in the Job Contact your System Administrator.
Log File has reached the maximum as
defined by the FreeFlow Accxes
Account Management Tool.
CONTROLLER FAULT 50000001
The Controller has developed a
"memory is full" internal fault. Large
documents using Auto
Reduction/Enlargement or AutoRotate may cause this fault. Also,
Photo and Mixed/Custom modes
require significantly more memory
than Line mode.
Remove the document. Press Start to
print the job.
The Controller has developed a
“memory is full” internal fault. Large
documents using Auto
Reduction/Enlargement or Auto
Rotate may cause this fault. Also,
Photo and Mixed/Custom modes
require significantly more memory
than Line mode.
Remove the document. Wait for previous
scans to finish printing. End the current set
or print it if a set is in progress. Rescan the
document.
A task controlling the Scan System
received an unrecognized request
from the task controlling the Scan
System control panel.
Power off the System.
CONTROLLER FAULT 50000002
CONTROLLER FAULT 50000003
CONTROLLER FAULT 50000004
CONTROLLER FAULT 50000005
CONTROLLER FAULT 50000007
Check that all cables are connected
correctly.
Power on the System.
See the "Powering off the System" and
"Powering on the System" sections for
more information.
A software problem was encountered
in controlling the Scan System.
Power off and power on the System. See
the "Powering off the System" and
"Powering on the System" sections for
more information.
CONTROLLER FAULT 50000008 - DOCUMENT
JAM
A document jam has occurred in the
Scan System.
Remove the jammed document. Scan the
document again.
CONTROLLER FAULT 50000011 - SCANNED
IMAGE LOST
FreeFlow Accxes firmware supports a
maximum of 128 active jobs in the
printer queue. Scans made after the
maximum were refused and a scan
error was declared.
Allow the jobs in the queue to print, and
then rescan the document.
SCAN SYSTEM FAULT 5000000B - CHECK SCAN
SYSTEM
A fault has occurred in communicating
with the Scan System.
Check that the IEEE 1394 cable is
properly connected at both ends.
Check that the Scan System is still
connected to the AC power and is still
switched on.
VERIFY SCAN SYSTEM IS
POWERED AND
PROPERLY CONNECTED
COMPLEX DOCUMENT
154 • Problem solving
FreeFlow Accxes firmware reserves 8 jobs
for Scan-to-Net and copy jobs. This
provides sufficient capability for scans and
copy jobs even when there is a high
volume of print jobs on the network.
Power off and power on the System. See
the "Powering off the System" and
"Powering on the System" sections for
more information.
due to the complexity of the image
XEROX WIDE FORMAT COPY SYSTEM
Error message
Probable cause
Corrective action
40000001: ERROR
The Job Log File size has reached the
maximum space allocated for it.
Contact your System Administrator.
ACCOUNTING DISK FULL
40000002: ERROR
The number of Job Records in the Job Contact your System Administrator.
Log File has reached the maximum as
defined by the FreeFlow Accxes
Account Management Tool.
CONTROLLER FAULT 50000001
The Controller has developed a
"memory is full" internal fault. Large
documents using Auto
Reduction/Enlargement or AutoRotate may cause this fault. Also,
Photo and Mixed/Custom modes
require significantly more memory
than Line mode.
Remove the document. Press Start to
print the job.
The Controller has developed a
“memory is full” internal fault. Large
documents using Auto
Reduction/Enlargement or Auto
Rotate may cause this fault. Also,
Photo and Mixed/Custom modes
require significantly more memory
than Line mode.
Remove the document. Wait for previous
scans to finish printing. End the current set
or print it if a set is in progress. Rescan the
document.
A task controlling the Scan System
received an unrecognized request
from the task controlling the Scan
System control panel.
Power off the System.
CONTROLLER FAULT 50000002
CONTROLLER FAULT 50000003
CONTROLLER FAULT 50000004
CONTROLLER FAULT 50000005
CONTROLLER FAULT 50000007
Check that all cables are connected
correctly.
Power on the System.
See the "Powering off the System" and
"Powering on the System" sections for
more information.
A software problem was encountered
in controlling the Scan System.
Power off and power on the System. See
the "Powering off the System" and
"Powering on the System" sections for
more information.
CONTROLLER FAULT 50000008 - DOCUMENT
JAM
A document jam has occurred in the
Scan System.
Remove the jammed document. Scan the
document again.
CONTROLLER FAULT 50000011 - SCANNED
IMAGE LOST
FreeFlow Accxes firmware supports a
maximum of 128 active jobs in the
printer queue. Scans made after the
maximum were refused and a scan
error was declared.
Allow the jobs in the queue to print, and
then rescan the document.
SCAN SYSTEM FAULT 5000000B - CHECK SCAN
SYSTEM
A fault has occurred in communicating
with the Scan System.
Check that the IEEE 1394 cable is
properly connected at both ends.
FreeFlow Accxes firmware reserves 8 jobs
for Scan-to-Net and copy jobs. This
provides sufficient capability for scans and
copy jobs even when there is a high
volume of print jobs on the network.
Check that the Scan System is still
connected to the AC power and is still
switched on.
VERIFY SCAN SYSTEM IS
POWERED AND
PROPERLY CONNECTED
Power off and power on the System. See
the "Powering off the System" and
"Powering on the System" sections for
more information.
that the document contains.
XEROX WIDE FORMAT COPY SYSTEM
Problem solving • 155
Error message
Probable cause
Corrective action
40000001: ERROR
The Job Log File size has reached the
maximum space allocated for it.
Contact your System Administrator.
ACCOUNTING DISK FULL
40000002: ERROR
The number of Job Records in the Job Contact your System Administrator.
Log File has reached the maximum as
defined by the FreeFlow Accxes
Account Management Tool.
CONTROLLER FAULT 50000001
The Controller has developed a
"memory is full" internal fault. Large
documents using Auto
Reduction/Enlargement or AutoRotate may cause this fault. Also,
Photo and Mixed/Custom modes
require significantly more memory
than Line mode.
Remove the document. Press Start to
print the job.
The Controller has developed a
“memory is full” internal fault. Large
documents using Auto
Reduction/Enlargement or Auto
Rotate may cause this fault. Also,
Photo and Mixed/Custom modes
require significantly more memory
than Line mode.
Remove the document. Wait for previous
scans to finish printing. End the current set
or print it if a set is in progress. Rescan the
document.
A task controlling the Scan System
received an unrecognized request
from the task controlling the Scan
System control panel.
Power off the System.
CONTROLLER FAULT 50000002
CONTROLLER FAULT 50000003
CONTROLLER FAULT 50000004
CONTROLLER FAULT 50000005
CONTROLLER FAULT 50000007
Check that all cables are connected
correctly.
Power on the System.
See the "Powering off the System" and
"Powering on the System" sections for
more information.
A software problem was encountered
in controlling the Scan System.
Power off and power on the System. See
the "Powering off the System" and
"Powering on the System" sections for
more information.
CONTROLLER FAULT 50000008 - DOCUMENT
JAM
A document jam has occurred in the
Scan System.
Remove the jammed document. Scan the
document again.
CONTROLLER FAULT 50000011 - SCANNED
IMAGE LOST
FreeFlow Accxes firmware supports a
maximum of 128 active jobs in the
printer queue. Scans made after the
maximum were refused and a scan
error was declared.
Allow the jobs in the queue to print, and
then rescan the document.
SCAN SYSTEM FAULT 5000000B - CHECK SCAN
SYSTEM
A fault has occurred in communicating
with the Scan System.
Check that the IEEE 1394 cable is
properly connected at both ends.
Check that the Scan System is still
connected to the AC power and is still
switched on.
VERIFY SCAN SYSTEM IS
POWERED AND
PROPERLY CONNECTED
WARNING: xxxx
156 • Problem solving
FreeFlow Accxes firmware reserves 8 jobs
for Scan-to-Net and copy jobs. This
provides sufficient capability for scans and
copy jobs even when there is a high
volume of print jobs on the network.
Power off and power on the System. See
the "Powering off the System" and
"Powering on the System" sections for
more information.
The image submitted for printing is
Recreate the image and try again.
XEROX WIDE FORMAT COPY SYSTEM
Error message
Probable cause
Corrective action
40000001: ERROR
The Job Log File size has reached the
maximum space allocated for it.
Contact your System Administrator.
ACCOUNTING DISK FULL
40000002: ERROR
The number of Job Records in the Job Contact your System Administrator.
Log File has reached the maximum as
defined by the FreeFlow Accxes
Account Management Tool.
CONTROLLER FAULT 50000001
The Controller has developed a
"memory is full" internal fault. Large
documents using Auto
Reduction/Enlargement or AutoRotate may cause this fault. Also,
Photo and Mixed/Custom modes
require significantly more memory
than Line mode.
Remove the document. Press Start to
print the job.
The Controller has developed a
“memory is full” internal fault. Large
documents using Auto
Reduction/Enlargement or Auto
Rotate may cause this fault. Also,
Photo and Mixed/Custom modes
require significantly more memory
than Line mode.
Remove the document. Wait for previous
scans to finish printing. End the current set
or print it if a set is in progress. Rescan the
document.
A task controlling the Scan System
received an unrecognized request
from the task controlling the Scan
System control panel.
Power off the System.
CONTROLLER FAULT 50000002
CONTROLLER FAULT 50000003
CONTROLLER FAULT 50000004
CONTROLLER FAULT 50000005
CONTROLLER FAULT 50000007
Check that all cables are connected
correctly.
Power on the System.
See the "Powering off the System" and
"Powering on the System" sections for
more information.
A software problem was encountered
in controlling the Scan System.
Power off and power on the System. See
the "Powering off the System" and
"Powering on the System" sections for
more information.
CONTROLLER FAULT 50000008 - DOCUMENT
JAM
A document jam has occurred in the
Scan System.
Remove the jammed document. Scan the
document again.
CONTROLLER FAULT 50000011 - SCANNED
IMAGE LOST
FreeFlow Accxes firmware supports a
maximum of 128 active jobs in the
printer queue. Scans made after the
maximum were refused and a scan
error was declared.
Allow the jobs in the queue to print, and
then rescan the document.
SCAN SYSTEM FAULT 5000000B - CHECK SCAN
SYSTEM
A fault has occurred in communicating
with the Scan System.
Check that the IEEE 1394 cable is
properly connected at both ends.
FreeFlow Accxes firmware reserves 8 jobs
for Scan-to-Net and copy jobs. This
provides sufficient capability for scans and
copy jobs even when there is a high
volume of print jobs on the network.
Check that the Scan System is still
connected to the AC power and is still
switched on.
VERIFY SCAN SYSTEM IS
POWERED AND
PROPERLY CONNECTED
Power off and power on the System. See
the "Powering off the System" and
"Powering on the System" sections for
more information.
corrupted or does not conform to the
XEROX WIDE FORMAT COPY SYSTEM
Problem solving • 157
Error message
Probable cause
Corrective action
40000001: ERROR
The Job Log File size has reached the
maximum space allocated for it.
Contact your System Administrator.
ACCOUNTING DISK FULL
40000002: ERROR
The number of Job Records in the Job Contact your System Administrator.
Log File has reached the maximum as
defined by the FreeFlow Accxes
Account Management Tool.
CONTROLLER FAULT 50000001
The Controller has developed a
"memory is full" internal fault. Large
documents using Auto
Reduction/Enlargement or AutoRotate may cause this fault. Also,
Photo and Mixed/Custom modes
require significantly more memory
than Line mode.
Remove the document. Press Start to
print the job.
The Controller has developed a
“memory is full” internal fault. Large
documents using Auto
Reduction/Enlargement or Auto
Rotate may cause this fault. Also,
Photo and Mixed/Custom modes
require significantly more memory
than Line mode.
Remove the document. Wait for previous
scans to finish printing. End the current set
or print it if a set is in progress. Rescan the
document.
A task controlling the Scan System
received an unrecognized request
from the task controlling the Scan
System control panel.
Power off the System.
CONTROLLER FAULT 50000002
CONTROLLER FAULT 50000003
CONTROLLER FAULT 50000004
CONTROLLER FAULT 50000005
CONTROLLER FAULT 50000007
Check that all cables are connected
correctly.
Power on the System.
See the "Powering off the System" and
"Powering on the System" sections for
more information.
A software problem was encountered
in controlling the Scan System.
Power off and power on the System. See
the "Powering off the System" and
"Powering on the System" sections for
more information.
CONTROLLER FAULT 50000008 - DOCUMENT
JAM
A document jam has occurred in the
Scan System.
Remove the jammed document. Scan the
document again.
CONTROLLER FAULT 50000011 - SCANNED
IMAGE LOST
FreeFlow Accxes firmware supports a
maximum of 128 active jobs in the
printer queue. Scans made after the
maximum were refused and a scan
error was declared.
Allow the jobs in the queue to print, and
then rescan the document.
SCAN SYSTEM FAULT 5000000B - CHECK SCAN
SYSTEM
A fault has occurred in communicating
with the Scan System.
Check that the IEEE 1394 cable is
properly connected at both ends.
FreeFlow Accxes firmware reserves 8 jobs
for Scan-to-Net and copy jobs. This
provides sufficient capability for scans and
copy jobs even when there is a high
volume of print jobs on the network.
Check that the Scan System is still
connected to the AC power and is still
switched on.
VERIFY SCAN SYSTEM IS
POWERED AND
PROPERLY CONNECTED
Power off and power on the System. See
the "Powering off the System" and
"Powering on the System" sections for
more information.
standards for the format.
158 • Problem solving
XEROX WIDE FORMAT COPY SYSTEM
Error message
Probable cause
Corrective action
40000001: ERROR
The Job Log File size has reached the
maximum space allocated for it.
Contact your System Administrator.
ACCOUNTING DISK FULL
40000002: ERROR
The number of Job Records in the Job Contact your System Administrator.
Log File has reached the maximum as
defined by the FreeFlow Accxes
Account Management Tool.
CONTROLLER FAULT 50000001
The Controller has developed a
"memory is full" internal fault. Large
documents using Auto
Reduction/Enlargement or AutoRotate may cause this fault. Also,
Photo and Mixed/Custom modes
require significantly more memory
than Line mode.
Remove the document. Press Start to
print the job.
The Controller has developed a
“memory is full” internal fault. Large
documents using Auto
Reduction/Enlargement or Auto
Rotate may cause this fault. Also,
Photo and Mixed/Custom modes
require significantly more memory
than Line mode.
Remove the document. Wait for previous
scans to finish printing. End the current set
or print it if a set is in progress. Rescan the
document.
A task controlling the Scan System
received an unrecognized request
from the task controlling the Scan
System control panel.
Power off the System.
CONTROLLER FAULT 50000002
CONTROLLER FAULT 50000003
CONTROLLER FAULT 50000004
CONTROLLER FAULT 50000005
CONTROLLER FAULT 50000007
Check that all cables are connected
correctly.
Power on the System.
See the "Powering off the System" and
"Powering on the System" sections for
more information.
A software problem was encountered
in controlling the Scan System.
Power off and power on the System. See
the "Powering off the System" and
"Powering on the System" sections for
more information.
CONTROLLER FAULT 50000008 - DOCUMENT
JAM
A document jam has occurred in the
Scan System.
Remove the jammed document. Scan the
document again.
CONTROLLER FAULT 50000011 - SCANNED
IMAGE LOST
FreeFlow Accxes firmware supports a
maximum of 128 active jobs in the
printer queue. Scans made after the
maximum were refused and a scan
error was declared.
Allow the jobs in the queue to print, and
then rescan the document.
SCAN SYSTEM FAULT 5000000B - CHECK SCAN
SYSTEM
A fault has occurred in communicating
with the Scan System.
Check that the IEEE 1394 cable is
properly connected at both ends.
Check that the Scan System is still
connected to the AC power and is still
switched on.
VERIFY SCAN SYSTEM IS
POWERED AND
PROPERLY CONNECTED
LL codes appear
FreeFlow Accxes firmware reserves 8 jobs
for Scan-to-Net and copy jobs. This
provides sufficient capability for scans and
copy jobs even when there is a high
volume of print jobs on the network.
Power off and power on the System. See
the "Powering off the System" and
"Powering on the System" sections for
more information.
Intermittent Scan System and/or
XEROX WIDE FORMAT COPY SYSTEM
Power the system off then on. If the
Problem solving • 159
Error message
Probable cause
Corrective action
40000001: ERROR
The Job Log File size has reached the
maximum space allocated for it.
Contact your System Administrator.
ACCOUNTING DISK FULL
40000002: ERROR
The number of Job Records in the Job Contact your System Administrator.
Log File has reached the maximum as
defined by the FreeFlow Accxes
Account Management Tool.
CONTROLLER FAULT 50000001
The Controller has developed a
"memory is full" internal fault. Large
documents using Auto
Reduction/Enlargement or AutoRotate may cause this fault. Also,
Photo and Mixed/Custom modes
require significantly more memory
than Line mode.
Remove the document. Press Start to
print the job.
The Controller has developed a
“memory is full” internal fault. Large
documents using Auto
Reduction/Enlargement or Auto
Rotate may cause this fault. Also,
Photo and Mixed/Custom modes
require significantly more memory
than Line mode.
Remove the document. Wait for previous
scans to finish printing. End the current set
or print it if a set is in progress. Rescan the
document.
A task controlling the Scan System
received an unrecognized request
from the task controlling the Scan
System control panel.
Power off the System.
CONTROLLER FAULT 50000002
CONTROLLER FAULT 50000003
CONTROLLER FAULT 50000004
CONTROLLER FAULT 50000005
CONTROLLER FAULT 50000007
Check that all cables are connected
correctly.
Power on the System.
See the "Powering off the System" and
"Powering on the System" sections for
more information.
A software problem was encountered
in controlling the Scan System.
Power off and power on the System. See
the "Powering off the System" and
"Powering on the System" sections for
more information.
CONTROLLER FAULT 50000008 - DOCUMENT
JAM
A document jam has occurred in the
Scan System.
Remove the jammed document. Scan the
document again.
CONTROLLER FAULT 50000011 - SCANNED
IMAGE LOST
FreeFlow Accxes firmware supports a
maximum of 128 active jobs in the
printer queue. Scans made after the
maximum were refused and a scan
error was declared.
Allow the jobs in the queue to print, and
then rescan the document.
SCAN SYSTEM FAULT 5000000B - CHECK SCAN
SYSTEM
A fault has occurred in communicating
with the Scan System.
Check that the IEEE 1394 cable is
properly connected at both ends.
Check that the Scan System is still
connected to the AC power and is still
switched on.
VERIFY SCAN SYSTEM IS
POWERED AND
PROPERLY CONNECTED
intermittently while
160 • Problem solving
FreeFlow Accxes firmware reserves 8 jobs
for Scan-to-Net and copy jobs. This
provides sufficient capability for scans and
copy jobs even when there is a high
volume of print jobs on the network.
software problems.
Power off and power on the System. See
the "Powering off the System" and
"Powering on the System" sections for
more information.
problem persists, call for service.
XEROX WIDE FORMAT COPY SYSTEM
Error message
Probable cause
Corrective action
40000001: ERROR
The Job Log File size has reached the
maximum space allocated for it.
Contact your System Administrator.
ACCOUNTING DISK FULL
40000002: ERROR
The number of Job Records in the Job Contact your System Administrator.
Log File has reached the maximum as
defined by the FreeFlow Accxes
Account Management Tool.
CONTROLLER FAULT 50000001
The Controller has developed a
"memory is full" internal fault. Large
documents using Auto
Reduction/Enlargement or AutoRotate may cause this fault. Also,
Photo and Mixed/Custom modes
require significantly more memory
than Line mode.
Remove the document. Press Start to
print the job.
The Controller has developed a
“memory is full” internal fault. Large
documents using Auto
Reduction/Enlargement or Auto
Rotate may cause this fault. Also,
Photo and Mixed/Custom modes
require significantly more memory
than Line mode.
Remove the document. Wait for previous
scans to finish printing. End the current set
or print it if a set is in progress. Rescan the
document.
A task controlling the Scan System
received an unrecognized request
from the task controlling the Scan
System control panel.
Power off the System.
CONTROLLER FAULT 50000002
CONTROLLER FAULT 50000003
CONTROLLER FAULT 50000004
CONTROLLER FAULT 50000005
CONTROLLER FAULT 50000007
Check that all cables are connected
correctly.
Power on the System.
See the "Powering off the System" and
"Powering on the System" sections for
more information.
A software problem was encountered
in controlling the Scan System.
Power off and power on the System. See
the "Powering off the System" and
"Powering on the System" sections for
more information.
CONTROLLER FAULT 50000008 - DOCUMENT
JAM
A document jam has occurred in the
Scan System.
Remove the jammed document. Scan the
document again.
CONTROLLER FAULT 50000011 - SCANNED
IMAGE LOST
FreeFlow Accxes firmware supports a
maximum of 128 active jobs in the
printer queue. Scans made after the
maximum were refused and a scan
error was declared.
Allow the jobs in the queue to print, and
then rescan the document.
SCAN SYSTEM FAULT 5000000B - CHECK SCAN
SYSTEM
A fault has occurred in communicating
with the Scan System.
Check that the IEEE 1394 cable is
properly connected at both ends.
VERIFY SCAN SYSTEM IS
POWERED AND
PROPERLY CONNECTED
FreeFlow Accxes firmware reserves 8 jobs
for Scan-to-Net and copy jobs. This
provides sufficient capability for scans and
copy jobs even when there is a high
volume of print jobs on the network.
Check that the Scan System is still
connected to the AC power and is still
switched on.
Power off and power on the System. See
the "Powering off the System" and
"Powering on the System" sections for
more information.
documents are scanned
XEROX WIDE FORMAT COPY SYSTEM
Problem solving • 161
Specifications
Specifications
Speed
8825
8830
8850
510 Series
721P
6030/6050
6204
2 inches per second
standard
4 inches per second
optional
standard
standard
standard
standard
standard
standard
1 inch per second
color
optional
optional
optional
optional
optional
optional
optional
7.33 inches per
second*
standard
* Requires Turbo III Speed Enhancement feature key, HFT, PUN, YKE,
or YKE-N Controller running version 9.0 or higher software, WIDE
FORMAT SCAN SYSTEM firmware version 3.0.7A or higher.
Input Document
Maximum document:
42" x 100 feet (1.07m x 30.5 m)
Maximum Scan Width:
36" (914 mm)
Minimum document:
A size 8.5 x 11 (216mm x 279mm)
A4 size (210mm x 297mm)
Document Thickness:
0.0023 to 0.50 " (0,06mm to 13mm)
Thick Document Weight:
6 lbs (2.72 kg) max.
Scan System
Resolution
Copying:
200, 300, 400 dots per inch
Scan-to-Net
75, 100, 200, 300, 400 dots per inch
Magnification:
25% to 400% in ± 0.1%
increments
Temperature
162 • Specifications
Minimum:
55 F (10 C)
Maximum:
90 F(32 C)
XEROX WIDE FORMAT COPY SYSTEM
Humidity:
20% - 80%
Maximum Elevation:
0 - 6560 feet
0 - 1.995 km
Heat Emission
Running:
690 BTU/hr
Power Consumption
Standby:
130 W
Running:
200 W
Electrical
Requirements
Voltage (AC):
100 - 120 VAC
Current:
4 amps
Frequency:
50/60 Hz
200 - 240 VAC
3 amps
Audible Noise
Standby:
33.7 dBA
Running:
52.1 dBA
Impulse:
56.4 dBA
XEROX WIDE FORMAT COPY SYSTEM
Specifications • 163
Appendices
Appendix 1: Scanning Resolutions
and Speeds
Table 9 below shows the minimum and maximum scanning speeds for a
36 inch (914 mm) wide document in Line, Mixed, and Photo modes at
various resolutions.
NOTE: Speeds are given in inches per second (IPS) and centimeters
per second (cm/s).
NOTE: Thick documents are scanned at a maximum speed of 4.00
IPS/10.16cm/s in all Modes.
Table 9. Scanning resolutions and speeds
Turbo II
Turbo III
2 IPS
Pixel Min
Max
Min
Max
Min
Max
Depth IPS/ cm/s IPS/ cm/s IPS/ cm/s IPS/ cm/s IPS/ cm/s IPS/ cm/s
Mode
DPI
Line (copy or scan
mode)
Line (scan mode)
Line (scan mode)
Line (scan mode)
Normal and Photo
only (scan mode)
Photo (scan mode)
Photo (scan mode)
Photo (copy or scan
mode)
Photo (scan mode)
400
1 bit
4.00/10.16 4.00/10.16
7.00/17.78
7.00/17.78
2.00/5.08
4.00/10.16
300
200
100
75
1 bit
1 bit
1 bit
4 bit
4.00/10.16
8.00/20.32
8.00/20.32
2.00/5.08
4.00/10.16
8.00/20.32
8.00/20.32
4.00/10.16
4.00/10.16
8.00/20.32
8.00/20.32
4.00/10.16
8.00/20.32
8.00/20.32
2.00/5.08
4.00/10.16
4.00/10.16
2.00/5.08
4.00/10.16
4.00/10.16
4.00/10.16
4.00/10.16
400
300
200
8 bit
8 bit
8 bit
0.5/1.27
1.00/2.54
2.00/5.08
4.00/10.16
4.00/10.16
8.00/20.32
4.00/10.16
4.00/10.16
8.00/20.32
4.00/10.16
4.00/10.16
8.00/20.32
0.5/1.27
1.00/2.54
2.00/5.08
4.00/10.16
4.00/10.16
4.00/10.16
100
8 bit
8.00/20.32 8.00/20.32
8.00/20.32
8.00/20.32
4.00/10.16
4.00/10.16
XEROX WIDE FORMAT COPY SYSTEM
Appendices • 165
Appendix 2: Paper Sheet Sizes
Paper sizes supported by the 8825, 8830, 8850, 510 Series, 721P,
6030/6050, and 6204 Printers and the Controller with Firmware 9.1 or
higher are shown in Table 10.
The Media types supported by your printer and the FreeFlow Accxes
firmware can be checked on the Web Print Management Tool by
selecting Defaults > Media > Media Defaults > Media Type. Available
roll sizes for each supported media type can be quickly and easily
checked from the supplies page of the XEROX website at
www.xerox.com.
Table 10. Printer paper sizes
Paper size
Dimension
8825/8830/8850
/510dp Series
721P
6030/6050
6204
ISO A0
ISO A1
841 x 1189 mm
X
X
X
X
594 x 841 mm
X
X
X
X
ISO A2
420 x 594 mm
X
X
X
X
ISO A3
297 x 420 mm
X
X
X
X
ISO A4
210 x 297 mm
X
X
X
X
ISO B1
707 x 1000 mm
X
X
X
X
ISO B2
500 x 707 mm
X
X
X
X
ISO B3
353 x 500 mm
X
X
X
X
ISO B4
250 x 353 mm
X
X
X
X
ANSI A
8.5 x 11 (215.9 x
279.4 mm)
X
X
X
X
ANSI B
11 x 17 in. (279.4
x 431.8 mm)
X
X
X
X
ANSI C
17 x 22 in. (431.8
x 558.8 mm)
X
X
X
X
ANSI D
22 x 34 in. (558.8
x 863.6 mm)
X
X
X
X
ANSI E
34 x 44 in. (863.6
x 1117.6 mm)
X
X
X
X
Architectural A
9 x 12 in. (228.6 x
304.8 mm)
X
X
X
X
Architectural B
12 x 18 in. (304.8
x 457.2 mm)
X
X
X
X
Architectural C
18 x 24 in. (457.2
x 609.6 mm)
X
X
X
X
Architectural D
24 x 36 in. (609.6
x 914.4 mm)
X
X
X
X
Architectural E
36 x 48 in. (914.4
x 1219.2 mm)
X
X
X
X
Architectural 30"
30 x 42 in. (76.2 x
1066.8 mm)
X
X
X
X
X
X
X
JIS B4
166 • Appendices
257mm
XEROX WIDE FORMAT COPY SYSTEM
JIS B3
364mm
X
X
X
JIS B2
515mm
X
X
X
JIS B1
728mm
X
X
X
XEROX WIDE FORMAT COPY SYSTEM
Appendices • 167
Appendix 3: Paper Roll Sizes
Table 11 below shows roll sizes supported by the 8825, 8830, 8850, 510
Series, 721P, 6030/6050, and 6204 Printers.
Table 11. Printer roll sizes
Roll size
Width
8825/8830/8850
/510dp Series
721P
6030/6050
6204
ISO Roll A0
841 mm
X
X
X
X
ISO Roll A1
594 mm
X
X
X
X
ISO Roll A2
420 mm
X
X
X
X
ISO Roll A3
297 mm
X
X
X
X
Roll 891
891 mm
-
X
-
-
Roll 900
900 mm
X
X
X
-
ANSI Roll 11
11 in.
X
X
X
X
ANSI Roll 17
17 in.
X
X
X
X
ANSI Roll 22
22 in.
X
X
X
X
ANSI Roll 34
34 in.
X
X
X
X
ARCH Roll 12
12 in.
X
X
X
X
ARCH Roll 18
18 in.
X
X
X
X
ARCH Roll 24
24 in.
X
X
X
X
ARCH Roll 30
30 in.
X
X
X
X
ISO B3
353 mm
X
X
X
X
ISO B2
500 mm
X
X
X
X
ISO B1
707 mm
X
X
X
X
JIS B3
364 mm
X
X
JIS B2
515 mm
X
X
JIS B1
728 mm
X
X
Sp. A2
440 mm
Sp. A1
620 mm
Sp. A0
168 • Appendices
X
X
-
X
X
750 mm
X
-
X
860 mm
X
-
X
X
880 mm
X
X
X
X
XEROX WIDE FORMAT COPY SYSTEM
Appendix 4: File Formats
File formats supported by the Controller with Firmware 12.0 are shown in
the list below.
Standard:
•
C4
•
CalComp
•
CALS (Type-1 and Type-2)
•
CGM (Version 2)
•
DDS
•
Filenet
•
HP-GL (in conformity with HP75XX series)
•
HP-GL/2/RTL (in conformity with HP Design Jet 750C)
•
JPEG (JFIF Version 1.02)
•
NIRS
•
TIFF (Version 6.0)
•
VCGL
•
VDS (VRF, Block Raster, Compressed Raster, VOF)
•
Versatec Raster/Green Sheet
Optional (require enablement by Feature Key)
•
Post Script 3, PDF 1.6 for YKE-N controller, PDF 1.4 and 1.5 for
YKE controller; PDF 1.3 for all other controllers.
•
AutoCAD/AEC – DWF
XEROX WIDE FORMAT COPY SYSTEM
Appendices • 169
Appendix 6: LED Status Indicators
The PUN Controller has four LED status indicators as shown in Table 12
below.
Table 12. Controller LED status indicators
LED Number
Color Indicated Condition
LED 1
Green
"Ready." Indicates that the Controller is powered up
and ready to process incoming jobs.
LED 2
Green
"Busy." Indicates that the Controller is busy
processing a job.
LED 3
Yellow
"Mismatch." Indicates that a media mismatch, which
may be blocking the print queue, has occurred. This
also displays when the Controller's Accounting disk is
full, or when the Controller has reached its Accounting
record limit. Check the Web Print Management Tool's
Main Page to determine the problem.
LED 4
Red
"Attention." Indicates that a Printer or Finisher fault
has occurred. May indicate a paper jam, out of toner
condition, out of media condition, or a
communications problem with one of the devices.
During power-on self test (POST), the firmware will light LEDs 2, 3, and
4. After POST has successfully completed, LEDs 2, 3, and 4 will be
switched OFF, and LED 1 will be switched ON. If POST did not
successfully complete, all 4 LEDs will be switched OFF (i.e., they will be
unlit).
170 • Appendices
XEROX WIDE FORMAT COPY SYSTEM
Appendix 7: Main Menu Structure
Appendix 7 shows the Main Menu structure. The menu tree below
shows the top level of the Main Menu. The pages that follow contain
menu trees for each of the four top-level options.
Main Menu
Configuration
System Information
System Administration
Diagnostics
The menu tree below shows the Configuration option structure of the
Main Menu.
Configuration
Localization
Language
Display units
Control Panel
Copy Options
Beeper
Text
Default Mode
Enhancement
Color IQ
Normal Mode
Dynamic Background
Removal
Media Series
Timers
Feature
Printer Interrupt
File Deletion
Power
Saver
Power Saver
delay
Scanner
Control
Autoscan
Document Return
Mode:
ƒ Autowidth/Auto
Center
ƒ Manual Width
ƒ Autowidth
ƒ Productivity
Custom R/E
Preset
Custom Media
Formats
Imaging
Auto-Rotate
Reduction Line Preservation
XEROX WIDE FORMAT COPY SYSTEM
Appendices • 171
The menu tree below shows the System Information option structure of
the Main Menu.
System Information
System Description
Recent Fault List
Configuration Prints
Copier Configuration
Printer Configuration
Printer Settings
All Configuration Prints
Scanner
Controller
Printer
Control Panel
Finisher
The menu tree below shows the structure of the System Administration
option of the Main Menu.
System Administration
Password
Job Accounting Mode
Change
File System
Password
Change Password
List by Directory
Delete Images
Delete All Images
Security Settings
Image Recall
The menu tree below shows the Diagnostics option structure of the Main
Menu.
Diagnostics
Usage Meters
Scanner (Ft2)
Media Linear
Media Area
172 • Appendices
Clear Scanner
Usage
Scanner
Diagnostics
Installation Test
Print
Password
Scanner (Ft2)
Image Path
Scan Bar
Full System Test
Write NVR
Reset NVR Defaults
Scanner Reliability Meter
Scanner Faults (Ordered)
Scanner Faults (Counts) Clear
Scanner Fault Log Clean
Calibration Zone
Read NVR
Component Test
Motor Speed
Lead Edge/Trail Edge
Sensors
Motor Communications
Document Motor
Lamp
Calibration Motor
XEROX WIDE FORMAT COPY SYSTEM
Index
ADAPTIVE CONTRAST, 103
Auto, 17
Auto Media Source, 18
AUTO ROTATE, 101
Automatic edge detection and
document centering, 34
AUTOSCAN, 49, 105, 106
AUTOWIDTH, 50, 105
AUTOWIDTH /AUTOCENTER,
34
AUTOWIDTH/AUTOCENTER,
50, 106
Background Suppression, 47,
88
Background Suppression
option, 16
Batch key, 75
beeper, 96
BEST COMPRESSION, 46
BEST IQ, 46
blueprint, 37
C/CA (Clear/Clear All) key, 22
C/CA key, 90
CAD_GIS, 46
CALIBRATION MOTOR, 129
CALIBRATION MOTOR option,
135
Calibration Roll Drive Gear, 133
Calibration Screen, 135
CHANGE PASSWORD, 112
CHANGE PASSWORD option,
117
Change Password Screen, 117
checkplot, 73
CLEAN CAL ZONE, 128
Clean Cal Zone Screen, 128
CLEAN CALIBRATION ZONE,
122
Cleaning and maintenance Scanner, 143
XEROX WIDE FORMAT COPY SYSTEM
Cleaning the Calibration Strip,
145
Cleaning the Platen Glass and
Document Drive Rolls, 144
CLEAR LAST IMAGE, 90
Clear Scanned Image Screen,
90
CLEAR SCANNER FAULT
LOG, 121
CLEAR SCANNER FAULT LOG
option, 128
Clear Scanner Fault Log
Screen, 128
CLEAR SCANNER USAGE,
119
Clear Scanner Usage Screen,
121
Clearing the scanned images,
90
Color, 15, 44
Color Enablement Feature
Key, 2
Color lithograph, 37
Color map, 37
Color photograph, 37
Compact Organizer, 7
Compact Stacker, 7
COMPONENT TESTS, 122
COMPONENT TESTS option,
128
Component Tests Screen, 129
COMPRESSION (JPEG
selected), 46
COMPRESSION (TIFF
selected), 45
CONFIGURATION, 93
Configuration menu, 94
Configuration menu options,
171
CONFIGURATION menu:, 94
Index • 173
CONFIGURATION PRINTS,
107
CONFIGURATION PRINTS
option, 110
Configuration Screen, 95, 110
CONTROL PANEL, 94
CONTROL PANEL option, 96
Control Panel Screen, 96
CONTROLLER FAULT, 150
Controller Power Switches, 26
Controller Screen, 108
Copier Configuration Screen,
111
Copier Parameters and Images
Screen, 62
copies, making, 49
COPY LENGTH, 41, 101
COPY mode, 85
COPY MODE, 40
Copy Mode Sample, 82
Copy option, 17, 48
COPY OPTIONS, 94, 97
COPY OPTIONS menu, 97
Copy Options Screen, 97
copy the same size as the
original document, 53
CROSSFOLD OPTIONS, 71
CUSTOM MEDIA FORMATS,
99
Custom Media Formats Screen,
100, 107
Custom Output Format Screen,
11
CUSTOM R/E PRESETS
option, 100
Custom R/E Presets Screen,
101
Decimal key, 22
DEFAULT, 45
Default media settings, 52
DELETE ALL IMAGES, 113
DELETE ALL IMAGES option,
116
Delete All Images Screen, 116
DELETE IMAGE option, 115
DELETE IMAGES, 113
Delete Images Screen, 115
Delete Last Job Screen, 63
DELETE TEMPLATE option, 66
Delete Template Screen, 67
Deleting the Last Job, 63
DIAGNOSTICS, 93
Diagnostics menu, 119
Diagnostics Menu, 120
Diagnostics Menu options, 172
DIAGNOSTICS option, 119
174 • Index
display units, 95
Document Exit Slot, 6
Document Feed Tray, 5
Document Handler, 4
DOCUMENT MOTOR, 129
Document Motor
Communications Screen,
133
Document Motor Screen, 134
Document quality, 33
DOCUMENT RETURN, 49, 105
DYNAMIC BACKGROUND
REMOVAL, 41
DYNAMIC BACKGROUND
REMOVAL, 33
Enlargement, 100
Enter key, 21
Error Code Table, 150
Error Screen - Job Accounting,
142
Exit key, 21
Faded line/text drawing, 37
FASTEST, 41
Feature Keys, 2
FILE DELETION, 104
FILE FORMAT, 43
File formats supported, 169
file system, 90
FILE SYSTEM, 112
FILE SYSTEM option, 90, 113
File System Screen, 114
film, vellum/tracing, 37
Finisher key, 56, 68
Finisher Not Available Error
Message Screen, 69
Finisher Screen, 68, 109
fixed copy size, 54
FOLD PROGRAM, 70
Fold Program Screen, 70
Folder, 55
FORMAT, 42, 45
FORWARD prints, 74
FTP, 1, 21, 83, 85, 118
FTP Transfer Failed Screen, 86
FULL SYSTEM TEST, 121
FULL SYSTEM TEST option,
124
Full System Test Screen, 124
Graphical Display, 8
HFT Controller, 26
IEEE 1394 Cable and
Connector, 6
IMAGE ENHANCEMENT
feature, 102
Image Enhancement Screen,
17, 41, 103
XEROX WIDE FORMAT COPY SYSTEM
IMAGE ENHANCEMENTS, 94
Image Entering the Scanner
Diagram, 77
IMAGE PATH, 121
Image Path Screen, 123
Image Quality, 13, 39, 51
Image Quality Area, 13
Image Quality Illustration, 51
IMAGING option, 101
Imaging screen, 41
Imaging Screen, 102
Immediate Image Overwrite, 61
INDEX, 45
INDEX ED, 45
INSTALLATION TEST PRINT,
119
INTELLIGENT TITLE BLOCK,
72
Invalid Mode screen, 14
INVERT option, 80
Job Accounting, 139
JOB ACCOUNTING MODE,
112, 140
Job Accounting Mode Screen,
140
JOB ACCOUNTING option, 113
Job Parameters and Images
Screen, 63
Job Parameters Recalled
Screen, 66, 68
Job Parameters Saved Option,
67
Job Parameters Saved Screen,
65
JOB TEMPLATES, 61
JOB TEMPLATES option, 63
Job Templates Screen, 64
JUSTIFICATION, 76
JUSTIFICATION option, 78
Justification Screen, 79
LAMP, 129
language, 95
LAST JOB, 61
LAST JOB option, 61
Last Job Screen, 62
LEAD EDGE/TRAIL EDGE, 129
Lead Edge/Trail Edge
Adjustment Screen, 130
LEAD EDGE/TRAIL EDGE
option, 130
LED status indicators, 170
LED Status Indicators, 170
Line, 15, 42
Line mode, 40
Line, photo or mixed original on
film, 37
XEROX WIDE FORMAT COPY SYSTEM
LIST BY DIRECTORY, 113
List by Directory Screen, 114
LOCALIZATION, 94
LOCALIZATION option, 95
Localization Screen, 95
long document, 57
Main Menu, 93
Main menu options, 171
Main Menu Screen, 94
MANUAL, 50
Manual mode, 11
Manual mode, 18
Manual Reduction/Enlargement
Screen, 19
MANUAL WIDTH, 105
MARGIN OPTIONS, 71
Margin Options Screen, 71
MARGINS, 76
margins for an image, 77
MARGINS option, 76
Margins Selection Screen in
Transform Menu, 77, 78
MAXIMUMCOPY LENGTH, 41,
101
MEDIA FORMATS, 99
Media Selection, 9
Media Selection Area, 9
MEDIA SERIES option, 98
Media Series Screen, 99
Media sizes, 98
Menu key, 20
MIRROR option, 79
Mirror transformations, 80
Mode key, 21
MOTOR COMMUNICATIONS,
129
MOTOR COMMUNICATIONS
test, 133
MOTOR SPEED, 129
MOTOR SPEED option, 130
Motor Speed Screen, 130
Navigation keys, 8
Navigational Keys and
Graphical Display Area, 20
Next key, 21
Normal, 14
NORMAL, 46
Normal mode, 40, 42
NORMAL MODE, 41
Numeric Keypad, 22
Numerical Key pad, 8
Operating in SCAN mode, 88
Option Keys section, 8
Original, Type, 14, 39
OUTPUT BIN option, 72
Output Bin Screen, 73
Index • 175
Output Format option, 11
OVERLENGTH OPTIONS, 70
Overlength Options Screen, 70
oversized documents, 57
PACKBITS, 44, 45
PALETTE, 45
paper sizes, 166
password, 112
PASSWORD, 119
PASSWORD option, 136
Password Screen, 137
PERCEPTUAL, 46
Photo, 15, 43
Photo mode, 40
Please Enter Account Id
Screen, 141
Please Enter Directory Screen,
87
Please Enter User Id Screen,
141
Power Cord, 6
Power off the Controller and the
Printer, 31
power on the XEROX WIDE
FORMAT COPY
SYSTEMS, 24
Power On/Off Switch, 6, 24
Power On/Off Switch Photo, 32
POWER SAVER, 94
POWER SAVER option, 105
Power Saver Screen, 105
Power Switch Photo, 25
Preparing documents, 36
Preset, 11
Preset (factory default), 19
Preset Output Format screen,
12
Preset Output Format Screen,
54
Preset Reduction/Enlargement
Screen, 19
PREVIEW, 43
PREVIEW, 42, 45
Printer Configuration Screen,
111
PRINTER INTERRUPT, 104
Printer Interrupt key, 60
Printer Screen, 109
Printer Settings Screen, 111
Problem solving, 147
PRODUCTIVITY, 106
PRODUCTIVITY – ANSI, 50
PRODUCTIVITY MODE, 34
PUNCH OPTIONS, 71
Punch Options Screen, 71
READ NVR, 122
176 • Index
READ NVR option, 136
Read NVR Screen, 136
Ready to Build Set Screen, 74
Ready to Copy Screen, 21, 31,
40, 52, 56, 70, 93
Ready to Print Set Screen, 74
Ready to Scan Screen, 21, 87
READY TO SCAN screen, 87
RECALL FACTORY
DEFAULTS, 61, 68
RECALL LAST JOB, 61, 62
RECALL TEMPLATE option, 65
Recall Template Screen, 66
RECENT FAULT LIST, 107
RECENT FAULT LIST option,
109
Recent Fault List Screen, 110
Reduce/Enlarge, 18, 88
Reduce/Enlarge Area, 18
Reduction, 100
REDUCTION LINE
PRESERVATION, 41
REDUCTION LINE
PRESERVATION, 101
RESET NVR DEFAULTS, 121
RESET NVR DEFAULTS
option, 125
Reset NVR Defaults Screen,
125
REVERSE prints, 74
roll sizes, 168
Safety Notes, vii
Sample key, 82
Sample Mode Screen, 82
SAVE DEFAULT TEMPLATE,
61
SAVE DEFAULT TEMPLATE
option, 67
SAVE TEMPLATE option, 64
Save Template Screen, 64
SCAN BAR, 121
SCAN BAR option, 123
Scan Bar Screen, 123
Scan Control keys, 8
Scan Control Keys, 23
SCAN mode, 85
SCAN MODE, 41
Scan Mode Sample, 82
Scan Options (Color) Screen,
46
Scan Options (Color) screens,
16
Scan Options (Color) Screens,
45
Scan Options (Line) Screen, 15,
43
XEROX WIDE FORMAT COPY SYSTEM
Scan Options (Normal) Screen,
14, 42
Scan Options (Photo) Screen,
15, 43, 44
Scanner compact components,
7
SCANNER CONTROL, 94
SCANNER CONTROL option,
105
Scanner Control Panel, 4, 8
Scanner Control Panel Photo, 8
Scanner Control Screen, 49,
106
SCANNER DIAGNOSTICS, 119
SCANNER DIAGNOSTICS
option, 121
Scanner Diagnostics Screen,
122
SCANNER FAULTS (COUNT)
option, 127
SCANNER FAULTS
(COUNTS), 121
Scanner Faults (Counts)
Screen, 128
SCANNER FAULTS
(ORDERED), 121
SCANNER FAULTS
(ORDERED) option, 126
Scanner Faults (Ordered)
Screen, 127
SCANNER RELIABILITY
METER, 121
SCANNER RELIABILITY
METER option, 125
Scanner Reliability Screen, 126
Scanner Screen, 108
Scanner standard components,
3
Scanning Resolutions, 165
Scanning resolutions and
speeds, 165
Scanning strategies, 37
Scanning strategies for
special documents, 37
Scanning to the Network, 85
Scan-to-FTP, 85
Scan-to-Net, 86
Scan-to-Net Feature Key, 2
Scan-to-Print Feature Key, 2
security feature, 85
SECURITY SETTINGS, 118
SECURITY SETTINGS, 112
SECURITY SETTINGS option,
118
Security Settings Screen, 119
XEROX WIDE FORMAT COPY SYSTEM
Selections disabled in SCAN
mode, 88
SENSORS, 129
SENSORS option, 131
Sensors Screen, 131
sepia, 37
Sets Build, 88
Sets Build key, 73
Sets Build Screen, 73
Source option, 10
Special features keys, 59
Special Features keys, 8
Special Features Keys, 23
Specifications, 162
Speed Enhancement T, 2
Speeds, 165
SRGB, 103
Stand, 4
Standard Organizer, 4
Standard Stacker, 6
Start key, 23
Status LED, 6
Stop key, 23
Store/Recall key, 61
Store/Recall Screen, 61
Synchro mode, 12
SYSTEM ADMINISTRATION,
93
SYSTEM ADMINISTRATION
menu, 112
System Administration menu
options, 172
SYSTEM ADMINISTRATION
option, 112
System Administration Screen,
113
SYSTEM DESCRIPTION, 107
SYSTEM DESCRIPTION
option, 108
System Description Screen, 108
SYSTEM INFORMATION, 93
System Information menu, 107
System Information menu
options, 172
SYSTEM INFORMATION
option, 107
System Information Screen, 107
System Screen, 113
TAB OPTIONS, 70
Tab Options Screen, 71
Template is in Use Screen, 65
Thick Document Lever, 4
TIMERS, 94
TIMERS option, 103
Timers Screen, 104
TITLE BLOCK LOCATION, 72
Index • 177
Title Block Location Screen, 72
TRANSFORM, 76
Transform key, 76
TRANSFORM MENU, 76
Transform Menu Screen, 76
TRANSFORM option, 79
Transform Screen, 80, 81
translucent media, 37
Type Line, 42
Type option, 10, 14, 40
Type Photo, 43
Type, Color, 44
Type, Normal, 41
Understanding the READY TO
SCAN screen, 87
178 • Index
USAGE METERS, 119, 120
Usage Meters Screen, 120
WEB, 46
WIDE DOCUMENTS, 57
WIDE FORMAT SCAN
SYSTEM Front View, 4
WIDE FORMAT SCAN
SYSTEM Rear View, 5
Width Found for Set is XX.X
Screen, 75
WRITE NVR, 121
WRITE NVR option, 125
Write NVR Screen, 125
