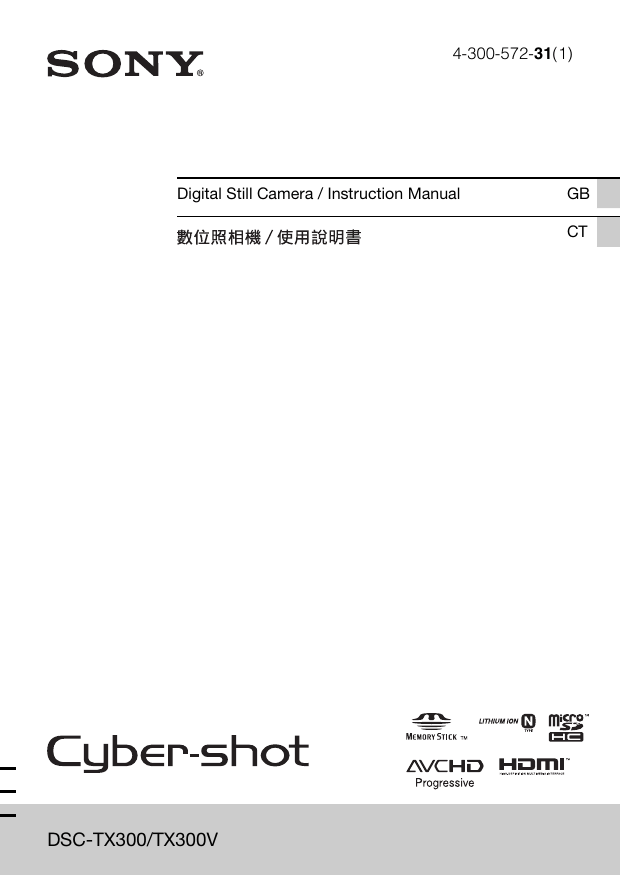

4-300-572-31(1)
Digital Still Camera / Instruction Manual
GB
CT
DSC-TX300/TX300V
English
Learning more about the camera (“Cyber-shot
User Guide”)
“Cyber-shot User Guide” is an on-line manual. Refer to it for
in-depth instructions on the many functions of the camera.
1 Access the Sony support page.
http://www.sony.net/SonyInfo/Support/
2 Select your country or region.
3 Search for the model name of your camera within the
support page.
• Check the model name on the bottom of your camera.
Checking the supplied items
The number in parentheses indicates the number of pieces.
• Camera (1)
• Rechargeable battery pack NP-BN (1)
(This rechargeable battery pack cannot be used with Cyber-shot that are
supplied with the NP-BN1 battery pack.)
• Paint pen (1)
• Multi Station UC-TH (1)
• Micro USB cable (1)
• AC Adaptor AC-UB10/UB10B (1)
• Power cord (mains lead) (not supplied in the USA and Canada) (1)
• Wrist strap (1)
• Cleaning Cloth (1)
• Instruction Manual (this manual) (1)
• Notes on the water-proofing (1)
GB
2
Owner’s Record
The model and serial numbers are located on the bottom. Record the serial number in the
space provided below. Refer to these numbers whenever you call your Sony dealer
regarding this product.
Model No. DSC-TX300/DSC-TX300V
Serial No. _____________________________
Model No. AC-UB10/AC-UB10B
Serial No. _____________________________
GB
WARNING
To reduce fire or shock hazard, do not expose the unit to rain or
moisture.
IMPORTANT SAFETY INSTRUCTIONS
-SAVE THESE INSTRUCTIONS
DANGER
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, CAREFULLY FOLLOW THESE
INSTRUCTIONS
If the shape of the plug does not fit the power outlet, use an attachment plug adaptor of the
proper configuration for the power outlet.
CAUTION
[ Battery pack
If the battery pack is mishandled, the battery pack can burst, cause a fire or even chemical
burns. Observe the following cautions.
• Do not disassemble.
• Do not crush and do not expose the battery pack to any shock or force such as
hammering, dropping or stepping on it.
• Do not short circuit and do not allow metal objects to come into contact with the battery
terminals.
• Do not expose to high temperature above 60°C (140°F) such as in direct sunlight or in a
car parked in the sun.
• Do not incinerate or dispose of in fire.
• Do not handle damaged or leaking lithium ion batteries.
GB
3
• Be sure to charge the battery pack using a genuine Sony battery charger or a device that
can charge the battery pack.
• Keep the battery pack out of the reach of small children.
• Keep the battery pack dry.
• Replace only with the same or equivalent type recommended by Sony.
• Dispose of used battery packs promptly as described in the instructions.
[ AC Adaptor
Connect the AC Adaptor to the nearest wall outlet (wall socket).
If some trouble occurs while using the AC Adaptor, immediately shut off the power by
disconnecting the plug from the wall outlet (wall socket).
The power cord (mains lead), if supplied, is designed specifically for use with this camera
only, and should not be used with other electrical equipment.
For Customers in the U.S.A. and Canada
[ RECYCLING LITHIUM-ION BATTERIES
Lithium-Ion batteries are recyclable.
You can help preserve our environment by returning your used
rechargeable batteries to the collection and recycling location nearest
you.
For more information regarding recycling of rechargeable batteries,
call toll free
1-800-822-8837, or visit http://www.rbrc.org/
Caution: Do not handle damaged or leaking Lithium-Ion batteries.
[ Battery pack
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This Class B digital apparatus complies with Canadian ICES-003.
GB
4
For Customers in the U.S.A.
UL is an internationally recognized safety organization.
The UL Mark on the product means it has been UL Listed.
If you have any questions about this product, you may call:
Sony Customer Information Center
1-800-222-SONY (7669).
The number below is for the FCC related matters only.
GB
[ Regulatory Information
Declaration of Conformity
Trade Name: SONY
Model No.: DSC-TX300V
Responsible Party: Sony Electronics Inc.
Address:
16530 Via Esprillo,
San Diego, CA 92127 U.S.A.
Telephone No.: 858-942-2230
This device complies with Part15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
Declaration of Conformity
Trade Name: SONY
Model No.: UC-TH
Responsible Party: Sony Electronics Inc.
Address:
16530 Via Esprillo,
San Diego, CA 92127 U.S.A.
Telephone No.: 858-942-2230
This device complies with Part15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
This equipment must not be co-located or operated in conjunction with any other antenna
or transmitter.
GB
5
The available scientific evidence does not show that any health problems are associated
with using low power wireless devices. There is no proof, however, that these low power
wireless devices are absolutely safe. Low power Wireless devices emit low levels of radio
frequency energy (RF) in the microwave range while being used. Whereas high levels of
RF can produce health effects (by heating tissue), exposure of low-level RF that does not
produce heating effects causes no known adverse health effects. Many studies of low-level
RF exposures have not found any biological effects. Some studies have suggested that
some biological effects might occur, but such findings have not been confirmed by
additional research. This equipment has been tested and found to comply with FCC
radiation exposure limits set forth for an uncontrolled environment and meets the FCC
radio frequency (RF) Exposure Guidelines in Supplement C to OET65.
[ CAUTION
You are cautioned that any changes or modifications not expressly approved in this manual
could void your authority to operate this equipment.
[ Note:
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
This product contains FCC ID: AK8CXN5100
The supplied interface cable must be used with the equipment in order to comply with the
limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules.
GB
6
About water-proof and dust-proof performance of
the camera
This camera is equipped to be water-proof and dust-proof. Damage caused
from misuse, abuse or failure to properly maintain the camera is not covered
by the limited warranty.
• This camera is water-proof/dust-proof equivalent to IEC60529 IP58. The
camera is operable up to a water depth of 5 m for 60 minutes.
• Do not subject the camera to pressurized water, such as from a tap.
GB
• Do not use in hot springs.
• Use the camera in the recommended operating water temperature range of
–10°C to +40°C (14°F to 104°F).
• As for dust-proof performance, there is no guarantee that the camera will not
become scratched or dented.
• Sometimes water-proof performance is lost if the camera is subjected to a
strong shock such as from being dropped. We recommend the camera be
inspected at an authorized repair shop for a fee.
• Accessories supplied do not meet water-proof and dust-proof specifications.
Notes before using the camera under/near water
• Make sure that no foreign matter such as sand, hair, or dirt gets inside the
battery/memory card cover. Even a small amount of foreign matter may lead
to water entering the camera.
• Confirm that the sealing gasket and its
mating surfaces have not become
scratched. Even a small scratch may
lead to water entering the camera. If the
sealing gasket or its mating surfaces
become scratched, take the camera to an
authorized repair shop to have the
sealing gasket replaced for a fee.
1 Sealing gasket
• If dirt or sand gets on the sealing gasket
2 Surface contacting
or its mating surfaces, wipe the area
the sealing gasket
clean with a soft cloth that will not leave
behind any fibers. Prevent the sealing
gasket from becoming scratched by touching it while charging a battery or
using a cable.
• Do not open/close the battery/memory card cover with wet or sandy hands or
near water. There is a risk this will lead to sand or water getting inside.
Before opening the cover, perform the procedure described in “Cleaning
after using the camera under/near water”.
GB
7
• Open the battery/memory card cover with the camera completely dry.
• Always confirm that the battery/memory card cover has been securely
locked.
Notes on using the camera under/near water
• The touch panel may be activated by water splashes on the screen icons.
When using the camera under/near water, it is recommended that you hide
the icons by touching
on the right side of the screen. Touch
for a few
seconds to display the icons again.
• The touch panel cannot be operated underwater. Use the buttons of the
camera to perform shooting operations.
• Do not subject the camera to shock such as from jumping into water.
• Do not open and close the battery/memory card cover while under/near
water.
• This camera sinks in water. Place your hand through the wrist strap to
prevent the camera from sinking.
• Faint, white, circular spots may appear in under-water flash photos due to
reflections off of floating objects. This is not a malfunction.
• Select
(Underwater) in Scene Selection to shoot underwater with less
distortion.
Cleaning after using the camera under/near water
• Always clean the camera with water after use
within 60 minutes, and do not open the
battery/memory card cover before cleaning is
finished. Sand or water may get inside places
where it cannot be seen. If not rinsed, waterproof performance will be degraded.
• Allow the camera to sit in pure water poured
into a cleaning bowl for about 5 minutes.
Then, gently shake the camera, press each button, slide the zoom lever inside
the water, to clean away any salt, sand or other matter lodged around the
buttons.
• After rinsing, wipe away water drops with a soft cloth. Allow the camera to
dry completely in a shady location with good ventilation. Do not blow dry
with a hair dryer as there is a risk of deformation and/or degraded waterproof performance.
• Wipe away water drops or dust on the memory card/battery cover or terminal
cover with a soft dry cloth.
GB
8
• This camera is constructed to drain water. Water will drain from openings
around the ON/OFF (Power) button, zoom lever, and other controls. After
removing from water, place the camera on a dry cloth for a while to allow
water to drain.
• Bubbles may appear when the camera is placed under water. This is not a
malfunction.
• The camera body may become discolored if it comes in contact with
sunscreen or suntan oil. If the camera does come in contact with sunscreen or
GB
suntan oil, quickly wipe it clean.
• Do not allow the camera to sit with salt water inside or on the surface. This
may lead to corrosion or discoloration, and degradation of water-proof
performance.
• To maintain the water-proof performance, we recommend that once a year
you take the camera to your dealer, or to an authorized repair shop, to have
the sealing gasket of the battery/memory card cover replaced for a fee.
GB
9
Identifying parts
A Shutter button
B W/T (Zoom) lever
C Self-timer lamp/Smile Shutter
lamp/AF illuminator
D Flash
E ON/OFF (Power) button
F Power/Charge lamp
G GPS sensor (built-in,
DSC-TX300V only)
H Lens
I
(TransferJet™) sensor
(built-in)
J OLED/Touch panel
K Microphone
L Speaker
M Hook for wrist strap
N Wi-Fi sensor (built-in)
O HDMI Micro jack
P Access lamp
Q Memory card slot
R Micro USB connector
S Battery/memory card cover
T Battery insertion slot
U Battery eject lever
V Tripod receptacle
• Use a tripod with a screw less
than 5.5 mm (7/32 inches) long.
Otherwise, you cannot firmly
secure the camera, and damage to
the camera may occur.
GB
10
Inserting the battery pack
Battery eject lever
GB
1 Open the cover.
the battery pack.
2 Insert
• Align the battery pack with the guide inside the battery insertion slot.
Insert the battery pack until the battery eject lever locks into place.
• Securely close the battery cover until you hear the slide lock on the
cover catch in place and so that the yellow mark under the slide lock can
no longer be seen.
• Closing the cover with the battery inserted incorrectly may damage the
camera.
GB
11
Charging the battery pack
ACCESS lamp
CHARGE lamp
Power/Charge lamp
Lit: Charging
Off: Charging finished
Flashing:
Charging error
Charging paused due to overheating
the Multi Station (supplied) to a computer,
1 Connect
using the micro USB cable (supplied).
the camera on the Multi Station.
2 Set
The ACCESS lamp and CHARGE lamp on the Multi Station will light up.
• With the camera screen facing upward, set the camera on the Multi
Station as illustrated.
• If the CHARGE lamp flashes continuously, make sure that there is no
dirt or other foreign matter on the Multi Station, and that no camera
other than this camera is connected to the Multi Station. After that,
disconnect the micro USB cable once and connect it again.
sure that charging has started.
3 Make
The Power/Charge lamp lights orange, and charging starts.
• Turn off the camera while charging the battery.
• You can charge the battery pack even when it is partially charged.
• When the Power/Charge lamp flashes and charging is not finished,
remove and re-insert the battery pack.
GB
12
z Charging the battery pack quickly
If you connect the camera to the AC Adaptor using the micro USB cable, then
plug the AC Adaptor into a wall outlet (wall socket), you can charge the battery
pack more quickly than with the Multi Station.
For customers in the USA
GB
Power cord
(Mains lead)
For customers in countries/regions
other than the USA
Notes
• If the Power/Charge lamp on the camera flashes when the AC Adaptor is
connected to the wall outlet (wall socket), this indicates that charging is
temporarily stopped because the temperature is outside the recommended range.
When the temperature gets back within the appropriate range, the charging
resumes. We recommend charging the battery pack in an ambient temperature of
between 10°C to 30°C (50ºF to 86ºF).
• The battery pack may not be effectively charged if the terminal section of the
battery is dirty. In this case, wipe any dust off lightly using a soft cloth or a cotton
swab to clean the terminal section of the battery.
• Connect the AC Adaptor (supplied) to the nearest wall outlet (wall socket). If
malfunctions occur while using the AC Adaptor, disconnect the plug from the wall
outlet (wall socket) immediately to disconnect from the power source.
• When charging is finished, disconnect the AC Adaptor from the wall outlet (wall
socket).
GB
13
• Be sure to use only genuine Sony brand battery packs, micro USB cable (supplied)
and AC Adaptor (supplied).
• BC-TRN2 battery charger (sold separately) is able to quick-charge the NP-BN
rechargeable battery pack supplied with this model. BC-TRN battery charger (sold
separately) is not able to quick-charge the NP-BN rechargeable battery pack
supplied with this model.
• Note the following points when charging via a computer:
– If the camera is connected to a laptop computer that is not connected to a power
source, the laptop battery level decreases. Do not charge for an extended period
of time.
– Do not turn on/off or restart the computer, or wake the computer to resume from
sleep mode when a USB connection has been established between the computer
and the camera. The camera may cause a malfunction. Before turning on/off, or
restarting the computer or waking the computer from sleep mode, disconnect the
camera and the computer.
– No guarantees are made for charging using a custom-built computer or a
modified computer.
x Charging time (Full charge)
Using the AC Adaptor (supplied), the charging times are as follows:
When using the Multi Station: Approx. 225 min.
When not using the Multi Station: Approx. 115 min.
Notes
• The above charging time applies when charging a fully depleted battery pack at a
temperature of 25°C (77°F). Charging may take longer depending on conditions of
use and circumstances.
• When charging while connected to a computer, charging time will vary depending
on your computer.
GB
14
x Battery life and number of images that can be
recorded and played back
Battery life
Number of images
Shooting (still images)
Approx. 110 min.
Approx. 220 images
Viewing (still images)
Approx. 160 min.
Approx. 3200 images
Shooting (movies)
Approx. 55 min.
—
GB
Notes
• The above number of images applies when the battery pack is fully charged. The
number of images may decrease depending on the conditions of use.
• The number of images that can be recorded is for shooting under the following
conditions:
– Using Sony microSD memory card (Class 4 or faster) (sold separately)
– The battery pack is used at an ambient temperature of 25°C (77°F).
– [GPS setting] is set to [Off] (DSC-TX300V only).
– [Disp. Resolution] is set to [Standard].
• The number for “Shooting (still images)” is based on the CIPA standard, and is for
shooting under the following conditions:
(CIPA: Camera & Imaging Products Association)
– [Panel Brightness] is set to [3(Normal)].
– Shooting once every 30 seconds.
– The zoom is switched alternately between the W and T ends.
– The flash strobes once every two times.
– The power turns on and off once every ten times.
• The battery life for movies applies shooting under the following conditions:
– Movie quality: AVC HD HQ
– When continuous shooting ends because of set limits (page 28), press the shutter
button down again and continue shooting. Shooting functions such as the zoom
do not operate.
GB
15
x Supplying power
The camera can be supplied with power from the wall outlet (wall socket) by
connecting to the AC Adaptor, using the micro USB cable (supplied).
You can import images to a computer without worrying about draining the
battery pack by connecting the camera to a computer using the micro USB
cable.
In addition, you can use the AC Adaptor AC-UD10 (sold separately) for
shooting to supply power when shooting.
Notes
• Power cannot be supplied when the battery pack is not inserted in the camera.
• When using the Wi-Fi while power is being supplied by the Multi Station, the
battery charge may be depleted, depending on the condition of use.
• When the camera is connected directly to a computer or to a power outlet using the
supplied AC Adaptor AC-UB10/UB10B, power supply is available only in
playback mode. If the camera is in shooting mode or while you are changing the
settings of the camera, power is not supplied even if you make a USB connection
using the micro USB cable.
• If you connect the camera and a computer using the micro USB cable while the
camera is in playback mode, the display on the camera will change from the
playback screen to the USB connection screen. Touch
(Playback) button to
switch to the playback screen.
GB
16
Inserting a memory card (sold separately)
microSD memory
“Memory Stick
Micro” media (M2) card
Make sure that the correct
side is facing up.
Terminal
GB
Printing
surface
1 Open the cover.
the memory card (sold separately).
2 Insert
• With the camera lens facing upward, as illustrated, insert the memory
card straight in until it clicks into place.
• Pushing down on the microSD memory card (in the direction of the
battery insertion slot) while inserting it may damage the camera.
• Be careful when removing the microSD memory card, as it may pop out
quickly.
3 Close the cover.
the icon displayed on the upper right screen and
4 Check
make sure the memory card is inserted correctly.
• A: The memory card is inserted
correctly.
• B: The memory card is not inserted
correctly. Confirm the direction of the
memory card and reinsert it straight into
the camera.
• Only one memory card can be inserted.
GB
17
x Memory cards that can be used
Memory card
A
B
For still images
For movies
Memory Stick Micro
a
Memory Stick Micro (Mark2)
a
a
microSD memory card
a
a (Class 4 or faster)
microSDHC memory card
a
a (Class 4 or faster)
—
• In this manual, products in A are collectively referred to as “Memory Stick Micro”
media, and products in B are collectively referred to as microSD memory card.
x To remove the memory card/battery pack
Memory card: Push the memory card in once to eject the memory card.
Battery pack: Slide the battery eject lever. Be sure not to drop the battery pack.
Note
• Never remove the memory card/battery pack when the access lamp (page 10) is lit.
This may cause damage to data in the memory card/internal memory.
GB
18
Setting the clock
GB
ON/OFF (Power) button
the ON/OFF (Power) button.
1 Press
The camera is turned on. The power lamp lights up green only when the
camera starts up.
Date & Time setting is displayed when you turn on the camera for the first
time.
• It may take time for the power to turn on and allow operation.
2 Select a desired language.
a desired geographic location by following the
3 Select
on-screen instructions, then touch [Next].
[Daylight Savings] or [Summer Time], [Date & Time
4 Set
Format] and [Date & Time], then touch [Next].
• Midnight is indicated as 12:00 AM, and noon as 12:00 PM.
5 Touch [OK].
the instructions on the screen.
6 Follow
• If you set [GPS setting] to [On], the battery charge may be depleted
faster.
• If you set [Disp. Resolution] to [High], the battery charge may be
depleted faster.
GB
19
Shooting still images/movies
Shutter button
Shooting still images
the shutter button halfway down to focus.
1 Press
When the image is in focus, a beep sounds and the z indicator lights.
2 Press the shutter button fully down to shoot an image.
Shooting movies
1 Touch (REC Mode) t (Movie Mode).
the shutter button to start recording.
2 Press
• Do not cover the microphone with your fingers.
• Use the W/T (zoom) lever to change the zoom scale.
• When
(REC Mode) is not set to
(Movie Mode), you can start
or stop recording by touching
(Movie button) on the screen.
3 Press the shutter button again to stop recording.
Notes
GB
20
• The sound of the lever operating will be recorded when the zoom function
operates while shooting a movie.
• Continuous shooting is possible for approximately 29 minutes at one time at the
camera’s default settings and when the temperature is approximately 25°C (77°F).
When movie recording is finished, you can restart recording by performing the
steps above from the beginning. Recording may stop to protect the camera
depending on the ambient temperature.
Viewing images
GB
(Playback).
1 Touch
• When images on a memory card recorded with other cameras are played
back on this camera, the registration screen for the data file appears.
x Selecting next/previous image
Touch
(Next)/
(Previous) on the screen.
• To play back movies, touch
(Playback) in the center of the screen.
• To zoom in, slide the W/T (Zoom) lever to T side.
x Deleting an image
Touch
(Delete) t [This Image].
x Returning to shooting images
Touch
on the screen.
• You can also return to shooting mode by pressing the shutter button halfway
down.
GB
21
In-Camera Guide
This camera is equipped with a built-in instruction guide. This allows you to
search the camera’s functions according to your needs.
1 Touch MENU.
(In-Camera Guide), then select the desired
2 Touch
MENU item.
The operating guide for the selected item is displayed.
• If you touch (In-Camera Guide) when the MENU screen is not
displayed, you can search the guide using keywords or icons.
GB
22
Introduction of other functions
Other functions used when shooting or playing back can be operated touching
the MENU on the screen. This camera is equipped with a Function Guide that
allows you to easily select from the functions. While displaying the guide, you
can use various functions.
GB
x Menu Items
Shooting
Movie shooting
scene
Select movie recording mode.
Easy Mode
Shoot still images using minimal functions.
Photo Creativity
Change settings easily and shoot images when the
shooting mode is set to [Intelligent Auto] or [Superior
Auto].
Movie button
Shoot movies quickly from shooting mode other than
[Movie Mode].
Flash
Sets the flash settings.
Self-Timer
Sets the self-timer settings.
Defocus Effect
Set the level of background defocus effect when
shooting in Background Defocus mode.
Still Image
Size(Dual Rec)
Set the still image size shot while recording a movie.
Still Image Size/
Panorama Image
Size/Movie Size/
Movie Quality
Select the image size and the quality for still images,
panoramic images or movie files.
Cont. Shooting
Settings
Sets the burst shooting settings.
GB
23
GB
24
Macro
Shoots beautiful close-up images of small subjects.
HDR Painting
effect
When [HDR Painting] is selected in Picture Effect, sets
the effect level.
Area of emphasis
When [Miniature] is selected in Picture Effect, sets the
part to focus on.
Color hue
When [Toy camera] is selected in Picture Effect, sets the
color hue.
Extracted Color
When [Partial Color] is selected in Picture Effect, selects
the color to extract.
Watercolor Effect
When [Watercolor] is selected in Picture Effect, sets the
effect level.
Illustration Effect
When [Illustration] is selected in Picture Effect, sets the
effect level.
EV
Adjust the exposure manually.
ISO
Adjust the luminous sensitivity.
White Balance
Adjust color tones of an image.
Underwater White
Balance
Adjust color tones when shooting underwater.
Focus
Select the focus method.
Metering Mode
Select the metering mode that sets which part of the
subject to measure to determine the exposure.
Scene Recognition
Set to automatically detect shooting conditions.
Soft Skin Effect
Set the Soft Skin Effect and the effect level.
Smile Shutter
Set to automatically release the shutter when a smile is
detected.
Smile Detection
Sensitivity
Set the Smile Shutter function sensitivity for detecting
smiles.
Face Detection
Select to detect faces and adjust various settings
automatically.
Anti Blink
Set to automatically shoot two images and select image
in which the eyes are not blinking.
Movie SteadyShot
Set the strength of SteadyShot in movie mode.
Position
Information*
Check triangulating status.
GPS Log REC*
Record the route traveled by the camera.
Send to Computer
Back up images by transferring them to a computer
connected to a network.
In-Camera Guide
Search the camera’s functions according to your needs.
GB
* DSC-TX300V only
Viewing
Easy Mode
Increase the text size on the screen for ease of use.
Date Select
Selects the desired image to view by date.
Calendar
Selects the date to be played back on Calendar.
Image Index
Displays multiple images at the same time.
Slideshow
Select a method of continuous playback.
Delete
Delete an image.
View on
Smartphone
Upload and transfer images to a smartphone.
View on TV
View images on a network-enabled TV.
Send to Computer
Back up images by transferring them to a computer
connected to a network.
Send by
TransferJet
Transfer data by closely aligning two products equipped
with TransferJet.
Retouch
Retouch an image using various effects.
Picture Effect
Add various texture on images.
Paint
Paints on a still image and saves it as a new file.
3D Viewing
Set to play back images shot in 3D mode on a 3D TV.
View Mode
Select the display format for images.
Display Cont.
Shooting Group
Select to display burst images in groups or display all
images during playback.
Protect
Protect the images.
Print (DPOF)
Add a print order mark to a still image.
GB
25
Rotate
Rotate a still image to the left.
Volume
Adjusts the volume.
Exposure data
Sets whether or not to display the shooting data (Exif
data) of the currently displayed file on the screen.
Number of images
in index
Sets the number of images displayed in the index screen.
In-Camera Guide
Search the camera’s functions according to your needs.
x
Setting items
If you touch the MENU while shooting or during playback,
(Settings) is
provided as a final selection. You can change the default settings on the
(Settings) screen.
Shooting Settings
Main Settings
Network Settings
Memory Card
Tool*2
Clock Settings
*1
*2
GB
26
Movie format/AF Illuminator/Grid Line/Clear Image
Zoom/Digital Zoom/Wind Noise Reduct./Scene Recog.
Guide/Red Eye Reduction/Blink Alert/Write Date/Disp.
Resolution
Beep/Panel Brightness/Language Setting/Display color/
Demo Mode/Initialize/HDMI Resolution/CTRL FOR
HDMI/Eco Mode/USB Connect Setting/USB Power
Supply/LUN Setting/Download Music/Empty Music/
Airplane Mode/GPS setting*1/GPS assist data*1/Dlt.
GPS Log Data*1/TransferJet/Version
WPS Push/Access point settings/Edit Device Name/
View on Smartphone/Disp MAC Address
Format/Create REC.Folder/Change REC.Folder/Delete
REC.Folder/Copy/File Number
Area Setting/Date & Time Setting/Auto Clock ADJ*1/
Auto Area ADJ*1
DSC-TX300V only
If a memory card is not inserted,
and only [Format] can be selected.
(Internal Memory Tool) will be displayed
Install PC application (Windows)
“PlayMemories Home” allows you to import images shot with the camera to a
computer for display.
1 Connect the camera to a computer.
7: [Computer] t Double-click camera icon
2 Windows
t [PMHOME.EXE]
GB
Windows XP/Vista: [Computer] (in Windows XP, [My
Computer]) t [PMHOME] t Double-click
[PMHOME.EXE]
the instructions on the screen to complete the
3 Follow
installation.
Note
• “PlayMemories Home” is not compatible to Mac OS. If you play back images on a
Mac, use the applications that are installed on your Mac.
For details, see http://www.sony.co.jp/imsoft/Mac/
x Features of “PlayMemories Home”
Below are examples of the functions available when you use “PlayMemories
Home”. To take advantage of the various “PlayMemories Home” functions,
connect to the Internet and install the “Expanded Feature”.
• You can import images shot with the camera to a computer and display them.
• You can display images stored on a computer by shooting date in a calendar
display.
• You can correct (Red Eye Correction, etc.) still images, print the images,
send images by e-mail, and change the shooting date and time.
• You can save and print images with the date.
• You can create a disc from AVCHD movies imported to a computer.
(Expanded Feature)
GB
27
Number of still images and recordable time of
movies
The number of still images and recordable time may vary depending on the
shooting conditions and the memory card.
x Still images
(Units: Images)
Capacity
Internal memory
Memory card
2 GB
Size
Approx. 105 MB
18M
17
295
VGA
370
6400
19
330
16:9(13M)
x Movies
The table below shows the approximate maximum recording times. These are
the total times for all movie files. Continuous shooting is possible for
approximately 29 minutes. The maximum size of an MP4-format movie file is
up to approximately 2 GB.
(h (hour), m (minute))
Capacity
GB
Memory card
Approx. 105 MB
2 GB
AVC HD 28M (PS)
—
9m
(9 m)
AVC HD 24M (FX)
—
10 m
(10 m)
AVC HD 9M (HQ)
—
25 m
(15 m)
MP4 12M
—
15 m
MP4 3M
—
1 h 10 m
Size
28
Internal memory
The number in ( ) is the minimum recordable time.
• The recordable time of movies varies because the camera is equipped with VBR
(Variable Bit Rate), which automatically adjusts image quality depending on the
shooting scene. When you record a fast-moving subject, the image is clearer but
the recordable time is shorter because more memory is required for recording.
The recordable time also varies depending on the shooting conditions, the subject
or the image quality/size settings.
Notes on using the camera
Functions built into this camera
• This manual describes each of the functions of GPS function compatible/
incompatible devices,1080 60i-compatible devices and 1080 50i-compatible
devices.
To check if your camera supports the GPS function, check for the model name.
GPS-compatible device: DSC-TX300V
GB
GPS-incompatible device: DSC-TX300
To check whether your camera is a 1080 60i-compatible device or a 1080 50icompatible device, check for the following marks on the bottom of the camera.
1080 60i-compatible device: 60i
1080 50i-compatible device: 50i
• This camera is compatible with 1080 60p movie. Progressive mode increases
resolution over standard interlaced recording mode, resulting in smoother and
more realistic images.
• While aboard an airplane, set [Airplane Mode] to [On].
• Do not watch 3D images shot with this camera for extended periods of time on
3D-compatible monitors.
• When you view 3D images shot with this camera on a 3D-compatible monitors,
you may experience discomfort in the form of eye strain, fatigue, or nausea. To
prevent these symptoms, we recommend that you take regular breaks. However,
you need to determine for yourself the length and frequency of breaks you require,
as they vary according to the individual. If you experience any type of discomfort,
stop viewing the 3D images until you feel better, and consult a physician as
necessary. Also refer to the operating instructions supplied with the device or
software you have connected or are using with this camera. Note that a child’s
eyesight is still at the development stage (particularly children below the age of 6).
Consult a pediatrician or ophthalmologist before letting your child view 3D
images, and make sure he/she observes the above precautions when viewing such
images.
On GPS-compatible devices (DSC-TX300V only)
• Use GPS in accordance with regulations of countries and regions where you use it.
• If you do not record the direction or location information, set [GPS setting] to
[Off].
On use and care
Avoid rough handling, disassembling, modifying, physical shock, or impact such as
hammering, dropping, or stepping on the product. Be particularly careful of the lens.
GB
29
Notes on recording/playback
• Before you start recording, make a trial recording to make sure that the camera is
working correctly.
• Do not aim the camera at the sun or other bright light. It may cause the
malfunction of the camera.
• If moisture condensation occurs, remove it before using the camera.
• Do not shake or strike the camera. It may cause a malfunction and you may not be
able to record images. Furthermore, the recording media may become unusable or
image data may be damaged.
Do not use/store the camera in the following places
• In an extremely hot, cold or humid place
In places such as in a car parked in the sun, the camera body may become
deformed and this may cause a malfunction.
• Under direct sunlight or near a heater
The camera body may become discolored or deformed, and this may cause a
malfunction.
• In a location subject to rocking vibration
• Near a location that generates strong radio waves, emits radiation or is strongly
magnetic place. Otherwise, the camera may not properly record or play back
images.
On carrying
Do not sit down in a chair or other place with the camera in the back pocket of your
trousers or skirt, as this may cause malfunction or damage the camera.
Carl Zeiss lens
The camera is equipped with a Carl Zeiss lens which is capable of reproducing sharp
images with excellent contrast. The lens for the camera has been produced under a
quality assurance system certified by Carl Zeiss in accordance with the quality
standards of Carl Zeiss in Germany.
Notes on the screen
The screen is manufactured using extremely high-precision technology so over
99.99% of the pixels are operational for effective use. However, some tiny black
and/or bright dots (white, red, blue or green) may appear on the screen. These dots
are a normal result of the manufacturing process, and do not affect the recording.
On camera’s temperature
Your camera and battery may get hot due to continuous use, but it is not a
malfunction.
GB
30
On the overheat protection
Depending on the camera and battery temperature, you may be unable to record
movies or the power may turn off automatically to protect the camera.
A message will be displayed on the screen before the power turns off or you can no
longer record movies. In this case, leave the power off and wait until the camera and
battery temperature goes down. If you turn on the power without letting the camera
and battery cool enough, the power may turn off again or you may be unable to
record movies.
On charging the battery
GB
If you charge a battery that has not been used for a long time, you may be unable to
charge it to the proper capacity.
This is due to the battery characteristics, and is not a malfunction. Charge the battery
again.
Warning on copyright
Television programs, films, videotapes, and other materials may be copyrighted.
Unauthorized recording of such materials may be contrary to the provisions of the
copyright laws.
No compensation for damaged content or recording failure
Sony cannot compensate for failure to record or loss or damage of recorded content
due to a malfunction of the camera or recording media, etc.
Cleaning the camera surface
Clean the camera surface with a soft cloth slightly moistened with water, then wipe
the surface with a dry cloth. To prevent damage to the finish or casing:
– Do not expose the camera to chemical products such as thinner, benzine, alcohol,
disposable cloths, insect repellent, sunscreen or insecticide.
GB
31
Specifications
Camera
[System]
Image device: 7.76 mm (1/2.3 type)
Exmor R CMOS sensor
Total pixel number of camera:
Approx. 18.9 Megapixels
Effective pixel number of camera:
Approx. 18.2 Megapixels
Lens: Carl Zeiss Vario-Tessar 5× zoom
lens
f = 4.7 mm – 23.5 mm (26 mm –
130 mm (35 mm film equivalent))
F3.5 (W) – F4.8 (T)
While shooting movies (16:9):
28 mm – 140 mm*
While shooting movies (4:3):
35 mm – 175 mm*
* When [Movie SteadyShot] is set
to [Standard]
SteadyShot: Optical
Exposure control: Automatic exposure,
Scene Selection (16 modes)
White balance: Automatic, Daylight,
Cloudy, Fluorescent 1/2/3,
Incandescent, Flash, One Push,
Underwater 1/2
Signal format:
For 1080 50i: PAL color, CCIR
standards HDTV 1080/50i, 1080/
50p specification
For 1080 60i: NTSC color, EIA
standards HDTV 1080/60i, 1080/
60p specification
GB
32
File format:
Still images: JPEG (DCF, Exif,
MPF Baseline) compliant, DPOF
compatible
3D still images: MPO (MPF
Extended (Disparity Image))
compliant
Movies (AVCHD format):
AVCHD format Ver. 2.0
compatible
Video: MPEG-4 AVC/H.264
Audio: Dolby Digital 2ch,
equipped with Dolby Digital Stereo
Creator
• Manufactured under license from
Dolby Laboratories.
Movies (MP4 format):
Video: MPEG-4 AVC/H.264
Audio: MPEG-4 AAC-LC 2ch
Recording media: Internal Memory
(Approx. 105 MB), “Memory Stick
Micro” media, microSD memory
cards
Flash: Flash range (ISO sensitivity
(Recommended Exposure Index)
set to Auto):
Approx. 0.08 m to 3.1 m
(3 1/4 inches to 10 feet
2 1/8 inches) (W)
Approx. 0.6 m to 2.3 m
(1 feet 11 5/8 inches to 7 feet
6 5/8 inches) (T)
[Input and Output connectors]
[Wireless LAN]
HDMI connector: HDMI micro jack
Micro USB connector:
USB communication
USB communication:
Hi-Speed USB (USB 2.0)
Supported format: IEEE 802.11 b/g/n
[Screen]
OLED: Wide (16:9), 8.3 cm (3.3 type)
TFT drive
Total number of dots:
1 229 760 dots
[Power, general]
Power: Rechargeable battery pack
NP-BN, 3.6 V
AC Adaptor AC-UB10/UB10B,
5V
Power consumption (during shooting):
1.0 W
Operating temperature:
–10 °C to +40 °C (14 °F to 104 °F)
Storage temperature: –20 °C to +60 °C
(–4 °F to +140 °F)
Dimensions (CIPA compliant):
95.5 mm × 58.3 mm × 16.0 mm
(3 7/8 inches × 2 3/8 inches ×
21/32 inches) (W/H/D)
Mass (CIPA compliant) (including NPBN battery pack, “Memory Stick
Micro” media):
Approx. 134 g (4.7 oz)
Microphone: Stereo
Speaker: Monaural
Exif Print: Compatible
PRINT Image Matching III:
Compatible
Water-proof/dust-proof performance:
Equivalent to IEC60529 IP58 (The
camera is operable up to a water
depth of 5 m for 60 minutes.)
Water-proof, dust-proof
performance is based on Sony test
criteria.
Multi Station UC-TH
Communication format: TransferJet
Maximum dimensions:
Approx. 103 mm × 12 mm ×
65 mm (4 1/8 inches × 1/2 inches
× 2 5/8 inches) (W/H/D)
Mass: Approx. 75 g (2.6 oz)
Operating temperature: 0 °C to 40 °C
(32 °F to 104 °F)
Power: DC 5 V, 0.5 A
Connector: Micro USB connector
GB
AC Adaptor AC-UB10/UB10B
Power requirements: AC 100 V to
240 V, 50 Hz/60 Hz, 70 mA
Output voltage: DC 5 V, 0.5 A
Operating temperature: 0 °C to 40 °C
(32 °F to 104 °F)
Storage temperature: –20 °C to +60 °C
(–4 °F to +140 °F)
Dimensions:
Approx. 50 mm × 22 mm × 54 mm
(2 inches × 7/8 inches ×
2 1/4 inches) (W/H/D)
Mass:
For the USA and Canada:
Approx. 48 g (1.7 oz)
For countries or regions other than
the USA and Canada:
Approx. 43 g (1.5 oz)
GB
33
Rechargeable battery pack
NP-BN
Used battery: Lithium-ion battery
Maximum voltage: DC 4.2 V
Nominal voltage: DC 3.6 V
Maximum charge voltage: DC 4.2 V
Maximum charge current: 0.9 A
Capacity:
typical: 2.3 Wh (630 mAh)
minimum: 2.2 Wh (600 mAh)
Design and specifications are subject to
change without notice.
Trademarks
• The following marks are trademarks
of Sony Corporation.
, “Cyber-shot,”
“Memory Stick Micro”
• “AVCHD Progressive” and
“AVCHD Progressive” logotype are
trademarks of Panasonic Corporation
and Sony Corporation.
• Windows is registered trademark of
Microsoft Corporation in the United
States and/or other countries.
• Mac is registered trademark of Apple
Inc.
• microSDHC logo is a trademark of
SD-3C, LLC.
•“
” and “PlayStation” are
registered trademarks of Sony
Computer Entertainment Inc.
• In addition, system and product
names used in this manual are, in
general, trademarks or registered
trademarks of their respective
developers or manufacturers.
However, the ™ or ® marks are not
used in all cases in this manual.
GB
34
• Add further enjoyment with your
PlayStation 3 by downloading the
application for PlayStation 3 from
PlayStation Store (where available.)
• The application for PlayStation 3
requires PlayStation Network
account and application download.
Accessible in areas where the
PlayStation Store is available.
Additional information on this
product and answers to frequently
asked questions can be found at
our Customer Support Website.
Printed on 70% or more recycled paper
using VOC (Volatile Organic
Compound)-free vegetable oil based
ink.
GB
GB
35
中文 (繁體字)
關於相機的詳細資訊 (“Cyber-shot 使用者指
南”)
“Cyber-shot 使用者指南”是線上使用說明書。關於相
機各種功能的深入使用說明,請參考此書。
1 進入 Sony 服務網頁。
http://www.sony.net/SonyInfo/Support/
2 選擇您的國家與地區。
3 搜尋服務網頁內您相機的型號名稱。
• 查看您相機底部的型號名稱。
檢查附件
括號中的數字代表的是件數。
• 相機 (1)
• 充電電池 NP-BN (1)
(這個充電電池不能用於附有 NP-BN1 電池的 Cyber-shot。)
• 畫筆 (1)
• 多功能工作站 UC-TH (1)
• 微型 USB 電纜 (1)
• 電源適配器 AC-UB10/UB10B (1)
• 電源線 (在美國與加拿大非附件)(1)
• 腕帶 (1)
• 清潔布 (1)
• 使用說明書 (本說明書)(1)
• 關於防水的注意事項 (1)
CT
2
警告
為減少發生火災或電擊的危險,請勿讓本機暴露於雨中或受潮。
重要的安全指示
-請保存這些指示危險
為了降低火災或電擊的危險,請小心遵守
這些指示
CT
如果插頭的形狀與電源插座不合,請使用適合電源插座的插頭轉接頭。
注意
[ 電池組
如果電池組處理不當,電池組可能會爆炸,造成火災,甚至化學灼傷。請遵
循以下注意事項。
• 切勿拆解。
• 切勿擠壓,撞擊電池組或對電池組用力過度,如敲擊,跌落或踩踏在電池
組上。
• 切勿短路或讓金屬物品接觸到電池端子。
• 切勿暴露在超過 60 ℃的高溫下,例如直射陽光下,或停在太陽下的汽車
•
•
•
•
•
•
•
內。
切勿焚化或丟棄在火中。
切勿處理損壞或洩漏的鋰離子電池。
務必使用 Sony 原廠的充電器或可對電池組充電的裝置來為電池組充電。
電池組應放在幼兒不易觸及的地方。
使電池組保持乾燥。
請僅使用與 Sony 建議的相同或相等的電池類型進行更換。
請依照說明書中的說明正確丟棄舊電池組。
[ 電源適配器
將電源適配器連接到附近的牆上電源插座。如果使用電源適配器時發生某些
問題,請立即中斷插頭與牆上電源插座的連接,以關閉電源。
如果附帶電源線,則該電源線專為本相機設計,不能用於其他電子設備。
CT
3
注意
僅適用於台灣
廢電池請回收
附屬電纜上附有鐡芯時的注意事項:USB 電纜或 A/V 連接電纜或電源適配器
之 DC 輸出線上的一個鐵芯係抑制電磁波干擾用,請勿任意拆卸。
經型式認證合格之低功率射頻電機,非經許可,公司、商號或使用者均不得
擅自變更頻率、加大功率或變更原設計之特性及功能。
低功率射頻電機之使用不得影響飛航安全及干擾合法通信;經發現有干擾現
象時,應立即停用,並改善至無干擾時方得繼續使用。前項合法通信,指依
電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科
學及醫療用電波輻射性電機設備之干擾。
CT
4
關於本相機的防水與防塵效能
本相機的配備能夠防水防塵。因為誤用、濫用或未能正確保養相機所造
成的損壞不在有限保固範圍內。
• 本相機的防水/防塵能力相當於IEC60529 IP58標準。相機可以在5公尺
深的水中操作 60 分鐘。
• 請勿讓相機承受加壓的水,例如來自水龍頭的水。
• 請不要在溫泉中使用。
• 請在建議的使用水溫範圍 (-10 ℃至 +40 ℃)內使用相機。
• 至於防塵的效能,並不保證相機不會有刮傷或者產生凹痕。
• 有時候,相機會因為受到掉落之類的強烈震動而失去防水效能。建議
CT
到經過授權的維修店去付費檢查相機。
• 隨附的附件並不符合防水與防塵規格。
在水底 / 水邊使用相機前的注意事項
• 請確認沒有沙子、毛髮或灰塵之類的異物進入電池 / 記憶卡蓋內。即使
少量異物也可能導致水分進入相機內。
• 請確認密封墊圈及其對應表面沒有刮
傷。即使微小的刮傷也可能導致相機
進水。如果密封墊圈或其對應表面有
刮傷,請將相機帶到經過授權的維修
店付費更換密封墊圈。
• 如果密封墊圈或其對應表面上有灰塵
或沙子,請用不會留下任何纖維的軟
布將其擦乾淨。為電池充電或者使用
電纜時,要避免觸及密封墊片以免將
1 密封墊圈
其刮壞。
2 接觸密封墊圈的表面
• 請勿以潮濕或帶沙的手、或者在靠近
水邊時打開 / 關閉電池 / 記憶卡蓋。
這樣會有讓沙子或水進入內部的風
險。打開蓋子之前,要進行 “在水底 / 水邊使用相機之後的清潔工
作”中描述的程序。
• 請在相機完全乾燥時打開電池 / 記憶卡蓋。
• 經常都要確認電池 / 記憶卡蓋已經關牢。
CT
5
關於在水底 / 水邊使用相機的注意事項
• 觸控面板可能因為噴濺在螢幕圖示上的水而被啟用。在水底 / 水邊使用
相機時,建議觸摸螢幕右邊的 以隱藏圖示。觸摸 幾秒鐘以便再度
顯示圖示。
• 觸控面板不能在水底操作。請用相機的按鈕進行拍攝操作。
• 請不要讓相機受到衝擊,例如跳入水中。
• 在水底 / 水邊時,請勿打開和關閉電池 / 記憶卡蓋。
• 本相機會沈入水中。請將您的手穿過手腕帶,以免相機沈入水中。
• 由於反映漂浮物體的緣故,用閃光燈在水底拍攝的相片可能會出現微
弱的白色圓點。這不是故障。
• 選擇場景選擇中的 (水底)以較少的失真進行水底攝影。
在水底 / 水邊使用相機之後的清潔工作
• 相機用過之後,一定要在 60 分鐘內用水清
洗,而且不要在清洗完成之前打開電池 /
記憶卡的蓋子。沙子或水可能會進入看不
到的地方。如果沒有洗乾淨,防水效能會
變差。
• 將相機放在裝有純水的清洗盆中約 5 分鐘。
然後在水中輕輕搖動相機,按每一個按
鈕,推動變焦桿,以便將所有卡在按鈕周
邊的鹽分、沙子或其他東西清洗掉。
• 洗乾淨之後,用柔軟的布將水珠擦掉。將相機放在通風良好的陰涼地
方乾透。請不要用吹風機吹乾,因為可能會有變形和 / 或防水效能變
差的風險。
• 用柔軟的乾布將記憶卡 / 電池蓋或端子蓋上的水滴或灰塵擦掉。
• 本相機的構造可以將水排掉。水會從 ON/OFF (電源)按鈕、變焦桿和
其他控制器周邊的開口處排掉。從水中取出來之後,要將相機擺在乾
布上一會兒讓水排掉。
• 相機放進水底時可能會冒出泡泡。這不是故障。
• 相機本體如果接觸到遮光劑或防曬油可能會褪色。萬一相機接觸到遮
光劑或防曬油,請趕快擦乾淨。
• 請不要讓鹽水停留在相機內部或表面。那樣可能會造成腐蝕或褪色,
而且防水效能會變差。
• 為了保持防水效能,建議每年一次將相機送到經銷商或經過授權的維
修店去付費更換電池 / 記憶卡蓋的密封墊片。
CT
6
認識各部件
A 快門按鈕
B W/T (變焦)桿
C 自拍定時器指示燈 / 微笑快門
指示燈 /AF 照明器
D 閃光燈
E ON/OFF (電源)按鈕
F 電源 / 充電指示燈
CT
G GPS 感應器 (內建,僅限
DSC-TX300V)
H 鏡頭
I (TransferJet™)感應器
(內建)
J OLED/ 觸控面板
K 麥克風
L 揚聲器
M 腕帶用掛勾
N Wi-Fi 感應器 (內建)
O HDMI 微型插孔
P 存取指示燈
Q 記憶卡插槽
R 微型 USB 接頭
S 電池 / 記憶卡蓋子
T 電池插槽
U 電池退出桿
V 三腳架安裝孔
• 請使用螺絲長度在 5.5 公釐以
下的三腳架。否則無法將相機
牢靠地固定住,而且可能會對
相機造成損壞。
CT
7
插入電池
電池退出桿
1 打開蓋子。
2 插入電池。
• 將電池與電池插槽內的導引箭頭對齊。將電池插入到電池退出桿
鎖入定位為止。
• 將電池蓋蓋牢,直到聽見蓋子上的卡榫卡入定位以致於看不到卡
榫底下的黃色標示為止。
• 電池插入不正確時關上電池蓋可能會損壞相機。
CT
8
為電池充電
ACCESS 指示燈
CHARGE 指示燈
CT
電源 / 充電指示燈
點亮:充電
關閉:充電完成
閃爍:
充電出錯
充電因為過熱而暫停
1 用微型 USB 電纜 (附件)將多功能工作站 (附件)連接
到電腦。
2 將相機放在多功能工作站上。
多功能工作站上的 ACCESS 指示燈和 CHARGE 指示燈會點亮。
• 如圖所示,將相機螢幕朝上放在多功能工作站上。
• 如果 CHARGE 指示燈持續閃爍,請確認多功能工作站上沒有塵土或
其他異物,而且多功能工作站上沒有連接本相機以外的其他相機。
然後,將微型 USB 電纜拔下來之後再連接回去。
3 確認已經開始充電。
電源 / 充電指示燈點亮橘色的燈,充電開始。
• 為電池充電時關閉相機。
• 即使電力沒有完全放光,也可以為電池充電。
• 電源 / 充電指示燈閃爍而且充電未完成時,取出電池之後再插回
去。
CT
9
z 快速充電
如果用微型 USB 電纜將相機連接到電源適配器,然後將電源適配器連接
到牆上的電源插座,便可以用比多功能工作站更快的速度充電。
美國的用戶
電源線
美國以外的國家 / 地區的用戶
附註
CT
10
• 電源適配器連接到牆上的電源插座時,如果相機上的電源 / 充電指示燈閃
爍,表示因為溫度超出建議範圍外而暫停充電。溫度回到適當的範圍內時,
會恢復充電。建議您在 10 ℃至 30 ℃的環境溫度下對電池充電。
• 電池的端子部分如果髒了,可能無法有效地充電。遇到這種情況時,請用
軟布或棉花棒輕輕地將所有髒東西擦掉,以清潔電池的端子部分。
• 將電源適配器 (附件)連接到最近的牆上電源插座。如果使用電源適配器
時發生故障,請立即將插頭從插座拔掉以中斷電源。
• 充電完成時,將電源適配器從牆上的電源插座拔掉。
• 務必只使用原廠的 Sony 電池、微型 USB 電纜 (附件)以及電源適配器 (附
件)。
• BC-TRN2 電池充電器 (另售)能夠為本機型所附的 NP-BN 充電電池快速充
電。BC-TRN 電池充電器 (另售)不能夠為本機型所附的 NP-BN 充電電池快
速充電。
• 經由電腦充電時,請注意下列幾點:
- 如果相機是連接在沒有連接電源的到膝上型電腦,電腦的電池電量會降
低。請不要長時間充電。
- 在相機與電腦之間建立 USB 連接時,不要開 / 關或重新啟動電腦,或者是
將電腦從休眠模式中喚醒。相機可能會造成故障。開 / 關電腦或重新啟動
電腦,或者喚醒休眠模式中的電腦之前,要中斷相機與電腦的連接。
- 對於自行組裝的電腦或修改過的電腦,不保證能夠充電。
x 充電時間 (完全充電)
使用電源適配器 (附件)時,充電時間如下:
使用多功能工作站時:約 225 分
不使用多功能工作站時:約 115 分
附註
• 上述充電時間適用於在 25 ℃的溫度下為放完電的電池充電的情況。充電可
能因為使用情況或環境而需要長一點的時間。
• 連接在電腦上充電時,充電時間會因電腦而異。
CT
x 電池使用時間以及可以記錄與播放的影像數目
電池使用時間
影像數目
拍攝 (靜態影像)
約 110 分
約 220 個影像
檢視 (靜態影像)
約 160 分
約 3200 個影像
拍攝 (動態影像)
約 55 分
—
附註
• 上述影像數目適用於電池充滿電的情況。視使用情況而定,影像的數目可
能會減少。
• 可以記錄的影像數目是在下列情況下拍攝的:
- 使用 Sony microSD 記憶卡 (等級 4 或者更快)(另售)
- 在周邊溫度為 25 ℃時使用電池。
-[GPS 設定]設定為 [關](僅限 DSC-TX300V)。
-[顯示解析度]設定為 [標準]。
• “拍攝 (靜態影像)”的數目以 CIPA 標準為根據,在下列情況下進行拍攝:
(CIPA: Camera & Imaging Products Association)
-[面板亮度]設定為 [3 (普通)]。
- 每 30 秒鐘拍一張。
- 變焦在 W 和 T 端交替轉換。
- 每拍攝兩次閃光燈閃光一次。
- 每拍攝十次打開和關閉電源一次。
• 動態影像的電池使用時間適用於下列拍攝情況:
- 動態影像的畫質:AVC HD HQ
- 連續拍攝因為設定限制而結束時 (第 24 頁),再度按下快門按鈕並繼續
拍攝。不使用變焦之類的拍攝功能。
CT
11
x 供電
用微型 USB 電纜 (附件)將相機連接到電源適配器,便可以從牆上的電
源插座為相機供電。
用微型 USB 電纜將相機連接到電腦,便可以將影像匯入電腦而不用擔心
電池的電耗盡。
此外,您可以在拍攝時使用拍攝用的電源適配器 AC-UD10 (另售)供
電。
附註
• 電池沒有插入相機時不能供電。
• 以多功能工作站供電使用 Wi-Fi 時,電池內的電可能會被耗光,這點要視使
用情況而定。
• 用隨附的電源適配器 AC-UB10/UB10B 將相機直接連接到電腦或電源插座時,
只能在播放模式中供電。如果相機處於拍攝模式或者您正在變更相機的設
定,即使用微型 USB 電纜進行 USB 連接,也無法供電。
• 如果相機處於播放模式時用微型 USB 電纜將相機與電腦連接,相機上的顯示
會從播放畫面變更為 USB 連接畫面。觸摸 (播放)按鈕以切換至播放畫
面。
CT
12
插入記憶卡 (另售)
“Memory Stick
Micro”(M2)
microSD 記憶卡
CT
端子
印刷表面
請確認正確的那一面朝上。
1 打開蓋子。
2 插入記憶卡 (另售)。
• 如圖所示,相機鏡頭朝上,將記憶卡筆直插入到卡入定位為止。
• 插入 microSD 記憶卡時將其往下(往電池插槽的方向)壓,可能會
損及相機。
• 取出 microSD 記憶卡時要小心,因為它可能會突然繃出來。
3 關上蓋子。
4 察看顯示於螢幕右上角的圖示,確認記憶卡已經正確的
插入。
• A:記憶卡插入正確。
• B:記憶卡插入不正確。請確認記憶
卡的方向並重新筆直的插入相機中。
• 只能插入一片記憶卡。
CT
13
x 可以使用的記憶卡
記憶卡
A
B
適用於靜態影像
適用於動態影像
Memory Stick Micro
a
—
Memory Stick Micro
(Mark2)
a
a
microSD 記憶卡
a
a (等級 4 或者更快)
microSDHC 記憶卡
a
a (等級 4 或者更快)
• 在本說明書中,A 中的產品統稱為 “Memory Stick Micro”,B 中的產品統
稱為 microSD 記憶卡。
x 若要取出記憶卡 / 電池
記憶卡:將記憶卡往裡壓一下以退出記憶卡。
電池:推動電池退出桿。小心不要讓電池掉落地上。
附註
• 存取指示燈(第 7 頁)點亮時切勿取出記憶卡 / 電池。這樣可能會對記憶卡 /
內部記憶體中的資料造成損壞。
CT
14
設定時鐘
ON/OFF (電源)按鈕
CT
1 按 ON/OFF (電源)按鈕。
相機就會開啟。電源指示燈只會在相機開機時點亮綠燈。
日期與時間設定會在您首次開機時顯示出來。
• 可能需要一點時間才能開啟電源並進行操作。
2 選擇要使用的語言。
3 按照螢幕上的指示選擇您要的地理位置,然後觸摸 [下
頁]。
4 設定 [夏令時間]、[日期時間格式]和 [日期時間],
然後觸摸 [下頁]。
• 午夜會顯示為 12:00 AM,而正午則是 12:00 PM。
5 觸摸 [OK]。
6 按照螢幕上的指示進行。
• 如果將 [GPS 設定]設定為 [開],電池的電力可能會消耗得比較
快。
• 如果將 [顯示解析度]設定為 [高],電池的電力可能會消耗得
比較快。
CT
15
拍攝靜態影像 / 動態影像
快門按鈕
拍攝靜態影像
1 將快門按鈕按下一半以便對焦。
影像合焦時,會發出嗶聲,而且 z 指示會點亮。
2 將快門按鈕完全按下去以拍攝影像。
拍攝動態影像
1 觸摸 (拍攝模式) t
2 按下快門按鈕開始記錄。
(動態影像模式)。
• 請勿以手指擋住麥克風。
• 用 W/T (變焦)桿變更變焦比率。
•
(拍攝模式)不是設定為 (動態影像模式)時,可以觸摸螢
幕上的 (動態影像按鈕)以開始或停止記錄。
3 再度按下快門按鈕停止記錄。
附註
• 拍攝動態影像時,變焦桿的運作聲音會在使用變焦功能時被記錄下來。
• 在 25 ℃左右的溫度下,以相機的預設設定拍攝時,一次可以連續拍攝大約
29 分鐘。動態影像記錄完成時,可以從頭開始執行上述步驟以便重新開始
記錄。視周遭溫度而定,記錄可能會停止以保護相機。
CT
16
觀看影像
1 觸摸
CT
(播放)。
• 在本相機上播放以其他相機記錄在記憶卡上的影像時,會出現資
料檔案的登記畫面。
x 選擇下一個 / 上一個影像
觸摸螢幕上的 (下一個)/
(上一個)。
• 若要播放動態影像,請觸摸螢幕中央的 (播放)。
• 若要放大,請將 W/T (變焦)桿推向 T 端。
x 刪除影像
觸摸 (刪除) t [這個影像]。
x 恢復拍攝影像
觸摸螢幕上的 。
• 您也可以將快門按鈕按下一半以返回拍攝模式。
CT
17
相機指南
本相機配備有內建的使用指南。這樣您便可以根據需要搜尋相機的功
能。
1 觸摸 MENU。
2 觸摸 (相機指南),然後選擇要使用的 MENU 項目。
所選項目的操作指南便會顯示出來。
• 如果您在 MENU 畫面沒有顯示出來時觸摸 (相機指南),便可以用
關鍵字或圖示搜尋指南。
CT
18
其他功能簡介
拍攝或播放時使用的其他功能可以用觸摸螢幕上的 MENU 的方式操作。
本相機備有功能指南,可以讓您輕鬆地從功能中選擇。顯示指南時,可
以使用各種功能。
CT
x 功能表項目
拍攝
動態影像拍攝場景
選擇動態影像的記錄模式。
簡單模式
用最少的功能拍攝靜態影像。
相片創造
拍攝模式設定為 [智慧式自動]或 [高級自動]
時,輕鬆地變更設定並拍攝影像。
動態影像按鈕
從 [動態影像模式]以外的拍攝模式快速地拍攝動
態影像。
閃光燈
設定閃光燈設定值。
自拍定時器
設定自拍定時器設定值。
散焦效果
以背景散焦模式拍攝時,設定背景散焦效果的等
級。
靜態影像尺寸
(Dual Rec)
記錄動態影像時設定拍攝靜態影像的尺寸。
靜態影像尺寸 / 全
景影像大小 / 動態
影像尺寸 / 動畫品
質
選擇靜態影像、全景影像或動態影像檔案的影像尺
寸和畫質。
連拍設定
設定連拍設定。
超近拍攝
拍攝微小被攝體的美麗特寫影像。
HDR 繪畫效果
在圖片效果中選擇 [HDR 繪畫]時,設定效果的等
級。
CT
19
強調的區域
在圖片效果中選擇 [縮樣]時,設定要對焦的部
分。
色調
在圖片效果中選擇 [玩具照相機]時,設定色調。
擷取的色彩
在圖片效果中選擇 [部分色彩]時,選擇要擷取的
顏色。
水彩畫效果
在圖片效果中選擇 [水彩畫]時,設定效果的等
級。
插圖效果
在圖片效果中選擇 [插圖]時,設定效果的等級。
EV
以手動方式調整曝光。
ISO
調整感光度。
白平衡
調整影像的色調。
水底白平衡
進行水底拍攝時調整色調。
對焦
選擇對焦方法。
測光模式
選擇測光模式,設定要測量被攝體的哪個部分以決
定曝光值。
場景辨識
設定為自動偵測拍攝情況。
柔膚效果
設定美膚效果與效果的等級。
微笑快門
設定在偵測到微笑時自動釋放快門。
微笑靈敏度
設定微笑快門功能偵測微笑的靈敏度。
面孔偵測
選擇自動偵測面孔並調整各種設定。
閉眼減弱功能
設定自動拍攝兩張影像,並選擇沒有眨眼的那一
張。
動畫 SteadyShot
設定動態影像模式中的 SteadyShot 的強度。
定位資訊 *
查看三角定位的狀態。
GPS log 記錄 *
記錄相機所行經的路徑。
傳送至電腦
請將影像傳送到連接在網路的電腦上備份。
相機指南
根據需要搜尋相機的功能。
* 僅限 DSC-TX300V
CT
20
觀看
簡單模式
增加螢幕上的文字尺寸以便於使用。
日期選擇
按日期選擇要觀看的影像。
日曆
選擇日曆上要播放的日期。
影像索引
同時顯示多個影像。
循環播放
選擇一種連續播放的方法。
刪除
刪除一個影像。
智慧型手機檢視
上載並傳送影像至智慧型手機。
在 TV 上觀看
在有網路功能的電視機上觀看影像。
傳送至電腦
請將影像傳送到連接在網路的電腦上備份。
以 TransferJet 傳
送
將配備有 TransferJet 的兩個產品貼近對齊以便傳
送資料。
修飾
用各種效果修飾影像。
相片效果
在影像上添加各種紋理。
繪製
在靜態影像上繪圖,並將其另存為新的檔案。
3D 檢視
設定為要在 3D 電視機上播放以 3D 模式拍攝的影像。
觀看模式
選擇影像的顯示格式。
顯示連拍群組
播放時可以選擇以群組顯示連拍影像或者顯示所有
影像。
保護
保護影像。
列印 (DPOF)
為一個靜態影像添加列印預訂標記。
轉動
將靜態影像向左旋轉。
音量
添加音量。
曝光資料
設定是否顯示目前顯示在螢幕上的檔案的拍攝資料
(Exif 資料)。
索引中的影像數目
設定顯示於索引畫面中的影像數目。
相機指南
根據需要搜尋相機的功能。
CT
CT
21
設定項目
x
如果在拍攝或播放時觸摸 MENU, (設定)會被提供作為最後的選擇。
您可以在 (設定)畫面上變更出廠設定。
拍攝設定
主要設定
動態影像格式 /AF 照明器 / 格線 / 清晰影像縮放 /
數位變焦 / 減少風噪音 / 場景辨識指引 / 紅眼減弱
/ 眨眼警告 / 寫入日期 / 顯示解析度
嗶音 / 面板亮度 /Language Setting/ 顯示顏色 / 演
示模式 / 初始化 /HDMI 解析度 /HDMI 控制 / 節能模
式 /USB 連接設定 /USB 電源供給 /LUN 設定 / 下載音
樂 / 清空音樂 / 飛航模式 /GPS 設定 *1/GPS 輔助資
料 *1/ 刪除 GPS log 資料 *1/TransferJet/ 版本
網路設定
WPS 按鍵 / 存取點手動設定 / 編輯裝置名稱 / 智慧
型手機檢視設定 / 顯示 MAC 地址
記憶卡工具 *2
格式化 / 建立記錄資料夾 / 改變記錄資料夾 / 刪除
記錄資料夾 / 複製 / 檔案序號
時鐘設定
區域設定 / 日期時間設定 / 自動調整時鐘 *1/ 自動
調整地區 *1
*1
僅限 DSC-TX300V
如果沒有插入記憶卡,會顯示
化]可供選擇。
*2
CT
22
(內建記憶體工具),而且只有 [格式
安裝 PC 應用程式 (Windows)
“PlayMemories Home”可以讓您將用相機拍攝的影像匯入電腦以便顯
示。
1 將相機連接到電腦。
2 Windows 7:[電腦]t 按兩下相機圖示 t
[PMHOME.EXE]
Windows XP/Vista:[電腦](在 Windows XP 中,則是 CT
[我的電腦]) t [PMHOME] t 按兩下
[PMHOME.EXE]
3 按照畫面上的指示完成安裝。
附註
• “PlayMemories Home”與 Mac OS 不相容。如果在 Mac 上播放影像,請使用
Mac 上安裝的應用程式。
詳情請參閱 http://www.sony.co.jp/imsoft/Mac/
x“PlayMemories Home”的功能
底下是使用 “PlayMemories Home”時的可用功能範例。若要利用
“PlayMemories Home”的各種功能,請連線至網際網路,並安裝 “擴
充功能”。
• 您可以將用相機拍攝的影像匯入電腦並加以顯示。
• 您可以在日曆顯示畫面中按拍攝日期顯示儲存於電腦上的影像。
• 您可以校正 (紅眼校正等)靜態影像、列印影像、用電子郵件傳送影
像以及變更拍攝日期和時間。
• 您可以儲存並列印有日期的影像。
• 您可以從匯入電腦的 AVCHD 動態影像製作光碟。(擴充功能)
CT
23
靜態影像的數目和可以記錄的動態影像時間
靜態影像的數目和可以記錄的動態影像時間可能會因為拍攝條件和記憶
卡而異。
x 靜態影像
(單位:影像張數)
容量
內部記憶體
記憶卡
尺寸
約 105 MB
2 GB
18M
17
295
VGA
370
6400
19
330
16:9 (13M)
x 動態影像
下表顯示的是大略的最長記錄時間。這些是所有動態影像檔案的總時
間。可以持續拍攝約 29 分鐘。MP4 格式動態影像檔案最大可以高達約
2 GB。
(h (時),m (分))
容量
內部記憶體
記憶卡
約 105 MB
2 GB
AVC HD 28M (PS)
—
9 m
(9 m)
AVC HD 24M (FX)
—
10 m
(10 m)
AVC HD 9M (HQ)
—
25 m
(15 m)
MP4 12M
—
15 m
MP4 3M
—
1 h 10 m
尺寸
()中的數字是最短的可記錄時間。
• 動態影像可以記錄的時間會因為相機配備有可以根據拍攝場景而自動調整
畫質的 VBR (Variable Bit Rate)而有所不同。記錄快速移動的被攝體
時,影像會比較清晰,但是可以記錄的時間會比較短,因為需要更多記憶
體來記錄。
可以記錄的時間也會因為拍攝條件、被攝體或者畫質 / 尺寸的設定而有所
不同。
CT
24
使用相機的注意事項
本相機內建的功能
• 本說明書描述 GPS 功能相容 / 不相容裝置、1080 60i 相容裝置與 1080 50i 相
容裝置的各項功能。
若想知道您的相機是否支援 GPS 功能,請查看機型。
GPS 相容裝置:DSC-TX300V
GPS 不相容裝置:DSC-TX300
若要查看您的相機是否是 1080 60i 相容裝置或 1080 50i 相容裝置,請查
看相機底部的下列標誌。
CT
1080 60i 相容裝置:60i
1080 50i 相容裝置:50i
• 本相機與 1080 60p 動態影像相容。相較於標準的隔行掃瞄記錄模式,逐行
掃瞄模式可以增加解析度,因而產生更平順更真實的影像。
• 搭乘飛機時,要將 [飛航模式]設定為 [開]。
• 不要在 3D 相容顯示器上長時間觀看以本相機拍攝的 3D 影像。
• 在 3D 相容顯示器上觀看以本相機拍攝的 3D 影像時,可能會有眼睛疲勞、倦
怠或噁心之類的不適經驗。為了防止這些症狀,建議您定時休息。不過,
您得自行決定休息所需的長度和頻率,因為這些會因人而異。如果您有任
何類型的不適,請停止觀看 3D 影像,直到感覺比較好為止,並視需要徵詢
醫生意見。另請參考連接本相機或使用於本相機的裝置或軟體所附的使用
說明。請注意,孩子的視力還在發育階段 (尤其是 6 歲以下的小孩)。
讓小孩觀看 3D 影像之前,請徵詢小兒科醫生或眼科醫生的意見,並確認孩
子在觀看這種影像時有遵守上述注意事項。
關於 GPS 相容裝置 (僅限 DSC-TX300V)
• 請根據所在國家與地區的規定使用 GPS。
• 如果不記錄方向或位置資訊,請將 [GPS 設定]設定為 [關]。
關於使用和維護
對於產品要避免粗暴的使用、拆解、修改、實體衝擊或者敲打、跌落或踐踏
之類的撞擊。對於鏡頭要特別小心。
關於記錄 / 播放的注意事項
•
•
•
•
開始拍攝之前,要進行試拍,以確定相機能正確的運作。
請勿用相機朝向太陽或其它強光。那樣可能會令您的相機故障。
如果有濕氣凝結,要在使用相機之前將其清除。
請勿搖晃或撞擊本相機。那樣可能會造成故障,您可能無法記錄影像。而
且,記錄媒體可能變成無法使用,或者影像資料可能受損。
請勿在下列地方使用 / 存放相機
• 在非常炎熱、寒冷或潮濕的地方
例如,在停在太陽底下的車廂中,相機機身可能變形而造成故障。
• 陽光直射或者靠近發熱器的地方
相機機身可能褪色或變形,而這可能會造成故障。
CT
25
• 在會受到搖擺振動的地方
• 靠近會產生強烈無線電波、發出輻射或者強烈磁性的地方。否則相機可能
無法正確地記錄或播放影像。
攜帶時
不要在相機放置於褲子或裙子的後面口袋中時坐在椅子或其他地方,因為這
樣可能會造成故障或者損害相機。
Carl Zeiss 鏡頭
本相機配備有 Carl Zeiss 鏡頭,能以優越的對比再生清晰的影像。本相機的
鏡頭是根據德國 Carl Zeiss 的品質標準,在經過 Carl Zeiss 認證的品質保
證系統底下生產的。
關於螢幕的說明
螢幕利用極高精確度技術製造,所以 99.99% 以上的像素都可以有效的使用。
不過,您可能會發現細小的黑點和 / 或亮點 (白色、紅色、藍色或綠色)出
現在螢幕上。這些點是生產過程中的正常結果,不會影響記錄。
關於相機的溫度
您的相機和電池可能因為持續使用而變熱,但是這並不是故障。
關於過熱保護
您可能無法記錄動態影像,或者電源可能會自動關閉以保護相機,這點要視
相機和電池溫度而定。
螢幕上會出現一個訊息,然後電源會關閉,或者您無法再記錄動態影像。遇
到這種情況時,將電源關閉,等到相機與電池溫度下降為止。如果不讓相機
與電池溫度降得夠低就開啟電源,電源可能會再度關閉或者可能會無法記錄
動態影像。
關於為電池充電
如果為很久沒用的電池充電,可能無法將其充到適當的容量。
這是因為電池特性的緣故,並不是故障。請再為電池充電。
版權警告
電視節目、影片、錄影帶及其它資料可能具有版權。未經許可錄製這些資料
將會觸犯版權法。
對於損壞的內容或記錄失敗不補償
對於因為相機或記錄媒體等的故障而造成的記錄失敗或記錄內容遺失或損
壞,Sony 不能補償。
清潔相機表面
用沾了一點水的軟布清潔相機表面,然後以乾布擦拭表面。若要防止傷害表
面塗層或外殼:
- 請不要讓相機接觸化學產品如稀釋劑、揮發油、酒精、用過即丟的清潔布、
驅蟲劑、防曬油或殺蟲劑。
CT
26
規格
相機
[系統]
影像裝置:7.76 公釐 (1/2.3 型)
Exmor R CMOS 感應器
相機的總像素數:
約 18.9 百萬像素
相機的有效像素數:
約 18.2 百萬像素
鏡頭:Carl Zeiss Vario-Tessar
5 倍變焦鏡頭
f = 4.7 公釐- 23.5 公釐
(26 公釐- 130 公釐 (35 公釐
的底片機))
F3.5 (W)- F4.8 (T)
拍攝動態影像 (16:9)時:
28 公釐- 140 公釐 *
拍攝動態影像 (4:3)時:
35 公釐- 175 公釐 *
* 當 [動畫 SteadyShot]設為
[標準]時
SteadyShot:光學
曝光控制:自動曝光、場景選擇
(16 種模式)
白平衡:自動、日光、多雲、螢光
照明 1/2/3、白熾燈、閃光燈、
單按、水底 1/2
訊號格式:
1080 50i:PAL 彩色、CCIR 標準
HDTV 1080/50i、1080/50p 規格
1080 60i:NTSC 彩色、EIA 標準
HDTV 1080/60i、1080/60p 規格
檔案格式:
靜態影像:符合 JPEG (DCF,
Exif,MPF Baseline)標準,相
容於 DPOF
3D 靜態影像:符合 MPO (MPF
Extended (視差影像))標準
動態影像 (AVCHD 格式):
AVCHD 格式 Ver. 2.0 相容
CT
視訊:MPEG-4 AVC/H.264
音訊:Dolby Digital 2 聲道,
配備 Dolby Digital Stereo
Creator
• 由 Dolby Laboratories 授權製
造。
動態影像 (MP4 格式):
視訊:MPEG-4 AVC/H.264
音訊:MPEG-4 AAC-LC 2 聲道
記錄媒體:內部記憶體 (約
105 MB)、“Memory Stick
Micro”、microSD 記憶卡
閃光燈:閃光範圍 (ISO 感光度
(建議曝光指數)設定為自
動):
約 0.08 公尺至 3.1 公尺 (W)
約 0.6 公尺至 2.3 公尺 (T)
[輸入和輸出接頭]
HDMI 接頭:HDMI 微型插孔
微型 USB 接頭:USB 通訊
USB 通訊:Hi-Speed USB (USB
2.0)
[螢幕]
OLED:寬 (16:9),8.3 公分
(3.3 型)TFT 驅動
總點數:1 229 760 點
CT
27
[電源,一般]
電源:充電電池 NP-BN,3.6 V
電源適配器 AC-UB10/UB10B,
5 V
電池消耗量 (進行拍攝時):1.0 W
操作溫度:-10 ℃至 +40 ℃
存放溫度:-20 ℃至 +60 ℃
尺寸 (符合 CIPA 標準):
95.5 公釐× 58.3 公釐×
16.0 公釐 (寬 / 高 / 長)
質量 (符合 CIPA 標準)(包含 NPBN 電池、“Memory Stick
Micro”):約 134 公克
麥克風:立體聲
揚聲器:單聲
Exif Print:相容
PRINT Image Matching III:相容
防水 / 防塵效能:相當於 IEC60529
IP58 標準 (相機可以在 5 公尺
深的水中操作 60 分鐘。)
防水、防塵效能以 Sony 的測試
標準為依據。
[無線 LAN]
支援的格式:IEEE 802.11 b/g/n
多功能工作站 UC-TH
通訊格式:TransferJet
最大尺寸:約 103 公釐× 12 公釐×
65 公釐 (寬 / 高 / 長)
質量:約 75 公克
操作溫度:0 ℃至 40 ℃
電源:DC 5 V,0.5 A
接頭:微型 USB 接頭
CT
28
電源適配器 AC-UB10/UB10B
電源要求:AC 100 V 至 240 V,
50 Hz/60 Hz,70 mA
輸出電壓:DC 5 V,0.5 A
操作溫度:0 ℃至 40 ℃
存放溫度:-20 ℃至 +60 ℃
尺寸:約 50 公釐× 22 公釐×
54 公釐 (寬 / 高 / 長)
質量:
美國與加拿大:約 48 公克
美國與加拿大以外的國家與地
區:約 43 公克
充電電池 NP-BN
使用的電池:鋰離子電池
最大電壓:DC 4.2 V
額定電壓:DC 3.6 V
最大充電電壓:DC 4.2 V
最大充電電流:0.9 A
容量:
通常:2.3 Wh (630 mAh)
最少:2.2 Wh (600 mAh)
設計及規格如有變更,恕不另行通
知。
商標
• 下列標記是Sony Corporation的商
標。
,“Cyber-shot”,
“Memory Stick Micro”
• “AVCHD Progressive”與“AVCHD
Progressive”標誌是 Panasonic
Corporation 與 Sony Corporation
的商標。
• Windows是Microsoft Corporation
在美國和 / 或其他國家的註冊商
標。
• Mac 是 Apple Inc. 的註冊商標。
• microSDHC 標誌是 SD-3C, LLC 的商
標。
•“
”和 “PlayStation”是
Sony Computer Entertainment
Inc. 的註冊商標。
• 此外,在本說明書中所使用的系統
和產品的名稱通常是他們各自的開
發商或製造商的商標或註冊商標。
但是在本説明書中並未在所有場合
使用 ™ 或 ® 標誌。
使用基於不含有 VOC (揮發性有機成
分)的植物油的油墨在 70%以上再生
紙上印刷。
CT
• 從 PlayStation Store (在有這些
店的地方)下載 PlayStation 3 的
應用程式,可以用您的
PlayStation 3 增添更多樂趣。
• PlayStation 3 的應用程式需要有
PlayStation Network 帳戶與應用
程式下載。只能在有 PlayStation
Store 的地方使用。
在我們的客戶支援網站可以查
到本產品新增的資訊和常見問
題的答案。
CT
29
©2012 Sony Corporation
Printed in Japan
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
