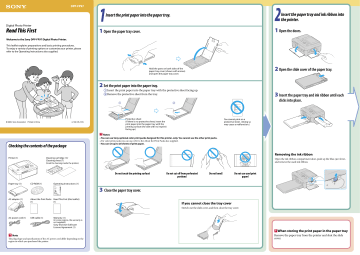

DPP-FP97
2
1
Insert the paper tray and ink ribbon into
the printer.
Insert the print paper into the paper tray.
Digital Photo Printer
1 Open the doors.
1 Open the paper tray cover.
Read This First
Welcome to the Sony DPP-FP97 Digital Photo Printer.
This leaflet explains preparations and basic printing procedures.
To enjoy a variety of printing options or customize your printer, please
refer to the Operating Instructions also supplied.
2 Open the slide cover of the paper tray.
Hold the parts on both sides of the
paper tray cover (shown with arrows)
and open the paper tray cover.
2 Set the print paper into the paper tray.
 Insert the print paper into the paper tray with the protective sheet facing up.
 Remove the protective sheet from the tray.

3 Insert the paper tray and ink ribbon until each
clicks into place.

Protective sheet
(If there is no protective sheet, insert the
print paper into the paper tray with the
printing surface (the side with no imprint)
facing up.)
You cannot print on a
protective sheet. (Doing so
may cause a malfunction.)
 Notes
Checking the contents of the package
• You can use Sony optional color print packs designed for this printer, only. You cannot use the other print packs.
• For color print packs you can use, refer to the About the Print Packs also supplied.
• You can set up to 20 sheets of print paper.
Removing the ink ribbon
Printer (1)
Cleaning cartridge (1)/
Cleaning sheet (1)
Open the ink ribbon compartment door, push up the blue eject lever,
and remove the used ink ribbon.
(Used for cleaning inside the printer.)
Do not touch the printing surface!
Paper tray (1)
CD-ROM (1)
Do not cut off from perforated
portions!
Do not bend!
Do not use used print
paper!
Operating Instructions (1)
3 Close the paper tray cover.
AC adaptor (1)
About the Print Packs Read This First (this leaflet)
(1)
(1)
If you cannot close the tray cover
Stretch out the slide cover, and then close the tray cover.
AC power cord (1)
USB cable (1)
Warranty (1)
(In some regions, the warranty is
not supplied.)
Sony End User Software
License Agreement (1)
 Note
The plug shape and specifications of the AC power cord differ depending on the
region in which you purchased the printer.
When storing the print paper in the paper tray
Remove the paper tray from the printer and shut the slide
cover.
3
Connect to the AC power source.
4
Insert a memory card into the slot.
1 Insert the plug of the AC adaptor into the DC IN 24 V
5
Turn on the printer.
Insert the memory card containing an image for printing into the appropriate slot with its terminal side facing
toward the slot.
jack on the back of the printer.
An image stored on the memory card is
displayed.
Access indicator
2 Connect one plug of the AC power cord to the connector
6
of the AC adaptor and the other plug to the wall outlet.
Select an image
for printing.
“Memory Stick” media
(“Memory Stick Duo” media)
Install the printer in a
location with 10 cm
(13/32 inch) or more
of space at the rear.
Press / button
repeatedly until the image
that you want to print
appears.
10 cm
(13/32 inch)
xD-Picture
Card
To
DC IN 24 V
connector
SD Memory
Card
CompactFlash
Card
“Memory Stick”
media
(“Memory Stick
Duo” media)
xD-Picture Card or
SD Memory Card
7
CompactFlash Card
Press the PRINT button.
AC adaptor
To the wall
outlet
AC power cord
 Notes
• A memory card has two sides and an insertion direction. Be sure to check the correct insertion direction of the card and
the correct insertion slot width, and then insert the memory card with its label side facing up.
• When carrying your printer, make sure to remove the memory card, AC adaptor, cables or cords, and paper
tray. Otherwise, the printer may be damaged.
What you can do with the digital photo printer (Refer to the Operating Instructions for the operations below.)
Printing from a device other than a memory card or internal memory
Making a variety of prints
You can process and print selected images from a memory card or internal memory (direct printing).
Calendar printing
 Page 29 in the Operating Instructions
Layout print
 Page 33 in the Operating Instructions
Adding a frame
 Page 33 in the Operating Instructions
ID Photo print
 Page 34 in the Operating Instructions
 Page 31 in the Operating Instructions
Operating your printer from a TV remote control unit
By connecting your printer to a “BRAVIA” Sync-compatible television with an HDMI cable
(sold separately), you can operate your printer from a TV remote control unit. You can print
an image while confirming the printed image on a large TV screen.
 Page 45 in the Operating Instructions
Printing from a PictBridge or other camera  Page 49
Borders/Borderless print
 Page 41 in the Operating Instructions
The printing process
The printer employs a dye sublimation printing system.
In this printing system, the thermal print head heats up as it passes over the
yellow, magenta, and then cyan layer of the ink ribbon, causing the dyes to
vaporize and permeate the surface of the print paper. Then the final cycle
lays a laminate layer as an overcoating to protect the printed surface:
The direction the ink film moves
inside the ink ribbon
Date print
 Page 40 in the Operating Instructions
Printing via Bluetooth communication  Page 50
Laminate film
Scrapbook print
 Page 26 in the Operating Instructions
Batch printing
Index, DPOF, ALL
 Page 35 in the Operating Instructions
Superimposed printing
Printing from a variety of devices
Cyan
Magenta
Yellow
Printing from a PC  Page 52
Print Paper
Special filter printing
Cross Filter, Painting, Partial Color, Sepia, Monochrome,
Single Color, Fish Eye
 Page 22 in the Operating Instructions
Printing from a digital photo frame  Page 48
 Notes
• The ink ribbon cannot be reused. You cannot reuse it by rewinding.
• The number on the ink ribbon cartridge is the maximum number of sheets that
can be printed with that cartridge. (e.g.: In case of SVM-F40P, you can print up
to 40 sheets.)
• Print paper emerges from the back and front paper outlets each time a color
is printed. Please wait until printing is completed and the print paper is
automatically ejected onto the paper tray.
