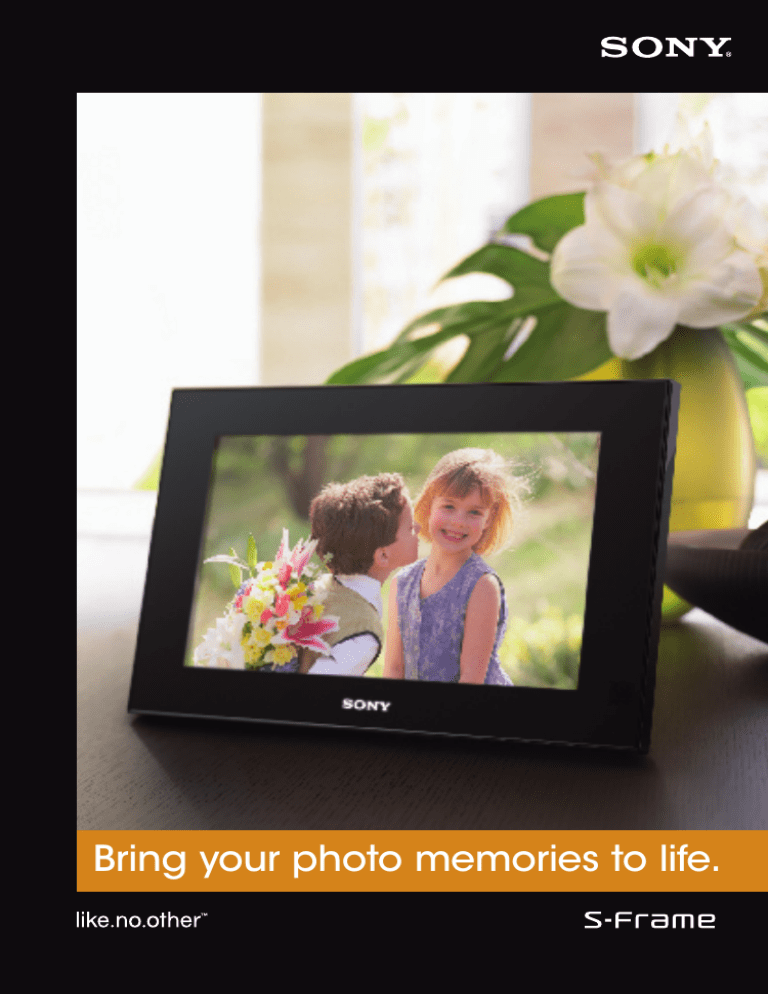

Bring your photo memories to life.
Your memories deserve the best:
a Sony® Digital Photo Frame
Display Modes
Index. Quickly find a
particular image by
displaying thumbnail
images.
Digital Clock. Displays
a running digital clock.
Single Image. Display a
single image in Fit-to-Screen
or Entire Image modes.
Analog Clock. Displays
a running analog
clock.
Slideshows. Ten variations,
including Fade, Wipe, Center
Cross, Vertical Blinds,
Horizontal Blinds, Multiple
Image, Clock/Image,
Calendar/Image, and
Random.
Calendar. Displays a
calendar of the current
month.
Auto Image Rotation & Auto
Orientation Sensor. The photo frame can be
set to automatically detect and rotate images
to their proper orientation. Also, the frame can
self-detect whether it is sitting horizontally or
vertically, and then automatically rotate images
accordingly.
• Internal Memory. Store your favorite
photos on internal memory with up to
512MB of internal memory (available
capacity – refer spec). Or expand your
storage capacity by adding a
compatible memory card (sold
separately).
•H
DMI™ Output. Connect to your HDTV
to display a giant-screen slideshow for
family and friends (HDMI cable required,
sold separately).
•U
SB Ports. Quickly transfer digital images
to/from your PC, camera, camera phone,
or other compatible storage device (USB
cables sold separately).
•B
luetooth® Ready. Transfer images
wirelessly from your PC or camera
phone to your compatible Sony
Digital Photo Frame via Bluetooth
(optional Bluetooth USB adaptor
DPPA-BT1 required, sold separately).
• Auto Power On/Off. Specify the
times (hour/minute) to have your
photo frame automatically turn on
and off.
•A
dvanced Image Processing.
Quickly decode and display up to
48 Megapixel or 100MB images,
including JPEG, TIFF, BMP, and RAW
file types.
Now you can display your digital photo collection in breathtakingly vivid
color -- on a Sony® Digital Photo Frame. Choose from a variety of slideshow
options, and watch your photo memories come to life on this stylish frame.
And when not displaying images, you can set it to one of its clock or
calendar modes – making it a great addition to any home or office.
Auto Touch-Up Features. Images can be
adjusted via the following auto-correction features.
Red-eye Correction
Skin Smoothing
Under/Over
Exposure
Correction
Horizontal
Vertical
Memory Card Support. Import images or expand
the storage capacity with one of these compatible
memory card types, including Memory Stick® media and
Memory Stick PRO Duo™ media, SD, MMC, CF,
Microdrive, and xD Picture cards.
See specifications for
a complete list.
Focus
Enhancement
Before
After
Remote Control.
Control the functions of
your Sony Digital Photo
Frame from the comfort of
your favorite chair.
* Some features not available on the DPF-D70. See reverse side for specifications.
To learn more, go to www.sony.com/S-Frame
DPF-V900 / DPF-V700 / DPF-D70
LCD Screen
Internal
Memory
Compatible
Formats
Viewing
Options
Size (measured diagonally)
Aspect Ratio
Resolution
Actual Viewable Area
Actual Viewable Area Resolution
Contrast Ratio
Capacity
Available for Digital Images
Approx. Number of Images
Auto Image Resizing
JPEG
TIFF
BMP
RAW
Maximum Image Size
Maximum File Size
Still Image Playback
Slideshow Playback
Index View
Clock View
Calendar View
Image Rotation
Delete
Zoom In/Out
Auto Touch-Up
Memory Stick
Compatible
Memory Card
Types (Read/
Write)
Other Inputs &
Outputs
Photo Frame
Options
Dimensions
Power
Requirements
Supplied
Accessories
SD Card
MMC
Compact Flash Card
Microdrive (MicroVault)
xD-picture Card
USB A-type (2.0 Full-Speed)
USB Mini B-type (2.0 Full-Speed)
HDMI Output
Bravia "PhotoTV HD" Compatible
Bluetooth
Sony Logo On/Off
Button Controls on Frame
HDMI CEC Control
Auto Image Rotation
Image Orientation Sensor
Digital Photo Frame
Digital Photo Frame,
Including Stand
Weight (without AC adaptor)
Power Consumption
Power Requirements
AC Adaptor
AC Power Cord & Adaptor
Remote Control
9" (V900) / 7" (V700 / D70)
15:9
WVGA 800 x 480
8.6" (V900) / 7" (V700 / D70)
750 x 480 (V900) /800 x 480 (V700 / D70)
400:1
512MB (V900 / V700) / 256MB (D70)
400MB (V900 / V700) / 200MB (D70)
1,000 (based on 2.0MP images) (V900 / V700) /
500 (based on 1.5MP images) (D70)
Menu Selectable, On/Off, to preserve internal memory
DCF Ver2.0, Exif Ver2.21
Exif Ver2.21 (V900 / V700) / No (D70)
1, 4, 8, 16, 24, 32bit Windows format (V900 / V700) / No (D70)
RAW (preview only: SRF, SR2, ARW)
48 MegaPixels (8,000 x 6,000)
100MB
Yes (Full Screen and Entire Image modes)
Yes (10 patterns)
Yes (2 types)
Yes (Digital and Analog Modes)
Yes
Yes (Auto / Manual)
Yes
Yes
Yes (Red-Eye Correction, Exposure Correction, Focus Enhancement, Skin
Smoothing) (V900 / V700) / No (D70)
Memory Stick, Memory Stick Duo, Memory Stick PRO, Memory Stick
PRO Duo, HighSpeed Memory Stick Duo, Memory Stick Micro (M2)1,
MagicGate Memory Stick, MagicGate Memory Stick Duo, Memory
Stick PRO-HG Duo
SD Card, Mini SD Card2, Micro SD Card2, SDHC Card, Mini SDHC
Card2, Micro SDHC Card2
MMC, RS-MMC2, MMC Plus2
Compact Flash Type I, Compact Flash Type II
Microdrive (MicroVault)
xD-picture Card, xD-picture Card Type M, xD-picture Card Type H
Yes (V900 / V700) / No (D70)
Yes
Yes (V900 / V700) / No (D70)
Yes (V900 / V700) / No (D70)
Yes, via optional DPPA-BT1 Bluetooth Adaptor (Version 2.0 + EDR, OPP
and BIP Profiles) (V900 / V700) / No (D70)
Menu Selectable, On/Off
Power, Menu, Up/Down Arrows, Enter (Select), View Mode
Yes, On/Off Selectable (V900 / V700) / No (D70)
Menu Selectable, On/Off (Auto/Manual)
Menu Selectable, On/Off
W 9.7”x H 6.4” x D 1.5” (V900)/ 8.2”x 5.4” x 1.5” (V700) /
8.2”x 5.4”x 1.5” (D70)
W 9.7”x H 6.4” x D 5.7” (V900)/ 8.2”x 5.4” x 4.9” (V700) /
8.2”x 5.4”x 4.9” (D70)
1.76lbs. (V900) / 1.2lbs. (V700 / D70)
12W (V900), 8W (V700), 7.7W (D70)
8.4V DC (V900 / V700) / 12V DC (D70)
100-240V, 50Hz/60Hz
Yes
Yes
1. Requires Memory Stick Micro adaptor.
2. An adaptor maybe required.
© 2008 Sony Electronics Inc. All right reserved. Sony, like.no.other, Memory Stick, Memory Stick PRO Duo, Sony Style, BRAVIA, MicroVault,
Memory Stick Micro, MagicGate, MagicGate Memory Stick, Memory Stick PRO-HG Duo, Memory Stick Duo, Memory and
S-Frame are trademarks of Sony. HDMI is a trademark of HDMI Licensing, LLC. Bluetooth is a trademark of Bluetooth SIG, Inc.
All other trademarks are trademarks of their respective owners.
CA6019W
