Sony MHC-V50 Operating instructions

Sony MHC-V50 Operating instructions

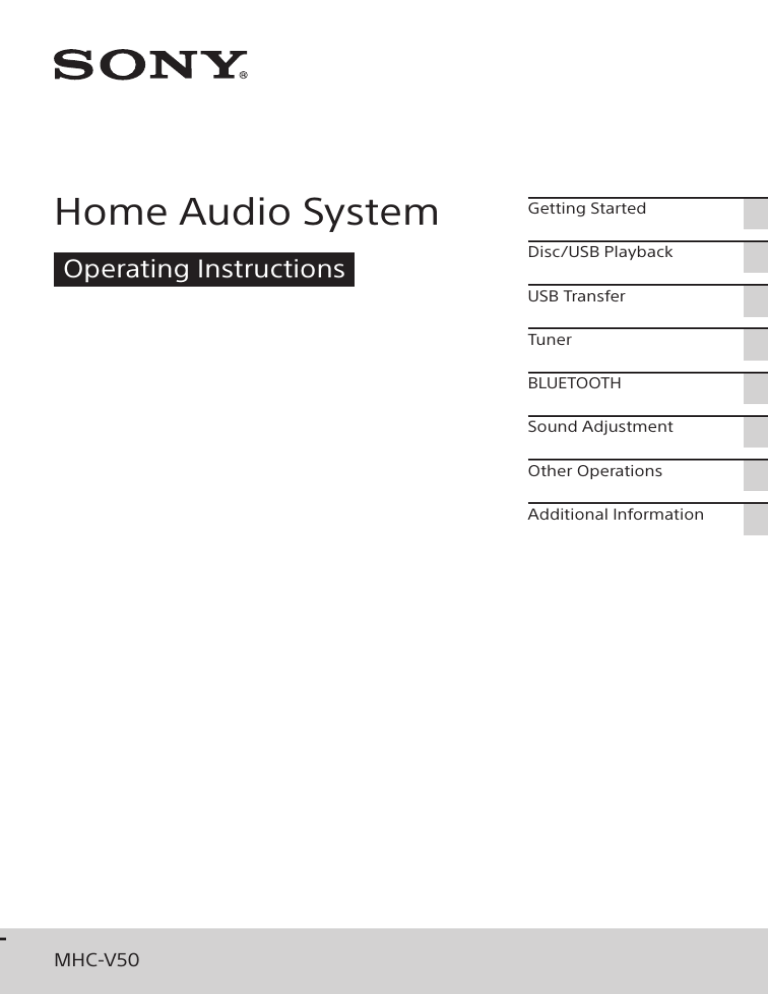

Home Audio System
Operating Instructions
Getting Started
Disc/USB Playback
USB Transfer
Tuner
BLUETOOTH
Sound Adjustment
Other Operations
Additional Information
MHC-V50
For the customers in the USA
CAUTION
Owner’s Record
The use of optical instruments with
this product will increase eye hazard.
The model and serial numbers are
located on the rear of the unit. Record
these numbers in the spaces provided
below. Refer to them whenever you
call upon your Sony dealer regarding
this product.
Model No.
Serial No.
WARNING
To reduce the risk of fire or
electric shock, do not expose this
apparatus to rain or moisture.
FOR UNITED STATES
CUSTOMERS. NOT APPLICABLE
IN CANADA, INCLUDING IN THE
PROVINCE OF QUEBEC.
To reduce the risk of fire, do not
cover the ventilation opening of
the appliance with newspapers,
tablecloths, curtains, etc.
Do not expose the appliance to naked
flame sources (for example, lighted
candles).
POUR LES CONSOMMATEURS
AUX ÉTATS-UNIS. NON
APPLICABLE AU CANADA, Y
COMPRIS LA PROVINCE DE
QUÉBEC.
To reduce the risk of fire or electric
shock, do not expose this appliance
to dripping or splashing, and do not
place objects filled with liquids, such as
vases, on the appliance.
As the main plug is used to disconnect
the unit from the mains, connect the
unit to an easily accessible AC outlet.
Should you notice an abnormality in
the unit, disconnect the main plug
from the AC outlet immediately.
Do not install the appliance in a
confined space, such as a bookcase or
built-in cabinet.
Do not expose batteries or appliances
with battery-installed to excessive
heat, such as sunshine and fire.
The unit is not disconnected from the
mains as long as it is connected to the
AC outlet, even if the unit itself has
been turned off.
Indoor use only.
2US
This appliance is classified as a CLASS
1 LASER product under IEC 608251:2007. This marking is located on the
rear exterior.
For the customers in the USA
This symbol is intended to
alert the user to the
presence of uninsulated
“dangerous voltage” within
the product’s enclosure
that may be of sufficient
magnitude to constitute a
risk of electric shock to
persons.
This symbol is intended to
alert the user to the
presence of important
operating and maintenance
(servicing) instructions in
the literature
accompanying the
appliance.
Important Safety Instructions
1)
2)
3)
4)
5)
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near
water.
6) Clean only with dry cloth.
7) Do not block any ventilation
openings. Install in accordance
with the manufacturer’s
instructions.
8) Do not install near any heat
sources such as radiators,
heat registers, stoves, or other
apparatus (including amplifiers)
that produce heat.
9) Do not defeat the safety purpose
of the polarized or grounding-type
plug. A polarized plug has two
blades with one wider than the
other. A grounding type plug has
two blades and a third grounding
prong. The wide blade or the
third prong are provided for your
safety. If the provided plug does
not fit into your outlet, consult an
electrician for replacement of the
obsolete outlet.
10) Protect the power cord from being
walked on or pinched particularly
at plugs, convenience receptacles,
and the point where they exit from
the apparatus.
11) Only use attachments/accessories
specified by the manufacturer.
12) Use only with the cart, stand,
tripod, bracket, or table specified
by the manufacturer, or sold with
the apparatus. When a cart is used,
use caution when moving the cart/
apparatus combination to avoid
injury from tip-over.
13) Unplug this apparatus during
lightning storms or when unused
for long periods of time.
14) Refer all servicing to qualified
service personnel. Servicing is
required when the apparatus has
been damaged in any way, such
as power-supply cord or plug is
damaged, liquid has been spilled
or objects have fallen into the
apparatus, the apparatus has been
exposed to rain or moisture, does
not operate normally, or has been
dropped.
NOTE:
This equipment has been tested
and found to comply with the limits
for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These
limits are designed to provide
reasonable protection against
harmful interference in a residential
installation. This equipment generates,
uses and can radiate radio frequency
energy and, if not installed and used
in accordance with the instructions,
may cause harmful interference to
radio communications. However, there
is no guarantee that interference will
not occur in a particular installation.
If this equipment does cause harmful
interference to radio or television
reception, which can be determined
by turning the equipment off and on,
the user is encouraged to try to correct
the interference by one or more of the
following measures:
——Reorient or relocate the receiving
antenna.
——Increase the separation between
the equipment and receiver.
——Connect the equipment into an
outlet on a circuit different from that
to which the receiver is connected.
——Consult the dealer or an
experienced radio/TV technician
for help.
3US
CAUTION
License and Trademark Notice
You are cautioned that any changes or
modifications not expressly approved
in this manual could void your
authority to operate this equipment.
•• “CD” logo is trademark.
•• WALKMAN® and WALKMAN® logo
are registered trademarks of Sony
Corporation.
•• MPEG Layer-3 audio coding
technology and patents licensed
from Fraunhofer IIS and Thomson.
•• Windows Media is either a
registered trademark or trademark
of Microsoft Corporation in
the United States and/or other
countries.
•• This product is protected by
certain intellectual property rights
of Microsoft Corporation. Use or
distribution of such technology
outside of this product is prohibited
without a license from Microsoft or
an authorized Microsoft subsidiary.
•• LDAC™ and LDAC logo are
trademarks of Sony Corporation.
•• The BLUETOOTH® word mark and
logos are registered trademarks
owned by Bluetooth SIG, Inc. and
any use of such marks by Sony
Corporation is under license. Other
trademarks and trade names are
those of their respective owners.
•• The N-Mark is a trademark or
registered trademark of NFC Forum,
Inc. in the United States and in other
countries.
•• Android™ is a trademark of Google
Inc.
•• Google Play is a trademark of
Google Inc.
•• Apple, the Apple logo, iPhone, and
iPod touch are trademarks of Apple
Inc., registered in the U.S. and other
countries. App Store is a service
mark of Apple Inc., registered in the
U.S. and other countries.
Properly shielded and grounded
cables and connectors must be used
for connection to host computers
and/or peripherals in order to meet
FCC emission limits.
This equipment must not be
co-located or operated in conjunction
with any other antenna or transmitter.
This equipment complies with FCC
radiation exposure limits set forth
for an uncontrolled environment and
meets the FCC radio frequency (RF)
Exposure Guidelines. This equipment
should be installed and operated
keeping the radiator at least 20 cm or
more away from person’s body.
For the customers in Canada
Properly shielded and grounded
cables and connectors must be used
for connection to host computers
and/or peripherals.
This device complies with Industry
Canada’s licence-exempt RSSs.
Operation is subject to the following
two conditions:
(1) This device may not cause
interference; and
(2) This device must accept any
interference, including interference
that may cause undesired operation of
the device.
This equipment complies with IC
radiation exposure limits set forth
for an uncontrolled environment
and meets RSS-102 of the IC radio
frequency (RF) Exposure rules. This
equipment should be installed and
operated keeping the radiator at least
20 cm or more away from person’s
body.
4US
•• “Made for iPod,” and “Made for
iPhone” mean that an electronic
accessory has been designed
to connect specifically to iPod
or iPhone, respectively, and has
been certified by the developer
to meet Apple performance
standards. Apple is not responsible
for the operation of this device
or its compliance with safety and
regulatory standards. Please note
that the use of this accessory with
iPod or iPhone may affect wireless
performance.
•• All other trademarks are trademarks
of their respective owners.
•• In this manual, ™ and ® marks are
not specified.
About this manual
•• This manual mainly explains
operations using the remote
control, but the same operations
can also be performed using the
keys on the touch panel of the unit
having the same or similar names.
•• Icons, such as
, listed at the
top of each explanation indicate
the type of media that can be used
with the function being explained.
•• Some illustrations are presented
as conceptual drawings, and
may be different from the actual
products.
•• The text enclosed in double
quotation mark (“--”) appears on
the display.
5US
Table of Contents
About this manual.................. 5
Unpacking............................... 8
Playable discs or files on
discs/USB device.................... 8
Websites for compatible
devices.................................. 10
Guide to parts and
controls.................................. 11
Getting Started
Hooking up the system
securely..................................15
Deactivating the
demonstration.......................16
Inserting batteries.................16
Listening to TV sound via the
system....................................17
Changing the display
mode......................................18
Disc/USB Playback
Before using the USB
device.....................................18
Basic playback.......................18
Using play mode....................19
Viewing information on the
display................................... 20
USB Transfer
Before using the USB
device.................................... 20
Transferring music................ 20
6US
Tuner
Listening to the radio............ 23
BLUETOOTH
About the BLUETOOTH
wireless technology.............. 24
Pairing this system with a
BLUETOOTH device............... 25
Listening to music on a
BLUETOOTH device............... 26
One Touch BLUETOOTH
Connection by NFC............... 27
Setting the BLUETOOTH
audio codecs......................... 28
Setting the BLUETOOTH
standby mode....................... 28
Turning on or off the
BLUETOOTH signal................ 29
Controlling the system using
a smartphone or tablet
(SongPal)............................... 29
Getting frenzied parties with
the “Fiestable” app................ 30
Sound Adjustment
Adjusting the sound..............31
Selecting the Virtual Football
mode......................................31
Creating your own sound
effect......................................31
Creating a party atmosphere
(DJ Effect).............................. 32
Other Operations
Using the Party Chain
function................................. 33
Singing along: Karaoke......... 36
Enjoying sound from a
guitar..................................... 37
Enjoying music with the
Party Light and Speaker
Light...................................... 37
Using the Sleep Timer........... 37
Using the Voice Guidance..... 38
Using optional equipment.... 38
Deactivating the touch
panel on the unit (Child
Lock)...................................... 38
Setting the automatic
standby function.................. 39
Updating the software.......... 39
Additional Information
Troubleshooting...................40
Precautions...........................46
Specifications........................48
7US
Unpacking
•• This unit (MHC-V50) (1)
•• Remote control (1)
•• R03 (size AAA) batteries (2)
•• FM lead antenna (1)
•• AC power cord (mains lead) (1)
Note
When unpacking the carton, be sure that
two people handle the unit. Dropping the
unit may cause personal injury and/or
property damage.
*1 MP3 (MPEG 1 Audio Layer 3) is a
standard format defined by ISO/
MPEG for compressed audio data. MP3
files must be in MPEG 1 Audio Layer 3
format.
*2 Files with copyright protection (Digital
Rights Management) cannot be played
back by the system.
3
* A logical format of files and folders
on CD-ROMs, defined by ISO
(International Organization for
Standardization).
Discs/files that cannot be played
back
•• You cannot play back the
Playable discs or files
on discs/USB device
Playable discs
•• AUDIO CD
•• CD-R/CD-RW in AUDIO CD format
Playable files on discs
MP3 files (.mp3)*1*2
Playable files on USB device
MP3 files (.mp3)*1*2, WMA files
(.wma)*2, AAC files (.m4a/.mp4/
.3gp)*2, WAV files (.wav)*2
Note
•• The CD-ROM/-R/-RW must be in DATA
CD format that contains the MP3*1*2
files, and conforms to ISO 9660*3 Level
1/Level 2 or Joliet (extended format).
•• The system will attempt to play back
any data with the extensions above,
even if it is not in the supported format.
Playing this data may generate a
loud noise which could damage your
speaker system.
8US
following discs
—CD-ROMs
—
recorded in PHOTO CD
format
—Data
—
part of CD-Extra or Mixed
Mode CDs*
—CD
— Graphics disc
—Super
—
Audio CDs
—DATA
—
CD that is created in Packet
Write format
—DATA
—
CD which has not been
correctly finalized
—A
— disc that has a non-standard
shape (e.g., heart, square, star)
—A
— disc that has adhesive tape,
paper, or a sticker attached to it
•• You cannot play back the
following files
—A
— WMA file in WMA DRM, WMA
Lossless, or WMA PRO format.
—An
— AAC file in AAC DRM or AAC
Lossless format.
—The
—
AAC files which is encoded
at 96 kHz.
—Files
—
that are encrypted or
protected by passwords.
—Files
—
with DRM (Digital Rights
Management) copyright
protection.
•• The MP3 PRO audio file can be
played back as MP3 file.
* Mixed Mode CD: This format records
data on the first track and audio (AUDIO
CD data) on the second and subsequent
tracks of a session.
Notes on CD-R/-RW
In some cases, a CD-R/-RW cannot
be played back on this system
due to the recording quality or
physical condition of the disc, or
the characteristics of the recording
device and authoring software.
For more information, refer to
the operating instructions of the
recording device.
Notes on discs
•• This product is designed to play
back discs that conform to the
Compact Disc (CD) standard.
•• DualDisc and some music discs
encoded with copyright protection
technologies do not conform to
the CD standard. Therefore, these
discs may not be compatible with
this product.
Note on multisession disc
•• This system can play back
multisession discs when an
MP3 file is contained in the first
session. Any subsequent MP3 files
recorded in later sessions can also
be played back (If later sessions
contain AUDIO CD format, the
system cannot play back this
multisession discs).
•• If the first session is recorded in
AUDIO CD format, only the first
session will be played back.
Notes on playable files
•• Playback may take a longer time
to start when:
—a
— DATA CD/USB device is
recorded with a complicated
tree structure.
—the
— audio files in another folder
have just been played back.
•• The system can play back a DATA
CD or a USB device in the following
conditions:
—up
— to a depth of 8 folders
—up
— to 300 folders
—up
— to 999 files in a disc
—up
— to 2,000 files in a USB device
—up
— to 650 files in a folder
These numbers may vary
depending on the file or folder
configuration.
•• Folders that have no audio files
are skipped.
•• Files transferred by a device such
as a computer may not be played
back in the order in which they
were transferred.
•• The playback order may not be
applicable depending on the
software used for creating the
audio file.
•• Compatibility with all encoding/
writing software of the supported
formats, recording devices,
and recording media cannot be
guaranteed.
Notes about USB devices
•• This system is not guaranteed to
operate with all USB devices.
•• Although there are a variety
of complex functions for USB
devices, the playable contents
of USB devices connected to the
system are music contents only.
For details, refer to the operating
instructions of the USB device.
9US
•• When a USB device is inserted,
the system reads all the files on
the USB device. If there are many
folders or files on the USB device,
it may take a long time to finish
reading the USB device.
•• Do not connect the system and
the USB device through a USB hub.
•• With some connected USB
devices, there may be a delay
before an operation is performed
by this system.
•• The playback order for the system
may differ from the playback order
of the connected USB device.
•• Before using a USB device, make
sure that no virus-ridden files are
on the USB device.
Websites for
compatible devices
Check the websites below for the
latest information about compatible
USB and BLUETOOTH devices.
For customers in the United States:
<https://esupport.sony.com/US/>
For customers in Canada:
<http://esupport.sony.com/CA/>
Compatible iPhone/iPod models
10US
The compatible iPhone/iPod models
are as follows. Update your iPhone/
iPod with the latest software before
using with the system.
BLUETOOTH technology works with:
•• iPhone 7 Plus
•• iPhone 7
•• iPhone SE
•• iPhone 6s Plus
•• iPhone 6s
•• iPhone 6 Plus
•• iPhone 6
•• iPhone 5s
•• iPhone 5c
•• iPhone 5
•• iPhone 4s
•• iPod touch (6th generation)
•• iPod touch (5th generation)
Guide to parts and controls
You can lock the keys except  (power) on the unit to prevent them from
being operated by mistake (page 38).
Unit
Top























Rear

Front
11US
  (power) button
Press to turn on the system, or
set it to standby mode.
 FLANGER key (page 32)
ISOLATOR key (page 32)
  (play) key
Touch to start playback.
Touch and hold  for more
than 2 seconds, the built-in
sound demonstration will be
played back. Touch  to stop the
demonstration.
  (stop) key
——Touch to stop playback.
When touched twice, resume
playback can be canceled.
——Touch to stop transfer during
music transfer.
——Touch to stop the built-in
sound demonstration.
 FUNCTION key
Touch to select a function.
 SOUND FIELD key (page
31)
MEGA BASS indicator
Lights up when MEGA BASS
sound effect is selected.
ENTER key
Touch to enter the settings.
 PARTY LIGHT key (page 18,
37)
 Display
 Party Light (page 37)
Do not look directly at the lightemitting part when the Party
Light is turned on.
 MIC1 jack
Use to connect the microphone.
MIC2/GUITAR jack
Use to connect the microphone
or guitar.
 PARTY CHAIN key (page
35)
 MIC ECHO key (page 36)
VOCAL FADER key (page
36)
 GUITAR indicator
Lights up when guitar mode is
turned on.
FIESTA key (page 31)
GUITAR key (page 37)
(USB) (REC/PLAY) port
Use to connect a USB device.
This port can be used for both
playback and music transfer.
12US
Touch to transfer music to the
USB device connected to the
(USB) port.
MEGA BASS key (page 31)
FOOTBALL key (page 31)

REC TO USB key
 MIC/GUITAR LEVEL +/– key
(page 36, 37)
 BLUETOOTH indicator
(page 24)
BLUETOOTH key
Remote control
Touch to select the BLUETOOTH
function.
PAIRING key
Touch and hold to activate
BLUETOOTH pairing during the
BLUETOOTH function.

+/– (select folder) key
Touch to select a folder on a
data disc or a USB device.
/ (go backward/go
forward) key (page 19)
TUNING +/– key (page 23)
S1, S2, S3, S4 key (page 32)
 DJ OFF key (page 32)
SAMPLER key (page 32)

(N-Mark) (page 27)
  (open/close) key
Touch to open or close the disc
tray.
 VOLUME/DJ CONTROL knob
  (power) button
Press to turn on the system, or
sets it to standby mode.
 PLAY MODE button (page
19, 21)
Turn to adjust the volume.*
Turn to adjust the FLANGER
and ISOLATOR effect or outputs
the SAMPLER sound effect
continuously (page 32).
REPEAT/FM MODE button
(page 20, 23)
* You cannot use this knob to adjust
the volume when DJ Effect is
selected.
LIGHT MODE button (page
37)
 Disc tray
 Remote control sensor
PARTY LIGHT button (page
18, 37)
 REC TO USB button
Press to transfer music to the
USB device connected to the
(USB) port.
TUNER MENU button (page
23)
13US
BACK button
OPTIONS button
Press to enter or exit options
menu.
/ button
Press to select the menu items.
+/– (select folder) button
Press to select a folder on a data
disc or a USB device.
(enter) button
Press to enter/confirm the
settings.
 FUNCTION button
Press to select a function.
 MEGA BASS button (page
31)
SOUND FIELD button (page
31)
 / (fast reverse/fast
forward) button (page 19)
TUNING+/– button (page
23)
 (play)* button
Press to start playback.
/ (go backward/go
forward) button (page 19)
PRESET+/– button (page
24)
 (pause) button
Press to pause playback. To
resume playback, press .
14US
 (stop) button
——Press to stop playback.
When pressed twice, resume
playback can be canceled.
——Press to stop transfer during
music transfer.
——Press to stop the built-in
sound demonstration.
 KEY CONTROL / button
(page 36)
 VOL (volume) +/–* button
Press to adjust the volume.
 MIC ECHO button (page 36)
 VOCAL FADER button (page
36)
 SCORE button (page 37)
DISPLAY button (page 16,
18, 20, 25)
Press to change the information
on the display.
SLEEP button (page 37)
* The VOL + and  buttons have a tactile
dot. Use the tactile dot as a reference
when operating the system.
Getting Started
Hooking up the system securely
Unit (Rear)
Getting Started
 Audio input and output jacks
Use an audio cable (not supplied)
to make either connection as
follows:
•• AUDIO/PARTY CHAIN OUT
L/R jacks
—Connect
—
to the audio
input jacks of an optional
equipment.
—Connect
—
to another audio
system to enjoy the Party
Chain function (page 33).
•• AUDIO/PARTY CHAIN IN L/R
jacks
—Connect
—
to the audio output
jacks of a TV or an audio/
video equipment. The
sound is output through this
system.
—Connect
—
to another audio
system to enjoy the Party
Chain function (page 33).
15US
 FM ANTENNA terminal
Find a location and an
orientation that provide good
reception when you set up the
antennas.
Keep the antenna away from the
AC power cord (mains lead) and
the USB cable to avoid picking
up noise.
Extend the FM lead
antenna horizontally
 AC power cord (mains lead)
Connect the AC power cord
(mains lead) (supplied) to the
unit, then slide the cord into the
slot at the unit’s foot. Plug the AC
power cord (mains lead) into a
wall outlet.
Deactivating the
demonstration
To deactivate the demonstration
while the system is turned off, press
DISPLAY repeatedly to select the no
display mode (Power Saving Mode)
(page 18).
Inserting batteries
Insert the two supplied R03 (size
AAA) batteries, matching the
polarities shown below.
Note
•• Do not mix an old battery with a new
one or mix different types of batteries.
•• If you do not use the remote control
for a long period of time, remove the
batteries to avoid damage from battery
leakage and corrosion.
To operate the system using the
remote control
To wall outlet
The demonstration (page 18)
starts automatically. If you press
 (power) to turn on the system,
the demonstration ends.
16US
Point the remote control at the unit’s
remote control sensor.
Listening to TV sound via the system
Before connecting cables, be sure to disconnect the AC power cord (mains
lead).
Audio cable (not supplied)
AUDIO OUT
Getting Started
To listen to TV sound, press FUNCTION repeatedly to select “AUDIO IN”.
Hint
•• You can also enjoy the sound of external equipment (DVD players, etc.) via the system
by connecting to the AUDIO/PARTY CHAIN IN jacks. For details, refer to the operating
instructions of your equipment.
•• If the audio output level from the system is low when connecting the external
equipment, try adjusting the audio output settings on the connected equipment. It
may improve the audio output level. For details, refer to the operating instructions of
your equipment.
17US
Changing the display
mode
Press DISPLAY repeatedly while
the system is turned off.
Each time you press the button, the
display mode changes as follows.
Demonstration
The messages about the main
features of this system scrolls across
the display and the illumination
turns on.
To turn off the illumination, press
PARTY LIGHT.
Disc/USB Playback
Before using the USB
device
For compatible USB devices, see
“Websites for compatible devices”
(page 10).
(You can use your Apple devices
with this system via BLUETOOTH
connection only.)
Basic playback
No display (Power Saving Mode)
The display is turned off to conserve
power.
1
Press FUNCTION repeatedly to
select “CD” or “USB”.
2 Prepare the playback source.
For CD function:
Touch  on the unit to open the
disc tray and load a disc with the
label facing up on the disc tray.
When you play back an 8 cm disc
such as a CD single, place it on
the inner circle of the tray.
Touch  on the unit again to close
the disc tray.
Do not forcibly push the disc tray to
close it as this may cause a
malfunction.
18US
For USB function:
Connect a USB device to the
(USB) port.
Using play mode
Note
You can use a USB adaptor (not
supplied) to connect the USB device
to the unit if the USB device cannot be
plugged into the (USB) port.
3 Press  to start playback.
Other operations
Do this
Stop playback Press .
Pause
playback
Press .
Resume
playback or
return to
normal
playback
Press .
Cancel the
resume point
Press  twice.
Select a track
or file
Press  or 
during playback.
(Operation might be
prohibited by disc or
USB device.)
Locate a point Press  or 
quickly in fast during playback.
forward or fast
reverse (Lock
Search)
When playback is stopped, press
PLAY MODE repeatedly.
The following indicator lights up on
the display.
•• (None): plays the disc or USB
device.
•• “FLDR”*: plays all playable files in
the specified folder on the disc or
USB device.
* Cannot be selected for AUDIO CD.
Playing in random order
(Shuffle Play)
Disc/USB Playback
To
Playing in sequential order
(Normal Play)
When playback is stopped, press
PLAY MODE repeatedly.
The following indicators light up on
the display.
•• “SHUF”: shuffles all playable files
on the disc or USB device.
•• “FLDR SHUF”*: shuffles all playable
files in the specified folder on the
disc or USB device.
* Cannot be selected for AUDIO CD.
Note
•• Shuffle Play is canceled when you:
—— open the disc tray.
—— perform Synchronized Transfer.
•• Shuffle Play may be canceled when you
select a folder or a track to play back.
19US
Playing repeatedly (Repeat
Play)
Press REPEAT repeatedly.
The following indicators light up on
the display.
•• “ ”: repeats all tracks or audio
files on a folder/disc/USB device.
•• “
”: repeats a track or audio file.
Note
Repeat Play is canceled when you
—— open the disc tray.
—— perform Synchronized Transfer.
Viewing information on
the display
Press DISPLAY repeatedly when
the system is turned on.
You can view the information as
follows:
—playing
—
time/remaining time of
track, file, disc
—file
— name, folder name
—title,
—
artist name, and album name
Note
•• The disc name or track name may
not be displayed depending on the
characters.
•• Playing time of audio files may not be
displayed correctly.
•• The elapsed playing time for an audio
file encoded using a VBR (variable bit
rate) is not displayed correctly.
USB Transfer
Before using the USB
device
For compatible USB devices, see
“Websites for compatible devices”
(page 10).
(You can use your Apple devices
with this system via BLUETOOTH
connection only.)
Transferring music
You can transfer music from a
disc (AUDIO CD or MP3 disc only)
to a USB device connected to the
(USB) port.
The audio format of files transferred
by this system is MP3.
Note
•• Do not remove the USB device during
transfer or erase operations. Doing so
may corrupt the data on the USB device
or damage the USB device itself.
•• MP3 files are transferred with the same
bit rate as the original files.
•• When transferring from AUDIO CD,
you may select the bit rate before
transferring.
•• USB transfer and erase operations are
prohibited when the disc tray is opened.
Note on copyright-protected content
The transferred music is limited to private
use only. Use of the music beyond this
limit requires permission of the copyright
holders.
To select the bit rate
You can select a higher bit rate to
transfer music with better quality.
1
20US
Press OPTIONS.
2
Press / repeatedly to select
“BIT RATE”, then press .
3
Press / repeatedly to select
the bit rate you want, then press
.
•• “128 KBPS”: encoded MP3 files
have smaller file size and lower
audio quality.
•• “256 KBPS”: encoded MP3 files
have bigger file size but higher
audio quality.
To exit the options menu, press
OPTIONS.
You can transfer music to a USB
device connected to
(USB) port
as follows:
•• Synchronized Transfer: Transfer
all tracks or MP3 files from a disc
to USB.
•• REC1 Transfer: Transfer a single
track or MP3 file during playback.
Use the keys on the touch panel of
the unit to perform this operation.
1
Connect a transferable USB
device to the
(USB) port.
Note
You can use a USB adaptor (not
supplied) to connect the USB device
to the unit if the USB device cannot be
plugged into the (USB) port.
2 Touch FUNCTION repeatedly to
select “CD” then load a disc.
Synchronized Transfer:
If the system starts playback
automatically, touch  twice to stop
the playback fully.
When playback is stopped, press
PLAY MODE on the remote control
repeatedly to select the play mode
you want.
Note
If you start transferring in Shuffle Play
or Repeat Play, the selected play mode
changes to Normal Play automatically.
REC1 Transfer:
Select the track or MP3 file you want
to transfer, then start playback.
4 Touch REC TO USB.
“PUSH ENTER” appears on the
display.
USB Transfer
Transferring music from a disc
3 Prepare the sound source.
5 Touch ENTER.
The transfer starts, then “DO NOT
REMOVE” appears on the display.
Do not remove the USB device until
the transfer is complete.
When the transfer is complete, the
system performs as follows:
Synchronized Transfer:
The disc stops automatically.
REC1 Transfer:
The disc continues to play the next
track or file.
To stop transfer
Touch .
Notes on transfer
•• While transferring, no sound is output.
•• CD-TEXT information is not transferred
to the created MP3 files.
21US
•• The transfer stops automatically if:
—— the USB device runs out of space
during transfer.
—— the number of audio files or folders
on the USB device reaches the limit
that the system can recognize.
•• If a folder or file that you are trying
to transfer already exists on the
USB device with the same name, a
sequential number is added after the
name without overwriting the original
folder or file.
•• You cannot perform the following
operations during transfer:
—— Eject the disc.
—— Select another track or file.
—— Pause playback or find a point in the
track or file.
—— Change the function.
•• When transferring music to a
WALKMAN® using “Media Manager for
WALKMAN”, be sure to transfer in MP3
format.
•• When connecting a WALKMAN® to
the system, be sure to connect after
the display “Creating Library” or
“Creating Database” on the WALKMAN®
has disappeared.
Folder and file generation
rules
Maximum number of MP3 files
that can be generated
•• 298 folders
•• 650 files in a folder
•• 650 files in REC1-CD or REC1-MP3
folder.
These numbers may vary depending
on the file or folder configuration.
When transferring to a USB device,
a “MUSIC” folder is created directly
below “ROOT”. Folders and files are
generated within this “MUSIC” folder
according to the transfer method
and source as follows:
22US
Synchronized Transfer
 When transferring CD-DA tracks
from an AUDIO CD
Folder name: “CDDA0001”*
File name: “TRACK001”*
 When transferring MP3 files
from a disc
Folder name: Same as the source
File name: Same as the source
REC1 Transfer
 When transferring a CD-DA track
from an AUDIO CD
Folder name: “REC1-CD”
File name: “TRACK001”*
 When transferring an MP3 file
from a disc
Folder name: “REC1-MP3”
File name: Same as the source
* Folder and file numbers are assigned
serially thereafter.
Erasing audio files or folders
on the USB device
1
Press FUNCTION repeatedly to
select “USB”.
2 When playback is stopped,
press OPTIONS.
3 Press
/ repeatedly to select
“ERASE”, then press .
4 Press
/ repeatedly to select a
folder, then press .
5 Press
/ repeatedly to select
an audio file you want to erase,
then press .
If you want to erase all the audio
files in the folder, select “ALL
TRACKS”.
“FOLDER ERASE” or “TRACK ERASE”
and “PUSH ENTER” appear on the
display.
To cancel erase operations, press .
6 Press
.
“COMPLETE” appears on the display.
To exit the options menu, press
OPTIONS.
Note
MP4 format file, and 3GP format file
only.
•• You cannot erase audio files or folders
when Shuffle Play has been selected.
Set the play mode to Normal Play
before erasing.
•• Erase operation is prohibited when the
disc tray is opened.
Listening to the radio
1
Press FUNCTION repeatedly to
select “TUNER FM”.
2 Tune to a station.
For automatic scanning:
Hold down TUNING+/– until the
frequency begins to change on the
display.
Scanning stops automatically when
a station is tuned in. “ST” (for FM
stereo programs only) lights up on
the display.
If scanning does not stop, press 
to stop scanning. Then, perform
manual tuning (below).
Tuner
•• You can erase the supported audio file,
Tuner
For manual tuning:
Press TUNING+/– repeatedly to tune
to the station you want.
Hint
To reduce static noise on a weak FM
stereo station, press FM MODE repeatedly
until “ST” disappears from the display. You
will lose the stereo effect, but reception
will improve.
Presetting radio stations
You can store up to 20 FM stations
as your favorite stations.
1 Tune to the station you want.
2 Press TUNER MENU.
23US
3 Press
/ repeatedly to select
the preset number you want,
then press .
“COMPLETE” appears on the display
and the station is stored.
If another station is already
assigned to the selected preset
number, that station is replaced by
the new one.
To listen to the preset station
Press PRESET+/– repeatedly to
select the preset number you want.
BLUETOOTH
About the BLUETOOTH
wireless technology
BLUETOOTH wireless technology is
a short-range wireless technology
that enables wireless data
communication between digital
devices.
Supported BLUETOOTH version,
profiles and codecs
For details, see “BLUETOOTH
section” (page 48).
Compatible BLUETOOTH devices
For details, see “Websites for
compatible devices” (page 10).
About the BLUETOOTH
indicator
The BLUETOOTH indicator on the
unit lights up or flashes in blue to
show the BLUETOOTH status.
24US
System status
Indicator status
BLUETOOTH
standby
BLUETOOTH
pairing
BLUETOOTH
connection is
established
Flashes slowly
Flashes quickly
Lights up
Pairing this system
with a BLUETOOTH
device
Pairing is an operation where
BLUETOOTH devices register with
each other beforehand. Once a
pairing operation is performed, it
does not need to be performed
again.
If your device is an NFC-compatible
smartphone, the manual pairing
procedure is not necessary. (See
“One Touch BLUETOOTH Connection
by NFC” (page 27).)
1
2 Touch BLUETOOTH on the unit to
select the BLUETOOTH function.
“BT AUDIO” appears on the display.
Hint
•• When there is no pairing information
on the system (for example, when
you use the BLUETOOTH function
for the first time after purchase),
“PAIRING” flashes on the display and
the system enters the pairing mode.
Proceed to step 4.
•• If the system is connected to
a BLUETOOTH device, touch
BLUETOOTH on the unit to
disconnect the BLUETOOTH device.
3 Touch and hold
of the BLUETOOTH device.
Perform this step within 5 minutes,
otherwise pairing will be canceled.
In this case, repeat from step 3.
Note
If passkey is required on the
BLUETOOTH device, enter “0000”.
“Passkey” may be called “Passcode”,
“PIN code”, “PIN number”, or
“Password”.
6 Establish connection with the
BLUETOOTH device.
When pairing is completed and the
BLUETOOTH connection is
established, BLUETOOTH device
name appears on the display.
Depending on the BLUETOOTH
device, connection may start
automatically after pairing is
completed.
You can check the BLUETOOTH
device address by pressing DISPLAY
repeatedly.
BLUETOOTH
Place the BLUETOOTH device
within 1 meter (3.3 feet) from
the unit.
5 Select “MHC-V50” on the display
Note
•• You can pair up to 9 BLUETOOTH
devices. If the 10th BLUETOOTH device
is paired, the oldest paired device will
be deleted.
•• If you want to pair with another
BLUETOOTH device, repeat steps 1 to 6.
To cancel the pairing operation
Touch and hold PAIRING on the
unit for 2 seconds or more until “BT
AUDIO” appears on the display.
PAIRING on
the unit for 2 seconds or more.
“PAIRING” flashes on the display.
4 Perform the pairing procedure
on the BLUETOOTH device.
For details, refer to the operating
instructions of your BLUETOOTH
device.
25US
To erase pairing information
Use the keys on the touch panel of
the unit to perform this operation.
1
Touch BLUETOOTH to select
BLUETOOTH function.
“BT AUDIO” appears on the display.
If the system is connected to a
BLUETOOTH device, the BLUETOOTH
device name appears on the display.
Touch BLUETOOTH to disconnect the
BLUETOOTH device.
2
Touch and hold ENTER and
– for about 3 seconds.
“BT HIST CLEAR” appears on the
display and all the pairing
information is erased.
Listening to music on a
BLUETOOTH device
You can operate a BLUETOOTH
device by connecting the system
and the BLUETOOTH device using
AVRCP.
Check the following before playing
music:
—The
—
BLUETOOTH function of the
BLUETOOTH device is turned on.
—Pairing
—
has been completed
(page 25).
Once the system and the
BLUETOOTH device are connected,
you can control playback by
pressing , , , / and
/.
1
Touch BLUETOOTH on the unit to
select the BLUETOOTH function.
“BT AUDIO” appears on the display.
26US
2 Establish connection with the
BLUETOOTH device.
Touch BLUETOOTH on the unit to
connect to the last connected
BLUETOOTH device.
Perform the BLUETOOTH connection
from the BLUETOOTH device if the
device is not connected.
Once the connection is established,
the BLUETOOTH device name
appears on the display.
3 Touch  to start playback.
Depending on the BLUETOOTH
device,
——you may need to touch  twice.
——you may need to start playing an
audio source on the BLUETOOTH
device.
4 Adjust the volume.
Adjust the volume of the
BLUETOOTH device first. If the
volume level is still too low, adjust
the volume level on the system.
Note
•• When the system is not connected to
any BLUETOOTH device, the system
will connect to the last connected
BLUETOOTH device automatically when
you touch BLUETOOTH or  on the
unit.
•• If you try to connect another
BLUETOOTH device to the system, the
current connected BLUETOOTH device
will be disconnected.
To terminate the BLUETOOTH
connection
Touch BLUETOOTH on the unit. “BT
AUDIO” appears on the display.
Depending on the BLUETOOTH
device, the BLUETOOTH connection
may be terminated automatically
when you stop playback.
One Touch BLUETOOTH
Connection by NFC
NFC (Near Field Communication)
is a technology enabling shortrange wireless communication
between various devices, such as
smartphones and IC tags.
When you touch the system with an
NFC-compatible smartphone, the
system automatically:
—turns
—
on in the BLUETOOTH
function.
—completes
—
the pairing and
BLUETOOTH connection.
Compatible smartphones
Note
•• The system can only recognizes and
connects to one NFC-compatible
smartphone at a time. If you try to
connect another NFC-compatible
smartphone to the system, the currently
connected NFC-compatible smartphone
will be disconnected.
•• Depending on your NFC-compatible
smartphone, you may need to perform
the following steps on your NFCcompatible smartphone in advance.
—— Turn on the NFC function. For details,
refer to the operating instructions of
the NFC-compatible smartphone.
—— If your NFC-compatible smartphone
has an OS version that is older than
Android 4.1.x, download and start
the “NFC Easy Connect” application.
“NFC Easy Connect” is a free
application for Android smartphones
that can be obtained from Google
Play. (The application may not be
available in some countries/regions.)
Touch the smartphone to the
N-Mark on the unit until the
smartphone vibrates.
Complete the connection by
following the instructions displayed
on the smartphone.
When the BLUETOOTH connection is
established, the BLUETOOTH device
name appears on the display.
2 Start playback of an audio
source on the smartphone.
For details, refer to the operating
instructions of your BLUETOOTH
device.
Hint
If pairing and the BLUETOOTH connection
fail, do the following.
—— Remove the case from the smartphone
if using a commercially available
smartphone case.
—— Touch the smartphone to the N-Mark
on the unit again.
—— Relaunch the “NFC Easy Connect”
application.
BLUETOOTH
Smartphones with a built-in NFC
function (OS: Android 2.3.3 or
later, excluding Android 3.x)
1
To terminate the BLUETOOTH
connection
Touch the smartphone to the
N-Mark on the unit again.
27US
Setting the BLUETOOTH
audio codecs
You can enable AAC, LDAC or SBC
codec reception from BLUETOOTH
device. AAC/LDAC can be selected
only when the BLUETOOTH device
supports AAC/LDAC.
1 Press OPTIONS.
2 Press / repeatedly to select
“BT CODEC”, then press
.
3 Press
/ repeatedly to select
the setting, then press .
•• “AUTO”: Enable reception in AAC
or LDAC codec format.
•• “SBC”: Receive in SBC codec
format.
To exit the options menu, press
OPTIONS.
Note
•• You can enjoy high quality sound if AAC
or LDAC is selected. If you cannot listen
to AAC or LDAC sound from your device
or the sound is interrupted, select “SBC”.
•• If you change this setting while the
system is connected to a BLUETOOTH
device, the BLUETOOTH device will
be disconnected. To connect to the
BLUETOOTH device, perform the
BLUETOOTH connection again.
Hint
LDAC is an audio coding technology
developed by Sony that enables the
transmission of High-Resolution (Hi-Res)
Audio content, even over a BLUETOOTH
connection. Unlike other BLUETOOTH
compatible coding technologies
such as SBC, it operates without any
down-conversion of the Hi-Res Audio
content*1, and allows approximately
three times more data*2 than those
other technologies to be transmitted
over a BLUETOOTH wireless network
with unprecedented sound quality, by
means of efficient coding and optimized
packetization.
*1 Excluding DSD format contents.
*2 In comparison with SBC (Subband
Coding) when the bitrate of 990 kbps
(96/48 kHz) or 909 kbps (88.2/44.1 kHz)
is selected.
Setting the BLUETOOTH
standby mode
The BLUETOOTH standby mode
enables the system to turn on
automatically when you establish
a BLUETOOTH connection from a
BLUETOOTH device.
1 Press OPTIONS.
2 Press / repeatedly to select
“BT STBY”, then press
.
3 Press
/ repeatedly to select
the setting, then press .
•• “ON”: The system turns on
automatically even when the
system is in standby mode.
•• “OFF”: Turns off this function.
To exit the options menu, press
OPTIONS.
28US
Turning on or off the
BLUETOOTH signal
You can connect to the system
from a paired BLUETOOTH device
in all functions when the system’s
BLUETOOTH signal is set to on. The
BLUETOOTH signal is turned on by
default.
Touch and hold ENTER and + on
the unit for about 3 seconds.
“BT ON” or “BT OFF” appears on the
display.
Note
•• You cannot perform the following
“SongPal” is a dedicated app for
operating “SongPal”-compatible
audio devices manufactured by
Sony using a smartphone or tablet.
Search for “SongPal” on Google
Play™ or App Store and download it
using your smartphone or tablet.
“SongPal” allows you to:
—change
—
the function of the system,
control the playback of the disc/
USB device and tune to an FM
station.
—browse
—
the music content of disc/
USB device.
—view
—
the information of disc/USB
such as playing time and title.
—adjust
—
the volume and change
sound setting.
1
BLUETOOTH
operations when BLUETOOTH signal is
set to off:
—— Pair and/or connect with BLUETOOTH
device
—— Erase the pairing information
—— Use “SongPal”
—— Change the BLUETOOTH audio
codecs
•• If you touch the N-Mark on the unit with
an NFC-compatible smartphone or set
the BLUETOOTH standby mode to on,
the BLUETOOTH signal will be set to on
automatically.
Controlling the
system using a
smartphone or
tablet (SongPal)
Search for “SongPal” or scan the
two-dimensional code below.
2 Download “SongPal” app on
your device.
3 Connect the system and device
by BLUETOOTH connection
(page 24).
4 Launch “SongPal” and follow
the on-screen instructions.
29US
3 Connect the system and device
Note
•• We recommend you to use the latest
“SongPal” version.
•• If the “SongPal” application does not
work properly, touch BLUETOOTH on
the unit to terminate the BLUETOOTH
connection, then perform the
BLUETOOTH connection again so that
the BLUETOOTH connection functions
normally.
•• Available operations via “SongPal” may
differ depending on the audio devices.
•• For more details on “SongPal”, refer to
the following URL.
http://info.songpal.sony.net/help/
•• Specifications and display design
of “SongPal” are subject to change
without notice.
Getting frenzied
parties with the
“Fiestable” app
You can control the party features
of Sony’s Home Audio System with
intuitive and fancy user interface
with the “Fiestable” app. “Fiestable”
allows you to control features
such as DJ Effect, illumination and
Karaoke.
Even if “Fiestable” is installed, the
“Fiestable” icon is not displayed
on the smartphone or tablet home
screen. It is embedded in the
“SongPal” app as a plug-in.
1
Search and download “SongPal”
app on your device (page 29).
2 Search and download
“Fiestable” app from Google
Play or App Store using your
device.
30US
by BLUETOOTH connection
(page 24).
4 Launch “SongPal” and touch the
“Fiestable” icon at the top left
corner.
Note
For more details on “SongPal”, refer to the
following URL.
http://info.songpal.sony.net/help/
Sound Adjustment
Adjusting the sound
To
Do this
Reinforce bass
sound and create
more powerful
sound (MEGA
BASS)
Touch MEGA BASS
on the unit to select
“BASS ON”. The
MEGA BASS
indicator lights up.
To cancel, touch
MEGA BASS again
to select “BASS
OFF”.
Touch FIESTA on the
Reproduce the
sound effect of a unit.
party hall (Fiesta) To cancel, touch
SOUND FIELD on the
unit repeatedly to
select “FLAT”.
Press SOUND FIELD
repeatedly. To
cancel, press
SOUND FIELD
repeatedly to select
“FLAT”.
Selecting the Virtual
Football mode
You can experience the feeling of
being in the stadium when watching
a football match broadcast.
Note that you can only select Virtual
Football mode during AUDIO IN
function.
Touch FOOTBALL on the unit
repeatedly while watching a
football match broadcast.
•• “ON NARRATION”: You can enjoy an
immersive feeling of being in a
football stadium through enhanced
stadium cheers.
more immersive feeling of being in a
football stadium by minimizing the
volume level of narration in addition
to the enhancement of cheers.
To cancel the Virtual Football
mode
Press SOUND FIELD repeatedly to
select “FLAT”.
Note
•• We recommend that you select the
Virtual Football mode when watching a
football match broadcast.
•• If you hear unnatural sounds in the
content when “OFF NARRATION”
is selected, “ON NARRATION” is
recommended.
•• This feature does not support monaural
sound.
Creating your own
sound effect
You can raise or lower the levels
of specific frequency bands, then
store the setting in the memory as
“CUSTOM EQ”.
1 Press OPTIONS.
2 Press / repeatedly to select
“CUSTOM EQ”, then press
Sound Adjustment
Select a sound
field
•• “OFF NARRATION”: You can enjoy a
.
3 Press
/ repeatedly to adjust
the equalizer level, then press
.
4 Repeat step 3 to adjust the level
of other frequency bands and
surround effect.
To exit the options menu, press
OPTIONS.
31US
To select the custom equalizer
setting
Press SOUND FIELD repeatedly to
select “CUSTOM EQ”.
Creating a party
atmosphere (DJ Effect)
Use the keys on the touch panel of
the unit to perform this operation.
1
Touch the following button to
select the effect type.
•• FLANGER: Creates a deep flanging
effect that is similar to the roar of
a jet plane.
•• ISOLATOR: Isolates a specific
frequency band by adjusting the
other frequency bands. For
example, when you want to focus
on vocals.
•• SAMPLER: Provides a series of
special sound effects.
2 Change the sound effect.
For FLANGER and ISOLATOR:
Turn the VOLUME/DJ CONTROL
knob to adjust the effect level.
For SAMPLER:
Touch SAMPLER repeatedly to
select the SAMPLER mode you
want, then touch S1, S2, S3 or S4 to
output the SAMPLER sound effect.
To output other SAMPLER sound
effect continuously, turn the
VOLUME/DJ CONTROL knob.
To turn off the effect
•• Touch DJ OFF.
•• Touch the selected effect button
again (for FLANGER and ISOLATOR
only).
32US
Note
•• The DJ Effect is automatically turned off
when you:
—— turn off the system.
—— change the function.
—— activate or deactivate the PARTY
CHAIN function.
—— change sound effect.
—— use the Vocal Fader.
—— change the key (Key Control).
•• If you activate the DJ Effect during
transferring, the sound effect will not be
transferred onto the USB device.
•• You cannot use VOLUME/DJ CONTROL
on the unit to adjust the volume when
the DJ Effect is activated.
Press VOL +/– on the remote control to
adjust the volume.
Other Operations
Using the Party Chain function
You can connect multiple audio systems in a chain to create a more
interesting party environment and to produce higher sound output.
An activated system in the chain will be the “Party Host” and share the music.
Other systems will become “Party Guests” and play the same music as that
being played by the “Party Host”.
Setting up the Party Chain
Set up a Party Chain by connecting all the systems using audio cables (not
supplied).
Before connecting cables, be sure to disconnect the AC power cord (mains
lead).
 If all the systems are equipped with Party Chain function
Example: When connecting using this system as the first system
Other Operations
Continue the
connection until
the last system
First system
Second
system
•• The last system must be connected to the first system.
•• Any system can become a Party Host.
Last system
33US
•• You can change the Party Host to another system in the chain. For details,
see “To select a new Party Host (when all the systems are equipped with
Party Chain function)” (page 35).
 If one of the systems is not equipped with Party Chain function
Example: When connecting using this system as the first system
Continue the
connection until
the last system
First system
Second
system
Last system*
* Connect the system which is not equipped with Party Chain function at the last system,
otherwise the chain will stop at that system. Be sure to select the Audio In function on
this last system.
•• The last system is not connected to the first system.
•• You must select the first system as Party Host so that all systems are playing
the same music when Party Chain function is activated.
34US
Enjoying the Party Chain
1
Plug in the AC power cord
(mains lead) and turn on all the
systems.
2 Adjust the volume on each
system.
3 Activate the Party Chain
function on the system to be
used as the Party Host.
Note
•• Depending on the total unit of systems
you have connected, Party Guests may
take some time to start playing the
music.
•• Changing the volume level and sound
effect on the Party Host will not affect
the output on the Party Guests.
•• The Party Guest continues playing the
music source as Party Host even when
you change the function on Party Guest.
However, you can adjust the volume
and change the sound effect on Party
Guest.
•• When you use the microphone or play
the guitar on Party Host, the sound will
not be output from Party Guests.
is performing USB transfer, wait for the
system to complete or stop the transfer
before you activate the Party Chain
function.
•• For detailed operation on other
systems, refer to the operating
instructions of the systems.
To select a new Party Host (when
all the systems are equipped
with Party Chain function)
Repeat step 3 of “Enjoying the Party
Chain” on the system to be used
as a new Party Host. The current
Party Host becomes Party Guest
automatically. All systems play the
same music as that being played by
the new Party Host.
Note
•• You can select another system as the
new Party Host only after the Party
Chain function of all the systems in the
Chain has been activated.
•• If the selected system does not become
a new Party Host after a few seconds,
repeat step 3 under “Enjoying the Party
Chain”.
To deactivate the Party Chain
Touch PARTY CHAIN on the Party
Host.
Other Operations
Example: When using this system
as the Party Host
Touch FUNCTION repeatedly on the
unit to select the function you want
(except when the AUDIO IN function
is used in connection 
(page 33)). Start playing the
music, then touch PARTY CHAIN on
the unit.
“PARTY CHAIN” appears on the
display. The Party Host starts the
Party Chain, and other systems
become Party Guests automatically.
All systems play the same music as
that being played by the Party Host.
•• When one of the systems in the chain
Note
If the Party Chain function is not
deactivated after a few seconds, touch
PARTY CHAIN on the Party Host again.
Setting the Party Chain sound
mode
You can set the sound mode when
the Party Chain function is activated.
1
Press OPTIONS.
35US
2 Press
/ repeatedly to select
“P CHAIN MODE”, then press .
3 Press
/ repeatedly to select
the mode you want, then press
.
•• “STEREO”: outputs the stereo
sound.
•• “RIGHT CH”: outputs the
monaural sound of the right
channel.
•• “LEFT CH”: outputs the monaural
sound of the left channel.
To exit the options menu, press
OPTIONS.
Singing along: Karaoke
Preparing for Karaoke
1
Touch MIC/GUITAR LEVEL – on
the unit repeatedly to reduce
the microphone volume level.
2 Touch GUITAR on the unit
repeatedly until GUITAR
indicator lights off.
3 Connect an optional
microphone to MIC1 or MIC2/
GUITAR jack on the unit.
Connect another optional
microphone if you want to sing in
duet.
4 Start playing the music and
adjust the microphone volume.
Press MIC ECHO repeatedly to
adjust the echo effect.
5 Start singing along with the
music.
36US
Note
•• If howling occurs:
—— move the microphone away from the
system.
—— change the direction of the
microphone.
—— touch MIC/GUITAR LEVEL – on the
unit repeatedly.
—— press MIC ECHO repeatedly to adjust
the echo level.
•• Microphone sound will not be
transferred to the USB device during
USB transfer.
•• You cannot adjust the microphone
volume level using the VOLUME/DJ
CONTROL knob on the unit or VOL +/−
button on the remote control. Touch
MIC/GUITAR LEVEL +/– on the unit
repeatedly to adjust the microphone
volume level.
Using Vocal Fader
You can reduce the sound of the
vocal in stereo source.
Press VOCAL FADER repeatedly to
select “ON V FADER”.
To cancel Vocal Fader effect, press
VOCAL FADER repeatedly to select
“OFF”.
Changing the key (Key Control)
Press KEY CONTROL / to suit
your vocal range.
Activating the Karaoke scoring
mode (Score Mode)
You only can use scoring function
when the microphone is connected.
Your score is calculated from a scale
of 0 to 99 by comparing your voice
with the music source.
1 Start playing the music.
2 Press SCORE before singing a
song.
3 After singing for more than a
minute, press SCORE again to
view your score.
Enjoying sound from a
guitar
You can listen to the sound from the
guitar by connecting a guitar to the
MIC2/GUITAR jack on the unit.
You can also play the guitar and sing
along by connecting a microphone
to the MIC1 jack on the unit.
1
Touch MIC/GUITAR LEVEL – on
the unit repeatedly to reduce
the guitar volume level.
supplied) to connect a guitar
(not supplied) to MIC2/GUITAR
jack on the unit.
3 Touch GUITAR on the unit
repeatedly until GUITAR
indicator lights up.
4 Start playing the guitar and
adjust the guitar volume.
The guitar sound is output from the
system.
Note
•• If the guitar sound is distorted, reduce
the guitar volume level on your guitar
until the distorted sound disappears.
If the guitar volume level is too low,
touch MIC/GUITAR LEVEL + on the unit
repeatedly to adjust the guitar volume.
•• While playing the guitar, you can adjust
the echo effect by pressing MIC ECHO
repeatedly.
Touch GUITAR on the unit repeatedly
until GUITAR indicator lights off.
Enjoying music with the
Party Light and Speaker
Light
1
Press PARTY LIGHT repeatedly
to select “LED ON”.
2 Press LIGHT MODE repeatedly to
select the illumination mode
you want.
To turn off Party Light and
Speaker Light
Press PARTY LIGHT repeatedly to
select “LED OFF”.
Note
•• Do not look directly at the light-emitting
part when the Party Light and Speaker
Light are turned on.
•• If the illumination brightness is glaring,
switch on the room lights or turn off the
illumination.
•• You can turn on or off the Party Light
and Speaker Light when demonstration
is turned on.
Other Operations
2 Use an instrument cable (not
To turn off the guitar mode
Using the Sleep Timer
The system turns off automatically
after the preset time.
Press SLEEP repeatedly to select
the time you want.
To cancel Sleep Timer, press SLEEP
repeatedly to select “OFF”.
Hint
To check the remaining time before the
system turns off, press SLEEP.
37US
Using the Voice
Guidance
Using optional
equipment
You can hear English Voice Guidance
on the following situations via the
system.
—When
—
entering BLUETOOTH
pairing.
—When
—
a BLUETOOTH device is
connected.
—When
—
a BLUETOOTH device is
disconnected.
1
1 Press OPTIONS.
2 Press / repeatedly to select
4 Start playing the connected
“VOICE GUIDANCE”, then press
.
3 Press
press
/ to select “ON”, then
.
The Voice Guidance is activated.
To exit the options menu, press
OPTIONS.
Note
•• The Voice Guidance and the SAMPLER
sound effect cannot be output at the
same time. If you select SAMPLER
sound effect while using the Voice
Guidance, the Voice Guidance will be
stopped automatically, and if you use
the Voice Guidance during SAMPLER
sound effect output, the SAMPLER
sound effect will stop automatically.
•• The Voice Guidance volume level
change according to the system’s
volume level. However, in some cases,
the Voice Guidance volume level may
not change.
•• In some cases, there may be a delay in
Voice Guidance output.
38US
Press VOL – repeatedly until
“VOL MIN” appears on the
display.
2 Connect an optional equipment
(page 15).
3 Press FUNCTION repeatedly to
select “AUDIO IN”.
equipment.
5 Press VOL + repeatedly to adjust
the volume.
Note
The system may enter standby mode
automatically if the volume level of the
connected equipment is too low. Adjust
the volume level of the equipment.
To turn off automatic standby function,
see “Setting the automatic standby
function” (page 39).
Deactivating the touch
panel on the unit (Child
Lock)
You can deactivate the keys (except
) on the touch panel of the unit to
prevent misoperation, such as child
mischief.
Touch and hold  on the unit for
more than 5 seconds.
“CHILD LOCK ON” appears on the
display.
You can only operate the system using
the buttons on the remote control.
To turn off the Child Lock function,
touch and hold  on the unit for more
than 5 seconds until “CHILD LOCK OFF”
appears on the display.
Note
•• Child Lock function will be turned off
automatically when you disconnect the
AC power cord (mains lead).
•• Child Lock function cannot be activated
when you open the disc tray.
Setting the automatic
standby function
1 Press OPTIONS.
2 Press / repeatedly to select
“AutoSTBY”, then press
.
Updating the software
The software of this system may be
updated in the future.
You can update your system’s preinstalled software from the websites
below.
Follow the online instructions to
update the software.
For customers in the United States:
<https://esupport.sony.com/US/>
For customers in Canada:
<http://esupport.sony.com/CA/>
Other Operations
The system enters standby mode
automatically in about 15 minutes
when there is no operation or audio
signal output.
By default, the automatic standby
function is turned on.
—— when microphone or guitar is
connected.
3 Press
/ repeatedly to select
“ON” or “OFF”, then press .
To exit the options menu, press
OPTIONS.
Note
•• “AutoSTBY” flashes on the display about
2 minutes before entering standby
mode.
•• The automatic standby function does
not work in the following cases:
—— during tuner function.
—— when the Sleep Timer is activated.
39US
Additional Information
Troubleshooting
Should you encounter a problem
with your system, find your problem
in the troubleshooting checklist
below and take the corrective
action.
If the problem persists, consult your
nearest Sony dealer.
Note that if the service personnel
changes some parts during repair,
these parts may be retained.
If “PROTECTX” (X is a number)
appears on the display
Immediately unplug the AC
power cord (mains lead), and
check if anything is blocking the
ventilation openings of the unit.
After you have checked and
found no problems, reconnect
the AC power cord (mains lead),
and turn on the system. If the
issue persists, contact your
nearest Sony dealer.
General
The power does not turn on.
•• Check that the AC power cord
(mains lead) is connected securely.
The system has entered standby
mode.
•• This is not a malfunction. The
system enters standby mode
automatically in about 15 minutes
when there is no operation or
audio signal output (page 39).
40US
There is no sound.
•• Adjust the volume.
•• Check the connection of the
optional equipment, if any
(page 15).
•• Turn on the connected equipment.
•• Unplug the AC power cord (mains
lead), then plug in the AC power
cord (mains lead) again and turn
on the system.
There is no microphone sound.
•• Adjust the microphone volume
level.
•• Make sure the microphone is
connected to the MIC1 or MIC2/
GUITAR jack on the unit correctly.
•• Make sure the microphone is
turned on.
There is severe hum or noise.
•• Move the system away from
sources of noise.
•• Connect the system to a different
wall outlet.
•• Install a noise filter (not supplied)
to the AC power cord (mains lead).
•• Turn off surrounding electrical
equipment.
•• The noise generated by the
cooling fans of the system may be
heard when the system is turned
on. This is not a malfunction.
•• Move the unit away from the neon
signs or fluorescent light.
The remote control does not
function.
•• Remove the obstacles between
the remote control and the unit.
•• Move the remote control closer to
the unit.
•• Point the remote control at the
unit’s sensor.
•• Replace the batteries (R03/size
AAA).
•• Move the unit away from the
fluorescent light.
There is acoustic feedback.
•• Reduce the volume.
•• Move the microphone and guitar
away from the system or change
the direction of the microphone.
The sound skips.
•• Wipe the disc clean (page 46).
•• Reload the disc.
•• Move the unit to a place with no
vibration.
“CHILD LOCK” appears when you
touch any key on the unit.
•• Set the Child Lock function to off
(page 38).
Playback does not start from the
first track.
•• Set the play mode to Normal Play
(page 19).
•• Resume Play has been selected.
Press  twice. Then, press  to
start playback.
A clicking sound is heard when
turning the power on.
•• This is the operating sound and it
occurs when the power is turned
on or off, for example. This is not a
malfunction.
Disc player
The disc tray does not open and
“LOCKED” appears on the display.
•• Consult your nearest Sony dealer
or local authorized Sony service
facility.
The disc does not eject.
•• You cannot eject the disc during
Synchronized Transfer or REC1
Transfer. Press  to cancel the
transfer, then touch  on the unit
to eject the disc.
•• Consult your nearest Sony dealer.
Playback does not start.
•• Wipe the disc clean (page 46).
•• Reload the disc.
•• Load the disc that this system can
play back (page 8).
•• Remove the disc and wipe away
the moisture on the disc, then
leave the system turned on for
a few hours until the moisture
evaporates.
The folder name, track name, file
name and ID3 tag characters do
not appear properly.
•• The ID3 version is not in Version 1
(1.0/1.1) or Version 2 (2.2/2.3).
•• The character codes that can be
displayed by this system are as
follows:
—Upper
—
cases (A to Z)
—Numbers
—
(0 to 9)
—Symbols
—
(< > * +, [ ] \ _)
Other characters appear as “_”.
The sound loses stereo effect
when you play back an AUDIO CD
or audio file.
•• Turn off the Vocal Fader
(page 36).
•• Make sure the system is
connected properly.
Additional Information
The disc tray does not close.
•• Load the disc correctly.
The MP3 disc cannot be played
back.
•• The data is not stored in the
supported format.
USB device
Transferring results in an error.
•• You are using an unsupported USB
device. Check the information on
the website about compatible USB
devices (page 10).
41US
•• The USB device is not formatted
correctly. Refer to the operating
instructions of the USB device on
how to format.
•• Turn off the system and remove
the USB device. If the USB device
has a power switch, turn the USB
device off and on again after
removing it from the system. Then,
perform the transfer again.
•• If the transfer and erase
operations are repeated multiple
times, the file structure within the
USB device becomes fragmented.
Refer to the operating instructions
of the USB device on how to deal
with this problem.
•• The USB device was disconnected
or the power was turned off
during transfer. Delete the
partially-transferred file, and
perform the transfer again. If this
does not fix the problem, the USB
device may be broken. Refer to the
operating instructions of the USB
device on how to deal with this
problem.
Audio files or folders on the USB
device cannot be erased.
•• Check if the USB device is writeprotected.
•• The USB device was disconnected
or the power was turned off
during the erase operation. Delete
the partially-erased file. If this
does not fix the problem, the USB
device may be broken. Refer to the
operating instructions of the USB
device on how to deal with this
problem.
42US
There is no sound.
•• The USB device is not connected
correctly. Turn off the system and
reconnect the USB device, then
turn on the system and check if
“USB” appears on the display.
There is noise, skipping, or
distorted sound.
•• You are using an unsupported USB
device. Check the information on
the website about compatible USB
devices (page 10).
•• Turn off the system and reconnect
the USB device, then turn on the
system.
•• The music data itself contains
noise, or the sound is distorted.
Noise may have entered during
the transfer process. Delete the
file, and try transfer again.
•• The bit rate used in encoding an
audio file was low. Send an audio
file with higher bit rate to the USB
device.
“READING” is displayed for an
extended time, or it takes a long
time before playback starts.
•• The reading process can take a
long time in the following cases.
—There
—
are many folders or files
on the USB device (page 9).
—The
—
file structure is extremely
complex.
—The
—
memory capacity is
excessive.
—The
—
internal memory is
fragmented.
“NO FILE” appears on the display.
•• The system has entered the
software update mode, and all
keys (except ) are deactivated.
Press  on the unit to cancel the
software update.
“OVER CURRENT” appears on the
display.
•• A problem has been detected
with the level of electrical current
from the
(USB) port. Turn off
the system and remove the USB
device from the port. Make sure
there is no problem with the USB
device. If this display pattern
persists, contact your nearest Sony
dealer.
Erroneous display.
•• The data stored in the USB
device may have been corrupted,
perform the transfer again.
•• The character codes that can be
displayed by this system are as
follows:
—Upper
—
cases (A to Z)
—Numbers
—
(0 to 9)
—Symbols
—
(< > * +, [ ] \ _)
Other characters appear as “_”.
Playback does not start.
•• Turn off the system and reconnect
the USB device, then turn on the
system.
•• Check the information on the
website about compatible USB
devices (page 10).
Playback does not start from the
first file.
•• Set the play mode to Normal Play
(page 19).
* This system supports FAT16 and FAT32,
but some USB devices may not support
all of these FAT. For details, refer to the
operating instructions of each USB
device or contact the manufacturer.
Tuner*
There is severe hum or noise, or
stations cannot be received.
•• Connect the antenna properly.
•• Change antenna location and
its orientation to obtain good
reception.
•• Turn off nearby electrical
equipment.
* Radio may not be received depending
on the radio wave conditions or the
housing environment in your area.
BLUETOOTH device
Pairing cannot be performed.
•• Move the BLUETOOTH device
closer to the system.
•• Pairing may not be possible if
other BLUETOOTH devices are
present around the system.
In this case, turn off the other
BLUETOOTH devices.
•• Make sure to enter the correct
passkey when selecting the
system’s name (this system) on
the BLUETOOTH device.
Additional Information
The USB device is not recognized.
•• Turn off the system and reconnect
the USB device, then turn on the
system.
•• Check the information on the
website about compatible USB
devices (page 10).
•• The USB device is not working
properly. Refer to the operating
instructions of the USB device on
how to deal with this problem.
Files cannot be played back.
•• USB devices formatted with file
systems other than FAT16 or FAT32
are unsupported.*
•• If you use a partitioned USB
device, only files on the first
partition can be played back.
The BLUETOOTH device cannot
detect the system, or “BT OFF”
appears on the display.
•• Set the BLUETOOTH signal to “BT
ON” (page 29).
43US
Connection is not possible.
•• The BLUETOOTH device you
attempted to connect does not
support the A2DP profile, and
cannot be connected with the
system.
•• Enable the BLUETOOTH function of
the BLUETOOTH device.
•• Establish a connection from the
BLUETOOTH device.
•• The pairing registration
information has been erased.
Perform the pairing operation
again.
•• Erase the pairing registration
information of the BLUETOOTH
device (page 26) and perform
the pairing operation again (page
25).
The sound skips or fluctuates, or
the connection is lost.
•• The system and the BLUETOOTH
device are too far apart.
•• If there are obstacles between
the system and your BLUETOOTH
device, remove or avoid the
obstacles.
•• If there is equipment that
generates electromagnetic
radiation, such as a wireless LAN,
other BLUETOOTH device, or a
microwave oven nearby, move
them away.
The sound of your BLUETOOTH
device cannot be heard on this
system.
•• Increase the volume on your
BLUETOOTH device first, then
adjust the volume using VOL +/–.
44US
There is severe hum, noise, or
distorted sound.
•• If there are obstacles between
the system and your BLUETOOTH
device, remove or avoid the
obstacles.
•• If there is equipment that
generates electromagnetic
radiation, such as a wireless LAN,
other BLUETOOTH device, or a
microwave oven nearby, move
them away.
•• Turn down the volume of the
connected BLUETOOTH device.
Party Chain
Party Chain function cannot be
activated.
•• Check the connections
(page 33).
•• Make sure the audio cables are
connected correctly.
“PARTY CHAIN” is flashing on the
display.
•• You cannot select AUDIO IN
function if you make connection
 (page 33) during Party Chain
function. Select other function
(page 35).
•• Touch PARTY CHAIN on the unit.
•• Restart the system.
Party Chain function does not
work properly.
•• Turn off the system. Then, turn it
back on again to activate the Party
Chain function.
Resetting the system
If the system still does not operate
properly, reset the system to factory
default settings.
Use the keys on the touch panel of
the unit to perform this operation.
1
Unplug the AC power cord (mains
lead), then plug it back in.
2
Press  to turn on the system.
3
Touch and hold ENTER and 
for about 3 seconds.
“RESET” appears on the display.
After the reset completes, the
system automatically reboots. Press
 to turn on the system.
All user-configured settings, such as
preset radio stations are reset to
factory default setting.
Messages
One of the following messages may
appear or flash on the display during
operation.
CANNOT PLAY
A disc that cannot be played back
was inserted.
DATA ERROR
•• The file is created in unsupported
format.
•• The file extensions does not match
the file format.
DEVICE FULL
The memory of the USB device is
full.
ERASE ERROR
Erase of audio files or folders on the
USB device failed.
FATAL ERROR
The USB device was removed during
transfer or erase operation, and may
have been damaged.
FOLDER FULL
You cannot transfer onto the USB
device because the number of
folders has reached its maximum.
HOST
The system activated the Party
Chain function and has become a
Party Host.
NoDEVICE
No USB device is connected or
unsupported device is connected.
NO DISC
There is no disc in the unit.
NO MUSIC
No supported audio files exist in the
playback source.
NO SUPPORT
An unsupported USB device is
connected, or the USB device is
connected through a USB hub.
NOT USE
You tried to perform a specific
operation under conditions where
that operation is prohibited.
OVER CURRENT
An over current from the
port was detected.
(USB)
PROTECT
The USB device is write-protected.
PUSH STOP
You tried to perform an operation
that can be performed only when
the playback is stopped.
Additional Information
DEVICE ERROR
The USB device could not be
recognized or an unknown device is
connected.
GUEST
The system has become a Party
Guest as the Party Chain function
has been activated by a Party Host.
READING
The system is reading information
of the disc or USB device. Some
operations are not available.
45US
REC ERROR
The transfer did not start, stopped
partway, or otherwise could not be
performed.
TRACK FULL
You cannot transfer onto the USB
device because the number of files
has reached its maximum.
Precautions
•• Completely disconnect the AC power
cord (mains lead) from the wall outlet
(mains) if it is not going to be used
for an extended period of time. When
unplugging the system, always grip the
plug. Never pull the cord itself.
•• Should any solid object or liquid get
into the system, unplug the system, and
have it checked by qualified personnel
before operating it again.
•• AC power cord (mains lead) must be
changed only at the qualified service
shop.
When carrying the unit
On handling the system
To avoid damaging the disc
mechanism, perform the following
procedure before carrying the unit.
This system is not drip-proof or
waterproof. Make sure not to splash water
on the system or clean it with water.
Use the keys on the touch panel of
the unit to perform this operation.
On placement
1
2
Press  to turn on the system.
3
Remove the disc.
Touch FUNCTION repeatedly to
select “CD”.
Touch  to open and close the disc
tray.
Wait until “NO DISC” appears on the
display.
4
Unplug the AC power cord (mains
lead).
Notes on discs
•• Before playing, wipe the disc with a
cleaning cloth from the center outward
to the edge.
•• Do not clean discs with solvents, such
as benzine, thinner, or commercially
available cleaners or anti-static spray
intended for vinyl LPs.
•• Do not expose discs to direct sunlight
or heat sources such as hot air ducts,
nor leave them in a car parked in direct
sunlight.
46US
On safety
•• Do not place the system in an inclined
position or in locations that are
extremely hot, cold, dusty, dirty, or
humid or lacking adequate ventilation,
or subject to vibration, direct sunlight or
a bright light.
•• Be careful when placing the system
on surfaces that have been specially
treated (for example, wax, oil, polish) as
staining or discoloration of the surface
may result.
•• If the system is brought directly from
a cold to a warm location or is placed
in a very damp room, moisture may
condense on the lens inside the unit,
and cause the system to malfunction.
In this situation, remove the disc, and
leave the system turned on for about an
hour until the moisture evaporates.
On heat buildup
•• Heat buildup on the unit during
operation is normal and is not a cause
for alarm.
•• Do not touch the cabinet if it has been
used continuously at a high volume
because the cabinet may have become
hot.
•• Do not obstruct the ventilation holes.
On the speaker system
The built-in speaker system is not
magnetically shielded, and the picture on
nearby TV sets may become magnetically
distorted. In this situation, turn off the
TV, wait 15 to 30 minutes, and turn it back
on. If there is no improvement, move the
system far away from the TV.
Cleaning the cabinet
Clean this system with a soft cloth slightly
moistened with a mild detergent solution.
Do not use any type of abrasive pad,
scouring powder, or solvent, such as
thinner, benzine, or alcohol.
On BLUETOOTH communication
•• BLUETOOTH devices should be used
Additional Information
within approximately 10 meters (33 feet)
(unobstructed distance) of each
other. The effective communication
range may become shorter under the
following conditions.
—— When a person, metal object, wall
or other obstruction is between
the devices with a BLUETOOTH
connection
—— Locations where a wireless LAN is
installed
—— Around microwave ovens that are
in use
—— Locations where other
electromagnetic waves are
generated
•• BLUETOOTH devices and wireless LAN
(IEEE 802.11b/g/n) equipment use the
same frequency band (2.4 GHz). When
using your BLUETOOTH device near
a device with wireless LAN capability,
electromagnetic interference may
occur. This could result in lower data
transfer rates, noise, or inability to
connect. If this happens, try the
following remedies:
—— Use this system at least 10 meters
(33 feet) away from the wireless LAN
equipment.
—— Turn off the power of the wireless
LAN equipment when using your
BLUETOOTH device within 10 meters
(33 feet).
—— Use this system and BLUETOOTH
device as closer to each other as
possible.
•• The radio waves broadcast by this
system may interfere with the operation
of some medical devices. Since this
interference may result in malfunction,
always turn off the power on this
system and BLUETOOTH device in the
following locations:
—— In hospitals, on trains, in airplanes,
at gas stations, and any place where
flammable gases may be present
—— Near automatic doors or fire alarms
•• This system supports security
functions that comply with BLUETOOTH
specifications to ensure secure
connections during communication
using BLUETOOTH technology. However,
this security may be insufficient
depending on the setting contents
and other factors, so always be careful
when performing communication using
BLUETOOTH technology.
•• Sony cannot be held liable in any way
for damages or other loss resulting
from information leaks during
communication using BLUETOOTH
technology.
•• BLUETOOTH communication is not
necessarily guaranteed with all
BLUETOOTH devices that have the same
profile as this system.
•• BLUETOOTH devices connected with
this system must comply with the
BLUETOOTH specification prescribed
by the Bluetooth SIG, Inc., and must
be certified to comply. However, even
when a device complies with the
BLUETOOTH specification, there may
be cases where the characteristics or
specifications of the BLUETOOTH device
make it impossible to connect, or may
result in different control methods,
display or operation.
•• Noise may occur or the audio may
cut off depending on the BLUETOOTH
device connected with this system,
the communications environment, or
surrounding conditions.
47US
Specifications
AUDIO POWER
SPECIFICATIONS
POWER OUTPUT AND TOTAL
HARMONIC DISTORTION:
(USA models only)
With 5 ohm loads, both channels
driven, from 280 Hz – 20,000 Hz; rated
50 watts per channel minimum RMS
power, with no more than 0.7% total
harmonic distortion from
250 milliwatts to rated output.
Speaker section
Speaker system:
3-way, Sound Pressure Horn
Speaker unit:
Tweeter L/R: 40 mm (1 5/8 in),
cone type
Midrange L/R: 80 mm (3 1/4 in),
cone type
Woofer: 200 mm (7 7/8 in), cone
type
Rated impedance:
Tweeter L/R: 5 ohms
Midrange L/R: 5 ohms
Woofer: 2 ohms
Inputs
AUDIO/PARTY CHAIN IN L/R:
Voltage 2 V, impedance
47 kilohms
MIC1:
Sensitivity 1 mV, impedance
10 kilohms
MIC2/GUITAR:
Sensitivity 1 mV, impedance
10 kilohms (When guitar mode is
turned off.)
Sensitivity 200 mV, impedance
1 Megaohm (When guitar mode is
turned on.)
48US
Outputs
AUDIO/PARTY CHAIN OUT L/R:
Voltage 2 V, impedance 1 kilohm
Disc player section
System:
Compact disc and digital audio
system
Laser Diode Properties
Emission Duration: Continuous
Laser Output*: Less than 44.6 μW
* This output is the value
measurement at a distance of
200 mm from the objective lens
surface on the Optical Pick-up
Block with 7 mm aperture.
Frequency response:
20 Hz – 20 kHz
USB section
Supported USB device:
Mass Storage Class
Maximum current:
1A
(USB) port:
Type A
FM tuner section
FM stereo, FM superheterodyne tuner
Antenna:
FM lead antenna
Tuning range:
87.5 MHz – 108.0 MHz (100 kHz
step)
BLUETOOTH section
Communication system:
BLUETOOTH Standard version 3.0
Output:
BLUETOOTH Standard Power
Class 2
Maximum communication range:
Line of sight approx. 10 m (33 ft)*1
Frequency band:
2.4 GHz band (2.4000 GHz –
2.4835 GHz)
Modulation method:
FHSS (Freq Hopping Spread
Spectrum)
Compatible BLUETOOTH profiles*2:
A2DP (Advanced Audio
Distribution Profile)
AVRCP (Audio Video Remote
Control Profile)
SPP (Serial Port Profile)
Supported codecs:
SBC (Subband Codec)
AAC (Advanced Audio Coding)
LDAC
Mass (Approx.):
14 kg (30 lb 14 oz)
Design and specifications are subject
to change without notice.
*1 The actual range will vary depending
on factors such as obstacles between
devices, magnetic fields around a
microwave oven, static electricity,
reception sensitivity, antenna’s
performance, operating system,
software application, etc.
*2 BLUETOOTH standard profiles
indicate the purpose of BLUETOOTH
communication between devices.
Supported audio formats
Additional Information
Supported bit rate and sampling
frequencies:
MP3:
32/44.1/48 kHz, 32 kbps –
320 kbps (VBR)
AAC:
44.1 kHz, 48 kbps – 320 kbps
(CBR/VBR)
WMA:
44.1 kHz, 48 kbps – 192 kbps
(CBR/VBR)
WAV:
44.1/48 kHz (16 bit)
General
Power requirements:
AC 120 V, 60 Hz
Power consumption:
120 W
Dimensions (W/H/D) (Approx.):
293 mm × 798 mm × 300 mm
(11 5/8 in × 31 1/2 in × 11 7/8 in)
49US
©2017 Sony Corporation Printed in China
4-689-515-14(1)
