Sony PCV-RZ24G VAIO® Desktop Computer User guide

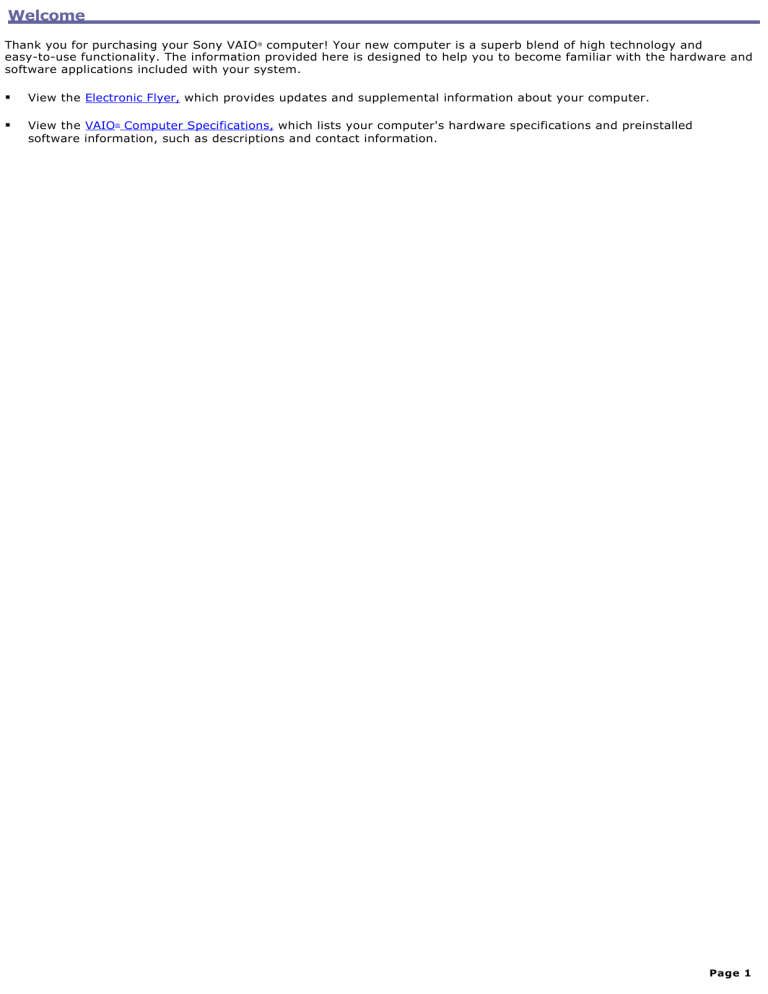

Welcome
Thank you for purchasing your Sony VAIO® computer! Your new computer is a superb blend of high technology and
easy-to-use functionality. The information provided here is designed to help you to become familiar with the hardware and
software applications included with your system.

View the Electronic Flyer, which provides updates and supplemental information about your computer.

View the VAIO® Computer Specifications, which lists your computer's hardware specifications and preinstalled
software information, such as descriptions and contact information.
Page 1
Getting Started
Congratulations on your purchase of the Sony VAIO® computer! Your new, high-performance, multimedia computer combines
state-of-the-art computer functionality with the latest audio, video and information technology features.

Unpacking your Computer

Planning An Ergonomic Work Space

Locating Controls And Ports

Setting Up Your Computer

Turning On your Computer

Registering your Computer

Setting Up your Dial-up Connection

Turning Off your Computer
Page 2
Unpacking your Computer
Your computer may not be supplied with all of the accessories shown, depending on the system configuration you
purchased. For details on the accessories supplied with your computer, see the online Specifications sheet.
Com puter and supplied accessories
(See the online specifications sheet for details about supplied accessories.)
Giga Pocket Personal Video Recorder accessories
(For m odels equipped with Giga Pocket features)
Manuals

VAIO Digital Studio Computer Quick Start—Provides basic information on setting up and registering your
computer. The Quick Start also provides resources for technical support, safety guidelines and owner's information.

Microsoft® Windows® XP guide—Explains how to use the basic features of the latest Windows operating system.
Page 3
Online Documentation

VAIO Digital Studio Com puter User Guide—Contains features and specifications of your computer. It also
includes information on the applications included with your system, how to contact software vendors, and solve
common problems.
To access the online User Guide:

1.
Click Start in the Windows taskbar, then click Help and Support.
2.
From the VAIO Help and Support Center menu, click VAIO User Guide.
Giga Pocket Personal Video Recorder—(For models equipped with Giga Pocket) This online guide contains
information on setting up and using the Giga Pocket Personal Video Recorder equipment and software applications.
The Internet Electronic Program Guide (iEPG) service information describes new Sony technology that is used with
the Internet, to locate, record and set up timed recordings of your favorite TV programs.
To access this online information:

1.
Click Start in the Windows taskbar, then click Help and Support.
2.
From the VAIO Help and Support menu, click Giga Pocket.
Creating DVDs—(For models equipped with a DVD±RW drive) This online guide provides information designed to
help you become familiar with your DVD±RW drive and the DVD burning software applications included with your
computer.
To access this online information:

1.
Click Start in the Windows taskbar, then click Help and Support.
2.
From the VAIO Help and Support menu, click Creating DVDs.
Specifications—This online specification sheet describes the hardware and software configuration of your VAIO
computer.
To access this online information:
1.
Click Start in the Windows taskbar, then click Help and Support.
2.
From the VAIO Help and Support menu, click VAIO User Guide.
3.
Click the Welcome link. The Welcome page displays in the right-side frame.
4.
Locate the link in the text, "View the VAIO® Computer Specifications..."
Recovery CDs

System Recovery CD(s) — Restore the software applications that shipped with your computer if they become
corrupted or are erased. The supplied System Recovery CDs can only be used to restore the hard disk of this Sony
computer.

Application Recovery CD(s) — Reinstalls individual software applications or drivers if they become corrupted or are
erased.
Other
Software Library containing the Microsoft software license agreement and Sony end-user license agreement.
Page 4
Planning An Ergonomic Work Space
Before you set up your new computer, find the best location for your new computer and plan your work space. There are
several ergonomic factors to consider when you arrange your work space:

Stable work surface — Use a stable work surface large enough to support the computer and other peripheral
equipment.

Ventilation — Leave at least eight inches of space on the left and back sides of your computer to enable proper
ventilation.

Placement of the keyboard, mouse, and other input devices — Place your keyboard, mouse, and other input
devices so that your arms and hands are in a relaxed, comfortable position. The keyboard should be directly in front
of you. Adjust the level of the keyboard so that your lower arms are parallel to the floor. Keep your wrists in a
relaxed position when you are using the keyboard—not angled up or down. Use the palmrest only briefly, for
resting. While typing, never use the palmrest or rest your hands on the table. Position the mouse at the same level
as the keyboard. Hold the mouse with a relaxed hand, and use your whole arm to move it. Take breaks during
sessions with your computer. Excessive use of the mouse or a joystick may strain muscles or tendons.

Furniture and posture — Sit in a chair with good back support and armrests. Adjust the level of the chair so your
feet are flat on the floor. A footrest may make you more comfortable. Sit with relaxed, upright posture—avoid
slouching forward or leaning far backward.

Viewing angle of the display — Position the display 18 to 26 inches directly in front of you, with the top of the
screen at or a little below eye level. Use the display's tilting feature to find the best position. You can reduce eye
strain and muscle fatigue by placing the display in the proper position.

Lighting — Choose a location where windows and lights do not create glare and reflection on the display. Use
indirect lighting to avoid bright spots on the display. You can also purchase accessories for your display that help
reduce glare. Proper lighting adds to your comfort and work effectiveness.
Page 5
Locating Controls And Ports
This section is intended to familiarize you with the controls, ports and jacks on your computer.Your computer may not be
equipped with all of these hardware features and the location of the controls, ports, and jacks may vary from the
illustrations shown in this section. To view the specific connection capabilities for your system, see the online specifications
sheet.

About the Front Panel (PCV-RZ series model)

About the Back Panel (PCV-RZ series model)

About the Remote Control (For models equipped with Giga Pocket features)

About the Front Panel (PCV-RX series model)

About the Back Panel (PCV-RX series model)
Page 6
About the Front Panel (PCV-RZ series model)
The front panel of your VAIO Computer enables access to the optical and floppy disk drives. On certain models, the front
panel also provides access to Giga Pocket Personal Video Recorder jacks and ports, a Memory Stick media slot and the
Universal Serial Bus (USB), and i.LINK® ports that enable you to connect compatible peripheral devices.
Front panel (PCV- RZ series m odel)
1
Optical drive 1
See the online specifications sheet for optical drive information.
2
Optical drive 2
See the online specifications sheet for optical drive information.
3
Floppy disk drive
Reads and writes data from and to a 3.5-inch floppy disk.
4
Floppy disk drive access indicator
Light is green while reading and writing data from and to a floppy disk.
5
Power indicator
Light is blue while the power is on.
6
Power switch
Page 7
Turns the computer on and off.
7
Stand by indicator
Light is red when the computer is placed in Stand by mode.
8
Optical drive access indicator
Light is amber while reading and writing data from and to the optical drives.
9
Hard disk drive access indicator
Light is amber while reading and writing data from and to the hard disk.
10
(For models equipped with Giga Pocket features)
S-video In jack
Connection for an S-video cable (optional).
Video In jack
Connection for a video cable (supplied).
Audio L In jack/Audio R In jack
Connection for an audio cable (supplied).
11
Optical drive 1 eject button
Ejects a disc from Optical drive 1.
12
Optical drive 2 eject button
Ejects a disc from Optical drive 2.
13
Memory Stick media slot and access indicator
Reads and writes data from and to a Memory Stick® media. The access indicator light is amber when reading or writing
data.
14
Floppy disk eject button
Ejects a floppy disk from the floppy disk drive.
15
Universal Serial Bus (USB 2.0) ports (2)
Connections for compatible high/full/low-speed USB devices.
Page 8
16
i.LINK (4-pin) S400 port (IEEE 1394)
Connection for a compatible digital device.
i.LINK is a trademark of Sony used only to designate that a product contains an IEEE 1394 connection. The i.LINK
connection may vary, depending on the software applications, operating system, and compatible i.LINK devices. All products
with an i.LINK connection may not communicate with each other.
Please refer to the documentation that came with your compatible i.LINK device for information on operating conditions and
proper connection. Before connecting compatible i.LINK devices to your system, such as an optical or hard disk drive,
confirm their operating system compatibility and required operating conditions.
Page 9
About the Back Panel (PCV-RZ series model)
The back panel of your computer contains the ports for supplied and optional accessories. The icons on the back panel
locate and identify the ports on your computer.
Back panel (PCV- RZ series m odel)
1
AC Input port
Connection for the supplied power cord.
2
Mouse port
Connection for a PS/2® mouse.
3
Keyboard port
Connection for a PS/2 keyboard.
4
Printer port
Connection for a parallel device, such as a printer or scanner.
5
Monitor port1
Connection for a standard display.
Page 10
6
i.LINK 6-pin S400 port (IEEE 1394)
Connection and power for a compatible digital device such as a Sony Digital Handycam® camcorder.
7
Universal Serial Bus (USB 2.0) ports (4)
Connections for compatible high/full/low-speed USB devices.
8
Microphone jack
Connection for a microphone (optional).
Headphones jack
Connection for the supplied speakers or optional headphones.
Line In jack
Connection for an audio device.
9
Monitor port2
Connection for a standard display.
10
Monitor (DVI) port3
Connection for a DVI monitor.
11
Telephone jack
Connection for a telephone cable (optional) to the computer.
12
Speaker DC Out jack4
Connection for the speaker power cable.
13
S/P DIF optical out port
Connection for a digital audio or optical device.
14
Ethernet port
Connection for a 10BASE-T/100BASE-TX Ethernet.
(The port marked with
15
(Network) is for LAN connections only.)
(For models equipped with Giga Pocket features)
Page 11
Audio Out jack
Connection for an audio cable (supplied).
Video/S-video Out jack
Connection for a video cable adapter (supplied) or an S-video cable (optional).
Audio In jack
Connection for an audio cable (supplied).
Video/S-video In jack
Connection for a video cable adapter (supplied) or an S-video cable (optional).
16
(For models equipped with Giga Pocket features)
VHF/UHF port
Connection for a coaxial cable (supplied).
17
Modem line jack
Connection for the modem (supplied) cable to the wall jack.
1
T his monitor port may have a c over, indic ating that it is not available for us e. O n s ome models , the monitor port loc ation may be in a different loc ation.
2
O n s ome loc ations , the monitor port loc ation may be in a different loc ation.
3
A DV I monitor port is available on s elec ted models only.
T he s peaker model s upplied with your c omputer may vary, depending on the s ys tem purc has ed. See the online s pec ific ation s heet for information on
s upplied ac c es s ories .
4
Page 12
About the Remote Control
(For models equipped with Giga Pocket features)
Giga Pocket Personal Video Recorder features are controlled with the remote commander1. The remote commander can
start and stop video recording and playback, select channels, and set viewing preferences. This section describes the basic
functions of your remote commander.
Rem ote control
1
MUTE button
Press to turn off the sound. Press again to restore the sound.
2
Channel number buttons (1-9)
Press to select specific channels.
(Press the ENT button to activate channel selection.)
JUMP button
Press to return to the previous channel. Press again to return to the current channel.
ENT button
Page 13
Press to activate channel selection. See Channel number buttons.
3
SIZE button
Press to view the current software in full-screen size. Press again to return the view to its original size.
4
AUDIO button
Press to view available sound mode options on the monitor/display.
5
DVD angle button
Press to change the camera angle during DVD playback. See the DVD player software for details. This function is not
available for other software.
DVD Subtitle button
Press to turn on/off subtitles or to change the subtitle language during DVD playback. See the DVD player software for
details. This function is not available for other software.
DISPLAY button
During DVD playback in full screen mode, press to show the settings window.
When using Giga Pocket software, press to display the TV/Recording deck and playback deck screens. Press again to hide
these views.
TV/VIDEO button
Press to change the on-screen image from the TV/Recording deck to external video equipment, such as your VCR.
(Note: You cannot change the input source while recording.)
6
REW and FF buttons
Press to rewind or fast-forward.
PREV and NEXT buttons
Press to move back to the previous screen or forward to the next screen.
7
TITLE button
The function of this button may vary between DVDs. See the DVD player software instructions for details.
8
CANCEL button
When using Giga Pocket software, press to close an error message dialog box. The window returns to its original size when
displayed in full-screen mode.
Page 14
(Note: This function is not available for other software.)
9
STANDBY button
Press to place the system into Stand by mode.
(Note: You can not place the computer into Stand by mode when certain Giga Pocket functions are running.)
10
MODE switch
Set the switch from 1 to 3, to change the remote commander's control between computers. The target computer's remote
commander software determines the assigned number.
(Note: The default setting is 1, if you are using a single computer.)
11
MENU button (upper)
Press to view a shortcut menu of available software applications. Press again to hide this window.
(Note: For Giga Pocket software, the Select Video Capsules window displays.)
START button
Press to start the selected software.
CLOSE button
Press to close the current software.
FUNCTION button
When Giga Pocket software is selected with the Menu button, press to switch from the TV/recording deck to the playback
deck.
When using SonicStage software, press to switch from the music drive (hard disk drive) to the CD.
12
CHANNEL button
Press to change channels automatically (no number input required).
(Note: This function is available for Giga Pocket software only.)
13
VOLUME button
Press to raise or lower the volume.
14
REC button
Page 15
Press to begin recording.
REC MODE button
Press to select the recording mode.
REC STOP button
Press to stop recording.
(Note: These functions are available for Giga Pocket software only.)
15
PLAY STOP button
Press to stop playback.
PLAY button
Press to begin playback.
PAUSE button
,Press to pause playback.
16
MENU button (lower)
Press to display the root menu during DVD playback. Press again to minimize the window. See the DVD player software for
details.
When using Giga Pocket software, press to display Video Capsule listings.
When using SonicStage software, press to display Playlists.
When using VAIO Media software, press to display the main menu.
17
Direction and ENTER buttons
Press a direction arrow to navigate. Press ENTER to select.
18
RETURN button
Press to return to the previous screen.
(Note: This function is not available for Giga Pocket software.)
For more details about the function buttons on your remote commander, see the Giga Pocket Help.
1
T he remote c ommander is s upplied with models that are equipped with Giga P oc ket features .
Page 16
About the Front Panel (PCV-RX series model)
The front panel of your VAIO Computer enables access to the optical and floppy disk drives. It also includes access to the
Memory Stick media slot, Universal Serial Bus (USB), and i.LINK® ports to connect compatible peripheral devices.
Front panel (PCV- RX series m odel)
1
Optical drive 1
See the online specifications sheet for optical drive information.
2
Optical drive 2
See the online specifications sheet for optical drive information.
3
Floppy disk drive
Reads and writes data from and to a 3.5-inch floppy disk.
4
Floppy disk drive access indicator
Light is green while reading and writing data from and to a floppy disk.
5
Optical drive access indicator
Light is amber while reading and writing data from and to the optical drives.
6
Hard disk drive access indicator
Page 17
Light is amber while reading and writing data from and to the hard disk.
7
Power button and power indicator
Turns the computer on/off. The indicator light is blue while the power is on and amber when the computer is in Stand by
mode.
8
i.LINK 4-pin S400 port (IEEE 1394)
Connection for a compatible digital device.
9
Optical drive 1 eject button
Ejects a disc from Optical drive 1.
10
Optical drive 2 eject button
Ejects a disc from Optical drive 2.
11
Memory Stick® media slot
Reads and writes data from and to a Memory Stick media.
12
Floppy disk eject button
Ejects a floppy disk.
13
Universal Serial Bus (USB 2.0) ports (4)
Connections for compatible high/full/low-speed USB devices.
For your convenience, your computer includes USB and i.LINK ports on both the front and back panels. The 4-pin
i.LINK port is located on the front panel and the 6-pin i.LINK port is located on the back.
Page 18
About the Back Panel (PCV-RX series model)
The back panel of your computer contains the ports for supplied and optional accessories. The icons on the back panel
locate and identify the ports and jacks on your computer.
Back panel (PCV- RX series m odel)
1
Mouse port
Connection for a PS/2® mouse.
2
Keyboard port
Connection for a PS/2 Keyboard.
3
Printer port
Connection for a parallel device, such as a printer or scanner.
4
Monitor port1
Connection for a standard display.
5
i.LINK 6-pin S400 port (IEEE 1394)
Connection for a compatible digital device.
6
S/P DIF optical out port
Page 19
Connection for a digital audio or optical device.
7
Universal Serial Bus (USB 2.0) ports (4)
Connections for compatible high/full/low-speed USB devices.
8
Microphone jack
Connection for a microphone (optional).
Headphones jack
Connection for the supplied speakers or optional headphones.
Line In jack
Connection for an audio device.
9
Monitor port2
Connection for a standard display.
10
Telephone jack
Connection for a telephone cable (optional) to the computer.
11
AC Input port
Connection for the supplied power cord.
12
Speaker DC Out jack3
Connection for the speaker power cable.
13
Ethernet port
Connection for a 10BASE-T/100BASE-TX Ethernet. (The port marked with
14
(Network) is for LAN connections only.)
Monitor (DVI) port4
Connection for a DVI monitor.
15
Modem line jack
Connection for the supplied modem cable to the wall jack.
1
T his monitor port may have a c over, indic ating that it is not available for us e. O n s ome models , the monitor port loc ation may be in a different loc ation.
Page 20
2
O n s ome loc ations , the monitor port loc ation may be in a different loc ation.
T he s peaker model s upplied with your c omputer may vary, depending on the s ys tem purc has ed. See the online s pec ific ation s heet for information on
s upplied ac c es s ories .
3
4
A DV I monitor port is available on s elec ted models only.
Page 21
Setting Up Your Computer
Your computer may not be equipped with all of these hardware features and the location of the controls, ports, and jacks
may vary from the illustrations shown in this section. See the online specifications sheet for your system's hardware
configuration.

Connecting a Display (Monitor)

Connecting the Speakers

Connecting the Keyboard and Mouse

Connecting the Power Cords

Turning On your Computer
Page 22
Connecting a Display (Monitor)
1.
Plug the display's cable into the monitor port.
2.
If necessary, plug the display's cable into the rear of the display.
To connect a display (PCV- RZ series m odel)
To connect a DVI display (PCV- RZ series m odel)
Install your equipment so that you can easily reach the power outlet in the event of an emergency.
Page 23
Connecting the Speakers
1.
Plug the cable attached to the back of the left speaker into the L Out jack on the back of the right speaker.
2.
Plug the cable attached to the back of the right speaker into the Headphones jack, located on the back panel of
your computer.
3.
Plug the jack end (yellow) of the speaker power cable into the DC In jack (yellow) on the back of the right
speaker.
4.
Plug the jack end (black) of the speaker power cable into the DC Out jack located on the back panel of your
computer.
To connect the PCVA- SP4 speakers (PCV- RZ series m odel)
To connect the PCVA- SP3A speakers (PCV- RX series m odel)
Page 24
Page 25
Connecting the Keyboard and Mouse
1.
Plug the keyboard cable into the keyboard port on the back of the computer.
2.
Plug the mouse cable into the mouse port on the back of the computer.
To connect the keyboard and m ouse (PCV- RZ series m odel)
Page 26
Connecting the Telephone and Modem Cables
1.
Unplug your telephone cable from the wall jack and plug it into the telephone jack located on the back panel of
your computer.
2.
Plug the modem cable (supplied) into the modem line jack, located on the back panel of your computer
3.
Plug the other end of the cable into the wall jack.
To connect the telephone and m odem cables (PCV- RZ series m odel)
Your computer has a protective sticker
covering the Ethernet port located on the rear panel.
Connect only 10BASE-T and 100BASE-TX cables to the Ethernet port. Using other cables or a telephone cable
may result in an electric current overload that can cause a malfunction, excessive heat, or fire in the Ethernet
port. For help on connecting to a network, see your network administrator.
Page 27
Connecting the Power Cords
1.
Plug the power cord into the back of the computer.
2.
Plug both the display and computer power cords into a grounded AC wall outlet or a power strip.
To connect the power cords (PCV- RZ series m odel)
Page 28
Turning On your Computer
When you start your system for the first time, your computer may detect new equipment and display a dialog box that
prompts you to restart your computer. Respond to this prompt immediately.
1.
Press the power button on the computer to turn on the power.
2.
Press the power button on the display to turn on the power.
3.
Press the power button on the right speaker to turn on the power.
To turn on your com puter
(PCV- RZ series m odel with PCVA- SP4 speakers)
To turn on your com puter
(PCV- RX series m odel with PCVA- SP3A speakers shown)
Page 29
Registering your Computer
Take advantage of Sony's commitment to quality customer support and receive these benefits by registering your
computer:

Sony Customer Support — Communicate with a Support Representative to troubleshoot problems you may be
having with your computer.

Limited warranty — Protect your investment. See the Warranty Card for more details.
You are prompted to register your computer the first time you turn on the unit. Follow the on-screen instructions to
complete the registration process. If you are not able to register your computer during the first session, you are provided
with additional registration opportunities later.
Page 30
Setting Up your Dial-up Connection
The first time you turn your computer on, follow these steps to set up your dial-up connection:
1.
Click Start from the Windows taskbar and select All Programs.
2.
Point to Accessories, point to Communications, and then click New Connection Wizard. The Location
Information window appears.
Location Inform ation window
3.
Enter in your information as requested. Click OK. The Phone and Modem Options window appears.
Phone and Modem Options window
4.
Click to select your dialing location and then click OK. The New Connection Wizard appears.
New Connection Wizard window
Page 31
5.
Follow the on-screen instructions to finish setting up your dial-up connection.
Page 32
Turning Off your Computer
Follow these steps when you are ready to turn off your computer for an extended period of time.
To avoid loss of data, do not use the Power button to turn off the computer.
To turn off your computer
1.
Click Start in the Windows taskbar, then select Turn Off Computer.
The Turn Off Computer dialog box appears.
2.
Select the Turn Off option.
Respond to any prompts about saving your documents.
3.
Wait for your computer to turn off automatically—the power indicator light turns off.
4.
Turn off any peripheral devices connected to your computer.
If you plan to turn off your computer for a short period of time, you may want to use Stand by mode instead.
About the power button
If your system stops responding, press and hold the Power button for more than six seconds to force your system to shut
down. You may need to repeat this procedure if your system does not shut down on the first attempt.
Page 33
Configuring Your VAIO Computer
This section provides basic information about managing your computer's hard disk drive performance, using i.LINK devices,
Memory Stick media, PC Cards, and changing default settings. Your computer may not be equipped with all of the hardware
features described in this section, depending on the system configuration purchased. To view the specific hardware
configuration for your computer, see the online specifications sheet.

About Your Hard Disk Drive

About i.LINK Compatibility

About the Memory Stick Media Slot

About VAIO Action Setup

About the Sony Software Window Design
Page 34
About Your Hard Disk Drive
To improve the performance of Sony audio and video software applications, the hard disk drive on your computer has been
formatted with two partitions, C and D. Some Sony software applications save files to the drive D partition. This prevents
large video captures from consuming the available space on your drive C partition.
To maintain optimum system performance, you should defragment your computer's D partition regularly.
Defragmenting your hard disk drive
If you encounter frame dropping while recording digital video onto your hard disk drive, defragmentation may be
necessary.
1.
Deactivate your screen saver and close other open applications, if applicable.
2.
Click Start in the Windows taskbar and select All Programs.
3.
Point to Accessories, point to System Tools, and then select Disk Defragmenter.
The Disk Defragment dialog box appears.
4.
Verify that drive D is selected.
5.
Select Action from the menu bar and click Analyze.
It may take a long time to complete the defragmentation process, depending on the data capacity and current
utilization of your computer's hard disk drive(s).
Page 35
About i.LINK Compatibility
Your VAIO® computer may be equipped with a 4-pin and/or a 6-pin i.LINK port, depending on the system configuration
purchased. A 4-pin i.LINK port cannot supply power to a connected i.LINK device. A 6-pin i.LINK port can supply power (10V
to 12V) to a connected i.LINK device, if the device is equipped with a 6-pin connector.
To view the specific hardware configuration for your computer see the online specifications sheet.
The total power supplied by the 6-pin i.LINK port cannot exceed 6 watts.
The following i.LINK 400 Mbps cables are available and recommended for use with your computer: VMC-IL4415,
VMC-IL4435, VMC-IL4615, and VMC-IL6615.
Sony computer supplies, accessories, and peripherals can be purchased from Sony VAIO Direct through the Web site at
http://vaio.sonystyle.com or the toll-free number, 1-888-315-7669.
i.LINK is a trademark of Sony used only to designate that a product contains an IEEE 1394 connection. The i.LINK
connection may vary, depending on the software applications, operating system and compatible i.LINK devices. All products
with an i.LINK connection may not communicate with each other.
Please refer to the documentation that came with your compatible i.LINK device for information on operating conditions and
proper connection. Before connecting compatible i.LINK devices to your system, such as an optical or hard disk drive,
confirm their operating system compatibility and required operating conditions.
Connecting an i.LINK (IEEE 1394) device
1.
Use the symbol to locate the i.LINK port on your compatible i.LINK device and on your computer. Plug the i.LINK
cable connector into this port.
2.
Plug the other end of the cable into the corresponding 4- or 6-pin i.LINK port on your computer.
See the instructions that came with your i.LINK device for more information on installation and use.
Page 36
About the Memory Stick Media Slot
Your computer may not be equipped with a Memory Stick® media slot as described in this section, depending on the
hardware configuration purchased. To view the specific system configuration for your computer see the online specifications
sheet.
A Memory Stick media is a compact, portable, and versatile data storage media designed for exchanging and sharing digital
data with similarly equipped products.
Memory Stick media do not support video file playback. First copy the video file to your hard disk drive and then
playback the file.
Inserting a Memory Stick media
1.
Use your fingertip to pull open the upper front panel cover, as shown.
Opening the front panel (PCV- RZ series m odel)
2.
Insert the Memory Stick® media into the Memory Stick media slot.
Inserting the Mem ory Stick Media (PCV- RZ series m odel)
Page 37
3.
If the media does not insert easily, remove it from the slot and verify that it is not upside-down or backwards.
Carefully reinsert the Memory Stick media, but do not force it into the slot.
Removing a Memory Stick media
A small portion of the Memory Stick media remains extended when it is inserted into the Memory Stick media slot.
1.
Press the extended portion of the Memory Stick media to release it from the Memory Stick slot. The media
extends further, enabling you to grasp it.
2.
Remove the Memory Stick media from the slot carefully.
Rem ov ing the Mem ory Stick Media (PCV- RZ series m odel)
Do not remove the Memory Stick media while the media access indicator light is on. The media or its
data may become damaged.
Protecting data on Memory Stick media
Memory Stick media contain a write-protect tab. The write-protect tab prevents accidental changes to information recorded
on your Memory Stick media. When you slide the write-protect tab to the LOCK position, your Memory Stick media is
write-protected. You cannot delete, copy, or save information on the media while the write-protect tab in the LOCK position.
Page 38
When you slide the tab to the un-LOCK position, you can write to or modify your Memory Stick media's contents.
Locking the Mem ory Stick Media
Page 39
About VAIO Action Setup
VAIO® Action Setup manages the settings for your computer's Shortcut keys (S Keys).
Identifying the Shortcut keys
The programmable S Keys are set to launch the following applications:

S1 — Microsoft® Outlook® Express

S2 — Microsoft® Internet Explorer

S3 — SonicStage

S4 — PictureGear

S5 — MovieShaker


Studio
S5 — Giga Pocket (On selected models equipped with Giga Pocket features.)
S6 — VAIO® Help and Support
Changing the S key settings
You can reprogram the S keys to launch other applications.
1.
Click Start in the Windows taskbar and select All Programs.
2.
Select VAIO Action Setup, then click VAIO Action Setup.
You can also double-click
Setup.
the VAIO Action Setup icon, located in the Windows taskbar, to launch VAIO Action
3.
Click the S Key you want to change.
4.
From the Select Application dialog box, click the option for the desired type of function. The corresponding
applications appear in the list box on the right.
5.
Select an application from the list. Click Next.
You can drag an application to place it into the list box.
6.
The Confirmation Application Name window appears. Click Next.
7.
You may now type a new name and description, if desired. Then click Finish.
Page 40
About the Sony Software Window Design
You can select from different window designs for certain Sony software applications and create your own personal
computing environment.
Changing the window design
1.
Click Start in the Windows taskbar and select the Control Panel.
2.
Click Other Control Panel Options.
3.
Click UI Design Selector.
4.
Click << or >> and select the desired design.
5.
Click Apply.
6.
The "UI Design Selector" window design changes. The window design for your Sony software matches the "UI
Design Selector" window.
7.
To try another selection, click << or >>, then click Apply.
8.
When you have made your selection, click OK. The UI Design Selector closes and the Sony software window
design displays.
You may only use this feature with compatible UI Design Selector software.
Page 41
Upgrading and Maintaining your VAIO Computer
In the future you may want to increase the functionality of your VAIO computer. This section describes how to perform basic
upgrades and maintenance on your system. For more information on upgrading your computer, see your model's System
Reference Manual. You can download the System Reference Manual from the Sony Web site at
http://www.sony.com/pcsupport.

Overview

About the Side Panel

About Add-on Card Installation

About Installing Memory

About the Lithium Battery

About Hard Disk Drive Installation
Page 42
Overview
The upgrading procedures described in this section assume that you are familiar with the general terminology associated
with personal computers and with the safety practices and regulatory compliance required for using and modifying
electronic equipment.
Before upgrading your computer
Disconnect the computer from its power source and from telecommunications links, networks, or modems before you open
the unit or follow any procedures described in this section.
Failure to disconnect your computer from its power source may result in personal injury or equipment damage.
Your computer may not be equipped with all of the hardware features mentioned in this section. The interior configuration
of your system may vary from the illustrations, depending on the computer purchased. To view the specific hardware
configuration for your system, see the online specifications sheet.
You may need to temporarily remove add-on cards or other components that may be near the slot cover you plan to
remove.
Electrostatic discharge (ESD) can damage disk drives, add-on cards, and other components. Follow the
procedures described here only at an ESD workstation. If such a station is not available, do not work in a carpeted
area and do not handle materials that produce or hold static electricity (for example, cellophane wrappers). Ground
yourself by maintaining continuous contact with an unpainted metal portion of the chassis while performing the
procedure.
Always turn the power off before you open the system or connect your computer to peripheral equipment. Otherwise,
damage may occur to the integrated circuits in your computer.
Page 43
About the Side Panel
Removing the side panel (PCV-RZ series model)
1.
Shut down your computer and turn off all peripheral devices, such as your printer.
2.
Unplug your computer and disconnect any peripheral devices.
3.
Lay the system unit on its side.
4.
Locate the two tabs on the back edge of the right side panel.
5.
Press up on these tabs and slide the side panel towards you.
6.
Lift the side panel up and set aside.
Rem ov ing the side panel (PCV- RZ series m odel)
Removing the side panel (PCV-RX series model)
1.
Shut down your computer and turn off all peripheral devices, such as your printer.
2.
Unplug your computer and disconnect any peripheral devices.
3.
Locate the tab on the upper right side of the rear panel, and pull it back until the side panel releases.
4.
Lift the side panel away from the unit and set aside.
Rem ov ing the side panel (PCV- RX series m odel)
If you remove the side panel immediately after you shut down your computer, the components may be too
hot
Page
44
to touch. Wait until the internal parts of the system unit cool down before you attempt to remove the side panel.
Replacing the side panel (PCV-RZ series model)
1.
Lay the system unit on its side.
2.
Align the tabs on the side panel to the tracks on the chassis frame.
3.
Gently slide the side panel onto the chassis, until the tabs lock the panel into place.
Replacing the side panel (PCV- RZ series m odel)
Replacing the side panel (PCV-RX series model)
1.
Align the tabs on the side panel to the chassis rim.
2.
Press the side panel firmly against the unit until it snaps into place.
Replacing the side panel (PCV- RX series m odel)
Page 45
About Add-on Card Installation
Your computer may have one or more open expansion slots, depending on the model configuration. An expansion slot
enables you to install add-on cards to expand the functionality of your system. The length of the add-on card should not
exceed 9.05 inches.
Add-on card configuration varies by model. Some models, such as Configure-to-Order (CTO) systems, may contain
preinstalled add-on cards.
Observe the proper safety precautions when you add cards to your Sony computer. See Before upgrading your
computer.
installing an Add-on Card
1.
Shut down your computer and turn off all peripheral devices, such as your printer.
2.
Unplug your computer and any peripheral devices.
3.
Remove the side panel. See About the Side Panel.
4.
Locate an available expansion slot. Remove the slot cover's screw, and then remove the slot cover.
When removing a slot cover, be careful not to damage components on the system board or add-on
cards. You may need to temporarily remove add-on cards or other components that may be next to the slot cover
you want to remove.
Rem ov ing the slot cov er
5.
Install the add-on card by inserting it into the expansion slot and secure it with the screw from the expansion
slot cover.
Installing an add- on card
Page 46
6.
Attach any internal cables that the card requires. See the instructions supplied with the add-on card.
7.
Replace the side panel. See About the Side Panel.
8.
Reconnect the power cord and all peripheral devices.
9.
Turn on the computer.
Page 47
About Installing Memory
The amount of preinstalled memory may vary, depending on the system configuration you purchased. Your computer may
ship with all available memory slots filled. See the online specifications sheet for details about the amount of memory
installed in your computer. For memory replacement or upgrades, use only 2.5 V, 64-bit, PC2700 DDR-SDRAM Dual Inline
Memory Modules (DIMM).
You can purchase additional memory modules, accessories, and peripheral equipment from your local retailer.
Observe the proper safety precautions when you add or remove the memory in your computer. See Before
upgrading your computer.
Removing a memory module
1.
Shut down your computer and turn off all peripheral devices, such as your printer.
2.
Unplug your computer and all peripheral devices.
3.
Remove the side panel. See About the Side Panel.
4.
Gently place the unit on its side. If necessary, remove any cables, add-on cards, or other components to access
the memory module slots.
To remove the power supply (for PCV-RX series model only)
1.
Remove the screw that secures the power supply unit to the chassis.
2.
Pull the tab that releases the power supply from the chassis.
3.
Slide the power supply unit up until it clears the chassis.
4.
Rotate the power supply to an upside down position and rest it beside the chassis.
5.
Locate the memory module(s) you wish to remove.
6.
Push down on the latches, located on both sides of the module, to gently eject it from the slot.
7.
Grasp one edge of the module and lift it out. Store the module in a static-free bag.
Gently handle the memory module by the sides only. Avoid touching the pins located at the bottom edge
of the module.
Rem ov ing/Installing m em ory (PCV- RZ series m odel)
Page 48
Installing a memory module
1.
Shut down your computer and turn off all peripheral devices, such as your printer.
2.
Unplug your computer and any peripheral devices.
3.
Remove the side panel. See About the Side Panel.
4.
Gently place the unit on its side. If necessary, remove any cables, add-on cards, or other components to access
the memory module slots.
To remove the power supply (for PCV-RX series model only)
1.
Remove the screw that secures the power supply unit to the chassis.
2.
Pull the tab that releases the power supply from the chassis.
3.
Slide the power supply unit up until it clears the chassis.
4.
Rotate the power supply to an upside down position and rest it beside the chassis.
5.
Remove the memory module from its anti-static package, handling it by the the edges.
6.
Locate the notch on the bottom edge of the module to align it over the open memory slot.
7.
Firmly insert the bottom edge of the memory module into the slot.
Page 49
8.
Press down evenly against the module's upper corners. The end latches snap into position, holding the module
in place.
To avoid damaging a memory module slot, move the end latches slightly outward to relieve
pressure. The module clicks into place.
9.
Reinstall any components or add-on cards you may have removed.
To Reinstall the power supply (for PCV-RX series models only)
1.
Rotate the power supply unit to its original position and slide it into the chassis until the tab snaps
into position.
2.
Replace the screw that secures the power supply to the chassis.
10. Replace the side panel. See About the Side Panel.
Page 50
About the Lithium Battery
The lithium battery starts to weaken after several years and the system settings, such as the date and time stored in
CMOS RAM, may become inaccurate. Replace the lithium battery when this occurs.
There is danger of the battery exploding if it is replaced incorrectly. Replace the battery only with a
CR2032-type lithium battery.
Replacing the lithium battery
1.
Write down any changes you may have made to the settings in the BIOS Setup utility.
2.
Shut down your computer and turn off all peripheral devices, such as your printer.
3.
Unplug your computer and the peripheral devices.
4.
Remove the side panel. See About the Side Panel.
5.
If necessary, remove any cables, add-on cards, or other components to access the lithium battery.
6.
Remove the old battery and install the new battery with the plus (+) side up.
Installing a lithium battery (PCV- RZ series m odel)
7.
Replace the side panel. See About the Side Panel.
The values stored in the CMOS memory are now reset to the factory default values. Run the Setup utility to reset the date,
time, passwords, and other changes you may have made to the BIOS settings. If you do not wish to customize your BIOS
settings, do not run the Setup utility.
Dispose of the lithium battery properly. In some areas, the disposal of lithium batteries in household or
business trash may be prohibited. You can return your unwanted lithium batteries to your nearest Sony Service Center
or Factory Service Center. To locate a Service Center near you, visit the Sony Computing Support Web site at
http://www.sony.com/pcsupport.
Resetting the computer's date and time
To reset your computer's date and time:
1.
Double-click the time readout displayed in the Windows® Taskbar Notification area. The Date and Time properties
window appears.
2.
From the Date & Time tab, change the settings as desired. Click Apply, and then click OK.
Page 51
About Hard Disk Drive Installation
Your computer comes with an available internal bay to hold a second standard 3½-inch hard disk drive. Some models, such
as Configure-to-Order (CTO) systems, may already have a second hard disk drive installed. Your system can support up to
ATA-100 hard disk drives. Sony recommends using an ATA-100 hard disk drive to take full advantage of your system's
features.
The hard disk drive access light blinks when either internal hard disk drive is active.
Using the Sony Computing Support Web site
For detailed information about installing additional hard disk drives, see the System Reference Manual. You can download
the System Reference Manual from the Sony Computing Support Web site at: http://www.sony.com/pcsupport.
Your computer must have an active Internet connection to access the Sony Computing Support Web site.
From the Sony support Web site:
1.
Click on PC - Desktops and click to select the appropriate model series from the submenu.
2.
Click the link for your computer model number. The model-specific support page appears.
3.
Under Documentation, click System Reference Manual or System Reference Guide.
Observe the proper safety precautions when you upgrade your Sony computer. See Before upgrading your
computer.
Installing an additional hard disk drive
1.
Shut down your computer and turn off all peripheral devices, such as your printer.
2.
Unplug your computer and any peripheral devices.
3.
Remove the side panel. See About the Side Panel.
4.
Configure the jumpers on the new drive as a slave. See the configuration instructions supplied with your drive.
5.
Detach the power and drive cables from the original hard disk drive that is preinstalled in your computer.
6.
Unlock the drive holder from the chassis by pulling the drive holder tab up at a slight angle.
To unlock the drive holder (for PCV-RX series models only)
Unlock the drive holder from the chassis by pulling down on the tab located at the bottom of the drive holder.
7.
Slide the drive holder out.
Rem ov ing the driv e holder (PCV- RZ series m odel)
Page 52
Rem ov ing the driv e holder (PCV- RX series m odel)
8.
Slide the new drive into the drive holder and align the holes on each side of the drive bay.
9.
Secure the drive to the drive holder with screws, through the holes on each side of the drive holder.
Attaching the driv e screws
Your new hard disk drive is supplied with the necessary screws. Do not overtighten these screws when securing
the drive to the drive holder.
10. Align the drive holder with the tracks on the inside of the chassis. Slide the drive holder in completely.
11. Push down on the drive holder tab to lock the drive into position.
Page 53
To lock the drive holder (for PCV-RX series model only)
Push up on the bottom tab on the drive holder to lock the drive into position.
12. Reconnect the power and drive cables to the original hard disk drive.
13. Connect the second drive connector to the new drive. Orient the connector to align pin 1 on the red side of the
ribbon cable with pin 1 on the new drive.
14. Connect the second power connector to the new drive following the instructions supplied with the drive.
Replacing the driv e holder (PCV- RZ series m odel)
Replacing the driv e holder (PCV- RX series m odel)
15. Replace the side panel. See About the Side Panel.
16. Reconnect the power cord to your computer.
Identifying the additional hard disk space
When you initialize the new hard disk, it must be configured as an extended partition in Windows NT file system (NTFS)
format.
1.
Log on to Windows ® as Administrator.
2.
Click Start in the Windows taskbar, then right-click My Computer. A shortcut menu appears.
3.
Select Manage. The Computer Management window appears.
4.
Under the file directory on the right, go to Storage and then select Disk Management.
Page 54
5.
Right-click on the newly installed, unformatted hard disk (Disk label identified with red marking). From the
shortcut menu, select Initialize Disk.
6.
Click on the Unallocated area of the disk and then right-click to display a shortcut menu.
7.
Select New Partition. The New Partition wizard appears.
8.
Follow the wizard's on-screen instructions to complete the process.
The Windows ® XP operating system recognizes the new hard disk drive and applies the NTFS format.
Page 55
System And Application Recovery CD(s)
You can restore your system, individual software applications, or drivers, using the Recovery CDs.

Using the System Recovery CD(s)

Using the Application Recovery CD(s)
Page 56
Using the System Recovery CD(s)
The System Recovery CD utility formats your hard disk drive and restores the operating system and all the original,
preinstalled software applications. If the operating system or applications become corrupted or are erased, you can restore
your computer to the original factory settings. The System Recovery CD can only be used to restore the hard disk drive of
the Sony computer you purchased.
The System Recovery process removes all software that you may have installed since you started using your
computer. Reinstall any applications that were not included with the computer when you purchased it.
If you experience a problem with your computer, reinstalling an individual application or device driver may correct the
problem. You may not need to recover the entire contents of your hard drive.
Use the Application Recovery CD(s) to reinstall individual applications.
When you successfully complete your system recovery, you are prompted to complete the Windows registration process.
Page 57
System Recovery options
Default System Drive Recovery (Recommended)
All data on Drive C is deleted. The factory default settings and software applications are restored on this drive only.
Change partition size and recover
All partitions, custom installations, and changes are removed from the hard disk drive. You can set the partition sizes for
both the Drive C and Drive D. The original, preinstalled operating system and software applications are restored.
Factory Default Settings Recovery
All data and partitions are removed from the hard disk drive. All original factory settings, operating system, and preinstalled
software are restored.
The System Recovery utility does not back up your system's data. If you wish to retain your system data,
perform a back up to an external media.
Page 58
Using the System Recovery CD(s)
Your system may take a few minutes to load necessary files. A blue screen appears during the downloading process.
1.
Press the disc eject button to open the optical disc drive and extend the disk tray.
2.
Insert the System Recovery CD (CD #1) in your computer's optical drive 1.
3.
Press the disc eject button to close the optical disk drive tray.
The System Recovery utility starts from the optical drive. The first CD must be in the drive when you turn on your
computer.
Inserting the System Recov ery CD (PCV- RZ series m odel shown)
If your system is equipped with two optical drives, insert the System Recovery CD into the upper optical drive.
4.
Turn off your computer.
5.
Wait 30 seconds and turn on your computer. Your screen displays the downloading progress, "Starting VAIO
Recovery Utility."
6.
When the VAIO System Recovery Utility dialog box appears, click Next.
7.
The Notes on Use window appears. Click Next.
8.
On the Main Menu - Product Recovery window, select the appropriate option to recover your system.
Follow the on-screen instructions to complete the recovery process.
Your system may include one or more System Recovery CDs. If you have more than one System Recovery CD, insert the first
CD to run the System Recovery program. You are prompted to insert the next CD(s) once the information from the first CD
has been installed.
The recovery process takes approximately 30 to 60 minutes to complete.
After recovering your system using the System Recovery CD(s), you may be prompted to insert your Application Recovery
CD(s) after restarting Windows. Use the Application Recovery CD(s) to complete full restoration of your system.
Page 59
Using the Application Recovery CD(s)
The Application Recovery CD utility enables you to reinstall your system's original software, drivers, and to repair software
applications if they become corrupted or are erased. You can reinstall a specific application or driver to correct a problem
that you are experiencing with your computer or peripheral hardware. You may not need to reinstall the entire contents of
your hard drive to correct certain problems. You must be in Windows to run the Application Recovery CD utility.
To reinstall all of the software that shipped with your computer, use the System Recovery CD(s).
Page 60
Reinstalling software
1.
Turn on your computer. If your computer is already on, save and close all open applications.
2.
Logon to go to the Windows ® desktop.
3.
Insert Application Recovery CD #1 into your computer's optical drive. The Application Recovery utility loads
automatically.
If your system is equipped with two optical drives, insert the Application Recovery CD into the upper optical
drive.
4.
Click OK in the VAIO welcome window. The Sony Application Recovery Program window appears.
5.
Double-click the Software folder. Icons representing the original, preinstalled software are displayed.
6.
Double-click the application you want to reinstall. The software's installation wizard begins.
7.
Follow the on-screen instructions to complete the application recovery process.
If you have questions about using the Application Recovery CD(s), visit the Sony Computing Support Web site at
http://www.sony.com/pcsupport.
Page 61
Reinstalling device drivers
The Microsoft® Windows ® XP operating system is capable of reinstalling the original factory-installed device drivers, without
using the Application Recovery CD(s).
1.
Click Start in the Windows taskbar, then right-click My Computer. A shortcut menu appears.
2.
Click Properties. The System Properties dialog box appears.
3.
From the Hardware tab, click the Device Manager button.
4.
Right-click to select the unknown device1 or the device that requires the driver installation and click Update
Driver from the shortcut menu. The Hardware Update Wizard appears.
5.
Follow the on-screen instructions to locate the device and reinstall the appropriate device driver.
If Windows XP does not reinstall the device driver(s), follow the steps in the next section to reinstall the device
driver(s) using the Application Recovery CD(s).
1
A n unknown devic e(s ) is identified by a yellow ques tion mark. A devic e that has a driver problem is identified by a yellow exc lamation mark.
Page 62
Reinstalling device drivers using Application Recovery CD(s)
1.
Logon to go to the Windows ® desktop.
2.
Insert Application Recovery CD #1 into the optical disc drive. The VAIO welcome window appears. Click OK, then
click Quit to close the Sony Application Recovery utility.
3.
Without removing the Application Recovery CD from the optical drive, click Start in the Windows taskbar and then
right-click My Computer. A shortcut menu appears.
4.
Click Properties. The System Properties dialog box appears.
5.
From the Hardware tab, click the Device Manager button.
6.
Right-click to select the unknown device or the device that requires the driver installation and click Update Driver
from the shortcut menu. The Hardware Update Wizard appears.
7.
Click to select the option, Install from a list or specific location (Advanced). Click Next.
8.
Click to cancel the option, Search removable media (floppy, CD-ROM...).
9.
Select the check box for Include this location in the search and click Browse. The Browse for Folder dialog box
appears.
10. Navigate to the optical drive and click to select the Application Recovery CD. The CD contents are displayed.
11. Click to open the drivers folder and click the folder for the device you want to reinstall.
12. Click OK to return to the Hardware Update Wizard. Click Next.
13. Select the device folder, and click Next.
The Microsoft® Windows ® XP operating system automatically reinstalls the device driver(s) from the Application
Recovery CD.
14. Click Finish and remove the Application Recovery CD from the optical drive.
15. Click Start in the Windows taskbar, select Turn Off Computer. The Turn Off Computer dialog box appears.
16. Select the Turn Off option.
17. Wait 30 seconds, and turn on your computer.
Your system includes one or more Application Recovery CDs. Insert Application Recovery CD #1, to start the application
or driver recovery process. You are prompted to insert the next CD(s), depending on the software application or driver you
wish to restore.
Page 63
Troubleshooting
This section describes how to troubleshoot common problems. You can also find helpful information on how to use your
computer's hardware features and preinstalled software. Your computer may not be equipped with all of the features or
software discussed in this section, depending on the system configuration purchased.

About VAIO Computer Functions

About Software

About Using the Optical Disc Drive(s)

About the Mouse and Keyboard

About the Modem

About the Speakers

About Using a Microphone

About Using Peripheral Equipment
Page 64
About VAIO Computer Functions
My computer does not start.

Verify that the computer is plugged into a power source and that it is turned on. Check that the power indicator is lit
on the front panel of the computer.

Confirm that a disk is not in the floppy disk drive1 (unless you are using a bootable floppy disk).

Confirm that a CD is not in an optical drive (unless you are using a bootable CD).

Confirm that the power cord and all cables are connected firmly.

If you plugged the computer into a power strip or Uninterruptible Power Supply (UPS), make sure the power strip or
UPS is turned on and working.

Verify that the monitor is plugged into a power source and turned on.
If your system has a built-in monitor, confirm that it is plugged into an appropriate power source and that the
system is turned on.

Verify that the brightness or contrast control dials are adjusted correctly. (See the manual that came with your
display for details.)

Confirm that the computer is not in stand by mode by pressing any key on the keyboard.
Why did my computer or software stop responding?
You can try to locate and close the software application that has stopped responding.
1.
Press the Ctrl+Alt+Delete keys. The Windows Task Manager window appears.
2.
From the Applications tab, locate the application that has the status message, "Not responding."
3.
Select the application that has a Not Responding status and click End Task. Windows attempts to close the
application.
If your computer does not respond or the application does not close, try the following steps:
1.
Save any open files, if possible.
2.
Press the Alt+F4 keys. The Turn Off Computer window appears.
3.
Click Restart.
If your computer still does not respond and you cannot restart, shut down your computer by pressing and holding the
power button for more than six seconds.
If the software application continues to stop responding or causes your computer to stop responding, contact the software
publisher or designated technical support provider.
Pressing and holding the power button for more than six seconds, may result in the loss of data from files that
are currently open.
Why does the Windows operating system stop responding during shutdown?
The Windows operating system may not shut down properly for many reasons, including incompatible or conflicting drivers,
damaged files, or non-responsive hardware. For troubleshooting information, you can search Windows Help.
1.
Click Start in the Windows taskbar and select Help and Support. The VAIO Help and Support Center menu
appears.
2.
Select Fixing a Problem and then select Startup and Shut Down problems. A list of specific problem topics
appears on the right side of the dialog box.
3.
Select Startup and Shutdown Troubleshooter. Follow the on-screen instructions according to your specific
situation.
Page 65
I cannot find the Windows taskbar.
The Windows taskbar may be hidden or minimized.

Use the mouse to locate a hidden taskbar by pointing to the left, right, top, and bottom edges of the screen. The
taskbar appears when the cursor is placed over its location.

1.
Right-click on the taskbar and select Properties from the shortcut menu.
2.
Clear the check box for Auto-hide the taskbar, then click OK.
Use the mouse to locate a minimized taskbar by pointing to the left, right, top and bottom edges of the display
screen. The taskbar has been located when the cursor changes to a double arrow cursor. Left-click and drag away
from the edge of the display screen. The minimized taskbar resizes and becomes visible.
Why is my system running slowly?

The system responsiveness varies depending with the number of applications that are open and running. Close any
applications that you are not currently using.

Increasing the system memory may also help. For information on installing memory, please see the online VAIO User
Guide.
To access the online User Guide:
1.
Click Start in the Windows taskbar, then click Help and Support.
2.
From the VAIO Help and Support Center menu, click VAIO User Guide.
How do I change the video resolution of my display?
1.
Click Start in the Windows taskbar and then select Control Panel.
2.
Select Appearance and Themes, then select Change the screen resolution.
3.
Click the Settings tab.
4.
Change the Screen resolution and Color quality to the desired levels.
5.
Click Apply and then click OK.
How do I change the parallel port type to ECP, EPP, or bi-directional?
You can change the parallel port2 type using the System Setup utility (CMOS Setup Utility). To access System Setup:
1.
Click Start in the Windows taskbar and select Turn Off Computer. Select Restart.
2.
When the Sony screen displays, press the F2 key on your keyboard.
3.
Select the Advanced tab from the Setup Utility screen.
4.
Select I/O Device Configuration and press Enter.
5.
Use the arrow keys to highlight Parallel Port Mode and press Enter.
You can toggle between the Normal (bi-directional), EPP, ECP, and ECP+EPP options using the directional arrow
keys.
6.
Select the desired setting displays, and press Enter.
7.
Press the F10 key to Save and Exit.
Where can I find a listing of my computer's preinstalled hardware?
You can find details about the drives, cards, and memory modules that are installed on your system by viewing the online
specifications sheet. This online document describes the hardware configuration of your VAIO computer.
Page 66
To access the online specifications sheet:
1.
Click Start in the Windows taskbar, then click Help and Support.
2.
From the VAIO Help and Support Center menu, click VAIO User Guide.
3.
Click the Welcome link. The Welcome page displays in the right-side frame.
4.
Locate the link in the text, "View the VAIO® Computer Specifications..."
1
C ertain V A I O c omputers are not equipped with a floppy dis k drive. Y ou c an purc has e this equipment s eparately.
2
Y our V A I O c omputer may not be equipped with a parallel port. See the online s pec ific ations s heet for details on your c omputer's hardware c onfiguration.
Page 67
About Software
Your computer may not be supplied with all of the software discussed in this section, depending on the system
configuration you purchased.
How do I create an audio CD with preinstalled Sony software?
Your VAIO® computer has SonicStage software preinstalled on your computer. SonicStage is a digital music management
software that enables you work with digital music from audio CDs and from the Internet. You can play music on your
computer, create custom audio CDs, and check music out to compatible digital music devices.
SonicStage software employs OpenMG copyright protection technology and advanced ATRAC3
you to enjoy digital music while protecting the rights of copyright holders.
audio file format to allow
To access SonicStage software Help
1.
Click Start in the Windows taskbar, and click All Programs.
2.
Point to SonicStage, and click SonicStage.
3.
On the Help menu, click SonicStage Help.
How do I use the System Restore feature in Windows XP?
System Restore is a feature of the Microsoft® Windows ® XP operating system that enables you to restore your computer to
a previous state, if a problem occurs. System Restore provides the following support:

Restores your system to a previous state.

Restores without erasing your personal data files.

Creates restore points daily and when software applications or utilities are installed.

Maintains storage of one to three weeks of past restore points.

Enables you to create your own custom restore points.

Locates the dates associated with the restore points.

Performs restorations that are reversible.

Enables different types of restore points.
To Use the System Restore Wizard
1.
Click Start in the Windows ® taskbar and click Help and Support. The VAIO Help and Support window appears.
2.
Under Pick a Help topic, click Performance and maintenance.
3.
Under Performance and maintenance, click Using System Restore to undo changes. A submenu appears on the
right.
4.
Under Pick a task, click Run the System Restore Wizard. The System Restore wizard dialog box appears.
5.
Follow the on-screen instructions to restore your system or create a custom restore point.
How do I copy files to a recordable CD or DVD media?
You can copy files to recordable media, using the installed CD-RW, DVD-RW, or DVD±RW drive. Your installed optical disc
drive may vary, depending on the hardware configuration purchased.
To copy files and folders to a CD using Windows XP
1.
Insert a blank CD-R or CD-RW disc into your CD-RW, DVD-RW, or DVD±RW drive. (If the CD Drive window
appears, click Take no action.)
2.
Page 68
Click Start in the Windows ® taskbar and click My Computer. Locate the files and folders you want to copy to the
CD.
3.
Point to select a file or folder, or select several files or folders by holding down the CTRL key while pointing to
each of the files you want.
4.
Under File and Folder Tasks, click Copy this file, Copy this folder, or Copy the selected items.
If the files are located in My Pictures, under Picture Tasks, click Copy to CD or Copy all items to CD. Skip to step
6.
If your files are located in My Music, under Music Tasks, click Copy to audio CD or Copy all items to audio CD.
Skip to step 6.
5.
In the Copy Items dialog box, click the read/write drive icon1, and click Copy.
6.
Under Other Places, click My Computer, and click the CD-RW or DVD-RW drive.
Windows displays the temporary area that holds the files until they are copied to the CD.
7.
Confirm that the files and folders you want to copy are displayed under Files Ready to Be Written to the CD.
8.
Click Write to CD, under CD Writing Tasks. The CD Writing Wizard starts.
9.
Follow the instructions in the wizard to complete writing the files or folders to the CD.
When the writing process is finished, the wizard displays a check box that enables you to copy another CD. To
create additional copies, click Yes, write these files to another CD, insert a blank CD-R or CD-RW disc, and click
Next.
To copy files to a DVD using preinstalled software
If your VAIO® computer is equipped with a DVD-RW or DVD±RW drive, you can copy files to DVD recordable media, using the
preinstalled RecordNow software. To learn more about using RecordNow, refer to the software's Help.
1.
Click Start in the Windows ® taskbar and click All Programs.
2.
Point to VERITAS Software, point to RecordNow, and then click RecordNow.
3.
If the RecordNow Wizard starts, click Help. If the RecordNow Wizard does not start right away, click Index on
the Help menu.
Where can I find a listing of my computer's preinstalled software titles?
You can find details about the software that is preinstalled on your system by viewing the online specifications sheet. This
online document describes the preinstalled software on your VAIO computer.
To access the online specifications sheet
1
1.
Click Start in the Windows ® taskbar and click Help and Support.
2.
From the VAIO Help and Support menu, click VAIO User Guide.
3.
Click the Welcome link. The Welcome page displays on the right-side frame.
4.
Locate the link in the text, "View the VAIO® Computer Specifications...
T he read/write drive letter des ignation may vary, depending your s ys tem's hardware c onfiguration.
Page 69
About Using the Optical Disc Drive(s)
Your computer may not be equipped with all of the hardware features listed in this section. To view the specific hardware
configuration for your system, see the online specifications sheet.
Why doesn't my optical drive tray open?
To use the Eject button
1.
Make sure the computer is turned on.
2.
Press the Eject button on the drive.
To use the My Computer icon
1.
Click Start in the Windows taskbar, then select My Computer.
2.
Right-click the appropriate optical drive icon.
3.
Select Eject from the shortcut menu.
Avoid using adhesive labels to identify your CD or DVD media. Adhesive labels may come off while the CD or DVD media
is in use in your optical drive(s) and may cause damage to the unit.
The message, "You must insert the application CD into your drive" appears and the software does not start.

Some software applications require specific files that are located on the application's CD. Try inserting the disc and
starting the program again.

Check to make sure you inserted the CD correctly, with the label side facing up.
Why can't I play a DVD or CD media?

After inserting your CD or DVD, wait a few seconds for the system to detect it before trying to access it.

Confirm that the disc is in the tray with the label side facing up.

Install your CD or DVD software according to the manufacturer's instructions.

If your drive reads some DVDs or CDs, but not others, check the shiny side of the disc for dirt or scratches.
To recover the CD or DVD software applications that are preinstalled on your computer, see Reinstalling software for
more information.
Why isn't my DVD playing properly?
If a region code warning appears when you are using the DVD player application, it may be that the region code of the DVD
you are trying to play is incompatible with the region code setting of your optical drive. A region code is listed on the disc
packaging. Region code indicators such as "1" or "ALL" are labeled on some DVDs to indicate the type of player that can
play the disc. Unless a "1" or "ALL" appears on the DVD or on its packaging, you cannot play the disc on this system.
If you hear audio but cannot see video, your computer's video resolution may be set too high. To improve video resolution,
verify that your screen area is set to 1024 x 7681, using 32-bit color (preset factory default). To verify or change your video
resolution:
1.
Click Start in the Windows taskbar and then select Control Panel.
2.
Select Appearance and Themes, then select Change the screen resolution.
3.
Click the Settings tab.
4.
Change the Screen resolution and Color quality to the desired levels.
5.
Click Apply and then click OK.
Page 70
If you see video but cannot hear audio, check all of the following:

Verify that your DVD player's mute feature is turned off.

Check the master volume setting in the Audio Mixer.

Check the volume settings on your computer speakers.

Check the connections between your speakers and the computer.

Verify that drivers are installed properly, by following these steps:
1.
Click Start in the Windows taskbar, then select Control Panel.
2.
Click Performance and Maintenance and then click Systems. The System Properties dialog box appears.
3.
Select the Hardware tab and then select the Device Manager button to view installed drivers.
A dirty or damaged disc may also cause the computer to stop responding while it tries to read the disc. If necessary,
remove the disc and check that it is not dirty or damaged.
To recover the CD or DVD software applications that are preinstalled on your computer, see Reinstalling software for
more information.
Why doesn't my optical drive (DVD-RW or DVD±RW) record to CD-RW media at higher speeds?
If you are having difficulty formatting CD-RW media with your installed DVD-RW or DVD±RW drive, verify that your CD-RW
media supports high-speed writing.
See the Help or documentation that came with your CD or DVD recording software application for details on adjusting the
write speed settings.
Why doesn't my optical drive (CD-RW) record to CD-RW media?
If you are having difficulty with writing, erasing, or formatting on your CD-RW media, the reason may be that the media is
not compatible with your high-speed CD-RW drive. Try using CD-RW media that is identified as "high-speed" (4X or higher)
for maximum performance and compatibility.
1
T he V A I O "W" s eries c omputer us es 1 2 8 0 x 7 6 8 for the default video res olution s etting.
Page 71
About the Mouse and Keyboard
Why doesn't my mouse work properly?

Confirm that the mouse is plugged securely into the mouse port. If you are using a USB mouse, verify that the
mouse is plugged securely into the appropriate USB port.

Save and close all open applications. Turn off your computer, wait approximately 10 seconds, and then restart your
computer.

If you are using an optical mouse, use an appropriate surface to ensure proper mouse tracking. A good mouse
surface requires a certain amount of detail or texture to enable mouse tracking.


Use surfaces such as plain paper, card stock, or fabric that do not have a lot of repetitive patterning.

Avoid surfaces such as mirrors, smooth glass, or magazines.

Avoid possible damage to easily-scratched surfaces by using a mouse pad.

Avoid surfaces that may damage or soil your optical mouse. Dirt or damage may cause the mouse to
malfunction.

If the cursor is not moving properly, try using the mouse on another mousing surface or using a mouse pad.
There may be dust or dirt inside the mouse mechanism. To clean the mouse, follow these steps:

Save and close all applications, and turn off your computer.

Turn the mouse upside down.

Remove the mouse ball cover on the back of the mouse by turning clockwise the ring that covers the
mouse ball.

Turn the mouse upright, and drop the mouse ball into your hand.

Using a piece of tape, remove any dust or dirt on the mouse ball and inside the mouse ball socket.

Return the mouse ball to the socket, and replace the mouse ball cover. Secure the cover by turning the
ring counter-clockwise.
You may need to reinstall the mouse drivers. See Reinstalling device drivers using Application Recovery CD(s) for more
information.
How do I set up my mouse for left-hand use?
1.
Click Start in the Windows taskbar, then click Control Panel.
2.
Click Printers and Other Hardware, then click Mouse. The Mouse Properties dialog box appears.
3.
From the Buttons tab, select Switch primary and secondary buttons under the Button Configuration options.
4.
Click Apply, then click OK.
Why doesn't my keyboard work properly?

Check that the keyboard1is securely plugged into the keyboard port.

Save and close all open applications. Turn off your computer, wait approximately 10 seconds, and then restart your
computer.
1
T he V A I O "W" s eries c omputer has a built-in keyboard.
Page 72
About the Modem
Why is my modem connection slow?
Many factors influence modem connection speed:

Telephone line noise

Incompatibility with other telephone equipment such as fax machines or other modems

Internet Service Providers (ISP) connection capability may vary
If you think your modem is not connecting properly to other PC-based modems, fax machines, or your ISP, check the
following:

Contact your telephone company and ask them to verify that your telephone line is free from line noise.

If your problem is fax-related, check that there are no problems with the fax machine you are calling and that it is
compatible with fax modems.

For optimum performance, verify that your ISP point of presence (POP) telephone number is compliant with V.90
standards.

If you are having a problem connecting with your ISP, check that they are not experiencing technical problems.

Try connecting your modem through another telephone line, if available.
Why doesn't my modem work properly?
Your modem may be experiencing equipment or software conflicts. If your modem is not functioning properly, check the
following:

Check that the telephone line is plugged into the modem line jack.

Check that the telephone line is working properly. You can verify the line by plugging in an external device such as a
standard telephone or fax machine and listening for a dial tone.

Check that the access telephone number (POP) is correct.

All software applications that are preinstalled by Sony are compatible with your computer's modem. If you have
installed other software, contact the software publisher for information on how to configure the software in order to
recognize the modem.

If it appears that your modem is not functioning properly, check the device status.
1.
Click Start in the Windows taskbar, then click Control Panel.
2.
Click Printers and Other Hardware and then select Phone and Modem Options.
3.
From the Modems tab, click to select your modem.
4.
Click Properties. The Modem Properties window appears.
5.
Review the information in the Device status section. If your modem is not working properly, click the
Troubleshoot button. The VAIO Help and Support Center window appears.
6.
Follow the on-screen instructions to resolve the problem.
You may need to reinstall the modem drivers. See Reinstalling device drivers using Application Recovery CD(s) for more
information.
How do I change my modem to rotary or Touch-tone dialing?
1.
Click Start in the Windows taskbar, then click Control Panel.
2.
Click Printers and Other Hardware, then click Phone and Modem options.
Page 73
3.
From the Dialing Rules tab, click Edit. The Edit Location dialog box appears.
4.
Select the Tone or Pulse option. Click OK.
Page 74
About the Speakers
Why is there no sound in any application?

Check that the speakers are plugged into the Headphones jack.

If your speakers have a mute button, verify that it is turned off.

If your speakers are powered by batteries, verify that the batteries are inserted properly and that they are
charged.

If your speakers use an external power source, verify that the power cord is plugged into a grounded wall outlet or
power strip.

If your speakers have volume control, check the volume level.

You cannot hear sound from your speakers if headphones are connected to your computer.

If the software application you are using has its own volume control, check that the volume is turned up.

Check the volume controls in the Windows® operating system using these steps:

1.
Click Start in the Windows taskbar, then select Control Panel.
2.
Select Sounds, Speech, and Audio Devices, then click Adjust the system volume.
3.
From the Volume tab, adjust the Device volume by moving the slider bar to the desired sound level.
Verify that the Mute option is not selected.
Check that the Mute check box is not selected in the Windows volume control.
You may need to reinstall the sound drivers. See Reinstalling device drivers using Application Recovery CD(s) for more
information.
Page 75
About Using a Microphone
Why doesn't my microphone work properly?
Check that the microphone is plugged into the Microphone jack.
Why is my microphone so sensitive to background noise?
If you find there is too much background noise when you record sound, you should adjust the microphone gain by following
these steps:
1.
Click Start in the Windows taskbar, then click Control Panel.
2.
Click Sounds, Speech, and Audio Devices, then click Sounds and Audio Devices.
3.
From the Audio tab, locate the Sound recording section and click Volume. The Recording Control dialog box
appears.
If the volume control for the microphone is visible, skip to step 6.
4.
Select the Options menu and click Properties. The Properties dialog box appears.
5.
In the section, Adjust volume for, select the Recording option. Click OK.
6.
From the Recording Control dialog box, decrease the microphone volume level by moving the slider bar down.
7.
Close the Recording Control dialog box and then close the Sounds and Audio Devices Properties window.
Page 76
About Using Peripheral Equipment
How do I install a printer?

Connect your USB or IEEE 1394 printer to the appropriate port on your computer's front, back or side panels1. If
your printer has a USB, IEEE 1394, or infrared connection, contact the printer manufacturer for information or
updates that may be required for proper installation.

Check the printer manufacturer's Web site for the latest drivers for your operating system before proceeding with
installation. Some printers do not function properly without the updated drivers for specific operating systems.

To install your printer, follow these steps:
1.
Click Start in the Windows taskbar, then click Control Panel.
2.
Click Printers and Other Hardware, then click Add a Printer.
3.
From the Add Printer Wizard, click Next.
4.
Select Local Printer, then click Next.
Place a check mark in the box for "Automatically detect and install my Plug and Play printer", if you are installing a
recently manufactured printer with Plug and Play capability.
5.
Select the appropriate port, usually LPT1, and then click Next.
6.
Select the appropriate printer manufacturer and model.
7.
Follow the on-screen instructions to print a test page and complete printer installation.
If the printer is not included in the list and the printer manufacturer included a disk with a Windows XP Printer
driver, choose Have Disk, enter the appropriate path for the disk or CD and click OK.
If the printer is not included on the list and no drivers are included with the printer, choose an alternate printer driver
that your printer may emulate. Refer to the manual that came with your printer for specific emulation information.
The connected printer does not function properly when the computer resumes from a power saving mode.

Clear the printer memory by turning the printer off for approximately 10 seconds, and then turning it back on.

If your printer does not resume normal operations, try restarting your computer.
1
T he loc ation of the c onnec tion ports for peripheral equipment may vary, depending upon your c omputer's hardware c onfiguration.
Page 77
Notes On Use
The information in this section provides basic procedures for handling your system and common peripheral devices, using
storage media, and locating upgrade procedures. A support resource listing is also provided to help you locate the
appropriate support options.

About the Power Source

About Disposing of the Lithium Battery

About Handling the Computer System

About Handling a Monitor (Display)

About DVD, CD, and Floppy Disk Media
Page 78
About the Power Source
Before opening your computer, turn the system off and let it cool down for 10 minutes. This protects you against
internal components that may be too hot to handle.

Your computer operates on 100-120 V AC 50/60 Hz only.

Plug all the power cords for your computer and its peripheral equipment into the same AC supply line. AC derived
from different supply lines may result in voltage differences that can cause unstable operation or unwanted weak
currents at the time of connection.

Do not share the AC outlet with any other power-consuming equipment, such as copying machines or shredders.

You can purchase a power strip with a surge protector. This device prevents damage to your computer caused by
sudden power surges such as those that may occur during an electrical storm.

If you live in an area that experiences frequent power fluctuations, you may want to purchase an Uninterruptible
Power Supply (UPS). This device contains both a surge protector and a battery backup. The surge protector
prevents damage to your computer caused by power surges. The battery backup safeguards your data during a
brief period of power loss.

The power control button on the front panel does not turn off the system AC power. To remove power from the
system, you must turn off the computer and then unplug the AC power cord from the wall outlet or power strip.

Do not place heavy objects on the power cord.

Do not operate the system with the cover removed. Always reinstall the cover before turning on the system.

To disconnect the cord, pull it out by the plug. Never pull the cord itself.

Unplug your computer from the wall outlet if you do not intend to use the computer for a long time.

Do not attempt to open the power supply. There are no user-serviceable parts in the power supply. To avoid
personal injury or damage to your equipment, refer the repair or replacement of the power supply to qualified
personnel only.
Page 79
About Disposing of the Lithium Battery
Dispose of the lithium battery properly. In some areas, the disposal of lithium batteries in household or business trash may
be prohibited. You can return your unwanted lithium batteries to your nearest Sony Service Center or Factory Service
Center. For the Sony Service Center nearest you, visit the Sony Computing Support Web site at
http://www.sony.com/pcsupport.
Do not handle damaged or leaking lithium batteries. The lithium battery may explode if mistreated. Do
not disassemble it or dispose of it in fire.
Replace the battery with a Sony CR2032 lithium battery. Using a type of battery other than a CR2032 may present a
risk of fire or explosion.
Page 80
About Handling the Computer System
Your computer uses high-frequency radio signals and may cause interference to radio or TV reception. If this occurs,
relocate the computer a suitable distance away from the TV or radio equipment.

Do not place your Sony computer in a location subject to:

Heat sources, such as radiators or air ducts

Direct sunlight

Excessive dust

Mechanical vibration or shock

Strong magnets or speakers that are not magnetically shielded

Ambient temperature of more than 95ºF (35ºC) or less than 50ºF (10ºC)

High humidity, moisture, or rain

Do not place electronic equipment near your computer. The computer's electromagnetic field may cause a
malfunction.

Provide adequate air circulation to prevent internal heat build-up. Do not place your computer on loose surfaces
(such as rugs or blankets) or near materials (such as curtains or draperies) that may block its ventilation slots.
Leave a space of at least 8 inches from the back panel of your computer.

Clean the cabinet with a soft, dry cloth or a soft cloth lightly moistened with a mild detergent solution. Do not use
any type of abrasive pad, scouring powder, or solvent such as alcohol or benzine, as it may damage the finish of
your Sony computer.

Should any solid object or liquid fall into the cabinet, keyboard, or mouse, shut down your computer and then
unplug it. You may want to have the computer checked by qualified personnel before operating it any further.

Use only specified peripheral equipment and interface cables; otherwise, problems may result.

Do not use cut or damaged connection cables.

Always switch the power off before connecting your computer to peripheral equipment; otherwise, damage may
occur to the integrated circuits in your computer.

Your computer, keyboard, and mouse consist of high-precision electronic parts. Do not drop them or bump them
against other objects.

Your Sony computer does not work with party lines, cannot be connected to a coin-operated telephone, and may
not work with multiple telephone lines or a private branch exchange (PBX).

If the telephone company makes a service call to your home or office and determines that your computer is
responsible for the problem, the telephone company may bill you for the service call. If you do not disconnect your
computer when it is adversely affecting the telephone line, the telephone company has the right to disconnect your
service until you correct the problem.
Moisture condensation
If your computer is brought directly from a cold location to a warm one, moisture may condense inside your computer. In
this case, allow at least an hour before turning on your computer. If any problem occurs, unplug your computer, and contact
your Sony Service Center.
The hard disk drive

Do not place the computer in a location that is subject to vibration or shock.

Do not move the computer during operation.

Do not subject the computer to sudden changes in temperature.

Do not turn off the power while the computer is accessing the hard disk drive.
Page 81
About Handling a Monitor (Display)

DVD playback and certain video-related software may not function correctly when your monitor is set to a high
refresh rate. If your monitor does not play back video content properly, try setting the display to a lower refresh
rate.

Do not place the display near a strong magnetic force.

Do not block the ventilation slots on the display.

Using the computer in low temperature conditions may produce a residual image on the screen. This is not a
malfunction. When the computer returns to normal temperature, the screen returns to normal.

A residual image may appear on the screen if the same image is displayed for a lengthy period of time. The image
disappears after a period of time. You can use a screen saver to prevent residual images.

The screen becomes warm during operation. This is normal and does not indicate a malfunction.
Page 82
About DVD, CD, and Floppy Disk Media
Handling CD or DVD media

Do not touch the surface of the disc.

Do not drop or bend the disc.

Do not use adhesive labels to identify the disc. The label may come off while the disc is in use in the optical drive
and damage the drive.
Cleaning CD or DVD media

Fingerprints and dust on the surface of a disc may cause read errors. Proper care of the disc is essential to maintain
its reliability. Do not use solvents such as benzine, thinner, commercially available cleaners or anti-static spray, as
they may cause damage to the disc.

For normal cleaning, hold the disc by its edge and use a soft cloth to wipe the surface from the center out.

If the disc is badly soiled, moisten a soft cloth with water, wring it out well, and use it to wipe the surface of the disc
from the center out. Wipe off any remaining moisture with a dry soft cloth.
Handling floppy disks1

Do not open the shutter manually and touch the surface of the floppy disk.

Keep floppy disks away from magnets.

Keep floppy disks away from direct sunlight and other heat sources.
1
T he V A I O "W" s eries c omputer is not equipped with a floppy dis k drive. Y ou c an purc has e a floppy dis k drive s eparately.
Page 83
Support Options
Sony provides several options to help solve common problems or to locate support for your VAIO® computer. This section
describes all available resources and offers suggestions on how to access this information for maximum results.

Immediate Help and Support

Software Help and Support

Contacting Sony for Help and Support
Page 84
Immediate Help and Support
You can locate helpful information immediately by consulting your hard copy guides and supplements, or by accessing the
online Computer User Guide and the individual software Help files.
Your computer is supplied with these support options:

VAIO® Computer Quick Start — The Quick Start contains information on how to set up your computer quickly and
easily. You can find instructions on how to plan an ergonomic work space, connect power cords, cables and
peripheral devices, register your computer with Sony, and establish a dial-up connection to the Internet. The Quick
Start can also provide troubleshooting support, if problems occur.

VAIO® Computer User Guide — The online User Guide provides information about configuring, maintaining, and
upgrading your computer. This support resource offers a variety of available topics, enabling you to quickly view
specific information using context-sensitive search features. To access the online manual:
1.
Click Start in the Windows ® taskbar, then click Help and Support.
2.
From the VAIO Help and Support Center menu, click VAIO User Guide.
3.
Specifications — The online specifications sheet describes the hardware and software configuration of
your VAIO computer. To view this online information:
4.
1.
Click Start in the Windows taskbar and click Help and Support.
2.
From the VAIO Help and Support Center menu, click VAIO User Guide.
3.
Click the Welcome link. The Welcome page displays in the right-side frame.
4.
Locate the link in the text, "View the VAIO® Computer Specifications..."
Preinstalled software Help files — Each preinstalled software application provides online Help within the
software, that describes the software's features. In these Help files, you can find tutorials that teach you
to use the software and locate troubleshooting support, should problems occur. To access software Help
files:
1.
Click Start in the Windows taskbar and point to All Programs. A submenu appears, listing all
preinstalled software applications.
2.
Click the desired software application.1 The software's main window appears.
3.
From the menu bar, click Help. The Help file appears.
Y ou c an loc ate the online H elp for Sony s oftware applic ations by pointing to the individual applic ation's ic on and s elec ting H elp from the
s ubmenu.
1
Page 85
Software Help and Support
The contact and support information for the preinstalled software on your system can be found on the online specifications
sheet. Computing support is free of charge for 90 days after the original date of purchase.
Your computer may not be supplied with all of the software discussed in this section, depending on the system
configuration you purchased. To view the specific software preinstalled on your computer, see the online specifications
sheet.
Page 86
Contacting Sony for Help and Support
If the information provided with your VAIO® computer does not provide an immediate solution, or you would like to get
direct support, contact Sony online or by telephone.
Page 87
