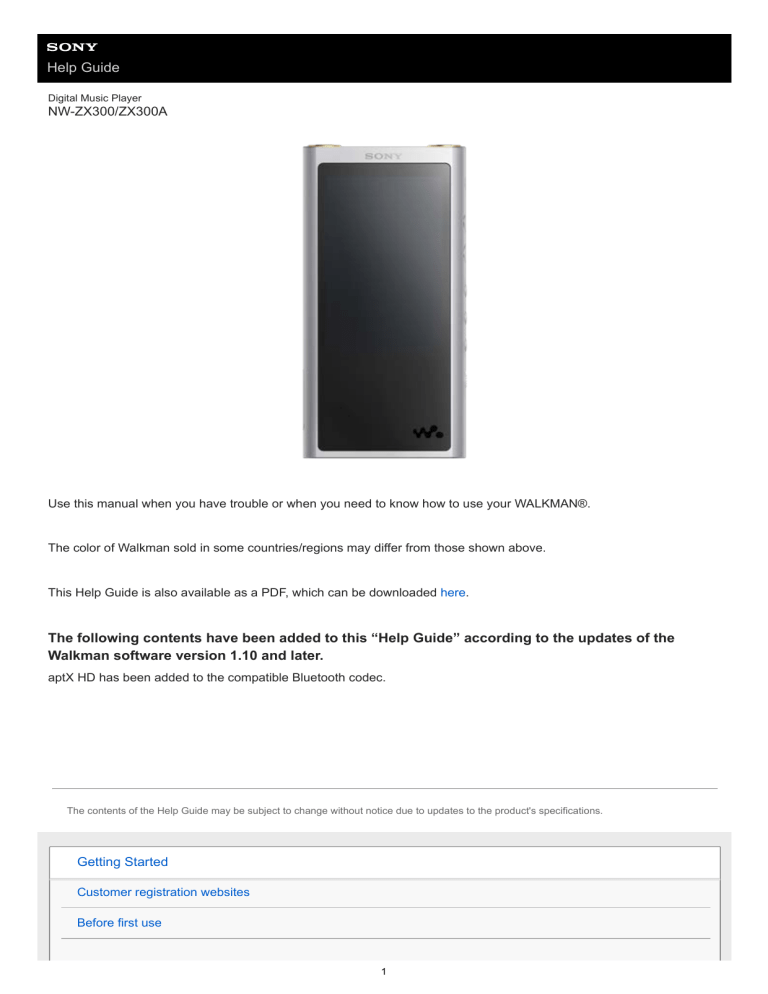

Help Guide
Digital Music Player
NW-ZX300/ZX300A
Use this manual when you have trouble or when you need to know how to use your WALKMAN®.
The color of Walkman sold in some countries/regions may differ from those shown above.
This Help Guide is also available as a PDF, which can be downloaded here.
The following contents have been added to this “Help Guide” according to the updates of the
Walkman software version 1.10 and later.
aptX HD has been added to the compatible Bluetooth codec.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Getting Started
Customer registration websites
Before first use
1
Walkman manuals and general information
Checking the contents of the package
Configuring the initial setup
Installing Music Center for PC (Windows)
Installing Content Transfer (Mac)
Power/Charging
Turning the Walkman on or off
Preventing unintentional operations (HOLD)
Charging the battery
Extending the battery life
Notes on charging the battery
microSD Cards
Using a microSD card
Notes on microSD cards
Basic Operations
Parts and controls
Screen operations
How to use the various screens on the Walkman
Library screen
Playback screen
Play Queue screen
Bookmark List screen
Sound quality setting screens
USB-DAC screen
List of icons displayed in the information area
Adjusting the volume
Volume operation in compliance with European and Korean Directives
Browsing the operating guide
Transferring Music
Preparing music content
2
Purchasing High-Resolution Audio content
Using a Windows computer
Transferring content from a Windows computer using Music Center for PC
Transferring content using Windows Explorer
Importing content from the Walkman to Music Center for PC
Using a Mac computer
Transferring content from a Mac computer using Content Transfer
Transferring content using Mac Finder
Adding lyrics information using a computer
Notes on transferring content from a computer
Playing/Organizing/Deleting Music
Playing music
Playback methods
Using [SensMe™ Channels]
Displaying lyrics
Obtaining lyrics information
Displaying lyrics
Managing playlists on the Walkman
Managing bookmarks on the Walkman
Deleting tracks from the Walkman
Viewing a guide to enjoy high quality sound
Various Functions
Enjoying music through a wireless connection
Connecting the Walkman to an unpaired Bluetooth device for the first time
Connecting the Walkman to a paired Bluetooth device
One-touch connections with a Bluetooth device (NFC)
Configuring the Bluetooth function
Notes on the Bluetooth function
Enjoying music content on a computer with Walkman sound quality (USB-DAC function)
Adjusting the sound quality settings
3
Using USB Mass Storage mode
Restarting / Formatting / Initializing
Restarting the Walkman
Resetting/Formatting/Initializing the Walkman
Formatting a microSD card
Version information/System updates
Checking information on the Walkman
Updating the Walkman system software
Using shortcut buttons from the quick setting panel
Settings menu
Announcement
Notes on handling the Walkman
Notes on the headphones
Notes on the built-in battery
Notes on the software
Notes on the sample data
General Information
Maintenance
Customer support website
Specifications
Specifications
Battery life
Maximum recordable number of songs
Supported formats
System requirements
Troubleshooting
Power/Charging
The built-in rechargeable battery becomes depleted quickly even after the Walkman is fully charged.
What is the battery lifespan?
Can I replace the built-in rechargeable battery myself?
4
microSD Cards
The computer does not recognize the microSD card in the Walkman.
The Walkman does not recognize a microSD card.
Playing Music
A track is duplicated on the Walkman.
The Walkman cannot play transferred content.
Others
You have spilled liquid (water, coffee, etc.) on the Walkman.
You have washed the Walkman in a washing machine.
The Walkman does not work properly.
4-698-041-12(1) Copyright 2017 Sony Corporation
5
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Customer registration websites
We recommend that you register the Walkman to get better customer support.
For customers in the US:
http://www.sony.com/walkmanreg/
For customers in Canada:
English
http://www.Sony.ca/Registration
French
http://www.Sony.ca/Enregistrement
For customers in Latin America:
http://www.sony-latin.com/registration
For customers in Europe:
www.sony.eu/mysony
For customers in Asia/Oceania/the Middle East/Africa:
English/Korean/Traditional Chinese
http://www.sony-asia.com/dmpwalkman/register/
Simplified Chinese
https://www.sonystyle.com.cn/b2c_sony/b2c/productRegister.do
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
4-698-041-12(1) Copyright 2017 Sony Corporation
6
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Before first use
Thank you for purchasing a Walkman.
For information on laws, regulations and trademark rights, refer to “Important Information” contained in the supplied
software. To read it, install the supplied software on your computer.
Before you start using the Walkman, read the topics under [Related Topic].
All other trademarks and registered trademarks are trademarks or registered trademarks of their respective holders.
In this manual, TM and ® marks are not specified.
Before you start using the Walkman, check the following information.
Model names
Several model names appear in this [Help Guide]. Some models are not available depending on the country or region
where you purchased the Walkman.
Computer system requirements
When you connect the Walkman to a computer, check the computer system requirements.
Battery charging
The battery might be low when you use the Walkman for the first time. Charge the battery before use.
microSD cards
The following memory cards are referred to as [microSD cards] in this [Help Guide].
microSD cards
microSDHC cards
microSDXC cards
Images and illustrations
The screen images and illustrations shown in this [Help Guide] are for reference only. They may differ from the actual
product or onscreen display.
Design and specifications are subject to change without notice.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
Walkman manuals and general information
System requirements
7
Charging the battery
Notes on handling the Walkman
Notes on the headphones
Notes on the built-in battery
Notes on the software
Notes on the sample data
General Information
Maintenance
Customer support website
4-698-041-12(1) Copyright 2017 Sony Corporation
8
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Walkman manuals and general information
Sony provides the following manuals and information regarding the Walkman.
The provided manuals explain the following operations and functions.
Basic operations.
Unique functions that require explanations.
Complicated operations that require instructions.
Help Guide
This Help Guide provides the standard operating procedures only.
How to transfer content to the Walkman.
How to use various functions.
Notes on using the Walkman.
Startup Guide (printed)
Basic steps to start listening to music after you purchase the Walkman.
Instruction Manual (printed)
Notes on using the Walkman
Compliance information
How to access [Important Information]
Important Information (supplied with the Walkman memory)
Information on copyrights, laws, and regulations
To read the file, install the supplied software on your computer.
Customer support website (online)
See [Customer support website] in this [Help Guide].
The latest information on the Walkman
FAQ: Frequently Asked Questions
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
Customer support website
4-698-041-12(1) Copyright 2017 Sony Corporation
9
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Checking the contents of the package
Walkman (1)
USB cable (1)
Startup Guide
Instruction Manual
Note
Headphones and a microSD card are not supplied with the Walkman.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
4-698-041-12(1) Copyright 2017 Sony Corporation
10
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Configuring the initial setup
When you turn on the Walkman for the first time, the initial setup wizard will launch.
You can set the following items during the initial setup.
Language
Date and time
1
Hold down the button (
) for 2 seconds until the Walkman turns on.
The initial setup wizard will launch. Confirm the message and tap
2
Select the language and tap
3
Set date and time, and then tap
.
.
.
Follow the onscreen instructions.
You can view the [Guide to High Quality Sound] screen, if you prefer.
Note
The Walkman does not display a clock. The clock setting is used for data management.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
4-698-041-12(1) Copyright 2017 Sony Corporation
11
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Installing Music Center for PC (Windows)
Music Center for PC is an application for Windows computers. Use the latest version of Music Center for PC.
You can use Music Center for PC to perform the following operations.
Importing content (such as music) from CDs to a computer.
Organizing and managing the content.
For example, you can create playlists.
Transferring content on a computer to the Walkman.
Confirm the system requirements before you install Music Center for PC.
1
Access the Music Center for PC download website.
http://www.sony.net/smc4pc/
2
Install Music Center for PC.
For details on installation, see [Download] – [Installation procedure] on the Music Center for PC support website.
(http://www.sony.net/smc4pc/)
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
Preparing music content
Transferring content from a Windows computer using Music Center for PC
System requirements
4-698-041-12(1) Copyright 2017 Sony Corporation
12
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Installing Content Transfer (Mac)
Content Transfer is an application for Mac computers. Use the latest version of Content Transfer. You can transfer
content that you manage with iTunes or Finder. You can simply drag-and-drop the tracks or albums to transfer them to
the Walkman.
Confirm the system requirements before you install Content Transfer.
1
Access the installer for Content Transfer.
http://www.sony.net/ct-mac/
2
Open the downloaded file.
[ContentTransfer.dmg] will be saved automatically to the download folder. The folder may open automatically.
3
Install Content Transfer.
Run [ContentTransfer.pkg]. Follow the onscreen instructions. When you finish the installation,
Note
Restart the computer if you are prompted. Follow the onscreen instructions.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
Preparing music content
Transferring content from a Mac computer using Content Transfer
System requirements
4-698-041-12(1) Copyright 2017 Sony Corporation
13
will be displayed.
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Turning the Walkman on or off
1
Hold down the button (
) for 2 seconds until the Walkman turns on.
When you turn on the Walkman for the first time, the initial setup wizard will launch. Follow the onscreen
instructions.
You can set the following items during the initial setup.
Language
Date and time
To turn off the Walkman
Hold down the button ( ) for 2 seconds while the screen is turned on.
Follow the onscreen instructions to turn off the Walkman.
Release the HOLD function if it is turned on.
Hint
The screen will turn off automatically if you do not operate the Walkman for a certain period of time. To turn on the screen, press
the button ( ).
To conserve the battery power, select [Auto Power Off]. The Walkman will turn off automatically.
Tap the menu items in the following order.
– [Settings] – [Device Settings] ([Basic Settings]) – [Auto Power Off].
Note
The Walkman does not display a clock. The clock setting is used for data management.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
Preventing unintentional operations (HOLD)
Configuring the initial setup
14
4-698-041-12(1) Copyright 2017 Sony Corporation
15
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Preventing unintentional operations (HOLD)
You can lock the Walkman to prevent accidental button operation.
1
Slide the switch (
).
The HOLD function is enabled. You cannot operate the buttons on the Walkman or the touch screen. Only the
button ( ) is active and you can use it to perform the following operations.
Turning the screen on or off.
Turning on the Walkman (2 seconds).
Restarting the Walkman (8 seconds).
To enable the screen operation
You can enable the touch-screen operation while the HOLD function is active.
1. Tap the menu items in the following order.
– [Settings] – [Device Settings] ([Basic Settings]).
2. Tap [Disable touch panel when the HOLD switch is on] to remove a check mark.
If you want to prevent accidental touch-screen operations, add a check mark again.
Hint
Slide the switch (
) in the opposite direction of the arrow to release the HOLD function.
While the HOLD function is active,
will flash when you operate a button.
When the HOLD function is enabled, you cannot turn off the Walkman. Release the HOLD function.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
Parts and controls
16
4-698-041-12(1) Copyright 2017 Sony Corporation
17
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Charging the battery
1
Connect the Walkman to a running computer via USB.
The charge lamp will light up.
When charging is complete, the battery status icon switches to
Then, the charge lamp turns off.
2
.
Disconnect the Walkman from the computer.
Hint
For details on how long it takes to charge the battery fully, see [Specifications].
Note
If the Walkman battery level is not sufficient, the computer will not recognize the Walkman. The Walkman screen will not turn on
in this case. If this happens, charge the battery fully. It may take about 10 minutes before the Walkman screen turns on.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
Extending the battery life
Notes on charging the battery
Specifications
4-698-041-12(1) Copyright 2017 Sony Corporation
18
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Extending the battery life
You can reduce the battery consumption by using the Walkman in the following manner.
The battery life depends on usage conditions. For details on the battery life, see [Battery life].
Turn off the power manually when you do not use the Walkman.
Set [Auto Power Off]. The Walkman will turn off automatically.
(
– [Settings] – [Device Settings] ([Basic Settings]) – [Auto Power Off].)
Set a shorter time for [Screen Off Timer].
(
– [Settings] – [Device Settings] ([Basic Settings]) – [Screen Off Timer].)
Adjust the screen brightness.
Set all sound quality settings to off.
Turn off the Bluetooth function when you are not using it.
Turn off the NFC function when you are not using it.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
Charging the battery
Turning the Walkman on or off
Settings menu
Sound quality setting screens
One-touch connections with a Bluetooth device (NFC)
Using shortcut buttons from the quick setting panel
Notes on the built-in battery
Displaying lyrics
Battery life
4-698-041-12(1) Copyright 2017 Sony Corporation
19
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Notes on charging the battery
The charging time depends on the battery usage conditions.
When the battery is sufficiently charged but the battery life has dropped to about half of its normal span, the battery
may be worn out. Contact the nearest Sony dealer or Sony Service Center.
The computer may not recognize the Walkman in the following situations.
When you connect the Walkman to the computer for the first time.
When the Walkman has not been used for a long period of time.
Charge the Walkman for about 10 minutes. The Walkman may start operating normally.
When the ambient temperature exceeds the recommended range,
appears on the screen and then charging is
forcibly terminated. Charge the battery at an ambient temperature from 5 °C to 35 °C (41 ºF to 95 ºF).
The battery can be recharged about 500 times from a completely depleted state. The exact number of times may
vary depending on the usage conditions.
To prevent deterioration of the battery, charge the battery at least once every 6 months.
Charging is not guaranteed when you use a homebuilt or modified computer.
Charging from a USB hub is only guaranteed when you use a self-powered USB hub that carries an authorized logo.
Do not connect the Walkman to a computer for a long period of time when the computer is not connected to an AC
power supply. Otherwise, the computer’s battery may run out.
While the Walkman is connected to a computer, observe the following cautions. Otherwise, the Walkman may not
function properly.
Do not turn on the computer.
Do not restart the computer.
Do not wake the computer from sleep mode.
Do not shut down the computer.
The Walkman may become hot while charging. This is not a malfunction.
The battery indicator scale does not correspond exactly to the remaining battery level. Refer to the battery indicator
as a guide.
When you charge the Walkman using a computer, do not remove the USB cable while data is transferring. If you
disconnect the USB cable, data on the Walkman may be lost.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
Charging the battery
Extending the battery life
Notes on the built-in battery
Battery life
4-698-041-12(1) Copyright 2017 Sony Corporation
20
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Using a microSD card
This topic includes instructions for the following operations.
Inserting a microSD card into the Walkman.
Removing a microSD card from the Walkman.
Formatting a microSD card on the Walkman.
To use a microSD card on the Walkman, you first need to format the microSD card on the Walkman.
1
Insert a microSD card.
Open the microSD card slot cover ( ).
Insert a microSD card until it clicks into place (
The gold contact pins should face up.
Close the cover ( ).
). Make sure to insert the microSD card in the correct direction.
The Walkman will start updating the database.
When the update is complete, the library screen will appear.
2
Format the microSD card.
Tap the menu items in the following order.
– [Settings] – [Device Settings] ([Basic Settings]) – [Reset/Format] – [Format SD Card].
Follow the onscreen instructions. Make sure to confirm the messages carefully.
To remove the microSD card
Before you remove a microSD card from the Walkman, first unmount the microSD card from the Walkman.
1. On the library screen, tap the menu items in the following order.
– [Settings] – [Device Settings] ([Basic Settings]) – [Mount/Unmount SD Card] – [OK].
2. Open the microSD card slot cover. Make sure that the access lamp (
3. Push the microSD card into the microSD card slot.
The microSD card will pop out.
21
) is turned off.
4. Remove the microSD card. Then, close the microSD card slot cover.
Note
On the Walkman, you cannot exchange data between the Walkman memory and a microSD card.
If the Walkman does not recognize the microSD card, remove and reinsert the microSD card into the Walkman.
Do not insert any object other than a microSD card into the microSD card slot.
If the inserted microSD card contains a large amount of data, it may take about 10 minutes or longer for the Walkman to update
the database.
When you remove the microSD card, the following information will be deleted.
The content that is currently being played.
The playback position.
Tracks and the playback order on the play queue screen
Bookmark information for tracks on the microSD card.
Formatting a microSD card will delete all data stored on the microSD card. Save a back up copy of important data.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
Notes on microSD cards
Formatting a microSD card
4-698-041-12(1) Copyright 2017 Sony Corporation
22
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Notes on microSD cards
Use a microSD card that has been formatted on the Walkman. Sony does not guarantee the operation of other
microSD cards.
Sony does not guarantee all operations for microSD cards that are used on multiple devices.
Formatting a microSD card will delete all data stored on the microSD card. Save a backup copy in advance.
Do not leave a microSD card within the reach of small children. Small children may accidentally swallow the microSD
card.
Unmount the microSD card ([Mount/Unmount SD Card]) from the Walkman before you remove a microSD card.
Otherwise, the Walkman may not function properly.
Sony does not guarantee the operation of all types of compatible microSD cards with the Walkman.
Data may be corrupted in the following situations.
When a microSD card is removed during a read or write operation.
When the Walkman is turned off during a read or write operation.
When a microSD card is used in a location where there is static electricity or electrical noise.
Sony assumes no responsibility for any loss or damage of stored data. Sony recommends that you save a backup
copy of important data regularly.
Observe the following cautions when you handle microSD cards.
Do not apply strong force to a microSD card.
Do not bend a microSD card.
Do not drop a microSD card.
Do not disassemble a microSD card.
Do not modify a microSD card.
Do not expose a microSD card to water.
Do not leave a microSD card in the hot interior of a car.
Do not leave a microSD card in direct sunlight.
Do not leave a microSD card near a heater.
Do not leave a microSD card in a humid place.
Do not leave a microSD card in a location where corrosive substances are present.
Observe the following cautions regarding the microSD card slot.
Insert microSD cards into the microSD card slot in the correct direction.
Do not insert any object other than a microSD card into the microSD card slot.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
Using a microSD card
Formatting a microSD card
4-698-041-12(1) Copyright 2017 Sony Corporation
23
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Parts and controls
1. Touch screen
Tap icons or items on the screen to operate the Walkman.
2. Charge lamp
The lamp lights up while the Walkman is charging.
3. Strap hole
Attach a wrist strap (not supplied).
4. WM-PORT jack
Connect the USB cable (supplied).
Connect accessories that support WM-PORT (not supplied).
5.
(power) button
Press the button to turn the screen on or off.
Hold down the button for 2 seconds to turn the Walkman on or off.
If operations become unstable, hold down the button for 8 seconds to restart the Walkman.
6. + (*1)/– (volume) buttons
Press the buttons to adjust the volume.
7. Playback operating buttons
(*1): Press the button to start or pause playback.
/
: Press the buttons to jump within the current track or to the previous or next track.
Hold down the buttons to fast-rewind or to fast-forward playback.
8. HOLD switch
Slide the switch to lock the operating buttons on the Walkman. This lets you avoid operating the buttons accidentally.
Locked (inoperable)
Released (operable)
24
9. Built-in Bluetooth antenna
The antenna allows the Walkman to connect with Bluetooth devices.
Do not cover the antenna when a Bluetooth connection is active. Otherwise, the connection may be interrupted.
10. Headphone jack (Stereo Mini) (*2)
Connect headphones with a stereo mini plug.
Push in the headphone plug until it clicks into place.
Connect the headphones properly. Otherwise, the output sound will be impaired.
11. Headphone jack (Balanced Standard) (*2)
Connect headphones with a balanced standard plug.
Push in the headphone plug until it clicks into place.
Connect the headphones properly. Otherwise, the output sound will be impaired.
Connect passive headphones (*3) to the headphone jack (Balanced Standard) only.
If you use an audio cable to connect the headphone jack (Balanced Standard) to the line-in jack of an audio
device, it may damage the device.
12. N-mark
Touch the N-mark on a Bluetooth device to this mark.
The Bluetooth device must support the NFC function.
You can connect the Bluetooth device to the Walkman.
13. Access lamp
Do not remove the microSD card when the access lamp is lit up.
14. microSD card slot cover
Open the cover to insert a microSD card.
15. microSD card slot
Insert a microSD card until it clicks into place.
Note on the front surface of the Walkman
Matte glass is used on the front surface of the Walkman. The glass prevents the adhesion of fingerprints and lets your
fingers slide more easily while you are operating the Walkman.
Matte glass has an uneven surface. Due to this characteristic, it may be difficult to remove scratches or dirt. Make sure
not to touch the surface with the following objects.
Metal products that are made of aluminum or magnesium (headphones, cameras, keyrings, coins, etc.)
Packaging materials that contain aluminum foil (packaging for gum, chocolate, tablets, etc.)
Sony recommends that you use a case or a pouch to protect the surface of the glass.
*1
*2
There are tactile dots on the
button and the + button. The tactile dots can help you operate the buttons without looking at them.
When headphones are connected to both headphone jacks (Stereo Mini and Balanced Standard), output from one headphone jack (Balanced
Standard) will be prioritized.
Disconnect from the Bluetooth connection to use wired headphones.
*3 Passive headphones: Headphones without a Noise Canceling function or Bluetooth function.
25
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
4-698-041-12(1) Copyright 2017 Sony Corporation
26
Help Guide
Digital Music Player
NW-ZX300/ZX300A
How to use the various screens on the Walkman
This topic explains the layout of the various screens with the playback screen (
screen
to switch to other screens (up/down/left/right).
) at the center. Flick the playback
Playback screen
You can control playback operations from the playback screen. You can also configure various settings for playback.
Library screen
You can select tracks from the library screen. Tracks are classified into various categories (such as [All Songs], [Album],
[Artist], etc.).
You can switch between the USB-DAC function and the music playback function.
Play Queue screen
27
You can check the list of tracks that the Walkman will play with the current settings.
Bookmark List screen
You can listen to tracks that you have registered to a bookmark list beforehand.
You can add tracks to bookmark lists on the playback screen, etc.
The following operations can be performed from this screen.
Adding tracks to a bookmark list.
Removing tracks from a bookmark list.
Changing the order of tracks in a bookmark list.
Adding tracks to playlists.
Checking the details of the track information.
Sound quality setting screens
You can adjust various sound quality settings.
You can save sound quality settings as presets. Up to 3 presets can be stored.
Equalizer/Tone Control
DSEE HX
DC Phase Linearizer
Dynamic Normalizer
Hint
You can also configure sound quality settings from the menu. Tap the menu items in the following order.
– [Settings] – [Sound Settings] ([Sound]).
Basic operating buttons
There are 4 basic operating buttons at the bottom of each screen. These buttons may not always be active depending on
the screen.
(back)
Tap the button to return to the previous screen.
(go to playback screen)
Tap the button to return to the playback screen.
(library)
Tap the button to display the library screen.
(options/settings)
Tap the button to display the option/setting menus.
You can configure various settings for the Walkman.
Available menu items may differ depending on the screen or settings. To configure the basic settings for the
Walkman, select the [Settings] menu.
Basic playback operating buttons
There are basic playback operating buttons in the lower area of each screen.
28
(play) /
(pause)
Tap
to start playback.
While the Walkman is playing a track, tap
to pause playback.
(fast-rewind)
Tap the button to go back to the beginning of the current track or previous track. Hold down the button to fast-rewind
playback.
(fast-forward)
Tap the button to jump to the beginning of the next track. Hold down the button to fast-forward playback.
(shuffle play)
Tap the button to shuffle playback.
(repeat play)
Tap the button to repeat playback. You can choose to repeat one track or all tracks.
Hint
Drag the timeline bar to change the playback position in a track.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
Library screen
Playback screen
Play Queue screen
Bookmark List screen
Sound quality setting screens
Playback methods
USB-DAC screen
4-698-041-12(1) Copyright 2017 Sony Corporation
29
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Library screen
You can select tracks from the library screen. Tracks are classified into various categories (such as [All Songs], [Album],
[Artist], etc.).
You can switch between the USB-DAC function and the music playback function.
To display the library screen
Flick the playback screen down.
You can also tap
at the bottom of the screen to display the library screen.
1. Function buttons
You can switch to the following functions.
USB-DAC
2. Music categories ([All Songs], [Album], [Artist], etc.)
Each track is classified into several categories. Select a track from the desired category.
3. Page indicator
The number of dots represents the number of available pages.
4. Subcategories
After you select a music category, select a subcategory until you find the desired track.
You can check the codecs for tracks, such as FLAC. Codecs for High-Resolution Audio formats appear in color.
Option/setting menu
Tap
to display the menu.
Available menu items may differ depending on the screen or settings.
Settings
Select the item to display the Settings menu.
Select Items to Display
Select the item to set which categories to display or not to display.
Reset display item order
Select the item to display the default categories.
30
View Help
Select the item to view the operating guide.
Pop-up menu
Tap
to display the pop-up menu.
appears beside each item in a subcategory list.
Available menu items may differ depending on the screen or settings.
Add to Bookmark List
Select the item to add a track or subcategory item to the bookmark list.
Add to Playlist
Select the item to add a track or subcategory item to a playlist.
Detailed Song Information
Select the item to display the details of the track.
Delete
Select the item to delete the selected track, folder, or playlist.
Delete from Playlist
Select the item to remove the selected track from the playlist.
Hint
You can drag-and-drop the category icons to change the order.
You can also display the pop-up menu by holding down an item in the list.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
How to use the various screens on the Walkman
Playing music
4-698-041-12(1) Copyright 2017 Sony Corporation
31
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Playback screen
You can control playback operations from the playback screen. You can also configure various settings for playback.
To display the playback screen
Tap
at the bottom of the screen.
1. Cover art
2. Track number / Total numbers of tracks
3. Elapsed time of the current track
4. Timeline bar
5. Track title / Artist name / Album title
6. Lyrics icon
7. Shuffle button / Previous button / Play (Pause) button / Next button / Repeat button
8. Length of the track
9. High-Resolution Audio icon
Hint
You can select the playback screen from three different layouts.
Standard
Spectrum Analyzer
Analog Level Meter
Tap
and then [Change Playback Screen].
[Spectrum Analyzer] or [Analog Level Meter] will not be displayed when a Bluetooth connection is active.
Drag the timeline bar to change the playback position in a track.
Note
32
The elapsed time and timeline bar indications may not be accurate.
The Walkman may not display cover art depending on the file format.
Option/setting menu
Tap
to display the menu.
Available menu items may differ depending on the screen or settings.
Scroll through the menu dialog to display the items listed below.
Settings
Select the item to display the Settings menu.
Add to Bookmark List
Select the item to add the current track to a bookmark list.
Add to Playlist
Select the item to add the current track to a playlist.
Change Playback Screen
Select the item to change the layout of the playback screen.
Detailed Song Information
Select the item to display the details of the current track.
Display Lyrics
Select the item to display the lyrics of the current track.
View Help
Select the item to view the operating guide.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
How to use the various screens on the Walkman
Playing music
Playback methods
Displaying lyrics
Adjusting the sound quality settings
4-698-041-12(1) Copyright 2017 Sony Corporation
33
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Play Queue screen
You can check the list of tracks that the Walkman will play with the current settings.
To display the play queue screen
Flick the playback screen to the right.
1. Current track
2. Playback order
3. Pop-up menu icon
4. Track information
Artist name
Track title
Codec
Codecs for High-Resolution Audio formats appear in color.
Length
Option/setting menu
Tap
to display the menu.
Available menu items may differ depending on the screen or settings.
Settings
Select to display the Settings menu.
Add All Songs to Bookmark List
Select the item to add the current play queue to a bookmark list.
Add All Songs to Playlist
Select the item to add the current play queue to a playlist.
Pop-up menu
Tap
to display the pop-up menu.
Available menu items may differ depending on the screen or settings.
34
Add to Bookmark List
Select the item to add the selected track to the bookmark list.
Add to Playlist
Select the item to add the selected track to a playlist.
Detailed Song Information
Select the item to display the details of the track.
Hint
You can also display the pop-up menu by holding down an item in the list.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
How to use the various screens on the Walkman
Playing music
Playback methods
Managing playlists on the Walkman
Managing bookmarks on the Walkman
4-698-041-12(1) Copyright 2017 Sony Corporation
35
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Bookmark List screen
You can listen to tracks that you have registered to a bookmark list beforehand.
You can add tracks to bookmark lists on the playback screen, etc.
To display the bookmark list screen
Flick the playback screen to the left.
1. Track information
Cover art
Artist name
Track title
Codec
Length
2. Number of the current list
The previous list and the next list buttons
3. Pop-up menu icon
Option/setting menu
Tap
to display the menu.
Available menu items may differ depending on the screen or settings.
Settings
Select the item to display the Settings menu.
Edit Song Order
Select the item to change the order of tracks in the selected bookmark list.
Drag-and-drop
until they are in the desired order.
Add All Songs to Bookmark
List
Select the item to add all tracks in the selected bookmark list to another
bookmark list.
Add All Songs to Playlist
Delete All
Select the item to add all tracks in the selected bookmark list to a playlist.
Select the item to remove all tracks from the selected bookmark list.
36
Pop-up menu
Tap
to display the pop-up menu.
Available menu items may differ depending on the screen or settings.
Add to Another Bookmark List
Select the item to add the selected track to another bookmark list.
Add to Playlist
Select the item to add the selected track to a playlist.
Delete from Bookmark List
Select the item to remove the selected track from the current bookmark list.
Detailed Song Information
Select the item to display the details of the track.
Hint
You can also display the pop-up menu by holding down an item in the list.
Note
When you remove a microSD card from the Walkman, tracks on the microSD card will be removed from the bookmark list.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
How to use the various screens on the Walkman
Playing music
Playback methods
Managing playlists on the Walkman
Managing bookmarks on the Walkman
4-698-041-12(1) Copyright 2017 Sony Corporation
37
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Sound quality setting screens
You can adjust various sound quality settings.
You can save sound quality settings as presets. Up to 3 presets can be stored.
To display the sound quality setting screen
Flick the playback screen up.
To navigate the sound quality setting screens
Flick the screen left or right to select the sound quality setting that you want to adjust.
Tap the Direct switch to turn off the [Direct Source (Direct)] function so that you can flick the screen.
Adjustable sound quality settings
Equalizer/Tone Control
DSEE HX
DC Phase Linearizer
Dynamic Normalizer
1. Name of the sound quality setting
2. Direct switch
You can turn the [Direct Source (Direct)] function on or off.
3. Page indicator
The number of dots represents the number of available pages. Flick the screen to the left or right to switch to a
different page.
Option/setting menu
Tap
to display the menu.
Available menu items may differ depending on the screen or settings.
Saved Sound Settings
Select the item to save or retrieve customized settings.
Tone Control
Select the item to switch from the Equalizer screen to the Tone Control screen.
38
Equalizer
Select the item to switch from the Tone Control screen to the Equalizer screen.
Hint
You can flick any of the sound quality setting screens down to return to the playback screen.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
How to use the various screens on the Walkman
Adjusting the sound quality settings
4-698-041-12(1) Copyright 2017 Sony Corporation
39
Help Guide
Digital Music Player
NW-ZX300/ZX300A
USB-DAC screen
You can use the Walkman as a USB-DAC device. Use this function to listen to music on a computer.
To switch to the USB-DAC function
Tap
1.
on the library screen.
button
Tap the button to switch back to the music playback function.
2. Signal indicator
The indicator reflects the audio signal level of the music content that is being played.
3. Volume knob / VOLUME +/– buttons
You can change the volume.
Option/setting menu
Tap
to display the menu.
Settings
Select the item to display the Settings menu.
Hint
Flick the USB-DAC screen up if you want to change the sound quality settings.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
How to use the various screens on the Walkman
40
Enjoying music content on a computer with Walkman sound quality (USB-DAC function)
4-698-041-12(1) Copyright 2017 Sony Corporation
41
Help Guide
Digital Music Player
NW-ZX300/ZX300A
List of icons displayed in the information area
You can check the playback status and various settings using the icons displayed in the information area. The icons vary
depending on the status of the Walkman.
1. Information area
Volume status
BALANCED indicator
The indicator appears when headphones are connected to the headphone jack (Balanced
Standard).
AVLS
,
,
,
Playback status
Play, pause, find the beginning of the next track, find the beginning of the current or previous
track
HOLD indicator
Sleep Timer
Bluetooth
NFC
Battery status
Hint
Tap the information area to open the volume dialog. You can turn the volume knob to adjust the volume.
42
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
Adjusting the volume
4-698-041-12(1) Copyright 2017 Sony Corporation
43
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Adjusting the volume
Adjusting the volume
On the Walkman: Press the button (
) to adjust the volume.
On the screen: Tap the area ( ) on the playback screen to display the volume dialog. Turn the knob (
volume. Tap
to close the volume dialog.
) to adjust the
Hint
You can also use the +/– buttons at the bottom of the volume dialog to adjust the volume.
The volume may be low when you use certain headphones. In this case, switch the output setting to [High Gain Output]. To
change the setting, tap the menu items in the following order.
– [Settings] – [Output Settings] ([Basic Settings]) – [High Gain Output] ([Headphone Output]).
Then, tap the appropriate item for the headphones that you are using. (The menu item is only available on models sold in certain
countries or areas.)
When you switch between the headphone jack (Balanced Standard) and the headphone jack (Stereo Mini), the volume may
become unexpectedly loud. To avoid loud volumes, the Walkman may lower the volume automatically.
Limiting the volume
The AVLS (Automatic Volume Limiter System) function reduces the risk of damage to ears from loud volumes. Using
AVLS limits the maximum volume.
AVLS has the following features.
AVLS limits the volume to a certain level.
AVLS prevents disturbances to others caused by loud volumes.
44
AVLS allows you to listen at a more comfortable volume.
1. Tap the menu items in the following order.
– [Settings] – [Output Settings] ([Basic Settings]).
2. Tap [AVLS (Volume Limit)] ([Headphone Output]) to add a check mark.
Note
[AVLS (Volume Limit)] does not work while there is an active Bluetooth connection.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
Volume operation in compliance with European and Korean Directives
4-698-041-12(1) Copyright 2017 Sony Corporation
45
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Volume operation in compliance with European and Korean Directives
For European customers
For Korean customers (models supplied with headphones)
The alarm (beep) and warning [Check the volume level.] are intended to protect your ears. They occur when you initially
turn the volume up to a harmful level. You can cancel the alarm and warning by tapping [OK] on the alert dialog.
Note
You can turn up the volume after you cancel the alarm and warning.
After the initial warning, the alarm and warning will repeat every 20 cumulative hours that the volume is set to a level that is
harmful to your ears. When this happens, the volume will turn down automatically.
If you turn off the Walkman after you have selected a high volume that may damage your eardrums, the volume level will
automatically be lower when you turn on the Walkman the next time.
The alarm will not sound when there is an active Bluetooth connection.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
Adjusting the volume
4-698-041-12(1) Copyright 2017 Sony Corporation
46
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Browsing the operating guide
You can browse the operating guide to take a quick tour of the operations on the Walkman.
1
and then [View Help].
On the library screen or the playback screen, tap
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
4-698-041-12(1) Copyright 2017 Sony Corporation
47
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Preparing music content
Before you transfer music content to the Walkman, you need to prepare the content.
This topic includes instructions for the following operations.
Importing content from an audio CD to Music Center for PC.
Importing content stored on a computer to Music Center for PC.
Importing content stored on an external media device to a computer.
Purchasing content from online music services.
The instructions below are for operations using Music Center for PC. Music Center for PC is the recommended
application for the Walkman. Install Music Center for PC in advance.
Note
Imported content is limited to private use only. Use of content for other purposes requires the permission of the copyright holders.
If you are using a Mac computer, use Content Transfer.
Importing content from an audio CD to Music Center for PC
1. Use a computer on which Music Center for PC has been installed.
2. Launch Music Center for PC.
3. Insert an audio CD into the media drive of the computer.
The content on the audio CD will appear on the Music Center for PC screen.
You can change the format setting for importing CDs, if necessary.
For higher sound quality: FLAC
For normal sound quality: AAC (.mp4), MP3 (.mp3)
4. Import the content on the audio CD to Music Center for PC.
For details on the procedure, see [How to use] on the Music Center for PC support website.
(http://www.sony.net/smc4pc/)
Hint
You can also use iTunes instead of Music Center for PC to import audio CDs.
Importing content stored on a computer to Music Center for PC
1. Use a computer on which Music Center for PC has been installed.
2. Launch Music Center for PC.
3. From the left pane on the Music Center for PC screen, select the menu for importing content from a computer.
You can specify a folder for the content that you want to import.
4. Start importing the content.
For details on the procedure, see [How to use] on the Music Center for PC support website.
(http://www.sony.net/smc4pc/)
48
Importing content stored on an external media device to a computer
Use an external media device that contains music content.
The following instructions are for Windows Explorer. If you are using a Mac computer, use Finder.
1. Connect the external media device to a computer.
2. Open the external media device in Windows Explorer.
3. Open the [Music] folder of the computer in Windows Explorer.
4. Drag-and-drop the folders or files from the external media device to the [Music] folder on the computer.
Purchasing content from online music services
You can purchase music content from online music services.
Check the service guide for the provider you use. Each service provider has different downloading procedures,
compatible file formats, and payment methods. Note that the provider may choose to suspend or terminate the service
without notice.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
Installing Music Center for PC (Windows)
Installing Content Transfer (Mac)
Transferring content from a Windows computer using Music Center for PC
Transferring content using Windows Explorer
Transferring content from a Mac computer using Content Transfer
Transferring content using Mac Finder
Adding lyrics information using a computer
Playing music
4-698-041-12(1) Copyright 2017 Sony Corporation
49
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Purchasing High-Resolution Audio content
High-Resolution Audio refers to content in a format with higher sound quality than the CD standard. High-Resolution
Audio content is available via online music services.
Access an online music service that provides High-Resolution Audio content. Services vary by country or area.
Check the service guide for the provider you use. Each service provider has different downloading procedures,
compatible file formats, and payment methods.
Note that the provider may choose to suspend or terminate the service without notice.
To transfer High-Resolution Audio content to the Walkman
On a Windows computer: Use Music Center for PC or Windows Explorer.
On a Mac computer: Use Content Transfer or Finder.
Hint
High-Resolution Audio content is indicated with an icon (
) both on the Walkman and in Music Center for PC.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
Installing Music Center for PC (Windows)
Installing Content Transfer (Mac)
Transferring content from a Windows computer using Music Center for PC
Transferring content using Windows Explorer
Transferring content from a Mac computer using Content Transfer
Transferring content using Mac Finder
4-698-041-12(1) Copyright 2017 Sony Corporation
50
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Transferring content from a Windows computer using Music Center for PC
You can transfer content that is stored on a Windows computer to the Walkman via Music Center for PC.
1
Use a computer on which Music Center for PC has been installed.
2
Launch Music Center for PC.
3
Connect the Walkman to the computer via USB.
4
Click
in the bottom left of Music Center for PC to open the list of content on the Walkman.
To transfer content to the microSD card in the Walkman:
Select the microSD card from the device selection menu. The device selection menu is located above the list of
content on the Walkman.
5
Select [Music Library] to open the list of content on Music Center for PC.
6
Select albums or tracks that you want to transfer.
7
Click
to transfer.
For details on the procedure, see [How to use] on the Music Center for PC support website.
(http://www.sony.net/smc4pc/)
Note
Do not disconnect the USB cable during data transfer. Otherwise, the data may be damaged.
Transferred content is limited to private use only. Use of content for other purposes requires the permission of the copyright
holders.
On the Walkman, you cannot exchange data between the Walkman memory and a microSD card.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
51
Related Topic
Installing Music Center for PC (Windows)
Preparing music content
Purchasing High-Resolution Audio content
Transferring content using Windows Explorer
Playing music
4-698-041-12(1) Copyright 2017 Sony Corporation
52
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Transferring content using Windows Explorer
You can transfer content directly by dragging and dropping it from Windows Explorer.
1
Connect the Walkman to the computer via USB.
2
Open the [WALKMAN] folder as follows.
Windows 10:
Open [File Explorer] from the [Start] menu. Select [WALKMAN] from the left pane.
Windows 8.1:
Open [File Explorer] from [Desktop]. Select [WALKMAN] from the list under [This PC].
Windows 7 or earlier versions:
Select [Start], [Computer], and then [WALKMAN].
You can also transfer content to a microSD card.
Select the folder with the name of the microSD card instead of [WALKMAN].
3
Open the [MUSIC] folder in [WALKMAN].
4
Drag-and-drop the files or folders on the computer to the [MUSIC] folder.
Confirm that the transfer is complete. Then, disconnect the Walkman from the computer.
Note
Observe the following precautions. Otherwise, the Walkman may not be able to play the files.
Do not change the names of the root folders (such as [MUSIC]).
Do not transfer the files to folders other than [MUSIC].
Do not disconnect the USB cable during data transfer.
Do not format the memory of the Walkman on the computer.
The Walkman may not display music information for some content correctly depending on the language setting on the Walkman.
53
Transferred content is limited to private use only. Use of content for other purposes requires the permission of the copyright
holders.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
Preparing music content
Purchasing High-Resolution Audio content
Transferring content from a Windows computer using Music Center for PC
Playing music
4-698-041-12(1) Copyright 2017 Sony Corporation
54
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Importing content from the Walkman to Music Center for PC
1
Use a computer on which Music Center for PC has been installed.
2
Launch Music Center for PC.
3
Connect the Walkman to the computer via USB.
4
Click
in the bottom left of Music Center for PC to open the list of content on the Walkman.
To import content from the microSD card in the Walkman:
Select the microSD card from the device selection menu. The device selection menu is located above the list of
content on the Walkman.
5
From the list of content on the Walkman, select the content that you want to import to Music Center for PC.
6
Click
in Music Center for PC.
For details on the procedure, see [How to use] on the Music Center for PC support website.
(http://www.sony.net/smc4pc/)
Note
Do not disconnect the USB cable during data transfer. Otherwise, the data may be damaged.
Imported content is limited to private use only. Use of content for other purposes requires the permission of the copyright holders.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
Installing Music Center for PC (Windows)
Playing music
Supported formats
55
4-698-041-12(1) Copyright 2017 Sony Corporation
56
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Transferring content from a Mac computer using Content Transfer
You can use Content Transfer. Content with copyright protection cannot be transferred.
1
Use a computer on which Content Transfer has been installed.
2
Launch Content Transfer.
3
Connect the Walkman to the computer via USB.
4
Select the destination memory on the Walkman (the internal memory or a microSD card).
5
Open Finder or iTunes. Then, select the content.
6
Drag-and-drop the content into Content Transfer.
Confirm that the transfer is complete. Then, disconnect the Walkman from the computer.
Note
57
Operation may not be guaranteed depending on the version of iTunes.
Do not disconnect the USB cable during data transfer. Otherwise, the data may be damaged.
Transferred content is limited to private use only. Use of content for other purposes requires the permission of the copyright
holders.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
Installing Content Transfer (Mac)
Preparing music content
Purchasing High-Resolution Audio content
Playing music
4-698-041-12(1) Copyright 2017 Sony Corporation
58
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Transferring content using Mac Finder
You can transfer content directly by dragging and dropping it from Finder. Content with copyright protection cannot be
transferred.
1
Connect the Walkman to a running computer via USB.
2
Select [WALKMAN] in the sidebar of the Finder.
You can also transfer content to a microSD card.
Select the folder with the name of the microSD card instead of [WALKMAN].
3
Open the [MUSIC] folder in [WALKMAN].
4
Drag-and-drop the files or folders (
) to the [MUSIC] folder (
) in [WALKMAN].
Confirm that the transfer is complete. Then, disconnect the Walkman from the computer.
Note
Observe the following precautions. Otherwise, the Walkman may not be able to play the files.
Do not change the names of the root folders (such as [MUSIC]).
Do not transfer the files to folders other than [MUSIC].
Do not disconnect the USB cable during data transfer.
Do not format the memory of the Walkman on the computer.
The Walkman may not display music information for some content correctly depending on the language setting on the Walkman.
Transferred content is limited to private use only. Use of content for other purposes requires the permission of the copyright
holders.
59
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
Installing Content Transfer (Mac)
Preparing music content
Purchasing High-Resolution Audio content
Playing music
4-698-041-12(1) Copyright 2017 Sony Corporation
60
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Adding lyrics information using a computer
You can input lyrics to a text file (an LRC file). After you input lyrics to tracks, transfer the tracks to the Walkman.
Creating lyrics in a text file (LRC file)
1. Open the [Notepad] in Windows Accessories.
2. Enter the lyrics into [Notepad].
3. Play the track and enter the time to display each line of text.
You can enter the time information to the left of each line of text in the following format.
Minutes:seconds:hundredths of a second (*1)
Time information must be entered in chronological order.
You can separate seconds and hundredths of a second using a period instead of a colon.
*1
You can omit hundredths of a second.
4. Save the file.
Select [UTF-8] as the character encoding.
Set the same file name as the audio file.
Set [.lrc] as the extension.
The maximum file size is 512 KB.
If a text line cannot fit on the screen, it will be wrapped.
The number of lines of text that can be displayed simultaneously depends on the Walkman model.
CR, CRLF, and LF line breaks are all recognized.
Blank text lines will be skipped.
5. Connect your Walkman to the computer via USB.
6. Open the [WALKMAN] folder according to one of the following procedures.
Windows 10:
Open [File Explorer] from the [Start] menu. Select [WALKMAN] from the left pane.
Windows 8.1:
Open [File Explorer] from [Desktop]. Select [WALKMAN] from the list under [This PC].
61
Windows 7 or earlier versions:
Select [Start], [Computer], and then [WALKMAN].
You can also transfer content to a microSD card.
Select the folder with the name of the microSD card instead of [WALKMAN].
7. Create a new folder in the [MUSIC] folder under [WALKMAN]. Then, drag-and-drop both the track and the LRC file
into the new folder to transfer them.
Hint
The following numbers of characters are recommended when you display lyrics on the Walkman.
Single-byte characters (for example, alphanumeric characters): 40 characters per line.
2-byte characters (for example, Chinese characters): 20 characters per line.
To manage LRC files with Music Center for PC, save the LRC files in the same folder as the music files. The LRC files will be
transferred to the Walkman when the music files are transferred.
On a Mac computer, you can create lyrics using “TextEdit” and other text editors. Follow the same procedure as that described
above to enter the lyrics or time information in the “Plain text” setting.
Copyright notice
When you create LRC files using copyrighted materials authored by others, the LRC files are limited to private use only.
Use of LRC files for other purposes requires the permission of the copyright holders.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
Obtaining lyrics information
Displaying lyrics
4-698-041-12(1) Copyright 2017 Sony Corporation
62
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Notes on transferring content from a computer
Drag-and-drop content into the correct folder as shown in the following illustration. The Walkman can play back content
stored in the first through eighth level of each folder.
Note
Do not rename the following default folders. Otherwise, the Walkman will not recognize the folders.
MUSIC
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
4-698-041-12(1) Copyright 2017 Sony Corporation
63
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Playing music
To play tracks, first select a category.
You need to transfer music content from a computer to the Walkman in advance.
On a Windows computer
Use Music Center for PC to transfer content from a CD or the computer to the Walkman.
Drag-and-drop content from Windows Explorer.
On a Mac computer
Use Content Transfer to transfer content from iTunes.
Drag-and-drop content from Finder.
1
Tap
2
Tap the desired category (
to open the library screen.
).
You can flick the screen to the left or right to switch pages. The number of dots represents the number of available
pages ( ).
3
Select subcategories until a track list appears, and then select the desired track.
Playback will start.
Manual buttons on the Walkman
Operation button
Function
Press the button to start or pause playback.
Press the button to skip to the beginning of the current track or the previous track.
Hold down the button to fast rewind the track while playing.
Press the button to skip to the beginning of the next track.
Hold down the button to fast forward the track while playing.
64
Note
If the Walkman does not play tracks in the order you want, try the following.
Use the bookmark function or playlist function on the Walkman.
Create playlists with Music Center for PC or iTunes and transfer them.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
Turning the Walkman on or off
How to use the various screens on the Walkman
Installing Music Center for PC (Windows)
Library screen
Playback screen
Preparing music content
Transferring content from a Windows computer using Music Center for PC
Transferring content using Windows Explorer
Transferring content from a Mac computer using Content Transfer
Transferring content using Mac Finder
Playback methods
4-698-041-12(1) Copyright 2017 Sony Corporation
65
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Playback methods
This topic includes instructions for the following operations.
Setting the playback mode.
Setting the playback range.
Setting the playback mode
1. Tap the area (
or
) to select a playback mode.
: Shuffle Playback
: Repeat 1 Song
: Repeat All
When
and
are lit up, the Walkman will play all tracks in the selected playback range randomly.
To return to the normal playback mode, tap the icons so that both
and
darken.
Hint
You can also set the playback mode from the settings menu.
Tap
– [Settings] – [Playback Settings] ([Basic Settings]). Then, select the desired playback mode from [Play Mode].
Setting the playback range
1. Tap the menu items in the following order.
– [Settings] – [Playback Settings] ([Basic Settings]).
2. Tap the desired playback range from [Playback Range].
Diagram of the relationship between playback mode and playback range
Play
Mode
Playback Range
All Range
Selected Range
All tracks are played in random order.
To shuffle all the tracks on the Walkman, select [All Songs] on the library screen.
Tracks in the
selected range
66
Shuffle
Playback
Repeat
Off
Repeat 1
Song
Repeat
All
*1
If you select a track from [Album] on the library screen, the Walkman will shuffle all
the tracks in the selected album. When the Walkman finishes playing all the tracks in
the album, playback will proceed to the next album. Then, the Walkman will shuffle
all the tracks in the album.
are played in
random order. (*1)
All tracks are played in sequential order.
Tracks in the
selected range
are played in
sequential order.
(*1)
The current track is played repeatedly.
The current track
is played
repeatedly.
All tracks are played repeatedly.
To repeat all the tracks on the Walkman, select [All Songs] on the library screen.
“Selected range” means one album or one artist, for example.
Note
When you play a track using the [SensMe™ Channels] function, you cannot change the playback mode.
When you select a track from a bookmark list, the Walkman plays tracks in the selected bookmark list only.
Tracks in other bookmark lists will not be played even when [Playback Range] is set to [All Range].
When you select a track from a playlist, the Walkman plays tracks in the selected playlist only.
Tracks in other playlists will not be played even when [Playback Range] is set to [All Range].
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
How to use the various screens on the Walkman
Playback screen
Playing music
4-698-041-12(1) Copyright 2017 Sony Corporation
67
Tracks in the
selected range
are played
repeatedly. (*1)
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Using [SensMe™ Channels]
The [SensMe™ Channels] function automatically groups tracks by theme. You can play tracks to suit your mood, current
activity, the time of day, and more.
To use the [SensMe™ Channels] function on the Walkman, tracks must be analyzed by Music Center for PC before you
transfer the tracks. To analyze tracks, activate the 12 TONE ANALYSIS function on Music Center for PC. The tracks that
are imported to Music Center for PC will be automatically analyzed and the results will be set to the tracks. For details on
operation, see the Music Center for PC support website.
1
On the library screen, tap [SensMe™ Channels].
Hint
[SensMe™ Channels] can be used for tracks that were transferred from applications that support the 12 TONE ANALYSIS
technology (developed by Sony).
When you open a channel using the [SensMe™ Channels] function or switch to a different channel, the track is played starting
from the most melodic or rhythmical section.
Tracks are played in random order. Each time you select a channel, the order of playback will be different.
Note
The Walkman only displays channels that contain tracks.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
Library screen
4-698-041-12(1) Copyright 2017 Sony Corporation
68
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Obtaining lyrics information
To display lyric information on the Walkman, you need to transfer a lyric text file (LRC file) together with the track file to
the Walkman.
You can obtain lyric information in the following ways.
Obtain lyric information via the Internet, and then create a text file (LRC file).
Input lyrics to a text file (LRC file) by yourself.
For details on LRC files, refer to the relevant topic under [Related Topic].
Note
Lyric information is limited to private use only. Use of lyric content for other purposes requires the permission of the copyright
holders.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
Displaying lyrics
Adding lyrics information using a computer
4-698-041-12(1) Copyright 2017 Sony Corporation
69
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Displaying lyrics
Transfer tracks with lyrics information to the Walkman. Then, set the Walkman to display lyrics.
When lyrics information is available for a track, an icon ( ) lights up.
1
On the playback screen, tap
and then [Display Lyrics].
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
Obtaining lyrics information
Adding lyrics information using a computer
4-698-041-12(1) Copyright 2017 Sony Corporation
70
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Managing playlists on the Walkman
You can collect your favorite tracks and save them as playlists on the Walkman.
This topic includes instructions for the following operations.
Adding tracks to playlists on the Walkman.
Listening to playlists on the Walkman.
Deleting playlists from the Walkman.
Adding tracks to playlists on the Walkman
Playlists can be saved either in the internal memory of the Walkman or on the microSD card. You cannot add a track
from the internal memory to a playlist on the microSD card or vice versa.
1. Perform one of the following.
While the Walkman is playing or pausing a track that you want to add to a playlist:
On the playback screen, tap
and then [Add to Playlist].
When a list (track list, album list, play queue, etc.) is displayed:
Tap
beside the desired item in the list to display the pop-up menu. Then, tap [Add to Playlist].
The playlist selection screen will appear.
2. Tap the playlist name to add the track.
Hint
Up to 999 tracks can be added to a playlist.
You can add a whole list to a playlist. When the play queue screen or the bookmark list screen is displayed, tap
[Add All Songs to Playlist].
You can change the order of tracks in a playlist. Select a playlist from the library screen. Tap
Drag-and-drop
to rearrange the tracks. Tap [Complete] to save the order of tracks.
and then
and then [Edit Song Order].
You can transfer playlists created using Music Center for PC or iTunes to the Walkman. Playlists in the m3u file format can be
managed on the Walkman.
Note
You cannot register cover art images for playlists.
Listening to tracks in a playlist on the Walkman
1. On the library screen, tap [Playlists].
2. Tap the desired playlist and then tap the desired track.
Deleting playlists from the Walkman
1. On the library screen, tap [Playlists] to display the list of playlists.
2. Tap
beside the playlist that you want to delete, and then tap [Delete].
3. Follow the onscreen instruction.
71
Hint
You can remove a track from a playlist.
Display the list of tracks in the playlist and tap
to display the pop-up menu. Then, select [Delete from Playlist].
Note
Even if you delete a playlist, the tracks in the playlist will not be deleted from the Walkman.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
Library screen
Playback screen
Play Queue screen
Bookmark List screen
4-698-041-12(1) Copyright 2017 Sony Corporation
72
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Managing bookmarks on the Walkman
You can add your favorite tracks to bookmark lists. Up to 10 bookmark lists are available. Up to 999 tracks can be added
to a bookmark list.
This topic includes instructions for the following operations.
Adding tracks to bookmark lists.
Listening to bookmarked tracks on the Walkman.
Removing tracks from a bookmark list on the Walkman.
Adding tracks to bookmark lists
1. Perform one of the following.
While the Walkman is playing or pausing a track that you want to bookmark:
On the playback screen, tap
and then [Add to Bookmark List].
When a list (track list, album list, play queue, etc.) is displayed:
Tap
beside the desired item in the list to display the pop-up menu. Then, tap [Add to Bookmark List].
The bookmark list selection screen will appear.
2. Select the desired bookmark list.
Hint
You can add a whole list to a bookmark list. When the play queue screen or the bookmark list screen is displayed, tap
then [Add All Songs to Bookmark List].
You can change the order of tracks in a bookmark list.
Select a bookmark list. Tap
and then [Edit Song Order]. Drag-and-drop
the order of tracks.
Note
You cannot import bookmark lists to a computer.
Listening to bookmarked tracks on the Walkman
1. Display the bookmark list screen.
2. Tap
/
to select a list, and then select a track.
Removing tracks from a bookmark list on the Walkman
1. Tap
beside the track in a bookmark list.
2. Tap [Delete from Bookmark List].
Hint
You can remove all the tracks from a bookmark list.
On the bookmark list screen, tap
and then [Delete All].
73
and
to rearrange the tracks. Tap [Complete] to save
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
Library screen
Playback screen
Play Queue screen
Bookmark List screen
4-698-041-12(1) Copyright 2017 Sony Corporation
74
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Deleting tracks from the Walkman
You can delete tracks from the Walkman.
1
On the library screen, display one of the following items.
To delete tracks, tap the desired category (albums, artists, etc.), and the desired subcategory until a track list
appears.
To delete a folder, tap [Folder] and then the desired folder.
2
Tap
to display the pop-up menu and tap [Delete].
Follow the onscreen instructions.
Hint
You can also delete tracks on a computer using the following applications. For details on operations, refer to the online help
information for each application.
Windows: Music Center for PC, Windows Explorer
Mac: Content Transfer, Finder
Note
When you delete tracks using Windows Explorer or Mac Finder, do not delete or rename the root folder (such as [MUSIC]).
Otherwise, the Walkman will not recognize the content.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
Library screen
4-698-041-12(1) Copyright 2017 Sony Corporation
75
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Viewing a guide to enjoy high quality sound
You can view information on enjoying content in high sound quality.
1
On the playback screen, tap the menu items in the following order.
– [Settings] – [Guide to High Quality Sound] ([Sound]).
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
Library screen
Sound quality setting screens
Adjusting the sound quality settings
4-698-041-12(1) Copyright 2017 Sony Corporation
76
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Connecting the Walkman to an unpaired Bluetooth device for the first time
The BLUETOOTH® function enables wireless connections between devices. The devices need to support Bluetooth
wireless technology. A wireless connection is possible at a range of up to 10 meters in an open area.
You can use the Bluetooth function for the following operations.
Listening to music.
Connect a Bluetooth device such as headphones or speakers. You can listen to music wirelessly.
When you connect Bluetooth devices wirelessly for the first time, the devices must be registered to each other. This
registration is called “pairing”. Once the Walkman and the device are paired, you can easily connect the devices in the
future.
The following instructions are a basic step-by-step procedure for connecting the Walkman and a Bluetooth device.
1
Turn on the Bluetooth function on the Bluetooth device, if necessary.
2
On the library screen, tap the menu items in the following order.
– [Settings] – [Connect to/Add Audio Device] ([Bluetooth]).
The Bluetooth connection screen will appear.
3
Tap the Bluetooth switch (
) to turn on the Bluetooth function and tap [Add Device (Pairing)] (
will appear in the information area. A list of the connectable devices will appear on the screen (
4
).
).
Tap the Bluetooth device.
If you are required to enter a passkey while pairing, check and enter the passkey for the Bluetooth device. For
details on the passkey for the Bluetooth device, refer to the manual of the device.
When the connection is established, [Connected] will appear in .
5
From the library screen, select and play a track.
The sound will be output from the connected Bluetooth device.
To disconnect from a paired Bluetooth device
77
1. While the Bluetooth device is connected, tap the menu items in the following order.
– [Settings] – [Connect to/Add Audio Device] ([Bluetooth]).
2. Tap the name of the Bluetooth device from [Added Devices].
Hint
You can delete registered Bluetooth device. On the list of connectable devices in [Added Devices], tap
Bluetooth device. Then, select [Delete Device].
beside the name of a
The passkey may also be called a “passcode”, “PIN code”, “PIN number”, or “password”.
The Walkman can stay connected to a Bluetooth device until you turn off the Bluetooth function. When you are not using the
Bluetooth function, turn off the Bluetooth function.
Note
Pairing information is deleted in the following situations. Pair the devices again.
One or both of the devices are reset to the factory settings.
Pairing information is deleted from the devices, such as when the devices are repaired.
The battery life becomes considerably shorter when the Bluetooth function is active.
You can pair the Walkman with a maximum of 7 devices. If the number of paired devices exceeds the maximum, the Walkman
will delete the oldest connected device.
If the pairing times out before it is finished, perform the procedure again starting from the Bluetooth connection screen.
There are some restrictions on sound output through a Bluetooth connection.
Even if you connect a pair of headphones to a headphone jack, sound will not be output from the headphones. Sound is output
from the Bluetooth device preferentially.
You cannot listen to played-back sound wirelessly while the USB-DAC function is active.
If sound is interrupted or skips during a Bluetooth connection, try the following.
Place the Walkman and the Bluetooth device closer together.
Select [SBC - Connection Preferred] by tapping the following menu items.
– [Settings] – [Audio Device Connection Settings] ([Bluetooth]) – [Wireless Playback Quality].
A Bluetooth connection is terminated automatically in the following cases:
The battery of the Walkman has run out.
The Walkman is turned off.
When there is an active Bluetooth connection, the sound quality settings are invalid.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
Connecting the Walkman to a paired Bluetooth device
One-touch connections with a Bluetooth device (NFC)
Configuring the Bluetooth function
Notes on the Bluetooth function
4-698-041-12(1) Copyright 2017 Sony Corporation
78
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Connecting the Walkman to a paired Bluetooth device
If the Walkman and a Bluetooth device have been paired before, the Bluetooth device is registered to the Walkman. You
can connect the Walkman and the Bluetooth device easily.
1
Turn on the Bluetooth function on the Bluetooth device, if necessary.
2
On the library screen, tap the menu items in the following order.
– [Settings] – [Connect to/Add Audio Device] ([Bluetooth]).
The Bluetooth connection screen will appear.
3
Tap the Bluetooth switch to turn on the Bluetooth function.
will appear in the information area.
4
Tap the Bluetooth device.
When the connection is established, [Connected] will appear.
5
From the library screen, select and play a track.
To turn the Bluetooth function on or off
1. Tap the menu items in the following order.
– [Settings] – [Connect to/Add Audio Device] ([Bluetooth]).
2. Tap the Bluetooth switch to turn the Bluetooth function on or off.
To confirm the information for a device:
Tap
beside the name of the Bluetooth device in the list and tap [Device Information].
To erase a registered device:
Tap
beside the name of the Bluetooth device in the list and tap [Delete Device].
Follow the onscreen instructions. The pairing information will be erased.
Hint
A shortcut is available for the Bluetooth function. You can tap
on the [Settings] screen. The Walkman will automatically
connect to the Bluetooth device that was connected the last time.
If you connect a USB charger (not supplied), the Walkman will charge while maintaining the Bluetooth connection.
If multiple names for a Bluetooth device are displayed, check the BD address of the Bluetooth device. For details on the BD
address, refer to the manual of the Bluetooth device.
If the Bluetooth device supports the NFC function, the Walkman and the Bluetooth device can be paired and connected by
touching them together.
The Walkman can stay connected to a Bluetooth device until you turn off the Bluetooth function. When you are not using the
Bluetooth function, turn off the Bluetooth function.
79
Note
The battery life becomes considerably shorter when the Bluetooth function is active.
There are some restrictions on sound output through a Bluetooth connection.
Even if you connect a pair of headphones to a headphone jack, sound will not be output from the headphones. Sound is output
from the Bluetooth device preferentially.
You cannot listen to played-back sound wirelessly while the USB-DAC function is active.
If sound is interrupted or skips during a Bluetooth connection, try the following.
Place the Walkman and the Bluetooth device closer together.
Select [SBC - Connection Preferred] by tapping the following menu items.
– [Settings] – [Audio Device Connection Settings] ([Bluetooth]) – [Wireless Playback Quality].
A Bluetooth connection is terminated automatically in the following cases:
The battery of the Walkman has run out.
The Walkman is turned off.
When there is an active Bluetooth connection, the sound quality settings are invalid.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
Connecting the Walkman to an unpaired Bluetooth device for the first time
One-touch connections with a Bluetooth device (NFC)
Configuring the Bluetooth function
Notes on the Bluetooth function
4-698-041-12(1) Copyright 2017 Sony Corporation
80
Help Guide
Digital Music Player
NW-ZX300/ZX300A
One-touch connections with a Bluetooth device (NFC)
If a Bluetooth device supports the NFC function, you can connect the Walkman and the device easily. You can simply
touch the Walkman to the device to pair the devices and establish a Bluetooth connection.
NFC is for close-range wireless communications.
1
If the Bluetooth device has an NFC switch, set the NFC switch to on.
2
Turn on the Walkman screen.
3
Touch the mark on the Walkman (
) to the mark on the Bluetooth device (
).
Hold them together until instructions appear on the screen of the Walkman.
4
Follow the onscreen instructions on the Walkman to complete the connection.
5
Once the connection is established, play a track on the Walkman.
To disconnect the Walkman and the Bluetooth device using the NFC function
Turn on the Walkman screen. Then, touch the devices (
and
To turn off the NFC function
81
) together again to disconnect.
The NFC function is turned on as a default. If you want to turn off the NFC function, tap the menu items in the following
order to remove the check mark.
– [Settings] – [NFC] ([Bluetooth]).
Hint
Take the following measures if the connection is poor.
Move the Walkman over the mark on the Bluetooth device ( ).
If your Walkman is inside a case, take it out of the case.
Make sure that the NFC function is on. Tap
and then [Settings]. Confirm that there is a check mark in the check box for
[NFC] ([Bluetooth]).
Note
The battery life becomes considerably shorter when the Bluetooth function is active.
You cannot connect the Walkman to a Bluetooth device using NFC while the following functions are active.
The USB-DAC function
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
Turning the Walkman on or off
Configuring the Bluetooth function
Notes on the Bluetooth function
4-698-041-12(1) Copyright 2017 Sony Corporation
82
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Configuring the Bluetooth function
This topic includes instructions for the following operations.
Selecting the playback quality for Bluetooth streaming.
Selecting the volume setting for Bluetooth streaming
Checking Bluetooth information.
Selecting the playback quality for Bluetooth streaming
You can select the combination of codecs and preferences for Bluetooth streaming.
1. On the playback screen, tap the menu items in the following order.
– [Settings] – [Audio Device Connection Settings] ([Bluetooth]) – [Wireless Playback Quality].
2. Tap the desired item.
Note
The setting for [Wireless Playback Quality] will take effect starting the next time you turn on the Bluetooth function.
The [Wireless Playback Quality] setting may not be effective depending on the settings of the Bluetooth device.
Selecting the volume setting for Bluetooth streaming
Depending on the Bluetooth device, the volume may not be adjustable using the Walkman.
In this case, try [Use Enhanced Mode].
1. On the playback screen, tap the menu items in the following order.
– [Settings] – [Audio Device Connection Settings] ([Bluetooth]) – [Use Enhanced Mode].
Checking Bluetooth information
1. On the playback screen, tap the menu items in the following order.
– [Settings] – [Bluetooth Information] ([Bluetooth]).
Information such as the Bluetooth version and profile will appear.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
Connecting the Walkman to an unpaired Bluetooth device for the first time
Connecting the Walkman to a paired Bluetooth device
One-touch connections with a Bluetooth device (NFC)
4-698-041-12(1) Copyright 2017 Sony Corporation
83
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Notes on the Bluetooth function
Depending on the Bluetooth device, network environment, and surrounding conditions, noise may be heard or the
sound may be interrupted. To optimize Bluetooth communications, observe the following.
Place the Walkman and the Bluetooth device as close together as possible. The Bluetooth standard supports
distances of up to 10 meters (32.8 feet).
Turn the built-in Bluetooth antenna (aerial) in the direction of the connected Bluetooth device.
Do not block the antenna (aerial) with a metal object such as a bag or case.
Do not block the antenna (aerial) with a body part such as a hand.
Do not block the antenna (aerial) by placing the Walkman inside a backpack or shoulder bag.
Do not block the antenna (aerial) by using the Walkman in a crowded place.
Avoid areas where electromagnetic waves are emitted. For example, near microwave ovens, mobile phones,
mobile gaming devices, or wireless LAN environments.
Due to a characteristic of Bluetooth wireless technology, the sound may lag slightly.
Bluetooth radiation may affect the operation of electronic medical devices. Turn off the Walkman and other Bluetooth
devices in the following locations.
in hospitals
near priority seats on trains
on airplanes
in places where flammable gases are present (gas stations, etc.)
near automatic doors
near fire alarms
The Walkman supports security functions that comply with the Bluetooth standard. Sony bears no responsibility
whatsoever for information leaks that occur as a result of your Bluetooth connection.
Even if a Bluetooth device conforms to the standard, all connections and correct operations are not guaranteed.
Depending on the Bluetooth device, it may take some time to establish a Bluetooth connection.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
Parts and controls
4-698-041-12(1) Copyright 2017 Sony Corporation
84
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Enjoying music content on a computer with Walkman sound quality (USB-DAC
function)
You can enjoy music content stored on a computer through the Walkman, without transferring the content to the
Walkman. Because the sound quality settings of the Walkman also apply to the output sound, music content on the
computer can be played with the same sound quality as the Walkman.
The following applications are compatible with the USB-DAC function. They are recommended for use with the
Walkman.
Windows: Music Center for PC
Mac: Hi-Res Audio Player for Mac
Note
While the USB-DAC function is turned on, the Walkman can only be used as a USB-DAC device. To use the Walkman as a music
player, turn off the USB-DAC function.
Music content cannot be transferred while the USB-DAC function is turned on.
1
Install the USB-DAC compatible application on a computer.
Windows:
Music Center for PC: To install the application, access the customer support website.
(http://www.sony.net/smc4pc/) Refer to the appropriate topic under [Related Topic].
Sony USB Device Driver: Access the customer support website to install Sony USB Device Driver. Follow
the onscreen instructions.
Mac:
Hi-Res Audio Player for Mac: Access the customer support website to install the application. Follow the
onscreen instructions.
2
On the computer, configure the settings for USB-DAC.
For details on the settings, refer to the following information.
Windows: Online help information for Music Center for PC
Mac: Online help information for Hi-Res Audio Player on the customer support website.
3
On the Walkman, tap
4
When a message is displayed, tap [OK].
5
Connect the Walkman to the computer via USB.
to open the library screen, and then tap
You can adjust the volume on the [USB DAC] screen.
To go back to the music playback function
Tap
in the top left of the screen.
When a message is displayed, tap [OK].
85
.
Hint
If you do not want the Walkman to charge from the computer, remove the check mark from [Charge this player from the
connected device]. Tap the menu items in the following order.
– [Settings] – [USB DAC Settings] ([Function Settings]) – [Charge this player from the connected device].
However, if the USB port on the computer is set to supply power constantly to the connected device, the Walkman may be
charged by the computer.
Note
You cannot listen to played-back sound wirelessly while the USB-DAC function is active.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
Adjusting the sound quality settings
Installing Music Center for PC (Windows)
How to use the various screens on the Walkman
USB-DAC screen
Customer support website
4-698-041-12(1) Copyright 2017 Sony Corporation
86
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Adjusting the sound quality settings
The Walkman has various settings for adjusting the sound quality.
From the [Settings] menu
On the playback screen, tap
and then [Settings].
You can set the following sound settings from the menu listed under [Sound].
Direct Source (Direct)
This setting outputs the file’s original sound quality directly without applying any sound effects.
Saved Sound Settings
Save Current Settings:
You can save customized sound quality settings as your own sound presets.
Saved Sound Settings 1/2/3:
You can retrieve preset sound quality settings.
From the [Settings] – [Sound Settings] menu
On the playback screen, tap the menu items in the following order.
– [Settings] – [Sound Settings] ([Sound]).
You can also adjust the following settings from the sound quality setting screens.
Equalizer/Tone Control
You can customize the equalizer and tone control settings from their respective screens.
On the equalizer screen, tap [Adjust] to adjust the setting. On the tone control screen, rotate the dials to adjust the
settings.
Tap
to select [Equalizer] or [Tone Control]. The selected setting will take effect.
DSEE HX
This function upscales the sound quality of audio files. The sound quality will become almost equal to that of HighResolution Audio. The function reproduces the clear high-range sound that is often lost.
Select a sound type based on the source sound.
DC Phase Linearizer
This function adjusts low-frequency phase shifts to reproduce the audio characteristics of analog amplifiers.
Select a sound type for this setting.
Dynamic Normalizer
You can moderate the change in volume between tracks to minimize differences in volume level.
Note
When there is an active Bluetooth connection, the sound quality settings are invalid.
You cannot adjust [Sound Settings] in the following cases.
When [Direct Source (Direct)] is set to [On].
87
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
How to use the various screens on the Walkman
Sound quality setting screens
4-698-041-12(1) Copyright 2017 Sony Corporation
88
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Using USB Mass Storage mode
When you connect the Walkman to a Windows computer, the following modes are available.
USB Mass Storage mode
The computer uses the Walkman as a USB storage device.
Data can be transferred between the computer and the Walkman.
You can access the [WALKMAN] and [SD_CARD] folders directly to manage files.
The Walkman charges via the computer.
You cannot operate the Walkman.
USB mode
The Walkman charges via the computer.
You can operate the Walkman while the Walkman is connected to the computer.
Data cannot be transferred.
This topic includes instructions for the following operations.
Switching from USB Mass Storage mode to the USB mode
Switching from USB mode to the USB Mass Storage mode
Switching from USB Mass Storage mode to USB mode
When you connect the Walkman to a computer, the Walkman enters USB Mass Storage mode.
1. Tap [Turn Off USB Mass Storage] (
).
The USB mode screen will appear.
2. Tap
.
The screen will return to the previous display.
Switching from USB mode to USB Mass Storage mode
Depending on the selected function,
or [USB Connection Settings] may not appear on the Walkman display. In this
case, tap
to return to the library screen for the music playback function.
1. Tap the menu items in the following order.
89
– [Settings] – [Device Settings] ([Basic Settings]) – [USB Connection Settings] – [Turn On USB Mass Storage] –
[OK].
Note
Before you disable USB Mass Storage mode, we recommend that you perform [Safely Remove Hardware] on the computer.
Do not disconnect the Walkman while transferring content between the Walkman and the computer. Doing so will damage the
data.
On the computer screen, confirm that the data has finished transferring properly.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
Charging the battery
4-698-041-12(1) Copyright 2017 Sony Corporation
90
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Restarting the Walkman
Restart the Walkman if operations become unstable or the Walkman freezes.
Restarting will not delete any data and pairing information.
However, perform the following before you restart the Walkman.
Otherwise, the data on the Walkman may be damaged.
Disconnect the Walkman from the computer.
Stop playback.
1
Hold down the button (
) for 8 seconds until the Walkman restarts.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
Resetting/Formatting/Initializing the Walkman
Formatting a microSD card
4-698-041-12(1) Copyright 2017 Sony Corporation
91
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Resetting/Formatting/Initializing the Walkman
This topic includes instructions for the following operations.
Resetting the Walkman.
Formatting the memory of the Walkman.
Rebuilding the database on the Walkman.
Initializing the Walkman.
Confirm the details of each function. Then, select the appropriate menu item for your needs.
1
On the library screen, tap the menu items in the following order.
– [Settings] – [Device Settings] ([Basic Settings]) – [Reset/Format].
2
Tap the operation that you want to execute.
Follow the onscreen instructions. Make sure to confirm the messages carefully.
[Reset All
Settings]
[Format
System
Storage]
[Rebuild
Database]
[Restore to
Factory
Configuration]
This operation resets all setting parameters to the default settings.
If you select this operation, the Walkman will restart automatically.
This operation formats the internal memory of the Walkman. Note that all data (including sample
data) stored on the Walkman will be deleted. Save a backup copy of important data.
This operation rebuilds the database on the Walkman.
You can rebuild the database manually.
This operation initializes both the settings and internal memory. You can restore the Walkman to
its default settings. All transferred data will be erased. However, the Walkman will restore its
preinstalled sample content and installers as default settings.
If you select this operation, the Walkman will restart automatically and the initial setup wizard will
launch.
Hint
Even if you perform [Reset All Settings], the following settings will not be changed.
Elapsed time of the selected track
Preset 1 through 3 for [Saved Sound Settings]
The bookmark list (1 through 10)
User settings for the library screen
Information on recently transferred content
Clock settings
Language settings
Note
Sony does not guarantee performance if you format the memory of the Walkman using a computer.
92
If you execute [Restore to Factory Configuration]/[Reset All Settings], pairing information for Bluetooth devices will be deleted
from the Walkman.
If you rebuild the database, the following information will be erased.
Elapsed time of the selected track
Playback order
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
Restarting the Walkman
Formatting a microSD card
4-698-041-12(1) Copyright 2017 Sony Corporation
93
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Formatting a microSD card
You can format a microSD card on the Walkman.
Formatting the microSD card will delete all data stored on the card. Save a backup copy in advance. Be careful not to
delete important data.
1
On the library screen, tap the menu items in the following order.
– [Settings] – [Device Settings] ([Basic Settings]) – [Reset/Format] – [Format SD Card].
Follow the onscreen instructions. Make sure to confirm the messages carefully.
Note
Format the microSD card on the Walkman. Otherwise, some functions of the Walkman may be limited.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
Restarting the Walkman
Resetting/Formatting/Initializing the Walkman
4-698-041-12(1) Copyright 2017 Sony Corporation
94
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Checking information on the Walkman
You can check information such as the model name and system software version.
1
On the library screen, tap the menu items in the following order.
– [Settings] – [Unit Information] ([Other]).
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
Updating the Walkman system software
4-698-041-12(1) Copyright 2017 Sony Corporation
95
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Updating the Walkman system software
You can update the software of the Walkman.
You will receive update notices by the following methods.
From Music Center for PC (You will receive update notices automatically.)
From the customer support website (Access the site manually to receive update notices.)
Access the customer support website to get the latest information.
The following procedure describes how to update the software from the customer support website.
For details on how to install the program, refer to the customer support website.
1
Download the update program to a computer from the website.
2
Connect the Walkman to the computer.
3
Launch the update program.
4
Follow the onscreen instructions.
Hint
To check the version information for the Walkman, tap the menu items in the following order.
– [Settings] – [Unit Information] ([Other]).
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
Related Topic
Customer support website
Restarting the Walkman
Resetting/Formatting/Initializing the Walkman
Checking information on the Walkman
4-698-041-12(1) Copyright 2017 Sony Corporation
96
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Using shortcut buttons from the quick setting panel
Shortcut buttons for some functions are available in the quick setting panel.
You can activate certain functions directly without scrolling in the [Settings] menu.
1
Tap
and then [Settings].
2
Tap the shortcut button for the desired function.
Available functions
Shortcut
button
Function
Tap the button to adjust the screen brightness. You can select a value from 1 to 100.
Tap the button to turn the Bluetooth function on or off.
When the Bluetooth function is turned on, the Walkman will automatically connect to the device that was
connected the last time.
(*1)
*1
Tap the button to turn the Bluetooth remote control function on or off.
This function is only available on models sold in certain countries or areas.
Note
Pair the Walkman and the Bluetooth device (audio device or remote control) in advance.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
97
Related Topic
Connecting the Walkman to an unpaired Bluetooth device for the first time
4-698-041-12(1) Copyright 2017 Sony Corporation
98
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Settings menu
You can adjust various settings from the Settings menu.
To enter the Settings menu, tap
and then [Settings].
You can select the Settings menu on the following screen.
Library screen
Playback screen
Play Queue screen
Bookmark list screen
Basic Settings
Play Mode
Playback Range
Playback Settings
Sleep Timer
Artist List Display
Display Lyrics
Headphone Output
Output Settings
USB Output for DSD
DSD Playback Settings
Beep Settings
Disable touch panel when the HOLD switch is on
Screen Off Timer
Mount/Unmount SD Card
USB Connection Settings
Device Settings
Auto Power Off
Battery Care
Clock Settings
Language Settings
Reset/Format
Note
Operating sounds ([Beep Settings]) are not output in the following situations.
While the Walkman is playing DSD tracks in the native format through balanced headphones. ([Play DSD in Native Format] is
on.)
While sound is being played back via a connected Bluetooth device.
The Walkman does not display a clock. The clock setting is used for data management.
99
Sound
Direct Source (Direct) (On/Off)
–
Equalizer/Tone Control
DSEE HX
Sound Settings
DC Phase Linearizer
Dynamic Normalizer
Saved Sound Settings
Saved Sound Settings 1/2/3
Guide to High Quality Sound
–
Bluetooth
On/Off
Connect to/Add Audio Device
Add Device (Pairing)
Added Devices
Wireless Playback Quality
Audio Device Connection Settings
Use Enhanced Mode
On/Off
Added Remote Control
Remote Control Settings (*1)
Add Remote Control
Delete Remote Control
NFC (On/Off)
–
Bluetooth Information
Bluetooth Version/Device Name/Bluetooth Device Address/Profile/Version
*1
The menu item is only available on models sold in certain countries or areas.
Function Settings
USB DAC Settings
Charge this player from the connected device
Other
Unit Information
Model name, firmware version, total number of tracks, etc.
Certificates (*1)
Safety regulations/certification
*1
The menu item is only available on models sold in certain countries or areas.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
100
4-698-041-12(1) Copyright 2017 Sony Corporation
101
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Notes on handling the Walkman
Read the notes below and follow the instructions to use the Walkman safely.
Consult a doctor if you become injured or burned from using the product.
Contact the nearest Sony dealer or Sony Service Center if the Walkman does not operate properly.
Observe the following precautions. Otherwise, an explosion, fire, electric shock, burns, or injury may result.
Do not expose the Walkman to fire.
Do not allow metallic objects to get inside the Walkman.
Do not short-circuit the terminals of the Walkman with metallic objects.
Do not take apart or modify the Walkman.
Do not use the Walkman when you see lightning or hear thunder.
Do not use the Walkman if it causes an uncomfortable reaction on your skin.
Observe the following precautions. Otherwise, you may damage the casing or cause the Walkman to malfunction.
Do not place the Walkman in direct sunlight.
Do not place the Walkman in locations where the temperature is extremely high.
Do not leave the Walkman in direct sunlight. Do not leave the Walkman in a car with all the windows closed,
especially during the summer.
Do not place the Walkman in locations where it is exposed to vibration.
Do not drop the Walkman from heights.
Do not apply a strong force or shock to the Walkman.
Do not place the Walkman in locations where there is magnetization. For example, do not place the Walkman
near a magnet, speakers, or a TV.
Do not turn on the Walkman right after you move it from a cold environment to a warm environment.
Do not use the Walkman in damp locations, such as in a bathroom or a sauna.
Do not place the Walkman on an unstable surface or in an inclined position.
Do not sit down when the Walkman is inserted in your pocket.
Do not use the Walkman in locations where it is exposed to excessive dust.
When you store the Walkman in a bag, do not apply strong impacts to the bag. In particular, avoid storing the
Walkman in a bag with the headphone cord or earphone cord wrapped around the Walkman.
The Walkman is neither waterproof nor dustproof. Observe the following precautions. Otherwise, the Walkman may
become inoperable because of short-circuited terminals or corroded metal.
Do not drop the Walkman into water.
102
Do not use the Walkman in humid locations or during wet weather such as rain or snow.
Do not place the Walkman against your body or clothes when you are sweating.
Do not touch the Walkman with wet hands.
Comply with announcements regarding the use of electronic devices when you are on an airplane.
Heat may build up in the Walkman in the following situations, but this is not a malfunction. However, be careful
because there is a risk of low-temperature burns.
While the battery is charging.
While the Walkman is playing for an extended period of time.
Do not apply strong force to the surface of the display. Strong force may cause the following problems.
Distorted colors or brightness.
A malfunction of the display.
Injury from a cracked display.
The Walkman screen is made of glass. The glass may crack if you drop the Walkman on a hard surface or if you
apply strong force to the screen. Be careful when you handle the Walkman. If the glass is cracked or chipped, do not
use the Walkman or touch the damaged part. Otherwise, you may get injured.
When you use a strap, note the following.
The strap can get caught on objects around you. Be careful to avoid the risk of strangulation.
Be careful not to swing the Walkman while holding the strap. You may hit someone with the Walkman.
Content that you record is for personal use only. Under copyright law, the content cannot be used without the
permission of the copyright holder.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
4-698-041-12(1) Copyright 2017 Sony Corporation
103
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Notes on the headphones
Road safety
Do not use headphones in the following situations.
While you are driving a car or riding a motorcycle or bicycle.
Places where impaired hearing is dangerous. For example, on train platforms, in areas where there is vehicle traffic,
or near construction sites.
Preventing hearing damage
Observe the following to protect your hearing.
Keep the volume at a moderate level. Do not listen to audio content at high volumes for an extended period of time.
Do not turn up the volume suddenly.
About the in-ear headphones
When you use in-ear headphones with a high degree of adhesion, note the following. Otherwise, you may damage
your ears or eardrums.
Do not insert the earbuds forcefully into your ears.
Do not remove the earbuds from your ears suddenly. When you take off the headphones, move the earbuds up
and down gently.
When you unplug the headphones from the Walkman, hold the headphones by the plug. Pulling the cord itself may
damage the headphones.
Do not sleep while you are wearing headphones. The cord may become wrapped around your neck while you are
sleeping.
Consideration for others
Avoid using the Walkman in environments where sound leakage will disturb others.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
4-698-041-12(1) Copyright 2017 Sony Corporation
104
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Notes on the built-in battery
Do not touch the rechargeable battery with your bare hands if the battery is leaking. The battery liquid may cause burns
or blindness. If the liquid contacts your body or clothes, wash the liquid off immediately with clean water.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
4-698-041-12(1) Copyright 2017 Sony Corporation
105
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Notes on the software
Copyright laws prohibit the following actions without the permission of the copyright holder.
Reproducing the software or the manual in whole or in part.
Loaning out the software
In no event will Sony be held liable for any of the following incidents that may arise out of the use of the supplied
software.
Financial damage
Loss of profits
Claims made by third parties
The supplied software cannot be used with devices for which it is not designated.
Please note that the software specifications may be changed without notice for quality improvement.
The explanations in this manual assume that you are familiar with the basic operations of a computer.
For details on the use of computers and operating systems, refer to their respective manuals.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
4-698-041-12(1) Copyright 2017 Sony Corporation
106
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Notes on the sample data
Sample music is pre-installed on the Walkman for trial listening.
Sample data is not installed in some countries or regions.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
4-698-041-12(1) Copyright 2017 Sony Corporation
107
Help Guide
Digital Music Player
NW-ZX300/ZX300A
General Information
Charging time and playback time depend on the following conditions.
The number of times you have charged the battery
Operating temperature
When the battery is sufficiently charged but the battery life has dropped to about half of its normal span, the battery
may be worn out.
A lithium-ion rechargeable battery is built into the Walkman. When you store the Walkman for long periods of time,
check the following to prevent the deterioration of the built-in battery.
Store the Walkman at temperatures from 5 °C to 35°C (41 ºF to 95 ºF).
To prevent deterioration of the battery, charge the battery at least once every 6 months.
When you use the Walkman in a cold location, the onscreen display may become dark or may not respond quickly.
However, these are not malfunctions.
You feel mild tingling against your ears particularly in dry air conditions.
This is a result of static electricity accumulated in the body.
This effect can be minimized by wearing clothes made from natural materials.
Sony is not responsible for user data even if the following problems occur due to defects in the Walkman or a
computer.
Recording or downloading of data is incomplete.
Data (such as music) is damaged or deleted.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
4-698-041-12(1) Copyright 2017 Sony Corporation
108
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Maintenance
Clean the Walkman with a soft cloth, such as a cleaning cloth for eyeglasses.
To clean a Walkman that has gotten very dirty, use a cloth slightly moistened with a mild detergent solution. Be
careful not to get water inside the Walkman.
Do not clean with solvents such as alcohol, naphtha, or paint thinner. These solvents may damage the surface of the
Walkman.
Clean the headphone plug occasionally with a soft dry cloth. Noise or sound skipping may occur if the plug is dirty.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
4-698-041-12(1) Copyright 2017 Sony Corporation
109
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Customer support website
Visit the customer support website in your country or region in the following situations.
When you have a question about the Walkman.
When you have an issue with the Walkman.
When you want information on compatible items.
For customers in the US:
http://www.sony.com/walkmansupport
For customers in Canada:
English
http://www.sony.ca/ElectronicsSupport/
French
http://www.sony.ca/ElectronicsSupport/
For customers in Latin America:
http://www.sony-latin.com/index.crp
For customers in Europe:
http://www.sony.eu/dna/wm/
For customers in Asia/Oceania/the Middle East/Africa:
English
http://www.sony-asia.com/support
Korean
https://scs.sony.co.kr/scs/handler/ProductSupport
Simplified Chinese
https://service.sony.com.cn
Traditional Chinese
http://service.sony.com.tw/
For customers who purchased the overseas models:
http://www.sony.co.jp/overseas/support/
110
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
4-698-041-12(1) Copyright 2017 Sony Corporation
111
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Specifications
Display
Size/Resolution
3.1-inch (7.8 cm), WVGA (800 × 480 Pixels)
Panel type
TFT color display with white LED-backlight
Capacitive touch screen
Interface
USB
Hi-Speed USB (USB 2.0 compliant)
Headphone
Stereo Mini-jack, Balanced Standard-jack
WM-PORT
WM-PORT (multiple connecting terminal): 22 pins
External memory
microSD
microSDHC
microSDXC
Bluetooth
Version
Ver. 4.2
Frequency band
2.4 GHz band (2.4000 GHz - 2.4835 GHz)
Modulation method
FHSS
Compatible Bluetooth profiles (*1)
A2DP (Advanced Audio Distribution Profile)
AVRCP (Audio Video Remote Control Profile)
Supported Codec (*2)
SBC (*3), LDAC, aptX, aptX HD
*1
*2
*3
Bluetooth profiles are standardized according to the purpose of the Bluetooth device.
Codec indicates the audio signal compression and conversion format.
SBC stands for Subband Codec.
NFC
NFC
Active type (for reader and writer)
Headphone Out (Stereo Mini-jack)
Frequency response
20 Hz to 40,000 Hz
(when playing data file, single signal measurement)
112
Headphone Out (Balanced Standard-jack)
Frequency response
20 Hz to 40,000 Hz
(when playing data file, single signal measurement)
General
Power Source
Built-in Rechargeable lithium-ion Battery
USB power (from a computer via a USB connector of the player)
Charging Time
USB-based charging
Approx. 5.5 hours
Operating temperature
5 °C to 35 °C (41 ºF to 95 ºF)
w/h/d, projecting parts not included
Approx. 57.3 mm × 119.5 mm × 14.8 mm
(2.26 inches × 4.71 inches × 0.59 inches)
Dimensions
w/h/d
Approx. 57.7 mm × 120.4 mm × 14.9 mm
(2.28 inches × 4.75 inches × 0.59 inches)
Approx. 157 g
(5.54 oz)
Mass
Capacity
NW-ZX300
64 GB
NW-ZX300A
16 GB
Actual available memory for other contents
NW-ZX300
Approx. 55.93 GB=60,055,519,232 byte
NW-ZX300A
Approx. 12.26 GB=13,164,150,784 byte
Note
Available capacity may vary. A portion of the memory is used for data management functions.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
113
4-698-041-12(1) Copyright 2017 Sony Corporation
114
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Battery life
Music (Approx.)
Stereo Mini-jack
Balanced Standard-jack
MP3 (128 kbps)
30 hours
25 hours
AAC (256 kbps)
27 hours
23 hours
FLAC (96 kHz/24 bit)
26 hours
23 hours
FLAC (192 kHz/24 bit)
23 hours
20 hours
DSD (2.8224 MHz/1 bit)
19 hours
13 hours
DSD (5.6448 MHz/1 bit)
15 hours
12 hours
DSD (11.2896 MHz/1 bit)
13 hours
10 hours
Bluetooth (Approx.)
MP3 (128 kbps)
SBC - Connection Preferred: 25 hours
FLAC (96 kHz/24 bit)
LDAC - Connection Preferred (Auto): 14 hours
Note
The values shown in this topic are the approximate battery life when content is played continuously at the default settings.
Even if the player is turned off for an extended period, a small amount of battery power is still consumed.
Battery life may vary depending on volume setting, conditions of use and ambient temperature.
The battery is consumed considerably when the screen is on.
The battery life may become about 55 % shorter when some of the sound quality settings are active.
A Bluetooth connection will shorten the battery life by up to 65 % depending on the following conditions.
Format of the content.
Settings of the connected device.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
4-698-041-12(1) Copyright 2017 Sony Corporation
115
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Maximum recordable number of songs
Music (Approx.)
NW-ZX300 (64 GB)
NW-ZX300A (16 GB)
MP3 (128 kbps)
15,000 songs
3,300 songs
AAC (256 kbps)
7,600 songs
1,600 songs
FLAC (44.1 kHz/16 bit)
1,300 songs
300 songs
FLAC (96 kHz/24 bit)
420 songs
90 songs
FLAC (192 kHz/24 bit)
210 songs
40 songs
DSD (2.8224 MHz/1 bit)
340 songs
70 songs
DSD (5.6448 MHz/1 bit)
170 songs
30 songs
DSD (11.2896 MHz/1 bit)
80 songs
10 songs
Note
The approximate numbers are based on 4 minute a song.
This product is confirmed to operate normally with up to a total of 20,000 tracks stored in the main memory and on the microSD
card.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
4-698-041-12(1) Copyright 2017 Sony Corporation
116
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Supported formats
Music
MP3 ( .mp3)
32 kbps - 320 kbps (Supports variable bit rate (VBR)) / 32 kHz, 44.1 kHz, 48 kHz
WMA ( .wma)
32 kbps - 192 kbps (Supports variable bit rate (VBR)) / 44.1 kHz
FLAC ( .flac)
16 bit, 24 bit / 8 kHz - 384 kHz
WAV ( .wav)
16 bit, 24 bit, 32 bit (Float/Integer) / 8 kHz - 384 kHz
AAC ( .mp4, .m4a, .3gp)
16 kbps - 320 kbps / 8 kHz - 48 kHz
HE-AAC ( .mp4, .m4a, .3gp)
32 kbps - 144 kbps / 8 kHz - 48 kHz
Apple Lossless ( .mp4, .m4a)
16 bit, 24 bit / 8 kHz - 384 kHz
AIFF ( .aif, .aiff, .afc, .aifc)
16 bit, 24 bit, 32 bit (Float/Integer) / 8 kHz - 384 kHz
DSD ( .dsf, .dff)
1 bit / 2.8224 MHz, 5.6448 MHz, 11.2896 MHz
APE ( .ape)
8 bit, 16 bit, 24 bit / 8 kHz - 192 kHz (Fast, Normal, High)
MQA ( .mqa.flac)
Supported
Note
Sampling frequency may not correspond to all encoders.
Copyright protected files cannot be played back.
Non-standard bit rates or non-guaranteed bit rates are included depending on the Sampling frequency.
Files that are 4 GB (2 GB for APE) or larger cannot be played back.
This product recognizes audio sources exceeding CD quality (44.1 kHz/16 bit quantization) and DAT quality (48 kHz/16 bit
quantization) as High-Resolution Audio.
The "HR" symbol is displayed for High-Resolution Audio sources.
117
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
4-698-041-12(1) Copyright 2017 Sony Corporation
118
Help Guide
Digital Music Player
NW-ZX300/ZX300A
System requirements
Supported OS
Windows® 10
Windows® 8.1
Windows® 7
macOSTM v10.8 - 10.12
Note
You need an Internet connection to download computer applications.
We do not guarantee operation for all computers.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
4-698-041-12(1) Copyright 2017 Sony Corporation
119
Help Guide
Digital Music Player
NW-ZX300/ZX300A
The built-in rechargeable battery becomes depleted quickly even after the Walkman is
fully charged.
Limit the battery consumption to check if the battery condition improves.
If the battery life becomes half as short as normal, consider replacing the battery.
The battery life depends on the conditions of use, settings, and ambient temperature.
Furthermore, the following operations will deplete the battery more quickly than continuous use of the Walkman.
Turning the Walkman on or off frequently.
Changing the Walkman settings frequently.
Charging and discharging the battery repeatedly.
This will gradually decrease the capacity of the battery. As a result, the battery may become depleted quickly even
after it is fully charged.
To replace the battery, contact the nearest Sony dealer or Sony Service Center.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
4-698-041-12(1) Copyright 2017 Sony Corporation
120
Help Guide
Digital Music Player
NW-ZX300/ZX300A
What is the battery lifespan?
The built-in rechargeable battery can be charged approximately 500 times.
The battery can be charged approximately 500 times on average.
However, the battery lifespan depends on the temperature and usage environment.
When the life of a fully charged battery becomes half as short as normal, consider replacing the battery.
To replace the battery, contact the nearest Sony dealer or Sony Service Center.
Do not replace the battery yourself. The battery is built into the Walkman. Battery replacement requires professional
knowledge and skills.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
4-698-041-12(1) Copyright 2017 Sony Corporation
121
Help Guide
Digital Music Player
NW-ZX300/ZX300A
Can I replace the built-in rechargeable battery myself?
Do not replace the battery yourself.
The battery is built into the Walkman. Battery replacement requires professional knowledge and skills. Do not replace the
battery yourself.
The Walkman uses a designated rechargeable battery. Commercially available batteries cannot be used.
To replace the battery, contact the nearest Sony dealer or Sony Service Center.
For your information
The battery performance deteriorates due to the following factors.
The number of times you charge or discharge the battery.
How long the battery is used.
Usage environment.
The battery life can be an indicator for replacement.
When the life of a fully charged battery becomes half as short as normal, the battery should be replaced.
The battery can be charged approximately 500 times on average.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
4-698-041-12(1) Copyright 2017 Sony Corporation
122
Help Guide
Digital Music Player
NW-ZX300/ZX300A
The computer does not recognize the microSD card in the Walkman.
Disconnect the Walkman from the computer, and then try the following measures.
The computer will not recognize the microSD card in the following cases.
The microSD card is not inserted firmly enough.
You inserted the microSD card after you connected the Walkman to the computer.
1. Select [Mount/Unmount SD Card] on the Walkman.
Tap the menu items in the following order.
– [Settings] – [Device Settings] (Basic Settings) – [Mount/Unmount SD Card].
2. Remove the microSD card from the Walkman. Then, reinsert the microSD card firmly and securely.
3. Connect the Walkman to the computer.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
4-698-041-12(1) Copyright 2017 Sony Corporation
123
Help Guide
Digital Music Player
NW-ZX300/ZX300A
The Walkman does not recognize a microSD card.
Try the following measures.
Make sure that the microSD card is inserted firmly and securely.
Select [Mount/Unmount SD Card] on the Walkman before you remove the microSD card. Then, reinsert the microSD
card firmly into the Walkman.
Make sure that the contact pins of the microSD card are clean.
Clean the contact pins of the microSD card with a dry cloth or a cotton bud. Then, reinsert the microSD card firmly.
Make sure that the microSD card is in a format that the Walkman can recognize.
Copy all the data on the microSD card onto a computer first. Then, format the microSD card on the Walkman.
Use the Walkman to format the microSD card. Sony does not guarantee the operation of microSD cards that have been
formatted on other devices such as computers.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
4-698-041-12(1) Copyright 2017 Sony Corporation
124
Help Guide
Digital Music Player
NW-ZX300/ZX300A
A track is duplicated on the Walkman.
A track may be duplicated on the Walkman if you transfer the same track using different transfer
methods.
A track may be duplicated for the following reasons.
The same track is transferred repeatedly in different formats.
The same track is transferred repeatedly with different track information.
The same track is transferred repeatedly with different transfer methods (the same track is transferred to different
storage folders).
You can delete unnecessary tracks from the Walkman.
Note on using microSD cards
If you are using the Walkman that supports microSD card, you may have transferred the same track to both the Walkman
and the microSD card.
Check the tracks on the Walkman and the microSD card to confirm that there are no duplicate tracks.
How to delete tracks from the Walkman
To delete tracks on the Walkman
1. On the library screen, tap the desired category (album, artist, etc.) and subcategory until the track list appears.
2. Tap
next to the track you want to delete, and then tap [Delete].
To delete tracks using Windows Explorer
1. Connect the Walkman to the computer, and open Windows Explorer.
2. Open the folder for the Walkman. Then, select the duplicate track in the [MUSIC] folder and delete the track.
Hint
Disable the automatic track transfer functions in music management applications such as the [Sync] function in Windows Media
Player.
If the function is enabled, tracks may be transferred to the [MUSIC] folder on the Walkman every time you connect the Walkman
to the computer.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
4-698-041-12(1) Copyright 2017 Sony Corporation
125
Help Guide
Digital Music Player
NW-ZX300/ZX300A
The Walkman cannot play transferred content.
Try the following measures.
[Cannot play; file format is not supported.] appears on the screen.
The Walkman only plays content in compatible formats (bitrate, etc.).
For details on supported formats, refer to the specifications section of the [Help Guide] or the model website.
Make sure that the Walkman supports the format of the content you are trying to play.
When you cannot find the transferred content on the Walkman.
Content may be transferred to folders or locations that the Walkman cannot access. This may happen when you
drag-and-drop the content using Windows Explorer or Mac Finder. Transfer the content to the appropriate folder or
location.
When you transfer audio content in the MP4 format, drag-and-drop the content into the [MUSIC] folder on the
Walkman.
If you have performed one of the following operations on a computer, the content may not be recognized on the
Walkman. In this case, change the file name or file location back to the original name or location.
You changed the file name of content on the Walkman.
You changed the location of content on the Walkman.
If you formatted the memory of the Walkman in Windows Explorer or Mac Finder, format the memory using the menu
on the Walkman.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
4-698-041-12(1) Copyright 2017 Sony Corporation
126
Help Guide
Digital Music Player
NW-ZX300/ZX300A
You have spilled liquid (water, coffee, etc.) on the Walkman.
You have washed the Walkman in a washing machine.
Contact the nearest Sony dealer or Sony Service Center.
Liquid may get inside the Walkman in the situations listed above.
Stop using the Walkman immediately. Then, contact the nearest Sony dealer or Sony Service Center.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
4-698-041-12(1) Copyright 2017 Sony Corporation
127
Help Guide
Digital Music Player
NW-ZX300/ZX300A
The Walkman does not work properly.
If one of the following situations occurs, restart the Walkman.
The Walkman does not respond to operations.
The Walkman screen freezes.
Adequately charge the Walkman. Then, hold down the
(power) button for 8 seconds until the Walkman restarts.
The contents of the Help Guide may be subject to change without notice due to updates to the product's specifications.
4-698-041-12(1) Copyright 2017 Sony Corporation
128
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
