Sony KDL-52XBR9, KDL-40XBR9, KDL-46XBR9 Operating instructions

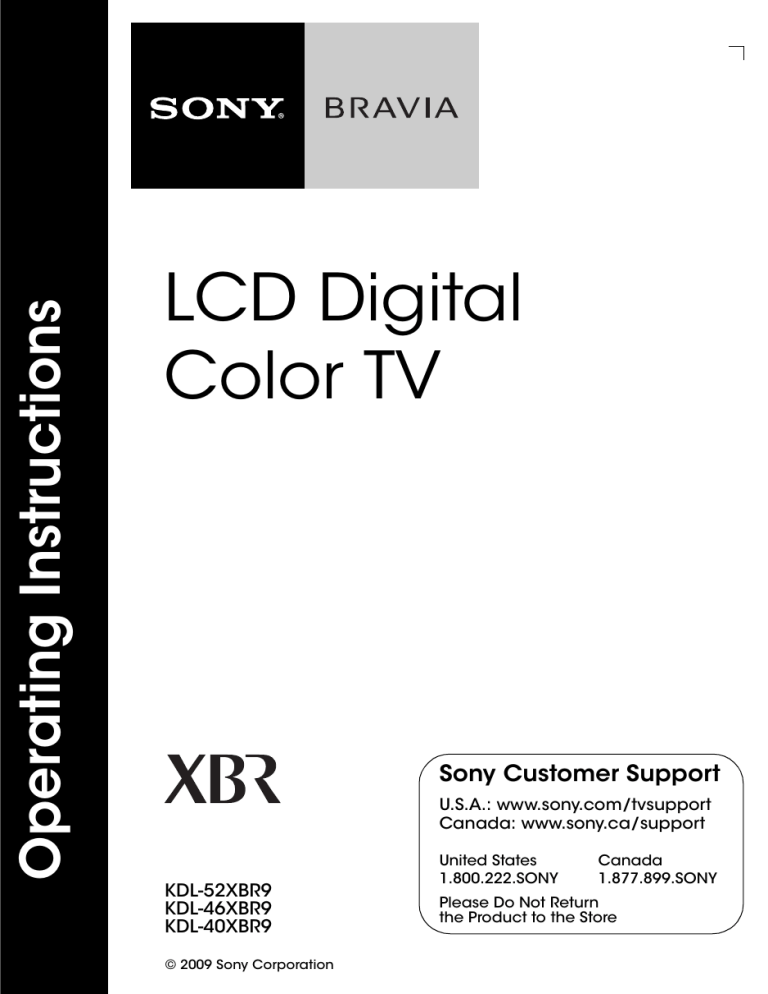

Operating Instructions LCD Digital Color TV Sony Customer Support U.S.A.: www.sony.com/tvsupport Canada: www.sony.ca/support KDL-52XBR9 KDL-46XBR9 KDL-40XBR9 © 2009 Sony Corporation United States 1.800.222.SONY Canada 1.877.899.SONY Please Do Not Return the Product to the Store Owner’s Record The model and serial numbers are located at the side and the rear of the TV. Record these numbers in the spaces provided below. Refer to them whenever you call upon your Sony dealer regarding this TV. Model Name “XrossMediaBar” is a trademark of Sony Corporation. “XMB” is a trademark of Sony Corporation and Sony Computer Entertainment Inc. “PlayStation” is a registered trademark and “PS3” is a trademark of Sony Computer Entertainment Inc. DLNA®, the DLNA Logo and DLNA CERTIFIED™ are trademarks, service marks, or certification marks of the Digital Living Network Alliance. Serial No. CAUTION To prevent electric shock and blade exposure, do not use this polarized AC plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted. ❑ ❑ Operate the TV only on 120-240 V AC. Avoid operating the TV at temperatures below 41°F (5°C). Licensing Information Macintosh is a trademark of Apple Inc., registered in the U.S. and other countries. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC. Fergason Patent Properties, LLC: U.S. Patent No. 5,717,422 U.S. Patent No. 6,816,141 Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. In the United States, TV Guide and other related marks are trademarks of Gemstar-TV Guide International, Inc. and/or its subsidiaries. In Canada, TV Guide is a registered mark of Transcontinental Inc., and is used under license by Gemstar-TV Guide International, Inc. and/or its subsidiaries. Your BRAVIA TV is ENERGY STAR® qualified in the “Home” mode. It meets strict energy efficiency guidelines set by the U.S. Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of these government agencies, designed to promote energy efficient products and practices. Changes to certain features, settings, and functionalities of this TV (i.e. TV Guide, Picture/Sound, Light Sensor, Power Savings) can increase or change the power consumption. Depending upon such changed settings, the power consumption may exceed the limits required for the ENERGY STAR qualification in the “Home” mode. The TV Guide On Screen system is manufactured under license from Gemstar-TV Guide International, Inc. and/or its subsidiaries. The TV Guide On Screen system is protected by one or more of the following United States patents 6,498,895; 6,850,693; 6,396,546; 5,940,073; 6,239,794 to Gemstar-TV Guide International, Inc. and/ or its subsidiaries. Gemstar-TV Guide International, Inc. and/or its related affiliates are not in any way liable for the accuracy or availability of the program schedule information or other data in the TV Guide On Screen system and cannot guarantee service availability in your area. In no event shall Gemstar-TV Guide International, Inc. and/or its related affiliates be liable for any damages in connection with the accuracy or availability of the program schedule information or other data in the TV Guide On Screen system. Blu-ray Disc is a trademark. “BRAVIA” and , S-Force, Motionflow, BRAVIA Sync, , DMex and “x.v. Color” are trademarks or registered marks of Sony Corporation. This manual is for the 40, 46 and 52 inch BRAVIA KDL-XBR9 series models with screen size measured diagonally. 2 Contents Introducing Your BRAVIA® TV Experiencing Stunning HD with Your BRAVIA TV . . . . . . . . . . . . . . . . . . . . .4 The Four Steps to a Full HD Experience . . . .4 TV Feature Highlights . . . . . . . . . . . . . . . . . . .5 Manufacturer’s Code List . . . . . . . . . . . . . . . 25 Using Other Equipment with Your Remote Control. . . . . . . . . . . . . . . . . . . . . . 27 Remote Control Backlight . . . . . . . . . . . . . . . 28 Getting Started Exploring the XMB™ and TV Features Setting Up Your TV . . . . . . . . . . . . . . . . . . . . .6 Using a Wall-Mount Bracket . . . . . . . . . . . . . .7 Locating Inputs and Outputs . . . . . . . . . . . . . .8 Connecting the TV . . . . . . . . . . . . . . . . . . . . 10 Connecting Internet & DLNA Certified™ Networks. . . . . . . . . . . . . . . . . . . . . . . . . . .13 Connecting Other Equipment . . . . . . . . . . . . 14 Bundling the Connecting Cables. . . . . . . . . .15 Installing the TV Against a Wall or Enclosed Area . . . . . . . . . . . . . . . . . . . . . . 15 Securing the TV . . . . . . . . . . . . . . . . . . . . . . 16 Running Initial Setup. . . . . . . . . . . . . . . . . . . 18 Category Icons . . . . . . . . . . . . . . . . . . . . . . . 30 Accessing Photo, Music, and Video Content . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 BRAVIA Internet Video . . . . . . . . . . . . . . . . . 32 Photo, Music, and Video . . . . . . . . . . . . . . . . 33 BRAVIA Internet Widgets . . . . . . . . . . . . . . . 35 Favorites . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 TV Guide On Screen® . . . . . . . . . . . . . . . . .38 Background TV . . . . . . . . . . . . . . . . . . . . . . .40 Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Wide Mode . . . . . . . . . . . . . . . . . . . . . . . . . . 41 BRAVIA® Sync™ with Control for HDMI. . . . 43 Operating the TV Other Information Using the Remote Control. . . . . . . . . . . . . . . 19 Remote Control Button Description . . . . . . .20 TV Controls and Indicators . . . . . . . . . . . . . . 23 Programming the Remote Control . . . . . . . . 24 How to Care for Your BRAVIA . . . . . . . . . . . 44 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . 44 Specifications . . . . . . . . . . . . . . . . . . . . . . . . 46 Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Welcome to the World of BRAVIA® HDTV Thank you for purchasing this Sony BRAVIA® high-definition television. Use the documentation listed below to get the most out of your TV. Safety Booklet Provides precautionary measures to keep you and your TV safe. Read this information prior to setting up your TV. Quick Setup Guide Provides TV setup information, illustrates sample optional equipment connection diagrams, and highlights TV features. Operating Instructions Provides general TV operation information. Reference Book Offers the most complete TV operation information available for your TV and presents advanced customization details. Access it at www.sony.com/referencebook. The TV operation information above has been designed in an eco-friendly manner to reduce the consumption of natural resources. 3 Introducing Your BRAVIA® TV Experiencing Stunning HD with Your BRAVIA TV To experience the stunning detail of your new BRAVIA TV, you need access to high-definition (HD) programming. Your BRAVIA TV can receive and display HD programming from: • • • • Over-the-air broadcasting via HD-quality antenna HD cable subscription HD satellite subscription Blu-ray Disc™ player or other HD compatible external equipment Contact your cable, satellite or HD service provider for information on upgrading to HD programming. The Four Steps to a Full HD Experience Set, Source, Sound, and Setup Along with your BRAVIA TV set, a complete HD system requires a source of HD programming, an HD sound system, and a proper connection setup. Refer to the Quick Setup Guide, enclosed separately, for connecting other optional equipment. You can enjoy crisp, clear images, smooth movement, and high-impact visuals from 1080 HD signals as shown here. When you compare a high-definition signal to a standard definition signal, you will notice a big difference in picture quality. If black bars appear as shown here, press WIDE on the remote control to fill the screen. 4 TV Feature Highlights Introducing Your BRAVIA® TV Your BRAVIA TV is equipped with the latest in TV technology. ➢ Broadband Internet Connectivity: BRAVIA Internet Video brings videos, movies and much more from the Internet to your TV (page 32). BRAVIA Internet Widgets allow you to access local weather, news, and much more. Displayed here is Widgets (page 35). ➢ Digital Media Accessibility: Use the Photo, Music, and Video Category icons to access photo, music, and video files from DLNA CertifiedTM networked equipment or Sony USB equipment. Displayed here is Photo USB (page 33). Photo DSC02991 Fri 5/25/2007 12:06 PM JPG DSC00140.JPG DSC00141.JPG ➢ Central Location for Your Favorite Items: The Favorites feature centralizes your favorite BRAVIA Internet Video and Widgets items, Photo, Music, Video content, TV channels, External Inputs, and Background TV themes for quick and easy access (page 37). ➢ Channel Programming Information: TV Guide On Screen® provides TV programming information (page 38). ➢ TV Home Menu: XMBTM (XrossMediaBar) TV menu provides you access to TV settings, photo, music, video, TV channel listings, and more (page 29). Product Support Preferences Settings Picture & Display Sound Channels & Inputs Network TV 5 Getting Started Setting Up Your TV Some TV models are packaged with a detached Table-Top Stand so you can mount your TV to a wall right away. If you are not mounting the TV to a wall, you will need to attach the Table-Top Stand. You will need a Phillips screwdriver and the supplied screws to complete the task. Look for the attachment instructions provided with the TV. Be sure to consider the following while setting up your TV: • Disconnect all cables when carrying the TV. • Carry the TV with the adequate number of people; larger size TVs require two or more people. • Correct hand placement while carrying the TV is very important for safety and to avoid damage. • Ensure your TV has adequate ventilation, see page 15. • For best picture quality, do not expose the screen to direct illumination or sunlight. • Avoid installing the TV in a room with reflective wall and floor materials. • Avoid moving the TV from a cold area to a warm area. Sudden room temperature changes may cause moisture condensation. This may cause the TV to show poor picture and/or poor color. Should this occur, allow moisture to evaporate completely before powering the TV on. • Read the supplied Safety Booklet for additional safety information. • When cable connection is completed, be sure to secure the TV to a stable surface or mount it to a wall. The designated Sony wall-mount bracket model and TV stand model name(s) are available under the “Other Information” section of Operating Instructions. For details on securing the TV, see page 16. 6 Using a Wall-Mount Bracket Your TV can be mounted on a wall using a Wall-Mount Bracket (not supplied) out of the box as packaged. Some larger size TV may require removing the Table-Top Stand; refer to the instructions provided with the TV. Prepare the TV for the Wall-Mount Bracket before making cable connections. • Follow the instruction guide provided with the Wall-Mount Bracket for your model. You may also need to refer to the online Reference Book for additional information for your TV model. Sufficient expertise is required in installing this TV, especially to determine the strength of the wall for withstanding the TV’s weight. • Be sure to use the screws supplied with the Wall-Mount Bracket when attaching the mounting hooks to the TV set. (Do not use the screws that are intended for the Table-Top Stand attachment.) The supplied M6 screws are designed so that they are 8 mm to 12 mm in length when measured from the attaching surface of the mounting hook. Use of screws other than those supplied with the bracket may result in internal damage to the TV set or cause it to fall, etc. 8-12 mm M6 screw (supplied with the Wall-Mount Bracket) Mounting Hook Rear of the TV set • Be sure to store the unused screws and Table-Top Stand in a safe place until you are ready to attach the Table-Top Stand. Keep the screws away from small children. When you are using the Table-Top Stand, be sure to read page 17. 7 Getting Started Sony strongly recommends that you use the Wall-Mount Bracket model designed for your TV (see page 45) and that wall-mounting of your TV should be performed by a Sony dealer or licensed contractor. Locating Inputs and Outputs Side Panel 2 1 Rear Panel 0 PC IN RGB VIDEO IN VIDEO Y qa LAN AUDIO 7 PB (OPTICAL) IN PR 2 1 DIGITAL AUDIO OUT IN L L AUDIO AUDIO R R 1 IN CABLE / ANTENNA 3 IN AUDIO 2 9 COMPONENT IN AUDIO OUT (1080p/1080i/720p/480p/480i) (VAR/FIX) 4 S VIDEO VIDEO L (MONO) 3 4 5 6 AUDIO R 2 VIDEO IN AC IN 8 • An HDMI or Component video (YPBPR) connection is required to view 480i, 480p, 720p, 1080i and 1080p video formats. The 1080/24p video format is available only with HDMI connection. This TV displays all video input signals in a resolution of 1,920 dots × 1,080 lines. 8 6 qs Item Description 1 LAN 4 COMPONENT IN 2 Component video provides better picture quality than the S Video and composite video. Audio connection is required for the COMPONENT IN ports, connect audio (L/R). 5 AUDIO OUT (VAR/FIX) 6 HDMI IN 1/2/3/4 L-AUDIO-R Connects to the left and right audio input jacks of your analog audio equipment. You can use these outputs to listen to your TV’s audio through your stereo system. HDMI (High-Definition Multimedia Interface) provides an uncompressed, alldigital audio/video interface between this TV and any HDMI-equipped audio/video equipment, such as a set-top box, DVD player, and A/V receiver. HDMI supports enhanced, or high-definition video, plus digital audio. Be sure to use only an HDMI cable that bears the HDMI logo. Use the HDMI IN 1 port when connecting DVI equipment with a DVI-to-HDMI cable or adapter (not supplied). Equipment using a DVI connection also requires an additional audio connection using an audio cable connected to AUDIO (L/R). 7 DIGITAL AUDIO Connects to the optical audio input of digital audio equipment that is PCM/Dolby* OUT (OPTICAL) Digital compatible. 8 AC IN Connects to your power source. Connect the supplied power cord to AC IN and the nearest wall outlet. 9 CABLE/ ANTENNA RF input that connects to your cable or over-the-air antenna. 0 USB qa PC IN (RGB/AUDIO) Connects to USB equipment to access photo, music, and video files. Connects to a personal computer’s video and audio output connector. Can also be connected to other analog RGB equipment. For some Apple Macintosh computers, it may be necessary to use an adapter (not supplied). If an adapter is used, connect the adapter to the computer before connecting the HD15-HD15 cable. You may need to adjust the TV settings or your PC’s resolution and timing (see page 12). qs VIDEO IN 2 S VIDEO/VIDEO L (MONO)AUDIO-R Connects to the S VIDEO output jack of video equipment. If both composite video and S VIDEO are connected, S VIDEO signal has priority. If you have mono equipment, connect its audio output port to the TV’s L (MONO) audio input port. * Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. 9 Getting Started Connects to an existing network using an Ethernet cable. Be sure to complete Network Setup (page 18). 2 DMex/SERVICE This USB port is only for service unless you are connecting an optional BRAVIA Link module (DMex). 3 VIDEO IN 1/ This input port can be used as composite video input (VIDEO 1) or as component COMPONENT video input (COMPONENT 1). For composite use, connect the yellow jack to Y for video and use audio (L/R) for audio signals. For component connection, use Y, PB, IN 1 (1080p/ PR for video signals and also connect the audio (L/R) for audio signals. 1080i/720p/ By default, this TV will automatically detect and switch between VIDEO 1 and 480p/480i)/ COMPONENT 1. To manually set the input type, press HOME, select Settings, L-AUDIO-R then Channels & Inputs, then select Video/Component 1 Selection. Connecting the TV Cable System or VHF/UHF Antenna System You can enjoy high-definition and standard-definition digital programming (if available in your area) along with standard-definition analog programming. This TV is capable of receiving unscrambled digital programming for both cable (QAM and 8VSB) and external VHF/UHF antenna (ATSC). Cable or VHF/UHF (or VHF only) 75-ohm coaxial cable Rear of TV CABLE/ANTENNA • It is strongly recommended that you connect the CABLE/ANTENNA input using a 75-ohm coaxial cable to receive optimum picture quality. A 300-ohm twin lead cable can easily be affected by radio frequency interference, resulting in signal degradation. Cable System and VHF/UHF Antenna System Use an optional A-B RF switch (not A-B RF Switch supplied) to switch between the cable A Cable and over-the-air antenna programming, Rear of TV as shown here. B Antenna CABLE/ANTENNA Set the Cable/Antenna setting found under the Settings on the XMB™ to Cable or Antenna for the type of input signal you choose. HD Cable Box/HD Satellite Box You can enjoy high-definition programming by subscribing to a high-definition service or a highdefinition satellite service. For the best possible picture, make sure you connect this equipment to your TV via the HDMI or component video (with audio) input located on the back of your TV. Shown with HDMI Connection Rear of TV CATV/Satellite antenna cable HD cable box/ HD satellite box HDMI cable 10 Shown with DVI Connection DVI-to-HDMI cable Rear of TV CATV/ Satellite antenna cable Getting Started HD cable box/ HD satellite box AUDIO-R (red) AUDIO-L (white) Audio cable • If your equipment has a DVI output and not an HDMI output, connect the DVI output to the HDMI IN 1 (with DVI-to-HDMI cable or adapter) and connect the audio output to the AUDIO IN (L/R) of HDMI IN 1. Shown with Component Connection Rear of TV CATV/Satellite antenna cable HD cable box/ HD satellite box AUDIO-R (red) AUDIO-L (white) PR (red) PB (blue) Y (green) Component video cable Audio cable (Continued) 11 Shown with PC connection Side panel Use the TV as a monitor for your PC by connecting an HD15-HD15 cable connection as shown to the right. PC IN RGB HD15-HD15 cable (analog RGB) AUDIO 2 This TV can also be connected to a PC with a DVI or HDMI output. (Refer to the supplied Quick Setup Guide.) Audio cable (stereo mini plugs) IN IN 3 IN 4 S VIDEO VIDEO L (MONO) AUDIO R 2 VIDEO IN PC Input Signal Reference Chart After connecting the PC to the TV, set the output signal from your PC according to the supported resolutions and timings indicated below. Supported resolutions Signal Horizontal (Pixel) × Vertical (Line) Horizontal frequency (kHz) Vertical frequency (Hz) Standard VGA 640 × 480 31.5 60 VGA SVGA 800 × 600 37.9 60 VESA Guidelines XGA 1,024 × 768 48.4 60 VESA Guidelines WXGA 1,280 × 768 47.4 60 VESA 1,280 × 768 47.8 60 VESA 1,360 × 768 47.7 60 VESA SXGA 1,280 × 1,024 64.0 60 VESA HDTV* 1,920 × 1,080 67.5 60 CEA-861* ~ • This TV’s PC input does not support Sync on Green or Composite Sync. • This TV’s PC VGA input does not support interlaced signals. • For the best picture quality, it is recommended to use the signals in the above chart. In plug and play, signals with a 60 Hz vertical frequency will be detected automatically. (PC reboot may be necessary.) * The 1080p timing when applied to the HDMI input will be treated as a video timing and not PC timing. This affects Picture settings and Wide Mode settings. To view PC content set Scene Select to Graphics, Wide Mode to Full, and Display Area to Full Pixel. • Connect the PC IN jack to the PC using an HD15-HD15 cable with ferrite core (analog RGB) and audio cable (see page 9). • The TV enters the standby mode automatically when the PC is connected to the TV and no signal has been output from the PC for more than 30 seconds, see the online Reference Book for details. 12 Connecting Internet & DLNA Certified™ Networks Connect an Ethernet cable from your home network to the LAN input of your TV to enjoy BRAVIA Internet features and/or connect to DLNA Certified™ media servers, see page 33 to learn more about these features. Sample Network Connection Diagram Internet Getting Started Internet Features • BRAVIA Internet Video • BRAVIA Internet Widgets Modem E NET RN TER NT INTER ER WER POW DLNA Certified™ Media Player Features • Photo • Music • Video Router PORT RT 1 OR PO PORT 2 PORT 3 PORT 4 ER WER POW DLNA Certified™ Media Server Wireless Bridge ! or VIDEO IN VIDEO Y LAN PB IN (OPTICAL) PR 1 DIGITAL AUDIO OUT L L AUDIO AUDIO R 1 R 2 AUDIO COMPONENT IN AUDIO OUT (1080p/1080i/720p/480p/480i) (VAR/FIX) • For more information about compatible wireless bridges, visit https://internet.sony.tv • Refer to your DLNA Certified equipment’s operating instructions for setup and connection information. 13 Connecting Other Equipment USB Blu-ray Disc Player/ DVD player “PS3” Digital satellite Digital Audio receiver cable box system Personal computer PC IN RGB AUDIO 2 IN IN 3 IN VIDEO IN VIDEO 4 S VIDEO Y LAN VIDEO PB (OPTICAL) PR L IN (MONO) 1 DIGITAL AUDIO OUT AUDIO R L L AUDIO AUDIO R 1 R 2 AUDIO COMPONENT IN AUDIO OUT (1080p/1080i/720p/480p/480i) (VAR/FIX) Digital recorder 2 VIDEO IN Digital audio Analog audio equipment equipment (A/V Receiver/Home Theater) CABLE / ANTENNA CABLE/ANTENNA VCR/ Game system/ Camcorder • Refer to the Quick Setup Guide (supplied) when connecting other equipment to your TV. 14 Bundling the Connecting Cables Use the attached cable clamper to bundle the connecting cables. The cable clamper is located on the Table-Top Stand as illustrated. Refer to the online Reference Book when mounting the TV to a wall. Do not bundle the AC power cord with other connecting cables. This can affect the picture quality. Getting Started Installing the TV Against a Wall or Enclosed Area Make sure that your TV has adequate ventilation. Allow enough space around the TV as shown below. Avoid operating the TV at temperatures below 41 °F (5 °C). Installed on the wall Installed with stand 11 7/ 8 inches (30 cm) 7/ 11 8 inches (30 cm) 4 inches (10 cm) 2 3 /8 inches 4 inches (10 cm) (6 cm) 4 inches (10 cm) 4 inches (10 cm) 4 inches (10 cm) Leave at least this much space around the set. Leave at least this much space around the set. Never install the TV set as follows: Air circulation is blocked. Wall Air circulation is blocked. Wall • Inadequate ventilation can lead to overheating of the TV and may cause TV damage or cause a fire. 15 Securing the TV Sony strongly recommends taking measures to prevent the TV from toppling over. Unsecured TVs may topple and result in property damage, serious bodily injury or even death. Preventing the TV from Toppling ❑ ❑ ❑ ❑ ❑ ❑ Secure the TV to a wall and/or stand. Do not allow children to play or climb on furniture and TV sets. Avoid placing or hanging items on the TV. Never install the TV on: • slippery, unstable and/or uneven surfaces. • furniture that can easily be used as steps, such as a chest of drawers. Install the TV where it cannot be pulled, pushed, or knocked over. Route all AC power cords and connecting cables so that they are not accessible to curious children. Recommended Measures to Secure the TV Consider the following measures when securing your TV to a TV stand (not supplied). 1 Secure the stand for the TV. Make sure the TV stand can adequately support the weight of the TV. Use two angle braces (not supplied) to secure the stand. For each angle brace use the appropriate hardware to: • attach one side of the angle brace to the wall stud. • attach the other side to the TV stand. Angle brace Stand 16 2 Secure the TV to the stand. M4 × 20 machine screw Screw Screw hole on the Table-Top Stand 3 Anchor the TV to the wall. Use the hardware listed below (not supplied). • Two M6 × 14 mm anchor bolts (screw into the top-most wall-mount holes located on the rear of the TV. • Rope or chain (attach to one M6 anchor bolt). • Wall-anchor (attach to the wall stud) strong enough to support the weight of the TV (pass the rope through the wall-anchor, then attach to the other M6 anchor bolt). Anchor bolts Wallanchor Wallmount holes Rope or chain • Contact Sony Customer Support to obtain the optional Support Belt Kit by providing your TV model name. For United States call: 1-800-488-7669 or visit: www.sony.com/accessories For Canada call: 1-877-899-7669 • Measure 2 provides minimal protection against the TV toppling over. For further protection, follow all three measures recommended above. 17 Getting Started Use the optional hardware listed below (not supplied): • M4 × 20 machine screw (screwed into the TV’s Table-Top Stand). • A screw or similar (attach it to the TV stand). • Rope or chain (strong enough to support the weight of the TV). Make sure that there is no excess slack in the rope or chain. An alternative way to secure the TV is with an optional Sony Support Belt Kit. Running Initial Setup The Initial Setup screen appears when you turn on the TV for the first time. 1 Complete your cable connections before proceeding with the Initial Setup (refer to the Quick Setup Guide and the online Reference Book for additional information). 2 Use the following remote control buttons to navigate through the Initial Setup. Initial Setup Welcome! Please select a language. ¡Bienvenido! Seleccione el idioma. Bienvenue! Sélectionner la langue. English Español Français Continue Choose RETURN V/v button: BRAVIA INTERNET Allows you to highlight options where applicable. button: Allows you to select the highlighted option. B button: Allows you to move back to the previous screen, where applicable. b button: Allows you to move to the next screen, where applicable. 3 Select the language for the on-screen display (OSD) text. 4 Select your viewing environment. Home mode sets the TV display to settings optimized for home viewing (this setting is ENERGY STAR compliant). Retail mode changes the display settings to a default more appropriate for a store environment. Select your country and enter your ZIP or Postal code. Set the clock to the current date and time. Select Continue to scan for available channels and enable the TV Guide On Screen® feature. If you receive channels from a cable box or satellite receiver and do not wish to use the TV’s built-in tuner, select Skip. Selecting Skip will disable the TV Guide On Screen feature, which is only available when the TV’s tuner is used. To benefit from the network features included on this TV, connect to your existing home network (see page 13). Follow the instructions on the screen to complete Network Setup, or select Skip to complete it at a later time (optional). Refer to the online Reference Book for more details. Initial Setup is complete. You can now begin watching your new TV. 5 6 7 8 • Enabling the TV Guide On Screen feature will increase the amount of time the TV is in Download Acquisition Mode (DAM); see page 46. • For more information on TV Guide On Screen, see page 38. • If the language that you selected in the Language setting is available from the broadcaster as an Alternate Audio language, your TV will automatically switch to the matching language with the Alternate Audio feature. To change the audio settings, access the Alternate Audio menu by pressing OPTIONS on the remote control when an alternate audio stream is available from the broadcaster. Alternate Audio is only available for digital programs (see the online Reference Book). • To complete Network Setup at a later time, access the XMB™ and select the Network icon on the Settings menu. Then select Network Setup. 18 Operating the TV Using the Remote Control Inserting Batteries into the Remote Control Insert two size AA batteries (supplied) by matching e and E on the batteries to the diagram inside the battery compartment of the remote control. Push to open Operating the TV Guidelines for Remote Control • Point your remote control directly at the IR sensor located on your TV. • Make sure that no objects are blocking the path between the remote control and the IR sensor on your TV. • Fluorescent lamps can interfere with your remote control; try turning off the fluorescent lamps. • If you are having problems with the remote control, reinsert or replace your batteries and make sure that they are correctly inserted. 19 Remote Control Button Description 1 2 3 DISPLAY LIGHT POWER TV POWER DVD AMP STB FUNCTION Button Description 1 DISPLAY Press once to display information about the channel/program/input you are viewing. The information will time out in a few seconds or press again to exit. You can change the display preference, press HOME and go to Preferences to set Info Banner to Small, Medium or Large. Press to light up the remote control buttons. Refer to the online Reference Book for additional information on the remote control backlight. The FUNCTION button indicator lights up momentarily when pressed to show which external equipment the remote control is operating. These buttons can be programmed to operate external equipment. You must first press one of these FUNCTION buttons to operate the corresponding equipment. See page 24 for “Programming the Remote Control”. The buttons listed below can operate video equipment programmed to the DVD, AMP, or STB FUNCTION buttons of the remote control. When the TV FUNCTION button is selected, the buttons can also be used to control the connected equipment with the Control for HDMI function (not available on all Control for HDMI equipment). Some other buttons on the remote control may also operate BRAVIA® SyncTM equipment. . PREV: Press to replay the current program from the previous chapter mark (if any) or from the beginning of the live TV cache. < REPLAY: Press to replay the current program for a set period of time. ADVANCE: Press to advance forward a set period of time when playing back a recorded program. > NEXT: Press to advance forward to the next chapter mark (if any) or to live TV when playing back a recorded program. m (fast reverse): Press to play a program in fast rewind mode. N PLAY: Press to play a program at a normal speed. M (fast forward): Press to play a program in fast forward mode. X PAUSE: Press to pause playback. x STOP: Press to stop playback. SYNC MENU: Press once to display the Sync’d HDMI Devices (while a Control for HDMI device is not selected). Select the HDMI device and then press SYNC MENU to display the menu of connected equipment (not available on all Control for HDMI equipment). THEATER: Press to turn on and off the Theater Mode. The picture settings will be set for a cinema-like experience and the audio will be switched to the audio output of the attached speakers of your BRAVIA Sync audio system. Your BRAVIA Sync audio system must be connected by an HDMI connection to your TV (see page 43 for details). TV PREV REPLAY ADVANCE NEXT PLAY 4 SYNC MENU PAUSE THEATER SCENE STOP CC WIDE WIDGETS VIDEO 2 LIGHT BRAVIA INTERNET 3 FUNCTION Buttons 4 SYNC MENU VOL CH MUTING JUMP z REC PAUSE REC STOP z BD/DVD TOP MENU MENU F1 F2 YELLOW BLUE RED GREEN ~ • The 5, PLAY and CH + buttons have a tactile dot. Use them as a reference when operating the TV. 20 < REC DISPLAY LIGHT POWER TV POWER DVD AMP STB FUNCTION TV PREV REPLAY ADVANCE NEXT PLAY SYNC MENU PAUSE THEATER SCENE CC WIDE WIDGETS VIDEO BRAVIA INTERNET 9 q; qa qs VOL CH MUTING JUMP qd qf qg qh qj qk REC REC PAUSE REC STOP BD/DVD TOP MENU MENU F1 F2 YELLOW BLUE RED GREEN Description 5 SCENE Press to select the best picture and sound settings for the particular type of content you are viewing. Press to display the XMB™ with highlight on the most recently viewed Internet content provider (see page 32). 6 BRAVIA INTERNET VIDEO 7 FAVORITES Press to display Favorites menu. Press again to exit from the Favorites menu (see page 37). Press to open the TV Guide On Screen. Press again wa 8 GUIDE to exit the Guide (see page 38). 9 RETURN Press to go back to the previous screen or exit from the screen when displaying menu items and settings. 0 HOME Press to display TV Home Menu/XMB™ to access TV Settings and other media and network related content (see page 29). qa 0-9 ENT Press 0-9 to select a channel; the channel changes after two seconds. Press ENT to change channels immediately. qs Use with 0-9 and ENT to select digital channels. For example, to enter 2.1, press 2 , , 1 and ENT. qd MUTING Press to mute the sound. Press again or press VOL + to restore the sound. qf VOL +/– Press to adjust the volume. qg DVR/VCR Record Buttons qh BD/DVD TOP MENU qj BD/DVD MENU z REC: Press to start recording. X REC PAUSE: Press to pause recording. x REC STOP: Press to stop recording. Press to display the top menu of the BD/DVD disc. Press to display the BD/DVD disc menu. ~ For more information, refer to the operating manual of the connected equipment. To use with Sony Blu-ray Disc player (BD), see page 28. qk YELLOW, BLUE, RED, GREEN ql TV POWER Press to turn on and off the TV. w; POWER wa WIDE Press to turn on and off the external equipment selected by FUNCTION buttons. Press repeatedly to cycle through the available Wide Mode settings (see page 41). (Continued) 21 Operating the TV 5 6 7 8 STOP ql w; Button DISPLAY LIGHT POWER TV POWER DVD AMP STB FUNCTION PLAY PAUSE THEATER SCENE Press to turn Closed Captions (CC) on, off, or automatically display CC when sound is muted. Press to display the BRAVIA Internet Widgets. While the BRAVIA Internet Widgets are displayed on the screen, press again to remove the Widgets from the screen (see page 35). Press to display the list of inputs. Press repeatedly to toggle through the inputs (see page 40). Press V/v/B/b to move focus/highlight. Press to select/confirm an item. Press to display a list of convenient functions and menu shortcuts. The Options menu items vary based on current input and/or content. Press to jump back and forth between two channels or inputs. The TV alternates between the current channel or input and the last channel or input that was selected. WIDE WIDGETS VIDEO ws CC wf INPUT STOP CC Description wd BRAVIA INTERNET WIDGETS TV PREV REPLAY ADVANCE NEXT SYNC MENU Button BRAVIA INTERNET ws wg V/v/B/b wd wh OPTIONS wf wg wj JUMP wh JUMP wk CH +/– VOL wl F1/F2 CH MUTING JUMP wj wk REC 22 REC PAUSE REC STOP BD/DVD TOP MENU MENU F1 F2 YELLOW BLUE RED GREEN wl JUMP Press to scan through channels. To scan quickly through channels, press and hold down either +/–. Press to select the function of connected components. For details, see page 27 “Using Other Equipment with Your Remote Control”. TV Controls and Indicators POWER 6 CHANNEL 7 VOLUME 8 Operating the TV 1 PIC OFF / TIMER 3 2 INPUT HD SIGNAL POWER/STANDBY 4 9 5 HOME q; Item Description 1 Speaker 2 PIC OFF/ TIMER Outputs audio signal. Lights up in orange when the Timer or Sleep Timer is set. Lights up and/or blinks in orange during a software upgrade. Lights up in green when the Power Saving is set to Picture Off. Lights up when the TV receives HD signal including up converted signals. Lights up in red when your TV is in PC power saving mode or during the software upgrade. Lights up in green when the TV is turned on. If the LED blinks in red continuously, this may indicate that the TV needs servicing (see contacting Sony information on the front cover). Senses room light level and adjusts the screen brightness accordingly. Do not put anything near the sensor or the nearby general area (as shown above), as its function may be affected. 3 HD SIGNAL 4 POWER/ STANDBY 5 Light Sensor (IR) Infrared Receiver 6 POWER 7 – CHANNEL + 8 – VOLUME + 9 INPUT Receives IR signals from the remote control. Do not block this area, as it may interfere with remote control operation. Press to turn on and off the TV. Press to scan through channels. To scan quickly through channels, press and hold down either +/–. In the MENU screen, these buttons serve as up/down buttons. Press to adjust the volume. In the MENU screen, these buttons serve as left/right buttons. Press to display the list of inputs or confirm your selection. Press repeatedly to toggle through the inputs. ~ 0 HOME • Inputs can be changed by pressing V/v and while the list of external inputs is displayed. • Refer to page 40 for information about setting up the external inputs labels. In the MENU screen, this button serves to confirm the selection or setting. Press to display TV Home Menu/XMB™ to access TV Settings and other media and network related content. 23 Programming the Remote Control The remote control can be programmed to operate other equipment and is pre-programmed to operate the following Sony equipment. Function Button Sony Equipment Code Number DVD DVD Player 31033 AMP Receiver 52172 STB Digital Satellite 01639 Programming Other Equipment DISPLAY LIGHT POWER TV POWER DVD AMP STB FUNCTION TV 2 PREV REPLAY ADVANCE NEXT PLAY SYNC MENU PAUSE THEATER SCENE STOP CC WIDE WIDGETS VIDEO BRAVIA INTERNET 2 4 3 VOL Follow the steps below to program your TV remote control. 1 Find the code that corresponds to your equipment from page 25. If more than one code is provided, try programming the first code listed. 2 Press and hold DVD, AMP or STB simultaneously with the INPUT button and release. When in the programming mode, the FUNCTION button blinks for approximately 30 seconds until a code is entered. 3 Enter the five digit code using 0-9 while the FUNCTION button is lit. If the code is not entered within 30 seconds, you must repeat step 2. 4 Press or ENT to confirm the code. If successfully programmed, the FUNCTION button blinks twice; if not, it blinks five times. CH ~ • Any of the FUNCTION buttons can be programmed to operate other equipment regardless of the labeling. For example, DVD can be programmed to operate a Blu-ray Disc player. Confirm the Programming If you can turn your equipment on and off using the green POWER button, the programming is complete. If not, try the next code listed. ~ • In some cases, you may not be able to program your remote control. If this is the case, use your equipment’s own remote control. 24 Manufacturer’s Code List If your equipment’s code is not listed, visit http://esupport.sony.com/remotecodes for a more comprehensive list. Sony Equipment Codes DVD Changers DVD Player DVD/HDD Combo Player DVD/VCR Combo Player DVR /HDD Player Satellite VCR Programmable Code Number 52172 41516, 42178, 42180 02177 51622, 51558, 51658, 51858 31633 31033, 31069, 31070 31033, 31069, 31070 30864 22181, 22182, 22183 01639 21232, 21546, 22184 Other Manufacturer Equipment Codes HD Blu-ray Disc Players Manufacturer LG Panasonic Philips Pioneer Samsung Code 40741 41641 42084 40142 40199 DVD Player Manufacturer Coby Cyberhome GPX JVC Koss Memorex Code 30778, 30852, 31077, 31086, 31107, 31165, 31177, 31351, 31628 30816, 30874, 31023, 31024, 31117, 31129, 31502, 31537 30699, 30769 30558, 30623, 30867, 31164, 31550, 31602 30651, 30769, 30896, 31061, 31423 30695, 30831, 31270 Philips RCA Samsung Sylvania Toshiba Code 30490, 30503, 30571, 30703, 31762 30503, 30539, 30646, 30675, 31267, 31354, 32056 30522, 30571, 30717, 30790, 30822, 31022 30490, 30573, 30744, 31044, 31075, 31470 30675, 31268 30503, 30539, 30573, 30695, 31154, 31503, 31588, 31608, 31854 VCR’s Manufacturer Daewoo JVC Panasonic Philips Sylvania DVD Changers Manufacturer Sylvania Techwood Toshiba Yamaha Zenith Code 30675 30692 30503, 31154 30497, 30545 30741 DVD Recorder Manufacturer Cyberhome JVC LG Lite-On Panasonic Philips Samsung Sylvania Toshiba Code 31129, 31502 31164 30741 31158, 31416, 31440 30490 30646 30490, 31470 30675 31588 DVD/VCR Combo Units Manufacturer JVC Broksonic Panasonic Toshiba Zenith Code 30867, 31164, 31550, 31602 30695, 31419 31762 30503, 31854 30741, 30869 Code 20037, 20045, 20046, 20278, 21137 20041, 20067, 21162 20000, 20035, 20162, 20225, 20226, 20614, 20616, 21062, 21162, 21262 20000, 20035, 20045, 20048, 20081, 20162, 20209, 20616, 20618, 20739, 21081, 21181 20000, 20035, 20043, 20081, 20593, 21593 A/V Receiver/Home Theater Systems Manufacturer Audiovox Bose Denon Emerson JVC Koss LG Onkyo Panasonic Philips Pioneer RCA Samsung Sherwood Yamaha Zenith Code 30790, 51390 50674, 51229, 51933 50121, 51142, 51306, 51360, 52857 50531 50331, 51495 30651 51293 51298, 51320, 51805 50308, 51288, 51308, 51316, 51548, 51633, 51763, 51764 31267, 51189, 51266, 51269 50150, 50531, 50630, 50823, 51023, 51384 30790, 50531, 50823, 51023, 51254, 51390, 51511, 51609 51295, 51500 31077, 51077, 51517, 51653 30497, 50176, 50354, 51023, 51276, 51331, 51376, 51815 51293 (Continued) 25 Operating the TV Sony Equipment A/V Receiver Blu-ray Disc Player Cable –Digital DVD A/V System Manufacturer Panasonic Digital Video Recorders Cable Box Manufacturer TiVo Manufacturer AT & T Jerrold/ General Inst./ Motorola Pace Code 01442, 01443, 01444, 20618, 20636, 20739 Satellite Manufacturer DirecTV Dish Network System Echostar Funai GE Hitachi Hughes Humax JVC LG Panasonic Philips RCA Samsung TiVo 26 Code 00099, 00247, 00392, 00566, 00639, 00749, 00819, 01076, 01108, 01109, 01142, 01377, 01392, 01414, 01442, 01442, 01443, 01444, 01609, 01639, 01640, 01749, 01856, 20739 00775, 01170, 01505, 01775 00775, 01170, 01505, 01775 01377 00392, 00566 00749, 00819, 01250 00749, 01142, 01443, 01444, 01749, 20739 01790, 20739, 21797, 21988 00775, 01170, 01775 01226, 01414, 22010 00247, 00701, 20614, 20616 00099, 00722, 00749, 00775, 00819, 01076, 01142, 01749, 20618, 20739 00143, 00392, 00566, 00775, 00855, 01142, 01392, 01442, 20880 01108, 01109, 01142, 01276, 01377, 01442, 01609, 20739 01442, 01443, 01444, 20618, 20636, 20739 Panasonic Pioneer Scientific Atlanta Zenith Code 00858, 02045 00003, 00276, 00476, 00810, 00858, 01187, 01254, 01376, 02045 00008, 00237, 00877, 01877 00000, 00008, 00107, 00144 00144, 00533, 00877, 01877 00000, 00003, 00008, 00237, 00477, 00877, 01877 00000, 00525, 00899 Using Other Equipment with Your Remote Control The table below describes the remote control commands available when external equipment is programmed to the the DVD, AMP, or STB buttons on the TV's remote control. Universal VCR, DVR Universal SAT/CBL Universal AMP/Receiver Information N/A N/A N/A N/A N/A Top Menu Menu HDD, DVD/HDD, DVD/VCR List List Menu VCR, VCR/DVD List List Menu List Top Menu Menu N/A N/A DVD DVD N/A N/A Band Surround (Continued) 27 Operating the TV Button Action Access Control DISPLAY Display Select Clear, (cancel) ENT Enter Shortcuts Control GUIDE Guide FAVORITES Favorites INPUT Input Select RETURN Exit HOME Setup Menu OPTIONS Options TOP MENU Top Menu/List MENU Menu For selecting F1 between DVD/VCR in F2 combo units Equipment Control POWER Turn on/off Previous, Skip . backward Replay <z z Advance, Skip Next, Skip > forward m Rewind Play N M Fast Forward Pause X Stop x Recording Control z Record Record Pause X Stop x Universal Blu-ray, HD-DVD, DVD, DVD-R, DVD/HDD, DVD/VCR < Button Action Navigation Control V/v Cursor up/down Cursor left/right B/b Tuning Control 0-9 Digit input Channel CH +/– up/down JUMP Last channel Volume Control VOL +/– Universal Blu-ray, HD-DVD, DVD, DVD-R, DVD/HDD, DVD/VCR TV volume +/– MUTING Muting R/G/B/Y Control RED Red GREEN Green BLUE Blue YELLOW Yellow N/A Universal VCR, DVR Universal SAT/CBL N/A N/A AMP/RECEIVER Vol. N/A N/A Universal AMP/Receiver N/A N/A N/A N/A N/A N/A DVD or BD Input VIDEO 1 or A/V Input SAT or Cable Input TV or Tuner Input Remote Control Backlight The remote control backlight can be set to automatically light up when a button is pressed. To set auto backlight: Press LIGHT and MUTING simultaneously until the four FUNCTION buttons blink. To turn off auto backlight: Press LIGHT and MUTING simultaneously until the TV FUNCTION button blinks. To change the backlight timeout: 1 Press LIGHT, VOL +, and CH + simultaneously until one of the FUNCTION buttons blinks. 2 Select the FUNCTION button that corresponds to your preferred timeout and press . 5 seconds (default), press DVD button 15 seconds, press STB button 10 seconds, press AMP button 20 seconds, press TV button To reset the remote control to the factory default: Press SCENE, TV POWER, and successfully reset. 28 simultaneously. The four FUNCTION buttons blink when Exploring the XMB ™ and TV Features Most TV functions are available from this menu screen called the TV Home Menu/XMB™ (XrossMediaBar). Press HOME to access the TV Home Menu/XMB™. Product Support Preferences 1 Select a Category icon using the B/b buttons. Settings Category Picture & Display 2 Highlight an Item using the V/v buttons. Channels & Inputs 3 Press Exploring the XMB™ and TV Features Item Sound to select an item. Network TV The XMB™ displays help text that describes options available within an item. Settings Preferences Customize TV features to suit personal preferences Shown with Preferences highlighted. 29 Category Icons The Category icons organize your TV settings and TV features for quick and easy access. Press V/v to highlight an item within a Category icon and then press to make a selection. Settings The Settings icon contains all of the necessary configurations to customize your TV settings. Product Support for troubleshooting and TV software information and updates. Preferences for customizing TV settings such as Timers, Parental Lock, Language, and much more. Picture & Display for adjusting picture and display settings. Sound for adjusting sound and speaker related settings. Channels & Inputs for setting up TV channel list and external inputs. Network for setting up Network related settings. Photo Music The Photo, Music, and Video icons organize your photo, music, and video files from Internet content providers, DLNA Certified media servers, and Sony USB connected equipment. Be sure to select the correct icon when accessing files. Refer to the feature section for more information on these icons. Video TV External Inputs Network 30 The TV icon provides you access to the TV channel list. You can select the TV Guide On Screen® icon located at the top of the channels list from this icon. The External Inputs icon provides access to your connected equipment, see page 14. The Network icon lists downloaded BRAVIA Internet Widgets. You can access the Widget Gallery from this icon. Refer to the feature section for more information on this icon. Accessing Photo, Music, and Video Content You can access a variety of Internet content by connecting to your existing home network with Internet connectivity. Your photo, music, and video files can also be accessed once you have set up a DLNA Certified equipment or after plugging in Sony USB equipment directly to your TV. Photo Music Video Network To display content under Photo, Music, Video, or Network: 1 Press HOME to display the XMB™. 2 Press B/b to highlight the Photo, Music, Video, or Network Category icon. 3 Press V/v to highlight an item and press to select an item. Exploring the XMB™ and TV Features Shown here is the XMB™ with the Photo icon highlighted. Photo Internet content provider, page 32 DLNA Certified media server, page 33 Sony USB, page 33 Sample Images, page 33 • The items displayed may vary for each category icon, your connected equipment, and the availability of Internet services. 31 BRAVIA Internet Video BRAVIA Internet Video serves as a gateway delivering select Internet content and a variety of ondemand entertainment straight to your BRAVIA TV. To connect to the BRAVIA Internet Video service, make sure that your TV is connected to your broadband home network and that you have completed the Initial Setup and Network Setup (see page 18). The Internet content provider icons appear under the Photo, Music, Video, and Network icons to open the Internet content provider’s service. on the XMB™. Highlight an icon and press Press V/v/B/b to navigate and to make a selection. The look and feel of Internet content providers may vary. Seeking Forwards and Backwards Some Internet content providers allow you to seek forward or seek backward. Press b or M to move forward in the video. Press B or m to move backward. The Control Panel appears with a dot indicating the point at which the playback will resume. To resume playback, press or N. See the illustration below for details. To change the speed of the seek, press the corresponding button up to three times. WIDGETS VIDEO BRAVIA INTERNET Press the corresponding buttons to control playback. Control Panel Playback Arrows indicate resume point speed of the seek Saving to Favorites You can save an Internet content provider to your Favorites; see “Adding to Favorites” on page 37. • Some Internet content providers arrange videos by Categories; press OPTIONS to view more categories. • Press DISPLAY to see more information on the highlighted video. • The Parental Lock function set on the TV blocks video content based on the appropriate TV or Movie Rating. Refer to the online Reference Book. • Recommended connection speed: Standard Definition video - 2.5 Mbps, High Definition video - 10 Mbps. • To update the BRAVIA Internet Video content providers, select the Network icon from the Settings menu on the XMB™, then select Refresh Internet Content. 32 Photo, Music, and Video Media files from DLNA Certified media servers or Sony USB equipment can easily be accessed from the Photo, Music, and Video Category icons. For a list of supported file formats, see page 46. Accessing Media Files 1 Press HOME to display the Shown with Photo Category icon selected. XMB™. 2 Select a Category icon. 3 Select a DLNA Certified media server, Sony USB or sample folder. (Pressing OPTIONS will display additional menu items, see “Media File Options Menu” below.) DLNA Certified media server Photo US0013A92B6949: server: USB Samples to select an item from the List View. Shown with Photo USB media location selected. Photo DSC02991 Fri 5/25/2007 12:06 PM JPG DSC00140.JPG List View DSC00141.JPG Media File Options Menu Press OPTIONS after accessing a media file to display a list of available options such as Playback Method, Start Slideshow, Add to Favorites, and Device Actions. Shown here is a photo file after pressing OPTIONS. Picture & Display Playback Method Start Slideshow Add to Favorites File Actions The Options Menu for each Category icon and media file selected may vary. • Internet content may appear under each icon if the TV Network Setup has been completed (see page 18). • Media files cannot be saved in the TV but can be added to Favorites and accessed when the equipment containing the media file is connected. • Refer to page 13 for a sample DLNA Certified equipment or page 14 for Sony USB equipment connection diagrams. (Continued) 33 Exploring the XMB™ and TV Features 4 Press Adding Music to a Slideshow 1 Highlight the Photo icon. Select from Photo your DLNA Certified media servers, Sony USB connected equipment, or the sample folder. Playback Method Start Slideshow USB Sony - Storage Media 3 4 5 slideshow, press OPTIONS and then select Playback Method. Select Slideshow Music, then select Browse Music. Highlight and select an item from the list of available DLNA Certified media servers, Sony USB connected equipment, or sample folder. Press v/V to highlight the music file or folder you would like to add to your slideshow and select OK. Add to Favorites Device Actions 2 Highlight the folder to display as a OPTIONS Close Browse Music Highlight a folder or file and select “OK” to set as slideshow music WINXP-DIXIM-DLNA-1 USB OK Cancel Samples RETURN Cancel Playing Music or Video When playing music or video files, press to pause or play the file. Press and hold B to move backward or press and hold b to move forward. Functionality of USB Equipment and DLNA Certified Media Servers The USB functionality on this TV is compatible with most Sony brand digital cameras, MICRO VAULT USB Flash Drives, and DLNA Certified media servers but not all. Sony cannot guarantee or assure compatibility with all formats, products or in the following cases: • Use of non-Sony brand USB equipment • Use of video or audio clips processed on a computer • Use of files obtained from the Internet or from printed film processing center. Prevent losing your files, be sure to back up all of your media files stored on USB equipment to prevent data corruption. Sony cannot accept responsibility for lost or damaged data stored on USB equipment. • For more information on this feature, refer to the online Reference Book. 34 BRAVIA Internet Widgets The BRAVIA Internet Widgets are small downloadable applications that provide you access to the latest in news, weather, stocks and interactive content when your TV is connected to the Internet. Displaying Widgets 1 Press WIDGETS. Minimized Widgets called Snippets will appear. THEATER SCENE 2 Press V/v/B/b to highlight a Snippet then press CC to launch it. The Snippet will expand into a Widget. WIDE WIDGETS VIDEO BRAVIA INTERNET Snippets Footer Minimizing a Widget Press RETURN to minimize an expanded Widget into a Snippet or press OPTIONS and select Minimize to Snippet. Hiding Widgets Press WIDGETS or RETURN to hide all of the Widgets from the screen or press OPTIONS and select Hide All. To display the Widgets again, press WIDGETS. Closing a Widget Press OPTIONS then select Close Widget. When closing a Widget, all Snippets associated with the Widget will close. To relaunch the Widget, see “Launching Widgets” page 36. Widget Gallery Use the Widget Gallery to browse and install new Widgets. Downloaded Widgets can be launched from the Network Category icon of the XMB™, see “Launching Widgets” page 36. • The Widget content that appears on the screen may be updated, modified or deleted at any time by the Widget provider. • Some Widgets can be customized to your preferences such as viewing weather for your local region or viewing your preferred stocks. (Continued) 35 Exploring the XMB™ and TV Features Widget Widgets Options Menu Highlight a Widget or Snippet and press OPTIONS to access additional feature menu items. The menu items may vary depending on the state of the Widget/Snippet. A sample feature options menu is shown below. Option Description Dock Aligns Widgets/Snippets to the bottom of the TV screen. Undock Allows you to move Widgets/Snippets to any location on the TV screen. Move Allows you to move Widgets/Snippets to your preferred location. Close Widget Allows you to close a Widget and all associated Snippets. Hide Widgets Allows you to hide all Widgets/Snippets from the TV screen. Hide/Show Footer Hides or shows the footer. The footer may provide additional information and may appear for an extended period of time. Moving Snippets on the Screen Snippets can be moved when they are undocked. 1 Highlight a Snippet, press OPTIONS and then Snippets in Move Mode select Move. 2 Press V/v/B/b to move the Snippet and then press to set it in your preferred location. Launching Widgets Hidden or closed Widgets can be launched from the Network Category icon of the XMB™. 1 Press HOME. 2 Highlight the Network Category icon. 3 Highlight a Widget and then press . Press OPTIONS while under the Network Category icon to access additional menu items. Deleting Widgets From the Network Category icon, highlight a Widget, press OPTIONS then select Delete. • When downloading new Widgets, existing Widgets may need to be deleted from the Network Category icon if memory space has been exceeded. • An expanded Widget cannot be moved using the remote control arrow buttons. • Some Widgets may fill your entire TV screen when expanded into a full view. • Widgets available on PCs or other devices may not be available on your TV. 36 Favorites With Favorites, you can manage your preferred TV channels, External Inputs, Photo, Music, and Video content from a DLNA server or USB connected equipment, Internet content, Widgets, and Background TV themes for easy access. Displaying Favorites Press FAVORITES. Recently Viewed Items Exploring the XMB™ and TV Features Saved Media Files/Folders Saved Inputs Navigating Favorites 1 Press B/b to move between saved selections in a carousel-like fashion. 2 When the Recently Viewed list is highlighted, press V/v to move between the items. 3 To tune to an item, highlight its icon and press . Adding to Favorites 1 On the XMB™, highlight the icon of an item you wish to add and press OPTIONS. 2 Highlight Add to Favorites and press . Removing from Favorites 1 In the Favorites screen, highlight the item to remove and press OPTIONS. 2 Highlight Remove from Favorites and press . • To organize items saved to Favorites based on type (such as TV channels or Photos), press OPTIONS from the Favorites screen, select Favorites View, then choose Stacked. • You can also add or remove an item while tuned to it, or while it is highlighted in Favorites. Press OPTIONS and select either Add to Favorites or Remove from Favorites. • To clear your Recently Viewed items, highlight the list in Favorites and press OPTIONS, then select Clear Recently Viewed. Recently Viewed items are also cleared when the TV is powered off. • Auto Program will clear your TV channels from Favorites (see page 18). • Initial Setup will clear Favorites back to factory default. 37 TV Guide On Screen® Use the Guide to find the program that you want to watch. The Guide allows you to organize and personalize the program listings. The Guide is available with connection to your cable service or with over-the-air antenna signal. You must connect your signal directly to the TV’s CABLE/ANTENNA input without using a cable box. TV Guide On Screen System Elements • Press GUIDE to display the TV Guide On Screen. Info Box Highlighted (Current) Menu Area Guide Menu Bar Clock Profile Name Icons for Highlighted Program Title Broadcast Information PIP (Video Window) (unpopulated) Ad Panel Channel Logo Highlighted (Current) Program Title Channel Call No. Listings Grid • Press OPTIONS to get back to the Guide Menu Bar. The CH +/– buttons can be used to page up/down through listings. TV Listings Up to 24 hours of program listings are available. You can also organize the program listings by categories, while TV Listings is highlighted on the Guide menu bar, press to display a popup menu that allows you to customize the listings. For example, if you are an avid sports fan, you can customize the listings to only show sports-related channels. Browse/Search You can look for a program by browsing through categories or by entering a keyword or title. 38 Ads Provides advertisements from TV Guide sponsors. Settings Under the Settings menu, you will find the Guide information and be able to set up Guide settings or profiles: Guide Information Screen, Guide Settings, Profile Settings, Reset Guide, Edit Channels, Update TV Listings, Select Channel Lineup. My TV The My TV feature allows you to organize the program listings by profiles such as Movie, Sport, or Kids. You can also create your own profile name and organize your favorite programs or channels. Exploring the XMB™ and TV Features My TV is highlighted Info Box describes My TV My TV Submenu When you add a favorite channel using the OPTIONS button while watching your program, your favorite channel will be added to the Main Profile under My TV. The channels you add to My TV will also automatically appear as your favorite channel in the TV’s Favorites. To disable the Guide feature, press HOME then select Preferences menu from the Settings on the XMB™. Look for Program Information Source then select the Broadcaster option. • Enabling the TV Guide On Screen feature will increase the amount of time the TV is in Download Acquisition Mode (DAM); see page 46. • Refer to the online Reference Book for details on how to customize the Guide or create personal profiles. 39 Background TV Background TV uses the current video on your TV to create images that are similar to a screen saver. Navigating Background TV 1 2 3 4 Tune to a channel or input. Press OPTIONS. Highlight Background TV and press . Highlight a theme and press . The TV will display the current channel or input using the selected Background TV theme. Picture Adjustments Sound Adjustments Background TV Motionflow Speakers Add to Favorites 5 Press RETURN to exit the Background TV and return to the current channel or input. ~ • Background TV themes may also be saved to Favorites, so that you can launch these themes from the Favorites screen. Inputs Press INPUT to display the Input menu and toggle through the External Inputs to select the video source. The Input menu consists of TV mode and other equipment connected to the TV. You can label your External Inputs for easy identification by the connected equipment name rather than the name of the input. How to Label an Input 1 From the Settings icon on the XMB™, select Channels & Inputs. Then, select Manage Inputs. Press V/v to highlight the video input (Video/Component 1, Video 2, Component 2, HDMI 1-4) to which you want to assign a label, press to select the input of your choice. 2 Press V/v to highlight one of the displayed labels corresponding to the equipment connected to that input then press to label the equipment. 3 If you have an open input port where no equipment is connected, that input is grayed-out and skipped on the Input menu. You can Enable input ports so that they are always selectable. Refer to the online Reference Book for instructions. 40 Wide Mode The Wide Mode feature allows you to select the screen display of your preference. Based on the original signal source, a black frame or black bars may surround the picture. You can manually change the Wide Mode setting while watching TV by pressing the WIDE button on your remote control. For more information on customizing Wide Mode settings, refer to the online Reference Book. Changing the Wide Screen Mode Press WIDE repeatedly to cycle through the available modes. 4:3 Original source 16:9 Original source High-definition source m Wide Zoom m Wide Zoom Normal Normal This mode is not available. Full Full H Stretch This mode is not available. H Stretch Zoom Zoom Exploring the XMB™ and TV Features Standard-definition source • Normal is only available with 480i or 480p sources. • H Stretch is only available with 720p, 1080i, 1080p and 1080/24p sources. (Continued) 41 Changing the Wide Screen Mode for PC Timing Wide Mode is also available while in the PC input mode. Press WIDE repeatedly to cycle through the available modes while in the PC input mode. Incoming PC signal Incoming PC signal 800 × 600 42 1,280 × 768 m Normal Normal m Full 1 Full 1 Full 2 Full 2 BRAVIA® SyncTM with Control for HDMI The BRAVIA Sync function allows this TV to communicate with other Sony equipment supporting the Control for HDMI function. To connect Sony equipment with Control for HDMI Use an HDMI cable that bears the HDMI logo for connection. Line up the triangle on the head of the HDMI cable with the triangle on the label of the HDMI input when connecting the HDMI cable. Setting the Control for HDMI 1 Select Channels & Inputs on the Settings menu. 2 Highlight HDMI Settings and press . 3 Select Control for HDMI and set it to On. To verify connected devices, select Device List from the HDMI Settings menu. For other equipment, refer to its operating instructions. Available options using Control for HDMI The following operations are available after you connect the supported Sony equipment with Control for HDMI function to your TV: • Automatically turn off the connected equipment when you turn off the TV. • The connected equipment and TV are turned on by One-Touch-Play. • Possible operations with SYNC MENU buttons, see page 20. When a Sony A/V receiver with BRAVIA Sync is connected, the following additional operations are possible: • Turning on the A/V receiver when the TV is turned on. • Automatically switching to the audio output of the A/V receiver’s attached speakers. • Adjusting the volume and muting of the A/V receiver with the TV’s remote control. 43 Exploring the XMB™ and TV Features The Control for HDMI function must be set up in order for the TV to communicate with other Control for HDMI enabled equipment. To setup the TV’s Control for HDMI: Other Information How to Care for Your BRAVIA Safety is very important, please read and follow the safety documentation (Safety Booklet) separately provided. Unplug the TV and other connected equipment from the wall outlet before you begin cleaning your TV. • Wipe the LCD screen gently with a soft cloth. • Stubborn stains may be removed with a cloth slightly moistened with a solution of mild soap and warm water. • If using a chemically pretreated cloth, please follow the instruction provided on the package. • Never use strong solvents such as a thinner, alcohol or benzine for cleaning. • Do not plug in the TV into the wall outlet until the moisture from cleaning has evaporated. The TV should also be placed on a stable surface to prevent it from toppling over (see page 16 and 17). If you have young children or pets at home, check regularly to insure the TV is securely fastened. Troubleshooting Many problems with picture and sound quality are related to improper cable connection; refer to the Quick Setup Guide provided for sample connections. Things to consider • Check the Input selection by pressing INPUT. You may be watching the wrong input. • You may have accidentally pressed the MUTING button on your remote control; press MUTING again or press VOL + to deactivate muting. • The batteries may be installed incorrectly or may be low. • An object or fluorescent light may be interfering with the remote control’s operation. • To reset the TV to factory default settings: 1 Turn on the TV. 2 While pressing V on the Remote Control, press POWER on the TV. (The TV will turn itself off, then back on again.) WARNING: The reset will clear all of your customized settings including the Parental Lock setting. If you have forgotten your password, enter the master password: 4357. This password clears your previous password and allows you to enter a new password. The online Reference Book (www.sony.com/referencebook) provides additional information on troubleshooting. Contact Sony if you need further assistance. 44 Declaration of Conformity Trade Name: SONY Model: KDL-40XBR9/KDL-46XBR9/KDL-52XBR9 Responsible Party: Sony Electronics Inc. Address: 16530 Via Esprillo, San Diego, CA 92127 U.S.A. Telephone Number: 858-942-2230 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note This television includes a QAM demodulator which should allow you to receive unscrambled digital cable television programming via subscription service to a cable service provider. Availability of digital cable television programming in your area depends on the type of programming and signal provided by your cable service provider. Compatible Wall-Mount Bracket and Speaker Bar Information Use the following Sony Wall-Mount Bracket or Speaker Bar with your TV model. Sony TV Model No. For customers in Canada This Class B digital apparatus complies with Canadian ICES-003. FCC Related Information ❑ ❑ Reorient or relocate the receiving antenna. ❑ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ❑ Consult the dealer or an experienced radio/TV technician for help. Increase the separation between the equipment and receiver. Sony Wall-Mount Bracket Model No. Sony Speaker Bar Model No. KDL46XBR9 KDL52XBR9 SU-WL500 HT-CT500 – Use with other Wall-Mount Brackets may cause instability and could result in property damages or injury. To Customers Sufficient expertise is required for TV installations. Be sure to subcontract the installation to a Sony dealer or licensed contractor and pay adequate attention to safety during the installation. For Customers in the United States The lamp in this product contains mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance (www.eiae.org). Pursuant to FCC regulations, you are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. 45 Other Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: KDL40XBR9 Specifications Model System KDL-40XBR9 Television system NTSC: American TV standard ATSC (8VSB terrestrial): ATSC compliant 8VSB QAM on cable: ANSI/SCTE 07 2000 (Does not include CableCARD functionality) Analog terrestrial: 2 - 69 / Digital terrestrial: 2 - 69 Analog Cable: 1 - 135 / Digital Cable: 1 - 135 LCD (Liquid Crystal Display) Panel 10 W + 10 W Channel coverage Panel system Speaker output KDL-46XBR9 KDL-52XBR9 Input/Output jacks CABLE/ANTENNA VIDEO IN 1/2 COMPONENT IN 1/2 HDMI IN 1/2/3/4 AUDIO OUT DIGITAL AUDIO OUT (OPTICAL) PC IN PC AUDIO INPUT USB DLNA 75-ohm external terminal for RF inputs S VIDEO (4-pin mini DIN) (VIDEO 2 only): Y: 1.0 Vp-p, 75 ohms unbalanced, sync negative / C: 0.286 Vp-p (Burst signal), 75 ohms VIDEO: 1 Vp-p, 75 ohms unbalanced, sync negative AUDIO: 500 mVrms (Typical) / Impedance: 47 kilohms YPBPR (Component Video): Y: 1.0 Vp-p, 75 ohms unbalanced, sync negative / PB: 0.7 Vp-p, 75 ohms / PR: 0.7 Vp-p, 75 ohms / Signal format: 480i, 480p, 720p, 1080i, 1080p AUDIO: 500 mVrms (Typical) / Impedance: 47 kilohms HDMI: Video: 480i, 480p, 720p, 1080i, 1080p, 1080/24p Audio: Two channel linear PCM 32, 44.1 and 48 kHz, 16, 20 and 24bits, Dolby Digital AUDIO (HDMI IN 1 only): 500 mVrms (Typical) / Impedance: 47 kilohms 500 mVrms (typical) PCM/Dolby Digital optical signal D-sub 15-pin, analog RGB, 0.7 Vp-p, 75 ohms, positive See the PC Input Signal Reference Chart on page 12. Stereo mini jack, 500 mVrms, (Typical) / Impedance: 47 kilohms MPEG2, MP3, and JPEG. MPEG2, LPCM, MP3, and JPEG. Power and others Power requirement 120-240 V AC, 50/60 Hz Power consumption 205 W 240 W 300 W in use in DAM* All models less than 20 W (You may hear a clicking noise during the download but this is normal.) in standby All models less than 0.1 W with 120 V AC and with 240 V AC less than 0.3 W Screen size 40 46 52 (inches measured diagonally) Display resolution 1,920 dots (horizontal) × 1,080 lines (vertical) Speaker/Full range (2) (mm) 45 × 120 with speaker box (inches) 1 3/4 × 4 3/4 Tweeter (2) (mm) 16 5/8 (inches) 1,094 × 725 × 330 1,243 × 821 × 358 Dimensions with stand (mm) 961 × 649 × 303 (inches) 37 7/8 × 25 5/8 × 12 43 1/8 × 28 5/8 × 13 49 × 32 3/8 × 14 1/8 without stand (mm) 961 × 580 × 85 1,094 × 657 × 85 1,243 × 745 × 85 (inches) 37 7/8 × 22 7/8 × 3 3/8 43 1/8 × 25 7/8 × 3 3/8 49 × 29 3/8 × 3 3/8 wall-mount hole pattern (mm) 300 × 300 wall-mount screw size (mm) M6 (length: refer to diagram on page 7) Mass with stand (kg) 19.9 23.9 29.9 (lb.) 43.9 52.7 65.9 without stand (kg) 17.2 20.6 25.9 (lb.) 37.9 45.4 57.1 Supplied accessories Remote control RM-YD029 (1) / Size AA batteries (2) / AC power cord (1) / Cable clamper (1 attached to the Table-Top Stand) / Operating Instruction Manual (1) / Quick Setup Guide (1) / Warranty Card (1) / Safety and Regulatory Booklet (1) / Attaching the Table-Top Stand (1) / Screws (4) (Only for models for which the Table-Top Stand requires installation.) Optional accessories Connecting cables / Support Belt Kit / Wall-Mount Bracket / Speaker Bar: see page 45 * Download Acquisition Mode (DAM) is used for software updates and/or collecting data for TV Guide On Screen. ~ • Optional accessories availability depends on its stock. • Design and specifications are subject to change without notice. 46 Index 0-9 buttons 21 O A OPTIONS button 22 AC IN 9 AUDIO OUT jack, described 9 Auto Program 18 P B Background TV 40 BD/DVD MENU button 21 BD/DVD TOP MENU button 21 BRAVIA INTERNET VIDEO button 21 BRAVIA INTERNET WIDGETS button 22 C CABLE/ANTENNA input, described 9 CC button 22 CH +/– button 22, 23 COMPONENT IN (1080p/1080i/720p/480p/480i) 9 D DIGITAL AUDIO OUT (OPTICAL) 9 DISPLAY button 20 DLNA 13, 31 DMex/SERVICE 9 DVR/VCR Record Buttons 21 ENT button 21 F R RETURN button 21 S SCENE button 21 Speaker 23 SYNC MENU buttons 20 T Troubleshooting 44 TV POWER button 21 U USB 9 V VIDEO IN 1/COMPONENT IN 1 (1080p/1080i/720p/ 480p/480i)/L-AUDIO-R 9 VIDEO IN 2 S VIDEO/VIDEO L (MONO)-AUDIO-R 9 VOL +/– button 21, 23 F1/F2 buttons 22 Favorites 37 FAVORITES button 21 FUNCTION button 20 W G YELLOW, BLUE, RED, GREEN buttons 21 WIDE button 21 Y GUIDE buttons 21 H HD SIGNAL LED 23 HDMI IN 1/2/3/4 L-AUDIO-R 9 HOME button 21, 23 I Infrared Receiver (IR) 23 INPUT button 22, 23 J JUMP button 22 L LAN 9 LIGHT button 20 Light Sensor 23 Locating 8 M MUTING button 21 47 Other Information E PC IN 9 PIC OFF/TIMER LED 23 POWER button 21, 23 POWER/STANDBY LED 23 Programming the Remote Control 24 For Your Convenience Online Reference Book: Online Registration: To learn more about your TV, visit the online Reference Book at: http://www.sony.com/referencebook Be sure to register your TV. United States Canada http://productregistration.sony.com http://www.SonyStyle.ca/registration Your TV is capable of receiving software updates. For the latest information about software updates for your TV, visit: Software Updates: United States Canada http://www.sony.com/tvsupport http://www.sony.ca/support NOTE: If your TV is connected to the Internet, you can check for software updates by selecting Settings, Product Support and then Software Update. 4-140-826-13(1) Printed in U.S.A.
