MiVue Manager
MiVue Manager™ is a tool for you to view the videos recorded on a MiVue™ dash cam.
Note: Not all features are available for every model.
5. During playback, you can check more driving information from the dashboard panel and the G sensor chart
that are displayed below the video playback screen.
• On the dashboard panel, click
Download the Setup file from https://www.navman.com.au/mapping/ or https://www.navman.co.nz/
mapping/ for your Windows or Mac. Double-click Setup.exe and follow the on-screen prompts to install
MiVue Manager.
IMPORTANT! You may be prompted to install the MOV and AVI codecs for video playback if they are missing
on your computer. Search online to install the required codecs.
1
Selects the folder that stores the recording files.
2
Previews and prints the current video image.
3
Saves the selected files to the specified location on your computer.
About the battery
4
Captures and saves the current video image to the specified location on your computer.
5
Opens the Settings Menu. The Settings items are described as follows:
CAUTION! This unit contains a non-replaceable internal Lithium Ion battery. The battery can burst or explode,
releasing hazardous chemicals. To reduce the risk of fire or burns, do not disassemble, crush, puncture, or
dispose of in fire or water.
Caution! Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the
instructions.
• Replace only with the same or equivalent type recommended by the manufacturer.
• The battery must be recycled or disposed of properly.
• Use the battery only in the specified equipment.
• Battery clause safety information.
• G sensor chart displays data in 3-axis waveform about the car’s shift forward/backward (X), to the right/
left (Y) and upward/downward (Z).
6. The tool bar allows you to do the following:
Playing the recording files
1. Remove the memory card from the dash cam and access the card on the computer via a card reader;
or connect the dash cam to your computer via a USB cable (not supplied). You are advised to copy the
recording files to your computer for backup and playback.
2. Start MiVue Manager on the computer.
• By default, MiVue Manager shows the calendar and the file list on the right.
• When a recording file exists, you will see the date marked with “ ”. Click that date to display the files
that were recorded on that date.
• You can choose the file type to display: Event / Normal / Parking.
• To display all files in the current folder, click All. To return to the calendar view, click Calendar.
1
3
4
5
6
3
4
5
6
7
8
• Change Skin: Sets the colour scheme of MiVue Manager.
• Check for Update: Checks if there is any new version of MiVue Manager. Internet access is
required for this feature.
3. Double-click the desired file on the file list to start playback.
2
2
• Change Language: Sets the display language of MiVue Manager.
Note: Your model may not support all file types.
• About: Displays the version and copyright information of MiVue Manager.
4. The playback controls are described as follows:
7
1
Skips to the previous/next file on the list.
2
Starts or pauses the playback.
3
Changes the playback speed to 1/4x, 1/2x, 1x (default), 1.5x, or 2x.
4
Mutes or unmutes the volume.
5
Adjusts the volume level.
6
Plays the video in full screen.
7
Displays the playback progress. You can click on a point along the track bar to move directly to a
different location for the playback.
Caring for your device
Taking good care of your device will ensure trouble-free operation and reduce the risk of damage.
• Keep your device away from excessive moisture and extreme temperatures.
• Avoid exposing your device to direct sunlight or strong ultraviolet light for extended periods of time.
• Do not place anything on top of your device or drop objects on your device.
• Do not drop your device or subject it to severe shock.
• Do not subject your device to sudden and severe temperature changes. This could cause moisture
condensation inside the unit, which could damage your device. In the event of moisture condensation,
allow the device to dry out completely before use.
• The screen surface can easily be scratched. Avoid touching it with sharp objects. Non-adhesive generic
screen protectors designed specifically for use on portable devices with LCD panels may be used to help
protect the screen from minor scratches.
• Never clean your device with it powered on. Use a soft, lint-free cloth to wipe the screen and the exterior
of your device.
• Do not use paper towels to clean the screen.
• Never attempt to disassemble, repair or make any modifications to your device. Disassembly, modification
or any attempt at repair could cause damage to your device and even bodily injury or property damage and
will void any warranty.
• Do not store or carry flammable liquids, gases or explosive materials in the same compartment as your
device, its parts or accessories.
• To discourage theft, do not leave the device and accessories in plain view in an unattended vehicle.
• Overheating may damage the device.
About GPS
• GPS is operated by the United States government, which is solely responsible for the performance of GPS.
Any change to the GPS system can affect the accuracy of all GPS equipment.
• GPS satellite signals cannot pass through solid materials (except glass). When you are inside a tunnel
or building, GPS positioning is not available. Signal reception can be affected by situations such as bad
weather or dense overhead obstacles (e.g. trees, tunnels, viaducts and tall buildings).
• The GPS positioning data is for reference only.
Important notice
In addition to the user manual, this document contains the following terms that apply to your use of your
Navman product:
1. Software licence;
2. Privacy notice;
3. Lifetime monthly safety camera updates; and
4. 1-year limited warranty.
is based, including in the USA, China, Taiwan, Australia, New Zealand and the Philippines. The third parties that
data is provided to may include social media providers if the customer has linked the connected device feature to
a social media account. Connected Device Information will not be transferred to third parties that are not acting
on behalf of Navman without the customer’s consent unless required by law or for the purposes disclosed in this
clause. The customer may choose not to provide Connected Device Information to Navman, but this may cause
certain features of the connected device to be unavailable.
Information Storage
Any Location Information or Connected Device Information will be collected and held by CloudMade Inc., 1370
Willow Road, Menlo Park, CA 94025, USA (a third party company which provides cloud services to us), MiTAC
Australia Pty Ltd, Unit 5, 43-51 College Street, Gladesville, NSW 2111, Australia. Navman will take reasonable
steps to secure any Location Information or Connected Device Information about the customer.
Access, correction and complaints
The customer may request to see a copy of the Location Information or Connected Device Information held by
Navman about the customer, and can request corrections to be made to the Location Information or Connected
Device Information. Navman's privacy policy contains information about how a customer may exercise their
rights under the foregoing sentence, how a customer may complain about any breach of privacy laws or
applicable codes, and how Navman will deal with such a complaint. Navman's privacy policy is available at
https://www.navman.com.au/privacy.
* In this Privacy Notice, the term "Navman" means MiTAC Australia Pty Ltd (an entity registered in Australia and
New Zealand and trading as Mitac Professional Solutions, Magellan GPS Technology, MIO TECHNOLOGY and
NAVMAN TECHNOLOGY.
Lifetime monthly safety camera updates
Navman's "Lifetime Monthly Safety Camera Updates" entitles you to receive up to 12 safety alert updates
annually, when and as such updates are made available from the Navman server.
It is only applicable for this specific Navman product, until that product's useful life expires or Navman no
longer receives safety alert data from its third party supplier, whichever is shorter.
Updates are not transferable to other Navman products or alternative products. The updates you receive will
be updates to the same geographic map data originally included with your Navman product when originally
purchased. Full terms and conditions available at www.navman.com.au / www.navman.co.nz or by contacting
Customer Support.
You may need to use an appropriate Connection to a WIFI enabled device with Navman Mivue Pro app
installed and Internet connection required. Android and iOS compatible.
Only the preloaded data sold with your device can be updated under this offer.
1-year limited warranty
The 1-year limited warranty applies separately to your use of the product, and should be read independently
of the other terms contained in the user manual.
1. Scope.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law and the New
Zealand Consumer Guarantees Act 1993. You are entitled to a replacement or refund for a major failure and
for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major
failure.
Where a product is comprised of both hardware and software and a separate software licence is provided with
the product, the terms of the software licence apply to the software and this limited warranty applies only to
the hardware portion of the product. This section does affect any rights you may have under the Consumer
Guarantees (as defined below).
This warranty is given by MiTAC Australia Pty Ltd ("Navman”), in Australia and New Zealand.
About the vehicle power adapter
• Use only the vehicle power adapter supplied with your device. Use of another type of the vehicle power adapter
may result in malfunction and/or danger.
• This product is intended to be supplied by a LISTED Power Unit marked with “LPS”, “Limited Power Source” and
output rated + 5 V dc / 2.0 A.
• Do not use the vehicle power adapter in a high moisture environment. Never touch the vehicle power adapter
when your hands or feet are wet.
• Allow adequate ventilation around the vehicle power adapter when connected to the device. Do not cover
the vehicle power adapter with paper or other objects that will reduce cooling. Do not use the vehicle power
adapter while it is inside a carrying case.
• Connect the vehicle power adapter to a proper power source. The voltage requirements are found on the
product case and/or packaging.
• Do not use the vehicle power adapter if the cord becomes damaged.
• Do not attempt to service the unit. There are no serviceable parts inside. Replace the unit if it is damaged or
exposed to excess moisture.
Note: The map screen may not display when the computer is not connected to the Internet or when your
MiVue model does not support the GPS function.
Installing MiVue Manager
1
to display the map screen.
Safety precautions
6
Exports the GPS information of the selected file in the KML format to the specified location on your
computer.
7
Uploads the selected file to Facebook / YouTube™.
8
In the playlist, the "F" and "R" marks displayed on the filename indicate that the video comes with a
corresponding front video (F) or rear video (R). While playing the video, the screen displays the PIP
(picture-in-picture) mode. You can switch the front and rear videos by clicking
.
Note: This feature is for selected models only.
Software licence
1. Generally.
Navman ("Licensor") is willing to grant the following licence (the "Licence") to use the software, if any, provided
with this Software Licence and Privacy Notice (whether provided separately or associated with a device) (the
"Licensed Product") to the original retail purchaser (and, subject to the limitations below, certain transferees) of
the Licensed Product or the device upon or with which the Licensed Product was installed or associated as of the
time of purchase (the "Customer") only if Customer accepts all of the terms of the Licence.
PLEASE READ THESE TERMS CAREFULLY. USING THE SOFTWARE WILL CONSTITUTE CUSTOMER'S
ACCEPTANCE OF THE TERMS AND CONDITIONS OF THIS LICENCE. PLEASE NOTE THAT THIS LICENCE IS
NOT ITSELF A LICENCE TO USE NAVIGATION DATA THAT MAY BE INCLUDED WITH A DEVICE. NAVIGATION
DATA IS COVERED BY A SEPARATE LICENCE AGREEMENT. IF YOU DO NOT AGREE TO THE TERMS OF THIS
LICENCE, DO NOT INSTALL OR USE THE LICENSED PRODUCT. RATHER, RETURN THE LICENSED PRODUCT
(AND, IF YOU RECEIVED THE LICENSED PRODUCT INSTALLED ON A DEVICE, RETURN THE DEVICE)
PROMPTLY, INCLUDING ALL PACKAGING AND WRITTEN MATERIALS, TO LICENSOR AND LICENSOR WILL
REFUND TO CUSTOMER THE ORIGINAL RETAIL PRICE PAID FOR THE PRODUCT (LESS DELIVERY AND
HANDLING CHARGES, WHERE PERMITTED).
2. Licence Grant.
This section does not limit or affect the rights of any person under the Consumer Guarantees (as defined in
section 7 below).
Licensor grants to Customer a non-exclusive licence (without right to transfer, assign, or sublicence except as
stated in this Licence) to use: (a) the Licensed Product (that term being further restricted where the Licensed
Product is, or contains, a work of authorship fixed in tangible (including electronic) media to mean the single
purchased copy thereof); and (b) the accompanying materials, including any manuals contained in the Licensed
Product (the "Materials"), in accordance with the terms and conditions of this Licence.
3. Limitations on Use.
Customer will not place, secure, or use, or permit any other person to place, secure, or use, the Licensed
Product or any device associated with the Licensed Product, in a manner that limits any user or operator's view,
that is likely to distract any user or operator, or that may cause accidents, personal injury, or property damage.
Customer, and any user that Customer permits to use the Licensed Product or any associated device, is solely
responsible for observing safe driving, operating, and other practices so as to avoid accidents or injury to
persons or property. Certain functionality of the Licensed Product or the device may be dependent upon the use
of hardware (sometimes called a "dongle" or "module") or software keys that enable or unlock the functionality.
This Licence does not permit Customer to use any of such functionality unless Customer has also legitimately
bought or otherwise obtained the appropriate dongle, module, or software key. Each dongle, module, or
software key is intended solely to enable the portion of functionality of the Licensed Product or device described
in the documentation associated with the dongle, module, or software key and no other functionality.
4. Intellectual Property Rights.
As between Licensor and Customer, the copyright and all other intellectual property rights in the Licensed
Product and Materials (including any enhancements or modifications) are the property of Licensor. Customer
must not rent, lease, reproduce, translate, adapt, vary, reverse-engineer, or modify the Licensed Product or
Materials or communicate the same to any person other than in accordance with the terms of this Licence
(or to the extent permitted by mandatory laws). Customer may not rent or lend the Licensed Product, or
reproduce, prepare any derivative work, distribute, perform publicly, display publicly, perform by digital or other
transmission, or broadcast the Licensed Product. Any rights not expressly granted in this Licence are reserved by
Licensor.
5. Transfer of Licence.
Customer may transfer this Licence to a subsequent transferee of the Licensed Product or the device, if any,
upon which the Licensed Product is installed, provided that Customer transfers to the transferee all physical
embodiments of the Licensed Product, the device upon which the Licensed Product is installed, if any, and all of
the Materials, and retains no copy or part of the Licensed Product or the Materials.
Where the Licensed Product is transferred, technical support offered by the Licensor will only be available to the
transferee, if the transferee provides proof of the original purchase of the Licensed Product.
2. Warranty.
Apart from any rights that you may have because of the Consumer Guarantees (as defined below), Navman warrants
to the original end-user retail purchaser from an authorized Navman dealer that this product will be free from defects
in material and workmanship and (where a User Manual is provided) will substantially conform to the specifications
and descriptions in the User Manual for the Warranty Period. The "Warranty Period" is one year from the date of
original retail purchase in Australia and New Zealand, as supported by a complete, legible and dated copy of the
original sales receipt.
3. Exclusions and Limitations.
This section sets out exclusions and limitations which apply to the warranty. It does not affect the rights of any
person under the Consumer Guarantees (as defined below). This warranty does not cover any non-rechargeable
batteries, finishes, service performed or attempted by anyone other than an authorised Navman Service Centre,
installations or defects caused by improper installation, any products, components or parts not manufactured
by Navman, any claim in relation to infringement of any patent, trademark, copyright or other proprietary right,
including trade secrets, any damage or failure of the product caused by shipping, misuse, tampering, abuse,
negligence, wear and tear in excess of that expected from normal consumer use, unauthorised attachments or
modification, failure to maintain as recommended, electrical discharges (including lightning), exposure to water
(except as otherwise stated in the User Manual), moisture or liquids, proximity or exposure to heat, disasters such
as fire, flood, wind, and lightning, or failure of availability or reliability of any external resource necessary or useful
for the product's operation (for example, and to the extent applicable, the global positioning system constellation of
satellites and their transmissions; traffic, weather, navigation, point-of-interest, or other data; and radio-frequency
or other wired or wireless signals, whether transferring data or otherwise). Improper or incorrectly performed
maintenance or repair, commercial use, or alteration or removal of any serial number or the opening, dismantling
or repair of this product by anyone other than an authorised Navman Service Centre each will void this warranty.
To the extent that the product is used or useful for navigation: (a) the product, including any associated electronic
charts or maps, navigation data, or radio or other services, is a supplement to other navigational resources and not
a replacement of them; (b) the product does not replace any charts, maps, or other information required by law
to be used for any activity (such as nautical or aeronautical charts); (c) errors and omissions are inevitable; (d) the
user is responsible for cross-checking the product against other sources of navigation information; and (e) Navman
recommends having back-up navigation tools available in the event that the product becomes inoperable.
4. Remedies and How to Obtain Warranty Service.
If the product is defective or fails to conform with the warranted specifications, and you send the product and all
other required information and materials to Navman, or return it to the retail outlet from which it was purchased,
on or before the last day of the Warranty Period (refer to the process at 1 to 3 below), , Navman will repair or
replace (at Navman's option) the product. This is your remedy for defective or non-conforming products under
Navman's warranty. You may have other rights or remedies under applicable laws (including under the Consumer
Guarantees, as defined below).
To obtain your warranty service:
1. Contact Navman to obtain a Return Materials Authorization number (RMA). You can reach Navman using the
Contact Details outlined at 3 below or through your authorized Navman dealer.
2. Pack the product, a copy of your dated purchase receipt, your address and telephone number, and any other
information Navman requests as part of the return authorization process (such as any return authorization form
you receive) in sturdy packing material.
3. Ship the product and the other required items to Navman at the address specified in the Contact Details below,
or return it to the retail outlet from which it was purchased, on or up to the end of the Warranty Period. You
should retain proof of shipping to evidence the date of shipment. Please send the item by registered post for
tracking purposes.
Contact Details:
In Australia:
In New Zealand:
Attention: MiTAC Repairs Attention: INTERNATIONAL - Navman Returns
Locked bag 5010
32 Botha Rd
Gladesville
Penrose
NSW 1675
Auckland
Your product uses a Lithium-ion battery. It is important to follow the guidelines set out regarding this type of Battery.
Electronic devices using a lithium – ion battery such as Mobile phones, GPSs and cameras are designed to operate
at a temperature range of approximately 0°C to 50°C. Beyond these temperature limits, there may be a risk of
battery failure, when these electronic goods are exposed to extreme heat conditions for long periods.
It is recommended that you do not use your device in a humid, wet and/or corrosive environment. Do not put, store
or leave your device in or near a heat source, in a high temperature location, in strong direct sunlight and do not
expose it to temperatures over 60°C (140°F). Failure to follow these guidelines may cause the Lithium-ion battery
to leak acid, become hot, explode or ignite and cause injury and/or damage. Do not pierce, open or disassemble
the battery. If the battery leaks and you come into contact with the leaked fluids, rinse thoroughly with water and
seek medical attention immediately. For safety reasons, and to prolong the lifetime of the battery, charging should
not occur at low (below 0°C/32°F) or high (over 45°C/113°F) temperatures.
THE LITHIUM-ION BATTERY CONTAINED IN THE PRODUCT MUST BE RECYCLED OR DISPOSED OF PROPERLY. IT
IS HIGHLY RECOMMENDED YOU USE YOUR PRODUCT ONLY WITH THE SUPPLIED DC POWER LEAD (VEHICLE
POWER ADAPTER/BATTERY CABLE) AND AC ADAPTER (HOME CHARGER) FOR BATTERY CHARGING.
For more information on how to recycle your old electronic devices, please contact your local council office. You
can also visit www.navman.com.au / www.navman.co.nz to view our latest trade-in offers.

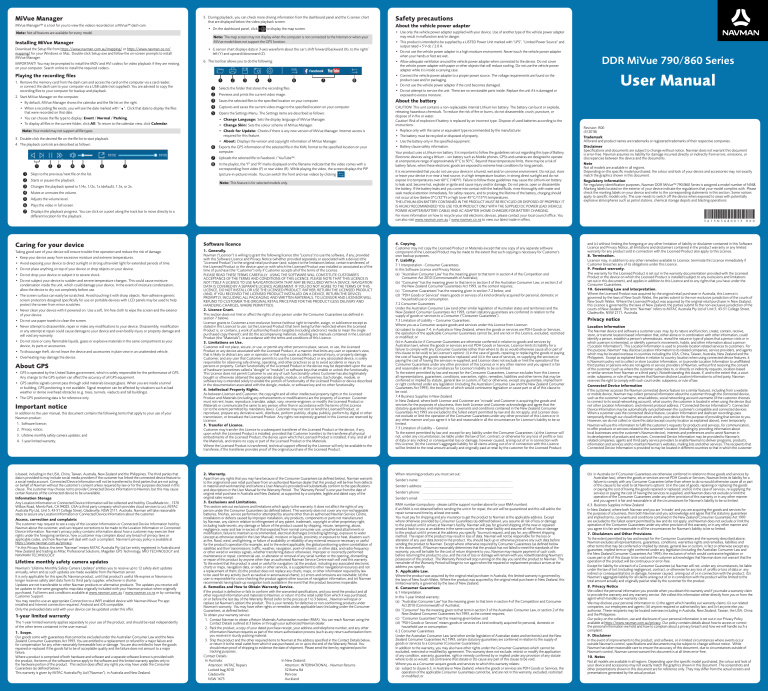

DDR MiVue 790/860 Series
User Manual
Revision: R00
(5/2018)
Trademark
All brand and product names are trademarks or registered trademarks of their respective companies.
Disclaimer
Specifications and documents are subject to change without notice. Navman does not warrant this document
is error-free. Navman assumes no liability for damage incurred directly or indirectly from errors, omissions, or
discrepancies between the device and the documents.
Note
Not all models are available in all regions.
Depending on the specific model purchased, the colour and look of your device and accessories may not exactly
match the graphics shown in this document.
Regulatory information
For regulatory identification purposes, Navman DDR MiVue™ 790/860 Series is assigned a model number of N568.
Marking labels located on the exterior of your device indicate the regulations that your model complies with. Please
check the marking labels on your device and refer to the corresponding statements in this section. Some notices
apply to specific models only. The user needs to switch off the device when exposed to areas with potentially
explosive atmospheres such as petrol stations, chemical storage depots and blasting operations.
5 6 1 5 N 5 6 8 0 0 1 3
R 0 0
6. Copying.
Customer may not copy the Licensed Product or Materials except that one copy of any separate software
component of the Licensed Product may be made to the extent that such copying is necessary for Customer's
own backup purposes.
7. Liability.
7.1 Interpretation - Consumer Guarantees.
In this Software Licence and Privacy Notice:
(a) "Australian Consumer Law" has the meaning given to that term in section 4 of the Competition and
Consumer Act 2010 (Commonwealth of Australia);
(b) "Consumer" has the meaning given to that term in section 3 of the Australian Consumer Law, or section 2 of
the New Zealand Consumer Guarantees Act 1993, as the context requires;
(c) "Consumer Guarantees" has the meaning given in section 7.2 below; and
(d) "PDH Goods or Services" means goods or services of a kind ordinarily acquired for personal, domestic or
household use or consumption.
7.2 Consumer Guarantees
Under the Australian Consumer Law (and other similar legislation of Australian states and territories) and the
New Zealand Consumer Guarantees Act 1993, certain statutory guarantees are conferred in relation to the
supply of goods or services to a Consumer ("Consumer Guarantees").
7.3 Limitation of Liability – Consumer Guarantees.
Where you as a Consumer acquire goods and services under this Licence from Licensor:
(a) subject to clause 7.4, in Australia or New Zealand, where the goods or services are PDH Goods or Services,
the operation of the applicable Consumer Guarantees cannot be, and are not in this Licence, excluded, restricted
or modified; or
(b) in Australia (or if Consumer Guarantees are otherwise conferred in relation to goods and services by
Australian law), where the goods or services are not PDH Goods or Services, Licensor limits its liability for a
failure to comply with any Consumer Guarantee (other than where to do so would otherwise cause all or part of
this clause to be void) to (at Licensor's option): (i) in the case of goods, repairing or replacing the goods or paying
the cost of having the goods repaired or replaced; and (ii) in the case of services, re-supplying the services or
paying the cost of having the services re-supplied, and Licensor does not exclude or limit the operation of the
Consumer Guarantees under any other provision of this Licence or in any other manner and you agree it is fair
and reasonable in all the circumstances for Licensor's liability to be so limited.
To the extent permitted by law and except for the Consumer Guarantees, Licensor excludes from this Licence
all representations, guarantees, conditions, warranties, rights, remedies, liabilities and other terms that may be
conferred or implied by statute, general law or custom, in fact or otherwise, except any guarantee, implied term
or right conferred under any legislation (including the Australian Consumer Law and the New Zealand Consumer
Guarantees Act 1993), the exclusion of which would contravene legislation or cause part or all of this clause to
be void.
7.4 Business Supplies in New Zealand
In New Zealand, where both Licensor and Customer are ‘in trade’ and Customer is acquiring the goods and
services for the purposes of a business, then both Licensor and Customer acknowledge and agree that the
statutory guarantees and implied terms, covenants and conditions contained in the New Zealand Consumer
Guarantees Act 1993 are excluded to the fullest extent permitted by law and do not apply, and Licensor does
not exclude or limit the operation of the Consumer Guarantees under any other provision of this Licence or in
any other manner and you agree it is fair and reasonable in all the circumstances for Licensor's liability to be so
limited.
7.5 Limitation of Liability – General.
To the extent permitted by law and except for any liability under the Consumer Guarantees: (a) the Licensor will
not, under any circumstances, be liable under the law of tort, contract, or otherwise for any loss of profits or loss
of data or any indirect or consequential loss or damage, however caused, arising out of or in connection with
this Licence; (b) the Licensor's aggregate liability for all claims arising out of or in connection with this Licence
will be limited to the total amount actually and originally paid at retail by the customer for the Licensed Product;
and (c) without limiting the foregoing or any other limitation of liability or disclaimer contained in this Software
Licence and Privacy Notice, all limitations and disclaimers contained in the product warranty or any limited
warranty for any product sold in connection with the Licensed Product also apply to this Licence.
8. Termination.
Licensor may, in addition to any other remedies available to Licensor, terminate this Licence immediately if
Customer breaches any of its obligations under this Licence.
9. Product warranty.
The warranty for the Licensed Product is set out in the warranty documentation provided with the Licensed
Product or the device on which the Licensed Product is installed (subject to any exclusions and limitations
set out in this document), and applies in addition to this Licence and to any rights that you have under the
Consumer Guarantees.
10. Governing Law and interpretation.
Where the Licensed Product was acquired by the original retail purchaser in Australia, this Licence is
governed by the laws of New South Wales, the parties submit to the non-exclusive jurisdiction of the courts of
New South Wales. Where the Licensed Product was acquired by the original retail purchaser in New Zealand,
this Licence is governed by the laws of New Zealand, the parties submit to the non-exclusive jurisdiction of the
courts of New Zealand. The term "Navman" refers to MiTAC Australia Pty Ltd of Unit 5, 43-51 College Street,
Gladesville, NSW 2111, Australia.
When returning products you must set out:
(b) in Australia (or if Consumer Guarantees are otherwise conferred in relation to those goods and services by
Australian law), where the goods or services are not PDH Goods or Services, Navman limits its liability for a
failure to comply with any Consumer Guarantee (other than where to do so would otherwise cause all or part
of this clause to be void) to (at Navman's option): (i) in the case of goods, repairing or replacing the goods
or paying the cost of having the goods repaired or replaced; and (ii) in the case of services, re-supplying the
services or paying the cost of having the services re-supplied, and Navman does not exclude or limit the
operation of the Consumer Guarantees under any other provision of this warranty or in any other manner
and you agree it is fair and reasonable in all the circumstances for Navman's liability to be so limited.
6.3. Business Supplies in New Zealand
In New Zealand, where both Navman and you are ‘in trade’ and you are acquiring the goods and services for
the purposes of a business, then both Navman and you acknowledge and agree that the statutory guarantees
and implied terms, covenants and conditions contained in the New Zealand Consumer Guarantees Act 1993
are excluded to the fullest extent permitted by law and do not apply, and Navman does not exclude or limit the
operation of the Consumer Guarantees under any other provision of this warranty or in any other manner and
you agree it is fair and reasonable in all the circumstances for Navman's liability to be so limited.
7. Disclaimers and Other Provisions
To the extent permitted by law and except for the Consumer Guarantees and the warranty described above,
Navman excludes all representations, guarantees, conditions, warranties rights and remedies, liabilities and
other terms that may be conferred or implied by statute, general law or custom, in fact or otherwise except any
guarantee, implied term or right conferred under any legislation (including the Australian Consumer Law and
the New Zealand Consumer Guarantees Act 1993), the exclusion of which would contravene legislation or
cause part or all of this clause to be void and the customer acknowledges that Navman does not warrant that the
operation of the product will be continuous or error-free.
Except for liability for a breach of a Consumer Guarantee (a) Navman will not, under any circumstances, be liable
under the law of tort (including negligence), contract, or otherwise for any loss of profits or loss of data or any
indirect or consequential loss or damage, however caused, arising out of or in connection with the product; (b)
Navman’s aggregate liability for all claims arising out of or in connection with the product will be limited to the
total amount actually and originally paid at retail by the customer for the product.
8. Privacy Notice
We collect the personal information you provide when you obtain this warranty and if you make a warranty claim
to provide the warranty and any warranty service. We collect this information either directly from you or from the
agent which handles our warranty claims.
We may disclose your personal information to: (i) the agent which handles our warranty claims; (ii) our related
companies, our employees and agents; (iii) anyone required or authorised by law; and (iv) anyone else you
authorise. These recipients may be located overseas including in Australia, New Zealand, Taiwan, the USA, China
and the Philippines.
Our policy on the collection, use and disclosure of your personal information is set out in our Privacy Policy
available at https://www.navman.com.au/privacy. Our policy contains details about how to access or correct
the personal information we hold and how to complain about a privacy breach and how we will handle such a
complaint.
9. Disclaimer
In the event of improvements to the product, and software, or in limited circumstances where events occur
outside Navman's control, specifications and documents may be subject to change without notice. While
Navman has taken reasonable care to ensure the accuracy of this document, due to circumstances outside of
Navman's control, Navman cannot warrant this document is at all times error-free.
10. Notes
Not all models are available in all regions. Depending upon the specific model purchased, the colour and look of
your device and accessories may not exactly match the graphics shown in this document. The screenshots and
other presentations shown in this document are for reference only. They may differ from the actual screens and
presentations generated by the actual product.
Sender's name:
...................................................................................
Sender's address: ...................................................................................
Sender's phone: ...................................................................................
Sender's email:
...................................................................................
RMA number (compulsory - please call the support number above for your RMA number).
If an RMA is not obtained before sending the unit in for repair, the unit will be quarantined and this will add to the
repair turnaround time by at least one week.
You must pay for shipping and any insurance to get the product to Navman at the applicable address. Except
where otherwise provided by Consumer Guarantees (as defined below), you assume all risk of loss or damage
to the product until it arrives at Navman's facility. Navman will pay for ground shipping of the new or repaired
product back to you at an address in the same country as the repair facility and assume all risk of loss or damage
to the product until it arrives at the address you specify. You must request, and pay for, any different shipping
method. The repair of the product may result in loss of data. Navman will not be responsible for the loss or
alteration of any user data stored in the product. You should back up or otherwise preserve any such data before
sending the product to Navman. Except where otherwise required by Consumer Guarantees (as defined below
in this document), if Navman reasonably determines that the product has not failed to meet the standards of the
warranty, you will be liable for the cost of return shipment to you, Navman may require payment of such costs
before returning the product to you, and the risk of loss or damage will remain with you notwithstanding Navman's
possession of the product. The Warranty Period will stop running on the day you send the product to Navman. The
remainder of the Warranty Period will begin to run again when the repaired or replacement product arrives at the
address you specify.
5. Applicable Law.
Where the product was acquired by the original retail purchaser in Australia, this limited warranty is governed by
the laws of New South Wales. Where the product was acquired by the original retail purchaser in New Zealand, this
limited warranty is governed by the laws of New Zealand.
6. Consumer Guarantees
6.1 Interpretation.
In this 1-year limited warranty:
(a) "Australian Consumer Law" has the meaning given to that term in section 4 of the Competition and Consumer
Act 2010 (Commonwealth of Australia);
(b) "Consumer" has the meaning given to that term in section 3 of the Australian Consumer Law, or section 2 of the
New Zealand Consumer Guarantees Act 1993, as the context requires;
(c) "Consumer Guarantees" has the meaning given below; and
(d) "PDH Goods or Services" means goods or services of a kind ordinarily acquired for personal, domestic or
household use or consumption.
6.2 Consumer Guarantees
Under the Australian Consumer Law (and other similar legislation of Australian states and territories) and the New
Zealand Consumer Guarantees Act 1993, certain statutory guarantees are conferred in relation to the supply of
goods or services to a Consumer (Consumer Guarantees).
In addition to the warranty, you may also have other rights under the Consumer Guarantees which cannot be
excluded, restricted or modified by agreement. This warranty does not exclude, restrict or modify the application
of any condition, warranty, guarantee, right or remedy conferred by or implied under any provision of any statute
where to do so would: (a) contravene that statute or (b) cause any part of this clause to be void.
Where you as a Consumer acquire goods and services to which this warranty relates:
(a) subject to clause 6.3, in Australia or New Zealand, where the goods or services are PDH Goods or Services, the
operation of the applicable Consumer Guarantees cannot be, and are not in this warranty, excluded, restricted
or modified; or
Privacy notice
Location Information
The Navman device and software a customer uses may, by its nature and function, create, contain, receive,
store, or transmit location based information that, either alone or in combination with other information, could
identify a person, establish a person's whereabouts, reveal the nature or type of places that a person visits or in
which a person is interested, or identify a person's movements, habits, and other information about a person
("Location Information"). This Location Information is used to provide location related services to customers. For
this purpose, Navman* may disclose Location Information to its related companies, service providers, and agents
which may be located overseas in countries including the USA, China, Taiwan, Australia, New Zealand and the
Philippines. Except as explained below in relation to country location when using connected device features, it
is Navman's policy not to collect or store Location Information, or to provide Location Information to unaffiliated
third parties or persons who are not agents or service providers of Navman, without first receiving the consent
of the customer (such as where the customer subscribes to, or directly or indirectly requests, location-based
or similar services from Navman or a third party). Notwithstanding this clause, if, and to the extent that, a court
order, subpoena, or rule of law requires that Navman disclose Location Information to a third party, Navman
reserves the right to comply with such court order, subpoena, or rule of law.
Connected Device Information
If the customer accesses the Navman connected device feature (or a similar feature), including from a website
or mobile device, Navman may collect personal information about the customer through the connected device,
such as the customer’s username, email address, social networking account username (if the customer chooses
to connect to its social networking account), what country the customer is located in when using the device (but
not other Location Information), and internet protocol address, (“Connected Device Information”). Connected
Device Information may be automatically synced between the customer's compatible and connected devices.
When a customer uses the connected device feature, Location Information and dashcam recordings pass
temporarily through our cloud infrastructure and to your device for the purpose of providing that service to you.
However, we do not collect or store this data (except country location as explained above), even temporarily.
Navman will use this information to fulfil the customer’s requests for products and services, for communication,
to offer products or services related to the customer’s location (including by providing information about
local businesses onto the customer's Navman device), interests and preferences and to assist Navman in
its development of products and services. Connected Device Information may be provided to Navman's
related companies, agents and third party service providers to enable Navman to deliver programs, products,
information and services and to maintain Navman’s websites, mailing lists and other services. The recipients that
Connected Device Information is provided to may be located in different countries to that in which the customer
Getting to know your dash cam
• To ensure the highest quality recordings, you are advised to place the dash cam near the rear-view mirror.
3
2
4
5
6
2
10
3
11
4
5
6
7
8
9
10
7
11
8
MiVue rear camera
• The dash cam is designed to stay connected with the vehicle power adapter to ensure optimal performance.
The battery is designed as a backup power source for short-term use only in the event when the vehicles
power system is cut out during an incident so the dash cam can save the last recording. It is not to be used as
a sole source of power for prolonged periods. Battery life may vary under different conditions.
1. Make sure that your car is parked on level ground. Follow the instructions to securely mount your dash cam and
rear camera (optional) into a vehicle.
11
22
2
2
Rear camera
Depending on your model, your device may support a rear camera (may be sold separately).
3
Mounting pad
2 Camera lens
3 Adjustment bolt
4 Micro-USB connector
1
1
2
1
3
Using the touch screen
To operate your dash cam, touch the screen with your fingertip. The system
provides the control buttons and system icons on the screen. Depending on your
settings and usage, the displayed buttons and icons may be different to indicate
various functions and information of your dash cam.
Adds a custom safety (speed) camera
Opens the Menu screen
Takes a photo
Starts an event recording manually
5
6
REC
18:16:23
REC
Recording indicator
Current time
WIFI status
GPS signal status
2
4
REC
REC
18:16:23
Once you connect the optional rear camera and start recording, the
screen displays the PIP (picture-in-picture) mode. By default, the
main screen displays the image of the front camera and the subscreen
displays the image of the rear camera. You can switch the front and
rear camera images by tapping the subscreen.
18:16:23
(Subscreen)
2. Tap
l
>
>
l
/
to set the time zone of your location and then set the
When you select Manual, the system will display the date and time setting screen. Tap
adjust the value of the selected field; tap
3. When done, tap
The event recording saves the duration from 10 seconds before the event until 10 seconds after the event. The
event recording can last up to 1 minute if the sensor is triggered again during the recording. When your memory
card fills up with event recordings in the "Event" category, it will automatically record over the oldest existing files
in this category.
on the recording
to
and repeat the step until all fields have been changed.
.
enable the function by selecting
>
>
>
>
>
>
. A "P" icon will appear on the screen.
>
Getting connected
The MiVue Pro app allows you to view, share and back up the videos recorded on a MiVue dash cam via WIFI.
Search for "MiVue Pro" in Apple App Store or in Google Play Store to download the app for free.
Note:
l The MiVue Pro app is compatible with iOS 9.0 (and above) and Android 5.0 (and above) devices. MiTAC
does not guarantee the product’s compatibility with smartphones from all manufacturers.
l Not all MiVue dash cam models support the MiVue Pro app or all its features.
Connecting your dash cam to MiVue Pro
On your dash cam, tap
>
> On to enable the WIFI mode. Once enabled, the WIFI setting screen
displays the SSID and password of the dash cam.
Follow the steps to set up the WIFI connection between the dash cam and the smartphone via the MiVue Pro app.
1. Make sure that you have enabled the WIFI function on the smartphone.
2. Open the MiVue Pro app and tap the "+" icon.
3. Tap Select WIFI and then select the dash cam you want to connect to.
4. Tap Done to complete the WIFI connection.
Note: The instructions about operating the smartphone are for reference only. The actual setting options
and methods may vary depending on your phone type/model and the app version.
>
.
>
.
The Menu screen
Tap
To exit the Parking mode (the system will resume continuous recording), tap
. You will be prompted to play the
saved parking recording (if available).
The parking recordings can be found in the “Parking” category for file playback.
• If the recording is in progress, tap
>
Camera alert types:
Icon
.
/
to play the previous/next video; tap
/
/
Play Playback
to move the file to the “Event” category.
• Tap
to download the file to the connected smartphone.
Adding a safety camera
Note: You can add a custom safety camera only when a GPS fix is established.
• The "D" icon displayed next to the file on the playlist indicates that the video comes with a corresponding
on the playback
• Tap
to delete the file.
• Tap
to return to the list.
• Threshold: Sets the speed value for the dash cam to start offering alerts.
• Cruise Speed Alert: Sets the limit for the cruise speed. When you drive at a cruise speed over the set value,
you will receive alerts by the dash cam.
Sets if you want to include sounds in the recordings.
Driving Safety
• Custom SafetyCam: Lists all custom safety cameras which are sorted by the created time.
Note: Not all MiVue dash cam models support all of the driving safety features.
Parking mode
The dash cam provides advanced driving safety functions to make your driving safer.
• Detection: When enabled, the dash cam will automatically enters the Parking mode when the car stops
moving for about 5 minutes.
• Calibration: You are advised to calibrate the system constantly in order to be alerted properly. Follow the steps
to calibrate the system.
1. Drive the vehicle in the middle of the lane.
2. Ask a passenger to select this option and then follow the on-screen instructions to complete calibration.
Please align the blue line with
the hood.
You can check the WIFI connection status by the WIFI icon on the dash cam.
• Detection Method: Sets the parking detection method to Only G-Sensor, Only Motion or Motion &
G-Sensor.
• Auto Entry: Sets the mode for the system to enter the Parking mode automatically.
• Motion Detection: Sets the sensitivity level of motion detection that triggers the system to save the parking
recording.
• G-Sensor Sensitivity: Sets the sensitivity level of the G sensor that triggers the system to save the parking
recording.
Video Recording
The dash cam is connected to the smartphone and paired with the MiVue app.
• Video Clip Length: Sets the length of each video clip for a continuous recording (1 min, 3 min or 5 min).
>
>
>
and then tap the safety
camera that you want to check.
4. Tap
to remove the custom safety camera from the dash cam.
System
• Date/Time: Sets the system date and time.
• Standard Alert: Sets the alert distance function according to the speed limit.
Record Sound
3. To view the information of the custom safety camera, tap
Note: Depending on your MiVue model, certain setting options may not be available.
• Smart Alert: Sets the alert distance function according to the current GPS car speed.
on the recording screen.
2. The next time when you pass by the location, you will receive alerts by the dash cam.
• Satellites: Displays the status of the GPS signal reception.
• Alert Method
Enables or disables the WIFI mode of the dash cam.
1. To add a custom safety camera in the current location, tap
Allows you to change the system settings of the dash cam.
• Alert Distance: The system will alert you at a preset distance (Short, Medium or Long) when a safety
camera is detected.
WIFI
Your dash cam allows you to customise the safety camera database. You can add up to 100 custom safety
cameras in your dash cam.
Follow the steps to configure a custom safety camera:
• Alert Sound: Turns on (Beep or Voice) or off (Mute) the alert sound.
Enters the Camera mode.
Red light and traffic light camera
Custom safety camera alert
SafetyCam
Plays the recorded videos and photos.
/
to play/pause the video.
to display the previous/next photo.
• Tap
Type
Speed and combined safety camera
2. Select the desired type, and then tap the desired file to start playback.
Settings
to access the Menu screen that includes the following options:
Please adjust your device to
align the red line with the
horizon, and the green line
with the centre of the lane.
• When your car approaches a safety camera at a speed over the set threshold, you will receive a
persistent beep alert until your car speed drops lower than the appropriate speed limit.
• You can change the settings about how you want to receive the safety camera alerts. See the “System
settings” section for information.
Playback mode
>
• When a safety camera appears and is positioned in the
detectable direction, you will receive alerts. The screen
will display the visual alert and you will also receive audio
warnings (Beep, Voice or Mute).
• When your car passes through a safety camera, you will be notified by a different beep alert.
.
The photos can be found in the “Photo” category for file playback.
1. Tap
You can receive alerts to warn you about the locations of safety
cameras, which will enable you to monitor your speed through
these areas.
• When your car approaches a safety camera, you will receive a normal beep alert.
to take a photo. (This function is not available when the optional rear
camera is connected.)
>
Caution: For legal reasons, the safety camera function is not available in all countries.
• When the alert sound setting is set to Beep:
Note: The video files recorded by the front and rear cameras will be saved separately in the
corresponding folders of the memory card. If you move or delete a front video, its corresponding rear
video will be processed synchronously.
memory card, so save any videos or photos to your computer first.
After Parking mode is enabled, the system will enter the Parking mode in the following conditions:
• When the car stops moving for about 5 minutes.
>
Safety camera alerts
during continuous recording.
screen.
Camera
MiVue Pro app
>
rear video. In this case, you can switch between the front and rear videos by tapping
>
to set a proper allocation for parking recording. Changing the allocation will erase the data on the
>
Navman does not warrant that all types and locations of safety camera data are available as cameras may be
removed, relocated or new cameras installed.
Your MiVue dash cam may come with lifetime monthly safety camera updates and are updated monthly via the
MiVue Pro app (for selected models only).
If the system does not shut down by keeping the Power button pressed, you can force it to shut down by
inserting a small rod (such as a straightened paper clip) into the Shutdown button of the device.
When movements or vibrations are detected, the system will save the duration from 10 seconds before the event
until 10 seconds after the event. The saved recording can last up to 1 minute if the sensor is triggered again
during the recording. When your memory card fills up with parking recordings in the "Parking" category, it will
automatically record over the oldest existing files in this category.
• While playing videos, tap
Note: The feature is triggered by the G sensor of the device. You can change the setting by selecting
Updating safety camera data
To shut down the dash cam, press and hold the Power button until the system powers off.
• While viewing photos, tap
Before enabling the Park mode, please check your device memory storage allocation. Select
/
To remove a card, gently push the top edge of the card inwards to release it and pull
it out of the slot.
3. During playback, you can:
Your dash cam supports the parking recording function. The Parking mode function is disabled by default. You can
daylight saving time. The system will set the date and time according to the GPS location.
Occasionally you may need to perform a hardware reset when the dash cam stops responding or if it appears
to be “frozen” or unresponsive.
• Tap
.
Note: The dash cam cannot operate the Parking mode function on the internal battery power. It requires an
additional power source to record the video during the Parking mode, such as an uninterruptible power cable or
Smart Box accessory which is sold separately. Visit www.navman.com.au to purchase this accessory.
(Manual).
When you select Use GPS time, tap
>
Recording in Parking mode
.
(Use GPS time) or
>
screen.
The event recordings can be found in the “Event” category for file playback.
To make sure that the date and time of your recordings are correct, check the settings before you begin
recording.
Shutting down the dash cam
• When the dash cam is turned on, press the Power button briefly to switch the LCD screen on and off.
Hold the card by the edges and gently insert it into the slot as shown in the
illustration.
The dash cam allows you to take a photo.
If you want to manually start an event recording while continuous recording is in progress, tap
(Main screen)
Setting the date and time
>
>
Complete the installation according to the instructions in the “Using your dash cam in a vehicle” section. Once
the vehicle engine is started, the dash cam automatically turns on. The System indicator glows in green when
the dash cam is powered.
You must insert a memory card (not supplied) before you can start recording. The dash cam supports Class 10
memory cards with 8 GB – 128 GB capacity.
Camera mode
By default, if an event happens such as a sudden impact, high speed driving, an aggressive turn or an accidental
crash during continuous recording, the G sensor will prompt the dash cam to start recording the event.
Note: You can change the sensitivity level of the G sensor by selecting
Switching screens
1. Tap
to return to
Event recording
System icons
5
6
7
8
. Tap
Turning the dash cam on
• To turn the dash cam on and off manually, press and hold the Power button for 2 seconds.
• When you tap
When continuous recording is in progress, you can manually stop recording by tapping
18:16:23
For a better viewing experience, you can use the AV-out connector to connect the dash cam to an external AV
device via an AV cable (not supplied).
Using a memory card
Recording in driving mode
the recording screen; the system will start continuous recording automatically.
The continuous recordings can be found in the “Video” category for file playback.
3
1
Note:
l If you only use the dash cam (without connecting the rear camera) in your vehicle, simply connect the vehicle
power adapter to the dash cam and then plug it to the cigarette lighter.
l The installation illustrations are for your reference only. The placement of the devices and cables may vary
depending on the vehicle model. If you encounter any problems during installation, contact a skilled installer
(such as the service personnel of the vehicle) for assistance.
3. Connect the cables.
Route the cables through the top ceiling and the A-pillar so that it does not interfere with driving. Make sure that
the cable installation does not interfere with the vehicle's airbags or other safety features.
2. Adjust the lens angle.
When adjusting the angle of mounting, make sure that the camera’s view is parallel with the level ground and
the ground/sky ratio is close to 6/4.
By default, the system will automatically begin continuous recording shortly after start-up. The System indicator
flashes in green and amber alternately while the recording is in progress.
The recording may be divided into several video clips; recording will not stop between video clips. When your
memory card fills up with continuous recordings in the "Video" category, it will automatically record over the
oldest existing files in this category.
7 8
Connecting an external AV device
Note:
l DO NOT apply pressure to the centre of the memory card.
l Navman does not guarantee the product’s compatibility with memory cards from all manufacturers. Please
check your card manufacturer's specifications and warranty to ensure it is suitable for use in dash cameras
and loop recording devices.
l Before you start recording, please format the memory card to avoid malfunction caused by files not created
by the dash cam.
l You may need to format your memory card periodically to ensure it remains in good condition to record and
save files.
l You should use separate MicroSD cards for recording and for regular data storage.
l You are advised to turn the device off before removing the memory card.
Continuous recording
Control buttons
Vehicle power adapter
2
To format a memory card (all data will be erased), tap
Note:
l Before sticking the mounting pad, it is recommended to clean the windscreen with rubbing alcohol.
l If the adhesion of the adhesive tape does not perform well, replace the tape with a new one.
Precautions and notices
• For your own safety, do not operate the controls of the product while driving. Using this product does not
change the requirement for a driver to take full responsibility for his or her behavior. This responsibility
includes observing all traffic rules and regulations in order to avoid accidents, personal injury or property
damage.
• A window mount is needed when using the dash cam in a car. Make sure that you place the dash cam in an
appropriate place, so as not to obstruct the driver’s view or deployment of airbags.
• Make sure that no object is blocking the camera lens and no reflective material appears near the lens.
Please keep the lens clean.
• If the car’s windscreen is tinted with a coating, it may impact the recording quality.
1
Formatting a card
2
Using your dash cam in a vehicle
1
2
3
4
3
Mounting the dash cam
1
You can connect the dash cam to your computer to access data on the memory card. Connect the dash cam to
the computer via a USB cable (not supplied).
Rear camera cable
• The system will automatically calibrate the G sensor of the device during start-up. To avoid G sensor
malfunction, always turn the device on AFTER you mount it in the vehicle properly.
9
4
Connecting an external device
MiVue dash cam
Connecting to your computer
• If the car’s windscreen is tinted with a reflective coating, it may be athermic and impact the GPS reception. In
this instance, please mount your device where there is a “clear area.”
Mini-USB connector
AV-out connector
Device mount socket
Microphone
Touchscreen
System indicator
Speaker
Camera lens
Shutdown button
Power button
Memory card slot
1
1
Y cable
• Select an appropriate location for mounting the device in a vehicle. Never place the device where the driver’s
field of vision is blocked.
• System Sound: Enables or disables system notification sounds.
• Volume: Adjusts the volume level.
• LCD Standby
• Always On: Keeps the LCD on.
• HUD: The system will turn off the LCD (in specified time) but still display the time and speed information.
• TPMS: The system will turn off the LCD (in specified time) but still display the TPMS information. (This
option is available only when the optional TPMS sensors are installed.)
• 10 sec/1 min/3 min: Sets the timer for the LCD to turn off automatically after recording starts.
• Language: Sets the language.
• Distance Unit: Sets the preferred distance unit.
• Storage Allocation: The system provides the default memory configurations to store the videos and
photos. Select the proper configuration based on your usage.
• Video output: The options are NTSC and PAL.
• Restore to Defaults: Restores the system settings to the factory defaults.
• Version: Displays the software information.
Format
Formats a memory card. (All data will be erased.)
TPMS
Note:
l The TPMS accessory may be sold separately. Visit www.navman.com.au for more infomation.
l For more information about the TPMS installation and features, refer to the separate TPMS Quick Start
Guide.
The dash cam is not connected to the smartphone.
• LDWS: Select Beep or Voice to enable the LDWS (Lane Departure Warning System) function. The system will
alert you when it detects that the car speed is over 60 km/h and the car has strayed from its intended lane.
• Frequency: Sets the frequency for the camera to avoid problems caused by artificial light sources that are not
constant.
The dash cam is connected to the smartphone but not paired with the MiVue app yet.
TPMS (Tyre Pressure Monitoring System) is an electronic assistant device installed in the car's tyres to monitor
the air pressure and temperature via your dash cam. You will receive alerts if the tyres are underinflated or
overinflated.
• FCWS: Select Beep or Voice to enable the FCWS (Forward Collision Warning System) function. The system
will alert you when the car moves slowly and gets too close to the car ahead.
• WDR: Enables the Wide Dynamic Range (WDR) function to improve the dash cam's image quality under highcontrast lighting conditions.
To configure the TPMS settings, tap
• Headlight Reminder: Once enabled, the system will remind you to turn the lights on when you are driving
after dark. The default setting is On.
• EV: Sets the exposure level (-1 – +1) to adjust the brightness of the image.
By starting the MiVue app on your smartphone, the dash cam will be ready to transfer video and photo files by
simply tapping the Event button (
) on the recording screen.
Over-the-air (OTA) update
Occasionally, Navman may offer you various software updates, including the device firmware and safety camera
data. You can upgrade the data via OTA updates of the MiVue Pro app. When the new data is available, you will
be asked to upgrade the data when you open the app. Follow the on-screen instructions to complete the update.
For more information on the MiVue Pro app features, refer to the separate MiVue Pro App Quick Start Guide.
• Fatigue Alert: Once enabled, the system will remind you to take a break for a long-distance drive (2 hours,
3 hours or 4 hours). The default setting is 2 hours.
• FDWS: Once enabled, the system will alert you when the car ahead has proceeded to go after being stopped
for longer than 10 seconds. The default setting is On.
• G-Sensor Sensitivity: Sets the sensitivity level of the G sensor that triggers the event recording during
continuous recording.
.
• Units: Sets the unit of the pressure (psi, Bar, kPa or kg/cm2) and temperature (OC or OF).
• Front Tyre Sensors: Sets the minimum/maximum pressure and maximum temperature for the front tyres.
• Rear Tyre Sensors: Sets the minimum/maximum pressure and maximum temperature for the rear tyres.
• Stamps: Sets the information (Coordinates or G-Sensor) that will be displayed on the recorded video.
• Sensor Location: Sets the sensors' locations.
• Speed Stamp: Displays the driving speed on the recorded video.
• Learning Mode: When new TPMS sensors are installed, use this option for the dash cam to detect the new
sensors.
• Text Stamp: Displays customisable text information.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
