LG 49XEB3E-B Owner's manual

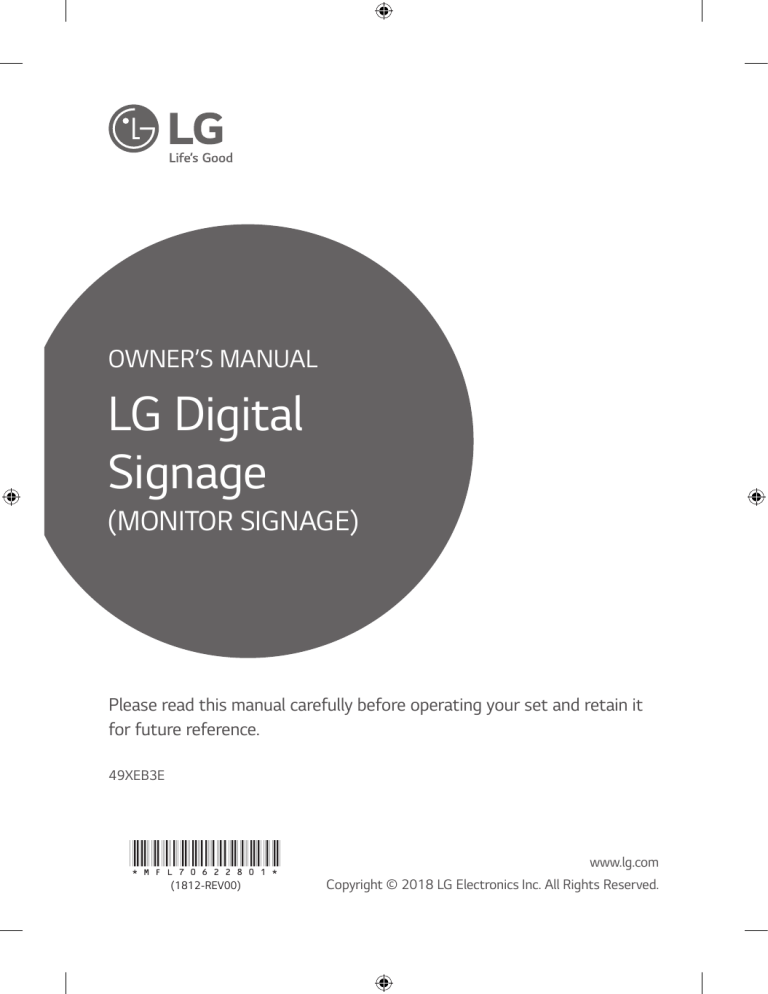

OWNER’S MANUAL LG Digital Signage (MONITOR SIGNAGE) Please read this manual carefully before operating your set and retain it for future reference. 49XEB3E *MFL70622801* (1812-REV00) www.lg.com Copyright © 2018 LG Electronics Inc. All Rights Reserved. 2 ENGLISH TABLE OF CONTENTS SAFETY PRECAUTION...................3 -- Precautions When Installing the Product.............3 -- Precautions for the AC Adapter and Power.......5 -- Precautions When Moving the Product................6 -- Precautions When Using the Product....................7 -- Precautions When Cleaning the Product.............9 -- Precautions When Experiencing Image Sticking. .....................................................................................................9 -- Precautions When Using the Remote Control..9 LICENSES..................................... 10 ASSEMBLY AND PREPARATION.11 -- Product Contents...........................................................12 -- Pixel Sensor.......................................................................13 -- Installing on a Wall.........................................................14 REMOTE CONTROL..................... 15 MAKING CONNECTIONS............ 17 -- Connecting to a PC.......................................................17 -- External Device Connection......................................17 -- To Connect External Devices....................................19 -- Using the Input List.......................................................20 CLEANING HEPA FILTER............. 21 TROUBLESHOOTING................... 22 PRODUCT SPECIFICATIONS....... 25 TO SEE THE WEB MANUALS (SOFTWARE USER GUIDE / INSTALLATION MANUAL).......... 27 3 SAFETY PRECAUTION The Safety Precautions are intended to prevent unexpected danger or harm by helping the user to use the product safely and for its intended purpose. WARNING If you ignore the warning message, you may be seriously injured or there is a possibility of accident or death. CAUTION If you ignore the caution message, you may be slightly injured or the product may be damaged. Precautions When Installing the Product WARNING Failure to observe these warnings may result in serious injury or death. •• Do not place the product close to heat sources such as fires and stoves. -- There is a risk of fire. •• Do not hang from or climb on the product. -- You may fall and cause injury. •• Do not install the product in a damp or dusty area. -- This may create a fire hazard or result in electric shock or damage to the product. •• If the product has been dropped or its case is damaged, turn off the power and unplug the power cord from the power outlet. -- Otherwise, the product may cause fire or electric shock. Contact the service center. •• Do not drop the product, subject it to shock, or throw any objects at the product screen. -- This may result in damage to the screen, malfunction of the product, or personal injury. •• When there is smoke or a strange smell or sound emitting from the product, disconnect the power cord and then contact the service center. -- Otherwise, the product may cause fire or electric shock. •• Do not leave the power or signal cable, etc. in walkways. -- If you step on or fall over the cable, it may cause fire, electric shock, product damage or personal injury. •• Keep the anti-moisture material or vinyl film used for packaging the product out of reach of children. -- If swallowed by mistake, force it to be vomited and visit the nearest hospital as a matter of urgency. •• Be careful when installing the product where it is likely to get wet, such as in a bathroom or other locations exposed to rain or water. -- This may cause fire, electric shock or product malfunction. ENGLISH WARNING: This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may cause radio interference. 4 ENGLISH •• Do not insert pieces of metal, such as coins, hairpins and metal debris, or flammable materials, such as paper or matches, into the product. -- Doing so may cause fire or result in electric shock. If foreign materials fall into the product, disconnect the power cord and then contact the service center. •• Do not install the product by yourself. The product should be installed by a professional installation technician specified by the retail store. -- Product installation by a non-professional installation technician is very dangerous and may cause personal injury. •• Do not install the product onto a wall that is close to sources of oil or oil mist. -- Otherwise, it may result in damage to the product and cause the product to fall. CAUTION Failure to observe these instructions may result in minor injury or damage to the product. •• Set to [Screen Off & Backlight (Outdoor mode)] when installing outdoors. -- Enable the [Outdoor mode] to reduce the risk of the internal humidity and condensation. -- When operating in below zero temperature, the enclosure may not work for up to one hour to raise the internal temperature of the enclosure. •• Ensure that the product is installed a certain distance (at least 100 mm) away from the wall for good ventilation. -- Failure to do so may result in the deformation of the product or fire due to the increase in the internal temperature. •• When placing the product on a table or shelf, be careful not to place it on the edge. -- The product may fall, causing personal injury or damage to the product. Make sure to use a table or stand that fits the product. •• Do not place the product close to sources of steam or oil, such as humidifiers and kitchen counters. -- This may result in electric shock or fire. •• Make sure the air vents are not blocked by a tablecloth or curtain. -- Failure to do so may result in the deformation of the product or fire due to the increase in the internal temperature. •• Do not install the product in an area with poor ventilation (e.g. on a bookshelf, in a closet, in separate outdoor structures), and avoid placing on cushions or carpets. -- This could result in fire due to high internal temperature. •• Do not place the product on an unstable or vibrating surface such as a vibrating shelf or tilted surface. -- The product may fall or flip over and cause injury. •• Do not install the product in a place with electromagnetic interference. •• In addition, do not install it in close proximity to hot objects, such as lights. •• If you install the product in unusual locations that do not meet the general conditions, this may cause serious damage to the product’s picture quality, life cycle or appearance. Please check with our service engineers before installing in such locations. -- Unusual locations: Locations where much fine dust or oil mist is generated, locations where chemical substances are used, locations where the temperature is too high or low and other locations where the product was not meant to be used. •• A readily accessible disconnect device shall be incorporated external to the product. •• The components complied with the requirements of IEC 61643-series shall be installed internal or external to this product. 5 WARNING Failure to observe these warnings may result in serious injury or death. •• If water or any foreign substance enters the product (TV, device, power cord or AC adapter), disconnect the power cord immediately and contact the service center. -- Otherwise, the damage to the product may cause a fire or electric shock. •• Always connect the power cord to a grounded outlet. -- Failure to do so may result in electric shock or personal injury. •• Do not touch the power cord or the signal cable in the event of thunder and lightning. -- There is risk of electric shock. •• Do not touch the power plug or AC adapter with wet hands. If the pins of the plug are wet or dusty, wipe or dry them thoroughly before use. -- Failure to do so may cause electric shock or fire. •• Insert the power plug securely so that it does not come loose. Do not use the product if the power outlet is loose. -- A bad connection may cause a fire or electric shock. •• Make sure the power cord is fully inserted into the AC adapter. -- If loose, the poor connection may cause a fire or electric shock. •• Do not insert a conductor such as a chopstick into the other side of the cord while the power cord is inserted into the wall outlet. Also, avoid touching the power plug immediately after pulling it out of the wall outlet. -- This may cause electric shock. •• Be sure to use power cords and AC adapters provided or approved by LG Electronics, Inc. -- The use of non-approved products may cause fire or electric shock. •• Use the product at the rated voltage only. -- Failure to do so may result in damage to the product or electric shock. •• Do not use with a multi-outlet shared with many devices. Use a dedicated multi-outlet with a ground terminal. -- Otherwise, this may result in fire due to excessive heat. •• Disconnect the power cable when the product is not used for a long period of time. -- Dust may accumulate, resulting in electrical short circuits, electric shock or fire due to overheating, combustion or insulation degradation. ENGLISH Precautions for the AC Adapter and Power 6 ENGLISH •• When unplugging the power cord, always pull it by the plug. Do not bend the power cord with excessive force. -- A damaged cable may result in electric shock or fire. •• Be careful not to step on or place heavy objects (electronic appliances, clothing, etc.) on the power cord or AC adapter. Be careful not to damage the power cord or AC adapter with sharp objects. -- Damaged power cords may cause a fire or electric shock. •• Never disassemble, repair or modify the power cord or AC adapter. -- This may cause a fire or electric shock. •• To turn off the main power, remove the power cord, which should be positioned so it is easy to access for operation. •• If the product is connected to an AC wall outlet, it will not be disconnected from the AC power source even if you turn off the switch. •• Power consumption will be ‘0’ only when the power plug is unplugged. CAUTION Failure to observe these instructions may result in minor injury or damage to the product. •• Do not remove the power cord when the product is in use. -- Otherwise, the product may be damaged due to the sudden loss of power. •• Be sure to keep the outlet, AC adapter and pins of the power plug clean from dust, etc. -- Failure to do so may cause fire. •• Do not turn the product on or off by plugging in or unplugging the power plug from the power outlet. (Do not use the power plug as a switch.) -- This may cause an electric shock or product malfunction. •• Keep the power cord away from any heating devices. -- The cord coating may melt and cause fire or electric shock. Precautions When Moving the Product WARNING Failure to observe these warnings may result in serious injury or death. •• Before moving the product, disconnect the power cord and all other cables connected. -- Otherwise, this may result in electric shock or product damage. •• When carrying the product, make sure the screen faces forward and hold it firmly in both hands. CAUTION Failure to observe these instructions may result in minor injury or damage to the product. •• Do not discard the delivery box with the original packaging. -- Put the product in the box when carrying it. •• Lifting, moving or unpacking the product require at least two people due to the weight of the product. -- Failure to do so may result in damage to the product or personal injury. Using the fallen product again may result in electric shock or fire. Contact the service center. 7 WARNING Failure to observe these warnings may result in serious injury or death. •• Do not disassemble, repair or modify the product by yourself. -- Otherwise, the product may cause fire or electric shock. If the product needs to be checked, adjusted or repaired, contact the service center. •• Do not allow water to get into the product and do not let the product get wet. -- Failure to do so may result in fire, electric shock, malfunction or deformation. •• If there is a gas leak, do not touch the power outlet, and open the windows for ventilation. -- Otherwise, the product may cause fire or electric shock. •• Do not impact the front or sides of the screen with a hard object, such as a metal object, and do not scratch the screen. -- This can result in damage to the screen. •• In the event that liquid or a foreign object falls into the product, please switch it off and unplug it from the wall outlet and contact the service center. -- Otherwise, the product may cause fire or electric shock. •• Make sure that children do not swallow the remote control batteries when you replace them. Keep batteries out of reach of children. -- If a child swallows a battery, consult a doctor immediately. •• In the event that no image appears on the screen or no sound is heard, stop using the product. Switch it off immediately, unplug it from the power outlet and contact the service center. -- Otherwise, the product may cause fire or electric shock. •• Do not use the product in any environment with excessively high temperatures or humidity. •• Using headsets (earphones) for a long time or listening at high volume can cause damage to your hearing. •• Do not use high-voltage electrical products near the device. This may result in device malfunction due to electric shock. (e.g. electric mosquito swatters) •• If the enclosure has been damaged, consult the service center. There is a risk of electric shock or personal injury. •• Do not touch the product if it has been exposed to sunlight or an intense light because it is hot. ENGLISH Precautions When Using the Product 8 CAUTION ENGLISH Failure to observe these instructions may result in minor injury or damage to the product. •• Do not use or store the product near inflammables. -- This may result in fire or explosion. •• Take a break to protect your health and vision when using the product for long periods of time. •• Displaying a still image for a prolonged time may cause damage to the screen, resulting in image sticking. -- Damage incurred as a result of the above is not covered by the product warranty. •• Do not push hard on or scratch the product’s surface with your hands or sharp objects, such as nails, pencils or pens. -- This may damage the product’s surface and cause it to malfunction. •• Keep the product clean. •• Refer to the user guide and set the product to a fitting resolution and frequency. (For models with PC support only) -- You may experience blurred vision. •• Because the LCD requires high technology consisting of millions of pixels, pixilated spots (red, green, white or black) may appear on the screen in some cases while using the product. -- This is normal for an LCD screen and is not a malfunction, nor is this related to the product’s performance. •• Do not leave the product in places where it is likely to get wet, and do not place anything containing liquid on top of the product such as a flower vase. •• To clean the front frame, spray water onto a soft cloth two to four times; wipe in one direction only. -- Too much moisture may cause staining. •• Used batteries, which include rechargeable batteries, should be recycled separately from waste. -- Please dispose used batteries and rechargeable batteries at a local recycling centre or a retail store that handles batteries. 9 WARNING Failure to observe these warnings may result in serious injury or death. •• Do not spray water directly onto the product and do not use inflammable materials such as thinner or benzene to wipe the product. -- Doing so may cause fire or result in electric shock. •• When you need to clean the inside of the product, you must contact the service centre. -- Otherwise, cleaning without support may cause a fire, electric shock, malfunction, deformation, or damage to the product. CAUTION Failure to observe these instructions may result in minor injury or damage to the product. •• To clean the product, unplug the power cord and wipe it gently with a soft cloth. When cleaning the product or the screen, do not use cleanser, automobile or industrial shiner, abrasive or wax, benzene, alcohol, etc., as this may damage the product. -- This may result in fire, electric shock or product damage (deformation, corrosion or breakage). Precautions When Experiencing Image Sticking •• Displaying a still image for a prolonged period of time may cause damage to the screen, resulting in image sticking. •• Use a screen saver when using the monitor for a prolonged period of time. •• Most third-party products have the same issue. The resulting damage is not covered by the product warranty. Precautions When Using the Remote Control CAUTION Failure to observe these instructions may result in minor injury or damage to the product. •• Remove any obstacles. •• The remote control may not function properly in sunlight or under a strong lamp. Move the product if it is being used in these conditions. •• Only use the specified type of battery. Do not insert batteries that are not rechargeable into the charger. -- Burst or leaking batteries may cause fire or electric shock. •• Avoid locations near heaters or locations with high humidity. •• Do not mix new batteries with old ones. -- Burst or leaking batteries may cause fire or electric shock. •• Do not expose the batteries to excessive heat. Keep them away from direct sunlight, fireplaces, electric heaters, etc. -- Monitor may have malfunction as its electrical shock. ENGLISH Precautions When Cleaning the Product 10 ENGLISH LICENSES Supported licenses may differ by model. For more information of the licenses, visit www.lg.com. The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries. Manufactured under license from Dolby Laboratories. Dolby, Dolby Vision, Dolby Audio, Dolby Atmos, and the double-D symbol are trademarks of Dolby Laboratories. For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together, DTS 2.0 Channel, DTS 2.0+Digital Out, DTS-HD, and DTS Virtual:X are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved. 11 CAUTION •• Always use genuine components to ensure safety and product performance. •• The product warranty will not cover damage or injury caused by the use of counterfeit components. NOTE •• The accessories provided with your product may vary depending on the model or region. •• Product specifications or contents in this manual may be changed without prior notice due to upgrade of product functions. •• SuperSign Software & Manual -- Downloading from the LG Electronics website. -- Visit the LG Electronics website (http://partner.lge.com) and download the latest software for your model. •• The warranty will not cover any damage caused by using the product in an excessively dusty environment. ENGLISH ASSEMBLY AND PREPARATION 12 ENGLISH Product Contents The image may be different according to the model. Front Back Illuminance sensor / IR Receiver Magnet sensor Power Indicator Handle Handle * This image shows the product with the back cover off. Illuminance sensor: Adjusts the screen brightness by measuring the amount of light. IR Receiver: This is where the unit receives signals from the remote control. Power Indicator: This Indicator lights up red when the display operates normally (on mode). If the display is in sleep mode (in Power Saving mode), this indicator changes color to amber. 13 Pixel Sensor ENGLISH Pixel Sensor 14 ENGLISH Installing on a Wall For proper ventilation, make sure the product is installed at least 100 mm away from the walls on every side. Consult a professional installation company near you for details on installation. 100 mm 100 mm 100 mm 100 mm •• Use the bottom side screw holes when mounting the product. -- Bottom side screw hole: M8, Torque 17 to 27 kgf (Bottom side: 8 holes) -- Please use the 18.0 mm to 25.0 mm screws. CAUTION •• Disconnect the power cord before moving or installing the monitor to avoid risk of electric shock. •• If you install the monitor on a ceiling or slanted wall, it may fall and result in injury. The product should be installed by a professional installation company specified by the retail store. •• Do not over tighten the screws as this may damage the monitor and void your warranty. •• Any damage or injuries caused by misuse or use of improper accessories are not covered by the warranty. •• To prevent injury, this apparatus must be securely attached to the wall in accordance with the installation instructions. (This pertains only to Australia and New Zealand.) NOTE •• Be sure to use the correct length. 15 The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully to use the monitor correctly. To install batteries, open the battery cover, place batteries (1.5 V AAA) matching and terminals to the labels inside the compartment, and close the battery cover. To remove the batteries, perform the installation actions in reverse. The illustrations may differ from the actual accessories. CAUTION •• Do not mix old and new batteries, as this may damage the remote control. •• Be sure to point the remote control toward the remote control sensor on the monitor. •• Some features of the remote control may not be supported in certain models. (POWER) Turns the monitor on or off. Turns the monitor on. Turns the monitor off. Adjusts the brightness of the picture to reduce energy consumption. (INPUT) Selects the input mode. function is not supported in this model. Toggles between numerical and alphabetical. Number and Alphabet buttons Enters numerical or alphabetical characters depending upon the setting. Deletes the entered numerical or alphabetical character. Volume Up/Down Button Adjusts the volume. Selects the Aspect Ratio mode. Automatically adjusts picture position and minimizes image instability (available for RGB input only). (MUTE) Mutes all sounds. Adjusts the brightness of the display. function is not supported in this model. ",# ENGLISH REMOTE CONTROL 16 ENGLISH Selects the Picture Mode. (HOME) Activates the Launcher. Enters the White Balance menu. (SETTINGS) Accesses the main menus or saves your input and exit menus. SuperSign menu key. Navigation Buttons Scrolls through menus or options. Selects menus or options and confirms your input. (BACK) Allows you to move back one step in the user interaction function. Quit all OSD tasks and applications. Allows you to control various multimedia devices to enjoy multimedia simply by using the remote control through the SimpLink menu. Selects the TILE mode. When the Picture ID number matches the Set ID number, you can control whichever monitor you want in multi-display format. USB Menu Control Buttons Controls media playback. 17 You can connect various external devices to your monitor. Change the input mode and select the external device you want to connect. For more information about external device connections, see the user manual provided with each device. Connecting to a PC Some of the cables are not provided. This monitor supports the Plug and Play* feature. * Plug and Play: a feature that enables a PC to recognize devices attached by the user without device configuration or user intervention when powering up. External Device Connection Connect a HD receiver, DVD, or VCR player to the monitor and select an appropriate input mode. Some of the cables are not provided. For the best picture and sound quality, connecting external devices to your monitor using HDMI cables is recommended. ENGLISH MAKING CONNECTIONS 18 NOTE ENGLISH •• For the best image quality, using the monitor with HDMI connection is recommended. •• To comply with the specifications of the product, use a shielded interface cable with ferrite core, such as a DVI-D cable. •• If you turn the monitor on when the set is cold, the screen may flicker. This is normal. •• Sometimes red, green, or blue spots may appear on the screen. This is normal. •• Use a High Speed HDMI®/TM cable (shorter than 3 meters). •• Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not display or a connection error may occur. •• Recommended HDMI Cable Types -- High-Speed HDMI®/TM Cable -- High-Speed HDMI®/TM Cable with Ethernet •• If you cannot hear any sound in HDMI mode please check your PC settings. Some PCs require you to manually change the default audio output to HDMI. •• If you want to use HDMI-PC mode, you must set your PC/DTV to PC mode. •• You may experience compatibility issues if you use HDMI-PC mode. •• Make sure the power cable is disconnected. •• If you connect a gaming device to the monitor, use the cable provided with the gaming device. •• High Speed HDMI®/TM cables transmit a HD signal up to 1080p and higher. CAUTION •• Connect the signal input cable and tighten it by turning the screws clockwise. •• Do not press the screen with your finger for an extended period of time as this may result in a temporary distortion of the screen. •• Avoid displaying static images on the screen for a long period of time to prevent image burn. Use a screensaver if possible. •• A wireless communication device near your monitor can affect the image. 19 When Installing a Media Player Internally ENGLISH To Connect External Devices 20 When Installing a Media Player/PC Externally ENGLISH NOTE •• If you set the tile mode using DVI-D or HDMI, you will not be able to watch HDCP-encrypted content. •• If the signal cable between the product and your PC is too long, make sure to use the Booster or optical cable. •• DP Cable - Use a DP cable that is certified to DP 1.1a standard or higher. •• When installing a media player/PC externally, you can only connect HDMI IN, USB 3.0 IN and LAN. Using the Input List (HOME) → •• HDMI → DISPLAYPORT → DVI-D 21 It is recommended that you change the HEPA filter regularly. After removing the screws (a total of 12), gently clean the HEPA filter with a brush, etc. ENGLISH CLEANING HEPA FILTER 22 ENGLISH TROUBLESHOOTING No image is displayed. Problem Is the product power cord connected? Does the “Invalid Format” message appear? Does the “No Signal” message appear? Action •• Check if the power cord is correctly plugged into the power outlet. •• When operating in below zero temperature, the enclosure may not work for up to one hour to raise the internal temperature of the enclosure. •• The signal from the PC (Graphic card) is out of Vertical or Horizontal frequency range of the product. Adjust the frequency range by referring to the Specifications in this manual. •• The signal cable between PC and product is not connected. Check the signal cable. •• Access the input menu to check the input signal. The Unknown Product message appears when the product is connected. Problem Did you install the driver? Action •• Check if the Plug and Play function is supported by the graphics card user manual. The screen image looks abnormal. Problem Is the screen position wrong? The screen is displayed abnormally. The screen’s brightness seems dark. Action •• Check if the graphics card resolution and frequency are supported by the product. If the frequency is out of range, set to the recommended resolution in the [Control Panel] → [Display] → [Setting] menu. (The settings may differ depending on your operating system.) •• The proper input signal is not connected to the signal port. Connect the signal cable that matches with the source input signal. •• Condensation may appear on the screen. It will disappear in a certain period of time after the product is powered on. -- The condensation formed inside the product is a natural phenomenon and is not covered under warranty. (IPX6 is a standard to protect the product from 100L of water per minute and not from infiltration of moisture in the air into the set.) •• Change the screen brightness settings. •• Check the Easy Brightness Control settings. •• Gently clean the HEPA filter with a brush, etc if the internal temperature of the enclosure rises, the screen’s brightness may darken. 23 After-image appears on the product. Action After-image appears when the product is turned off. •• If you use a fixed image for a long time, the pixels may be damaged. Use the screen-saver function. •• When a dark image is displayed on the screen after an image with high contrast (black and white or gray), this may cause image sticking. This is normal for LCD screen products. The audio function does not work. Problem No sound? Sound is too dull. Sound is too low. Action •• See if the audio cable is connected properly. •• Adjust the volume. •• See if the sound is set properly. •• Select the appropriate equalizer sound. •• Adjust the volume. Screen color is abnormal. Problem Screen has poor color resolution (16 colors). Screen color is unstable or mono-colored. Do black spots appear on the screen? Action •• Set the number of colors to more than 24 bits (true color). Select [Control Panel] → [Display] → [Settings] → [Color Table] in Windows. (The settings may differ depending on your operating system.) •• Check the connection status of the signal cable. Or, re-insert the PC graphics card. •• Several pixels (red, green, blue, white, or black color) may appear on the screen, which can be attributable to the unique characteristics of the LCD panel. This is not a malfunction of the LCD. The operation does not work normally. Problem The power suddenly turned off. Action •• Is the Timer set? •• Check the power control settings. Power interrupted. •• An enclosure product may be powered off if its internal temperature increases. When the screen is turned off, please check the filter change notification. •• It is recommended that you change the HEPA filter regularly. ENGLISH Problem 24 CAUTION ENGLISH •• Image sticking does not occur when using constantly changing images but may occur when using a fixed image for an extended period of time. Therefore, it is recommended that you use the instructions below to decrease the likelihood of image sticking occurring when using a fixed image. It is recommended that you display videos for 12 hours or less per day to decrease the likelihood of image sticking. Recommended operating conditions 1 Change the background and the character colors using the same time interval. ID: UPM 123 PW: **** ID: UPM 123 PW: **** When changing colors, using complementary colors helps to prevent image sticking. ITO or MoTi Pixel Layer 2 Change the image using the same time interval. Make sure that the characters or images before changing the image remain in the same location after changing the image. What is image sticking? When the LCD panel displays a static image for an extended period of time, it can cause a voltage difference between the electrodes that operate the liquid crystals. When the voltage difference between the electrodes builds up over time, liquid crystals have a tendency to remain aligned in one direction. During this process, a previously displayed image remains visible. This phenomenon is referred to as image sticking. 25 The product specifications below may be changed without prior notice due to upgrade of product functions. “ ” refers to alternating current (AC), and “ ” refers to direct current (DC). LCD screen Screen type Video signal Maximum resolution Recommended resolution Horizontal frequency Vertical frequency Synchronization Input / Output ports When installing the media player inside When installing the media player / PC outside Embedded battery Environmental Operating Temperature Conditions Operating Humidity Storage Temperature Storage Humidity LCD screen Power Pixel Pitch Rated power Power Consumption Dimensions (Width x Height x Depth) / Weight Thin Film Transistor (TFT) Liquid Crystal Display (LCD) Screen 1920 x 1080 @ 60 Hz -- This may not be supported on some OS or graphics card types. 1920 x 1080 @ 60 Hz -- This may not be supported on some OS or graphics card types. HDMI / DVI-D / DISPLAYPORT: 30 kHz to 83 kHz HDMI / DVI-D / DISPLAYPORT: 56 Hz to 60 Hz Digital Applied -30 °C to 50 °C 5 % to 100 % -20 °C to 60 °C 5 % to 100 % 49XEB3E 0.5593 mm (H) x 0.5593 mm (V) AC 100-240 V ~ 50/60 Hz 4.5 A On Mode: 270 W (Typ.) / 400 W (Max.) Sleep Mode (DVI-D, HDMI, DISPLAYPORT): ≤ 1.0 W Off Mode: ≤ 0.5 W 701 mm x 1,445 mm x 181 mm / 58.6 kg ENGLISH PRODUCT SPECIFICATIONS 26 HDMI / DVI-D / DISPLAYPORT (PC) Support Mode ENGLISH Resolution Horizontal frequency (kHz) Vertical frequency (Hz) 640 x 480 31.469 59.94 800 x 600 37.879 60.317 1024 x 768 48.363 60 1280 x 720 44.772 59.855 1366 x 768 47.712 60 1280 x 1024 63.981 60.02 1680 x 1050 65.290 59.954 1920 x 1080 67.5 60 Resolution Horizontal frequency (kHz) Vertical frequency (Hz) 480/60p 31.5 60 576/50p 31.25 50 720/50p 37.5 50 720/60p 45 60 1080/50i 28.1 50 1080/60i 33.75 60 1080/50p 56.25 50 1080/60p 67.5 60 HDMI / DISPLAYPORT (DTV) mode NOTE •• When using HDMI/DVI-D/DisplayPort inputs, PC and DTV resolutions can be adjusted in the Input Label. •• Vertical frequency: The product display functions by the screen image changing dozens of times every second like a fluorescent lamp. The vertical frequency or refresh rate is the number of times the image display is repeated per second. The unit is Hz. •• Horizontal frequency: The horizontal interval is the time taken to display one horizontal line. When 1 is divided by the horizontal interval, the number of horizontal lines displayed every second can be tabulated as the horizontal frequency. The unit is kHz. 27 You can find more information about the LG Digital Signage (Monitor Signage) in the web manuals (Software User Guide / Installation Manual). For more information, visit the LG website at http://partner.lge.com. ENGLISH TO SEE THE WEB MANUALS (SOFTWARE USER GUIDE / INSTALLATION MANUAL) Make sure to read the Safety Precautions before using the product. The model and serial numbers of the SET are located on the back and one side of the SET. Record it below should you ever need service. MODEL SERIAL Temporary noise is normal when powering ON or OFF this device.
