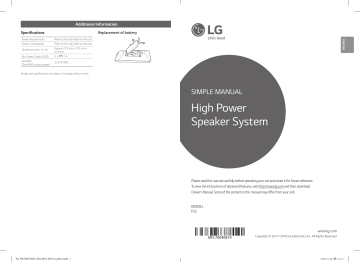

LG FJ5 User guide
Additional Information
Specifications
Replacement of battery
Refer to the main label on the unit.
Power Consumption
Refer to the main label on the unit.
Dimensions (W x H x D)
Approx. 615 mm x 272 mm x
318 mm
Bus Power Supply (USB)
5V01A
Amplifier
(Total RMS output power)
220 W RMS
ENGLISH
Power Requirements
Design and specifications are subject to change without notice.
SIMPLE MANUAL
High Power
Speaker System
Please read this manual carefully before operating your set and retain it for future reference.
To view the instructions of advanced features, visit http://www.lg.com and then download
Owner’s Manual. Some of the content in this manual may differ from your unit.
MODEL
FJ5
www.lg.com
MFL70040819
FJ5-NK.DMYSLLK_SIM_ENG_MFL70040819.indd 2
Copyright © 2017-2018 LG Electronics Inc. All Rights Reserved.
2018-10-29
1:13:11
Top Panel
Front panel / Rear panel
e VOCAL EFFECTS
Selects VOCAL EFFECTS mode.
a
i
h
b
f BASS BLAST
Press to select BASS effect directly.
c
a
d
g MASTER VOLUME/MULTI JOG
- Adjust speaker volume.
- Adjust microphone volume.
- Selects lighting mode.
- Selects VOCAL EFFECTS mode.
h F (Function)
Selects the function and input source.
L
R
AC IN
ANTENNA
e
AUX IN
b
U (Skip/Search)
- Skips forward.
- Searches for a section within a file.
T (Play/Pause)
Starts or pauses playback.
c
d
e
f
g
a USB Port
You can play sound files by connecting the USB device.
b 1 (Standby)
Turns the power on or off
Y (Skip/Search)
- Skips backward.
- Searches for a section within a file.
WIRELESS LINK
- Selects MASTER or SLAVE on WIRELESS PARTY LINK mode.
- Enable or disable WIRELESS PARTY LINK mode.
i Display window
KEY CHANGER
Changes the key to suit your vocal range.
a MIC (Microphone) jack
c Handle
b Remote sensor
d AC IN socket
e AUX IN (L/R)
Connect an auxiliary device.
VOICE CANCELLER
You can enjoy this function while playing music by reducing
the singer's vocal in music from various source.
How to place the unit
ECHO/DEMO
- Selects ECHO mode.
- In power off status, if you press ECHO/DEMO, shows DEMO
mode.
Vertical
c LIGHTING
Selects the lighting effects.
d MIC (Microphone) VOL. (Volume)
Select to adjust microphone volume.
(Adjust microphone volume by rotating
MASTER VOLUME/MULTI JOG.)
Controller App
Download the Music Flow Bluetooth App to your
device. (Android only)
FJ5-NK.DMYSLLK_SIM_ENG_MFL70040819.indd 3-4
Left
LG Sound Sync (Wireless)
Horizon
Right
On the horizon mode, you can hear the stereo sound and on
the vertical mode, the sound transforms into a mono signal.
For more information, download the online owner’s
manual. http://www.lg.com
2018-10-29
1:13:13
