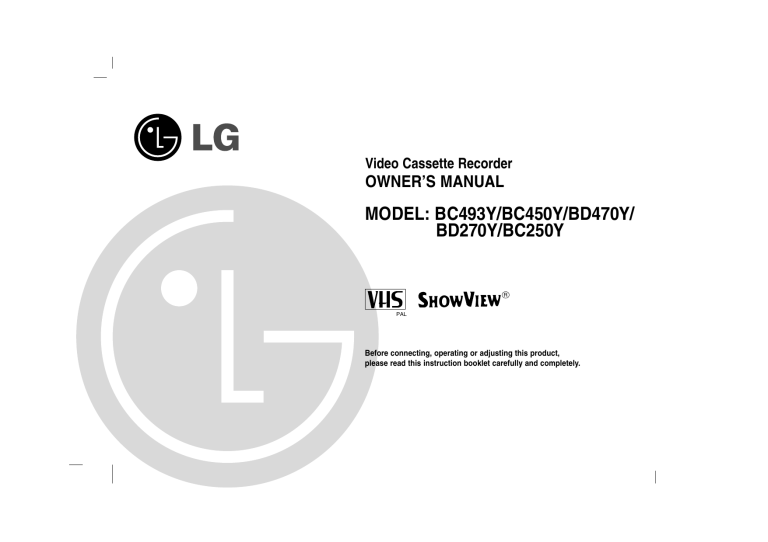

Video Cassette Recorder
OWNER’S MANUAL
MODEL: BC493Y/BC450Y/BD470Y/
BD270Y/BC250Y
R
PAL
Before connecting, operating or adjusting this product,
please read this instruction booklet carefully and completely.
Information
Precautions & features
Position your VCR so that no bright light or
sunlight falls directly onto it.
Just to name a few examples of the
extraordinary features:
Care should be taken not to expose your
VCR to any unnecessary vibration,
moisture, dust or heat.
During electrical storms it is advisable to unplug both
the aerial cable and mains plug to prevent accidental
damage to your VCR and TV.
Do not operate your VCR if it is damaged.
Your VCR should not be repaired by anyone
except qualified service personnel.
Never remove the back cover of your VCR as this
can expose you to very high voltage and other
hazards. If your VCR does not operate properly,
please check the Troubleshooting Check List (see
p. 31). If your VCR still does not operate
properly, unplug it and call your dealer.
Ensure that your VCR is placed in a position to
allow a free flow of air.
This product is manufactured to comply
with the radio interference requirements
of EEC DIRECTIVE 89/336/EEC,
93/68/EEC and 73/23/EEC.
2
• ez (easy) operations
(see p. 29)
• Programmable 80
channel memory with
Frequency synthesised
tuner
• ACMS (Automatic
Channel Memory
System)
• 7 event/1 month
programmable timer
• Built-in ShowView
Programming(BC493Y)
• Recording and playback
for 16:9 Wide-screen
format
• Shuttle Controls
(BC493Y/BC450Y/BD470Y)
• LP - Long Play recording & playback
• Energy Saving function
• ICON OSD (On Screen
Display)
• NTSC playback on PAL
TV
• Logic & Picture Search
• Child Lock
• Auto Head Cleaner
• Auto Power on and Play
• Frame advance & Slow
motion functions
(BC493Y/BC450Y/BD470Y)
• Still function
• Real Time Counter
• Quick Start function
•Auto Tracking System
Table of Contents
Welcome to LG
Thank you for buying this LG video cassette recorder Model BC493Y/BC450Y/BD470Y/
BD270Y/BC250Y.
Description
Precautions & features
Remote Control Location & function
Your VCR’s Controls
Setting Up
2-5
2
4
5
6 - 14
6
Connecting to a TV
Tuning in a video channel on your TV 7 - 8
How to use the main menu
9
Tuning in TV Stations Automatically
10
Tuning in TV Stations Manually
11 - 12
Changing the order of TV Stations
13
Deleting & Selecting TV Stations
14
Basic Operations
Playing a tape
15 - 18
Advanced Operations
Instant Timer Recording (ITR)
ShowView Programming (BC493Y)
19 - 29
19 - 20
21 - 22
Timer Recording using On Screen
Display
23 - 24
Energy Saving
25
On Screen Display
25
Tape Counter Memory Stop
26
Child Lock
26
Wide Screen Compatibility (16:9)
Automatic Memory Power Shut-Off
27
28
Video Doctor (Self-Diagnosis)
28
ez (easy) operations
29
15 - 16
Helpful Hints
30 - 31
Setting the Colour System
17
Tape Copying
30
Setting the Clock Manually
18
Specifications
30
Troubleshooting Check List
31
3
Location & Function
Remote Control
Your video recorder (VCR) is designed so that almost all of its features can be controlled from the
REMOTE CONTROL HANDSET. Some features can also be controlled from the FRONT PANEL
of the video recorder. The maximum operating distance that you may control your video recorder
is about 7.5 metres (25 feet). It must also be within an angle of 30 degrees either side of the
REMOTE SENSOR on the front of your video recorder.
To avoid damage from possible battery leakage, remove the batteries if you do not plan to use the remote
control handset for an extended period of time. Do not use batteries of differing age or type. Always discard
batteries safely.
POWER
Switches the VCR on and off
EJECT
Ejects tape
EJECT
CLEAR
Reset tape counter to zero
OK/CLOCK/TAPE COUNTER
Calls the on screen display.
POWER
CLEAR
OK
PAUSE/STILL
Switches to a still picture
REW
Rewinds the tape
Reverse high speed picture play
To install batteries:
i
Displays on screen menu
CLK/CNT
P/STILL
REW
FF
PLAY
FF
Winds the tape forwards
Forward high speed picture play
ST O P
Your REMOTE CONTROL
HANDSET is powered by
two AA type batteries.
REC/ITR
Starts instant recording
Numbered buttons
To select channels.
Programme number information on
screen.
1. To insert them, push
the tab backwards and
lift off the cover of the
handset.
2. Put the two batteries
into the compartment
making sure the + and
– are correctly
positioned.
3. Replace the cover.
TV/VCR
VCR; to monitor, view playback or
view the VCR’s tuner
TV; to watch TV or view another
programme while recording
another programme
SHOWVIEW
To display the programme menu
for ShowView programming.
(BC493Y)
AA
AA
i
CURSORS
During playback, tracking control
To control on screen display
information, channel up & down
selection and vertical tremble
during still picture.
ez POWER OFF
(see p. 29)
4
PLAY
To play the tape
REC/
ITR
1
2
3
4
5
6
7
8
9
TV/VCR
0
CM SKIP
SHOWVIEW
LP
AV
CM SKIP
To fast forward picture search
through 30 seconds of a recording
AUDIO/VIDEO MODE
Select input source for recording
VIDEO Plus+
C.LOCK
ez POWER OFF
STOP
To stop the tape
ez REPEAT
LP
To select the recording speed of
the tape
CHILD LOCK
Switches the Child Lock on and off
ez REPEAT
(see p. 29)
MODEL : BC493Y
1 2
3
4
5
PROG.
6
78 9
MODEL : BC450Y/BC250Y
1 2
3
4
5
6
78 9
REC/ITR
PROG.
REC/ITR
P/STILL
OPR
10
MODEL : BD470Y/BD270Y
1 2
3
4
5
PROG.
10
1.
2.
3.
4.
5.
6.
7.
Power (on/off)
Stop & Tape Eject
Cassette Compartment
VCR Display
Remote Control Sensor
REC/ITR (Instant Record)
Rewind
1112
6
REC
/ITR
10
11
789
PAUSE/
11
TV/VIDEO
13
8. PLAY
9. FF
10. Channel Programme Selectors
11. Pause/Still
12. OPR (see p.16)
13. TV/VCR
5
Your VCR’s
Controls
Each button on your VCR has the same function as its corresponding button on the
remote control handset.
To a TV
Connecting
The guidance given on this page is the most common form of connection. However please check
with your manufacturer’s instruction books for specific information. Make sure all connections are
made with both your VCR and additional appliance unplugged from the mains to avoid
damaging your equipment. Connecting a VCR using a SCART lead is one of the best ways to
achieve optimum sound and picture quality from video-tape playback.
Aerial
The quality of the sound and
picture can be greatly influenced
by the positioning, quality and
state of repair of your external
aerial.
Back view of your VCR
All connections must
be made with all
appliances unplugged
from the mains.
Using your VCR very first
time
Following picture will display
on the TV screen when you
have just connected your
video recorder for the very
first time.
To make tuning TV stations,
please follow stages 3 to 4
as shown “ACMS” (see p.
10).
Pr-12
AERIAL
SORTIE
ANTENNE
EURO AV1
AUDIO/
VIDEO
RF.OUT
Television
ACMS
ACMS
ENTREE
ANTENNE
OK i
6
Aerial Connection
Cable (75 ohms)
Do not try and force
the connector into
place, it should plug
in easily.
Tuning in a
Video channel
On your TV
Your TV receives signals from the video recorder (VCR) like another TV station.
You have to select a channel number on your TV and tune it in so that you may watch video
tapes.
If you connect a monitor or a TV set equipped with SCART socket this adjustment will not
be necessary, simply select the AV mode on your TV.
Make sure that you have
correctly installed your
VCR as described earlier
in this book.
Insert a pre-recorded
video tape into your VCR
and press PLAY on the
remote control.
CLK/CNT
Press POWER to turn on
your VCR.
P/STILL
REW
FF
PLAY
ST O P
REC/
EJECT
POWER
Turn on your TV.
Tune this channel until
the video picture is sharp
and the sound is clear.
Store this channel on
your TV.
If you have used a
SCART cable you will
not have to tune your TV,
simply select the AV
channel. The AV channel
is already pre-tuned for
optimum video playback
on your TV.
You will need to look at
the TV instruction book if
you do not know how to
do this.
The output frequency of
this video recorder (VCR)
is set at UHF channel 60.
If channel 60 is already
used by another TV
station, or if the picture is
distorted, you can
change the transmitter
channel of your VCR.
Stages 5~8 will show you
how to change the output
frequency of your VCR.
Select a TV channel
number on which you
wish to watch video’s.
Don’t worry if you don’t
have a video-tape to play
at this stage!
If you switch your VCR
on and continue stages
3 ~ 4, instead of seeing
video playback tune your
TV until you see a bright
blue screen.
7
Tuning in a
Video channel
On your TV
Only carry out stages
5 ~ 8 if you cannot
obtain clear video playback as described in
stages 1 ~ 4.
Select a TV channel
number on which you
wish to watch video’s.
Make sure that
you have correctly
installed your VCR
and successfully
tuned in a dedicated
video channel on your
TV. If you do not tune in
a dedicated video
channel on your TV you
will be unable to view
and record video tapes!
Make sure that your VCR
is in standby by pressing
POWER on the remote
control (only the clock will
be displayed)
(BC493Y/BC450Y/
BC250Y).
Press PROG.
▲ or ▼ on the front of
your VCR for more than
4 seconds.
CH60 will appear in the
VCR display
(BC493Y/BC450Y/
BC250Y).
All indicators will light in
the VCR display
(BD470Y/BD270Y).
The following picture will
be displayed on the TV
screen.
Make sure that your VCR
is in standby by pressing
POWER on the remote
control. (STANDBY indicator
will light in the VCR display.)
(BD470Y/BD270Y)
PR
8
RF CHANNEL : 60
i
Press PROG. ▲ or ▼ to
select another video
channel.
Select a TV channel
number on which you
wish to watch video’s.
You may select any
channel number between
22 and 68.
Tune this channel so that
a bright blue screen
appears.
Store this channel on
your TV.
Press
when you have
finished.
How to
use the main menu
This VCR can easily be programmed by using the menus displayed on screen.
The menus are controlled from the REMOTE CONTROL HANDSET.
Turn on your TV set.
Press i.
Press POWER to turn on
your VCR.
The main menu will
Press OK and press
appear on the TV screen.
E to select the sub
menu.
Press “i” to remove the
menu.
Press F or G to select
the desired menu.
D
or
POWER
OK
OK
i
i
EJECT
POWER
CLK/CNT
CLK/CNT
CLEAR
P/STILL
OK
REW
P/STILL
i
REW
FF
PLAY
FF
PLAY
CLK/CNT
P/STILL
1 2
REC PR
Pr-12
ACMS
TIME
DATE
SYSTEM
f OSD
ON
AUDIO OFF
O
O
O
O
O
O
O
16:9
4:3
OSD
VCR
DR
REC
OK i
OPR
REC - Timer recording setting (see p. 23 to 24).
PR - Manual tuning setting (see p. 11 to 12).
ACMS - ACMS (Automatic Channel Memory System) (see p. 10).
TIME DATE - Date & clock setting (see p. 18).
SYSTEM - To set the Colour System (see p. 17).
ABC OSD - To change the language setting for OSD (see right).
DR. - To check a problem with your VCR (see p. 28).
AB
C
O
O
O
O
LANGUAGE
SELECTION
You can select the
language among English,
Russian,Deutsch,
Francais, and Polski.
RF AUDIO- To select the channel of audio output according to
your TV type (“B/G” for PAL B/G TV, “D/K” for PAL
D/K TV)
F.OSD ON/OFF - To switch the display of operational mode of your
VCR ON or OFF (see p. 25).
16:9/4:3 - To select the aspect ratio of your TV (see p. 27).
OPR - To improve the playback picture (see p. 16).
9
Tuning in
TV stations
Automatically
Make sure that you have
correctly installed your
VCR and tuned a video
channel on your TV as
described earlier in this
book.
Switch on your TV and
select the channel you
wish to watch videos.
Press i.
The main menu will
appear on the TV screen.
Press OK to start the
automatic tuning
process.
The TV station table will
appear when tuning is
complete.
Press i to save your
settings.
Press F or G to select
the ACMS.
Press OK.
Press POWER to turn on
your VCR.
OK
CLEAR
i
CLEAR
EJECT
CLK/CNT
POWER
OK
i
OK
i
P/STILL
CLK/CNT
CLK/CNT
REW
PAUSE/
FF
PLAY
P/STILL
01
02
03
1 2
REC PR
Pr-12
ACMS
TIME
DATE
16:9
4:3
OPR
AUDIO
10
ON
OFF
SYSTEM
AB
C
OSD
00
00
00
01
02
03
04
05
06
07
08
PR-01
PR-02
PR-03
VCR
DR
S
Pr-12
ACMS
f OSD
C02
C03
C04
Pr-12
OK i
ACMS
E
i
PR
C02
C03
C04
C05
C06
C07
C08
C09
00
00
00
00
00
00
00
00
MOVE :
DELETE :
PR-01
PR-02
PR-03
PR-04
PR-05
PR-06
PR-07
PR-08
,
OK i
Tuning in
TV stations
Manually
In certain areas of the country broadcast signals may be too weak for your VCR’s
automatic tuning process to find or assign TV stations correctly.
You must tune in these weaker broadcast stations manually in order for your VCR to store
them.
Press i.
Press AV to select C
(Standard stations) or S
The main menu will
(Cable stations):
appear on the TV screen. C02 - C71, S01 - S41.
OK
7
8
9
TV/VCR
0
CM SKIP
i
SHOWVIEW
CLK/CNT
LP
Press
Press
G
D
to select MFT.
or E to adjust.
Press G to select
STATION so that you
may name your TV
station.
CLEAR
CLEAR
OK
AV
OK
i
i
VIDEO Plus+
CLK/CNT
C.LOCK
P/STILL
CLK/CNT
REW
P/STILL
FF
PLAY
Repeatedly press D or E
to tune in the TV station.
Press F or
the PR.
G
to select
Press OK.
PR
01
CH
C--
MFT
--
If you know the broadcast station number of
your particular TV station
you may enter its number
directly by using the
number buttons on the
remote control.
PR
01
STATION
- - - - -
i
MFT
00
STATION
PR
01
CHANNEL/CABLE : AV
CHANNEL/CABLE : AV
PR
CH
C 02
PR
i
CH
C 02
MFT
+04
PR
01
STATION
CH
C 02
MFT
+04
STATION
CHANNEL/CABLE : AV
PR
OK
i
PR
OK i
11
Tuning in
TV stations
Manually
Press OK to select it.
Press D or E to select
letters and numbers for
the new station name.
Press F or G to move
back and forth between
characters.
Press i, confirm the
station placement.
Your new TV station has
now been tuned into your
VCR.
Press i again.
If you wish to manually
tune other stations
repeat stages 1-7.
Press OK.
EJECT
POWER
EJECT
POWER
OK
i
CLEAR
CLK/CNT
CLEAR
OK
i
P/STILL
OK
CLK/CNT
i
REW
FF
PLAY
CLK/CNT
S
P/STILL
PR
01
PR
12
CH
C02
MFT
+04
STATION
-
OK i
PR
01
PR
CH
C02
MFT
+04
STATION
TV2
OK i
01
02
03
04
05
06
07
08
PR
C02
--------
P
00
-------MOVE :
DELETE :
CNN
----------------------------,
OK i
Changing
the order of
TV stations
After tuning TV stations into your VCR you may wish to change the order in which they are
stored without having to retune them against! The instructions given on this page will show you
how you can simply move them into your desired order.
Press i.
Press i.
The main menu will
Press D or E to select
appear on the TV screen. the programme number
you want to move (for
Press F or G to select
example, PR 03).
the PR.
Press G.
Press OK.
Press D or E to place
the cursor line at the
position where to insert
the selected programme.
(for example, PR 05)
Press OK.
The selected programme
will be moved to the new
programme number.
Press i.
If you wish to move other
TV stations repeat
stages 1 - 4.
EJECT
POWER
CLEAR
OK
i
CLEAR
CLK/CNT
CLEAR
P/STILL
RET
OK
i
CLEAR
AV
OK
CLK/CNT
PAUSE/
OK
CLK/CNT
PR
01
CH
C02
MFT
00
01
02
03
04
05
06
07
08
STATION
ARD
C02
C03
C04
C05
C06
C07
C08
C09
00
00
00
00
00
00
00
00
ARD
ZDF
WDR 3
BR3
HR3
N3
NDR3
SWF3
01
02
03
04
05
06
07
08
C02
C03
C05
C06
C04
C07
C08
C09
i
CLK/CNT
i
P/STILL
00
00
00
00
00
00
00
00
01
02
03
04
05
06
07
08
ARD
ZDF
BR3
HR3
WDR 3
N3
NDR3
SWF3
C02
C03
C05
C06
C04
C07
C08
C09
00
00
00
00
00
00
00
00
ARD
ZDF
BR3
HR3
WDR 3
N3
NDR3
SWF3
CHANNEL/CABLE : AV
PR
i
PR
OK i
PR
OK i
PR
OK i
13
Deleting &
Selecting
TV Stations
After tuning TV stations into your VCR you may wish to delete a station.
The instructions given on this page will show you how easily delete any unwanted TV
stations.
Press i.
Press i.
Press
The main menu will
Press D or E to select
appear on the TV screen. the programme number
you want to delete.
Press F or G to select
(for example, PR 01)
the PR.
Selecting stored
TV stations:
Stored TV stations
can be selected in
either of two ways.
Press D or E to
select different stations
that are tuned into your
VCR.
Press i.
F.
After a short while, the
selected station will be
deleted.
If you wish to delete
other TV stations repeat
stages 1 - 4.
Press OK.
You may also directly
select stations using the
numbered buttons on
the remote control.
EJECT
POWER
POWER
CLEAR
CLEAR
CLEAR
OK
i
OK
OK
CLK/CNT
OK
i
CLK/CNT
P/STILL
i
RET
CLK/CNT
CLK/CNT
P/STILL
OK
i
i
CLEAR
PAUSE/
AV
P/STILL
REW
FF
PLAY
CLK/CNT
S
ENR/
DEP
1
2
3
4
5
6
7
8
9
0
CM SKIP
TV/VCR
PR
01
LP
MFT
00
STATION
ARD
CHANNEL/CABLE : AV
PR
SHOWVIEW
CH
C 02
01
02
03
04
05
06
07
08
AV
14
i
PR
C02
C03
C04
C05
C06
C07
C08
C09
00
00
00
00
00
00
00
00
MOVE :
DELETE :
01
02
03
04
05
06
07
08
ARD
ZDF
WDR3
BR3
HR3
N3
NDR3
SWF3
,
OK i
PR
C03
C04
C05
C06
C07
C08
C09
--
00
00
00
00
00
00
00
-MOVE :
DELETE :
ZDF
WDR3
BR3
HR3
N3
NDR3
SWF3
-----
,
OK i
P
Playing
a tape
You will only be able to load and eject video cassettes when your VCR is plugged into the mains.
Your VCR may also play back recordings from NTSC tapes (on PAL TV).
Getting a better picture
When a cassette is inserted and playback started, the automatic tracking function works to get
the best possible picture automatically. If the quality of the recording is poor, repeatedly press
▼ or ▲ on the remote control to manually adjust the tracking until any distortions have been
removed. Press numbered 0 on the remote control to switch automatic tracking back on again.
Make sure that you have
correctly connected your
VCR as described earlier
in this book.
Press PLAY to start
playing your tape.
P/STILL
REW
Turn on your TV and
select the video channel
for video playback.
Press POWER to turn on
your VCR.
EJECT
POWER
Insert the video cassette
into your VCR.
The video cassette
should have the window
side facing up and the
arrow facing away from
you.
FF
PLAY
ST O P
REC/
If you load a video
cassette which has had
its record protection tab
removed playback of the
cassette will start
automatically.
AUTO TRACKING
Your VCR will
automatically adjust the
tracking to give the best
picture quality.
Still picture :
Press P/STILL to pause
a picture.
Press P/STILL
repeatedly to advance
the still picture frame by
frame (BC493Y/BD470Y/
BC450Y).
Press D or E to reduce
the vertical tremble
during still picture (BC493Y/
BD470Y/BC450Y).
CLEAR
OK
i
CLK/CNT
P/STILL
Still pictures will have a lot
of white streaks across
them, this is quite normal
and doesn’t mean that there
is anything wrong with your
VCR! Tapes can be paused
for up to 5 minutes. After 5
minutes your VCR will stop
playing the tape to prevent
damaging the tape or your
VCR.
Press PLAY to continue
playing your tape.
Picture search:
During playing back
press either FF or REW
to this will enable you to
rapidly wind the tape (7
times normal playback
speed) and see where
you are on the tape.
Logic search:
During fast forwarding or
rewinding press and hold
FF or REW the picture
will be played back at 7
times normal playback
speed.
HORLOGE
COMPT
P/STILL
REW
FF
PLAY
ST O P
ENR/
15
Playing
a tape
Picture search will only continue for about 3 minutes, after which your VCR will return to
normal playback. During picture search, logic search, and CM Skip the sound is muted
and there will be some noise streaks on the picture.
During playback
of a video cassette you can
select picture
sharpness by
pressing OPR on the
front of your VCR
(BC493Y).
Slow motion playback,
Press STOP to end
Shuttle
playback.
(BC493Y/BD470Y/BC450Y):
During playing back or
still picture press F or G.
P/STILL
REW
FF
PLAY
ST O P
You can reach the
following playback
speeds.
(-7xplay, -3xplay, -play,
still, 1/19 slow, play,
2xplay, 7xplay)
Press 1:
To make a picture
softer.
Press 2:
To make it clearer.
Press 3:
To switch off.
REC/
ITR
Press EJECT.
EJECT
POWER
To switch off the slow
motion and shuttle, press
the desired function.
During slow motion and
shuttle, the noise bars
may appear on the
picture according to the
status of tape.
If distortions can be seen
in the picture, reduce
them with D or E.
16
CM (Commercial
Message) Skip:
OPR (Optimum
Picture Response):
This feature enables you
during playback of a tape
to skip a commercial
break in a few seconds,
then resume normal
playback.
While tape is playing
press CM SKIP on the
remote control to skip
commercial (or another
programme material).
This feature automatically
improves playback
picture quality by
adjusting your VCR to
the condition of the tape.
CLEAR
If the end of the tape is
reached, your VCR will
stop playback automatically,
rewind, stop, eject the
tape and place itself into
power off.
7
8
9
TV/VCR
0
CM SKIP
Press i.
Press F or G to select
OPR.
Press OK.
Press D or E repeatedly
to select: OFF, SOFT or
OFF
REC
SHOWVIEW
LP
AUDIO
Repeatedly press
CM SKIP to skip material:
1 Press
30 seconds
2 Press
60 seconds
3 Press
90 seconds
4 Press
120 seconds
5 Press
150 seconds
6 Press
180 seconds
1 2
Pr-12
PSET
ACMS
RSOFT
fSHARP
OSD
AV
ON
OFF
16:9
4:3
TIME
DATE
SYSTEM
AB
C
OSD
VCR
DR
OPR
OPR
i
SHARP.
Please note you may
only set OPR to on when
playing a tape.
Press i to remove the
menus.
Setting the colour system
Your VCR is equipped with triple colour standard, you can play back a tape in PAL B/G and
SECAM D/K.
During playback your VCR detects the colour system automatically.
If there are colour problem please select the colour system manually.
Press OK.
Press i.
Press D or E to select
according to the
COLOUR system used.
The main menu will
appear on the TV screen.
AUTO : automatic colour
selection,
PAL : PAL recordings
MESECAM : SECAM
D/K recordings.
CLEAR
Press F or G to select
the SYSTEM.
OK
Press i to remove the
menus from the TV
screen.
i
CLK/CNT
P/STILL
EJECT
POWER
CLEAR
CLEAR
CLEAR
OK
OK
OK
i
i
CLK/CNT
i
CLK/CNT
CLK/CNT
P/STILL
P/STILL
RET
AV
1 2
REC PR
AUDIO
f OSD
ON
OFF
Pr-12
ACMS
16:9
4:3
TIME
DATE
OPR
SYSTEM
AB
C
OSD
VCR
DR
SYSTEM
i
REC
AUTO
PSET
ACMS
R
Pr-12
+
AUDIO
1 2
TIME
DATE
PAL
MESECAM
OFF
-
4:3
OPR
SYSTEM
AB
C
OSD
VCR
DR
SYSTEM
i
17
Setting the clock
Manually
The clock in your VCR controls time, day and date settings for your VCR.
Use the numbered
buttons on the remote
control to alter or enter
the HOURS, MINUTES,
DAY, MONTH and
YEAR.
Press i.
Press F or G to select
TIME DATE.
Press OK.
If you make a mistake
press F or G and enter
the correct details.
Press i.
Please note your VCR
uses a 24 hour clock.
e.g. 1 pm will be
displayed as 13:00.
When entering singles
numbers a 0 must be
added first, for example 1
must be entered as 01, 2
as 02 etc.
CLEAR
EJECT
POWER
OK
i
CLEAR
CLK/CNT
OK
i
P/STILL
OK
i
The day of the week will
appear automatically
when you enter the date.
CLK/CNT
CLK/CNT
REW
RET
S OP
AV
LECT
ENR/
DEP
HH MM
-- : - -
DD MM
YY
-- . -- . --
---
1
2
3
4
5
6
7
8
9
TV/VCR
0
CM SKIP
HH MM
8 : 00
DD MM
YY
1 . 01 . 00
SAT
1 2
TIME
DATE
18
i
1 2
SHOWVIEW
LP
AV
FF
PLAY
P/STILL
TIME
DATE
i
Instant Timer
Recording(ITR)
Your VCR allows you to make recordings using a variety of simple methods :
Instant Timer Recording (ITR) start recording immediately for a set period of time or until the
video cassette runs out.
Make sure that you have
correctly installed your
VCR as described earlier
in this book.
Turn on your TV and
select the channel that
you set up for video
playback.
Insert a video cassette
with protection tab into
your VCR.
The video cassette
should have the window
side facing up and the
arrow facing away from
you.
Press ▲ or ▼ to select
the programme number
you wish to record.
If you wish to record
directly from the SCART
socket press AV, as
shown by the display
(AV) on the TV screen.
CLEAR
OK
7
8
9
TV/VCR
0
CM SKIP
i
CLK/CNT
SHOWVIEW
LP
AV
VIDEO Plus+
Press POWER to turn on
your VCR.
EJECT
You may also directly
select programme
number using the
numbered buttons on
the remote control.
C.LOCK
If you do not wish to record
on a tape (this can happen
quite easily by
accident!)
remove the
protection tab
on the back
edge of the
video
cassette.
POWER
ENR/
DEP
1
2
3
4
5
6
7
8
9
TV/VCR
0
CM SKIP
SHOWVIEW
LP
It is possible to record on a
video cassette
with the record
protection tab
removed by
covering the
hole with self
adhesive tape.
AV
19
Instant Timer
Recording(ITR)
Your VCR incorporates Long Play (LP) which enables you to record up to twice the amount
of time on a video cassette. For example an E-180 will record up to 180 minutes using
Standard Play (SP); using LP you will be able to record up to 360 minutes. Please note
there will be a slight loss in picture and sound quality when using LP.
Press LP if you wish to
record in Long Play or
Standard Play.
Remember you
can record one
programme while
watching another
by starting your ITR
recording, press TV/VCR
to select TV mode and
then select a different
channel on your TV.
SP will produce improved
picture and sound quality,
however LP will provide
twice as much recording
time as SP.
SP or LP will be
displayed in your VCR
display to let you know
which you have selected.
Press REC/ITR to start
recording.
RECORD will appear on
the TV screen.
Press REC/ITR several
times. Each successive
press will increase the
record time by 30 minutes
until you reach a
maximum of 9 hours.
Press P/STILL to avoid
recording unwanted
scenes.
Press STOP to end
recording.
Press EJECT.
Press P/STILL again to
continue recording.
Tapes can be paused for
up to 5 minutes; RECP
will be displayed when a
tape is paused. After 5
minutes your VCR will
stop recording to prevent
damaging the tape or
your VCR.
EJECT will appear on the
TV screen for a few
seconds.
If the end of the tape is
reached, your VCR will
stop recording
automatically, rewind,
stop, eject the tape and
place itself into power off.
EJECT
POWER
CLEAR
OK
i
CLK/CNT
4
5
6
7
8
9
TV/VCR
SHOWVIEW
0
LP
SHOWVIEW
LP
RET
AV
FF
PLAY
REW
P/STILL
ST O P
C.LOCK
REC/
ITR
AV
1
VIDEO Plus+
C LOCK
20
FF
PLAY
VIDEO Plus+
CM SKIP
P/STILL
HORLOGE
COMPT
REW
3
ST O P
FF
PLAY
2
REC/
ITR
Make sure that TV
channels have been
tuned and stored in
correct SHOWVIEW
order.
Insert a video cassette
with protection tab into
your VCR.
Press SHOWVIEW.
7
8
9
TV/VCR
0
CM SKIP
SHOWVIEW
LP
Press D or E to select
the recording type.
ONCE: To record once.
WEEKLY: To record at
the same time every
week.
AV
VIDEO Plus+
C.LOCK
Press the numbered
buttons to enter the
ShowView Code of the
TV programme that you
wish to record.
If you make a mistake
press F then enter the
revised number.
DAILY: To record every
day (except Saturday
and Sunday) at the same
time.
ENR/
DEP
1
2
3
4
5
6
7
8
9
TV/VCR
0
CM SKIP
CLEAR
OK
i
CLK/CNT
----------RECORD : ONCE
SHOWVIEW
0~9,
----------RECORD : ONCE
OK i
SHOWVIEW
0~9,
246876543
RECORD : ONCE
OK i
SHOWVIEW
0~9,
OK i
21
ShowView
Programming
(BC493Y)
ShowView greatly simplifies entering the date, channel, start and end times of a Timer
Recording by simply entering a ShowView Code. ShowView Codes are published in most TV
guide magazines; they can vary one to nine numbers in length.
Programming
(BC493Y)
ShowView
SHOWVIEW is a registered trademark of Gemstar Development Corporation.
The SHOWVIEW System is manufactured under licence from Gemstar Development
Corporation.
Press OK.
If PLEASE CHECK is
displayed it means that
you have entered the
wrong ShowView
number, entered the
ShowView number
incorrectly.
Press F or G to select
the settings that you wish
to revise. (PR, DATE,
TIME and SP).
Press D or E to enter the
correct information.
If “- -” is displayed, you
have to enter the
programme number of
the station, you want to
record from.
CLEAR
OK
CLEAR
i
OK
i
CLK/CNT
CLK/CNT
PR
DATE
TIME
PR-01 12
10 : 11 ~ 11 : 55
--- - : - - ~ - -: - --- - : - -~- - : - --- - : - -~- - : - --- - : - -~- - : - --- - : - -~- - : - --- - : - -~- - : - -
PR
DATE
TIME
PR-01 12
10 : 11 ~ 11 : 55
--- - : - - ~ - -: - --- - : - -~- - : - --- - : - -~- - : - --- - : - -~- - : - --- - : - -~- - : - --- - : - -~- - : - -
SP
SP
SP
SP
SP
SP
SP
i
22
i
If you wish to record from
AUDIO IN(L/R) and VIDEO IN
on the front or from the EURO
SCART socket on the back of
VCR, press AV to select for
correct display AV.
CLEAR
OK
If you want to make
another ShowView
recording repeat stages
SP will produce improved 2 - 7.
picture and sound quality, however LP will proPress i twice.
vide twice as much
recording time as SP.
If PLEASE CHECK is
displayed, you have
Check that the timer
entered incorrect
event details are correct. information and will need
to re-enter the data.
Press D or E if you wish
to record in Long Play.
PR
DATE
TIME
PR-01 12
10 : 11 ~ 11 : 55
--- - : - - ~ - -: - --- - : - -~- - : - --- - : - -~- - : - --- - : - -~- - : - --- - : - -~- - : - --- - : - -~- - : - REC. SPEED : SP
SP
SP
SP
SP
SP
SP
SP
i
Press POWER to switch
your VCR power off
mode.
EJECT
POWER
TIMER will appear in the
video recorder’s display
while your VCR waits to
make the recording.
SP
SP
SP
SP
SP
SP
SP
i
Timer recording
using On Screen Display
You may set up to seven timer record events within one month of the current date.
PLEASE NOTE! before setting the timer make sure that you have set the VCR clock
correctly and you know which channels you have tuned TV stations on your VCR.
Make sure that TV
channels have been
tuned and stored.
Insert a video cassette
with protection tab into
your VCR.
Press i.
Press
REC.
F
or
G
to select
Press OK again to start
setting the timer record
event.
CLEAR
OK
Press OK.
i
1
2
3
4
5
6
7
8
9
TV/VCR
0
CM SKIP
CLK/CNT
EJECT
P/STILL
If all timer record events
are full press D or E to
select the event that you
wish to remove and
replace.
POWER
The video cassette
should have the window
side facing up and the
arrow facing away from
you.
Press the numbered
buttons to enter the
programme number that
you wish to record.
CLEAR
OK
i
CLK/CNT
Press F to remove the
event.
P/STILL
RET
AV
When selecting programme
numbers 1 - 9, press 0 first,
then the programme number;
for example PR NO. 1 as
01. You may also select
programme numbers by
pressing ▲ or ▼. Once
selected press G.
CLEAR
OK
1 2
REC PR
AUDIO
PR
--------
f OSD
ON
OFF
Pr-12
ACMS
TIME
DATE
16:9
4:3
OPR
DATE
--------
-
SYSTEM
AB
C
OSD
CLK/CNT
DR
REC
PAUSE/
OK i
TIME
- : - - ~ - -: - - : - - ~ - -: - - : - -~- - : - - : - -~- - : - - : - -~- - : - - : - -~- - : - - : - -~- - : - -
DELETE:
If you wish to record from
the EURO SCART socket on the back of VCR,
press AV.
i
VCR
,
SP
SP
SP
SP
SP
SP
SP
OK i
PR
--------
DATE
--------
-
TIME
- : - - ~ - -: - : - - ~ - -: - : - -~- - : - : - -~- - : - : - -~- - : - : - -~- - : - : - -~- - : -
-
SP
SP
SP
SP
SP
SP
SP
i
PR
PR-01
-------
DATE
--------
-
TIME
- : - - ~ - -: - : - - ~ - -: - : - -~- - : - : - -~- - : - : - -~- - : - : - -~- - : - : - -~- - : -
-
SP
SP
SP
SP
SP
SP
SP
i
23
If timer record
events overlap...
If at a later date you wish to delete or change any of the settings in timer event memory
you may do so without having to enter all the timer event information again. Simply display the timer event screen. Press D or E to select the event that you wish to delete or
change.
Press F to delete the event.
Press OK to change; then press F or G to select Station, Date, Start and End times, and
LP. Press D or E to enter the correct information.
Make sure that the
preset times of the
timer recording events do
not overlap. If they do,
the earlier programme
will always be given
priority.
Press the numbered
buttons to enter the date
of the programme.
Example:
Programme 1 is
programmed to start at
10:30 and end at 11:30.
ENR/
DEP
Programme 2 is
programmed to start at
11:00 and end at 12:00.
2
3
4
5
6
7
8
9
TV/VCR
0
CM SKIP
SHOWVIEW
LP
ENR/
DEP
AV
If you press OK before
entering the date you
may select one of the
following automated
recording features.
Press F or G to select,
then press OK to confirm.
DLY(Daily) To record
every day (except
Saturday and Sunday) at
the same time.
Weekly To record at the
same time every week.
(In this case, Programme
1 will be recorded in its
entirety, but only the last
30 minutes of
Programme 2 will be
recorded.)
PROGRAMME 1
11:30
10:30
11:00
1
12:00
PROGRAMME 2
(This portion will not be
recorded)
24
PR
DATE
26
PR-01
------------DLY SU MO
-
Press the numbered
buttons to enter the
recording start and end
times of the programme
that you wish to
record.
TIME
- : - - ~ - -: - - : - - ~ - -: - - : - -~- - : - - : - -~- - : - - : - -~- - : - - : - -~- - : - - : - -~- - : - TU WE TH FR
SP
SP
SP
SP
SP
SP
SP
SA
OK i
1
2
3
4
5
6
7
8
9
TV/VCR
0
CM SKIP
SHOWVIEW
LP
AV
Please note your VCR
uses a 24 hour clock. e.g.
1 pm will be
displayed as 13:00.
You may also select the
the start and end times by
pressing ▲ or ▼.
Press G to select the
recording speed.
Press ▲ or ▼ if you wish
to record in Long Play or
Standard Play.
Check that the timer event
details are correct.
Press i to save your
settings.
If PLEASE CHECK is
displayed, you have
entered incorrect
information and will need
to re-enter the data.
If you want to make other
Timer recordings repeat
stages 3 - 8. Press i
again to remove the
menus.
Press POWER to switch
your VCR off.
TIMER will appear in the
video recorder’s display
while your VCR waits to
make the recording.
(BC493Y/BC450Y/BC250Y)
Power indicator will light
in the video recorder’s
display while your VCR
waits to make the
recording.
(BD470Y/BD270Y)
CLEAR
OK
i
EJECT
POWER
CLK/CNT
PR
PR-01
-------
DATE
TIME
26
10 : 00 ~ 11: 00
-- - : - - ~ - -: - -- - : - -~- - : - -- - : - -~- - : - -- - : - -~- - : - -- - : - -~- - : - -- - : - -~- - : - -
SP
SP
SP
SP
SP
SP
SP
i
PR
DATE
TIME
26
10 : 00 ~ 11: 00
PR-01
--- - : - - ~ - -: - --- - : - -~- - : - --- - : - -~- - : - --- - : - -~- - : - --- - : - -~- - : - --- - : - -~- - : - REC. SPEED : SP
SP
SP
SP
SP
SP
SP
SP
i
The VCR and clock will
appear on the video
recorder’s display
(BC493Y/BC450Y/
BC250Y).
POWER and VCR
indicators will light in the
video recorder’s display
(BD470Y/BD270Y).
Press POWER on the
VCR again and your
VCR will go into Energy
Save.
You may easily display the current time or
tape counter and amount of tape left, day,
month, year, day of week,
programme channel, and operational
mode of your VCR on the TV screen. If a
recording is taking place these On
Screen Displays will not be recorded onto
the tape.
Press OK/CLK/CNT to
display.
CLEAR
OK
All indicators will turn off
in the video recorder’s
display.
Press POWER to switch
off Energy Save.
i
CLK/CNT
After 3 seconds the
display will clear only
leaving the clock or tape
counter and amount of
tape left on the TV
screen.
P/STILL
VCR
Function
STOP
SP
Channel
Programme
ARD
Press OK/CLK/CNT
again to remove all
displays from the TV
screen.
POWER
1.01.00 SAT
Day/Month/
Year/Day of
Week
12:00
Clock/Tape
Counter &
Amount of
Tape Left
CLEAR
OK
i
CLK/CNT
P/STILL
Press OK/CLK/CNT
repeatedly to display the
tape counter and amount
of tape left.
25
Energy Saving
Press POWER on the
VCR.
On Screen Display
Your VCR has an Energy Save feature
which if set will place your VCR into an
economic power save where the clock
display will disappear. If you have
programmed a recording, this feature
will not work.
Tape Counter Memory Stop
Child Lock
The Digital Tape Counter can be
displayed on your TV screen instead of
the time by pressing OK/CLK/CNT on
the remote control. The Digital Tape
Counter indicates the relative positions
of recordings on the tape.
Press OK/CLK/CNT
repeatedly until the
counter is displayed on
screen.
Press STOP when
playback or recording is
complete.
Press REW.
Press CLEAR to set the
counter to 0:00:00.
Press PLAY or start
recording.
The tape will rewind and
automatically stop when
the counter returns to
0:00:00.
The tape counter will
display the actual play
time in hours, minutes
and seconds.
CLEAR
OK
CLEAR
i
CLK/CNT
OK
P/STILL
i
REW
CLK/CNT
ST O P
P/STILL
REW
FF
PLAY
ST O P
26
FF
PLAY
REC/
QSR
The control buttons on the front of the
VCR can be switched off so that your
VCR can only be operated using the
remote control.
Press C.LOCK.
SAFE will appear on
the TV screen.
POWER indicator will flicker
in your video recorder’s
display for a few seconds.
(BD470Y/BD270Y)
SAFE will flicker in your
video recorder’s display
for a few seconds.
(BC493Y/BC450Y/
BC250Y)
None of the buttons on the
front of your VCR will work
(except STOP/ EJECT)
If any buttons on the front
of your VCR are pressed
POWER indicator will flicker
in your video recorder’s
display for a few seconds.
(BD470Y/BD270Y)
If any buttons on the
front of your VCR are
pressed SAFE will flicker
in your video recorder's
display for a few seconds.
(BC493Y/BC450Y/
BC250Y)
Press C.LOCK again to
switch off the child lock.
SAFE will disappear
on the TV screen.
POWER indicator will
flicker in your video
recorder’s display for a
few seconds.
(BD470Y/BD270Y)
OFF will flicker in your
video recorder’s display
for a few seconds.
(BC493Y/BC450Y/
BC250Y)
Wide Screen
Compatibility
16:9
Your VCR can record and play back wide screen aspect ratio programmes (16:9). To record a
wide screen format programme successfully the correct type of wide screen signal must be
broadcast by the TV station.
Switch on your VCR.
Press D or E repeatedly
to select : AUTO, 4:3 or
16:9.
Press i.
Press F or
16:9/4:3.
G
to select
OK
AUTO:
Automatically plays back
Wide-Screen
programmes as WideScreen and Normal
programmes as normal.
4:3
Only for playing back and
recording Normal format
recordings (4:3).
16:9:
Only for playing back and
recording Wide-Screen
format recordings (16:9).
OK
i
CLK/CNT
P/STILL
RET
AV
1 2
ON
OFF
FF
PLAY
CLEAR
AUDIO
P/STILL
REW
EJECT
Pr-12
i
i
CLK/CNT
POWER
f OSD
OK
CLEAR
To enjoy Wide-Screen
playback you must
connect your VCR to the
TV using a SCART
cable.
CLK/CNT
Press OK.
REC PR
Press i to remove the
menus.
ACMS
TIME
DATE
16:9
4:3
OPR
AB
C
SYSTEM OSD
VCR
1 2
DR
16:9
4:3
REC PR
OK i
AUDIO
Pr-12
ACMS
f OSD
16:9
ON
4:3
OFF
TIME
DATE
OPR
AB
C
SYSTEM OSD
AUTO
NIC
4:3
16:9
ST O P
VCR
DR
16:9
4:3
i
27
Video Doctor (Self-Diagnosis)
Automatic Memory Power Shut-Off
Automatic Memory Power Shut-Off
This feature of your VCR enables you to
switch off your VCR automatically after
tape rewind has been completed.
Press POWER during
tape rewind.
The tape will rewind to
the beginning and your
VCR will automatically
switch itself off.
Video Doctor (Self-Diagnosis)
This feature informs you that there is a
problem with your VCR. These error
messages will appear on the TV
screen.
Switch on your VCR.
Press D or
problem.
to check a
Press i.
Press
DR.
F
or
G
HEAD STATUS
O PLEASE CLEAN:
Clean your video
heads.
TAPE STATUS
O NOT RECORDABLE:
Insert a tape with its
protection tab in place
NO. OF TIMER
PROGRAMME
O2
Shows the number of
timer recording.
NEXT TIMER
PROGRAMME
OPR-01 10:00~11:00
Shows the current status
of timer recording.
to select
Press OK.
EJECT
POWER
CLEAR
OK
i
CLK/CNT
P/STILL
RET
AV
Press i.
VIDEO DOCTOR
HEAD STATUS
TAPE STATUS
NO. OF TIMER PROGRAMME
NEXT TIMER PROGRAMME
VCR
DR
28
E
OK
i
During playing back
press ez POWER OFF.
Your VCR will be operated as the following ;
STOP
TV/VCR
SHOWVIEW
0
LP
ez (easy) repeat
By pressing & holding ez REPEAT
during playing back, the holding section
is replayed twice automatically.
Release ez REPEAT at
During playing back,
press & hold ez REPEAT the point where repeat
at the point where repeat play is to start.
play is to be concluded.
The holding section is
Then, your VCR is started
replayed twice
reverse search.
automatically.
TV/VCR
CM SKIP
SHOWVIEW
AV
0
LP
CM SKIP
AV
VIDEO Plus+
VIDEO Plus+
C.LOCK
C.LOCK
REWIND
ez POWER OFF
ez POWER OFF
ez REPEAT
ez (easy)
operations
ez (easy) power off
Sequence of “Stop
Rewind
Eject
Power Off ” is operated automatically by
pressing ez POWER OFF.
ez REPEAT
Pressing ez
REPEAT again
during repeat
play, return to
normal play.
EJECT
POWER
OFF
29
Tape Copying
Specifications
A second VCR (for tape copying) should
be connected to the SCART socket on
the back of your VCR. Remember to
select the appropriate audio/video
mode by pressing the AV button on the
remote control.
Back view of your VCR
Place the blank video tape
that you wish to record ON
into this VCR
ENTREE
ANTENNE
AERIAL
AUDIO
OUT
EURO AV1
AUDIO/
VIDEO
L
SORTIE
ANTENNE
RF.OUT
The design and
specifications are
subject to change
without notice.
All connections must be
made with both your VCR's
and TV unplugged from the
mains
SCART Lead
If you use a SCART lead,
picture and sound quality
of video-tape playback will
be improved.
Back view of playing VCR
Place the video tape that you wish to record
FROM into this VCR
Unauthorised recording of copyrighted TV programmes, film, video
cassettes and other materials may infringe the rights of copyright
owners and be contrary to copyright laws
30
General
Power
Power consumption
110-240V~, 50/60Hz.
Approx. 16 Watts (Energy saving
mode: 3 Watts)
Video Head System
Double azimuth 4 heads, helical
scanning. (BC493Y/BC450Y/BD470Y)
Rotary 2 heads, helical scanning
(BC270Y/BC250Y)
Tape speed
23.39 mm/sec (SP mode)/
11.69 mm/sec (LP mode).
Tape format
Tape width 12.7 mm (0.5 inch).
Maximum recording
4 hours (SP mode, E-240 tape)/
time
8 hours (LP mode, E-240 tape).
Rewind time
Approx. 180 sec.(E-180 tape)
(BD470Y/BD270Y).
Approx. 65(±10) sec. (E-180 tape)
(BC493Y/BC450Y/BC250Y)
Dimensions
360 x 94 x 270 mm (W x H x D)
Weight
3.4 Kg.
Operating temperature 5oC - 35oC
Operating humidity
Less than 80%.
Timer
24 hours display type.
Video
Television system
CCIR standard (625 lines, 50 fields)
PAL/SECAM colour signal
Recording format
PAL/MESECAM
RF reception
PAL/SECAM (B/G, D/K)
RF OUT
PAL K/G
Input level
VIDEO IN (SCART type)
1.0 Vp-p, 75 Ohm, unbalanced
Output level
VIDEO OUT (SCART type)
1.0 Vp-p, 75 Ohm, unbalanced
Signal to noise ratio
More than 43 dBm.
RF Modulator
UHF channels 22-68 (Adjustable)
Audio
Input level
AUDIO IN (SCART type)
-6.0 dBm, more than 10 kohms
Output level
AUDIO OUT (SCART type)
-6.0 dBm, less than 1 kohm
Track
Mono track
Frequency response 100 Hz-10 kHz (-6/+3 dBm)
Signal to noise ratio
More than 43 dB
Check points
No picture &
no sound
Is the mains plug plugged in and switched on?
Is the TV switched on?
Try another channel, maybe a weak signal.
Check aerial is it plugged in? Check aerial, is the
lead broken or damaged?
Have you tuned in a video channel on your
TV to watch video on?
If you have used a SCART lead to connect your VCR
and TV have you selected the AV channel on your
TV?
Check tuning, carry out Automatic Tuning again
No playback
or poor
Are the TV channels tuned in properly?
Have you tried using another cassette?
Can you minimise the noise bars to an acceptable
level with 0, D or E ?
TV
programmes
cannot be
recorded
Can you get a picture on the TV?
Are the aerial leads and special RF connector lead
between your VCR and TV connected?
Are the TV channels tuned in properly?
Has the safety tab on the video cassette been
removed to prevent recording?
Try another station, maybe a weak signal
Check aerial is it plugged into TV?
Symptom
Check points
Video
cassette
cannot be
inserted
Is the cassette compartment empty?
Are you trying to insert the cassette the right way
round?
Remote
control does
not work
Is the mains plug plugged in and switched on?
Is the VCR switched on
Check the batteries in remote control.
The top of
the playback
picture is
unstable
Is the video cassette damaged, have you tried
using another one?
Adjust the horizontal control on your TV.
Check aerial is it plugged into VCR?
Check aerial, is the lead broken or damaged?
Check for local interference
Make sure that you are using a video TV
channel on your TV.
Auto Play
does not
work
Has the safety tab been removed from the video
cassette?
31
Troubleshooting
Symptom
Check List
Video Head Cleaning
Whenever a video cassette is inserted into or ejected from your VCR the video head is
automatically cleaned. This should mean that additional head cleaning should not be necessary.
However dirt accumulating on the head after a long period of time can cause the playback
picture to become blurred or broken up. High quality video cassette tapes will not normally
deposit dirt onto the video head, but old or damaged tapes might.
P/N:3834RP0055C
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
