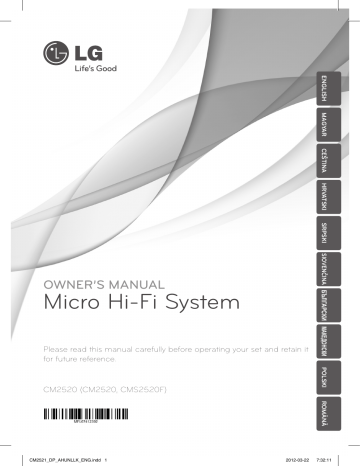

LG CM2520 User guide
ENGLISH
MAGYAR
CEŠTINA
HRVATSKI
SRPSKI
Micro Hi-Fi System
Please read this manual carefully before operating your set and retain it
for future reference.
SIOVENČINA БЪЛГАРСКИ МАКЕДОНСКИ
OWNER’S MANUAL
POLSKI
CM2520 (CM2520, CMS2520F)
ROMÂNĂ
CM2521_DP_AHUNLLK_ENG.indd 1
2012-03-22
7:32:11
1
Getting Started
2
Getting Started
Safety Information
1
CAUTION
Getting Started
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR BACK) NO
USER-SERVICEABLE PARTS INSIDE REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
This lightning flash with arrowhead
symbol within an equilateral
triangle is intended to alert the
user to the presence of uninsulated
dangerous voltage within the
product’s enclosure that may be of
sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within
an equilateral triangle is
intended to alert the user to the
presence of important operating
and maintenance (servicing)
instructions in the literature
accompanying the product.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
WARNING: Do not install this equipment in a
confined space such as a book case or similar unit.
CAUTION: Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the
product and to protect it from over heating. The
openings shall be never be blocked by placing
the product on a bed, sofa, rug or other similar
surface. This product shall not be placed in a builtin installation such as a bookcase or rack unless
proper ventilation is provided or the manufacturer’s
instruction has been adhered to.
CM2521_DP_AHUNLLK_ENG.indd 2
CAUTION: This product employs a Laser System.
To ensure proper use of this product, please read
this owner’s manual carefully and retain it for future
reference. Shall the unit require maintenance,
contact an authorized service centre.
Use of controls, adjustments or the performance of
procedures other than those specified herein may
result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not
try to open the enclosure.
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon
a dedicated circuit;
That is, a single outlet circuit which powers only
that appliance and has no additional outlets or
branch circuits. Check the specification page of this
owner’s manual to be certain. Do not overload wall
outlets. Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power cords, or
damaged or cracked wire insulation are dangerous.
Any of these conditions could result in electric
shock or fire. Periodically examine the cord of your
appliance, and if its appearance indicates damage
or deterioration, unplug it, discontinue use of the
appliance, and have the cord replaced with an
exact replacement part by an authorized service
centre. Protect the power cord from physical or
mechanical abuse, such as being twisted, kinked,
pinched, closed in a door, or walked upon. Pay
particular attention to plugs, wall outlets, and
the point where the cord exits the appliance. To
disconnect power from the mains, pull out the
mains cord plug. When installing the product,
ensure that the plug is easily accessible.
2012-03-22
7:32:11
Getting Started
This device is equipped with a portable battery or
accumulator.
CAUTION: The apparatus shall not be exposed to
water (dripping or splashing) and no objects filled
with liquids, such as vases, shall be placed on the
apparatus.
Disposal of your old appliance
1. When this crossed-out wheeled
bin symbol is attached to a
product it means the product is
covered by the European Directive
2002/96/EC.
2. All electrical and electronic
products should be disposed of
separately from the municipal
waste stream via designated
collection facilities appointed
by the government or the local
authorities.
3. The correct disposal of your
old appliance will help prevent
potential negative consequences
for the environment and human
health.
4. For more detailed information
about disposal of your old
appliance, please contact your
city office, waste disposal service
or the shop where you purchased
the product.
CM2521_DP_AHUNLLK_ENG.indd 3
Disposal of waste batteries/accumulators
1. When this crossed-out wheeled
bin symbol is attached to batteries/
accumulators of Your product
it means they are covered by
European Directive 2006/66/EC.
2. This symbol may be combined with
chemical symbols for mercury(Hg),
cadmium(Cd) or lead(Pb) if the
battery Contains more that 0.0005%
of mercury,0.002% of cadmium or
0.004% of lead.
1
Getting Started
Safety way to remove the battery or the
battery from the equipment: Remove the
old battery or battery pack, follow the steps
in reverse order than the assembly. To prevent
contamination of the environment and bring on
possible threat to human and animal health, the
old battery or the battery put it in the appropriate
container at designated collection points. Do
not dispose of batteries or battery together with
other waste. It is recommended that you use
local, free reimbursement systems batteries and
accumulators. The battery shall not be exposed to
excessive heat such as sunshine, fire or the like.
3
3. All batteries/accumulators should
be disposed separately from
the municipal waste stream via
designated collection facilities
appointed by the government or
the local authorities.
4. The correct disposal of Your old
batteries/accumulators will help
to prevent potential negative
consequences for the environment,
animal and human health.
5. For more detailed information
about disposal of Your old batteries/
accumulators, please contact Your
city office, waste disposal service or
the shop where You purchased the
product.
LG Electronics hereby declares that this/
these product(s) is/are in compliance
with the essential requirements and other
relevant provisions of Directive 2004/108/
EC, 2006/95/EC and 2009/125/EC.
European Standards Centre:
Krijgsman1, 1186 DM Amstelveen The Netherlands
yy Please note that this is NOT a Customer Service
contact point. For Customer Service Information,
see Warranty Card or contact the dealer that you
purchased this product.
2012-03-22
7:32:12
4
Table of Contents
Table of Contents
1
Getting Started
2
6
6
6
6
6
6
7
8
9
Safety Information
Unique Features
Accessories
Playable file Requirement
– MP3/WMA music file requirement
– Compatible USB Devices
– USB device requirement
Remote control
Front panel
Rear panel
2
Connecting
10
10
10
10
11
11
Connecting to speakers
– Attaching the speakers to the unit
Optional Equipment Connection
– USB Connection
– PORT. IN Connection
– PHONES Connection
3
Operating
12
12
12
13
13
13
13
13
13
13
14
14
14
Basic Operations
– CD/ USB Operations
– Selecting a folder
Other Operations
– Programmed Playback
– Displaying file information (ID3 TAG)
– Turn off the sound temporarily
Radio Operations
– Listening to the radio
– Improving poor FM reception
– Presetting the Radio Stations
– Deleting all the saved stations
– Seeing information about a Radio
station
Sound adjustment
– Setting the surround mode
Setting the Clock
– Setting the alarm
– Sleep Timer Setting
– Dimmer
Advanced Operations
– Playing the iPod/iPhone
– Compatible iPod/iPhone
– Listening to music from your external
device
– Recording to USB
– Pausing recording
– To select recording bit rate and speed
15
15
15
16
16
16
17
17
17
18
18
18
19
CM2521_DP_AHUNLLK_ENG.indd 4
2012-03-22
7:32:12
Table of Contents
4
Troubleshooting
20
Troubleshooting
5
Appendix
21
22
23
23
23
Trademarks and Licenses
Specifications
Maintenance
– Handling the Unit
– Notes on Discs
5
1
2
3
4
5
CM2521_DP_AHUNLLK_ENG.indd 5
2012-03-22
7:32:12
6
Getting Started
Unique Features
1
USB Direct Recording
Getting Started
Records music to your USB device.
Portable In
Listens to music from your portable device.
(MP3, Notebook, etc)
Made for iPod/iPhone
Enjoy music from iPod/iPhone with simple
connection.
Accessories
Compatible USB Devices
yy MP3 Player : Flash type MP3 player.
yy USB Flash Drive :
Devices that support USB2.0 or USB1.1.
yy The USB function of this unit does not support
all USB devices.
USB device requirement
yy Devices which require additional program
installation when you have connected it to a
computer, are not supported.
yy Do not extract the USB device while in operation.
yy For a large capacity USB, it may take longer than
a few minute to be searched.
yy To prevent data loss, back up all data.
Please check and identify the supplied accessories.
yy If you use a USB extension cable or USB hub, the
USB device is not recognized.
yy Using NTFS file system is not supported. (Only
FAT(16/ 32) file system is supported.)
yy This unit is not supported when the total
number of files is 1 000 or more.
Remote Control (1)
Battery (1)
Playable file
Requirement
yy External HDD, Card readers, Locked devices, or
hard type USB devices are not supported.
yy USB port of the unit cannot be connected to PC.
The unit cannot be used as a storage device.
MP3/WMA music file
requirement
MP3/ WMA file compatibility with this unit is limited
as follows.
yy Sampling Frequency : 32 - 48 kHz (MP3), 32 - 48
kHz (WMA)
yy Bit rate : 32 - 320 kbps (MP3), 40 - 320 kbps
(WMA)
yy Maximum files : Under 999
yy File extensions : “.mp3”/ “.wma”
yy CD-ROM file format : ISO 9660/JOLIET
yy We recommend that you use “Easy-CD Creator”,
which creates an ISO 9660 file system.
CM2521_DP_AHUNLLK_ENG.indd 6
2012-03-22
7:32:12
Getting Started
Remote control
• • • • • • a • • • • • • MENU/REPEAT :
POWER : Switches the unit ON or
OFF.
-- Listens to your tracks repeatedly
or randomly.
EQ : Chooses sound impressions.
-- Move to the previous menu on
IPOD mode.
OPEN/CLOSE : Opens and closes
the disc tray.
• • • • • • b • • • • • • PRESET/FOLDER W/S :
-- Searches for a folder of MP3/
WMA files. When a CD/ USB
containing MP3/ WMA files in
several folders is being played,
press PRESET/FOLDER W/S
to select the folder you want to
play.
-- Choose a preset number for a
radio station.
FUNCTION : Selects the function
and input source.
MUTE @ : Mutes the sound.
VOLUME W/S : Adjusts speaker
volume.
• • • • • • c • • • • • • SLEEP : Sets the system to turn off
automatically at a specified time.
(Dimmer : The display window will
be darkened by half.)
INFO : Sees informations about
your music. MP3 files often come
with ID3 tags. The tag gives
the Title, Artist, Album or Time
information.
Remove the battery cover on the
rear of the Remote Control, and
insert one (size AAA) battery with
4 and 5 matched correctly.
CM2521_DP_AHUNLLK_ENG.indd 7
TUN. -/+ : Selects the radio
station.
Cc/vV (Skip/Search) :
-- Skips Fast backward or Forward.
-- Searches for a section within a
track/file.
1
Getting Started
? : The button is not available for
any function.
Battery Installation
7
Z ENTER :
-- Stops playback or recording.
-- Choose an item on IPOD mode.
d/M (Play/Pause) : Starts or
pauses playback.
• • • • • • d • • • • • • CLOCK : For setting the clock and
checking the time.
TIMER : With the TIMER function
you can turn CD, USB play and
TUNER reception on or off at a
desired time.
SET/RDS :
-- Confirms the setting.
-- RDS (Radio Data System).
(Refer to page 14)
PTY : Searches radio stations by
radio type.
PROGRAM/MEMO :
-- Stores radio stations.
-- Creates a playlist you want to
listen to.
X REC : USB direct recording.
2012-03-22
7:32:12
8
Getting Started
Front panel
1
Getting Started
a IPOD DOCKING SYSTEM
f Display window
b Remote sensor
g Disc tray
c 1 (Power ON/OFF)
h R (Open/Close)
Opens and closes the disc tray.
d F
Selects the function or input source.
i VOL. +/-
T
Starts or pauses playback.
I
Stops playback or recording.
TUN. -/+
Selects the radio station.
Y/U (Skip/Search)
e USB Port
You can play or record sound files by
connecting the USB device.
PORT. IN
PHONES
CM2521_DP_AHUNLLK_ENG.indd 8
2012-03-22
7:32:12
Getting Started
9
Rear panel
1
Getting Started
a FM ANTENNA
b SPEAKERS terminal (L/R)
c Power cord
CM2521_DP_AHUNLLK_ENG.indd 9
2012-03-22
7:32:13
Connecting
10
Connecting to
speakers
Optional Equipment
Connection
Attaching the speakers to the
unit
USB Connection
2
Connect connector on the speaker cable to speaker
terminal.
Connecting
Each speaker connector is colored. Use matching
color connector to each speaker terminal. When
connecting connector to the speaker terminal,
push the connector until it is perfectly linked.
Connect the USB Memory (or MP3 player, etc.) to
the USB port on the front of the unit.
,,Note
yy Removing the USB Device from the unit :
1. Choose a different function/mode or
press Z ENTER on the remote control
or I on the unit twice in a row.
2. Remove the USB device from the unit.
>>Caution
The speakers contain magnet parts, so color
irregularity may occur on the TV screen or PC
monitor screen. Please use the speakers far
away from either TV screen or PC monitor.
Color
Speaker
Position
White
Front
Front left
Red
Front
Front right
CM2521_DP_AHUNLLK_ENG.indd 10
yy You can only recharge your iPod/iPhone
through USB port. To listen to music on
iPod/iPhone, refer to the page 17.
2012-03-22
7:32:13
Connecting
11
PORT. IN Connection
PHONES Connection
Connect an output (earphone or line out) of
portable device (MP3 or PMP etc) to the
PORT. IN connector.
Connect a pair of stereo headphones ( 3.5
mm phone plug) to PHONES jack on the unit
for private listening.
2
Connecting
,,Note
You can’t hear any sound from speakers,
while the headphones plug is inserted in the
PHONES jack.
CM2521_DP_AHUNLLK_ENG.indd 11
2012-03-22
7:32:13
3
Operating
12
Operating
Basic Operations
Selecting a folder
CD/ USB Operations
2. Press d/M on the remote control or T on the
unit to play it. The first file of folder will play.
1. Insert the disc by pressing OPEN/CLOSE on the
remote control or R on the unit.
1. Press PRESET/FOLDER W/S on the remote
control repeatedly until a desired folder appears.
Or connect the USB device to the USB port.
2. Select the CD or USB function by pressing
FUNCTION on the remote control or F on the
unit.
3. Select a track/file you want to play by pressing
Cc/vV on the remote control or
Y/U on the unit.
3
To
Operating
Stop
Playback
Pause
Do this
Press Z on the remote control or
I on the unit.
Press d/M on the remote control
or T on the unit.
During playback, press d/M on the
remote control or Ton the unit.
Press Y/U on the unit or
Cc/vV on the remote
control to skip the track/file in stop
status.
During playback, press U on the
unit or vV on the remote
Skipping to control to go to the next track/file.
the next/
previous Playing less than 2 seconds, press
track/file Y on the unit or Cc on
the remote control to go to the
previous track/file.
Playing after 3 seconds, press
Y on the unit or Cc on
the remote control to go to the
beginning of the track/file.
Press and hold Y/U on the
Searching unit or Cc/vV on the
for a section remote control during playback
within a track and release it at the point you want
to listen to.
Press MENU/REPEAT on the
remote control repeatedly, the
Playing
display change in the following
repeatedly or order.
randomly
RPT1 -> RPT DIR (only MP3/ WMA)
-> RPT ALL -> RANDOM -> OFF
CM2521_DP_AHUNLLK_ENG.indd 12
2012-03-22
7:32:13
Operating
13
Other Operations
Radio Operations
Programmed Playback
Listening to the radio
The program function enables you to store your
favorite files from any disc or USB device.
1. Press FUNCTION on the remote control or F on
the unit until FM appears in the display window.
The last received station is tuned in.
A program can contain 20 tracks/files.
1. Insert a CD or a USB and wait for it to be
ordered.
2. Press PROGRAM/MEMO on the remote control
in stop status.
3. PressCc/vV on the remote control
or Y/U on the unit to select a track/file.
5. Press d/M on the remote control or T on the
unit to play the programmed music tracks/files.
6. To clear your selection, press Z on the remote
control or I on the unit twice.
,,Note
The programs are also cleared when the disc
or USB device is removed, the unit is powered
off or the function is switched to others.
Or
Press TUN. -/+ repeatedly.
3. Adjust the volume by pressing VOL+/- on the
unit or VOLUME W/S on the remote control
repeatedly.
Improving poor FM reception
3
Operating
4. Press PROGRAM/MEMO on the remote control
again to save and select a next track/file.
2. Press and hold TUN. -/+ for about 2 seconds
until the frequency indication starts to change,
then release. Scanning stops when the unit
tunes in a station.
Press d/M on the remote control. This will change
the tuner from stereo to mono and usually improve
the reception.
Displaying file information
(ID3 TAG)
While playing an MP3 file containing file
information, you can display the information by
pressing INFO.
Turn off the sound temporarily
Press [email protected] on the remote control to mute
your unit.
You can mute your unit, for example, to answer the
telephone, the mute symbol “q” is displayed in the
display window.
To cancel it, press [email protected] again on the remote
control or change the volume level.
CM2521_DP_AHUNLLK_ENG.indd 13
2012-03-22
7:32:13
14
Operating
Presetting the Radio Stations
You can preset 50 stations for FM.
Before tuning, make sure to turn down the volume.
1. Press FUNCTION on the remote control or F on
the unit until FM appears in the display window.
2. Select the desired frequency by pressing
TUN. -/+.
3. Press PROGRAM/MEMORY. A preset number
will blink in the display window.
4. Press PRESET/FOLDER W/S to select the
preset number you want.
5. Press PROGRAM/MEMO. The station is stored.
3
6. Repeat steps 2 to 5 to store other stations.
Operating
7. To listen a preset station, press
PRESET/FOLDER W/S.
Deleting all the saved stations
1. Press and hold PROGRAM/MEMO for two
seconds. “CLEAR” will flash up on the unit
display.
2. Press PROGRAM/MEMO to erase all saved radio
stations.
CM2521_DP_AHUNLLK_ENG.indd 14
Seeing information about a
Radio station
The FM tuner is supplied with the RDS (Radio Data
System) facility. This shows information about
the radio station being listened to. Press RDS
repeatedly to cycle through the various data types:
PS (Programme Service Name)
The name of the channel will appear in
the display.
PTY (Programme Type Recognition)
The programme type (e.g. Jazz or News)
will appear in the display.
RT (Radio Text)
A text message contains special
information from the broadcast station.
This text may scroll across the display.
CT (Time controlled by the channel)
This shows the time and date as
broadcast by the station.
You can search the radio stations by programme
type by pressing RDS. The display will show the last
PTY in use. Press PTY one or more times to select
your preferred programme type. Press and hold
C/V. The tuner will search automatically.
When a station is found the search will stop.
2012-03-22
7:32:13
Operating
Sound adjustment
Setting the surround mode
This system has a number of pre-set surround
sound fields. You can select a desired sound mode
by using EQ.
The displayed items for the Equalizer may be
different depending on sound sources and effects.
Description
AUTO EQ
Sets the sound equalizer on the
mode that is the most similar to
the genre which is included in
the MP3 ID3 tag of song files.
POP
CLASSIC
ROCK
This program lends an
enthusiastic atmosphere to the
sound, giving you the feeling
you are at an actual pop, classic
or rock concert.
BASS
BYPASS
Setting the Clock
1. Turn the unit on.
2. Press CLOCK for at least 2 seconds.
3. Choose time mode by pressing Cc/
vV.
- AM 12:00 (for an AM and PM display)
or 0:00 (for a 24 hour display)
4. Press SET to confirm your selection.
5. Select the hours by pressing Cc/
vV.
6. Press SET.
7. Select the minutes by pressing Cc/
vV.
3
Operating
On Display
15
8. Press SET.
Reinforce the treble, bass and
surround sound effect.
You can enjoy the sound
without equalizer effect.
,,Note
Maybe you need reset the surround mode,
after switching the input, sometimes even
after the sound track changed.
CM2521_DP_AHUNLLK_ENG.indd 15
2012-03-22
7:32:14
16
Operating
Setting the alarm
Sleep Timer Setting
You can use the unit as an alarm clock.
You have to set the clock before setting the alarm.
Press SLEEP repeatedly to select delay time
between 10 and 180 minutes. After the delay time,
the unit will be turned off.
1. Turn the unit on.
2. Press TIMER. Each of functions flashes.
3. Press SET when the function you want to be
woken by is showing.
4. “ON TIME” will be displayed. This is your desired
time to the unit turns on. Press Cc/
vV to change the hours and minutes and
press SET to save.
5. The “OFF TIME” will be displayed. This is your
desired time to the unit turns off.
3
6. Press Cc/vV to change the hours
and minutes and press SET to save.
Operating
7. Press Cc/vV to change the volume
and press SET to save.
,,Note
To cancel the sleep function, press SLEEP
repeatedly until “SLEEP 10” appears, and then press
SLEEP once again while “SLEEP 10” is displayed.
,,Note
yy You can check the remaining time before
the unit is turned off.
yy Press SLEEP. The remaining time appears in
the display window.
Dimmer
Press SLEEP once. The display window will
be darkened by half. To cancel it, press SLEEP
repeatedly until dim off.
yy If you set the clock time and alarm, you can
check the time by pressing CLOCK or the
alarm by pressing TIMER even when the
unit is turned off.
yy If the alarm is already set, press TIMER once
to cancel the alarm. To activate the alarm,
press TIMER once again.
yy If the clock time or the alarm is already set,
press and hold CLOCK or TIMER for at least
2 seconds to reset the clock timer or the
alarm.
CM2521_DP_AHUNLLK_ENG.indd 16
2012-03-22
7:32:14
Operating
Advanced Operations
Playing the iPod/iPhone
You can enjoy the sound with your iPod/iPhone. For
details about iPod/iPhone, refer to the iPod/iPhone
User Guide.
1. Connect the iPod/iPhone firmly. Your iPod/
iPhone will be automatically turned on and start
recharging.
17
Do this
To
ON REMOTE
Pause or
restart
T
d/M
Skip
Y/U
Cc/vV
Search
Press and hold
Y/U
Press and hold
Cc/vV
Move to the
previous
menu
-
REPEAT
(MENU)
Move to the
desired item
-
PRESET.
FOLDER
W/S
Choose an
item
I
Z ENTER
3
Operating
ON UNIT
Compatible iPod/iPhone
We recommend installing the latest software
version.
The unit supports the models as follows.
yy iPod touch 1 G, 2 G, 3 G, 4 G
yy iPod classic
2. Turn the unit on.
yy iPod with video
3. Press F on the unit or FUNCTION on the remote
control to select IPOD function. You can operate
your iPod/iPhone through an iPod/iPhone’s
display by using the supplied remote control
and also control on your iPod/iPhone.
yy iPod nano 1 G, 2 G, 3 G, 4 G, 5 G, 6 G
yy iPod mini
yy iPod with click wheel
yy iPhone 4S
yy iPhone 4
yy iPhone 3GS
yy iPhone 3G
Depending on your iPod/iPhone’s software version,
you may not control your iPod/iPhone from the
unit.
CM2521_DP_AHUNLLK_ENG.indd 17
2012-03-22
7:32:14
18
Operating
,,Note
yy iPod/iPhone can recharge even when the
unit is turned off.
yy If this unit displays an error message, follow
the message. An error message “ERROR”.
3
Listening to music from your
external device
This unit can be used to play the music from many
types of external device. (Refer to the page 11)
- Your iPod/iPhone is not connected firmly.
- This unit recognizes your iPod/iPhone as
an unknown device.
- Your iPod/iPhone is exceptionally low in
power.
1. Connect the external device to the PORT. IN
connector of the unit.
/ The battery needs to be charged.
/ If you charge the battery while iPod/
iPhone is extremely low in power,
it may take longer to be charged.
4. Turn the external device and start playing
music.
Operating
yy iPod/iPhone does not support recording
function when connected.
yy Depending on your iPod/iPhone’s software
version, it may not be possible to control
your iPod/iPhone from this unit. We
recommed installing the latest software
version.
yy If you use an application, make a call, or
send and receive SMS text message, etc. on
iPod touch or iPhone, disconnect it from
iPod dock of this unit and then use it.
yy If you have a problem with your iPod/
iPhone, please visit www.apple.com/
support.
2. Turn the power on by pressing 1 (POWER).
3. Select the PORTABLE function by pressing F on
the unit or FUNCTION on the remote control.
Recording to USB
1. Connect the USB device to the unit.
2. Select a function by pressing F on the unit or
FUNCTION on the remote control.
One track recording - You can record to USB
after playing a file you want.
All tracks recording - You can record to USB after
stop.
Program list recording - After showing the
programmed list, you can record it to USB.
(Refer to the page 13)
3. Start the recording by pressing REC X on the
remote control.
4. To stop recording, press Z on the remote
control or I on the unit.
Pausing recording
During recording, press REC X on the remote
control to pause recording. Press it again to restart
recording. (Only Radio, Portable)
CM2521_DP_AHUNLLK_ENG.indd 18
2012-03-22
7:32:14
Operating
To select recording bit rate
and speed
1. Press REC X on the remote control for longer
than 3 seconds.
2. Use Y/U on the unit or Cc/
vV or remote control to select the bit rate
:
96 kbps -> 128 kbps -> 192 kbps -> 256 kbps
3. Press REC X on the remote control again to
select the recording speed.
4. Press Y/U on the unit or Cc/
vV on the remote control to select a
desired recording speed : (Only AUDIO CD)
X2 SPEED
- You can just record the music file.
,,Note
• You can check the recording percentage
rate for the USB record on the display
window during the recording. (MP3/ WMA
CD Only)
• During recording MP3/ WMA, there is no
sound.
• When you stop recording during playback,
the file that has been recorded at that time
will be stored. (Except MP3/WMA files)
• Do not remove the USB device or turn
off the unit during USB recording. If not,
an incomplete file may be made and not
deleted on PC.
• If USB recording does not work, the
message like “NO USB”, “ERROR”, “FULL” or “NO
REC” is displayed on the display window.
• Multi card reader device or External HDD
can not be used for USB recording.
5. Press REC X on the remote control to finish the
setting.
• A file is recorded by about 512 Mbyte when
you record for a long term.
6. To stop recording, press I on the unit or Z on
the remote control.
• You may not store more than 999 files.
3
Operating
X1 SPEED
- You can listen to music while recording it.
19
• It’ll be stored as follows.
AUDIO CD
MP3/ WMA
The other
source*
* : TUNER, PORTABLE and the like.
The making of unauthorized copies of copyprotected material, including computer
programs, files, broadcasts and sound
recordings, may be an infringement of
copyrights and constitute a criminal offense.
This equipment should not be used for such
purposes.
Be responsible
Respect copyrights
CM2521_DP_AHUNLLK_ENG.indd 19
2012-03-22
7:32:14
4
Troubleshooting
20 Troubleshooting
Troubleshooting
Problem
Cause & Correction
• The power cord is not plugged in. Plug in the power cord.
No Power.
• Check whether electricity failed.
Check the condition by operating other electronic devices.
• Check whether you select right function.
Press FUNCTION and check the selected function.
No sound.
• Speaker cables are not connect correctly.
Connect the speaker cables correctly.
• The volume is set to minimum.
Use the volume controller to adjust the volume.
• An unplayable disc is inserted. Insert a playable disc.
4
The unit does not start
playback.
• No disc is inserted. Insert a disc.
• The disc is dirty. Clean the disc. (Refer to the page 23)
Troubleshooting
• The disc is inserted upside down.
Place the disc with the label or printed side facing upwards.
• The antenna is positioned poorly. Adjust its position.
Radio stations cannot
be tuned in properly.
• The signal strength of the radio station is too weak.
Tune to the station manually.
• No stations have been preset or preset stations have been cleared (when
tuning by scanning preset channels).
Preset some radio stations, see page 14 for details.
• The remote control is not pointed at the remote sensor of the unit.
Point the remote control at the remote sensor of the unit.
• The remote control is too far from the unit.
Operate the remote control within about 16 ft (5 m).
The remote control
does not work properly. • There is an obstacle in the path of the remote control and the unit.
Remove the obstacle.
• The battery in the remote control is exhausted.
Replace the battery with new one.
iPod/iPhone does not
work.
CM2521_DP_AHUNLLK_ENG.indd 20
• Check whether the player is connected to the unit correctly.
Connect it to the unit correctly.
2012-03-22
7:32:14
5
Appendix
Troubleshooting
Trademarks and
Licenses
21
You have to set the disc format option to [Mastered]
in order to make the discs compatible with the LG
players when formatting rewritable discs. When
setting the option to Live File System, you cannot
use it on LG players.
(Mastered/Live File System : Disc format system for
Windows Vista)
“Made for iPod” and “Made for iPhone” mean
that an electronic accessory has been designed
to connect specifically to iPod or iPhone
respectively, and has been certified by the
developer to meet Apple performance standards.
Apple is not responsible for the operation of
this device or its compliance with safety and
regulatory standards.
Please note that the use of this accessory with
iPod or iPhone may affect wireless performance.
4
Troubleshooting
CM2521_DP_AHUNLLK_ENG.indd 21
2012-03-22
7:32:14
22 Appendix
Specifications
General
Power supply
200 - 240 V, 50 / 60Hz
Power consumption
35 W
Net Weight
2.3 kg
External dimensions (W x H x D)
230 x 125 x 243 mm
Operating conditions Temperature 5 °C to 35 °C (41 °F to 95 °F)
Operating humidity
5 % to 85 %
Tuner
FM Tuning Range
87.5 to 108.0 MHz or 87.50 to 108.00 MHz
Amplifier
Output Power
30 W + 30 W
CD
Frequency Response
40 Hz to 20 kHz
Signal-to-noise ratio
70 dB
5
Dynamic range
55 dB
Appendix
USB
USB Version
Bus Power Supply
USB 2.0 or USB 1.1
DC 5 V 0 500 mA
iPod/iPhone DC 5 V 0 1 A
Speakers
Type
2 Way 2 Speaker
Impedance
6Ω
Rated Input Power
30 W
Max. Input Power
60 W
Net Dimensions (WxHxD)
150 x 251 x 170 mm
Net Weight(1EA)
1.56 kg
• Design and specifications are subject to change without notice.
CM2521_DP_AHUNLLK_ENG.indd 22
2012-03-22
7:32:15
Appendix 23
Maintenance
Handling the Unit
Notes on Discs
Handling Discs
Never stick paper or tape on the disc.
When shipping the unit
Storing Discs
Please save the original shipping carton and
packing materials. If you need to ship the unit, for
maximum protection, re-pack the unit as it was
originally packed at the factory.
After playing, store the disc in its case. Do not
expose the disc to direct sunlight or sources of heat
and never leave it in a parked car exposed to direct
sunlight.
Keeping the exterior surfaces clean
Cleaning Discs
Do not use volatile liquids such as insecticide spray
near the unit.
Do not use strong solvents such as alcohol,
benzine, thinner, commercially available cleaners,
or anti-static spray intended for old vinyl records.
Wiping with strong pressure may damage the
surface.
Do not leave rubber or plastic products in contact
with the unit for a long period of time.
Cleaning the unit
To clean the player, use a soft, dry cloth. If the
surfaces are extremely dirty, use a soft cloth lightly
moistened with a mild detergent solution. Do not
use strong solvents such as alcohol, benzine, or
thinner, as these might damage the surface of the
unit.
5
Appendix
Maintaining the Unit
The unit is a high-tech, precision device. If the
optical pick-up lens and disc drive parts are dirty
or worn, the picture quality could be diminished.
For details, please contact your nearest authorized
service centre.
CM2521_DP_AHUNLLK_ENG.indd 23
2012-03-22
7:32:15
CM2521_DP_AHUNLLK_ENG.indd 24
2012-03-22
7:32:15
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
