LG OM5560 User guide

LG OM5560 User guide
МАКЕДОНСКИ
MAGYAR
POLSKI
ČESKY
ROMÂNĂ
HRVATSKI
РУССКИЙ
SRPSKI
LATVIEŠU
LIETUVIŲ K.
EESTI
SLOVENČINA БЪЛГАРСКИ

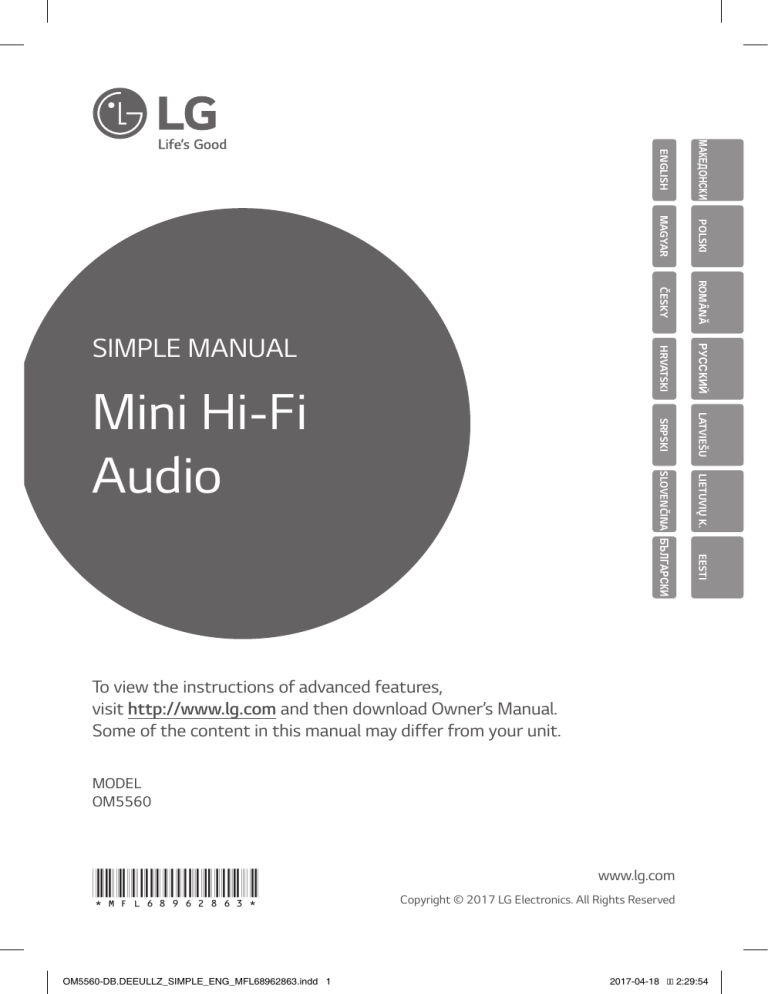

Mini Hi-Fi
Audio
ENGLISH
SIMPLE MANUAL
To view the instructions of advanced features,
visit http://www.lg.com and then download Owner’s Manual.
Some of the content in this manual may differ from your unit.
MODEL
OM5560
*MFL68962863*
OM5560-DB.DEEULLZ_SIMPLE_ENG_MFL68962863.indd 1
www.lg.com
Copyright © 2017 LG Electronics. All Rights Reserved
2017-04-18 �� 2:29:54
Top panel
o
a
b
c
d
n
m
l
k
e
j
f
g
h
i
i SEARCH
Moves to folder or file in selection mode.
OK
Selects a folder when searching a file.
j Y , U & SEARCH (Skip/Search)
- Searches a folder or a file.
- Searches for a section within a track/file.
- Selects the radio stations.
k T (Play/Pause)
- Starts or pauses playback.
- Selects Stereo/Mono.
I (Stop) / RDS
- Stops playback or cancels DELETE function.
- Radio Data System
a USB 1 Port
You can play or record sound files by connecting the USB
device.
b 1/! (Standby/On)
R (Open/Close)
Opens and closes the disc tray.
REGION EQ / BASS BLAST
- Chooses region equalizer.
- Press and hold to select BASS effect directly.
c MIC. (Microphone volume)
Controls microphone’s volume.
l VOL. (Volume)
Adjusts speaker volume.
d VOICE CANCELLER
You can enjoy the function while playing the music, by
reducing singer vocal of music in the various source.
Press to switch this mode on or off.
m USB REC / DEMO
Records to USB. / Shows Demo mode.
KEY CHANGER (b/#)
Changes the key to suit your vocal range.
LIGHTING / PARTY LINK
- Turns on/off the lighting effects.
- Press and hold to select the PARTY LINK.
e SCRATCH / LEVEL / SYNC SET
Turn clockwise or counterclockwise to make Scratch sound. /
Adjust DJ EFFECT level. / Sets Delay value in PARTY LINK
mode.
F (Function) / WIRELESS LINK
- Selects the function and input source.
- Press and hold for 3 seconds to select WIRELESS PARTY
LINK mode.
n USB 2 Port
You can play or record sound files by connecting the USB
device.
o Display window
f DJ EFFECT
Selects DJ EFFECT mode.
USER EQ
Selects the sound effect created by your own.
g PARTY THRUSTER
Slide the lever to create a party atmosphere.
h CLUB, DRUM, USER (DJ PRO)
Selects CLUB, DRUM or USER sound effect to mix.
(If you want to use USER, you have to register a source with
“Music Flow Bluetooth” app.)
1, 2, 3 (DJ PRO PAD)
Press a desired sound pad.
OM5560-DB.DEEULLZ_SIMPLE_ENG_MFL68962863.indd 2
2017-04-18 �� 2:29:55
Front panel / Rear panel
OUT
IN
e
f
a
b
c
d
g
a Disc tray
e ANTENNA (FM)
b MIC (Microphone) 1 / 2 jack
f AUX IN / OUT
c PORT. IN
g AC in socket
d
Remote sensor
Controller App
Download the Music Flow Bluetooth App to your
device.
OM5560-DB.DEEULLZ_SIMPLE_ENG_MFL68962863.indd 3
LG Sound Sync (Wireless)
For more information, download the online owner’s
manual. http://www.lg.com
2017-04-18 �� 2:29:55
Additional Information
Specifications
Power Requirements
Power Consumption
Refer to the main label on
the unit.
Refer to the main label on
the unit.
Networked standby : 0.5 W
How to disconnect the wireless network
connection or the wireless device
Turn off the unit by pressing the power button for more
than 5 seconds.
Replacement of battery
(If all network ports are
activated.)
Net Weight
Approx. 13.3 kg
Bus Power Supply (USB)
5 V 0 500 mA
Amplifier
(Total RMS output power)
500 W
Design and specifications are subject to change without
notice.
Caution
yy Connect the power cord to wall outlet directly if
possible. Or when you use an extension cable, it is highly
recommended to use an extension cable of 110 V /
15 A or 230 V / 15 A, otherwise the unit may not
operate properly because of the lack of power supply.
yy Do not overload the extension cord with excessive
electrical load.
3)
Approx. 330 mm x
715 mm x 302 mm
(R03)
Declaration of Conformity
Hereby, LG Electronics declares that the radio equipment
type MINI HI-FI AUDIO is in compliance with Directive
2014/53/EU. The full text of the EU declaration of
conformity is available at the following internet address:
http://www.lg.com/global/support/cedoc/cedoc#
For consideration of the user, this device should be
installed and operated with a minimum distance of 20 cm
between the device and the body.
Frequency range
2402 to 2480 MHz
OM5560-DB.DEEULLZ_SIMPLE_ENG_MFL68962863.indd 4
(R0
Dimensions (W x H x D)
Output power (Max.)
10 dBm
2017-04-18 �� 2:29:55
