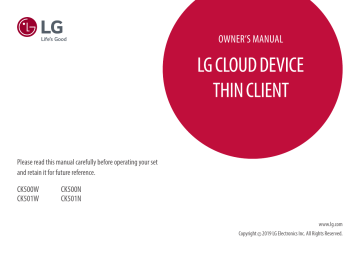

OWNER’S MANUAL
Please read this manual carefully before operating your set
and retain it for future reference.
CK500W
CK501W
CK500N
CK501N
www.lg.com
Copyright 2019 LG Electronics Inc. All Rights Reserved.
SAFETY INSTRUCTIONS
LICENSE
•• Please make sure the device is installed near the wall outlet to which it is connected and that the outlet
Each model has different licenses. Visit www.lg.com for more information on the license.
is easily accessible.
•• As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source
ENGLISH
even if the unit is turned off.
•• Be sure to use power cords and AC adapters provided or approved by LG Electronics, Inc.
•• Do not use this equipment near water such as near a bathtub, washbowl, kitchen sink, laundry tub, in a
wet basement, or near a swimming pool.
•• Equipment is provided with ventilation openings in the cabinet to allow the release of heat generated
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or
registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
during operation. If these openings are blocked, built-up heat can cause failures which may result in a fire
hazard. Therefore, NEVER:
-- Block the bottom ventilation slots by placing the equipment on a bed, sofa, rug, etc.
-- Place the equipment in a built-in enclosure unless proper ventilation is provided.
-- Cover the openings with cloth or other material.
-- Place the equipment near or over a radiator or heat source.
OPEN SOURCE SOFTWARE NOTICE INFORMATION
To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this
product, please visit http://opensource.lge.com.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are
available for download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of
performing such distribution (such as the cost of media, shipping, and handling) upon email request to
[email protected]
This offer is valid for a period of three years after our last shipment of this product.
This offer is valid to anyone in receipt of this information.
2
IMPORTANT NOTES ON INSTALLING AN OPERATING
SYSTEM
(Only CK500N, CK501N)
This product does not provide an operating system to run the product.
Please note that LG Electronics does not sell an operating system such as Windows, and users are required to
purchase and install an operating system to run the product. For more information on purchasing Windows
operating systems, please contact Microsoft directly.
Due to the characteristics of the product, only Windows 10 IoT Enterprise LTSB 2016 (RS1) is available for
installation. LG Electronics will not be liable for any issues caused by installing and using an operating
system other than Windows 10 IoT Enterprise LTSB 2016 (RS1).
How to install Windows 10 IoT Enterprise LTSB 2016 (RS1)
Product Composition
(Only CK500N, CK501N)
Please check whether all the components are included in the box before using the product. If there are any
missing components, contact the retailer where you purchased the product.
1
Install Windows
2
Install Drivers
3
Update
Windows
Complete Installing
Windows
ASSEMBLING AND PREPARING
ENGLISH
Follow the steps below to install Windows when you purchase and install Windows 10 IoT Enterprise LTSB
2016 (RS1).
For more information on installing Windows, refer to the manual or guide provided with Windows.
Owner’s Manual/Regulatory
Manual/Cards
Power cord
Adapter
Bracket / Screws
(4 ea, M4 X L10)
(2 ea, M3)
Wifi Antenna
DVI to D-Sub Dongle
Supported Drivers, Software and Language pack install guide
•• You can download the latest version for installation on the LG Electronics website (www.lg.com).
CAUTION
•• Only use an approved LG power adapter.
•• Damage caused by other power adapters is not covered by warranty.
NOTE
•• Note that the components may look different from those shown here.
•• Without prior notice, all information and specifications in this manual are subject to change to improve
the performance of the product.
•• Use of the DVI to D-Sub Dongle accessary included with the product is strongly advised.
3
Product Installation
CAUTION
Parts and Buttons
Connection
ENGLISH
•• Illustrations in this document represent typical procedures, so they may look different from the actual
product.
•• Applying excessive force when tightening screws may cause damage to the Cloud Device. Damage caused
in this way will not be covered by the product warranty.
•• The product may not be mounted on some monitors with mount bracket.
-- In this case, use the product in horizontal or vertical position.
•• When connecting the peripherals after mounting the product on the monitor, be sure to hold the product.
1. Assembling the Wifi Antenna
1
2
2. Mounting on the Back of the Monitor
1
2
3
4
DP
LAN
Hub/Router
Using the Kensington Lock
For more information on installation and usage, refer to the Kensington lock owner’s manual or visit the
website at http://www.kensington.com.
4
DP IN
HDMI IN
Monitor
Monitor
DVI IN
Monitor
Dual Band Wireless module (AC3168) Specifications
NOTE
•• When you connect two monitors at the same time, one of the connections should be through
PRODUCT SPECIFICATION
AC/DC Adapter
DA-48F19, manufactured by APD
Output: 19 V
2.53 A
Operating Conditions
Storing Conditions
Dimensions
IEEE 802.11a/b/g/n/ac
Output Power (Max.)
2400 to 2483.5 MHz
5150 to 5725 MHz
5725 to 5850 MHz
15.5 dBm
15.5 dBm
15.5 dBm
Frequency Range
Output Power (Max.)
2400 to 2483.5 MHz
10 dBm
•• As band channels can vary per country, the user cannot change or adjust the operating frequency. This
product is configured for the regional frequency table.
Temperature
10 °C to 40 °C
Humidity
20 % ~ 80 %
Temperature
-20 °C to 60 °C
Humidity
10 % ~ 90 %
Width x Height x Depth (mm)
180 x 39.9 x 117
Weight
Standard
Frequency Range
Bluetooth
Power Consumption Off Mode: 0.7 W *
(Typical)
Sleep Mode: 1.0 W *
Idle Mode (Display Off): 8 W *
Idle Mode (Display On) : 10 W *
Environmental
Conditions
Wireless LAN
ENGLISH
DP(DisplayPort).
-- Ex.)
,
,
(with DVI to D-Sub Dongle)
•• Some games (online, 3D, 2D) may not be supported, and some high-resolution videos (including Full HD
and some HD videos) may stutter during playback.
1 kg
Specifications are subject to change without notice.
* The operating mode power consumption is measured with ENERGY STAR® test standard and the following
OS. (Windows 10 IoT Enterprise LTSB 2016 (RS1))
•• For consideration of the user, this device should be installed and operated with a minimum distance of
20 cm between the device and the body.
•• "IEEE 802.11ac" is not available in all countries.
ENERGY STAR complied product
(Only CK500W, CK501W)
ENERGY STAR is a joint program of the U.S. Environmental Protection Agency and the U.S. Department
of Energy helping us all save money and protect the environment through energy efficient products and
practices.
The products with the ENERGY STAR logo comply with the ENERGY STAR standard, and the power
management feature is enabled by default.
The monitor and computer are automatically set to sleep after 10 and 30 minutes of user inactivity. To wake
your computer, click the mouse or press any key on the keyboard.
Please visit http://www.energy.gov/powermanagement for detail information on power management and
its benefits to the environment. In addition, please visit http://www.energystar.gov for detail information
on the ENERGY STAR joint program.
5
WARNING: This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment
may cause radio interference.
This device can be used in all regions. Read the owner's manual carefully and keep it at hand. Please note
that the label attached to the product provides information for technical support.
Model
Serial No.
(Only CK500W, CK501W)
