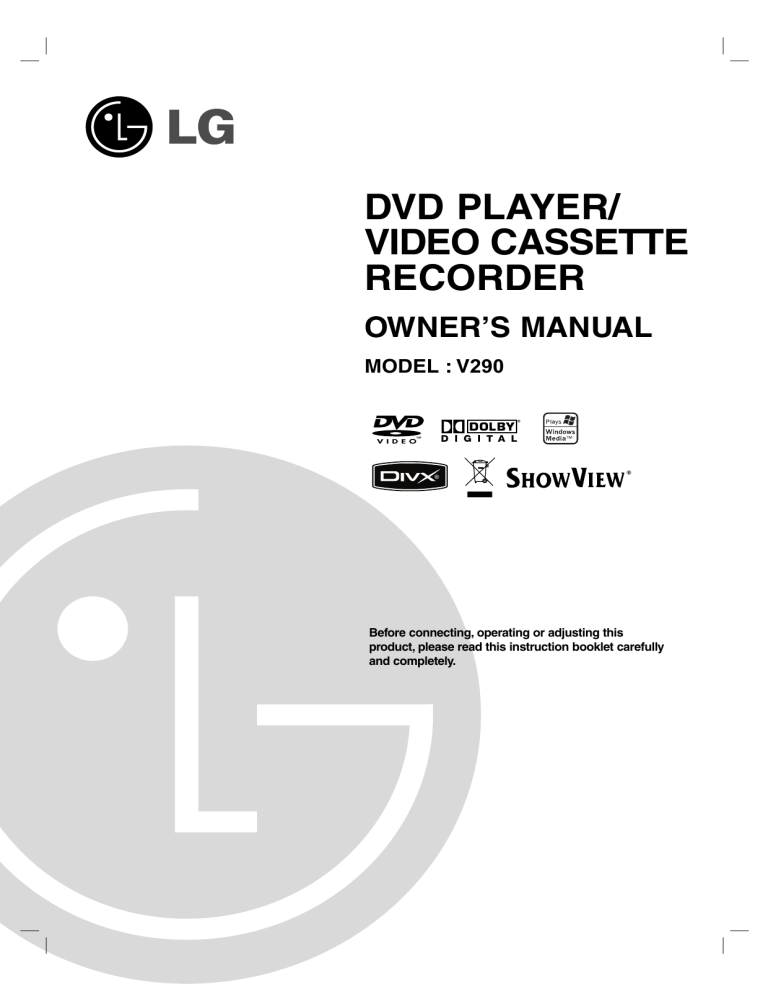

DVD PLAYER/

VIDEO CASSETTE

RECORDER

OWNER’S MANUAL

MODEL : V

290

Before connecting, operating or adjusting this product, please read this instruction booklet carefully and completely.

Safety Precautions

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK

OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation mark within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

WARNING:

TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT

TO RAIN OR MOISTURE.

WARNING:

Do not install this equipment in a confined space such as a bookcase or similar unit.

CAUTION:

Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from over heating.

The openings should be never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instruction have been adhered to.

Disposal of your old appliance

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.

2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.

3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.

4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.

CAUTION concerning the Power Cord

Most appliances recommend they be placed upon a dedicated circuit;

That is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits.

Check the specification page of this owner's manual to be certain.

Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized services.

Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

To disconnect power from the mains, pull out the mains cord plug. When installing the product, ensure that the plug is easily accessible.

This product is manufactured to comply with

EMC Directive 2004/108/EC and Low Voltage

Directive 2006/95/EC.

European representative:

LG Electronics Service Europe B.V.

Veluwezoom 15, 1327 AE Almere, The

Netherlands

(Tel : +31-036-547-8940)

CAUTION:

This Digital Video Disc Player employs a Laser System.

To ensure proper use of this product, please read this owner’s manual carefully and retain for future reference, should the unit require maintenance, contact an authorized service location-see service procedure.

Use of controls, adjustments or the performance of procedures other than those specified herein may result in hazardous radiation exposure.

To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation when open. DO

NOT STARE INTO BEAM.

CAUTION:

The apparatus shall not be exposed to water, dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

2

R

S

HOW

V

IEW is a registered trademark of Gemstar

Development Corporation.

The S

HOW

V

IEW system is manufactured under licence from Gemstar Development Corporation.

Table of Contents

Introduction

Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . 2

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Before Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

About the Symbol Display . . . . . . . . . . . . . . 4

Symbol used in this Manual . . . . . . . . . . . . . . . 4

Notes on Discs . . . . . . . . . . . . . . . . . . . . . . . . . 4

Handling Discs . . . . . . . . . . . . . . . . . . . . . . . . . 4

Storing Discs . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Cleaning Discs . . . . . . . . . . . . . . . . . . . . . . . . . 4

Selecting the Viewing Source . . . . . . . . . . . . . . 4

Types of Playable Discs. . . . . . . . . . . . . . . . . . . 5

Regional Code . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Preparation

Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-10

Connecting to a TV & Decoder(or Satellite) . . . . . 9

Connecting to Optional Equipment . . . . . . . . . . . 10

Before Operation-VCR part . . . . . . . . . . . . . . . 11-15

Tuning in a video channel on your TV . . . . . . . . . 11

Using your VCR for the very first time. . . . . . . . . 11

Setting the clock Manually . . . . . . . . . . . . . . . . . 12

To set the colour system . . . . . . . . . . . . . . . . . . 12

How to use the main menu. . . . . . . . . . . . . . . . . 13

Tuning in TV Stations Automatically . . . . . . . . . . 13

Tuning in TV Stations Manually. . . . . . . . . . . . . . 14

Changing the order of TV Stations . . . . . . . . . . . 15

Deleting TV Stations . . . . . . . . . . . . . . . . . . . . . 15

Before Operation-DVD part . . . . . . . . . . . . . . . 16-19

Displaying Disc Information on-screen . . . . . . . . 16

Initial Settings . . . . . . . . . . . . . . . . . . . . . . . . . . 16

General Operation . . . . . . . . . . . . . . . . . . . . . . . 16

LANGUAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Menu Language. . . . . . . . . . . . . . . . . . . . . . 17

Disc Audio / Subtitle / Menu . . . . . . . . . . . . . 17

DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

TV Aspect . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Display Mode. . . . . . . . . . . . . . . . . . . . . . . . 17

Progressive Scan. . . . . . . . . . . . . . . . . . . . . 17

TV Output Select . . . . . . . . . . . . . . . . . . . . . 17

AUDIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Dolby Digital / DTS / MPEG . . . . . . . . . . . . . 18

Sample Freq. (Frequency) . . . . . . . . . . . . . . 18

DRC (Dynamic Range Control) . . . . . . . . . . 18

Vocal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

LOCK (Parental Control) . . . . . . . . . . . . . . . . . . 18

Rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Password (Security Code) . . . . . . . . . . . . . . 18

Area Code . . . . . . . . . . . . . . . . . . . . . . . . . . 19

OTHERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

DivX(R) VOD . . . . . . . . . . . . . . . . . . . . . . . 19

Operation

Operation with tape . . . . . . . . . . . . . . . . . . . . . 20-24

Playing a tape . . . . . . . . . . . . . . . . . . . . . . . . . . 20

CM (Commercial Message) Skip . . . . . . . . . 20

OPR (Optimum Picture Response). . . . . . . . 20

Instant Timer Recording . . . . . . . . . . . . . . . . . . . 21

S

HOW

V

IEW

Programming . . . . . . . . . . . . . . . . . . 22

Timer recording using On Screen Display . . . 23-24

Additional Operation - VCR part . . . . . . . . . . . . 25-27

Hi-Fi Stereo Sound System . . . . . . . . . . . . . . . . 25

On Screen Display (F.OSD) . . . . . . . . . . . . . . . . 25

Tape Counter Memory Stop . . . . . . . . . . . . . . . . 25

To set the decoder . . . . . . . . . . . . . . . . . . . . . . . 25

Video Doctor (Self-Diagnosis) . . . . . . . . . . . . . . 26

Lock (Child Lock) . . . . . . . . . . . . . . . . . . . . . . . . 26

Wide Screen Compatibility 16:9 . . . . . . . . . . . . . 26

1W Mode (Power save mode) . . . . . . . . . . . . . . 26

Recording from External Components . . . . . . . . 27

Copying from DVD to VCR . . . . . . . . . . . . . . . . . 27

General Playback features - DVD Part . . . . . . . . . 28

Playing a DVD . . . . . . . . . .

. . . . . . . . . . . . . . . . . . 29

Additional features . . . . . . . . . . . . . . . . . . . . . . . 29

Time Search . . . . . . . . . . . . . . . . . . . . . . . . 29

Marker Search . . . . . . . . . . . . . . . . . . . . . . 29

Last Scene Memory . . . . . . . . . . . . . . . . . . 29

Screen Saver . . . . . . . . . . . . . . . . . . . . . . . 29

Playing an Audio CD or MP3/WMA file . . . . . . . . 30

Programmed Playback . . . . . . . . . . . . . . . . . . . . 30

Repeat Programmed Tracks . . . . . . . . . . . . . 30

Erasing a Track from Program List . . . . . . . . 30

Erasing the Complete Program List . . . . . . . 30

Viewing a JPEG file . . . . . . . . . . . . . . . . . . . . . . . 31

Slide Show. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Still Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Moving to another File . . . . . . . . . . . . . . . . . . . . 31

Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

To rotate picture . . . . . . . . . . . . . . . . . . . . . . . . . 31

Playing a DivX Movie file . . . . . . . . . . . . . . . . . . . 32

Playing a DVD VR format Disc . . . . . . . . . . . . . . . 33

Additional Operation . . . . . . . . . . . . . . . . . . . . . . . 34

Controlling other TVs with the remote control . . . 34

Maintenance and Service. . . . . . . . . . . . . . . . . . 34

Reference

Language and Area Code List . . . . . . . . . . . . . . . 35

Language Code List . . . . . . . . . . . . . . . . . . . . . . 35

Area Code List . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

3

Before Use

To ensure proper use of this product, please read this owner’s manual carefully and retain for future reference.

This manual provides information on the operation and maintenance of your DVD player. Should the unit require service, contact an authorized service location.

About the Symbol Display

“ ” may appear on your TV display during operation and indicates that the function explained in this owner’s manual is not available on that specific DVD video disc.

Notes on Discs

Handling Discs

Do not touch the playback side of the disc. Hold the disc by the edges so that fingerprints do not get on the surface. Never stick paper or tape on the disc.

Symbol Used in this Manual

Note:

Indicates special notes and operating features.

Tip:

Indicates tips and hints for making the task easier.

A section whose title has one of the following symbols is applicable only to the disc represented by the symbol.

Storing Discs

After playing, store the disc in its case. Do not expose the disc to direct sunlight or sources of heat and never leave it in a parked car exposed to direct sunlight.

Cleaning Discs

Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing, clean the disc with a clean cloth. Wipe the disc from the center out.

ALL

DVD

ACD

MP3

WMA

DivX

All discs listed below

DVD and finalized DVD±R/RW

Audio CDs

MP3 files

WMA files

DivX files

Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or anti-static spray intended for older vinyl records.

Selecting the Viewing Source

You must select one of your output sources (DVD or

VCR) to view on the TV screen.

If you want to view DVD deck output source:

Press DVD until DVD indicator in the display window lights and output source of DVD deck is viewed on the

TV screen.

If you want to view VCR deck output source:

Press VCR until VCR indicator in the display window lights and output source of VCR deck is viewed on the

TV screen.

Notes:

If you insert a disc while this unit is in the VCR mode, this unit will switch to DVD mode automatically.

If you insert a cassette tape without prevention tab while this unit is in the DVD mode, this unit will switch to VCR mode automatically.

4

Before Use (Continued)

Types of Playable Discs

DVD

(8 cm / 12 cm disc)

Audio CD

(8 cm / 12 cm disc)

In addition, this unit plays DVD±R/RW, and CD-R/RW that contains audio titles, DivX, MP3, WMA, and/or

JPEG files.

This indicates a product feature that is capable of playing DVD-RW discs recorded with Video

Recording format.

Notes:

• Depending on the conditions of the recording equipment or the CD-R/RW (or DVD±R/RW) disc itself, some CD-R/RW (or DVD±R/RW) discs cannot be played on the unit.

• Do not use irregularly shaped CDs (e.g., heartshaped or octagonal) since they may result in malfunctions.

• This unit requires discs and recordings to meet certain technical standards in order to achieve optimal playback quality. Pre-recorded DVDs are automatically set to these standards. There are many different types of recordable disc formats (including CD-R containing MP3 or WMA files) and these require certain pre-existing conditions (see above) to ensure compatible playback.

Customers should note that permission is required in order to download MP3 / WMA files and music from the Internet. Our company has no right to grant such permission. Permission should always be sought from the copyright owner.

Notes on Copyrights:

It is forbidden by law to copy, broadcast, show, broadcast via cable, play in public, or rent copyrighted material without permission. This product features the copy protection function developed by Macrovision. Copy protection signals are recorded on some discs. When recording and playing the pictures of these discs picture noise will appear. This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision

Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by

Macrovision Corporation. Reverse engineering or disassembly is prohibited.

CONSUMERS SHOULD NOTE THAT NOT ALL HIGH

DEFINITION TELEVISION SETS ARE FULLY COM-

PATIBLE WITH THIS PRODUCT AND MAY CAUSE

ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN

CASE OF 625 PROGRESSIVE SCAN PICTURE

PROBLEMS, IT IS RECOMMENDED THAT THE USER

SWITCH THE CONNECTION TO THE ‘STANDARD

DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS

REGARDING OUR TV SET COMPATIBILITY WITH

THIS MODEL 625p DVD PLAYER, PLEASE CONTACT

OUR CUSTOMER SERVICE CENTER.

Regional Code

This unit has a regional code printed on the rear of the unit. This unit can play only DVD discs labelled same as the rear of the unit or “ALL”.

Notes on Regional Codes

• Most DVD discs have a globe with one or more numbers in it clearly visible on the cover. This number must match your unit’s regional code or the disc cannot play.

• If you try to play a DVD with a different regional code from your player, the message “Check Regional

Code” appears on the TV screen.

5

Front Panel

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

16 17

1.

1 /

I

Switches the unit to ON or OFF.

2.

Disc Tray

Insert a disc here.

3.

PROG. (

V / v

)

Channel Programme Selectors.

4.

DVD

Opens or closes the disc tray.

5.

Display window

Shows the current status of the unit.

DVD:

DVD deck is selected.

:

A disc is loaded in the DVD deck.

[P]:

Indicates the Progressive Scan is set to On mode.

:

Indicates repeat mode.

:

Child Lock is engaged.

:

DVD+VCR is in timer recording or a timer recording is programmed.

:

A Cassette is in the VCR deck.

VCR:

VCR deck is selected.

REC:

VCR recording is engaged.

DVD to V ideo tape

copy is in progress.

TV:

Indicates TV mode. (See Notes on page 21.)

:

Indicates total playing time/elapsed time/current time.

6.

Remote Sensor

Point the remote control here.

7. Tape Compartment

8.

DVD/VCR

DVD/VCR Selecto

9.

x

Stops playback.

10.

.

Go to beginning of current chapter/track or to

PREVIOUS chapter/track.

Press and hold for two seconds for a fast reverse search. Rewinds the tape.

11.

N

Starts playback.

12.

M

Go to NEXT chapter/track.

Press and hold for two seconds for a fast forward search. Winds the tape forwards.

13. Video IN Jack

14. Audio IN (L/R) Jacks

15.

VCR

Tape Eject

16.

O

VCR Record

17.

INPUT

Select input source for recording into tape.

6

Remote Control

POWER

Switch this unit ON or OFF.

DVD/VCR select button

Selects operational mode of remote control.

OPEN/CLOSE

EJECT

Open or close the disc tray.

Tape Eject.

0-9 numerical buttons

Select numbered items in a menu.

TV/VCR

Switch between your TV’s tuner and the VCR’s internal tuner.

AV

Select input source for recording into tape.

BACKWARD / FORWARD

(

m

/

M

)

DVD: Search backward or forward.

VCR: Rewinds the tape during the

STOP mode, for fast reverse picture search and Advances the tape during the STOP mode, fast forward picture search.

SKIP (

.

/

>

)

Go to next chapter or track.

Returns to beginning of current chapter or track or go to previous chapter or track.

PAUSE/STEP (

X

)

Pause playback temporarily / press repeatedly for frame-by-frame playback.

PLAY (

N

)

Starts playback.

STOP (

Á

)

Stops playback.

MARKER

Mark any point during playback.

SEARCH

Display MARKER SEARCH menu.

CLEAR

Clear a track number on the program menu or a mark on the

MARKER SEARCH menu.

Reset tape counter to zero.

REPEAT

Repeat chapter, track, title, all.

A-B/LP

Repeat sequence.

Select the recording speed of the tape.

Remote Control Operation

Point the remote control at the remote sensor and press the buttons.

Do not mix old and new batteries and never mix different types of batteries such as standard, alkaline, etc.

*

Remote control battery installation

Detach the battery cover on the rear of the remote control, and insert two batteries (size

AAA) with

3 and

# aligned correctly.).

TV Control Buttons

(see p. 34)

TV POWER:

Turns on or off the TV.

TV AV:

Selects the TV’s source.

TV PR +/–:

Selects TV’s channel.

TV VOL +/–:

Adjusts TV’s volume.

DISPLAY

CLK/CNT

Access the On-Screen Display.

Shows you the current time or counter.

F G D E

(left/right/up/down)

Select an item in the menu.

PR/TRK(

+/-

)

Select channel programme of VCR.

To adjust tracking.

To control vertical tremble during picture still.

ENTER/OK

Acknowledge menu selection.

DISC MENU

Access menu of a DVD disc.

SETUP/ i

Access or remove setup menu.

RETURN

Hides or displays the help menu while watching JPEG picture in full screen.

AUDIO

Select an audio language (DVD).

SUBTITLE

Select a subtitle language.

ANGLE

Select DVD camera angle if available

ZOOM

Enlarge video image.

REC/ITR (

O

)

Record your input sources into tape.

LOCK (Child Lock)

Switch the Child Lock on and off.

TITLE

Display the title menu of the disc if available.

PROGRAM

Access or remove program menu.

RANDOM/CM SKIP

Play tracks in random order.

CM SKIP

S

HOW

V

IEW

To display the programme menu for

ShowView programming.

*

Feature is not available.

7

Rear Panel

AERIAL

Connect the aerial using this jack.

VIDEO/AUDIO OUT(Left/Right) (DVD/VCR OUT)

Connect to a TV with video and audio inputs.

COMPONENT/PROGRESSIVE SCAN VIDEO OUT (Y Pb Pr)

(DVD EXCLUSIVE OUT)

Connect to a TV with Y Pb Pr inputs.

AUDIO OUT (Left/Right) (DVD EXCLUSIVE OUT)

Connect to an amplifier, receiver or stereo system.

EURO AV2 DECODER

Connect to pay-TV decoder or another video recorder.

AC Power Cord

Connect to a power source.

EURO AV1 AUDIO/VIDEO (VCR IN+OUT / DVD OUT)

Connect to your TV set or another video recorder.

COAXIAL (Digital audio out jack) (DVD EXCLUSIVE OUT)

Connect to digital (coaxial) audio equipment.

RF.OUT

Connect to your TV using this jack.

Do not touch the inner pins of the jacks on the rear panel.

Electrostatic discharge may cause permanent damage to the unit.

8

Connections

Caution:

Make sure this unit is connected directly to the TV. Set the TV to the correct video input channel.

Do not connect this unit’s AUDIO OUT jack to the phone in jack (record deck) of your audio system.

Connecting to a TV & Decoder (or

Satellite)

Make one of the following connections, depending on the capabilities of your existing equipment.

Basic connection (AV)

1. Connect the

EURO AV1 AUDIO/VIDEO

on the rear panel of this unit to the SCART input socket on the

TV using a SCART lead

(S1)

.

2. Some TV broadcasters transmit encoded television signals which you can only see with a purchased or rented decoder. You can connect such a decoder

(descrambler) to this unit

(S2)

.

or

1. Connect the

VIDEO (DVD/VCR OUT)

jacks on the

DVD Player to the corresponding in jacks on the TV using the video cable

(V)

.

2. Connect the Left and Right or

AUDIO (DVD/VCR

OUT)

jacks of the DVD+VCR to the audio left/right in jacks on the TV using the audio cables

(A1)

.

Note:

The encoded television signals (CANAL+ or PRE-

MIERE) are not decoded in the 1W Mode (see p. 26).

Basic connection (RF)

1. Connect the RF antenna cable from your indoor/ outdoor antenna to AERIAL jack on the rear panel of this unit.

2. Connect the supplied RF antenna cable from the

RF.OUT jack on the rear panel of this unit to your television’s Antenna Input

(R)

.

DVD exclusive out connection

Component Video connection

1. Connect the

COMPONENT/PROGRESSIVE SCAN

VIDEO OUT

jacks on the DVD Player to the corresponding in jacks on the TV using the Y Pb Pr cable

(C)

.

2. Connect the Left and Right

AUDIO OUT

jacks of this unit to the audio left/right in jacks on the TV using the audio cables

(A2)

.

Progressive Scan connection

If your television is a high-definition or “digital ready” television, you may take advantage of the DVD

Player’s progressive scan output for the highest video resolution possible.

If your TV does not accept the Progressive Scan format, the picture will appear scrambled if you try

Progressive Scan on the DVD Player.

1. Connect the

COMPONENT/ PROGRESSIVE SCAN

VIDEO OUT

jacks on the DVD Player to the corresponding in jacks on the TV using the Y Pb Pr cable.

2. Connect the Left and Right

AUDIO OUT

jacks of the this unit to the audio left/right in jacks on the TV using the audio cables.

Notes:

Set the Progressive to “On” on the setup menu for progressive signal, see page 17.

Progressive scan does not work with the analog video connections (yellow VIDEO OUT jack).

Rear of TV

AERIAL

VIDEO

INPUT

COMPONENT VIDEO INPUT/

PROGRESSIVE SCAN

Pr Pb Y

AUDIO INPUT

R L

SCART INPUT

C A2

Rear of TV

AERIAL

VIDEO

INPUT

COMPONENT VIDEO INPUT/

PROGRESSIVE SCAN

Pr Pb Y

AUDIO INPUT

L R

SCART INPUT

R

V A1

S1

Decoder (or Satellite)

S2

Rear of this unit (DVD exclusive out connection)

Rear of this unit (Basic connection)

9

Connections (Continued)

Connecting to Optional Equipment

Connecting to an amplifier equipped with two channel analog stereo or Dolby Pro Logic II/Pro Logic

Connect the Left and Right

DVD/VCR AUDIO OUT

or

AUDIO OUT (DVD EXCLUSIVE OUT)

jacks on this unit to the audio left and right in jacks on your amplifier, receiver or stereo system, using the audio cables.

Connecting to an amplifier equipped with two channel digital stereo (PCM) or to an Audio/ Video receiver equipped with a multi-channel decoder (Dolby

Digital™, MPEG 2 or DTS)

1. Connect one of this unit’s DIGITAL AUDIO OUT jack

(COAXIAL) to the corresponding in jack on your amplifier. Use an optional digital (coaxial) audio cable.

2. You will need to activate this unit’s digital output.

(See “AUDIO” on page 18).

Digital Multi-channel sound

A digital multi-channel connection provides the best sound quality. For this you need a multi-channel

Audio/Video receiver that supports one or more of the audio formats supported by your unit (MPEG 2, Dolby

Digital and DTS). Check the receiver manual and the logos on the front of the receiver.

Warning:

Due to the DTS Licensing agreement, the digital output will be in DTS digital out when DTS audio stream is selected.

Notes:

If the audio format of the digital output does not match the capabilities of your receiver, the receiver will produce a strong, distorted sound or no sound at all.

To see the audio format of the current DVD in the

On-Screen Display, press AUDIO.

Rear of this unit

DVD/VCR OUT or

DVD exclusive out

COAXIAL

DIGITAL INPUT

L

R

AUDIO INPUT

Amplifier (Receiver)

Digital multi-channel connection

(DVD exclusive out connecttion)

Rear of this unit

Manufactured under license from Dolby Laboratories.

Dolby and the double-D symbol are registered trademarks of Dolby Laboratories.

DTS and DTS Digital Out are trademarks of Digital

Theater Systems, Inc.

10

Before Operation-VCR part

Tuning in a video channel on your

TV

Video channel (RF output channel) is the channel on which your TV receives picture and sound signals from the DVD+VCR through the RF cable.

If you have used a SCART lead you will not have to tune your TV, simply select the AV channel. The AV channel is already pre-tuned for optimum video playback on your TV.

Perform the following steps only if interference appears in the TV picture after you have moved to a different area or a new station has started broadcasting in your area, or if you change the connection from RF connection to AV connection, or vise versa.

1.

Turn on DVD+VCR and TV.

2.

Set the vacant position 36 on your TV.

3.

Press POWER on the remote control to enter the stand by mode (the clock indicator will be dimmed).

4. Press and hold

PROG. (

v or V

)

on the DVD+VCR for more than 4 seconds.

RF 36 will appear in the display.

The following picture will be displayed on the TV screen.

Using your VCR for the very first time

Following picture will display on the TV screen when you have just connected your video recorder for the very first time.

To make tuning TV stations, please follow stages 3 to 4 as shown "ACMS" (see p.13).

Pr-12

ACMS

A

N NL

CH D E I

P S SF OTHERS

OK

i

RF CHANNEL 36

If the picture is snowy, move to step 5. If the picture is clean, press

POWER

on the DVD+VCR to finish.

5. Press

PROG. (

v or V

)

on the DVD+VCR to set the video channel to a vacant position between 22 and

68 which is not occupied by any local station in your area.

Note:

The RF channel will not change until step 6 has been executed.

6. Press

POWER

to store the new RF video channel into the DVD+VCR memory.

Now tune your TV set to the new DVD+VCR RF channel.

Note

If the TV picture was clear in step 4, do not retune your

TV.

11

Before Operation-VCR part

Setting the clock Manually

The clock in your DVD+VCR controls time and date settings for your DVD+VCR.

The clock is set automatically during

ACMS

(Automatic

Channel Memory System) when your DVD+VCR detects a channel that broadcasts a Teletext signal.

If the broadcast signal is weak the clock will not be set and will require setting manually.

1. Press

i

.

Press b or B to select

SET

.

Press

ENTER/OK

.

The ACSS mode can be set to “OFF” by pressing

ENTER/OK

if you want to set the time manually.

To set the colour system

1. Press

i

.

2. The main menu will appear on the TV screen.

3. Press

1 or

2 to select the

SYS

and press

ENTER/OK

.

4. Press

3 or

4 to select according to the

COLOUR

system used.

1 2

SET SYS

f

OSD

ON

OFF

SYS i

1 2

SET

HH

- -

:

MM

- -

DD

- -

.

MM

- -

.

YY

- - - -

ACSS : ON

OK i

5. Press

2 to select the RF AUDIO.

Press

3 or

4 to select according to the RF AUDIO used.

2. Use the v or V on the remote control to alter the

HOURS, MINUTES, DAY, MONTH

and

YEAR

.

Please note your DVD+VCR uses a 24 hour clock.

e.g. 1pm will be displayed as 13:00.

The day of the week will appear automatically when you enter the year.

1 2

SET

SYS

f

ON

OFF

SYS i

6. Press

i

to remove the menus from the TV screen.

1 2

SET

HH

8 :

MM

00

DD

1 .

MM

01 .

YY

07 MON

OK i

3. If you make a mistake press b or B and enter the correct details.

4. Press

i

to return to a TV picture.

12

Before Operation-VCR part

How to use the main menu

This DVD+VCR can easily be programmed by using the menus displayed on screen.

The menus are controlled by the Remote Control

Handset.

1. Switch on your TV set and DVD+VCR by pressing the

POWER

button.

2. Press

i

button.

The main menu will appear on the TV screen.

Tuning in TV Stations Automatically

If the TV broadcast signal is weak your DVD+VCR may not detect the necessary information and will not be able to store them correctly. To overcome this problem please turn to the MANUAL TUNING section on page 14.

1. Press

POWER

to turn on your DVD+VCR.

2. Press

i

button.

The main menu will appear on the TV screen.

Press

1 or

2 to select the

ACMS

.

Press

ENTER/OK

.

1 2

SET SYS

f

ON

OFF

REC -

Timer recording setting (see p. 22).

PR SET -

Manual tuning setting (see p. 14).

ACMS -

ACMS (Automatic Channel Memory

System) (see p. 13).

SET -

Date & clock setting (see p. 12).

SYS -

To set the Colour TV System (see p. 12).

1 W ON/OFF -

Power Save Mode (see p. 25).

(Dr.) -

To check a problem with your VCR

(see p. 25).

F.OSD ON/OFF -

To display the operational mode of your VCR

(see p. 24).

(16:9/4:3) -

To select the aspect ratio of your

TV (see p. 25).

DECODER -

To use a pay-TV decoder

(or Satellite) with your VCR

(see p. 24).

(OPR) -

To improve the playback picture

(see p. 20).

Appear when playback only.

Tip

You can change the menu language on the DVD setup menu. (See the Menu Language on page 17.)

3. Press

1 and

2 to select the desired menu.

Press

ENTER/OK

and use

3 or

4 to select.

4. Press

i

to return to a TV picture.

f

OSD

ON

OFF

Pr-12

ACMS

1 2

SET

SYS

Pr-12

ACMS

OK

i

01

02

03

C02

C03

C04

Pr-12

ACMS

A

N NL

CH D E I

P S SF OTHERS

OK

i

3. Select the country according to your area with

1 or

2

.

A:A

ustria,

B:B

elgium,

CH:S

witzerland,

D:G

ermany,

DK:D

enmark,

E:S

pain,

F:F

rance,

I:I

taly,

N:N

orway,

NL:N

etherlands,

P:P

ortugal,

S:S

weden,

SF:F

inland,

“OTHERS”

4. Press

ENTER/OK

to start the automatic storing of the channels of the TV stations in your area.

00

00

00

ARD

ZDE

WDR 3

Pr-12

ACMS

S E i

5. The

TV STATION TABLE

will appear when tuning is completed.

Press

i

to save your settings.

01

02

03

04

05

06

07

08

C02

C03

C04

C05

C06

C07

C08

C09

00

00

00

00

00

00

00

00

MOVE :

DELETE :

ARD

ZDE

WDR 3

BR3

HR3

N 3

NDR3

SWF3

,

OK

i

Notes:

The DVD+VCR’s clock will be set automatically when automatic tuning has finished. If the clock is wrong please see “Setting the clock Manually” on page 12.

13

Before Operation-VCR part

Tuning in TV Stations Manually

In certain areas of the country broadcast signals may be too weak for your DVD+VCR’s automatic tuning process to find or assign TV stations correctly.

You must tune in these weaker broadcast stations manually in order for your DVD+VCR to store them.

1. Press

i

.

The main menu will appear on the TV screen.

Press

1 or

2 to select the

PR SET

.

Press

ENTER/OK

.

PR

04

CH

C04

MFT

00

STATION

CHANNEL/CABLE : AV

6. Press

2 to select

STATION

so that you may name your TV station.

Press

ENTER/OK

.

7. Use

3 or

4 to select

letters

and

numbers

for the station name.

Use

1 or

2 to move back and forth between characters.

Press

ENTER/OK

.

f

OSD

ON

OFF

Pr-12

ACMS

1 2

SET SYS

PR

04

CH

C04

MFT

00

STATION

-

PR

01

CH

C03

MFT

00

STATION

PR-03

CHANNEL/CABLE : AV i

2. Press

i

.

The station table will appear.

3. Press

3 or

4 to select the programme number that you want to tune (for example, PR 04).

PR

04

CH

C04

MFT

00

STATION

PR-04

OK

i

8. Press

i

, confirm the station placement.

01

02

03

04

05

06

07

08

C01

C02

C03

- -

- -

- -

- -

- -

00

00

00

- -

- -

- -

- -

- -

MOVE :

DELETE :

PR-01

PR-02

PR-03

- - - - -

- - - - -

- - - - -

- - - - -

- - - - -

,

OK

i

4. Press

ENTER/OK

.

Press

AV

to select

C

(Standard stations) or

S

(Cable stations):

C02 - C69, S01 - S41.

Enter the channel number of station that you want to tune, use

3 or

4 to find the required station.

OK

i

If you wish to manually tune other stations repeat stages

3 - 8.

05

06

07

08

01

02

03

04

- -

- -

- -

- -

C01

C02

C03

C04

- -

- -

- -

- -

00

00

00

00

MOVE :

DELETE :

PR-01

PR-02

PR-03

PR-04

- - - - -

- - - - -

- - - - -

- - - - -

,

OK

i

9. Press

i

again.

Your new TV station has now been tuned into your

DVD+VCR.

PR

04

CH

C - -

MFT STATION

- - - - - -

CHANNEL/CABLE : AV i

5. Searching will stop when it locates a stations.

Press

2 to select

MFT.

Control the fine tuning of the station by using

3 or

4

.

14

Before Operation-VCR part

Changing the order of TV Stations

After tuning TV stations into your DVD+VCR you may wish to change the order in which they are stored without having to retune them again. The instructions given on this page will show you how you can simply move them into your desired order.

1. Press

i

.

The main menu will appear on the TV screen.

Press

1 or

2 to select the

PR SET

.

Press

ENTER/OK

.

Deleting TV Stations

After tuning TV stations into your DVD+VCR you may wish to delete a station.

The instructions given on this page will show you how you can easily delete any unwanted TV stations.

1. Press

i

.

The main menu will appear on the TV screen.

Use

1 or

2 to select the

PR SET

.

Press

ENTER/OK

.

PR

01

CH

C03

MFT

00

STATION

PR-03

Pr-12

ACMS

1 2

SET SYS

f

ON

OFF

CHANNEL/CABLE : AV i

2. Press

i

.

Press

3 or

4 to select the

programme number

you want to move (for example, PR-03).

Press

2

.

PR

01

CH

C03

MFT

00

STATION

PR-03

Pr-12

ACMS

1 2

SET SYS

f

ON

OFF

CHANNEL/CABLE : AV i

2. Press

i

.

3. Press

3 or

4 to select the

programme number

you want to delete. (for example, PR-01)

01

02

03

04

05

06

07

08

C01

C02

C03

C04

- -

- -

- -

- -

00

00

00

00

- -

- -

- -

- -

MOVE :

DELETE :

PR-01

PR-02

PR-03

PR-04

- - - - -

- - - - -

- - - - -

- - - - -

,

OK

i

05

06

07

08

01

02

03

04

- -

- -

- -

- -

C01

C02

C03

C04

- -

- -

- -

- -

00

00

00

00

3. Press

3 or

4 to select the

programme number

you want to move to (for example, PR-05).

05

06

07

08

01

02

03

04

C01

C02

C04

- -

C03

- -

- -

- -

00

- -

- -

- -

00

00

00

- -

PR-01

PR-02

PR-04

- - - - -

PR-03

- - - - -

- - - - -

- - - - -

OK

i

PR-01

PR-02

PR-03

PR-04

- - - - -

- - - - -

- - - - -

- - - - -

OK

i

4. Press

ENTER/OK

.

The selected

programme

will be moved to

the new programme number

.

If you wish to move other TV stations repeat stages

1 - 4.

01

02

03

04

05

06

07

08

C01

C02

C04

- -

C03

- -

- -

- -

- -

- -

- -

00

00

00

- -

00

MOVE :

DELETE :

PR-01

PR-02

PR-04

- - - - -

PR-03

- - - - -

- - - - -

- - - - -

,

OK

i

5. Press

i

to remove the menus from the TV screen.

05

06

07

08

01

02

03

04

C01

C02

C04

- -

C03

- -

- -

- -

00

- -

- -

- -

00

00

00

- -

MOVE :

DELETE :

PR-01

PR-02

PR-04

- - - - -

PR-03

- - - - -

- - - - -

- - - - -

,

OK

i

4. Press

1

.

After a short while, the selected station will be deleted.

If you wish to delete other TV stations repeat stages

3 - 4

.

01

02

03

04

05

06

07

08

C01

C02

- -

C03

- -

- -

- -

- -

00

00

- -

00

- -

- -

- -

- -

MOVE :

DELETE :

PR-02

PR-04

- - - - -

PR-03

- - - - -

- - - - -

- - - - -

- - - - -

,

OK

i

5. Press

i

to remove the menus from the TV screen.

15

Before Operation-DVD part

Displaying Disc Information on-screen

You can display various information about the disc loaded on-screen.

1. Press DISPLAY to show various playback information.

The items displayed differ depending on the disc type or playing status.

Initial Settings

By using the DVD Setup menu, you can make various adjustments to items such as picture and sound. You can also set a language for the subtitles and the Setup menu, among other things. For details on each Setup menu item, see pages 16 to 19.

To display and exit the Menu:

Press SETUP to display the menu. A second press of

SETUP will take you back to initial screen.

To go to the next level:

Press B on the remote control.

To go back to the previous level:

Press b on the remote control.

General Operation

1. Press DVD on the remote control.

2. You can select an item by pressing v / V and change or select the setting by pressing b / B .

Title (Track) – Current title (or track) number/total number of titles (or tracks)

Chapter – Current chapter number/total number of chapters

Time – Elapsed playing time

Audio – Selected audio language or channel

Subtitle – Selected subtitle

Angle – Selected angle/total number of angles

Note:

If no button is pressed for a few seconds, the on-screen display disappears.

2. Press SETUP.

The Setup menu appears.

3. Use v / V to select the desired option then press B to move to the second level.

The screen shows the current setting for the selected item, as well as alternate setting(s).

4. Use v / V to select the second desired option then press B to move to the third level.

5. Use v / V to select the desired setting then press

ENTER/OK to confirm your selection.

Some items require additional steps.

6. Press SETUP or N exit the Setup menu.

16

Before Operation-DVD part

LANGUAGE

Progressive Scan

Progressive Scan Video provides the highest quality pictures with less flickering.

If you are using the Component Video jacks for connection to a TV or monitor that is compatible with a progressive scan signal, set Progressive Scan to On.

To turn On progressive scan:

Connect component out of this unit to the input of your monitor/television, set your television or monitor to

Component Input.

1. Select “Progressive Scan” on the DISPLAY menu then press B .

Menu Language

Select a language for the VCR and DVD’s setup menu and information display.

Disc Audio / Subtitle / Menu

DVD

Select the language you prefer for the audio track

(disc audio), subtitles, and the disc menu.

Original

: Refers to the original language in which the disc was recorded.

Other

: To select another language, press number buttons then ENTER/OK to enter the corresponding

4-digit number according to the language code list in the reference chapter (see page 35). If you enter the wrong language code, press CLEAR.

DISPLAY

2. Select “On” using the v / V buttons.

3. Pressing ENTER/OK will set this unit to Progressive scan mode.

TV Output Select

Set this unit TV Output Select options according to the

TV connection type.

YPbPr:

When your TV is connected with the

COMPONENT/PROGRESSIVE SCAN VIDEO OUT jacks on this unit.

RGB:

When your TV is connected with the SCART

(RGB signal) jack.

TV Aspect

DVD

4:3 :

Select when a standard 4:3 TV is connected.

16:9 :

Select when a 16:9 wide TV is connected.

Display Mode

DVD

Display Mode setting works only when the TV Aspect mode is set to “4:3”.

Letterbox:

Displays a wide picture with bands on the upper and lower portions of the screen.

Panscan:

Automatically displays the wide picture on the entire screen and cuts off the portions that do not fit.

17

Before Operation-DVD part

AUDIO

Each DVD disc has a variety of audio output options.

Set this unit’s AUDIO options according to the type of audio system you use.

LOCK (Parental Control)

AT

Dolby Digital / DTS / MPEG

DVD DivX

Bitstream:

Select “Bitstream” if you connect the

DVD+VCR’s DIGITAL AUDIO OUT jack to an amplifier or other equipment with a Dolby Digital, DTS or

MPEG decoder.

PCM (for Dolby Digital / MPEG):

Select when connected to a two-channel digital stereo amplifier.

DVDs encoded in Dolby Digital or MPEG will be automatically downmixed to two-channel PCM audio.

Off (for DTS):

If you select “Off”, the DTS signal is not output through the DIGITAL AUDIO OUT jack.

Sample Freq. (Frequency)

DVD

If your receiver or amplifier is NOT capable of handling

96 kHz signals, select 48 kHz. When this choice is made, this unit automatically converts any 96 kHz signals to 48 kHz so your system can decode them.

If your receiver or amplifier is capable of handling 96 kHz signals, select 96 kHz. When this choice is made, this unit passes each type of signal through without any further processing.

Check the documentation for your amplifier to verify its capabilities.

DRC (Dynamic Range Control)

DVD

With the DVD format, you can hear a program’s soundtrack in the most accurate and realistic presentation possible, thanks to digital audio technology. However, you may wish to compress the dynamic range of the audio output (the difference between the loudest sounds and the quietest ones). This allows you to listen to a movie at a lower volume without losing clarity of sound.

Set DRC to On for this effect.

Rating

Blocks playback of rated DVDs based on their content.

Not all discs are rated.

1. Select “Rating” on the LOCK menu then press B .

2. To access the LOCK options, you must input the password you have created. If you have not yet entered password, you are prompted to do so.

Input a password and press ENTER/OK. Enter it again and press ENTER/OK to verify. If you make a mistake before pressing ENTER/OK, press CLEAR.

3. Select a rating from 1 to 8 using the v / V buttons.

Rating 1-8:

Rating one (1) has the most restrictions and rating eight (8) is the least restrictive.

Unlock:

If you select unlock, parental control is not active and the disc plays in full.

4. Press ENTER/OK to confirm your rating selection, then press SETUP to exit the menu.

Password

You can enter or change password.

1. Select Password on the LOCK menu then press B .

2. Follow step 2 as shown above (Rating).

To change the password, press ENTER/OK when the

“Change” option is highlighted. Input a password and press ENTER/OK. Enter it again and press

ENTER/OK to verify.

3. Press SETUP to exit the menu.

If you forget your password

If you forget your password, you can clear it using the following steps:

1. Press SETUP to display the Setup menu.

2. Input the 6-digit number “210499” and press

ENTER/OK. The password is cleared.

Vocal

DVD

Set to On only when a multi-channel karaoke DVD is playing. The karaoke channels on the disc mix into normal stereo sound.

18

Before Operation - DVD part

Area Code

DVD

Enter the Area Code whose standards were used to rate the DVD video disc, based on the list in the reference chapter (see page 35).

1. Select “Area Code” on the LOCK menu then press

B .

2. Follow step 2 as shown left (Rating).

3. Select the first character using v / V buttons.

4. Press

B and select the second character using v / V buttons.

5. Press ENTER/OK to confirm your area code selection.

OTHERS

The Divx(R) settings can be

changed.

changed.

.

.

DivX(R) VOD

We provide you the DivX® VOD (Video On Demand) registration code that allows you to rent and purchase videos using the DivX® VOD service. For more information, visit www.divx.com/vod.

1. Select “DivX(R) VOD” option then press B .

2. Press ENTER/OK while “Select” is selected and the registration code will appear.

Use the registration code to purchase or rent the videos from DivX® VOD service at www.divx.com/vod. Follow the instructions and download the video onto a disc for playback on this unit.

3. Press ENTER/OK to exit.

Note:

All the downloaded videos from DivX® VOD can only be played back on this unit.

19

Operation with tape

Playing a tape

You will only be able to load and eject video cassettes when your DVD+VCR is plugged into the mains.

Your DVD+VCR may also playback recordings from

NTSC tapes (on PAL TV).

Getting a better picture

When a cassette is inserted and playback started, the automatic tracking function works to get the best possible picture automatically. If the quality of the recording is poor, repeatedly press

3 or

4 on the remote control to manually adjust the tracking until any distortions have been removed.

1. Make sure that you have correctly connected your

DVD+VCR as described earlier in this book.

Turn on your TV.

Press

POWER

to turn on your DVD+VCR.

Insert the video cassette into your DVD+VCR.

The video cassette should have the window side facing up and the arrow facing away from you.

2. Press

N to start playing your tape.

If you load a video cassette which has had its record protection tab removed, playback of the cassette will start automatically.

AUTO TRACKING

Your DVD+VCR will automatically adjust the tracking to give the best picture quality.

3. Press

PAUSE/STEP

to still a picture.

Press

PAUSE/STEP

repeatedly to advance the tape frame by frame.

If you press

FORWARD

, the picture will be slowed down at about 1/19 times the normal playback.

Tapes can be paused for up to 5 minutes. After 5 minutes your DVD+VCR will stop the tape to prevent damaging the tape or your DVD+VCR .

Still picture quality can be improved slightly by using v or V .

4. Press N to continue playing your tape.

Double speed playback

Press the " N " button during normal playback. The tape will play back at double speed and without sound.

Press the "

N

" button to return to playback at normal speed

Picture search:

During playing back press either

BACKWARD

or

FORWARD

to this will enable you to rapidly wind the tape see where you are on the tape.

Logic search:

During fast forwarding or rewinding press and hold m or M the picture will be played back at 7 times normal playback speed.

5.

Slow motion playback

,

Shuttle :

During playing back or still picture press F or G .

You can reach the following playback speeds.

(REV, PB 5-, PB 1-, Still, SLW, PLAY, 2PLY, CUE)

To switch off the slow motion and shuttle, press the desired function.

During slow motion and shuttle, the noise bars may appear on the picture according to the status of tape.

If distortions can be seen in the picture, reduce them with v or V .

6. Press

STOP

to end playback.

Press

EJECT

.

If the end of the tape is reached, your DVD+VCR will stop playback automatically, rewind, stop, eject the tape.

CM (Commercial Message) Skip:

This feature enables you during playback of a tape to skip a commercial break in a few seconds, then resume normal playback.

While tape is playing press

CM SKIP

on the remote control to skip commercial (or another programme material).

Repeatedly press

CM SKIP

to skip:

1 Press 30 seconds

2 Press 60 seconds

3 Press 90 seconds

4 Press 120 seconds

5 Press 150 seconds

6 Press 180 seconds

OPR (Optimum Picture Response)

This feature automatically improves playback picture quality by adjusting your DVD+VCR to the condition of the tape. Please note that the OPR icon ( ) will only appear in play that mode when playing a tape.

1. Press

i.

2. Press b or B to select

(OPR)

.

3. Press

ENTER/OK

.

4. Press

3 or

4 repeatedly to select:

OFF

,

SOFT

or

SHARP

.

Please note you may only set OPR when playing a tape.

5. Press

i

return to screen.

f

ON

OFF

Pr-12

ACMS

1 2

SET

OFF

SOFT

R

20

Operation with tape

Instant Timer Recording (ITR)

Your DVD+VCR allows you to make recordings using a variety of simple methods:

Instant Timer Recording (ITR)

start recording immediately for a set period of time or until the video cassette runs out.

Your DVD+VCR incorporates Long Play (LP) which enables you to record up to twice the amount of time on a video cassette. For example an E-180 will record up to 180 minutes using Standard Play (SP); using LP you will be able to record up to 360 minutes. Please note there will be a slight loss in picture and sound quality when using LP.

1. Make sure that you have correctly connected your

DVD+VCR as described earlier in this book.

Press

POWER

to turn on your DVD+VCR.

2. Insert a video cassette with protection tab into your

DVD+VCR.

The video cassette should have the window side facing up and the arrow facing away from you.

3. Press

3 or

4 to select the

programme number

you wish to record.

You may also directly select programme number using the

numbered buttons

on the remote control.

4. If you wish to record directly from the SCART or

RCA jacks, repeatedly press AV until the socket you wish to record from is displayed.

AV 1

for recording from EURO AV1 SCART jacks on the rear of your unit.

AV 2

for recording from EURO AV2 DECODER jacks on the rear of your unit.

AV 3

for recording from VIDEO IN and AUDIO IN

(Left & Right) jacks on the front of your unit.

5. Press LP if you wish to record in Long Play or

Standard Play.

SP will produce improved picture and sound quality, however LP will provide twice as much recording time as SP.

6. Press

REC/ITR

on the remote to start recording.

Press

REC/ITR

on the remote several times.

Each successive press will increase the record time by 30 minutes until you reach a maximum of 9 hours.

7. Press

PAUSE/STEP

to avoid recording unwanted scenes.

Press

PAUSE/STEP

to continue recording.

Tapes can be paused for up to 5 minutes; RECP will be displayed when a tape is paused. After 5 minutes your DVD+VCR will stop recording to prevent damaging the tape or your DVD+VCR.

8. Press

STOP

to end recording.

Press

EJECT

.

Notes:

If you do not wish to record on a tape (this can happen quite easily by accident!) remove the protection tab on the back edge of the video cassette.

It is possible to record on a video cassette with the record protection tab removed by covering the hole with self adhesive tape.

Remember you can record one programme while watching another by starting your instant recording, press

TV/VCR

to select

TV

mode and then selecting a different channel on your TV.

21

S

Operation with tape

HOW

V

IEW

Programming

ShowView greatly simplifies entering the date, channel, start and end times of a Timer Recording by simply entering a ShowView Code. ShowView Codes are published in most TV guide magazines; they can vary one to nine numbers in length.

1. Make sure that TV channels have been tuned and stored in correct

S

HOW

V

IEW order.

Insert a video cassette with protection tab into your

DVD+VCR.

2. Press

S

HOW

V

IEW

.

SHOWVIEW NO.

- - - - - - - -

REC

0~9,

OK

i

3. Press the

numbered buttons

to enter the

ShowView Code

of the TV programme that you wish to record. If you make a mistake press F then enter the revised number.

SHOWVIEW NO.

24687654 3

DELETE :

0~9,

OK

i

REC

4. Press

ENTER/OK

.

If

PLEASE CHECK

is displayed it means that you have entered the wrong ShowView number, entered the ShowView number incorrectly.

If “

- -

” is displayed, you have to enter the programme number of the station, you want to record from.

- -

- -

- -

- -

PR DATE

PR-01 12

- -

- -

- -

- -

- -

- -

- -

- -

10 :

TIME

: SP

SP

SP

SP

SP

SP

SP i

5. Press F or G to select the settings that you wish to revise. (PR, DATE, TIME, VPS and SP).

Press

D or

E to enter the correct information.

- -

- -

- -

- -

PR DATE

PR-01 12

- -

- -

- -

- -

- -

- -

- -

- -

TIME

10 : 11 11 : 55 SP

SP

SP

SP

SP

SP

SP i

6.

Press G and press D or E to switch VPS/PDC on or off. Press G to select the recording speed.

Press D or E to select the desired tape speed (SP,

IP, or LP).

IP mode determines how much tape is left and switches speed from SP to LP, if necessary, to complete recording the program.

IP mode is not selected when VPS/PDC is ON.

Check that the timer event details are correct.

If you wish to record from AUDIO IN and VIDEO IN on the front or from either of the EURO SCART sockets on the back of VCR, press AV to select for correct display (AV1, AV2 or AV3).

PR DATE

PR-01 12

- -

- -

- -

- -

- -

- -

- -

- -

- -

- -

- -

- -

TIME

10 : 11 11 : 55 SP

SP

SP

SP

SP

SP

SP i

7. If you want to make another ShowView recording repeat stages

2 - 6

. Press

i

twice.

If

PLEASE CHECK

is displayed, you have entered incorrect information and will need to re-enter the data.

Press

POWER

to switch your VCR power off mode.

Note:

The 1W Mode is not available in the standby mode for the timer recording.

will appear in the video recorder’s display while your VCR waits to make the recording.

To watch a DVD during timer recording standby mode, press

POWER

and DVD to switch to DVD mode.

8. Press

POWER

to end recording

Notes:

Video Programme System (VPS)

The Video Programme System (VPS) ensures that the TV programmes that you have programmed for timer recording will be recorded exactly from their beginning to end, even if the actual broadcasting time differs from the scheduled time due to delayed start, or if the programme is extended beyond its scheduled time. Also, if a programme is interrupted, for example, if a news flash is inserted, the recording will also be interrupted automatically and resumed when the programme continues.

The VPS signal is broadcast by the TV station and this controls the timer in the video recorder.

VPS should be set ON for all timer recordings from

TV stations broadcasting these signals. It should be set OFF for all timer recordings from TV stations that are not broadcasting these signals.

*** The similar system PDC, which is used in the time being in the Netherlands, can also be used with your new video recorder.

22

Operation with tape

Timer recording using On Screen

Display

You may set up to seven timer record events within one month of the current date.

Note:

Before setting the timer make sure that you have set the

DVD+VCR clock correctly and you know which stations you have tuned TV stations on your DVD+VCR.

PR

PR-03

- -

- -

DATE

3

- -

- -

T I M E

SP

SP

SP

- -

- -

- -

- -

SP

SP

- - SP

- - SP

DLY SU MO TU WE TH FR SA

OK i

6. Use v / V /

1

/

2 buttons to enter the recording start and end times of the programme that you wish to record.

Please note your DVD+VCR uses a 24 hour clock.

e.g. 1pm will be displayed as 13:00.

1. Insert a video cassette with protection tab into your

DVD+VCR.

The video cassette should have the window side facing up and the arrow facing away from you.

2. Press

i

.

Press

1 or

2 to select

REC ( )

.

Press

ENTER/OK

.

PR

- -

- -

- -

- -

- -

- -

- -

DATE

- -

- -

- -

- -

- -

- -

- -

T I M E

DELETE: ,

SP

SP

SP

SP

SP

SP

SP

OK i

PR

PR-03

- -

- -

- -

- -

- -

- -

DATE

4

- -

- -

- -

- -

- -

- -

T I M E

: : 30 SP

SP

SP

SP

SP

SP

SP i

7. Press B and press v or V to switch VPS/PDC on or off.

T I M E

: : 30 SP

SP

SP

SP

SP

SP

SP i

3. Press

ENTER/OK

to start setting the timer record event.

4. Use the PR/TRK ( v / V ) to enter the station that you wish to record then press

2

.

PR

PR-03

- -

- -

- -

- -

- -

- -

DATE

- -

- -

- -

- -

- -

- -

- -

T I M E

SP

SP

SP

SP

SP

SP

SP i

8. Press B to select the recording speed.

Press v or

V to select the desired tape speed (SP,

IP, or LP).

IP mode determines how much tape is left and switches speed from SP to LP, if necessary, to complete recording the program. IP mode is not selected when VPS/PDC is ON.

PR

PR-03

- -

- -

- -

- -

- -

- -

DATE

4

- -

- -

- -

- -

- -

- -

T I M E

: : 30

SP

SP

SP

SP

SP

SP

SP i

Note:

If all timer record events are full press v or V to select the event that you wish to remove and replace.

Press b to delete the event.

5. Use the PR/TRK ( v / V ) to enter the date of the programme.

If you press

ENTER/OK

before entering the date you may select one of the following automated recording features.

Press

1 or

2 to select, then press

ENTER/OK

to confirm.

DLY

To record every day (except Saturday and

Sunday) at the same time.

SU~SA

To record at the same time every week.

23

Operation with tape

Timer recording using On Screen

Display (Continued)

9. Press

i

to set another timer record event and follow steps 3 to 8.

Check that the timer event details are correct.

Press

i

return to screen.

If

PLEASE CHECK

is displayed, you have entered incorrectly and will need to re-enter the data.

10. Press

POWER

to switch your DVD+VCR to Timer

Standby mode.

Note:

The 1W Mode is not available in the standby mode for the timer recording.

The timer symbol ( ) will appear in the display window while your DVD+VCR waits to make the recording.

11. Press

POWER

to end timer recording.

Notes:

The DVD+VCR will automatically power off when

Timer Recording ends.

During timer recording standby mode, the DVD and

VCR mode cannot be operated. To use the

DVD+VCR, press

POWER

. After you use the DVD or

VCR, press

POWER

again to put the VCR into timer recording standby mode.

If at a later date you wish to

delete

or

change

any of the settings in timer event memory you may do so without having to enter all the timer event information again. Simply display the timer event screen. Use v or V to select the event that you wish to

delete

or

change

.

Press b to delete the event...or

Press

ENTER/OK

to change; then press b or B to select; Station, Date, Start and End times and recording speed. Press v or V to enter the correct information.

If Timer record events Overlap...

Make sure that the preset times of the timer recording events do not overlap. If they do, the earlier programme will always be given priority.

Example:

Programme 1 is programmed to start at 16:00 and end at 17:00.

Programme 2 is programmed to start at 16:30 and end at 17:30.

(In this case, Programme 1 will be recorded in its entirety, but only the last 30 minutes of Programme 2 will be recorded.)

To watch a DVD while performing a timer recording, press

DVD

to select DVD mode.

24

Additional Operation - VCR part

Hi-Fi Stereo Sound System Tape Counter Memory Stop

This allows you to record and playback the sound in several different ways. Video cassettes recorded on your

DVD+VCR will have a normal mono audio track and two

V ideo tape

Hi-Fi stereo audio tracks. These stereo tracks allow you to make audio recordings in Hi-Fi stereo or bilingual mode from a TV broadcast, stereo audio system, video disc or another Hi-Fi VCR.

The

Digital Tape Counter

can be displayed on the display window instead of the time by pressing

CLK/CNT

on the remote control. The Digital Tape Counter indicates the relative positions of recordings on the tape.

1. Your VCR’s allows you to enjoy broadcasts with standard stereo, bilingual and mono sound. The particular type of sound received or that recorded will be briefly displayed on the TV screen for a couple of seconds:

STEREO

Sound is automatically recorded on the Hi-Fi stereo and mono tracks of the video tape.

BIL

Both audio channels will be recorded on the Hi-Fi stereo tracks. The primary language channel (left) will be recorded on the mono track of the video tape.

MONO

The sound is recorded on the Hi-Fi tracks and the mono track of the video tape without any separation.

2. Press

AUDIO

repeatedly until the desired audio mode appears.

3. The choice is

STEREO

,

LEFT

,

RIGHT

and

MONO

.

In

BIL

playback the primary language is output on the left channel and the secondary channel is output simultaneously from the right channel when audio output is set to

STEREO

.

The primary language will be output from both channels when the audio setting is

MONO

.

Please note that when adjusting the tracking control

Hi-Fi stereo sound may revert to

MONO

.

1. Press

CLK/CNT

.

Press

CLEAR

to set the counter to 0:00:00.

Press N or start recording.

The tape counter will display the actual play time in hours, minutes and seconds.

2. Press x when playback or recording is complete.

Press m .

The tape will rewind and automatically stop when the counter returns to 0:00:00.

We have already described, how to connect a decoder for pay-TV station as CANAL+ or PREMIERE on page

9. For the recording of an encoded station you do not have to control anything. You just select the station and wait shortly until the decoding will start.

1. Press

Press

Press

i

.

The main menu will appear on the TV screen.

F or G to select the

ENTER/OK

.

2. Press D or E to select.

DECODER

3. Press

i

to return to a TV picture.

.

ON

: When the decoder is connected to the AV2 socket.

OFF

: When another VCR is connected to the AV2 socket.

On Screen Display (F.OSD)

To set the decoder

You may easily display the current time or tape counter, amount of tape left, day, month, year, day of week, programme channel, tape speed and operational mode of your DVD+VCR on the TV screen. If a recording is taking place these On Screen Displays will not be recorded onto the tape.

1. Press

CLK/CNT

to display.

Press

CLK/CNT

repeatedly to cycle through the display options. The tape counter and amount of tape left will appear if there is a tape loaded.

2. After 3 seconds the majority of the On Screen

Displays will clear leaving only the clock or tape counter and the amount of tape left on the screen.

Press

CLK/CNT

again to remove all displays from the TV screen.

25

Additional Operation - VCR part

Video Doctor (Self-Diagnosis)

This feature informs you that there is a problem with your

DVD+VCR. These error messages will appear on the TV screen.

1. Press

i

.

Press

1 or

2 to select .

Press

ENTER/OK

.

Pr-12

ACMS

1 2

SET SYS

ANTENNA CONNECT

HEAD STATUS

TAPE STATUS

NO. OF TIMER PROGRAMME

NEXT TIMER PROGRAMME

PLEASE CHECK

f

OSD

ON

OFF

2. Press

3 or

4 to check a problem.

ANTENNA CONNECT

O

PLEASE CHECK:

Connect the aerial into the jack securely.

HEAD STATUS

O

PLEASE CLEAN:

Clean your video heads.

TAPE STATUS

O

NOT RECORDABLE:

Insert a tape with its protection tab in place

NO. OF TIMER PROGRAMME

O

2

Shows the number of timer recording.

NEXT TIMER PROGRAMME

O

PR-01 26 10:00~11:00 SP

Shows the current status of timer recording.

3. Press

i

to remove the menus from the TV screen.

i

Lock (Child Lock)

The control buttons on the front of the unit can be switched off so that your unit can only be operated using the remote control.

1. Press

LOCK

.

and

SAFE

will appear in the display window.

None of the buttons on the front of your unit will work.

If any buttons on the front of your unit are pressed

SAFE

will flicker in the display window for a few seconds.

2. Press

LOCK

again to switch off the child lock.

OFF

will appear in the display window.

Wide Screen Compatibility 16:9

Your DVD+VCR can record and play back wide screen aspect ratio programmes (16:9). To record a wide screen format programme successfully the correct type of wide screen signal must be broadcast by the TV station.

1. Switch on your DVD+VCR.

Press

i

.

Press F or G to select .

Press

ENTER/OK

.

f

ON

OFF

Pr-12

ACMS

1 2

SET SYS

f

ON

OFF

Pr-12

ACMS

1 2

AUTO

SYS

4:3

16:9

i

2. Press v/V repeatedly to select:

AUTO, 4:3

or

16:9

.

AUTO (Playback mode only)

Automatically plays back Wide-Screen programmes as Wide-Screen and Normal programmes as normal.

4:3

Only for playing back and recording Normal format recordings (4:3).

16:9:

Only for playing back and recording Wide-Screen format recordings (16:9).

3. Press

i

to remove the menus from the TV screen.

To enjoy Wide-Screen playback you must connect your VCR to the TV using a SCART cable.

1W Mode (Power save Mode)

Set 1W ON/OFF to ON to place your DVD+VCR into an economic power save mode.

Nothing is displayed in the display window.

1 Press

i

.

The main menu will appear on the TV screen.

Press F or G to select the

1W ON/OFF

.

Press

ENTER/OK

.

2. Press D or E to select the ON.

3 Press

i

.

Notes:

Some function may not be operated in the 1W Mode.

The 1W Mode is not available in the standby mode for the timer recording and when turn Power off of the

DVD+VCR after receiving the encoded television signals (CANAL+ or PREMIERE).

The encoded television signals (CANAL+ or PRE-

MIERE) are not decoded in the 1W Mode.

26

Additional Operation - VCR part

Recording from External Components

You can record from an external component, such as a camcorder or VCR, connected to any of the DVD+VCR’s external inputs.

1. Make sure that the component you want to record from is connected properly to the DVD+VCR.

2. Press AV repeatedly to select the external input to record from.

AV 1

for recording from EURO AV1 SCART jacks on the rear of your unit.

AV 2

for recording from EURO AV2 DECODER jacks on the rear of your unit.

AV 3

for recording from VIDEO IN and AUDIO IN

(Left & Right) jacks on the front of your unit.

3. Load a recordable tape.

4. Set a recording mode (SP or LP) as necessary by pressing LP repeatedly.

5. Play the tape or disc in the external component. If you have a TV attached to your DVD+VCR, you can see the video playing.

6. Press REC/ITR on the Remote Control once to start recording.

The REC indicator lights in the display window.

7. Press STOP to stop recording.

Notes:

• Before recording, confirm the recording start position.

• If your source is copy-protected using CopyGuard, you will not be able to record it using this unit. See

Copyright on page 5 for more details.

• To record for a fixed length of time, see Instant

Timer Recording.

Copying from DVD to VCR

You can copy the contents of a DVD to a V ideo

tape.

1. Insert the disc you wish to copy into the DVD deck and close the disc tray.

2. Insert a blank video tape into the VCR deck.

3. Find the place on the DVD from which you want to start dubbing using the N , BACKWARD,

FORWARD and PAUSE functions.

For best results, pause playback at the point from which you want to record.

4. Press REC/ITR on the Remote Control.

The DVD goes into PLAY mode and the VCR goes into RECORD mode. If the DVD disc menu appears, you may need to press N manually to begin copying.

5. When the DVD is finished playing, press STOP to end copying.

Notes:

• If the DVD you are attempting to copy is copy protected, you will not be able to copy the disc.

It is not permitted to copy Macrovision encoded

DVDs (or Discs). “LOCK” is displayed in the display window.

• You must stop the copy process manually when the

DVD movie ends, or the unit may replay and record over and over again.

• When you stop the DVD playback during copying, the recording on VCR is stopped automatically.

27

General Playback features - DVD Part

Buttons Operations

Z (OPEN / CLOSE) Opens or closes the disc tray.

X (PAUSE) During playback, press X to pause playback.

.

/ >

Press X repeatedly to play Frame-by-Frame.

During playback, press .

or > to go to the next chapter/track or to return to the beginning of the current chapter/track.

m

A-B

/

REPEAT

ZOOM

RANDOM

TITLE

M

DISC MENU

Press .

twice briefly to step back to the previous chapter/track.

During playback, press m or M repeatedly to select the required scan speed.

DVD, DivX disc; 4 steps

MP3, Audio CD ; 3 steps

While the playback is paused, press M repeatedly to play in slow motion (4 steps).

During playback, press REPEAT repeatedly to select a desired repeat mode.

DVD Video discs: Chapter/Title/Off

Audio CD, DivX/MP3/WMA discs: Track/All/Off

Press the A-B button one at a time to select a point A and point B and repeats a sequence from point A (Starting point) to point B (End point).

During playback or pause mode, press ZOOM to enlarge the video image (4 steps).

You can move through the zoomed picture using b B v V buttons. Press CLEAR to exit.

During playback or in stop mode, press RANDOM for random playback.

If the current DVD title has a menu, the title menu appears on the screen. Otherwise, the disc menu may appears.

The disc menu appears on the screen.

(ANGLE) During playback of DVD disc contains scenes recorded different camera angles, press ANGLE repeatedly to select a desired angle.

(SUBTITLE)

(AUDIO)

During playback, press SUBTITLE repeatedly to select a desired subtitle language.

During playback, press AUDIO repeatedly to hear a different audio language or audio track.

Discs

ALL

ALL

DVD

ALL

DivX

DVD

ACD

DivX

MP3

DVD

ALL

DVD

DVD

DivX

DVD

DivX

DVD

ACD

DIVX

ACD

WMA

DVD

MP3

DVD DivX

DVD DivX

28

Playing a DVD

Notes on general features:

• If you press > once during Repeat Chapter (Track) playback, the repeat playback cancels.

• Zoom may not work on some DVDs.

• When you are playing a DVD disc contains scenes recorded different camera angles, the angle indicator will blink on the TV screen during scenes recorded at different angles as an indication that angle switching is possible

.

• The A-B repeat function is available only in the current chapter/track.

Additional features

Time Search DVD DivX

To start playing at any chosen time on the disc:

1. Press DISPLAY during playback.

2. Press v / V to select the time clock icon and

“--:--:--” appears.

3. Use numerical buttons to input the required start time in hours, minutes, and seconds from left to right. If you enter the wrong numbers, press CLEAR to remove the numbers you entered. Then input the correct numbers.

4. Press ENTER to confirm. Playback starts from the selected time.

Marker Search DVD DivX

To enter a Marker

You can start playback from up to nine memorized points. To enter a marker, press MARKER at the desired point on the disc. The Marker icon appears on the TV screen briefly. Repeat to enter up to nine markers.

To Recall or Clear a Marked Scene

1. During disc playback, press SEARCH. The marker search menu appears on the screen.

2. Within 10 seconds, press b / B to select a marker number that you want to recall or clear.

3. Press ENTER and playback starts from the marked scene. Or, Press CLEAR and the marker number is erased from the list.

4. You can play any marker by inputting its number on the marker search menu.

Last Scene Memory DVD ACD

This player memorizes last scene from the last disc that is viewed. The last scene remains in memory even if you remove the disc from the player or switch off the player. If you load a disc that has the scene memorized, the scene is automatically recalled.

Note:

This player does not memorize the scene of a disc if you switch off the player before commencing to play the disc.

Screen Saver

The screen saver appears when you leave the DVD player in Stop mode for about five minutes.

29

Playing an Audio CD or MP3/WMA file

This unit can play Audio CDs or MP3/WMA files recorded media.

MP3/ WMA/ Audio CD

Once you insert an MP3/WMA files recorded media or

Audio CD, a menu appears on the TV screen.

Press v / V to select a track/file then press PLAY or

ENTER and playback starts. You can use variable playback functions. Refer to page 28-29.

AUDIO CD

0:52:07

List

Track1

Track2

Track3

Track4

Track5

Track6

Track7

Track8

1 / 12

PROGRAM Edit

Program

Clear All

MUSIC

0:00:00

List

1-Music1

2-Music2

3-Music3

4-Music4

5-Music5

6-Music6

7-Music7

1 / 12

DISPLAY Info PROGRAM Edit

Program

Clear All

ID3 TAG

• When playing a file containing information such as track titles, you can see the information by pressing

DISPLAY.

[ Song, Artist, Album, Comment, Genre ]

Tips:

• Press DISC MENU to move to the next page.

• On a CD with MP3/WMA and JPEG you can switch

MP3/WMA and JPEG. Press TITLE and MUSIC or

PHOTO word on top of the menu is highlighted.

MP3 / WMA disc compatibility with this player is limited as follows:

• Sampling frequency: within 8 - 48 kHz (MP3), within

32 - 48kHz (WMA)

• Bit rate: within 8 - 320kbps (MP3),

32 - 384 kbps (WMA)

• The player cannot read an MP3/WMA file that has a file extension other than “.mp3” / “.wma”.

• CD-R physical format should be ISO 9660

• If you record MP3 / WMA files using software that cannot create a file system (eg. Direct-CD) it is impossible to playback MP3 / WMA files. We recommend that you use Easy-CD Creator, which creates an ISO 9660 file system.

• File names should have a maximum of 8 letters and must incorporate an .mp3 or .wma extension.

• They should not contain special letters such as / ?

* : “ < > l etc.

• The total number of files in a folder should be less than 1,000 files.

Programmed Playback

The program function enables you to store your favorite tracks from any disc in the player memory.

A program can contain 30 tracks.

1. Insert an Audio CD or MP3/WMA files recorded media. AUDIO CD or MUSIC menu appears.

2. Press PROGRAM. The

E

mark will appear.

Note:

Press PROGRAM again to exit the program edit mode, then the

E

mark will disappear.

3. Select a track on the “List”, then press ENTER to place the selected track on the “Program” list.

Repeat to place additional tracks on the list.

4. Select the track you want to start playing on the

“Program” list.

5. Press PLAY or ENTER to start. Playback begins in the order in which you programmed the tracks.

Playback stops after all of the tracks on the

“Program” list have played once.

6. To resume normal playback from programmed playback, select a track on the list and then press PLAY.

Repeat Programmed Tracks

Press REPEAT to select a desired repeat mode.

• Track: repeats the current track

• All: repeats all the tracks on the “Program” list.

• Off(No display): does not play repeatedly.

Note:

If you press > once during Repeat Track playback, the repeat playback cancels.

Erasing a Track from “Program” List

1. During STOP mode, press PROGRAM and the

E

mark will appear

2. Use v V b B to select the track that you wish to erase from the Program list.

3. Press CLEAR. Repeat step 1~3 to erase additional tracks on the list.

Erasing the Complete Program List

1. During STOP mode, press PROGRAM and the

E

mark will appear

2. Use v V b B to select “Clear All”, then press

ENTER.

Note:

The programs are also cleared when the power is off or the disc is removed.

30

Viewing a JPEG file

This unit can play JPEG files recorded media.

1. Insert a JPEG files recorded media. The PHOTO menu appears on the TV screen.


Preview

List

Folder 00

Folder 01

Folder 02

Folder 03

Folder 04

01 FILE 01

02 FILE 02

03 FILE 03

/FILE 01

>>>

2. Press v / V to select a folder, and press ENTER. A list of files in the folder appears.

3. If you want to view a particular file, press v / V to highlight a file and press ENTER or PLAY.

4. To return to the PHOTO menu while watching pictures, press STOP.

Tips:

• If you are in a file list and want to return to the previous Folder list, use v / V buttons to highlight press ENTER.

and

• Press DISC MENU to move to the next page.

• There are three Slide Speed options : >>> (Fast),

>> (Normal) and > (Slow).

Use v V b B to highlight . Then, use b / B to select the option you want to use then press ENTER.

• On a disc with MP3/WMA and JPEG you can switch

MP3/WMA and JPEG. Press TITLE and MUSIC or

PHOTO word on top of the menu is highlighted.

• While watching a picture, press RETURN to hide the help menu.

Slide Show

Use v V b B to highlight the (Slide Show) then press ENTER.

Still Picture

1. Press PAUSE/STEP during slide show.

The player will now go into PAUSE mode.

2. To return to the slide show, press PLAY or press

PAUSE/STEP again.

Moving to another File

Press

.

or

> or cursor ( b or

B

) once while viewing a picture to advance to the next or previous file.

Zoom

During watching pictures, press ZOOM to enlarge the video image (4 steps).

You can move through the zoomed picture using b B v

V buttons.

To rotate picture

Press v / V during showing a picture to rotate the picture clockwise or counter clockwise.

To listen to MP3 music watching picture

You can display files while listening to MP3 music files recorded on the same disc.

1. Insert the disc containing the two types of file in the player.

2. Press TITLE to display PHOTO menu.

3. Press v / V to select a photo file.

4. Use B / V to select icon then press ENTER.

Playback starts. The playback will continue until

STOP is pressed.

Tip:

To listen to only the desired music watching picture, programmed the desired tracks from the “MUSIC” menu and then proceed as above

.

JPEG disc compatibility with this player is limited as follows:

• Depending upon the size and number of JPEG files, it could take a long time for this unit to read the disc’s contents. If you do not see an on-screen display after several minutes, some of the files may be too large — reduce the resolution of the JPEG files to less than 5 million pixels and burn another disc.

• The total number of files in a folder should be less than 1,000 files.

• Some discs may be incompatible due to a different recording format or the condition of disc.

• Ensure that all the selected files have the “.jpg” extensions when copying into the CD layout.

• If the files have “.jpe” or “.jpeg” extensions, please rename them as “.jpg” file.

• File names without “.jpg” extension will not be able to be read by this unit. Even though the files are shown as JPEG image files in Windows Explorer.

31

Playing a DivX Movie file

Using this DVD Player you can play DivX file.

1. Insert a DivX file recorded media. The MOVIE menu appears on the TV screen.

MOVIE

0:00:00

List

Movie Folder 1

Movie Folder 2

Movie Folder 3

Movie Folder 4

Movie Folder 5

Movie Folder 6

Movie Folder 7

Movie Folder 8

2. Press v / V to select a folder, and press ENTER. A list of files in the folder appears.

3. If you want to view a particular file, press v / V to highlight a file and press ENTER or PLAY.

You can use variable playback functions. Refer to page 28-29.

4. Press STOP to stop the playback. The Movie menu appears

Tips:

• If you are in a file list and want to return to the previous Folder list, use the v

/

V buttons on the remote to highlight and press ENTER.

• Press DISC MENU to move to the next page.

• On a CD with MP3/WMA, JPEG and MOVIE file, you can switch MUSIC, PHOTO and MOVIE menu. Press

TITLE and MUSIC, PHOTO and MOVIE word on top of the menu is highlighted.

• The picture may not displayed properly while DivX playback. Set your TV system to AUTO or PAL-60 mode to restore the picture, if available.

• The disc subtitle may not be displayed properly, if a

DivX subtitle is downloaded through the internet.

• If the Disc Subtitle setup menu does not have the

DivX subtitle language you are going to play, the subtitle may not be displayed properly.

Notice for displaying the DivX subtitle

If the subtitle does not display properly during playback, press and hold SUBTITLE about 3 seconds then press b / B to select another language code until the subtitle is displayed properly.

DivX disc compatibility with this player is limited as follows:

• Available resolution size of the DivX file is under

720x576 (W x H) pixel.

• The file name of the DivX subtitle is available by

56 characters.

• If there is impossible code to express in the DivX file, it may be displayed as " _ " mark on the display.

• If the number of the screen frame is over 30 per 1 second, this unit may not operate normally.

• If the video and audio structure of recorded file is not interleaved, either video or audio is outputted.

• If the file is recorded with GMC, the unit supports only 1-point of the record level.

* GMC?

GMC is the acronym for Global Motion

Compensation. It is an encoding tool specified in

MPEG4 standard. Some MPEG4 encoders, like

DivX, have this option.

There are different levels of GMC encoding, usually called 1-point, 2-point, or 3-point GMC.

Playable DivX file

.avi, .mpg, .mpeg

Playable Subtitle format

SubRip(*.srt/*.txt)

SAMI(*.smi)

SubStation Alpha(*.ssa/*.txt)

MicroDVD(*.sub/*.txt)

SubViewer 1.0(*.sub)

SubViewer 2.0(*.sub/*.txt)

TMPlayer(*.txt)

Playable Codec format

"DIVX3.xx ", "DIVX4.xx ", "DIVX5.xx ",

"MP43 ", "3IVX ".

32

Playing a DVD VR format Disc

This unit will play DVD-R/RW discs recorded using the

DVD-Video format that have been finalized using a

DVD-recorder.

• This unit will play DVD-RW discs recorded using the

Video Recording (VR) format.

1. Insert a disc and close the tray, It start playing automatically.

2. The DVD-VR menu appears on the TV screen when you press DISC MENU buttons while playing.

DVD-VR

3. Press v / V to select a track then press PLAY or

ENTER and playback starts.

4. Press DISC MENU to move to the list menu.

Note:

• Unfinalized DVD-R/RW discs cannot be played in this player.

• Some DVD-VR disc are made with CPRM data by

DVD RECORDER. Player does not support these kinds of discs

.

What is ‘CPRM’?

CPRM is a copy protection system (with scramble system) only allowing the recording of ‘copy once’ broadcast programs. CPRM stands for Content

Protection for Recordable Media.

33

Additional Operation

Controlling other TVs with the remote control

Maintenance and Service

You can control the sound level, input source, and power switch of your LG TV with the supplied remote control.

You can control the sound level, input source, and power switch of non-LG TVs as well.

If your TV is listed in the table below, set the appropriate manufacturer code.

1. While holding down TV POWER button, press the number buttons to select the manufacturer code for your TV (see the table below).

2. Release TV POWER button.

Code numbers of controllable TVs

If more than one code number is listed, try entering them one at a time until you find the one that works with your TV.

Manufacturer

LG / GoldStar

Zenith

Samsung

Sony

Hitachi

Code Number

1 (Default), 2

1, 3, 4

6, 7

8, 9

4

Note:

• Depending on your TV, some or all buttons may not function on the TV, even after entering the correct manufacturer code.

• If you enter a new code number, the code number previously entered will be erased.

• When you replace the batteries of the remote, the code number you have set may be reset to the default setting. Set the appropriate code number again.

Refer to the information in this chapter before contacting a service technician.

Handling the Unit

When shipping the unit

Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally packed at the factory.

Keeping the exterior surfaces clean

• Do not use volatile liquids such as insecticide spray near the unit.

• Do not leave rubber or plastic products in contact with the unit for a long period of time. since they leave marks on the surface.

Cleaning the unit

To clean the player, use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution.

Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage the surface of the unit.

Maintaining the Unit

The DVD+VCR is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty or worn, the picture quality could be diminished.

Depending on the operating environment, regular inspection and maintenance are recommended after every 1,000 hours of use.

For details, please contact your nearest authorized service center.

34

Language and Area Code List

Language Code List

Use this list to input your desired language for the following initial settings: Disc Audio, Disc Subtitle, Disc Menu.

Language

Abkhazian

Afar

Afrikaans

Albanian

Ameharic

Arabic

Armenian

Assamese

Aymara

Azerbaijani

Bashkir

Basque 6985

Bengali; Bangla 6678

Bhutani 6890

Bihari

Breton

6672

6682

Bulgarian

Burmese

Byelorussian

Cambodian

Catalan

6671

7789

6669

7577

6765

Code

6566

6565

6570

8381

6577

6582

7289

6583

6588

6590

6665

Chinese

Corsican

Croatian

Czech

Danish

Dutch

English

Esperanto

Estonian

Faroese

9072

6779

7282

6783

6865

7876

6978

6979

6984

7079

7265

7387

7273

7285

7383

7378

7365

7165

7384

7465

Code

7074

7073

7082

7089

7176

7565

6869

6976

7576

7178

7185

7487

7578

7583

7575

7589

7579

7585

7679

7665

7686

Language

Fiji

Finnish

French

Frisian

Galician

Georgian

German

Greek

Greenlandic

Guarani

Gujarati

Hausa

Hebrew

Hindi

Hungarian

Icelandic

Indonesian

Interlingua

Irish

Italian

Japanese

Javanese

Kannada

Kashmiri

Kazakh

Kirghiz

Korean

Kurdish

Laothian

Latin

Latvian, Lettish

Language

Lingala

Lithuanian

Macedonian

Malagasy

Malay

Malayalam

Maltese

Maori

Marathi

Moldavian

Mongolian

Nauru

Nepali

Norwegian

Oriya

Panjabi

7865

7869

7879

7982

8065

Pashto, Pushto 8083

Persian 7065

Polish 8076

Portuguese

Quechua

8084

8185

Code

7678

7684

7775

7771

7783

7776

7784

7773

7782

7779

7778

Rhaeto-Romance 8277

Rumanian 8279

Russian 8285

Samoan

Sanskrit

8377

8365

Scots Gaelic

Serbian

7168

8382

Serbo-Croatian 8372

Shona

Sindhi

8378

8368

Language

Singhalese

Slovak

Slovenian

Somali

Spanish

Sudanese

Swahili

Swedish

Tagalog

Tajik

Tamil

Tatar

Telugu

Thai

Tibetan

Tigrinya

Tonga

Turkish

Turkmen

Twi

Ukrainian

Urdu

Uzbek

Vietnamese

Volapük

Welsh

Wolof

Xhosa

Yiddish

Yoruba

Zulu

8484

8469

8472

6679

8473

8479

8482

8475

8487

8575

Code

8373

8375

8376

8379

6983

8385

8387

8386

8476

8471

8465

8582

8590

8673

8679

6789

8779

8872

7473

8979

9085

Area Code List

Choose a area code from this list.

Area

Afghanistan

Argentina

Australia

Austria

Belgium

Bhutan

Bolivia

Brazil

Cambodia

Canada

Chile

China

Colombia

Congo

Costa Rica

Croatia

Czech Republic

Denmark

Ecuador

Egypt

El Salvador

CO

CG

CR

HR

CZ

DK

BO

BR

KH

CA

CL

CN

Code

AF

AR

AU

AT

BE

BT

EC

EG

SV

Area

Ethiopia

Fiji

Finland

France

Germany

Great Britain

Greece

Greenland

Heard and McDonald Islands

Hong Kong

Hungary

India

Indonesia

Israel

Italy

Jamaica

Japan

Kenya

Kuwait

Libya

Luxembourg

ID

IL

IT

JM

JP

KE

GR

GL

HM

HK

HU

IN

Code

ET

FJ

FI

FR

DE

GB

KW

LY

LU

Area

Malaysia

Maldives

Mexico

Monaco

Mongolia

Morocco

Nepal

Netherlands

NP

NL

Netherlands Antilles AN

New Zealand NZ

Nigeria

Norway

NG

NO

Oman

Pakistan

Panama

Paraguay

Philippines

Poland

OM

PK

PA

PY

PH

PL

Code

MY

MV

MX

MC

MN

MA

Portugal

Romania

PT

RO

Russian Federation RU

Area

Saudi Arabia

Senegal

Singapore

Slovak Republic

Slovenia

South Africa

South Korea

Spain

Sri Lanka

Sweden

Switzerland

Taiwan

Thailand

Turkey

Uganda

Ukraine

United States

Uruguay

Uzbekistan

Vietnam

Zimbabwe

TH

TR

UG

UA

US

UY

KR

ES

LK

SE

CH

TW

Code

SA

SN

SG

SK

SI

ZA

UZ

VN

ZW

35

Troubleshooting

Check the following guide for the possible cause of a problem before contacting service.

Symptom

No power.

The power is on, but the DVD player does not work.

No picture.

Cause

The power cord is disconnected.

No disc is inserted.

Correction

Plug the power cord into the wall outlet securely.

Insert a disc.

No sound.

The picture is poor.

The DVD player does not start playback.

The remote control does not work properly.

Video tape cannot be inserted.

No Hi-Fi sound

The TV is not set to receive this unit’s signal output.

The video cable is not connected securely.

The Progressive Scan is set to “On” on the setup menu but is connected to a standard (analog) television.

The equipment connected with the audio cable is not set to receive DVD signal output.

The audio cables are not connected securely.

The power of the equipment connected with the audio cable is turned off.

The Audio option is set to the wrong position.

The disc is dirty.

The TV channels are not tuned in properly.

An unplayable disc is inserted.

The disc is placed upside down.

The disc is not placed within the guide.

The disc is dirty.

The Rating level is set.

There is an obstacle in the path of the remote control and this unit.

The batteries in the remote control are exhausted.

Is the cassette compartment empty?

Audio mode is not set properly.

Select the appropriate video input mode on the TV so the picture from the this unit appears on the TV screen.

Connect the video cable into the jacks securely.

Set Progressive Scan to “Off”

(see page 17).

Select the correct input mode of the audio receiver so you can listen to the sound from the this unit.

Connect the audio cable into the jacks securely.

Turn on the equipment connected with the audio cable.

Set the Audio option to the correct position, then turn on the DVD player again by pressing POWER.

Clean the disc.

Check tuning, carry out tuning again.

Insert a playable disc. (Check the disc type and Regional code.)

Place the disc with the playback side down.

Place the disc on the disc tray correctly inside the guide.

Clean the disc.

Cancel the Rating function or change the rating level.

Remove the obstacle.

Replace the batteries with new ones.

Eject the tape in.

Select “STEREO” by repeatedly pressing

“AUDIO” on the remote control.

36

Specification

General

Power requirements

Power consumption

Dimensions (approx.)

Mass (approx.)

Operating temperature

Operating humidity

Timer

RF Modulator

AC 200-240V, 50/60 Hz

17W

430 x 78.5 x 265 mm (W x H x D)

4.2 kg

5˚C to 35˚C (41˚F to 95˚F)

5 % to 90 %

24 hours display type

UHF 22 - 68 (Adjustable)

System

Laser

Video Head system

Signal system

Frequency response

Signal-to-noise ratio

Harmonic distortion

Dynamic range

Semiconductor laser, wavelength 650 nm

Double azimuth 6 heads, helical scanning.

PAL

DVD (PCM 96 kHz): 8 Hz to 44 kHz

DVD (PCM 48 kHz): 8 Hz to 22 kHz

CD: 8 Hz to 20 kHz

More than 100dB (ANALOG OUT connectors only)

Less than 0.008%

More than 100 dB (DVD)

More than 95 dB (CD)

Inputs (VCR)

Audio

Video

-6.0dBm, more than 10 kohms (SCART)

-6.0dBm, more than 47 kohms (RCA)

1.0 Vp-p, 75 ohms, unbalanced (SCART/RCA)

Outputs (DVD)

VIDEO OUT

COMPONENT VIDEO OUT

(Progressive Scan)

RGB output

Audio output (coaxial audio)

Audio output (analog audio)

1 Vp-p 75 ohms, sync negative

(Y) 1.0 V (p-p), 75

, negative sync, RCA jack x 1

(Pb)/(Pr) 0.7 V (p-p), 75 Ω , RCA jack x 2

0.7 Vp-p, 75 ohms

0.5 V (p-p), 75 Ω , RCA jack x 1

2.0 Vrms (1 KHz, 0 dB), 600

, RCA jack (L, R)x2/SCART (TO TV)

Outputs (VCR)

Audio

Video

RGB output

-6.0dBm, less than 1 kohms (SCART)

1.0Vp-p, 75 ohms, unbalanced (SCART)

0.7 Vp-p, 75 ohms

Design and specifications are subject to change without notice.

P/NO: MFL56842646

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
