LG LA080WC, LA100WC Owner's manual

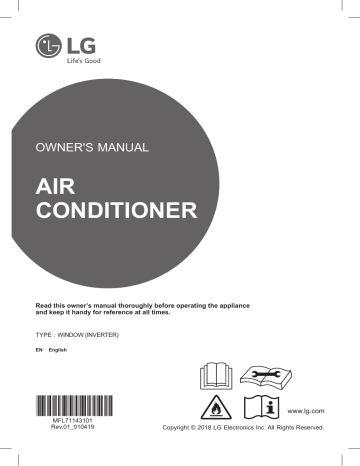

OWNER'S MANUAL AIR CONDITIONER Read this owner’s manual thoroughly before operating the appliance and keep it handy for reference at all times. TYPE : WINDOW (INVERTER) EN English www.lg.com MFL71143101 Rev.01_010419 Copyright © 2018 LG Electronics Inc. All Rights Reserved. 2 TABLE OF CONTENTS TABLE OF CONTENTS 3 SAFETY INSTRUCTIONS 16 SMART FUNCTIONS 3 16 IMPORTANT SAFETY INSTRUCTIONS LG SmartThinQ Application 8 PRODUCT OVERVIEW 18 MAINTENANCE 8 8 18 Exterior Parts Interior Parts 9 INSTALLATION 9 Circuit Breaker Installation 9 Installation Overview 10 How to Install the Unit 10 Drainage (Optional) 11 Installation of the Unit 11 Space for Outside Air Flow 12 OPERATION 12 13 13 14 14 15 15 Control Panel and Remote Control Using the Light Off Function Using the Auto Clean Function Wireless Remote Control Ventilation Air Direction Slinger Fan Air Filter 19 TROUBLESHOOTING 19 19 Before Calling for Service Normal Sounds You May Hear SAFETY INSTRUCTIONS 3 SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and follow all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or injure you and others. All safety messages will follow the safety alert symbol and either the word WARNING or CAUTION. These words mean: WARNING You may be killed or seriously injured if you do not follow instructions. CAUTION You may be injured or cause damage to the product if you do not follow instructions. All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what may happen if the instructions are not followed. IMPORTANT SAFETY INSTRUCTIONS WARNING injury to persons when using this product, follow basic precautions, including the following: INSTALLATION ● Before use, the appliance must be properly installed as described in this manual. ● Contact the authorized service technician for repair or maintenance of this unit. ● Contact the installer for installation of this unit. ● The air conditioner is not intended for use by young children or invalids without supervision. ● Keep any required ventilation openings clear of obstruction. ● Compliance with national gas regulations shall be observed. 4 SAFETY INSTRUCTIONS ● When the power cord is to be replaced, replacement work shall be performed by authorized personnel only using only genuine replacement parts. and authorized personnel only. ● Connect to a properly rated, protected, and sized power circuit to avoid electrical overload. ● Always plug into a grounded outlet. ● Do not under any circumstances, cut or remove the third (ground) prong from the power cord. ● When installing or moving the appliance, be careful not to pinch, crush, or damage the power cord. ● Plug in the power plug properly. ● Do not modify or extend the power cord. ● Do not start/stop operation by plugging/unplugging the power cord. ● If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard. ● Use a dedicated circuit. ● Do not disassemble or modify the product. ● Adhere to all industry recommended safety procedures including the use of long-sleeved gloves and safety glasses. ● Use care when unpacking and installing. The edges of the product may be sharp. ● Disconnect the power cord or circuit breaker before installing or servicing the appliance. ● Keep packaging materials out of the reach of children. These materials can pose a suffocation risk to children. ● Store and install the product where it will not be exposed to temperatures below freezing or exposed to outdoor weather conditions. other appliance. OPERATION ● Use this appliance only for its intended purpose. ● Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug. ● Repair or immediately replace all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end. ● Do not run cord under carpets or mats where it could be stepped on and damaged. ● Keep the cord out from under heavy objects like tables or chairs. ● Do not place the power cord near a heat source. ● Do not use an adaptor or plug the product into a shared outlet. ● Do not tamper with controls. ● If you detect a strange sound, a chemical or burning smell, or smoke coming from the appliance, unplug it immediately, and contact an LG Electronics Customer Information Center. straight out from the outlet. ● Do not grasp the power cord or touch the appliance controls with wet hands. SAFETY INSTRUCTIONS 5 ● If water enters the product, turn off the power at the main circuit, then unplug the product and call for service. ● If the product has been submerged, contact an LG Electronics Customer Information Center for instructions before resuming use. ● Unplug the product when unused for long periods. ● Unplug the product before cleaning. ● In the event of a gas leak (propane gas, etc.) do not operate this or any other appliance. Open a window or door to ventilate the area immediately. ● This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. ● The interior of the product must only be cleaned by a LG Electronics Customer Information Center or a dealer. ● Do not use solvent-based detergent on the product. Doing so can cause corrosion or damage, GROUNDING INSTRUCTIONS ● The power cord of this appliance is equipped with a three-prong (grounding) plug. Use this with a standard three-slot (grounding) wall power outlet to minimize the hazard of electric shock. The sure the receptacle is properly grounded. DO NOT CUT OR REMOVE THE THIRD (GROUND) PRONG FROM THE POWER PLUG. - Situations when the appliance will be disconnected occasionally; Because of potential safety hazards, we strongly discourage the use of an adapter plug. ● Attaching the adapter ground terminal to the wall receptacle cover screw does not ground the appliance unless the cover screw is metal, and not insulated, and the wall receptacle is grounded to make sure the receptacle is properly grounded. ● Disconnect the power cord from the adapter, using one hand on each. Otherwise, the adapter ground terminal might break. Do not use the appliance with a broken adapter plug. - Situations when the appliance will be disconnected often; Do not use an adapter plug in these situations. Unplugging the power cord frequently can lead to an eventual breakage of the ground terminal. The wall power outlet should be replaced by a three-slot (grounding) outlet instead. 6 SAFETY INSTRUCTIONS CAUTION To reduce the risk of minor or moderate injury to persons, malfunction, or damage to the product or property when using this product, follow basic precautions, including the following: INSTALLATION ●●Take care when installing the product that exhaust or condensation does not damage nearby property. ●●Follow installation instructions exactly to avoid excessive vibration or water leakage. OPERATION ●●This appliance is not intended for use as a precision refrigeration system. Do not use it for special purposes such as maintaining pets, food, precision machinery, or art objects. ●●When installing or moving the appliance, be careful not to pinch, crush, or damage the power cord. ●●Make sure the air inlet and outlet are free from obstructions. ●●Use a soft cloth to clean the appliance. Do not use waxes, thinners, or harsh detergents. ●●Do not step on or place heavy objects on top of the appliance. ●●Do not operate the appliance without the filter securely installed. ●●Do not drink water drained from the appliance. ●●Be sure to ventilate sufficiently when the air conditioner and a heating appliance such as a heater are used simultaneously. ●●Being exposed to direct airflow for an extended period of time could be hazardous to your health. ●●Remove the batteries if the remote control is not to be used for an extended period of time. ●●Never mix different types of batteries, or old and new batteries for the remote control. ●●Stop using the remote control if there is a fluid leak in the battery. If your clothes or skin are exposed to the leaking battery fluid, wash off with clean water. ●●If the leaking battery fluid has been swallowed, rinse the inside of the mouth thoroughly and consult a doctor. ●●Do not recharge or disassemble the batteries. MAINTENANCE ●●Clean the filter every two weeks. ●●Never touch the metal parts of the air conditioner when removing the air filter. ●●Never use strong cleaning agents or solvents when cleaning the air conditioner or spray water. Use a smooth cloth. SAFETY INSTRUCTIONS 7 REFRIGERANT (FOR R32 ONLY) WARNING ● Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer. ● The appliance shall be stored in a room without continuously operating open flames (for example an operating gas appliance) and ignition sources (for example an operating electric heater). ● The appliance shall be stored in a well-ventilated area where the room size corresponds to the room area as specified for operation. ● The appliance shall be stored so as to prevent mechanical damage from occurring. Technical Safety ● Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorises their competence to handle refrigerants safely in accordance with an industry recognised assessment specification. ● Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants. 8 PRODUCT OVERVIEW PRODUCT OVERVIEW Exterior Parts Interior Parts 3 9 1 2 8 4 5 1 7 6 6 5 4 3 7 2 1 Control Panel 1 Evaporator 2 Remote Controller 2 Air Guide 3 Air Filter 3 Control Box 4 4 Condenser 5 5 Compressor 6 Air Inlet 6 Base Pan 7 Front Grille 7 Power Cord 8 Cabinet 9 Air Outlet INSTALLATION INSTALLATION Circuit Breaker Installation Read thoroughly and follow all directions provided. A circuit breaker must be installed between the power source and the unit if the plug is not used (see illustration below). Main Power source Circuit Breaker Use a circuit breaker or time delay fuse. NOTE ● Use 15 A circuit breaker. Installation Overview Foam Drain pipe Tools Needed Phillips-head screwdriver Flat-blade screwdriver Pencil Tape measure Cutting knife Scissors Level 9 10 INSTALLATION How to Install the Unit Drainage (Optional) 1 Measure the space for installation to assure a good fit. The air conditioner must be installed firmly into place to prevent vibration and noise. The base-pan may overflow due to high humidity. To drain the excess water, remove the drain cap from the base pan of the unit and secure the drain pipe. 2 3 Avoid exposure to direct sunlight. 1 Remove the rubber cap from the hole under the base-pan. 2 Press the drain pipe into the hole by hanging and pushing. 4 Remove all obstacles from the rear of the unit. There must be at least 50cm (20in.) of cleared space around the rear of the unit. Obstacles restricting the airflow may reduce the cooling efficiency of the unit. The unit should be installed with a slight tilt towards the outside to allow condensed water to drain. (About 10~15mm or 1/4 bubble with Level) Fence Awning Cooled air Heat radiation 70-150 cm Foam 10~15 mm Over 50 cm 1 2 1/4 Bubble 3 4 3 Th erm CO os O L tat E 5 R 6 2 1 7 Connect the drain hose to the outlet located on the bottom of the drain pipe. (You can purchase the drain hose or tubing locally to satisfy your particular needs. Drain hose is not supplied) 8 9 Level CAUTION ● The external grille must be exposed outside for air discharge. CAUTION ● Take care when inserting the drain pipe. Push away from the sharp edge to avoid slipping and injuring yourself. INSTALLATION 11 Installation of the Unit 1 FLASH OR SEAL AROUND EXTERNAL WALL FRAME OR ARCHITRAVE Prepare the hole in the wall so that the bottom of the unit is well supported, the top has minimum clearace and the air inlet louveres have clearance as shown. Holes from the outside through to the cavity should be sealed. The unit should slope down towards the rear by about 10~15 mm to allow water formed during operation to drain. DRAIN PIPE STURDY TIMBER FRAME ALL ROUND UNIT EXTERNAL SUPPORT FRAME AT BALANCE POINT OF RAC TIMBER FRAMED WALL OR PARTITION ALTERNATIVELY, BRACKETS AS ILLUSTRATED BELOW MAY BE USED. Preferred method of installation into a timber framed wall, partition or window. Space for Outside Air Flow 2 AIR IN Install the unit into the wall and secure. Ensure the foam seals are not damaged. Flash, seal or fill gaps around the inside and outside to provide satisfactory appearance and protection against the weather, insects and rodents. The Foam (Around the unit) AIR IN AIR OUT 100 mm minimum OPTION A 45°BRICK CUT AWAY TO CLEAR LOUVRES 45°BRICK CUT AWAY TO CLEAR LOUVRES FRONT BRICK WALL 100mm TOP VIEW AIR IN AIR IN 100mm LOUVRE NOTE AIR OUT ● Unit may be supported by a solid frame from below or by a hanger from a solid overhead support. CAUTION ● Use an assistant to help lift the unit and set it in place. Lifting and maneuvering the unit by yourself could result injury. BRICK WALL OPTION B 12 OPERATION OPERATION Control Panel and Remote Control Remote Control 5 6 7 8 1 8 9 Auto Clean(3 s) 4 7 Light Off(3 s) 3 10 2 4 3 2 1 1 Power Press to turn the air conditioner ON or OFF. 2 Sleep Mode This mode keeps operating noise to a minimum and turns the air conditioner off after a set time. The timer can be set from 1 to 7 hours. ● In the Cool, Energy Saver, Dry Mode, the setting temperature increases by 1 °C after 30 minutes and additional 1 °C after another 30 minutes for a more comfortable sleep. ● The setting temperature increases up to 2 °C from the preset temperature. 3 Delay ON/OFF Timer Delay ON - When the air conditioner is off, set it to automatically turn on from 1 to 24 hours later, at its previous mode and fan settings. Delay OFF - When the air conditioner is on, set it to automatically turn off from 1 to 24 hours later. NOTE ● Each press of the Timer button advances the timer by 1 hour. After the last press the display returns to the temperature setting. 4 Operation Mode Press the Mode button to cycle between 4 types of air conditioner operation: Cool / Energy Saver / Fan / Dry. Cool - This mode is ideal on hot days to cool and dehumidify the room quickly. Use the Temp buttons to set the desired room temperature and use the Fan Speed button to set the desired fan circulation speed. Energy Saver - In this mode the compressor and fan turn off when the set temperature is achieved. Approximately every 3 minutes the fan turns on to allow the unit sensor to accurately determine if more cooling is needed. Fan - In this mode the fan circulates air but the compressor does not run. Use the Fan Speed button to set fan speed to High, Medium or Low. In this mode, you cannot adjust the set temperature. Dry - This mode is ideal for rainy and damp days to dehumidify the room rather removed from the room by the combination of compressor operation and the fan speed off once the set temperature is reached. Fan speed cannot be adjusted in Dry mode. 5 Wi-Fi Enables connection of the air conditioner to the home Wi-Fi. ● Wi-Fi Pairing : Mode + Fan Speed ● Wi-Fi Off : Power + Fan Speed OPERATION 13 6 Clean Filter The Clean Filter LED lights up to notify you and Temp together on the control panel to turn off the Clean Filter light. NOTE ● control panel, not the remote control. ● This feature is a reminder to clean the air light turns on after 250 hours of operation. 7 Fan Speed Press to set the fan speed to Low (F1), Medium (F2), or High (F3). 8 Temperature Control The thermostat monitors room temperature to maintain the desired temperature. The thermostat can be set between 16 °C–30 °C (60 °F–86 °F). Press or arrows to increase or decrease temperature setting. 9 Energy Saver In this mode the compressor and fan turn off when the set temperature is achieved. Approximately every 3 minutes the fan turns on to allow the unit sensor to accurately determine if more cooling is needed. NOTE ● This function is available with Cooling Mode. 10 Clear Cancel Sleep and Timer settings. Also set the Diagnosis if held for 5 seconds. NOTE ● Auto Restart: If the air conditioner turns off due to a power outage, it will restart automatically once the power is restored, with the same settings as were set before the unit turned off. ● Energy Saver: The unit defaults to the Energy Saver mode each time the unit is switched on except in Fan mode or when power is restored after an electrical power outage. ● The remote control will not function properly if the AC infrared sensor is exposed to direct light or if there are obstacles between the remote controller and the air conditioner. Using the Light Off Function You can set the brightness of the control panel. ● Press Mode button on the remote control for 3 seconds, or ● Press Mode and Sleep button together on the control panel. NOTE ● Turn on/off the control panel. Using the Auto Clean Function In the Cooling and Dry Mode, Moisture is generated inside the indoor unit. This function removes such moisture. ● Press Energy Saver button on the remote control for 3 seconds. ● NOTE is displayed on the remote control. ● If you turn off the unit, the fan continues to run for 10 minutes and cleans the inside of the indoor unit. 14 OPERATION Wireless Remote Control Inserting Batteries If the display screen of the remote control begins to fade, replace the batteries. Insert AAA (1.5 V) batteries before using the remote control. 1 Ventilation Push the ventilation lever in to the closed position to maintain the best cooling performance. Pull the ventilation lever out to open the vent and draw fresh air into the room. Remove the cover on the back of the remote control. Close Open 2 Insert the new batteries and make sure that the + and - terminals of the batteries are installed correctly. NOTE ● New batteries are supplied with the air conditioner for use in the remote control. ● Do not use a rechargeable battery. Make sure that the battery is new. ● In order to prevent discharge, remove the battery from the remote control if the air conditioner is not going to be used for an extended period of time. ● Keep the remote control away from extremely hot or humid places. ● To maintain optimal operation of the remote control, the remote sensor should not be exposed to direct sunlight. OPERATION 15 Air Direction of the air conditioner’s louvers. Direction Slinger Fan This air conditioner is equipped with a slinger fan. (See drawing.) The fan’s outer ring picks up the condensed water from the base pan if the water level gets high enough. The water is then picked up by the fan and expelled through the condenser, making levers of the vertical louvers to the left or right. Ring Direction up or down. NOTE ● When the weather is extremely hot, the unit may turn off automatically to protect the compressor. 16 SMART FUNCTIONS SMART FUNCTIONS Using LG SmartThinQ Application Things to check before using LG SmartThinQ • For appliances with the logo 1 Check the distance between the appliance and the wireless router (Wi-Fi network). • If the distance between the appliance and the wireless router is too far, the signal strength becomes weak. It may take a long time to register or installation may fail. 2 Turn off the Mobile data or Cellular Data on your smartphone. • For iPhones, turn data off by going to Settings → Cellular → Cellular Data. 3 Connect your smartphone to the wireless router. NOTE • To verify the Wi-Fi connection, check that Wi-Fi icon on the control panel is lit. • The appliance supports 2.4 GHz Wi-Fi networks only. To check your network frequency, contact your Internet service provider or refer to your wireless router manual. • LG SmartThinQ is not responsible for any network connection problems or any faults, malfunctions, or errors caused by network connection. • If the appliance is having trouble connecting to the Wi-Fi network, it may be too far from the router. Purchase a Wi-Fi repeater (range extender) to improve the Wi-Fi signal strength. • The Wi-Fi connection may not connect or may be interrupted because of the home network environment. • The network connection may not work properly depending on the Internet service provider. • The surrounding wireless environment can make the wireless network service run slowly. • The appliance cannot be registered due to problems with the wireless signal transmission. Unplug the appliance and wait about a minute before trying again. • If the firewall on your wireless router is enabled, disable the firewall or add an exception to it. • The wireless network name (SSID) should be a combination of English letters and numbers. (Do not use special characters.) • Smartphone user interface (UI) may vary depending on the mobile operating system (OS) and the manufacturer. • If the security protocol of the router is set to WEP, you may fail to set up the network. Please change it to other security protocols (WPA2 is recommended) and register the product again. SMART FUNCTIONS 17 Installing LG SmartThinQ Search for the LG SmartThinQ application from the Google Play Store or Apple App Store on a smart phone. Follow instructions to download and install the application. Wi-Fi Function • For appliances with the logo Communicate with the appliance from a smart phone using the convenient smart features. Smart Diagnosis™ Using a Smart Phone Use this function if you need an accurate diagnosis by an LG Electronics customer information center when the appliance malfunctions or fails. Smart Diagnosis™ can not be activated unless the appliance is connected to power. If the appliance is unable to turn on, then troubleshooting must be done without using Smart Diagnosis™. 1 Open the LG SmartThinQ application on the smart phone. 2 Select the air conditioner in dashboard. NOTE 3 Press Start Smart Diagnosis button. ● If you change your wireless router, Internet service provider or password, delete the registered appliance from the LG SmartThinQ application and register it again. 4 Follow the instructions on the smart phone. Settings Allows you to set various options on the appliance and in the application. ● The application is subject to change for appliance improvement purposes without notice to users ● Functions may vary by model. Open Source Software Notice Information To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product, please visit http:// opensource.lge.com. In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [email protected] This offer is valid for a period of three years after our last shipment of this product. This offer is valid to anyone in receipt of this information. NOTE The Smart Diagnosis™ function depends on the local call quality. If the Smart Diagnosis™ data transfer is poor due to poor call quality, you may not receive the best Smart Diagnosis™ service. Be sure to keep ambient noise to a minimum or the phone may not correctly receive the buzzer beeps from the indoor unit. 18 MAINTENANCE MAINTENANCE 2 40 °C (104 °F). WARNING Before cleaning or performing maintenance, disconnect the power supply and wait until the fan stops. Air Filter if cleaning is necessary. Trapped particles in the cooling capacity and causing an accumulation of frost on the evaporator. Cleaning the Air Filter 1 3 Gently shake the excess water from the filter. 4 5 Dry the filter in the shade. Insert the filter in to the Front grille. Cleaning the Air Conditioner ● Wipe the front grille and inlet grille with a cloth dampened in a mild detergent solution. ● Wash the cabinet with mild soap or detergent and lukewarm water, then polish using liquid appliance wax. NOTE ● condenser coils (outside of unit) should be checked periodically and cleaned if clogged with soot or dirt from outside air. ● For repair and maintenance, contact a LG Electronics Customer Information Center. See the warranty card for details or call .(02)902-5544. Have your model number and serial number available. TROUBLESHOOTING 19 TROUBLESHOOTING Before Calling for Service The appliance is equipped with an automatic error-monitoring system to detect and diagnose problems at an early stage. If the appliance does not function properly or does not function at all, check the following before you call for service. Normal Sounds You May Hear 1 2 5 4 3 1 High Pitched Chatter 2 Sound of Rushing Air At the front of the unit, you may hear the sound of rushing air being moved by the fan. 3 Gurgle/Hiss Gurgling or hissing noise may be heard due to refrigerant passing through evaporator during normal operation. 4 Vibration Unit may vibrate and make noise because of poor wall or window construction or incorrect installation. 5 Pinging or Swishing Droplets of water hitting condenser during normal operation may cause pinging or swishing sounds. 20 TROUBLESHOOTING Problem Air conditioner does not start. Possible Cause Solutions The air conditioner is unplugged. Make sure the air conditioner plug is pushed completely into the outlet. The fuse is blown/circuit breaker is tripped. Check the house fuse/circuit breaker box and replace the fuse or reset the breaker. Power failure. If power failure occurs, turn the mode control to off. When power is restored, wait 3 minutes to restart the air conditioner to prevent tripping of the compressor overload. Make sure there are no curtains, blinds, or furniture blocking the front of the air conditioner. The temp control may not be set correctly. Air conditioner does not cool as it should. Set the desired temperature to a level lower than the current temperature. weeks. See the 'MAINTENANCE (Cleaning the Air Filter)' section. The room may have been hot. Cold air is escaping. Cooling coils have iced up. Air conditioner freezing up. The cooling coils are iced over. Water drips outside. Hot, humid weather. turned on, you need to allow time for the room to cool down. registers and cold air returns. See 'Air conditioner freezing up' below. obstruct the air conditioner from properly cooling the room. Set the Fan Speed High at Fan or Cool mode. This is normal. TROUBLESHOOTING 21 Problem Possible Cause Solutions Water drips indoors. The air conditioner is not tilted to the outside. For proper water disposal, make sure the air conditioner slants slightly from the unit front to the rear. Water collects in base pan. Moisture removed from air and drains into base pan. This is normal for a short period in areas with little humidity; normal for a longer period in very humid areas. Outside temperature extremely hot. Refer to installation instructions or check with installer. Air movement sound. This is normal. If too loud, set to lower FAN Speed. Window vibration - poor installation. Refer to installation instructions or check with installer. Room too cold. Set temperature too low. Increase set temperature. Can't connect the LG SmartThinQ App. to the air conditioner. Air conditioner is turned off. Turn the air conditioner on. Wireless router is turned off. Turn the router on. The Wi-Fi router is too far from the air conditioner. Move the router closer to the air conditioner or purchase and install a Wi-Fi repeater (signal booster). You do not have permission to use the router or it is incompatible. Make sure you are selecting the correct wireless router from the list. The router must be set to 2.4 GHz. Air conditioner turns on and off rapidly. Noise when unit is cooling. The air conditioner is not connecting to the Wi-Fi. NOTE ● If you see "CH" in the display, please call (02)902-5544. 22 TROUBLESHOOTING Wi-Fi Problem Trouble connecting appliance and smartphone to Wi-Fi network. Possible Cause Solutions The password for the Wi-Fi network was entered incorrectly. Delete your home Wi-Fi network and begin the registration process again. Mobile data for your smartphone is turned on. Turn off the Mobile data on your smartphone before registering the appliance. The wireless network name (SSID) is set incorrectly. The wireless network name (SSID) should be a combination of English letters and numbers. (Do not use special characters.) The router frequency is not 2.4 GHz. Only a 2.4 GHz router frequency is supported. Set the wireless router to 2.4 GHz and connect the appliance to the wireless router. To check the router frequency, check with your Internet service provider or the router manufacturer. The distance between the appliance and the router is too far. If the appliance is too far from the router, the signal may be weak and the connection may not be router closer to the appliance or purchase and install a Wi-Fi repeater.
