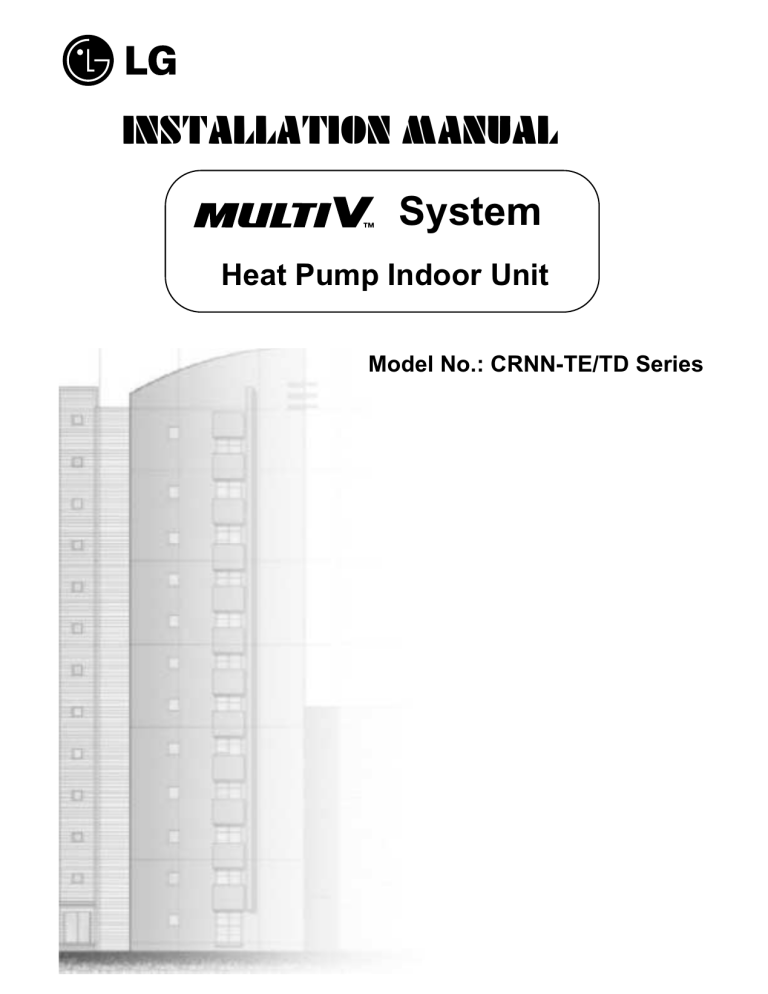

INSTALLATION MANUAL
System
Heat Pump Indoor Unit
Model No.: CRNN-TE/TD Series
The following should be always observed for safety
• Please report to or take consent by the supply authority before connecting to the system.
• Be sure to read "THE FOLLOWING SHOULD BE ALWAYS OBSERVED FOR SAFETY" before installing the air
conditioner.
• Be sure to observe the cautions specified here as they include important items related to safety.
• The indications and meanings are as follows.
WARNING
Could lead to death, serious injury, etc.
CAUTION
Could lead to serious injury in particular environments when operated incorrectly.
• After reading this manual, be sure to keep it together with the instruction manual in a handy place .
WARNING
Do not install it yourself (customer).
Perform the installation securely referring to the installation manual.
• Incomplete installation could cause injury due to fire, electric shock, the unit
falling or a leakage of water. Consult the dealer from whom you purchased the
unit or special installer.
• Incomplete installation could cause a personal injury due to fire, electric
shock, the unit falling or a leakage of water.
Install the unit securely in a place which can bear the
weight of the unit.
Perform electrical work according to the installation
manual and be sure to use an exclusive circuit.
• When installed in an insufficient strong place, the unit could fall causing
injured.
• If the capacity of the power circuit is insufficient or there is incomplete electrical work, it could result in a fire or an electric shock.
Use the specified wires to connect the indoor and the
outdoor units securely and attach the wires firmly to the
terminal board connecting sections so the stress of the
wires is not applied to the sections.
Attach the electrical part cover to the indoor unit and the
service panel to the outdoor unit securely.
• Incomplete connecting and fixing could cause fire.
Check that the refrigerant gas do not leak after installation
is completed.
• If the electrical part cover if the indoor unit and/or the service panel if the outdoor unit are not attached securely, it could result in a fire or electric shock
due to dust, water, etc.
Be sure to use the part provided or specified parts for
the installation work.
• The use of defective parts could cause an injury or leakage of water due to a
fire, electric shock, the unit falling, etc.
CAUTION
Perform grounding
• Do not connect the ground wire to a gas pipe, water pipe arrester
or telephone ground wire. Defective grounding could cause an
electric shock.
Perform the drainage/piping work securely
according to the installation manual.
• If there is a defect in the drainage/piping work, water could drop
from the unit and household goods could be wet and damaged.
Do not install the unit in a place where an inflammable gas leaks.
• If gas leaks and accumulates in the area surrounding the unit,
it could cause an explosion.
❈ The installation parts which are not provided should be purchased.
Installation of Ceiling Cassette Type(4 way) Indoor Unit
2
Installation of Ceiling Cassette Type(4 way) Indoor Unit
• Please read this instruction sheet completely before installing the product.
• When the power cord is damaged, replacement work shall be performed by authorized personnel only.
• Installation work must be performed in accordance with the national wiring standards by authorized personnel only.
Anti-bacteria filter
Air
Intake
Air Outlet
Cooling & Heating Model has
included Drain Elbow.
Required Parts
Required Tools
• Connecting cable
• Pipes: Gas side
Liquid side
• Hanging Bolt
(W 3/8 or M10 length 650mm)
• Insulated drain hose
• Level
• Screw driver
• Electric drill
• Hole core drill (ø70mm)
• Flaring Tools set
• Torque Wrenches
• Hexagonal Wrench (4mm, 5mm)
• Gas-leak detector
• Owner’s Manual
• Additional Drain hose
(Inner Dia ....................................32mm)
• Thermometer
Installation of Ceiling Cassette Type(4 way) Indoor Unit
3
Installation of Ceiling Cassette Type(1 way) Indoor Unit
1. Selection of the best location
Above 250
400 or less
50 or
more
100
or more
Ceiling
Ceiling Board
Ceiling Board
50 or
more
30 or less
30 or more
• There should not be any heat source or steam near the unit.
• There should not be any obstacles to the air circulation.
• A place where air circulation in the room will be good.
• A place where drainage can be easily obtained.
• A place where noise prevention is taken into consideration.
• Do not install the unit near the door way.
• Ensure the spaces indicated by arrows from the wall, ceiling, or other obstacles.
• The indoor unit must have the maintenance space.
Unit:cm
Floor
Installation of Ceiling Cassette Type(4 way) Indoor Unit
4
Installation of Ceiling Cassette Type(4 way) Indoor Unit
2. Ceiling opening dimensions and hanging bolt location
• The dimensions of the paper model for installing are the same as those of the ceiling opening dimensions.
Ceiling
Ceiling board
Level gauge
CRUN186TEA0, CRUN246TEA0
CRUN366TDA0
75
Unit:mm
CAUTION
• This air-conditioner uses a drain pump.
• Install the unit horizontally using a level gauge.
• During the installation, care should be taken
not to damage electric wires.
840 Unit size
45
875 (Ceiling opening)
785(Hanging bolt)
840 Unit size
570 Unit size
570 Unit size
45
39.5
600 (Ceiling opening)
521(Hanging bolt)
672 (Hanging bolt) 75
39.5
875 (Ceiling opening)
101.5 672 (Hanging bolt) 101.5
600 (Ceiling opening)
Unit:mm
• Select and mark the position for fixing bolts and piping hole.
• Decide the position for fixing bolts slightly tilted to the drain
direction after considering the direction of drain hose.
• Drill the hole for anchor bolt on the wall.
NOTE:
• Avoid the following installation location.
1. Such places as restaurants and kitchen where considerable amount of oil steam and flour is generated.
These may cause heat exchange efficiency reduction, or water drops, drain pump mal-function.
In these cases, take the following actions;
• Make sure that ventilation fan is enough to cover all noxious gases from this place.
• Ensure enough distance from the cooking room to install the air conditioner in such a place where it may
not suck oily steam.
Installation of Ceiling Cassette Type(4 way) Indoor Unit
5
Installation of Ceiling Cassette Type(4 way) Indoor Unit
Air conditioner
Take enough
distance
Use the ventilation fan
for smoke-collecting
hood with sufficient
capacity.
Cooking table
2. Avoid installng air conditioner in such places where cooking oil or iron powder is generated.
3. Avoid places where inflammable gas is generated.
4. Avoid place where noxious gas is generated.
5. Avoid places near high frequency generators.
Ceiling
Nut
(W3/8 or M10)
Spring washer
(M10)
Keep the length of the bolt
from the bracket to 40mm
Flat washer for M10
(accessory)
Ceiling board
Flat washer for M10
(accessory)
Nut
(W3/8 or M10)
Air Conditioner body
Ceiling board
Paper model
for installation
Adjust the same height
• The following parts are local purchasing.
Hanging Bolt - W 3/8 or M10
Nut
- W 3/8 or M10
Spring Washer - M10
Plate Washer - M10
CAUTION
• Tighten the nut and bolt to prevent unit from
falling off.
Installation of Ceiling Cassette Type(4 way) Indoor Unit
6
150mm
Hanging bolt
(W3/8 or M10)
Set screw of
paper model (4 pieces)
Open the ceiling board
along the outer edge of the
paper model
Installation of Ceiling Cassette Type(4 way) Indoor Unit
3. Wiring Connection
• Open the control box cover and connect the Remote controller cord and Indoor power wires.
Indoor
power cord
Remote
controller
cord
Control box cover
[Air inlet side view]
Control box cover
fitting screw(2 units)
Terminal Block in Indoor
1(L)
2(N)
3
Terminal Block in Outdoor
4
A
B
INDOOR POWER INPUT
(CAN BE CONNECTED TO OUTDOOR)
WARNING
Make sure that the screws of the terminal are free from looseness.
Installation of Ceiling Cassette Type(4 way) Indoor Unit
7
Installation of Ceiling Cassette Type(4 way) Indoor Unit
4. Installation of Decorative Panel
The decorative panel has its installation
direction.
Before installing the decorative panel,
always remove the paper template.
1. Temporarily fix two decorative panel fixing screws (hexagon M5 screw) on the unit body. (Tighten by
amount 10mm in length.)
The fixing screws (hexagon M5 screw) are included the indoor unit box.
2. Remove the air inlet grille from the decorative panel. (Remove the hook for the air inlet grille cord.)
3. Hook the decorative panel key hole (
) on the screws fixed in step above, and slide the panel so
that the screws reach the key hole edge.
4. Retighten completely two temporarily fixed screws and other two screws. (Total 4 screws)
5. Connect the louver motor connector and display connector.
6. After tightening these screws, install the air inlet grille (including the air filter).
Piping side
Air conditioner unit
Decorative panel fixing screws
(hexagon M5 screws)
Temporally fitting at 2 places
(Tightening about 10mm)
Control box cover
Louver
motor
Inlet Grille
Decorative panel
Display
Key holes
Lead wire for
louver motor and
display
Decorative panel fixing screws
(Hexagon M5 screw)
Inlet Grille
Installation of Ceiling Cassette Type(4 way) Indoor Unit
8
Installation of Ceiling Cassette Type(4 way) Indoor Unit
CAUTION
Install certainly the decorative panel.
Cool air leakage causes sweating.
Water drops fall.
Good example
Bad example
Air conditioner
unit
Air
Ceiling
board
• Drain piping must have down-slope (1/50 to 1/100): be
sure not to provide up-and-down slope to prevent
reversal flow.
• During drain piping connection, be careful not to exert
extra force on the drain port on the indoor unit.
• The outside diameter of the drain connection on the
indoor unit is 32mm.
Cool air leakage
(no good)
Ceiling
board
Decorative
panel
Decorative panel
Fit the insulator (this part) and
be careful for cool air leakage
5. Indoor Unit Drain Piping
Air conditioner unit
Pipe clamp
Upward
routing
not allowed
Indoor unit
Maintenance
drain port
Piping material: Polyvinyl chloride pipe VP-25
and pipe fittings
1/50~1/100
• Be sure to install heat insulation on the drain piping.
Heat insulation material: Polyethylene foam with
thickness more than 8 mm.
MAX 700mm
Drain test
The air conditioner uses a drain pump to drain water.
Use the following procedure to test the drain pump operation:
Feed water
Flexible drain hose
(accessory)
Main
drain pipe
Drain Pump
Drain
port
Glue the joint
Drain hose connection
Use the clip (accessory)
• Connect the main drain pipe to the exterior
and leave it provisionally until the test
comes to an end.
• Feed water to the flexible drain hose and
check the piping for leakage.
• Be sure to check the drain pump for normal
operating and noise when electrical wiring
is complete.
• When the test is complete, connect the
flexible drain hose to the drain port on the
indoor unit.
Drain pan
Installation of Ceiling Cassette Type(4 way) Indoor Unit
9
Installation of Ceiling Cassette Type(1 way) Indoor Unit
CAUTION
After the confirmation of the above conditions, prepare the wiring as follows:
1) Never fail to have an individual power specialized for the air conditioner. As for the method of
wiring, be guided by the circuit diagram pasted on the inside of control box cover.
2) Provide a circuit breaker switch between power source and the unit.
3) The screw which fasten the wiring in the casing of electrical fittings are liable to come loose
from vibrations to which the unit is subjected during the course of transportation. Check them
and make sure that they are all tightly fastened. (If they are loose, it could give rise to burn-out
of the wires.)
4) Specification of power source
5) Confirm that electrical capacity is sufficient.
6) Be sure that the starting voltage is maintained at more than 90 percent of the rated voltage
marked on the name plate.
7) Confirm that the cable thickness is as specified in the power sources specification.
(Particularly note the relation between cable length and thickness.)
8) Never fail to equip a leakage breaker where it is wet or moist.
9) The following troubles would be caused by voltage drop-down.
• Vibration of a magnetic switch, damage on the contact point there of, fuse breaking, disturbance to
the normal function of a overload protection device.
• Proper starting power is not given to the compressor.
HAND OVER
Teach the customer the operation and maintenance procedures, using the operation manual (air filter cleaning, temperature
control, etc.).
Installation of Ceiling Cassette Type(4 way) Indoor Unit
10
Installation of remote control
• Although the room themperature sensor is in the indoor unit, the remote control should be installed in such
places away from direct sunlight and high humidity.
Installation of the remote control
• Select places that are not splashed with water.
• Select control position after receiving customer approval.
• The room temperature sensor is built in the indoor unit.
• This remote control equipped with liquid crystal display. If this position is higher or lower, display is difficult to
see.(The standard height is 1.2 ~1.5m high)
Routing of the remote control cord
• Keep the remote control cord away from the refrigerant piping and the drain piping.
• To protect the remote control cord from electrical noise, place the cord at least 5cm away from other power
cables (audio equipment. television set, etc.)
• If the remote control cord is secured to the wall, provide a trap at the top of the cord to prevent water droplets
from running.
CAUTION
• Use the wireless remote control with the wired.
If you want to use wireless alone, you should do following process.
1) Do auto addressing in connecting the wired.
2) After compelting auto addressing, turn off the power and disconnect the wired.
WIRED REMOTE CONTROL INSTALLATION
DISASSEMBLING
• Separate the under plate from Remote
control box.
Front case
Th
• Attach insulator to under plate.
el
ow
er
pa
rt
Lever carefully
Remote control
the box open
box body
using a screw
etc. plate on the wall
• Fixdriver,
the under
• Fix the cord clamps on the wall by ø 3 tapping screws (accessory).
• Fix the remote control cord.
Face of wall
Cord clamp
(accessory)
Under plate
Screw (accessory)
Remote controller
ELECTRICAL WIRING
(Main board)
CN REMO
Wire and make sure that teminal
numbers are matched on unit side and
remote controller side.
The maximum length of the cord is 100m.
If the length of the cord exceeds 50m,
2
use a wire size greater than 0.5mm .
Installation of Ceiling Cassette Type(4 way) Indoor Unit
11
Indoor Unit Drain Pipe Work
Indoor unit drain pipe work
1) Drain pipe gradient and support
a) - The drain pipe must be fitted at a gradient of at least 1/100.
- The drain pipe should be as short as possible and free from airlocks.
Indoor unit
Gradient of least 1 / 100
(1cm / 1m)
b) - Suspension bolts should be used th support long stretches of drain pipe in order to ensure that a
gradient of 1/100 is maintained (PVC pipe should not be bent)
Spacing of supports for horizontal piping
Class
Norminal diameter
Spacing
Rigid PVC pipe
25~40mm
1.0m or less
c) - The length of pipe laid horizontally should be kept a minimum.
2) Drain trap
Fit any indoor unit whose drain pipe connection is subjected to negative pressure, with a drain trap.
a) Rig the drain trap shown in the drawing below.
Indoor unit
H
H
b) Provide one trap per unit. A single trap for converging units will prove ineffective.
c) Rig the trap to allow for future changing.
Plug
Indoor unit
Indoor unit
Plug
Installation of Ceiling Cassette Type(4 way) Indoor Unit
12
Indoor Unit Drain Pipe Work
3) Ground drain piping
a) It is standard work practice to make connections to the main pipe from above. The pipe down from the
combination should be as large as possible.
Face the vent pipe mouth downward to keep
foreign matter from penetrating he system
Face piping
downward
Vent pipe
b) The pipe work should be kept as short as possible and he number of indoor units per group kept to a
minimum.
4) Use of an auxiliary drain hose(flexible)
a) It the drain pan made of polystyrene foam is used then an auxiliary drain hose(flexible) is also essential a
flexible drain hose permits the drain socket and drain pipe to be connected without difficulty and prevents
any undue strain being placed on he drain pan.
Metal clamp
Auxiliary drain hose
Drain pan
Thermal insulation (drain pipe area)
Metal clamp
Thermal insulation(bend area)
❈ Important points
- The drain pipe should be at least equal in size to that of the indoor unit.
- The drain pipe is thermally insulated to prevent the formation of condensation inside the pipe.
- The drain up mechanism should be fitted before the indoor unit is installed and when the electricity has
been connected some water should be added to the drain pan and the drain pump check to see that it is
functioning correctly.
- Al connections should be secure. (Special care is needed with PVC pipe)
- Insulate auxiliary drain hose with thermal insulation band.
Installation of Ceiling Cassette Type(4 way) Indoor Unit
13
Installation of Drain Pump
Installation of drain pump
1) Safety First
• Cut off the power supply before installation and maintenance.
• Drain Pump Assy, Elbow and Hose must be installed at safe area where it is far away from the user.
• Drain Pump Assy must be installed at appointed location.
• All wiring and connections are for installation only.
1
2
2) Quantity
Quantity
1
1
1
2
10
1
1
Package contents
Drain Pump Assy(AC220~240V, 50/60Hz, 400cm3/min)
Elbow(ø32mm)
Hose
Tie Wrap
Screw
Rubber
Installation manual
3) Service Parts List
No.
Location No.
P/No.
Description
1
158590
5858A10001L
Pump Water
2
266012
6601A20001E
Switch Assy, Float
Installation of Ceiling Cassette Type(4 way) Indoor Unit
14
Remark
Installation of Drain Pump
5) Attention
1. Possible drain-head height is up to 700mm. So, it
must be installed below 700mm.
1/50~1/100
1/50~1/100
2. Keep the drain hose downward up to 1/50~1/100
inclination.
Prevent any upward flow or reverse flow in any
part.
1/50~1/100
Drain Pipe
MAX 700mm
Drain Pump
3. 5mm or thicker formed thermal insulator is provided for the drain pipe.
Thermal insulator
(Local supply)
Drain pipe
(Local supply)
Unit
Elbow
Drain pump
4. Upward routing is not allowed.
5. Be sure to check the drain pump for normal operation and abnormal noise when electrical wiring is
complete.
Wall
Drain hose
Installation of Ceiling Cassette Type(4 way) Indoor Unit
15
Optional Operation
Optional operation
1) Two Thermistor System
(1) Open the rear cover of the wired remote-controller to set the mode.
(2) Select one of three selectable modes as follows.
• Position 1:
The room temperature is controlled by the thermistor of the main body.
• Position 2:
The room themperature is controlled by the thermistor of the wired remote-controller, control the
temperature according to the position of wired remote-controller.
• Position 3:
The room temperature is controlled by lower temperature between the temperature of main body and of
remote-controller sensor.
(3) Move the slide switch to set position.
Room Temp. sensor
Slide switch for 2 Thermistor
TH
R14H OP3
SW TH
REMO
MAIN
2TH
OP2
REMO
MAIN
2TH
R12H
CO1H
OP1
R19H
R11H
OP5R16H
OP4
R15H
OP7
R18H
R17H
OP6
LO
STAND
C070
Position 2
Position 1
Position 3
R13H
R03S
HI
R04S
HIGH
R01S
R02S
SW
Slide switch for ceiling height
(4) Close the rear cover and check if it works normally.
CAUTION
• Select the position after counselling with a customer.
• In case of cooling mode, room temperature is controlled by the main body sensor.
• To control the room temperature by a wired remote controller, install controller(room temp. sensor) to
sense the temperature more accurately.
• Maunfactured in the position 3.
Installation of Ceiling Cassette Type(4 way) Indoor Unit
16
Optional Operation
2) Adjusting air volume to the height of ceiling
You can choose the RPM(or air volume) of indoor motor according to the height of ceiling to supply the
comfortable atmosphere to consumers.
Procedure
1. Choose the selectable position in the table after measuring the height of ceiling.
Ceiling height
more than 4.0m
3.2~4.0m
less than 3.2m
Mode of slide switch
High Ceiling
Standard
Low Ceiling
Change of air volume
Increasing
Decreasing
Remark
Maunfactured in standard mode
2. In the case of changing the height as "high" or "low", open the rear cover of the wired remote-controller.
3. Move the slide switch to the set position.
Slide switch for 2 Thermistor
TH
Low ceiling
Standard
(Default)
High Ceiling
Lo
R14H OP3
SW TH
STAND
R13H
OP2
REMO
MAIN
2TH
Hi
R12H
CO1H
OP1
R19H
R11H
OP5R16H
OP4
R15H
OP7
R18H
R17H
OP6
C070
LO
STAND
R03S
HI
R04S
SW
HIGH
R01S
R02S
Slide switch for ceiling height
4. Close the rear cover and check if it works nomally.
Installation of Ceiling Cassette Type(4 way) Indoor Unit
17
P/No.: 3828A20280A
February, 2003
Printed in Korea
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
