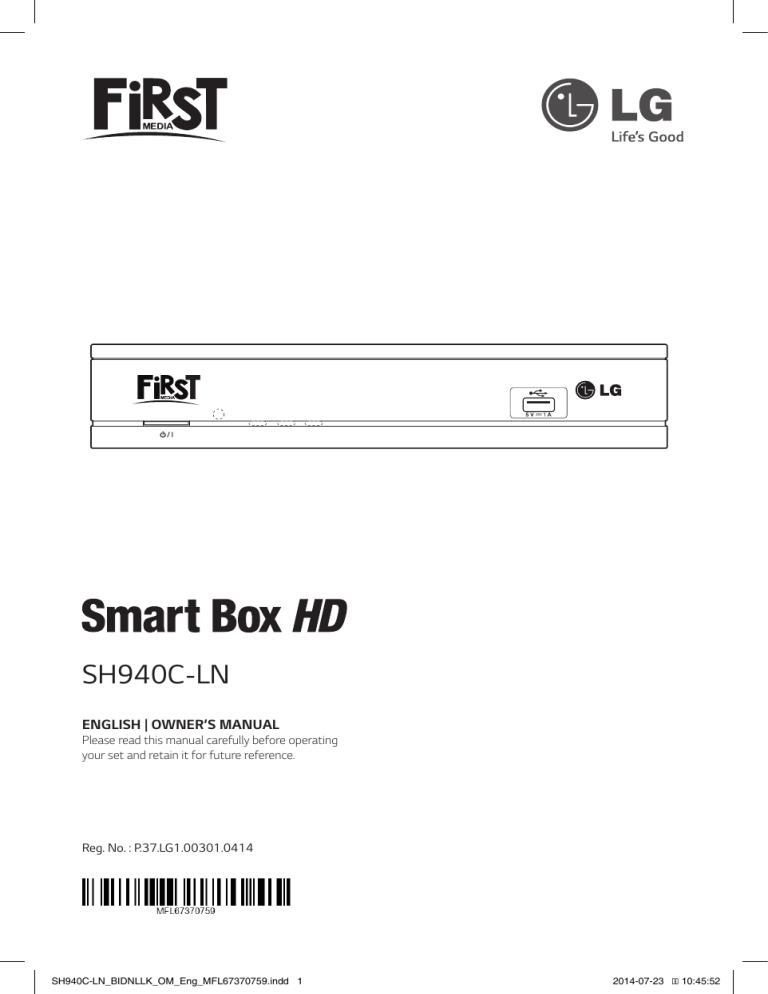

SH940C-LN
ENGLISH | OWNER’S MANUAL
Please read this manual carefully before operating
your set and retain it for future reference.
Reg. No. : P.37.LG1.00301.0414
SH940C-LN_BIDNLLK_OM_Eng_MFL67370759.indd 1
2014-07-23 �� 10:45:52
2
Getting Started
Safety Information
1
CAUTION
Getting Started
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR BACK) NO
USER-SERVICEABLE PARTS INSIDE REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
This lightning flash with arrowhead
symbol within an equilateral triangle
is intended to alert the user to the
presence of uninsulated dangerous
voltage within the product’s
enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing)
instructions in the literature accompanying the
product.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
WARNING: Do not install this equipment in a
confined space such as a book case or similar unit.
CAUTION: The apparatus shall not be exposed to
water (dripping or splashing) and no objects filled
with liquids, such as vases, shall be placed on the
apparatus.
CAUTION: Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the
product and to protect it from over heating. The
openings shall be never be blocked by placing
the product on a bed, sofa, rug or other similar
surface. This product shall not be placed in a builtin installation such as a bookcase or rack unless
proper ventilation is provided or the manufacturer’s
instruction has been adhered to.
SH940C-LN_BIDNLLK_OM_Eng_MFL67370759.indd 2
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon
a dedicated circuit;
That is, a single outlet circuit which powers only
that appliance and has no additional outlets or
branch circuits. Check the specification page of this
owner’s manual to be certain. Do not overload wall
outlets. Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power cords, or
damaged or cracked wire insulation are dangerous.
Any of these conditions could result in electric
shock or fire. Periodically examine the cord of your
appliance, and if its appearance indicates damage
or deterioration, unplug it, discontinue use of the
appliance, and have the cord replaced with an
exact replacement part by an authorized service
center. Protect the power cord from physical or
mechanical abuse, such as being twisted, kinked,
pinched, closed in a door, or walked upon. Pay
particular attention to plugs, wall outlets, and
the point where the cord exits the appliance. To
disconnect power from the mains, pull out the
mains cord plug. When installing the product,
ensure that the plug is easily accessible.
This device is equipped with a portable battery or
accumulator.
Safety way to remove the battery or the
battery from the equipment: Remove the
old battery or battery pack, follow the steps
in reverse order than the assembly. To prevent
contamination of the environment and bring on
possible threat to human and animal health, the
old battery or the battery put it in the appropriate
container at designated collection points. Do
not dispose of batteries or battery together with
other waste. It is recommended that you use
local, free reimbursement systems batteries and
accumulators. The battery shall not be exposed to
excessive heat such as sunshine, fire or the like.
NOTICE: For safety making information including
product identification and supply ratings, please
refer to the main label on the bottom or rear of the
apparatus.
2014-07-23 �� 10:45:52
Table of Contents
3
Table of Contents
1
Getting Started
2
4
4
5
Safety Information
Front Panel
Rear Panel
Remote Control
2
Connecting
6
6
6
7
7
Antenna connection to your TV and this unit
Connections to Your TV
– Connecting HDMI cable
– Connecting Video / Audio cable
Connecting the AC Adaptor
3
Operating
8
9
10
10
10
10
11
Initial Setup
Menu Operations
Channel Scan
Connecting to your Home Network
– Wireless network connection
– Wireless network setup
– How to check the internet connection
4
Troubleshooting
12
Troubleshooting
5
Appendix
13
14
14
14
15
15
Specifications
Trademarks and Licenses
– Open source software notice
Important Information Relating to Network Services
Maintenance
– Handling the unit
1
2
3
4
SH940C-LN_BIDNLLK_OM_Eng_MFL67370759.indd 3
5
2014-07-23 �� 10:45:52
4
Getting Started
Front Panel
1
Getting Started
a
b
c de
f
a 1/I (Power) button
g
f USB Port
Connect an USB device contained video,
audio and photo files. If you want to record on
external HDD, connect external HDD to unit.
b Remote Sensor
c STANDBY/REMOTE indicator
d CABLE MODEM indicator
g SMART CARD slot
Slot for external smart card to decode
scrambled channels.
e Wi-Fi indicator
Rear Panel
a
b
c
d
a POWER (12 V 0 2 A)
Connect the supplied AC adaptor.
b VIDEO OUT
Connect to the VIDEO IN jack on a TV or
monitor.
c AUDIO OUT (L/R)
Connect to the AUDIO IN (L/R) jack on a TV or
monitor.
d HDMI OUT
Connect to the HDMI IN jack on a HDMI
compatible TV or monitor.
SH940C-LN_BIDNLLK_OM_Eng_MFL67370759.indd 4
e
f
g
e USB Port
Connect an USB device containing video,
audio and photo files. If you want to record on
external HDD, connect an external HDD to unit.
f CABLE IN
Connect a CATV line.
g CABLE OUT
Passes the signal from the CABLE IN jack to
your TV.
2014-07-23 �� 10:45:53
Getting Started
5
Remote Control
• • • • • • c• • • • • •
1 (Power): Switches the unit
ON or OFF.
Coloured buttons: Selects the
color buttons for interactive
applications.
(Mute): Mutes the sound.
a
0-9 numerical buttons: Selects
numbered options in a menu or
inputs letters.
Text: Activates the Virtual
Keyboard.
(Backspace): Deletes the
previous character at the cursor
position.
b
c
c (Scan): Searches backward.
d/ M (Play / Pause): Starts or
pauses playback. Play backs or
pauses time-shift for a live TV
programme.
v (Scan): Searches forward.
Z: Stops playback or time-shift.
Lang: Selects a language for
current programme.
• • • • • • b• • • • • •
REC: Starts recording.
Info: Displays the detail
information for current
programme.
PVR: Displays PVR menu that
shows the Recording Schedule
and Recorded Folder.
Guide: Displays the Program
Guide menu for TV or Audio
broadcasting.
Library: Accesses to the Library
menu.
Prev: Returns to the previous
channel.
Direction buttons (W/S/
A/D): Selects an option in the
menu.
OK: Acknowledges menu
selection.
1
Getting Started
• • • • • • a• • • • • •
VOD: Accesses to the VOD
mode.
Search: Displays the search
menu to use the search function
by entering keywords.
Fav: Displays the favourite
channel list.
Exit: Exits the menu.
Ch (+/-): Scans up or
down through memorized
programmes.
Battery Installation
Remove the battery cover on
the rear of the remote control,
and insert two R03 (size AAA)
batteries with 4 and 5
matched correctly.
Vol (+/-): Adjusts the sound
level of the unit.
Back: Returns to the previous
screen.
Home: Displays Home menu.
Menu: Displays and exits a
menu.
SH940C-LN_BIDNLLK_OM_Eng_MFL67370759.indd 5
2014-07-23 �� 10:45:54
6
Connecting
Antenna connection to
your TV and this unit
Connect the CATV line to the CABLE IN jack on the
unit.
2
Connect one end of the RF cable to CABLE OUT
jack on the unit and other end to ANTENNA IN jack
on your TV. Passes the signal from the CABLE IN jack
to your TV.
Connections to Your TV
Connecting HDMI cable
If you have a HDMI TV or monitor, you can connect
it to this unit using a HDMI cable (Type A, High
Speed HDMI™ Cable). Connect the HDMI OUT
jack on the unit to the HDMI IN jack on a HDMI
compatible TV or monitor.
Connecting
CABLE Outlet
Rear of this unit
Rear of this unit
HDMI Cable
RF Cable
Set the TV’s source to HDMI (refer to TV’s Owner’s
manual).
,,Note
yy If a connected HDMI device does not accept
the audio output of the unit, the HDMI
device’s audio sound may be distorted or
may not be output.
yy When you use HDMI connection, you can
change the resolution for the HDMI output.
yy Changing the resolution when the
connection has already been established
may result in malfunctions. To solve the
problem, turn off the unit and then turn it
on again.
yy When the HDMI connection with HDCP
is not verified, TV screen is changed to
black screen. In this case, check the HDMI
connection, or disconnect the HDMI cable.
yy If there is noise or lines on the screen, please
check the HDMI cable (length is generally
limited to 4.5 m).
SH940C-LN_BIDNLLK_OM_Eng_MFL67370759.indd 6
2014-07-23 �� 10:45:54
Connecting
Additional Information for HDMI
yy When you connect a HDMI or DVI compatible
device make sure of the following:
-- Try switching off the HDMI/DVI device and
this unit. Next, switch on the HDMI/DVI
device and leave it for around 30 seconds,
then switch on this unit.
-- The connected device’s video input is set
correctly for this unit.
yy Not all HDCP-compatible HDMI or DVI devices
will work with this unit.
-- The picture will not be displayed properly
with non-HDCP device.
,,Note
yy Do not connect the unit through a VCR.
The image could be distorted by the copy
protection system.
yy For high definition video, it is recommended
to use the HDMI connection.
Connecting the AC
Adaptor
Connect the unit to the power supply with the
supplied AC adaptor.
Rear of this unit
2
Connecting
-- The connected device is compatible with
1280x720p, 1920x1080i or 1920x1080p video
input.
7
-- TV screen is changed to black screen.
Connecting Video / Audio
cable
Connect the VIDEO/AUDIO OUT on the unit to
VIDEO/AUDIO IN on TV with AV cable, such as
VIDEO with yellow, AUDIO Left/Right with white/
red.
Plug into a
power source.
AC Adaptor
yy Contact an electrical parts distributor for
assistance in selecting a suitable AC plug adaptor
or AC cord set.
>>Caution
Rear of this unit
Only use the AC adaptor supplied with this
device. Do not use a power supply from
another device or manufacturer. Using any
other power cable or power supply may cause
damage to the device and void your warranty.
Video/Audio Cable
VIDEO IN
L - AUDIO IN - R
SH940C-LN_BIDNLLK_OM_Eng_MFL67370759.indd 7
2014-07-23 �� 10:45:55
8
Operating
Initial Setup
When you turn on the unit for the first time, the
initial setup wizard appears on the screen. Set the
screen area on the initial setup wizard.
Step 3. Legal
By using this device, you confirm that you have
read and agreed to the “Google Terms of Service”
and Additional Terms of Service” and that you have
read the “Google Privacy Policy”.
,,Note
You can reset the unit to all its factory settings.
The initial setup menu appears on the screen
after the Factory Reset.
Step 1. Wireless network setup
3
Operating
By connecting the unit to a broadband home
network, you have access to services such as on-line
content services. For details, refer to “Connecting to
your Home Network” on pages 10-11.
Step 4. That’s it!
Step 2. Maximize your screen area
Step 5. Help make your device better
Maximize your screen area to just barely cover the
edge of your TV screen using W/S/A/D and
OK.
Check this box to make this device send TV viewing
history, usage information, statistics, and crash
reports to Google automatically.
Shows tip about modifying the settings.
Step 6. TV Viewing
The Initial Setup is completed and you can view the
TV channels.
SH940C-LN_BIDNLLK_OM_Eng_MFL67370759.indd 8
2014-07-23 �� 10:45:56
Operating
Menu Operations
You can access the required functions through
Home menu. The home menu appears when you
press Home button. Use W/S to select a required
function and press OK.
9
Application
You can select and launch an application installed
on the unit. (PlayStore, YouTube, Chrome and All
Apps that includes Live TV, Search, Settings, etc.)
Widget
Setting
You can change the settings of the unit in the
menu.
yy Picture: You can change the settings for the
picture. (Resolution and Screen Size)
yy Sound: You can select the sound mode and
audio language.
You can watch the Live TV and use the various
function related with TV viewing.
Guide
Shows the Program Guide contains schedule and
program information for TV broadcasting. You can
find programs easily and conveniently and to view
schedule and descriptive program information for
the programs.
On Demand
Library
yy Protection: Allows you to set up specific
channels and ratings through blocking schemes.
Also allows you to activate or disable all of the
lock schemes previously set up. A PIN code is
required to gain access to the [Protection] menu.
(The default PIN code is “0000”.)
3
Operating
Live TV
yy Display: You can select the menu language and
duration for Infobar.
yy General: You can see the general informations
of the device (decoder, system, network, disk,
CAS and signal, etc.) And, you can use [Channel
Scan], [Upgrade], [Factory Reset] and [Remove
harddisk] function.
yy Favorite: You can set favorite channels.
Library has the function that manages the reminder
program, play the recorded contents (PVR), play the
normal files (image, music, video file) in USB device.
yy Reminder: You can see the reserved program list
to watch in the future.
yy PVR: You can see the Recording Schedule and
Recorded Folder.
yy Other Media: You can play video, audio and
photo files in USB device or on-line content
services.
Search
Displays the search menu and you can use the
search function by entering keywords.
SH940C-LN_BIDNLLK_OM_Eng_MFL67370759.indd 9
2014-07-23 �� 10:45:56
10
Operating
Channel Scan
Finds all channels available through the ‘CABLE IN’
source and stores all the active channels found.
1. Press Home and select [Setting] on the Home
menu.
2. Select [General] on the [Setting] menu.
Wireless
Communication
3. Select [Channel Scan] on the [General] menu.
Access Point or
Wireless Router
3
Operating
4. Press OK while [Ok] icon is highlighted
and begins the channel search. The unit
automatically searches for and saves the
channels.
Connecting to your
Home Network
This unit can be connected to a local area network
via the internal wireless module.
By connecting the unit to a broadband home
network, you have access to services such as online content services.
Wireless network connection
Access Point or a wireless router is needed for
Wireless network connection. The network
configuration and connection method may vary
depending on the equipment in use and the
network environment.
SH940C-LN_BIDNLLK_OM_Eng_MFL67370759.indd 10
Broadband
service
Refer to the setup instructions supplied with
your access point or wireless router for detailed
connection steps and network settings.
Wireless network setup
For the wireless network connection, the unit
needs to be set up for network communication.
This adjustment can be done from the [Settings] on
the [All Apps] menu.
Preparation
Before setting the wireless network, you need
to:
-- Connect the broadband internet to the
wireless home network.
-- Set the access point or wireless router.
-- Note the SSID and security code of the
network.
2014-07-23 �� 10:45:56
Operating
1. Press Home and select [Application] on the
Home menu.
2. Select [All Apps] on the [Application] menu.
3. Select [Settings] on the [All Apps] menu.
4. Select [Wi-Fi] and select a desired SSID of
wireless network.
If you have security on your access point, you
need to input the security code as necessary.
11
yy Our company is not responsible for any
malfunction of the unit and/or the internet
connection feature due to communication
errors/malfunctions associated with your
broadband internet connection, or other
connected equipment.
yy Some internet contents may require a higher
bandwidth connection.
yy Even if the unit is properly connected and
configured, some internet contents may not
operate properly because of internet congestion,
the quality or bandwidth of your internet service,
or problems at the provider of the content.
How to check the internet
connection
You can check the internet connection.
1. Press Home and select [Setting] on the Home
menu.
2. Select [General] on the [Setting] menu.
3. Select [Network Information] on the [General]
menu. Information for internet connection is
displayed.
yy Any fees charged by an ISP including, without
limitation, connection charges are your
responsibility.
3
Operating
yy Some internet connection operations may not
be possible due to certain restrictions set by the
Internet service provider (ISP) supplying your
broadband Internet connection.
yy The use of a “Router” may not be allowed or its
usage may be limited depending on the policies
and restrictions of your ISP. For details, contact
your ISP directly.
yy The wireless network operate at 2.4 GHz
radio frequencies that are also used by other
household devices such as cordless telephone,
Bluetooth® devices, microwave oven, and can be
affected by interference from them.
yy Turn off all unused network equipment in
your local home network. Some devices may
generate network traffic.
yy For the purpose of the better transmission,
placing the unit from the access point as close as
possible.
Notes on Network Connection
yy Many wireless home network connection
problems during set up can often be fixed by
re-setting the access point or wireless router.
After connecting the unit to the home network,
quickly power off and/or disconnect the power
cable of the home network router. Then power
on and/or connect the power cable again.
yy Depending on the internet service provider (ISP),
the number of devices that can receive internet
service may be limited by the applicable terms
of service. For details, contact your ISP.
SH940C-LN_BIDNLLK_OM_Eng_MFL67370759.indd 11
yy In some instances, placing the access point or
wireless router at least 0.45 m above the floor
may improve the reception.
yy Move closer to the access point if possible or reorient the unit so there is nothing between it
and the access point.
yy The reception quality over wireless depends on
many factors such as type of the access point,
distance between the unit and access point, and
the location of the unit.
yy Set your access point or wireless router to
Infrastructure mode. Ad-hoc mode is not
supported.
2014-07-23 �� 10:45:57
4
Troubleshooting
12
Troubleshooting
Troubleshooting
Symptom
Cause & Solution
The Power does not turned on.
yy Plug the power cord into the wall outlet securely.
The remote control does not
work properly.
yy The remote control is not pointed at the remote sensor of the unit.
yy The remote control is too far from the unit.
yy There is an obstacle in the path between the remote control and the
unit.
yy The batteries in the remote control are exhausted.
There is no picture.
yy Select the appropriate video input mode on the TV so the picture
from the unit appears on the TV screen.
yy Connect the video connection securely.
yy Your TV may not support the resolution you have set on the unit.
Change the resolution to one that your TV accepts.
yy The unit’s HDMI jack is connected to a DVI device that does not
support copyright protection.
4
Troubleshooting
yy If the antenna’s reception is weakened by heavy rain, the condition of
the sound and picture may temporarily be poor or be no picture. This
is not malfunction of product.
Picture noise appears.
yy Set the resolution to one that your TV accepts.
yy Check the signal strength and quality.
There is no sound or the sound
is distorted.
yy Connect the audio connection securely.
yy The input source setting on the amplifier or the connection to the
amplifier is incorrect.
yy The sound volume is low or muted.
yy Check that the connected amplifier is compatible with the audio
format output from the unit.
yy The unit’s HDMI jack is connected to a DVI device. The DVI jack does
not accept audio signal.
yy Check the device connected to the unit’s HDMI OUT jack is
compatible with the audio format output from the unit.
Cannot connect the unit to the
access point or wireless LAN
router.
yy The wireless communication may be interrupted from household
devices that are using radio frequencies. Move the unit away from
them.
Access point is not displayed
on the “Access point name” list.
yy The access point or wireless LAN router may not broadcast its SSID.
Set your access point to broadcast its SSID through your computer.
yy Your network device such as access point may not set with available
frequency range and channel that this unit can support.
Try setting the frequency range and channel on the network device
setting.
SH940C-LN_BIDNLLK_OM_Eng_MFL67370759.indd 12
2014-07-23 �� 10:45:57
Appendix
13
Specifications
General
Power Requirements
12 V 0 2 A
AC Adaptor
yy
yy
yy
yy
Dimensions (W x H x D)
Approx. 260 mm x 50 mm x 164 mm without foot
Net Weight (Approx.)
0.83 kg
Operating Temperature
5 °C to 35 °C
Operating Humidity
5 % to 90 %
Signal System
Standard PAL color TV system
Bus Power Supply (USB)
5V01A
Wireless LAN (internal antenna)
Integrated IEEE 802.11n (2.4 GHz bands) wireless networking
access, compatible with 802.11b/g Wi-Fi networks.
Manufacturer: Yang Ming Industrial
Model: WA-24I12FG
Input: 100 - 240 V ~, 50/60 Hz, 0.7 A
Output: 12 V 0 2 A
Connectors
1.0 V (p-p), 75 Ω, sync negative, RCA jack x 1
AUDIO OUT
2.0 Vrms (1 kHz, 0 dB), 600 Ω, RCA jack (L, R) x 1
HDMI OUT (video/audio)
19 pin (HDMI standard, Type A)
USB Port
4 pin (USB 2.0 standard) x 2
5
Appendix
VIDEO OUT
Tuner & Channel
CABLE IN / OUT Connector
F-Type, IEC 169-24, Female
Input Frequency Range
54 MHz to 862 MHz
Impedance
75 Ω
Input Level Range
64 QAM (-15 dBmV to +15 dBmV), 256 QAM (-11 dBmV to +15 dBmV)
Demodulation
64 QAM, 256 QAM
Input Symbol Rate
4.00 Ms/s to 6.92 Ms/s
yy Design and specifications are subject to change without notice.
Warranty Period
The warranty period of the STB is 24 months from the production. Please refer to production date on the STB.
SH940C-LN_BIDNLLK_OM_Eng_MFL67370759.indd 13
2014-07-23 �� 10:45:57
14
Appendix
Trademarks and
Licenses
5
Important Information
Relating to Network
Services
The terms HDMI and HDMI High-Definition
Multimedia Interface, and the HDMI logo are
trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other
countries.
All information, data, documents, communications,
downloads, files, text, images, photographs,
graphics, videos, webcasts, publications, tools,
resources, software, code, programs, applets,
widgets, applications, products and other content
(“Content”) and all services and offerings (“Services”)
provided or made available by or through any
third party (each a “Service Provider”) is the sole
responsibility of the Service Provider from whom it
originated.
Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol
are trademarks of Dolby Laboratories.
The availability of and access to Content and
Services furnished by the Service Provider through
the LGE Device are subject to change at any time,
without prior notice, including, but not limited to
the suspension, removal or cessation of all or any
part of the Content or Services.
The Wi-Fi CERTIFIED Logo is a certification mark
of the Wi-Fi Alliance.
Appendix
Notes on Copyrights
This product incorporates copyright protection
technology that is protected by U.S. patents
and other intellectual property rights. Use of
this copyright protection technology must be
authorized by Rovi Corporation, and is intended for
home and other limited viewing uses only unless
otherwise authorized by Rovi Corporation. Reverse
engineering or disassembly is prohibited.
Should you have any inquiry or problem related
to the Content or Services, you may refer to the
Service Provider’s website for the most up-todate information. LGE is neither responsible nor
liable for customer service related to the Content
and Services. Any question or request for service
relating to the Content or Services should be made
directly to the respective Content and Service
Providers.
Please note that LGE is not responsible for any
Content or Services provided by the Service
Provider or any changes to, removal of, or cessation
of such Content or Services and does not warrant
or guaranty the availability of or access to such
Content or Services.
Open source software notice
To obtain the corresponding source code under
GPL, LGPL and other open source licenses, please
visit http://opensource.lge.com. All referred license
terms, warranty disclaimers and copyright notices
are available to download with the source code.
SH940C-LN_BIDNLLK_OM_Eng_MFL67370759.indd 14
2014-07-23 �� 10:45:57
Appendix
15
Maintenance
Handling the unit
When shipping the unit
Please save the original shipping carton and
packing materials. If you need to ship the unit, for
maximum protection, re-pack the unit as it was
originally packed at the factory.
Cleaning the unit
To clean the unit, use a soft, dry cloth. If the
surfaces are extremely dirty, use a soft cloth lightly
moistened with a mild detergent solution. Do not
use strong solvents such as alcohol, benzine, or
thinner, as these might damage the surface of the
unit.
Keeping the exterior surfaces clean
yy Do not use volatile liquids such as insecticide
spray near the unit.
yy Wiping with strong pressure may damage the
surface.
SH940C-LN_BIDNLLK_OM_Eng_MFL67370759.indd 15
5
Appendix
yy Do not leave rubber or plastic products in
contact with the unit for a long period of time.
2014-07-23 �� 10:45:57
PT. LG ELECTRONICS INDONESIA
Kawasan Industri MM2100 Blok G
Cikarang Barat, Bekasi, Jawa Barat 17520
INDONESIA
SH940C-LN_BIDNLLK_OM_Eng_MFL67370759.indd 16
2014-07-23 �� 10:45:57
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
