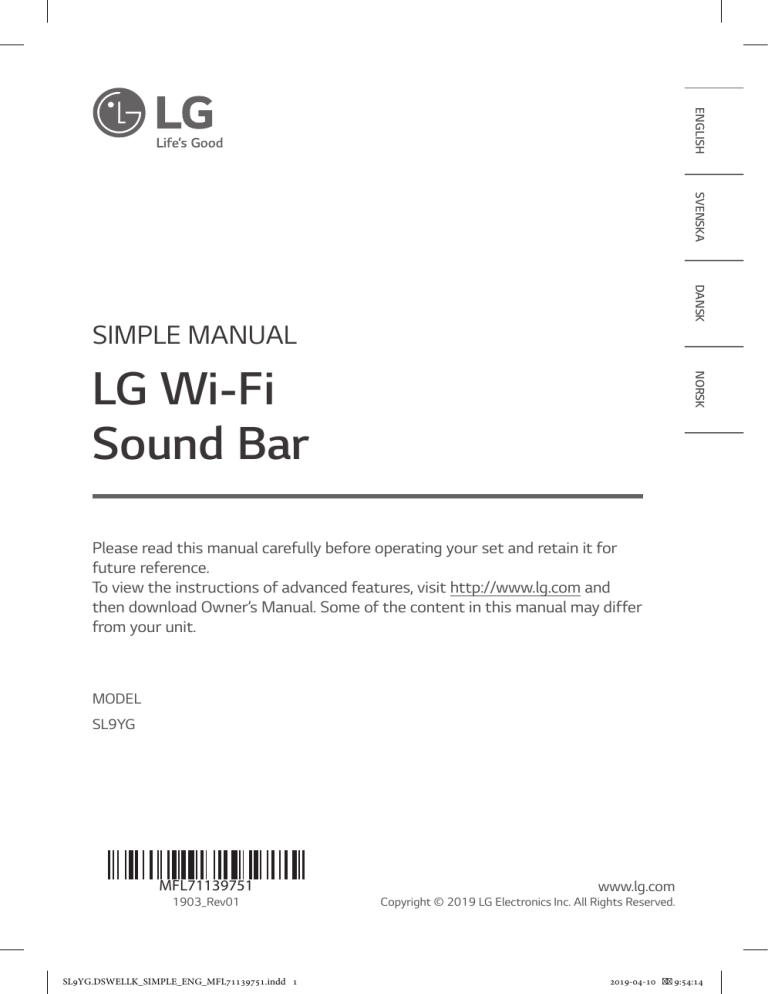

LG SL9YG User guide
ENGLISH
SVENSKA
DANSK
SIMPLE MANUAL
NORSK
LG Wi-Fi
Sound Bar
Please read this manual carefully before operating your set and retain it for
future reference.
To view the instructions of advanced features, visit http://www.lg.com and
then download Owner’s Manual. Some of the content in this manual may differ
from your unit.
MODEL
SL9YG
MFL71139751
1903_Rev01
SL9YG.DSWELLK_SIMPLE_ENG_MFL71139751.indd 1
www.lg.com
Copyright © 2019 LG Electronics Inc. All Rights Reserved.
2019-04-10
9:54:14
Front Panel
Subwoofer Connection
Microphone
Place the wireless subwoofer near the sound bar and
follow steps below.
a Connect the power cord of the sound bar and the
wireless subwoofer to the outlet.
b Turn on the sound bar.
• The sound bar and wireless subwoofer will be
automatically connected. The subwoofer's
green LED turns on.
Google Assistant LED
1 (Standby) · · · · · · · · · · · · Switches the unit ON or OFF.
F (Function) · · · · · · · · · · · · · · · · · · · · · · · · · · Selects function.
p/o (Volume) · · · · · · · · · · · · · · · · · · · · · · Adjusts volume.
N · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · Play / pause
> (Mic mute) · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·
Enables and disables Voice recognition.
· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·
Standby and Stops feedback of Google Assistant.
Rear Panel
Manually Subwoofer Connection
If the subwoofer does not make sound, try to
connect manually.
a Press Pairing on the rear of the wireless
subwoofer.
• The green LED on the rear of the wireless
subwoofer blinks quickly.
(If the green LED does not blink, press and
hold the Pairing.)
b Turn on the sound bar.
• Pairing is completed. The green LED on the
rear of the wireless subwoofer turns on.
Keep the sound bar and the subwoofer
away from the device (ex. wireless router,
microwave oven, etc.) over 1 m to prevent
wireless interference.
!1 m
USB (Service only) · · · · · · · · · S/W download connector.
OPTICAL IN · · · · · · · · · · · · Connect to an optical device.
HDMI OUT (TV ARC) · · · · · · · · · · · · · · · Connect to a TV.
HDMI IN · · · · · · · · · · Connect to device with HDMI OUT.
SL9YG.DSWELLK_SIMPLE_ENG_MFL71139751.indd 2
2019-04-10
9:54:15
TV Connection
Connect the sound bar and TV using Optical (
HDMI ARC ( ).
Network Connection
) or
a
c
Optical Connection
a Connect the sound bar to the TV using Optical
cable.
b Set up [External Speaker (Optical)] on your TV
setting menu.
HDMI (ARC) Connection
a Connect the sound bar to the TV using HDMI
cable.
b Set up [External Speaker (HDMI ARC)] on your
TV setting menu.
b
a Check network condition. A router connected to
network should be installed.
b Connect your smart device to your home
network.
c Connect the sound bar to the power supply.
All devices should be connected to same
router.
Step.1 Install “Google Home” App
Download the Google Home App from the Google
Play or App Store.
Step.2 Set up the Wi-Fi connection with
app
a Connect your smart device to the Wi-Fi network
that you’ll use for your speaker.
• HDMI connection is unavailable if your TV
does not support HDMI ARC.
• If this unit is connected by OPTICAL and
ARC at the same time, the ARC signal is a
high priority.
Additional Device Connection
a Connect to the external device like as follow.
In case of iOS devices, it should be turned
on Bluetooth setting on your smart device.
b Launch the “Google Home” app.
c Follow the steps for Wi-Fi connection on the app.
• When the speaker is properly connected
to Wi-Fi, “CONNECTED” will appear on the
display window with sound.
(Set-top Box,
Player etc.)
OR
b Set the input source by pressing F repeatedly.
SL9YG.DSWELLK_SIMPLE_ENG_MFL71139751.indd 3
2019-04-10
9:54:16
• When connect to Wi-Fi, this app may
request to create a Google Account. You
will need a Google account to use this app.
• “Google Home” app is provided by Google.
It might be revised by a change of Google
Policy.
• For more information (Set up, Usage, Help
etc.), research “Google Assistant Help” or
visit the web site.
https://support.google.com/assistant This
public site is provided for devices that work
with Google Assistant.
• The speaker is not available to use some
function from “Google Assistant Help” site.
(ex. Call etc.)
How to Use “Google Assistant”
Make sure the speaker is connected to Wi-Fi.
Case 1. Say “Ok Google”
Ok Google.
The Google Assistant only responds to
voice commands when you are using Wi-Fi
or BT (Bluetooth) as the input.
If you are using HDMI, Optical, ARC, or
Optical Sound Sync, then you must use
the
button to activate the Google
Assistant.
Case 2. Press
.
OR
SL9YG.DSWELLK_SIMPLE_ENG_MFL71139751.indd 4
2019-04-10
9:54:16
Voice command
• Plan your day
“Tell me about my day.”
“What’s my next meeting?”
“Set a reminder to check schedule at 6pm.”
• Weather
“What’s the weather?”
“What’s the weather on tomorrow?”
“What’s the weather in New York?”
• Music
“Play the music.” “Next song.”
“Previous song.” “Pause the music”
• Availability
“How many calories in a hot dog?”
“How do I get to Ocean Beach?”
“How do you say hello in Korean?”
“Talk to Best Jokes.”
• Internet
“What movies are showing this weekend?”
“Why is the sky blue?”
“What is the smallest country in Europe?”
“How much sugar is there in a Coke?”
• Subscriptions
“What are the latest headlines?”
• Smart Home
“Turn up the thermostat.”
“Set the thermostat to 22 degrees”
“Dim the lights in the kitchen.”
“Is the light on in the living room?”
• For more information on the voice
commands, refer to the “Google Home”
app screen or visit the web site. https://
support.google.com/assistant
• If you're having problems with Voice
recognition or this product, suggest your
feedback by saying "Ok Google, feedback".
It is helpful to Google Service quality
enhancement.
SL9YG.DSWELLK_SIMPLE_ENG_MFL71139751.indd 5
Bluetooth Connection
Step 1. Connect the Wi-Fi
Make sure the speaker connects to Wi-Fi by using
“Google Home” app.
Bluetooth function is inactive before
connecting to Wi-Fi.
Step 2. Change Function
Select the Bluetooth function by pressing F
repeatedly.
Step 3. Find and Select your speaker
name
Select speaker name that was set on “Google Home”
app on the device list of your smart device. When
successfully connected Bluetooth, “PAIRED” will
appear on display window.
Additional
Comfortable Function
With the Google Assistant built in, you can control
compatible smart home devices such as TV’s, lights,
switches, plugs, thermostats and more by simply
using your voice.
For more information, visit the below web
site.
• Set up, Usage and more: https://support.
google.com/assistant
• Compatible LG appliance models: Visit
http://www.lg.com and then search the
information.
Download LG Wi-Fi Speaker Application
You can manage the speaker settings and control the
speaker by using “LG Wi-Fi Speaker”.
Download “LG Wi-Fi Speaker” on the App Store or
Google Play Store.
2019-04-10
9:54:16
Remote control
Replacement of Battery
Additional Information
Specification
Power
requirements
Refer to the main label.
Refer to the main label.
Power
consumption
Dimensions
(W x H x D)
SOUND EFFECT: Selects a sound effect mode.
-- TV remote: Long press SOUND EFFECT and
press it again to use TV remote control.
: Standby and Stops feedback of Google Assistant.
>: Enables and disables Voice recognition.
: Adjusts sound level of each speaker.
-- Surround sound: Long press
and press it
again.
8: Turns on or off the Night time mode.
J: Displays the information of a file, an input
source, a connected Bluetooth device name or an
application name.
-- Auto Power ON/OFF: Long press J and press
it again.
SL9YG.DSWELLK_SIMPLE_ENG_MFL71139751.indd 6
Networked standby : 5.5 W
(If all network ports are
activated.)
Approx.
1220.0 mm x 57.0 mm x
145.0 mm (with foot)
Amplifier
(Total RMS
500 W RMS
Output
power)
Design and specifications are subject to change
without notice.
Rear Speakers Ready
Ready for surround sound with Rear
Speakers Kit sold separately. (SPK8-S)
How to disconnect the wireless network
connection or the wireless device
Turn off the unit by pressing the power button for
more than 3 seconds.
2019-04-10
9:54:17
OPEN SOURCE SOFTWARE NOTICE
INFORMATION
To obtain the source code under GPL, LGPL, MPL, and
other open source licenses, that is contained in this
product, please visit http://opensource.lge.com.
In addition to the source code, all referred license
terms, warranty disclaimers and copyright notices are
available for download.
LG Electronics will also provide open source code to
you on CD-ROM for a charge covering the cost of
performing such distribution (such as the cost of
media, shipping, and handling) upon email request to
opensource@lge.com.
This offer is valid for a period of three years after our
last shipment of this product. This offer is valid to
anyone in receipt of this information.
For more information about Google’s open source,
visit device settings of Google Home app.
Disclaimers
• Google, Google Home, Google Play, Chromecast builtin and other related marks and logos are trademarks
of Google LLC.
• Google Assistant requires an internet/data
connection. Data rates may apply.
• The Google Assistant is not available in certain
languages and countries.
• Subscriptions may be required, and additional terms,
conditions and/or charges may apply.
• Controlling certain devices and features in your home
requires a compatible smart device.
SL9YG.DSWELLK_SIMPLE_ENG_MFL71139751.indd 7
Declaration of Conformity
Hereby, LG Electronics declares that the radio
equipment type Wi-Fi SOUND BAR is in compliance
with Directive 2014/53/EU. The full text of the EU
declaration of conformity is available at the following
internet address:
http://www.lg.com/global/support/cedoc/cedoc#
The use of the 5150 – 5350 MHz band is restricted
to indoor use only. This restriction exists in the
countries Belgium (BE), Bulgaria (BG), Czech Republic
(CZ), Denmark (DK), Germany (DE), Estonia (EE),
Ireland (IE), Greece (EL), Spain (ES), France (FR),
Croatia (HR), Italy (IT), Cyprus (CY), Latvia (LV),
Lithuania (LT), Luxembourg (LU), Hungary (HU),
Malta (MT), Netherlands (NL), Austria (AT), Poland
(PL), Portugal (PT), Romania (RO), Slovenia (SI),
Slovakia (SK), Finland (FI), Sweden (SE), United
Kingdom (UK), Switzerland (CH), Iceland (IS),
Liechtenstein (LI) and Norway(NO).
For consideration of the user, this device should be
installed and operated with a minimum distance of
20 cm between the device and the body.
Frequency range
2402 to 2480 MHz
2412 to 2472 MHz
5180 to 5320 MHz
5500 to 5700 MHz
5730 to 5821 MHz
Output power (Max.)
9 dBm
20 dBm
23 dBm
23 dBm
13 dBm
2019-04-10
9:54:17
SL9YG.DSWELLK_SIMPLE_ENG_MFL71139751.indd 8
2019-04-10
9:54:18
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
