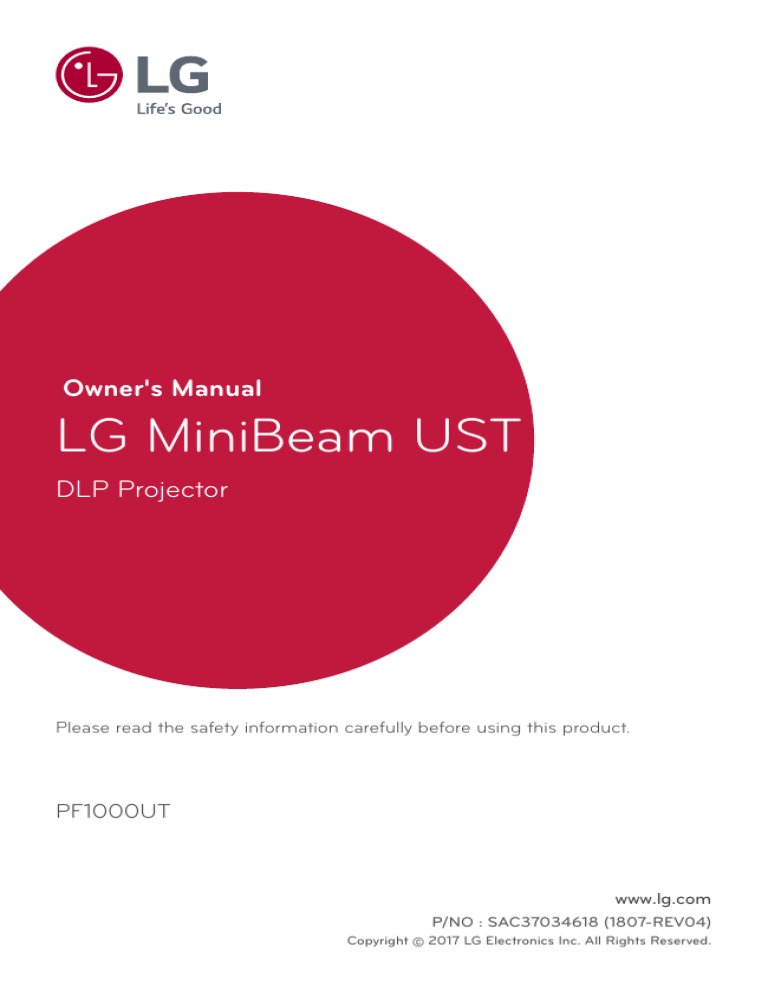

Owner's Manual
LG MiniBeam UST
DLP Projector
Please read the safety information carefully before using this product.
PF1000UT
www.lg.com
P/NO : SAC37034618 (1807-REV04)
Copyright ⓒ 2017 LG Electronics Inc. All Rights Reserved.
2
LICENSES
LICENSES
Supported licenses may differ by model. For more information about
licenses, visit www.lg.com.
Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol
are trademarks of Dolby Laboratories.
This DivX Certified® device has passed
rigorous testing to ensure it plays DivX®
video.
To play purchased DivX movies, first register
your device at vod.divx.com. Find your
registration code in the DivX VOD section of
your device setup menu.
DivX Certified® to play DivX® video up to HD
1080p, including premium content.
DivX®, DivX Certified® and associated logos
are trademarks of DivX, LLC and are used
under license.
Covered by DivX Patents 7,295,673;
7,515,710; RE45,052; and others available
at [www.divx.com/patents]
The terms HDMI and HDMI High-Definition
Multimedia Interface, and the HDMI Logo
are trademarks or registered trademarks of
HDMI Licensing LLC in the United States
and other countries.
For DTS patents, see http://patents.dts.
com. Manufactured under license from DTS
Licensing Limited. DTS, the Symbol, & DTS
and the Symbol together are registered
trademarks, and DTS 2.0+Digital Out is a
trademark of DTS, Inc. © DTS, Inc. All Rights
Reserved.
LICENSES

NOTE
• Image shown may differ from your projector.
• Your projector’s OSD (On Screen Display) may differ slightly from
that shown in this manual.
3
4
SAFETY PRECAUTIONS
SAFETY PRECAUTIONS
Please take note of the safety instructions to prevent any potential accident
or misuse of the projector.
• Safety precautions are given in two forms, i.e., WARNING and CAUTION
as detailed below.
WARNING Failure to follow the instructions may cause serious
injury and even death.
CAUTION Failure to follow the instructions may cause personal
injury or product damage.
• Read the owner's manual carefully and keep it on hand.
WARNING/CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with
arrowhead symbol, within
an equilateral triangle, is
intended to alert the user to the
presence of uninsulated dangerous
voltage within the product’s
enclosure that may be of sufficient
magnitude to constitute a risk of
electric shock to persons.
The exclamation point
within an equilateral
triangle is intended to alert
the user to the presence of
important operating and
maintenance (servicing)
instructions in the literature
accompanying the appliance.
WARNING/CAUTION
-- TO REDUCE THE RISK
OF FIRE AND ELECTRIC
SHOCK, DO NOT EXPOSE
THIS PRODUCT TO RAIN OR
MOISTURE.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Indoor Installation
WARNING
• Do not use the projector outside
and do not expose the product
to any humidity or water.
--Since the product is not
waterproof, this may result in
a fire or electric shock.
• Do not place the projector in
direct sunlight or near heat
sources such as radiators, fires,
stoves, etc.
--This may result in fire.
• Do not place flammable
materials such as aerosols near
the projector.
--This may result in fire.
SAFETY PRECAUTIONS
• Do not allow children to cling to
or climb up to the projector.
-- This may cause the projector
to fall, causing injury or death.
• Do not install the product in a
place with no ventilation (e.g.,
on a bookshelf or in a closet) or
on a carpet or cushion.
--This may result in fire due
to the increase in internal
temperature.
• Do not place the product close
to sources of steam, oil or oil
mist, such as humidifiers and
kitchen counters.
--Failure to do so may result
in fire, electric shock, or
corrosion.
• Do not install the product onto
a wall or ceiling that is close to
sources of oil or oil mist.
--The product may be
damaged and fall, resulting in
serious injury.
• Do not place the projector where
it might be exposed to dust.
--This may result in fire.
• Do not use the projector in a
damp place such as a bathroom
where it is likely to get wet.
--This may result in fire or
electric shock.
• Do not allow a tablecloth or
curtain to block the air vent.
--This may result in fire due to
the increase in the internal
temperature.
5
• Ensure good ventilation around
the projector. The distance
between the projector and the
wall should be at least 30 cm.
--This will prevent fire due to
the increase in the internal
temperature.
CAUTION
• When placing the projector on a
table or shelf, be careful not to
put it near the edge.
--The projector could fall due
to balance problems, which
may cause personal injury or
damage to the product. Make
sure to use the projector
cabinet or stand that fits the
projector.
• When moving the projector,
make sure to switch it off and
remove the power plug and
cords.
--The power cord may be
damaged, resulting in fire or
electric shock.
• Do not place the projector on
an unstable or vibrating surface
such as a wobbly shelf or a
slope.
--It may fall and cause injury.
• Be careful not to tip the projector
over when connecting external
devices to the projector.
--This may cause personal
injury or damage to the
projector.
6
SAFETY PRECAUTIONS
Power
WARNING
• DISCONNECTING THE
DEVICE FROM THE MAIN
POWER
--The power plug is the
disconnecting device. In case
of an emergency, the power
plug must remain readily
accessible.
• The grounding wire should be
connected. (Except for devices
which are not grounded.)
--Ensure that you connect the
grounding cable to avoid
electric shock. If it is not
possible to ground the unit,
have a qualified electrician
install a separate circuit
breaker.
Do not try to ground the
projector by connecting it to
telephone wires, lightning
rods or gas pipes.
• The power plug should be
inserted fully into the power
outlet.
--An unstable connection may
cause a fire.
• Do not place heavy objects on
the power cord.
--This may result in fire or
electric shock.
• Never touch the power plug with
wet hands.
--This may result in electric
shock.
• Do not plug too many devices
into one multi-power outlet.
--This may result in fire due to
the power outlet overheating.
• Keep the AC adapter, power
plug, and the used power outlet
clean from dust or foreign
materials building up.
--This may result in fire.
• If there is any smoke or a
burning smell from the projector
or AC adapter, stop using the
product immediately. Disconnect
the power cord from the power
outlet, and then contact the
customer service centre.
--This may result in fire.
• To turn off the main power,
remove the power plug, which
should be positioned so it is
easy to access for operation.
SAFETY PRECAUTIONS
CAUTION
• Always grab the plug to remove
the AC adapter or power cord.
--Otherwise, this may result
in a fire or may damage the
product.
• Refrain from constantly bending
the power cord of the AC
adapter.
--If the power cord is bent
excessively for a long period
of time, the cord may break
inside. This may result in a
fire or electric shock.
• Ensure the power cord and plug
are not damaged, modified,
severely bent, twisted, pulled,
sandwiched or hot. Do not use
the product if the power outlet
is loose.
--This may result in fire or
electric shock.
• Keep the power cord away from
heating devices.
--The wire's sheath may melt,
which may result in fire or
electric shock.
• Place the projector where
people will not trip over or step
on the power cord to protect the
power cord and plug from any
damage.
--This may result in fire or
electric shock.
7
• Do not turn the projector on or
off by plugging in the power plug
or unplugging it from the power
outlet. (Do not use the power
plug as a switch.)
--This may result in electric
shock or damage to the
product.
• Do not insert a conductor
into the other side of the wall
outlet while the power plug is
inserted into the wall outlet.
In addition, do not touch the
power plug immediately after it
is disconnected from the wall
outlet.
--This may result in electric
shock.
• Only use the official power cord
provided by LG Electronics. Do
not use other power cords.
--This may result in fire or
electric shock.
• If any water or foreign materials
have gone into the AC adapter,
power cord, or the interior of the
projector, turn off the projector
by pressing the power button.
Remove all the cables, and then
contact the customer service
centre.
--This may result in fire or
electric shock.
• The surface of the AC adapter is
hot. Keep the AC adapter out of
the reach of children and avoid
touching it during use.
8
SAFETY PRECAUTIONS
• Never disassemble the power
supply devices (AC adapter/
power cord, etc.).
--This may damage the power
cord and result in a fire or
electric shock.
• Connect the AC adapter and the
power cord firmly.
--Not doing so may result in a
product failure or fire.
• Do not place heavy objects
or put pressure on the power
cord and AC adapter and avoid
damage.
--This may result in a fire or
may damage the product.
• Always use the AC adapter
provided or any AC adapters
approved and certified by LG
Electronics.
--Any other AC adapter
connected may result in the
screen flickering.
When in Use
WARNING
• Do not place anything containing
liquid on top of the projector
such as a vase, flower pot,
cup, cosmetics, or medicine; or
ornaments, candles, etc.
--This may result in fire or
electric shock, or cause injury
due to falling.
• In the event that there is a
heavy impact or the cabinet is
damaged, switch it off, unplug
it from the power outlet and
contact an authorized service
centre.
--This may result in electric
shock.
• Do not insert pieces of metal
such as coins, hairpins or metal
debris, nor flammable materials
such as paper or matches into
the projector.
--This is to prevent electric
shock or fire.
• Make sure that a child does
not swallow the batteries when
you replace the old remote
control batteries with new ones.
Keep batteries out of reach of
children.
--If a child swallows a battery,
consult a doctor immediately.
• Never open any cover on the
projector.
--There is a high risk of electric
shock.
SAFETY PRECAUTIONS
• Do not look directly into the lens
when the projector is in use.
--The bright light may damage
your eyes.
• When the lamp is on or has just
been turned off, avoid touching
the air vent or lamp, because
these will be very hot.
• If there is a gas leak in the
room with the projector, do not
touch the projector or power
outlet. Open the windows for
ventilation.
--Sparks may cause fire or
burns.
• Unplug the power cord from the
outlet during a lightning storm.
--This will prevent shock or
damage to the projector.
• Do not use the projector near
electronic devices that generate
a strong magnetic field.
• Do not put the plastic package
used to pack the projector
around your head.
--This may cause suffocation.
• Do not keep your hand on the
projector for a long time when it
is running.
9
• When you play a game by
connecting a game console to
a projector, it is recommended
that you maintain a distance
of more than four times the
diagonal length of the screen.
--Make sure that the
connecting cable is long
enough. Otherwise, the
product may fall causing
personal injury or damage to
the product.
• Do not place the projector or its
remote control with battery in
an extremely high temperature
environment.
--This may result in fire.
• Do not use 3D glasses if you do
not watch 3D.
10
SAFETY PRECAUTIONS
CAUTION
• Do not place heavy objects on
the projector.
--It may fall down and cause
personal injury.
• Be careful not to allow any
impact to the lens during
transport.
• Do not touch the lens of the
projector.
--The lens may be damaged.
• Do not use any sharp tools on
the projector such as a knife
or hammer, because this may
damage the casing.
• In the event that no image
appears on the screen or no
sound is heard, stop using
the projector. Switch off the
projector, unplug it from the
power outlet and contact our
service centre.
--This may result in fire or
electric shock.
• Do not drop anything onto the
projector or allow anything to
bang into the projector.
--This may cause damage
to the projector or personal
injury.
• It is recommended that you
maintain a distance of at least
5-7 times the diagonal length of
the screen.
--If you watch the screen at
a close distance for a long
time, your eye sight may
become worse.
• Do not block the light beam
emitted from the projector using
a book or other object.
--Lengthy exposure to the
projector beam may result in
fire. In addition, the lens may
be overheated and damaged
by the reflected heat. Disable
the AV function to stop
projection temporarily or turn
off the power.
• Do not start the projector with
the volume turned up high.
--High volume may damage
hearing.
• Do not use high voltage
electrical equipment near the
projector, (e.g., a bug zapper.).
This may result in product
malfunction.
SAFETY PRECAUTIONS
Cleaning
WARNING
• Do not spray the projector with
water when cleaning. Make sure
water does not flow into the
projector.
--This may result in fire or
electric shock.
• When there is smoke or a
strange smell coming out from
the projector or a foreign object
falls into the projector, please
switch it off and unplug it from
the power outlet and contact our
service centre.
--Otherwise, this may result in
fire or electric shock.
• Use air spray, a soft cloth or
a cotton swab moistened with
a lens cleaning chemical or
alcohol to remove dust or stains
on the front projection lens.
CAUTION
• Contact your seller or our
service centre once a year to
clean the internal parts of the
projector.
-- If you do not clean the
projector for a long period of
time, dust will accumulate,
which may result in fire or
damage to the projector.
11
• When cleaning plastic parts
such as the projector case,
unplug the power first and wipe
with a soft cloth. Do not spray
with water or wipe with a wet
cloth. Never use glass cleaner,
automobile or industrial shiner,
abrasives, wax, benzene, or
alcohol as these can damage the
projector.
-- This can result in fire, electric
shock or cause damage to
the product (deformation and
corrosion).
• Do not wipe the optical system
(lens, mirror) right after the
product has been turned off
or while the product is being
operated. When cleaning each
part of the product, remove the
power cord and wipe gently
with a soft cloth. Do not spray
with water or wipe with a wet
cloth. Do not use detergents,
automobile or industrial polish,
abrasive substances, wax,
benzene, alcohol, water, etc. on
the product's main unit or optical
system (lens, mirror) as this may
damage the product.
--This can result in fire, electric
shock or cause damage to
the product (deformation and
corrosion).
• Remove the plug from the outlet
before cleaning the product.
-- Otherwise, this may result in
electric shock.
12
SAFETY PRECAUTIONS
Others
WARNING
• Some users may experience
a seizure or other abnormal
symptoms when they are
exposed to a flashing light or
particular patterns from a video
game.
• When you go out, place the
projector out of reach of
animals, and remove the power
plug from the wall outlet.
--Using a damaged power cord
may result in short circuit
or fire.
• Do not use the projector near
highprecision electronic devices
or those that transmit weak
radio signals.
--This may affect the operation
of the product, causing an
accident.
• Only a qualified technician
can disassemble or modify
the projector. For diagnosis,
adjustment, or repair, contact
your seller or our service centre.
--This may result in fire or
electric shock.
• Do not stare directly into lens
when in operation, eye damage
can occur.
• No user serviceable parts
inside unit. High voltage parts
can cause shock and even
electrocution.
• Proper ventilation required, do
not block airflow around unit.
Doing so can cause injury and
internal overheating.
• Do not touch the lens; doing so
can result in burns or damage
to lens. Lens and unit may be
HOT during and immediately
after use. Use caution when
handling unit, allowing for proper
cool down.
• Only use a grounded electrical
outlet. (Except for devices which
are not grounded.)
• Do not insert anything into or
cover up the exhaust vents.
--This may result in fire or
electric shock.
• Follow all maintenance
guidelines for optimal use;
service only at an authorized
service centre.
• Keep the batteries and remote
out of reach of children.
--This will prevent personal
injury or damage to the
product.
SAFETY PRECAUTIONS
CAUTION
• Do not mix new batteries with
old ones.
-- Burst or leaking batteries may
result in damage or injury.
• Be sure to unplug if the projector
is not to be used for a long
period.
-- Accumulated dust may result
in fire or electric shock due to
overheating, ignition, or poor
insulation.
• Only use the specified type of
battery.
-- Burst or leaking batteries may
result in damage or injury.
• Dispose of used batteries
properly.
-- This may result in explosion
or fire. The correct method of
disposal may vary depending
on your country or region.
Dispose of the battery pack
as instructed.
• Do not throw or disassemble the
battery.
-- This may result in fire or
explosion due to damage to
the battery.
• Store batteries away from
metallic objects, such as keys
and paper clips.
-- Excess current may cause a
rapid increase in temperature,
resulting in fire or burns.
13
• Do not store the batteries near
any heat source, such as a
heater.
-- This may result in fire or
damage to the product.
• Do not store batteries at
temperatures higher than 60 °C
or in high humidity.
-- This may result in explosion
or fire.
• Make sure that the battery is
installed correctly.
-- This prevent explosion or fire.
• Make sure you use the same
type of batteries for replacement.
• Incorrect battery replacement
may cause fire.
Risk Group 2
CAUTION Possibly hazardous
optical radiation emitted from this
product. Do not stare at operating
lamp. May be harmful to the eye.
14
CONTENTS
CONTENTS
LICENSES
2
SAFETY PRECAUTIONS
4
PREPARATION
17
Accessories
17
Optional Extras
18
Parts and Components
--Main Unit
--Side
--Back
19
19
20
21
Using the Joystick Button
--Basic functions
--Adjusting the menu
22
22
23
Projector Status Indicators 23
Installation
24
--Installation Precautions
24
--Projection Distance per
Screen Size
25
--Kensington Security System
26
MAGIC REMOTE CONTROL
27
--To Register the Magic
Remote Control
29
--To Re-register the Magic
Remote Control
29
--Using the Magic Remote
Control
30
USING THE PROJECTOR 31
Watching Projector
31
--Initial Setup
31
--Focus of the Screen Image
34
--Watching With the Projector
35
Additional Options
36
--To adjust Aspect Ratio
36
--Using the Edge Adj (4 Corner
Keystone) Function
37
--Changing Input Device
38
--To Use SIMPLINK
40
Using the Quick Menu
42
To Set Sound
--To Set Sound Output
43
43
ENTERTAINMENT
45
To use Smart Features
--To use Home Screen
--To use MY APPS
--To edit items in MY APPS
45
45
46
46
To Connect Network
--One-click Network
Connection
--To Connect to a Network
Through Set Expert
--To Use the Wi-Fi Direct
Function
--Tips for Network Settings
47
47
47
48
49
CONTENTS
SMARTSHARE
50
Before Using
50
--Connecting a USB Device 50
--Removing a USB Device 50
To use SmartShare™
--Watching the Videos
--Viewing the Photos
--Listening to Music
--Viewing Files
--To Set SmartShare™
Related Functions
52
53
55
56
57
58
To use SCREEN SHARE
(Miracast™ / Intel's WiDi
Function)
--To Use the Miracast™ /
Intel's WiDi Function
61
To Use a Premium Service
--To Use Paid Content
--To Reset Premium
62
63
64
61
To Use LG Smart World
65
--To Sign Up With LG Smart
World
66
--To Install An App On Your
Projector
66
--To Manage My Information 67
To Use Search Function
68
To Use the Voice Recognition
Function
69
--Using this Function Through
Search
69
--Using this Function on the
Internet
69
15
To Use Voice Mate Function 71
--What Is Voice Mate?
71
--How to Use Voice Mate? 72
--What Are Other Functions of
Voice Mate?
72
See Avatar
--Using the Avatar
73
73
To Use Internet
74
Frequently Asked Questions
for Projector
75
USING ADVANCED
FUNCTIONS
79
To Use Screen Remote
79
--To Use Screen Remote
79
--To Control a Device
Connected to the Projector
Using the Screen Remote 79
To Use the Universal Control
function
80
To Use a USB Input Device On
a Projector
81
--To Use a USB Wired/wireless
Mouse
81
--To Use a USB Wired/wireless
Keyboard
81
16
CONTENTS
3D FUNCTION
82
While Watching 3D
82
Requirements for Watching 3D
Images
85
--Using the DLP-LINK (DLPReady) Type Glasses
86
To view 3D images
--Supported 3D Mode
86
87
CUSTOMIZING SETTINGS
88
SETTINGS
88
PICTURE Settings
89
SOUND Settings
96
TIME Settings
99
LOCK Settings
100
OPTION Settings
101
NETWORK Settings
104
SUPPORT
106
CONNECTING DEVICES 107
Connecting to HD Receiver,
DVD, or VCR Player, External
Devices
108
--HDMI Connection
108
--HDMI to DVI Connection 109
--AV Connection
109
--Component Connection 110
Connecting a PC
111
--HDMI Connection
111
--HDMI to DVI Connection 111
Connecting a Laptop
--HDMI Connection
112
112
Connecting Headphones
113
Connecting a Digital Amp
114
Using the Mirroring Function
of a Mobile Phone
115
--MHL Connection
115
MAINTENANCE
116
Cleaning
116
--Cleaning the Lens
116
--Cleaning the Projector Case
116
INFORMATION
117
To Update Projector Software
117
Before Reporting a Problem,
Check the Following:
118
--General
118
--Picture
118
--Sound
119
--PC Connection Problem 120
--Problems Replaying Movies
in My Media
121
SPECIFICATIONS
123
SYMBOLS
128
PREPARATION
PREPARATION
The pictures may differ slightly from the actual product.
Accessories
Accessories included with the projector are show below.
Accessories are subject to change without prior notice.
New accessories may be added or old ones removed.
Magic Remote Control
Two AA Batteries
Owner's Manual
Power cord
AC-DC Adaptor
• When connecting an HDMI or USB
cable, or connecting a USB flash drive
to the HDMI or USB port, use a product
that has a width of 18 mm or less and a
height of 10 mm or less.
• When connecting two USB devices at
the same time, each one should have
bezels less than 8.5 mm thick.
• If the USB cable or USB flash drive
does not fit the USB ports of the
projector, use an extension cable that
supports USB 2.0.
Composite
Gender
17
18
PREPARATION
• Use a certified cable with the HDMI logo attached.
• If you do not use a certified HDMI cable, the screen may not display or a
connection error may occur. (Recommended HDMI cable types)
--High-Speed HDMI®/™ Cable
--High-Speed HDMI®/™ Cable with Ethernet
Optional Extras
To purchase optional accessories, visit an electronics store or online
shopping site or contact the retail store where you purchased the product.
Optional accessories are subject to change without prior notice.
Projection Screen
HDMI Cable
Optical Cable
Video Cable
Audio Cable
3D glasses
(DLP-LINK or DLP
Ready Type)
LG Audio Device
MHL Cable
Component Gender
PREPARATION
19
Parts and Components
This projector is manufactured using high-precision technology. You may,
however, see tiny black dots and/or bright coloured dots (red, blue, or
green) that continuously appear on the projector screen. This is a normal
result of the manufacturing process and does not indicate a malfunction.
Main Unit
Joystick Button
Vent1)
Mirror2)
Speaker
Vent1)
Focus Ring
Speaker
Vent1)
Lens2)
IR Reciver
Bottom of the Projector
Adjustable leg3)
1) Due to the high temperature of vent area, do not get close to the vent area.
2) Do not touch the lens and mirror when using the projector. The Lens and
Mirror may be damaged.
3) Turn the adjustable leg left or right to adjust the angle.
20
PREPARATION
Side
1 2 3
No.
1
4
Description
(Headphone Port)
2
COMPONENT IN Port
3
AV IN Port
4
OPTICAL DIGITAL AUDIO OUT Port
5
6
7
(USB port)
LAN Port
Port
5
6
7
PREPARATION
Back
1
No.
Description
Port
1
2
2
DC IN Port
21
22
PREPARATION
Using the Joystick Button
You can operate the projector by pressing the button or moving the joystick
left, right, up, or down.
Basic functions
Power On
When the projector is turned off, place
your finger on the joystick button,
press it once, and release it.
Power Off
When the projector is turned on, place
your finger on the joystick button,
press it once for a few seconds, and
release it. (However, if the menu
button is on the screen, pressing and
holding the joystick button will let you
exit the menu.)
Volume
Control
Place your finger over the joystick
button and move it left or right.
You can adjust the volume level.
Up/Down/
Left/Right
If you move the joystick up, down, left,
or right, you can move the cursor to
select the menu items.
NOTE
• Move the joystick button up, down, left, or right. Be careful not to
press the joystick button. If you press the button while moving the
joystick, the volume control may not work, and the cursor may not
move.
PREPARATION
Adjusting the menu
When the projector is turned on, press the joystick button one time.
You can adjust the menu items ( ,
, , ) moving the joystick
button left, right, up, or down. Move to the desired menu item, and then
press the joystick button once to select it.
Close
Minibeam
off
Turns the power off.
Input List
Changes the input source.
Close
Clears on-screen displays
and returns to projector
viewing.
Settings
Displays the Settings menu.
Projector Status Indicators
LED Power
Indicator
LED Power
Indicator
LED Power Indicator
Red
Power standby state
Off
The projector is operating with the power on.
23
24
PREPARATION
Installation
Installation Precautions
• Place the projector in a wellventilated environment.
--To prevent internal
overheating, install the
projector in a well-ventilated
place. Do not place anything
near the projector. That may
block its air vents. If the
air vents are blocked, the
internal temperature of the
projector will increase.
--Do not place the projector
on a carpet or rug. If the
projector's inlet vent is on
the bottom, be careful not to
block the vent and always
use the projector on a solid,
level surface.
--Be sure to prevent foreign
objects such as paper debris
from entering the projector.
--Leave an adequate open
area (30 cm or more) around
the projector.
• Do not place the projector in a
hot, cool, or humid environment.
• Do not place the projector in a
place where it will easily attract
dust.
--This may result in fire.
• Never open any cover on the
projector. There is a high risk of
electric shock.
• The projector is manufactured
using high-precision technology.
You may, however, see
tiny black dots and/or bright
coloured dots (red, blue or
green) that continuously
appear on the projector screen.
This is a normal result of the
manufacturing process and
does not indicate a malfunction.
• The remote control may not
work in an environment where
a lamp equipped with electronic
ballasts or a three-wavelength
fluorescent lamp is installed.
Replace the lamp with an
international standard lamp
for the remote control to work
normally.
• To install to the ceiling, attach
the ceiling-type bracket to
the projector with M4 x 8 mm
screws.
PREPARATION
25
Projection Distance per Screen Size
1
2
3
4
Place the projector on a sturdy, level surface, together with the PC or
audio/video source.
Place the projector an appropriate distance away from the screen. The
distance between the projector and the screen determines the actual
size of the image.
Position the projector so that the lens is at a right angle to the screen.
If the projector is not at a right angle, the projected image will look
distorted. To correct the distortion, use the Edge Adj function.
(See page 37.)
Connect the power cord of the projector and the connected device to
the wall outlet.
Ratio of upward projection: 125 %
X
Screen
Y
C
C
D
D
B
A
Screen Size [mm]
1524
Horizontal Size (X) x 1328 x
Vertical Size (Y) [mm] 747
A [mm]
414
B [mm]
105
C [mm]
149
D [mm]
241
1778
1550 x
872
482
173
181
273
2032
1771 x
996
550
241
213
304
2286
1992 x
1121
618
309
245
336
2540
2214 x
1245
686
377
276
368
The projection distance may vary depending on the installation conditions.
CAUTION
• If the projected image looks distorted or bent, check to see if the
screen is installed properly.
26
PREPARATION
Kensington Security System
• This projector has a Kensington Security Standard connector as an
anti-theft mechanism. Connect a Kensington Security System cable as
shown below.
• For more information on installation and use of the Kensington Security
System, refer to the user’s guide provided with the Kensington Security
System.
• The Kensington Security System is an optional accessory.
• What is Kensington?
Kensington is a company that provides safety systems for laptops and
other electronic devices. Website: http://www.kensington.com
27
MAGIC REMOTE CONTROL
MAGIC REMOTE CONTROL
If the battery low message appears while using the
Projector, replace the batteries.
As shown in the figure, press the top of the battery
cover and slide it down the cover. Insert two new and
identical batteries (1.5 V, AA type) with + and - poles
pointing in the correct direction in the remote control.
2
1
NOTE
• Do not mix new batteries with old ones.
(POWER)
Turns the Projector on or off.
(Up/Down/Left/Right)
Press the up, down, left or right button to scroll
the menu.
buttons while the
If you press
pointer is in use, the pointer will disappear from
the screen and Magic Remote will operate like
a general remote control. To display the pointer
on the screen again, shake Magic Remote to the
left and right.
(BACK)
Returns to the previous screen.
(Home)
Accesses the Home menu.
Wheel (OK)
Press the centre of the Wheel button to select
a menu.
28
MAGIC REMOTE CONTROL
(EXIT)
Changes the input source.
(Voice recognition)
Network connection is required to use the voice
recognition function.
1. Press the voice recognition button.
2. Speak when the voice display window
appears on the left of the Projector screen.
* Use the Magic Remote no further than
10 cm from your face.
* The voice recognition may fail when you
speak too fast or too slowly.
* The recognition rate may vary depending
on the user’s characteristics (voice,
pronunciation, intonation, and speed)
and the environment (noise and Projector
volume).
Coloured buttons
These access special functions in some menus.
Adjusts the volume level.
/INPUT
Displays the Screen Remote.
* Pressing and holding the
button will
/INPUT
display a menu to select an external device that
is connected to the Projector.
Used for viewing 3D video.
(MUTE)
Mutes all sounds.
P
Moves to the previous/next page.
MAGIC REMOTE CONTROL
29
1
2
1
Displayed when you press
the
Wheel (OK) button
on the magic remote
control. Check external input
information.
2
If you point and hold the
pointer at the bottom left of
the screen while watching
projector, the MY APPS
icon is displayed. Clicking
the icon displays the MY
APPS menu.
To Register the Magic Remote Control
To use the Magic Remote control, register it with your projector first.
1
2
Put batteries into the Magic Remote and turn the Projector on.
Point the Magic Remote at your projector and press the
Wheel
(OK) on the remote control.
• If the projector fails to register the Magic Remote, try again after turning
the projector off and back on.
To Re-register the Magic Remote Control
1
2
Press the
(Home) and
(BACK) buttons at the same time for
five seconds, to unpair the Magic Remote with your projector.
Press the
Wheel (OK) button towards the projector to re-register
the magic remote control.
• Pressing and holding the
(EXIT) button will let you cancel and reregister Magic Remote at once.
30
MAGIC REMOTE CONTROL
Using the Magic Remote Control
• Shake the magic remote control lightly when
there is no pointer displayed on the screen. A
pointer will be displayed on the screen.
--The pointer disappears if the remote control
is not used for a certain period of time.
• When you move the pointer signal transmitter
up/down/left/right while pointing it toward the
projector, the pointer moves.
--If the pointer is not working properly, do not
move the magic remote control for about
10 seconds, and then try again.
• If you press the navigation button while moving the pointer on the
screen, the pointer disappears, and the magic remote control works as a
common remote control.
• Use within an effective distance of 10 metres. Using the remote control
from greater distances or when obstructions block the sight line may
cause malfunctions.
• Electronic devices nearby may cause communication interference.
Devices such as microwave ovens and wireless LANs use the same
frequency range (2.4 GHz) as the Magic Remote Control and may cause
interference.
• Take care not to bang it against other hard objects such as furniture or
the floor.
USING THE PROJECTOR
31
USING THE PROJECTOR
Watching Projector
Initial Setup
The menu screen display in this owner's manual is an example to help
users understand how to operate the product and may look different from
the actual screen.
1
2
Connect the power cord correctly.
3
When you turn on the projector for the first time, a setting screen
appears as shown below. Here, you can specify the items required for
watching the projector more easily.
After waiting for a moment, press the POWER button on the remote
control or the joystick button.
32
USING THE PROJECTOR
--Store mode is used when displaying the product in-store. The
picture mode is automatically reset after a certain period of time. You
can select Home to use the product at home.
USING THE PROJECTOR
--The initial settings are completed when you select the settings
above.
NOTE
• To change the mode while using the projector, go to
SETTINGS → OPTION and select Mode Setting.
(Home) →
33
34
USING THE PROJECTOR
Focus of the Screen Image
When an image appears on the screen, check if it is in focus and fits the
screen properly.
Focus Ring
• To adjust the focus of the image, rotate the focus ring.
• Make sure the product does not move when adjusting the focus.
USING THE PROJECTOR
35
Watching With the Projector
1
2
3
When in standby mode, press the POWER button to turn the projector
on.
Select the
want.
(Home) → INPUT LIST and select the input signal you
Control the projector using the following buttons while watching
projector.
Button
P
Description
Moves to the previous/next page.
Adjusts the volume level.
(MUTE)
4
Mutes the sound from the projector.
To turn the projector off, press the POWER button.
36
USING THE PROJECTOR
Additional Options
To adjust Aspect Ratio
Select
(Home) → SETTINGS → PICTURE → Aspect Ratio
Selects the screen aspect ratio.
Menu
16:9
Just
Scan
Original
Full
Wide
4:3
14:9
Zoom
Cinema
Zoom 1
Description
Resizes images to fit the screen width.
Displays video images in the original size without removing
parts of the edge of the image.
• In HDMI / Component (over 720p) mode, Just Scan is
available.
When your projector receives a wide screen signal it will
automatically change to the picture format broadcasted.
When projector receives the wide screen signal, it will let
you adjust the picture horizontally or vertically, in a linear
proportion,to fill the entire screen fully.
• In AV mode, Full Wide is available.
Resizes images to the previous standard 4:3.
You can view a picture format of 14:9 in the 14:9 mode.
The 14:9 screen is viewed in the same way as in 4:3, but is
moved up or down.
Resizes the image to fit the screen width. The top and
bottom parts of the image may be cut off.
Formats an image to the cinema scope ratio (2.35:1) and
zooms in on the ratio.
NOTE
• While viewing an external device, these cases may result in image
burn :
--a video with stationary caption (such as network name)
--4:3 aspect ratio mode for an extended period.
Take caution when using these functions.
• Available picture size may differ depending on the input signal.
• The screen aspect ratios on HDMI-PC input are available in 4:3 and
16:9 only.
USING THE PROJECTOR
37
Using the Edge Adj (4 Corner Keystone) Function
Edge Adj (4 Corner Keystone) adjusts the horizontal and vertical sides of
the projected image if the projector is at an angle and not perpendicular to
the screen. This feature ensures the shape of the projected image is not
distorted.
Use this feature only when the projector cannot be set up at the optimal
angle. Edge Adj may result in a loss of image quality.
1
2
3
(Home) → SETTINGS → OPTION → Edge Adj.
Go to
The value range of Edge Adj is as follows.
--Top Left (H: 0 to 100, V: 0 to 100)
--Top Right (H: -100 to 0, V: 0 to 100)
--Bottom Left (H: 0 to 100, V: -100 to 0)
--Bottom Right (H: -100 to 0, V:-100 to 0)
Press the
Wheel (OK) button.
NOTE
• When using Auto Keystone(Vertical), the current value set for
Edge Adj is changed to the value that has been set with Auto
Keystone(Vertical).
38
USING THE PROJECTOR
Changing Input Device
To select an external input
Selects external input.
• Select
(Home) → INPUT LIST or press the INPUT button on the
remote control to display the input selection screen.
--Connected inputs are displayed first. However, AV is always
activated.
• Select an input signal using the remote control's INPUT button to
connect the projector to the desired input. You can use the or
button to switch among all the input modes.
1
2
3
4
5
Description
1
Selects speaker.
2
Selects input.
3
Edits the name of external device connected to external
terminal.
4
Sets SIMPLINK.
5
Sets Universal Remote Control.
USING THE PROJECTOR
Selecting an Input Label
Displays which devices are connected to which input ports.
1
2
3
4
Select
(Home) → INPUT LIST or press the INPUT button on the
remote control to display the input selection screen.
Press the Red button.
Press the or button to go to the desired input and press the
Wheel (OK) button.
Press the
,
,
, or
button to select a device name.
39
40
USING THE PROJECTOR
To Use SIMPLINK
SIMPLINK is a feature that enables you to control and manage various
multimedia devices conveniently using the projector remote control only via
the SIMPLINK menu.
1
2
3
4
5
6
Connect the projector's HDMI terminal with the SIMPLINK device's
HDMI output terminal using an HDMI cable. For home theatre units
with a SIMPLINK function, connect HDMI terminals as above, and use
an optical cable to connect OPTICAL DIGITAL AUDIO OUT from the
projector to Optical Digital Audio In of the SIMPLINK device
Select
(Home) → MY APPS → SIMPLINK. SIMPLINK menu
window appears.
Select SIMPLINK Setting on SIMPLINK menu window. SIMPLINK
setup window appears.
SIMPLINK to On in SIMPLINK setup window.
Close SIMPLINK setup window.
Select the device to control from
SIMPLINK.
(Home) → MY APPS →
NOTE
• This function only works on devices with the SIMPLINK logo
(
). Verify that the external device has a SIMPLINK logo.
• To use the SIMPLINK function, you need to use a high-speed HDMI®
cable (with CEC, or Consumer Electronics Control, feature added).
High-speed HDMI® cables have pin 13 connected for information
exchange between devices.
• Turn on or select the media of a device with home theatre features to
see the speaker switch to External Speaker.
• To use the Listen via External Speaker function, connect an optical
cable (Purchase separately) or HDMI-ARC-enabled device via the
HDMI-ARC port.
• Switching to external input causes devices operating with SIMPLINK
to stop.
• Use of a third-party device with HDMI-CEC features may cause
malfunctions.
• Connect with an Optical cable (sold separately) to use External
Speaker.
USING THE PROJECTOR
41
Explanation of SIMPLINK Features
Menu
Description
Direct Play
Plays the multimedia device on the projector
instantly.
Select
multimedia
device
Selects the desired device via the SIMPLINK menu
to control it from the projector screen instantly.
Disc playback
Manages the multimedia device with the projector
remote control.
Power off all
devices
If the Auto Power function is set to On in the
SIMPLINK setting, turning the projector off will turn
the power off on all SIMPLINK-connected devices.
Sync Power on
If the Auto Power function is set to On in the
SIMPLINK setting, turning on a SIMPLINK device
will turn the projector on.
Speaker
Selects speaker either on the home theatre unit or
the projector.
42
USING THE PROJECTOR
Using the Quick Menu
You can customize frequently used menus.
1
2
Select
(Home) → MY APPS → Quick Menu.
Press the
button.
or
button to select a menu and press
Menu
Wheel (OK)
Description
Aspect Ratio
Resizes the picture.
Picture Mode
Changes the picture mode.
Sound Mode
Sets the sound mode.
Sleep Timer
Sets the projector to be turned off at the specified
time.
Energy Saving
Reduces power consumption by adjusting peak
screen brightness.
Sets the genre.
Mode
AV Mode
Press the
menus.
Sport
Optimizes video/ audio settings for sports.
Cinema
Change to optimal video/ audio settings
for movies.
Game
Change to optimal video/audio settings
for games.
Allows you to remove a connected USB device in a
safe manner.
USB Device
3
Off
You can watch using the settings in the
video/audio menu.
,
,
, or
button to scroll through the following
USING THE PROJECTOR
To Set Sound
To Set Sound Output
To use projector’s speakers
Sound is output through the projector speaker.
•
(Home) → SETTINGS → SOUND → Sound Out → Speaker
To use External Speaker
Sound is output through the speaker connected to the optical or HDMI
(ARC) port.
SIMPLINK is supported.
•
(Home) → SETTINGS → SOUND → Sound Out → External
Speaker (Optical/HDMI ARC)
To use Digital Sound Out
Sets up Digital Sound Output.
•
(Home) → SETTINGS → SOUND → Sound Out → External
Speaker (Optical/HDMI ARC) → Digital Sound Out
Item
Auto
PCM
Sound Input
Digital Sound Output
MPEG
PCM
Dolby Digital
Dolby Digital
Dolby Digital Plus
Dolby Digital
HE-AAC
Dolby Digital
All
PCM
To connect and use an LG audio device
LG audio device allows you to enjoy rich powerful sound easily.
•
(Home) → SETTINGS → SOUND → Sound Out → LG Sound
Sync (Optical)
Connect an LG audio device with the
logo to the OPTICAL
DIGITAL AUDIO OUT port.
43
44
USING THE PROJECTOR
To Connect and Use a Bluetooth device
Sound output is through the Bluetooth device.
•
(Home) → SETTINGS → SOUND → Sound Out → Bluetooth
• The devices that can be connected are:LG BTS1, LG HBS-700, LG
HBS-730, LG HBS-800 (Product availability may vary by country.)
• For wireless connection, if the device fails to connect. Check the device
power to connect and if the LG Audio device is in a proper operating
condition.
• If two or more devices are detected, the first detected device is
connected first. To view more detected devices to connect, press the
Show More button.
• Products from other manufacturers may not be compatible.
To Connect and Use a Headphone
Sound output is through the headphone.
•
(Home) → SETTINGS → SOUND → Sound Out → Headphone
• If you connect headphones while the projector is powered on, it
automatically detects the headphones and sounds through them.
ENTERTAINMENT
45
ENTERTAINMENT
To use Smart Features
To use Home Screen
• Press the
(Home) button on the remote control.
With all projector features on one screen, everyone can access a wealth of
content and applications conveniently via the quick and easy-to-use menu,
arranged by themes such as MY APPS, etc.
2
Movie
Weather
News
Sports
UCC
Map
Game
Music
SNS
1
3
Description
1
RECENT LIST
2
Sign in
3
MY APPS
46
ENTERTAINMENT
To use MY APPS
•
(Home) → MY APPS
• Select MY APPS at the lower left of the home screen.
• Check pre-installed apps and apps you have downloaded.
To edit items in MY APPS
• Select
(Home) → MY APPS →
(Edit).
• On the MY APPS page, select
(Edit) at the top of the screen to
move or delete apps. Please note that system apps can be moved, but
cannot be deleted.
• Changes orders / deletes items by dragging the app icons if your device
has a Magic Remote Control.
ENTERTAINMENT
47
To Connect Network
A wireless or wired network connection is required to use smart features.
When connected to the network, you can use premium content, LG Smart
World, Contents Sharing and more.
One-click Network Connection
Connects easily to a wired/wireless network.
•
(Home) → SETTINGS → NETWORK → Network Connection to
connect to an available network automatically. Follow the prompts on the
projector.
To Connect to a Network Through Set Expert
For use in special circumstances such as in offices (in cases where a static
IP is used).
• Select
(Home) → SETTINGS → NETWORK → Network
Connection → Start Connection (→ Other Network List) → Manual
Setup.
1
2
Select a Network Connection, either Wired or Wireless.
When connecting via Wi-Fi, use the one of the following network
connection methods.
Item
Description
AP List
Connects to the network selected from the AP List.
Enter the SSID
Connects to the wireless AP typed in.
WPS-PBC
Connects easily when the button of a wireless AP
supporting PBC is pressed.
WPS-PIN
Connects easily when the PIN of the wireless AP
that you wish to connect to is entered in to the AP
website.
48
ENTERTAINMENT
To Use the Wi-Fi Direct Function
Wi-Fi Direct is a function that allows your projector to connect with a Wi-Fi
Direct device without Internet connection. With SmartShare™, you can
watch the files stored on a device connected via Wi-Fi Direct.
• Select
(Home) → SETTINGS → NETWORK → Wi-Fi Direct.
1
2
Set Wi-Fi Direct to On. (If you do not use it, please change it to Off.)
3
4
5
6
A list of devices that can be connected to the projector is displayed.
Enable the Wi-Fi Direct settings on the device to which you want to
connect.
Select a device to connect.
Select Yes when the connection request message appears.
If the device that you want to connect accepts the request, Wi-Fi
Direct is connected.
ENTERTAINMENT
49
Tips for Network Settings
• Use a standard LAN cable (Cat5 or higher with RJ45 connector,
10 Base-T or 100 Base TX LAN port).
• Resetting your modem can cause network connection problems. To
resolve the problem, turn the power off, disconnect and reconnect, and
then turn the power back on.
• LG Electronics is not responsible for any network connection problems
or any faults, malfunctions and errors caused by an network connection.
• A network connection may not work properly depending on the Internet
service provider.
• A DSL modem is required for a DSL service; a cable modem is required
for a cable service. Only a limited number of network connections
may be available, and projector network setting may not be available
depending on your contract with your Internet Service Provider (ISP.)
(If only one device is allowed per line and the PC is already connected,
other devices cannot be used.)
• Wireless networks can be subject to interference from other devices
operating at a frequency of 2.4 GHz (wireless phones, Bluetooth
devices, or microwave ovens). There may also be interference from
devices with a frequency of 5 GHz, same as other Wi-Fi devices.
• The surrounding wireless environment can cause the wireless network
service to run slowly.
• If you do not turn off the entire local home network, network traffic may
occur on some devices.
• For an AP connection, an access point device that supports wireless
connection is required and the wireless connection feature must
be enabled on the device. Contact your service provider regarding
availability of wireless connection on your access point.
• Check the SSID and security settings of the AP for AP connection. Refer
to the appropriate documentation for SSID and security settings of the
AP.
• Invalid settings on network devices (wired/wireless line sharer, hub)
can cause the projector to run slowly or not operate properly. Install
the devices correctly according to the appropriate manual and set the
network.
• Connection method may differ according to the AP manufacturer.
50
SMARTSHARE
SMARTSHARE
Smartshare is the name of contents sharing and usage function that
includes USB Connection, SCREEN SHARE (Miracast™, Intel's WiDi),
Contents Sharing and others.
Before Using
Connecting a USB Device
Connect a USB device (external
HDD, USB memory) to the USB port
of projector to enjoy the content files
stored in the USB device with your
projector. You cannot write or delete
data in the USB device. Connect a
USB flash drive as shown below.
USB flash
Drive

Removing a USB Device
1
2
Select
3
Select a USB to remove. Wait for confirmation that the USB device has
stopped before removing the USB.
(Home) → MY APPS → Quick Menu.
Use the or button to move to USB Device and press the
Wheel (OK) button.

NOTE
• If detached early, an error may occur on the projector or the USB
storage device.
• Once a USB device has been selected for removal, it can no longer
be read. Remove the USB storage device and then re-connect it.
SMARTSHARE
51
Tips for using a USB device
• If the USB storage device has a built-in auto recognition program or uses
its own driver, it may not work.
• Some USB storage devices may not work or may work incorrectly.
• If you use a USB extension cable, the USB device may not be
recognized or may not work properly.
• Use only USB storage devices formatted with the Windows FAT32 or
NTFS file system.
• For external USB HDDs, it is recommended that you use devices with a
rated voltage of less than 5 V and a rated current of less than 500 mA.
• It is recommended to use a USB hub or hard disk drive with power
supplied. (If the power supplied is not enough, the USB storage device
may not be detected properly.)
• It is recommended that you use USB flash drives of 32 GB or less and
USB HDDs of 2 TB or less.
• If a USB HDD with power-saving function does not work properly, turn
the power off and on. For more information, refer to the user manual of
the USB HDD.
• Data in USB storage device can be damaged so be sure to back
up important files to other devices. Data maintenance is the user's
responsibility and the manufacturer is not responsible for data loss.
52
SMARTSHARE
To use SmartShare™
1 Press the (Home) button on the magic remote control.
2 Select SMARTSHARE™.
You can watch the photo, music, video, and document on the projector by
connecting a USB or home network (Contents Sharing). The photo, music,
video, and document files of all devices connected to the projector are
displayed. (For the document files, only those in the devices connected via
USB are displayed.)
1
000
001
002
003
004
005
006
007
008
009
010
011
2
Description
1
Displays photo/music/video/document files on all devices
connected to the Projector.
2
Shows how to connect PC, smartphone/device, and USB.
SMARTSHARE
Watching the Videos
In the Videos, you can watch movies stored on the connected USB
device.
Controls playback and sets options while viewing videos.
Playing video - warning
• Some subtitles created by users may not work properly.
• The video and subtitle files should be placed in the same folder. For
subtitles to display correctly, the video and subtitle files must have the
same name.
• Subtitles on an NAS (Network Attached Storage) device may not be
supported depending on the manufacturer and model.
• We do not support any stream that contains GMC (Global Motion
Compensation) or Qpel (Quarterpel Motion Estimation).
• Only H.264 / AVC profile level 4.1 and lower is supported.
• The file size limit is dependent on the encoding environment.
• It works only the above version of Window Media Audio V2.
• It’s not supported AAC Main Profile.
• Video files created by some encoders may not be played back.
• Video files in formats other than the ones specified here may not be
played back.
• Playback of video files stored on the USB device that do not support
High Speed may not work properly.
• The projector supports DTS audio codec when the USB / HDMI video
file playback.
53
54
SMARTSHARE
To control video playback
You can control playback using the following buttons.
Shows the current playing position.
Use the or button to move forward or backward.
Item
Description
Resumes normal playback.
Pauses the video player.
Displays in slow motion.
Whenever this button is pressed, the playback speed is
increased or decreased by one unit.
Plays the previous/next file.
3D
Option
Switches to the 3D screen.
Sets the option.
SMARTSHARE
55
Viewing the Photos
You can view photos stored on a connected device.
To control photo view
You can control playback using the following buttons.
Item
,
Description
Selects the previous or next photo.
If no picture is selected, all photos in the current folder are
displayed in a slide show. If some photos are selected,
those photos are displayed in a slide show.
• Set Slide Show Speed in the Option → Set Photo View.
menu.
• When the 3D photos are displayed in a slide show, the
Slide Show Effect may not work.
You can listen to music while viewing full-size photos.
• Set BGM in the Option → Set Photo View. menu.
3D
Switches to the 3D screen.
Rotates photos.
• Rotates a photo 90°, 180°, 270°, 360° clockwise.
• Photos cannot be rotated if their width is greater than the
height of the maximum supported resolution.
Enlarges or reduces the photo.
Use the Up/Down/Left/Right buttons to select a page and
press the
Wheel (OK) button.
Option
A setting popup window will appear.
56
SMARTSHARE
Listening to Music
You can play audio files stored on the connected device.
To control music playback
You can control playback using the following buttons.
Changes the playing position.
Item
Description
Plays the previous/next file.
Pauses the music player.
Resumes normal playback.
Sets the repeat playback.
Sets the random playback.
Plays music with the projector screen turned off.
Sets Option for the music list.
• If you use the USB device, time information will be not shown on screen.
SMARTSHARE
57
Viewing Files
You can see document files stored on a connected device.
Supported File Formats
XLS, XLSX, DOC, DOCX, PPT, PPTX, TXT, PDF, HWP
Microsoft Office 97/2000/2002/2003/2007 version
Adobe PDF 1.0/1.1/1.2/1.3/1.4 version
HWP 2007 version
• File Viewer realigns a document, so it may look different from what is
displayed on a PC.
• For documents that include images, the resolution may look lower during
the realigning process.
• If the document is large or has many pages, it may take longer to load.
• Unsupported fonts may be replaced by other fonts.
• The file viewer may not open for Office documents that contain many
high resolution images. In that case, reduce the image file size, save it
on a USB storage device and run the file viewer again or connect your
PC to the projector and open the file on your PC.
Browsing File Viewer
You can control playback using the following buttons.
• Press the
P button to move to the previous or next page.
• Press the
button to zoom in or zoom out.
--Press the
Wheel (OK) button.
--Press the Up/Down/Left/Right buttons to move to Go Page or
Zoom.
Item
Description
Go Page
Moves to the page you specify.
Zoom
Enlarges or reduces the document.
Option
Sets Option for File Viewer.
List
Returns to a list.
58
SMARTSHARE
To Set SmartShare™ Related Functions
Select
(Home) → SMARTSHARE™ → Settings.
Changes settings related to SmartShare™ content playback.
Advanced Setting
Item
Description
My Minibeam
Name
Changes the name that appears when searching for
the projector from other devices.
Network Status
Checks the network connection.
Wi-Fi Direct
Allows use of wireless connection functions such as
Wi-Fi Direct and WiDi.
Auto Play on
Receive
Choosing whether to ask before playing the content
that is shared by other devices.
DivX(R) VOD
Registers or releases DivX.
Checks DivX Registration Code for playing DivXprotected videos. Register at http://vod.divx.com.
Uses Registration Code to rent or purchase movies
at www.divx.com/vod.
• Rented / purchased DivX files cannot be played
if the DivX Registration Code of a different device
is used. Use only the DivX Registration Code
granted to this device.
• Converted files not conforming to the DivX Codec
Standard may not play or may produce abnormal
images and sound.
Delete History
• To delete contents history, press Delete History button. Use the
contents at Recent menu.
SmartShare™ supporting file
• Maximum data transfer rate: 20 Mbps (Mega bit per second)
• External subtitle formats supported: *.smi, *.srt, *.sub (MicroDVD,
SubViewer 1.0/2.0), *.ass, *.ssa, *.txt (TMPlayer), *.psb (PowerDivX),
*.dcs(DLP Cinema)
• Internal subtitle formats supported: XSUB (supports internal subtitles
generated from DivX6)
SMARTSHARE
59
Video Supported Codec
Maximum resolution: 1920 x 1080 @ 30p
Extension
.asf,
.wmv
.divx,
.avi
.mp4,
.m4v,
.mov
.3gp,
.3g2
.mkv
.ts, .trp,
.tp, .mts,
.m2ts
.vob
.mpg,
.mpeg
Codec
Video
VC-1 Advanced Profile, VC-1 Simple and Main
Profile
Audio
WMA Standard, WMA 9 Professional
Video
DivX3.11, DivX4, DivX5, DivX6, XViD, H.264/
AVC, Motion Jpeg, MPEG-4 Part 2
Audio
MPEG-1 Layer I, II, MPEG-1 Layer III (MP3),
Dolby Digital, Dolby Digital Plus, LPCM,
ADPCM, DTS
Video
H.264/AVC, MPEG-4 Part 2
Audio
AAC , MPEG-1 Layer III (MP3)
Video
H.264/AVC, MPEG-4 Part 2
Audio
AAC, AMR-NB, AMR-WB
Video
H.264/AVC
Audio
HE-AAC, Dolby Digital
Video
H.264/AVC, MPEG-2, VC-1
Audio
MPEG-1 Layer I, II, MPEG-1 Layer III (MP3),
Dolby Digital, Dolby Digital Plus, AAC
Video
MPEG-1, MPEG-2
Audio
Dolby Digital, MPEG-1 Layer I, II, DVD-LPCM
Video
MPEG-1, MPEG-2
Audio
MPEG-1 Layer I, II, MPEG-1 Layer III(MP3), AAC
Audio File
File type
Item
Bit rate
mp3
Sample freq.
Support
Info
32 Kbps to 320 Kbps
16 kHz to 48 kHz
MPEG1, MPEG2, Layer2, Layer3
60
SMARTSHARE
Available photo file
File type
Item
Info
2D
(jpeg, jpg, jpe)
JPEG
Minimum: 64 x 64
Maximum:
--Normal Type: 15360 (W) x 8640 (H)
--Progressive Type: 1920 (W) x 1440 (H)
3D (jps)
JPS
Minimum: 64 x 64
Maximum:
--Normal Type: 15360 (W) x 8640 (H)
MPO
4:3 size: 3648 x 2736
2592 x1944
2048 x 1536
3:2 size: 3648 x 2432
3D (mpo)
SMARTSHARE
61
To use SCREEN SHARE
(Miracast™ / Intel's WiDi Function)
To Use the Miracast™ / Intel's WiDi Function
You can view the screen of a device with Miracast™ and Intel's WiDi
technologies on your projector. Contact the device manufacturer to find out
if the device supports this function.
• Select
(Home) → SETTINGS → NETWORK → Miracast™ / Intel's
WiDi.
1
2
3
4
5
6
Set Miracast™ / Intel's WiDi to On. (If you do not use it, please
change it to Off.)
Enable the Miracast™ / Intel's WiDi settings on the device that you
want to connect to.
A list of devices that can be connected to the projector is displayed.
Select a device to connect.
Select Yes, when the connection request message appears.
If the device that you want to connect accepts the request, Miracast™
/ Intel's WiDi is connected.
• When Wi-Fi Direct is set to Off, if you set Miracast™ / Intel's WiDi to
On, Wi-Fi Direct is automatically set to On.
• When you set the Miracast™ / Intel's WiDi function to Off, Wi-Fi Direct
returns to the previous setting.
NOTE
• It is recommended to connect a laptop using Intel's WiDi within
close range.
• Though Intel's WiDi can be connected without a wireless router,
it is recommended to connect the wireless router first for optimal
performance.
• You may not connect your projector to a non-LG Electronics device
even when it is detected.
• It is recommended you to connect a device to a 5 GHz router.
• The response rate may vary depending on the user’s environment.
• For more information on the device you want to connect to, refer to
its owner’s manual.
62
SMARTSHARE
To Use a Premium Service
•
(Home) → PREMIUM
• This service gives you easy access to a wide variety of content, such
as video, news, and UCC, at any time, as long as you are connected
to the network. Premium content includes specialized country-specific
services taking regional cultural sensitivities into account as well as
global content.
WEB
Movie
Map
SNS
Play
NEWS
Comic
Entertainment
Information
TV
SMARTSHARE
63
To Use Paid Content
Some Premium Content is provided as for-fee services. To purchase forfee services, use either LG Electronics’ proprietary billing system or that of
each content provider.
If you are using the LG billing system, you can purchase paid content after
signing up for LG Projector.
You can sign up for on the sign-up screen on your projector or the LG
website (www.lgappstv.com). You can then sign into both the projector and
the website with a single ID.
1
2
Click Sign In button in upper right corner of Home screen to sign in.
3
After checking the content’s pricing and service information, click the
Purchase button. (There may be limitations on the available period
and number of times depending on content.)
4
5
Move to the desired premium service. (For some premium services,
separate sign-in is required after signing up for the premium service.)
Once the purchasing process is completed, view the paid content by
clicking the Buy button.
Select your ID on upper menu of Home screen and check history of
purchases from My Page → Payment inquiry. It is also available on
My Page → Purchase History of web site (www.lgappstv.com).
64
SMARTSHARE
To Reset Premium
•
(Home) → PREMIUM → Option → Initialisation of Premium
• Premium list, Premium information, country setting, and user sign-in
information will be reset. When an error occurs during Premium update,
a reset will fix the problem.
NOTE
• Content on offer by service providers are subject to change to
enhance their service quality or deletion without any prior notice.
Refer to the web site of each content provider for questions,
troubleshooting, or latest information about Content. LG Electronics
does not take any legal responsibility for content services and
related information including discontinuation of service by the service
provider.
• The quality of premium service may be affected by Internet
connections. For any questions related to Internet speed or any
other service problems, contact the Internet service provider.
• For best service quality, subscribe to an Internet service of 4.0 Mbps
(1.5 Mbps or faster). Contact the ISP (Internet service provider) for
any problems related to Internet speed.
• Content providers may make available content that is unsuitable for
minors. Parental discretion is advised.
SMARTSHARE
65
To Use LG Smart World
• Select
(Home) → MY APPS → LG Smart World.
LG Smart World is a projector application service available through
Projector Service. You can download and enjoy many different apps (for
fee or free) including education, entertainment, life, and news.
1
App 1
App 8
App 15
App 2
App 9
App 16
App 3
App 10
App 17
App 4
App 11
App 18
App 5
App 12
App 19
App 6
App 13
App 20
App 7
App 14
App 21
2
Description
1
Sign in.
When you sign in, ID is displayed.
When you select the ID, you can select My Page and Sign Out.
2
Select the app to install.
66
SMARTSHARE
To Sign Up With LG Smart World
•
(Home) → Sign In
Sign up is required to download and run apps.
1
2
3
4
Select Sign Up and agree to Legal Notice.
Enter ID and password.
In Confirm Password box, enter password again.
Select
Wheel (OK) button to complete sign-up process.
NOTE
• You can sign up for membership on either your projector or the
website (www.lgappstv.com).
• After signing up for membership, log into your projector and our
website with the same ID.
• You can sign in to up to five projectors with a single ID.
• The website (www.lgappstv.com) is not available in some countries.
To Install An App On Your Projector
•
(Home) → MY APPS → LG Smart World
Sign up is required to download and run apps.
1
2
3
4
5
Click the Sign In button at the top of the home screen to log in.
6
7
For paid apps, payment and purchase authentication is required.
Select the LG Smart World card.
Select an app you want from the list.
Check the details of the app, then select the Install or Buy button.
Check that you have the functions or projector accessories required to
install the app, then select the
Wheel (OK) button.
Select Run once installation is complete to run the app immediately.
If you do not want to run immediately, select Close. If you want to run
the app later, select My Apps to check the list of apps installed on
projector.
SMARTSHARE
67
NOTE
• You can purchase apps via PC or Projector, but you must use the
Projector to install and run them.
• If you have insufficient storage space on your Projector, you can
download apps to a USB storage device connected through the
Projector's terminal for USB apps. Apps stored on USB can be run /
deleted / moved from the MY APPS screen.
• A USB Flash Drive containing apps cannot be used for other data.
(For USB Apps Only)
To Manage My Information
•
(Home) → MY APPS → LG Smart World
1
2
3
4
Sign in.
Select the currently signed-in ID at the top of the screen.
Select My Page.
Manages by examining Member Information, My Purchased Apps List,
and Projector Installed Apps List.
Item
Description
My
Information
Shows basic information about the ID currently signed
in. To change your member information,
visit www.lgappstv.com on your PC
Payment
Inquiry
Shows Payment History of the signed-in ID.
Purchased
Apps
Shows My Purchased Apps List for the signed-in ID.
You can delete / re-install the purchased apps.
68
SMARTSHARE
To Use Search Function
•
(Home) → MY APPS → Search
• You can search apps and contents using the Search function of LG
Projector. When you enter keywords using the input device, such as
the remote control, you can find apps of LG Smart World and some
contents of the Premium service. Links are also provided to go for web
search. If you are using SmartShareTM, you can also search contents of
SmartShareTM. The Search categories and content types vary depending
on the country and will be kept updating.
1
3
2
Description
1
Enter search terms.
2
Category of search results
3
Search results
SMARTSHARE
69
To Use the Voice Recognition Function
Using this Function Through Search
1
2
3
Go to
(Home) → MY APPS → Search. Select the voice
recognition icon on the left of the text field.
Speak slowly and clearly after the voice recognition window appears.
After the voice recognition is completed, the Similar List window
pops up. If the popup window does not have the results you want,
press Retry to try again. Select the most similar result, then it will be
displayed in the text field. Press the Search button to get the result you
want.
Using this Function on the Internet
1
2
3
4
Go to
(Home) → INTERNET. Move the Magic Remote Control
pointer in the text field on a website to open the virtual keyboard.
Select the voice recognition icon
virtual keyboard.
on the left of the text field on the
Speak slowly and clearly after the voice recognition window appears.
After the voice recognition is completed, the Similar List window
pops up. If the pop-up window does not have the results you want,
press Retry to try again. Select the most similar result, then it will be
displayed on the text field. Press the Search button on the website to
get the result you want.
70
SMARTSHARE
NOTE
• The website (www.lgappstv.com) is not available in some countries.
• While the recognised result is in the text field, if you retry the voice
recognition function, the previous result will be replaced with the new
one.
• You can use Voice Search when you press the on the Magic
remote control even if QWERTY keyboard is shown on your screen.
• Check the network connection before using the voice recognition
function.
• It is recommended to use the remote control no further than 10 cm
from your face.
• The voice recognition may fail if you speak too fast or too slowly.
• The recognition rate may vary depending on the user's
characteristics (voice, pronunciation, intonation, and speed) and the
environment (noise and projector volume).
• To change the voice recognition language, go to
(Home)
→ SETTINGS → OPTION → Language(Language) → Voice
Recognition Language.
• You can set Avatar to On / Off in
(Home) → SETTINGS →
OPTION → See Avatar.
SMARTSHARE
71
To Use Voice Mate Function
What Is Voice Mate?
Voice Mate allows you to search desirable programs and content with your
voice and adjust the projector.
1
2
Press the voice recognition
3
Press the
Wheel (OK) button with the Voice Search standby to see
the supported language in the voice guide.
button on the magic remote control.
When the Voice Display bar is activated on the left of the screen, say
what you want to watch.
72
SMARTSHARE
How to Use Voice Mate?
• To use all the functions and services of Voice Mate, you need to set
Smart Wizard and Time. Set up the network, region, auto tuning, and
universal remote control through the Smart Wizard.
• In order to use Voice Mate, you must set up the network, time, region,
and tuning.
• Set the language of your country to use Voice Mate.
• You can change the language for Voice Search in
(Home)
→ SETTINGS → OPTION → Language (Language) → Voice
Recognition Language.
• You can turn the avatar On/Off in
(Home) → SETTINGS →
OPTION → See Avatar.
• Point the universal remote control towards the set-top box when you use
Voice Mate with it.
• When speaking a command, hold the remote within 10 cm of your face.
• The voice search may fail when you speak too fast or too slow.
• The recognition rate of Voice Mate may vary depending on the user’s
characteristics (voice, pronunciation, intonation, and speed) and the
environment (noise and projector volume).
• If your voice is not recognized properly, Voice Mate may function in an
unwanted manner.
What Are Other Functions of Voice Mate?
You can access various projector features using Voice Mate.
Item
Description
Recommendation
and Search
You can recommend and search content files.
Information and
Internet
You can also search other information such as
today’s weather.
• Available functions may vary depending on the country.
• For more supported examples, see the voice user guide.
SMARTSHARE
73
See Avatar
Using the Avatar
•
(Home) → SETTINGS → OPTION → See Avatar
You can use the avatar when you use voice recognition. You can check
the voice recognition status via the message from the avatar and it helps
you to enter your speech correctly.
• If you set See Avatar to On, the avatar is activated on the bottom right
of the screen.
• The voice recognition is still supported, even if See Avatar is set to Off.
• The speech balloon guide of See Avatar may vary depending on voice
recognition features, languages, and models.
74
SMARTSHARE
To Use Internet
•
(Home) → INTERNET
• Types URL manually on projector or visits websites added to favourite.
1
2
3
Description
1
Types in the web address.
2
Chooses when you open several web browsers.
3
Add the current page to favourites.
• Internet supports up to Flash 11 but does not support platformdependent technology like ActiveX.
• Internet only works with a pre-installed plug-in.
• Internet may not play any media file format other than the following:
JPEG / PNG / GIF
• Internet will be forcibly closed when there is insufficient memory.
• For the Internet, fonts installed on the projector are used and may not be
displayed normally depending upon the content played.
• Internet does not support file and font download.
• Internet is made for projector so it may function differently than browsers
made for PC.
• Internet is a projector browser and may not work properly when playing
some content files.
SMARTSHARE
75
Frequently Asked Questions for Projector
Sign up is required to use LG Smart World.
You can sign up on either your projector or the LG website
(www.lgappstv.com). Free apps are available immediately after signing up.
You can purchase paid apps using your credit card registered with the
website or credits. Paid apps can also be purchased through carrier billing.
Problem
Solution
When entering
menu, the Initializing
message always
appears.
• The Initializing message shows you how
long it takes to reboot the microprocessor
and hardware, set up network
communications, and communications
with SDP (device authentication and basic
information download). It takes about 20
seconds and this is a normal process.
While using internet
features, there is
a blank space on
some Web pages.
• The internet of the Projector supports up to
Flash 11 and may not replay any file format
other than the following: JPEG, PNG, GIF
Internet closes
automatically when
visiting website.
• If memory is insufficient because of large
volume of image information in the web
page, the browser may be forced to close.
I already signed up
on projector. Do
I need to sign up
again at web site
(www.lgappstv.
com)?
• If you sign up on your projector, no
additional sign-up on the LG website
(www.lgappstv.com) is required.
• After signing up on the projector, you can
sign into the website by using the same ID
and password and entering the additional
information to complete the email verification
process.
Can each family
member use a
different ID with a
single projector?
• It is possible to register and use more than
one ID on one projector.
• To check the ID registered with Projector
from
(Home) → Sign In → ID List.
• You can check the list of apps purchased
by each ID. However, you can see all apps
installed by each ID in
(Home) → Sign In → My Page.
76
SMARTSHARE
Problem
Solution
What should I do if I
forget my ID?
• After signing up on a PC, use the Forgot
ID? feature on web site (www.lgappstv.com)
when needed.
• After signing up on projector, check it from
(Home) → Sign In → Find ID.
I purchased an app
from the LG web site
(www.lgappstv.com).
How can I use it on
the projector?
• To check purchased apps from the
projector, sign in and open the Purchased
Apps menu.
• Select the ID at the top of Home and check
the app in My Page → Purchased Apps.
Can I see history of
my purchased apps?
• Select the ID at the top of Home and check
the app in My Page → Purchased Apps.
• Sign in to website (www.lgappstv.com) and
then select My Page → Purchase History.
I deleted a paid
app. Do I have to
purchase again to
download it?
• If a purchased app is accidentally deleted, you
can download and reinstall it without having to
buy it again, as long as it is still in service.
• Select the ID at the top of Home and redownload apps in My Page → Purchased
Apps. (Previously owned apps may not be
re-downloaded or run, depending upon the
software version.)
Can I use apps from
LG Projector’s LG
Smart World on both
a projector and a
PC?
• Please check if the projector model supports
LG Smart World.
• The apps provided from LG Projector's LG
Smart World can be used only on an LG
Projector.
• Apps may be purchased from the website
(www.lgappstv.com) but cannot be used on
a PC or Mac. Use care when purchasing.
How can I check the
ID currently signed
in on the projector?
• Select the ID at the top of Home and check
the currently signed-in ID in My Page → My
Information.
SMARTSHARE
Problem
77
Solution
I installed an app on
the projector. Where
can I check the
installed app?
• Select
(Home) → MY APPS. All paid
and free apps installed on Projector are
displayed.
There is a difference
between the app size
shown on the screen
and the actual app
size installed on
projector.
• The app size shown in the screen includes
the additional space needed for installing
apps so it may be different from actually
installed app size.
I forgot my
password on the
projector. What
should I do?
• If you only provide the ID and password
when signing up on your projector, you
cannot recover your password when it is
lost. Create a new ID and sign up with the
ID.
• If you provide other information than the
ID and password when signing up on your
projector or the LG website (www.lgappstv.
com), you can recover your password on
the website.
Do I need to store
payment information
in web site to
purchase paid apps?
• The following payment methods are
available to purchase paid apps on your
projector: credit card, credits, and carrier
billing.
• To purchase paid apps using your credit
card or credits, you should have a credit
card registered with the LG website
(www.lgappstv.com) or have enough credits.
Paid apps can also be purchased through
carrier billing if your credit card details are
not registered with the website or you do
have enough credits. If you purchase paid
apps on the website, the following payment
methods are available: credit card or credits.
78
SMARTSHARE
Problem
Solution
Can I cancel an
app that I have
purchased?
• As a member, you cannot demand refund
just because you changed your mind after
purchase.
• If there is a defect in the product or a
problem of using the product, which is
not your fault, you can ask for a refund.
However, the valid reason for refund must
be provided.
Should I use only an
email address for
my ID?
• For new sign-up members, the ID format
has changed from a combination of
alphanumerics to your email address.
• You can only use an email address for your
ID when signing up.
Do I need to change
my ID format to the
email address?
• For new sign-up members, the ID format
has changed from a combination of
numbers and alphabets to the email
address.
• If you are already a member, you can still
use your existing ID or change it to the email
address.
What is the LG
account?
• The LG account allows you to sign into all
of the LG Smart service with a single ID
and password. You can use the following
services with your LG account:
LG Projector, LG Smart World (excluding
some countries), LG Smart ThinQ, and LG
Smart air conditioning, etc.
Additional information may be required
depending on the service.
USING ADVANCED FUNCTIONS
79
USING ADVANCED FUNCTIONS
To Use Screen Remote
To Use Screen Remote
Press the
button on the magic remote control.
Select a button on the screen remote displayed on the screen using the
magic remote control.
• The type of buttons on the screen remote varies depending on the
region or the type of a connected device.
• Image shown may differ from your projector.
Change
Device tab
TV operation
buttons
Exits the Screen
Remote
Moves the
position of the
Screen Remote
to left or right
To Control a Device Connected to the Projector Using
the Screen Remote
You can control a device connected via SIMPLINK or MHL using the
Screen Remote.
1
2
Check if the device is connected to the Projector.
After pressing the
button on the magic remote control, select
the device you want to control in the Change Device tab. The screen
remote that can control the device appears.
--This may not work with some buttons.
80
USING ADVANCED FUNCTIONS
To Use the Universal Control function
With the Magic Remote control, you can control a set-top box, Blu-ray
player, home theatre system, etc.
1
2
Check if a device you want to set is connected to your projector.
3
When you select a device you want in the Change Device tab, the
Screen Remote that can control the device appears on the screen.
To see more control buttons, select
at the bottom of the Screen
Remote.
After pressing the
button on the Magic Remote control, select
the icon of a device you want in the change device tab.
If there is no device you want, press the
(input selection) on
the tab, and select the external device you want. Once the setup is
complete, the name of the selected device is displayed in the Change
Device tab.
To change or clear the Universal Control settings
1
2
•
•
•
•
•
•
•
•
After pressing the
button on the magic remote control, select
the
(input selection) button.
Select Change Setting or Cancel Setting at the bottom of the device
to be changed.
When change setting, check if the power of the device to be changed is
turned on.
You can set one device per type.
With the screen remote, you can only control the devices of a brand or
manufacturer that you can select in the setup screen.
If you connect to a network before setting the universal remote control,
update for the latest manufacturer list is available.
Some buttons may not work depending on the external device model.
Place the device near the projector for seamless operation.
If the device is in a drawer, open the drawer.
Go to
(Home) → MY APPS → Universal Control or
(Home) →
INPUT LIST → Set the Universal Control and add, delete, or change
a device.
USING ADVANCED FUNCTIONS
81
To Use a USB Input Device On a Projector
To Use a USB Wired/wireless Mouse
Connect your mouse to the USB port. Use the mouse to move the pointer
on the Projector screen and select the menu you want.
Mouse
Magic Remote Control
Left Button
OK Button on Magic Remote Control
Wheel Button
Wheel Button on Magic Remote Control
• The right mouse button and any special buttons will not work with the
Projector.
• The usability of a wireless USB mouse and keyboard may be affected by
the radio frequency environment and the distance.
To Use a USB Wired/wireless Keyboard
Connect your keyboard to the USB port. You can enter text with the
keyboard when using the search function and the Internet.
• Text cannot be entered on some screens.
• It is recommended to use a product which is tested for compatibility with
the LG Projector.
LOGITECH K200, LOGITECH K400, MICROSOFT Comfort Curve
2000, MICROSOFT MS800, and LG Electronics ST-800
• You can change the input language by pressing the language switch key
(or the right Alt key) on your keyboard.
82
3D FUNCTION
3D FUNCTION
3D technology uses different video frames for each eye to add depth to
the video.
While Watching 3D
WARNING
• If you view 3D video or images too closely for a long period of time, you
may experience eyestrain.
• If you watch the projector or game screen for a long time with 3D
glasses on, you may experience dizziness or eye fatigue.
• People with chronic diseases (epilepsy, cardiovascular disease, blood
pressure-related diseases, etc.), pregnant women, and people with
serious motion sickness should avoid watching 3D video.
• People with stereo blindness, or with stereopsis problems, should also
avoid watching 3D video content. It may cause double vision or visual
discomfort.
• People with strabismus, amblyopia, or astigmatism may have difficulty
perceiving video depth and may be fatigued easily due to double vision
or other ailments. It is recommended to rest more frequently than other
viewers.
• Because 3D can be perceived as real, some viewers may be surprised
or overexcited.
• Do not watch 3D images near fragile objects or any objects that can be
knocked over easily.
• Take care not to injure yourself as you may subconsciously try to move
away from the life-like 3D images.
3D FUNCTION
83
• Warning about photosensitivity seizures
--Some users may experience a seizure or other abnormal symptoms
when they are exposed to a flashing light or particular patterns from
a video game. If anyone in your family has a history of epilepsy or
has ever experienced any kind of seizure, please consult your doctor
before viewing 3D images.
If you experience one of the following symptoms while watching a 3D
video, stop watching the 3D video immediately and take a rest.
--Dizziness, switched eyesight, twitching of the eye or facial muscles,
involuntary movements, cramp, loss of consciousness, confusion,
loss of sense of direction, or nausea. If the symptom does not
disappear, please consult your doctor.
• You can reduce the risk of photosensitive seizures by taking the
following preventive measures.
--Take a rest of 5 to 15 mins. for every 1 hour of viewing.
--If vision varies between each eye, correct the variation before
beginning to watch a 3D video.
--Ensure that the 3D video is directly in front of you, at eye level.
--You should stop watching if you experience a headache, fatigue, or
dizziness.
--Do not view 3D images for a long period of time when you are tired
or ill.
CAUTION
• Extra special care is required for children watching a 3D video.
When Watching 3D Video
• Prevent children of 5 years or younger from watching a 3D video. It may
impair the development of their eyes.
• Children 10 years old or younger are still developing their eyesight and
may have an excessive tendency to touch or jump at the screen. Adult
guidance and supervision is recommended.
• Since the distance between the eyes is narrower for children than in
adults, children tend to notice a greater difference in the images seen by
each eye. Therefore, even while watching the same 3D video, children
may have a greater depth perception than adults.
• Children under 19 years old or younger may respond with sensitivity to
the light stimuli of 3D content. Excessive viewing when fatigued is not
recommended.
84
3D FUNCTION
• Elderly viewers may have a reduced depth perception than younger
viewers. Avoid watching video nearer than the recommended distance.
• Watch 3D images within the optimum viewing angle and distance.
• If you are outside the viewing angle or distance, you may not be able to
see 3D images. You cannot view 3D images when you are lying down.
• You may see left and right images overlapped during projector
initialization after it is powered on. It may take some time for
optimization.
• It may take some time for the 3D image to look normal after you turn
your eyes away from the screen and look back at the 3D image.
• It may flicker slightly while watching 3D images under a 3 wavelength
lamp fluorescent light (50 Hz to 60 Hz) or near windows. If so, it is
recommended to block the sun light with a curtain and to dim the lights.
• The 3D glasses must be DLP-LINK (DLP Ready) type.
• You may not be able to watch 3D properly if there is an obstacle
between the projector and 3D glasses.
• Install the 3D projector as far as possible from other devices.
• If a future 3D broadcasting format that is not supported by this projector
becomes the standard, an additional device such as a set-top box may
be required.
Please check the following when using 3D glasses.
• Do not use 3D glasses as ordinary glasses, sunglasses, or protective
goggles.
--If you do so, this may cause injury.
• Do not store 3D glasses in very hot or very cold conditions. If you do,
this may cause them to become distorted. Do not use distorted glasses.
• Do not drop 3D glasses or allow them to come into contact with other
objects.
--This may cause product malfunction.
• The lenses of 3D glasses are easily scratched. Use a soft clean cloth
when cleaning them.
• Foreign particles on the cloth may cause scratches.
• Do not scratch the surface of the 3D glasses' lenses with sharp objects
or wipe them with chemicals. If the lenses get scratched, images may
not look normal when viewing 3D.
3D FUNCTION
85
Requirements for Watching 3D Images
* Optimum viewing angle: Top/Bottom/Left/Right 9°
Recommended viewing distance: 3 m to 5 m
Recommended screen size: 101 cm

* Watching 3D videos should be done in dark room environments only.
NOTE
• The pairing with the DLP-LINK glasses is affected by the intensity of
light reflected from the screen. Therefore, the pairing with DLP-LINK
glasses may not work properly if the light reflected from the screen is
not bright enough, such as when the surrounding area is bright, the
screen is big, or the maximum energy saving mode is enabled.
• Some menus may not work while playing a 3D video.
• You can only watch a 3D video properly when the 3D video format
option has been selected on the projector.
86
3D FUNCTION
Using the DLP-LINK (DLP-Ready) Type Glasses
1
2
3
While watching 3D images from the projector, press buttons on the
glasses.
When you press the button, the glasses flicker while synchronizing with
the 3D images. (The flickering is a unique operation method of DLPLINK type glasses. It may be different depending on the glasses type.)
If the glasses flicker or problems occur while watching 3D, first turn
the lights off to make the room darker. Contact your projector seller for
queries about the glasses.
To view 3D images
3D imaging is a technology that utilizes the slight difference in left/
right eyes to make the images on the projector appear just like real-life
3-dimensional space.
1
2
3
4
Play a 3D-image title.
5
Select 3D Settings to switch the playing direction of an image. Select a
screen with better 3D display quality.
--If you press the 3D button during viewing, it returns to 2D.
Press the
button to activate 3D.
Turn on the 3D glasses and put them on.
While viewing 3D images, press the
end 3D image viewing.
button on the remote control to
* Depending on the input signal, the available 3D type may differ.
3D FUNCTION
87
Supported 3D Mode
Horizontal Vertical
Signal Resolution Frequency Frequency
(kHz)
(Hz)
720p
1080i
1280 x
720
1920 x
1080
HDMI
1080p
USB
1080p
1920 x
1080
1920 x
1080
37.5
50
45
60
Supported 3D
Formats
Side by side
(half), Top and
Bottom
75
50
89.9 /
90
59.94
/ 60
Frame Packing
28.125
50
33.7
60
Side by side
(half), Top and
Bottom
27
24
33.7
30
53.95
/ 54
23.98
/ 24
56.3
50
67.5
60
33.75
30
Side by side
(half), Top and
Bottom
Frame Packing
Side by side
(half), Top
and Bottom,
Single Frame
Sequential
Side by side,
Top and
Bottom, JPS,
MPO(Photo)
88
CUSTOMIZING SETTINGS
CUSTOMIZING SETTINGS
SETTINGS
1 Press the (Home) button and select SETTINGS.
2 Use the or button to select the desired item and press the
3
4
Wheel (OK) button.
Use the , , , or button to set up the desired item and press
the
Wheel (OK) button.
Press the
(BACK) button when completed.
Menu
Description
Adjusts the image quality for optimal viewing.
SOUND
Adjusts the sound quality and volume level.
TIME
Sets the time and time-related features.
LOCK
Lock contents or external input.
OPTION
Customizes the general settings.
NETWORK
Sets the network.
SUPPORT
Shows the projector information.
CUSTOMIZING SETTINGS
89
PICTURE Settings
1 Press the (Home) button
2
3
and select SETTINGS.
Use the or buttons to
select PICTURE and press the
Wheel (OK) button.
Use the , , , or
button to set up the desired item
and press the
Wheel (OK)
button.
--To return to the previous
menu, press the
(BACK)
button.
The available picture settings are described as follows.
Menu
Energy Saving
Description
Reduces power consumption by adjusting peak
screen brightness.
Mode
Applies the pre-set Energy Saving
mode.
Minimum/
--If Energy Saving is set to
Medium/
Minimum and the ambient
Maximum
temperature is 35 °C or higher,
Energy Saving will be disabled.
90
CUSTOMIZING SETTINGS
Menu
Description
Picture Mode
Selects the picture mode optimized for the viewing
environment or the program. You can also
customize advanced options for each mode.
Mode
Maximizes the visual effect of video.
Vivid
Heightens contrast, brightness, and
sharpness to display vivid images.
Displays images in standard levels of
Standard
contrast, brightness, and sharpness.
Cinema
Optimizes the image for a movie.
Optimised picture mode for sport.
The pitch and kits are presented in
Sport
vibrant colours, with crystal-clear
images even for fast movements.
Optimizes the image for playing
Game
games on fast-moving screens.
Menu for adjusting picture quality
that allows experts and amateurs to
enjoy the best projector viewing.
Expert1 /
--Expert mode is for picture tuning
Expert2
professionals to control and finetune using a specific image. For
normal images, the effects may
not be dramatic.
Contrast
Adjusts the difference between bright and dark
regions of the screen.
Brightness
Adjusts the overall screen brightness.
Sharpness
Adjusts the sharpness of the borders between
bright and dark. Horizontal and Vertical Sharpness
are available only in Expert1 / Expert2.
Colour
Adjusts the colours on the screen darker or lighter.
Tint
Adjusts the red/green colour balance.
Advanced
Control
(Expert Control)
Customizes the advanced settings.
CUSTOMIZING SETTINGS
Menu
91
Description
Picture Option
Sets optional settings.
Picture Reset
Resets values customized by the user.
Each picture mode is reset. Select the picture mode
you wish to reset.
3D
You can set the 3D mode On or Off.
Adjusts various aspects of 3D imaging.
Mode
3D Settings
3D Mode
Provides the appropriate 3D depth.
• 3D Depth: Adjust 3D depth
between the foreground object(s)
and the background.
• 3D Viewpoint: 3D image can be
made closer or farther from user.
3D Sound
Zooming
Provides 3D-optimized sound.
3D Pattern
Recognition
This will activate and deactivate 3D
mode automatically based on the
input.
Normal
Image View
This will down-convert a 3D signal
to 2D.
3D Image
Correction
Switches the left/right images of 3D
video.
Aspect Ratio
Resizes the picture.
Picture Wizard
III
Use the remote control and follow the instructions
of the Picture Wizard to calibrate and adjust for
optimum picture quality without expensive pattern
devices or help from a specialist. Follow the
instructions to obtain the optimum picture quality.
92
CUSTOMIZING SETTINGS
Advanced Control
Menu
Description
Dynamic
Contrast
Adjusts contrast and colour to the optimal level
according to the screen’s brightness.
Dynamic
Colour
Adjusts colours for more natural-looking colours.
Colour
Gamut
Selects the range of colours that can be expressed.
• Standard: Displays the original colours of an input
signal regardless of the display features.
• Wide: Makes use of the display's rich colours.
Preferred
Colour
Skin Colour
Skin colour spectrum can be separately
set to implement the skin colour as
defined by the user.
Grass
Colour
Natural colour spectrum (meadows, hills,
etc.) can be set separately.
Sky Colour
Sky colour is set separately.
Super
Resolution
Provides a crystal-clear picture by improving the details
in areas where the picture is blurry or unclear.
Gamma
Sets the gradation curve according to the output of the
picture signal in relation to the input signal.
CUSTOMIZING SETTINGS
93
Expert Control
Menu
Description
Dynamic
Contrast
Adjusts contrast and colour to the optimal level
according to the screen’s brightness.
Super
Resolution
Provides a crystal-clear picture by improving the
details in areas where the picture is blurry or unclear.
Colour Gamut
Selects the range of colours that can be expressed.
• Standard: Displays the original colours of an input
signal regardless of the display features.
• Wide: Makes use of the display's rich colours.
Edge
Enhancer
Shows clearer and distinctive yet natural edges of
the video.
Colour Filter
Filters a specific colour spectrum in RGB colours to
fine-tune colour saturation and hue accurately.
Expert Pattern
Patterns used for expert adjustment.
Gamma
Sets the gradation curve according to the output of
the picture signal in relation to the input signal.
Adjusts white balance. Detailed adjustment is
possible as shown below.
White Balance
a. Method: 2 Points
--Pattern: Inner, Outer
--Points: Low, High
--Red/Green/Blue: The adjustment range for
each colour is from -50 to +50.
--Apply to all inputs: The values of the White
Balance is applied to all the input modes.
b. Method: 20 Point IRE
--Pattern: Inner, Outer
--IRE (Institute of Radio Engineers) is the unit
indicating the size of a video signal and can
be set to 5,10,15, ... 100. You can fine-tune for
each setting as shown below.
--Red/Green/Blue: The adjustment range is -50
to +50.
--Apply to all inputs The values of the White
Balance is applied to all the input modes.
94
CUSTOMIZING SETTINGS
Menu
Colour
Management
System
Description
Adjusts Red/Green/Blue/Cyan/Magenta/Yellow
colours. Allows an expert to adjust the tint using a
test pattern. Six colours (Red/Green/Blue/Cyan/
Magenta/Yellow) can be selectively adjusted without
affecting other colours. You may not see colours
change on a normal picture even after adjustment.
--Saturation Red/Green/Blue/Cyan/Magenta/
Yellow,
Tint Red/Green/Blue/Cyan/Magenta/Yellow,
Luminance Red/Green/Blue/Cyan/Magenta/
Yellow:
The adjustment range is -30 to +30 each.
* Depending on input signal or other picture settings, the range of detailed
items for adjustment may differ.
CUSTOMIZING SETTINGS
95
Picture Option
Menu
Description
Noise Reduction
Reduces screen noise in the video.
MPEG Noise
Reduction
Eliminates noise generated while creating digital
picture signals.
Black Level
Adjusts the brightness or darkness of the screen
to suit the black level of the picture input using the
degree of darkness (black level) of the screen.
Real Cinema
Optimizes the screen for movie viewing.
Corrects images to display smoother motion
sequences.
Mode
TruMotion
Colour
Temperature
Smooth
De-Judder value is set to 3.
Clear
De-Judder value is set to 7.
User
De-Judder can be set manually.
• De-Judder This function adjusts
juddering of the screen.
Off
De-Judder value is set to 0.
Adjusts the overall colour of the screen to suit your
preference.
Select Warm, Natural, Cool, or Medium.
* If the video signal is 60 Hz, TruMotion may not work.
96
CUSTOMIZING SETTINGS
SOUND Settings
1 Press the (Home) button
2
3
and select SETTINGS.
Use the or buttons to
select SOUND and press the
Wheel (OK) button.
Use the , , , or
button to set up the desired item
and press the
Wheel (OK)
button.
--To return to the previous
menu, press the
(BACK)
button.
The available sound settings are described as follows.
Menu
Smart
Sound
Mode
Description
Provides the optimized sound adjusted for each content
type.
• If the Smart Sound Mode function is enabled, Sound
Mode, Virtual Surround Plus and Clear Voice ll are
automatically adjusted.
Sets the sound mode.
Mode
Sound
Mode
Standard
Suitable for all types of video.
News / Music
/ Cinema /
Sport / Game
Sets audio optimized for a specific genre.
User Setting
Adjusts volume level.
• 100 Hz / 300 Hz / 1 kHz / 3 kHz /
10 kHz: Sets EQ by manual
adjustment of sound bands.
• Reset: Resets the equalizer value
changed by the user.
CUSTOMIZING SETTINGS
Menu
97
Description
Virtual
Surround
Plus
Provides realistic 5.1 channel stereo sound from two
speakers.
• If Clear Voice ll is set to On, Virtual Surround plus
will not be chosen.
Clear
Voice II
Boosts voice clarity.
Sets various modes for volume control.
Mode
Volume
Mode
Auto Volume
Sets Auto Volume to On. Different
volume outputs from signal to signal.
They are then automatically adjusted
for convenient projector watching, when
clicking through different signal.
Sets the audio output of the projector.
Mode
Sound Out
Speaker
Sound is output through the projector
speaker.
External
Speaker
(Optical/
HDMI ARC)
Sound is output through the speaker
connected to the optical port. SIMPLINK
is supported.
• Digital Sound Out Sets up Digital
Sound Output.
LG Sound
Sync
(Optical)
Sound is output through an LG audio
device connected to the OPTICAL
DIGITAL AUDIO OUT port.
Bluetooth
Sound output is through the Bluetooth
device.
Headphone
Sound is output through headphones.
• Headphones are detected and
connected automatically when the
projector is on.
98
CUSTOMIZING SETTINGS
Menu
Description
Synchronizes video and audio directly when they do
not match. If you set AV Sync. Adjust to On, you can
adjust the sound output (projector speaker, SPDIF, or
Bluetooth) to the screen image.
Mode
Speaker
Adjusts the synchronization of the
sound from the projector's internal
speakers.
The + and - buttons allow the viewer to
synchronize the audio with the video.
External
Speaker
Adjusts how the sound is synced to
external speakers, such as an external
speaker connected to the digital audio
output port, LG audio device, projector
speaker, SPDIF, and headphone.
The + and - buttons allow the viewer to
synchronize the audio with the video.
Bluetooth
Adjusts the synchronization between the
video and the Bluetooth device sound.
--This feature is only available when a
Bluetooth device is connected.
--Audio sync may vary by
manufacturer.
--When playing video and music from
a connected USB drive, AV Sync.
Adjust can also be adjusted using
the Set Audio. menu.
Bypass
Outputs broadcasting signals or the
audio of an external device without
audio delay. Audio may be output
before video as it takes time to process
video input into the projector.
AV Sync.
Adjust
Sound
Option
Setting
Balance: Adjusts left/right audio balance.
CUSTOMIZING SETTINGS
99
TIME Settings
1 Press the (Home) button
2
3
and select SETTINGS.
Use the or button to select
TIME and press the
Wheel
(OK) button.
Use the , , , or
button to set up the desired item
and press the
Wheel (OK)
button.
--To return to the previous
menu, press the
(BACK)
button.
The available time settings are described as follows.
Menu
Description
Clock
Checks or changes the time while watching projector.
Sets the time and date manually if the auto setup does
not correspond to the current time.
Off Time/
On Time
Sets On/Off time. Select Off on Repeat to discontinue
On Time/Off Time.
• To use On Time/Off Time, set the current time
correctly.
• Even when the On Time function is on, the projector
will turn off automatically in 120 minutes when no
button is pressed within that time.
Sleep
Timer
Turns off the projector after a preset number of minutes.
To cancel the Sleep Timer, select Off.
Auto Off
If there is no input signal or button press, the projector
automatically turns off after the preset time has elapsed.
Automatic
Standby
If you do not press any button on the projector or
remote control for a certain period, the projector will
automatically turns off.
100 CUSTOMIZING SETTINGS
LOCK Settings
1 Press the (Home) button
and select SETTINGS.
2
Use the or button to select
LOCK and press the
Wheel
(OK) button.
--To enter the LOCK menu,
enter the preset 4-digit
password. The initial
password is set as 0000.
3
Use the , , , or
button to set up the desired item
and press the
Wheel (OK)
button.
--To return to the previous
menu, press the
(BACK)
button.
The available lock settings are described as follows.
Menu
Set
Password
Description
Sets or changes projector password.
• The initial password is set as 0000.
Permits only specific external input.
Select the Lock System to On.
Lock
System
Item
Input Block
Block the input sources.
Application
Lock
Lock the application.
CUSTOMIZING SETTINGS
101
OPTION Settings
1 Press the (Home) button
2
3
and select SETTINGS.
Use the or button to select
OPTION and press the
Wheel (OK) button.
Use the , , , or
button to set up the desired item
and press the
Wheel (OK)
button.
--To return to the previous
menu, press the
(BACK)
button.
The available option settings are described as follows.
Menu
Description
Selects Menu Language and Voice Recognition
Language displayed on the screen.
Item
Language
(Language)
Service
Country
Setting
Menu
Language
Selects a screen menu language.
Voice
Recognition
Language
Select the language to make voice
search.
You can change the country setting of your smart
projector. The premium service and LG Smart World
that are available for the country you selected will be
provided.
• If a network is disconnected while setting the service
country, it may not be set properly.
Item
Auto
Setting
A service country is automatically set for
your smart projector.
Manual
Setting
A service country can be set manually
for your smart projector.
102 CUSTOMIZING SETTINGS
Menu
Set the
Universal
Control
Description
With the magic remote control, you can control a set-top
box, Bluray player, home theatre system, etc.
Sets the speed and shape of the pointer that appears
on the projector screen.
Speed
Sets the moving speed of the pointer.
Shape
Selects a pointer shape from various
options.
Size
Chooses the size of the pointer.
Alignment
Set to On. If there is any misalignment
between the pointer and the actual
direction the remote control indicates,
move the Magic Remote control left
and right to realign. The pointer will
automatically realign to the centre,
making it easier to control.
• If it is set to Off, the alignment
function will not work even when you
move the magic remote control left
and right.
Pointer
PJT Mode
Auto
Keystone
(Vertical)
This function turns the projected image upside down or
flips horizontal.
Auto Keystone(Vertical) provides a rectangular screen
image by automatically adjusting the keystone number
when there is a trapezoidal screen image caused by
tilting of the projector.
When using Auto Keystone(Vertical), the current
value set for Edge Adj is changed to the value that has
been set with Auto Keystone(Vertical).
Item
On
Automatically adjusts the keystone
number.
Off
Manually adjusts the keystone number.
CUSTOMIZING SETTINGS
Menu
Edge Adj
103
Description
To prevent the screen image from becoming
trapezoidal, Edge Adj adjusts the top and bottom width
of the image if the projector is not set at a right angle to
the screen.
Makes the projector turn on automatically when the
power code is connected to the projector.
Item
Auto Power
On
When the power code is connected to
the projector, it turns on automatically.
Off
When the power code is connected to
the projector, it goes into standby mode.
High
Altitude
If the projector is used at an altitude higher than
1200 metres, turn this on.
Otherwise, the projector may overheat or its protection
function may be activated. If this happens, turn the
projector off and then on again after waiting for several
minutes.
Auto Input
Search
Automatically searches for and displays the input signal
type when it is received. It is available only with external
inputs (HDMI, AV, and Component).
Balloon
Help
Enables/disables the balloon help.
Control
Device List
Displays the list of control devices connected to the
projector.
See Avatar
Turns the Avatar function on or off.
Factory
Reset
Deletes all optional settings and returns to initial default
mode. Once initialization is complete, the projector will
turn off and on by itself.
• If Lock System is activated, a pop-up password
prompt will appear.
• Do not turn off the power during initialization.
Mode
Setting
Selects Standard or Store. For use at home, select
Standard. Store is a mode used for store display.
104 CUSTOMIZING SETTINGS
NETWORK Settings
1 Press the (Home) button
2
3
and select SETTINGS.
Use the or button to select
NETWORK and press the
Wheel (OK) button.
Use the , , , or
button to set up the desired item
and press the
Wheel (OK)
button.
--To return to the previous
menu, press the
(BACK)
button.
The available network settings are described as follows.
Menu
Description
Network
Connection
Connects a network.
Network
Status
Displays the connection status of the network.
This function allows you to change a wired Internet
connection to your projector to Wi-Fi, allowing you to
connect various external devices or to use wireless
Internet.
Soft AP
Soft AP
Sets to On/Off.
Security
Key
Sets the Wi-Fi security number.
• You can set the security key with a
combination of English letters and numbers
between 8 and 64 characters long.
• The default setting is LG123456.
• To enable the Soft AP function, your projector must
be turned on and have a wired Internet connection.
• Up to four external devices can be connected.
• If the Soft AP function is enabled, the Wi-Fi Direct
and Miracast™ functions become unavailable. You
must set the Soft AP function to Off to use the Wi-Fi
Direct and Miracast™ functions.
CUSTOMIZING SETTINGS
Menu
105
Description
Wi-Fi Direct
Wi-Fi Direct is a function that allows your projector
to connect with a Wi-Fi Direct device without Internet
connection.
Miracast™/
Intel's WiDi
The Miracast™ allows you to enjoy video and audio
from a portable device through the projector wirelessly.
Intel's WiDi allows you to view a laptop screen through
the projector without a cable.
My
Minibeam
Name
Changes the name that appears when searching for the
projector from other devices.
106 CUSTOMIZING SETTINGS
SUPPORT
1 Press the
2
3
(Home) button
and select SETTINGS.
Use the or button to select
SUPPORT and press the
Wheel (OK) button.
Use the , , , or
button to set up the desired item
and press the
Wheel (OK)
button.
--To return to the previous
menu, press the
(BACK)
button.
The available support settings are described as follows.
Menu
Description
Software
Update
Updates to the latest software.
Picture Test
Check whether a video signal is properly displayed.
Sound Test
Check whether an audio signal is properly output.
3D Picture
Test
Check whether an 3D picture signal is properly output.
Product/
Service Info.
Shows the product/service information.
Initialization
of App
If problems occur after updates, try initializing the
system.
• During initialization, the projector will restart
automatically.
Legal
Documents
You can check the contents of Legal Documents and
you can make a choice whether to agree or withdraw
your consent to Legal Documents.
Self
Diagnosis
Troubleshoots functional problems that can arise while
using the product.
CONNECTING DEVICES
107
CONNECTING DEVICES
You can connect various external devices to the projector.
Computer/Notebook

USB
Digital Device
Video/DVD
LG Audio Device
Games
Console
Headphone
Mobile Phone
HDMI - Page 108
Composite (AV) - Page 109
Component - Page 110
USB Device - Page 50
Headphone - Page 113
Digital Amp - Page 114
Mobile Phone (MHL) - Page 115
108 CONNECTING DEVICES
Connecting to HD
Receiver, DVD, or
VCR Player, External
Devices
Connect an HD receiver, DVD,
VCR player, or external devices
to the projector and select an
appropriate input mode.
HDMI Connection
With an HDMI cable, you can enjoy
high quality picture and sound.
Using a HDMI cable, connect the
port of the projector
to the HDMI output port of the
device to connect. Both video and
audio are output at the same time.
You can also use the
.
Press the INPUT button on the
remote control to select HDMI.
You can connect with any HDMI
input port.
Optional Extras
NOTE
ARC(Audio Return Channel)
• External audio devices that
support SIMPLINK and ARC
must be connected using
port.
• When connected with a
high-speed HDMI® cable,
external audio devices
that support ARC output
or SPDIF work with the
SIMPLINK function without
the need for an additional
optical audio cable.
CONNECTING DEVICES
109
HDMI to DVI Connection
AV Connection
Using an HDMI to DVI cable,
connect the projector's
port to the DVI OUT
port.
To output audio, use an audio
cable for connection. You can also
use the
.
Press the INPUT button on the
remote control to select HDMI.
You can connect with any HDMI
input port.
Connect the output ports of an
external device and the AV IN
ports of the projector using an AV
cable. Press the INPUT button on
the remote control to select AV.
Check whether cables of the same
colour are connected properly.
Accessories
White
Red
Yellow
White
Red
Not
provided
Yellow
Optional
Extras
Not
provided
Red
White
DVI OUT
Yellow
AUDIO OUT
110 CONNECTING DEVICES
Component Connection
You can enjoy a video by
connecting the component port
of an external device to the
COMPONENT IN port of the
projector. Press the INPUT button
on the remote control to select
Component. Check whether
cables of the same colour are
connected properly.
Accessories
White
Red
Yellow
Green
Blue
Red
A)
B)
Not
provided
Red
White
Red
Red
Red
Red
White
Red
Blue
White
Blue
Green
Yellow
Green
Not
provided
Not
provided
Blue
Green
Accessories
Optional
Extras
Not
provided
Red
White
Red
Blue
Green
CONNECTING DEVICES
Connecting a PC
The projector supports Plug and
Play. Your PC will automatically
detect the projector and requires
no driver installation.
HDMI Connection
Using an HDMI cable, connect the
port of the projector to
the HDMI output port of your PC.
Both video and audio are output at
the same time. You can also use
the
.
Press the INPUT button on the
remote control to select HDMI.
You can connect with any HDMI
input port.
111
HDMI to DVI Connection
Using an HDMI to DVI cable,
connect the projector's
port to the DVI OUT
port.
To output audio, use an audio
cable for connection. You can also
use the
.
Press the INPUT button on the
remote control to select HDMI. You
can connect with any HDMI input
port.
Optional
Extras
Not
provided
Optional Extras
AUDIO OUT
DVI OUT
112 CONNECTING DEVICES
NOTE
• It is recommended to use
an HDMI connection for the
best image quality.
• Depending on the graphics
card, DOS mode video may
not work if a HDMI to DVI
Cable is in use.
• In PC mode, there may be
noise associated with the
resolution, vertical pattern,
contrast, or brightness. If
noise is present, change
the PC output to another
resolution, change the
refresh rate to another rate
or adjust the brightness and
contrast on the PICTURE
menu until the picture is
clear.
• The synchronization input
form for Horizontal and
Vertical frequencies is
separate.
• Depending on the graphics
card, some resolution
settings may not allow the
image to be positioned on
the screen properly.
• If you are using DVI out from
a PC, you have to connect
analog audio separately.
• When using the HDMI/DVI
cable, Single link only is
supported.
Connecting a Laptop
You can connect the projector to a
laptop to use various functions.
HDMI Connection
Using an HDMI cable, connect the
port of the projector
to the HDMI output port of your
laptop. Both video and audio are
output at the same time. You can
also use the
.
Press the INPUT button on the
remote control to select HDMI.
You can connect with any HDMI
input port.
Optional Extras
CONNECTING DEVICES
The table below shows examples
of switching the output. For
more information, refer to the
External Output, Connecting to
an External Monitor, or similar
sections of the owner's manual of
your computer.
Brand
Connecting
Headphones
You can listen to the audio through
a headphone.
Switching
Output
NEC
[Fn]+[F3]
Panasonic
[Fn]+[F3]
Toshiba
[Fn]+[F5]
IBM
[Fn]+[F7]
Sony
[Fn]+[F7]
Fujitsu
[Fn]+[F10]
LG
[Fn]+[F7]
Samsung
[Fn]+[F4]
Macintosh
Adjust the control
panel to enable
mirroring after
start-up.
113
Not provided
114 CONNECTING DEVICES
Connecting a Digital
Amp
Using an optical cable, connect
the digital audio input port of
a digital amp to the OPTICAL
DIGITAL AUDIO OUT port of the
projector. The output of an amp
with a digital converter must be set
to the desired audio format. When
using a HDMI cable to connect a
home theatre or when connecting
an optical output to an external
audio device, set Sound Out
to External Speaker (Optical/
HDMI ARC) as shown below.
If a projector, home theatre, or
the speaker of an external audio
device is operating at the same
time, there will be an echo.
Optional Extras
NOTE
• Refer to the user manual of
the audio device to connect.
• When connecting this
product to other devices,
make sure to turn off and
unplug all the devices.
• The audio output of this
product has wide-ranging
audio bandwidth, so the
receiver volume must
be adjusted properly.
Speakers can be damaged
by unexpected high
frequencies.
• Connecting the OPTICAL
DIGITAL AUDIO OUT port
of the projector to the digital
audio input port of a digital
amp and the audio input port
of the projector to the analog
audio output port of the
digital amp can cause sound
oscillation due to the closed
loop. Remove one of the two
connections to prevent this.
(This also applies to home
theatre devices.)
CONNECTING DEVICES
115
Using the Mirroring Function of a Mobile
Phone
MHL Connection
The Mobile High-definition Link (MHL) is an interface that can connect a
mobile phone to the projector and play video and audio from the mobile
phone through the projector.
This only applies to products with a HDMI input that supports MHL.
(To find out whether your device is MHL-certified, please contact your
device manufacturer.)
For MHL support, check the
port.
Use a dedicated cable for MHL.
Optional Extras

NOTE
• When you connect a mobile phone to the
port, you
can see the mobile phone screen through a projector.
--This only applies to mobile phones that support MHL.
--You can use the remote control for some applications.
• Disconnect the MHL cable from the projector when:
--The MHL function is disabled.
--Your mobile device is fully charged in standby mode.
116 MAINTENANCE
MAINTENANCE
Clean your Projector to keep it in optimal condition.
Cleaning
Cleaning the Lens
If there is any dust or staining on the lens surface, you must clean the lens.
Use an air spray or a cleaning cloth to clean the lens.
To remove dust or stains, use an air spray or apply a small amount of
cleaning agent onto a swab or soft cloth to lightly rub the lens.
Please be aware that liquid may flow into the lens if the product is sprayed
directly onto the lens.
Cleaning the Projector Case
To clean the projector case, first unplug the power cord.
To remove dust or stains, use only a dry, lint-free, nonabrasive cloth to
polish the lens.
Do not use alcohol, benzene, thinners, or other chemicals, which may
damage the case.
INFORMATION
117
INFORMATION
To Update Projector Software
Uses Software Update to check and obtain the latest version.
It is also possible to check manually for available updates.
1
2
Press the
(Home) button and select SETTINGS.
Select SUPPORT and go to Software Update.
Item
Description
Software Update
Set it to On.
If an update is available, a prompt will appear to
perform the update.
Automatic update
mode
If an update is available, the update
automatically starts without prompting.
Check Update
Version
Checks the latest update version installed. When
a new update is available, the download process
can be performed manually.
• When the update starts, the update progress window appears for a short
time and disappears.
• The latest version can be obtained via an Internet connection.
• If software is not updated, certain functions may not work properly.
118 INFORMATION
Before Reporting a Problem, Check the
Following:
If the following symptoms occur, please carry out the checks and
adjustments described below. There may be no malfunction.
General
Problem
Solution
There is a delay after the
projector is switched on
before the image is fully
visible.
• This is not a problem. Image noise that
may occur when the projector is first
switched is being cleaned up.
(Home) → SETTINGS → SUPPORT → Picture Test
First run a Picture Test to verify that the image signal output is normal.
If there is no problem with the test image, check external device
connections.
Problem
Solution
Vibrating horizontal/
vertical lines and
fishnet patterns appear
momentarily.
• Such a problem may happen when
there is strong electronic interference.
Turn off other electronic devices such as
mobile phones, power tools, and other
small electrical appliances.
The display is inactive
or unclear when
connected to an HDMI®
source.
• Check the HDMI® cable specifications.
If your HDMI® cable is not genuine,
images may fade in and out or not be
displayed properly.
• Ensure that all cables are securely
connected. When connections are not
secure, images may not be properly
displayed.
Does not work with a
USB storage device.
• Verify that the USB device and cable is
version 2.0 or higher.
INFORMATION
119
Sound
(Home) → SETTINGS → SUPPORT → Sound Test
First run a Sound Test to verify that the sound signal output is normal.
If there is no problem with the test sound, check connected external
devices.
Problem
Solution
Screen display is on but
there is no sound.
• Check if the audio output settings for the
projector are configured correctly.
The volume changes
when I change program.
• Volume can vary from program to
program.
• Set Auto Volume to On.
There is no sound when
connected to HDMI /
USB.
• Verify that the HDMI® cable is high
speed.
• Check if the USB device and cable is
version 2.0 or higher.
• Use only regular music (*mp3) files.
120 INFORMATION
PC Connection Problem
Problem
Solution
The screen display
does not come on
after connecting to
the computer.
• Verify that the computer and the projector
are securely connected.
• Turn the projector off and back on using the
remote control.
• Restart the PC with the projector on.
• Check whether the resolution is correctly
set for PC input.
• Reconnect the HDMI cable.
There is no sound
after connecting the
computer with the
HDMI cable.
• Check with manufacturer of your video
card to ensure it supports HDMI voice
output. (Video cards in DVI format require
connection of a separate sound cable.)
When connected to
the computer, the
display is partially
cut off or shifts to
one side.
• Set the resolution to support PC input. (If
this does not work, reboot the computer.)
INFORMATION
121
Problems Replaying Movies in My Media
Problem
Solution
I cannot view the files
on the Movie List.
• Check whether the file on the USB storage
device can be read on a computer.
• Check whether the file extension is
supported.
This file is invalid.
message appears
or the image display
is not normal even
though the sound
is OK.
• Make sure that the file replays normally on
the computer’s video player. (Check for
damaged files.)
• Check whether the resolution is supported
by the computer.
• Verify that the video/audio codec is
supported.
• Verify that the frame rate is supported.
Audio not supported.
message appears
or the sound is not
normal even though
the image display is
OK.
• Make sure that the file replays normally on
the computer’s video player. (Check for
damaged files.)
• Check if the audio codec is supported by
the computer.
• Verify that the bit rate is supported.
• Verify that the sample rate is supported.
122 INFORMATION
Problem
Subtitles are not
displayed.
Solution
• Make sure that the file replays normally on
the computer’s video player. (Check for
damaged files.)
• Check if the video file has the same name
as the subtitle file.
• Make sure that the video and subtitle files
are in the same folder.
• Verify that the subtitle file format is
supported.
• Verify that the subtitle language is
supported. (Subtitle files can be opened in
Notepad to check the language.)
• Image shown may differ from your projector.
• For information on requesting service, refer to the following menu.
(Home) → SETTINGS → SUPPORT → Product/Service Info.
SPECIFICATIONS
123
SPECIFICATIONS
MODELS
PF1000UT (PF1000UT-EU)
Resolution (Pixel)
1920 (Horizontal) × 1080 (Vertical)
Aspect Ratio
16:9 (Horizontal:Vertical)
Panel size (mm)
11.896
Projection Distance
(Video size)
0.413 m to 0.686 m (152.4 cm to 254 cm)
Ratio of Upward
Projection
125 %
Working range of
the remote control
6m
Power consumption
100 W
AC-DC Adaptor
19 V
5.79 A
(Adaptor Input 100 - 240 V @ 50/60 Hz)
Audio Output
3W+3W
Video Input
NTSC M / PAL-B, D, G, H, I / PAL M / PAL N /
PAL 60 / SECAM
Height (mm)
127.6 (without foot) / 128.8 (with foot)
Width (mm)
131.4
Depth (mm)
309
Weight (kg)
1.9
USB Device
5 V, 0.5 A (Max.)
Temperature
Operation
environment
Operation
0 °C to 40 °C
Storage
-20 °C to 60 °C
Relative humidity
Operation
0 % to 80 %
Storage
0 % to 85 %
* Contents in this manual may be changed without prior notice due to
upgrade of product functions.
124 SPECIFICATIONS
HDMI Supported Mode
Resolution
720 x 480
720 x 576
1280 x 720
1920 x 1080
Horizontal
Frequency (kHz)
Vertical Frequency
(Hz)
31.469
59.94
31.5
60
31.25
50
37.5
50
45
60
44.96
59.94
28.125
50
33.75
60
33.72
59.94
56.25
50
67.5
60
67.432
59.94
27
24
26.973
23.976
33.75
30
33.716
29.97
SPECIFICATIONS
125
Supported HDMI (PC) Modes
Resolution
Horizontal
Frequency (kHz)
Vertical Frequency
(Hz)
640 x 480
31.469
59.94
800 x 600
37.879
60.31
1024 x 768
48.363
60.00
1152 x 864
54.348
60.053
1360 x 768
47.712
60.015
1280 x 1024
63.981
60.020
1920 x 1080
67.5
60.00
• If an invalid signal is input into the projector, it will not be displayed
properly on the screen or a message such as No Signal or Invalid
Format will be displayed.
• The projector supports the DDC1/2B type as the Plug and Play function
(Auto-recognition of PC monitor).
• 1920 x 1080 is recommended as the best picture quality in the PC
mode.
126 SPECIFICATIONS
Component Port Connecting Information
Component ports on the
Projector
Video output ports on DVD
player
Y
PB
PR
Y
PB
PR
Y
B-Y
R-Y
Y
Cb
Cr
Y
Pb
Pr
Signal
Component
480i / 576i
O
480p / 576p
O
720p / 1080i
O
1080p
O
(50 Hz / 60 Hz only)
SPECIFICATIONS
127
Open Source Software Notice Information
To obtain the source code under GPL, LGPL, MPL and other open source
licenses, that is contained in this product,
please visit http://opensource.lge.com.
In addition to the source code, all referred license terms, warranty
disclaimers and copyright notices are available for download.
LG Electronics will also provide open source code to you on CD-ROM for a
charge covering the cost of performing such distribution (such as the cost
of media, shipping, and handling) upon email request to
[email protected] This offer is valid for three (3) years from the date
on which you purchased the product.
