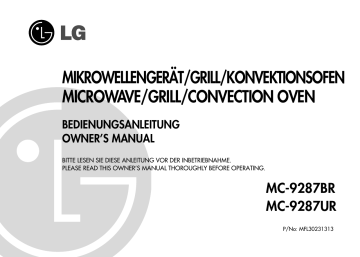

MIKROWELLENGERÄT/GRILL/KONVEKTIONSOFEN
MICROWAVE/GRILL/CONVECTION OVEN
BEDIENUNGSANLEITUNG
OWNER’S MANUAL
BITTE LESEN SIE DIESE ANLEITUNG VOR DER INBETRIEBNAHME.
PLEASE READ THIS OWNER’S MANUAL THOROUGHLY BEFORE OPERATING.
MC-9287BR
MC-9287UR
P/No: MFL30231313
Precautions
Precautions to avoid possible exposure to excessive microwave energy.
When heating liquids, e.g. soups, sauces and beverages in your microwave
oven, delayed eruptive boiling can occur without evidence of bubbling. This
could result in a sudden boil over of the hot liquid. To prevent this possibility
the following steps should be taken:
You cannot operate your oven with the door open due to the safety interlocks
built into the door mechanism. These safety interlocks automatically switch off
any cooking activity when the door is opened; which in the case of a
microwave oven could result in harmful exposure to microwave energy.
It is important not to tamper with the safety interlocks.
1 Avoid using straight sided containers with narrow necks.
Do not place any object between the oven front face and the door or allow
food or cleaner residue to accumulate on sealing surfaces.
GB
2 Do not overheat.
3 Stir the liquid before placing the container in the oven and again halfway
through the heating time.
Do not operate your oven if it is damaged. It is particularly important that the
oven door closes properly and that there is no damage to the: (1) door(bent),
(2) hinges and latches (broken or loosened), (3) door seals and sealing
surfaces.
4 After heating, allow to stand in the oven for a short time, stir or shake
them(especially the contents of feeding bottles and baby food jars) again
carefully and check the temperature of them before consumption to avoid
burns (especially, contents of feeding bottles and baby food jars).
Be careful when handling the container.
Your oven should not be adjusted or repaired by anyone except qualified
service personnel.
WARNING
WARNING
Always allow food to stand after being cooked by
microwaves and check the temperature of them
before consumption. Especially contents of feeding
bottles and baby food jars.
Please ensure cooking times are correctly set as
over cooking may result in the FOOD catching fire
and subsequent damage to your oven.
46
Contents
How the Microwave Oven Works
Microwaves are a form of energy similar to radio and television waves and
ordinary daylight. Normally, microwaves spread outwards as they travel
through the atmosphere and disappear without effect. Microwave ovens,
however, have a magnetron which is designed to make use of the energy in
microwaves. Electricity, supplied to the magnetron tube, is used to created
microwave energy.
These microwaves enter the cooking area through openings inside the oven.
A turntable or tray is located at the bottom of the oven. Microwaves cannot
pass through metal walls of the oven, but they can penetrate such materials
as glass, porcelain and paper, the materials out of which microwave-safe
cooking dishes are constructed.
Microwaves do not heat cookware, though cooking vessels will eventually
get hot from the heat generated by the food.
A very safe appliance
Your microwave oven is one of the safest of all home
appliances. When the door is opened, the oven
automatically stops producing microwaves. Microwave
energy is converted completely to heat when it enters
food, leaving no “left over” energy to harm you when
you eat your food.
47
Precautions_______________________________________________46
Contents _________________________________________________47
Unpacking & Installing _____________________________________48 ~ 49
Setting the Clock __________________________________________50
Child Lock________________________________________________51
Micro Power Cooking ______________________________________52
Micro Power Level _________________________________________53
Quick Start _______________________________________________54
Grill Cooking _____________________________________________55
Convection Preheat ________________________________________56
Convection Cooking _______________________________________57
Grill Combination Cooking _________________________________58
Convection Combination Cooking ____________________________59
Keep Warming ___________________________________________60
Quick Defrost _____________________________________________61 ~ 62
Auto Defrost ______________________________________________63
Auto Weight Defrost Guide _________________________________64
Auto Cook _______________________________________________65 ~ 70
Auto Reheat ______________________________________________71 ~ 72
Auto Roast _______________________________________________73 ~ 74
More or less cooking_______________________________________75
Rotisserie Assembly ________________________________________76
Rotisserie Installation & Cooking _____________________________77 ~ 78
Heating or Reheating Guide_________________________________79
Fresh Vegetable Guide _____________________________________80
Grill Cooking Guide _______________________________________81
Important safety instructions __________________________________82 ~ 83
Microwave - safe Utensils ___________________________________84
Food characteristics & Microwave cooking_____________________85 ~ 86
Questions & Answers ______________________________________87
IEC Test Lists ______________________________________________88
Plug Wiring Information/Technical Specifications _______________89
GB
Unpacking &
Installing
By following the basic steps on these two pages you will be able to quickly check that your oven is operating
correctly. Please pay particular attention to the guidance on where to install your oven. When unpacking your
oven make sure you remove all accessories and packing. Check to make sure that your oven has not been
damaged during delivery.
Place the oven in the level location of your choice with
more than 85cm height but make sure there is at least
20cm of space on the top and 10cm at the rear for proper
ventilation. The front of the oven should be at least 8cm from the
edge of the surface to prevent tipping.
An exhaust outlet is located on top or side of the oven. Blocking the
outlet can damage the oven.
Unpack your oven and place it on a flat level surface.
GB
HIGH RACK
LOW RACK
ROTISSERIE BAR
GLASS TRAY
ROTATING RING
MC-9287BR
METAL TRAY
HANDLE
MC-9287UR
THIS OVEN SHOULD NOT BE USED FOR COMMERCIAL CATERING
PURPOSES
48
Plug your oven into a
standard household
socket. Make sure your oven is
the only appliance connected to
the socket. If your oven does not
operate properly, unplug it from
the electrical socket and then
plug it back in.
Open your oven door
by pressing the DOOR
OPEN BUTTON. Place the
ROTATING RING inside the oven
and place the GLASS TRAY on
top.
Press the STOP
button, and press the
START button
one time to set
30 seconds of
cooking time.
You will hear a
BEEP each time you press the
button. Your oven will start before
you have finished the sixth press;
don’t worry this is normal.
The DISPLAY will
count down from 30
seconds. When it reaches 0 it
will sound BEEPS. Open the oven
door and test the temperature of
the water. If your oven is
operating the water should be
warm. Be careful when removing
the container it may be hot.
Fill a microwave
safe container with
300 ml (1/2 pint) of water.
Place on the GLASS TRAY and
close the oven door. If you have
any doubts about what type of
container to use please refer to
page 84.
The contents of feeding bottles and baby food jars
shall be stirred or shaken and the temperature
checked before consumption, in order to avoid burns.
HOW TO USE THE ACCESSORY
Do not operate the
appliance as shown figure.
As misuse will lead to
sparking and damage the
appliance.
YOUR OVEN IS NOW INSTALLED
49
GB
Setting the
Clock
You can set either12 hour clock or 24 hour clock.
In the following example I will show you how to set the time for 14:35 when using the 24 clock.
Make sure that you have removed all packaging from your oven.
Make sure that you have correctly installed your oven as described
earlier in this book.
Press STOP/CLEAR.
GB
When your oven is plugged in for the
first time or when power resumes after a
power cut, a ‘0’ will be shown in the
display; you will have to reset the clock.
If the clock (or display) shows any
strange looking symbols, unplug your
oven from the electrical socket and plug
it back in and reset the clock.
Press Clock once.
Press DIAL for 24 hour clock conformation.
(If you want to use a 12 hour clock, Press Clock once more. If you want to
change different option after setting clock, you have to unplug and plug it
back in.)
Turn DIAL until display shows “14:00”.
Press DIAL for hour confirmation.
Turn DIAL until display shows “14:35”.
Press DIAL.
The clock starts counting.
50
Child
Lock
Press STOP/CLEAR.
Your oven has a safety feature that
prevents accidental running of the oven.
Once the child lock is set, you will be
unable to use any functions and no
cooking can take place.
However your child can still open the
oven door.
Press and hold STOP/CLEAR until “L” appears on the display and BEEP
sounds.
The CHILD LOCK is now set.
To cancel CHILD LOCK press and hold STOP/CLEAR until “L” disappears.
You will hear BEEP when it’s released.
51
GB
Micro Power
Cooking
In the following example I will show you how to cook some food on 80% power for 5 minutes and 30 seconds.
Make sure that you have correctly installed your oven as described
earlier in this book.
Press STOP/CLEAR.
Press MODE.
Your oven has five microwave Power
settings.
GB
POWER
%
Power Output
HIGH MAX
100%
900W
MEDIUM HIGH
80%
720W
MEDIUM
60%
540W
DEFROST
MEDIUM LOW
40%
360W(
LOW
20%
180W
Press DIAL for micro mode confirmation.
(MICRO mode(
selected)
) is automatically available when MODE button is
Turn DIAL until display shows “720”.
)
Press DIAL for power confirmation.
Turn DIAL until display shows “5:30”.
Don't Use
METAL TRAY
ROTISSERIE
Press START.
When cooking you can increase or decrease cooking time by turning
DIAL.
HIGH RACK
LOW RACK
52
Micro Power
Level
Your microwave oven is equipped with 5 power levels to give you maximum flexibility and control over cooking.
The table below shows the examples of food and their recommended cooking power levels for use with this
microwave oven.
POWER LEVEL
USE
POWER LEVEL (%)
POWER OUTPUT
HIGH
* Boil Water
* Brown minced beef
* Cook poultry pieces, fish, vegetables
* Cook tender cuts of meat
100%
900W
MEDIUM HIGH
* Reheating(Liquid)
* Roast meat and poultry
* Cook mushrooms and shellfish
* Cook foods containing cheese and eggs
80%
720W
MEDIUM
* Reheating(Mashed potato, Plated meal, Ready meal)
* Prepare eggs
* Cook custard
* Prepare rice, soup
60%
DEFROST/
MEDIUM LOW
* All thawing
* Melt butter and chocolate
* Cook less tender cuts of meat
40%
LOW
* Soften butter & cheese
* Soften ice cream
* Raise yeast dough
20%
GB
53
540W
360W(
180W
)
Quick
Start
In the following example I will show you how to set 2 minutes of cooking on 900W power.
Press STOP/CLEAR.
GB
The QUICK START feature allows you to
set 30 seconds intervals of HIGH power
cooking with a touch of the QUICK
START button.
Don't Use
Press QUICK START four times to select 2 minutes on 900W power.
Your oven will start before you have finished the fourth press.
During QUICK START cooking, you can extend the cooking time up to
99 minutes 59 seconds by repeatedly pressing the QUICK START button.
METAL TRAY
ROTISSERIE
HIGH RACK
LOW RACK
54
In the following example I will show you how to use the grill to cook some food for 12 minutes and 30 seconds.
Grill
Cooking
Press STOP/CLEAR.
Press MODE.
This model is fitted with a QUARTZ
GRILL, so preheating is not needed.
This feature will allow you to brown and
crisp food quickly.
Turn DIAL to select GRILL.
The following indication is displayed: “
The metal tray is placed between a glass
tray and a grill rack at the grill mode.
Press DIAL for mode conformation.
The grill rack(high rack) must be used
during grill cooking.
Turn DIAL until display shows “12:30”.
GB
“
Press START.
When cooking you can increase or decrease cooking time by turning
DIAL.
55
Convection
Preheat
In the following example I will show you how to preheat the oven at a temperature of 230°C.
Press STOP/CLEAR.
Press MODE.
GB
The convection oven has a temperature
range of 40 °C and 100 °C~250 °C
(180 °C is automatically available when
convection mode is selected).
The oven has a ferment function at the
oven temperature of 40°C. You may wait
until the oven is cool because you cannot
use a ferment function if the oven
temperature is over 40°C.
When you use this function if the oven
temperature is over 70°C Error code
“F-14” displays.
Your oven will take a few minutes to reach
the selected temperature.
Once it has reached correct temperature,
your oven will BEEP to let you know that it
has reached the correct temperature.
Turn DIAL to select CONV.
The following indication is displayed: “
“
Press DIAL for mode confirmation.
Turn DIAL until display shows “230°C”.
Press DIAL for temperature confirmation.
Press START.
Preheating will be started with displaying “ Pr-H”.
Then place your food in your oven: then
tell your oven to start cooking.
56
In the following example I will show you how to preheat the oven first, then cook some food at a temperature of
230°C for 50 minutes.
Convection
Cooking
Press STOP/CLEAR.
Press MODE.
If you do not set a temperature your
oven will automatically select 180 °C, the
cooking temperature can be changed by
turning DIAL.
The convection rack(low rack) must be
used during convection cooking.
Turn DIAL to select CONV.
The following indication is displayed: “
“
Press DIAL for mode confirmation.
Turn DIAL until display shows “230°C”.
Press DIAL for temperature confirmation.
Turn DIAL until display shows “50:00”.
Press START.
When cooking you can increase or decrease cooking time by turning
DIAL.
57
GB
Grill Combination
Cooking
In the following example I will show you how to programme your oven with micro power 20% and grill
for a cooking time of 25 minutes.
Press STOP/CLEAR.
Press MODE.
GB
Your oven has a combination cooking
feature which allows you to cook food
with heater and microwave at the same
time or alternately. This generally means
it takes less time to cook your food.
You can set three kinds of micro power
level(20%, 40% and 60%) in combi
mode.
Turn DIAL to select GRILL COMBI until display shows “540”.
The following indications are displayed: “
“, “
“.
Press DIAL for mode conformation.
Turn DIAL until display shows “180”.
Press DIAL for power confirmation.
Turn DIAL until display shows “25:00”.
Press START.
When cooking you can increase or decrease cooking time by turning
DIAL.
Be careful when removing your food because the container will be hot!
58
In the following example I will show you how to programme your oven with micro power
60% and at a convection temperature 200 °C for a cooking time of 25 minutes.
Convection Combination
Cooking
Press STOP/CLEAR.
Press MODE.
Turn DIAL to select CONV. COMBI until display shows “540”.
The following indications are displayed: “
“, “
“.
You can set three kinds of micro power
level(20%, 40% and 60%) in combi
mode.
Press DIAL for mode confirmation.
Press DIAL for power confirmation.
(540W is automatically available when CONV. COMBI mode is
selected.)
Turn DIAL until display shows “200°C”.
Press DIAL for temperature confirmation.
Turn DIAL until display shows “25:00”.
Press START.
When cooking you can increase or decrease cooking time by turning
DIAL.
Be careful when removing your food because the container will be hot!
59
GB
Keep
Warming
In the following example I will show you how to keep warming at the temperature of 90 °C for 30 minutes.
Press STOP/CLEAR.
Press MODE.
GB
The oven has a temperature range of
30 °C~90 °C when keep warming is
selected.
When you press keep warming, 60 °C is
set initially.
Turn DIAL until display shows “60°C”.
Press DIAL to select keep warming.
Turn DIAL until display shows “90°C”.
Your oven will take a few minutes to
reach the selected temperature.
Once it has reached correct temperature,
your oven will BEEP to let you know that
it has reached the correct temperature.
Press DIAL for temperature confirmation.
Turn DIAL to set keep warming time until display shows “30:00”.
Press START.
When cooking you can increase or decrease cooking time by turning
DIAL.
60
Use this function to thaw only 0.5kg of Minced meat very quickly.
This will require a standing time to allow the center to thaw. In the following example will show you how to defrost
0.5kg of frozen minced meat.
Quick
Defrost
Press STOP/CLEAR.
Weight the food that you are about to defrost. Be certain to remove any
metallic ties or wraps; then place the food in your oven and close
the oven door.
Your oven has a microwave quick
defrost setting (MEAT).
Press Quick Defrost.
(Put the 0.5kg of Meat)
The oven will start automatically.
Don't Use
METAL TRAY
ROTISSERIE
During defrosting your oven will “BEEP”, at which point open the oven door, turn food over and separate to
ensure even thawing. Remove any portions that have thawed or shield them to help slow down thawing. After
checking close the oven door and press START to resume defrosting.
Your oven will not stop defrosting (even when the beep sounded) unless the door is opened.
61
GB
QUICK DEFROST GUIDE
Use this function to defrost quickly for minced meat.
Remove the meat completely from its wrapping. Place the mince onto a microwave-safe plate. When beeps, at this point remove the mince from the microwave
oven, turn the mince over and return to the microwave oven. Press start to continue. At the end of the program remove the mince from the microwave oven,
cover with foil and allow to stand 5-15 minutes or until completely thawed.
Category
Minced Meat
Weight
0.5kg
Utensil
Microwave ware
(Flat plate)
Instructions
Minced meat only
Turn food over at beef
After defrosting, let stand for 5-15 minutes.
GB
62
The temperature and density of food varies, I would recommend that the food is checked before cooking
commences. Pay particular attention to large joints of meat and chicken, some foods should not be completely
thawed before cooking. For example fish cooks so quickly that it is sometimes better to begin cooking while still
slightly frozen. The BREAD programme is suitable for defrosting small items such as rolls or a small loaf. These will
require a standing time to allow the centre to thaw. In the following example I will show you how to defrost 1.4Kg
of frozen poultry.
Auto
Defrost
Press STOP/CLEAR.
Weight the food that you are about to defrost. Be certain to remove any
metallic ties or wraps; then place the food in your oven and close the
oven door.
Press Auto Defrost.
Your oven has four microwave defrost
settings:- MEAT, POULTRY, FISH and
BREAD; each defrost category has
different power settings.
Turn DIAL until display shows “dEF2”.
Press DIAL for category confirmation.
Enter the weight of the frozen food that you are about to defrost.
Don't Use
Turn DIAL until display shows “1.4kg”.
METAL TRAY
ROTISSERIE
Press START.
During defrosting your oven will “BEEP”, at which point open the oven door, turn food over and separate to
ensure even thawing. Remove any portions that have thawed or shield them to help slow down thawing.
After checking close the oven door and press START to resume defrosting.
Your oven will not stop defrosting (even when the beep sounded) unless the door is opened.
63
GB
Auto weight defrost guide
* Food to be defrosted should be in a suitable microwave proof container and place uncovered on the glass turntable.
* If necessary, shield small areas of meat or poultry with flat pieces of aluminum foil. This will prevent thin areas becoming warm during defrosting. Ensure the
foil does not touch the oven walls.
* Separate items like minced meat, chops and bacon as soon as possible.
* When BEEP, at this point remove the food from the microwave oven, turn the food over and return to the microwave oven. Press start to continue.
At the end of the program, remove the food from the microwave oven, cover with foil and allow to stand until completely thawed.
To thaw completely , for example joints of meat and whole chickens should STAND for a minimum of 1 hour before cooking.
Category
Weight Limit
Meat
0.1 ~ 4.0 kg
(dEF1)
Utensil
Microwave ware
(Flat plate)
Food
Meat
Minced beef, Fillet steak, Cubes for stew, Sirloin steak, Pot roast, Rump roast, Beef burger,
Lamp chops, Rolled roast, Cutlets(.2cm)
Turn food over at beef
After defrosting, let stand for 5-15 minutes.
GB
Poultry
Poultry
Whole chicken, Legs, Breasts, Turkey breasts(under 2.0kg)
(dEF2)
Turn food over at beef
After defrosting, let stand for 20-30 minutes.
Fish
Fish
Fillets, Steaks, Whole fish, Sea foods
(dEF3)
Turn food over at beef
After defrosting, let stand for 10-20 minutes.
Bread
(dEF4)
0.1 ~ 0.5 kg
Paper towel
or flat plate
Sliced bread, Buns, Baguette, etc.
64
Auto
Cook
In the following example I will show you how to cook 0.3kg of Rice. (Ac 2)
Press STOP/CLEAR.
Press Auto Cook.
AUTO COOK allows you to cook most of
your favorite food easily by selecting the
food type and entering the weight of the
food.
GB
Turn DIAL until display shows “Ac 2”.
Press DIAL for category confirmation.
Turn DIAL until display shows “0.3kg”.
Press START.
When cooking you can increase or decrease cooking time by turning
DIAL.
65
Auto Cook
Don't Use
Category
Weight Limit
Utensil
Food Temp.
Jacket Potato
(Ac 1)
0.1 - 1.0kg
Metal tray
Room
Choose medium sized potatoes 170 -200g.
Wash and dry potatoes. Pierce the potatoes several times
with a fork. Place the potatoes on the metal tray and glass tray.
Adjust weight and press start.
After cooking, remove the potatoes from the oven.
Let stand covered with foil for 5 minutes.
CAUTION: The grill and surrounding oven will get very HOT.
Use oven gloves.
Rice
(Ac 2)
0.1 - 0.4kg
Microwavesafe bowl
Room
1. Place rice and boiling water with 1/4 to 1 teaspoon salt in a deep
and large bowl. Place food in the oven.
2. After cooking, stir. Stand covered for 5 minutes.
ROTISSERIE
Instructions
Notes :
Add 300ml of boiling water per 100g white rice.
Cover with plastic wrap and vent.
GB
Pasta
(Ac 3)
0.1 - 0.4kg
Microwavesafe bowl
Room
1. Place pasta and boiling water with 1/4 to 1 teaspoon salt in a deep
and large bowl. Place food in the oven.
2. After cooking, stir. Stand covered for 5 minutes.
Notes :
Add 400ml of boiling water per 100g pasta.
Do not cover. Stir at least twice during cooking to prevent sticking.
66
Auto Cook
Don't Use
ROTISSERIE
Category
Weight Limit
Utensil
Food Temp.
Fresh
Vegetable
(Ac 4)
0.2 - 0.8kg
Microwavesafe bowl
Room
Frozen
Vegetable
(Ac 5)
0.2 - 0.8kg
Microwavesafe bowl
Frozen
Fresh Fish
(Ac 6)
0.1 - 0.6kg
Microwavesafe flan dish
Refrigerated
67
Instructions
Place vegetables in a microwave-safe bowl. Add water.
Cover with wrap. Adjust weight and press start.
After cooking, stir and allow to stand for 2minutes.
Add amount of water according to the quantity.
** 0.2kg - 0.4kg : 2 Tablespoon
** 0.5kg - 0.8kg : 4 Tablespoon
Place vegetables in a microwave-safe bowl. Add water.
Cover with wrap. Adjust weight and press start.
After cooking, stir and allow to stand for 2 minutes.
Add amount of water according to the quantity.
** 0.2kg - 0.4kg : 2 Tablespoon
** 0.5kg - 0.8kg : 4 Tablespoon
Whole fish, steaks
- Oily fish : salmon, mackerel
- White fish : cod, haddock
Arrange in a single layer in a large microwave-safe flan dish.
Add 2 tablespoons of lemon juice.
Cover dish tightly with plastic wrap and pierce in several places.
Place on the glass turntable.
Adjust weight and press start.
After cooking, remove the dish from the oven.
Allow to stand for 3 minutes before serving.
GB
Auto Cook
Category
Weight Limit
Utensil
Food Temp.
0.2 - 0.5kg
Heatproof plate
on the
High rack
Frozen
Don't Use
French
fries
(Ac 7)
Spread frozen potato products out on the heatproof plate on the high
rack. For the best results, cook in a single layer.
When beep, turn food over.
After cooking, remove from the oven and stand for 1~2 minutes.
Gratin
(Ac 8)
0.5 - 1.2kg
Low rack
on the
Metal tray
Room
Use this key to cook home made Gratins.
ROTISSERIE
Instructions
* Potato Gratin *
Ingredients
400g potatoes
100g onions(cut into thin slices)
2/3 tablespoon butter
3 slices of bacon
350g white sauce
80g shredded mozzarella cheese
Salt, black pepper
GB
(White Sauce)
3 tablespoon butter, 5 tablespoon flour, 2 cups of milk
Place butter in a large bowl. Microwave at HIGH until butter
melts. Add flour and microwave for 2 minutes at HIGH.
Add milk, salt and black pepper. Microwave at HIGH for15
minutes. (During cooking, stir several times.)
Method
1. Bake potatoes for 7-8 minutes on Microwave HIGH. And then peel
and slice into small size. Add salt, pepper.
2. Combine onions and butter in a bowl. Microwave at HIGH for 2
minutes.
3. Place one third of the white sauce in gratin dish. Add potatoes,
onions and bacon. Cover with the rest of the white sauce.
4. Sprinkle with cheese. Place on low rack on the metal tray.
After cooking, stand for 2~3 minutes.
68
Auto Cook
Category
Kebab
(Ac 9)
Weight Limit
Utensil
Food Temp.
0.2 - 1.0kg
Rotisserie
over the
metal tray
Refrigerated
Instructions
600g meat(lamb, beef)
2 tablespoon Salt
1 large onion
Olive oil
1 skewer: approx.0.2-0.25kg
1. Cut the meat into the small and equal pieces.
Grate the onion and separate its juice.
Mix the onion juice and olive oil. Then cover the pieces of meat with
the olive oil and onion juice for 3-4 hours.
2. Fix the meat pieces into the skewers. Note that the skewers pass the
meat center. Insert the roti-bar into the Roti-holder over the metal
tray.
3. Adjust weight and press start.
4. After cooking, remove from the oven.
69
GB
Auto Cook
Category Weight Limit
Utensil
Food Temp.
Chilled
Pizza
(Ac 10)
0.2 - 0.6kg
Low rack
on the
metal tray
Refrigerated
Fresh Pizza
(Ac 11)
0.7 - 1.0kg
Metal tray
on the
low rack
Room
Instructions
This function is for reheating leftover chilled pizza. Place chilled pizza on the
low rack on the metal tray.
After cooking, take food out immediately. Stand for 1~2 minutes.
Batter
1.0kg
Dry yeast(g)
7
All-purpose flour(g) 300
Water, tepid(ml)
150
Sugar(g)
8
Salt(g)
5
Vegetable oil(tablespoon)
3
0.7kg
4
200
100
5
3
11/2
The others
1.0kg
Tomato puree(tablespoon)
4
Canned tomatoes(g) 300
Ham, precooked(g)
80
Shredded
200
mozzarella cheese(g)
0.7kg
3
200
50
100
1. Combine a flour, yeast, sugar, salt and warm water.
2. Add oil and knead the batter well. And stand for 15-25 minutes on
Convection 40°…. After finishing, knead again.
3. Drain the juice of canned tomatoes.
4. Grease the oil on the metal tray. Spread the batter on the metal tray.
And prick the surface of the batter with a fork.
5. Place the tomato puree and canned tomatoes.
6. Place the other ingredients on the pie.
7. Sprinkle shredded mozzarella cheese on the pizza.
8. Choose the menu and press start without food.
9. The oven will beep at end of the preheating period.
Open the door and place the prepared food on the low rack on the glass
turntable. Press start to continue cooking.
10. After cooking, remove food from the oven and serve.
GB
Frozen Pizza
(Ac 12)
0.1 - 0.6kg
Low rack
on the
metal tray
Frozen
This function is for cooking frozen pizza.
Remove all package and place on low rack on the metal tray.
After cooking, stand for 1~2 minutes.
70
Auto
Reheat
In the following example I will show you how to cook 0.3kg of Sauce. (rh 2)
Press STOP/CLEAR.
Press Auto Reheat.
AUTO REHEAT cooking make food
reheating convient and easy to use.
The oven has been pre-programmed to
automatically reheat food.
Your oven has four AUTO REHEAT
settings: Soup, Sauce, Chilled Meal,
Frozen Meal.
GB
Turn DIAL until display shows “rh 2”.
press the DIAL for category confirmation.
Turn DIAL until display shows “0.3kg”
Press START.
71
Category
Weight Limit
Utensil
Food Temp.
Instructions
Soup
(rh 1)
0.2 - 0.6kg
Microwavesafe bowl
Room
Pour the soup into a microwave-safe bowl.
Cover with lid or plastic wrap.
After heating, stir. Allow to stand for 2 minutes with cover.
And then stir again.
Sauce
(rh 2)
0.2 - 0.6kg
Microwavesafe bowl
Room
Pour the sauce into a microwave-safe bowl.
Cover with lid or plastic wrap.
After heating, stir. Allow to stand for 2 minutes with cover.
And then stir again.
Chilled meal
(rh 3)
0.3 - 0.6kg
Own tray
Refrigerated
Pierce using a skewer on the surface.
Place food on the glass turntable. After cooking, allow to stand for 2-3 minutes before
serving.
- Stirrable e.g : Spaghetti bolognese, Beef stew
- Non-stirrable e.g : Lasagne, Cottage pie
GB
Note :
For food contained in bag(s), pierce meat portion and rice/pasta portions, etc.
- For stirrable foods, stir.
- Non-stirrable foods, it is not necessary to stir at beep.
Frozen meal
(rh 4)
0.3 - 0.6kg
Own tray
Frozen
Same as above.
72
In the following example I will show you how to cook 0.5kg of Roast Beef. (Ar 1)
Auto
Roast
Press STOP/CLEAR.
Press Auto Roast.
AUTO ROAST allows you to cook most of
your favorite food easily by selecting the
food type and entering the weight of the
food.
GB
Turn DIAL until display shows “Ar 1”.
Press the DIAL for category confirmation.
Turn DIAL until display shows “0.5kg”.
Press START.
73
Category Weight Limit
GB
Utensil
Food Temp.
Instructions
Roast Beef
(Ar 1)
0.5 - 1.8kg
Rotisserie
over the
metal tray
Refrigerated
1. Brush the beef with melted margarine or butter.
2. Pierce the beef with the roti-bar. Note that the bar pass through the beef completely.
3. Tie the beef with a cotton thread and insert the bar into the roti-holder over the metal tray.
4. Adjust weight and press start.
5. After cooking, remove from the oven. Stand covered with foil for 10-15 minutes before
serving.
Roast Pork
(Ar 2)
0.5 - 1.8kg
Rotisserie
over the
metal tray
Refrigerated
1. Brush the pork with melted margarine or butter.
2. Pierce the pork with the roti-bar. Note that the bar pass through the pork completely.
3. Tie the pork with a cotton thread and insert the bar into the roti-holder over the metal tray.
4. Adjust weight and press start.
5. After cooking, remove from the oven. Stand covered with foil for 10-15 minutes before
serving.
Chicken
Portions
(Ar 3)
0.2 - 0.8kg
High rack
on the
metal tray
Refrigerated
Wash and dry skin. Brush the chicken legs with melted margarine or butter. Place on the high
rack on the metal tray. Adjust weight and press start.
When beeps, turn food over. And then press start to continue cooking. After cooking, stand
covered with foil for 2-5 minutes.
Whole
Chicken
(Ar 4)
0.8 - 2.4kg
Rotisserie
over the
metal tray
Refrigerated
Whole chicken approx. 1.2kg (with skin)
2 large onions
3 tablespoon olive oil
Salt
1. Cover the chicken with the onion juice, salt and oil(or butter) for 3-4 hours.
2. Pierce the chicken with the roti-bar.
Note that the bar pass through the chicken completely.
3. Tie its feet, wings and body with a cotton thread and insert the bar into the roti-holder over the
metal tray.
4. Adjust weight and press start.
5. After cooking, remove from the oven. Stand covered with aluminium foil for 5 minutes before
serving.
74
In the following example I will show you how to change the preset AUTO COOK programmes for a
longer or shorter cooking time.
More or Less
Cooking
Press STOP/CLEAR.
If you find that your food is over or
undercooked when using the AUTO
COOK programme, you can increase or
decrease cooking time by turning DIAL.
When cooking with auto and manual
function, you can lengthen or shorten the
cooking time at any point by turning
DIAL.
There is no need to stop the cooking
process.
Set the required AUTO COOK programme.
Select weight of food.
GB
Press START.
*See AUTO COOK (page 65).
Turn DIAL clockwise.
The cooking time will increase by 10 seconds for each turning DIAL.
Turn DIAL counterclockwise.
The cooking time will decrease by 10 seconds for each turning DIAL.
75
Rotisserie
Assembly
Barbecue bars into the left plate
Screw the barbecue bar
clockwise into the left plate
CAUTION
GB
Rotisserie is not a toy.
Keep the Rotisserie away
from the child.
Assemble the right plate
Push barbecue bars into right plate.
Assemble skewers
Install the handle on the
rotisserie.
Insert the pointed edge of
the skewer into hole on
the left plate.
76
Insert the other edge
of the skewer into a
hole on the right plate.
Turn it clockwise until it’s
fixed. Repeat 4 times until
rotisserie is assembled.
Rotisserie
Installation & Cooking
Chicken
Press Auto Roast.
Turn DIAL until display shows “Ar 4”.
Turn DIAL in order to set weight.
Prepare foods with the rotisserie.
Chicken
CAUTION
Rotisserie is not a toy. Keep
the Rotisserie away from the
child.
Tie chicken’s feet, wings and
body with a cotton thread
before cooking whole
chicken as show in the
picture.
GB
Kebab
Press Auto Cook.
Turn DIAL until display shows “Ac 9”.
Turn DIAL in order to set weight.
Clean the work space, before inserting the kebab.
77
Kebab
Rotisserie
Installation & Cooking
Insert the shaft of right
plate into the shaft of
motor.
Put the shaft of left plate on the
holder of rotisserie.
The shaft of motor
To Clean ROTISSERIE &
METAL TRAY
GB
When cooking is completed,
separate the ROTISSERIE from
the food. Take care when
handling both ROTISSERIE &
metal tray and food stuff as it is
very hot. During cooking it is
normal for the ROTISSERIE &
metal tray to be stained from the
food. Simply clean the
ROTISSERIE & metal tray with a
warm soapy water and a soft
cloth. If the ROTISSERIE & metal
tray remain stained after
washing, Utensils in hot soapy
water for a few minutes.
Do not use metal scouring pads.
They will scratch the surface .
The holder of Rotisserie
Press START.
After cooking hold the rotisserie bar of both side with the handle and lift up
the right end slightly and pull out from the left end.
NOTE:
1. The rotisserie cooking is convenient for grilling of meat and poultry.
All the surface of the food will become even brown without overturning.
2. The rotisserie cooking can be used in grill mode, convection mode and
Persian Cook.
3. The rotisserie bar is used for rotisserie cooking only. After rotisserie cooking
is finished remove the rotisserie bar and store with other accessories.
CAUTION
1. DO NOT USE THE METAL TRAY AND ROTISSERIE WITH NO LOAD, IT WILL BE
DAMAGED THE OVEN.
2. AFTER COOKING, THE METAL TRAY WILL BECOME EXTREMELY HOT.
3. It is recommended to remove the grease from the turntable every time before
cooking. Hot grease on the turntable may cause smoke.
78
Glass Tray
Metal Tray
To heat or reheat successfully in the microwave, it is important to follow several guidelines. Measure the amount of
food in order to determine the time needed to reheat. Arrange the food in a circular pattern for best results. Room
temperature food will heat faster than refrigerated food. Canned foods should be taken out of the can and placed in a
microwavable container. The food will be heated more evenly if covered with a microwavable lid or vented plastic
wrap. Remove cover carefully to prevent steam burns. Use the following chart as a guide for reheating cooked food.
Item
Sliced meat
3 slices
(0.5cm thick)
Chicken pieces
1 breast
1 leg and thigh
Cook time
(at HIGH)
1~2 minutes
Special Instructions
Place sliced meat on microwavable plate.
Cover with plastic wrap and vent.
• Note: Gravy or sauce helps to keep meat juicy.
1~2 minutes
Place fish on microwavable plate.
Cover with plastic wrap and vent.
Lasagne
1 serving(300g)
4~6 minutes
Place lasagne on microwavable plate.
Cover with plastic wrap and vent.
Casserole
cream or cheese
1 cup
4 cups
Mashed potatoes
350 g
Baked beans
1 cup
2~3 minutes Place chicken pieces on microwavable plate.
3~31/2 minutes Cover with plastic wrap and vent.
Fish fillet
(170-230g)
Casserole
1 cup
4 cups
Item
Heating or Reheating
Guide
Cook time
(at HIGH)
6~7 minutes
(at Medium)
Special Instructions
COOK covered in microwavable casserole dish.
Stir once halfway through cooking.
11/2~3 minutes COOK covered in microwavable casserole dish.
Stir once halfway through cooking.
Ravioli or pasta in sauce
1 cup
21/2~4 minutes COOK covered in microwavable casserole dish.
4 cups
71/2~11minutes Stir once halfway through cooking.
Rice
1 cup
4 cups
11/2~3 minutes COOK covered in microwavable casserole dish.
41/2~7minutes Stir once halfway through cooking.
1~11/2 minutes COOK covered in microwavable casserole dish.
31/2~5 minutes Stir once halfway through cooking.
Sandwich roll or bun
1 roll
15~30 seconds Wrap in paper towel and place on glass tray.
Vegetables
1 cup
4 cups
1~21/2 minutes COOK covered in microwavable casserole dish.
31/2~6 minutes Stir once halfway through cooking.
Soup
1 serving (8 oz.)
Sloppy Joe or
1~21/2 minutes Reheat filling and bun separately.
Barbecued beef
COOK covered in microwavable casserole dish.
1 sandwich
Stir once. Heat bun as directed in chart below.
(1/2 cup meat filling)
without bun
79
11/2~21/2 minutes COOK covered in microwavable casserole dish.
31/2~51/2 minutes Stir once halfway through cooking.
11/2~2 minutes COOK covered in microwavable casserole dish.
Stir once halfway through cooking.
GB
Fresh Vegetable
Guide
Vegetable
Artichokes
(230g each)
GB
Cook time
Amount (at HIGH)
2 medium 41/2 ~ 7
4 medium 10 ~ 12
Instructions
Standing
Time
Instructions
Standing
Time
Corn, Fresh
2 ears
Add 1 cup water. Cover.
Mushrooms,
Fresh, Sliced
230g
Parsnips, Fresh,
Sliced
450g
4~7
Add 1/2 cup water in 1.5 litre covered 2~3 minutes
casserole dish. Stir halfway through
cooking.
Peas, Green,
Fresh
4 cups
6~9
Add 1/2 cup water in 1.5 litre covered 2~3 minutes
casserole dish. Stir halfway through
cooking.
4~9
6~ 12
Pierce potatoes several times with fork. 2~3 minutes
Place on 2 paper towels.
Turn over halfway through cooking.
450g
21/2 ~ 6
Green Beans
450g
7 ~ 11
Add 1/2 cup water in 1.5 litre casserole 2~3 minutes
dish. Stir halfway through cooking.
Beats, Fresh
450g
11 ~ 16
Add 1/2 cup water in 1.5 litre covered 2~3 minutes
casserole dish. Rearrange halfway
through cooking.
Place broccoli in baking dish.
Add 1/2 cup water.
2~3 minutes
4~8
450g
Cabbage, Fresh,
Chopped
450g
Carrots, Fresh,
Sliced
200g
Cauliflower,
Fresh, Whole
450g
5~7
Trim. Add 1/4 cup water in 1.5 litre
covered casserole dish. Stir halfway
through cooking.
2~3 minutes
Fresh, Flowerettes
Celery, Fresh,
Sliced
2 cups
4 cups
11 ~ 16
Slice. Add 1/2 cup water in 1.5 litre
covered casserole dish. Stir halfway
through cooking.
2~3 minutes
Sweet Potatoes 2 medium
Whole Baking
4 medium
(170~230g each)
51/2~71/2 Add 1/2 cup water in 1.5 litre covered 2~3 minutes
casserole dish. Stir halfway through
cooking.
Husk. Add 2 tbsp water in 1.5 litre
baking dish. Cover.
11/2 ~ 21/2 Place mushrooms in 1.5 litre covered
casserole dish. Stir halfway through
cooking.
2~3 minutes
Broccoli, Fresh,
Spears
2~3
Cook time
Amount (at HIGH)
Trim. Add 2 tsp water and 2 tsp juice. 2~3 minutes
Cover.
Asparagus,
Fresh, Spears
5~8
Vegetable
2~3 minutes
2~3 minutes
White potatoes, 2 potatoes 51/2 ~ 71/2 Pierce potatoes several times with fork. 2~3 minutes
Whole Baking 4 potatoes 91/2 ~ 14 Place on 2 paper towels.
Turn over halfway through cooking.
(170~230g each)
Add 1/4 cup water in 1.5 litre covered 2~3 minutes
casserole dish. Stir halfway through
cooking.
80
Spinach, Fresh,
Leaf
450g
41/2 ~ 71/2 Add 1/2 cup water in 2 litre covered
casserole dish.
Courgette, Fresh,
Sliced
450g
41/2 ~ 71/2 Add 1/2 cup water in 1.5 litre covered
casserole dish. Stir halfway through 2~3 minutes
cooking.
Courgette, Fresh,
Whole
450g
6~9
Pierce. Place on 2 paper towels.
Turn courgette over and rearrange
halfway through cooking.
2~3 minutes
2~3 minutes
Grill Cooking
Guide
Directions for grilling meat on grill
• Trim excess fat from meat. Cut fat, making sure you do not cut into the lean.
(This will stop the fat curling.)
• Arrange on the rack. Brush with melted butter or oil.
• Halfway through, turn the meat over.
Item
Weight
Approx. cooking time
( in minutes)
Beefburgers
50g x 2
100g x 2
13-16
19-23
Beefsteaks
(2.5cm (1”) thick)
Rare
Medium
Well
230g x 2
230g x 2
230g x 2
18-20
22-24
26-28
Lamb chops
(2.5cm (1”) thick)
230g x 2
25-32
Directions for grilling fish and seafood
Place fish and seafood on the rack. Whole fish should be scored diagonally on both sides
before grilling. Brush fish and seafood with melted butter, margarine or oil before and
during cooking. This helps stop the fish drying out. Grill for times recommended in the chart.
Whole fish and fish steaks should be carefully turned over halfway through grilling time. If
desired thick fillets can also be turned halfway.
Hints
Item
Weight
Approx. cooking time
( in minutes)
Baste with oil or melted
butter. Thin items should
be placed on the grill
rack. Turn food over
after half the cooking
time.
Fish fillets
1 cm (1/2”) thick
1.5cm (1/2”) thick
230g
230g
17-21
20-24
Fish steaks
2.5 cm (1”) thick
230g
24-28
225-350g each
450g
16-20
24-28
Allow extra time for thick
and oily fish.
450g
450g
16-20
16-20
Baste well during
cooking.
Whole fish
Scallops
Prawns uncooked
Turn frequently.
81
Hints
Brush with melted butter
and turn over halfway
through cooking.
GB
Important safety instructions
Read carefully and keep for future reference
GB
1 Do not attempt to tamper with, or make any adjustments or repairs to the
door, control panel, safety interlock switches or any other part of the oven.
It is hazardous for anyone to carry out any service or repair operation
which involves the removal of any cover which gives protection against
exposure to microwave energy. Repairs should only be undertaken by a
qualified service technician.
2 Do not operate the oven when empty. It is best to leave a glass of water in
the oven when not in use. The water will safely absorb all microwave
energy, if the oven is accidentally started.
3 Do not use the oven for the purpose of dehumidification. It can be the cause
of serious damage of safety. (ex. Operating the microwave oven with the
wet newspapers, clothes, toys, pet or portable electric devices, etc.)
4 Do not cook food wrapped in paper towels, unless your cook book contains
instructions, for the food you are cooking.
5 Do not use newspaper in place of paper towels for cooking.
6 Do not use wooden containers. They may heat-up and char. Do not use
ceramic containers which have metallic (e.g. gold or silver) inlays. Always
remove metal twist ties. Metal objects in the oven may arc, which can cause
serious damage.
7 Do not operate the oven with a kitchen towel, a napkin or any other
obstruction between the door and the front edges of the oven, which may
cause microwave energy leakage.
8 Do not use recycled paper products since they may contain impurities which
may cause sparks and/or fires when used in cooking.
9 Do not rinse the turntable by placing it in water just after cooking. This may
cause breakage or damage.
10 Small amounts of food require shorter cooking or heating time. If normal
times are allowed they may overheat and burn.
11 Be certain to place the oven so the front of the door is 8 cm or more
behind the edge of the surface on which it is placed, to avoid accidental
82
tipping of the appliance.
WARNING
Please ensure cooking times are correctly
set as over cooking may result in FIRE and
subsequent DAMAGE to the OVEN.
12 Before cooking, pierce the skin of potatoes, apples or any such fruit or
vegetable.
13 Do not cook eggs in their shell. Pressure will build up inside the egg which
will burst.
14 Do not attempt deep fat frying in your oven.
15 Remove the plastic wrapping from food before cooking or defrosting. Note
though that in some cases food should be covered with plastic film, for
heating or cooking.
16 If the oven door or door seals are damaged, the oven must not be
operated until it has been repaired by a qualified service technician.
17 If smoke is observed, switch off or disconnect the oven from the power
supply and keep the oven door closed in order to stifle any flames.
18 When food is heated or cooked in disposable containers of plastic, paper
or other combustible materials, check the oven frequently due to the
possibility of the food container is deteriorating.
19 Only allow children to use the oven without supervision when adequate
instructions have been given so that the child is able to use the oven in a
safe way and understands the hazards of improper use.
20 Liquids or other foods must not be heated in sealed containers since they
are liable to explode.
21 Do not operate the oven, if the door seals and adjacent parts of the
microwave oven are faulty, until the oven has been repaired by a qualified
service technician.
22 Check the utensils are suitable for use in microwave ovens before use.
23 Do not touch the oven door, outer cabinet, rear cabinet, oven cavity,
accessories and dishes during grill mode, convection mode and auto cook
operations, unless wearing thick oven gloves, as they will become hot.
Before clearing make sure they are not hot.
Important safety instructions
Read carefully and keep for future reference
35 The appliance is not intended for use by young children or infirm
persons without supervision.
24 Only use utensils that are suitable for use in microwave ovens.
25 When heating food in plastic or paper containers, keep an eye on the
oven due to the possibility of ignition.
36 The microwave oven must be operated with the decorative door open.
37 This connection may be achieved by having the plug accessible or by
incorporation a switch in the fixed wiring in accordance with the wiring
rules.
26 If smoke is observed, switch off or unplug the appliance and keep the
door closed in order to stifle any flames.
27 Microwave heating of beverages can result in delayed eruptive boiling,
therefore care must be taken when handing the container.
38 Do not use harsh abrasive cleaners or sharp metal scrapers to clean the
oven door glass since they can scratch the surface, which may result in
shattering of the glass.
28 The contents of feeding bottles and baby food jars shall be stirred or
shaken and the temperature checked before consumption, in order to
avoid burns.
WARNING: If the door or door seals are damaged, the oven must not
be operated until it has been repaired by a competent
person.
29 Eggs in their shell and whole hard-boiled eggs should not be heated in
microwave ovens since they may explode, even after microwave heating
has ended.
WARNING: It is hazardous for anyone other than a competent person
to carry out any service or repair operation that involves
the removal of a cover which gives protection against
exposure to microwave energy.
30 Details for cleaning door seals, cavities and adjacent parts.
31 The oven should be cleaned regularly and any food deposits removed.
WARNING: Liquids and other foods must not be heated in sealed
containers since they are liable to explode.
32 Failure to maintain the oven in a clean condition could lead to
deterioration of the surface that could adversely affect the life of the
appliance and possibly result in a hazardous situation.
33 Only use the temperature probe recommended for this oven (for
appliances having a facility to use a temperature-sensing probe).
WARNING: Only allow children to use the oven without supervision
when adequate instructions have been given so that the
child is able to use the oven in a safe way and understands
the hazards of improper use.
34 If heating elements are provided, during use the appliance becomes hot.
Care should be taken to avoid touching heating elements inside the
oven.
WARNING: Accessible parts may become hot during use. Young
children should be kept away.
83
GB
Microwave-safe
Utensils
Never use metal or metal trimmed utensils in your
microwave oven
GB
Paper
Paper plates and containers are convenient and safe to use in your microwave oven,
provided that the cooking time is short and foods to be cooked are low in fat and
moisture. Paper towels are also very useful for wrapping foods and for lining baking
trays in which greasy foods such as bacon are cooked. In general, avoid coloured
paper products as the colour may run. Some recycled paper products may contain
impurities which could cause arcing or fires when used in the microwave oven.
Microwaves cannot penetrate metal. They will bounce off any metal object in the
oven and cause arcing, an alarming phenomenon that resembles lightning.
Most heat resistant non metallic cooking utensils are safe for use in your microwave
oven. However, some may contain materials that render them unsuitable as
microwave cookware. If you have any doubts about a particular utensil, there’s a
simple way to find out if it can be used in your microwave oven.
Place the utensil in question next to a glass bowl filled with water in the microwave
oven. Microwave at power HIGH for 1 minute. If the water heats up but the utensil
remains cool to the touch, the utensil is microwave~safe. However, if the water does
not change temperature but the utensil becomes warm, microwaves are being
absorbed by the utensil and it is not safe for use in the microwave oven. You
probably have many items on hand in your kitchen right now that can be used as
cooking equipment in your microwave oven. Just read through the following
checklist.
Plastic cooking bags
Provided they are made specially for cooking, cooking bags are microwave safe.
However, be sure to make a slit in the bag so that steam can escape. Never use
ordinary plastic bags for cooking in your microwave oven, as they will melt and
rupture.
Plastic microwave cookware
A variety of shapes and sizes of microwave cookware are available. For the most
part, you can probably use items you already have on hand rather than investing in
new kitchen equipment.
Dinner plates
Pottery, stoneware and ceramic
Many kinds of dinner-ware are microwave-safe. If in doubt consult the
manufacturer’s literature or perform the microwave test.
Containers made of these materials are usually fine for use in your microwave oven,
but they should be tested to be sure.
Glassware
Glassware that is heat-resistant is microwave-safe. This would include all brands of
oven tempered glass cookware. However, do not use delicate glassware, such as
tumblers or wine glasses, as these might shatter as the food warms.
CAUTION
Some items with high lead or iron content are not suitable for cooking
utensils.
Utensils should be checked to ensure that they are suitable for use in
microwave ovens.
Plastic storage containers
These can be used to hold foods that are to be quickly reheated. However, they
should not be used to hold foods that will need considerable time in the oven as hot
foods will eventually warp or melt plastic containers.
84
Food characteristics &
Microwave cooking
Moisture content of food
Keeping an eye on things
Since the heat generated from microwaves tends to evaporate moisture, relatively dry food
such as roasts and some vegetables should either be sprinkled with water prior to cooking
or covered to retain moisture.
The recipes in the book have been formulated with great care, but your success in
preparing them depends on how much attention you pay to the food as it cooks.
Always watch your food while it cooks. Your microwave oven is equipped with a
light that turns on automatically when the oven is in operation so that you can see
inside and check the progress of your food. Directions given in recipes to elevate,
stir, and the like should be thought of as the minimum steps recommended. If the
food seems to be cooking unevenly, simply make the necessary adjustments you think
appropriate to correct the problem.
Bone and fat content of food
Bones conduct heat and fat cooks more quickly than meat. Care must be taken when
cooking bony or fatty cuts of meat that they do not cook unevenly and do not become
overcooked.
Quantity of food
The number of microwaves in your oven remains constant regardless of how much food is
being cooked. Therefore, the more food you place in the oven, the longer the cooking time.
Remember to decrease cooking times by at least one third when halving a recipe.
Factors affecting microwave cooking times
Many factors affect cooking times. The temperature of ingredients used in a recipe
makes a big difference in cooking times. For example, a cake made with ice-cold
butter, milk, and eggs will take considerably longer to bake than one made with
ingredients that are at room temperature. All of the recipes in this book give a range
of cooking times. In general, you will find that the food remains under-cooked at the
lower end of the time range, and you may sometimes want to cook your food beyond
the maximum time given, according to personal preference. The governing
philosophy of this book is that it is best for a recipe to be conservative in giving
cooking times. While overcooked food is ruined for good. Some of the recipes,
particularly those for bread, cake, and custards, recommend that food be removed
from the oven when they are slightly undercooked. This is not a mistake. When
allowed to stand, usually covered, these foods will continue to cook outside of the
oven as the heat trapped within the outer portions of the food gradually travels
inward. If the food is left in the oven until it is cooked all the way through, the outer
portions will become overcooked or even burnt. You will become increasingly skilful
in estimating both cooking and standing times for various foods.
Shape of food
Microwaves penetrate only about 2.cm into food, the interior portion of thick foods are
cooked as the heat generated on the outside travels inward. Only the outer edge of food in
cooked by microwave energy; the rest is cooked by conduction. The worst possible shape
for a food that is to be microwaved is a thick square. The corners will burn long before the
centre is even warm . Round thin foods and ring shaped foods cook successfully in the
microwave.
Covering
A cover traps heat and steam which causes food to cook more quickly. Use a lid or
microwave cling film with a corner folded back to prevent splitting.
Browning
Meats and poultry that are cooked fifteen minutes or longer will brown lightly in their own
fat. Food that are cooked for a shorter period of time may be brushed with a browning
sauce such as worcestershire sauce, soy sauce or barbecue sauce to achieve an appetizing
colour. Since relatively small amounts of browning sauces are added to food the original
flavour of the recipe is not altered.
Density of food
Covering with greaseproof paper
Light, porous food such as cakes and breads cook more quickly than heavy, dense
foods such as roasts and casseroles. You must take care when microwaving porous
food that the outer edges do not become dry and brittle.
Greaseproofing effectively prevents spattering and helps food retain some heat. But
because it makes a looser cover than a lid or clingfilm, it allows the food to dry out slightly.
Arranging and spacing
Height of food
Individual foods such as baked potatoes, small cakes and hors d’oeuvres will heat more
evenly if placed in the oven an equal distance apart, preferably in a circular pattern. Never
stack foods on top of one another.
The upper portion of tall food, particularly roasts, will cook more quickly than the
lower portion. Therefore, it is wise to turn tall food during cooking, sometimes several
times.
85
GB
Food characteristics &
Microwave cooking
Stirring
To Clean Your Oven
Stirring is one of the most important of all microwaving techniques. In conventional cooking,
food is stirred for the purpose of blending. Microwaved food, however, is stirred in order to
spread and redistribute heat. Always stir from the outside towards the centre as the outside
of the food heats first.
1 Keep the inside of the oven clean
Food spatters or spilled liquids stick to oven walls and between seal and door
surface. It is best to wipe up spillovers with a damp cloth right away. Crumbs and
spillovers will absorb microwave energy and lengthen cooking times. Use a damp
cloth to wipe out crumbs that fall between the door and the frame. It is important to
keep this area clean to assure a tight seal. Remove greasy spatters with a soapy cloth
then rinse and dry. Do not use harsh detergent or abrasive cleaners. The glass tray
can be washed by hand or in the dishwasher.
Turning over
Large, tall foods such as roasts and whole chickens should be turned so that the top and
bottom will cook evenly. It is also a good idea to turn cut up chicken and chops.
Placing thicker portions facing outwards
Since microwaves are attracted to the outside portion of food, it makes sense to place
thicker portions of meat, poultry and fish to the outer edge of the baking dish. This way,
thicker portions will receive the most microwave energy and the food will cook evenly.
Shielding
GB
Strips of aluminium foil (which block microwaves) can be placed over the corners or edges
of square and rectangular foods to prevent those portions from overcooking. Never use too
much foil and make sure the foil is secured to the dish or it may cause ‘arcing’ in the oven.
2 Keep the outside of the oven clean
Clean the outside of your oven with soap and water then with clean water and dry
with a soft cloth or paper towel. To prevent damage to the operating parts inside the
oven, the water should not be allowed to seep into the ventilation openings. To clean
control panel, open the door to prevent oven from accidentally starting, and wipe a
damp cloth followed immediately by a dry cloth. Press STOP/CLEAR after cleaning.
Elevating
Thick or dense foods can be elevated so that microwaves can be absorbed by the underside
and centre of the foods.
Piercing
Foods enclosed in a shell, skin or membrane are likely to burst in the oven unless they are
pierced prior to cooking. Such foods include yolks and whites of eggs, clams and oysters
and whole vegetables and fruits.
3 If steam accumulates inside or around the outside of the oven door, wipe the panels
with a soft cloth. This may occur when the microwave oven is operated under high
humidity conditions and in no way indicates a malfunction of the unit.
Testing if cooked
Food cooks so quickly in a microwave oven, it is necessary to test it frequently. Some foods
are left in the microwave until completely cooked, but most foods, including meats and
poultry, are removed from the oven while still slightly undercooked and allowed to finish
cooking during standing time. The internal temperature of foods will rise between 50F (30C)
and 150F (80C) during standing time.
4 The door and door seals should be kept clean. Use only warm, soapy water, rinse
then dry thoroughly.
DO NOT USE ABRASIVE MATERIALS, SUCH AS CLEANING POWDERS OR
STEEL AND PLASTIC PADS.
Metal parts will be easier to maintain if wiped frequently with a damp cloth.
Standing time
Foods are often allowed to stand for 3 to 10 minutes after being removed from the
microwave oven. Usually the foods are covered during standing time to retain heat unless
they are supposed to be dry in texture (some cakes and biscuits, for example). Standing
allows foods to finish cooking and also helps flavour blend and develop.
5 Do not use any steam cleaner.
86
Questions &
Answers
Q What’s wrong when the oven light will not glow?
A There may be several reasons why the oven light will not glow.
Light bulb has blown
Door is not closed
Q Is it possible to pop corn in a microwave oven?
A Yes, if using one of the two methods described
below
1 Popcorn-popping utensils designed specifically for microwave cooking.
2 Prepackaged commercial microwave popcorn that contains specific
times and power outputs needed for an acceptable final product.
Q Does microwave energy pass through the viewing screen in the door?
A No. The holes, or ports, are made to allow light to pass; they do not let
microwave energy through.
FOLLOW EXACT DIRECTIONS GIVEN BY EACH MANUFACTURER FOR
THEIR POPCORN PRODUCT. DO NOT LEAVE THE OVEN UNATTENDED
WHILE THE CORN IS BEING POPPED. IF CORN FAILS TO POP AFTER
THE SUGGESTED TIMES, DISCONTINUE COOKING. OVERCOOKING
COULD RESULT IN THE CORN CATCHING FIRE.
Q Why does the beep tone sound when a pad on the Control Panel is
touched?
A The beep tone sounds to assure that the setting is being properly entered.
Q Will the microwave oven be damaged if it operates empty?
A Yes Never run it empty or without the glass tray.
CAUTION
NEVER USE A BROWN PAPER BAG FOR POPPING CORN. NEVER
ATTEMPT TO POP LEFTOVER KERNELS.
Q Why do eggs sometimes pop?
A When baking, frying, or poaching eggs, the yolk may pop due to steam
build up inside the yolk membrane. To prevent this, simply pierce the yolk
before cooking. Never microwave eggs in the shell.
Q Why doesn’t my oven always cook as fast as the cooking guide says?
A Check your cooking guide again to make sure you’ve followed directions
correctly, and to see what might cause variations in cooking time.
Cooking guide times and heat settings are suggestions, chosen to help
prevent overcooking, the most common problem in getting used to a
microwave oven. Variations in the size, shape, weight and dimensions of
the food require longer cooking time. Use your own judgement along
with the cooking guide suggestions to test food condition, lust as you
would do with a conventional cooker.
Q Why is standing time recommended after microwave cooking is over?
A After microwave cooking is finished, food keeps on cooking during
standing time. This standing time finishes cooking evenly throughout the
food. The amount of standing time depends on the density of the food.
87
Q Why is the Cooling fan operated after some cooking?
Is the oven wrong?
A When the oven inside is hot, the cooling fan is automatically operating
to cool down the oven for short time. This is not fault.
GB
IEC Test Lists
• Microwave defrosting
Meal
Microwave setting (watts), Cooking time
Meat
Auto key function
Notes
Place a flat plate on the center of the glass tray.
At beep, turn food over.
• Microwave cooking
GB
Meal
Microwave setting (watts), Cooking time
Custard
360W, 25 ~ 30 min.
Sponge cake
900W, 5 min.
Meatloaf
540W, 17 ~ 19 min.
Notes
Place a Pyrex dish on the center of the glass tray.
Place a ø 22cm Pyrex dish on the center of the glass tray.
Place a Pyrex dish on the center of the glass tray.
• Combination cooking with the microwave
Meal
Microwave setting (watts), Cooking time
Temperature
Potato gratin
Convection + 360W, 18 ~ 22 min.
200˚C
Place a ø 22cm Pyrex dish on the low rack.
Cake
Grill + 540W, 6 min.
-
Place a ø 22cm Pyrex dish on the glass tray.
Chicken
Grill + 180W, 45 ~ 50 min.
-
Place chicken breast-side down on the low rack on the
Notes
metal tray. Turn after half of total cooking time.
or Auto key function
If you use auto key function, turn food over at beep.
88
Plug wiring information/
Technical Specifications
WARNING
Technical Specification
This appliance must be earthed
MC-9287BR / MC-9287UR
The wires in this mains lead are colored in accordance with the
following codes
BLUE ~ Neutral
BROWN ~ Live
GREEN & YELLOW ~ Earth
Power Input
Output
Microwave Frequency
Outside Dimension
Power Consumption
Microwave
Grill
Combination
Convection
As the colours of the wires in the mains lead of this appliance may
not correspond with the coloured markings identifying the
terminals in your plug proceed as follows:
The wire which is colored BLUE must be connected to the terminal
which is marked with the letter N or Colored BLACK.
The wire which is colored BROWN must be connected to the
terminal which is marked with the letter L or colored RED.
The wire which is colored GREEN & YELLOW or GREEN must be
connected to the terminal which is marked with the letter E or
.
If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified person in
order to avoid a hazard;
89
230V~ 50Hz
900 W (IEC60705 rating standard)
2450 MHz
574 mm(W) X 376 mm(H) X 510 mm(D)
1350 watts
1250 watts
max. 2600 watts
1950 watts
GB
Memo
Entsorgung von Altgeräten
1. Wenn dieses Symbol eines durchgestrichenen Abfalleimers auf einem
Produkt angebracht ist, unterliegt dieses Produkt der europäischen
Richtlinie 2002/96/EC.
2. Alle Elektro- und Elektronik-Altgeräte müssen getrennt vom Hausmüll über
dafür staatlich vorgesehenen Stellen entsorgt werden.
3. Mit der ordnungsgemäßen Entsorgung des alten Geräts vermeiden Sie
Umweltschäden und eine Gefährdung der persönlichen Gesundheit.
4. Weitere Informationen zur Entsorgung des alten Geräts erhalten Sie bei
der Stadtverwaltung, beim Entsorgungsamt oder in dem Geschäft, wo Sie
das Produkt erworben haben.
Disposal of your old appliance
LG Electronics Deutschland GmbH
Jakob-Kaiser-Str.12
D-47877, Willich
1. When this crossed-out wheeled bin symbol is attached to a product it
means the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately
from the municipal waste stream via designated collection facilities
appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential
negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please
contact your city office, waste disposal service or the shop where you
purchased the product.
Printed in Korea
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
