LG LAC6800R, LAC7800R Owner's manual

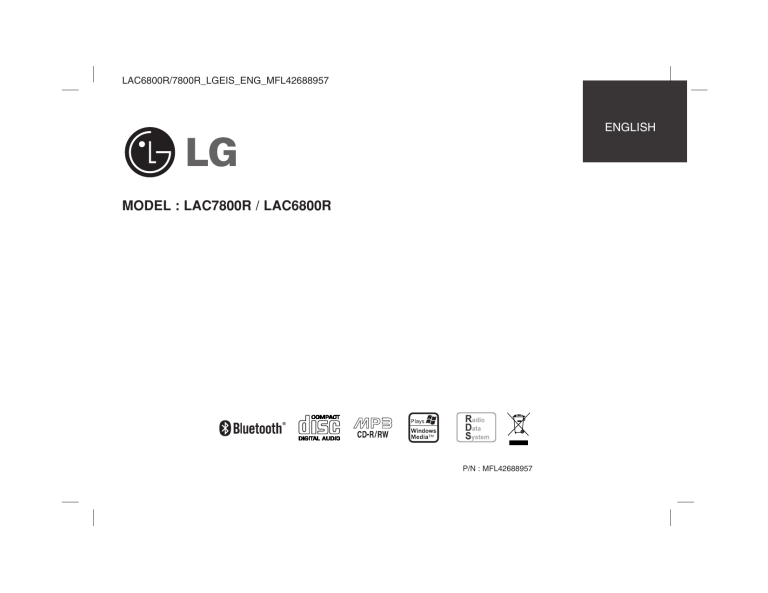

LAC6800R/7800R_LGEIS_ENG_MFL42688957 ENGLISH MODEL : LAC7800R / LAC6800R P/N : MFL42688957 Table of Contents 2 3 4 5 6 Table of Contents Safety Note [LAC7800R] Front Panel / Remote Control [LAC6800R] Front Panel / Remote Control(optional) [LAC7800R] About Detachable Control Panel Attaching the control panel Detaching the control panel 7 MP3/WMA Track -10 / +10 MP3/WMA Folder UP/DOWN See information about your music 13 [LAC7800R] Connecting USB device 13 14-15 Connecting an Auxiliary Equipment Connecting a Bluetooth wireless technology Moving to another drive [LAC6800R] About Detachable Control Panel Attaching the control panel Detaching the control pane 8 Installation Basic installation Removing the existing receiver unit ISO-DIN installation Battery installation 9 10 Connection Basic operation Mute Changing the general settings Using the EQ Adjusting the sound level XDSS+ / BRB Checking the clock 11 Listening to the radio Auto search memory Storing and recalling broadcast frequencies To scan the preset stations To tune in the preset stations 11 Listening RDS broadcasting 12 Listening a CD 16 17-18 19 20 20 Disconnecting a phone Answering and Ending a call Rejecting a call Making a call saved preset number Missed call notification Audio transfer Making a call from the latest call Paring your unit and device with Bluetooth wireless technology Playing MP3 files Storing a call number in last answered Bluetooth wireless technology profiles information The buttons with bluetooth wireless technology Adjusting the setting (Bluetooth wireless technology) Phone compatibility list (Bluetooth wireless technology) Troubleshooting General setting information Specifications RDS broadcasting information Pause or restart a CD Search for a section within a track / file Skip to another track / file Intro scan Repeat Shuffle 2 CAR CD/MP3/WMA Receiver This product is manufactured to comply with Directive 2006/28/EEC(ANNEX I , 3.2.9), 72/245/EEC, 99/5/EC and 2006/95/EC. European representative: LG Electronics Service Europe B.V. Veluwezoom 15, 1327 AE Almere, The Netherlands (Tel : +31-036-547-8940) Safety Note CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT SPLIT COVER(OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. Always operate the vehicle in a safe manner. Do not become distracted by the vehicle while driving, and always be fully aware of all driving condition. Do not change settings, or any functions. Pull over in a safe and legal manner before attempting such operations. Do not use for many hours at extremely low or high temperature. (-10~60’C) To reduce the risk of electric shock, do not remove the cover or back of this product. There are no user-serviceable parts inside. Refer servicing to qualified service personnel. To reduce the risk of fire or electric shock, do not expose this product to dripping or splashing water, rain, or moisture. CAUTION : This product uses a Laser System. To ensure proper use of this product, please read this owner’s manual carefully and retain it for future reference. Should the unit require maintenance, contact an authorized service center. Performing controls, adjustments, or carrying out procedures other than those specified herein may result in hazardous radiation exposure. To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation when open. DO NOT STARE INTO BEAM. Disposal of your old appliance 1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. 2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities. 3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health. 4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product. Caution When being connected in a wrong way, the unit displays as follows. - Antenna port short : “ANTENNA ON PORT SHORT CIRCUIT CHECK” After connecting it again, restart the unit. The temperature of unit’s outside can be extremely high, please use the unit after proper installation in your vehicle. 8 cm This unit cannot play 8cm disc (use 12cm disc only). You have to set the disc format option to [Mastered] in order to make the discs compatible with the LG players when formatting rewritable discs. When setting the option to Live File System, you cannot use it on LG players. (Mastered/Live File System : Disc format system for Windows Vista) CAR CD/MP3/WMA Receiver 3 BACK [LAC7800R] Front Panel / Remote Control 1 2 10 3 4 11 INT 12 5 6 7 13 8 14 9 15 BACK 16 1 2 3 SOURCE [SRC] Skip / Search / Seek / Tune B?+ U/AS] • Auto Store [U u/PS] • Preset Scan [u u • MP3/WMA Track +10/-10 U/u u • Folder Up/Down U/u • Enter • Volume • [MUTE] • Power [PWR] Remote Sensor Bluetooth wireless technology [B/T] Display window • Equalizer [EQ] • Extreme Dynamic Sound System [XDSS+] • Bass Reverb Blaster [BRB] 4 5 6 7 8 4 CAR CD/MP3/WMA Receiver 9 10 11 12 13 14 15 16 17 18 19 20 21 • Traffic Announcement [TA] • Programme Type [PTY] Display [DISP] Release USB slot AUX in Preset Station [1~6] Shuffle [SHF] Repeat [RPT] Intro Scan [INT] Play/Pause B/X • [BAND] • [DRIVE] Skip / Search / Seek / Tune / Back -?b Select [SEL] / [MENU] 1 2 3 4 5 6 7 8 Power [POWER] / Mute Select [MENU/SEL] Source [SRC] Play / Pause B/X Intro Scan [INT] Shuffle [SHF] • MP3/WMA Track +10 • Folder Up U • CD Skip / Search • Seek / Tune ?m m 9 10 11 12 13 14 15 16 • [BAND] • DRIVE [DRV] Volume Up / Down Number [#] Repeat [RPT] Number [0 -9] • CD Skip / Search • Seek / Tune M M? Display [DISP.] • MP3/WMA Track -10 • Folder Down u BACK [LAC6800R] Front Panel / Remote Control(optional) 1 2 10 3 INT 4 11 INT 12 5 6 7 13 8 14 9 15 BACK 16 1 2 3 4 5 6 7 SOURCE [SRC] Skip / Search / Seek / Tune B?+ U/AS] • Auto Store [U u/PS] • Preset Scan [u u • MP3/WMA Track +10/-10 U/u u • Folder Up/Down U/u • [ENTER] • Volume • [MUTE] • Power [PWR] Remote Sensor (Optional) Bluetooth wireless technology [B/T] • Equalizer [EQ] • Extreme Dynamic Sound System [XDSS+] • Bass Reverb Blaster [BRB] 8 9 10 11 12 13 14 15 16 17 18 19 20 • Traffic Announcement [TA] • Programme Type [PTY] Display [DISP] Eject Release AUX in Preset Station [1~6] Shuffle [SHF] Repeat [RPT] Intro Scan [INT] Play/Pause B/X [BAND] Skip / Search / Seek / Tune / Back -?b Select [SEL] / [MENU] 1 2 3 4 5 6 7 8 Power [POWER] / Mute Select [MENU/SEL] Source [SRC] Play / Pause B/X Intro Scan [INT] Shuffle [SHF] • MP3/WMA Track +10 • Folder Up U • CD Skip / Search • Seek / Tune ?m m 9 10 11 12 13 14 [BAND] Volume Up / Down Number [#] Repeat [RPT] Number [0 -9] • CD Skip / Search • Seek / Tune M M? 15 Display [DISP.] 16 • MP3/WMA Track -10 • Folder Down u CAR CD/MP3/WMA Receiver 5 [LAC7800R] About Detachable Control Panel Attaching the control panel 1 2 D B C 3 Detaching the control panel Attach part A of the control panel to part B of the unit. Attach part C of the control panel to part D of the unit while pushing the control panel to left. Close the control panel. 1 2 3 4 A Press the “ ” button to unlock the control panel. Push the control panel to left. Pull the control panel out of the unit. Put the detached control panel into the protective case. Caution • When detaching or attaching the control panel, do not press the display or control buttons. • The control buttons may not work properly if the control panel is not attached properly. If this occurs, gently press the control panel. • Do not leave the control panel in any area exposed to high temperatures or direct sunlight. • Do not drop the control panel or otherwise subject it to strong impact. • Do not allow such volatile agents as benzine, thinner, or insecticides to come into contact with the surface of the control panel. • Do not try to disassemble the control panel. 6 CAR CD/MP3/WMA Receiver Control panel Protective Case Note Periodically wipe the contacts on the back of the control panel with a cotton swap moistened with alcohol. For safety, turn off the ignition before cleaning, and remove the key from the ignition switch. [LAC6800R] About Detachable Control Panel Attaching the control panel 1 2 Detaching the control panel Align the left side of the panel with the stopper. Push the right side or panel into the unit until it clicks. 1 1 2 2 3 4 Press the “ ” (RELEASE) to open the control panel. Hold the right part of the control panel. Pull out the control panel. Place the control panel in the supplied protective case. 2 3 1 4 Control panel Protective Case Note Periodically wipe the contacts on the back of the control panel with a cotton swap moistened with alcohol. For safety, turn off the ignition before cleaning, and remove the key from the ignition switch. CAR CD/MP3/WMA Receiver 7 Installation ISO-DIN Installation Basic Installation 1 Before installing, make sure that the ignition-switch is set to OFF and remove the terminal of the car battery to avoid short-circuiting. Bend the claws according to the thickness of the dashboard 1 2 3 4 Remove the existing receiver unit. Make the necessary connections. Install the installation sleeve. Install the unit into the installation sleeve. Control panel 2 4 5 1 3 2 4 3 6 Control panel 5 6 Slide the unit into the ISO-DIN frame. Fit screws removed from the old unit. Slide the unit and frame into the dash opening. Install the dash panel or adapter plate. Install the trim ring to the unit. Install the control panel to the unit. Battery Installation 1 Removing the existing receiver unit If there is already an installation sleeve for the receiver unit in the dashboard, it must be removed. A 1 2 A 8 CAR CD/MP3/WMA Receiver 3 Remove the rear support from the unit. Remove the control panel and trim ring from the unit. Insert the lever A into the hole on one side of the unit. Perform the same operation on the other side and pull the unit out from the mounting sleeve. 2 3 Pull out the battery holder with a sharp product like a ball point pen. Put the battery with and correctly on the battery holder. Push the battery holder back into its original position. Note • Use only one CR2025 (3V) lithium battery. • Remove the battery if the remote control is not used for a long period of time. • Do not leave the product in a hot or humid place. • Do not handle the battery with metallic tools. • Do not store the battery with metallic materials. Connection Before connecting, make sure that the ignition switch is set to OFF, and remove the battery # terminal to avoid short circuits. 1 3 5 7 2 4 6 8 1 3 5 7 2 4 6 8 B A Phone Mute(Orange) Remote On(Blue/White) Front Left Front Right Rear Left Rear Right To Audio out Power Antenna A5 Power Antenna(Blue) A6 Dimmer(Pink) A7 To Ignition(Red) Sub-woofer Left Sub-woofer Right (Optional) To Audio in Amplifier (Optional) Control Relay Dimmer Switch Ignition Switch A4 To Battery(+)(Yellow) B 1 A8 Ground(-)(Black) B 2 B 3 BATTERY A1, A2, A3 : Not connected Amplifier (Optional) B 4 B B B B B B B B 1 2 3 4 5 6 7 8 Violet : Rear Right + Violet/ Black Stripe : Rear Right – Gray : Front Right + Gray / Black Stripe : Front Right – White : Front Left + White/Black Stripe : Front Left – Green : Rear Left + Green/ Black Stripe : Rear Left – B 5 B 6 B 7 B 8 CAR CD/MP3/WMA Receiver 9 Basic Operation ON PLAYER 1. Turn the unit on. PWR/MUTE 2. Select a source. SRC 3. Adjust the volume. Rotate PWR ON REMOTE POWER SRC VOLUME Basic operation - more you can do Mute Press PWR/MUTE (POWER cancel it, press again. XDSS+/BRB Press and hold EQ/XDSS+/BRB repeatedly to select the modes you want. XDSS+ : (Improves the treble, bass sound.) BRB : (Bass Reverb Blaster) press EQ/XDSS+/BRB to select the sub BRB TBB (Turbo-Bass Blaster) : Improve the bass sound to make it spectacular. 3D (3D-TremD Blaster) : Positions audio effects real time in 3D space. SBB (Sound field Boost Blaster) : Extremely wide stereo imaging and improved low frequency bass. on the remote control) to cut the sound. To Changing the general settings 1 Press and hold SEL/MENU (press and hold SEL/MENU on remote control) so that one of menu items appears. 2 Press SEL/MENU (SEL/MENU on remote control) and rotate PWR. (Press VOLUME on the remote control.) to select one of the settings specified belows. - For more details about setting information, refer to page 20. 3 Press and hold SEL/MENU (SEL/MENU on remote control) to finish the setting. Using the EQ EQ is to increase or decrease the signal strength of audio frequencies. The function helps you to enjoy sound more plentifully. Press EQ/XDSS+/BRB repeatedly. The screen lights up in the following order. Pop t Classic t Rock t Jazz t Vocal t Salsa t Samba t User1 t User2 t Off Note When XDSS+/BRB is set to “Off”, you can adjust the EQ settings. Adjusting the sound level Press SEL/MENU (SEL/MENU on the remote control) repeatedly to select the mode you want to adjust from volume, balance, fadar and Sub-woofer(optional). To adjust sound quality, rotate PWR. 10 Note When EQ, BRB and XDSS+ is set to “Off”, you can adjust the sound level (BAS, MID, TRB) settings. CAR CD/MP3/WMA Receiver Checking the clock You can see the clock pressing DISP (DISP. on the remote control). Listening to the radio Listening RDS broadcasting ON PLAYER ON REMOTE SRC SRC 2. Select a band. BAND 3. Auto seek. Manual seek. -?b / B?+ Press and hold -?b / B?+ BAND ?mm/MM? Press and hold ?mm/MM? 1. Select a source to tuner. Listening to the radio - more you can do Auto search memory Press U/AS. The six strongest broadcast frequencies will be stored under preset button 1-6 in the order of their signal strength.To cancel, press U/AS. Storing and recalling broadcast frequencies 1 Press BAND to select desired band you want to store. 2 Select the desired frequency and press one of preset buttons 1-6 and hold until the beep sound. 3 Repeat steps 1-2 to preset other stations. The next time, you press the same preset button, the radio station frequency is recalled from the memory. ON PLAYER 1. Select a source to tuner. 2. Select a band to FM. 3. Select a programme types. 4. Select a station in PTY type. ON REMOTE SRC SRC BAND BAND Press and hold TA/PTY - 1- 6 1-6 RDS broadcasting information. Press and hold the PTY repeatedly for selecting each mode. Music group t Speech Group t Search off NO. MUSIC GROUP 1. 2. 3. 4. 5. 6. POP M, ROCK M EASY M, LIGHT M. CLASSICS, OTHER M JAZZ, COUNTRY NATION M, OLDIES FOLK M NO. SPEECH GROUP 1. NEWS, AFFAIRS, INFO 2. SPORT, EDUCATE, DRAMA 3. CULTURE, SCIENCE, VARIED 4. WEATHER, FINANCE, CHILDREN 5. SOCIAL, RELIGION, PHONE IN 6. TRAVEL, LEISURE, DOCUMENT To scan the preset stations Press u/PS. Each preset station appears. To cancel, press u/PS. To tune in the preset stations Press BAND to select the desired band and press the desired preset button 1-6 (preset button 1-6 on the remote control). Note When a station is stored on the preset numbers on which another station of the same band has already been preset, the previously preset station is automatically erased. CAR CD/MP3/WMA Receiver 11 Listening a CD 1. Open the front panel. ON PLAYER ON REMOTE - - - [LAC7800R only] 2. Insert a CD. 3. Adjust the volume. Rotate PWR VOLUME Note During random playback, if you press -?b , you won’t go back to the previous track. MP3/WMA Track -10 / +10 (If there is no folder or one folder.) During playback press u/PS to go back 10 tracks, and press U/AS to go forward 10 tracks. Listening a CD - more you can do MP3/WMA Folder UP/DOWN Pause or restart a CD (If there are more than two folders.) During playback, press u/PS to go back to the previous folder, and press U/AS to go forward to the next folder. Press B on the player (B B/ on the remote control) during playback. Press this button again to resume play. See information about your music Search for a section within a track / file Press and hold -?b / B?+ on the player (.bb/BB> on remote control) for about 1 second during playback and then release at the point you want. Skip to another track / file Press -?b / B?+ on the player (.bb/BB> on remote control.). To skip to previous track, press briefly -?b within 3 seconds of playing time. Press [#] and a number you want to move on remote control to move the files/track. Intro scan Press or press and hold INT on the player (INT on remote control). Each files in the current selected folder ( INT) or the first 10 seconds of each tracks/files (INT) on the disc are played. To cancel it, press the button again. Repeat Press or press and hold RPT on the player (RPT on the remote control). The current selected tracks/files (1 RPT) or folder ( RPT) on the disc is played repeatedly. To cancel it, press the button again. Shuffle Press or press and hold SHF on the player (SHF on the remote control). Each files in the current selected folder ( SHF) or all of the tracks/files (SHF) on the disc is played randomly. Press SHF again to cancel it. 12 CAR CD/MP3/WMA Receiver MP3/WMA files often come with tags. The tag gives the Title, Artist or Album. Press DISP repeatedly during MP3/WMA/CD TEXT file playback. If there is no information, “NO TEXT” will be shown in the display window. Note • : The icon is displayed during MP3/WMA playback. • MP3/WMA Disc compatibility with this unit is limited as follows: 1. Sampling Frequency / 8 - 48kHz (MP3) 22.05 - 48kHz (WMA) 2. Bit rate / within 8 - 320kbps (include VBR) (MP3) 32 -320kbps (WMA) 3. CD-R/CD-RW file system should be “ISO 9660” 4. If you record MP3/WMA files using software which cannot create a FILE SYSTEM, for example “Direct-CD” etc., it will not be possible to playback MP3/WMA files. We recommend that you use “Easy-CD Creator” which creates an ISO9660 file system. 5. WMA decoder is supported until “Class 2A”. Customers should also note that permission is required in order to download MP3/WMA files and music from the Internet. Our company has no right to grant such permission. Permission should always be sought from the copyright owner. [LAC7800R] Connecting USB device Connecting an Auxiliary Equipment Auxiliary input [LAC7800R] MP3 Player, etc ON PLAYER ON REMOTE 1. Open the USB cover. - - 2. Connect the USB device. - - 3. Adjust the volume. Rotate PWR Line out Auxiliary input [LAC6800R] VOLUME MP3 Player, etc Line out Connecting USB device - more you can do Moving to another drive When connecting this unit to multi reader, press BAND/DRIVE (BAND/DRV on remote control) to go to the next drive. Each time you press the button, the driver modes changes. Note • If the USB device is already connected, press SRC (SRC on remote control.) to select a source to USB. • Pause / Intro Scan / Repeat / Shuffle / ... functions are same with “Listening a CD - more you can do”. Refer to the page 12. 1. Select a source to AUX. 2. Play the connected Auxiliary Equipment. 3. Adjust the volume. ON PLAYER ON REMOTE SRC SRC - - Rotate PWR VOLUME CAR CD/MP3/WMA Receiver 13 Connecting a Bluetooth wireless technology Before you start the pairing procedure, make sure the Bluetooth wireless technology is turned on in to your phone. Refer to your phone’s user guide. Pairing links your unit and phone with Bluetooth wireless technology, and is required only once for the initial setup. If the connection is successful, the phone is registered (Device 1–5) and the flashing of indicator stops on the unit. The process of pairing may be different depend on the phones. The PIN CODE is 1234. ON PLAYER 1. Enter the menu. B/T Making a call saved preset number Press B/T and preset number (1~6). Missed call notification When an incoming call is not answered, the missed call message is displayed on the display window (without headset profile). When the “ ” appears, go to the menu (B/T -> CALL -> MISSED). You can check the list of missed call. To place a call, press B/T. And to end the call and hang up the phone, press and hold B/T. 2. Find the “CONNECTION” menu. Rotate PWR Audio transfer 3. Search the phones supported Bluetooth wireless technology. Press PWR 4. Select a phone you want to connect. Rotate PWR 5. Connect the phone. Press PWR 6. Select the “CONNECT” menu. Press PWR It is possible to switch the audio connection between your phone equipped with Bluetooth wireless technology and this unit. 1 Press B/T to answer the call. 2 Press B/T again. The “Private” is displayed. If the private mode is selected on the unit, press B/T to return to the call to hands-free mode. Or press and hold B/T to return to the call to hands-free mode. Using a Bluetooth wireless technology - more you can do Disconnecting a phone. Refer to page 16. Go to the menu (B/T -> CONNECTION -> Connected device name -> DISCONNECT) Answering and Ending a call. When your unit rings, press B/T to answer a call. To end a call, press and hold B/T. Rejecting a call When your unit rings, press and hold B/T. 14 CAR CD/MP3/WMA Receiver Making a call from the latest call The lists are sorted from newest to oldest entries. Your unit keeps recorded of your recently received and dialed on phone. Refer to the page 16. Note • When you want to make an international call, press B?+ to add “+” and to delete it press again. • “+” can only be added when the detail list of Missed call, Dialled call or Received call is selected. • Rejecting a call / Making a call saved preset number / Missed call notification (These features are only available on phones with Headset profile.) Paring your unit and device with Bluetooth wireless technology (MP3 Player, MP3 Phone...) When you activate your Bluetooth device’s linked unit, you can listen to MP3 with wireless connections. The method of use for a Bluetooth device is the same as when using a Bluetooth phone. Refer to the phone’s user guide for using this function. The buttons with bluetooth wireless technology B/T : Press it to enter B/T setting. B?+ : When you write some words on the unit, press it to move next space on display. Playing MP3 files When you turn Bluetooth on, your device supported Bluetooth wireless technology displays “Bluetooth” on the home screen. The Bluetooth remains on until you turn the device off. Press SRC repeatedly to select [LAC7800R] “B/T Streaming” / [LAC6800R] “B/T Music”. To play an MP3 file stored on your device. Refer to the phone’s user guide for using this function. Storing a call number in last answered. You can easily store up to 6 phone numbers and laster recall with the press the button. Refer to the page 14. Go to the menu (CALL -> RECEIVED -> Rotate PWR the phone number you want to save -> SAVE -> select 1~6). Bluetooth wireless technology profiles information. In order to use Bluetooth wireless technology, devices must be able to interpret certain profiles. This unit is compatible with following profiles. GAP (Generic Access Profile) HFP (Hands Free Profile) HSP (Hands Set Profile) GAVDP (Generic Audio/Video Distribution Profile) A2DP (Advanced Audio Distribution Profile) AVRCP (Audio/Video Distribution Remote Control Profile) OPP (Object Push Profile) • Press PWR : Go to the next contents of the setting or enter the words when you write some words on the unit. • Rotate PWR : Move the contents vertically on the setting or choose a spell when you write the words on the unit. BACK [LAC7800R] -?b : Press it to delete a spell or go back previous contents. Press more 1 second to delete all words entered on display when you write some words on the unit. Note The position of LAC6800R’s B/T button is different with LAC7800R. But the features are same. BACK CAR CD/MP3/WMA Receiver 15 Adjusting the setting. B/T CALL (Bluetooth wireless technology) RECEIVED DIALED RECEIVED/DIALED/MISSED Phone number list. To call the phone number, select the phone number and press B/T. To save it, select the phone number and press PWR. “SAVE” will be shown. Press PWR again. Rotate PWR to select a preset number(1~6). The phone number be saved. MISSED PRESET PRESET : Checking and deleting the phone number saved preset number. REDIAL REDIAL : Adjusting the counts of redial. (1 TIME <-> 2 TIMES.) DIAL PHONEBOOK LIST PB SEARCH GET (ADD) CONNECTION SETUP Connected Device Name will be displayed. When the unit is not under connection, you can search the phones available to connect. Select the register in the Connection contents. VISIBILITY VISIBILITY : You can make it is impossible to search this unit. (SHOWN <-> HIDDEN) AUTO ANSWER MIC VOLUME NAME PIN-1234 ADDRESS 16 CAR CD/MP3/WMA Receiver H/F SEARCH : Searching the phone number in the list. (English and Russian only) Press B?+ more 1 second to change the languages between Russian and English. GET : Getting the Phonebook from the phone automatically. (This menu is only available with phones supported this function.) ADD (Under disconnection) : PHONEBOOK -> ADD-> Press PWR -> “000/500” will be displayed. Then send the phonebook data from your phone. Depend on your phone, the sending process is different. Refer to your phone’s guide. Connected Device Name AUTO CONN BT INFO DIAL : Entering the number directly on the unit. To select the 1~10 rotate the volume. Press B?+ to make the phone number. To call it, Press B/T. LIST : Checking the list of the phone numbers saved by phonebook. AUTO CONN : Adjusting connection with automatically or not. (ON <-> OFF) AUTO ANSWER : You can adjust answering automatically or not. (ON <-> OFF) MIC VOLUME : Adjusting microphone volume on the phone from 1 to 5. While you are on the phone with bluetooth wireless technology, press U/AS, u/PS to adjust the MIC volume. NAME : Changing the name of this unit. PIN code : Changing the PIN code. Default is 1234. ADDRESS : Checking the address. Phone compatibility list H : Handsfree A : Audio Streming (A2DP) Bluetooth list and manufacturing company applicable. Company List H Nokia 3230 3250 3650 5300 6021 6103 6120 6131 6230 6270 6280 6600 6630 6650 6670 6680 6681 6820 7370 7380 7610 7650 7600 7610 7650 8600 8800 9500 3650 (Italy) 5500 SPORT 6230i 6820a 7500prism 7650 (Italy) 8910i 9300i E50 E60 E61 E62 E70 O O O O O O O O O O O O O O O O O O O O O A O P O O O O O O O O O O O O V Company List H Nokia N70 N71 N73 N77 N80 N90 N91 N92 N93 N95 N-Gage N-Gage QD O O O O O O O O O O O O A1000 A780 E1000 E1070 E398 E550 E680 E680i KRZR K1 L72 RAZR V3 RAZR V3i RIZR Z8 ROKR E2 ROKR E6 SLVR L7 U6 V195 V360 V3X V500 V525 V600 O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O P : Phonebook Sync (GET) V : Object Push(Vcard, ADD) O O O O O O O O O O O O O O O O O O (Bluetooth wireless technology) O O O O O O O O O O O O O O O O O O O O O O O Motolora A P O V Company List H A P V O O O O SONY ERICSSON K610i K618i K700i K750i K770i K800i M600i P990i S500i S700i T610 T618 T628 T68i V600 V800 W550i W710i W800i W810i W850i Z1010 Z600 Z608 O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O D500 D600 D820 D900 E770 E900 i600 T509 X820 Z540V O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O SAMSUNG O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O CAR CD/MP3/WMA Receiver 17 H : Handsfree A : Audio Streming (A2DP) Bluetooth list and manufacturing company applicable. Company List H SIEMENS EF81 S55 S65 S88 SK65 SL75 SX1 SXG75 O O O O O O O O BLACK BERRY 8100(PEARL) 8800 8707v O O O O O HP HW6915 O O O PALM Treo750v O 1. 2. 3. 4. A P V Company List H A O O O O O O O O O LG CU500 KE970 KG245 KG800 U880 U890 KF600 KE850 PRADA KG290 KE500 KM500 KU990 VIEWTY KU580 KU970 KU960 U370 O O O O O O O O O O O O O O O O O O O O O P : Phonebook Sync (GET) V : Object Push(Vcard, ADD) O O O O O O O O O P V O O O O O O O O O O O O O Company List H A O O O O PHILIPS KE770 M4410 O2 Xda Atom GX15 GX25 O O I-MATE K-JAM O PANTECH PG6200 O NEC N750 N930 O O SAGEM MYX6-2 O SHARP P V O O O O O O O O O Note When the phone features <Bluetooth Power Save> function, you should make the function turned on to maintain connection. When you switch the call mode from handsfree to phone, the connection may e disconnected. Some phones don’t support Reject function. Low battery in phone may cause the problems. “The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by LG Electronics is under license. Other trademarks and trade names are those of their respective owners.” Bluetooth® wireless technology is a system which allows radio contact between electronic devices within a max. range of 10 meters. Connecting individual devices under Bluetooth® wireless technology does not incur any charges. A mobile phone with Bluetooth® wireless technology can be operated via the Cascade if the connection was made via Bluetooth® wireless technology. Operating condition for using a Bluetooth wireless technology function - Close windscreen. - Turn off the air conditioner/ heater. - Stop the vehicle or drive at low speed. - Make the call in a quiet location. • There may be differences in call quality depending on phone type, road conditions weather, etc. • Using the phone while driving may cause unexpected accidents. • The Bluetooth wireless technology function may not operate properly with certain types of phones equipped with Bluetooth wireless technology. 18 CAR CD/MP3/WMA Receiver Troubleshooting Symptom General CD Remote Cause Power doesn’t turn on / The Leads and connectors are not properly. unit doesn’t operate. The fuse is blown. Noise and other factors are causing the builtin microprocessor to operate incorrectly. No sound is heard / The vol- Cables are not connected correctly. ume level will not rise. There’s audio skipping. This unit is not firmly secured. The playback is not possi The disc is dirty. ble. The loaded disc is of a type this unit cannot play. Battery power is low. The unit does not operate correctly even when the appropriate remote control buttons are pressed. Correction Confirm once more that all connections are correct. Rectify the problem that caused the fuse to blow, and then replace it. Be very sure to install the correct fuse with the same rate. Turn the unit off and then on. Connect the cables correctly. Secure this unit firmly. Clean disc. Check what type the disc. Load new battery. CAR CD/MP3/WMA Receiver 19 General setting information AF(Alternative frequency) ON / OFF When the reception quality drops, the tuner automatically changes to another station in the network, broadcasting a better reception quality, using the PI and AF codes. REG (Region) ON / OFF REG ON : The unit switches to another station, within the same network, broadcasting the same program when the receiving signals from the current station become weak. REG OFF : The unit switches to another station, within the same network when the receiving signals from the current station become weak. (This mode, the program may differ from the one currently received.) TA(Traffic Announcement) ALARM / SEEK TA ALARM : When a newly tuned station has no TP information for 5 seconds, a double beep sound is output. TA SEEK : When the newly tuned station does not receive TP information for 5 seconds, the receiver retunes to the next station which has the same PI as the last station, but has the TP information. PI (Programme Identification) SOUND / MUTE PI SOUND : If the sound of a station with different PI is heard intermittently, the receiver mutes the sound after 1 second. PI MUTE : If the sound of a station with different PI is heard intermittently, the receiver mutes the sound right now. AUX (Auxiliary) ON / OFF It is possible to use auxiliary equipment with this unit. Activate the auxiliary setting when using auxiliary equipment connected to this unit. AUX (Auxiliary) 00dB / +6dB You can adjust the volume level of each source to prevent radical changes in volume when switching between sources. You can set to 0 dB or +6 dB. You may be surprised at a loud sound when you change the source from the external component to another source. DEMO OFF/ ON You can change the initial indication on the display to information name (function name, EQ name, etc...) while listen to a source. [LAC7800R] LED BLU/RED, [LAC6800R] LED RED/GRN You can change the button color. [LAC7800R] Blue <-> Red / [LAC6800R] Red <-> Green BEEP 2ND / ALL BEEP 2ND : The beep is generated when a key is long pressed. (1 sec) BEEP ALL : The beep is generated when any key is pressed. 20 CAR CD/MP3/WMA Receiver Specifications General Output Power Power Source Speaker impedance Ground System Dimensions (W x H x D) Net Weight Tuner FM Frequency Range S/N Ratio Distortion Usable Sensitivity AM (MW) Frequency Range S/N Ratio Distortion Usable Sensitivity CD Frequency Response S/N Ratio Distortion Channel Separation (1kHz) AUX Frequency Response S/N Ratio Distortion Channel Separation (1kHz) Max Input Level (1kHz) Bluetooth TX POWER Frequency Range Version [LAC7800R] USB Version Line OUT Subwoofer (optional) Frequency Response Output Volatage Line out Frequency Response Output Volatage 50W x 4CH (Max.) DC 12V 4Ω Negative 180 x 50 x 176 mm (Without Control Panel) 1.3 kg 87.5-107.9, 87.5-108 MHz 53 dB 0.7% 12 dBµV 520-1720 or 522-1620 kHz 50 dB 1.0% 28 dBµV 20 Hz-20 kHz 85 dB 0.1% 60 dB 20 Hz-20 kHz 85 dB 0.1 % 45 dB 1.2V (35KΩ) 4 dBm 2402 ~ 2480MHz Bluetooth Specification 2.0 + EDR USB 1.1 20Hz ~ 120 Hz 3.8 V (Max.) 20Hz ~ 20 KHz 3.8 V (Max.) Designs and specifications are subject to change without notice.
