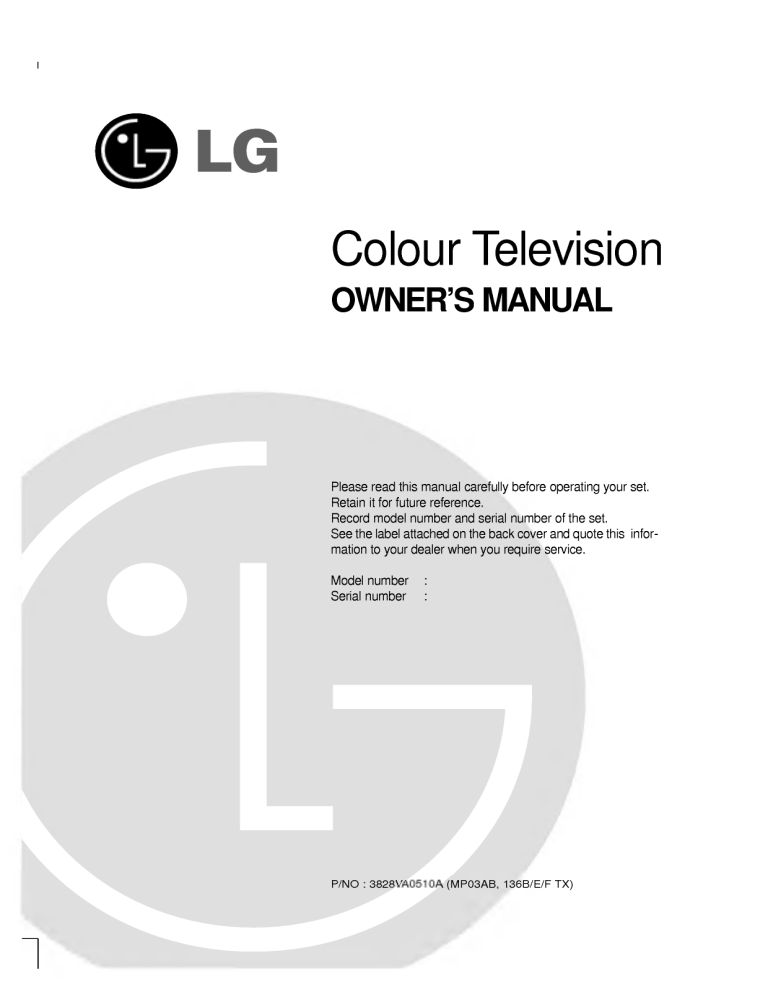

Colour Television
OWNER'S MANUAL
Please read this manual
carefully before operating
your set.
Retain it for future reference.
Record model number and serial number of the set.
See the label attached
on
the back
mation to your dealer when you
Model number
:
Serial number
:
P/NO
:
3828VA0510A
(MP03AB,
cover
require
and
quote this infor-
service.
136B/E/F
TX)
Contents
Installation
3
Location and function of controls
Remote control handset
Battery installation
Front panel
4
Basic operation
On and off / Programme selection
Volume adjustment / Quick view
Mute function / Auto Demonstration
On screen language selection (option)
7
On
8
screen menus
Menu selection
up TV stations
Auto programme tuning
Manual programme tuning
Fine tuning / Programme edit
Favourite programme
Calling the programme table
9
Setting
Picture adjustment
PSM (Picture Status Memory) / XD
VM (Velocity Modulation)
Picture adjustment / Auto convergence (option)
Convergence (option) / Picture format
Turbo picture selection (option) / Eye (option)
14
Sound adjustment
SSM (Sound Status Memory) / Sound adjustment
Turbo sound selection (option)
Sound output selection / Stereo/Dual reception
NICAM reception (option)
19
Time setting
Clock / On/Off time
Auto sleep
22
Other functions
TV and AV modes / Auto AV switching
PIP Picture Source Selection (option)
Child lock / Sleep timer
PIP
23
(option)
25
operation (option)
On and off / Input mode selection for sub picture
Swapping between main and sub pictures
Programme selection for sub picture
Sub picture size / Sub picture freeze
Sub picture position change / Programme scan
Teletext (option)
Switch on/off
SIMPLE text / TOP text (option)
FASTEXT / Special teletext functions
26
Connection of external equipment
Aerial socket
Euro scart sockets
Audio/Video in sockets
S-Video/Audio in sockets (S-AV)
Component in sockets
Variable Audio out sockets (AUDIO
29
Troubleshooting
2
check list
OUT)
31
Installation
Power
This set operates on an AC mains supply, the voltage is as indicated on the label on the back cover. Never apply DC power to the set.
In the event of thunderstorms
ial and mains
or
powercuts, please pull
out the aer-
plugs.
Warning
To prevent fire
moisture.
Do not
or
shock hazard, do not expose the set to rain
place anything containing liquid on top
fire or could give an electric shock.
or
of the set, this may
cause a
Service
Never
remove
the back
high voltage
properly, unplug it
very
cover of the set as this can expose you to
and other hazards. If the set does not operate
and call your dealer.
Aerial
Connect the aerial cable to the socket marked +75 Ω
For the best
cover.
reception
an
on
the back
outdoor aerial should be used.
Location
Position your set so that no bright light or sunlight falls directly onto
screen. Care should be taken not to expose the set to any
unnecessary vibration, moisture, dust or heat. Also ensure that the
the
set is
in
a position to allow a free flow
openings on the back cover.
place the set on a sloping or unstable
placed
of air. Do not
cover
the ventilation
Do not
on
the bottom of the set may
When
ture
displaying
still
pictures
cause
such
it to
as
move
persisted
on
the
the casters
videogames, 16:9
a long time,
format, PIP display, and station label for
may be
area as
and to be
damaged.
4:3 picthe image
or
screen.
Manufactured under license from Dolby Laboratories. "Dolby"
and the double-D symbol are trademarks of Dolby
Laboratories. (option)
3
Location and function of controls
POWER
1
TV/AV
2
MULTIMEDIA
12
TURBO
SOUND
34
PIP
PR+
SWAP
MENU
INPUT
PR
MUTE
OK
TURBO SOUND BUTTON
selects Turbo sound.
4.
PIP BUTTONS (option)
PIP
switches the sub picture on or off.
PR +/selects a programme for the sub picture.
SWAP
alternates between main and sub picture.
INPUT (option)
selects the input mode for the sub picture.
SIZE
adjusts the sub picture size.
STILL
freezes motion of the sub picture.
POSITION
relocates the sub picture in clockwise direction.
SCAN
switches on or off the programme scan mode 12 sub
5.
MENU
selects
123
456
7
8
9
PSM
0
SSM
17
8
SCAN
STILL
18
SIZE
MIX
9
10
TIME
SLEEP
REVEAL
?
LIST
M
19
EYE
I/II
STOP
11
REW
ARC
P/STILL
PLAY
20
21
REC
FF
6.
TELETEXT /
(With
PIP)
D / E (Programme Up/Down)
selects a programme or a menu item.
switches the set on from standby.
F / G (Volume Up/Down)
adjusts the volume.
adjusts
PIP
4
PR-
menu
SWAP
MENU
INPUT
PR
5
6
8
9
PSM
0
SSM
POSITION
SCAN
STILL
SLEEP
LIST
EYE
ARC
SIZE
I/II
(Without TELETEXT/With PIP)
4
or
7.
NUMBER BUTTONS
switches the set on from
8.
PSM (Picture Status
recalls your preferred
9.
SLEEP
sets the
MUTE
7
settings.
accepts your selection
PR+
pictures.
a menu.
OK
SOUND
standby.
3.
PR
POSITION
TV/AV (option)
selects TV or AV mode.
switches the set on from
VOL
6
7
be controlled with the remote control handset.
also be adjusted with the buttons on the front
14 Before you use the remote control handset, please install the batteries. See the next page.
15
1. POWER
switches the set on from standby or off to standby.
16 2.
5
VOL
can
can
13 Remote control handset
TEXT
PR-
All the functions
Some functions
panel of the set.
sleep
displays
the current mode.
standby or directly
Memory)
picture setting.
select
a
number.
timer.
10. I/II
selects the language during dual language broadcast.
selects the sound output (option).
11. VCR BUTTONS
control a LG video cassette recorder.
Location and function of controls
12. MULTIMEDIA (option)
selects Component 1
POWER
or
Component 2 modes.
1
TV/AV
13. TURBO PICTURE BUTTON
selects Turbo picture.
2
MULTIMEDIA
12
TURBO
SOUND
13
3
14. TELETEXT BUTTONS (option)
These buttons are used for teletext.
For further details, see the 'Teletext' section.
MENU
15. YELLOW BUTTON
returns to the previously viewed programme.
selects a favourite programme.
on or
18. STILL
freezes motion of the
PR
picture.
7
the programme table.
1
2
3
4
5
6
7
8
9
PSM
0
SSM
17
8
SLEEP
format.
on or
These buttons
programme edit.
:
are
used for teletext
REW
P/STILL
PLAY
REC
FF
(only
Note : In teletext mode, the PR +/-, SWAP and INPUT buttons
used for teletext function.
Battery
ARC
20
21
STOP
or
EYE
19
18
off.
11
models)
STILL
10
* : No function
COLOURED BUTTONS
LIST
9
I/II
21. EYE (option)
switches the eye function
TELETEXT
VOL
off.
19. LIST
20. ARC
select your desired
OK
6
17. SSM (Sound Status Memory)
recalls your preferred sound setting.
displays
MUTE
16
VOL
16. MUTE
switches the sound
PR
5
are
(Without PIP/TELETEXT)
installation
SOUND
The remote control handset is powered by two AAA type batteries.
To load the batteries, turn the remote control handset over and
open the battery compartment. Install two batteries as indicated by
the polarity symbols ( + and
) marked inside the compartment.
TEXT
14
-
MENU
PR
MUTE
5
7
PSM
Note : To avoid damage from possible battery leakage, remove the
batteries if you do not plan to use the remote control handset for an
extended period of time.
INDEX
SIZE
TIME
I/II
9
0
UPDATE
MIX
6
8
SLEEP
EYE
SSM
HOLD
REVEAL
M
?
LIST
ARC
(With TELETEXT/Without PIP)
5
Location and function of controls
Front
?
panel
RE-44NB10 series
S-VIDEOL/MN
2
10
TV /AV
ME NU
OK
MUTE
VOL
11
AUDIO
PR
R
ON/OFF
1
AV3
(Side panel)
TV/AV
3
1.
MAIN POWER
switches the set
OK
MENU
4
on or
67
5
REMOTE CONTROL SENSOR
3.
TV/AV (option)
selects TV or AV mode.
clears the menu / text from the screen.
switches the set on from standby.
MENU
selects
8
PR
9
F / G
8.
(Volume Up/Down)
adjusts the volume.
adjusts menu settings.
9.
D / E (Programme Up/Down)
selects a programme or a menu item.
switches the set on from standby.
off.
2.
4.
VOL
MUTE
10. EYE
(option)
adjusts picture according
to the
a menu.
11. AUDIO/VIDEO IN SOCKETS
5.
OK
accepts your selection
or
displays
7.
6
MUTE
switches the sound
on or
the current
off.
POWER/STANDBY INDICATOR
illuminates brightly when the set is in
mode.
dims when the set is switched on.
standby
(AV3)
Connect the audio/video out sockets of external equipment to these sockets.
S-VIDEO/AUDIO IN SOCKETS (S-AV)
Connect the video out socket of an S-VIDEO
VCR to the S-VIDEO socket.
Connect the audio out sockets of the SVIDEO VCR to the audio sockets as in AV3.
mode.
6.
surrounding
conditions.
*
CASTERS (on the bottom)
turn and move the set
easily.
(option)
Basic
operation
On and off
1.
2.
3.
4.
Press the main power button to switch the set on.
If the set is in standby mode, press the POWER, D / E, TV/AV,
MULTIMEDIA or NUMBER buttons on the remote control handset
to switch it on fully.
Press the POWER button on the remote control handset.
The set reverts to standby mode.
Press the main power button again to switch the set off.
Note : If, while the set is switched on, the mains plug is disconnected the set will switch to standby or power on when the mains
plug is replaced in the mains power socket.
Programme
selection
You can select
buttons.
a
Volume
programme number with the D / E
or
POWER
TV/AV
TURBO
SOUND
NUMBER
SWAP
MENU
adjustment
Press the F / G button to adjust the volume.
Note : When the TV
(speaker) is On, it's available.
VOL
PR
OK
MUTE
VOL
Quick view
Press the SWAP button to view the
previous programme you
were
watching.
Note
:
This function works
only
PR
when Favourite programme is
set to Off. Otherwise each press of this button will select a stored
1
2
3
4
5
6
7
8
9
0
SSM
favorite programme.
Mute function
Press the MUTE button. The sound is switched off and the
W appears.
You can cancel it
SOUND button.
by pressing
display
the MUTE, F / G, SSM, I/II, TURBO
Auto Demonstration
To review all the menus programmed in the set, press the OK button of the panel control for about 10 seconds. To stop auto demonstration, press any button of the front panel control or POWER button of the remote control.
On
The
screen
language
selection
be displayed on the
guage. First select your language.
1.
2.
menu
can
I/II
Q.VIEW
(option)
screen
in your desired lan-
Press the MENU button and then D / E button to select the
Special
Press
menu.
the
G
button
and
then
D
/
E
button
to
select
Language.
3.
Press the G button and then D / E button to select your desired
4.
All the on screen displays will appear in the selected language.
Press the OK or F button to select the Special menu.
Repeatedly press the MENU button to return to normal TV
language.
viewing.
7
On
screen menus
The
an
dialogue
operator
also
between you and your set takes place on screen with
The buttons required for the operating steps are
menu.
displayed.
Menu selection
1.
Press the MENU button and then D / E button to
display
each
menu.
2.
3.
4.
Press the G button and then D / E button to select a menu item.
Press the G button to display the sub menu or the pull-down menu.
Change the setting of an item in the sub or pull-down menu with
F/GorD/E.
MENU
You can move to the higher level menu by pressing the F button
and to move to the lower level menu by pressing the G button.
Note :
a.
In the teletext mode, menus are not displayed.
b.
In some models, the Normal/Turbo search will not display,
only the Start will display in the Auto programme menu.
c.
In some models, the BG, L will display.
d.
In some models, the Language, Input (
) will not display.
e.
In some models, the Auto convergence will not display, only
the Convergence will display in the Picture menu.
PR
Auto programme
Station
VOL
OK
VOL
AutoOprogramme
ManualOprogramme
{
ProgrammeOedit
FavouriteOprogramme
{
{
{
()O}{OOKOMENU
{
NormalOsearch
TurboOsearch
{
OBG
OOI
ODK
{
menu
Manual programme
PSM
XD
VM
Contrast
{
Brightness
{
Sharpness
Convergence
{
Storage
System
Channel
{
{
{
Fine
{
{
{
Search
Name
Booster
{
{
Colour
{
{
{
{
()O}{O OKOMENU
()O}{O OKOMENU
menu
Programme
Sound
SSM
AVL
DBS
TV
Balance
{
edit
OO0OOCO03
OO5OOSO69
{
O1OOCO03OOO6OOSO17
{
O2OOCO12OOO7OOSO22
{
O3OOSO66OOO8OOCO09
{
O4OOSO67OOO9OOCO11
DeleteOOOOCopy
MoveOOOOOOSkip
()}{O OKOMENU
()O}{OOKOMENU
Sound
menu
Time
Clock
{
{
OffOtime
OnOtime
{
{
AutoOsleep
()O}{OOKOMENU
T ime
menu
Special
Language
Input
InputOOO(
{
{
)
ChildOlock
{
{
()O}{O OKOMENU
Special
TV programme
8
{
()O}{O OKOMENU
Station
PR
System
StorageOfrom
menu
2
Setting up
TV stations
Up to 100 TV stations can be stored by programme numbers (0 to
99). Once you have preset the stations, you will be able to use the
D
/ E
or
grammed.
NUMBER buttons to
Stations can be tuned
Auto programme
scan
using
Station
the stations you have proautomatic or manual modes.
2.
{
{
{
()O}{OOKOMENU
Press the MENU button and then D / E button to select the
Station menu.
Press the G button and then D / E button to select Auto pro-
gramme.
3.
{
ProgrammeOedit
FavouriteOprogramme
tuning
All stations that can be received are stored by this method. It is recommended that you use auto programme during installation of this set.
1.
AutoOprogramme
ManualOprogramme
Press the G button to
display
the Auto programme
menu.
Auto programme
System
StorageOfrom
{
NormalOsearch
TurboOsearch
{
OBG
OOI
ODK
{
{
()O}{O OKOMENU
4.
5.
6.
7.
8.
9.
Press the G button. Select a TV system with the D / E button
on the System pull-down menu;
L
: SECAM L/L'
BG : PAL B/G, SECAM B/G (Europe/East Europe)
I
: PAL I/II (U.K./Ireland)
DK : PAL D/K, SECAM D/K (East Europe)
Press the OK or F button.
Press the D / E button to select Storage from.
Press the G button. Select the beginning programme number
with the F / G button or NUMBER buttons on the Storage
from pull-down menu. Any number under 10 is entered with a
numeric '0' in front of it, i.e. '05' for 5.
Press the OK button.
Press the D / E button to select Normal or Turbo search.
Option:
In
some
models, you
can
only
select Start.
Note :
a.
Turbo search is further faster than Normal search and in
some models, these searches will automatically store all receivable stations.
b. If the programmed station has poor quality sound, select the
system again in the Manual programme menu.
10. Press the G button to begin auto programming.
Auto programme
MENU
VOL
PR
OK
VOL
PR
1
2
3
4
5
6
7
8
9
0
Auto programme
System
StorageOfrom
{
NormalOsearch
TurboOsearch
{
{
OCO01O(BG)
{
System
StorageOfrom
{
NormalOsearch
TurboOsearch
{
77O7O7O736%
MENU
{
{
OCO01O(BG)
77O7O7O736%
MENU
(Normal search)
(Turbo search)
All receivable stations are stored. The station name is stored for
stations which broadcast VPS (Video Programme Service),
PDC (Programme Delivery Control) or TELETEXT data. If no
station name can be assigned to a station, the channel number
is assigned and stored as C (V/UHF 01-69) or S (Cable 01-47),
followed by a number.
To stop auto programming, press the MENU button.
When auto programming is completed, the Programme edit
menu appears on the screen. See the 'Programme edit' section
to edit the stored programme.
11.
Repeatedly
press the MENU button to return to normal TV
viewing.
9
Setting up
Station
AutoOprogramme
ManualOprogramme
{
ProgrammeOedit
FavouriteOprogramme
{
{
{
Manual programme
tuning
Manual programme lets you manually tune and arrange the stations in whatever order you desire. Also you can assign a station
name with five characters to each programme number.
1.
()O}{O OKOMENU
TV stations
2.
3.
Press the MENU button and then D / E button to select the
Station menu.
Press the G button and then D / E button to select Manual
programme.
Press the G button to display the Manual programme
menu.
Manual programme
Storage
System
{
{
Channel
{
Fine
{
Search
Name
Booster
{
2
{
{
()O}{O OKOMENU
MENU
VOL
4.
5.
PR
OK
VOL
6.
7.
8.
PR
1
2
3
4
5
6
7
8
9
0
Press the D / E button to select Storage.
Press the G button to select the programme number. Select the
desired programme number with the F / G button or NUMBER
buttons on the Storage pull-down menu. Any number under 10
is entered with a numeric '0' (or '00') in front of it, i.e. '05' (or
'005') for 5.
Press the OK button.
Press the D / E button to select System.
Press the G button. Select a TV system with the D / E button
on the System pull-down menu;
L
:
BG
:
I
DK
:
:
SECAM L/L'
PAL B/G, SECAM B/G
PAL I/II (U.K./Ireland)
PAL D/K, SECAM D/K
(Europe/East Europe)
(East Europe)
9. Press the OK or F button.
10. Press the D / E button to select Channel.
11. Press the G button. Press the D / E button to select V/UHF or
Cable on the Channel pull-down menu.
If possible, select the channel number directly with the number
buttons. Any number under 10 is entered with a numeric '0' (or
'00') in front of it, i.e. '05' (or '005') for 5.
12. Press the OK or F button.
13. Press the D / E button to select Search.
14. Press the G button. Press the F / G button to commence
searching on the Search pull-down menu. If a station is found
the search will stop.
15. Press the OK button to store it. The display Stored will appear.
Manual programme
Storage
System
{
Channel
{
Fine
{
Search
Name
Booster
{
{
{
{{{
{
Stored
16. To store another station, repeat steps 4 to 15.
17. Repeatedly press the MENU button to return to normal TV
viewing.
10
TV stations
Setting up
Assigning a station name
1. Repeat the 'Manual programme tuning' steps
2.
3.
4.
5.
6.
7.
Station
1 to 3.
Press the D / E button to select Name.
Press the G button on the Name pull-down menu.
Press the D button. You can use a blank, +, -, the numeric 0 to
9 and the alphabet A to Z.
With the E button you can select in the opposite direction.
Select the position by pressing the F / G button and then make
your choice of the second character, and so on.
Press the OK button.
Repeatedly press the MENU button to return to normal TV
AutoOprogramme
ManualOprogramme
{
ProgrammeOedit
FavouriteOprogramme
{
{
{
()O}{OOKOMENU
viewing.
Booster (option)
In some models, Booster is an optional function.
Booster can perform this function.
Only
a
set with
If the reception is poor at the fringe area of TV signal, select
Booster to On. When the picture condition is good, do not select
Booster to On.
1.
2.
3.
4.
5.
6.
the 'Manual programme tuning' steps 1 to 3.
the D / E button to select Booster.
the G button.
the D / E button to select On or Off on the Booster
MENU
PR
Repeat
Press
Press
Press
down
Press
VOL
menu.
the OK button.
the MENU button to return to normal TV
PR
tuning
Normally
VOL
pull-
Repeatedly press
viewing.
Fine
OK
fine
tuning
is
only necessary
if
reception
is poor.
1
2
3
4
5
6
7
8
9
0
1.
2.
3.
the 'Manual programme tuning' steps 1 to 3.
Press the D / E button to select Fine.
Press the G button.
Repeat
Manual programme
Storage
System
{
Channel
{
Fine
{
Search
Name
Booster
{
{
{{{
{
{
}{O OKOMENU
4.
5.
6.
Press the F / G button to fine tune for the best picture and
sound on the Fine pull-down menu.
Press the OK button.
Repeatedly press the MENU button to return to normal TV
viewing.
The finely tuned programme will be
ber during programme selection.
indicated
by
a
yellow
num-
11
Setting up
Station
AutoOprogramme
ManualOprogramme
{
ProgrammeOedit
FavouriteOprogramme
{
{
{
Programme
edit
This function enables you to delete or skip the stored programmes.
Also you can move some stations to other programme numbers or
insert a blank station data into the selected programme number.
1.
()O}{O OKOMENU
TV stations
2.
3.
Press the MENU button and then D / E button to select the
Station menu.
Press the G button and then D / E button to select
Programme edit.
Press the G button to display the Programme edit menu.
Programme
edit
OO0OOCO03
OO5OOSO69
O1OOCO03OOO6OOSO17
O2OOCO12OOO7OOSO22
O3OOSO66OOO8OOCO09
O4OOSO67OOO9OOCO11
DeleteOOOOCopy
MoveOOOOOOSkip
()}{O OKOMENU
Deleting
MENU
1.
PR
2.
VOL
VOL
a programme
Select a programme to be deleted with the D / E or F / G button.
Press the RED button twice.
The selected programme is deleted, all the following programmes are shifted up one position.
Copying
1.
2.
a programme
Select a programme to be copied with the D / E
Press the GREEN button.
All the following programmes are shifted down
or F
one
/ G button.
position.
Moving
PR
1.
1
2
3
4
5
6
7
8
9
2.
3.
a programme
Select a programme to be moved with the D / E or F / G button.
Press the YELLOW button.
Move the programme to the desired programme number with
theD/EorF/Gbutton.
4.
Press the YELLOW button
again
to release this function.
0
Programme
edit
OO0OOCO03
OO5OOSO69
O1OOCO03OOO6OOSO17
O2OOCO12OOO7OOSO22
O3OOSO66OOO8OOCO09
O4OOSO67OOO9OOCO11
MoveOOff
()}{O MENU
a programme number
Select a programme number to be skipped with the D / E or
F / G button.
Press the BLUE button. The skipped programme turns to blue.
Press the BLUE button again to release the skipped programme. When a programme number is skipped it means that
you will be unable to select it using the D / E button during normal TV viewing. If you want to select the skipped programme,
directly enter the programme number with the NUMBER buttons or select it in the programme edit or table menu.
Skipping
1.
2.
3.
Repeatedly press
12
the MENU button to return to normal TV
viewing.
Setting up
TV stations
Favourite programme
Station
This function lets you select your favourite programmes
1.
2.
AutoOprogramme
ManualOprogramme
{
ProgrammeOedit
FavouriteOprogramme
{
directly.
Press the MENU button and then D / E button to select the
Station menu.
Press the G button and then D / E button to select Favourite
programme.
3.
{
{
()O}{O OKOMENU
Press the G button.
Favourite programme
AutoOprogramme
ManualOprogramme
{
Off
{
ProgrammeOedit
FavouriteOprogramme
{
56O CO 05
{
}{O()OOKOMENU
4.
5.
6.
7.
8.
9.
Press the F / G button to select On.
Press the D / E button to select
-----.
Select a desired programme with the F / G button or NUMBER
buttons. Any number under 10 is entered with a numeric '0' (or
'00') in front of it, i.e. '05' (or '005') for 5.
To store another programme, repeat steps 5 to 6.
You can store up to 8 programmes.
Press the OK button.
Repeatedly press the MENU button to return to normal TV
--
viewing.
Repeatedly press
SWAP
MENU
VOL
PR
OK
VOL
ther SWAP button to select stored favourite pro-
grammes.
Calling
the programme table
You can check the programmes stored in the memory
the programme table.
by displaying
programme table
Press the LIST button to display the Programme table menu.
The programme table appears on the screen. One programme
table contains ten programmes as below.
PR
1
2
3
4
5
6
7
8
9
Displaying
0
Station
OO0OOCO03
OO5OOSO69
O1OOCO03OOO6OOSO17
O2OOCO12OOO7OOSO22
O3OOSO66OOO8OOCO09
O4OOSO67OOO9OOCO11
LIST
()}{O OKOMENU
Q.VIEW
Note :
a.
You may find some blue programmes. They have been set up
to be skipped by auto programming or in the programme edit
mode.
b. Some programmes with the channel number shown in the programme table indicate there is no station name assigned.
a programme in the programme table
Select a programme with the D / E or F / G button.
Then press the OK button.
The set switches to the chosen programme number.
Selecting
Paging through a programme table
are 10 (or 20) programme table pages which contain 100 (or
200) programmes.
Pressing the D / E or F / G button repeatedly turns the pages.
Repeatedly press the MENU button to return to normal TV viewing.
There
13
PSM
XD
VM
Contrast
{
Brightness
{
Colour
{
Sharpness
Convergence
{
{
{
PSM (Picture Status
1.
{
{
adjustment
2.
3.
()O}{OOKOMENU
Memory)
Press the MENU button and then D / E button to select the
Picture menu.
Press the G button and then D / E button to select PSM.
Press the G button and then D / E button to select a picture
setting on the PSM pull-down menu.
PSM
XD
VM
Contrast
{
Brightness
{
Colour
{
Sharpness
Convergence
{
{
{
Dynamic
Standard
{
Mild
{
Game
User
()O}OOKOMENU
Press the OK
5.
Repeatedly
viewing.
You
a desired picture (Dynamic, Standard,
User) with PSM button on the remote control. The
picture Dynamic, Standard, Mild and Game are programmed
for optimum picture reproduction at the factory and cannot be
changed.
can
also
Mild, Game
MENU
VOL
PR
OK
or F button.
press the MENU button to return to normal TV
4.
VOL
recall
or
XD
You
can enjoy the vivid and hi-definition picture
Digital Reality processor technology.
Press the MENU button and then D / E button to select the
Picture menu.
Press the G button and then D / E button to select XD.
Press the G button and then D / E button to select On or Off
on the XD pull-down menu.
Press the OK or F button.
Repeatedly press the MENU button to return to normal TV
1.
PR
with LG's excellent
2.
3.
4.
5.
viewing.
PSM
VM
(Velocity Modulation)
This is the function to enhance the
1.
2.
3.
sharpness
of
image edge.
Press the MENU button and then D / E button to select the
Picture menu.
Press the G button and then D / E button to select VM.
Press the G button and then F / G button to adjust the vm.
PSM
XD
VM
Contrast
{
Brightness
{
Colour
{
Sharpness
Convergence
{
{
{
{
1
{
}{OOKOMENU
4.
5.
Press the OK button.
Repeatedly press the MENU button to return to normal TV
viewing.
14
You
adjust picture contrast, brightness, colour intensity, sharpand tint (NTSC AV only) to the levels you prefer.
Press the MENU button and then D
2.
adjustment
can
ness
1.
adjustment
/ E
button to select the
menu.
Press the G button and then D / E button to select Contrast,
Brightness,
Colour
PSM
XD
VM
Contrast
{
Brightness
{
Colour
{
Sharpness
Convergence
{
{
{
{
{
()O}{O OKOMENU
Sharpness.
or
PSM
XD
VM
Contrast
{
Brightness
{
{
{
{
{
Colour
50
{
Sharpness
Convergence
{
()O}{O OKOMENU
3.
Press the G button and then F / G button to make
adjustments
on
the each sub
appropriate
menu.
Contrast
80
MENU
PR
}{O()OOKOMENU
4.
Press the OK button to store it for the
5.
Repeatedly
ing.
VOL
OK
VOL
user.
press the MENU button to return to normal TV view-
Auto convergence
(option)
PR
This function enables you to
automatically during
adjust the colour convergence of screen
receiving the signals. When the set is first
installed or it is relocated, the picture may be unstable with three
colour ghosts (red, green, blue). This problem can be solved by
adjusting the colour convergence.
1.
Press the MENU button and then D
Picture menu.
/ E
button to select the
PSM
XD
VM
Contrast
{
Brightness
{
{
Colour
Sharpness
AutoOconvergence
{
{
{
{
{
()O}{O OKOMENU
2.
Press the G button and then D / E button to select Auto con-
vergence.
3.
Press the G button to
adjust
the colour convergence automati-
cally.
Note :
a.
The operating point colour will change in the order of 'blue-greenred'.
b.
Please make sure the surrounding illumination where the TV is
situated remains dark otherwise the screen will become unstable or the message "Ensure lights are dimmed sufficiently" will be displayed on screen after Auto convergence is completed. Auto convergence will then have to be operated again.
15
PSM
XD
VM
Contrast
{
Brightness
{
Colour
{
Sharpness
Convergence
{
adjustment
Convergence (option)
{
{
{
{
()O}{O OKOMENU
This function enables you to adjust the colour convergence of
screen all area or 9 points during receiving the signals. When the
set is first installed or it is relocated, the picture may be unstable
with three colour ghosts (red, green, blue). This problem can be
solved by adjusting the colour convergence.
1.
2.
Press the MENU button and then D / E button to select the
Picture menu.
Press the G button and then D / E
button to select
Convergence.
TV/AV
3.
Press the G button and then D / E button to select 1
or 9
(9 point convergence).
(All
point convergence)
MENU
PR
PSM
XD
VM
Contrast
{
Brightness
{
Colour
{
Sharpness
Convergence
{
{
{
{
{1
{
9
{
()O}{OOKOMENU
4.
VOL
OK
VOL
Press the G button.
The display DE F G is selected in red.
If the display + are unstable with three colour
convergence needs to be adjusted.
ghosts,
the colour
PR
()O}{O1-9OTV/AVOOKOMENU
()O}{OTV/AVOOKOMENU
If the
display
+
is white, colour convergence
adjustment
is not
necessary.
5.
6.
7.
Press the TV/AV button to select the display DE F G in blue.
: Press the number (1 to 9) button to select
Only selection 9
the position you want to adjust the convergence.
Press the D / E / F / G button to superimpose the display +
(red or blue) with the green one.
The display + is moved to the left, right, up or down by pressing
theD/E/F/Gbutton.
If the red and blue display + are superimposed with the green
display + will be changed to yellow or cyan.
9. Press the OK button to store it for the convergence.
10. Repeatedly press the MENU button to return to normal TV view-
8.
one, the
ing.
Note :
a.
Press the MENU button to cancel the adjustment before saving.
b. If the picture needs to be adjusted more after 1
(All point con9
can
the
vergence) adjustment, you
adjust
(9 point convergence) for the position you want to adjust.
c.
Adjust the convergence according to a broadcasting system
(50Hz or 60Hz) each.
16
adjustment
Picture format
You can watch TV in various picture formats; 16:9, 14:9, Zoom,
Auto and 4:3.
In some models, you can watch TV in various picture formats; 4:3
and 16:9.
Repeatedly press the ARC button to select your desired picture format.
4:3
This
16:9
You can
format is 4 to 3 of
general
enjoy the cinema (the picture
through the 16:9 mode.
TV.
format of
16:9)
or
general
TV
programme
14:9 (option)
The screen 14:9 is viewed
just like that but the screen 4:3 is magnified to the upper / lower and left / right so that the screen 14:9 is
full.
You can move the screen up or down with D / E button.
PR
VOL
Zoom (option)
You can enjoy the cinema in a vast screen through the Zoom mode.
The screen 4:3 is magnified to the upper/lower and left/right sides
so that the screen 16:9 is full. The bottom and top of the picture
may be lost.
You can move the screen up or down with D / E button.
VOL
PR
Auto (option)
When your TV receives the wide screen signal, it will be automatically changed to the picture format to be sent.
Note : In the double window and
available.
scan
mode, ARC function isn't
ARC
17
adjustment
Turbo
selection
(option)
When this function is on, the picture will be more brilliant and distinct than normal. Repeatedly press the TURBO PICTURE button
to switch on or off.
TURBO
(Turbo Picture on)
(Turbo Picture off)
Note : If you press the PSM button with the Turbo picture function,
the Turbo picture function is automatically switched off.
Eye (option)
Eye is an optional function.
this function.
In some models, the set will
Only
a
set with eye
option
can
perform
automatically adjust the picture accordconditions.
This will enable you to enjoy the
ing
surrounding
most suitable picture according to the surroundings.
Press the EYE button to switch the eye function on or off.
to the
Off
PSM
EYE
When the eye function is on, the most suitable picture is automatically adjusted according to the surrounding conditions.
in green does not appear continuAt this time the display
in yellow appears each time the picture
ously but the display
condition changes.
: If you press the PSM or TURBO PICTURE button with the
eye function, the eye function is automatically switched off.
Note
18
Sound
SSM
You
adjustment
(Sound Status Memory)
Sound
select your preferred sound setting; Dolby Virtual (option),
Flat, Music, Movie or Speech and you can also adjust the sound
frequency of the equalizer.
can
SSM
AVL
DBS
TV
Balance
{
{
{
{
{
()O}{O OKOMENU
1.
2.
3.
Press the MENU button and then D / E button to select the
Sound menu.
Press the G button and then D / E button to select SSM.
Press the G button and then D / E button to select a sound setting on the SSM pull-down menu.
Sound
SSM
AVL
DBS
TV
Balance
{
DolbyOVirtual
{
Flat
{
Music
Movie
{
{
Speech
User
{
()O}OOKOMENU
MENU
Dolby Virtual (option)
Dolby Virtual lets you experience panoramic
Sound Frequency Adjustment
a. Press the G button in User to
effects of sound.
VOL
display
PR
the User sub
OK
VOL
menu.
PR
0.1O0.5O1.5O5.0O10OkHz
()O}{O OKOMENU
b. Select a sound band by pressing the F / G button.
c. Select appropriate sound level with the D / E button.
d. Press the OK button to store it for the sound User.
Repeatedly press
the MENU button to return to normal TV
SSM
viewing.
desired sound (Dolby Virtual (option),Flat,
or User) with SSM button on the remote
control. The sound Dolby Virtual (option), Flat, Music, Movie
and Speech are programmed for optimum sound reproduction at
the factory and cannot be changed.
You
can
also recall
a
Music, Movie, Speech
If you press the SSM button after making appropriate
adjustment on the User sub menu, the display User automatically
appears even though you have already set a factory preset setting;
Dolby Virtual (option), Flat, Music, Movie or Speech.
Note
:
19
Sound
Sound
Sound
SSM
AVL
DBS
TV
Balance
{
{
{
{
{
()O}{OOKOMENU
adjustment
adjustment
You can adjust AVL (Auto Volume Leveler), DBS, TV Speaker or
balance. AVL automatically keeps on the equal volume level even if
you change programmes. If you switch DBS to on, the set creates
a dynamic bass sound. The Turbo sound creates an all around
sound as in a concert hall.
1.
2.
Press the MENU button and then D / E button to select the
Sound menu.
Press the G button and then D / E button to select the desired
sound item ; AVL, DBS, TV
(Speaker) or Balance.
Sound
TURBO
SOUND
SSM
{
AVL
{
DBS
{
TV
{
Balance
{
0
()O}{OOKOMENU
MENU
VOL
PR
OK
VOL
3.
In the AVL, DBS and TV
(Speaker) on the Sound menu, press
the D / E button to select On or Off.
In the Balance on the Sound menu, make desired adjustment
with the F / G button on the Balance pull-down menu.
Repeatedly press the MENU button to return to normal TV
viewing.
Note : In the
available.
Virtual
Dolby
mode, AVL and DBS function isn't
PR
Turbo sound selection
(option)
When this function is on, the sound will be more emphasized and
amplified than normal.
Repeatedly press the TURBO SOUND button to switch on or off.
MEGA TURBO
I/II
(Turbo
Sound
off)
(Turbo
Sound
on)
Sound output selection
In AV
mode, you
can
select
output sound for the left and right loud-
speakers.
press the I/II button to select the sound output.
Audio signal from audio L input is sent to left loud-speaker
and audio signal from audio R input is sent to right loud-
Repeatedly
L+R
:
L+L
:
R+R
20
:
speaker.
Audio signal
speakers.
Audio signal
speakers.
from audio L
input
is sent to left and
right
loud-
from audio R
input
is sent to left and
right
loud-
Sound
Stereo/Dual
adjustment
reception
When a programme is selected, the sound information for the station appears after the programme number and station name disap-
pear.
Broadcast
On Screen
Mono
MONO
Stereo
STEREO
Dual
DUAL I
Display
Mono sound selection
In stereo reception if the stereo signal is weak, you can switch to
mono by pressing the I/II button twice. In mono reception the depth
of sound is improved. To switch back to stereo, press the I/II button
twice again.
Language
If
selection for dual
language
broadcast
programme is received in two languages (dual language), you
can switch to DUAL I, DUAL II or DUAL I+II by pressing the I/II
button repeatedly.
DUAL I sends the primary broadcast language to the loudspeakers.
DUAL II sends the secondary broadcast language to the louda
speakers.
DUAL I+II sends
NICAM
a
separate language
to each
loudspeaker.
reception (option)
If your set is equipped with the receiver for NICAM reception, the
high quality NICAM (Near Instantaneous Commanding Audio
Multiplex) digital sound can be received.
Sound output can be selected according to the type of received
broadcast as follows by pressing the I/II button repeatedly.
1.
2.
3.
When NICAM mono is received, you can select NICAM
MONO or FM MONO.
When NICAM stereo is received, you can select NICAM
STEREO or FM MONO. If the stereo signal is weak, switch to
FM mono.
I/II
When NICAM dual is received, you can select NICAM DUAL
I, NICAM DUAL II or NICAM DUAL I+II or MONO. When
FM mono is selected the display MONO appears on the
screen.
21
Time
setting
Clock
T ime
Clock
{
{
OffOtime
OnOtime
1.
{
{
AutoOsleep
2.
3.
Press the MENU button and then D / E button to select the
Time menu.
Press the G button and then D / E button to select Clock.
Press the G button and then D / E button to adjust the hour.
Time
()O}{OOKOMENU
C lock
{
OffOtime
OnOtime
{
AutoOsleep
{
-i-o:o-i- AM
{
()O}{O OKOMENU
4.
5.
6.
Press the G button and then D / E button to adjust the minute.
Press the OK button.
Repeatedly press the MENU button to return to normal TV
viewing.
On/Off time
By using this function, the set automatically switches on or off at a
preset time. You must set the time correctly before using on/off time
function.
MENU
PR
1.
2.
VOL
OK
VOL
3.
Press the MENU button and then D / E button to select the
Time menu.
Press the G
button and then D / E button to select Off
time/On time.
Press the G button and then D / E button to adjust the hour.
Time
Clock
{
OffOtime
OnOtime
{
{
-i-o:o-i- AM
AutoOsleep
{
Pr
1
VOLOOO30
Off
PR
()O}{O OKOMENU
4.
5.
Press the G button and then D / E button to adjust the minute.
Only On time function; Press the G button and then D / E
6.
7.
button to adjust programme number and volume level.
Press the OK button.
Repeatedly press the MENU button to return to normal TV
viewing.
Note :
a.
On time function works only in standby mode.
b.
To view the remaining on/off time, select the Time menu.
c.
When you switch the main power off, the Clock is reset.
d.
Two hours after the set is switched on by the on time function it
will automatically switch back to standby mode unless a button
has been pressed.
e.
Once the on or off time is set, these functions operate daily at
the preset time.
Auto
sleep
If you select On on the Auto sleep pull-down menu, the set will
automatically switch itself to standby mode approximately ten minutes after a TV station stops broadcasting.
1.
2.
3.
4.
5.
Press the MENU button and then D / E button to select the
Time menu.
Press the G button and then D / E button to select Auto sleep.
Press the G button and then D / E button to select On or Off
on the Auto sleep pull-down menu.
Press the OK or F button.
Repeatedly press the MENU button to return to normal TV
viewing.
22
Other functions
TV and AV modes
Inputs
can
be set for TV
cassette recorder
Special
or
(VCR),
AV mode. AV mode is used when
or
other
equipment
a video
is connected to the
OOO
O
set.
Note : When a VCR is connected via the aerial socket the set is
used in TV mode. See the 'Connection of external equipment' section.
1.
Press the MENU button and then D / E
Special
2.
3.
OOO
button to select the
menu.
Press the G button and then D / E button to select Input.
Press the G button and then D / E button to select TV, AV1,
AV2, AV3, AV4, S-VIDEO4, COMPONENT 1 or COMPONENT 2 on the Input pull-down menu.
TV/AV
Special
{
Input
TV
OOO
O
MENU
PR
OOO
VCR connected to the Euro scart socket 1 on the back
AV2 : VCR connected to the Euro scart socket 2 on the back
AV3 : VCR connected to the AV3 sockets on the set
AV4 : VCR connected to the Euro scart socket 4 on the back
S-VIDEO4 :VCR connected to the Euro scart socket 4 on the
back
COMPONENT1 : COMPONENT connected to the COMPONENT1 sockets on the back
COMPONENT2 : COMPONENT connected to the COMPONENT2 sockets on the back
Repeatedly press the MENU button to return to normal TV
AV1
4.
VOL
VOL
:
PR
viewing.
Alternatively you
can
select the TV
or
AV mode
by pressing
the
TV/AV button.
In AV mode, to return to TV mode, press the D / E
or
NUMBER but-
tons.
Auto AV
switching (option)
If your VCR outputs switching voltage when connected to the Euro
scart socket, the set will switch to AV1, AV2 or AV4 mode automatically. But if you want to keep on watching TV mode, press the
D / E or NUMBER buttons.
Press the TV/AV button to return to AV modes.
23
Other functions
PIP Picture Source Selection
Special
Language
Input
InputOOO(
{
{
{
)
ChildOlock
1.
{
2.
3.
()O}{O OKOMENU
(option)
Press the MENU button and then D / E
Special
button to select the
menu.
Press the G button and then D / E button to select Input (
).
Press the G button and then D / E button to select TV, AV1,
AV2, AV3, AV4 or S-VIDEO4.
Special
Language
Input
InputOOO(
ChildOlock
{
{
)
{
{
TV
AV1
AV2
AV3
AV4
S-VIDEO4
()O}OOKOMENU
4.
5.
or F
Press the OK
Repeatedly press
viewing.
button.
the MENU button to return to normal TV
Child lock
MENU
PR
The TV can be set so that the remote control handset is needed to
control it. This feature can be used to prevent unauthorized viewVOL
OK
ing.
VOL
1.
2.
3.
PR
4.
5.
Press the MENU button and then D / E
Special
button to select the
menu.
Press the G button and then D / E button to select Child lock.
Press the G button and then D / E button to select On or Off
on the Child lock pull-down menu.
Press the OK or F button.
Repeatedly press the MENU button to return to normal TV
viewing.
With the lock on, the display Child lock on appears on the screen
if any button on the front panel is pressed while viewing the TV.
Note : The
any button
Child lock on will not appear on the screen if
the front panel is pressed while displaying the
display
on
menus.
SLEEP
Sleep
timer
You don't have to remember to switch the set off before you go to
bed. The sleep timer automatically switches the set to standby after
the preset time elapses.
Press the SLEEP button to select the number of minutes. The diswill appear on the screen, followed by 10, 20, 30, 60, 90,
play
120, 180 and 240. The timer begins to count down from the number
of minutes selected.
---
Note :
a.
To view the
remaining sleep time, press
the SLEEP button
once.
b.
To cancel the sleep time, repeatedly press the SLEEP button
until the display
appears.
When you switch the set off, the set releases the preset sleep
time.
---
c.
24
PIP
Option
PIP is
operation (option)
:
an
optional function,
so
that
set with PIP function can
only the
operate.
PIP
(Picture
in
Picture) displays
a
within
a
picture.
On and off
Press the PIP button to switch on the sub
Press this button again to switch it off.
Input
mode selection for sub
Press the INPUT button to select the
input
Each time this button is pressed, each
ture is displayed as shown below.
Programme
:
You
can
Swapping
also
mode for the sub
input
it in the
Programme
selection for sub
PR+
SWAP
INPUT
AV3
Special
exchange
PIP
PR-
between main and sub
Press the SWAP button to
pic-
AV2
AV4
adjust
picture.
mode for the sub
AV1
number
S-VIDEO4
Note
picture.
menu.
pictures
the main and sub
pictures.
Press the PR +/- buttons to select a programme for the sub picture.
The selected programme number is displayed just below the programme number of main picture.
Sub
size
Repeatedly press the SIZE button to select the desired sub
size. The sub picture appears as below.
1/16 size of the main
1/9 size
1/2 size
POSITION
SCAN
STILL
SIZE
Note : If broadcasting system of the main picture for PIP is differ
from sub picture's for PIP, the sub picture not be natural. (ex: In
case that main picture/sub picture is PAL/NTSC system)
Sub
freeze
Press the STILL button to freeze motion of the sub
Press this button again to restore motion.
Sub
picture.
picture position change
Press the POSITION button repeatedly until desired
achieved. The sub pictures move clockwise.
Programme
position
is
scan
This function enables you to search all the stored stations on 12
sub pictures and see your favorite station by exchanging the main
and sub pictures.
Press the SCAN button repeatedly to select 12 sub pictures.
The selected sub pictures search all the stored stations
Press the SCAN button again to switch off sub pictures.
.
25
Teletext
(option)
Teletext (or TOP text) is an optional function, therefore only
with the teletext system can receive the teletext broadcast.
a
set
free service broadcast by most TV stations which gives
information on news, weather, television programmes, share prices and many other topics.
Teletext is
a
up-to-the-minute
The teletext decoder of this TV can support the SIMPLE, TOP and
FASTEXT systems. SIMPLE (standard teletext) consists of a number of pages which are selected by directly entering the corresponding page number. TOP and FASTEXT are more modern
methods allowing quick and easy selection of teletext information.
TV/AV
TEXT
Switch on/off
Press the TEXT button to switch to teletext. The initial page or last
page appears on the screen.
Two page numbers, TV station name, date and time are displayed
on the screen headline. The first page number indicates your selection, while the second shows the current page displayed.
Press the TEXT or TV/AV button to switch off teletext. The previous mode reappears.
PR
OK
SIMPLE text
selection
Enter the desired page number as a three digit number with the
NUMBER buttons. If during selection you press a wrong number, you must complete the three digit number and then reenter the correct page number.
The D / E button can be used to select the preceding or fol-
Page
PR
1.
1
2
3
4
5
6
7
8
9
2.
lowing page.
0
a colour button in LIST mode
If the TV is in SIMPLE text, TOP text or FASTEXT mode, press the
M
button to switch to LIST mode.
Programming
M
Four teletext page numbers of your choice can be colour coded
easily selected by pressing the corresponding coloured button
and
on
the remote control handset.
1.
Press
a
2.
Using
the NUMBER buttons, select the page you wish to pro-
3.
gramme.
Press the OK button. Then the selected page is stored as the
selected page number by blinking once. From now on, you can
4.
select this page with the same coloured button.
The three other coloured buttons are programmed in the
way.
26
coloured button.
same
Teletext
TOP text
(option)
(option)
The user guide displays four fields-red, green, yellow and blue at
the bottom of the screen. The yellow field denotes the next group
and the blue field indicates the next block.
Block / group / page selection
1. With the blue button you can progress from block to block.
2. Use the yellow button to proceed to the next group with automatic overflow to the next block.
3. With the green button you can proceed to the next existing
page with automatic overflow to the next group.
Alternatively the D button can be used.
4. The red button permits to return to previous selection.
Alternatively the E button can be used.
Direct page selection
Corresponding to the SIMPLE teletext mode, you can select a page
by entering it as a three digit number using the NUMBER buttons in
PR
TOP mode.
FASTEXT
The teletext pages are colour coded along the bottom of the screen
and are selected by pressing the corresponding coloured button.
selection
i
Press the
button to select the index page.
You can select the pages which are colour coded along the bottom line with the same coloured buttons.
Corresponding to the SIMPLE teletext mode, you can select a
page by entering its three digit page number with the NUMBER
buttons in FASTEXT mode.
The D / E button can be used to select the preceding or fol-
PR
Page
1.
2.
3.
4.
1
2
3
4
5
6
7
8
9
0
lowing page.
27
Teletext
Special
(option)
teletext functions
REVEAL
Press this button to
display concealed information, such as
puzzles.
again to remove the information from the
solutions of riddles
Press this button
or
display.
SIZE
Selects double
height text.
enlarge the top
button again to enlarge
Press this button to
Press this
page.
Press this button
again
half of the page.
the bottom half of the
to return to the normal
display.
PR
UPDATE
Displays
the TV
on
the
screen
while
waiting
for the
new
will appear at the top left hand
teletext page. The display
corner of the screen. When the updated page is available then
will change to the page number.
Press this button to view the updated teletext page.
display
HOLD
PR
1
2
Stops
3
4
5
6
7
8
9
MIX
TIME
change
which will
occur
if
a
tele-
sub pages and the sub page displayed is, usually, shown
on the screen below the time. When this button is pressed
the stop symbol is displayed at the top left-hand corner of
the screen and the automatic page change is inhibited.
To continue press this button again.
0
SIZE
the automatic page
text page consists of 2 or more sub pages. The number of
REVEAL
?
MIX
Displays
the teletext pages
superimposed
on
the TV
pic-
ture.
To switch the TV
off press this button
again.
TIME
viewing a TV programme, press this button to display
the time at the top right hand corner of the screen. Press this
button again to remove the display. In the teletext mode,
When
press this button to select a sub page number. The sub page
number is displayed at the bottom of the screen. To hold or
the sub page, press the RED / GREEN, D / E
NUMBER buttons.
change
Press this button
28
again
to exit this function.
or
Connection of external
You
connect additional
can
equipment,
such
as
equipment
VCRs, camcorders
etc. to your set.
Here shown may be somewhat different from your set.
Aerial socket
1.
2.
3.
4.
5.
Connect the RF out socket of the VCR to the aerial socket on
the back of the set.
Connect the aerial cable to the RF aerial in socket of the VCR.
Store the VCR channel on a desired programme number using
the 'Manual programme tuning' section.
Select the programme number where the VCR channel is
stored.
Press the PLAY button on the VCR.
DVD INPUT
COMPONENT1 COMPONENT2
(480i/480p/576i)
(R)
(R)
(L)
(L)
PR
PR
PB
PB
Y
Y
AUDIO
AV2
LR
VARIABLE
ANT IN
AUDIO OUTPUT
LL
VIDEO
AV4
AV1
VCR
Euro scart socket
1.
Connect the Euro scart socket of the VCR to the Euro scart
socket1,2or4oftheset.
2.
Press the PLAY button on the VCR.
If your VCR outputs a switching voltage connect to Euro scart
socket1,2or4,thesetwillswitchtoAV1,AV2orAV4mode
automatically. But if you want to keep on watching TV mode,
press the D / E
or
NUMBER buttons.
Otherwise press the TV/AV button on the remote control hand1, AV 2 or AV 4. The VCR playback picture
appears on the screen.
set to select AV
You
can
also record programmes received
by
the TV
on
DVD INPUT
COMPONENT1 COMPONENT2
(480i/480p/576i)
(R)
(R)
(L)
(L)
PR
PR
PB
PB
Y
Y
AUDIO
AV2
LR
VARIABLE
ANT IN
AUDIO OUTPUT
LL
VIDEO
AV4
AV1
VCR
video
tape.
Note
a.
b.
c.
:
i.e. the signals red, green and blue can only
be selected for the Euro scart 1 and the AV 1 can be received.
These signals are transmitted, for example, by a pay TV
decoder, game machine or photo CD unit, etc.
If both Euro scart 1, 2 and 4 sockets have been connected to
the VCRs simultaneously, only the AV 2 can be received.
In Euro scart 4 socket, the video output is not available.
Signal type RGB,
Audio/Video in sockets
1.
2.
3.
S-VIDEOL/MN
AUDIO
R
AV3
VCR
Connect the audio/video out sockets of the VCR to audio/video
in sockets of the set.
Press the TV/AV button to select AV 3.
Press the PLAY button on the VCR.
The VCR playback picture appears on the screen.
Note : If you have a mono VCR, connect the audio cable from the
VCR to the AUDIO L/MONO socket of the set.
29
Connection of external
equipment
S-Video / Audio in sockets
When
connecting
picture quality will
S-VIDEOL/MN
1.
AUDIO
R
AV3
2.
S-VIDEO VCR
3.
(S-AV)
an S-VIDEO VCR to the S-VIDEO socket, the
be further improved.
Connect the S-video socket of the VCR to the S-VIDEO socket
or Euro scart socket 4 of the set.
Connect the audio cable from the S-VIDEO VCR to the AUDIO
sockets of the set.
Select AV3 or S-VIDEO4 by pressing the TV/AV button repeat-
edly.
4.
Press the PLAY button on the VCR.
The VCR playback picture appears on the
screen.
Note : If both S-VIDEO and VIDEO sockets have been connected
to the S-VHS VCR simultaneously, only the S-VIDEO can be
received.
DVD INPUT
COMPONENT1 COMPONENT2
(480i/480p/576)
(R)
(R)
(L)
(L)
PR
PR
PB
PB
Y
Y
AUDIO
AV2
L
R
VARIABLE
ANT IN
AUDIO OUTPUT
LL
VIDEO
AV4
AV1
Component
S-VIDEO VCR
1.
2.
3.
4.
DVD INPUT
COMPONENT1 COMPONENT2
(480i/480p/576)
(R)
(R)
(L)
(L)
PR
PR
PB
PB
Y
Y
AUDIO
AV2
L
in sockets
Connect the COMPONENT VIDEO output sockets (Y Cb Cr,
YPbPr,YB-YR-YorYPBPR)oftheDVDplayertotheDVD
INPUT VIDEO sockets (Y PB PR) of the set.
Connect the audio cable from the DVD player to DVD
INPUT AUDIO sockets of the set.
Press the TV/AV or MULTIMEDIA button to select COMPONENT1 or COMPONENT2.
Press the PLAY button on the DVD player.
The DVD playback picture appears on the screen.
R
VARIABLE
ANT IN
AUDIO OUTPUT
LL
VIDEO
AV4
AV1
Note : DVD audio
be output.
input
can
be output, but DVD video
input
cannot
DVD
Variable Audio out sockets
(AUDIO OUT)
The phono sockets for a Hi-Fi amplifier system are on the back of
the set; L=left sound channel, R=right sound channel.
If you connect an amplifier system, you can also play the TV sound
through the stereo amplifier system. TV speaker and external
speakers
DVD INPUT
COMPONENT1 COMPONENT2
(480i/480p/576)
(R)
(R)
(L)
(L)
AUDIO
AV2
L
R
VARIABLE
ANT IN
PR
PR
PB
PB
Y
Y
AUDIO OUTPUT
LL
VIDEO
AV4
Amplifier
30
AV1
muted when
pressing
the MUTE button.
Troubleshooting
check list
Symptoms
No
picture,
no
sound
Sound OK, poor
Picture OK, poor sound
Picture blurred
Lines
or
streaks in
Poor
reception
on some
channels
No colour
Poor colour
Remote control does not work
Check these items and try to
adjust these
The mains plug-(plugged in and
switched on)
Is the TV switched
Try
on
another channel
(weak signal)
Check aerial
(plugged
Check aerial
(broken lead?)
into
TV?)
Check aerial
Check for local interference
Adjust
contrast
Adjust brightness
Adjust
colour
Adjust
volume
Check the batteries in remote control
Check Audio/Video sockets
(VCR only)
31
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
