LG GSM860LBAZ Owner's Manual
EN

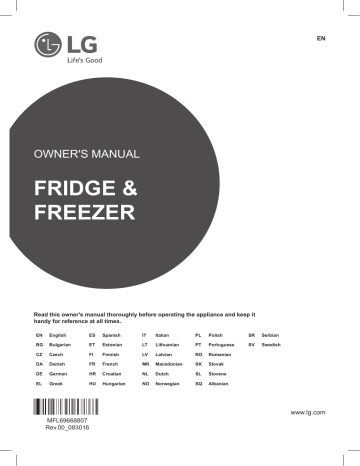

OWNER'S MANUAL
FRIDGE &
FREEZER
Read this owner's manual thoroughly before operating the appliance and keep it
handy for reference at all times.
EN
English
ES
Spanish
IT
Italian
PL
Polish
SR
Serbian
BG
Bulgarian
ET
Estonian
LT
Lithuanian
PT
Portuguese
SV
Swedish
CZ
Czech
FI
Finnish
LV
Latvian
RO
Romanian
DA
Danish
FR
French
MK
Macedonian
SK
Slovak
DE
German
HR
Croatian
NL
Dutch
SL
Slovene
EL
Greek
HU
Hungarian
NO
Norwegian
SQ
Albanian
www.lg.com
MFL69668807
Rev.00_083016
TABLE OF CONTENTS
This manual may contain images or content
different from the model you purchased.
This manual is subject to revision by the
manufacturer.
SAFETY INSTRUCTIONS........................................................3
IMPORTANT SAFETY INSTRUCTIONS..................................................... 3
Disposal of Your Old Appliance................................................................. 11
INSTALLATION.......................................................................12
Notes for Movement and Transport........................................................... 13
Notes for Installation.................................................................................. 13
Removing the Door.................................................................................... 14
Refitting the Door....................................................................................... 14
Adjusting the Height of the Door................................................................ 15
Leveling the Appliance............................................................................... 16
Parts and Functions................................................................................... 17
OPERATION............................................................................17
Notes for Operation................................................................................... 21
Using Control Panel................................................................................... 22
Icemaker (Optional)................................................................................... 24
Door in Door (Optional)............................................................................. 26
Other Functions......................................................................................... 27
SMART FUNCTIONS..............................................................28
MAINTENANCE.......................................................................29
Notes for Cleaning..................................................................................... 29
Replacing the Pure N Fresh Filter (Optional)............................................ 29
Cleaning the Door Basket.......................................................................... 30
Cleaning the Shelf..................................................................................... 31
Cleaning the Vegetable Drawer................................................................. 31
TROUBLESHOOTING............................................................32
SAFETY INSTRUCTIONS
EN
The following safety guidelines are intended to prevent unforeseen
risks or damage from unsafe or incorrect operation of the appliance.
The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as
described below.
This symbol is displayed to indicate matters and
operations that can cause risk. Read the part with this
symbol carefully and follow the instructions in order to
avoid risk.
WARNING
This indicates that the failure to follow the instructions can
cause serious injury or death.
CAUTION
This indicates that the failure to follow the instructions can
cause the minor injury or damage to the product.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of explosion, fire, death, electric shock,
injury or scalding to persons when using this product, follow
basic precautions, including the following:
Children in the Household
This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person
responsible for their safety. Children should be supervised to ensure
that they do not play with the appliance.
3
EN
For use in Europe:
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in
a safe way and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance shall not be
made by children without supervision.
Installation
•This
•
appliance should only be transported by two or more people
holding the appliance securely.
•Ensure
•
that the socket outlet is properly grounded, and that the
earth pin on the power cord is not damaged or removed from
the power plug. For more details on grounding, inquire at an LG
Electronics customer information centre.
•This
•
appliance is equipped with a power cord having an equipmentgrounding conductor and a grounding power plug. The power plug
must be plugged into an appropriate socket outlet that is installed
and grounded in accordance with all local codes and ordinances.
•If
• the power cord is damaged or the hole of the socket outlet is
loose, do not use the power cord and contact an authorized service
centre.
•Do
• not plug the appliance into multiple socket outlets or extension
power cable.
•Do
• not modify or extend the power cord.
•Avoid
•
using any extension cords or double adaptor. The appliance
should be connected to a dedicated power line which is separately
fused.
•Install
•
the appliance in a place where is easy to unplug the power
plug of the appliance.
4
EN
•Be
• careful not to point the power plug up or let the appliance lean
against the power plug.
•Install
•
the appliance on a firm and level floor.
•Do
• not install the appliance in a damp and dusty place. Do not
install or store the appliance in any outdoor area, or any area that
is subject to weathering conditions such as direct sunlight, wind, or
rain or temperatures below freezing.
•Do
• not place the appliance in direct sunlight or expose it to the heat
from heating appliances such as stoves or heaters.
•Be
• careful not to expose the rear of the appliance when installing.
•Be
• careful not to let the appliance door fall during assembly or
disassembly.
•Be
• careful not to pinch, crush, or damage the power cable during
assembly or disassembly of the appliance door.
Operation
•Do
• not use the appliance for any purpose (storage of medical
or experimental materials or shipping) other than any domestic
household food storage use.
•In
• case of flood, disconnect the power plug and contact the LG
Electronics customer information centre.
•Unplug
•
the power plug during a severe thunderstorm or lightening
or when not in use for a long period of time.
•Do
• not touch the power plug or the appliance controls with wet
hands.
•Do
• not bend the power cable excessively or place a heavy object
on it.
5
EN
•If
• water penetrates electrical parts of the appliance, disconnect
power plug and contact an LG Electronics customer information
centre.
•Do
• not place hands or metallic objects inside the area emitting the
cold air, cover or heat releasing grille on the back.
•Do
• not apply excessive force or impact to the back cover of the
appliance.
•Do
• not put animals, such as pets into the appliance.
•Be
• careful of nearby children when you open or close the appliance
door. The door may bump the child and cause injury.
•Avoid
•
the danger of children getting trapped inside the appliance. A
child trapped inside the appliance can cause suffocation.
•Do
• not place heavy or fragile objects, liquid filled containers,
combustible substances, or flammable objects (such as candles
and lamps) on the appliance.
•If
• there is a gas leakage (isobutane, propane, natural gas, etc.),
do not touch the appliance or power plug and ventilate the
area immediately. This appliance uses a very eco-friendly gas
(isobutane, R600a) as the refrigerant. Although it uses a small
amount of the gas, it is still combustible gas. Gas leakage during
appliance transport, installation or operation can cause fire,
explosion or injury if sparks are caused.
•Do
• not use or store flammable or combustible substances (ether,
benzene, alcohol, chemical, LPG, combustible spray, insecticide,
air freshener, cosmetics, etc.) near the appliance.
6
EN
•Immediately
•
unplug the power plug and contact an LG Electronics
customer information centre if you detect a strange sound, odour,
or smoke coming from the appliance.
•Fill
• with potable water only into icemaker or dispenser water tank.
Maintenance
•Disconnect
•
the power cord before cleaning the appliance or
replacing the inside lamp (where fitted).
•Securely
•
plug the power plug in the socket outlet after completely
removing any moisture and dust.
•Never
•
unplug the appliance by pulling on the power cable. Always
grip the power plug firmly and pull straight out from the socket
outlet.
•Do
• not spray water inside or outside the appliance to clean it.
•Do
• not clean the appliance with brushes, cloths or sponges with
rough surfaces or which are made of metallic material.
•Only
•
qualified service personnel from LG Electronics service centre
should disassemble, repair, or modify the appliance. Contact an LG
Electronics customer information centre if you move and install the
appliance in a different location.
•Do
• not use a hair drier to dry the inside of the appliance or place a
candle inside to remove the odours.
Disposal
•When
•
discarding the appliance, remove the door gasket while
leaving the shelves and baskets in place and keep children away
from the appliance.
•Dispose
•
of all packaging materials (such as plastic bags and
styrofoam) away from children. The packaging materials can cause
suffocation.
7
EN
Technical Safety
•Keep
•
ventilation openings, in the appliance enclosure or in the builtin structure, clear of obstruction.
•Do
• not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the type
recommended by the manufacturer.
•The
•
refrigerant and insulation blowing gas used in the appliance
require special disposal procedures. Consult with service agent or a
similarly qualified person before disposing of them.
•This
•
appliance contains a small amount of isobutane refrigerant
(R600a), natural gas with high environmental compatibility, but it is
also combustible. When transporting and installing the appliance,
care should be taken to ensure that no parts of the refrigerating
circuit are damaged.
•Refrigerant
•
leaking out of the pipes could ignite or cause an
explosion.
•If
• a leak is detected, avoid any naked flames or potential sources
of ignition and air the room in which the appliance is standing for
several minutes. In order to avoid the creation of a flammable gas
air mixture if a leak in the refrigerating circuit occurs, the size of
the room in which the appliance is used should correspond to the
amount of refrigerant used. The room must be 1 m² in size for every
8 g of R600a refrigerant inside the appliance.
•The
•
amount of refrigerant in your particular appliance is shown on
the identification plate inside the appliance.
•This
•
appliance is intended to be used in household and similar
applications only. It should not be used for commercial, or catering
purposes, or in any mobile application such as a caravan or boat.
8
EN
•Never
•
start up an appliance showing any signs of damage. If in
doubt, consult your dealer.
•Do
• not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
CAUTION
To reduce the risk of minor injury to persons, malfunction, or
damage to the product or property when using this product,
follow basic precautions, including the following:
Installation
•Do
• not tilt the appliance to pull or push it when transporting.
Operation
•Do
• not touch frozen food or the metal parts in the freezer
compartment with wet or damp hands. It may cause frostbite.
•Do
• not place glass containers or bottles in the freezer compartment,
shelves or ice bin that will be exposed to temperatures below
freezing.
•The
•
tempered glass on the front side of the appliance door or the
shelves can be damaged by an impact. If it is broken, do not touch
it with wet hands, as this may result in injury.
•Make
•
sure your hands and feet do not get stuck when opening and
closing the appliance door or the door in door.
•Do
• not place heavy objects on top of the door in door.
•Do
• not use the door in door as a chopping board and ensure it
is not scratched by a sharp tool, as this may cause appliance
damage.
•Do
• not hang from the appliance door, storage room, shelf or fridge
door in door or climb up into it.
9
EN
•Do
• not store an excessive amount of water bottles or containers
for side dishes on the door baskets. The basket may break or your
hand may bump into the surrounding structure, causing injury.
•Keep
•
food organized inside the appliance.
•Prevent
•
animals from nibbling on the power cable or water hose.
•Do
• not open or close the appliance door with excessive force.
•If
• the hinge of the product door is damaged or operates improperly,
stop using the appliance and contact an authorized service centre.
•Supervise
•
a child or a person with poor cognitive skills to ensure
they use the appliance safely.
•Do
• not damage the pipes of the refrigerant circuit.
•Do
• not place any electronic appliance (such as heater and mobile
phone) inside the appliance.
•Do
• not clean glass shelves or covers with warm water when
they are cold. They may break if exposed to sudden temperature
changes.
•Never
•
eat frozen foods immediately after they have been taken out
in the freezer compartment.
Maintenance
•Do
• not insert the shelves upside down. The shelves may fall,
causing injury.
•To
• remove frost from the appliance, contact an LG Electronics
customer information centre.
•Dispose
•
of the ice inside the ice bin in the freezer compartment
during an extended power outage.
10
EN
Disposal of Your Old Appliance
•• This crossed-out wheeled bin symbol indicates that waste electrical and electronic products
(WEEE) should be disposed of separately from the municipal waste stream.
•• Old electrical products can contain hazardous substances so correct disposal of your old
appliance will help prevent potential negative consequences for the environment and human
health. Your old appliance may contain reusable parts that could be used to repair other
products, and other valuable materials that can be recycled to conserve limited resources.
•• You can take your appliance either to the shop where you purchased the product, or contact
your local government waste office for details of your nearest authorised WEEE collection
point. For the most up to date information for your country please see www.lg.com/global/
recycling.
11
INSTALLATION
EN
Compartments
Egg Box (Optional)
Ice Tray (Optional)
Owner's Manual
••The appearance or components of the appliance may differ from model to model.
12
Spanner
EN
Notes for Movement and
Transport
••Remove all food from inside the appliance. Then,
transport the appliance only after fixing fragile
parts such as shelves and the door handle with
tape. Failure to do so may cause appliance
damage.
••Pull the power plug out, insert and fix it into the
power plug hook at the rear or on top of the
appliance. Failure to do so may cause damage to
the power plug or floor scratch.
••When transporting the appliance, more than two
people should transport the appliance carefully.
Dropping the appliance, which is extremely heavy,
may cause personal injury or appliance failure.
••When transporting the appliance over a long
distance, keep the appliance upright. The
appliance may fall over, causing malfunctions.
Never transport the appliance laying down as it
can cause a refrigerant circulation malfunction
when it is turned back on again.
Notes for Installation
••Install the appliance on a solid and flat area.
−−If the appliance is installed on an uneven floor,
it can cause vibration and noise causing the
appliance to fall resulting in injury. It could
also cause the doors not to close correctly
and introduce moisture inside the unit during
operation.
−−If the appliance front or rear is not level, adjust
the front feet so that it can be corrected. Severe
cases may need the floor to be packed out with
strips of thin timber.
••Avoid placing the unit near heat sources, direct
sunlight or moisture.
••Connect the power supply cord (or plug) to the
outlet. Don't double up with other appliances on
the same outlet.
••After connecting the power supply cord (or plug) to
the outlet, Wait two or three hours before you put
food into the appliance. If you add food before the
appliance has cooled completely, your food may
spoil.
••Models with handles should be located at least 55
mm from the wall on the hinge side to open door
by 90°.
••Allow over 55 mm clearance to the right, left, back
and top when installing.
13
EN
Removing the Door
When it is necessary to move the appliance through
a narrow opening, removing the doors is the
recommended procedure.
WARNING
••Disconnect the power cord, house fuse or circuit
breaker before installing or service the appliance.
Failure to follow these instructions may result in
death, fire or electric shock.
CAUTION
••When removing the upper hinge, be sure to
support the door as it will fall forwards. It is
recommended that two or more people carry out
the door removal and refitting.
4
Upper hinge
If your entrance door is too narrow for the appliance
to pass through, remove the appliance doors and
pass the appliance laterally.
[For both freezer and fridge]
1
Remove the screw of the hinge cover on top of
the appliance by rotating it counterclockwise.
2
While pressing 1 hook of the link of the
electrical connectors, remove the link by pulling
it in both directions.
1
3
14
Remove the hinge lever by tapping the end of it
toward the outside edge of the cabinet.
Lift the upper hinge fixed between the appliance
and the appliance door and then remove it.
Door
5
Remove the freezer and fridge compartment
door by lifting it upward. At this time, the door
should be lifted enough for the steel pipe to be
completely pulled out.
Refitting the Door
Mount them in the reverse sequence of removal
after the appliance is passed through the access
door.
EN
Adjusting the Height of the Door
If the door of the appliance is not level, adjust the
difference in the height of appliance door using the
following method.
3
After adjusting the difference in the height of the
appliance door, fasten the keeper nut by rotating
it clockwise.
NOTE
••Because the hinge pin may falll out, do not adjust
the height of the appliance door more than 5 cm.
To tighten the nut
[Method1]
*Reference
If it is impossible to adjust the height of the
appliance door through the above method, level the
door according to the following guide.
Keeper nut
Adjustment hinge pin
Spanner
1
Loosen the keeper nut by rotating it
counterclockwise using a 19 mm spanner.
[Method2]
If the freezer compartment door is lower than
the fridge compartment door
1
Level the door by inserting flat(-type) driver into
groove of the left height adjusting screw and
rotate it clockwise.
To loosen the nut
2
Adjust the difference in the height of the
appliance door by rotating the adjustment hinge
pin clockwise or counterclockwise with an 8 mm
spanner.
2
Up
If the freezer compartment door is higher
than the fridge compartment door
Level the door by inserting flat(-type) driver into
groove of the right height adjusting screw and
rotate it clockwise.
Down
15
EN
Leveling the Appliance
The appliance has two front leveling legs.
Turn the leveling leg to the left to raise that side of
the appliance or to the right to lower it.
NOTE
••It is normal installation for the appliance to slightly
tilt backwards to close the doors smoothly.
16
OPERATION
EN
Parts and Functions
1
Control Panel
This adjusts the freezer and fridge target temperatures.
2
Door in Door (Optional)
The Door in Door is a double layered door system. It can be opened individually or together with the main
door. You can conveniently locate and access your favourite snacks or food items.
3
Door in Door Lever (Optional)
This lever opens Door in Door.
••The appearance or components of the appliance may differ from model to model.
17
EN
1
Icemaker (Optional)
This is where ice is manually produced and stored.
2
Freezer Door Basket
This is where small packages of frozen food can be stored.
••Do not store ice cream or food which will be stored for a long period of time within these baskets.
3
LED Lamp
The LED lamps inside the appliance light up when you open the door.
4
Freezer Shelf (Optional)
This is where frozen foods such as the meat, fish, and ice cream, can be stored.
5
Freezer Drawer (Optional)
This is for long-term storage of frozen items.
18
EN
1
Smart Diagnosis Unit
Use this function when contacting LG Electronics customer information centre to help make an accurate
diagnosis when the appliance operates abnormally or a failure occurs.
2
LED Lamp
The LED lamps inside the appliance light up when you open the door.
3
Fridge Shelf
This is where refrigerated foods and other items are stored.
••This adjusts the shelf height by inserting the shelf in another groove of different height.
••Store the foods with higher moisture content at the front of the shelf.
••The actual number of shelves will differ from model to model.
4
Bottle Rack (Optional)
This is where drinks tall bottles or containers are stored.
CAUTION
••Do not store short bottles or containers. The items may fall and to cause an injury or appliance damage.
5
Pure N Fresh (Optional)
This function minimizes bacteria and odor inside the appliance.
6
Snack Drawer (Optional)
This is where small packages of refrigerated foods are stored.
19
EN
7
Temperature Sensor
This sensor senses the temperature of the fridge compartment.
••Maintain the distance between the sensor and food to accurately sense the temperature.
8
Vegetable Drawer
This is where fruits and vegetables are stored to remain fresh for as long as possible.
9
Door in Door (Optional)
This is where foods which are taken out frequently such as beverages and snacks are stored.
10
Fridge Door Basket
This is where small packages of refrigerated foods, drinks and sauce containers are stored.
20
EN
Notes for Operation
Storing Foods Effectively
••Do not use the ice water dispenser tank for
beverages other than drinking water.
••Users should keep in mind that frost can form If
the door is not closed completely, if the humidity
is high during the summer, or if the freezer door is
opened frequently.
••Ensure there is sufficient space between food
stored on the shelf or door basket to allow the door
to close completely.
••Opening the door lets warm air enter the
appliance, and may cause the internal temperature
to rise.
••Do not open or close the appliance door
excessively.
••The LED lamp is only intended for use in domestic
appliances and is not suitable for household room
illumination.
Suggestion for Energy Saving
••Ensure there is sufficient space between stored
foods. This allows cold air to be circulated evenly
and lowers electricity bills.
••Store hot food only after it has cooled in order to
prevent dew or frost.
••When storing an appliance in the freezer
compartment, set the freezer temperature lower
than the temperature indicated on the appliance.
••Do not set the temperature of the appliance lower
than needed. For ice making in normal climates,
the freezer temperatures should be set to -19 or
colder.
••Do not put food near the temperature sensor of the
fridge compartment. Keep a distance of at least 3
cm from the sensor.
••Please note that a temperature rise after
defrosting has a permissible range in the
appliance specifications. If you wish to minimise
the impact this may have on the food storage due
to a temperature rise, seal or wrap the stored food
in several layers.
21
EN
Using Control Panel
Units and Functions
1
Icon Panel
••This shows the fridge and freezer target
temperatures.
••To display function settings, press any of the
buttons from 2 - 6 .
2
Express Freeze
••This sets Express Freeze functions.
3
Freezer Temperature
••This sets the freezer target temperature.
Replace
4
Door Alarm (Optional)
••This sets the alarm sound which is activated
when the appliance door is opened.
Pure N Fresh (Optional)
••This sets the Pure N Fresh function.
5
Fridge Temperature
••This sets the fridge target temperature.
6
Child Lock
••This locks the buttons on the control panel.
••The actual control panel may differ from model to model.
22
EN
Notes for Use the Control Panel
Setting the Temperature
• The control panel will turn on in any of the
following cases.
− When the power is turned on
− When a button is touched
− When the appliance door (fridge
compartment, freezer compartment, door in
door) is opened
• The control panel will turn off automatically for
energy saving in any of the following cases.
− When one minute has passed after turning on
the power
− When no button operation is carried out for
20 seconds after a desired button is pressed
− When 20 seconds has passed after the
appliance door (fridge compartment, freezer
compartment, door in door) is opened and
closed
• If there is any finger or skin contact to the
control panel while cleaning it, the button
function may operate.
This sets the fridge temperature or freezer
temperature.
• Press the Fridge button or Freezer button to
adjust the temperature.
• The temperature can be adjusted.
− Fridge: from 1 °C to 7 °C
− Freezer: from -14 °C to -24 °C
• The actual inner temperature varies depending
on the food status, as the indicated setting
temperature is a target temperature, not actual
temperature within the appliance.
NOTE
• The default temperature setting may vary
depending on the appliance.
• Wait until two or three hours have passed after
connecting the appliance to the outlet before
storing food in the appliance.
• The appliance can automatically detect
problems during the operation.
• If a problem is detected, the appliance does
not operate and an error code is displayed
even when any button is pressed.
• When this occurs, do not turn off the power
and immediately contact an LG Electronics
customer information centre. If you turn off
the power, the repair technician from the LG
Electronics customer information centre. It may
have difficulty finding the problem.
Setting Express Freeze
The function can quickly freeze a large amount
of ice or frozen foods.
• When you press the Express Freeze button,
the Express Freeze icon lights on the control
panel.
• The function is enabled and disabled in turn
each time you press the button.
• The Express Freeze function automatically
terminates after a specific period has passed.
23
EN
Setting and Resetting Lock
Icemaker (Optional)
This locks the buttons on the control panel.
This is where ice is manually produced and stored.
••When you press the Lock button for three
seconds, the Set/Reset icon on the control panel
lights. The function is enabled and disabled in turn
each time you press the button.
Making Ice
••If you press a button other than lock when the lock
is set, the button will not function.
••When you press a button other than lock when the
lock is set, the Set/Reset icon on the control panel
will flash 3 times.
<Type 1>
1
Hold the handle of ice tray and pull it out.
2
Fill the ice tray with water so that all the cubes
are equally full.
3
Place the ice tray back to its position carefully
not to spill water on the floor.
••To change a setting, first press the Lock button for
three seconds to disable the function.
Setting Pure N Fresh (Optional)
Bacteria and odor inside the appliance can be
minimized with the Pure N Fresh function. However,
the function is only effective for bacteria floating in
the appliance, not bacteria adsorbed onto food.
Setting Door Alarm (Optional)
This sets the alarm sound which is activated when
the appliance door is opened.
••When you press the Door Alarm button, the Door
Alarm icon lights and activates the alarm. The
function is enabled and disabled in turn each time
you press the button.
••Contact an LG Electronics customer information
centre if the alarm sound continues even after
closing the door.
CAUTION
••Be careful not to spill water when inserting the ice
tray after filling with water.
<Type 2>
Fill the icetray with water so that all the cubes are
equally full. And place it in the freezer compartment.
24
EN
Taking Out Ice
<Type 1>
1
Rotate the ice separation handle on the
icemaker clockwise.
NOTE
••Please note that ice may stick together if you
rotate the ice separation handle of the icemaker
before the water has completely frozen.
••It takes approximately three hours for water at the
temperature of -20 °C to be frozen completely.
••When placing the ice storage bin back to its
original position after using, make sure to check if
it is inserted all the way in.
2
Lift the ice storage bin slightly and remove.
••The proper storage amount of the ice storage bin
is the amount of ice made three times. If more
than the amount of ice made for three times is
stored, the ice storage bin may not come out and
will become stuck. Do not store more than three
ejected ice trays of ice in the ice storage bin.
Removing the Icemaker (Optional)
1
Hold both edges of the freezer door basket on
top of the icemaker and remove it by pulling it
up.
2
Hold both edges of ice tray compartment and
remove it by pulling it up.
<Type 2>
Hold the icetray at its ends and twist gently.
CAUTION
••If you open and close the freezer door frequently, it
may take longer for water to be frozen.
••The time for water to be frozen may vary
according to the season.Until 24 hours after initial
installation, the temperature inside the appliance
may not be stabilized so that it may take longer for
water to be frozen.
••Make sure to be careful as the edges of the
ejected ice may be sharp.
NOTE
CAUTION
••Remove in this order. Removing the ice tray first
may cause damage.
••When separating the icemaker, hold and remove it
properly to prevent the ice tray from falling off.
••If ice cannot be detached easily, rotate the ice
separation handle of the icemaker once again.
25
EN
Cleaning the Ice Tray (Optional)
Door in Door (Optional)
1
Press the lever on the lower edge door in door until
it opens.
Hold the handle of ice tray and pull it out to
remove.
There is plenty of storage space inside the door in
door and its surrounding baskets, allowing you to
store food in an organized manner.
2
After cleaning, remove it back to its original
position.
CAUTION
••When cleaning, wipe all components with a wet
towel except for the ice tray and dry them off
completely before using. Failure to do so may
cause malfunctions.
Removing the Case from the Door in
Door
Hold the case from inside the door in door with both
hands and remove it by lifting it upward.
Refitting the Door in Door Case
Mount them in the reverse order of the removal
process.
26
EN
Other Functions
Malfunction Detection
The appliance can automatically detect problems
during the operation.
••If a problem is detected, the appliance does not
operate and an error code is displayed even when
any button is pressed.
••When this occurs, do not turn off the power and
immediately contact an LG Electronics customer
information centre. If you turn off the power, the
repair technician from the LG Electronics customer
information centre. It may have difficulty finding the
problem.
27
SMART FUNCTIONS
Smart Diagnosis™ Through the
Customer Information Centre
Use this function if you need an accurate diagnosis
by an LG Electronics customer information center
when the appliance malfunctions or fails. Use this
function only to contact the service representative,
not during normal operation.
1
Press the Lock button to activate the lock
function.
••If the lock function has been activated already,
press the Lock button to deactivate the lock
function, and then press the Lock button again
to activate the lock function.
••Please note that the Smart Diagnosis function
will not operate until five minutes has passed
since the lock function was activated.
EN
NOTE
••Position the phone so that its microphone is
aligned with the speaker hole.
••The Smart Diagnosis™ sound is generated after
around three seconds.
••Do not take the phone off the speaker hole while
the data is transmitted.
••Hold the phone to the upper right speaker hole
and wait while the data is transmitted.
••The data transfer sound may be harsh to the
ear while the Smart Diagnosis™ data is being
transmitted, but do not take the phone off the
speaker hole for accurate diagnosis until the data
transfer sound has stopped.
••When the data transfer is complete, the transfer
completion message is displayed and the control
panel is automatically turned off and then on again
after a few seconds. After the customer information
centre explains the diagnosis result.
••The Smart Diagnosis™ function depends on the
local call quality.
••The communication performance will improve and
you can transmit a better signal if you use a land
line home phone.
2
Press and hold the Freezer button for three
seconds or longer while continuing to hold your
phone to the speaker.
3
Open the fridge door and then hold the phone on
the upper right speaker hole.
4
After the data transfer is complete, the service
agent will explain the result of the Smart
Diagnosis™.
28
••If the Smart Diagnosis™ data transfer is poor due
to poor call quality, you may not receive the best
Smart Diagnosis™ service.
MAINTENANCE
Notes for Cleaning
••When removing a shelf or drawer from inside
the appliance, remove all stored foods from the
shelf or drawer to prevent injury or damage to the
appliance.
−−Otherwise, injury may occur due to the weight of
stored foods.
EN
••Never clean the shelves or containers in the
dishwasher.
−−The parts may become deformed due to the
heat.
••If the appliance is equipped with an LED lamp,
do not remove lamp cover and LED lamp in any
attempt to repair or service it. Please, contact an
LG Electronics customer information centre.
••If cleaning the outside air vents of the appliance by
means of vacuuming, then the power cord should
be unplugged from the outlet to avoid any static
discharge that can damage the electronics or
cause an electric shock.
Replacing the Pure N Fresh
Filter (Optional)
••Detach the shelves and drawers and clean them
with water, and then dry them sufficiently, before
replacing them.
To maintain the performance of the Pure N Fresh
filter, if a message indicating the filter replacement is
displayed, replace the filter as soon as possible.
••Regularly wipe the door gaskets with a wet soft
towel.
1
••Door basket spills and stains should be cleaned as
they can compromise storage ability of the basket
and could even be damaged.
If Replace icon lights on the control panel,
replace the Pure N Fresh filter.
Replace
••After cleaning, check if the power cable is
damaged, warm or improperly plugged.
••Keep the air vents on the exterior of the appliance
clean.
−−Blocked air vents can cause fire or appliance
damage.
••Waxing external painted metal surfaces helps
provide rust protection. Do not wax plastic parts.
Wax painted metal surfaces at least twice a year
using appliance wax (or auto paste wax). Apply
wax with a clean, soft cloth.
2
Hold and remove the Pure N Fresh filter cover
by rotating it counterclockwise.
••For the appliance exterior, use a clean sponge or
soft cloth and a mild detergent in warm water. Do
not use abrasive or harsh cleaners. Dry thoroughly
with a soft cloth.
29
EN
3
Remove the filter inside the Pure N Fresh filter
cover and replace it with a new filter.
Cleaning the Door Basket
Removing the Fridge/Freezer Door
Basket
Hold both edges of the basket and remove it by
lifting it upward.
4
After replacing the filter, insert the Pure N Fresh
filter cover by rotating it clockwise.
Refitting the Fridge/Freezer Door
Basket
5
To reset the filter replacement period, press the
Pure N Fresh button on the control panel for
more than three seconds. The Replace icon on
the control panel will turn off.
6
It will operate after replacing the filter.
NOTE
••Do not insert your finger or other foreign objects
inside or its mounting. Doing so may result in
injuries or malfunctions.
••If the replacement period has passed, the bacteria
and odor removal performance may deteriorate.
••Please note that if you wash the filter with water,
the filter performance may also deteriorate.
••Caution should be taken not to change the
direction of the filter to be inserted into the filter
cover.
••When setting the appliance to On or Power mode
after replacing the filter, check if the LED lamp
near the filter is on.
••The filter can be purchased from an LG Electronics
customer information centre.
30
1
Hold both edges of the door basket, gently push
one edge to assemble, and then in the same
manner assemble the other edge.
2
After assembling, tap the door basket gently to
fix it horizontally.
EN
Cleaning the Shelf
Cleaning the Vegetable Drawer
Removing the Fridge/Freezer Shelf
Removing the Vegetable Drawer
Remove the shelf by pulling it out.
1
Remove the contents of the drawer. Hold the
handle of the vegetable drawer and pull it out
completely until it outward gently until it stops.
2
Lift the vegetable drawer up and remove it by
pulling it out.
Refitting the Fridge/Freezer Shelf
Remove the shelf by pulling it out while slightly lifting
the rear edge of the fridge shelf.
Refitting the Vegetable Drawer
1
If the vegetable drawer has a cover, lift it.
2
Insert the bottom of the vegetable drawer into its
original position and gently push it back in while
lowering it.
CAUTION
••Please note that injuries can be caused by
the weight of stored foods when removing the
vegetable drawer.
31
TROUBLESHOOTING
Symptoms
EN
Reason
Is there a power interruption?
There is no refrigeration
If the power plug unplugged from
or freezing.
the outlet?
Is the fridge or freezer
temperature set to its warmest
setting?
Solution
••Check the power of other appliances.
••Plug the power plug in the outlet
properly.
••Set the fridge or freezer temperature to
'Medium'.
Is the appliance in direct sunlight,
••Check the installation area and reinstall
or is it near a heat generating
it away from heat generating objects.
object such as cooking oven or
heater?
Did you store hot food without
There is poor
refrigeration or freezing. cooling it first?
••Cool the hot food first before putting it in
the fridge or freezer compartment.
Did you put in too much food?
••Maintain an appropriate space between
food.
Are the appliance doors
completely closed?
••Completely close the door and make
sure that stored food is not obstructing
in the door.
Is there enough space around the ••Adjust the installation position to make
appliance?
enough space around the appliance.
The appliance contains
a bad smell.
The inside lamp in the
appliance does not turn
on.
32
Is the fridge or freezer
temperature set to 'Warm'?
••Set the fridge or freezer temperature to
'Medium'.
Did you put in food with a strong
smell?
••Store foods with strong smells in a
sealed containers.
Vegetables or fruit may have
spoiled in the drawer?
••Throw away rotten vegetables and clean
the vegetable drawer. Do not store
vegetables too long in the vegetable
drawer.
Does the inside lamp in the
appliance turn off?
••It is hard for customers to replace the
inside lamp in the appliance as they
are not serviceable. If the inside lamp
does not turn on, please contact the LG
Electronics customer information centre.
EN
Symptoms
The appliance door is
not closed tightly.
It is difficult to open the
appliance door.
There is condensation
inside the appliance or
on the bottom of the
vegetable drawer cover.
Frosts has formed
in the freezer
compartment.
Reason
Solution
Is the appliance leaning forward?
••Adjust the front feet to raise the front
side slightly.
Were the shelves properly
assembled?
••Refit the shelves if needed.
Did you close the door with
excessive force?
••If you apply too much force or speed
when closing the door, it may remain
briefly open before closing. Make sure
that you do not slam the door closed.
Close without force.
Did you open the door right after
you closed it?
••If you try to open the appliance door
within one minute after you closed it,
you may have difficulties because of
the pressure inside the appliance. Try to
open the appliance door again in a few
minutes so that the internal pressure
stabilizes.
Did you store hot food without
cooling it first?
••Cool the hot food first before putting it in
the fridge or freezer compartment.
Did you leave the appliance door
open?
••Although the condensation will
disappear soon after you close the
appliance door, you can wipe it with a
dry cloth.
Do you open and close the
appliance door too frequently?
••Condensation can form due to the
temperature difference from the outside.
Wipe out the dampness with a dry cloth.
Did you put warm or moist food
inside without sealing it in a
container?
••Store food in a covered or sealed
container.
Doors may not be closed
properly?
••Check if the food item inside the
appliance is blocking the door and make
sure that the door is tightly closed.
Did you store hot food without
cooling it first?
••Cool the hot food first before putting it in
the fridge or freezer compartment.
33
EN
Symptoms
Frosts has formed
in the freezer
compartment.
Frost or condensation
has formed inside or
outside the appliance.
Reason
Is the air entry or exit of the
freezer compartment blocked?
Is the freezer compartment
overfilled?
••Maintain an appropriate space between
items.
Did you open and close the
appliance door frequently or is
the appliance door improperly
closed?
••Frosts or condensation can form if
the outside air penetrates inside the
appliance.
Is the installation environment
humid?
••Condensation can appear on the
exterior of the appliance if the
installation area is too humid or on a
humid day such as a rainy day. Wipe off
any moisture with a dry cloth.
Is the appliance installed on a
weak floor or improperly leveled?
••Install the appliance on a solid and flat
area.
Does the rear of the appliance
The appliance is noisy
touch the wall?
and generates abnormal
Are objects scattered behind the
sounds.
appliance?
The side or front of the
appliance is warm.
There is water inside
or outside of the
appliance.
34
Solution
••Make sure that air entry or exit is not
blocked so that the air can circulate
inside.
••Adjust the installation position to allow
enough clearance around the appliance.
••Remove the scattered objects from
behind the appliance.
Is there an object on top of the
appliance?
••Remove the object on top of the
appliance.
There are anti condensation
pipes fitted to these areas of the
appliance to reduce condensation
forming from around the door
area.
••The heat releasing pipe to prevent
condensation is installed on the front
and side of the appliance. You may
feel it particularly hot right after the
appliance is installed or during the
summer. You can be assured that this is
not a problem and is quite normal.
Is there water leakage around the
appliance?
••Check if the water has leaked from a
sink or another place.
Is there water on the bottom of
the appliance?
••Check if the water is from the thawed
frozen food or a broken or dropped
container.
EN
Symptoms
Clicking noises
Reason
Solution
The defrost control will click
when the automatic defrost cycle
begins and ends. The thermostat
••Normal Operation
control (or appliance control on
some models) will also click when
cycling on and off.
Rattling noises may come from
the flow of appliance, the water
line on the back of the unit (for
plumbed models only), or items
stored on top of or around the
appliance.
••Normal Operation
Appliance is not resting evenly
on the floor.
••Floor is weak or uneven or leveling
legs need to be adjusted. See the Door
Alignment section.
Appliance with linear compressor
was moved while operating.
••Normal operation. If the compressor
does not stop rattling after three
minutes, turn the power to the appliance
off and then on again.
Evaporator fan motor is
circulating air through the fridge
and freezer compartments.
••Normal Operation
Air is being forced over the
condenser by the condenser fan.
••Normal Operation
Gurgling noises
Appliance flowing through the
cooling system
••Normal Operation
Popping noises
Contraction and expansion of the
inside walls due to changes in
temperature.
••Normal Operation
Vibrating
If the side or back of the
appliance is touching a cabinet
or wall, some of the normal
vibrations may make an audible
sound.
••To eliminate the noise, make sure that
the sides and back do not make any
contact with any wall or cabinet.
Rattling noises
Whooshing noises
35
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
