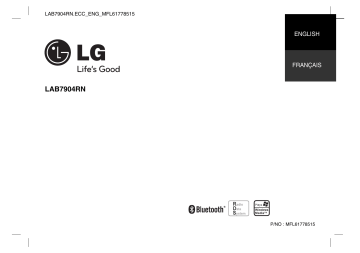

LAB7904RN.ECC_ENG_MFL61778515

LAB7904RN

ENGLISH

FRANÇAIS

P/NO : MFL61778515

7

Table of Contents

3

4

5

6

Safety Note

Front Panel

Basic operation

Mute

Using the EQ

Adjusting the sound level

XDSS+(Extreme Dynamic Sound System)

Checking the clock

Setting the clock

Listening to a CD

Pause or restart a CD

Search for a section within a track / file

Skip to another track / file

Intro scan

Repeat

Shuffle

MP3/WMA Track -10 / +10

MP3/WMA Folder UP/DOWN

Checking information about your music

Listening to the radio

Auto search memory

Storing and recalling broadcast frequencies

To scan the preset stations

To tune in the preset stations

Listening RDS broadcasting

Connecting USB device

8

Connecting an Auxiliary Equipment

Changing settings

9-10

Connecting a Bluetooth wireless technology

Disconnecting a phone

Answering and Ending a call

Rejecting a call

Making a call saved preset number

Missed call notification

Audio transfer

Making a call from the latest call

Paring your unit and device with Bluetooth wireless technology

Playing MP3 files

Storing a call number in last answered

11

Bluetooth wireless technology profiles information

The buttons with bluetooth wireless technology

Adjusting the setting (Bluetooth wireless technology)

12-13

Phone compatibility list (Bluetooth wireless technology)

14

Troubleshooting

15

Specifications

This product is manufactured to comply with Directive

2006/28/EEC(ANNEX I , 3.2.9), 72/245/EEC, 99/5/EC and

2006/95/EC.

European representative:

LG Electronics Service Europe B.V.

Veluwezoom 15, 1327 AE Almere, The Netherlands

(Tel : +31-036-547-8940)

You have to set the disc format option to [Mastered] in order to make the discs compatible with the players when formatting rewritable discs.

When setting the option to Live File System, you cannot use it on the players.

(Mastered/Live File System : Disc format system for Windows Vista)

2

CAR CD/MP3/WMA Receiver

Safety Note

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION : TO REDUCE THE RISK OF ELECTRIC

SHOCK DO NOT SPLIT COVER(OR BACK) NO USER

SERVICEABLE PARTS INSIDE. REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL.

This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

Always operate the vehicle in a safe manner.

Do not become distracted by the vehicle while driving, and always be fully aware of all driving condition. Do not change settings, or any functions.

Pull over in a safe and legal manner before attempting such operations.

Do not use for many hours at extremely low or high temperature.

(-10~60

°

C)

To reduce the risk of electric shock, do not remove the cover or back of this product. There are no user-serviceable parts inside.

Refer servicing to qualified service personnel.

To reduce the risk of fire or electric shock, do not expose this product to dripping or splashing water, rain, or moisture.

The temperature of unit’s outside can be extremely high, please use the unit after proper installation in your vehicle.

CAUTION :

This product uses a Laser System.

To ensure proper use of this product, please read this owner’s manual carefully and retain it for future reference.

Should the unit require maintenance, contact an authorized service center. Performing controls, adjustments, or carrying out procedures other than those specified herein may result in hazardous radiation exposure.

To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation when open. DO NOT STARE INTO BEAM.

This device is equipped with a portable battery or accumulator.

Safe way to remove the battery or the battery from the equipment:

Remove the old battery or battery pack, follow the steps in reverse order than the assembly. To prevent contamination of the environment and bring on possible threat to human and animal health, the old battery or the battery put it in the appropriate container at designated collection points. Do not dispose of batteries or battery together with other waste. It is recommended that you use local, free reimbursement systems batteries and accumulators.

The battery shall not be exposed to excessive heat such as sunshine, fire or the like.

Disposal of your old appliance

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.

2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.

3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.

4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.

8 cm

This unit cannot play 8cm disc (use 12cm disc only).

Caution

When being connected in a wrong way, the unit displays as follows.

- Antenna port short : “

ANTENNA ON PORT SHORT CIRCUIT CHECK

After connecting it again, restart the unit.

CAR CD/MP3/WMA Receiver

3

Front Panel

1 CD slot

2 SOURCE [

SRC

]

3 Bluetooth wireless technology[

B/T

]

4 [

SEL

]/[

MENU

]

5 [

BAND

]

/[DRIVE]

6 • Volume

• [

MUTE

]

• Power [

PWR

]

• ENTER

7 Reset hole

8 • Play/Pause B/X

• Intro Scan

[SCAN]

• Repeat [

RPT

]

• Shuffle

[SHF]

• Preset Station [

1~6

]

4

CAR CD/MP3/WMA Receiver

9 Display window

10 Eject Z

• Programme Type

[PTY]

12 • Equalizer

[EQ]

• Extreme Dynamic Sound System [

XDSS

]

13 Display [

DISP

]

14 USB slot

15 • Auto Store [

AS

]

• Preset Scan [

PS

]

• MP3/WMA Track +10/-10

• Folder Up/Down

• Skip / Search / Seek / Tune / ?b

-

+

B?

16 AUX in

Basic Operation

1. Turn the unit on.

2. Select a source.

3. Adjust the volume.

ON PLAYER

PWR

SRC

Rotate PWR

Adjusting the sound level

Press

SEL/MENU

repeatedly to select the mode you want to adjust from

VOL(volume), BAL(left/right speaker), FAD(front/rear speaker) and SUB(Subwoofer:optional). To adjust sound quality, rotate

PWR

.

Note

When EQ and XDSS+ is set to “Off”, you can also adjust the sound level

(BAS(bass), MID(middle), TRB(treble)) settings.

Basic operation - more you can do

Mute

Press

PWR/MUTE

to cut the sound. To cancel it, press again.

Using the EQ

EQ is to increase or decrease the signal strength of audio frequencies. The function helps you to enjoy sound more plentifully. Press

EQ/XDSS

repeatedly. The indicator lights up in the following order.

POP t CLASSIC t ROCK t JAZZ t VOCAL t SALSA t SAMBA t

REGGAE t

RUSSY t

USER1 t

USER2 t

Off (not displayed)

Note

When XDSS+ is set to “Off”, you can adjust the EQ settings.

• You can adjust sound level to your preference. Once you select a USER mode and then adjust the sound level, it will be automatically stored for the currently selected USER mode. Refer to the “Adjusting the sound level” for

USER 1/2 mode.

XDSS+

(Extreme Dynamic Sound System)

Press and hold

EQ/XDSS . (

XDSS+ : Improves the treble, bass sound.) To cancel it, press and hold it again.

Checking the clock

You can see the clock pressing

DISP

.

Setting the clock

When RDS CT information is not received and then you set CT on the setting menu to OFF, you can adjust the time by yourself.

Refer to the page 8 for setting the CT(Clock Time) ON/OFF.

1 Press the

DISP

and then, press and hold it for more 1 second.

2 Press the ?b

to adjust the hour.

3 Press the

+

B?

to adjust the minute.

4 Press

DISP

again to finish the setting.

CAR CD/MP3/WMA Receiver

5

Listening to a CD

1. Insert a CD.

2. Adjust the volume.

ON PLAYER

-

Rotate PWR

Shuffle

Press or press and hold

SHF

on the player. Each files in the current selected folder (

SHF

) or all of the tracks/files (

SHF

) on the disc is played randomly.

Press

SHF

again to cancel it.

Note

During random playback, if you press ?b

, you won’t go back to the previous track.

Listening to a CD - more you can do

MP3/WMA Track -10 / +10

(If there is no folder or one folder.) During playback press

PS

to go back 10 tracks, or press

AS

to go forward 10 tracks.

Pause or restart a CD

Press

B/X on the player during playback. Press this button again to resume play.

Search for a section within a track / file

Press and hold ?b

/

+

B?

on the player for about 1 second during playback and then release at the point you want.

MP3/WMA Folder UP/DOWN

(If there are more than two folders.) During playback, press previous folder, or press

AS

to go forward to the next folder.

PS

to go back to the

Skip to another track / file

Press

?b

/

+

B?

on the player. To skip to previous track, press briefly

?b

within 3 seconds of playing time.

Intro scan

Press or press and hold

SCAN

on the player. Each files in the current selected folder (

INT

) or the first 10 seconds of each tracks/files (

INT

) on the disc are played. To cancel it, press the button again.

Repeat

Press or press and hold

RPT

on the player. The current selected tracks/files (

1

RPT

) or folder ( the button again.

RPT

) on the disc is played repeatedly. To cancel it, press

Checking information about your music

MP3/WMA files often come with tags. The tag gives the Title, Artist or Album.

Press

DISP

repeatedly during MP3/WMA/CD TEXT file playback. If there is no information, “NO TEXT” will be shown in the display window.

Note

: The icon is displayed during MP3/WMA playback.

• MP3/WMA Disc compatibility with this unit is limited as follows:

1. Sampling Frequency / 8 - 48kHz (MP3) 22.05 - 48kHz (WMA)

2. Bit rate / within 8 - 320kbps (include VBR) (MP3) 32 -320kbps (WMA)

3. CD-R/CD-RW file system should be “ISO 9660”

4. If you record MP3/WMA files using software which cannot create a FILE

SYSTEM, for example “Direct-CD” etc., it will not be possible to playback

MP3/WMA files. We recommend that you use “Easy-CD Creator” which creates an ISO9660 file system.

Customers should also note that permission is required in order to download MP3/WMA files and music from the Internet. Our company has no right to grant such permission. Permission should always be sought from the copyright owner.

6

CAR CD/MP3/WMA Receiver

Listening to the radio

1. Select a source to tuner.

2. Select a band.

3. Auto seek.

Manual seek.

ON PLAYER

SRC

BAND

?b

-

/

+

B?

Press and hold

?b

-

/

+

B?

Listening RDS broadcasting

1. Select a source to tuner.

2. Select a band to FM.

3. Select a programme types.

4. Select a station in PTY type.

ON PLAYER

SRC

BAND

Press and hold TA/PTY

1-6

Listening to the radio - more you can do

Auto search memory

Press

AS

. The six strongest broadcast frequencies will be stored under preset button 1-6 in the order of their signal strength. To cancel, press

AS

.

Storing and recalling broadcast frequencies

1 Press

BAND

to select desired band you want to store.

2 Select the desired frequency and press one of preset buttons 1-6 and hold until the beep sound.

3 Repeat steps 1-2 to preset other stations.The next time, you press the same preset button, the radio station frequency is recalled from the memory.

RDS broadcasting information.

Press and hold the

TA/PTY

repeatedly for selecting each mode.

Music group t

Speech Group t

Search off

NO. MUSIC GROUP

1.

POP M, ROCK M

2.

EASY M, LIGHT M.

3.

CLASSICS, OTHER M

4.

JAZZ, COUNTRY

5.

NATION M, OLDIES

6.

FOLK M

NO. SPEECH GROUP

1.

NEWS, AFFAIRS, INFO

2.

SPORT, EDUCATE, DRAMA

3.

CULTURE, SCIENCE, VARIED

4.

WEATHER, FINANCE, CHILDREN

5.

SOCIAL, RELIGION, PHONE IN

6.

TRAVEL, LEISURE, DOCUMENT

To scan the preset stations

Press

PS

. Each preset station appears. To cancel, press

PS

.

To tune in the preset stations

Press

BAND

to select the desired band and press the desired preset button 1-6.

Note

When a station is stored on the preset numbers on which another station of the same band has already been preset, the previously preset station is automatically erased.

Connecting USB device

1. Open the USB cover.

2. Connect the USB device.

3. Adjust the volume.

ON PLAYER

-

-

Rotate PWR

Moving to another drive

When connecting this unit to multi reader, press

BAND

to go to the next drive.

Each time you press the button, the driver modes changes.

Note

If the USB device is already connected, press

SRC

to select a source to USB.

Pause / Intro Scan / Repeat / Shuffle / ... functions are same with “Listening to a CD - more you can do”. Refer to the page 6.

CAR CD/MP3/WMA Receiver

7

Connecting an Auxiliary Equipment

1. Connect an auxiliary equipment to the AUX jack with line input cable.

2. Select a source to AUX.

3. Play the connected Auxiliary

Equipment.

4. Adjust the volume.

ON PLAYER

-

SRC

-

Rotate PWR

Changing settings

1. Select one item.

2. Select a source.

3. Finish the setting .

ON PLAYER

Press and hold

SEL/MENU

Rotate PWR

Press and hold

SEL/MENU

AF(Alternative frequency) ON / OFF

When the reception quality drops, the tuner automatically changes to another station in the network, broadcasting a better reception quality, using the PI and AF codes.

REG (Region) ON / OFF

REG ON : The unit switches to another station, within the same network, broadcasting the same program when the receiving signals from the current station become weak.

REG OFF : The unit switches to another station, within the same network when the receiving signals from the current station become weak. (This mode, the program may differ from the one currently received.)

TA(Traffic Announcement) ALARM / SEEK

TA ALARM : When the tuned station has no TP information for 5 seconds, a double beep sound is output.

TA SEEK : When the tuned station does not receive TP information for 5 seconds, the receiver retunes to the next station that has the TP information.

8

CAR CD/MP3/WMA Receiver

PI (Programme Identification) SOUND / MUTE

PI SOUND : If the sound of a station with different PI is heard intermittently, the receiver mutes the sound after 1 second.

PI MUTE : If the sound of a station with different PI is heard intermittently, the receiver mutes the sound right now.

C-T(Clock Time) ON/OFF

You can use the RDS CT information to update the time. When RDS CT information is not received and then you set CT to OFF, you can adjust the time by yourself. Refer to the page 5 for setting the clock.

AUX (Auxiliary) ON / OFF

It is possible to use auxiliary equipment with this unit. Activate the auxiliary setting when using auxiliary equipment connected to this unit.

AUX (Auxiliary) 00dB / +6dB

Only when you set AUX to ON as switching sources, you can adjust the volume level of each source to prevent radical changes in volume.

You can set to 0 dB or +6 dB. You may be surprised at a loud sound when you change the source from the external component to another source.

DEMO OFF/ ON

You can change the initial indication on the display to information name (function name, EQ name, etc...) while listening to a source.

LCD WHI / RED

You can change the LCD window color. WHI(white) <-> RED(red)

LED RED / GRN / AUTO: You can change the button color.

COL TM (Color changing time)

Only when you set LED to AUTO, you can set LED color changing time from

5 to 60 seconds.

SW(Subwoofer) OFF / SW 55HZ / SW 85HZ / SW 120 HZ

You can enable the subwoofer. SW OFF <-> SW 55HZ <-> SW 85HZ <-> SW 120 HZ .

DIM(Dimmer) OFF / ON / AUTO

You can change the brightness of the display window during the power-on status. When you set DIMMER to AUTO, the dimmer operates according to the car dimmer setting.

DIM L (Dimmer Level)

When you set DIM to ON/AUTO, you can adjust the dimmer level. (-2,-1,0,+1,+2)

A-EQ(Auto EQ) ON/OFF

AUTO EQ operates only in the music file supported with Genre in the device.

When you set AUTO EQ to ON, POP, CLASSIC, ROCK, or JAZZ is automatically selected according to the music genre.

BEEP 2ND / ALL

BEEP 2ND : The beep is generated when a key is long pressed. (1 sec)

BEEP ALL : The beep is generated when any key is pressed.

Connecting a Bluetooth wireless technology

Before you start the pairing procedure, make sure the Bluetooth wireless technology is turned on in to your phone. Refer to your phone’s user guide. Pairing links your unit and phone with

Bluetooth wireless technology, and is required only once for the initial setup. If the connection is successful, the phone is registered (Device 1–5) and the flashing of indicator stops on the unit. The process of pairing may be different depend on the phones. The PIN CODE is 1234.

1. Enter the menu.

2. Find the “CONNECTION” menu.

3. Search the phones supported Bluetooth wireless technology.

4. Select a phone you want to connect.

5. Connect the phone.

6. Select the “CONNECT” menu.

ON PLAYER

B/T

Rotate PWR

Press PWR

Rotate PWR

Press PWR

Press PWR

Using a Bluetooth wireless technology - more you can do

Disconnecting a phone.

Refer to page 11. Go to the menu (B/T -> CONNECTION -> Connected device name -> DISCONNECT)

Answering and Ending a call.

When your unit rings, press

B/T

to answer a call. To end a call, press and hold

B/T

.

Rejecting a call

When your unit rings, press and hold

B/T

.

Making a call saved preset number

Press

B/T

and preset number (1~6).

Missed call notification

When an incoming call is not answered, the missed call message is displayed on the display window (without headset profile). When the “ ” appears, go to the menu (B/T -> CALL -> MISSED). You can check the list of missed call. To place a call, press B/T. And to end the call and hang up the phone, press and hold

B/T

.

Audio transfer

It is possible to switch the audio connection between your phone equipped with

Bluetooth wireless technology and this unit.

1 Press

B/T

to answer the call.

2 Press

B/T

again. The “Private” is displayed.

If the private mode is selected on the unit, press

B/T

to return to the call to hands-free mode.

Making a call from the latest call

The lists are sorted from newest to oldest entries. Your unit keeps recorded of your recently received and dialed on phone. Refer to the page 11.

Note

• When you want to make an international call, press

+

B?

to add “+” and to delete it press again.

• “+” can only be added when the detail list of Missed call, Dialled call or

Received call is selected.

• Rejecting a call / Making a call saved preset number / Missed call notification

(These features are only available on phones with Headset profile.)

CAR CD/MP3/WMA Receiver

9

Paring your unit and device with Bluetooth wireless technology

(MP3 Player, MP3 Phone...)

When you activate your Bluetooth device’s linked unit, you can listen to MP3 with wireless connections. The method of use for a Bluetooth device is the same as when using a Bluetooth phone. Refer to the phone’s user guide for using this function.

The buttons with bluetooth wireless technology

1

Playing MP3 files

When you turn Bluetooth on, your device supported Bluetooth wireless technology displays “Bluetooth” on the home screen. The Bluetooth remains on until you turn the device off. Press

SRC

repeatedly to select “BT Music”. To play an MP3 file stored on your device. Refer to the phone’s user guide for using this function.

Storing a call number in last answered.

You can easily store up to 6 phone numbers and laster recall with the press the button. Refer to the page 9. Go to the menu (CALL -> RECEIVED -> Rotate

PWR

the phone number you want to save -> SAVE -> select 1~6).

Bluetooth wireless technology profiles information.

In order to use Bluetooth wireless technology, devices must be able to interpret certain profiles. This unit is compatible with following profiles.

GAP

(Generic Access Profile)

HFP

(Hands Free Profile)

HSP

(Hands Set Profile)

GAVDP

(Generic Audio/Video Distribution Profile)

A2DP

(Advanced Audio Distribution Profile)

AVRCP

(Audio/Video Distribution Remote Control Profile)

OPP

(Object Push Profile)

2

1

B/T

: Press it to enter B/T setting.

2

• Press

PWR

: Go to the next contents of the setting.

• Rotate

PWR

: Move the contents vertically on the or choose a spell when you write the words on the unit.

3

• ?b

- : Press it to delete a spell or go back previous contents. Press more 1 second to delete all words entered on display when you write some words on the unit.

+

B?

: When you write some words on the unit, press it to move next space on display.

3

10

CAR CD/MP3/WMA Receiver

Adjusting the setting.

( Bluetooth wireless technology)

B/T CALL

PHONEBOOK

CONNECTION

SETUP

BT INFO

RECEIVED

DIALED

MISSED

PRESET

REDIAL

DIAL

LIST

SEARCH

GET (ADD)

Connected

Device

Name

VISIBILITY

AUTO CONN

AUTO

ANSWER

MIC VOLUME

NAME

PIN-1234

ADDRESS

RECEIVED/DIALED/MISSED Phone number list.

To call the phone number, select the phone number and press

B/T.

To save it, select the phone number and press

PWR

. “SAVE” will be shown. Press

PWR

again. Rotate

PWR

to select a preset number(1~6). Press

PWR

again. The phone number be saved.

PRESET : Checking and deleting the phone number saved preset number. To delete the phone number, select the preset number by rotating

PWR

. And then press

PWR

. Press

PWR

again when the “DELETE” is displayed.

REDIAL : Adjusting the counts of redial. (1 TIME <-> 2 TIMES.)

DIAL : Entering the number directly on the unit. To select the 1~10 rotate the volume.

Press

+

B?

to make the phone number. To call it, Press

B/T

.

LIST : Checking the list of the phone numbers saved by phonebook.

Searching the phone number in the list. (English and Russian only)

Press

+

B?

more 1 second to change the languages between Russian and English.

GET : Getting the Phonebook from the phone automatically.

(This menu is only available with phones supported this function.)

ADD (Under disconnection) : PHONEBOOK -> ADD-> Press PWR -> “000/500” will be displayed. Then send the phonebook data from your phone. Depend on your phone, the sending process is different. Refer to your phone’s guide.

Connected Device Name will be displayed.

When the unit is not under connection, you can search the phones available to connect.

Select the register in the Connection contents.

VISIBILITY : You can make it is impossible to search this unit. (SHOWN <-> HIDDEN)

AUTO CONN : Adjusting connection with automatically or not. (ON <-> OFF)

AUTO ANSWER : You can adjust answering automatically or not. (ON <-> OFF)

MIC VOLUME : Adjusting microphone volume on the phone from 1 to 5. While you are on the phone with bluetooth wireless technology, rotate

PWR

to adjust the MIC volume.

NAME : Changing the name of this unit.

PIN code : Changing the PIN code. Default is 1234.

ADDRESS : Checking the address.

CAR CD/MP3/WMA Receiver

11

Phone compatibility list

( Bluetooth wireless technology)

Bluetooth list and manufacturing company applicable.

H

: Handsfree

A

: Audio Streming (A2DP)

P

: Phonebook Sync (GET)

V

: Object Push(Vcard, ADD)

Company

Nokia

List

3230

3250

3650

5300

6021

6103

6120

6131

6230

6270

6280

6600

6630

6650

6670

6680

6681

6820

7370

7380

7610

7650

7600

7610

7650

8600

8800

9500

3650 (Italy)

5500 SPORT

6230i

6820a

7500prism

7650 (Italy)

8910i

9300i

E50

E60

E61

E62

E70

O

O

O

O

O

O

O

H A

O

O

O

O O

O

O

O O

O

O

O

O

O

O

O

O

O

O

O

O

O O

O

O

O

O O

O O

O

O

O

O

O

O O

P V

O

O

O O

O O

O

O

O

O

O

O

O

O

O

O

O

O O

O O

O O

O O

O

O

O

O

O O

O

O O

O

O

O O

O

O

O

O O

O

O

O

Company

Nokia

Motorola A1000

A780

E1000

E1070

E398

E550

E680

E680i

KRZR K1

L72

RAZR V3

RAZR V3i

RIZR Z8

ROKR E2

ROKR E6

SLVR L7

U6

V195

V360

V3X

V500

V525

V600

List

N70

N71

N73

N77

N80

N90

N91

N92

N93

N95

N-Gage

N-Gage QD

H

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

A

O

O

O

O

O

O

P

O

O O

O

O

O O

O O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

V

O

O

O

O

Company List

SONY K610i

ERICSSON K618i

K700i

K750i

K770i

K800i

M600i

P990i

S500i

S700i

T610

T618

T628

T68i

V600

V800

W550i

W710i

W800i

W810i

W850i

Z1010

Z600

Z608

SAMSUNG D500

D600

D820

D900

E770

E900 i600

T509

X820

Z540V

12

CAR CD/MP3/WMA Receiver

P V

O O

O

O

O O

O

O O

O O

O O

O O

O

O O

O O

O O

O O

O

O O

O O

O O

O O

O O

O O

O O

O O

O O

H A

O O

O O

O

O

O O

O O

O O

O O

O O

O

O

O

O

O

O

O

O

O O

O

O

O O

O

O

O

O

O O

O O

O O

O O

O

O O

O

O O

O

O O

O

O

O

O

O

O

O

O

O

Bluetooth list and manufacturing company applicable.

Company

SIEMENS

BLACK

BERRY

HP

PALM

List

EF81

S55

S65

S88

SK65

SL75

SX1

SXG75

H

8100(PEARL) O

8800 O

8707v O

A

O

O

O

O

O

O O

O

O

HW6915

Treo750v

O

O O

P V

O O

O

O

O

O

O

O

O O

H

: Handsfree

A

: Audio Streming (A2DP)

O O

O O

Company

LG

P

: Phonebook Sync (GET)

V

: Object Push(Vcard, ADD)

P List H

CU500

KE970

KG245

KG800

U880

U890

KF600

KE850 PRADA O

KG290 O

KE500

KM500

O

O

O

O

O

O

O

O

O

KU990 VIEWTY O

KU580 O

KU970 O

KU960

U370

O

O

O

O

O

O

O

O

O

O

O

A

O

O

O

O

O

O

O

O

O

O

V

O

O

O

O

O

O

Company

PHILIPS

SHARP

I-MATE

PANTECH

NEC

SAGEM

Note

1. When the phone features <Bluetooth Power Save> function, you should make the function turned on to maintain connection.

2. When you switch the call mode from handsfree to phone, the connection may e disconnected.

3. Some phones don’t support Reject function.

4. Low battery in phone may cause the problems.

List H A

KE770 O O

M4410 O

O2 Xda Atom O O

GX15

GX25

O

O

K-JAM

PG6200

N750

N930

MYX6-2

O

O

O

O

O

O

P V

O

O

O

O

O

O

“The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by LG Electronics is under license. Other trademarks and trade names are those of their respective owners.”

Bluetooth ® wireless technology is a system which allows radio contact between electronic devices within a max. range of 10 meters.

Connecting individual devices under Bluetooth ® wireless technology does not incur any charges. A mobile phone with Bluetooth ® wireless technology can be operated via the Cascade if the connection was made via Bluetooth ® wireless technology.

Operating condition for using a Bluetooth wireless technology function

- Close windscreen.

- Turn off the air conditioner/ heater.

- Stop the vehicle or drive at low speed.

- Make the call in a quiet location.

• There may be differences in call quality depending on phone type, road conditions weather, etc.

• Using the phone while driving may cause unexpected accidents.

• The Bluetooth wireless technology function may not operate properly with certain types of phones equipped with Bluetooth wireless technology.

CAR CD/MP3/WMA Receiver

13

Troubleshooting

General

CD

Radio

Symptom

Power doesn’t turn on / The unit doesn’t operate.

Cause

Leads and connectors are not properly.

The fuse is blown.

No sound is heard / The volume level will not rise.

There’s audio skipping.

The playback is not possi ble.

Radio stations cannot be tuned in.

Noise and other factors are causing the builtin microprocessor to operate incorrectly.

Cables are not connected correctly.

This unit is not firmly secured.

The disc is dirty.

The loaded disc is of a type this unit cannot play.

The signal strength of the stations is too weak(when tuning in with automatic tuning.)

No station has been preset or preset stations have been cleared(when tuning by scanning preset stations.)

Correction

Confirm once more that all connections are correct.

Rectify the problem that caused the fuse to blow, and then replace it. Be very sure to install the correct fuse with the same rate.

Turn the unit off and then on.

Connect the cables correctly.

Secure this unit firmly.

Clean the disc.

Check what type the disc.

Tune in the stations manually.

Preset the stations.(Refer to the page 7)

14

CAR CD/MP3/WMA Receiver

Specifications

General

Output Power

Power Source

Speaker impedance

Ground System

Dimensions (W x H x D)

Net Weight

Tuner

FM

Frequency Range

S/N Ratio

53 W x 4 CH (Max.)

DC 12V

4

Ω

Negative

188 x 100 x 186 mm

1.59 kg

87.5-107.9, 87.5-108

55 dB

Usable Sensitivity

AM (MW)

Frequency Range

S/N Ratio

Distortion

Usable Sensitivity

12 dBµV

520-1720 or 522-1620 kHz

50 dB

1.0 %

28 dBµV

CD

Frequency Response 20 Hz-20 kHz

S/N Ratio

Distortion

80 dB

0.12 %

Channel Separation (1kHz) 55 dB

AUX

Frequency Response

S/N Ratio

Distortion

20 Hz-20 kHz

80 dB

0.1 %

Channel Separation (1kHz) 45 dB

Max Input Level (1kHz) 1.1 V

Bluetooth

TX POWER

Frequency Range

Version

USB

Version

4 dBm

2402 ~ 2480MHz

Bluetooth Specification 2.0 + EDR

USB 1.1

Line OUT

Subwoofer (optional)

Frequency Response

Output Volatage

Line out

Frequency Response

Output Volatage

20 Hz - 120 Hz

1.8 V (Max.)

20Hz - 20 kHz

1.8 V (Max.)

Designs and specifications are subject to change without notice.

CAR CD/MP3/WMA Receiver

15

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
