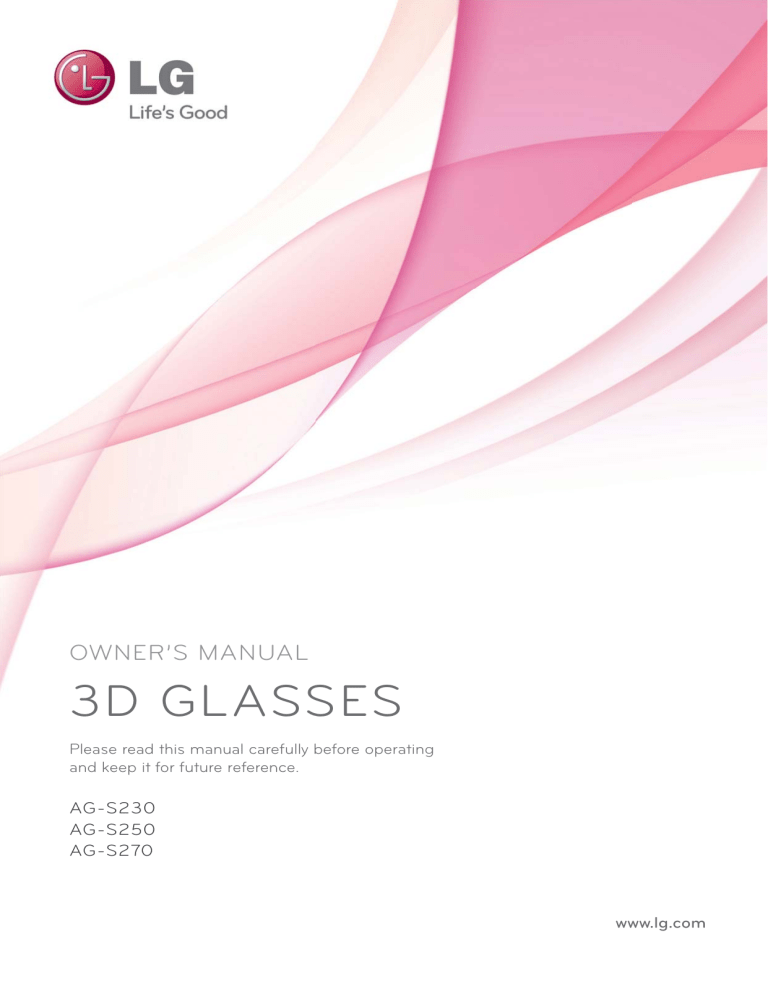

OWNER’S MANUAL
3D GLASSES
Please read this manual carefully before operating
and keep it for future reference.
AG-S230
AG-S250
AG-S270
www.lg.com
CAUTION
10
Do not spray cleaner directly onto the surface
of the product.
This may result in discoloration and
cracks and may cause the screen display
to peel off.
11
Do not let water come into contact with the
product when cleaning it. Ensure that water
does not enter the product.
This may result in electric shock or fire.
12
Since the lens of the product is easily
scratched, make sure to clean the product
with a soft cloth.
As the product may be scratched if there
is any foreign material on the cloth, make
sure to shake off any dust before using it.
13
Do not scratch the surface of the Liquid
crystal shutters with a sharp tool and do
not clean it using chemicals.
14
Do not apply force to the 3D Glasses’ Lenses.
Do not drop or bend the product.
15
When watching 3D video, ensure that you
are viewing the video within the specified
receiving range. (For more information, please
refer to the user manual of the TV or the
PROJECTOR.)
If the receiving range is out of the
specified range, the screen may not be
viewable as 3D video.
16
The following people should not use this
product: Pregnant women, infirm persons,
persons with heart issues, as well as persons
that become nauseous easily.
People with these conditions should not
use this product.
Flickering may be generated by the 3D
glasses (60 Hz) when watching the 3D
screen when a magnetic fluorescent lamp
(50 Hz) is on.
If you encounter this symptom, please turn
off the light and continue watching.
17
The 3D glasses are a wireless communications
device that use the 2.4GHz frequency band
and may be interfered by devices, such as the
microwave oven or the wireless LAN.
Wireless performance may also be interfered
when there is a physical barrier between the 3D
glasses and the 3D TV or PROJECTOR.
When watching 3D video, do not place
anything nearby that can be easily broken.
You may mistake a 3D image for an actual
object and move your body, causing you to
break nearby objects and hurt yourself.
18
Children should be closely supervised when
using the 3D glasses and should stop using
them in the cases of fatigue, twitching of the
eye or face muscles, or other involuntary movements.
19
If adults wear the 3D glasses for children (AGS230), this may cause damage to the device.
20
Using 3D glasses may cause minor inconveniences. If you are wearing your regular glasses,
adjust the nose pad of the 3D glasses up 90
degrees before wearing.
Please read these safety instructions carefully to ensure your personal safety and to prevent damage.
1
2
3
4
5
6
7
8
9
2
If you experience difficulty while viewing 3D
images with the 3D glasses, you may have
some problems with your eyesight.
You may experience headaches or fatigue
when viewing 3D images through the glasses
for too long.
If you experience headaches, •• fatigue, or
dizziness, stop watching immediately.
Do not drop objects onto the product or
import force to the product.
This may result in electric shock or fire.
Do not use your product near a humidifier or
kitchen counter.
This may result in electric shock or fire.
Do not disassemble, repair or modify the
product or its parts.
Failing to do so may result in damage to the
product or a malfunction.
The product may be easily taken off after
putting on for some people.
Use this product for watching 3D video only.
Do not use it for any other purpose.
Do not use the 3D Glasses as sunglasses
or reading glasses.
FEATURES
■
■
■
AG-S230/S250/S270 are 3D glasses using RF(2.4GHz) wireless communication.
If the device is connected to the TV or PROJECTOR that supports the RF glasses, you can enjoy the vivid
3D images.
You can enjoy movies or pictures made as 3D.
ACCESSORIES
ENGLISH
3D Glasses
8-pin mini USB
cable
Manual CD
Quick Start
Guide
Pouches
! NOTE ▶ The accessories represented in this manual may differ from the actual appearances.
PART NAMES
Nose Pad
Nose Pad
Power Button
3D Glasses’ Lenses
AG-S270 (Made of Metal)
AG-S250 (For Audlts)
AG-S230 (For Children)
3D Glasses’ Lenses
Power Button
LED indicator
LED indicator
Nose Pad
USB port (charging port)
8-pin mini USB cable
USB port (charging port)
8-pin mini USB cable
Power Button
3D Glasses’
Lenses
LED indicator
USB port (charging port)
8-pin mini USB cable
USING 3D GLASSES
Button Operation
LED Indication
Power On
Press the Power button once.
The red LED blinks once.
Power Off
Press and hold down the Power button (2 second The red LED blinks three times.
~3 second)
Auto Off*1
The device is automatically switched off if there is The red LED blinks three times.
no 3D signal for more than one minute.
Battery
(Lithium polymer)
discharge
-
If the battery is discharged, the LED blinks for 1
minute and turns off automatically.
* When charging is completed, the LED is lit green.
How to connect the
glasses
-
When initially switched on, the device will
a u to m a t i c a l l y b e c o n n e c te d to t h e T V o r
PROJECTOR with the strongest signal.
Press the power button for over eight seconds.
Release the button when the green LED light
turns on. Then, you will see the green light blink
three times before the device is switched off. If
you switch the power on again, the glasses will
be connected to the TV or PROJECTOR with the
strongest signal.
How to 2re-connect the
glasses*
*1
The Auto Off function automatically switches the power off when the glasses lose signal from the TV or the PROJECTOR.
This may occur when the distance or angle between the device and the TV or PROJECTOR are out of range; when there is a barrier
between the two devices; or when the device is switched from 3D to 2D mode.
*2
The device recognizes the unique ID of the TV or PROJECTOR to which it is connected. Thus, IDs of other TVs or PROJECTORs are
not recognized by the device. If you wish to re-connect the device to other TVs or PROJECTORs, please see “How to re-connect the
glasses”. (see how to use the 3D glasses)
You can view 3D images with the device even while recharging it with a USB cable. During recharge, the LED light of the device indicates:
3
When the device is on and there are 3D
images:
The red light blinks every second during recharge and the green light blinks every second
when fully recharged.
When the device is off or on and there are
no 3D images
Either the red or the green light stays on depending on the recharge status.
CHARGING THE GLASSES
1
Connect the USB port located under the power button on the glasses to the USB port of the
TV or PC using the supplied 8-pin mini USB cable as shown by the figure.
CAUTION ▶ Do not insert the supplied 8-pin mini USB cable in the reverse direction. Otherwise, this may
cause damage to the product.
ENGLISH
i.e) AG-S250
2
Charge the glasses until the LED is green. The glasses will fully charge in about 1 hours 50
minute.
! NOTE ▶ While charging: The LED is red.
▶ When charging is complete: The LED is green.
▶ When the battery is discharged: The LED blinks for 1 minute and turns off automatically.
CAUTION
▶ If you use a USB cable other the one (8-pin mini USB) supplied with the product, the
product may be damaged.
▶ This equipment shall be powered with USB 2.0 or higher.
HOW TO WEAR THE 3D GLASSES
Using 3D glasses may cause minor inconveniences. If you are wearing your regular glasses, adjust the nose
pad of the 3D glasses up 90 degrees before wearing.
Please refer to the picture below for instructions. Adjust the
angle to find the most comfortable state for you.
TROUBLESHOOTING
Problem.
Suggestion.
A. The battery (Lithium Polymer) may be discharged, charge the battery with
Q. The glasses do not work.
the 8-pin mini USB cable.
A. Please also check the 3D settings on the TV or PROJECTOR.
A. This occurs when the battery (Lithium Polymer) is discharged. In this case,
Q. The led LED blinks continuously.
charge the battery with the supplied 8-pin mini USB cable.
Q. I charged the glasses with the 8-pin mini
A. Check if the 8-pin mini USB cable is properly connected to the product.
USB cable, but it is not charged.
4
SPECIFICATIONS
AG-S230 / S250
AG-S270
ENGLISH
Shutters
Liquid crystal
Liquid crystal
Contrast Ratio
Max. 1000:1
Max. 2000:1
Transmittance
Over 34 %
Over 34 %
Field Rate
120 fields/s
120 fields/s
Open Time
Under 2.0 ms
Under 2.0 ms
Close Time
Under 0.3 ms
Under 0.3 ms
Weight
About 36 g
About 43 g
· USB Cable: 8-pin mini USB cable
· USB Cable: 8-pin mini USB cable
· Battery: 80 mA/h
· Battery: 75 mA/h
· Operating time when On: About 40
hours
· Operating time when On: About 40
hours
0 °C to 40 °C
0 °C to 40 °C
-20 °C to 60 °C
-20 °C to 60 °C
Power Supply
Operating
Temperature
Storage Temperature
☞ The images and specifi cations presented in this user manual are subject to change without prior notice for quality
improvement purposes.
Class B ITE (Information Technology Equipment)
This equipment satisfies the EMC requirements and is intended for use in all environments, including the
domestic environment.
(Class B ITE produces less electromagnetic emissions than Class A ITE.)
5
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Note
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Modifications not expressly approved by the manufacturer could void the user’s authority to operated
the equipment under FCC rules.
LG
AG-S230
AG-S250
AG-S270
