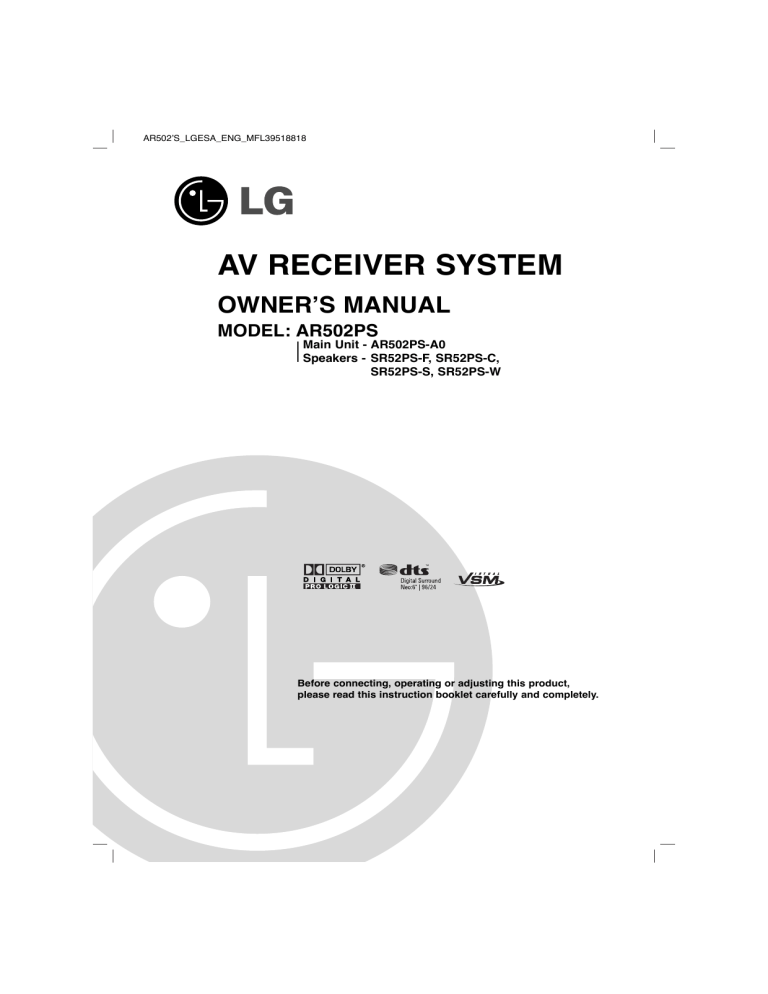

AR502’S_LGESA_ENG_MFL39518818
AV RECEIVER SYSTEM
OWNER’S MANUAL
MODEL: AR502PS
Main Unit - AR502PS-A0
Speakers - SR52PS-F, SR52PS-C,
SR52PS-S, SR52PS-W
Before connecting, operating or adjusting this product,
please read this instruction booklet carefully and completely.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK
OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
This lightning flash with arrowhead symbol
within an equilateral triangle is intended to
alert the user to the presence of non
insulated dangerous voltage within the
product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the product.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
WARNING: Do not install this equipment in a confined
space such as a book case or similar unit.
CAUTION: Do not block any ventilation openings.
Install in accordance with the manufacturer's
instructions.
Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the
product and to protect it from overheating.
The openings should be never be blocked by placing
the product on a bed, sofa, rug or other similar
surface. This product should not be placed in a built-in
installation such as a bookcase or rack unless proper
ventilation is provided or the manufacturer's
instruction have been adhered to.
CAUTION: The apparatus should not be exposed to
water (dripping or splashing) and no objects filled with
liquids, such as vases, should be placed on the
apparatus.
2
CAUTION: The apparatus should not be exposed to
water (dripping or splashing) and no objects filled with
liquids, such as vases, should be placed on the
apparatus.
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon
a dedicated circuit;
That is, a single outlet circuit which powers only that
appliance and has no additional outlets or branch
circuits. Check the specification page of this owner's
manual to be certain.
Do not overload wall outlets. Overloaded wall outlets,
loose or damaged wall outlets, extension cords,
frayed power cords, or damaged or cracked wire
insulation are dangerous. Any of these conditions
could result in electric shock or fire. Periodically
examine the cord of your appliance, and if its
appearance indicates damage or deterioration, unplug
it, discontinue use of the appliance, and have the cord
replaced with an exact replacement part by an
authorized LG Service Centre.
Protect the power cord from physical or mechanical
abuse, such as being twisted, kinked, pinched, closed
in a door, or walked upon. Pay particular attention to
plugs, wall outlets, and the point where the cord
exits the appliance.
To disconnect power from the mains, pull out the
mains cord plug. When installing the product, ensure
that the plug is easily accessible.
Contents
Selecting setup menu . . . . . . . . . . . . .28-31
Setup Configuration . . . . . . . . . . . . . . . . . .28
Introduction . . . . . . . . . . . . . . . . .4-11
General operation of setup menu . . . . . . . .28
Before use . . . . . . . . . . . . . . . . . . . . . . . . .4
Before connection . . . . . . . . . . . . . . . . . . .4
Symbol Used in this Manual . . . . . . . . . . . .4
Required cables . . . . . . . . . . . . . . . . . . . . .4
Front Panel . . . . . . . . . . . . . . . . . . . . . . . .5
Rear Panel . . . . . . . . . . . . . . . . . . . . . . . .6
Display window . . . . . . . . . . . . . . . . . . . . .7
Remote Control . . . . . . . . . . . . . . . . . . .8-11
1. SURROUND (Enjoying surround sound) .28
Installation . . . . . . . . . . . . . . . . .12-21
Connecting components with digital
audio output jacks . . . . . . . . . . . . . . . .12-13
Connecting components with analog
audio jacks . . . . . . . . . . . . . . . . . . . . .14-16
Connecting audio components . . . . . . . . . .14
Connecting a camcorder or game console .15
Connecting Portable device or USB device .16
Connecting video components for
Playback . . . . . . . . . . . . . . . . . . . . . . . . .17
Connecting video components for
Recording . . . . . . . . . . . . . . . . . . . . . . . .18
Connecting the antennas . . . . . . . . . . . . .19
Connecting speakers . . . . . . . . . . . . .20-21
Example of 5.1 channel speaker
system configuration . . . . . . . . . . . . . . . . .20
Speaker System Connection . . . . . . . . . . .21
Operation . . . . . . . . . . . . . . . . . .22-35
2. SPK TYPE (Setting speaker type) . . . . .29
3. X-OVER . . . . . . . . . . . . . . . . . . . . . . . . .29
4. SPK DISTANCE (Setting speaker
distance) . . . . . . . . . . . . . . . . . . . . . . . . . .30
5. SPK LEVEL (Setting speaker level) . . . .30
6. DIGITAL IN (Setting Digital Input Signal) .30
7. LOAD INITIAL . . . . . . . . . . . . . . . . . . . .31
Enjoying the listening mode . . . . . . . . .31-35
SURROUND mode . . . . . . . . . . . . . . . . . . .31
DSP (Digital Sound Processor) mode . . . . .32
BYPASS mode . . . . . . . . . . . . . . . . . . . . . .32
ENHANCER mode . . . . . . . . . . . . . . . . . . .32
About Listening mode . . . . . . . . . . . . . . . .33
Adjusting the speaker level . . . . . . . . . . .34
TEST TONE . . . . . . . . . . . . . . . . . . . . . . .34
AV Sync. (Adjusting the audio delay) . . . .34
Adjusting the tone control . . . . . . . . . . . . .34
Using the NIGHT function
(Dolby Digital only) . . . . . . . . . . . . . . . . . .35
M1, M2, M3 . . . . . . . . . . . . . . . . . . . . . . .35
Reference . . . . . . . . . . . . . . . . . .36-39
Mini Glossary for Audio Stream & Surround
mode . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Troubleshooting . . . . . . . . . . . . . . . . . . . .37
Specifications . . . . . . . . . . . . . . . . . . .38-39
Turning On the unit . . . . . . . . . . . . . . . . .22
Using Headphones . . . . . . . . . . . . . . . . .22
Selecting the input source . . . . . . . . . . . .22
Selecting the input mode . . . . . . . . . . . . .23
Switching the audio signal . . . . . . . . . . . .24
Switching the video signal . . . . . . . . . . . .24
Playing music files using the USB feature 25
Listening to FM/AM radio . . . . . . . . . . . . .26
Presetting radio stations . . . . . . . . . . . . . .26
Setting the Display Brightness . . . . . . . . .27
Using the Mute Function . . . . . . . . . . . . .27
Using the Sleep Timer . . . . . . . . . . . . . . .27
Displaying Source Information . . . . . . . . .27
3
Introduction
Before use
• To ensure proper use of this product, please read
this owner’s manual carefully and keep this manual
in an easily accessible place for future reference.
A/V
Analog audio/Composite video cable
Yellow (video)
White (L/audio)
• This manual provides information on the operation
and maintenance of your unit. Should the unit
require service, contact an authorized service
location.
Red (R/audio)
• As the unit may become warm during operation,
always leave sufficient space above the unit for
ventilation.
Yellow
• Choose the installation location of your unit carefully.
Avoid placing it in direct sunlight or close to a source
of heat. Also avoid locations subject to vibrations
and excessive dust, heat, cold or moisture.
VIDEO
Optical
COAXIAL
Composite video cable
Optical digital audio cable
Coaxial digital audio cable
• When removing the power plug from the wall outlet,
always pull directly on the plug, never yank the
cord.
• Do not attempt to clean the unit with chemical
solvents or it may damage the finish. Use a clean,
dry cloth.
COMPONENT
Component video cable
Green
Blue
Before connection
Turn off the power of all the component before making
connections.
Read the owner’s manual of each component you
intend to use with this unit.
Read this before operation
Symbol Used in this Manual
Red
USB
USB cable
USB cable for MP3 Player (or Memory Card Reader, etc.)
LINE
LINE IN cable
Note
Indicates special notes and operating features.
Tip
Indicates tips and hints for making the task easier.
Required cables
The hookup diagrams on the subsequent pages
assume the use of the following connection cables.
You must purchase the connection cables separately
if necessary.
AUDIO
White (L)
Red (R)
4
Analog audio cable
Notes
• Turn off the power to all components before making
any connections.
• When connecting an audio/video cable, be sure to
match the color-coded pins to the appropriate jacks
on the components: yellow (video) to yellow; white
(left, audio) to white; and red (right, audio) to red.
• When connecting optical digital cables, insert the
cable plugs straight in until they click into place.
• Do not bend or tie optical digital cables.
Front Panel
2
3
4
5
7
6
INPUT
SELECT
Introduction
1
MASTER VOLUME
/l
DISPLAY
9
8
11
10
13
12
15
14
M1
17
16
1. POWER (
)
Sets the unit to On and Standby.
2. INPUT SELECT
Select the input source.
Turn this knob until the input source you want
appears in the display window.
3. DISPLAY
Displays various information about the currently
selected input source.
4. Display window
5. M1, M2, M3
Loads and stores various settings on this buttons
you set at one time.
6. Remote sensor
Receives control signals from the remote control.
7. MASTER VOLUME
Adjusts the volume of the unit to MIN (- 70.0dB)
through MAX (+10.0dB).
8. PHONES connector
Connect a stereo headphone plug ( 6.3 mm) to
PHONES connector for private listening.
9. SPEAKER LEVEL
Adjusts the level of each speaker.
10. TEST TONE
Checks the position and sound balance of
speakers in the following order.
(Front left speaker → Center speaker → Front right
speaker → Surround right speaker → Surround left
speaker → Subwoofer)
11. DIGITAL
Selects the input mode (ANALOG, COAXIAL,
OPTICAL 1/2/3).
/l
M2
M3
18
19
20
21
12. FM/AM
Selects the unit’s tuner (FM and AM bands).
13. SURROUND MODE
Selects various surround effect.
14. DSP (Digital Signal Processor)
Selects DSP (Digital Signal Processor) mode.
15. BYPASS
Selects BYPASS mode.
16. SETUP
Accesses or removes the setup menu.
17. b/B/v/V (left/right/up/down)
Selects an item in the menu.
(ENTER)
Acknowledges the menu selection.
PRESET (-/+)
Selects preset number of radio.
TUN. (-/+)
Tunes in the desired radio station.
18. USB port
Connect a USB port of USB device.
19. OPTICAL IN3
Connect a component with digital audio output
jacks.
20. PORTABLE-IN (3.5 )
Connect a portable component.
21. AV IN (AUDIO L/R, VIDEO)
Connect the components with analog audio/video
output jacks (camcorder,game console, etc).
5
Rear Panel
1
2 34 5 6 7 8
+
-
9
1. VCR IN/VCR REC. OUT
Connect a VCR.
2. TV/STB IN
Connect a TV, satellite tuner or set-top box.
3. DVD IN
Connect a DVD player to DVD IN jacks.
4. CD IN
Connect a CD player or Super Audio CD player to
CD IN jacks.
5. MONITOR OUT
Connect to a video input on your TV or projector.
6. COMPONENT VIDEO OUT
Connect a TV or projector to COMPONENT
VIDEO OUT jacks.
10 11
12
13
14
7. COMPONENT VIDEO DVD IN
Connect a DVD player with component video out
jacks to COMPONENT VIDEO DVD IN jacks.
8. COMPONENT VIDEO TV/STB IN
Connect a satellite tuner or set-top box, etc with
component video out jacks to COMPONENT
VIDEO TV/STB IN jacks.
9. SPEAKER SYSTEM
Connect the speakers.
10. AM ANTENNA
Connect an AM antenna.
11. FM ANTENNA
Connect a FM antenna.
12. SW (PRE OUT)
Connect the active subwoofer.
13. OPTICAL IN 1/2
Connect CD and DVD player, and other
components with an optical digital audio output.
14. COAXIAL
Connect CD and DVD player, and other
components with a coaxial digital audio output.
Note
The VCR IN video signal is not outputted to the VCR REC. OUT but outputted to the MONITOR OUT. However,
The VCR IN audio signal can be outputted to the VCR REC. OUT.
6
Display window
3 4
2
SLEEP
USB
WMA
MP3
PCM Virtual
FM ST.
5
6
Introduction
1
VOLUME
MUTE
kHz MHz
dB
ftms
L
SW
C
SL
7
8
1. SLEEP indicator
Lights up when the Sleep function has been set.
5. MUTE indicator
Flashes while the unit is muted.
2. Listening mode & format indicators
These indicators show the currently selected
listening mode and the format of digital input
signals.
6. VOLUME indicator
Displays the level of volume.
3. FM indicator
Lights up when the FM broadcast is being
received.
ST. indicator
Lights up when a stereo broadcast is being
received in radio mode.
R
SR
7. Message area
Shows various information about the currently
selected source.
8. Speaker indicators
Displays the front, center, surround, and
subwoofer.
4. TUNED indicator
Lights up when the unit is tuned into a radio
station.
7
Remote Control
Remote control operation range
RECEIVER Mode
Point the remote control at the remote sensor and
press the buttons.
• Distance: About 23 ft (7 m) from the front of the
remote sensor
To set the remote control to RECEIVER mode,
press RECEIVER.
• Angle: About 30° in each direction in front of the
remote sensor
RECEIVER
1
Remote control battery installation
Remove the battery cover on the rear
of the remote control, and insert two
R06 (size AA) batteries with
and
aligned correctly.
Notes
• Do not mix old and new batteries. Never mix
different types of batteries (standard, alkaline, etc.).
• If you intend not to use the remote control for a
long time, remove the batteries to prevent damage
from leakage or corrosion.
2
3
4
• Expired batteries should be removed as soon as
possible to prevent damage from leakage or
corrosion.
About the remote control modes
The remote control can be used to control up to ten
different components. The remote control has a
specific operating mode for use with each type of
component. Modes are selected by using the four
RECEIVER, DVD, VCR, and TV buttons on the
remote control.
7
5
1. Press RECEIVER, DVD, VCR, or TV buttons to
select a mode.
RECEIVER
In RECEIVER Mode, you can control the unit.
DVD
In DVD Mode, you can control DVD player.
VCR
In VCR Mode, you can control VCR.
TV
In TV Mode, you can control TV.
2. Use the buttons supported by that mode to
control the component.
Note
Some of the remote control operations may not work
as expected with other components.
8
6
2. DIGITAL
Press this button to assign one of the digital inputs
to a source.
DIMMER
Press this button to adjust the brightness of the
display window.
SLEEP
Press this button to set the sleep timer.
NIGHT
Reduces the dynamic range of Dolby Digital
material so that you can still hear quiet parts even
when listening at low volume levels.
SPK LEVEL
Adjusts the speaker level from -10dB to +10dB.
TEST TONE
Checks the position and sound balance of
speakers in the following order.
TONE CTRL
Controls the BASS, MIDDLE, and TREBLE.
AV SYNC.
Adjusts the Audio Delay.
LISTENING MODE
- SURROUND
Selects various surround effect.
- DSP (Digital Signal Processor)
Selects DSP (Digital Signal Processor) mode.
- BYPASS
Selects BYPASS mode.
- ENHANCER
Enhances the sound quality of compressed input
signal.
3. USB mode only
x)
- STOP (x
Stops playback.
- PLAY (B)
Starts playback.
X)
- PAUSE(X
Pauses playback temporarily.
- REPEAT
Repeats track.
./>
>)
- SKIP (.
Moves to the next or previous track.
4. DISPLAY
Accesses On-Screen display.
MENU
Access the menu on a disc.
SETUP
Accesses or removes setup menu.
TITLE
Displays the disc’s title menu, if available.
RETURN
Returns to the previous menu.
b/B/v/V (left/right/up/ down)
Selects an option in the menu.
ENTER
Acknowledges the menu selection.
PRESET (-/+)
Selects program of Radio.
TUN. (-/+)
Tunes in the desired radio station.
Introduction
1. POWER (
)
Switches the unit ON and OFF.
RECEIVER/DVD/TV/VCR
To operate the desired function with this remote
control, select the corresponding the buttons.
5. 0-9 numerical buttons
Selects numbered options in a menu.
INPUT SELECT buttons
- TUNER : Selects an FM or AM broadcast
- DVD : Selects a DVD mode.
- PORTABLE : Selects a POTABLE mode.
- VCR : Selects a VCR mode.
- CD : Selects a CD mode.
- AV : Selects an AV mode.
- TV/STB : Selects a TV/STB mode.
- USB : Selects an USB mode.
PROG./CLEAR
Stores a radio station’s frequency in the tuner’s
memory.
INPUT.SEL.
Selects the input settings.
6. M1, M2, M3
Loads and stores various settings on this buttons
you set at one time.
MO./ST.
Selects the mono or stereo during receiving a FM
broadcast.
D.SEL
Selects a card on the USB mode in case that more
than one memory cards are connected to the USB
port.
7. MUTE
Mutes the sound.
VOLUME (-/+)
Adjusts the volume.
9
DVD Mode
DVD
To set the remote control to DVD mode, press
DVD.
1
2
3
4
10
1. POWER (
)
Switches the unit ON and OFF.
x)
2. STOP (x
Stops playback.
PLAY (B)
Starts playback.
X)/STEP
PAUSE(X
Pauses playback temporarily. Press this button
repeatedly to play Frame-by-Frame.
REPEAT
Repeats chapter, track, title or all.
bb/B
BB)
SCAN(b
Searches backward or forward.
./>
>)
SKIP (.
Moves to the next or previous chapter or track.
3. DISPLAY
Accesses On-Screen display.
MENU
Access the menu on a disc.
SETUP
Accesses or removes setup menu.
TITLE
Displays the disc’s title menu, if available.
RETURN
Returns to the previous menu.
b/B/v/V (left/right/up/ down)
Selects an option in the menu.
ENTER
Acknowledges the menu selection.
4. 0-9 numerical buttons
Selects numbered options in a menu.
VCR
To set the remote control to VCR mode, press
VCR.
1
2
TV Mode
TV
To set the remote control to TV mode, press TV.
Introduction
VCR Mode
1
2
3
3
1. POWER (
)
Switches the unit ON and OFF.
4
2. CH (-/+)
Selects the channel.
MUTE
Mutes the sound.
TV INPUT
Selects the TV’s source.
VOLUME (-/+)
Adjusts the volume.
1. POWER (
)
Switches the unit ON and OFF.
x)
2. STOP (x
Stops playback.
PLAY (B)
Starts playback.
X)/STEP
PAUSE(X
Pauses playback temporarily. Press this button
repeatedly to play Frame-by-Frame.
bb/B
BB)
SCAN (b
Searches backward or forward.
3. CH (-/+)
Selects the channel.
4. 0-9 numerical buttons
Selects numbered options in a menu.
3. 0-9 numerical buttons
Selects numbered options in a menu.
Controlling the TV
You can control the channel, sound level, input
source, and power switch of your LG TV with the
supplied Remote Control.
Setting Remote Control Codes for LG TV
1. Hold POWER ( ) and press CH (-/+) button
repeatedly until the TV on or off.
2. The POWER ( ), CH (-/+), VOLUME (-/+),
numerical buttons and TV INPUT buttons on
remote control can operate the LG TV.
Note
If the remote control does not operate your particular TV,
try the other code or use the remote control originally
supplied with the LG TV. (LG and Gold Star)
Due to the variety of codes used by manufacturers, OUR
COMPANY cannot guarantee that the remote control will
operate every LG TV model.
11
Installation
Connecting components with digital audio output jacks
Connecting a DVD player (or Digital device), TV monitor or satellite tuner (or
Set top box etc.)
1. Connect the audio jacks.
For details of the required cables, see the page 4.
DVD player (or Digital device)
OPTICAL OUT
COAXIAL OUT
COAXIAL
Optical
+
-
OPTICAL OUT
Optical
Satellite tuner
(or Set top box etc.)
Notes
• You can also connect the device to OPTICAL IN 3 jack on the front panel
• Connect to either the DVD COAXIAL IN or DVD OPTICAL IN 1 jack.
• You can listen to the sound of your TV by connecting your TV’s audio output jacks to the TV/STB AUDIO IN
jacks on the unit. In this case, do not connect the TV’s video output jack to the COMPOSITE VIDEO
(TV/STB) IN jack on the unit.
12
TV monitor
VIDEO INPUT
Installation
2. Connect the video jacks.
For details of the required cables, see the page 4.
The following illustration shows how to connect a TV or satellite tuner (Set top box, etc) and a DVD player
with COMPONENT VIDEO (Y, CB/PB, CR/PR) output jacks.
DVD player (or Digital device)
COMPONENT VIDEO INPUT
COMPONENT VIDEO OUT
COMPONENT
VIDEO
COMPONENT
+
-
VIDEO
VIDEO OUT
COMPONENT VIDEO OUT
Satellite tuner (or Set top box, etc)
COMPONENT
3. Select the input source to play the component.
For details, see the page 22.
Note
Connect to either the COMPOSITE VIDEO OUT or COMPONENT VIDEO OUT jacks.
13
Connecting components with analog audio jacks
Connecting audio components
1. Connect the audio jacks with analog audio cable.
For details of the required cables, see the page 4.
Satellite tuner (or
Set top box etc.)
VCR
AUDIO OUT
AUDIO OUT
DVD player
AUDIO OUT
CD player
AUDIO OUT
L
L
L
L
R
R
R
R
+
-
2. Connect the video jacks with composite video cable.
For details of the required cables, see the page 4.
Satellite tuner (or
Set top box etc.)
VCR
VIDEO INPUT
VIDEO INPUT
DVD player
VIDEO INPUT
+
-
3. Select the input source to play the component.
For details, see the page 22.
14
CD player
VIDEO INPUT
Connecting a camcorder or game console
INPUT
SELECT
Installation
1. Connect the audio and video jacks.
For details of the required cables, see the page 4.
MASTER VOLUME
/l
DISPLAY
M1
M2
M3
AUDIO
AUDIO OUT
L
VIDEO OUT
R
VIDEO
Camcorder or game console
2. Connect the unit’s MONITOR OUT jack to the TV’s VIDEO IN jack with composite video cable.
For details of the required cables, see the page 4.
TV monitor
VIDEO INPUT
VIDEO
+
-
3. Select the input source to play the component.
For details, see the page 22.
15
Connecting Portable device or USB device
For details of the required cables, see the page 4.
Select the input source to play the component after connecting.
- For details, see the page 22.
Portable device Connection (L)
Connect the unit’s PORTABLE-IN jack to the corresponding jack of portable device with mini stereo (3.5mm)
cable.
USB connection (U)
Connect the unit’s USB port to the USB port of USB Memory (or MP3 player, etc.).
INPUT
SELECT
MASTER VOLUME
/l
DISPLAY
M1
M2
M3
(L)
LINE
Portable device
(U)
USB
USB Memory, MP3 Player (or
Memory Card Reader, etc.)
16
Connecting video components for Playback
Installation
1. Connect the audio jacks.
For details of the required cables, see the page 4.
2. Connect the video jack and then connect your TV to the MONITOR OUT jack.
You can watch the video from the selected input.
+
-
VIDEO
IN OUT VIDEO
OUTOUT
VIDEO IN VIDEO OUT
AUDIO IN
L
AUDIO OUT
L
R
R
VIDEO
VIDEO
VIDEO INPUT
AUDIO
VCR
TV monitor
3. Select the input source to play the component.
For details, see the page 22.
Note
The VCR IN video signal is not outputted to the VCR REC. OUT but outputted to the MONITOR OUT.
However, The VCR IN audio signal can be outputted to the VCR REC. OUT.
17
Connecting video components for Recording
This section explains how to connect a VCR for recording from a TV or another VCR.
1. Connect the unit’s VCR REC. OUT jack to a video input on the recording VCR.
2. Connect the unit’s VCR REC. OUT L/R jacks to an audio input L/R on the recording VCR.
3. Connect the unit’s TV/STB IN, DVD IN, CD IN, or AV IN jack to a device with video output.
4. Connect the unit’s TV/STB IN, DVD IN, CD IN, or AV IN L/R jacks to an device with audio output.
MASTER VOLUME
M2
+
M3
-
Or Or
AUDIO / VIDEO
VIDEO
IN OUT VIDEO
OUTOUT
VIDEO IN VIDEO OUT
IN OUT VIDEO
OUTOUT
VIDEO
VIDEO IN VIDEO OUT
AUDIO IN
L
AUDIO OUT
L
AUDIO IN
L
AUDIO OUT
L
R
R
R
R
Recording VCR
Video signal
Audio signal
AUDIO / VIDEO
TV monitor, Playback VCR,
Satellite tuner or Set top box or
device with video output, etc
Playback from the Recording VCR
To play back a video in the recording VCR
via the unit:
1. Connect the unit’s VCR IN jack to a video
output on the recording VCR.
2. Connect the unit’s VCR IN L/R jacks to an
audio output on the recording VCR.
+
-
3. Connect the unit’s MONITOR OUT jack to
an video input jack on the TV.
AUDIO / VIDEO
VIDEO
VIDEO
IN OUT VIDEO
OUTOUT
VIDEO IN VIDEO OUT
IN OUT VIDEO
OUTOUT
VIDEO
VIDEO IN VIDEO OUT
AUDIO IN
L
AUDIO OUT
L
AUDIO IN
L
AUDIO OUT
L
R
R
R
R
Recording VCR
Notes
• The unit must be turned on for recording. Recording is not possible while it’s in Standby mode.
TV monitor
• If you want to record directly from your TV or playback VCR to the recording VCR without going through the
unit, connect the TV/VCR’s audio and video outputs directly to the recording VCR’s audio and video inputs.
See the manuals supplied with your TV and VCR for details.
• Video signals connected to video inputs can only be recorded via video outputs. If your TV/VCR is connected
to a composite video input, the recording VCR must be connected to a composite video output.
18
Connecting the antennas
Installation
Connect the supplied AM loop antenna and FM wire antenna.
AM Loop Antenna
(supplied)
FM Wire Antenna
(supplied)
+
-
Notes
• To prevent noise pickup, keep the AM Loop antenna away from the unit and other components.
• Be sure to fully extend the FM wire antenna.
• After connecting the FM wire antenna, keep it as horizontal as possible.
19
Connecting speakers
The unit allows you to use 5.1 channel system.
The ideal surround speaker system for this unit is 5speaker systems, using front left and right speakers, a
center speaker, surround left and right speakers, and
a subwoofer.
For best results we recommend that all front speakers
be of the same type, with identical or similar driver
units. This the action moves from side to side.
Your center channel speaker is very important as over
80 % of the dialog from a typical motion picture
emanates from the center channel. It should possess
similar sonic characteristics to the main speakers.
Bass effects are an important part of home theater.
For optimal enjoyment a subwoofer should be used as
it is optimized for low frequency reproduction.
Example of 5.1 channel speaker
system configuration
Surround Left
Front Left
Subwoofer
Front Center
0
30
45
110
20
Surround Right
90
Front Right
Front left and right speakers
These output the overall sound. Their role in a home
theater is to provide a solid anchor for the sound
image. They should be positioned facing the listener
at about ear level, and equidistant from the TV. Angle
them inward so as to create a triangle, with the
listener at the apex.
Center speaker
This speaker enhances the front left and right
speakers, making sound movements distinct and
providing a full sound image. In movies it’s used
mainly for dialog.
Position it close to your TV (preferably on top) facing
forward at about ear level, or at the same height as
the front left and right speakers.
Surround left and right speakers
These speakers are used for precise sound
positioning and to add realistic ambience.
Position them at the sides of the listener, or slightly
behind, about 2–3 feet (60–100 cm) above ear level.
Ideally they should be equidistant from the listener.
Subwoofer
The subwoofer handles the bass sounds of the LFE
(Low-Frequency Effects) channel.
The volume and quality of the bass output from your
subwoofer will depend on its position, the shape of
your listening room, and your listening position. In
general, a good bass sound can be obtained by
installing the subwoofer as shown left.
Tip
To find the best position for your subwoofer, while
playing a movie or some music with good bass,
experiment by placing your subwoofer at various
positions within the room, and choose the one that
provides the most satisfying results.
Speaker System Connection
For the best surround sound, you should connect 5 speakers and/or subwoofer.
Connect the your front, center, surround speakers, and subwoofer by using the speaker wires.
Passive subwoofer
Black
Red
Front speaker (R)
Front speaker (L)
Black
Black
Red
Installation
Using a suitable cable, connect the SW (PRE OUT) to an input on optional powered subwoofer, as shown below.
Red
+
-
Active subwoofer
(Not supplied)
Black
Red
Center speaker
Black
Red
Surround
speaker (R)
Black
Red
LINE INPUT
Surround
speaker (L)
Notes
• Turn the unit off before connecting the speakers wires.
• Be sure to match the speaker wire to the appropriate terminal on the components: + to + and – to –.
If the cables are reversed, the sound will be distorted and will lack bass.
• Be sure to use speakers with the specified impedance as shown on the rear panel of this unit.
• Do not touch the speaker terminals when the power is on. It may cause you to receive an electric shock.
Connecting speaker wire
1.
2.
3.
1. Loosen the knob by turning it counterclockwise.
2. Insert the bare part of the wire into the hole in side of each terminal.
3. Tighten the knob by turning it clockwise to secure the wire.
21
Operation
Turning On the unit
Selecting the input source
Before connecting the power cord, connect all your
speakers and AV components.
This section explains how to select the input source
(i.e., the AV component that you want to listen to or
watch).
1. Plug the power cord into an AC wall outlet.
1. Press POWER (
2. Press the POWER (
or
) button.
The unit turns on, the display window lights up.
/l
or
) to turn the unit on.
/l
To turn off the unit, press the POWER (
button.
The unit will enter the Standby mode.
/l
or
)
Using Headphones
You can connect a pair of stereo headphones (6.3
phone plug) to the unit’s PHONES jack for private
listening.
2. Select a source by rotating the INPUT SELECT
on the front panel.
The selected source appears in the display window.
To select the
Display
Built-in tuner
Tuner or frequency
DVD player
DVD
Portable player
Portable
VCR
VCR
CD or Super Audio CD player CD
Camcorder or TV game
AV
Satellite tuner
TV/STB
USB device
USB
INPUT
SELECT
/l
DISPLAY
M1
M2
M3
Notes
• Always turn down the volume before connecting
your headphones.
• The speakers are turned off while the headphones
plug is inserted in the PHONES jack.
To select the required input source using the
remote control you must ensure that the remote is
in the receiver mode. This can be verified by
pressing the RECEIVER button until it can be seen
illuminated. Once in the receiver mode simply press
the INPUT. SEL. button until it is lit and then press
the numerical key that corresponds with the desired
input. Subsequent presses of the numerical keys
will also switch to the input shown on the remote.
To cancel this function simply press the INPUT.
SEL. button again until it is not illuminated.
Press the
To select the
Display
Built-in tuner
TUNER button
repeatedly.( )
DVD player
DVD button.( ) DVD
PORTABLE
Portable
button.( )
Portable player
VCR
CD
Tuner or
frequency
VCR button.( ) VCR
CD button.( )
CD
Camcorder or
TV game
AV button.( )
AV
Satellite tuner
TV/STB button.
( )
TV/STB
USB device
USB button.( )
NO USB
3. Turn on the component and start playback.
4. To adjust the volume, rotate the MASTER
VOLUME on the front panel, or press VOLUME
(-/+) on remote control.
22
Selecting the input mode
To mute the sound
Press MUTE on the remote control. To cancel, press it
again.
Operation
If you connect a component to a digital input jack, you
must assign that jack to an input source.
1. Select the input source that you want to
assign.
Some of input sources may not be assigned.
2. Press DIGITAL.
The current assignment flashes in the display
window.
3. Press DIGITAL repeatedly to select Opt. 1,
Opt. 2, Opt. 3, Coaxial or Analog.
Examples:
If you connect your DVD player to the
OPTICAL IN 1 jack, set “DVD” to “Opt. 1”.
If you want to listen to audio from the component
connected to the OPTICAL IN 2 jack when the
VCR input source is selected, set “VCR” to “Opt.
2”.
If you want to listen to audio from the component
connected to the COAXIAL IN jack when the
TV/STB input source is selected, set “TV/STB” to
“Coaxial”.
For input source that you don’t want to assign a
digital input jack, set to “Analog”.
Notes
• You can select the input mode only when you set
the input source to DVD, VCR, CD, AV, or TV/STB.
Input source
Initial setting
DVD
OPTICAL 1
Opt. 1
VCR
ANALOG
Analog
CD
COAXIAL
Coaxial
AV
OPTICAL 3
Opt. 3
TV/STB
OPTICAL 2
Opt. 2
Display
• You can also select other input mode on the
selected input source.
23
Switching the audio signal
This section explains how to switch the audio input/output signal about each function mode.
(O: Active, X: Inactive)
Input/
Output
Output
Input
•
•
•
•
OPTICAL 1
OPTICAL 2
OPTICAL 3
COAXIAL
Function
mode
Analog RCA input
(VCR, TV/STB, DVD,
CD, Portable, AV)
TUNER
X
X
O
DVD
O
O
O
O
Portable
O
X
O
O
Speaker
terminal
VCR
REC.OUT
O
VCR
O
O
O
O
CD
O
O
O
O
AV
O
O
O
O
TV/STB
O
O
O
O
USB
X
X
O
X
Note
The VCR REC. audio output is outputted only when analog audio input is selected on each function mode.
Switching the video signal
This section explains how to switch the video input/output signal about each function mode.
(O: Active, X: Inactive)
Output
Function mode
MONITOR OUT
VCR REC. OUT
COMPONENT OUT
TUNER
X
X
DVD
O
O
X
O
Portable
X
X
X
VCR
O
X
X
CD
O
O
X
AV
O
O
X
TV/STB
O
O
O
USB
X
X
X
Note
• The VCR IN video signal is not outputted to the VCR REC. OUT video signal. However, The VCR IN audio
signal can be outputted to the VCR REC. OUT audio signal.
• COMPOSITE VIDEO signal is only outputted to MONITOR OUT or VCR REC. OUT.
COMPONENT VIDEO signal is only outputted to COMPONENT VIDEO OUT.
24
You can enjoy music files (MP3/WMA) saved in an
MP3 player or USB memory by connecting the
storage device to the USB port of this unit.
Basic Operation
1. Rotate the INPUT SELECT on the front panel
until the “USB” appears in the display window.
Or press RECEIVER on the remote control, and
then press INPUT.SEL. And then press the USB
on the remote control.
“NO USB” appears in the display window.
2. Connect the USB device to the USB port of the
unit. (See the page 16.)
“CHECKING...” appears in the display window,
and then the total number of files is displayed.
3. Press PLAY (B) on the remote control (or v on
the front panel).
Note
If there is no file in the USB device, “NO FILE”
appears in the display window.
Moving to other memory cards
In case that more than one memory cards are
connected to the USB port, press the D.SEL
repeatedly on the remote control to select a memory
card you want to use.
Note
If there is no memory card in the USB device, “NO
DISK” appears in the display window.
Pause
Press the PAUSE(X) on the remote control (or v on
the front panel) during playback.
Press the PLAY (B) on the remote control (or v on
the front panel) to resume playback.
Stop
Press the STOP (x) on the remote control (or V on
the front panel) during playback.
- The total number of files appears in the display
window.
Skip
During playback, press SKIP (./>) on the
remote control (or b/B on the front panel) to move to
the next track or to return to the beginning of the
current track. Press SKIP . on the remote control
(or b on the front panel) twice briefly to step back to
the previous track.
Repeat
During playback, press REPEAT on the remote
control (or on the front panel) repeatedly to select a
desired repeat mode.
Display
Playback
N
Plays all tracks once.
1
Plays one track repeatedly
A
Plays all tracks repeatedly.
R
Plays all tracks randomly.
Operation
Playing music files using the
USB feature
Information display of MP3 file
During playback, press DISPLAY repeatedly.
- You can check the ID3 TAG (Title→Artist→Album),
disc number, sound mode, channel and sampling
frequency in the display window.
Note
• The information of title, artist, and album supports a
maximum of 40 letters.
• WMA file does not display the ID3 tag.
Compatible Devices
1. Devices which require additional program
installation when you have connected it to a
computer, are not supported.
2. MP3 Player: Flash type MP3 player.
• The MP3 player requiring installation of a driver is
not supported.
3. USB Flash Drive: Devices that support USB2.0 or
USB1.1.
Notes:
• Do not extract the USB device in operating.
• A back up demands to prevent a data damage.
• If you use a USB extension cable or USB hub, the
USB device might not be recognized.
• This unit can support USB 2.0 or USB 1.1.
• A device using NTFS file system is not supported.
(Only FAT (12/16/32) file system is supported.)
• The USB function of this unit does not support all
USB devices.
• Digital camera and mobile phone are not
supported.
• This unit is not supported when the total number of
files is 1000 or more.
• MP3/WMA file compatibility
- Bit rate: within 8 - 320 Kbps (MP3),
within 8 - 320 Kbps (WMA)
- Sampling frequency: within 32 - 48 KHz (MP3),
within 32 - 48 KHz (WMA)
• If there is no supported file, the file is skipped
automatically and next file is played.
25
Listening to FM/AM radio
Presetting radio stations
You can listen to FM and AM broadcasts through the
built-in tuner. Before operation, make sure you have
connected the FM and AM antennas to the unit.
You can preset up to 50 FM or AM stations.
Then you can easily tune in the stations you often
listen to.
Automatic tuning
1. Rotate INPUT SELECT to select tuner (FM or
AM).
Or select TUNER with the remote control to
select tuner (FM or AM).
Tip
Refer to the “Selecting the input source” on the
page 22 to select the tuner mode.
2. Press TUN. - or TUN. + for more than 2
seconds.
Press TUN. - for more than 2 seconds to scan
from high to low.
Press TUN. + for more than 2 seconds to scan
from low to high.
The unit stops scanning whenever a station is
received.
Note
In case of FM stereo reception, if the FM stereo
reception is poor and “ST.” flashes in the display
window, select monaural audio so that the sound will
be less distorted by pressing the MO./ST.
- The “ST.” indicator disappears in the display
window.
There will be no stereo effect, but the reception will
improve. Press the button again to restore the
stereo effect.
1. Rotate INPUT SELECT to select tuner (FM or
AM).
Or select TUNER with the remote control to
select tuner (FM or AM).
Tip
Refer to the “Selecting the input source” on the
page 22 to select the tuner mode.
2. Tune in the station that you want to preset
using Automatic tuning or Manual tuning.
3. Press PROG./CLEAR.
A preset number flashes in the display window for
a few seconds. When a preset number flashes, do
step the 4.
4. Press PRESET - or PRESET+ to select a preset
number you want.
If a preset number is not flashed before you select
the preset number, start again from the step 3.
5. Press PROG./CLEAR again.
The station is stored to the selected preset
number.
If a preset number is not flashed before you press
PROG./CLEAR, start again from the step 3.
6. Repeat the steps 2 to 5 to preset another
station.
Manual tuning
To clear all the stored stations
Press TUN. - or TUN. + briefly and repeatedly on
the FM or AM mode to select a station you want.
1. Press and hold PROG./CLEAR for about two
seconds.
“ERASE ALL” appears in the display window.
2. Press PROG./CLEAR again.
All the presetting stations are cleared.
Notes
• If you have accidentally entered into the "ERASE
ALL" mode and you do not wish to clear the
memory, do not press any key. After a few seconds,
"ERASE ALL" will go out by itself and change to
normal mode.
• If all stations have already been entered, “FULL” will
appear in the display window for a moment and
then a preset number will flash. To change the
preset number, follow the steps 4-5 as specified
above. The previous frequency is automatically
refreshed.
26
Displaying Source Information
You can adjust the brightness of the display window.
You can display various information about the current
input source.
Press RECEIVER, and then press DIMMER on the
remote control repeatedly.
The brightness of the display window is on/off.
Using the Mute Function
You can temporarily mute the output of the unit.
Press RECEIVER, and then press MUTE.
The output is muted and the “MUTE” flashes in the
display window.
To cancel it, press the MUTE again, or adjust the
volume.
Using the Sleep Timer
With the sleep timer, you can set the unit to turn
off automatically after a specified period.
1. Press RECEIVER, and then press SLEEP
repeatedly to select the required sleep time.
The SLEEP indicator and the sleep time appears
in the display window.
2. Each time you press SLEEP the setting
changes in the following order.
SLEEP 180 →150 →120→90 →80 → 70 → 60→
50 → 40 → 30 → 20 →10 →OFF (No display)
The specified sleep time minute appears on the
display for about five seconds, then the previous
display reappears.
Operation
Setting the Display Brightness
Press RECEIVER, and then press DISPLAY
repeatedly to cycle through the available
information.
Note
The following information can typically be displayed
for input sources in the display window.
Input source &
Input mode
DVD
Listening mode
DSP BYPASS
Input Channel
values* & Signal
format
3/2.1
Opt.1
48KHz
* Interpreting Input Channel values
3/2.1
A B C
A: The number of front channels (3 means front
left, front right, and center).
B: The number of surround channels (2 means
surround left and surround right).
C: Subwoofer (1 means yes).
Note
To check the remaining time before the unit sleeps.
press SLEEP.
- The remaining time appears for about five seconds
in the display window.
27
Selecting setup menu
By using the Setup menu, you can make various
adjustments to items such as sound.
Setup configuration
1 . SURROUND
2 . SPK TYPE
A) PLII-PANO : N/Y
B) PLII-DIM. : -7 ~ +7
C) PLII-CWID : 0 ~ 7
D) Neo:6-CG : 0.0 ~ 1.0
FRONT LR : SMALL / LARGE
CENTER : SMALL / LARGE / NONE
SURR. LR : SMALL / LARGE / NONE
LFE OUT : FRONT / SUBWF / BOTH
3 . X - OVER
X - OVER : 040Hz ~ 200Hz
4 . SPK DISTANCE
DELAY FL : 0.0M ~ 15.0M
DELAY C : 0.0M ~ 15.0M
DELAY FR : 0.0M ~ 15.0M
DELAY SR : 0.0M ~ 15.0M
DELAY SL : 0.0M ~ 15.0M
DELAY SW : 0.0M ~ 15.0M
5 . SPK LEVEL
FL LEV : -10dB ~ +10dB
C LEV : -10dB ~ +10dB
FR LEV : -10dB ~ +10dB
SR LEV : -10dB ~ +10dB
SL LEV : -10dB ~ +10dB
SW LEV : -10dB ~ +10dB
6 . DIGITAL IN
Digital : AUTO / MANUAL
7 . LOAD INITIAL
LOAD INIT : NO / YES
General operation of setup menu
1. Press RECEIVER, and then press SETUP.
The Setup menu appears in the display window.
The default setting is 1 . SURROUND .
2. Use b / B to select the desired item then press
ENTER to move to the second level.
The current setting for the selected item appears
in the display window.
3. Use b / B to select the second desired item
and then use v / V to select the desired setting.
4. Press RETURN to exit the previous menu.
Press SETUP to exit the Setup menu.
1. SURROUND (Enjoying surround
sound)
These settings provide for playing any 2-channel
digital source such as Dolby Digital, or 2-channel
analog/PCM source in the PLII Music listening mode.
1 . SURROUND
A) PLII-PANO : N/Y
B) PLII-DIM. : -7 ~ +7
C) PLII-CWID : 0 ~ 7
D) Neo:6-CG : 0.0 ~ 1.0
PLII-PANO (Panorama mode)
With this function, you can broaden the width of the
front stereo image when using the Pro Logic II Music
listening mode.
Y : Panorama function on.
N : Panorama function off (default).
PLII-DIM. (Dimension mode)
With this setting, you can move the sound field
forward or backward when using the Pro Logic II
Music listening mode. Higher settings move the sound
field forward.
It can be adjusted from -7 to 7 (default is 0).
PLII-CWID (Center width mode)
With this function, you can adjust the width of the
sound from the center speaker when using the Pro
Logic II Music listening mode.
Normally if you are using a center speaker, the center
channel sound is outputted by only the center speaker.
(If you are not using a center speaker, the center
channel sound will be distributed to the front left and
right speakers to create a phantom center). This setting
controls the front left, right, and center mix, allowing
you to adjust the weight of the center channel sound. It
can be adjusted from 0 to 7 (default is 3).
Neo:6-CG (Center width mode)
The DTS Neo:6 Music listening mode creates 6channel surround sound from 2-channel (stereo)
sources. With this setting, you can specify by how
much the front left and right channel output is
attenuated in order to create the center channel. It can
be adjusted from 0 to 1.0. This setting is unavailable if
no surround speakers are connected.
When set to 0, the front left and right channel output is
attenuated by half (–6dB), giving the impression that
the sound is located centrally. This setting works well
when the listening position is considerably off center.
When set to 1.0, the front left and right channels are
not attenuated, maintaining the original stereo balance.
Note
If you set the surround mode to the Neo:6 CINEMA, ,
you cannot adjust the settings since the Neo:6-CG is
fixed to 1.0.
28
You can set the size of the speakers connected to this
unit.
)
2 . SPK TYPE
FRONT LR : SMALL / LARGE
CENTER : SMALL / LARGE / NONE
SURR. LR : SMALL / LARGE / NONE
LFE OUT : FRONT / SUBWF / BOTH
FRONT LR (FRONT LEFT/RIGHT)
Set the FRONT L/R speaker to LARGE or SMALL.
• LARGE : If you connect large speakers that will
effectively reproduce bass frequencies,
select “LARGE”. Normally, select
“LARGE”.
When the LFE OUT is set to “FRONT”,
front speakers are automatically set to
“LARGE”.
• SMALL : If the sound is distorted, or you fell a
lack of surround effects when using multi
channel surround sound, select “SMALL”
to activate the bass redirection circuitry
and output the front channel bass
frequencies from subwoofer.
When the LFE OUT is set to “SUBWF”,
front speakers are automatically set to
“SMALL”.
CENTER
Set the CENTER speaker to LARGE, SMALL, or
NONE.
• LARGE : If you connect large speakers that will
effectively reproduce bass frequencies,
select “LARGE”. Normally, select
“LARGE”.
• SMALL : If the sound is distorted, or you fell a
lack of surround effects when using multi
channel surround sound, select “SMALL”
to activate the bass redirection circuitry
and output the center channel bass
frequencies from front speaker or
subwoofer.
• NONE : If you did not connect a center speaker,
select “NONE”. The sound of the center
channel will be outputted from the front
speakers.
SURR. LR (SURROUND LEFT/RIGHT)
Set the SURROUND L/R speaker to LARGE, SMALL,
or NONE.
• SMALL : If the sound is distorted, or you fell a
lack of surround effects when using multi
channel surround sound, select “SMALL”
to activate the bass redirection circuitry
and output the surround channel bass
frequencies from subwoofer or other
“LARGE” speaker.
• NONE : If you did not connect surround speaker,
select “NONE”.
Operation
2. SPK TYPE (Setting speaker type)
LFE OUT
Set the output of subwoofer to FRONT, SUBWF, or
BOTH.
• FRONT : Select “FRONT” if you did not connect a
subwoofer. The LFE signals, the lowfrequency signals of front left and right
channels, and the low-frequency signals
of other speakers set to “SMALL” or to
“NONE” are all directed to the front left
and right speakers.
• SUBWF : Select “SUBWF” if you connected a
subwoofer. The LFE signals as well as
the low-frequency signals of other
speakers set to “SMALL” or to
“NONE” are directed to the subwoofer.
• BOTH : Select “BOTH” if you connected a
subwoofer. The low-frequency signals of
any source are output from the
subwoofer. The LFE signals as well as
the low-frequency signals of other
speakers set to “SMALL” or to
“NONE” are directed to the subwoofer.
The low-frequency signals of the front
left and right channels are directed to
the front left and right speakers.
(When the analog or digital 2ch input is
used, the front speakers is only
outputted.)
3. X-OVER
The bass frequency you select is added to the output
of subwoofer or outputted to the front speakers.
3 . X - OVER
X - OVER : 040Hz ~ 200Hz
X - OVER
Set the bass frequency to 40Hz - 200Hz.
The default setting is 100Hz.
• LARGE : If you connect large speakers that will
effectively reproduce bass frequencies,
select “LARGE”. Normally, select
“LARGE”.
29
4. SPK DISTANCE (Setting speaker
distance)
You can set the distance of the speakers connected to
this unit.
Initial value is 3.0 meter (10 feet).
It lets you set the distance from your listening position
to the front, center, surround, surround center, and
subwoofer speakers. You can adjust from 0 meter to
15 meters (0 to 50 feet) in 0.3 meter (1 foot) steps.
If you press DISPLAY during setting the distance, the
unit of distance is changed from M (Meter) to Ft (Feet)
in the display window. If you press DISPLAY again, it
is changed from Ft (Feet) to M (Meter).
5. SPK LEVEL (Setting speaker level)
You can adjust the level of each speaker. These
setting are applied to all sound fields.
Initial value is 0dB.
You can adjust from -10dB to +10dB in 1dB step.
5 . SPK LEVEL
FL LEV : -10dB ~ +10dB
C LEV : -10dB ~ +10dB
FR LEV : -10dB ~ +10dB
SR LEV : -10dB ~ +10dB
SL LEV : -10dB ~ +10dB
SW LEV : -10dB ~ +10dB
FL LEV: Sets the level of Front L speaker.
C LEV: Sets the level of Center speaker.
4 . SPK DISTANCE
DELAY FL : 0.0M ~ 15.0M
DELAY C : 0.0M ~ 15.0M
DELAY FR : 0.0M ~ 15.0M
DELAY SR : 0.0M ~ 15.0M
DELAY SL : 0.0M ~ 15.0M
DELAY SW : 0.0M ~ 15.0M
FR LEV: Sets the level of Front R speaker.
SR LEV: Sets the level of Surround R speaker.
SL LEV: Sets the level of Surround L speaker.
SW LEV: Sets the level of Subwoofer.
DELAY FL / DELAY FR
Set the distance of Front L/R speakers.
If both front speakers are not placed an equal
distance from your listening position, set the distance
to the closest speaker.
DELAY C
Sets the distance of Center speaker.
DELAY SR / DELAY SL
Sets the distance of Surround L/R speakers.
If both surround speakers are not placed an equal
distance from your listening position, set the distance
to the closest speaker.
DELAY SW
Sets the distance of Subwoofer.
30
6. DIGITAL IN (Setting Digital Input
Signal)
This setting determines how to set the digital signals.
6 . DIGITAL IN
Digital : AUTO / MANUAL
Digital
• AUTO : The unit changes to the selected digital
signal when received the digital signal.
The unit changes to analog signal
automatically when not received the digital
signal.
• MANUAL : The unit maintains the current mode
regardless of digital signal.
7. LOAD INITIAL
Enjoying the listening mode
This procedure can be used to initialize settings you
have made to their factory.
SURROUND mode
LOAD INIT : NO / YES
LOAD INIT
• NO : The unit does not initializes settings you
have to the made to their factory default
settings.
• YES : The unit initializes settings you have to the
made to their factory default settings.
While “LOAD INIT : YES” appears in the
display window, press ENTER on the
remote control. After “LOAD INTIT DONE”
appears in the display window for a while,
the unit is changed to TUNER mode.
The following is reset to their factory
settings.
- Current input source : TUNER, FM 87.5MHz
- The following is the default setting on each
function.
Function Display
-
-
-
-
-
Function Display
DVD
Opt. 1
AV
VCR
Analog
TV/STB Opt. 2
CD
Coaxial
Opt. 3
If there is no signal to the default setting,
”Analog” appears in the display window.
Default surround mode
• PCM/MP3/WMA : PLII Music
• DD2 : PLII Movie
Current LISTENING MODE
• DSP EQ LS Mode : CINEMA
• Bypass LS Mode : DSP Bypass
• Enhancer LS Mode : VSM (Virtual Speaker
Mode)
PLII Music & NEO:6 Parameter
• PLII Panorama : OFF
• PLII Dimension (0~14) : 7
• PLII Center Width (0~7) : 3
• Neo:6 CGAIN : 1.0
SPEAKER LEVEL : All CH 0dB
SPEAKER DISTANCE : ALL CH 3.0M (10Feet)
AV SYNC (AUDIO DELAY) : 0 msec
SPEAKER TYPE
• Front: SMALL
• Center: SMALL
• Surround: SMALL
• LFE OUT: SUBWF
X-OVER: 100Hz
NIGHT MODE (DRC) : OFF
TONE CONTROL: OFF
• BASS : 0, MIDDLE : 0, TREBLE : 0
This mode lets you specify the type of decoding for 2
channels audio sources. This unit can reproduce 2
channel sound in 5.1 channels through Dolby Pro Logic
II; 5.1 channels through DTS Neo:6. However, DTS
2CH sources are not decoded by DTS Neo:6; they are
output in 2 channels.
Operation
7 . LOAD INITIAL
Press RECEIVER, and then press SURROUND
repeatedly to select the 2 channel decoding
mode.
The selected sound appears in the display window.
Display
Description
PLII MOVIE
Performs Dolby Pro Logic II
Movie mode decoding. This
setting is ideal for movies
encoded in Dolby Surround.
PLII MUSIC
Performs Dolby Pro Logic II
Music mode decoding. This
setting is ideal for normal stereo
such as CDs.
PLII GAME
Performs Dolby Pro Logic II
Game mode decoding.
Neo:6 CINEMA
Performs the DTS Neo:6
Cinema mode decoding.
Neo:6 MUSIC
Performs the DTS Neo:6 Music
mode decoding. This setting is
ideal for normal stereo such as
CDs.
31
DSP (Digital Sound Processor) mode
ENHANCER mode
Press RECEIVER, and then press DSP repeatedly
to select the DSP (Digital Sound Processor) mode
you want.
The selected sound appears in the display window.
This mode enhances the sound quality of compressed
input signal (MP3, WMA, etc) from front speakers and
subwoofer.
Display
Description
CINEMA
Reproduces the powerful sound of
movie theater.
Press RECEIVER, and then press ENHANCER
repeatedly to enhance the sound quality.
BIG HALL
Reproduces the exciting sound of
movie concert halls.
CLUB
Reproduces the normal music
sound.
JAZZ
Reproduces the acoustics of a jazz
club.
ARENA
Reproduces the feeling of a sport
ground.
STADIUM
Reproduces the feeling of sports
open-air stadium.
BYPASS mode
Press RECEIVER, and then press BYPASS
repeatedly to select 2 channel sound from front
speakers or subwoofer.
The selected sound appears in the display window.
Display
Description
DSP BYPASS
Reproduces the DSP bypass mode
with bass management from front
speakers and subwoofer.
STEREO
Reproduces the 2 or 2.1 channel
bypass sound in multi channel from
front speakers and subwoofer.
PURE BYPASS Reproduces the pure bypass mode
with no bass management from front
speakers.
32
Display
Description
VSM-3D
Reproduces the 3D sound effect
when the input source is selected 2
or 2.1 channel.
VSM-ES
Reproduces the 3D sound effect
when the input source is selected 5.1
channel or more.
MUSIC
ENHANCER
Reproduces the compounded the
high-frequency. This mode has an
effect on the section of Bit rate and
Sampling frequency as shown below.
- Bit rate : 80-96Kbps
- Sampling frequency : 32 - 44.1 kHz
About Listening mode
The following table lists all the listening modes and shows which modes can be selected for each input signal
format.
(O: Active, X: Inactive)
Input Signal
Front L
Front R
Channels
Signal
Function
Buttons
BYPASS
SURROUND
DSP
ENHANCER
Listening
mode
RCA/
TUNER/
spdif/
USB/
Portable
Front L
Front R
spdif
Operation
DTS
Dolby Digital
PCM
Analog/
3/2.1
No
PCM/
Surround
(96/24)
MP3/ surround
WMA
Front L/R Front L/R
Center
Center
Rear L/R Rear L/R
spdif
spdif
DSP BYPASS
O
O
O
STEREO
O
O
O
O
O
PURE BYPASS
O
O
O
O
PLII MOVIE
O
O
X
X
PLII MUSIC
O
O
X
X
PLII GAME
O
O
X
X
Neo:6 CINEMA
O
O
X
X
Neo:6 MUSIC
O
O
X
X
CINEMA
O
O
O
O
BIG HALL
O
O
O
O
CLUB
O
O
O
O
JAZZ
O
O
O
O
ARENA
O
O
O
O
STADIUM
O
O
O
O
VSM-3D
O
O
X
X
VSM-ES
X
X
O
O
MUSIC ENHANCER
O
X
X
X
Note
If you press the SURROUND to select the surround mode when you connect the headphone, the mode is
changed to bypass mode.
-“HP DOWNMIX” appears in the display window.
33
Adjusting the speaker level
You can adjust the level of each speaker.
1. Press RECEIVER, and then press SPK LEVEL.
b / B to adjust the level of each
2. Use v / V/b
speaker.
For details, see “5. SPK LEVEL (Setting speaker
level)” on the page 30.
To cancel it, press SPK LEVEL again.
AV Sync. (Adjusting the audio
delay)
You may compensate for the difference through the
use of delay settings in your listening position.
The audio delay is adjusted from 0msec to 300msec
in 10msec steps.
1. Press RECEIVER, and then press AV SYNC..
“AV SYNC: xxx ms” appears in the display window.
2. Use v / V to adjust the audio delay.
TEST TONE
To cancel it, press AV SYNC. again.
This section explains how to output test tone
sequentially from each speaker.
You can adjust the speaker level and volume while
listening the test tone from listening position.
• This function is not operated on the TUNER,
Notes
PORTABLE, and USB mode.
• Use this function during playing a video file.
1. Press RECEIVER, and then press TEST TONE.
It appears in sequence as shown below.
TEST TONE FL → TEST TONE C → TEST TONE
FR → TEST TONE SR → TEST TONE SL → TEST
TONE SW → TEST TONE FL...
• This function has no effect on when a signal is
2. Adjust the speaker level and volume while
listening the test tone.
You can adjust the bass, middle, and treble level.
The level is adjusted from -10dB to +10dB in 2dB
steps and displayed from MIN (-5) through MAX (+5)
in the display window.
To cancel it, press TEST TONE again.
Note
The speakers cannot be calibrated while the output of
the unit is muted, while a pair of headphones is
connected.
outputted to VCR REC. OUT L/R.
Adjusting the tone control
1. Press RECEIVER, and then press TONE CTRL
repeatedly.
“TONE CTRL OFF” or “TONE CTRL ON” appears
in the display window.
2. Press ENTER and then use b / B to select
bass, middle, or treble level.
3. Use v / V to adjust the bass, middle, or treble
level and then press ENTER.
Note
If you press any buttons except for MASTER
VOLUME knob and VOLUME (-/+) buttons during
adjusting the levels, the unit moves to the previous
mode.
34
With the NIGHT function, you can reduce the dynamic
range of Dolby Digital material so that you can still
hear quiet parts even when listening at low volume
levels—ideal for watching movies late at night when
you don’t want to disturb anyone.
1. Press RECEIVER, and then press NIGHT
repeatedly to select:
[NIGHT : OFF] - Late Night function off.
[NIGHT : STD] - Small reduction in dynamic
range.
[NIGHT : MAX] - Big reduction in dynamic range.
Note
The effect of the NIGHT function depends on the
Dolby Digital material that you are playing, and with
Storing the settings
1. Press RECEIVER, and then press M1, M2, or
M3 on the unit.
“M1 (M2 or M3) LOAD?” appears in the display
window.
Operation
Using the NIGHT function
(Dolby Digital only)
2. Press v / V.
“M1 (M2 or M3) SAVE?” appears in the display
window.
3. Press ENTER.
After “M1 (M2 or M3) SAVE OK” appears in the
display window for a while, the unit is stored to the
settings you set.
Loading the settings
1. Press M1, M2, or M3 to load the stored
settings.
“M1 (M2 or M3) LOAD?” appears in the display
window.
some material there will be little or no effect.
M1, M2, M3
2. Press ENTER.
After “M1 (M2 or M3) LOAD OK” appears in the
display window for a while, the unit loads the
settings you set.
This section explains how to load and stores various
settings on this buttons you set at one time.
The following is the stored items on the M1, M2, or
M3 buttons.
- Input source (Tuner, DVD, Portable, VCR, CD, AV,
TV/STB, USB)
- Input mode (Opt. 1, Opt. 2, Opt. 3, Coaxial, Analog)
- Listening mode
• Surround mode (PLII MOVIE, PLII MUSIC,
PLII GAME, Neo:6 CINEMA, Neo:6 MUSIC)
• DSP (Digital Sound Processor) mode (CINEMA,
BIG HALL, CLUB, JAZZ, ARENA. STADIUM)
• BYPASS mode (DSP BYPASS, STEREO, PURE
BYPASS)
• ENHANCER mode (VSM-3D, VSM-ES, MUSIC
ENHANCER)
- Speaker level (FL/C/FR/SR/SL/SW)
- AV SYNC
- X - OVER
- NIGHT mode
- TONE CONTROL (BASS, MIDDLE, TREBLE)
- Radio frequency
35
Reference
Mini Glossary for Audio Stream & Surround mode
Dolby Digital
DTS Neo : 6™surround 5.1
Manufactured under license from Dolby Laboratories.
This mode applies conventional 2-channel signals
such as digital PCM or analog stereo signals to the
high precision digital matrix decoder used for DTS-ES
Matrix 6.1 to achieve 5.1-channel surround playback.
DTS Neo : 6 surround includes two modes for
selecting the optimum decoding for the signal source.
“Dolby”, “Pro Logic”, and the Double-D symbol are
trademarks of Dolby Laboratories.
Dolby Digital is the multi- channel digital signal format
developed by Dolby Laboratories. Discs bearing the
DOLBY
D I G I T A L
“
” includes the recording of up to 5.1 channels of
digital signals, which can reproduce much better
sound quality, spatial expansion and dynamic range
characteristics than the previous Dolby Surround
effect.
• DTS Neo : 6 CINEMA
This mode is optimum for playing movies. Decoding
is performed with emphasis on separation
performance to achieve the same atmosphere with
2-channel sources as with 5.1-channel sources.
Dolby Surround Pro Logic
• DTS Neo : 6 MUSIC
This mode is suited mainly for playing music. The
front left and front right signals bypass the decoder
and are played directly so there is no loss of sound
quality, and the effect of the surround signals from
the center, surround left and surround right
channels adds a natural sense of expansion to the
sound field.
“DTS”, “DTS-ES Extended Surround”, “Neo : 6”, and
“DTS 96/24” are trademarks of Digital Theater
Systems,Inc.
Dolby Pro Logic is a specially encoded two channel
surround format which consists of four channels ( front
left, center, front right and surround). Sources bearing
the Dolby Surround Pro Logic provide the theater like surround sound. The surround channel is
monaural, but is played through two surround
speakers.
Dolby Pro Logic II
This mode applies conventional 2- channel signals
such as digital PCM or analog stereo signals as well
as Dolby Surround signals, etc. to surround
processing to offer improvements over conventional
Dolby Pro Logic circuits. Dolby Pro Logic II surround
includes three modes as follows:
•
•
•
Dolby Pro Logic II MOVIE
When enjoying movies, this mode allows you to
further enhance the cinematic quality by adding
processing that emphasizes the sounds of the
action special effects.
Dolby Pro Logic II MUSIC
When listening to music, this mode allows you to
further enhance the sound quality by adding
processing that emphasizes the musical effects.
Dolby Pro Logic II GAME
When listening to game, this mode allows you to
further enhance the sound quality by adding
processing that emphasizes the dynamic effects.
36
DTS Digital Surround
DTS was introduced in 1994 to provide 5.1 channels
of discrete digital audio into home theater systems.
DTS brings you premium quality discrete
multi-channel digital sound to both movies and music.
DTS is a multi-channel sound system designed to
create full range digital sound reproduction.
The no compromise DTS digital process sets the
standard of quality for cinema sound by delivering an
exact copy of the studio master recordings to
neighborhood and home theaters.
"DTS"and "DTS Digital Surround" are registered
trademarks of Digital Theater Systems, Inc.
Troubleshooting
Check the following guide for the possible cause of a problem before contacting service.
No sound.
No sound from the
surround speakers.
POSSIBLE CAUSE
• Connect cord securely.
• Poor connection at AC wall outlet or the
outlet is dead or off.
• Check the outlet using a lamp or
another appliance.
• The speaker wires are disconnected.
• Check the speaker connections.
• The MASTER VOLUME is adjusted too low.
• Adjust the MASTER VOLUME.
• The MUTE button is pressed to ON.
• Press the MUTE button to cancel the
muting effect.
• The selected decoding mode is not
matched to the input signal format.
• Select the available decoding mode.
• Incorrect selection of input source.
• Select the desired input source
correctly.
• Incorrect connections between the
components.
• Make connections correctly.
• Surround mode is switched off (normal
stereo mode).
• Select a surround mode.
• MASTER VOLUME and surround level
are too low.
• Monaural source is used.
• Surround speaker setting is “NONE”.
No sound from the
(front) center speaker.
Stations cannot be
received.
Preset stations cannot
be received.
Poor FM reception.
Remote control does
not operate.
REMEDY
• The AC input cord is disconnected.
Reference
PROBLEM
No power.
• Adjust MASTER VOLUME and
surround level.
• Select a stereo or surround source.
• Select the desired surround speaker
setting.
• Dolby Virtual, normal stereo mode, etc
is selected.
• Select the desired surround mode.
• MASTER VOLUME and center level are
too low.
• Adjust MASTER VOLUME and center
level.
• No antenna is connected.
• Connect an antenna.
• The desired station frequency is not
tuned in.
• Tune in the desired station frequency.
• Antenna is in wrong position.
• Move antenna and retry tuning.
• An incorrect station frequency has been
memorized.
• Memorize the correct station
frequency.
• The memorized stations are cleared.
• Memorize the stations again.
• No antenna is connected.
• Connect an antenna.
• The antenna is not positioned for the
best reception.
• Change the position of the antenna.
• Batteries are not loaded or exhausted.
• Replace the batteries.
• The remote sensor is obstructed.
• Remove the obstacle.
37
Specifications
General
Power supply
Power consumption
Net Weight
External dimensions
Operating conditions
Refer to main label.
70 W
4.94 kg
430 x 150 x 300 mm (W x H x D)
Temperature: 5°C to 35°C
Amplifier
Frequency response
Signal-to-noise ratio
COMPONENT VIDEO OUT
Output Power
Front
Center
Surround
Passive Subwoofer
Inputs
Outputs
T.H.D
10 - 22000 Hz
More than 80 dB (Analog : 1 kHz, NOP -3 dB, 20 kHz LPF/A-Filter)
More than 95 dB (Digital : 1 kHz, NOP -3 dB, 20 kHz LPF/A-Filter)
(Y) 1.0 V, (PB)/(PR) 0.7 V
70 W + 70 W (10% THD, 8Ω, 20 kHz LPF)
70 W + 70 W (10% THD, 8Ω, 20 kHz LPF)
70 W + 70 W (10% THD, 8Ω, 20 kHz LPF)
130 W (10% THD, 4Ω, 20 kHz LPF)
VCR IN, TV/STB IN, DVD IN, CD IN , OPTICAL 1/2/3 IN,AV IN
COMPONENT VIDEO IN (DVD, TV/STB), COAXIAL IN, USB,
PORTABLE IN
MONITOR OUT, COMPONENT VIDEO OUT
Less than 0.08 % (1W, 20kHz LPF)
Tuner
FM
Tuning Range
Intermediate Frequency
Signal-to Noise Ratio
Frequency Response
87.5 - 108.0 MHz or 65.0 - 74.0 MHz, 87.5 - 108.0 MHz
10.7 MHz
60 dB (Mono)/ 55 dB (Stereo)
140 - 10000 Hz
AM
Tuning Range
Intermediate Frequency
Signal-to Noise Ratio
Frequency Response
38
522 - 1620 kHz or 520 - 1720 kHz
450 kHz
30 dB
140 - 1800 Hz
Type
Impedance
Front Speaker (SR52PS-F)
Center speaker (SR52PS-C)
Bass Reflex 2 Way 2 Speaker System
8Ω
Bass Reflex 2 Way 2 Speaker System
8Ω
Frequency Response
80 - 20000 Hz
80 - 20000 Hz
Sound Pressure Level
81 dB/W (1m)
81 dB/W (1m)
Rated Input Power
70 W
70 W
Max. Input Power
140 W
140 W
169 x 940 x 175 mm
320 x 145 x 163 mm
Net Dimensions (W x H x D)
Net Weight (1EA)
Type
Impedance
11.7 kg
2.46 kg
Surround Speaker (SR52PS-S)
Passive subwoofer (SR52PS-W)
Bass Reflex 1 Way 1 Speaker System
8Ω
Bass Reflex 1 Way 1 Speaker System
4Ω
Frequency Response
100 - 20000 Hz
30 - 1000 Hz
Sound Pressure Level
81 dB/W (1m)
81 dB/W (1m)
Rated Input Power
70 W
130 W
Max. Input Power
140 W
260 W
113 x 185 x 145 mm
265 x 340 x 410 mm
1.05 kg
8.06 kg
Net Dimensions (W x H x D)
Net Weight (1EA)
Reference
Speaker
39
P/NO : MFL39518818
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
