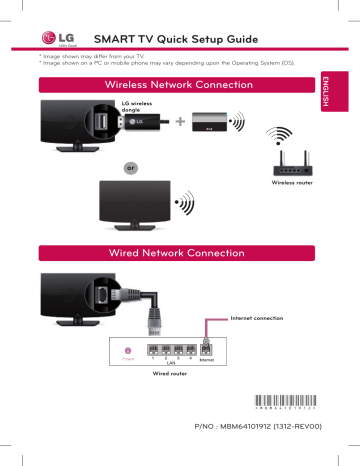

SMART TV Quick Setup Guide
* Image shown may differ from your TV.
* Image shown on a PC or mobile phone may vary depending upon the Operating System (OS).
ENGLISH
Wireless Network Connection
LG wireless
dongle
or
Wireless router
Wired Network Connection
Internet connection
Wired router
*MBM64101912*
P/NO : MBM64101912 (1312-REV00)
NETWORK SETTING
ENGLISH
Premium Apps are pre-installed on the TV. These may vary by country.
1
Press the SMART
button to access the
Smart Home menu. Select SETTINGS and
press Wheel(OK).
4
The device automatically tries to connect to the
network available (wired network first).
Network Connection
Connecting to the network.
Cancel

If you select Cancel or it fails to connect to the
network, the available network list is displayed.
Choose the network you wish to use.
Network Connection
SETTINGS
2
Choose the network you want.
Select the NETWORK
menu.
Network Connection
Wired Network
Wireless : AAA
Wireless : BBB
Wireless : CCC
Manual Setup
Wireless : 11111
Network Connection
For wireless AP (Router) that have the ꔒ
symbol, you need to enter the security key.
Network Status
Soft AP
Wi-Fi Direct
Network Connection
Miracast™ / Intel’s WiDi
My TV Name
Refresh List
Wireless : 22222
NETWORK
: NETCAST4
Wireless : AAA
Enter security key of network.
Forgot your password? Contact your AP manufacturer.
3
Select the Start Connection.
Network Connection
Connect to your wired or wireless network.
Enjoy various Smart TV features through network.
To connect to a wireless network:
To connect to a wired network:
Requires a wireless router or access point.
Connect a LAN cable to the back of TV.
or
Start Connection
5
The connected network is displayed.
Select Complete to confirm the network
connection. If you select the Other Network
List, the available network list is displayed
again.
Network Connection
Network is connected.
Wireless : AAA
Select [Other Network List] to connect to another network.
Complete
Please call LG Customer Service if you experience any problems.
Other Network List
Troubleshooting Network Problems
Press the SMART
button to access the
Smart Home menu. Select SETTINGS and
press Wheel (OK).
 Additional points to check when using a
wireless connection
1 Check the password for the wireless
connection in the router settings window.
2 Change the router SSID (network name) or
the wireless channel.

Check the AP (Router) or consult your Internet
service provider.
TV
SETTINGS
2
Select the NETWORK
menu.
Network Status
Gateway
DNS
Internet
When an
appears on TV and Gateway, but an
X on DNS.
1 Unplug the power cord of the AP (Router),
cable modem and try to connect after 5
seconds.
NETWORK
2 Initialize (Reset) the AP (Router) or cable
modem.
3 Contact internet companies or AP (Router)
companies.
Network Connection
Network Status
Soft AP
Wi-Fi Direct
Miracast™ / Intel’s WiDi
My TV Name
: NETCAST4
TV
Follow the instructions below that correlate to your
network status.
Check the TV or the AP (Router).
Gateway
DNS
Internet
When an
appears on TV, Gateway and DNS,
but an X on Internet.
1 Unplug the power cord of the AP (Router),
cable modem and try to connect after 5
seconds.
TV
When an
Gateway
DNS
Internet
appears on TV, but an X on Gateway.
1 Check the connection status of the TV, AP
(Router) and cable modem.
2 Power off and power on the TV, AP (Router)
and cable modem.
3 If you are using a static IP, enter the IP directly.
4 Contact internet companies or AP (Router)
companies.
2 Initialize (Reset) the AP (Router) or cable
modem.
3 Check that the MAC address of the TV/
AP (Router) is registered with your Internet
service provider. (The MAC address displayed
on the right pane of the network status window
should be registered with your Internet service
provider.)
4 Check the AP (Router) manufacturer’s website
to make sure your router has the latest firmware
version installed.
ENGLISH
1
Installation & Setting
ENGLISH
Install the SmartShare PC SW (DLNA) program on your PC.
1
Go to www.lg.com . Then, select your region.
2
Select SUPPORT. Then, search for your model.
3
Select Drivers & Software or SOFTWARE UPDATE. Then, select SmartShare PC SW (DLNA).
4
You can run the program when installation is complete.
NOTE
yyDLNA service is only available if TV and other devices are connected via a single AP (Router).
DLNA Connection to Smartphone
1
Check that Wi-Fi is enabled on your smartphone. To use DLNA, both devices must on the same
local network.
2
Install/run the app for sharing content on your smartphone (It's called SmartShare on LG phones).
3
Enable your smartphone to share content files with other devices.
4
Select the file type you want to play (movie, audio, or photo).
5
Select a movie, music or photo file to play on the TV.
6
Add the selected file to the playlist.
7
Select a TV model name on which to play the files. (The TV model name is on a label on the side of
the TV and in the customer support menu.)
8
Play the media file to view and enjoy it on your TV.
Please call LG Customer Service if you experience any problems.
Updating the TV Firmware
SETTINGS
SUPPORT
Software Update
Software Update
Set it to On.
When an updated file is detected, the file is downloaded automatically.
Automatic Update Mode
If an update is available, the update automatically starts without
prompting.
Check Update Version
Checks the latest update version installed. When a new update is
available, the download process can be performed manually.
Wi-Fi Direct Setting
SMART
SETTINGS
NETWORK
Wi-Fi Direct
If a local network is not available, you can connect a portable device directly to the TV using Wi-Fi Direct.
With SmartShare, you can share files or screens of devices connected to Wi-Fi Direct.
[Device Screen]
Wi-Fi Direct
[TV Screen]
On
Wi-Fi Direct
Device name
Connection
Connection
AAA
1
If Wi-Fi Direct is set to On, a list of available
devices appears.
Settings
»» To use Wi-Fi Direct, go to
NETWORK and set Wi-Fi Direct ( ) to On.
2
When you are prompted to request connection,
select Yes. Wi-Fi Direct is now connected to
your TV.
[AAA]
Do you want to request a connection?
Automatically connect without asking
BBB
Yes
No
*If you are not using Wi-Fi Direct to minimize the interference between Wi-Fi devices, it is
recommended to set Wi-Fi Direct ( ) to Off. You can use only devices that support Wi-Fi Direct.
MiracastTM Setting
MiracastTM allows a portable device to securely send video and sound to the TV wirelessly.
[Device Screen]
MiracastTM / Intel's WiDi
The device which is applied MiracastTM and Intel's WiDi
technology can be shown on the TV.
MiracastTM / Intel's WiDi
On
Connection
Device name
AAA
Connection
1
MiracastTM should be set to ON ( ) on your mobile device And TV.
Go to the Network settings to set the MiracastTM.
2
When your TV or portable device is detected, select the device.
ENGLISH
SMART
By default, the TV will notify you of new software updates.
You can use the Software Update menu to manually check for available updates.
WiDi (Wireless Display) Setting
ENGLISH
Intel’s WiDi (Wireless Display) technology enables easy and fast connection without wires or internet
network for mirrored and dual monitor display on your TV. You can sit back and experience your favorite
movies, videos, photos, online shows and more in full HD on your TV with great image clarity and sound.
NOTE
y When you connect the TV and laptop, you should set up TV mode for Live TV and external input.
If not, your computer cannot detect LG Smart TV.
1
Intel's WiDi is set to On. Connect your laptop to AP (Router). (Without AP, it is possible to use this
function; it is recommended to connect to AP.) Your laptop runs the Intel WiDi ( ) program.
2
It detects LG Smart TVs available, which supports WiDi. In the list, select the TV you want and
click Connect. Enter the number ( ) shown on the screen into the input field ( ) on your laptop
andthen click Continue.
(4-digit number: under WiDi 3.1.29, 8-digit number: above WiDi 3.5)
[Intel's WiDi] Request connection
Enter the following Security keys.
MY PIN : ****
Remain: 92 second(s)
* When WiDi is connected, devices connected
with Wi-Fi Direct are disconnected.
Cancel
TV Screen
3
Notebook Screen
The TV screen appears on the laptop screen. The wireless environment may affect the screen
display. If the connection is poor, the Intel WiDi connection may be lost.
* LG TVs do not need to register.
* TV sound setting for Digital Sound Out is set to PCM.
* For more information on Intel WiDi, visit http://intel.com/go/widi .
* On the Intel's WiDi, WiDi device is not searched. Close the Intel's WiDi, then search WiDi.
* You can control your PC using the Magic Remote Control.
* Intel's WiDi laptop is not appeared in the MiracastTM /WiDi menu in TV network menu.
Please call LG Customer Service if you experience any problems.
