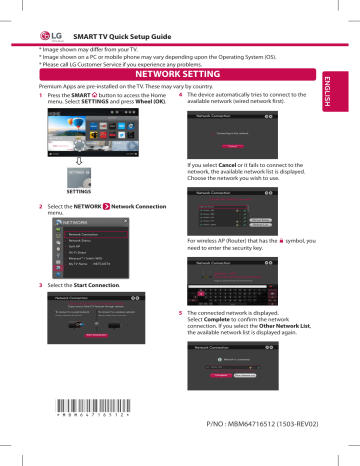

SMART TV Quick Setup Guide
* Image shown may differ from your TV.
* Image shown on a PC or mobile phone may vary depending upon the Operating System (OS).
* Please call LG Customer Service if you experience any problems.
Premium Apps are pre-installed on the TV. These may vary by country.
4 The device automatically tries to connect to the
1 Press the SMART button to access the Home
available network (wired network first).
menu. Select SETTINGS and press Wheel (OK).
Network Connection
Connecting to the network.
Cancel

If you select Cancel or it fails to connect to the
network, the available network list is displayed.
Choose the network you wish to use.
SETTINGS
Network Connection
Choose the network you want.
2 Select the NETWORK
menu.
Network Connection
Wired Network
Wireless : AAA
Wireless : BBB
Wireless : CCC
NETWORK
Manual Setup
Wireless : 11111
Refresh List
Wireless : 22222
Network Connection
For wireless AP (Router) that has the ꔒ symbol, you
need to enter the security key.
Network Status
Soft AP
Wi-Fi Direct
Miracast™ / Intel’s WiDi
My TV Name
: NETCAST4
Network Connection
Wireless : AAA
Enter the security key of network.
3 Select the Start Connection.
Forgot your password? Contact your AP manufacturer.
Network Connection
Connect to your wired or wireless network.
Enjoy various Smart TV features through network.
To connect to a wireless network:
To connect to a wired network:
Requires a wireless router or access point.
Connect a LAN cable to the back of TV.
or
Start Connection
5 The connected network is displayed.
Select Complete to confirm the network
connection. If you select the Other Network List,
the available network list is displayed again.
Network Connection
Network is connected.
Wireless : AAA
Select [Other Network List] to connect to another network.
Complete
Other Network List
*MBM64716512*
P/NO : MBM64716512 (1503-REV02)
ENGLISH
NETWORK SETTING
Troubleshooting Network Problems
1 Press the SMART button to access the Home
menu. Select SETTINGS and press Wheel (OK).
ENGLISH
yy Additional points to check when using a wireless
connection
1 Check the password for the wireless connection in
the router settings window.
2 Change the router SSID (network name) or the
wireless channel.

Check the AP (Router) or consult your Internet
service provider.
TV
SETTINGS
2 Select the NETWORK
Network Status menu.
NETWORK
Network Connection
Network Status
Gateway
DNS
Internet
When an appears on TV and Gateway, but an X
on DNS.
1 Unplug the power cord of the AP (Router) or cable
modem and try to connect after 5 seconds.
2 Initialize (Reset) the AP (Router) or cable modem.
3 Contact Internet provider or AP (Router)
manufacturer.
Soft AP
Wi-Fi Direct
Miracast™ / Intel’s WiDi
My TV Name
: NETCAST4
Follow the instructions below that match to your
network status.
Check the TV or the AP (Router).
TV
Gateway
DNS
Internet
When an appears on TV, but an X on Gateway.
1 Check the connection status of the TV, AP (Router),
and cable modem.
2 Power off and power on the TV, AP (Router), and
cable modem.
3 If you are using a static IP, enter the IP directly.
4 Contact Internet provider or AP (Router)
manufacturer.
TV
Gateway
DNS
Internet
When an appears on TV, Gateway, and DNS,
but an X on Internet.
1 Unplug the power cord of the AP (Router) or cable
modem and try to connect after 5 seconds.
2 Initialize (Reset) the AP (Router) or cable modem.
3 Check that the MAC address of the TV/AP (Router)
is registered with your Internet service provider.
(The MAC address displayed on the right pane of
the network status window should be registered
with your Internet service provider.)
4 Check the AP (Router) manufacturer’s website
to make sure your router has the latest firmware
version installed.
SmartShare PC SW Installation and Setting
Install the SmartShare PC SW program on your PC.
1 Go to www.lg.com . Then, select your region.
2 Select SUPPORT. Then, search for your model.
3 Select Drivers & Software or SOFTWARE UPDATE. Then, select SmartShare PC SW.
4 You can run the program when installation is complete.
NOTE
yy Content Sharing service is only available if TV and other devices are connected via a single AP (Router).
Content Sharing Connection to Smartphone
Updating the TV Firmware
SMART
SETTINGS
SUPPORT
Software Update
By default, the TV will notify you of new software updates.
You can use the Software Update menu to manually check for available updates.
Software Update
Set it to On.
When an updated file is detected, the file is downloaded automatically.
Automatic Update Mode
If an update is available, the update automatically starts without prompting.
Check Update Version
Checks the latest update version installed. When a new update is available, the
download process can be performed manually.
Wi-Fi Direct Setting
SMART
SETTINGS
NETWORK
Wi-Fi Direct
If a local network is not available, you can connect a portable device directly to the TV using Wi-Fi Direct.
With SmartShare, you can share files or screens of devices connected to Wi-Fi Direct.
[Device Screen]
Wi-Fi Direct
On
Wi-Fi Direct
Device name
AAA
BBB
Connection
Connection
[TV Screen]
[AAA]
Do you want to request a connection?
Automatically connect without asking
Yes
No
1 If Wi-Fi Direct is set to On, a list of available devices
appears.
»» To use Wi-Fi Direct, go to
SETTINGS
NETWORK and set Wi-Fi Direct ( ) to On.
2 When you are prompted to request connection,
select Yes. Wi-Fi Direct is now connected to your TV.
* If you are not using Wi-Fi Direct to minimize the interference between Wi-Fi devices, it is recommended to
set Wi-Fi Direct ( ) to Off. You can use only devices that support Wi-Fi Direct.
ENGLISH
1 Check that Wi-Fi is enabled on your smartphone. To share contents, both devices must on the same local
network.
2 Install/run the app for sharing content on your smartphone (It's called SmartShare on LG phones).
3 Enable your smartphone to share content files with other devices.
4 Select the file type you want to play (movie, audio, or photo).
5 Select a movie, music or photo file to play on the TV.
6 Add the selected file to the playlist.
7 Select a TV model name on which to play the files. (The TV model name is on a label on the side of the TV
and in the customer support menu.)
8 Play the media file to view and enjoy it on your TV.
MiracastTM Setting
MiracastTM allows a portable device to send video and sound securely to the TV wirelessly.
[Device Screen]
MiracastTM / Intel's WiDi
The device which is applied MiracastTM and Intel's WiDi
technology can be shown on the TV.
ENGLISH
MiracastTM / Intel's WiDi
1 MiracastTM should be set to On ( ) on your mobile device And TV.
Go to the Network settings to set the MiracastTM.
2 When your TV or portable device is detected, select the device.
On
Connection
Device name
Connection
AAA
WiDi (Wireless Display) Setting
Intel’s WiDi (Wireless Display) technology enables easy and fast connection without wires or internet network
for mirrored and dual monitor display on your TV. You can sit back and experience your favorite movies, videos,
photos, online shows and more in full HD on your TV with great image clarity and sound.
NOTE
yy When you connect the TV and laptop, you should set up TV mode for Live TV and external input. If not,
your computer cannot detect your LG Smart TV.
1 Intel's WiDi is set to On. Connect your laptop to AP (Router). (Without AP, it is possible to use this function,
but we recommend connecting to the AP.) Your laptop runs the Intel WiDi ( ) program.
2 It detects LG Smart TVs available, which supports WiDi. In the list, select the TV you want and click Connect.
Enter the number ( ) shown on the screen into the input field ( ) on your laptop and then click Continue.
(4-digit number, WiDi 3.1.29 and below. 8-digit number WiDi 3.5 and above.)
[Intel's WiDi] Request connection
Enter the following Security keys.
MY PIN : ****
Remain: 92 second(s)
* When WiDi is connected, devices connected
with Wi-Fi Direct are disconnected.
Cancel
TV Screen
Notebook Screen
3 The laptop screen appears on the TV screen. The wireless environment may affect the screen display. If the
connection is poor, the Intel WiDi connection may be lost.
* LG TVs do not need to register.
* TV sound setting for Digital Sound Out is set to PCM.
* For more information on Intel WiDi, visit http://intel.com/go/widi .
* On the Intel's WiDi, WiDi device is not searched. Close the Intel's WiDi, then search WiDi.
* You can control your PC using the Magic Remote Control.
* Intel's WiDi laptop does not appear in the MiracastTM / WiDi menu in TV network menu.
